SA NODE BLOCK & AV NODE BLOCK - Detailed Notes

PART 1: SA NODE (SINOATRIAL) BLOCK

Anatomy & Physiology Background

The SA node sits at the subepicardial surface at the junction of the right atrium and superior vena cava. It contains two cell types:

P cells (pacemaker cells) - generate the electrical impulse
T cells (transitional cells) - transmit the impulse outward to atrial myocardium

In SA block, the impulse is either generated normally but fails to exit (exit block), or generation itself fails (sinus arrest). The critical distinction: the SA node depolarization is NOT visible on surface ECG - only the resulting P wave is visible. So SA block is inferred from P wave patterns alone.

Sinoatrial exit block results from failure of sinus node activity to propagate to the atrium. - Harrison's Principles of Internal Medicine 22E

Causes of SA Node Block

Category	Examples
Ischemia	SA nodal artery occlusion (branch of RCA), inferior MI
Fibrosis / Degeneration	Sick sinus syndrome, age-related fibrosis
Inflammation	Myocarditis, endocarditis, rheumatic fever
Medications	Digitalis, beta-blockers, calcium channel blockers, antiarrhythmics
Vagal tone	Well-trained athletes, carotid sinus hypersensitivity
Infiltrative disease	Amyloidosis, sarcoidosis

Types of SA Node Block

SA block is classified analogously to AV block, but only 2nd degree can be diagnosed on the surface ECG. First and third degree require invasive electrophysiology study.

TYPE 1: FIRST-DEGREE SA BLOCK

Mechanism: Fixed delay between SA node firing and atrial depolarization (prolonged SA conduction time), but every impulse eventually reaches the atrium.

ECG: CANNOT be seen on surface ECG. Requires an intracardiac electrophysiology study (EPS) placing a wire near the SA node to record SA node electrogram and measure SA conduction time (SACT).

Clinical significance: Benign. Usually asymptomatic.

TYPE 2: SECOND-DEGREE SA BLOCK - TYPE I (Sinoatrial Wenckebach)

Mechanism: Progressive increase in SA conduction time with each beat until one impulse fails to exit - no P wave (and no QRS) appears. Then the cycle resets.

ECG Key Features:

P-P interval progressively shortens (because the increment of delay decreases each beat - the same mechanism as R-R shortening in AV Wenckebach)
Followed by a pause (dropped P + QRS)
The pause is less than twice the shortest P-P interval
"Grouped beating" pattern (clusters of beats)

ECG Example - SA Wenckebach (Type I) with ladder diagram:

SA Exit Block Type I - Lead II showing grouped beating with ladder diagram of SA, Atrial, AV, and Ventricular levels

The P-P intervals progressively shorten before the pause. The ladder diagram shows the SA node fires regularly but with increasing conduction delay until one beat is blocked.

TYPE 3: SECOND-DEGREE SA BLOCK - TYPE II (Mobitz II)

Mechanism: Fixed SA conduction time with sudden intermittent failure of propagation. Every other impulse (or every 3rd, etc.) fails to exit.

ECG Key Features:

P-P intervals remain constant before the dropped beat
The pause is exactly (or approximately) twice the normal P-P interval
Abrupt transition to a sinus rate that is half the previous rate (2:1 SA block)
No gradual shortening of P-P intervals before the pause

Type II second-degree SA block can be inferred on the ECG if the sinus rate abruptly transitions to a sinus rate that is half the previous rate. - Harrison's 22E

ECG Key:

Constant P-P intervals → sudden pause = 2x P-P = Type II SA block
Mimics sinus pause but the pause is a mathematically exact multiple of the P-P

TYPE 4: THIRD-DEGREE (COMPLETE) SA BLOCK

Mechanism: No impulses exit the SA node at all. The atria are depolarized by a subsidiary pacemaker (junctional or ventricular escape).

ECG:

No visible P waves from SA node
Escape rhythm appears (junctional at 40-60 bpm, or ventricular at 20-40 bpm)
Cannot be distinguished from sinus arrest on surface ECG - requires EPS

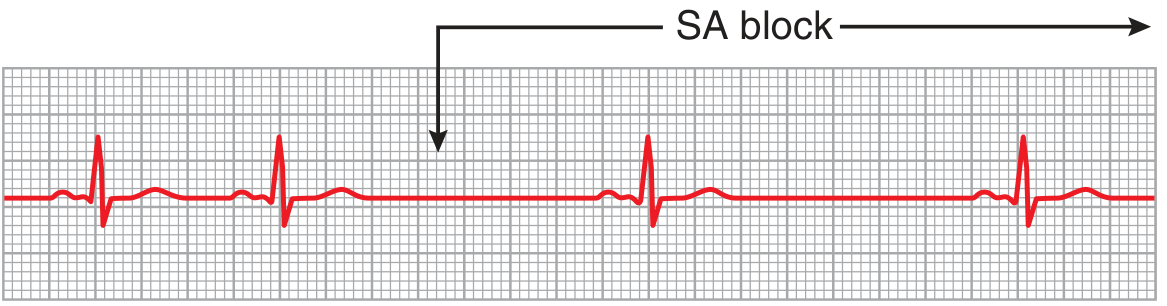

ECG from Guyton & Hall - SA Block with AV Nodal Escape:

SA Block ECG from Guyton and Hall - showing cessation of P waves and ventricular escape rhythm with labeled SA block region

After the SA block begins, P waves disappear. Ventricles establish their own rhythm via the AV node. The escape QRS complexes are narrow and slower.

SA Block vs. Sinus Arrest - Key Distinction

Feature	SA Exit Block (Type II)	Sinus Arrest
Mechanism	Impulse generated, fails to exit	SA node stops firing
Pause duration	Exact multiple of P-P interval	NOT a multiple of P-P
P-P before pause	Constant (Type II) or shortening (Type I)	Variable
Distinguishable on ECG?	Yes (Type II by math)	Yes (by exclusion)

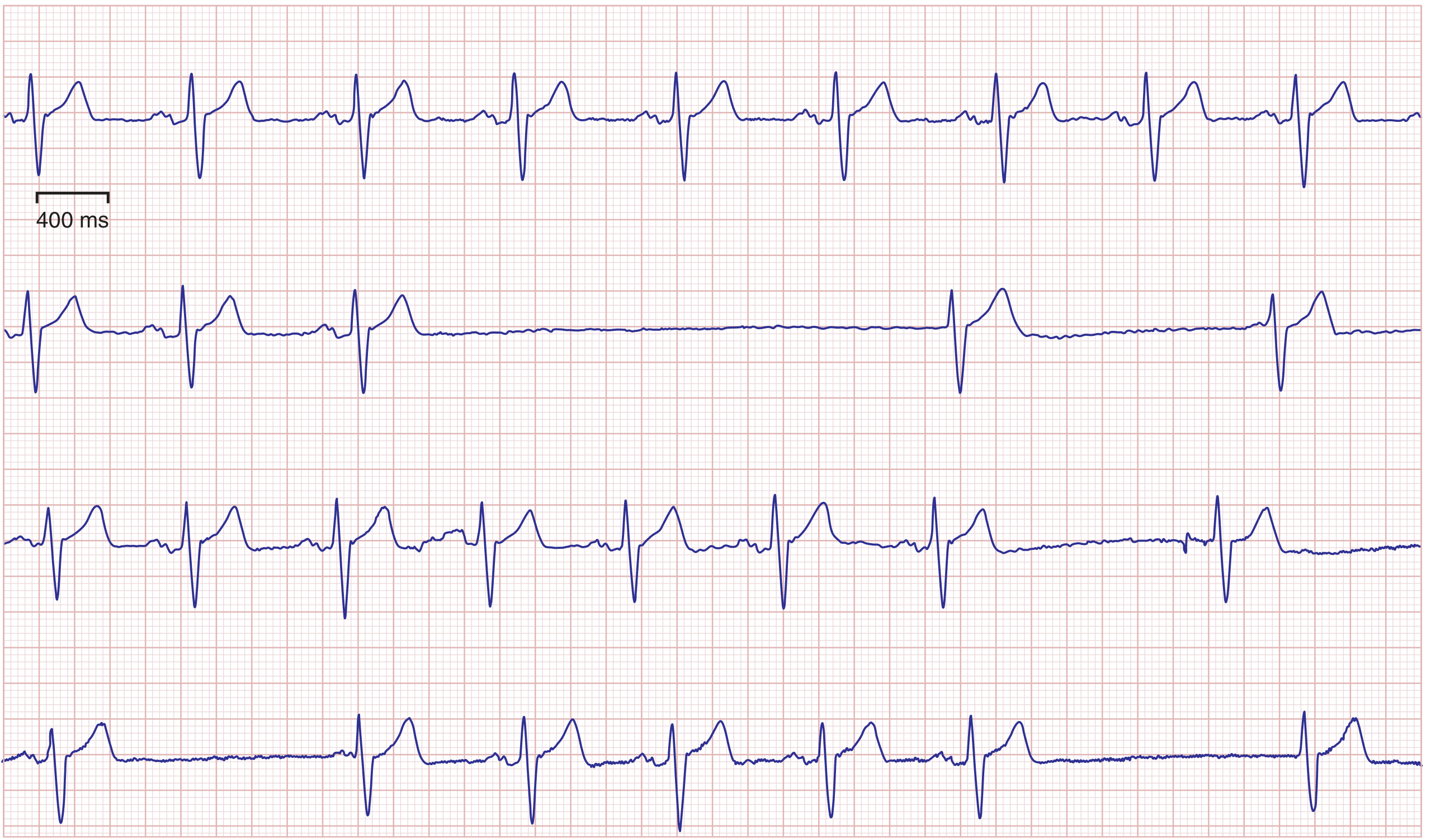

Sinoatrial Exit Block ECG from Harrison's 22E:

Multiple ECG tracings from Harrison's showing SA exit block with pause - second line shows long pause without P wave, followed by junctional escape beat, then sinus rhythm recovery

Line 2 shows a long pause with absent P wave and absent QRS, followed by a junctional escape beat, then gradual return of sinus rhythm P waves.

SA Block - Management

Type	Management
1st degree	No treatment needed
2nd degree (asymptomatic)	Identify + remove reversible causes (medications, hypothyroidism, electrolytes)
2nd degree (symptomatic)	Atropine, pacemaker consideration
3rd degree	Permanent pacemaker if no reversible cause
Tachy-Brady syndrome	Often requires pacemaker (allows safe use of rate-control agents)

PART 2: AV NODE BLOCK (ATRIOVENTRICULAR BLOCK)

Anatomy

Impulses travel from SA node → atrial myocardium → AV node (inferior right atrium) → Bundle of His → Right & Left bundle branches → Purkinje fibers → ventricular myocardium.

The AV node is the only normal electrical connection between atria and ventricles. Block at any level of this pathway = AV block.

Causes of AV Block

From Guyton & Hall:

Ischemia of AV node or bundle of His (RCA occlusion most common)
Compression by scar tissue or calcified cardiac structures
Inflammation - rheumatic fever, diphtheria, endocarditis, myocarditis
Excessive vagal tone - carotid sinus syndrome, trained athletes
Degeneration - age-related fibrosis (Lev's disease, Lenègre's disease)
Medications - digitalis, beta-blockers, calcium channel blockers

CLASSIFICATION OF AV BLOCK

FIRST-DEGREE AV BLOCK

Mechanism: Slowed conduction through AV node. Every atrial impulse reaches the ventricles, but with delay. NOT a true block - all impulses conduct.

ECG Criteria:

PR interval > 200 ms (>0.20 sec) on every beat
Every P wave is followed by a QRS complex
QRS morphology is normal (narrow unless BBB coexists)
Regular rhythm

Normal PR = 0.12-0.20 sec | 1st degree = >0.20 sec

ECG - First-Degree AV Block (Guyton & Hall, Fig 13.5):

First-Degree AV Block ECG showing prolonged PR interval in every beat, red waveform on grid with P waves clearly labeled

PR interval is approximately 0.30 sec (normal ≤0.20 sec). Each P wave conducts to a QRS. Rhythm is regular.

Another example - First-Degree AV Block with labeled P waves:

First-Degree AV Block ECG from Frameworks for Internal Medicine showing P waves with prolonged PR interval before each QRS

Clinical significance: Usually benign. Commonly seen with increased vagal tone, inferior MI, medications. Requires no specific treatment unless symptomatic or progresses.

SECOND-DEGREE AV BLOCK

Some (not all) atrial impulses conduct to ventricles = intermittent dropped QRS complexes.

SECOND-DEGREE AV BLOCK - MOBITZ TYPE I (WENCKEBACH)

Mechanism: Progressive fatigue/decremental conduction in the AV node until one impulse fails to conduct. The cycle then resets.

Location of block: AV node (above Bundle of His)

ECG Criteria:

PR interval progressively lengthens beat to beat
After the longest PR, a P wave is NOT followed by a QRS (dropped beat)
PR interval after the dropped beat resets to its shortest value
R-R interval progressively shortens up to the dropped beat
P-P interval remains constant
"Grouped beating" is the hallmark - clusters of 3, 4, or 5 beats

Mobitz I is defined by the presence of nonconducted beats that are preceded by conducted beats associated with progressively longer PR intervals on ECG. - Frameworks for Internal Medicine

ECG - Mobitz I Wenckebach (from Frameworks for Internal Medicine, Fig 3-3):

Mobitz I AV block ECG showing progressively lengthening PR intervals with labels P and dropped QRS after 4th P wave

P-wave rate is constant. PR gets progressively longer (1st → 2nd → 3rd → 4th P wave), then the 4th P wave is blocked (no QRS). The next PR interval resets to shortest.

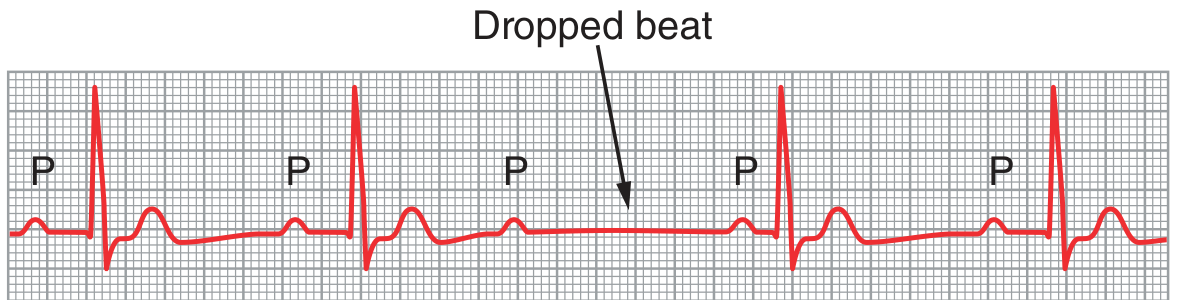

ECG - Mobitz I (Type I) - Guyton & Hall, Fig 13.6:

Type I AV Block Wenckebach ECG with red waveform showing progressive PR prolongation and dropped beat with P waves labeled

Arrow marks the dropped beat. Note P wave without a QRS response.

Associated with: Right coronary artery territory MI (inferior STEMI - look for ST elevation in II, III, aVF). Usually reversible.

Prognosis: Generally benign. Often reversible if cause treated. Rarely progresses to complete heart block.

Treatment: Usually no treatment needed. Atropine if symptomatic bradycardia. Pacemaker rarely required.

SECOND-DEGREE AV BLOCK - MOBITZ TYPE II

Mechanism: Sudden intermittent failure of conduction WITHOUT prior PR prolongation. The block is below the AV node (infranodal) - in the Bundle of His or bundle branches.

Location of block: Bundle of His or Purkinje system (infranodal)

ECG Criteria:

PR interval is constant (fixed) before the dropped beat - does NOT progressively lengthen
Sudden P wave not followed by QRS (dropped beat)
The PR interval does NOT change before or after the dropped beat
Conduction ratio may be: 2:1, 3:1, 3:2, 4:3, etc.
QRS may be wide (if associated bundle branch block, which is common)

Prognosis: Serious. High rate of progression to complete (3rd degree) heart block. Increased mortality.

Treatment: Pacemaker almost always required. Atropine is often ineffective (infranodal block). Dopamine/isoproterenol as bridge.

SECOND-DEGREE AV BLOCK - 2:1 AV BLOCK

A special pattern deserving its own category:

ECG:

Every other P wave is blocked - alternating conducted and nonconducted beats
Cannot distinguish Mobitz I from Mobitz II because there are not 2 consecutive conducted beats to compare PR intervals

2:1 AV Block ECG (Frameworks for Internal Medicine, Fig 3-5):

2:1 AV Block ECG showing alternating P waves with only every other one followed by a QRS, P waves labeled on regular grid strip

There are twice as many P waves as QRS complexes. Every other P wave is blocked. Cannot differentiate Mobitz I vs II from this pattern alone.

How to determine level of block in 2:1 AV block:

Feature	Suggests Nodal (Mobitz I)	Suggests Infranodal (Mobitz II)
QRS width	Narrow	Wide
Rate response to atropine	Increases conduction	No improvement
Response to exercise	Improves conduction	Worsens
Associated MI territory	Inferior	Anterior

THIRD-DEGREE (COMPLETE) AV BLOCK

Mechanism: No impulses whatsoever pass from atria to ventricles. Atria and ventricles beat completely independently (AV dissociation). A subsidiary escape pacemaker takes over the ventricles.

ECG Criteria (from Guyton & Hall):

P waves and QRS complexes are completely dissociated - no fixed relationship
P-P interval is regular (atrial rate ~60-100 bpm)
R-R interval is regular but SLOWER (escape rhythm)
PR intervals vary completely - P waves "march through" the QRS complexes
Escape rhythm rate:
- Junctional escape (AV node/proximal His): 40-60 bpm, narrow QRS
- Ventricular escape (distal His/Purkinje): 20-40 bpm, wide QRS (≥0.12 sec)

Complete block of the impulse from the atria into the ventricles occurs...the P waves become dissociated from the QRS and T complexes...the rate of ventricular beat is less than 40 beats/min. - Guyton & Hall

ECG - Complete (Third-Degree) AV Block (Guyton & Hall, Fig 13.7):

Complete AV Block ECG from Guyton and Hall showing fully dissociated P waves and QRS complexes with P waves labeled marching through independently at faster rate than QRS

Atrial rate ~100 bpm (P waves). Ventricular rate <40 bpm (QRS). P waves have no relationship to QRS - they march through at their own rate. This is complete AV dissociation.

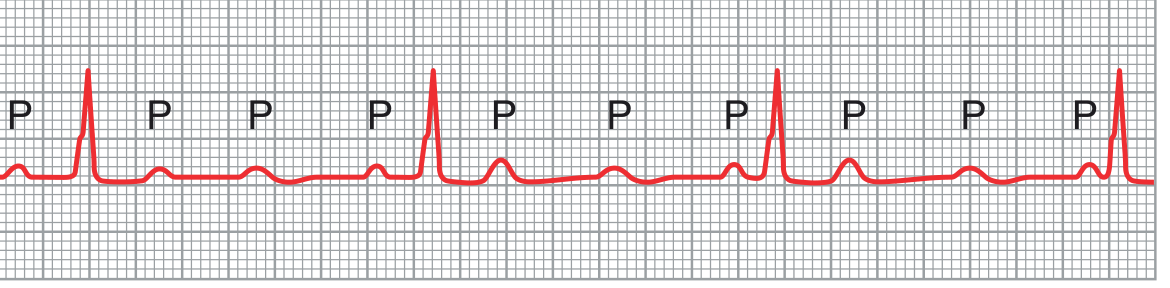

ECG - Complete Heart Block (2:1 pattern progressed):

2:1 AV Block / Complete block ECG with P waves labeled showing regular atrial activity with much slower ventricular escape rhythm, P waves regularly spaced but unrelated to QRS

Stokes-Adams Syndrome: In complete AV block, the ventricular escape may be delayed 5-30 seconds after block onset, causing syncope (Stokes-Adams attack). Death can occur if escape does not appear within 1-2 minutes.

Clinical Features:

Wide pulse pressure
Cannon A waves (JVP) - right atrium contracts against closed tricuspid valve
Bradycardia
Syncope, fatigue, heart failure symptoms
1-year mortality in symptomatic patients can reach 50% without treatment

Treatment: Permanent pacemaker required in virtually all cases without a reversible cause.

SUMMARY TABLE: AV BLOCK COMPARISON

Feature	1st Degree	2nd Degree Mobitz I	2nd Degree Mobitz II	3rd Degree
PR interval	Fixed, prolonged >200ms	Progressively lengthens	Fixed, constant	No fixed PR (dissociated)
Dropped beats	None	Yes, periodically	Yes, suddenly	All - no conduction
P:QRS ratio	1:1	e.g. 4:3, 5:4	e.g. 2:1, 3:1	P>QRS (dissociated)
QRS width	Narrow	Usually narrow	Often wide	Narrow (junctional) or wide (ventricular)
Block location	AV node	AV node	Infranodal (His/Purkinje)	Any level
Prognosis	Benign	Usually benign	Serious	Life-threatening
Pacemaker?	No	Rarely	Almost always	Always
Associated MI	Inferior	Inferior	Anterior	Any

QUICK MEMORY AIDS

SA Block Types:

1st degree = delay but conducts (invisible on ECG)
2nd degree Type I = P-P shortens then drops (Wenckebach pattern)
2nd degree Type II = constant P-P then exact double pause
3rd degree = no exit at all, escape rhythm takes over

AV Block Types:

1st = "Long PR, no dropped beats" → PR > 200ms
2nd Mobitz I = "Longer, longer, longer, DROP - then reset" (Wenckebach)
2nd Mobitz II = "Same PR, then sudden DROP" → dangerous
3rd = "Completely divorced" - P and QRS independent

Poem for 1st degree: "If the P-R is long and more than two, first-degree block is running through."

Sources: Guyton and Hall Textbook of Medical Physiology; Harrison's Principles of Internal Medicine 22E (2025); Frameworks for Internal Medicine; Braunwald's Heart Disease; LITFL ECG Library
