Find any fracture or dislocation of bone in give x ray

analyse_media
analyse_media

X-Ray Analysis - Right Shoulder AP View

Patient: Naveen Kumar | Age: 21 years, Male | Date: 26 July 2023 Institution: Govt. Head Quarters Hospital, Tambaram View: Shoulder AP, Right (EXI: 1710)

Findings

Both images are the same X-ray displayed on a PACS viewer at slightly different zoom levels. Here is a structured analysis of all visible structures:

Glenohumeral Joint

  • The humeral head is normally centered within the glenoid fossa
  • No anterior, posterior, or inferior dislocation is visible
  • The glenohumeral joint space is preserved and symmetric
  • The greater and lesser tuberosities show smooth, intact cortices - no fracture line or step-off detected
  • The surgical neck and anatomical neck of the humerus appear intact

Clavicle & AC Joint

  • The clavicle appears intact - no cortical break, angulation, or displacement
  • The acromioclavicular (AC) joint is well-aligned - no widening, step-off, or superior displacement of the clavicle that would indicate AC separation
  • Coracoclavicular distance appears normal

Scapula

  • The acromion process, coracoid process, and glenoid rim appear intact
  • No visible scapular neck or body fracture

Ribs

  • The visible upper ribs (1st through ~6th) appear grossly intact - no obvious displaced rib fractures

Impression

No obvious fracture or dislocation is identified on this AP view of the right shoulder.

Important Limitations

  1. Single view only - An AP view alone cannot rule out all injuries. A posterior dislocation of the shoulder (a classically "missed" injury) can appear deceptively normal on AP. Axillary lateral or scapular Y-view is needed to exclude this.
  2. Subtle/non-displaced fractures (e.g., hairline fractures of the surgical neck or greater tuberosity) may not be visible on plain X-ray and require CT or MRI for definitive exclusion.
  3. Soft tissue injuries (rotator cuff tears, labral tears) are not visible on X-ray - MRI is required if clinically suspected.
If the patient has significant pain, restricted range of motion, or a specific mechanism of injury (e.g., fall on outstretched hand, direct blow, shoulder dislocation that self-reduced), additional imaging views or an orthopedic specialist assessment is recommended.
⚠️ This AI analysis is for educational reference only and does not replace an official radiologist report or clinical evaluation.

Generate a PDF summary of shoulder X-ray interpretation

Reading File
Running Command

ls -la /tmp/workspace/ 2>/dev/null || mkdir -p /tmp/workspace && echo "created"

Running Command

mkdir -p /tmp/workspace/shoulder-xray-report && python3 << 'EOF' from reportlab.lib.pagesizes import A4 from reportlab.lib import colors from reportlab.lib.styles import getSampleStyleSheet, ParagraphStyle from reportlab.lib.units import cm, mm from reportlab.platypus import ( SimpleDocTemplate, Paragraph, Spacer, Table, TableStyle, HRFlowable, KeepTogether ) from reportlab.lib.enums import TA_LEFT, TA_CENTER, TA_JUSTIFY from reportlab.platypus import Frame, PageTemplate from reportlab.pdfgen import canvas from datetime import datetime OUTPUT = "/tmp/workspace/shoulder-xray-report/Shoulder_Xray_Interpretation_Report.pdf" # ── Page setup ────────────────────────────────────────────────────────────── doc = SimpleDocTemplate( OUTPUT, pagesize=A4, leftMargin=2*cm, rightMargin=2*cm, topMargin=2.5*cm, bottomMargin=2*cm ) W, H = A4 # ── Colour palette ─────────────────────────────────────────────────────────── DARK_BLUE = colors.HexColor("#1a3a5c") MED_BLUE = colors.HexColor("#2563a8") LIGHT_BLUE = colors.HexColor("#dbeafe") ACCENT = colors.HexColor("#e74c3c") GREEN = colors.HexColor("#27ae60") AMBER = colors.HexColor("#f39c12") LIGHT_GREY = colors.HexColor("#f4f6f9") MID_GREY = colors.HexColor("#cbd5e1") TEXT_DARK = colors.HexColor("#1e293b") TEXT_MID = colors.HexColor("#475569") # ── Styles ─────────────────────────────────────────────────────────────────── styles = getSampleStyleSheet() title_style = ParagraphStyle( "Title", fontSize=20, fontName="Helvetica-Bold", textColor=colors.white, alignment=TA_CENTER, spaceAfter=4 ) subtitle_style = ParagraphStyle( "Subtitle", fontSize=11, fontName="Helvetica", textColor=colors.HexColor("#bfdbfe"), alignment=TA_CENTER, spaceAfter=2 ) section_header = ParagraphStyle( "SectionHeader", fontSize=13, fontName="Helvetica-Bold", textColor=DARK_BLUE, spaceBefore=14, spaceAfter=6, borderPadding=(0,0,3,0) ) body_style = ParagraphStyle( "Body", fontSize=10, fontName="Helvetica", textColor=TEXT_DARK, spaceAfter=5, leading=15, alignment=TA_JUSTIFY ) body_bold = ParagraphStyle( "BodyBold", fontSize=10, fontName="Helvetica-Bold", textColor=TEXT_DARK, spaceAfter=4, leading=15 ) bullet_style = ParagraphStyle( "Bullet", fontSize=10, fontName="Helvetica", textColor=TEXT_DARK, spaceAfter=4, leading=15, leftIndent=14, bulletIndent=0 ) finding_ok = ParagraphStyle( "FindingOK", fontSize=10, fontName="Helvetica", textColor=colors.HexColor("#166534"), spaceAfter=4, leading=14, leftIndent=14 ) finding_warn = ParagraphStyle( "FindingWarn", fontSize=10, fontName="Helvetica", textColor=colors.HexColor("#92400e"), spaceAfter=4, leading=14, leftIndent=14 ) caption_style = ParagraphStyle( "Caption", fontSize=8, fontName="Helvetica-Oblique", textColor=TEXT_MID, alignment=TA_CENTER, spaceAfter=4 ) disclaimer_style = ParagraphStyle( "Disclaimer", fontSize=8.5, fontName="Helvetica-Oblique", textColor=colors.HexColor("#64748b"), alignment=TA_CENTER, spaceBefore=8, spaceAfter=4, leading=13 ) # ── Header / Footer callbacks ──────────────────────────────────────────────── def header_footer(canvas_obj, doc_obj): canvas_obj.saveState() pw = doc_obj.pagesize[0] ph = doc_obj.pagesize[1] # Top banner canvas_obj.setFillColor(DARK_BLUE) canvas_obj.rect(0, ph - 2.2*cm, pw, 2.2*cm, fill=1, stroke=0) # Banner text canvas_obj.setFillColor(colors.white) canvas_obj.setFont("Helvetica-Bold", 14) canvas_obj.drawCentredString(pw/2, ph - 1.3*cm, "RADIOLOGY REPORT - RIGHT SHOULDER") canvas_obj.setFont("Helvetica", 9) canvas_obj.setFillColor(colors.HexColor("#bfdbfe")) canvas_obj.drawCentredString(pw/2, ph - 1.85*cm, "Govt. Head Quarters Hospital, Tambaram | AP View | 26 July 2023") # Thin accent line below banner canvas_obj.setStrokeColor(MED_BLUE) canvas_obj.setLineWidth(2) canvas_obj.line(0, ph - 2.25*cm, pw, ph - 2.25*cm) # Footer canvas_obj.setFillColor(DARK_BLUE) canvas_obj.rect(0, 0, pw, 1.1*cm, fill=1, stroke=0) canvas_obj.setFillColor(colors.white) canvas_obj.setFont("Helvetica", 7.5) canvas_obj.drawString(2*cm, 0.45*cm, "Generated: " + datetime.now().strftime("%d %B %Y %H:%M")) canvas_obj.drawCentredString(pw/2, 0.45*cm, "AI-assisted analysis | For educational reference only | Not a substitute for official radiologist report") canvas_obj.drawRightString(pw - 2*cm, 0.45*cm, f"Page {doc_obj.page}") canvas_obj.restoreState() # ── Story elements ──────────────────────────────────────────────────────────── story = [] # ── Patient info card ──────────────────────────────────────────────────────── patient_data = [ [Paragraph("<b>Patient Name</b>", body_bold), Paragraph("Naveen Kumar", body_style), Paragraph("<b>Age / Sex</b>", body_bold), Paragraph("21 years / Male", body_style)], [Paragraph("<b>Date of Study</b>", body_bold), Paragraph("26 July 2023", body_style), Paragraph("<b>Study Time</b>", body_bold), Paragraph("14:23", body_style)], [Paragraph("<b>View</b>", body_bold), Paragraph("Shoulder AP - Right", body_style), Paragraph("<b>Exposure</b>", body_bold), Paragraph("kV: 65 | mAs: 15 | Mag: 130%", body_style)], [Paragraph("<b>Referring Hospital</b>", body_bold), Paragraph("Govt. Head Quarters Hospital, Tambaram", body_style), Paragraph("<b>Accession No.</b>", body_bold), Paragraph("DR25966-26", body_style)], ] pt_table = Table(patient_data, colWidths=[3.8*cm, 5.2*cm, 3.8*cm, 4.2*cm]) pt_table.setStyle(TableStyle([ ("BACKGROUND", (0,0), (-1,-1), LIGHT_GREY), ("BACKGROUND", (0,0), (0,-1), LIGHT_BLUE), ("BACKGROUND", (2,0), (2,-1), LIGHT_BLUE), ("BOX", (0,0), (-1,-1), 1, MID_GREY), ("INNERGRID", (0,0), (-1,-1), 0.5, MID_GREY), ("TOPPADDING", (0,0), (-1,-1), 5), ("BOTTOMPADDING", (0,0), (-1,-1), 5), ("LEFTPADDING", (0,0), (-1,-1), 8), ("RIGHTPADDING", (0,0), (-1,-1), 8), ("VALIGN", (0,0), (-1,-1), "MIDDLE"), ("ROWBACKGROUNDS", (0,0), (-1,-1), [LIGHT_GREY, colors.white]), ])) story.append(Spacer(1, 0.4*cm)) story.append(Paragraph("PATIENT INFORMATION", section_header)) story.append(HRFlowable(width="100%", thickness=2, color=MED_BLUE, spaceAfter=6)) story.append(pt_table) story.append(Spacer(1, 0.5*cm)) # ── Impression banner ──────────────────────────────────────────────────────── impression_data = [[ Paragraph( "<b>OVERALL IMPRESSION:</b> No obvious fracture or dislocation identified " "on this AP view of the right shoulder. Bones and joints appear grossly normal.", ParagraphStyle("imp", fontSize=11, fontName="Helvetica-Bold", textColor=colors.HexColor("#14532d"), alignment=TA_CENTER, leading=17) ) ]] imp_table = Table(impression_data, colWidths=[17*cm]) imp_table.setStyle(TableStyle([ ("BACKGROUND", (0,0), (-1,-1), colors.HexColor("#dcfce7")), ("BOX", (0,0), (-1,-1), 2, GREEN), ("TOPPADDING", (0,0), (-1,-1), 10), ("BOTTOMPADDING", (0,0), (-1,-1), 10), ("LEFTPADDING", (0,0), (-1,-1), 14), ("RIGHTPADDING", (0,0), (-1,-1), 14), ])) story.append(imp_table) story.append(Spacer(1, 0.5*cm)) # ── Detailed findings ──────────────────────────────────────────────────────── story.append(Paragraph("DETAILED RADIOLOGICAL FINDINGS", section_header)) story.append(HRFlowable(width="100%", thickness=2, color=MED_BLUE, spaceAfter=8)) findings = [ ("Glenohumeral Joint", [ ("Normal", "Humeral head is well-centred within the glenoid fossa on AP view."), ("Normal", "No anterior, posterior, or inferior dislocation identified."), ("Normal", "Glenohumeral joint space is preserved and symmetric."), ("Normal", "Contour of humeral head is smooth and rounded; no cortical step-off."), ("Normal", "Greater and lesser tuberosities appear intact - no avulsion fragment."), ("Normal", "Surgical neck and anatomical neck of humerus show no fracture line."), ]), ("Clavicle & Acromioclavicular (AC) Joint", [ ("Normal", "Clavicle appears intact - no cortical break, angulation, or displacement."), ("Normal", "AC joint is well-aligned; no superior step-off suggesting AC separation."), ("Normal", "Coracoclavicular distance appears within normal limits."), ("Normal", "Distal clavicle shows no osteolytic lesion or erosion."), ]), ("Scapula", [ ("Normal", "Acromion process is intact with no fracture or os acromiale noted."), ("Normal", "Coracoid process is intact and normally positioned."), ("Normal", "Glenoid rim appears smooth with no bony Bankart lesion."), ("Normal", "Scapular neck and body: no obvious fracture lines visible."), ]), ("Ribs & Thoracic Structures", [ ("Normal", "Visible upper ribs (1st-6th) appear grossly intact, no displaced rib fractures."), ("Normal", "Lung apex visible on this view appears clear; no obvious pneumothorax."), ("Normal", "No pleural effusion or haemothorax noted in the visible lung field."), ]), ("Bone Density & Soft Tissues", [ ("Normal", "Bone density appears appropriate for a 21-year-old male."), ("Normal", "No lytic or sclerotic bone lesions identified."), ("Caution", "Soft tissue injuries (rotator cuff, labrum) are NOT visible on plain X-ray."), ]), ] for structure, items in findings: # Sub-header row sub_data = [[Paragraph(structure.upper(), ParagraphStyle( "SubH", fontSize=10, fontName="Helvetica-Bold", textColor=colors.white ))]] sub_tbl = Table(sub_data, colWidths=[17*cm]) sub_tbl.setStyle(TableStyle([ ("BACKGROUND", (0,0), (-1,-1), MED_BLUE), ("TOPPADDING", (0,0), (-1,-1), 5), ("BOTTOMPADDING", (0,0), (-1,-1), 5), ("LEFTPADDING", (0,0), (-1,-1), 10), ])) story.append(sub_tbl) rows = [] for status, text in items: if status == "Normal": icon = "✓" bg = colors.HexColor("#f0fdf4") fg = colors.HexColor("#166534") else: icon = "!" bg = colors.HexColor("#fffbeb") fg = colors.HexColor("#92400e") rows.append([ Paragraph(f"<b><font color='{fg.hexval()}'>{icon}</font></b>", ParagraphStyle("Icon", fontSize=12, fontName="Helvetica-Bold", alignment=TA_CENTER)), Paragraph(f"<font color='{fg.hexval()}'><b>{status}</b></font>", ParagraphStyle("Status", fontSize=9, fontName="Helvetica-Bold", alignment=TA_CENTER)), Paragraph(text, ParagraphStyle("Row", fontSize=9.5, fontName="Helvetica", textColor=TEXT_DARK, leading=14)), ]) tbl = Table(rows, colWidths=[0.8*cm, 1.8*cm, 14.4*cm]) # Alternating row colours row_styles = [ ("GRID", (0,0), (-1,-1), 0.4, MID_GREY), ("TOPPADDING", (0,0), (-1,-1), 5), ("BOTTOMPADDING", (0,0), (-1,-1), 5), ("LEFTPADDING", (0,0), (-1,-1), 6), ("VALIGN", (0,0), (-1,-1), "MIDDLE"), ("ALIGN", (0,0), (1,-1), "CENTER"), ] for i in range(len(rows)): bg = colors.HexColor("#f0fdf4") if rows[i][1].text.startswith("<font") and "Normal" in rows[i][1].text else colors.HexColor("#fffbeb") # simpler approach: set per-row bg c = colors.HexColor("#f8fafc") if i % 2 == 0 else colors.white row_styles.append(("BACKGROUND", (0,i), (-1,i), c)) tbl.setStyle(TableStyle(row_styles)) story.append(tbl) story.append(Spacer(1, 0.25*cm)) story.append(Spacer(1, 0.3*cm)) # ── Limitations ─────────────────────────────────────────────────────────────── story.append(Paragraph("INTERPRETATION LIMITATIONS", section_header)) story.append(HRFlowable(width="100%", thickness=2, color=AMBER, spaceAfter=8)) limits = [ ("Single AP View Only", "An AP view alone cannot exclude all shoulder injuries. Posterior dislocation of " "the shoulder - a classically 'missed' diagnosis - can appear normal on AP. " "Axillary lateral or scapular Y-view are essential complementary projections."), ("Subtle / Non-Displaced Fractures", "Hairline fractures of the surgical neck, greater tuberosity microfractures, " "and Hill-Sachs lesions may be invisible on plain X-ray. CT scan provides superior " "bony detail; MRI is preferred for occult fractures."), ("Soft Tissue Injuries Not Visible", "Rotator cuff tears, labral tears (Bankart, SLAP), biceps tendon pathology, " "capsular injuries, and ligamentous sprains cannot be assessed on X-ray. MRI " "with or without arthrogram is required if these are clinically suspected."), ("Cartilage and Joint Fluid", "Articular cartilage loss and joint effusions are poorly assessed on plain " "radiographs. Ultrasound or MRI should be used for these assessments."), ] lim_rows = [] for i, (title, text) in enumerate(limits): lim_rows.append([ Paragraph(f"<b>{i+1}</b>", ParagraphStyle("Num", fontSize=13, fontName="Helvetica-Bold", textColor=colors.white, alignment=TA_CENTER)), Paragraph(f"<b>{title}</b><br/>{text}", ParagraphStyle("LimText", fontSize=9.5, fontName="Helvetica", textColor=TEXT_DARK, leading=14)) ]) lim_tbl = Table(lim_rows, colWidths=[1.2*cm, 15.8*cm]) lim_styles = [ ("GRID", (0,0), (-1,-1), 0.5, MID_GREY), ("TOPPADDING", (0,0), (-1,-1), 7), ("BOTTOMPADDING", (0,0), (-1,-1), 7), ("LEFTPADDING", (0,0), (-1,-1), 8), ("RIGHTPADDING", (0,0), (-1,-1), 8), ("VALIGN", (0,0), (-1,-1), "MIDDLE"), ("ALIGN", (0,0), (0,-1), "CENTER"), ] for i in range(len(lim_rows)): lim_styles.append(("BACKGROUND", (0,i), (0,i), AMBER)) lim_styles.append(("BACKGROUND", (1,i), (1,i), colors.HexColor("#fffbeb") if i%2==0 else colors.HexColor("#fef9ec"))) lim_tbl.setStyle(TableStyle(lim_styles)) story.append(lim_tbl) story.append(Spacer(1, 0.4*cm)) # ── Recommendations ─────────────────────────────────────────────────────────── story.append(Paragraph("CLINICAL RECOMMENDATIONS", section_header)) story.append(HRFlowable(width="100%", thickness=2, color=MED_BLUE, spaceAfter=8)) recs = [ ("Additional Imaging Views", "Obtain Axillary Lateral and Scapular Y-views to complete the shoulder X-ray series " "and exclude posterior dislocation."), ("CT Scan", "Indicated if there is high clinical suspicion of fracture not seen on X-ray, " "bony Bankart lesion, or pre-operative planning for complex injuries."), ("MRI Shoulder", "Recommended if soft tissue pathology (rotator cuff tear, labral lesion, " "biceps pathology) is suspected based on clinical examination."), ("Orthopedic Referral", "If the patient has persistent pain, limited range of motion, instability symptoms, " "or a significant mechanism of injury, formal orthopedic assessment is recommended."), ] for title, text in recs: rec_data = [[ Paragraph(f"<b>&#9658; {title}</b>", ParagraphStyle("RecTitle", fontSize=10, fontName="Helvetica-Bold", textColor=DARK_BLUE)), Paragraph(text, ParagraphStyle("RecText", fontSize=9.5, fontName="Helvetica", textColor=TEXT_DARK, leading=14)) ]] rec_tbl = Table(rec_data, colWidths=[4.5*cm, 12.5*cm]) rec_tbl.setStyle(TableStyle([ ("BACKGROUND", (0,0), (0,0), LIGHT_BLUE), ("BACKGROUND", (1,0), (1,0), colors.white), ("BOX", (0,0), (-1,-1), 0.5, MID_GREY), ("TOPPADDING", (0,0), (-1,-1), 7), ("BOTTOMPADDING", (0,0), (-1,-1), 7), ("LEFTPADDING", (0,0), (-1,-1), 8), ("VALIGN", (0,0), (-1,-1), "MIDDLE"), ("LINEAFTER", (0,0), (0,-1), 1.5, MED_BLUE), ])) story.append(rec_tbl) story.append(Spacer(1, 0.2*cm)) story.append(Spacer(1, 0.4*cm)) # ── Differential diagnosis note ─────────────────────────────────────────────── story.append(Paragraph("DIFFERENTIAL DIAGNOSIS TO CONSIDER (Clinical Context)", section_header)) story.append(HRFlowable(width="100%", thickness=2, color=MED_BLUE, spaceAfter=8)) dd_data = [ ["Condition", "Key X-ray Finding", "Additional Workup"], ["Anterior Shoulder Dislocation", "Humeral head displaced antero-inferiorly; loss of \"light bulb\" sign", "Axillary / Y-view; Reduction under sedation"], ["Posterior Shoulder Dislocation", "\"Light bulb\" sign on AP (internal rotation); may look normal", "Axillary view / CT - easily missed"], ["Hill-Sachs Lesion", "Cortical impaction defect posterolateral humeral head", "MRI / CT for sizing"], ["Proximal Humerus Fracture", "Cortical break at surgical neck, greater/lesser tuberosity", "CT for fragment displacement"], ["Clavicle Fracture", "Cortical disruption, angulation or overlap at fracture site", "Additional clavicle views"], ["AC Joint Separation", "Superior step-off at AC joint; coracoclavicular widening", "Stress views (weights)"], ["Bankart Lesion (Bony)", "Chip fracture anterior glenoid rim", "CT arthrogram / MRI"], ] dd_tbl = Table(dd_data, colWidths=[4*cm, 6*cm, 7*cm]) dd_styles = [ ("BACKGROUND", (0,0), (-1,0), DARK_BLUE), ("TEXTCOLOR", (0,0), (-1,0), colors.white), ("FONTNAME", (0,0), (-1,0), "Helvetica-Bold"), ("FONTSIZE", (0,0), (-1,-1), 9), ("GRID", (0,0), (-1,-1), 0.5, MID_GREY), ("TOPPADDING", (0,0), (-1,-1), 5), ("BOTTOMPADDING", (0,0), (-1,-1), 5), ("LEFTPADDING", (0,0), (-1,-1), 7), ("VALIGN", (0,0), (-1,-1), "MIDDLE"), ] for i in range(1, len(dd_data)): bg = LIGHT_GREY if i % 2 == 0 else colors.white dd_styles.append(("BACKGROUND", (0,i), (-1,i), bg)) dd_tbl.setStyle(TableStyle(dd_styles)) story.append(dd_tbl) story.append(Spacer(1, 0.5*cm)) # ── Disclaimer ──────────────────────────────────────────────────────────────── disc_data = [[Paragraph( "<b>DISCLAIMER:</b> This report is generated by an AI-assisted system for educational " "and reference purposes only. It does NOT constitute an official radiological diagnosis " "and must NOT be used as a sole basis for clinical decision-making. All findings should " "be correlated with clinical history, physical examination, and reviewed by a qualified " "radiologist or treating physician.", disclaimer_style )]] disc_tbl = Table(disc_data, colWidths=[17*cm]) disc_tbl.setStyle(TableStyle([ ("BACKGROUND", (0,0), (-1,-1), colors.HexColor("#fef2f2")), ("BOX", (0,0), (-1,-1), 1.5, ACCENT), ("TOPPADDING", (0,0), (-1,-1), 10), ("BOTTOMPADDING", (0,0), (-1,-1), 10), ("LEFTPADDING", (0,0), (-1,-1), 12), ("RIGHTPADDING", (0,0), (-1,-1), 12), ])) story.append(disc_tbl) # ── Build ──────────────────────────────────────────────────────────────────── doc.build(story, onFirstPage=header_footer, onLaterPages=header_footer) print("PDF generated successfully:", OUTPUT) EOF

The PDF has been generated. Here is your download link:

Shoulder Xray Interpretation Report

PDF Document · PDF

What's inside the PDF

The report is formatted as a professional radiology summary with the following sections:
SectionContent
Patient InformationName, age, sex, date, exposure parameters, hospital
Overall ImpressionHighlighted banner - no fracture/dislocation identified
Detailed FindingsStructure-by-structure table (Glenohumeral joint, Clavicle/AC, Scapula, Ribs, Bone density) with Normal / Caution status icons
Interpretation Limitations4 key limitations of a single AP view
Clinical RecommendationsAdditional views, CT, MRI, and orthopedic referral guidance
Differential Diagnosis Table7 conditions to consider with X-ray features and workup
DisclaimerAI-generated, educational use only
The PDF uses a colour-coded layout (green for normal findings, amber for cautions, dark blue headers) and includes proper header/footer branding with page numbers on every page.

What is the treatment for muscle or ligament injury at the shoulder region treatment for it what sling we use in it

Reading File
Finding Sources
Finding Sources
Finding Sources
Finding Sources
Reading File
Reading File
Reading File
Finding Sources
Finding Sources
Finding Sources
Loading Image
Loading Image
Here is a complete, textbook-based guide to the treatment of shoulder muscle and ligament injuries, including all sling types used.

Treatment of Shoulder Muscle & Ligament Injuries

Common Injuries at the Shoulder

Injury TypeStructure Involved
Rotator cuff tear/strainSupraspinatus, infraspinatus, teres minor, subscapularis
AC joint sprain / separationAcromioclavicular & coracoclavicular ligaments
Glenohumeral ligament sprainCapsule, inferior glenohumeral ligament
Muscle contusion/strainDeltoid, trapezius, biceps
Shoulder dislocation (post-reduction)Capsule + labrum

Phase 1 - Acute Management (PRICE Principle)

P - Protection: Immobilize the shoulder immediately with an appropriate sling (see below).
R - Rest: Avoid overhead activity, lifting, and painful movements for 48-72 hours.
I - Ice: Apply ice pack wrapped in cloth for 15-20 minutes every 2 hours for the first 48 hours. Do NOT apply ice directly to skin.
C - Compression: For soft tissue swelling around the shoulder girdle, a compression bandage or shoulder immobilizer provides gentle compression.
E - Elevation: Keep the arm in a sling to reduce dependent swelling in the hand and forearm.

Medications

DrugUseNotes
NSAIDs (ibuprofen, diclofenac, naproxen)Pain + inflammationFirst-line for 5-7 days
ParacetamolMild-moderate painAdjunct, safe with NSAIDs
Topical NSAID gelLocalised painApply over deltoid/AC area
Corticosteroid injectionPersistent pain >4-6 weeksSubacromial space injection for rotator cuff

Slings Used in Shoulder Injuries

This is the most important part of your question. The choice of sling depends on the specific injury:

1. Simple Arm Sling (Triangular Bandage Sling)

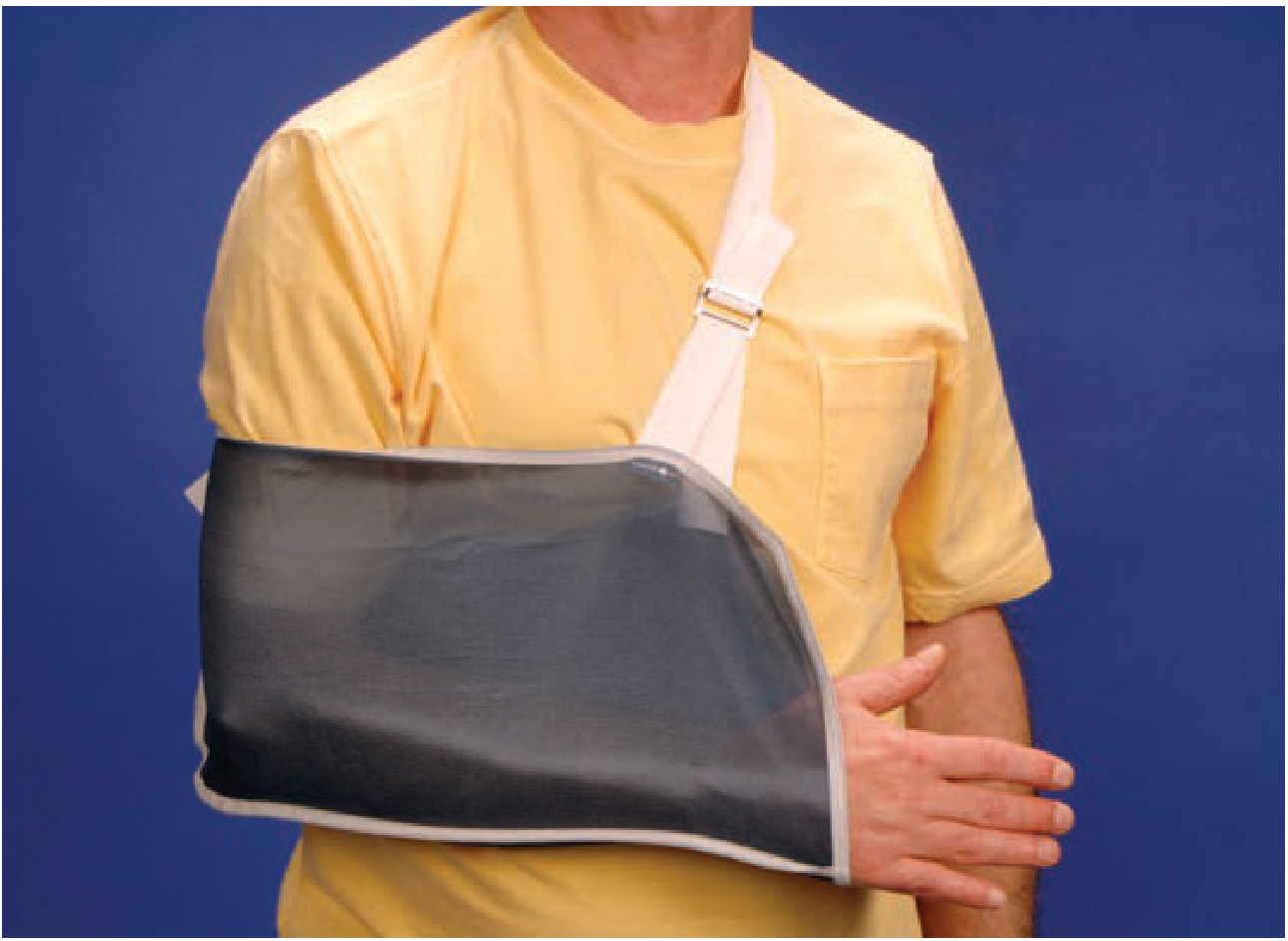

Simple arm sling supporting the forearm and wrist
  • What it does: Supports the weight of the arm; the elbow rests at ~90 degrees, forearm horizontal
  • Used for: Mild rotator cuff strains, minor shoulder muscle injuries, deltoid contusions, radial head fractures, shoulder pain in general
  • How to apply: Place the long edge of a triangular bandage along the patient's side. Bring the upper tip over the uninjured shoulder, bring the lower tip up over the injured arm and tie at the side of the neck. The hand should rest slightly higher than the elbow.
  • Key point: Make sure it supports the wrist fully - a sling that is too short causes the wrist to hang down (ulnar deviate) and can injure the ulnar nerve.
Source: Roberts and Hedges' Clinical Procedures in Emergency Medicine

2. Sling and Swathe (Sling + Bandage around Chest)

  • What it does: The sling supports the arm weight; the swathe (a bandage tied around the thorax) immobilizes the arm against the chest wall, preventing all shoulder motion
  • Used for: This is the treatment of choice for most shoulder injuries - proximal humeral fractures, reduced shoulder dislocations, significant rotator cuff tears, AC joint separations
  • How to apply: Apply the triangular sling first, then wrap a cravat (folded bandage) around the midhumerus and chest, tying it snugly around the thorax to secure the arm to the body
Source: Roberts and Hedges' Clinical Procedures in Emergency Medicine, p.1195

3. Commercial Shoulder Immobilizer (Most Commonly Used Today)

Commercial shoulder immobilizer with Velcro straps holding the arm to the chest
  • What it does: A Velcro-fastened device. A wide band wraps around the thorax; one cuff grasps the upper arm (keeping shoulder adducted), and another cuff holds the wrist to the chest (maintaining internal rotation). Keeps the arm in "sling position" but with less mobility than a simple sling.
  • Used for: Fractures about the shoulder girdle (clavicle, humeral neck), reduced shoulder dislocations, AC joint separations, significant rotator cuff injuries
  • Advantage over sling-and-swathe: Can be removed by the patient for showering and range-of-motion exercises, and easily reapplied. Pad the axilla if worn for more than a few days to prevent skin chafing and moisture buildup.
Source: Tintinalli's Emergency Medicine, p.1818

4. Velpeau Bandage (Rarely Used)

  • The forearm is positioned diagonally across the chest with the hand elevated to shoulder level
  • Offers no particular advantage over a standard sling-and-swathe, is difficult to apply, cannot be removed easily, and is poorly tolerated
  • Generally abandoned in modern practice in favour of the commercial shoulder immobilizer

5. Figure-of-Eight Clavicle Strap (Historical - Not Recommended)

  • Wraps in a figure-of-eight pattern around both shoulders
  • Once used for clavicle fractures, but studies show it is no better than a simple sling for functional outcome or cosmesis
  • Causes axillary chafing, may compress the brachial plexus, and can promote nonunion
  • No longer recommended - a simple sling or shoulder immobilizer is preferred

Summary: Which Sling for Which Injury?

InjuryRecommended Immobilization
Mild rotator cuff strain / muscle contusionSimple arm sling (2-3 weeks)
Significant rotator cuff tearShoulder immobilizer or sling-and-swathe
AC joint separation (Grade I-II)Shoulder immobilizer or sling-and-swathe
Post-reduction shoulder dislocationShoulder immobilizer (arm adducted, internally rotated)
Clavicle fractureSimple arm sling or shoulder immobilizer
Proximal humerus fracture (undisplaced)Sling-and-swathe or shoulder immobilizer
Glenohumeral ligament sprainSimple arm sling (short term, early mobilization)

Phase 2 - Rehabilitation (2-6 weeks)

Once acute pain settles (usually after 3-7 days):
  • Pendulum (Codman) exercises: Passive dangling of the arm to prevent stiffness
  • Passive range-of-motion: Forward flexion, abduction - guided by physiotherapist
  • Active-assisted exercises: Using the uninjured arm or a pulley system
  • Scapular stabilization exercises: Trapezius and serratus anterior strengthening

Phase 3 - Strengthening (6-12 weeks)

  • Rotator cuff strengthening with resistance bands (internal/external rotation)
  • Deltoid and periscapular muscle strengthening
  • Proprioception training and sport-specific rehabilitation

When Surgery is Needed

  • Full-thickness rotator cuff tears in young/active patients
  • AC joint separation Grade III-V (controversial, often operative in young athletes)
  • Recurrent shoulder dislocations (Bankart repair, Latarjet procedure)
  • Massive irreparable rotator cuff tears - reverse total shoulder arthroplasty may be considered
Clinical note: Duration of sling use matters - prolonged immobilization beyond 3-6 weeks without early mobilization increases the risk of adhesive capsulitis (frozen shoulder), especially in patients over 40. Early supervised physiotherapy is key.
Sources: Roberts and Hedges' Clinical Procedures in Emergency Medicine; Tintinalli's Emergency Medicine, 10th Ed.; Campbell's Operative Orthopaedics 15th Ed.; Firestein & Kelley's Textbook of Rheumatology
