Visual Pathway - Guyton & Hall
Diagram of the Visual Pathway
(Guyton & Hall Textbook of Medical Physiology, Fig. 52.1)
Tracing the Visual Pathway
The visual pathway carries information from the retina to the primary visual cortex. It has the following sequential components:
1. Photoreceptors (Rods & Cones) → Retinal Neurons
Light stimulates photoreceptors in the retina. Signals pass through bipolar cells → ganglion cells. Axons of the ganglion cells form the optic nerve.
2. Optic Nerve (CN II)
Leaves each eye through the optic disc and travels to the optic chiasm.
3. Optic Chiasm
- Fibers from the nasal (medial) half of each retina cross to the opposite side.
- Fibers from the temporal (lateral) half of each retina remain ipsilateral.
- Result: each optic tract carries information from the contralateral visual field of both eyes.
4. Optic Tract
Runs from the chiasm to the dorsal lateral geniculate nucleus (LGN) of the thalamus.
- Also sends collaterals to: suprachiasmatic nucleus (circadian rhythm), pretectal nuclei (pupillary reflex), superior colliculus (eye movement control).
5. Lateral Geniculate Nucleus (LGN) of Thalamus
A 6-layered structure. Layers II, III, V receive input from the ipsilateral temporal retina; layers I, IV, VI from the contralateral nasal retina. Signals are kept separate (one eye per layer) but spatially registered.
6. Optic Radiation (Geniculocalcarine Tract)
Two bundles:
- Upper fibers (carry lower visual field) - pass directly through parietal lobe to upper lip of calcarine fissure.
- Lower fibers / Meyer's loop (carry upper visual field) - loop anteriorly into temporal lobe before sweeping back to lower lip of calcarine fissure.
7. Primary Visual Cortex (V1 / Area 17)
Located in the calcarine fissure of the medial occipital lobe (Brodmann area 17). Contralateral visual field is represented here. The macula has a disproportionately large representation (macular sparing in occipital lesions).
From here, signals project to secondary visual areas (V2, V3, V4, V5 / MT) for processing of form, colour, and motion.
Lesions at Various Levels of the Visual Pathway
The following is a schematic summary:
LEFT EYE RIGHT EYE
[ L | R ] [ L | R ]
| | | |
| |___________________| Nasal fibers cross
| |
Optic Optic
nerve nerve
(1) (2)
\ /
Optic Chiasm (3)
/ \
Left Right
Optic tract Optic tract
| |
LGN LGN
| |
Optic radiation Optic radiation
(Meyer's loop) (Meyer's loop)
| |
Left Visual Right Visual
Cortex Cortex
| Site of Lesion | Visual Field Defect | Name |
|---|---|---|
| (1) One optic nerve | Total blindness in that eye only | Monocular blindness (amaurosis) |
| (2) Centre of optic chiasm (e.g. pituitary adenoma pressing from below) | Loss of both temporal (lateral) fields - both nasal retinal fibers are destroyed | Bitemporal hemianopia (heteronymous) |
| (3) Lateral chiasm (rare, e.g. carotid aneurysm) | Loss of nasal field of that same eye | Monocular nasal hemianopia |
| (4) Optic tract (post-chiasmal) | Loss of opposite visual field in both eyes | Contralateral homonymous hemianopia (incongruous - asymmetric) |
| (5) LGN / optic radiation - upper fibers (parietal lobe) | Inferior quadrantanopia contralateral | Contralateral inferior homonymous quadrantanopia ("pie on the floor") |
| (6) Meyer's loop (temporal lobe) | Superior quadrantanopia contralateral | Contralateral superior homonymous quadrantanopia ("pie in the sky") |
| (7) Occipital cortex / primary visual cortex | Contralateral homonymous hemianopia with macular sparing (because macula has dual blood supply and large cortical representation) | Homonymous hemianopia with macular sparing |
| (8) Bilateral occipital cortex | Total cortical blindness, but pupillary reflexes intact | Anton's syndrome (cortical blindness, patient may deny blindness) |
Key Points for 5-Mark Answer
- Optic nerve lesion - Ipsilateral monocular blindness. Pupillary light reflex lost (afferent defect - RAPD positive).
- Optic chiasm (central) lesion - Bitemporal hemianopia. Classic finding with pituitary adenomas or craniopharyngiomas compressing the chiasm from below.
- Optic tract lesion - Contralateral homonymous hemianopia (incongruous - the defects in the two eyes are not mirror images of each other because fibres are not perfectly organised at this level).
- Optic radiation lesions:
- Parietal lobe (upper fibers) → contralateral inferior quadrantanopia
- Temporal lobe / Meyer's loop (lower fibers) → contralateral superior quadrantanopia ("pie in the sky")
- Occipital cortex lesion - Contralateral homonymous hemianopia with macular sparing (posterior cerebral artery territory; the macula also receives middle cerebral artery supply, so it is spared). Pupillary reflexes are intact because the pupillary fibers leave the pathway at the LGN/pretectal level and do not reach the cortex.
A simple rule: Lesions at or behind the chiasm → Homonymous defects (same side of visual field lost in both eyes). Lesions before the chiasm → Monocular defects.
Source: Guyton and Hall Textbook of Medical Physiology, Chapter 52 - "The Eye: III. Central Neurophysiology of Vision"
Search for clinical MRI images showing optic chiasm compression and tract lesions
Finding Sources
Searching the Web
optic chiasm compression MRI clinical images pituitary adenoma
Reading File
Loading Image
Loading Image
Searching the Web
optic tract lesion MRI homonymous hemianopia clinical case radiology
Loading Image
Loading Image
Loading Image
I have all the images needed. Here is a well-organized clinical MRI gallery covering both optic chiasm compression and optic tract lesions:
Clinical MRI Images: Optic Chiasm Compression & Tract Lesions
1. Optic Chiasm Compression - Pituitary Adenoma (Coronal View)
Post-contrast T1 MRI, Coronal View - University of Iowa / EyeRounds.org
What to see: The large enhancing pituitary mass rises out of the sella turcica into the suprasellar space. The red arrow points to the compressed optic chiasm being displaced and stretched superiorly. This patient presented with bitemporal hemianopia and temporal optic disc pallor - the classic chiasmal compression syndrome.
2. Optic Chiasm Compression - Pituitary Adenoma (Axial View)
Post-contrast T1 MRI, Axial View - University of Iowa / EyeRounds.org
What to see: Axial cut at the level of the suprasellar cistern shows the enhancing pituitary adenoma directly abutting and compressing the optic chiasm anteriorly. The bilateral optic nerves can be traced converging into the compressed chiasm region.

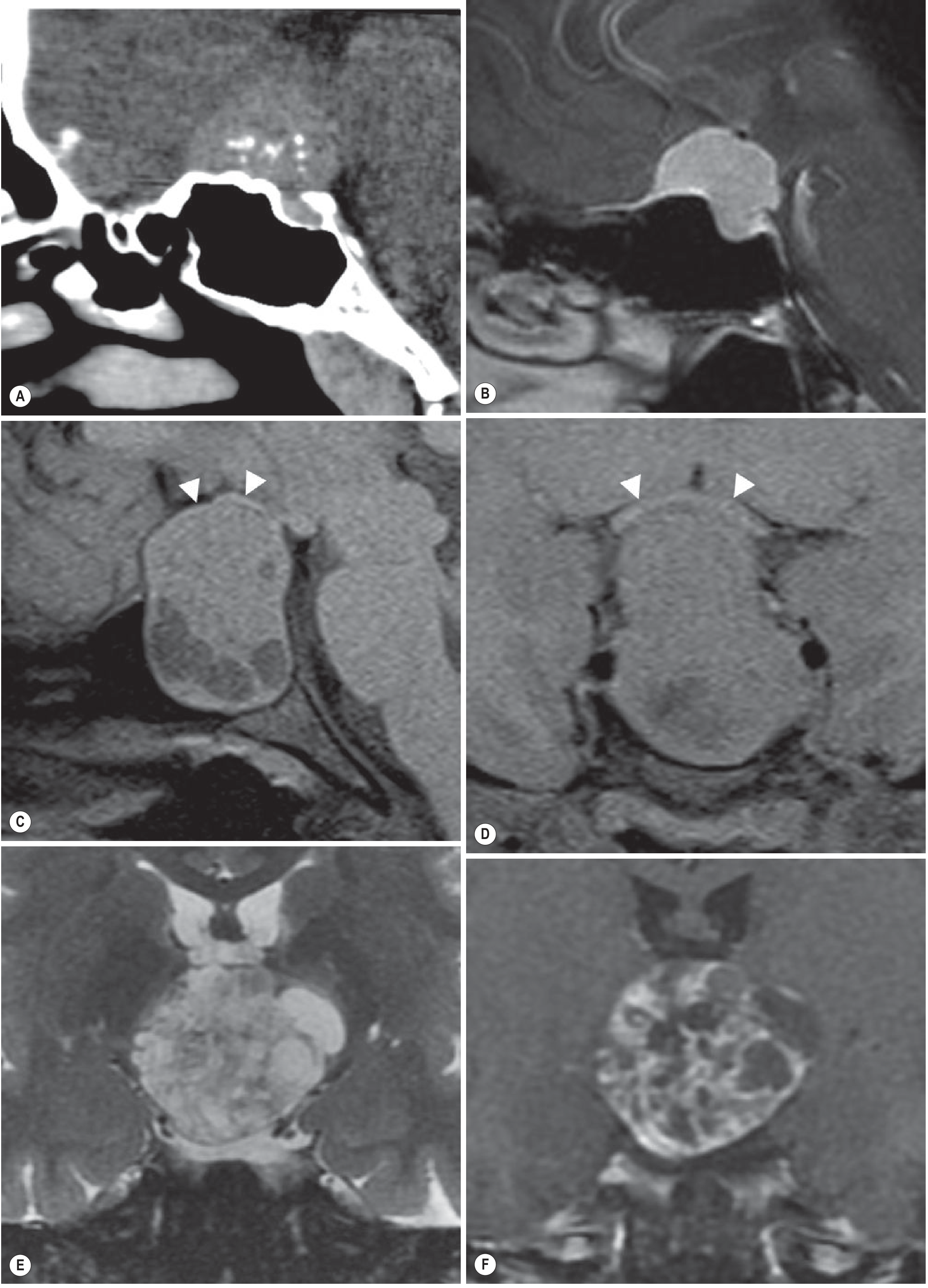

3. Compressive Tumours - Multi-Pathology Panel (Radiology Textbook)
From Grainger & Allison's Diagnostic Radiology (Fig. 60.44)
Panel breakdown (A-F):
| Panel | Modality | Pathology | Finding |
|---|---|---|---|
| A | Sagittal CT post-contrast | Planum sphenoidale meningioma | Calcific enhancing mass compressing chiasm from above |
| B | Sagittal T1 MRI | Same meningioma | Chiasm draped over tumour |
| C | Sagittal T1 MRI | Pituitary macroadenoma | White arrowheads = chiasm draped over suprasellar component (classic "snowman" or "figure of 8" sign) |
| D | Coronal T1 MRI | Pituitary macroadenoma | Coronal view - chiasm stretched over the mass (arrowheads) |
| E | Coronal T2 MRI | Craniopharyngioma | Large heterogeneous suprasellar mass compressing chiasm |
| F | Coronal T1 post-contrast | Same craniopharyngioma | Heterogeneous enhancement with cystic and solid components |
Clinical pearl: Craniopharyngiomas (from Rathke's pouch remnants) and pituitary macroadenomas are the two most common causes of chiasmal compression. Both cause bitemporal hemianopia due to damage to crossing nasal retinal fibers at the chiasm floor. - Grainger & Allison's Diagnostic Radiology
4. Optic Tract Lesion - Homonymous Hemianopia (Axial FLAIR MRI)
Axial FLAIR MRI showing optic tract lesion - Radiopaedia
What to see: Axial FLAIR image at the level of the basal ganglia and thalamus. The green arrow points to a hyperintense (bright) signal abnormality at the left optic tract. This produces right-sided contralateral homonymous hemianopia (incongruous, because fibers are not yet fully organized at this level). Key distinguishing feature: an RAPD (Relative Afferent Pupillary Defect) will be present contralateral to the lesion, since pupillary fibers still run in the optic tract at this level.
Summary: MRI Protocol & Key Imaging Points
| Level | Best MRI Sequence | What You Look For | Visual Defect |
|---|---|---|---|
| Optic nerve | T1 fat-sat post-contrast coronal | Enhancement, swelling of nerve | Monocular blindness + RAPD |
| Optic chiasm | T1 post-contrast coronal + sagittal | Mass lifting/draping chiasm, loss of chiasm signal | Bitemporal hemianopia |
| Optic tract | FLAIR axial + T1 post-contrast | Signal change lateral to hypothalamus | Incongruous contralateral homonymous hemianopia + RAPD |
| Optic radiation (temporal) | FLAIR axial | Signal in temporal white matter (Meyer's loop) | Superior "pie in the sky" quadrantanopia |
| Optic radiation (parietal) | FLAIR axial | Signal in posterior parietal white matter | Inferior "pie on the floor" quadrantanopia |
| Visual cortex | DWI + FLAIR | PCA territory infarct in occipital lobe | Homonymous hemianopia with macular sparing |
Gadolinium-enhanced coronal and sagittal T1 MRI is the gold standard for evaluating sellar and suprasellar lesions compressing the optic chiasm. Diffusion-weighted imaging (DWI) is the most sensitive sequence for detecting acute infarcts affecting the optic radiations and visual cortex. - StatPearls on Hemianopsia
