Dynamic Elbow Orthosis (DEO)

Definition

Classification of Elbow Orthoses

Mechanism of Action

• Gradual elongation of shortened capsule, ligament, and scar tissue
• Collagen fiber reorientation along lines of stress
• Reduction of fibrotic contracture without exceeding tissue injury thresholds

Indications

Orthopedic / Trauma

• Elbow contractures (flexion or extension) following fractures, dislocations, or prolonged immobilization
• Post-operative rehabilitation (ligament reconstruction, arthroplasty, radial head repair, olecranon fractures)
• Burns causing elbow joint stiffness
• Hemophilic arthropathy with restricted ROM

Neurological

• Cubital tunnel syndrome - extension night splint worn at 45 degrees reduces ulnar nerve stretch during sleep (Campbell's Operative Orthopaedics, 15th ed.)
• Stroke/TBI/SCI with elbow flexor spasticity - assists extension against spastic tone
• Cerebral palsy with elbow flexion pattern

Lateral epicondylitis

• An elbow strap (counterforce brace) is used for lateral epicondylitis; long-arm splinting at 45 degrees of flexion for cubital tunnel syndrome (Miller's Review of Orthopaedics, p. 887)

General criterion

• Pre-splinting ROM typically around 60-72 degrees; studies show average gains of 36-37 degrees, bringing post-splinting arc to ~100-108 degrees (Aetna Clinical Policy)

Design Features

• Hinged medial and lateral uprights anchored to cuffs above (humerus) and below (forearm) the joint
• Spring or tension mechanism at the hinge axis providing the stretch force
• Adjustable tension dial or spring selection to titrate load
• Blocks for varus/valgus stability (especially post-ligament reconstruction)
• Optional ROM stops to limit arc during healing phases
• Worn passively (at rest, during sleep) rather than during active use

Clinical Phases of Use

Dynamic vs. Static-Progressive: Which to Choose?

• Static-progressive group: pre-splinting ROM 72 degrees → improved by 36 degrees
• Dynamic group (72 patients): pre-splinting ROM 63 degrees → improved by 37 degrees
• Choice depends on surgeon/patient preference; dynamic orthoses may cause more discomfort due to continuous tension (Cavalcanti et al., Acta Ortop Bras 2022 - PMID 36451794)

Compared to Plaster Splinting

• Significantly better grip strength
• Better Oxford Elbow Scores
• Comparable pain reduction at 6, 12, and 24 weeks
• Advantage: earlier mobility, better circulation, and avoidance of joint stiffness

Contraindications / Precautions

• Severe spasticity or contracture (> ~30-40 degrees fixed) making device fitment difficult
• Acute infection or open wounds at the orthosis contact sites
• Unstable fractures not yet surgically stabilized
• Skin conditions precluding prolonged contact (pressure injury risk)
• Non-compliance (device must be worn consistently for efficacy)

Key Points Summary

1. Dynamic spring-loaded orthoses are the preferred non-surgical treatment for elbow flexion and extension contractures (Miller's Review of Orthopaedics, 9th ed.)
2. They work by LLPS - collagen creep and stress-relaxation over weeks to months
3. Gains are mostly achieved in the first 6 months, but improvement can continue beyond that
4. Static-progressive and dynamic orthoses yield similar ROM outcomes; dynamic devices may be less comfortable
5. They are also used to assist weak elbow flexors or extensors in neurological patients (stroke, SCI)
6. Articulated designs additionally provide mediolateral stability to protect repaired ligaments while permitting flexion-extension

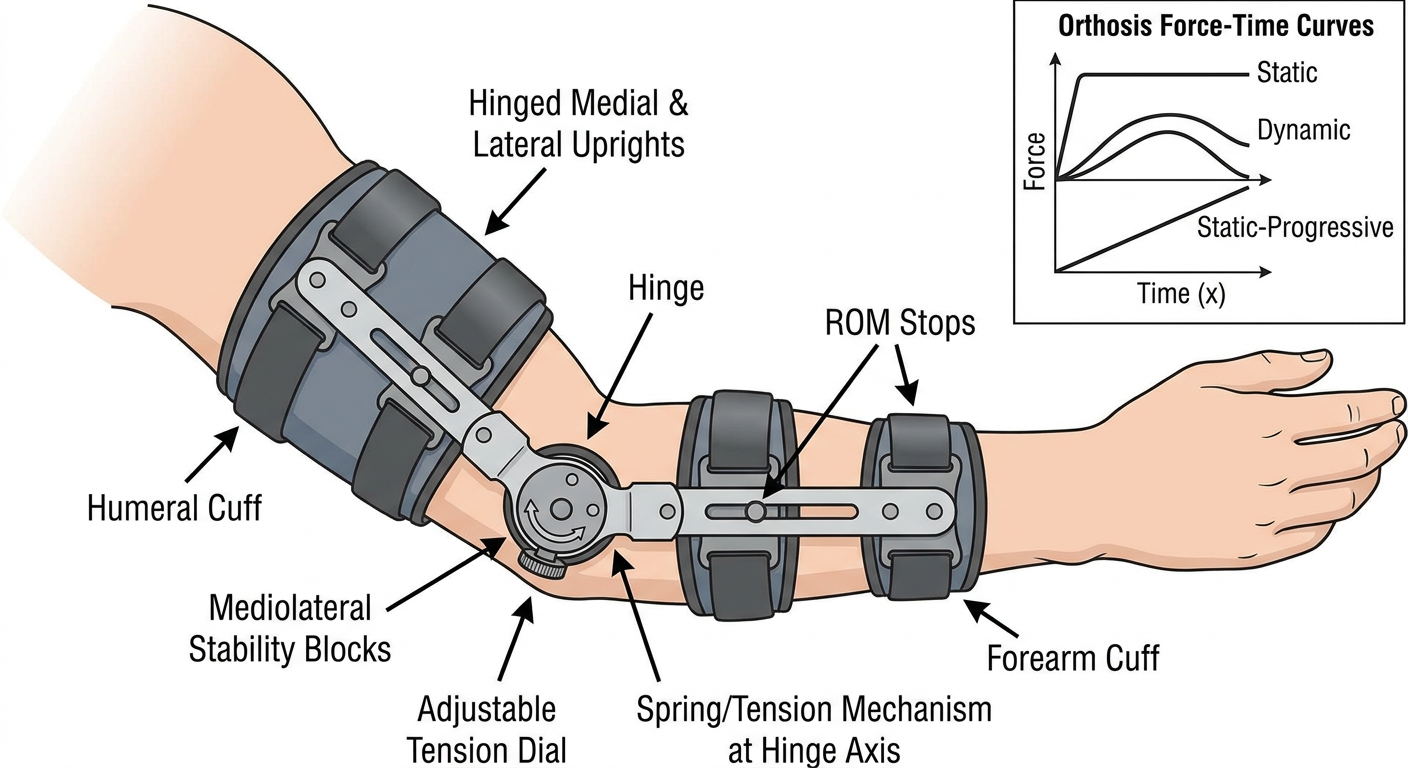

• Humeral cuff - anchors the device to the upper arm
• Forearm cuff - anchors to the forearm/wrist segment
• Hinged uprights (medial and lateral) - run along both sides of the elbow, providing mediolateral stability
• Spring/tension mechanism at the hinge axis - delivers the constant low-load prolonged stretch (LLPS)
• Adjustable tension dial - allows titration of stretch force to patient tolerance
• ROM stops - limit the arc of motion during healing phases
• The inset force-time curves show how a dynamic orthosis maintains constant stretch load, compared to static (single fixed position) and static-progressive (stepwise increments)

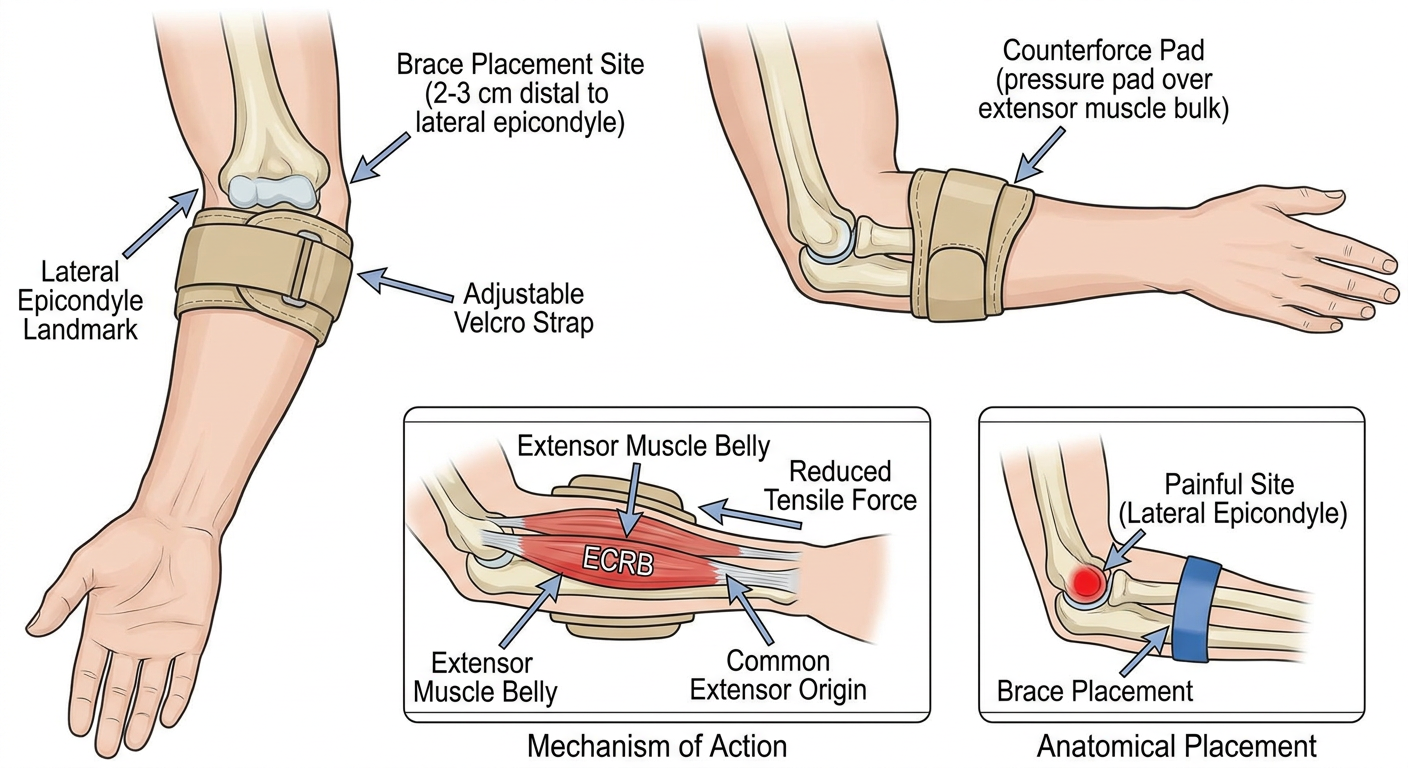

• Worn 2-3 cm distal to the lateral epicondyle - this is critical; placing it directly over the epicondyle defeats the purpose
• Sits over the extensor muscle belly, not over bone

• Counterforce pad - a firm pressure pad that compresses the extensor muscle bulk
• Adjustable Velcro strap - circumferential strap, tightened snugly but not to the point of neurovascular compromise

• The brace compresses the extensor muscle belly (primarily ECRB - extensor carpi radialis brevis), which creates a new "origin point" for the muscle
• This reduces the tensile force and stress transmitted proximally to the common extensor origin at the lateral epicondyle - the site of the tendinopathy
• By offloading the degenerated tendon attachment, pain is reduced during gripping and wrist extension activities

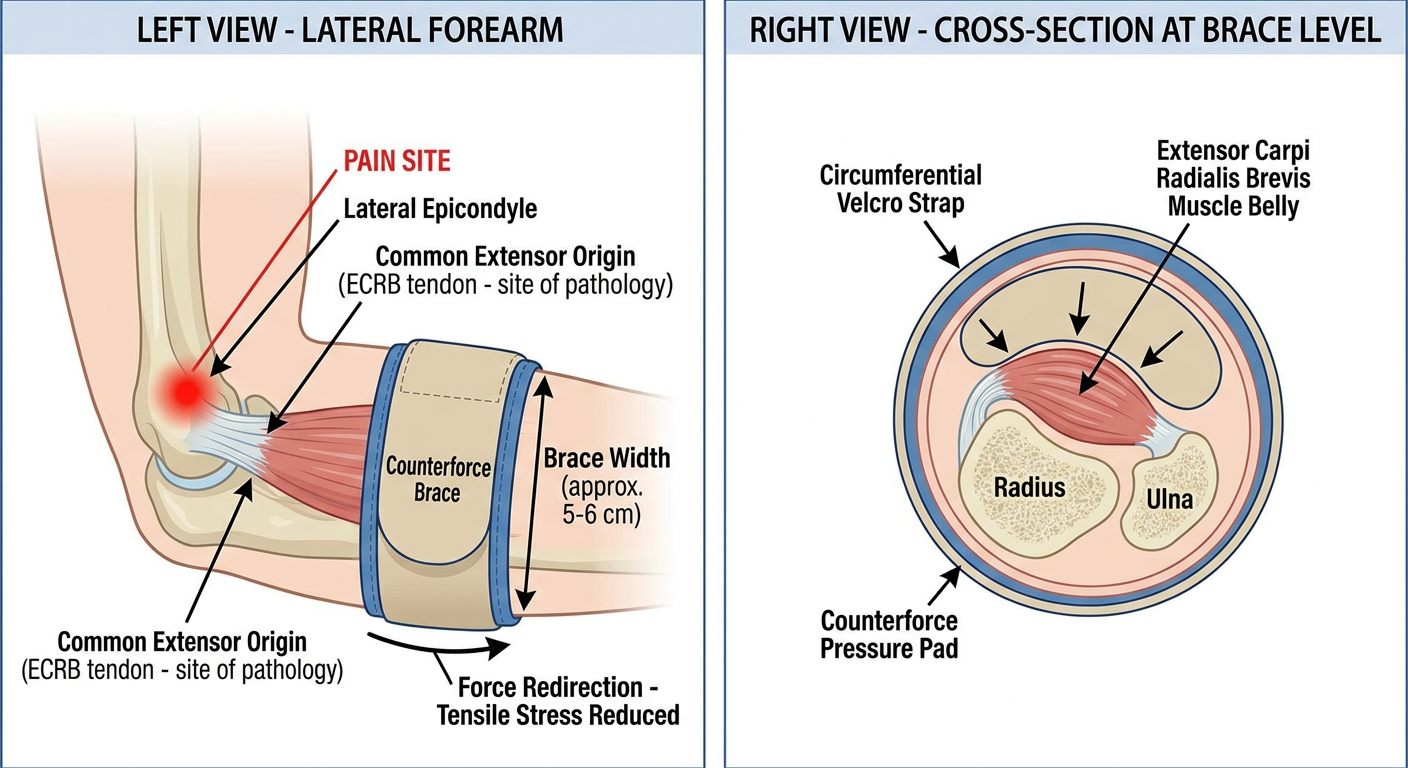

• Red dot marks the lateral epicondyle - the actual pain site
• Brace sits 2-3 cm distal to the epicondyle, over the proximal forearm
• The counterforce pad lies directly over the ECRB muscle belly

• Shows how the pad applies focal compression to the extensor muscle compartment
• The strap distributes circumferential pressure while the pad concentrates force over the extensors

• Compression of the ECRB muscle belly creates a functional new origin distal to the pathological tendon
• Reduces tensile load at the common extensor origin on the lateral epicondyle by up to 30-50%
• Worn during activity (sport, gripping tasks), removed at rest
