📋 SPOTTING EXAM VISUAL GUIDE
1. Types of Squint (Strabismus)
| Type | Direction | Key Fact |
|---|---|---|
| Esotropia | Inward (convergent) | Most common in children |
| Exotropia | Outward (divergent) | Often intermittent |
| Hypertropia | Upward deviation | May indicate CN IV palsy |
| Hypotropia | Downward deviation | Opposite eye has hypertropia |
| Paralytic | Varies by muscle/nerve | Diplopia present |
2. Chaddock's Sign
- Stimulus: Stroke the lateral malleolus / outer dorsum of foot (sub-malleolar area)
- Positive response: Extension (dorsiflexion) of the big toe - same as Babinski
- Significance: UMN lesion / pyramidal tract damage
- Use: When patient withdraws from plantar stimulation (Babinski cannot be elicited)
3. Atrial Fibrillation ECG
- No P waves (replaced by fibrillatory "f" waves)
- Irregularly irregular RR intervals
- Narrow QRS (unless aberrant conduction)
- Ventricular rate: 100-180 bpm (uncontrolled)

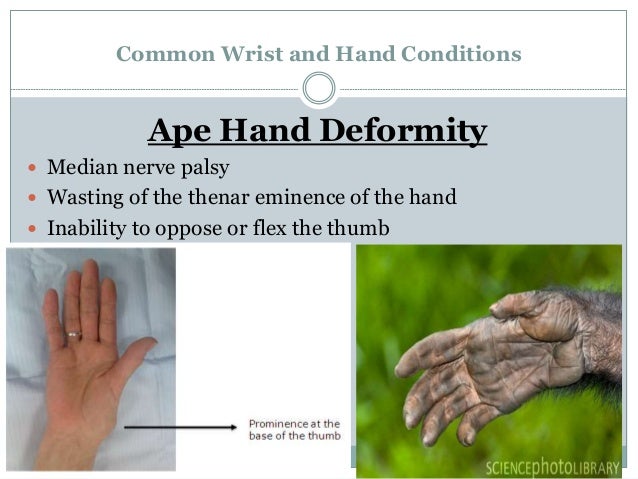

4. Ape Hand Deformity (Median Nerve Palsy)
- Cause: Median nerve lesion (proximal)
- Appearance: Thumb adducted, flattened thenar eminence, loss of opposition
- Hand of benediction: When patient tries to make a fist (proximal lesion)
- Median claw: Distal lesion - index/middle fingers cannot flex
- Sensory loss: Lateral 3.5 fingers (palmar), radial 2.5 fingers (dorsal)
- Test: Pen test / Bottle sign for functional assessment
5. Scoliometer + Adam's Forward Bend Test
- Position: Patient bends forward 90°, arms hanging, feet together, knees straight
- Scoliometer placed over the spinous processes at the apex of the curve
- Positive: Rib hump / trunk rotation visible; scoliometer reads >5-7° ATR (Angle of Trunk Rotation)
- Referral threshold: ATR ≥ 7° warrants X-ray
6. 90-90 Straight Leg Raise (SLR) Test
- Position: Hip and knee both flexed to 90°, then patient actively extends the knee
- Positive: Unable to reach within 20° of full extension
- Indicates: Hamstring tightness
- Used in: Scoliosis assessment, sports medicine, school screening
- Normal: Popliteal angle < 20° (near full extension achieved)
7. Serratus Anterior MMT
- Wall push-up: Patient pushes against wall - winging of scapula = grade 3 or less
- MMT grades:
- Grade 5/4: Shoulder flexion against resistance in supine (arm at 90°)
- Grade 3: Shoulder flexion against gravity (winging visible)
- Grade 2-1: Arm elevation in side-lying
- Nerve: Long thoracic nerve (C5, C6, C7)
- Sign of weakness: Medial border of scapula lifts off chest wall (winging)
8. Grover's Sign
- Test for: Sacroiliac joint dysfunction / SIJ pathology
- How performed: Patient supine. Examiner pushes both ASIS downward and outward (distraction) OR compresses them inward (compression)
- Positive: Pain reproduced in the SIJ area
- Part of: FABER, Gaenslen's, Posterior Shear test battery for SIJ
Note: Some sources also refer to Grover's sign in a dermatological context (Grover's disease - transient acantholytic dermatosis). In physiotherapy/orthopedic context, it refers to SIJ provocation.
9. RA Deformities (Rheumatoid Arthritis)
| Deformity | Description | Mechanism |
|---|---|---|
| Swan neck | PIP hyperextension + DIP flexion | Intrinsic tightness |
| Boutonniere | PIP flexion + DIP hyperextension | Central slip rupture |
| Z-thumb | IP hyperextension + MCP flexion | Tendon imbalance |
| Ulnar drift | MCP deviation ulnarward | Joint destruction |
| Caput ulnae | Prominent ulnar styloid | Wrist subluxation |
| Piano key sign | Springing ulnar head | Ligament laxity |
10. Pathological Gait
| Gait | Cause | Appearance |
|---|---|---|
| Hemiplegic (Circumduction) | UMN lesion/stroke | Stiff leg swings out in arc |
| Scissor gait | Spastic diplegia/CP | Knees cross each other |
| Steppage gait | Foot drop (peroneal nerve) | High stepping, foot slaps |
| Trendelenburg gait | Weak gluteus medius | Hip drops on swing side |
| Antalgic gait | Pain | Short stance phase on painful limb |
| Ataxic gait | Cerebellar lesion | Wide-based, staggering |
| Parkinsonian gait | Parkinson's disease | Shuffling, festination, reduced arm swing |
| High-stepping | Dorsiflexor weakness | Exaggerated knee lift |
11. Pathological Reflexes
| Reflex | Stimulus | Response | Significance |
|---|---|---|---|
| Babinski | Stroke lateral sole | Extensor hallucis - big toe up | UMN lesion |
| Chaddock | Stroke sub-malleolar area | Big toe extension | UMN lesion |
| Oppenheim | Scrape along tibia | Big toe extension | UMN lesion |
| Gordon | Squeeze calf | Big toe extension | UMN lesion |
| Hoffmann | Flick middle fingernail | Thumb + index flex | UMN (cervical) |
| Grasp reflex | Stroke palm | Hand grasps | Frontal lobe lesion |
| Palmomental | Stroke thenar eminence | Chin muscle contracts | Frontal lobe lesion |
| Snout reflex | Tap upper lip | Puckering | Diffuse brain disease |
12. LSST - Lower Limb Selective Strength Test / Lumbar Spine Special Tests
| Test | Technique | Positive Finding |
|---|---|---|
| SLR (Lasegue) | Passive hip flexion with knee straight | Radicular pain < 70° = L4/L5/S1 root |
| Crossed SLR | SLR on opposite limb causes ipsilateral pain | Disc prolapse |
| Slump test | Slumped sitting + neck flexion + knee extension | Neural tension/dural irritation |
| Femoral nerve stretch | Prone, knee flexed | Anterior thigh pain = L2/L3/L4 |
| FABER | Figure-4 position | Hip/SIJ pain = pathology there |
13. NCV - R-Wave Graph (Normal Nerve Conduction)
/\
/ \
/ \___
______/ \___
|---latency---|
|--amplitude--|
- R-wave (initial positive deflection) followed by a large negative peak
- Latency: Time from stimulus to onset of response (ms)
- Amplitude: Height of the waveform (mV)
- Duration: Width of the waveform
- Conduction velocity = Distance / (proximal latency - distal latency)
14. NCV - Condition-Wise Patterns
| Condition | Latency | Amplitude | Velocity | Pattern |
|---|---|---|---|---|
| Normal | Normal | Normal | >40 m/s motor; >45 sensory | Normal |
| Axonal neuropathy | Normal/↑ | ↓↓ (reduced) | Normal or slightly ↓ | Low amplitude, preserved velocity |
| Demyelinating neuropathy (e.g., GBS, CIDP) | ↑↑ | Normal/↓ | ↓↓ (<38 m/s) | Prolonged latency, slow velocity |
| Carpal Tunnel Syndrome | ↑ (median nerve) | ↓ | ↓ (focal) | Focal demyelination at wrist |
| Complete nerve transaction | No response | No response | None | Absent CMAP/SNAP |
| Neuropraxia | Normal/↑ | ↓ | ↓ focal | Focal conduction block |
15. Orthosis
| Type | Region | Example | Purpose |
|---|---|---|---|
| AFO (Ankle-Foot Orthosis) | Ankle/foot | Posterior leaf spring | Foot drop, spasticity |
| KAFO (Knee-Ankle-Foot) | Knee to foot | Long leg brace | Polio, paraplegia |
| HKAFO | Hip to foot | Reciprocating gait orthosis | High SCI |
| Cervical orthosis | Neck | Philadelphia collar, Halo vest | Fractures, instability |
| TLSO | Thoracolumbar | Boston brace, TLSO jacket | Scoliosis, fractures |
| Cock-up splint | Wrist | Radial nerve palsy orthosis | Wrist drop |
| WHO (Wrist-Hand) | Wrist/hand | Resting hand splint | RA, burns |
| Thomas heel | Foot | Modified shoe | Pes planus |
16. Prosthesis
| Level of Amputation | Prosthesis Type | Key Components |
|---|---|---|
| Trans-tibial (BK) | Below-knee prosthesis | Socket, pylon, SACH foot |
| Trans-femoral (AK) | Above-knee prosthesis | Socket, knee unit, foot |
| Syme's | At ankle joint | Syme socket + foot |
| Trans-radial | Below-elbow | Body-powered or myoelectric hook/hand |
| Trans-humeral | Above-elbow | Elbow unit + terminal device |
| Shoulder disarticulation | Full arm | Chest harness, shoulder joint |
- SACH (Solid Ankle Cushioned Heel) - most common, non-energy storing
- Dynamic response foot - energy storing (carbon fiber)
- Multi-axial foot - allows inversion/eversion
- Single axis, Polycentric (4-bar), Hydraulic, Pneumatic, Microprocessor knee
Quick Tip for Spotting: For each item, note the structure being tested/shown, the nerve or joint involved, and the clinical significance. In NCV questions, look at the waveform shape - low amplitude = axonal, prolonged latency = demyelinating.All 16 topics are covered. Here's a summary of what's in the guide:
| # | Topic | Images Available |
|---|---|---|
| 1 | Types of Squint | ✅ Diagram |
| 2 | Chaddock's Sign | ✅ Clinical photo |
| 3 | AF ECG | ✅ Comparison + 12-lead |
| 4 | Ape Hand | ✅ AMBOSS illustration |
| 5 | Scoliometer | ✅ Adam's test + scoliometer |
| 6 | 90-90 SLR | ✅ Clinical image |
| 7 | Serratus Anterior MMT | Grades table |
| 8 | Grover's Sign | Description + context |
| 9 | RA Deformity | Table (Swan neck, Boutonniere, etc.) |
| 10 | Pathological Gait | Comparison table |
| 11 | Pathological Reflex | All major UMN reflexes |
| 12 | LSST | Lumbar spine special test battery |
| 13 | NCV R-wave graph | ASCII waveform + parameters |
| 14 | NCV condition-wise | Axonal vs Demyelinating table |
| 15 | Orthosis | AFO, KAFO, TLSO, splints |
| 16 | Prosthesis | BK, AK, upper limb + components |
