Flow-Volume Loop: Normal vs. Obstructive vs. Restrictive
What Is a Flow-Volume Loop?
A flow-volume loop (FVL) is a graphical plot of airflow (y-axis, L/s) against lung volume (x-axis, L) during a maximal forced expiration followed immediately by a maximal forced inspiration. The upper half of the loop = expiration, the lower half = inspiration.
Key landmarks on a normal loop:
- Peak expiratory flow (PEF) - the sharp early peak, reflects large airway patency; it is effort-dependent
- FEF25-75% (mid-expiratory flows, V50/V25) - the descending limb after the peak; this is effort-independent and reflects small airway/peripheral airway function
- FVC - total width of the loop along the volume axis
- RV - residual volume at the end of expiration (the loop's rightmost point)
- Inspiratory limb - smooth, symmetric, roughly semicircular

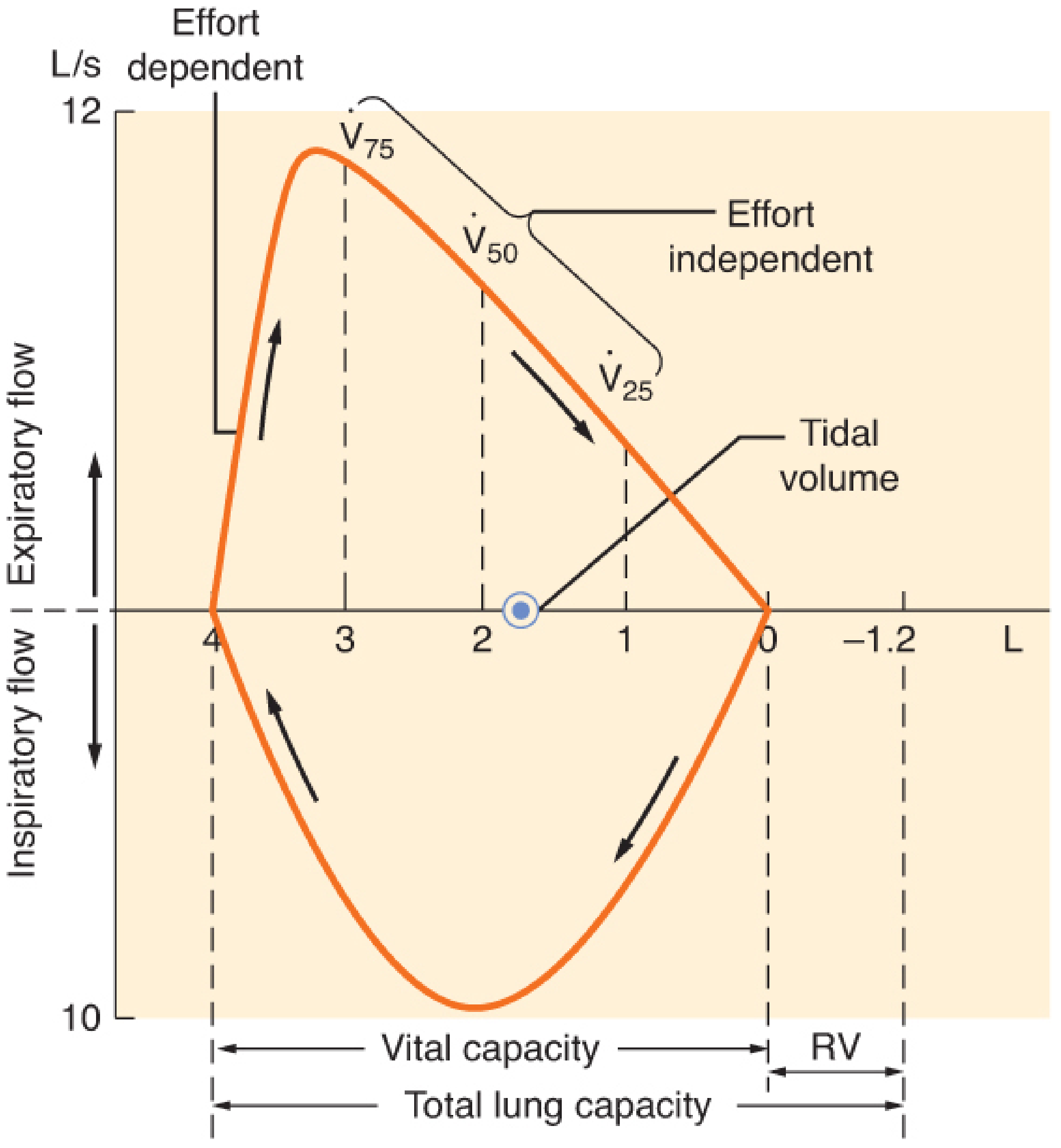

Normal FVL - Barash, Cullen, and Stoelting's Clinical Anesthesia, 9e
Side-by-Side Comparison
Flow-volume loops compared across disease states - Barash, Cullen, and Stoelting's Clinical Anesthesia, 9e
Normal Pattern
| Feature | Normal |
|---|---|
| Shape | Wide, triangular expiratory limb; smooth symmetric inspiratory arc |
| Peak expiratory flow | Normal (effort-dependent) |
| Expiratory descending limb | Straight to mildly convex (bowing outward) |
| FVC | Normal |
| FEV1/FVC | ≥ 0.70 (≥ 70%) |
| TLC | Normal |
| RV | Normal |
Obstructive Pattern (COPD, Asthma, Emphysema, Bronchiectasis)
The hallmark is increased airway resistance - air cannot leave quickly.
Shape on the FVL:
- "Scooped" or "coved" expiratory limb - the descending portion bows inward (concave upward) instead of being straight. This is the most recognizable feature.
- Reduced peak expiratory flow - the early peak is blunted
- FEF25-75% markedly reduced - the effort-independent portion reflects small airway obstruction
- Loop is shifted to the LEFT (toward higher lung volumes) - because TLC increases due to air trapping, and RV is elevated
- Wider loop on the volume axis - the loop extends further left because RV is increased (hyperinflation)
- Inspiratory limb is relatively preserved (unless severe)
Spirometry numbers:
| Value | Direction |
|---|---|
| FEV1 | ↓↓ |
| FVC | ↓ or normal |
| FEV1/FVC | ↓ (< 0.70) - defining criterion |
| TLC | ↑ (hyperinflation) |
| RV | ↑↑ (air trapping) |
| FEF25-75% | ↓↓ |
Why the scoop? In obstructive disease, dynamic airway collapse during forced expiration causes premature small airway closure. At lower lung volumes (reduced elastic recoil + narrowed airways), flow drops off faster than normal, pulling the curve inward.
Restrictive Pattern (Pulmonary Fibrosis, Scoliosis, Neuromuscular Disease, Pleural Disease)
The hallmark is reduced lung volumes - the lungs cannot fully expand, but the airways themselves are normal.
Shape on the FVL:
- Smaller overall loop - the entire loop is narrow and shifted to the RIGHT (toward lower volumes)
- Shape is preserved - the expiratory limb remains straight/convex (no scooping), because airway resistance is normal
- Reduced peak expiratory flow - but proportional to the reduced lung volumes
- Normal-looking curve, just miniaturized
Spirometry numbers:
| Value | Direction |
|---|---|
| FEV1 | ↓ |
| FVC | ↓↓ |
| FEV1/FVC | Normal or ↑ (> 0.70-0.80) - airway resistance intact |
| TLC | ↓ - confirming criterion |
| RV | ↓ or normal |
| FEF25-75% | Normal or proportionally reduced |
Why preserved shape? Because the airways are patent and resistance is normal. The lungs simply cannot fill or empty as much total volume. The shape of the flow-rate curve relative to its volume is normal; there is just less volume to work with.
Key Distinguishing Summary
| Feature | Normal | Obstructive | Restrictive |
|---|---|---|---|
| Expiratory limb shape | Straight/convex out | Scooped inward (concave) | Straight/convex - preserved shape |
| Loop size | Normal | Wide/large (air trapping) | Small/narrow |
| Loop position | Central | Shifted left (high volumes) | Shifted right (low volumes) |
| FEV1/FVC | ≥ 0.70 | < 0.70 | Normal or high |
| TLC | Normal | ↑ | ↓ |
| RV | Normal | ↑↑ | ↓ or normal |
| Inspiratory limb | Normal arc | Relatively preserved | Smaller arc, normal shape |
A Note on Mixed Disease
Some patients have both obstructive and restrictive components simultaneously (e.g., COPD + obesity or COPD + fibrosis). The FVL in those cases shows a scooped expiratory limb (obstructive signature) combined with reduced total loop size. TLC measurement is necessary to confirm restriction when FEV1/FVC is already low.
Bonus: Upper Airway Obstruction Patterns
The FVL is especially useful for detecting large airway (tracheal) problems:
- Fixed obstruction (e.g., tracheal stenosis): Both expiratory AND inspiratory limbs are flat - a box-shaped loop
- Variable extrathoracic obstruction (e.g., vocal cord paralysis): Only the inspiratory limb is flattened
- Variable intrathoracic obstruction (e.g., tracheomalacia): Only the expiratory limb is flattened
Sources: Barash, Cullen, and Stoelting's Clinical Anesthesia, 9e; Murray & Nadel's Textbook of Respiratory Medicine; Fishman's Pulmonary Diseases and Disorders
