Pleth Waveform - Complete Interpretation Guide

Looking at your monitors (Allengers BRIO units), the purple/pink sinusoidal wave at the bottom is the SpO2 pleth, and the teal wave below it is the RESP (capnography/respiration) waveform. The second monitor shows a beautifully regular, tall pleth - a healthy-looking waveform.

What is the Pleth Waveform?

The photoplethysmographic (PPG) waveform - displayed as "pleth" or "SpO2" on monitors - is generated by the pulse oximeter's infrared sensor detecting pulsatile changes in blood volume in peripheral tissue with each heartbeat. It is an amplified, filtered representation of the pulsatile component of that light absorption over time.

It tells you three things:

Signal quality / reliability of SpO2 reading
Cardiovascular and perfusion status
Respiratory-cardiac interactions (in intubated/ventilated patients)

Anatomy of a Single Normal Pleth Wave

     Peak (systole)
      ___
     /   \
    /     \  <- Dicrotic notch (aortic valve closure)
   /       \_/\
  /              \___  <- Diastolic trough (baseline)
 /
Anacrotic limb (steep upstroke)

Component	What It Represents
Anacrotic limb	Steep upstroke during ventricular systole - rapid ejection of blood
Systolic peak	Maximum pulsatile amplitude
Dicrotic notch	Aortic valve closure, onset of diastole
Catacrotic limb	Descending slope during diastolic runoff
Diastolic trough	Baseline, end of cardiac cycle

Types of Pleth Waveforms

1. Normal Pleth

Appearance: Regular, consistent amplitude; tall, well-defined peaks; visible dicrotic notch; one wave per heartbeat
What it means: Good perfusion at probe site, reliable SpO2 reading
Clinical correlation: Normal cardiac output, adequate vascular tone, well-perfused extremity

2. Low-Amplitude / Dampened Pleth

Appearance: Small, flat, or barely visible waves
Causes:
- Peripheral vasoconstriction (cold, shock, vasopressors)
- Hypovolemia
- Poor probe placement or motion artifact
- Hypothermia
Clinical significance: SpO2 reading is UNRELIABLE when waveform is dampened - treat the reading with caution

3. Respiratory Variation (Respiratory Swing / delta-POP)

Appearance: Waveform amplitude oscillates up and down with the respiratory cycle
What it means: Classic sign of hypovolemia / preload responsiveness in mechanically ventilated patients
Threshold: >13% amplitude variation (delta-POP or PVI >14%) suggests the patient will respond to fluid bolus
Seen on your monitor as subtle waxing-waning of wave height in the SpO2 channel
Caution: Only valid in sedated, passively ventilated patients (no spontaneous breathing)

4. Pulsus Paradoxus Pattern

Appearance: Waveform amplitude drops significantly (visually shrinks) during spontaneous inspiration
What it means: >10 mmHg drop in systolic BP during inspiration
Causes: Cardiac tamponade, severe asthma, tension pneumothorax, large pericardial effusion
Clinical use: A qualitative visual assessment of pulsus paradoxus is possible from the pleth alone, even without an arterial line

5. Pulsus Alternans Pattern

Appearance: Alternating tall-and-short waveforms in a beat-to-beat pattern
What it means: Alternating strong and weak cardiac contractions
Causes: Severe LV dysfunction / heart failure, post-cardioversion, severe hypertension
Clinical significance: Sign of critically impaired myocardial function

6. Irregular Pleth (Arrhythmia)

Appearance: Varying amplitude AND irregular intervals between waves
Causes: Atrial fibrillation (most common), frequent ectopics (PVCs), other arrhythmias
Clinical note: In AF, each wave has a different height because stroke volume varies beat-to-beat; SpO2 may still be accurate but will seem to flicker

7. Motion Artifact / Noisy Pleth

Appearance: Chaotic, irregular waves with no recognizable morphology; "noisy" baseline
Causes: Patient movement, shivering, poor probe contact, electrical interference
Action: Reposition probe, consider alternative site (ear lobe, forehead); SpO2 value is unreliable

8. Notched / Bifid Pleth

Appearance: Double peak or exaggerated dicrotic notch
Causes: Aortic regurgitation (wide pulse pressure), hyperdynamic circulation, sepsis (low SVR states)
Correlated to: "Bisferiens pulse" on arterial line tracing

Perfusion Index (PI) and Pleth Variability Index (PVI)

Many modern monitors (like yours) display a PI (Perfusion Index) alongside the waveform:

PI Value	Interpretation
<0.3%	Very poor perfusion - readings unreliable
0.3 - 1%	Low perfusion - treat SpO2 with caution
1 - 5%	Adequate perfusion
>5%	Excellent perfusion / hyperdynamic state

PVI (Pleth Variability Index): An automatic continuous calculation of respiratory variation in the pleth amplitude. On Masimo monitors, PVI >14% in a ventilated patient = likely fluid responsive.

Quick Bedside Interpretation Checklist

Check	Normal	Abnormal Action
One wave per heartbeat?	Yes	Consider arrhythmia
All waves same height?	Yes	Look for alternans / AF
Waveform tall and well-defined?	Yes	Reposition if flat/small
Respiratory swing present?	Minimal	>13% swing - assess fluid status
Dicrotic notch visible?	Yes (sometimes)	Not required, but loss may indicate vasoconstriction
PI displayed?	>1%	<0.3% - SpO2 unreliable

Regarding Your Monitor Images

Monitor 1 (HR 101, SpO2 100%, RR 12): The pleth waveform visible shows somewhat smaller amplitude waves - check PI/PERF value and ensure probe position is adequate.
Monitor 2 (HR 134, SpO2 100%, BP 106/69, RR 13, 40Y male): The pleth shows larger, more regular waves with visible respiratory variation. Note the PERF value shown is 2.32 - this is adequate. The teal RESP waveform below shows regular breathing cycles. The slight waxing-waning in the pleth at HR 134 with BP 106/69 is worth noting - assess fluid status if this is a post-operative or hemodynamically monitored patient.

Bottom line: The pleth is far more than just a signal quality indicator. It is a continuous, noninvasive window into cardiac output, perfusion, preload status, and arrhythmia - if you know how to read it.

Using images

Searching the Web

pleth waveform types images normal abnormal pulse oximetry clinical

Searching the Web

plethysmography waveform interpretation diagram anacrotic dicrotic notch types

Loading Image

Generating Image

Here is a complete visual guide to pleth waveform interpretation:

Pleth Waveform Interpretation - Visual Guide

1. Anatomy of a Single Pleth Wave

Anacrotic and Dicrotic Limbs of Arterial Pulse

Component	What It Represents
Anacrotic limb (upstroke)	Ventricular systole - rapid blood ejection into aorta
Systolic peak	Maximum pulsatile flow
Dicrotic notch	Aortic valve closure - onset of diastole
Dicrotic limb (downstroke)	Diastolic runoff into periphery
Diastolic trough	End of one cardiac cycle

The pleth waveform mirrors arterial pressure waveform morphology - just without absolute pressure values.

2. Labeled Normal Waveform with Cardiac Events

Arterial waveform with labeled components - SBP, DBP, dicrotic notch, aortic valve events

This shows how each component maps to cardiac physiology - directly applicable to reading the pleth on your Allengers monitor.

3. The 4 Core Pleth Types at the Bedside

Common pulsatile signals on a pulse oximeter - Normal, Low Perfusion, Noise Artifact, Motion Artifact

Type	Appearance	Meaning
Normal	Sharp, tall waves with clear dicrotic notch	Good perfusion, reliable SpO2
Low perfusion	Small, sine-wave-like, flattened	Vasoconstriction, hypovolemia, hypothermia
Noise artifact	Jagged, irregular baseline	Electrical interference, shivering
Motion artifact	Erratic, unpredictable spikes	Patient movement - SpO2 unreliable

4. Clinical Pleth Interpretation Table (Nursing/Clinical Reference)

Pleth appearance table - Normal, Flattened, Irregular, Variable size waveforms with causes and interventions

This table is exactly what you need at the bedside:

Regular, same size = Normal, continue monitoring
Flattened/non-pulsatile = Poor perfusion or poor probe contact - investigate and reposition
Irregular spacing/varying heights = Arrhythmia (AF, ectopics) - check ECG
Variable size AND shape = Movement or poor signal - limit movement, resite probe

5. Pulse Type Classification with Disease Correlation

Waveform types table - Normal, Small/weak, Large/bounding, Pulsus alternans, No dicrotic notch, Chaotic

Waveform Type	Physiological Cause	Possible Disease
Normal	Normal stroke volume + SVR	-
Small and weak	Decreased stroke volume / increased peripheral resistance	Heart failure, hypovolemia
Large and bounding	Increased stroke volume / decreased SVR	Fever, anaemia, aortic regurgitation, TBI
Pulsus alternans	Alternating stroke volumes beat-to-beat	LV failure
No dicrotic notch	Increased arterial resistance	Coronary heart disease, arteriosclerosis
Chaotic	Arrhythmia / motion artifact	VT, VF, AF, movement

6. Waveform Changes with Aortic Valve Pathology

Waveform changes with aortic valve pathology - Normal, Congenitally stenosed, Calcific stenosis, Insufficiency

Normal aortic valve: Clean dicrotic notch visible
Congenital/calcific aortic stenosis: Slurred upstroke, delayed peak (pulsus parvus et tardus), blunted or absent notch
Aortic insufficiency: Wide pulse pressure, absent notch, tall bounding wave

7. Overview - All Pleth Types in One Diagram

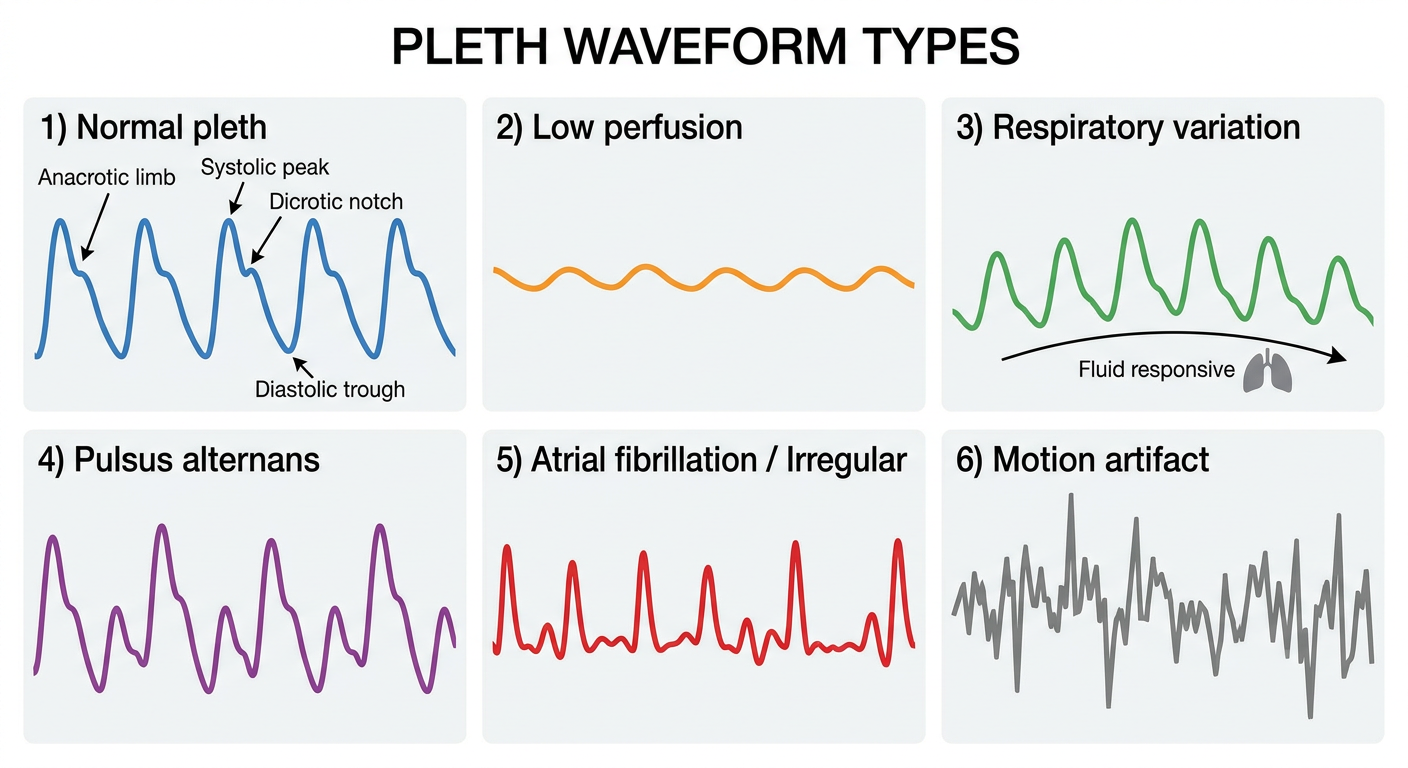

Custom pleth waveform types educational diagram

8. Advanced: Respiratory Variation in the Pleth (Ventilated Patients)

On your monitor, look at whether pleth wave height waxes and wanes with each ventilator breath:

Minimal variation (<13%) = Normal, adequate preload
Significant variation (>13-14%) = Fluid responsiveness - the patient will likely respond to IV fluids
This is called delta-POP (respiratory variation in plethysmographic waveform amplitude)
On Masimo monitors, this is automatically calculated as PVI (Pleth Variability Index)
Valid only in fully sedated, passively ventilated patients on controlled-mode ventilation

Quick Bedside Decision Chart

Pleth visible?
├── NO → Reposition probe, try earlobe/forehead
└── YES
    ├── Regular + same height?
    │   ├── YES → Normal. SpO2 reliable.
    │   └── NO
    │       ├── Alternating tall/short → Pulsus alternans (check cardiac function)
    │       ├── Varying height + irregular → AF or ectopics (check ECG)
    │       └── Waxing-waning with breathing → Assess fluid responsiveness
    └── Small/flat waves?
        ├── Check PI (Perfusion Index)
        ├── <0.3% → SpO2 unreliable
        └── Warm the limb, resite probe, consider shock/vasoconstriction

The pleth is never just a signal quality check - it is a continuous, noninvasive cardiac and haemodynamic monitor if you read it systematically.

Anachrotic and dicrotic notch

Finding Sources

Searching the Web

anacrotic limb dicrotic notch arterial pulse waveform physiology explanation

Loading Image

Reading File

Loading Image

Searching the Web

anacrotic notch aortic stenosis dicrotic notch absent clinical significance waveform

Excellent images gathered. Here is a thorough, image-supported explanation:

Anacrotic Limb & Dicrotic Notch - Deep Dive

The Two Limbs of the Arterial/Pleth Waveform

Anacrotic and Dicrotic limbs - systole and diastole

The word anacrotic comes from Greek ana (upward) + krotos (stroke) = "upward beat" The word dicrotic comes from Greek di (twice) + krotos (stroke) = "double beating"

Part 1: The ANACROTIC Limb (Upstroke)

Full labeled waveform - systolic upstroke, peak, dicrotic notch, diastolic runoff, end-diastolic pressure

The anacrotic limb is the steep upstroke of the waveform - everything from the baseline up to the systolic peak.

What causes it:

Aortic valve opens → LV ejects blood rapidly into the aorta
Pressure rises steeply as blood volume suddenly fills the aortic root
Continues rising until ejection rate slows (reduced ejection phase)
Reaches systolic peak pressure (SBP)

What the slope tells you:

Upstroke character	Meaning
Steep, sharp upstroke	Good LV contractility, normal SVR
Slow, gradual upstroke (pulsus tardus)	Obstruction to ejection = Aortic stenosis
Very steep + tall	High CO, low SVR (sepsis, fever, AR)

The Anacrotic NOTCH (shoulder on the upstroke)

Hypertensive waveform showing anacrotic notch + reflected wave

The anacrotic notch is a distinct shoulder or kink on the upstroke (before the peak). It is caused by early return of peripheral reflected waves superimposed on the forward wave during systole.

Seen in hypertension and elderly patients (stiff arteries, early wave reflection)
Specifically prominent in aortic stenosis - where it distorts the slurred upstroke
On the pleth: appears as a double hump or shoulder on the rising edge of each wave

Part 2: The DICROTIC Notch

Labeled waveform - SBP, DBP, dicrotic notch, aortic valve events

The dicrotic notch sits on the downstroke (dicrotic limb) and represents aortic valve closure.

Mechanism Step-by-Step:

LV pressure drops below aortic pressure
        ↓
Blood briefly reverses flow back toward the ventricle
        ↓
Aortic valve snaps SHUT
        ↓
Small transient pressure rise as the closed valve
  bounces blood back into the aorta
        ↓
This appears as the DICROTIC NOTCH on the waveform
        ↓
Followed by gradual diastolic runoff to periphery

Incisura vs. Dicrotic Notch - Important Distinction

Feature	Incisura	Dicrotic Notch
Location	Measured in the aorta	Measured in peripheral arteries
Cause	True aortic valve closure	Mixture of reflected waves + valve closure
Appearance	Sharp, deep cut into waveform	Softer, more rounded
On your pleth monitor	Not seen directly	This is what you see on SpO2 pleth

As you move from aorta → radial → fingertip, the sharp incisura becomes a rounder dicrotic notch, and gradually shifts lower and later on the downstroke.

Part 3: Age-Related Changes in Both Notches

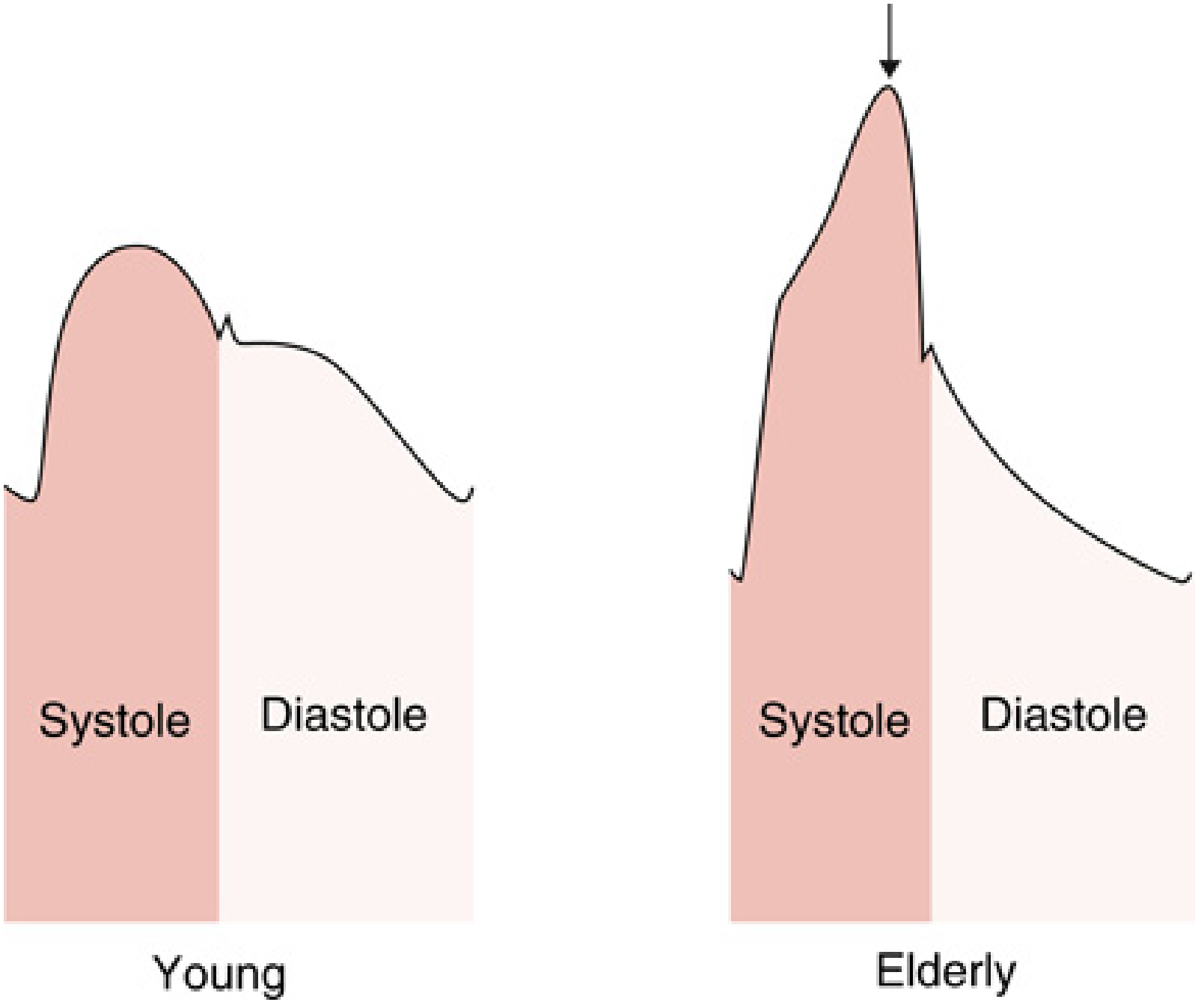

Young vs Elderly waveform - early vs late wave reflection, anacrotic notch

Young (compliant arteries)	Elderly (stiff arteries)
Reflected wave returns late in diastole	Reflected wave returns early in systole
Dicrotic notch visible and well-placed	Notch may be absent or blurred
Rounded systolic peak	Sharp, narrow systolic peak + anacrotic notch
Lower pulse pressure	Higher pulse pressure

Part 4: Clinical Significance - What Notch Changes Tell You

Dicrotic Notch Position

Notch position	Meaning
High on downstroke (early)	High SVR / vasoconstriction
Low on downstroke (delayed)	Low SVR / vasodilation, hypovolemia
Absent notch	Severe vasoconstriction, aortic stenosis, overdamped arterial line
Very prominent / accentuated	Low SVR states (sepsis), hyperdynamic circulation

Anacrotic Notch / Abnormal Upstroke - Disease States

Finding	Disease
Slow upstroke + anacrotic shoulder on upstroke	Aortic stenosis (pulsus parvus et tardus)
Double systolic peak (bisferiens)	Aortic regurgitation or HOCM
Spike-and-dome shape	Hypertrophic obstructive cardiomyopathy (HOCM)
Steep upstroke + absent notch + wide pulse pressure	Aortic regurgitation

From Miller's Anesthesia: "In aortic stenosis, a distinct shoulder termed the anacrotic notch often distorts the pressure upstroke and the dicrotic notch may not be discernible. These features may make the arterial pressure waveform appear overdamped."

Summary Diagram

         Systolic Peak (SBP)
              /\
Anacrotic    /  \   Systolic decline
  limb      /    \
(upstroke) /      \___  ← Dicrotic notch (aortic valve closes)
          /           \
Baseline /             \___________  End-diastolic pressure (DBP)
        ↑
   Anacrotic notch
 (shoulder on upstroke,
  = early reflected wave,
  prominent in HTN/AS/elderly)

One-line clinical memory:

Anacrotic limb = upstroke = LV ejection power
Anacrotic notch = shoulder on upstroke = reflected wave or obstruction (think AS)
Dicrotic notch = notch on downstroke = aortic valve closes = end of systole
Dicrotic limb = downstroke = diastolic runoff

This is a shared conversation. Sign in to Orris to start your own chat.
