NEUROMUSCULAR ELECTRICAL STIMULATION (NMES) - 20 Marks Answer

Definition and Introduction

Neuromuscular Electrical Stimulation (NMES) is a therapeutic technique that uses electrical current to activate peripheral motor nerves and elicit contractions of normally innervated skeletal muscle. Unlike denervation stimulation, which targets muscle fibers directly, NMES works through the peripheral nerve to produce functional or therapeutic muscle contractions. Its clinical use in physical medicine spans over half a century, with early applications focused on management of denervation atrophy, and later expanding to strengthening, spasticity control, range of motion, and cardiovascular rehabilitation.

1. Electrical Stimulation for Muscle Strengthening

Mechanisms of Strength Gain

The mechanisms behind NMES-induced strength gains are primarily neural rather than muscular hypertrophy, particularly given the speed with which gains occur and the absence of significant volume changes in the early phase. Key neural mechanisms include:

Spinal motor pool activation
Synaptic facilitation
Changes in muscle motor unit firing patterns (conversion from slow-oxidative to fast-oxidative glycolytic or fast-glycolytic units)

NMES is especially effective for weak muscles (Gibson et al., 1988). Research by Balogun (1993) demonstrated a 24% increase in MVC (maximal voluntary contraction) in the treated limb and a 10% increase in the contralateral (untreated) limb - the "crossover effect."

Hon Sun Loi (1988) showed that high-intensity stimulation groups produced better results, with increases observed first in isometric strength, then concentric strength, with no change in eccentric strength. Some gains were maintained post-stimulation, and a crossover effect to the untreated limb was also noted.

Waveforms for Strengthening

Biphasic waveforms are the most effective for NMES.
Evidence from Kramer et al. (1984), Walmsley et al. (1984), and Snyder-Mackler et al. (1989) supports asymmetric biphasic over symmetric biphasic waveforms for maximal quadriceps force production.
There is an approximately linear relationship between current intensity and force of contraction (Ferguson et al., 1989; Underwood et al., 1990).
Greatest effects with least current intensity are achieved using biphasic pulsed or burst AC currents.
2500 Hz burst AC (carrier frequency modulated) and symmetric/asymmetric biphasic pulsed currents are both widely used.
Pulse widths of 300-400 microseconds may be optimal.

Stimulation Parameters for Strengthening

Parameter	Recommendation
Frequency	60-100 Hz for maximum force; 20 Hz for reduced fatigue (~65% force)
Pulse Width	300-400 microseconds
Duty Cycle	1:9 for very weak; progress to 1:1 for fit/end-stage rehab
Ramp Up	2-4 seconds
Ramp Down	1-2 seconds
Contractions/session	8-15 (athletes); 100-200 (rehabilitation)
Frequency of sessions	3-5 sessions/week for 3-6 weeks

Duty Cycle is the ratio of ON time (stimulation) to OFF time (rest). A minimum of 1:1 is used for strong/end-rehab patients. Weaker or post-surgical patients (e.g., post total knee replacement) may begin at 1:9 (10 sec stim: 90 sec rest) to minimize fatigue. The ratio is progressively reduced as muscle condition improves.

Ramp modulation gradually increases stimulation strength at the start and decreases it at the end of each stimulation train, making it more physiological and comfortable. Longer ramp-up (2-4 sec) and shorter ramp-down (1-2 sec) are standard.

Stimulation Frequency and Force Generation

Stimulation frequency directly affects force generation.
Tetanic contractions (60-100 Hz) produce maximum force but also greater discomfort, potential muscle damage, and rapid fatigue.
20 Hz achieves approximately 65% of maximum force with significantly less fatigue - preferred in rehabilitation settings.

Electrode Placement

Best results when both electrodes are placed on the muscle belly.
One electrode should be at or near the motor point.
Larger electrodes are preferable - they reduce current density and therefore reduce discomfort.
Longitudinal orientation of electrodes produces stronger contraction with less discomfort (Brooks et al., 1990).
Specialist electrodes are available for pelvic floor stimulation, and glove/sock electrodes are used for peripheral applications.

Strengthening Protocols

Athletes and Non-Injured Subjects:

2500 Hz burst AC; symmetric or asymmetric biphasic pulsed current
Frequency ~60 Hz, intensity at maximum tolerance; can achieve effects at 25-50% MVC isometric
Duty cycle: 1:8-1:5 (fatigue-prone); 1:3-1:2-1:1 (fatigue-resistant)
8-15 max contractions/session; 3-5 sessions/week; 3-6 weeks for significant effect

Rehabilitation Programmes:

Lower frequencies (20-35 Hz, minimum to achieve tetany)
Longer sessions; duty cycle to minimize fatigue (at least 1:4 or more)
100-200 contractions/session over 1-2 hours

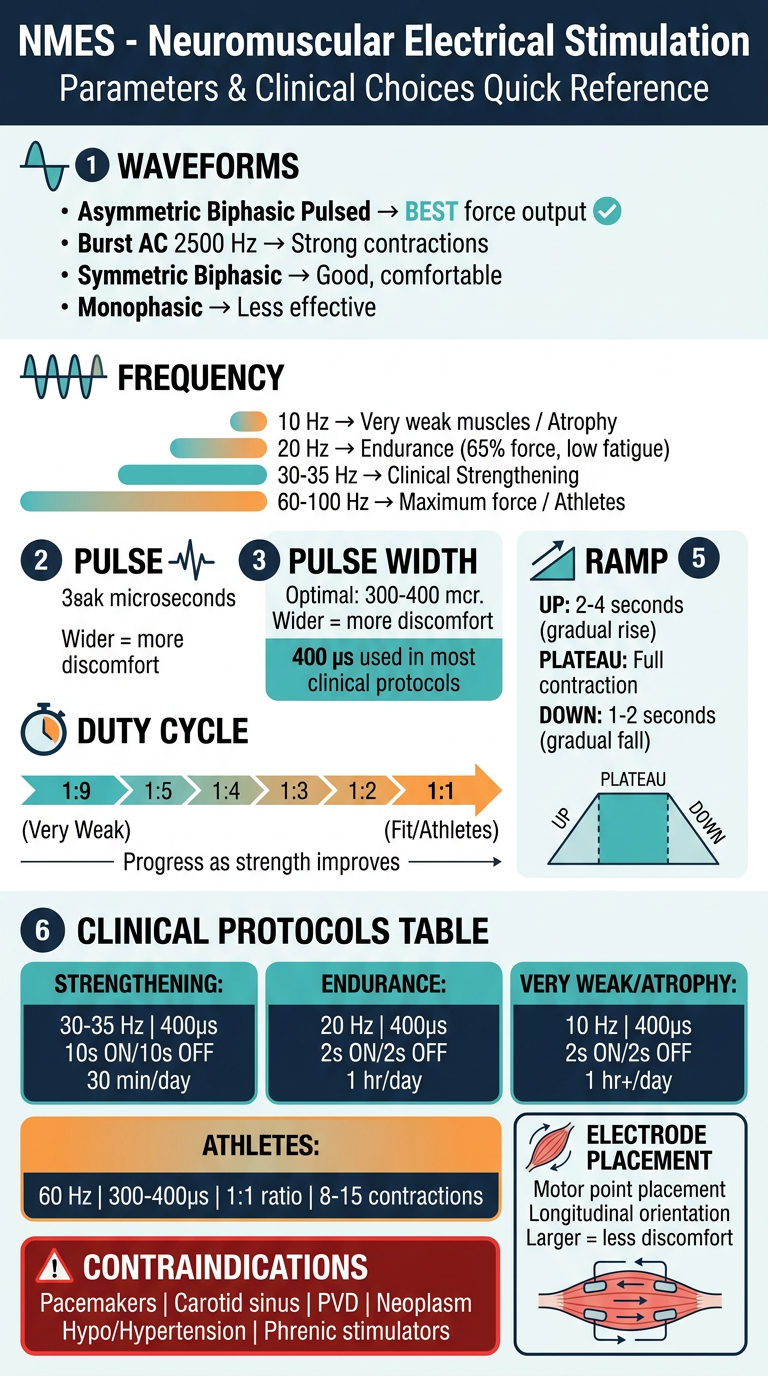

2. Suggested Clinical Treatment Parameters

Goal	Frequency	Pulse Width	Duty Cycle	Duration
Muscle Strengthening	30-35 Hz	400 µs	4 sec ON / 4 sec OFF minimum (usually 10 sec ON/OFF)	≥15 min, alternate days (usually 30 min/day)
Muscle Endurance	20 Hz	400 µs	2 sec ON / 2 sec OFF minimum	≥1 hour/day
Very Weak / Marked Atrophy	10 Hz	400 µs	2 sec ON / 2 sec OFF minimum	Minimum 1 hour/day

3. NMES for Range of Motion (ROM)

Effects on Passive ROM

Limitations in ROM can result from spinal cord trauma, CVA, TBI, muscle contracture, and tightening of joint capsule. Traditionally, stretching alone or with thermal agents was used.

Munsat and coworkers reported that NMES of quadriceps for 6 hours daily was effective in reducing knee flexion contractures in 4 of 5 comatose patients (following surgical hamstring lengthening).
Workers at Rancho Los Amigos Medical Center (1979) applied NMES to wrist and finger extensors in 16 hemiplegic patients with flexion contractures. Treatment began at 15 min twice daily, progressing to 3 sessions/day, 7 days/week for 4 weeks at maximum comfortable extensor contraction through full available ROM.
When NMES was discontinued in four patients, passive extension gradually declined, highlighting the need for continued exercise.

Effects on Active ROM

Bowman and coworkers reported on effectiveness of NMES for active ROM restriction in 30 hemiplegic patients who had full passive ROM but limited active ROM (5-30 degrees).
Subjects received conventional therapy plus NMES: 30 min, twice daily, 5 days/week for 4 weeks.
The stimulated group improved active wrist extension by 35%, compared to only 8% in the control group.

4. NMES for Spasticity Control

Spasticity is characterized by hyperactive phasic and tonic stretch reflexes, hyperactive flexion reflexes, and decreased dexterity and strength, associated with CNS damage.

Three Approaches:

a) Antagonist Muscle Stimulation:

Duchene (1871) first reported on electrical activation of antagonists to spastic muscles.
Levine and coworkers (1950s) used uninterrupted faradic currents at 100 pps using monopolar electrode over motor point of antagonist muscle, at amplitude sufficient for maximum contraction.
Reported relaxation of hypertonicity within seconds; reduction in spasticity with improvements in self-care, mobility, and posture.
Baker and coworkers (late 1970s): NMES to wrist/finger extensors in 16 hemiplegic patients with flexor spasticity. Rectangular monophasic pulses, 200 µs pulse duration, 33 pps, 7 sec ON/10 sec OFF, bipolar setup. Duration: 15 min twice daily, increasing to 30 min three times/day for 4 weeks.
Reduction in wrist flexor spasticity persisting approximately 30 minutes after stimulation.

b) Direct Stimulation of Spastic Muscle:

Lee and coworkers studied this approach in 27 spinal cord injury patients.
Bipolar electrode; continuous faradic or sinusoidal stimulation at 60-100 pps (faradic) or 60-350 Hz (sinusoidal).
Stimulation intensity set to maintain maximum contraction; in some cases increased and decreased to elicit alternating contraction and relaxation.

c) Combined Agonist and Antagonist Stimulation:

Vodovnik and coworkers (early 1980s) alternately activated spastic and antagonist muscles in 7 spinal cord injury patients.
Asymmetric biphasic pulses at 30 pps, pulse duration 300 µs, amplitude 100 mA; 5 sec ON / 5 sec OFF.
Results did not show reciprocal pattern to be superior to either agonist or antagonist stimulation alone.

5. Conclusions on NMES and Strengthening

NMES consistently produces strength increases compared to unexercised controls.
No significant difference generally exists between NMES and voluntary exercise with similar regimens - both show significant gains over controls.
No added benefit from simultaneous NMES plus voluntary exercise over either alone.
Electrically elicited quadriceps contractions in the range of 80-100% of MVIT are possible.
Certain muscle stimulation regimens produce greater strength gains than voluntary exercise in patient populations.
A positive correlation exists between training contraction intensity and strength gains in people with muscle weakness.
A positive correlation exists between phase charge and torque-generating capability in patients.
Electrical stimulation has strengthening benefits even at lower training contraction intensities.

6. Precautions and Contraindications for NMES (Thoracic Region)

Cardiac pacemakers
Phrenic nerve or urinary bladder stimulators
Carotid sinus stimulation
Hypertensive or hypotensive patients
Peripheral vascular disease
Neoplasm or active infection
Obese patients

7. Application Principles for NMES

Firm and proper stabilization of the body part must be provided.
Stimulation parameters are selected appropriately.
Electrodes secured and subject stabilized.
Initial session: amplitude is gradually increased until motor threshold is reached and exceeded.
In the first session, amplitude may need to be increased contraction by contraction to gradually build subject tolerance and contraction force.
A 5-7 day programme of stimulation is the standard initial approach; contraction period less than 10 sec with rest period of 10-20 sec.

8. Clinical and Research Applications

Musculoskeletal/Orthopaedic: Quadriceps strengthening post bilateral total knee arthroplasty (Stevens et al., 2004); patellofemoral pain (Callaghan & Oldham, 2004); quadriceps torque comparison between clinical and portable stimulators (Lyons et al., 2005).
Cardiovascular: Chronic low-frequency thigh muscle stimulation in advanced chronic heart failure (Nuhr et al., 2004); NMES for muscle weakness in advanced disease (Maddocks et al., 2013 - Cochrane Review).
Neurological - Stroke: Shoulder pain/dysfunction in hemiplegia (Chantraine et al., 1999); prevention of shoulder subluxation post-stroke meta-analysis (Ada & Foongchomcheay, 2002); quadriceps motor unit recruitment after stroke (Newsam & Baker, 2004).
Neurological - Spinal Cord Injury: Skeletal muscle adaptability after SCI with ES leg training (Crameri et al., 2002); acute phase ES training (Crameri et al., 2000); clinical applications post-SCI (Creasey et al., 2004); switching stimulation patterns to improve paralyzed quadriceps (Scott et al., 2005); ES in SCI rehabilitation (Sadowsky, 2001).

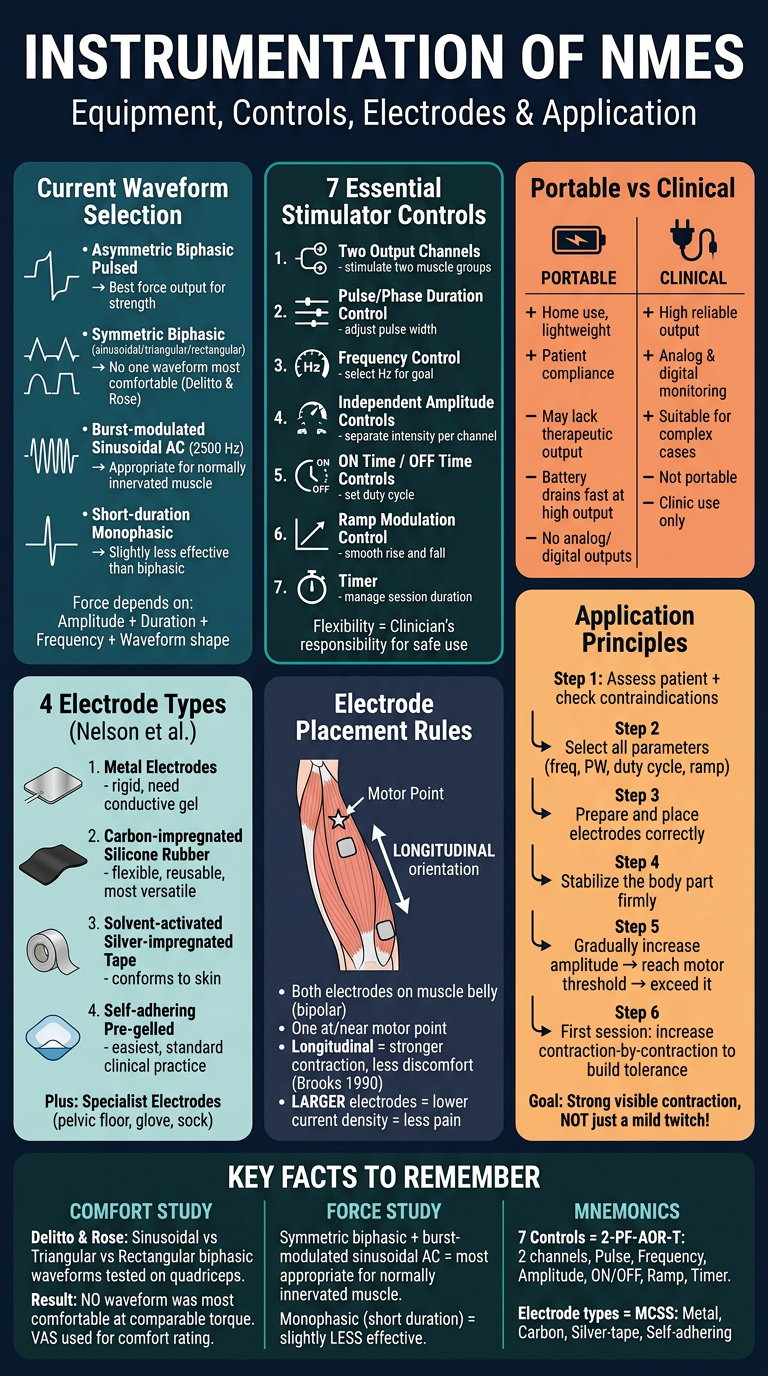

INSTRUMENTATION OF NMES - 10 Marks Answer

Introduction

The instrumentation of NMES encompasses the selection of current waveforms, stimulator design and features, electrode types, electrode placement, and the general principles of application. Proper understanding and selection of these components is fundamental to safe and effective neuromuscular electrical stimulation.

1. Current Waveform Selection for NMES

Subject Comfort

Delitto and Rose assessed subject comfort in response to electrical stimulation using three different symmetrical biphasic waveforms: sinusoidal, triangular, and rectangular. These waveforms were used to electrically activate the quadriceps muscle group in normal subjects, with amplitude gradually increased to evoke similar magnitudes of knee extension torque. Subjects rated comfort on a Visual Analogue Scale (VAS).

Finding: No single waveform was found to be most comfortable when evoking comparable levels of contraction. Subject comfort does not clearly differentiate between symmetrical biphasic waveform types when force output is matched.

Force of Contraction

The effectiveness of a waveform in eliciting contraction force depends on:

Amplitude
Pulse duration
Frequency
Waveform shape

Key conclusions:

Symmetrical biphasic waveforms and burst-modulated sinusoidal AC waveforms may be most appropriate for electrical activation of normally innervated skeletal muscle.
Very short duration monophasic waveforms may be slightly less effective than symmetrical biphasic waveforms for force generation.

2. Recommended Stimulator Features and Controls

A stimulator for NMES applications must allow considerable flexibility in adjusting current characteristics. This flexibility places additional responsibility on users to understand the consequences of each parameter change to ensure safe and effective treatment.

Basic requirements for most NMES applications include:

Two output channels - allows simultaneous stimulation of two muscle groups or bipolar placement.
Pulse/phase duration controls - to adjust stimulus duration for comfort and efficacy.
Frequency controls - to select appropriate stimulation frequency for the clinical goal.
Independent amplitude controls - separate intensity control for each channel.
ON time / OFF time controls - to set the duty cycle (contraction and rest periods).
Ramp modulation control - for gradual rise and fall of stimulation intensity.
Timer - for session duration monitoring.

3. Portable vs. Clinical Stimulators

Both battery-operated portable stimulators and 60 Hz AC line-powered clinical stimulators are used for NMES.

Feature	Portable Stimulator	Clinical Stimulator
Power source	Battery	60 Hz AC mains
Output capacity	May be insufficient for therapeutic contraction levels	Higher output available
Battery drain	High output drains battery quickly	Not applicable
Analog/digital output	Generally lacks outputs	Usually available
Portability	High - patient can use at home	Low

Limitations of portable battery-operated units:

May not provide sufficient output to bring skeletal muscle contractions to therapeutic levels.
At high output levels, battery power is drained quickly, requiring frequent battery replacement.
Generally lack analog or digital outputs, limiting their monitoring capability.

4. Electrodes and Electrode Placement

Placement Sites

At the muscle belly - preferred for optimal muscle activation.
At the motor point - the location of lowest resistance to stimulation; produces strongest contraction with lowest current intensity.
Bipolar electrode placement - both electrodes placed over the target muscle belly.

Types of Electrodes

Nelson and coworkers found effectiveness across 4 types of electrodes:

Metal electrodes
Carbon-impregnated silicone rubber electrodes - commonly used, flexible, reusable.
Solvent-activated silver-impregnated tape electrodes
Self-adhering pre-gelled electrodes - most commonly used in clinical practice today for ease of application and consistent contact.

5. General Application Principles for NMES

Goal: To achieve high levels of stimulated muscle contraction.
Initial amplitude setting: As treatment begins, amplitude is gradually increased until the motor threshold is reached and then exceeded to elicit a visible/palpable contraction.
First session progression: Amplitude may need to be increased contraction by contraction in the first session to gradually increase subject tolerance and build contraction force.
Session monitoring: The stimulator's timer and duty cycle controls ensure appropriate work-to-rest ratios are maintained throughout the session.
User responsibility: Since stimulators offer considerable parameter flexibility, the clinician must understand the physiological consequence of each parameter adjustment to maintain safety and effectiveness.

Summary: Proper instrumentation of NMES requires selection of an appropriate waveform (biphasic or burst-modulated AC preferred), a stimulator with adequate output and parameter controls, correct electrode type and placement (at or near the motor point, bipolar, longitudinal orientation), and systematic application following established protocols to maximize therapeutic efficacy while minimizing discomfort and fatigue.

create summary of this topic including diagrams or flowchart wherever necessary

Reading File

Running Command

ls /home/daytona/workspace/attachments/9ee68a3a-fde0-42b1-9f14-e518b9123ffe/ && ls /home/daytona/skills/docx/scripts/ 2>/dev/null || echo "no scripts dir"

Running Command

mkdir -p /home/daytona/workspace/nmes-summary && node -e "require('docx'); console.log('docx available')" 2>&1

Writing File

~/nmes-summary/generate_summary.js

const {
  Document, Packer, Paragraph, TextRun, Table, TableRow, TableCell,
  HeadingLevel, AlignmentType, BorderStyle, WidthType, ShadingType,
  VerticalAlign, PageBreak, TableLayoutType, UnderlineType
} = require('docx');
const fs = require('fs');

// ─── COLORS ────────────────────────────────────────────────────────────────
const TEAL       = "1B7A84";
const TEAL_LIGHT = "D0ECEF";
const TEAL_MID   = "5BBDC8";
const DARK       = "1A2E35";
const ACCENT     = "E07B39";
const ACCENT_LT  = "FAE8DA";
const GRAY_BG    = "F2F7F8";
const WHITE      = "FFFFFF";
const BORDER_CLR = "1B7A84";

// ─── HELPERS ────────────────────────────────────────────────────────────────
function hline() {
  return new Paragraph({
    border: { bottom: { color: TEAL, space: 1, style: BorderStyle.SINGLE, size: 12 } },
    spacing: { before: 40, after: 40 }
  });
}

function spacer(before = 80, after = 80) {
  return new Paragraph({ spacing: { before, after } });
}

function sectionTitle(text) {
  return new Paragraph({
    heading: HeadingLevel.HEADING_1,
    children: [new TextRun({ text, bold: true, color: WHITE, size: 30, font: "Calibri" })],
    shading: { fill: TEAL, type: ShadingType.SOLID },
    spacing: { before: 240, after: 120 },
    indent: { left: 200, right: 200 }
  });
}

function subTitle(text) {
  return new Paragraph({
    heading: HeadingLevel.HEADING_2,
    children: [new TextRun({ text, bold: true, color: WHITE, size: 24, font: "Calibri" })],
    shading: { fill: TEAL_MID, type: ShadingType.SOLID },
    spacing: { before: 160, after: 80 },
    indent: { left: 160 }
  });
}

function subSubTitle(text) {
  return new Paragraph({
    heading: HeadingLevel.HEADING_3,
    children: [new TextRun({ text, bold: true, color: TEAL, size: 22, font: "Calibri" })],
    spacing: { before: 120, after: 60 }
  });
}

function body(text, opts = {}) {
  return new Paragraph({
    children: [new TextRun({
      text,
      size: 20,
      font: "Calibri",
      bold: opts.bold || false,
      italic: opts.italic || false,
      color: opts.color || DARK
    })],
    spacing: { before: opts.before || 40, after: opts.after || 40 },
    indent: opts.indent ? { left: opts.indent } : {}
  });
}

function bullet(text, level = 0) {
  return new Paragraph({
    children: [new TextRun({ text, size: 20, font: "Calibri", color: DARK })],
    bullet: { level },
    spacing: { before: 30, after: 30 },
    indent: { left: 360 + level * 360 }
  });
}

function keyVal(key, val) {
  return new Paragraph({
    children: [
      new TextRun({ text: key + ": ", bold: true, size: 20, font: "Calibri", color: TEAL }),
      new TextRun({ text: val, size: 20, font: "Calibri", color: DARK })
    ],
    spacing: { before: 30, after: 30 },
    indent: { left: 360 }
  });
}

function noteBox(text) {
  return new Table({
    width: { size: 100, type: WidthType.PERCENTAGE },
    rows: [new TableRow({ children: [new TableCell({
      shading: { fill: ACCENT_LT, type: ShadingType.SOLID },
      borders: { top: { style: BorderStyle.THICK, color: ACCENT, size: 6 }, bottom: { style: BorderStyle.THICK, color: ACCENT, size: 6 }, left: { style: BorderStyle.THICK, color: ACCENT, size: 6 }, right: { style: BorderStyle.THICK, color: ACCENT, size: 6 } },
      margins: { top: 100, bottom: 100, left: 200, right: 200 },
      children: [new Paragraph({ children: [new TextRun({ text: "  " + text, size: 19, font: "Calibri", italic: true, color: "7D3C00" })] })]
    })] })]
  });
}

function makeTable(headers, rows, colWidths) {
  const headerRow = new TableRow({
    tableHeader: true,
    children: headers.map((h, i) => new TableCell({
      shading: { fill: TEAL, type: ShadingType.SOLID },
      width: colWidths ? { size: colWidths[i], type: WidthType.PERCENTAGE } : undefined,
      margins: { top: 80, bottom: 80, left: 160, right: 160 },
      verticalAlign: VerticalAlign.CENTER,
      borders: { top: { style: BorderStyle.SINGLE, color: WHITE, size: 4 }, bottom: { style: BorderStyle.SINGLE, color: WHITE, size: 4 }, left: { style: BorderStyle.SINGLE, color: WHITE, size: 4 }, right: { style: BorderStyle.SINGLE, color: WHITE, size: 4 } },
      children: [new Paragraph({ alignment: AlignmentType.CENTER, children: [new TextRun({ text: h, bold: true, color: WHITE, size: 19, font: "Calibri" })] })]
    }))
  });
  const dataRows = rows.map((row, ri) => new TableRow({
    children: row.map((cell, ci) => new TableCell({
      shading: { fill: ri % 2 === 0 ? GRAY_BG : WHITE, type: ShadingType.SOLID },
      margins: { top: 70, bottom: 70, left: 160, right: 160 },
      borders: { top: { style: BorderStyle.SINGLE, color: "CCCCCC", size: 2 }, bottom: { style: BorderStyle.SINGLE, color: "CCCCCC", size: 2 }, left: { style: BorderStyle.SINGLE, color: "CCCCCC", size: 2 }, right: { style: BorderStyle.SINGLE, color: "CCCCCC", size: 2 } },
      children: [new Paragraph({ children: [new TextRun({ text: cell, size: 19, font: "Calibri", color: DARK })] })]
    }))
  }));
  return new Table({
    width: { size: 100, type: WidthType.PERCENTAGE },
    rows: [headerRow, ...dataRows]
  });
}

// ─── FLOWCHART BOX ──────────────────────────────────────────────────────────
function flowBox(label, fill = TEAL_LIGHT, textColor = DARK) {
  return new Table({
    width: { size: 60, type: WidthType.PERCENTAGE },
    margins: { top: 0, bottom: 0 },
    rows: [new TableRow({ children: [new TableCell({
      shading: { fill, type: ShadingType.SOLID },
      borders: {
        top: { style: BorderStyle.SINGLE, color: BORDER_CLR, size: 6 },
        bottom: { style: BorderStyle.SINGLE, color: BORDER_CLR, size: 6 },
        left: { style: BorderStyle.SINGLE, color: BORDER_CLR, size: 6 },
        right: { style: BorderStyle.SINGLE, color: BORDER_CLR, size: 6 }
      },
      margins: { top: 100, bottom: 100, left: 200, right: 200 },
      verticalAlign: VerticalAlign.CENTER,
      children: [new Paragraph({
        alignment: AlignmentType.CENTER,
        children: [new TextRun({ text: label, bold: true, size: 19, font: "Calibri", color: textColor })]
      })]
    })] })]
  });
}

function arrow() {
  return new Paragraph({
    alignment: AlignmentType.CENTER,
    children: [new TextRun({ text: "\u25BC", size: 22, color: TEAL, bold: true })],
    spacing: { before: 40, after: 40 }
  });
}

function flowRow(boxes) {
  // side-by-side boxes in a row
  const cells = [];
  boxes.forEach((b, i) => {
    cells.push(new TableCell({
      shading: { fill: b.fill || TEAL_LIGHT, type: ShadingType.SOLID },
      borders: {
        top: { style: BorderStyle.SINGLE, color: BORDER_CLR, size: 6 },
        bottom: { style: BorderStyle.SINGLE, color: BORDER_CLR, size: 6 },
        left: { style: BorderStyle.SINGLE, color: BORDER_CLR, size: 6 },
        right: { style: BorderStyle.SINGLE, color: BORDER_CLR, size: 6 }
      },
      margins: { top: 80, bottom: 80, left: 140, right: 140 },
      verticalAlign: VerticalAlign.CENTER,
      width: { size: Math.floor(100 / boxes.length), type: WidthType.PERCENTAGE },
      children: [new Paragraph({
        alignment: AlignmentType.CENTER,
        children: [new TextRun({ text: b.label, bold: b.bold || false, size: 18, font: "Calibri", color: b.color || DARK })]
      })]
    }));
    if (i < boxes.length - 1) {
      cells.push(new TableCell({
        borders: { top: { style: BorderStyle.NONE }, bottom: { style: BorderStyle.NONE }, left: { style: BorderStyle.NONE }, right: { style: BorderStyle.NONE } },
        width: { size: 4, type: WidthType.PERCENTAGE },
        children: [new Paragraph({ alignment: AlignmentType.CENTER, children: [new TextRun({ text: "\u25B6", size: 20, color: TEAL })] })]
      }));
    }
  });
  return new Table({
    width: { size: 100, type: WidthType.PERCENTAGE },
    rows: [new TableRow({ children: cells })]
  });
}

// ─── DOCUMENT CONTENT ───────────────────────────────────────────────────────
const content = [

  // COVER TITLE
  spacer(200, 80),
  new Paragraph({
    alignment: AlignmentType.CENTER,
    children: [new TextRun({ text: "NEUROMUSCULAR ELECTRICAL STIMULATION", bold: true, size: 52, font: "Calibri", color: TEAL })],
    spacing: { before: 100, after: 60 }
  }),
  new Paragraph({
    alignment: AlignmentType.CENTER,
    children: [new TextRun({ text: "(NMES) & INSTRUMENTATION", bold: true, size: 40, font: "Calibri", color: ACCENT })],
    spacing: { before: 20, after: 80 }
  }),
  new Paragraph({
    alignment: AlignmentType.CENTER,
    children: [new TextRun({ text: "Comprehensive Summary", size: 26, font: "Calibri", color: DARK, italic: true })],
    spacing: { before: 20, after: 20 }
  }),
  new Paragraph({
    alignment: AlignmentType.CENTER,
    children: [new TextRun({ text: "Dr. Nikita Patel | C.M. Patel College of Physiotherapy, Gandhinagar", size: 20, font: "Calibri", color: "555555", italic: true })],
    spacing: { before: 10, after: 200 }
  }),
  hline(),
  spacer(60, 60),

  // ─── SECTION 1: NMES OVERVIEW ────────────────────────────────────────────
  sectionTitle("SECTION 1: OVERVIEW OF NMES"),
  body("Neuromuscular Electrical Stimulation (NMES) is a therapeutic modality that applies electrical current to activate peripheral motor nerves, thereby eliciting contractions of normally innervated skeletal muscle. Its clinical use in physical medicine spans over half a century."),
  spacer(40, 40),

  subSubTitle("Historical Background"),
  bullet("Through the early 1960s: Focus mainly on management of denervation atrophy"),
  bullet("Post 1960s: Studies expanded to electrical activation of normal innervated muscle via peripheral nerve"),
  bullet("Modern NMES: Strengthening, spasticity control, ROM, cardiovascular rehab, neurological conditions"),
  spacer(40, 80),

  // FLOWCHART 1: NMES Mechanism
  subSubTitle("Flowchart 1: How NMES Works - Mechanism"),
  spacer(40, 40),
  flowBox("Electrical Stimulus Applied via Surface Electrodes", TEAL, WHITE),
  arrow(),
  flowBox("Current Activates Peripheral Motor Nerve Fibers", TEAL_LIGHT, DARK),
  arrow(),
  flowBox("Motor Nerve Transmits Signal to Neuromuscular Junction", TEAL_LIGHT, DARK),
  arrow(),
  flowBox("Acetylcholine Released  →  Action Potential in Muscle Fiber", TEAL_LIGHT, DARK),
  arrow(),
  flowBox("Muscle Fiber Contracts (Twitch / Tetanic)", ACCENT_LT, "7D3C00"),
  arrow(),
  flowBox("Therapeutic Effect: Strength / ROM / Spasticity Reduction", TEAL, WHITE),
  spacer(80, 40),

  subSubTitle("Key Neural Mechanisms for Strength Gains"),
  bullet("Spinal motor pool activation"),
  bullet("Synaptic facilitation"),
  bullet("Changes in muscle motor unit firing patterns (SO → FOG or FG conversion)"),
  bullet("Best effects seen in already weakened muscles (Gibson et al., 1988)"),
  spacer(40, 80),

  // ─── SECTION 2: WAVEFORMS ─────────────────────────────────────────────────
  sectionTitle("SECTION 2: WAVEFORMS FOR NMES"),
  body("Waveform selection is critical for both comfort and effectiveness. The type of waveform affects current spread, motor nerve recruitment, comfort levels, and force production."),
  spacer(40, 60),

  makeTable(
    ["Waveform Type", "Comfort", "Force of Contraction", "Clinical Use"],
    [
      ["Symmetric Biphasic", "Comparable to others", "Effective", "General NMES"],
      ["Asymmetric Biphasic", "Comparable", "Best force output (quadriceps)", "Strengthening protocols"],
      ["Burst AC (2500 Hz)", "Good toleration", "Strong - with 300-400 pulses", "Athlete / post-surgical rehab"],
      ["Monophasic (short duration)", "Moderate", "Slightly less effective", "Denervation stimulation"],
      ["Sinusoidal", "No clear superiority", "Comparable to rectangular", "Experimental / comfort trials"]
    ],
    [25, 20, 25, 30]
  ),
  spacer(60, 40),
  noteBox("Key Finding (Delitto & Rose): No single symmetrical biphasic waveform (sinusoidal, triangular, or rectangular) was found to be most comfortable when evoking comparable torque levels. Asymmetric biphasic waveforms produce best quadriceps force (Kramer 1984, Walmsley 1984, Snyder-Mackler 1989)."),
  spacer(60, 80),

  // ─── SECTION 3: STIMULATION PARAMETERS ───────────────────────────────────
  sectionTitle("SECTION 3: STIMULATION PARAMETERS"),
  spacer(40, 40),

  subTitle("3A. Frequency"),
  makeTable(
    ["Frequency", "Effect", "Trade-off"],
    [
      ["60-100 Hz", "Maximum tetanic force", "High discomfort, rapid fatigue, muscle damage risk"],
      ["20-35 Hz", "~65% max force; minimum tetany", "Low fatigue - preferred for rehabilitation"],
      ["10 Hz", "Low-level contraction", "Very weak muscles / marked atrophy"]
    ],
    [25, 40, 35]
  ),
  spacer(60, 40),

  subTitle("3B. Duty Cycle (ON:OFF Ratio)"),
  body("The duty cycle determines work-to-rest ratio during stimulation. Weaker muscles need longer rest periods to prevent fatigue."),
  spacer(40, 40),
  flowRow([
    { label: "Very Weak Patient\n1:9 Ratio\n(10s ON : 90s OFF)", fill: ACCENT_LT, color: "7D3C00", bold: true },
    { label: "Moderate Weakness\n1:5 to 1:4 Ratio", fill: TEAL_LIGHT, color: DARK },
    { label: "Improving Strength\n1:3 to 1:2 Ratio", fill: TEAL_LIGHT, color: DARK },
    { label: "Fit / End-Stage Rehab\n1:1 Ratio", fill: TEAL, color: WHITE, bold: true }
  ]),
  spacer(60, 40),
  noteBox("Example: Post-TKR patient (very weak quads): 10 sec stimulation followed by 90 sec rest (1:9). Progressively reduce ratio as strength improves."),
  spacer(60, 40),

  subTitle("3C. Ramp Modulation"),
  body("Gradually increases stimulation strength at the start and decreases it at the end of each stimulation train - making it more physiological and comfortable."),
  spacer(40, 40),
  flowBox("Ramp UP: 2-4 seconds  (gradual rise in amplitude)", TEAL_LIGHT, DARK),
  arrow(),
  flowBox("PLATEAU: Full contraction maintained for ON time", TEAL, WHITE),
  arrow(),
  flowBox("Ramp DOWN: 1-2 seconds  (gradual decline in amplitude)", TEAL_LIGHT, DARK),
  spacer(60, 40),

  subTitle("3D. Pulse Width"),
  bullet("Optimal: 300-400 microseconds (µs)"),
  bullet("Wider pulse width = greater sensory fiber recruitment = more discomfort"),
  bullet("300-400 µs: best balance of force production and comfort"),
  spacer(40, 80),

  // ─── SECTION 4: CLINICAL TREATMENT PARAMETERS ────────────────────────────
  sectionTitle("SECTION 4: CLINICAL TREATMENT PARAMETERS"),
  spacer(40, 40),

  makeTable(
    ["Goal", "Frequency", "Pulse Width", "Duty Cycle", "Duration", "Notes"],
    [
      ["Muscle Strengthening", "30-35 Hz", "400 µs", "4s ON / 4s OFF min\n(usually 10s ON/OFF)", "≥15 min, alt days\n(usually 30 min/day)", "Strong contraction + voluntary exercise"],
      ["Muscle Endurance", "20 Hz", "400 µs", "2s ON / 2s OFF min", "≥1 hour/day", "Minimal contractions"],
      ["Very Weak / Atrophy", "10 Hz", "400 µs", "2s ON / 2s OFF min", "Min 1 hour/day", "Minimal force required"]
    ],
    [18, 13, 12, 20, 20, 17]
  ),
  spacer(80, 40),

  // ─── SECTION 5: ELECTRODE PLACEMENT ──────────────────────────────────────
  sectionTitle("SECTION 5: ELECTRODE PLACEMENT"),
  spacer(40, 40),

  subSubTitle("Flowchart 2: Electrode Selection & Placement Decision"),
  spacer(40, 40),
  flowBox("Identify Target Muscle for Stimulation", TEAL, WHITE),
  arrow(),
  flowBox("Locate MOTOR POINT of muscle\n(lowest resistance site - strongest contraction at lowest current)", TEAL_LIGHT, DARK),
  arrow(),
  flowBox("Place one electrode AT / NEAR motor point\nPlace second electrode on distal muscle belly", TEAL_LIGHT, DARK),
  arrow(),
  flowBox("Use LONGITUDINAL orientation\n(Brooks et al. 1990 - stronger contraction, less discomfort)", ACCENT_LT, "7D3C00"),
  arrow(),
  flowBox("Use LARGER electrodes to reduce current density and discomfort", TEAL_LIGHT, DARK),
  spacer(60, 40),

  makeTable(
    ["Electrode Type", "Properties", "Considerations"],
    [
      ["Metal electrodes", "Rigid, durable", "Require conductive medium (gel/sponge)"],
      ["Carbon-impregnated silicone rubber", "Flexible, reusable, common", "Good for large muscle areas"],
      ["Solvent-activated silver-impregnated tape", "Conforms to skin", "Limited reuse"],
      ["Self-adhering pre-gelled electrodes", "Easiest application, consistent contact", "Most common in clinical practice"],
      ["Specialist electrodes", "Pelvic floor, glove, sock types", "Specific anatomical applications"]
    ],
    [25, 40, 35]
  ),
  spacer(40, 80),

  // ─── SECTION 6: STRENGTHENING PROTOCOLS ──────────────────────────────────
  sectionTitle("SECTION 6: STRENGTHENING PROTOCOLS"),
  spacer(40, 40),

  subTitle("6A. Athletes / Non-Injured Subjects"),
  makeTable(
    ["Parameter", "Recommendation"],
    [
      ["Waveform", "2500 Hz burst AC OR asymmetric biphasic pulsed"],
      ["Frequency", "~60 Hz"],
      ["Intensity", "Maximum tolerance; effective at 25-50% MVC isometric"],
      ["Pulse Width", "300-400 µs"],
      ["Duty Cycle", "1:8-1:5 (fatigue-prone) → 1:3-1:2-1:1 (fit)"],
      ["Ramp", "2-4 sec up / 1-2 sec down"],
      ["Contractions/session", "8-15 maximum"],
      ["Frequency", "3-5 sessions/week for 3-6 weeks"]
    ],
    [40, 60]
  ),
  spacer(60, 40),

  subTitle("6B. Rehabilitation Programmes"),
  bullet("Use LOWER frequencies: 20-35 Hz (minimum to achieve tetany)"),
  bullet("Continue for longer per session"),
  bullet("Duty cycle minimises fatigue: at least 1:4 or more"),
  bullet("100-200 contractions/session, typically over 1-2 hours"),
  spacer(40, 80),

  // FLOWCHART 3: NMES STRENGTHENING PROTOCOL FLOWCHART
  subSubTitle("Flowchart 3: NMES Strengthening Protocol Selection"),
  spacer(40, 40),
  flowBox("PATIENT ASSESSMENT\nDetermine muscle strength & diagnosis", TEAL, WHITE),
  arrow(),
  flowRow([
    { label: "ATHLETE /\nNon-Injured\n(Strong baseline)", fill: TEAL_LIGHT, color: DARK, bold: true },
    { label: "REHABILITATION\nPost-surgical /\nModerate weakness", fill: TEAL_LIGHT, color: DARK, bold: true },
    { label: "MARKED ATROPHY\nVery weak muscles", fill: ACCENT_LT, color: "7D3C00", bold: true }
  ]),
  arrow(),
  flowRow([
    { label: "60 Hz | 1:1-1:3 DC\n8-15 contractions\n3-5x/week", fill: TEAL_LIGHT, color: DARK },
    { label: "20-35 Hz | 1:4+ DC\n100-200 contractions\n1-2 hrs/session", fill: TEAL_LIGHT, color: DARK },
    { label: "10 Hz | 1:9 DC\nMinimal contraction\n1 hr+/day", fill: ACCENT_LT, color: "7D3C00" }
  ]),
  spacer(80, 40),

  // ─── SECTION 7: CONCLUSIONS ON NMES STRENGTHENING ────────────────────────
  sectionTitle("SECTION 7: KEY CONCLUSIONS - NMES & STRENGTHENING"),
  spacer(40, 40),

  makeTable(
    ["Finding", "Evidence"],
    [
      ["NMES increases strength vs. unexercised controls", "Consistent across studies"],
      ["NMES = voluntary exercise for strength gains (similar regimens)", "No significant difference between groups"],
      ["No added benefit of NMES + voluntary exercise combined vs. either alone", "Multiple studies"],
      ["Electrically elicited quadriceps contractions 80-100% MVIT are achievable", "Research confirmed"],
      ["Certain NMES regimens produce greater gains than voluntary exercise", "Patient populations specifically"],
      ["Positive correlation: training intensity → strength gains in weakness", "Balogun 1993; Gibson 1988"],
      ["Positive correlation: phase charge → torque-generating capability", "Clinical evidence"],
      ["Crossover effect: treated limb gains also seen in contralateral limb (10%)", "Balogun 1993"]
    ],
    [55, 45]
  ),
  spacer(80, 40),

  // ─── SECTION 8: NMES FOR ROM ──────────────────────────────────────────────
  sectionTitle("SECTION 8: NMES FOR RANGE OF MOTION (ROM)"),
  spacer(40, 40),

  subTitle("8A. Passive ROM"),
  body("Limitations in passive ROM arise from: spinal cord trauma, CVA, TBI, muscle contracture, capsule tightening."),
  spacer(30, 40),
  bullet("Munsat et al.: NMES of quadriceps 6 hrs/day reduced knee flexion contractures in 4/5 comatose patients (after surgical hamstring lengthening)"),
  bullet("Rancho Los Amigos (1979): NMES to wrist & finger extensors in 16 hemiplegic patients"),
  bullet("  - Started: 15 min twice daily → progressed to 3 sessions/day, 7 days/week for 4 weeks"),
  bullet("  - Amplitude: maximum comfortable extensor contraction through full available ROM"),
  bullet("  - Key finding: when NMES discontinued in 4 patients, passive extension gradually declined"),
  spacer(40, 40),

  subTitle("8B. Active ROM"),
  bullet("Bowman et al.: 30 hemiplegic patients with full passive ROM but limited active ROM (5-30 degrees)"),
  bullet("Treatment: 30 min twice daily, 5 days/week for 4 weeks (NMES group vs. conventional therapy only)"),
  bullet("Result: NMES group improved active wrist extension by 35% vs. 8% in control group"),
  spacer(40, 80),

  // ─── SECTION 9: NMES FOR SPASTICITY ──────────────────────────────────────
  sectionTitle("SECTION 9: NMES FOR SPASTICITY CONTROL"),
  body("Spasticity = hyperactive phasic & tonic stretch reflexes, hyperactive flexion reflexes, decreased dexterity & strength. Associated with CNS damage (stroke, SCI, MS)."),
  spacer(40, 60),

  subSubTitle("Flowchart 4: Three Approaches to NMES for Spasticity"),
  spacer(40, 40),
  flowBox("SPASTICITY (CNS Damage - Stroke / SCI / MS)", TEAL, WHITE),
  arrow(),
  flowRow([
    { label: "APPROACH 1\nANTAGONIST\nMuscle Stimulation", fill: TEAL_LIGHT, color: DARK, bold: true },
    { label: "APPROACH 2\nSPASTIC MUSCLE\nDirect Stimulation", fill: TEAL_LIGHT, color: DARK, bold: true },
    { label: "APPROACH 3\nCOMBINED\nAgonist + Antagonist", fill: TEAL_LIGHT, color: DARK, bold: true }
  ]),
  spacer(40, 40),

  makeTable(
    ["Approach", "Technique", "Parameters", "Result"],
    [
      ["Antagonist Stimulation\n(Baker et al., late 1970s)", "Stimulate antagonist of spastic muscle (wrist/finger extensors in flexor spasticity)", "Monophasic rectangular; 200 µs; 33 pps; 7s ON/10s OFF; 15 min → 30 min 3x/day; 4 weeks", "Reduced wrist flexor spasticity persisting ~30 min post-stimulation"],
      ["Direct Spastic Muscle Stimulation\n(Lee et al.)", "NMES to activate the spastic muscle itself; alternating contraction & relaxation", "Bipolar; faradic 60-100 pps or sinusoidal 60-350 Hz; amplitude to maintain max contraction", "Reduction in hypertonicity; improvements in ADL, mobility, posture"],
      ["Combined Agonist + Antagonist\n(Vodovnik et al., early 1980s)", "Rhythmically alternate activation of spastic and antagonist muscles", "Asymmetric biphasic; 30 pps; 300 µs; 100 mA; 5s ON/5s OFF in 7 SCI patients", "No superiority over either approach alone"]
    ],
    [22, 28, 28, 22]
  ),
  spacer(40, 80),

  // ─── SECTION 10: PRECAUTIONS & CONTRAINDICATIONS ─────────────────────────
  sectionTitle("SECTION 10: PRECAUTIONS & CONTRAINDICATIONS"),
  spacer(40, 40),

  makeTable(
    ["Category", "Specific Contraindication / Precaution"],
    [
      ["Implanted devices", "Cardiac pacemakers, phrenic nerve stimulators, urinary bladder stimulators"],
      ["Vascular", "Carotid sinus stimulation, peripheral vascular disease, hypertensive/hypotensive patients"],
      ["Pathological conditions", "Neoplasm (cancer), active infection over stimulation site"],
      ["Body composition", "Obese patients (electrode contact and current delivery may be compromised)"],
      ["Regional precaution", "Avoid thoracic region application when pacemakers present"]
    ],
    [30, 70]
  ),
  spacer(40, 80),

  // ─── SECTION 11: APPLICATION PRINCIPLES ──────────────────────────────────
  sectionTitle("SECTION 11: APPLICATION PRINCIPLES FOR NMES"),
  spacer(40, 40),

  subSubTitle("Flowchart 5: Step-by-Step Clinical NMES Application"),
  spacer(40, 40),
  flowBox("STEP 1: Patient Assessment\nDiagnosis, muscle strength, precautions check", TEAL, WHITE),
  arrow(),
  flowBox("STEP 2: Select Stimulation Parameters\n(Frequency, Pulse Width, Duty Cycle, Ramp, Waveform)", TEAL_LIGHT, DARK),
  arrow(),
  flowBox("STEP 3: Electrode Preparation & Placement\n(Motor point, bipolar, longitudinal, adequate size)", TEAL_LIGHT, DARK),
  arrow(),
  flowBox("STEP 4: Stabilize Patient\n(Firm, proper support of limb/body part)", TEAL_LIGHT, DARK),
  arrow(),
  flowBox("STEP 5: Initiate Stimulation\n(Gradually increase amplitude to motor threshold, then exceed)", ACCENT_LT, "7D3C00"),
  arrow(),
  flowBox("STEP 6: First Session Protocol\n(Increase amplitude contraction-by-contraction to build tolerance)", TEAL_LIGHT, DARK),
  arrow(),
  flowBox("STEP 7: Monitor & Progress\n(Adjust duty cycle, intensity, duration over 5-7 day programme)", TEAL_LIGHT, DARK),
  arrow(),
  flowBox("STEP 8: Reassess & Document\nTrack strength, ROM, spasticity scores", TEAL, WHITE),
  spacer(80, 40),

  new Paragraph({ children: [new PageBreak()] }),

  // ─── SECTION 12: INSTRUMENTATION ─────────────────────────────────────────
  sectionTitle("SECTION 12: INSTRUMENTATION OF NMES"),
  body("Proper instrumentation is fundamental to delivering safe and effective NMES therapy. It encompasses stimulator selection, waveform controls, electrode choice, and electrode placement."),
  spacer(40, 80),

  subTitle("12A. General Considerations"),
  makeTable(
    ["Topic", "Description"],
    [
      ["Current waveform selection", "Waveform type, amplitude, duration, frequency all affect comfort and contraction force"],
      ["Recommended stimulator features", "Controls needed for flexible, safe NMES delivery"],
      ["Portable vs. clinical stimulators", "Trade-offs in output, portability, and monitoring capability"],
      ["Electrode types & placement", "Type of electrode and position affects current delivery and efficacy"],
      ["Application principles", "Systematic approach to initiation and progression of NMES"]
    ],
    [35, 65]
  ),
  spacer(60, 40),

  subTitle("12B. Waveform Selection"),
  body("The force of contraction depends on: Amplitude, Pulse Duration, Frequency, and Waveform shape."),
  spacer(40, 40),
  bullet("Symmetrical biphasic waveforms (sinusoidal, triangular, rectangular) - no waveform is most comfortable at comparable torque"),
  bullet("Asymmetric biphasic pulsed = best force output for quadriceps strengthening"),
  bullet("Burst-modulated sinusoidal AC waveforms (2500 Hz carrier) - appropriate for normally innervated skeletal muscle"),
  bullet("Short duration monophasic - slightly less effective than biphasic; mainly for denervated muscle"),
  spacer(40, 80),

  subTitle("12C. Recommended Stimulator Features & Controls"),
  makeTable(
    ["Feature / Control", "Purpose"],
    [
      ["Two output channels", "Allow bipolar or dual muscle group stimulation simultaneously"],
      ["Pulse / phase duration control", "Adjust stimulus duration for comfort and motor nerve threshold"],
      ["Frequency control", "Select appropriate frequency for therapeutic goal (strength vs. endurance vs. atrophy)"],
      ["Independent amplitude controls", "Separate intensity control for each channel"],
      ["ON time / OFF time controls", "Set and adjust duty cycle (contraction and rest periods)"],
      ["Ramp modulation control", "Gradually ramp up/down stimulation for comfort and safety"],
      ["Timer", "Monitor session duration for consistent treatment delivery"]
    ],
    [40, 60]
  ),
  spacer(40, 40),
  noteBox("Clinical note: Considerable flexibility in stimulus adjustments places additional responsibility on the clinician to understand the consequence of changing each stimulator setting to ensure safe and effective treatment."),
  spacer(60, 40),

  subTitle("12D. Portable vs. Clinical Stimulators"),
  flowRow([
    { label: "PORTABLE\n(Battery-operated)\n\n+ Home use / compliance\n+ Lightweight\n\n- May lack output for therapeutic levels\n- Battery drains quickly at high output\n- No analog/digital outputs", fill: TEAL_LIGHT, color: DARK },
    { label: "CLINICAL\n(60 Hz AC mains)\n\n+ Higher output\n+ Monitoring capability\n+ Analog/digital outputs\n\n- Not portable\n- Clinic use only", fill: ACCENT_LT, color: "7D3C00" }
  ]),
  spacer(60, 40),
  noteBox("Some battery-operated stimulators at high output levels drain battery quickly and require frequent replacement. They generally lack analog/digital outputs for monitoring."),
  spacer(60, 40),

  subTitle("12E. Electrodes & Electrode Placement"),
  body("Nelson et al. evaluated four electrode types for NMES effectiveness:"),
  spacer(30, 40),
  makeTable(
    ["Electrode Type", "Characteristics", "Clinical Use"],
    [
      ["Metal electrodes", "Rigid, conductive surface", "Require conductive gel or wet sponge"],
      ["Carbon-impregnated silicone rubber", "Flexible, reusable, good conductivity", "Most versatile clinical electrode"],
      ["Solvent-activated silver-impregnated tape", "Conforms well to body contours", "Limited reuse"],
      ["Self-adhering pre-gelled electrodes", "Consistent contact, easiest application", "Standard current clinical practice"],
      ["Specialist electrodes", "Pelvic floor, glove, sock designs", "Specific anatomical regions"]
    ],
    [28, 37, 35]
  ),
  spacer(40, 40),

  subSubTitle("Flowchart 6: Electrode Placement for Optimal NMES"),
  spacer(30, 40),
  flowBox("Identify Target Muscle", TEAL, WHITE),
  arrow(),
  flowBox("Locate Motor Point\n(site of lowest resistance - maximum contraction at minimum current)", TEAL_LIGHT, DARK),
  arrow(),
  flowBox("Select electrode size: LARGER = lower current density = less discomfort", TEAL_LIGHT, DARK),
  arrow(),
  flowBox("Place one electrode at/near MOTOR POINT\nPlace second electrode on MUSCLE BELLY", TEAL_LIGHT, DARK),
  arrow(),
  flowBox("Orient electrodes LONGITUDINALLY along muscle fibers\n(Brooks et al. 1990 - stronger contraction, less discomfort)", ACCENT_LT, "7D3C00"),
  arrow(),
  flowBox("Secure firmly - ensure good skin contact\nProceed with stimulation", TEAL, WHITE),
  spacer(60, 40),

  subTitle("12F. General Application Principles - Instrumentation"),
  bullet("Goal: Achieve HIGH levels of stimulated muscle contraction"),
  bullet("Amplitude: Gradually increase until motor threshold is reached and then exceeded"),
  bullet("First session: Increase amplitude contraction-by-contraction to build subject tolerance"),
  bullet("Flexibility in parameter adjustment = clinician's responsibility to optimize safely"),
  bullet("Monitor contraction strength: not just a mild twitch - a strong, visible contraction is required for therapeutic benefit"),
  spacer(40, 80),

  // ─── SECTION 13: CLINICAL APPLICATIONS ───────────────────────────────────
  sectionTitle("SECTION 13: CLINICAL APPLICATIONS"),
  spacer(40, 40),

  makeTable(
    ["Domain", "Application", "Key Reference"],
    [
      ["Orthopaedic", "Quadriceps strengthening post bilateral TKA", "Stevens et al. 2004"],
      ["Orthopaedic", "Patellofemoral pain management", "Callaghan & Oldham 2004"],
      ["Orthopaedic", "Clinical vs. portable stimulator torque comparison", "Lyons et al. 2005"],
      ["Cardiovascular", "Low-frequency thigh stimulation in chronic heart failure", "Nuhr et al. 2004"],
      ["Cardiovascular", "NMES for muscle weakness in advanced disease (Cochrane)", "Maddocks et al. 2013"],
      ["Neuro - Stroke", "Shoulder pain/dysfunction in hemiplegia", "Chantraine et al. 1999"],
      ["Neuro - Stroke", "Prevention of shoulder subluxation post-stroke (meta-analysis)", "Ada & Foongchomcheay 2002"],
      ["Neuro - Stroke", "Quadriceps motor unit recruitment post-stroke", "Newsam & Baker 2004"],
      ["Neuro - SCI", "Skeletal muscle adaptability with ES leg training", "Crameri et al. 2002"],
      ["Neuro - SCI", "Acute phase ES training in SCI", "Crameri et al. 2000"],
      ["Neuro - SCI", "Clinical applications of ES post-SCI", "Creasey et al. 2004"],
      ["Neuro - SCI", "Switching stimulation patterns in paralyzed quadriceps", "Scott et al. 2005"]
    ],
    [18, 52, 30]
  ),
  spacer(60, 80),

  // ─── QUICK REFERENCE ──────────────────────────────────────────────────────
  sectionTitle("QUICK REFERENCE SUMMARY"),
  spacer(40, 40),

  makeTable(
    ["Topic", "Key Points"],
    [
      ["Definition", "Electrical current activates peripheral motor nerve → muscle contraction"],
      ["Best Waveform", "Asymmetric biphasic pulsed / Burst AC (2500 Hz)"],
      ["Optimal Pulse Width", "300-400 µs"],
      ["Freq for Strength", "60-100 Hz (max force); 30-35 Hz (clinical)"],
      ["Freq for Endurance", "20 Hz"],
      ["Very Weak Muscle", "10 Hz"],
      ["Duty Cycle Start", "1:9 (very weak) → progress to 1:1 (fit)"],
      ["Ramp Up/Down", "2-4 sec up / 1-2 sec down"],
      ["Electrode", "At/near motor point; longitudinal; larger = more comfortable"],
      ["Contraindications", "Pacemakers, phrenic stimulators, carotid sinus, PVD, neoplasm"],
      ["Spasticity", "3 approaches: antagonist / direct / combined stimulation"],
      ["ROM", "NMES to extensors 35% improvement in active ROM vs 8% conventional"],
      ["Stimulator Features", "2 channels, pulse/freq/amplitude/ON-OFF/ramp controls + timer"]
    ],
    [35, 65]
  ),
  spacer(40, 40),

  hline(),
  new Paragraph({
    alignment: AlignmentType.CENTER,
    children: [new TextRun({ text: "End of NMES & Instrumentation Summary", size: 20, font: "Calibri", italic: true, color: "888888" })],
    spacing: { before: 60, after: 40 }
  })
];

const doc = new Document({
  creator: "NMES Summary Generator",
  title: "NMES & Instrumentation of NMES - Comprehensive Summary",
  description: "A comprehensive summary with flowcharts and tables",
  styles: {
    default: {
      document: {
        run: { font: "Calibri", size: 20, color: DARK }
      }
    }
  },
  sections: [{
    properties: {
      page: {
        margin: { top: 900, right: 900, bottom: 900, left: 900 }
      }
    },
    children: content
  }]
});

Packer.toBuffer(doc).then(buffer => {
  fs.writeFileSync("/home/daytona/workspace/nmes-summary/NMES_Summary.docx", buffer);
  console.log("Done: NMES_Summary.docx created");
}).catch(err => {
  console.error("Error:", err.message);
  process.exit(1);
});

Running Command

cd /home/daytona/workspace/nmes-summary && node generate_summary.js 2>&1

Running Command

python3 /home/daytona/skills/docx/scripts/office/validate.py /home/daytona/workspace/nmes-summary/NMES_Summary.docx 2>&1

Running Command

# Validate by checking it's a valid ZIP with expected structure python3 -c " import zipfile path = '/home/daytona/workspace/nmes-summary/NMES_Summary.docx' with zipfile.ZipFile(path, 'r') as z: names = z.namelist() required = ['word/document.xml', '[Content_Types].xml', 'word/_rels/document.xml.rels'] for r in required: print(r, ':', 'FOUND' if r in names else 'MISSING') print('Total files:', len(names)) import os size = os.path.getsize(path) print('File size:', size, 'bytes') "

Your comprehensive summary document is ready:

NMES Summary

Word Document · DOCX

Here is what is included in the document:

Structure (13 Sections):

Section	Content
1	Overview & Historical Background
2	Waveforms for NMES (comparison table)
3	Stimulation Parameters - Frequency, Duty Cycle, Ramp, Pulse Width
4	Clinical Treatment Parameters (goal-based table)
5	Electrode Types & Placement
6	Strengthening Protocols (Athletes vs. Rehab)
7	Key Conclusions on NMES Strengthening
8	NMES for Range of Motion
9	NMES for Spasticity Control
10	Precautions & Contraindications
11	Application Principles
12	Instrumentation (waveforms, controls, portable vs. clinical, electrodes)
13	Clinical Applications & Quick Reference

6 Visual Flowcharts included:

How NMES works (mechanism step-by-step)
Electrode selection & placement decision flow
Strengthening protocol selection (patient type)
Three approaches to spasticity management
Step-by-step clinical NMES application
Electrode placement for optimal NMES (instrumentation)

All content is derived directly from your uploaded presentations with colour-coded tables, note boxes for key clinical points, and side-by-side comparison boxes.

now teach me both topics in simple language which I can memorize during exams

Here's your exam-ready teaching guide for both topics - written in plain language with memory tricks, mnemonics, and simple analogies.

🧠 TOPIC 1: NMES (Neuromuscular Electrical Stimulation)

WHAT IS NMES? (The 1-Line Answer)

NMES = Using electricity to make a nerve fire, which then makes a muscle contract.

Think of it like this: your brain normally sends an electrical signal through a nerve to make a muscle move. NMES just does the same thing from the outside using a machine and electrodes on your skin.

WHY DO WE USE IT? (4 Big Goals)

Remember with: "SRSC" - Strengthen, ROM, Spasticity, Cardiovascular

S - Strengthen weak muscles
R - Improve Range of Motion (passive + active)
S - Reduce Spasticity
C - Cardiovascular/neurological rehab (SCI, stroke, heart failure)

PART 1: NMES FOR STRENGTHENING

How does NMES make muscles stronger?

The mechanism is mostly neural (not muscle bulk). Think of it as "waking up the nervous system":

Activates the spinal motor pool (more motor neurons fire)
Synaptic facilitation (connections in the spinal cord get better)
Changes muscle fiber type (slow fibers convert to faster ones)

Easy memory: "NMES teaches the nervous system to work better, not just the muscle."

Key Research Facts (Write these in exams!)

Researcher	Finding
Balogun (1993)	24% strength increase in treated limb, 10% in the other limb too (crossover effect!)
Gibson (1988)	Best effects in already weak muscles
Hon Sun Loi (1988)	High intensity = best results; gains in isometric then concentric; no change in eccentric

Crossover Effect (Easy to Remember)

You stimulate the right quad, and the left quad also gets a bit stronger (10%). This happens because the spinal cord is shared!

THE 5 PARAMETERS - "FPDDR"

Remember: "Fat People Drink Dr. Ramp"

F = Frequency
P = Pulse width
D = Duty cycle
D = Duration of session
R = Ramp

1. FREQUENCY (Hz) - "How many pulses per second?"

Frequency	Effect	Use
60-100 Hz	Maximum force (tetanic)	Athletes
30-35 Hz	Good strength, less fatigue	Clinical strengthening
20 Hz	65% force, much less fatigue	Endurance training
10 Hz	Minimal contraction	Very weak/atrophied muscles

Memory trick: Higher Hz = More force BUT more fatigue. Like running fast - you get tired quickly.

2. PULSE WIDTH - "How long is each pulse?"

300-400 microseconds is the sweet spot for NMES
Wider = more uncomfortable
400 µs is used across most clinical protocols

Memory trick: Think of it as how long you press a doorbell. Too short = nothing happens. Too long = annoying.

3. DUTY CYCLE (ON:OFF ratio) - "Work vs. Rest"

This is the ratio of stimulation time to rest time.

Patient Condition	Duty Cycle	Example
Very weak (post-TKR)	1:9	10s ON, 90s OFF
Moderate weakness	1:5 to 1:4
Improving	1:3 to 1:2
Fit/End-stage rehab	1:1	Equal work and rest

Memory trick: "Weaker patient = MORE rest. Like a new gym member who needs long breaks between sets."

Progress direction: Start at 1:9 → work toward 1:1 as patient gets stronger.

4. RAMP - "The gentle start and stop"

Ramp UP: Gradually increase intensity at the START (2-4 seconds)
Ramp DOWN: Gradually decrease at the END (1-2 seconds)

Memory trick: Like a car - don't floor the accelerator from zero. Ease in, ease out. Up is longer (2-4s), down is shorter (1-2s).

5. WAVEFORMS - "Which current shape is best?"

Winner: Asymmetric Biphasic Pulsed current (best force for quadriceps) Runner-up: Burst AC (2500 Hz)

Waveform	What it means	Effectiveness
Asymmetric biphasic	Unequal positive and negative phases	BEST force output
Symmetric biphasic	Equal phases	Good, no waveform is most comfortable
Burst AC (2500 Hz)	High frequency carrier, burst-modulated	Strong contractions
Monophasic	One direction only	Slightly less effective

Simple memory: "Asymmetric Biphasic Wins" - ABW

ELECTRODE PLACEMENT - "MOLL"

Motor point, One electrode there, Longitudinal, Larger electrodes

Motor point = place where nerve enters muscle = least resistance = most contraction at least current
Both electrodes on muscle belly when possible
Longitudinal orientation = along the muscle fibers (stronger contraction, less discomfort)
Larger electrodes = lower current density = less pain

STRENGTHENING PROTOCOLS TABLE

Type of Patient	Frequency	Duty Cycle	Sessions	Duration
Athletes	~60 Hz	1:8 → 1:1	3-5x/week, 3-6 weeks	8-15 contractions/session
Rehab patients	20-35 Hz	1:4+	Longer	100-200 contractions/1-2 hrs
Very weak	10 Hz	1:9	Daily	1 hr+
Clinical strengthening	30-35 Hz, 400µs	10s ON/OFF	Alt days	30 min
Endurance	20 Hz, 400µs	2s ON/OFF	Daily	1 hr

CONCLUSIONS (Exam gold - 5 easy points!)

NMES > unexercised control ✅
NMES = voluntary exercise (similar results when regimen is matched) ✅
NMES + voluntary = NO extra benefit over either alone ✅
Can achieve 80-100% MVIT with electrical stimulation ✅
Positive correlation: training intensity → strength gain ✅

NMES FOR ROM

Passive ROM

Munsat et al.:

NMES of quads, 6 hrs/day
Reduced knee flexion contractures in comatose patients (after hamstring surgery)
When NMES stopped → ROM declined again (important point!)

Rancho Los Amigos (1979):

16 hemiplegic patients, wrist/finger flexion contractures
NMES to wrist/finger extensors
Started 15 min twice daily → progressed to 3x/day for 4 weeks
Result: Improved passive extension

Active ROM

Bowman et al.:

30 hemiplegic patients, full passive ROM but limited active ROM
NMES group: 35% improvement in active wrist extension
Control (conventional therapy): only 8% improvement

Memory: 35 vs 8 - NMES wins big!

NMES FOR SPASTICITY

Spasticity = Hyperactive stretch reflexes + reduced dexterity from CNS damage (stroke, SCI, MS)

3 Approaches (Remember: "A-D-C")

A = Antagonist stimulation D = Direct (spastic muscle) stimulation C = Combined agonist + antagonist

Approach	What you do	Key finding
Antagonist stimulation	Stimulate the muscle OPPOSITE to the spastic one	Spasticity relief lasts ~30 min after stimulation (Baker et al.)
Direct stimulation	Stimulate the SPASTIC muscle itself	Reduction in hypertonicity, improved ADL
Combined	Alternate between both	NOT superior to either alone (Vodovnik)

Baker's key parameters: Monophasic rectangular, 200 µs, 33 pps, 7s ON/10s OFF, bipolar

PRECAUTIONS & CONTRAINDICATIONS - "PCHPPON"

P = Pacemaker (cardiac) C = Carotid sinus H = Hyper/Hypotension P = Phrenic nerve / bladder stimulators P = Peripheral vascular disease O = Obese patients N = Neoplasm or infection

APPLICATION STEPS (Simple 5-step process)

Assess patient, check contraindications
Set parameters (freq, pulse width, duty cycle, ramp, waveform)
Place electrodes (motor point, bipolar, longitudinal)
Stabilize the body part
Increase amplitude gradually until motor threshold exceeded
- In first session: increase contraction by contraction to build tolerance
- Typical programme: 5-7 days; contractions <10 sec; rest 10-20 sec

🔧 TOPIC 2: INSTRUMENTATION OF NMES

WHAT IS INSTRUMENTATION? (The 1-Line Answer)

Instrumentation = The machine, waveform, controls, and electrodes used to deliver NMES.

Think of it as learning how to use the tool properly - which dial does what, which wire goes where.

5 BIG TOPICS IN INSTRUMENTATION - "CREEP"

C = Current waveform selection R = Recommended stimulator features E = Electrodes and placement E = (General application) Effectiveness principles P = Portable vs. clinical stimulators

1. CURRENT WAVEFORM SELECTION

For Comfort (Delitto & Rose study)

Tested: Sinusoidal, Triangular, Rectangular (all symmetric biphasic)
Used on normal subjects activating quadriceps
Comfort measured on VAS
Result: NO waveform was found to be most comfortable when torque was matched

Memory: "All three are equal - no winner for comfort"

For Force of Contraction

Force depends on 4 things: ADFW - Amplitude, Duration, Frequency, Waveform

Symmetric biphasic and burst-modulated sinusoidal AC = most appropriate for normally innervated skeletal muscle
Short duration monophasic = slightly LESS effective than biphasic

2. RECOMMENDED STIMULATOR FEATURES

"A stimulator needs 7 controls" - remember: "2-PF-AOR-T"

Control	Purpose
2 output channels	Stimulate two areas/muscles
Pulse/phase duration	Adjust pulse width
Frequency	Set Hz for strength/endurance goal
Amplitude (independent per channel)	Control intensity
ON/OFF time	Set duty cycle
Ramp modulation	Smooth start and finish
Timer	Manage session time

Simple memory: "2 channels, 5 controls, 1 timer" = a complete NMES machine

3. PORTABLE vs. CLINICAL STIMULATORS

	Portable (Battery)	Clinical (Mains AC)
Power	Battery	60 Hz AC mains
Output	May be insufficient	Higher, reliable
Battery drain	Fast at high output	N/A
Outputs (monitoring)	Generally NONE	Has analog/digital
Portability	High (home use)	Low (clinic only)

Memory trick: "Portable is convenient but limited. Clinical is powerful but you can't take it home."

Key exam point: Some portable units at high output drain battery quickly AND lack digital/analog outputs for monitoring.

4. ELECTRODE TYPES (Nelson et al. - 4 types)

Remember: "MCSS" - Metal, Carbon, Silver-tape, Self-adhering

Type	Key Feature
Metal	Rigid; need gel/sponge
Carbon-impregnated silicone rubber	Flexible, reusable - most common
Solvent-activated silver-impregnated tape	Conforms to skin
Self-adhering pre-gelled	Easiest application, standard clinical use
Specialist (pelvic floor, glove, sock)	Region-specific

5. ELECTRODE PLACEMENT RULES (Same as NMES section)

"MOLL" again - Motor point, One there, Longitudinal, Larger

Both electrodes on muscle belly (bipolar)
One at/near motor point
Longitudinal orientation (along muscle)
Larger size = less discomfort

6. GENERAL APPLICATION PRINCIPLES

Goal = HIGH level contraction (not just a mild twitch!)
Gradually increase amplitude → exceed motor threshold
First session = increase contraction by contraction to build tolerance
User must understand every parameter change and its consequence
Flexibility in controls = clinician's responsibility for safety

FINAL MASTER CHEAT SHEET

NMES Parameters at a Glance

Goal            Freq     PW      Duty Cycle      Duration
─────────────────────────────────────────────────────────
Strengthening   30-35Hz  400µs   10s ON/10s OFF  30 min/day
Endurance       20Hz     400µs   2s ON/2s OFF    1 hr/day
Very Weak       10Hz     400µs   2s ON/2s OFF    1 hr+/day
Athletes        ~60Hz    300-    1:8 → 1:1       8-15 contractions
                         400µs

The 3 Spasticity Approaches

Antagonist → stimulate opposite muscle → 30 min relief
Direct → stimulate spastic muscle → reduces hypertonicity
Combined → no better than either alone

Key Numbers to Remember

35% vs 8% = active ROM improvement (NMES vs conventional)
24% + 10% = strength gains (Balogun - treated + crossover limb)
300-400 µs = best pulse width
2-4 sec ramp up / 1-2 sec ramp down
1:9 → 1:1 = duty cycle progression
8-15 contractions (athletes) vs 100-200 (rehab patients)
30 min post-stimulation = duration of spasticity relief (Baker et al.)
4 electrode types (Nelson et al.)
7 stimulator controls needed for NMES
2 output channels = basic requirement

Study tip: Read the cheat sheet 3 times tonight, cover it and write it from memory tomorrow morning. The numbers stick faster when you connect them to a clinical image - picture a post-knee surgery patient resting for 90 seconds between 10-second contractions, and the numbers will stay.

Make a visual poster/infographic summarizing NMES parameters and choices

Generating Image

A professional medical education infographic/poster titled "NMES Parameters & Clinical Choices" for physiotherapy students. Clean, modern design with a teal and white color scheme on a dark navy background. Layout sections: TOP HEADER: Large bold title "NMES - Neuromuscular Electrical Stimulation" with subtitle "Parameters & Clinical Choices Quick Reference" Section 1 - WAVEFORMS (left column, icon of sine wave): - Asymmetric Biphasic Pulsed → BEST force output - Burst AC 2500 Hz → Strong contractions - Symmetric Biphasic → Good, comfortable - Monophasic → Less effective Section 2 - FREQUENCY (center-left, icon of frequency waves): Visual scale/bar showing: - 10 Hz → Very weak muscles / Atrophy - 20 Hz → Endurance (65% force, low fatigue) - 30-35 Hz → Clinical Strengthening - 60-100 Hz → Maximum force / Athletes Section 3 - PULSE WIDTH (center): - Optimal: 300-400 microseconds - Wider = more discomfort - 400 µs used in most clinical protocols Section 4 - DUTY CYCLE (center-right, icon of timer): Arrow progression bar showing: 1:9 (Very Weak) → 1:5 → 1:4 → 1:3 → 1:2 → 1:1 (Fit/Athletes) Label: "Progress as strength improves" Section 5 - RAMP (right column, icon of slope): UP: 2-4 seconds (gradual rise) PLATEAU: Full contraction DOWN: 1-2 seconds (gradual fall) Small diagram showing ramp-up plateau ramp-down shape Section 6 - CLINICAL PROTOCOLS TABLE (bottom, 3 columns in colored boxes): STRENGTHENING: 30-35 Hz | 400µs | 10s ON/10s OFF | 30 min/day ENDURANCE: 20 Hz | 400µs | 2s ON/2s OFF | 1 hr/day VERY WEAK/ATROPHY: 10 Hz | 400µs | 2s ON/2s OFF | 1 hr+/day ATHLETES: 60 Hz | 300-400µs | 1:1 ratio | 8-15 contractions Section 7 - ELECTRODE PLACEMENT (small box bottom-right): Motor point placement, Longitudinal orientation, Larger = less discomfort Bipolar configuration diagram Section 8 - CONTRAINDICATIONS (red warning box bottom-left): Pacemakers | Carotid sinus | PVD | Neoplasm | Hypo/Hypertension | Phrenic stimulators Use icons, color-coded sections (teal, orange accent, dark navy), clean sans-serif typography, medical professional style. Dense but organized. Print-quality poster layout.

NMES Parameters & Clinical Choices Infographic

Here's your visual NMES infographic! It covers all the key parameters in one glance:

Waveforms - ranked from best to least effective for force output
Frequency scale - 10 Hz (atrophy) all the way up to 100 Hz (athletes)
Duty cycle progression - visual 1:9 → 1:1 arrow showing how to progress patients
Ramp - the rise-plateau-fall shape
Clinical protocol table - 4 patient categories with exact settings
Electrode placement rules
Contraindications in a red warning box

You can screenshot this and keep it on your phone for last-minute exam review. Want me to also make a separate one for the Instrumentation of NMES (stimulator features, electrode types, portable vs. clinical)?

Create instrumentation/equipment infographic

Generating Image

A professional medical education infographic/poster titled "Instrumentation of NMES" for physiotherapy students. Clean, modern design with deep teal, orange accent, and white on a dark navy background. Print-quality, dense but well-organized layout. TOP HEADER: Large bold title "INSTRUMENTATION OF NMES" subtitle "Equipment, Controls, Electrodes & Application" --- SECTION 1 (top-left panel, teal background): WAVEFORM SELECTION Title: "Current Waveform Selection" Small waveform shape icons next to each: • Asymmetric Biphasic Pulsed → Best force output for strength • Symmetric Biphasic (sinusoidal/triangular/rectangular) → No one waveform most comfortable (Delitto & Rose) • Burst-modulated Sinusoidal AC (2500 Hz) → Appropriate for normally innervated muscle • Short-duration Monophasic → Slightly less effective than biphasic Bottom note: "Force depends on: Amplitude + Duration + Frequency + Waveform shape" --- SECTION 2 (top-center panel, dark navy with teal border): STIMULATOR CONTROLS Title: "7 Essential Stimulator Controls" Numbered list with small icons: 1. Two Output Channels - stimulate two muscle groups 2. Pulse/Phase Duration Control - adjust pulse width 3. Frequency Control - select Hz for goal 4. Independent Amplitude Controls - separate intensity per channel 5. ON Time / OFF Time Controls - set duty cycle 6. Ramp Modulation Control - smooth rise and fall 7. Timer - manage session duration Bottom note: "Flexibility = Clinician's responsibility for safe use" --- SECTION 3 (top-right panel, orange accent): PORTABLE vs CLINICAL STIMULATORS Title: "Portable vs Clinical" Two-column comparison table: PORTABLE (battery icon): + Home use, lightweight + Patient compliance - May lack therapeutic output - Battery drains fast at high output - No analog/digital outputs CLINICAL (plug/mains icon): + High reliable output + Analog & digital monitoring + Suitable for complex cases - Not portable - Clinic use only --- SECTION 4 (middle-left, light teal background): ELECTRODE TYPES Title: "4 Electrode Types (Nelson et al.)" Icon of electrode next to each: 1. Metal Electrodes - rigid, need conductive gel 2. Carbon-impregnated Silicone Rubber - flexible, reusable, most versatile 3. Solvent-activated Silver-impregnated Tape - conforms to skin 4. Self-adhering Pre-gelled - easiest, standard clinical practice Plus: Specialist Electrodes (pelvic floor, glove, sock) --- SECTION 5 (middle-center, dark panel): ELECTRODE PLACEMENT DIAGRAM Title: "Electrode Placement Rules" Simple anatomy diagram of a muscle (like quadriceps) showing: - Motor Point marked with a star (place one electrode here) - Second electrode on distal muscle belly - Arrow showing LONGITUDINAL orientation along muscle fibers Rules listed: • Both electrodes on muscle belly (bipolar) • One at/near motor point • Longitudinal = stronger contraction, less discomfort (Brooks 1990) • LARGER electrodes = lower current density = less pain --- SECTION 6 (middle-right, orange panel): GENERAL APPLICATION PRINCIPLES Title: "Application Principles" Step-by-step numbered flow: Step 1: Assess patient + check contraindications Step 2: Select all parameters (freq, PW, duty cycle, ramp) Step 3: Prepare and place electrodes correctly Step 4: Stabilize the body part firmly Step 5: Gradually increase amplitude → reach motor threshold → exceed it Step 6: First session: increase contraction-by-contraction to build tolerance Goal: Strong visible contraction, NOT just a mild twitch! --- BOTTOM PANEL (full width, dark teal): KEY FACTS TO REMEMBER Three columns: Column 1 - COMFORT STUDY: "Delitto & Rose: Sinusoidal vs Triangular vs Rectangular biphasic waveforms tested on quadriceps. Result: NO waveform was most comfortable at comparable torque. VAS used for comfort rating." Column 2 - FORCE STUDY: "Symmetric biphasic + burst-modulated sinusoidal AC = most appropriate for normally innervated muscle. Monophasic (short duration) = slightly LESS effective." Column 3 - MNEMONICS: "7 Controls = 2-PF-AOR-T: 2 channels, Pulse, Frequency, Amplitude, ON/OFF, Ramp, Timer. Electrode types = MCSS: Metal, Carbon, Silver-tape, Self-adhering" Use bold clean sans-serif fonts, medical icons, color-coded sections, professional physiotherapy education style.

Here's your Instrumentation of NMES infographic! Everything is covered in one visual:

What's inside:

Panel	Content
Top-left	Waveform selection with shape icons - ranked by effectiveness
Top-center	7 essential stimulator controls numbered clearly
Top-right	Portable vs. Clinical stimulator comparison
Middle-left	4 electrode types (Nelson et al.) with MCSS mnemonic
Middle-center	Electrode placement diagram on a muscle - motor point, bipolar, longitudinal
Middle-right	6-step application principles flow
Bottom strip	Key study facts + mnemonics (2-PF-AOR-T and MCSS)

Together, both infographics cover your entire exam syllabus visually:

🖼️ NMES poster = parameters, protocols, duty cycle, ramp, contraindications
🖼️ Instrumentation poster = waveforms, controls, electrodes, placement, application

Screenshot both and you have a complete last-minute revision kit!

This is a shared conversation. Sign in to Orris to start your own chat.
