❤️ ECG (Electrocardiogram) — Poori Samajh, 10 Common Heart Diseases ke Saath

ECG Kya Hota Hai?

ECG dil ki electrical activity ko paper par record karta hai. Dil mein bijli ki lehren chalti hain jo muscles ko contract karne ka signal deti hain. ECG machine in lehar ko peaks aur valleys ki shakal mein dikhata hai.

ECG Paper ko Samjho

Grid	Matlab
Chhota square (horizontal)	0.04 second
Bada square (horizontal)	0.2 second
Chhota square (vertical)	1 mm = 0.1 mV voltage

Normal ECG ki Waves

         R
         |
    P    |        T
   /\    |       /\
--/--\---+------/--\----  (baseline)
         |     /
    Q    |    S

Wave	Kya Represent Karta Hai	Normal Duration
P wave	Atrium (upar wale chambers) ki depolarization (contraction signal)	0.06-0.12 sec, height 2-3 mm
PR interval	AV node se current guzarne ka waqt	0.12-0.20 sec
QRS complex	Ventricles (neeche wale chambers) ki depolarization	0.06-0.10 sec (<3 chhote squares)
ST segment	Ventricles ki electrical recovery ki shuruat	Isoelectric (baseline par)
T wave	Ventricles ki repolarization (relaxation)	Upright in most leads
QT interval	Ventricles ki depolarization + repolarization ka total waqt	<0.44 sec (men), <0.46 sec (women)

12 Leads ka Matlab

ECG 12 alag-alag angles se dil ko "dekh" ta hai:

Limb leads: I, II, III, aVR, aVL, aVF (dil ke upper/lower angles)
Precordial leads: V1-V6 (dil ke front se right to left angles)

10 Common Heart Diseases aur Unke ECG

1. 🫀 Normal Sinus Rhythm (NSR) - Reference Point

Kya hota hai: Dil bilkul normal chal raha hai, SA node se shuru ho kar sab signals sahi waqt par ja rahe hain.

ECG features:

Har QRS se pehle ek P wave
Rate: 60-100 beats/min
Regular rhythm
PR interval normal (0.12-0.20 sec)

2. 🔴 STEMI (ST-Elevation Myocardial Infarction) - Heart Attack

Kya hota hai: Coronary artery (dil ko khoon dene wali nali) block ho jaati hai. Ek hissa marne lagta hai.

ECG features (Tintinalli's Emergency Medicine se):

ST segment upar uth jaata hai (elevation) - yeh sabse important sign hai
Baad mein pathological Q waves bante hain (ek baar thrombus se dil ka tissue mar jaye)
Mirror image mein ST depression opposite leads mein

Kahan ST elevation, kahan dil ka hissa affect hua:

Location	ECG Leads mein ST Elevation
Anteroseptal	V1, V2, (V3)
Anterior	V1, V2, V3, V4
Anterolateral	V1-V6, I, aVL
Inferior	II, III, aVF
Lateral	I, aVL
Right Ventricle	II, III, aVF + V4R

Diagram: Inferior STEMI (Right Coronary Artery Block)

Inferior STEMI ECG - ST elevation in II, III, aVF with ST depression in aVL

Yeh ECG ek 80 saal ke mard ka hai jo chest pain ke saath aaya. Lead III aur II mein ST elevation hai aur lead I, aVL mein depression hai. Right coronary artery 100% block mili. (Tintinalli's EM, Fig 49-5)

Diagram: Anterior STEMI (LAD Block)

Anterior STEMI ECG - ST elevation in V1, V2, V3

Yeh ECG ek 52 saal ke mard ka hai. V1, V2, V3 aur Lead I mein ST elevation hai. Left anterior descending artery 100% block mili. (Tintinalli's EM, Fig 49-7)

Diagram: Right Ventricular Infarction

Right Ventricular Infarction ECG with right-sided leads

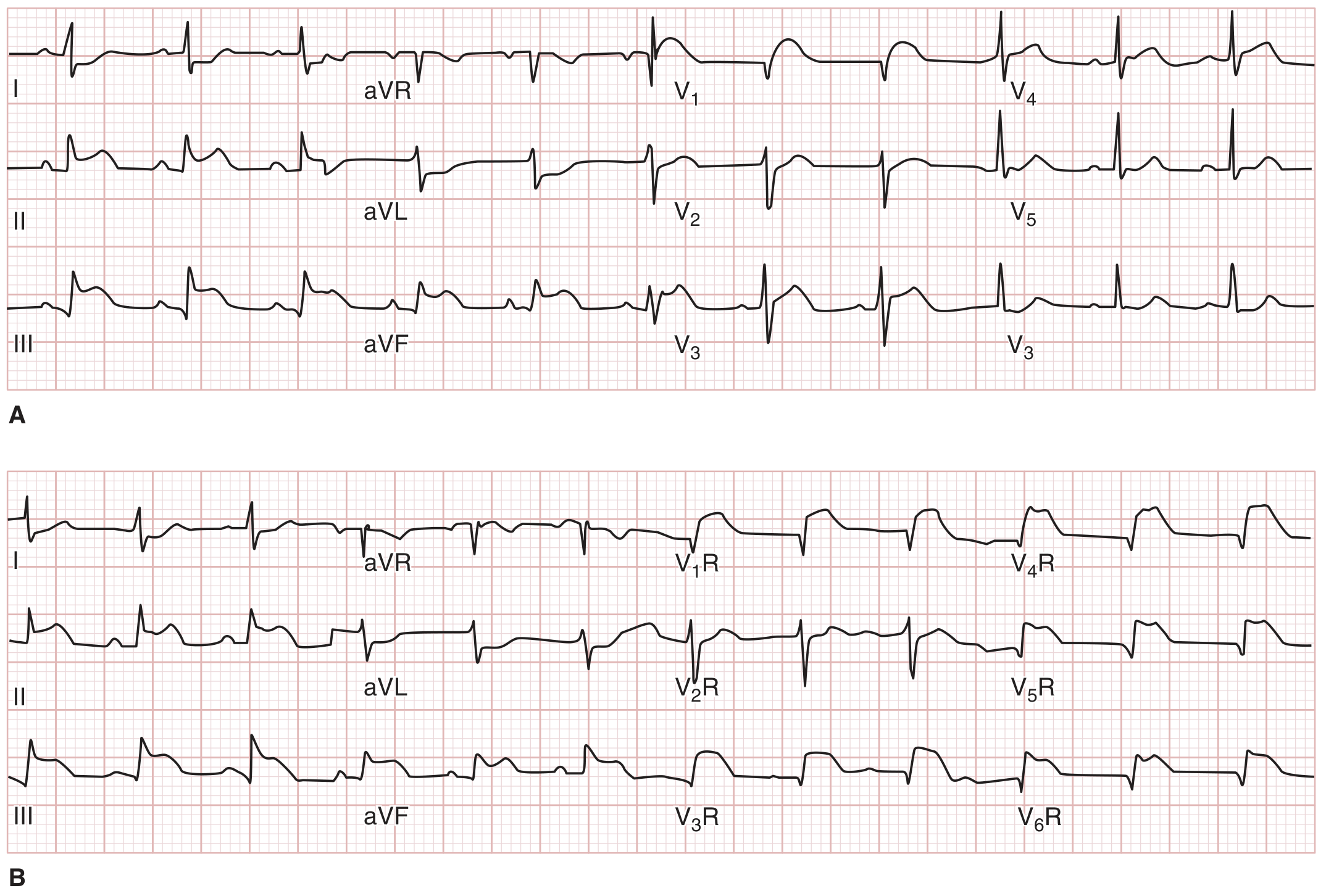

Panel A: Standard leads mein inferior STEMI. Panel B: Right-sided leads (V1R-V6R) mein ST elevation - yeh RV infarction ki nishaani hai. (Tintinalli's EM, Fig 49-6)

3. 🟠 NSTEMI / Unstable Angina - Partial Block

Kya hota hai: Artery completely block nahi, lekin khoon ka flow kam ho gaya.

ECG features:

ST depression (neeche ki taraf)
T wave inversion
Koi ST elevation nahi
Q waves nahi bante (isliye "non-ST elevation")

4. 💛 Atrial Fibrillation (AF)

Kya hota hai: Atrium mein bijli ki chaotic firing hoti hai. 300-600 baar/minute atria "quiver" karta hai. Ventricles ko irregular signals milte hain.

ECG features:

P waves nahin hote - baseline chaotic/wavy dikhta hai (fibrillatory waves)
Irregularly irregular RR intervals - bilkul random
QRS narrow (agar no conduction problem)

Yaad karo: "No P = A-fib likely"

Common causes: Hypertension, valve disease, ischemic heart disease, thyroid problems

5. 💚 Atrial Flutter

Kya hota hai: Atrium mein ek regular circular current banta hai, 250-350 baar/minute. AV node sirf kuch signals pass karta hai.

ECG features:

"Sawtooth" pattern - P waves jaisi waves jo ek doosre mein milti hain (especially V1, II, III, aVF)
Rate: 250-350 flutter waves/min
QRS: Regular, usually 2:1 ya 4:1 ratio mein (har 2 flutter waves par 1 QRS)

6. ❤️‍🔥 Ventricular Tachycardia (VT)

Kya hota hai: Ventricles ke andar se fast electrical signals nikalna shuru hote hain, 150-250 baar/minute.

ECG features:

Wide QRS complexes (>0.12 sec = >3 chhote squares)
Fast rate: >100/min (usually 150-250)
Regular rhythm
P waves absent ya dissociated (AV dissociation)
Fusion beats ya capture beats (VT ki proof)

Khatarnak: Low blood pressure, loss of consciousness ho sakti hai

Diagram: Ventricular Run (VT)

Ventricular Tachycardia - wide QRS complexes at high rate

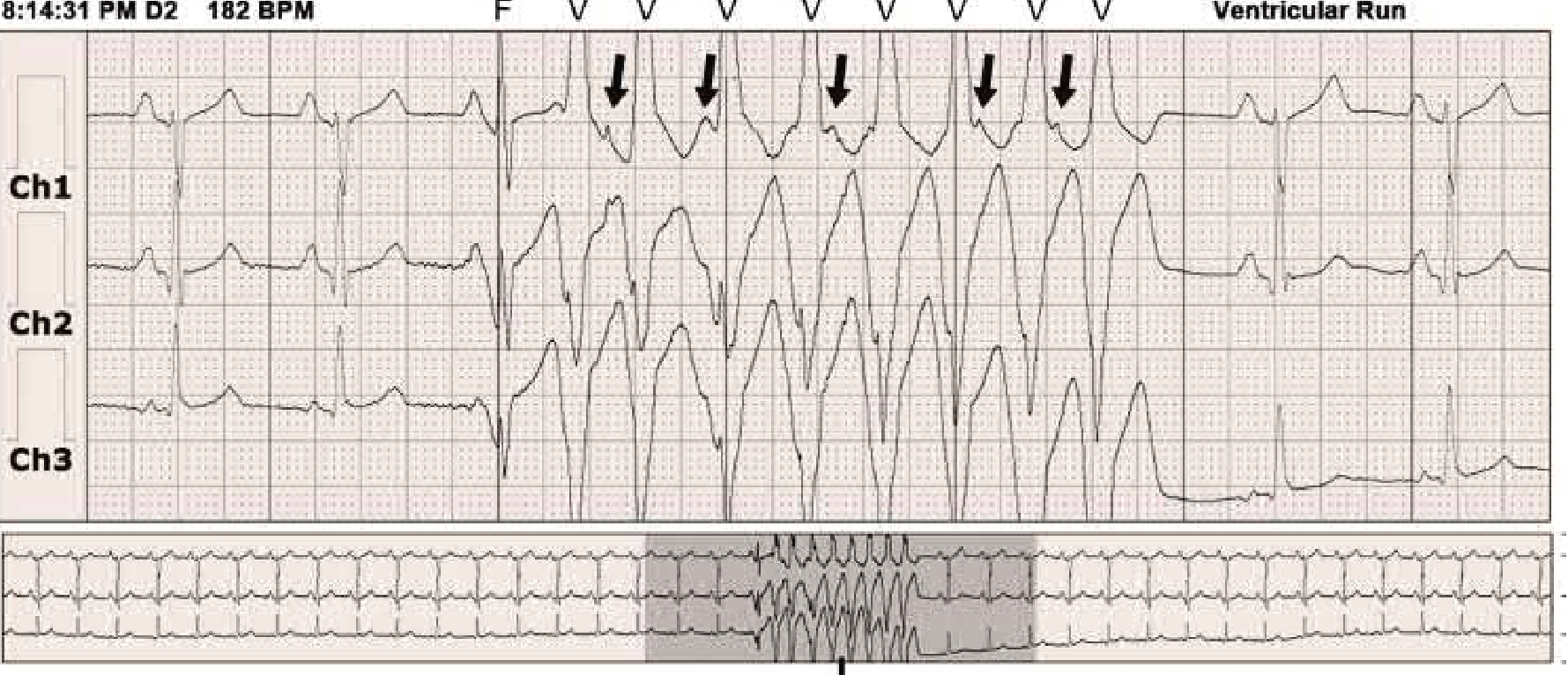

Holter monitor recording. Fusion beat (F) ke baad 9 wide QRS complexes of VT. Arrows show retrograde P waves. Isse patient ko palpitations hue. (Braunwald's Heart Disease, Fig 61.12)

7. 💀 Ventricular Fibrillation (VF)

Kya hota hai: Ventricles mein bilkul chaotic electricity - koi coordinated contraction nahi. No cardiac output = cardiac arrest.

ECG features (Tintinalli's EM se):

Koi recognizable P waves ya QRS nahi
Sirf chaotic, irregular waves dikhen gi
Fine (chhoti waves) ya coarse (badi waves) VF ho sakti hai

Diagram: Ventricular Fibrillation (3 types)

Ventricular Fibrillation - fine, coarse, and VT-mimicking patterns

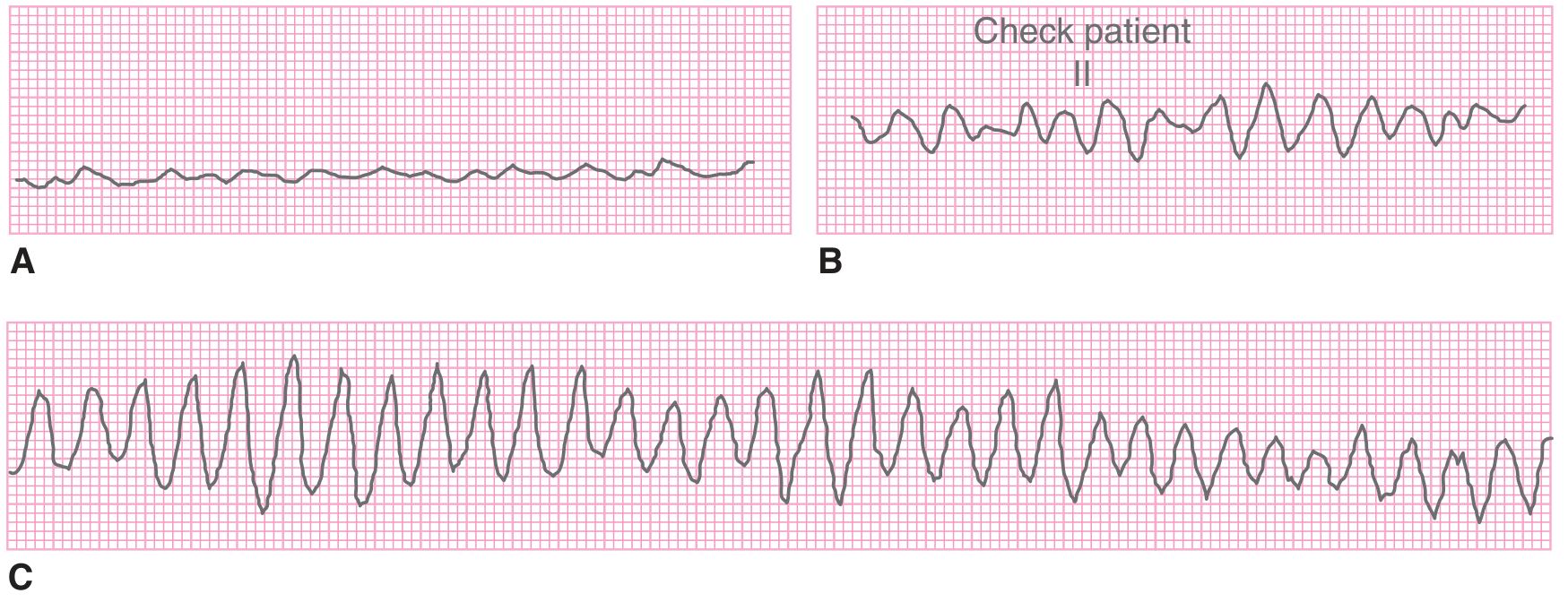

A: Fine amplitude VF. B: Coarse amplitude VF. C: Coarse VF jo Ventricular Tachycardia jaisi lagti hai. Yeh sab cardiac emergency hain - immediate defibrillation zaruri. (Tintinalli's EM, Fig 18-23)

8. 💙 Complete Heart Block (Third Degree AV Block)

Kya hota hai: Atria aur Ventricles ke darmiyan connection completely cut ho jaata hai. Dono apni apni speed se chalte hain.

ECG features (Tintinalli's EM, Table 18-20):

P waves aur QRS completely independent hain (AV dissociation)
P-P interval regular, R-R interval regular - par koi relation nahi
P waves kahin bhi aa sakte hain QRS ke relation mein
QRS narrow (junctional escape) ya wide (ventricular escape)
Rate: Atria ~60-100/min, Ventricles ~30-40/min (escape rhythm)

Symptoms: Syncope, dizziness, very low heart rate

9. 💜 Left Ventricular Hypertrophy (LVH)

Kya hota hai: High blood pressure (ya valve disease) ki wajah se left ventricle ki deewar moti ho jaati hai.

ECG features (Harrison's Principles se):

Tall R waves left precordial leads mein (V5, V6) aur deep S waves right leads mein (V1, V2)
Sokolow-Lyon criteria: S in V1 + R in V5 or V6 > 35 mm
aVL criterion: R in aVL > 28 mm (men), > 20 mm (women)
ST depression + T wave inversion in left leads (I, aVL, V5, V6) - "strain pattern"
Left axis deviation

10. 🤍 Wolff-Parkinson-White (WPW) Syndrome

Kya hota hai: Atria aur ventricles ke beech ek extra electrical pathway hoti hai (accessory pathway) jo AV node ko bypass kar leti hai.

ECG features (Tintinalli's EM se):

Short PR interval (<0.12 sec) - kyunki signal AV node ko bypass karta hai
Delta wave - QRS complex ka shuruat mein ek "slurred" upstroke (slow initial deflection)
Widened QRS complex - fusion ki wajah se
ST aur T wave changes - opposite direction mein delta/QRS se

Khatarnak: Rapid AF mein VF ho sakti hai. Accessory pathway rapid conduction allow karta hai.

ECG Padhne ka Systematic Approach

Koi bhi ECG dekho to in steps mein chalo:

1. RATE      → Kitne beats per minute?
               (300 ÷ big squares between R waves)
               Ya: Number of complexes in 10 sec × 6

2. RHYTHM    → Regular hai? (R-R intervals equal?)
               Regular, Regularly Irregular, ya Irregularly Irregular?

3. P WAVES   → Hain ya nahi? Har QRS se pehle? Shape normal?

4. PR INTERVAL → 0.12-0.20 sec (3-5 small squares)? Constant?

5. QRS       → Width normal (<0.12 sec)? Shape? Q waves?

6. ST SEGMENT → Baseline par? Elevation ya Depression?

7. T WAVES   → Upright ya inverted? Peaked?

8. QT        → Prolonged? (<0.44 sec men, <0.46 sec women)

Quick Summary Table

Disease	Key ECG Finding	Emergency?
STEMI	ST elevation in leads matching territory	YES - urgent PCI
NSTEMI/UA	ST depression, T inversion	Urgent
Atrial Fibrillation	No P waves, irregular rhythm	Depends
Atrial Flutter	Sawtooth P waves, regular	Yes
VT	Wide QRS, fast, regular	YES
VF	No P/QRS - chaotic	YES - defibrillate now
Complete Heart Block	AV dissociation	YES - pacemaker
LVH	Tall R + deep S, strain pattern	No (chronic finding)
WPW	Short PR + delta wave	Monitor
Pulmonary Embolism	Sinus tachycardia, S1Q3T3	YES

Sources: Tintinalli's Emergency Medicine (9th Ed.), Harrison's Principles of Internal Medicine (22nd Ed., 2025), Braunwald's Heart Disease (11th Ed.)

Note: ECG diagnosis hamesha clinical context ke saath karein. Single ECG se poori tasweer nahi milti - symptoms, biomarkers (troponin), aur history sab milake diagnosis hota hai.
