Basics of Cardiac Implantable Electronic Devices (CIEDs): Pacemakers, ICD, and CRT
1. PACEMAKER - Basics
What It Does
A pacemaker senses intrinsic cardiac electrical activity and delivers an electrical pulse only when needed (demand pacing). It consists of:
- Pulse generator - hermetically sealed, lithium battery (~30 g, lifespan 7-12 years), semiconductor chip as CPU
- Lead system - unipolar or bipolar electrodes placed in the heart via subclavian or cephalic vein under fluoroscopy
Unipolar vs. Bipolar Leads
| Feature | Unipolar | Bipolar |
|---|---|---|
| Cathode | Lead tip electrode | Lead tip electrode |
| Anode | Generator casing | Ring electrode ~2 cm proximal to tip |
| Sensing | More prone to EMI interference | Preferred - less external interference |
| Pacing artifact on ECG | Large spike | Small spike |
The NBG (NASPE/BPEG) Pacemaker Code
Developed by the North American Society of Pacing and Electrophysiology (NASPE) and British Pacing and Electrophysiology Group (BPEG), revised in 2002:
| Position | I | II | III | IV | V |
|---|---|---|---|---|---|
| Meaning | Chamber Paced | Chamber Sensed | Response to Sensing | Rate Modulation | Antitachycardia |
| Options | O = None | O = None | O = None | O = None | O = None |
| A = Atrium | A = Atrium | I = Inhibited | R = Rate mod | P = Antitachycardia pacing | |
| V = Ventricle | V = Ventricle | T = Triggered | M = Multiple | S = Shock | |
| D = Dual | D = Dual | D = Dual | C = Communicating | D = Dual |
In daily practice, only the first 3 letters are used (e.g., VVI, DDD, AAI).
2. PACEMAKER TYPES / MODES (PPI = Permanent Pacemaker Implantation)
Common Modes
| Mode | Paces | Senses | Response | Use |
|---|---|---|---|---|
| AOO | Atrium | None | None | Asynchronous atrial - rarely used |
| VOO | Ventricle | None | None | Asynchronous ventricular - magnet mode |
| AAI | Atrium | Atrium | Inhibited | Sick sinus syndrome with intact AV node |
| VVI | Ventricle | Ventricle | Inhibited | AF with slow ventricular response; most common single-chamber |
| VDD | Ventricle | Dual | Dual | Senses atrium, paces ventricle - AV synchrony without atrial pacing |
| DDD | Dual | Dual | Dual | Most physiologic; intact sinus node, AV block |
| VVIR / DDDR | + Rate modulation | - | - | Chronotropic incompetence, active patients |
Rate Modulation (R in position IV)
Physiologic sensors (motion sensors, minute ventilation, QT interval, temperature, venous O2 sat) automatically increase/decrease pacing rate with physical activity. Key for patients who exercise.
Magnet Application
Placing a magnet over the generator closes a reed switch, converting the demand pacemaker into an asynchronous/fixed-rate pacemaker at the "magnet rate."
Indications for PPI
| Indication | Notes |
|---|---|
| Symptomatic/hemodynamically unstable bradycardia | Hypotension, altered consciousness, angina, pulmonary edema |
| Sick sinus syndrome | Prolonged asystole >3 s with syncope |
| Complete heart block | Third-degree AV block |
| Mobitz type II AV block | High risk of progression to complete block |
| Torsades de pointes | Overdrive pacing |
| Recurrent monomorphic VT | Overdrive pacing |
3. ICD (Implantable Cardioverter-Defibrillator)
Also called AICD (Automatic Implantable Cardioverter-Defibrillator).
Components
- Pulse generator - sealed titanium casing with lithium-silver-vanadium oxide battery, capacitors (charge over 3-10 sec), microprocessors, memory, telemetry
- Leads - sensing electrodes + defibrillation coil(s), inserted via subclavian/axillary/cephalic vein to RV apex (left side preferred for better shocking vector)
- Dual-coil lead - proximal coil in SVC + distal coil in RV creates 3D electric field for better defibrillation
Energy
- Capacitors store charge and discharge rapidly
- Max output: 30 J in most units; up to 45 J in higher-energy models
ICD Types
| Type | Leads | Advantage |
|---|---|---|
| Single-chamber | RV lead only | Simpler, but poor SVT discrimination |
| Dual-chamber | RA + RV leads | Better rhythm discrimination, fewer inappropriate shocks |
| CRT-D | RA + RV + LV (coronary sinus) | Combines CRT with defibrillation |
Distribution of annual ICD implants: ~27% single-chamber, ~32% dual-chamber, ~41% CRT systems.
Tiered Therapy (Hierarchical Treatment)
- Antitachycardia pacing (ATP) - overdrive pacing; terminates up to 90% of monomorphic VT <200 bpm; silent/painless
- Low-energy cardioversion (≤5 J) - if ATP fails
- High-energy defibrillation (30-45 J) - for VF or refractory VT
ICD Indications
- Secondary prevention: Survivors of VF or hemodynamically unstable VT not due to reversible cause
- Primary prevention: LVEF ≤35%, NYHA class II-III on optimal medical therapy, expected survival >1 year (ischemic cardiomyopathy ≥40 days post-MI; non-ischemic after ≥3 months of GDMT)
- Inherited channelopathies: Brugada syndrome, Long QT, HCM with high risk features
4. CRT (Cardiac Resynchronization Therapy)
Also called biventricular pacing.
What It Does
~1/3 of patients with HFrEF have QRS prolongation (often LBBB pattern), causing mechanical dyssynchrony of the failing heart. CRT paces both RV and LV simultaneously (via a coronary sinus lead for LV + RV lead), restoring coordinated contraction and improving:
- Cardiac output and LVEF
- Peak VO2 (~1-2 mL/kg/min improvement)
- NYHA functional class
- Reduction in hospitalizations and all-cause mortality
Lead Setup
- Right ventricular lead - standard endocardial lead
- Coronary sinus lead - for left ventricular pacing
- Right atrial lead - often included for AV synchrony
CRT Types
| Device | Full Name | Function |
|---|---|---|
| CRT-P | CRT-Pacemaker | Biventricular pacing only |
| CRT-D | CRT-Defibrillator | Biventricular pacing + ICD shock capability |
CRT Indications (ACC/AHA Guidelines)
Optimal condition: LVEF ≤35% + LBBB + QRS ≥150 ms + sinus rhythm + NYHA II-IV on GDMT

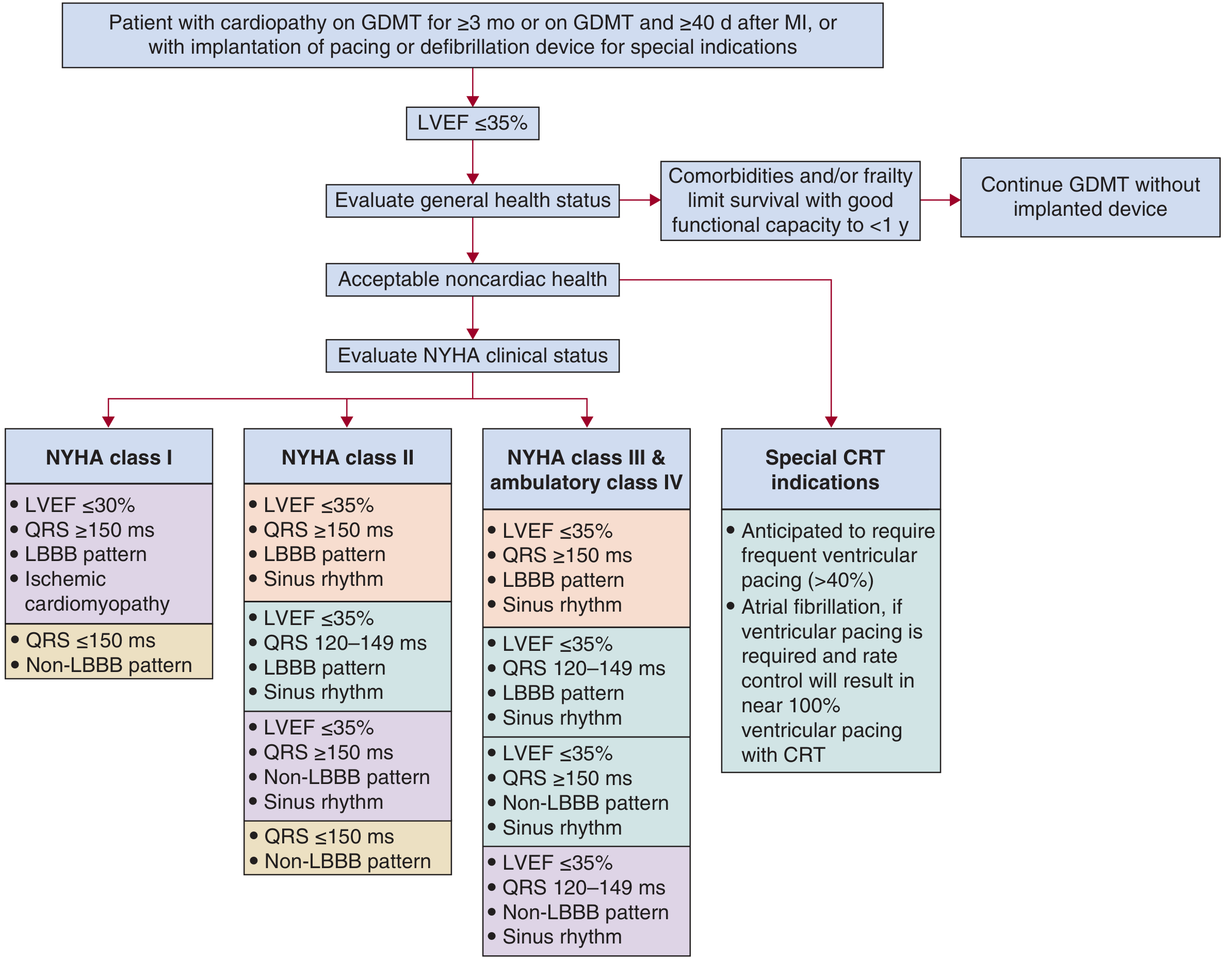

The CRT indications algorithm from Fuster & Hurst's The Heart, 15th Ed.:
| NYHA Class | LVEF | QRS | Pattern | Indication |
|---|---|---|---|---|
| I | ≤30% | ≥150 ms | LBBB, ischemic CM | Indicated |
| II | ≤35% | ≥150 ms | LBBB, sinus rhythm | Indicated |
| II | ≤35% | 120-149 ms | LBBB, sinus rhythm | Indicated |
| III/IV (ambulatory) | ≤35% | ≥120 ms | LBBB, sinus rhythm | Indicated |
| Any | - | - | Anticipated >40% RV pacing | Special indication |
| AF with near 100% ventricular pacing required | - | - | - | Special indication (+ AV node ablation) |
Key Clinical Trials
| Trial | Population | Finding |
|---|---|---|
| COMPANION | NYHA III-IV, LVEF ≤35%, QRS ≥120 ms (n=1520) | CRT-P: 24% mortality reduction; CRT-D: 36% reduction |
| CARE-HF | NYHA III-IV, LVEF ≤35%, QRS ≥120 ms (n=813) | CRT-P: 36% mortality reduction; 52% reduction in HF hospitalization |
| MADIT-CRT | NYHA I-II, LVEF ≤30%, QRS ≥130 ms | CRT-D vs ICD: 25-35% reduction in mortality + HF hospitalization |
| RAFT | NYHA II-III, QRS ≥120 ms | CRT-D: mortality + HF hospitalization benefit; only trial showing mortality benefit in mild HF |
CRT Complications
- Coronary sinus dissection or perforation during LV lead placement
- Lead dislodgement (especially LV lead)
- Diaphragmatic/phrenic nerve pacing (from LV lateral free wall lead)
- Device pocket infection, pneumothorax, pocket erosion
Summary Comparison
| Feature | Pacemaker (PPI) | ICD | CRT |
|---|---|---|---|
| Primary purpose | Prevent bradycardia | Prevent sudden cardiac death (VT/VF) | Restore mechanical synchrony in HF |
| Leads | 1-2 (RA, RV) | 1-2 (RV ± RA) | 3 (RA + RV + LV via coronary sinus) |
| Delivers shock? | No | Yes (up to 45 J) | No (CRT-P) / Yes (CRT-D) |
| Key indication | Bradyarrhythmia, AV block, SSS | VT/VF, LVEF ≤35% + NYHA II-III | LVEF ≤35% + LBBB + QRS ≥120 ms + NYHA II-IV |
| Battery life | 7-12 years | 5-8 years | 5-9 years |
