Chest X-Ray in Cardiac Disease Evaluation: A Systematic Approach

[DNB Radiology Final - 10 Marks]

Introduction

The plain chest radiograph (CXR) remains a cornerstone in the evaluation of cardiac disease. It provides a rapid, reproducible overview of cardiac size and contour, pulmonary vascular status, lung parenchyma, mediastinal structures, and implanted devices. Systematic interpretation maximizes diagnostic yield, especially when correlated with clinical data and ECG.

Five-Step Systematic Approach to CXR Evaluation in Cardiac Disease

Step 1: Technical Adequacy and Thoracic Wall

Before reading the film, assess:

Projection: PA (preferred) vs. AP (overestimates cardiac size)
Rotation: Medial ends of clavicles should be equidistant from vertebral spinous processes; rotation falsely displaces mediastinum and distorts the cardiac silhouette
Inspiration: At least 10 posterior ribs should be visible; poor inspiration exaggerates cardiac size
Penetration: Disc spaces must be faintly visible behind the heart; over- or under-penetration affects assessment of lead integrity and calcifications

Thoracic wall abnormalities affecting cardiac interpretation:

Pectus excavatum: Narrows the AP diameter, compresses and displaces the heart leftward, mimics RV enlargement and falsely enlarges the pulmonary artery segment
Straight-back syndrome: Loss of thoracic kyphosis compresses the heart
Scoliosis: Rotates the mediastinum
Right-sided stomach (situs): Suggests situs inversus/ambiguus; absent IVC shadow + right-sided stomach indicates congenital IVC interruption with azygos continuation

A narrowed AP thoracic diameter is the most common cause of an innocent murmur in young adults.

Step 2: Cardiac Size

Cardiothoracic Ratio (CTR):

CTR = maximum transverse diameter of the heart / maximum internal diameter of the thorax
Normal on PA erect CXR: ≤ 0.5
CTR > 0.5 = cardiomegaly
A CTR > 0.42 on acute MI CXR is associated with worse in-hospital and long-term outcomes

Clinical correlation:

Volume overload (e.g., MR, AR, L-to-R shunts): produces greater cardiomegaly than pressure overload alone
Pressure overload alone (e.g., AS, hypertension): may show normal or mildly enlarged heart with LV hypertrophy without significant dilatation
Small heart: Seen in COPD, Addison disease, anorexia nervosa, starvation

Step 3: Cardiac Contour (Silhouette and Border Analysis)

The cardiac contour on PA CXR is formed by:

Right cardiac border (from top to bottom):

Superior vena cava (SVC) - upper right
Right atrium (RA) - lower right border

Left cardiac border (from top to bottom):

Aortic knob (aortic arch)
Pulmonary trunk
Left atrial appendage (LAA)
Left ventricle (LV) - forms the bulk of the left heart border

Specific Chamber Enlargement Signs:

Chamber	CXR Signs
Left Atrium (LA)	Double density sign (retrocardiac opacity); widening of carina >70°; elevation of left main bronchus; posterior esophageal displacement (lateral view); convexity/bulge at LAA segment (3rd mogul sign)
Left Atrial Appendage (LAA)	Straightening or convexity of the left heart border just below the pulmonary artery segment ("third mogul/bump")
Right Atrium (RA)	Increased convexity and rightward bulge of the right heart border; globular right heart border
Left Ventricle (LV)	Downward, outward, and leftward displacement of the cardiac apex; boot-shaped heart in pressure overload
Right Ventricle (RV)	Filling of retrosternal space on lateral view; upward and leftward displacement of cardiac apex; RV enlargement rotates the heart leftward making the pulmonary trunk appear more prominent
Both Ventricles (biventricular)	Globular cardiomegaly with CTR > 0.5; apex displaced downward and leftward

Specific Diagnostic Contour Signs:

Coeur en sabot ("boot-shaped heart"): Tetralogy of Fallot - elevated apex due to RV hypertrophy with concave pulmonary bay
"Flask/water bottle" shape: Large pericardial effusion - globular cardiomegaly with sharp cardiac borders
Double density sign: LA enlargement (visible as a retrocardiac opacity with a distinct second inner density)
LV aneurysm: Localized bulge along the left cardiac border with a retrosternal double density
Markedly widened right cardiac contour + straightened left border: Severe MS with secondary TR
Elevated cardiac silhouette with lucency below (between inferior cardiac border and left hemidiaphragm): Congenital absence of pericardium

Step 4: Pulmonary Vascularity

The lung vasculature reflects underlying cardiac pathophysiology with high fidelity.

Normal Pulmonary Vascularity:

Erect PA CXR shows caudal blood flow pattern (gravity-dependent: lower lobes > upper lobes)
Right descending pulmonary artery: 10-15 mm (males), 9-14 mm (females)
Arterial-bronchial ratio (ABR): lower lobe arteries almost always larger than accompanying bronchi (ABR ~1.34)
Vessels taper gradually ("tree-like") from hilum to periphery

Abnormal Pulmonary Vascularity:

A. Abnormalities in Volume:

Pattern	Cause	CXR Appearance
Increased PBF (Shunt vascularity)	L-to-R shunts: ASD, VSD, PDA	Uniform bilateral vessel dilatation; right descending pulmonary artery > 15-16 mm; "equalization" of upper and lower lobe vessels
Decreased PBF	PS + VSD (ToF), isolated right heart failure	Smaller, shorter pulmonary arteries; more radiolucent lungs; right descending PA < 9 mm

B. Abnormalities in Distribution (Flow Pattern):

Pattern	Mechanism	Causes
Cephalization (redistribution)	Post-capillary PH: pulmonary venous hypertension constricts lower-lobe vessels; upper-lobe vessels dilate	Mitral stenosis, increased LVEDP, severe MR, LV failure
Centralization	Pre-capillary PH: pulmonary trunk and central arteries dilate; peripheral arteries prune ("pruning")	Primary PH, Eisenmenger syndrome, recurrent PE, severe emphysema
Lateralization	Unilateral obstruction: blood forced into one lung	Massive unilateral PE; jet effect in congenital valvular PS (flow to left lung)
Localization	Localized vascular abnormality	Pulmonary arteriovenous fistula
Collateralization	Extreme oligemia with bronchial collaterals	Pseudotruncus arteriosus, pulmonary atresia

Stages of Pulmonary Venous Hypertension on CXR:

Stage I (PVP 12-18 mmHg): Cephalization - upper lobe vessel dilatation, lower lobe vessel constriction
Stage II (PVP 18-25 mmHg): Interstitial edema - Kerley B lines (horizontal lines at the costophrenic angles), peribronchial cuffing, hazy hila
Stage III (PVP >25 mmHg): Alveolar edema - bilateral perihilar "bat-wing/butterfly" opacity

Acute LV failure: Alveolar edema + normal-sized heart (no time for cardiac remodeling)
Chronic LV failure: Gross cardiomegaly + cephalization + Kerley B lines + interstitial fibrosis

Step 5: Great Vessels and Other Structures

Aorta:

Finding	Diagnosis
Selective dilatation of ascending aorta	Valvular aortic stenosis (post-stenotic dilatation)
Generalized dilatation of entire thoracic aorta	Aortic regurgitation and/or systemic hypertension
"3 sign" on aortic knob (upper bulge = pre-stenotic; lower bulge = post-stenotic) + "E sign" on barium esophagogram	Coarctation of the aorta
Small aortic knob	ASD, mitral stenosis (LV "crowded out" by RV)
Heavy calcification of ascending aortic aneurysm	Luetic (syphilitic) aortitis
Widened mediastinum/aortic knob	Aortic dissection, aortic aneurysm

Pulmonary Trunk:

Finding	Diagnosis
Enlarged pulmonary trunk	RV enlargement (most common); MS; ASD; primary PH
Concave/absent pulmonary trunk segment	Tetralogy of Fallot; pulmonary atresia

Note: Pulmonary trunk prominence is a reliable secondary sign of RV enlargement, EXCEPT in: (1) ToF (RV hypertrophy but hypoplastic pulmonary trunk), (2) idiopathic pulmonary artery dilatation, (3) PDA (normal RV), (4) straight-back syndrome/pectus excavatum/scoliosis (AP compression displaces and falsely enlarges PA).

Superior Vena Cava (SVC): Dilated in SVC syndrome, right heart failure, constrictive pericarditis

Azygos Vein: Enlarged (>7 mm on supine) in right heart failure, IVC obstruction, portal hypertension, azygos continuation of IVC

Pulmonary Veins: Anomalous pulmonary venous connection (TAPVC/PAPVC); pulmonary varix

Summary Table: Chamber-Specific Signs

Chamber	Key Radiographic Signs
LA	Double density sign; widened carina (>70°); elevated left main bronchus; LAA convexity (3rd mogul); posterior esophageal displacement
LV	Downward/leftward apex; increased CTR; boot shape (pressure overload)
RA	Convex right heart border; rightward bulge
RV	Filling of retrosternal space (lateral); apex elevation; pulmonary trunk prominence; cardiac rotation leftward
Both	Globular cardiomegaly; CTR > 0.5

Devices and Other Findings

On any cardiac CXR, assess:

Pacemakers/ICDs: Lead integrity, position (RA, RV, coronary sinus leads), generator position
LVAD: Inflow cannula in LV, outflow conduit to aorta
Intra-aortic balloon pump: Tip should be at aortic knob level (1-2 cm below origin of left subclavian artery)
Calcifications: Mitral annular, valvular (proportional to stenosis severity), coronary artery (almost always atherosclerotic), pericardial

Key Points for DNB Examination

CTR > 0.5 on erect PA CXR = cardiomegaly; AP CXR overestimates
Double density sign = LA enlargement (pathognomonic)
Boot-shaped heart = Tetralogy of Fallot
"3 sign" / "E sign" = Coarctation of aorta
Cephalization = post-capillary (venous) PH (mitral stenosis, LV failure)
Centralization with pruning = pre-capillary (arterial) PH (primary PH, Eisenmenger)
Ascending aortic dilatation alone = valvular AS (post-stenotic); whole thoracic aorta = AR/hypertension
Kerley B lines = interstitial edema (stage II pulmonary venous hypertension)
Acute LV failure: butterfly edema + normal cardiac size (no time for remodeling)
Pectus excavatum/straight-back = AP narrowing - do not misread as RV enlargement or PA dilatation

Sources: Fuster and Hurst's The Heart, 15th Edition (Chapter 3: Cardiac Imaging); Grainger & Allison's Diagnostic Radiology; Braunwald's Heart Disease

Cardiomegaly with selective chamber enlargement - PA chest radiograph

PA CXR showing gross cardiomegaly with LA enlargement (double density sign), biventricular enlargement, pulmonary venous congestion, and cephalization. Sternal wires and mitral valve prosthesis indicate prior valvular surgery.

Innumerate the structure forming right and left heart border on plain chest radiograph, PA view. Discuss the feature of enlargement of various cardiac chamber on plain radiograph. DNB radiology question answer. For 10 marks.

Finding Sources

Reading File

Finding Sources

Searching Images

cardiac borders PA chest radiograph anatomy left right

This diagnostic image is a posterior-anterior (PA) chest radiograph demonstrating a focal pulmonary abnormality. A prominent 3 cm radiopaque mass is visible in the right upper lobe, positioned superior to the minor fissure (indicated by a blue horizontal arrow). The mass exhibits irregular borders with an infiltrative appearance extending medially toward the right hilum. The right hilum and right paratracheal soft tissues appear prominent, suggesting possible lymphadenopathy. In contrast, the left lung field is clear. Anatomical landmarks including the trachea, mediastinal contours, and hemidiaphragms are visible, with the right hemidiaphragm normally positioned slightly higher than the left. The cardiac silhouette and skeletal structures of the thorax, including the clavicles and ribs, appear unremarkable. This clinical photograph is highly relevant for medical education regarding the radiological presentation of primary bronchogenic carcinoma, specifically pulmonary adenocarcinoma. It illustrates key diagnostic findings such as lung masses, hilar prominence, and the importance of localized lobe anatomy in chest imaging interpretation.

A posterior-anterior (PA) chest X-ray illustrating the thoracic cavity and skeletal structures. The radiograph reveals a distinct anatomical anomaly: a hypoplastic or unusually small right first rib compared to the contralateral side. The primary anatomical landmarks are visible, including the clavicles, rib cage, and vertebral column. The lung fields appear largely clear and radiolucent, with normal bronchovascular markings. The cardiac silhouette is centrally located with well-defined borders and normal size. The diaphragmatic domes are intact, with a clear gastric air bubble visible beneath the left hemidiaphragm. Near the left clavicle, a radiopaque marker or artifact is noted. Clinically, such variations in the first rib anatomy are significant in the context of thoracic outlet syndrome or venous compression (Paget-Schroetter syndrome). This diagnostic image serves as an educational example of rib morphology variations and their potential relationship to vascular pathologies in the thoracic inlet.

Reading File

Searching Images

left atrial enlargement double density sign chest X-ray mitral stenosis

Reading File

Searching Images

right ventricular enlargement boot shaped heart tetralogy of Fallot chest radiograph

Loading Image

Searching Images

cardiomegaly biventricular enlargement PA chest X-ray heart failure

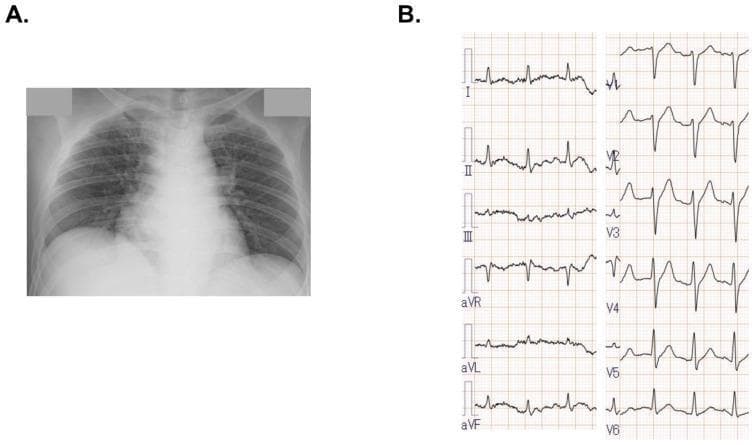

This composite clinical diagnostic image includes a chest X-ray (A) and a 12-lead electrocardiogram (B). Panel A shows a posterior-anterior (PA) view of the thorax, demonstrating a markedly enlarged cardiac silhouette consistent with cardiomegaly. The lung fields exhibit increased bronchovascular markings and subtle bilateral interstitial opacities, characteristic of mild pulmonary congestion. Panel B displays a 12-lead ECG strip showing a regular sinus rhythm. Notably, there is an absence of ST-segment elevation or significant ischemic changes across the limb leads (I, II, III, aVR, aVL, aVF) and precordial leads (V1-V6), which clinically helps rule out acute ST-elevation myocardial infarction (STEMI) in the context of acute heart failure. The primary educational focus is the correlation between radiological findings of biventricular enlargement/congestive heart failure and the corresponding baseline electrical activity of the heart.

This diagnostic image is a posterior-anterior (PA) chest X-ray of a human adult. The primary finding is significant global cardiomegaly, evidenced by a widened cardiac silhouette that occupies more than 50% of the thoracic diameter, suggesting multi-chamber enlargement. Additionally, the pulmonary vasculature is prominently increased, indicating pulmonary venous hypertension or congestion. This is characterized by increased vascular density and vessel visibility extending into the peripheral lung fields. The hilar regions appear enlarged and dense, consistent with vascular engorgement. The costophrenic angles appear relatively clear on this view, and the bony structures of the thorax are intact. This clinical photograph is used in medical education to illustrate the radiological hallmarks of congestive heart failure or advanced valvular heart disease, such as mitral regurgitation or chronic biventricular dilation.

I now have comprehensive source material. Let me compose the definitive DNB answer.

Cardiac Borders on PA CXR and Chamber Enlargement Signs

[DNB Radiology Final - 10 Marks]

Part I: Structures Forming the Cardiac Borders on PA CXR

The heart and great vessels together form the cardiomediastinal silhouette on a PA chest radiograph. The borders are formed by the outermost cardiovascular structure at each level.

RIGHT CARDIAC BORDER (from above downward)

Structure	Level	Notes
1. Superior vena cava (SVC)	Upper right border	Forms the right paratracheal stripe; straight or gently convex margin
2. Ascending aorta	Upper-mid right	Partially contributes in elderly/hypertensive patients; curves into the arch
3. Right atrium (RA)	Lower right border	Forms the entire lower right cardiac border; a gently convex curvilinear margin extending from the SVC to the right cardiophrenic angle

The right cardiophrenic angle is formed by the RA and the right hemidiaphragm. The inferior vena cava (IVC) enters the RA at this level and may be faintly visible as a short oblique shadow.

LEFT CARDIAC BORDER (from above downward)

Structure	Level	Notes
1. Aortic knob (aortic arch)	Uppermost left	The transverse arch of the aorta as it turns from ascending to descending; forms a distinct rounded convexity. Normally measures < 3.5 cm in width
2. Main pulmonary artery (pulmonary trunk)	Just below aortic knob	A gentle convexity below the aortic knob; the "pulmonary bay" or "pulmonary segment"
3. Left atrial appendage (LAA)	Between PA and LV	Normally inapparent or produces only a slight straight/flat segment just below the pulmonary trunk
4. Left ventricle (LV)	Lower left border	Forms the bulk of the left heart border - a smooth, gently convex margin tapering to the cardiac apex. The apex normally points downward and to the left, resting on the left hemidiaphragm

These four structures from top to bottom on the left border are sometimes called the "four moguls": aortic knob, pulmonary trunk, LAA, and LV.

Diaphragmatic Borders

Right: RV forms most of the inferior cardiac surface; right hemidiaphragm level
Left: LV apex rests on left hemidiaphragm

Part II: Radiographic Features of Chamber Enlargement

1. LEFT ATRIUM (LA) ENLARGEMENT

The LA is the most posteriorly situated chamber and does not normally contribute to the cardiac borders. Its enlargement manifests in several characteristic ways:

PA View Signs:

Double density sign - The enlarged LA projects as a second opacity (inner density) behind and to the right of the normal right heart border, visible as two distinct curvilinear contours superimposed on the right side of the heart. This is the most specific sign of LA enlargement.
Widening of the subcarinal angle (>70°) - The carina is splayed as the enlarged LA pushes the left main bronchus superiorly. Normal carinal angle is ~60-70°; >70° is abnormal.
Elevation of left main bronchus - The left main bronchus is elevated and may appear horizontal; the right main bronchus descends at a steeper angle by comparison.
Left atrial appendage (LAA) bulge / Third mogul sign - Enlargement of the LAA produces a convexity or straightening of the left heart border just below the pulmonary artery segment. In mitral regurgitation and mitral stenosis, this produces the characteristic "third mogul" or bump on the left border.
Posterior displacement of esophagus - Best seen on lateral view with barium; enlarged LA displaces the barium-filled esophagus posteriorly and to the right.

Causes: Mitral stenosis, mitral regurgitation, left heart failure, atrial fibrillation

2. LEFT VENTRICLE (LV) ENLARGEMENT

The LV forms the lower left cardiac border. Enlargement manifests differently depending on whether it is due to volume or pressure overload.

PA View Signs:

Elongation and downward displacement of the cardiac apex - The apex is displaced downward, outward, and to the left ("drooping" or "sagging" apex); the heart appears more globular
Increased CTR (>0.5) - LV dilatation is the most common cause of overall cardiomegaly
Rounding of the left cardiac border - The normally flat or gently convex left border becomes more curved and prominent
Upward displacement of the aortic knob - In aortic regurgitation, the markedly dilated LV may push the heart upward, elongating the ascending aorta

Volume overload vs. Pressure overload:

Volume overload (MR, AR, VSD): significant cardiomegaly with enlarged, rounded left border and dilated LV
Pressure overload alone (AS, hypertension): LV hypertrophy with concentric remodeling; CTR may be near normal despite significant hypertrophy; only mild or no enlargement of the cardiac silhouette

Lateral View: The LV extends posteriorly and may overlap the inferior vena cava (LV posterior wall) on the lateral view.

3. RIGHT VENTRICLE (RV) ENLARGEMENT

The RV is an anterior structure and does not normally contribute significantly to the PA view cardiac borders. It enlarges anteriorly and upward.

PA View Signs:

Upward and leftward displacement of the cardiac apex - The enlarged RV pushes the LV upward and posteriorly, elevating and rotating the apex (cardiac apex appears "uplifted")
Prominence of the pulmonary trunk/main pulmonary artery - When the RV enlarges, the heart rotates leftward on its long axis, bringing the pulmonary trunk into a more lateral and prominent position (appears larger than it actually is)
Coeur en sabot ("boot-shaped heart") - Classic in Tetralogy of Fallot: RV hypertrophy elevates the apex + concave/absent pulmonary artery segment = boot or wooden shoe shape
Filling of the retrosternal airspace on lateral view - Enlarged RV fills the normally air-filled retrosternal space; the RV-sternum contact extends more than one-third of the way up the sternum

Lateral View (most sensitive): Obliteration of the retrosternal airspace is the most reliable sign of RV enlargement.

Causes: Pulmonary hypertension, cor pulmonale, pulmonary stenosis, ASD, VSD, tricuspid regurgitation

4. RIGHT ATRIUM (RA) ENLARGEMENT

The RA forms the entire lower right cardiac border.

PA View Signs:

Increased convexity and rightward bulging of the right heart border - The right border becomes more convex and projects further to the right of the spine; CTR may be asymmetrically increased on the right side
Increased height of the right cardiac border - The right atrial arc appears taller and more prominent
Globular right heart border - Prominent, bulging right cardiac contour extending from SVC to cardiophrenic angle
Dilated right cardiac border + straightened left border - In severe mitral stenosis with secondary tricuspid regurgitation, the massively enlarged RA dominates the right side while the LA and pulmonary trunk contribute to the straightened left border

Causes: Tricuspid stenosis, tricuspid regurgitation, right heart failure, ASD, Ebstein anomaly, constrictive pericarditis

5. BIVENTRICULAR ENLARGEMENT

Global cardiomegaly - CTR > 0.5, with heart enlarged in all dimensions
Apex displaced downward AND the right border projects markedly to the right
Found in dilated cardiomyopathy, advanced valvular disease, end-stage heart failure

Summary Table: Chamber-Specific Signs on PA CXR

Chamber	Key PA View Signs	Additional/Lateral Signs
LA	Double density sign; subcarinal angle >70°; elevated left main bronchus; LAA convexity (3rd mogul)	Posterior esophageal displacement on barium
LAA	Straightening or convexity below pulmonary artery segment	-
LV	Apex displaced downward/laterally; rounding of left border; increased CTR	LV projects posterior to IVC on lateral
RV	Elevated apex; prominent pulmonary trunk; boot shape (ToF)	Fills retrosternal space on lateral
RA	Convex, rightward bulge of right border; increased height of right arc	-
Biventricular	Global cardiomegaly (CTR >0.5); all borders enlarged	-

Important Diagnostic Contour Signs

Sign	Chamber/Structure	Diagnosis
Double density sign	LA	LA enlargement (mitral stenosis, MR)
Third mogul/bump	LAA	LAA enlargement (mitral valve disease)
Coeur en sabot (boot shape)	RV + concave pulmonary bay	Tetralogy of Fallot
Globular/water-bottle shape	All chambers	Pericardial effusion
Widened right border + straight left border	RA + LA	Severe MS with TR
LV aneurysm bulge	LV	LV aneurysm (post-MI) - localized bulge on left border
Elevated cardiac silhouette + sub-diaphragmatic lucency	-	Congenital absence of pericardium

Measurement: Cardiothoracic Ratio (CTR)

CTR = Maximum transverse cardiac diameter / Maximum internal thoracic diameter (at same level)
Normal on erect PA CXR: ≤ 0.5
CTR > 0.5 = cardiomegaly
AP CXR overestimates cardiac size due to magnification and beam divergence - CTR assessment is unreliable on AP films

Sources: Fuster & Hurst's The Heart, 15th Ed.; Grainger & Allison's Diagnostic Radiology; Braunwald's Heart Disease

PA CXR showing LAA enlargement (arrow) in mitral regurgitation - note subcarinal opacity and slight elevation of left main bronchus due to LA enlargement:

LAA enlargement in mitral regurgitation - Grainger & Allison's Diagnostic Radiology

PA CXR demonstrating marked cardiomegaly with biventricular enlargement and pulmonary venous congestion:

Biventricular cardiomegaly with pulmonary congestion

Create a PDF reference in 2 or 3 pages card on cardiac chamber enlargement signs for rapid exam review

Reading File

Running Command

ls -la /tmp/workspace/ 2>/dev/null || mkdir -p /tmp/workspace && echo "workspace ready"

Running Command

mkdir -p /tmp/workspace/cardiac-xray-card && python3 << 'PYEOF' from reportlab.platypus import ( SimpleDocTemplate, Table, TableStyle, Paragraph, Spacer, HRFlowable, KeepTogether ) from reportlab.lib.styles import getSampleStyleSheet, ParagraphStyle from reportlab.lib import colors from reportlab.lib.units import mm, cm from reportlab.lib.pagesizes import A4 from reportlab.lib.enums import TA_CENTER, TA_LEFT, TA_JUSTIFY from reportlab.platypus import PageBreak OUTPUT = "/tmp/workspace/cardiac-xray-card/Cardiac_Chamber_Enlargement_CXR.pdf" # ── Colour palette (medical/academic feel) ────────────────────────── C_NAVY = colors.HexColor("#0A2540") C_BLUE = colors.HexColor("#1565C0") C_SKY = colors.HexColor("#E3F0FF") C_TEAL = colors.HexColor("#006D77") C_TEAL_LT = colors.HexColor("#D9F0F2") C_AMBER = colors.HexColor("#B45309") C_AMBER_LT= colors.HexColor("#FEF3C7") C_RED = colors.HexColor("#B91C1C") C_RED_LT = colors.HexColor("#FEE2E2") C_GREEN = colors.HexColor("#166534") C_GREEN_LT= colors.HexColor("#DCFCE7") C_PURPLE = colors.HexColor("#6B21A8") C_PURPLE_LT=colors.HexColor("#F3E8FF") C_GREY_LT = colors.HexColor("#F1F5F9") C_GREY = colors.HexColor("#64748B") C_WHITE = colors.white C_BLACK = colors.HexColor("#1E293B") W, H = A4 # 595 x 842 pt MARGIN = 14*mm doc = SimpleDocTemplate( OUTPUT, pagesize=A4, leftMargin=MARGIN, rightMargin=MARGIN, topMargin=12*mm, bottomMargin=12*mm, title="Cardiac Chamber Enlargement – CXR Signs", author="DNB Radiology Quick Reference" ) styles = getSampleStyleSheet() def S(name, **kw): return ParagraphStyle(name, parent=styles["Normal"], **kw) # ── Custom styles ──────────────────────────────────────────────────── sTitle = S("sTitle", fontSize=17, leading=21, textColor=C_WHITE, fontName="Helvetica-Bold", alignment=TA_CENTER, spaceAfter=2) sSubtitle = S("sSubtitle", fontSize=9, leading=12, textColor=colors.HexColor("#CBD5E1"), fontName="Helvetica", alignment=TA_CENTER) sSec = S("sSec", fontSize=10, leading=13, textColor=C_WHITE, fontName="Helvetica-Bold", alignment=TA_CENTER) sBullet = S("sBullet", fontSize=8.2, leading=11.5, textColor=C_BLACK, fontName="Helvetica", leftIndent=6, spaceAfter=1) sBold = S("sBold", fontSize=8.2, leading=11.5, textColor=C_BLACK, fontName="Helvetica-Bold") sNote = S("sNote", fontSize=7.5, leading=10.5, textColor=C_GREY, fontName="Helvetica-Oblique", alignment=TA_JUSTIFY) sKeyHdr = S("sKeyHdr", fontSize=9, leading=12, textColor=C_WHITE, fontName="Helvetica-Bold", alignment=TA_CENTER) sKeyCell = S("sKeyCell", fontSize=8, leading=11, textColor=C_BLACK, fontName="Helvetica") sKeyCellB = S("sKeyCellB", fontSize=8, leading=11, textColor=C_BLACK, fontName="Helvetica-Bold") sFooter = S("sFooter", fontSize=7, leading=9, textColor=C_GREY, fontName="Helvetica-Oblique", alignment=TA_CENTER) COL_W = (W - 2*MARGIN) # usable width def bullet(text, bold_prefix=None): if bold_prefix: return Paragraph(f"\u2022 {bold_prefix} {text}", sBullet) return Paragraph(f"\u2022 {text}", sBullet) def sp(h=3): return Spacer(1, h) def hr(color=C_BLUE, thickness=0.5): return HRFlowable(width="100%", thickness=thickness, color=color, spaceAfter=3, spaceBefore=3) # ═══════════════════════════════════════════════════════════════════ # PAGE 1 # ═══════════════════════════════════════════════════════════════════ elems = [] # ── HEADER BANNER ─────────────────────────────────────────────────── header_data = [[ Paragraph("CARDIAC CHAMBER ENLARGEMENT", sTitle), Paragraph("CXR Signs · Rapid Exam Reference · DNB Radiology", sSubtitle), ]] hdr_tbl = Table([[Paragraph("CARDIAC CHAMBER ENLARGEMENT", sTitle)], [Paragraph("CXR Signs · PA View · DNB Radiology Quick Reference", sSubtitle)]], colWidths=[COL_W]) hdr_tbl.setStyle(TableStyle([ ('BACKGROUND', (0,0), (-1,-1), C_NAVY), ('ROWPADDING', (0,0), (-1,-1), 6), ('TOPPADDING', (0,0), (-1, 0), 10), ('BOTTOMPADDING',(0,-1),(-1,-1), 8), ('ROUNDEDCORNERS', [5]), ])) elems.append(hdr_tbl) elems.append(sp(5)) # ── CARDIAC BORDERS TABLE ──────────────────────────────────────────── borders_title = Table([[Paragraph("CARDIAC BORDERS ON PA CXR", sSec)]], colWidths=[COL_W]) borders_title.setStyle(TableStyle([ ('BACKGROUND', (0,0),(-1,-1), C_TEAL), ('ROWPADDING', (0,0),(-1,-1), 5), ('ROUNDEDCORNERS',[4]), ])) elems.append(borders_title) elems.append(sp(4)) # two-column layout for borders def cell(content, bg=C_WHITE, pad=6): t = Table([[content]], colWidths=[(COL_W-4)/2]) t.setStyle(TableStyle([ ('BACKGROUND',(0,0),(-1,-1), bg), ('BOX',(0,0),(-1,-1), 0.5, C_TEAL), ('ROWPADDING',(0,0),(-1,-1), pad), ('VALIGN',(0,0),(-1,-1),'TOP'), ])) return t RIGHT_content = [ Paragraph("RIGHT CARDIAC BORDER (Top → Bottom)", S("rh", parent=sBold, textColor=C_TEAL, fontSize=8.5)), sp(3), bullet("Superior Vena Cava (SVC)", "1."), bullet("Ascending Aorta — partial (elderly)", "2."), bullet("Right Atrium (RA) — entire lower right border", "3."), sp(2), Paragraph("RA → right cardiophrenic angle (IVC entry point)", sNote), ] LEFT_content = [ Paragraph("LEFT CARDIAC BORDER (Top → Bottom)", S("lh", parent=sBold, textColor=C_BLUE, fontSize=8.5)), sp(3), bullet("Aortic Knob (Aortic Arch)", "1."), bullet("Main Pulmonary Artery (Pulmonary Trunk)", "2."), bullet("Left Atrial Appendage (LAA) — normally flat/inconspicuous", "3."), bullet("Left Ventricle (LV) — bulk of left border + apex", "4."), sp(2), Paragraph("Mnemonic: A – P – L – L (Aorta · PA · LAA · LV)", sNote), ] def multi_cell(items, bg, border_col, w): rows = [[i] for i in items] t = Table(rows, colWidths=[w]) t.setStyle(TableStyle([ ('BACKGROUND',(0,0),(-1,-1), bg), ('BOX',(0,0),(-1,-1), 0.8, border_col), ('LEFTPADDING',(0,0),(-1,-1), 7), ('RIGHTPADDING',(0,0),(-1,-1), 7), ('TOPPADDING',(0,0),(-1,-1), 2), ('BOTTOMPADDING',(0,0),(-1,-1), 2), ('TOPPADDING',(0,0),(-1,0), 7), ('BOTTOMPADDING',(0,-1),(-1,-1), 7), ('ROUNDEDCORNERS',[4]), ])) return t HW = (COL_W - 5) / 2 borders_row = Table( [[multi_cell(RIGHT_content, C_TEAL_LT, C_TEAL, HW), multi_cell(LEFT_content, C_SKY, C_BLUE, HW)]], colWidths=[HW, HW], hAlign='LEFT' ) borders_row.setStyle(TableStyle([ ('LEFTPADDING',(0,0),(-1,-1), 0), ('RIGHTPADDING',(0,0),(-1,-1), 0), ('VALIGN',(0,0),(-1,-1),'TOP'), ('COLPADDING', (0,0),(0,-1), 0), ('INNERGRID',(0,0),(-1,-1), 0, C_WHITE), ])) elems.append(borders_row) elems.append(sp(6)) # ── CHAMBER ENLARGEMENT SECTIONS ──────────────────────────────────── def chamber_block(title, color_hdr, color_bg, color_border, signs_pa, signs_extra, causes): title_row = Table([[Paragraph(title, sSec)]], colWidths=[COL_W]) title_row.setStyle(TableStyle([ ('BACKGROUND',(0,0),(-1,-1), color_hdr), ('ROWPADDING',(0,0),(-1,-1), 4), ('ROUNDEDCORNERS',[4]), ])) # Three sub-columns: PA Signs | Additional Signs | Causes cw = [(COL_W - 4) * 0.42, (COL_W - 4) * 0.32, (COL_W - 4) * 0.26] pa_items = [Paragraph("PA VIEW SIGNS", S("ph", parent=sBold, textColor=color_hdr, fontSize=7.8))] + \ [sp(2)] + [bullet(s) for s in signs_pa] ex_items = [Paragraph("LATERAL / EXTRA SIGNS", S("eh", parent=sBold, textColor=color_hdr, fontSize=7.8))] + \ [sp(2)] + [bullet(s) for s in signs_extra] ca_items = [Paragraph("CAUSES", S("ch", parent=sBold, textColor=color_hdr, fontSize=7.8))] + \ [sp(2)] + [bullet(s) for s in causes] def sub_cell(items, w, bg): rows = [[i] for i in items] t = Table(rows, colWidths=[w]) t.setStyle(TableStyle([ ('BACKGROUND',(0,0),(-1,-1), bg), ('LEFTPADDING',(0,0),(-1,-1), 6), ('RIGHTPADDING',(0,0),(-1,-1), 6), ('TOPPADDING',(0,0),(-1,-1), 2), ('BOTTOMPADDING',(0,0),(-1,-1), 2), ('TOPPADDING',(0,0),(0,0), 5), ('BOTTOMPADDING',(0,-1),(0,-1), 5), ])) return t inner = Table( [[sub_cell(pa_items, cw[0], bg=color_bg), sub_cell(ex_items, cw[1], bg=color_bg), sub_cell(ca_items, cw[2], bg=colors.HexColor("#F8FAFC"))]], colWidths=cw ) inner.setStyle(TableStyle([ ('BOX',(0,0),(-1,-1), 0.8, color_border), ('INNERGRID',(0,0),(-1,-1), 0.4, color_border), ('VALIGN',(0,0),(-1,-1),'TOP'), ('LEFTPADDING',(0,0),(-1,-1), 0), ('RIGHTPADDING',(0,0),(-1,-1), 0), ('TOPPADDING',(0,0),(-1,-1), 0), ('BOTTOMPADDING',(0,0),(-1,-1), 0), ('ROUNDEDCORNERS',[4]), ])) return [title_row, sp(3), inner, sp(5)] # ── LEFT ATRIUM ────────────────────────────────────────────────────── elems += chamber_block( "LEFT ATRIUM (LA) ENLARGEMENT", C_BLUE, C_SKY, C_BLUE, signs_pa=[ "Double density sign — retrocardiac opacity (2nd inner curvilinear shadow) on right side of heart", "Widening of subcarinal (carinal) angle > 70°", "Elevation of left main bronchus (horizontal left bronchus)", "LAA convexity — straightening or bulge below pulmonary artery = Third mogul sign", "Increased CTR if massive LA", ], signs_extra=[ "Posterior esophageal displacement (barium swallow / lateral CXR)", "Splaying of carina on lateral view", "Posterior displacement of descending aorta", ], causes=["Mitral stenosis", "Mitral regurgitation", "LV failure", "Atrial fibrillation (chronic)"] ) # ── LEFT VENTRICLE ─────────────────────────────────────────────────── elems += chamber_block( "LEFT VENTRICLE (LV) ENLARGEMENT", C_PURPLE, C_PURPLE_LT, C_PURPLE, signs_pa=[ "Cardiac apex displaced downward, outward and to the left (drooping apex)", "Rounding and increased convexity of left cardiac border", "Increased CTR > 0.5 (volume overload > pressure overload)", "Localized left border bulge = LV aneurysm (post-MI)", "Boot-shaped heart in pressure overload (AS)", ], signs_extra=[ "LV projects posterior to IVC on lateral view", "Posterior cardiac border extends > 1.8 cm behind IVC on lateral", "Volume overload: gross cardiomegaly; pressure overload: near-normal size", ], causes=["Aortic regurgitation", "Mitral regurgitation", "Dilated CMP", "Aortic stenosis", "Hypertension", "Post-MI aneurysm"] ) elems.append(PageBreak()) # ═══════════════════════════════════════════════════════════════════ # PAGE 2 # ═══════════════════════════════════════════════════════════════════ # Repeat compact header hdr2 = Table([[Paragraph("CARDIAC CHAMBER ENLARGEMENT — CXR SIGNS | Page 2", sTitle)]], colWidths=[COL_W]) hdr2.setStyle(TableStyle([ ('BACKGROUND',(0,0),(-1,-1), C_NAVY), ('ROWPADDING',(0,0),(-1,-1), 7), ('ROUNDEDCORNERS',[5]), ])) elems.append(hdr2) elems.append(sp(5)) # ── RIGHT VENTRICLE ────────────────────────────────────────────────── elems += chamber_block( "RIGHT VENTRICLE (RV) ENLARGEMENT", C_AMBER, C_AMBER_LT, C_AMBER, signs_pa=[ "Cardiac apex elevated and displaced upward/leftward", "Prominent pulmonary trunk (cardiac rotation brings PA laterally)", "Coeur en sabot (boot-shaped heart) — RV hypertrophy + concave PA bay = Tetralogy of Fallot", "Widened right cardiac contour if RV + RA both enlarged", "Reduced pulmonary vascularity (if associated PS/ToF)", ], signs_extra=[ "Retrosternal airspace obliteration on lateral view (most sensitive sign)", "RV-sternum contact > 1/3 of sternal height on lateral", "Diaphragmatic surface occupied by RV (not LV) on lateral", ], causes=["Pulmonary hypertension", "Cor pulmonale (COPD)", "ASD / VSD", "Pulmonary stenosis", "Tetralogy of Fallot", "Tricuspid regurgitation"] ) # ── RIGHT ATRIUM ───────────────────────────────────────────────────── elems += chamber_block( "RIGHT ATRIUM (RA) ENLARGEMENT", C_RED, C_RED_LT, C_RED, signs_pa=[ "Increased convexity and rightward bulging of right heart border", "Increased height of right cardiac arc", "Right cardiophrenic angle becomes rounded and widened", "Globular right heart border extending from SVC to cardiophrenic angle", "Massive RA + straightened left border = severe MS with secondary TR", ], signs_extra=[ "Dilated right cardiac border without pulmonary artery segment enlargement = tricuspid stenosis", "Ebstein anomaly: massively dilated RA with decreased pulmonary vascularity", ], causes=["Tricuspid regurgitation", "Tricuspid stenosis", "Right heart failure", "ASD", "Ebstein anomaly", "Severe MS → TR"] ) # ── BIVENTRICULAR ──────────────────────────────────────────────────── elems += chamber_block( "BIVENTRICULAR ENLARGEMENT", C_GREEN, C_GREEN_LT, C_GREEN, signs_pa=[ "Global cardiomegaly — CTR > 0.5", "All cardiac borders enlarged: right border bulges right, left border bulges left", "Apex displaced downward AND rightward border prominent", "Flask / globular shape in dilated cardiomyopathy", "Pulmonary venous congestion + Kerley B lines (CHF)", ], signs_extra=[ "Combined retrosternal filling + posterior cardiac extension on lateral", "Pericardial effusion mimics biventricular enlargement — water-bottle shape with sharp borders", ], causes=["Dilated cardiomyopathy", "Advanced valvular disease (MR + AR)", "End-stage CHF", "Myocarditis", "Viral cardiomyopathy"] ) elems.append(sp(4)) elems.append(hr(C_GREY, thickness=0.8)) elems.append(sp(3)) # ── QUICK-REFERENCE DIAGNOSTIC SIGNS TABLE ────────────────────────── qr_title = Table([[Paragraph("PATHOGNOMONIC & CLASSIC CXR SIGNS — QUICK REFERENCE", sSec)]], colWidths=[COL_W]) qr_title.setStyle(TableStyle([ ('BACKGROUND',(0,0),(-1,-1), C_NAVY), ('ROWPADDING',(0,0),(-1,-1), 5), ('ROUNDEDCORNERS',[4]), ])) elems.append(qr_title) elems.append(sp(4)) qr_data = [ [Paragraph("SIGN", sKeyHdr), Paragraph("STRUCTURE", sKeyHdr), Paragraph("DIAGNOSIS", sKeyHdr)], ["Double density sign", "Left atrium", "LA enlargement (MS, MR)"], ["Third mogul / LAA bump", "Left atrial appendage", "Mitral valve disease"], ["Widened subcarinal angle > 70°", "Left atrium / Carina", "LA enlargement"], ["Coeur en sabot (boot shape)", "RV hypertrophy + absent PA", "Tetralogy of Fallot"], ["Water-bottle / flask shape", "Pericardial sac", "Pericardial effusion"], ["Drooping/downward apex", "Left ventricle", "LV dilatation (AR, MR, DCM)"], ["Elevated uplifted apex", "Right ventricle pushing LV up", "RV enlargement"], ["Localized left border bulge", "Left ventricle wall", "LV aneurysm (post-MI)"], ["Widened Rt border + straight Lt border", "RA enlargement + LA/PA", "Severe MS → TR"], ["3-sign / E-sign on aorta/esophagus", "Aortic arch", "Coarctation of aorta"], ["Retrosternal space obliteration", "Right ventricle (lateral)", "RV enlargement"], ["Pruning of peripheral vessels", "Pulmonary arteries", "Pre-capillary PH (Eisenmenger)"], ["Kerley B lines", "Interstitial / lymphatics", "Pulmonary venous hypertension Gr II"], ["Butterfly / bat-wing edema", "Alveoli", "Acute LV failure / alveolar oedema"], ] def qr_fmt(row_idx, text): if row_idx == 0: return Paragraph(text, sKeyHdr) elif row_idx % 2 == 0: return Paragraph(text, S(f"ev{row_idx}", parent=sKeyCell, backColor=C_GREY_LT)) else: return Paragraph(text, sKeyCell) qr_rows = [] for i, row in enumerate(qr_data): if i == 0: qr_rows.append([Paragraph(c, sKeyHdr) for c in row]) else: qr_rows.append([Paragraph(c, sKeyCell) for c in row]) cw3 = [COL_W * 0.35, COL_W * 0.28, COL_W * 0.37] qr_tbl = Table(qr_rows, colWidths=cw3, repeatRows=1) row_styles = [ ('BACKGROUND', (0,0), (-1,0), C_NAVY), ('TEXTCOLOR', (0,0), (-1,0), C_WHITE), ('FONTNAME', (0,0), (-1,0), 'Helvetica-Bold'), ('FONTSIZE', (0,0), (-1,-1), 8), ('ROWPADDING', (0,0), (-1,-1), 4), ('VALIGN', (0,0), (-1,-1), 'MIDDLE'), ('INNERGRID', (0,0), (-1,-1), 0.3, C_GREY), ('BOX', (0,0), (-1,-1), 0.8, C_NAVY), ('ROUNDEDCORNERS',[4]), ] for i in range(1, len(qr_rows)): bg = C_GREY_LT if i % 2 == 0 else C_WHITE row_styles.append(('BACKGROUND', (0,i), (-1,i), bg)) qr_tbl.setStyle(TableStyle(row_styles)) elems.append(qr_tbl) elems.append(sp(5)) elems.append(PageBreak()) # ═══════════════════════════════════════════════════════════════════ # PAGE 3 — CTR + Pulmonary Vascularity + Memory Aids # ═══════════════════════════════════════════════════════════════════ hdr3 = Table([[Paragraph("CARDIAC CHAMBER ENLARGEMENT — CXR SIGNS | Page 3", sTitle)]], colWidths=[COL_W]) hdr3.setStyle(TableStyle([ ('BACKGROUND',(0,0),(-1,-1), C_NAVY), ('ROWPADDING',(0,0),(-1,-1), 7), ('ROUNDEDCORNERS',[5]), ])) elems.append(hdr3) elems.append(sp(5)) # ── CTR BOX ────────────────────────────────────────────────────────── ctr_title = Table([[Paragraph("CARDIOTHORACIC RATIO (CTR)", sSec)]], colWidths=[COL_W]) ctr_title.setStyle(TableStyle([ ('BACKGROUND',(0,0),(-1,-1), C_TEAL), ('ROWPADDING',(0,0),(-1,-1), 5), ('ROUNDEDCORNERS',[4]), ])) elems.append(ctr_title) elems.append(sp(3)) ctr_data = [ [Paragraph("CTR Formula", sBold), Paragraph("Max transverse cardiac diameter ÷ Max internal thoracic diameter (at same level)", sKeyCell)], [Paragraph("Normal (erect PA)", sBold), Paragraph("≤ 0.5", sKeyCell)], [Paragraph("Cardiomegaly", sBold), Paragraph("> 0.5 on PA erect CXR", sKeyCell)], [Paragraph("Caution — AP CXR", sBold), Paragraph("AP view OVERESTIMATES cardiac size due to magnification; CTR assessment unreliable on AP", sKeyCell)], [Paragraph("Clinical note", sBold), Paragraph("CTR > 0.42 on acute MI CXR is associated with worse in-hospital and long-term outcome", sKeyCell)], [Paragraph("Volume vs Pressure", sBold), Paragraph("Volume overload (AR, MR) → greater cardiomegaly; Pressure overload alone (AS) → near-normal size", sKeyCell)], ] ctr_tbl = Table(ctr_data, colWidths=[COL_W*0.28, COL_W*0.72]) ctr_tbl.setStyle(TableStyle([ ('BOX',(0,0),(-1,-1), 0.8, C_TEAL), ('INNERGRID',(0,0),(-1,-1), 0.3, C_TEAL_LT), ('BACKGROUND',(0,0),(0,-1), C_TEAL_LT), ('BACKGROUND',(1,0),(-1,-1), C_WHITE), ('ROWPADDING',(0,0),(-1,-1), 5), ('VALIGN',(0,0),(-1,-1),'MIDDLE'), ('ROUNDEDCORNERS',[4]), ])) elems.append(ctr_tbl) elems.append(sp(6)) # ── PULMONARY VASCULARITY TABLE ─────────────────────────────────────── pv_title = Table([[Paragraph("PULMONARY VASCULARITY PATTERNS IN CARDIAC DISEASE", sSec)]], colWidths=[COL_W]) pv_title.setStyle(TableStyle([ ('BACKGROUND',(0,0),(-1,-1), C_PURPLE), ('ROWPADDING',(0,0),(-1,-1), 5), ('ROUNDEDCORNERS',[4]), ])) elems.append(pv_title) elems.append(sp(3)) pv_data = [ [Paragraph("Pattern", sKeyHdr), Paragraph("Mechanism", sKeyHdr), Paragraph("CXR Appearance", sKeyHdr), Paragraph("Causes", sKeyHdr)], ["Cephalization\n(Redistribution)", "Post-capillary PH → lower lobe vessel constriction", "Upper lobe vessels dilated; lower lobe vessels constricted", "Mitral stenosis, LV failure, increased LVEDP"], ["Centralization", "Pre-capillary PH → central PA dilation, peripheral pruning", "Dilated pulmonary trunk + central PAs; peripheral pruning", "Primary PH, Eisenmenger, recurrent PE, severe COPD"], ["Increased PBF\n(Shunt vascularity)", "L-to-R shunt → increased pulmonary flow", "Uniform bilateral vessel dilatation; Rt PA > 16 mm", "ASD, VSD, PDA"], ["Decreased PBF", "RV outflow obstruction / right heart failure", "Small, short pulmonary arteries; lucent lungs", "Tetralogy of Fallot, isolated right heart failure"], ["Lateralization", "Unilateral obstruction", "Asymmetric PBF; one lung oligemic", "Massive unilateral PE; congenital valvular PS"], ] pv_rows = [] for i, row in enumerate(pv_data): pv_rows.append([Paragraph(str(c), sKeyHdr if i==0 else sKeyCell) for c in row]) cw4 = [COL_W*0.18, COL_W*0.24, COL_W*0.30, COL_W*0.28] pv_tbl = Table(pv_rows, colWidths=cw4, repeatRows=1) pv_styles = [ ('BACKGROUND',(0,0),(-1,0), C_PURPLE), ('TEXTCOLOR',(0,0),(-1,0), C_WHITE), ('FONTNAME',(0,0),(-1,0), 'Helvetica-Bold'), ('FONTSIZE',(0,0),(-1,-1), 7.5), ('ROWPADDING',(0,0),(-1,-1), 4), ('VALIGN',(0,0),(-1,-1),'TOP'), ('INNERGRID',(0,0),(-1,-1), 0.3, C_GREY), ('BOX',(0,0),(-1,-1), 0.8, C_PURPLE), ('ROUNDEDCORNERS',[4]), ] for i in range(1, len(pv_rows)): bg = C_GREY_LT if i % 2 == 0 else C_WHITE pv_styles.append(('BACKGROUND', (0,i), (-1,i), bg)) pv_tbl.setStyle(TableStyle(pv_styles)) elems.append(pv_tbl) elems.append(sp(6)) # ── MEMORY AIDS ────────────────────────────────────────────────────── mem_title = Table([[Paragraph("MEMORY AIDS & HIGH-YIELD EXAM FACTS", sSec)]], colWidths=[COL_W]) mem_title.setStyle(TableStyle([ ('BACKGROUND',(0,0),(-1,-1), C_AMBER), ('ROWPADDING',(0,0),(-1,-1), 5), ('ROUNDEDCORNERS',[4]), ])) elems.append(mem_title) elems.append(sp(3)) mem_data = [ ["Left border (top → bottom)", "A – P – L – L (Aorta · Pulmonary trunk · LAA · LV)"], ["Right border (top → bottom)", "S – A – R (SVC · Ascending Aorta · RA)"], ["LA enlargement signs", "Double density · Carina >70° · Elevated left bronchus · 3rd mogul · Posterior esophageal displacement"], ["RV enlargement best sign", "Retrosternal space obliteration on LATERAL view"], ["Boot-shaped heart", "RV hypertrophy + concave PA bay = Tetralogy of Fallot"], ["3-sign on aorta", "Coarctation of aorta (pre + post-stenotic dilatation)"], ["Ascending aorta dilatation only", "Valvular aortic stenosis (post-stenotic)"], ["Whole thoracic aorta enlarged", "Aortic regurgitation and/or systemic hypertension"], ["Water-bottle / flask heart", "Pericardial effusion — sharp cardiac borders (no lung markings effaced)"], ["Acute LV failure", "Alveolar oedema (butterfly pattern) + NORMAL-sized heart"], ["Chronic LV failure", "Gross cardiomegaly + cephalization + Kerley B lines"], ["Eisenmenger syndrome", "Centralization with pruning + enlarged pulmonary trunk"], ["Ebstein anomaly", "Massive RA + decreased PBF ('wall-to-wall' heart)"], ["PA > 16 mm (right descending)", "Suggests increased pulmonary blood flow / L-to-R shunt"], ] mem_rows = [[Paragraph(f"{r[0]}", S("mk", parent=sBold, fontSize=7.8, textColor=C_AMBER)), Paragraph(r[1], S("mv", parent=sKeyCell, fontSize=7.8))] for r in mem_data] mem_tbl = Table(mem_rows, colWidths=[COL_W*0.30, COL_W*0.70]) mem_styles = [ ('BOX',(0,0),(-1,-1), 0.8, C_AMBER), ('INNERGRID',(0,0),(-1,-1), 0.3, C_AMBER_LT), ('BACKGROUND',(0,0),(0,-1), C_AMBER_LT), ('ROWPADDING',(0,0),(-1,-1), 4), ('VALIGN',(0,0),(-1,-1),'TOP'), ('ROUNDEDCORNERS',[4]), ] for i in range(len(mem_rows)): bg = C_WHITE if i % 2 == 0 else C_GREY_LT mem_styles.append(('BACKGROUND',(1,i),(1,i), bg)) mem_tbl.setStyle(TableStyle(mem_styles)) elems.append(mem_tbl) elems.append(sp(6)) elems.append(hr(C_GREY, 0.5)) elems.append(sp(3)) # ── FOOTER ─────────────────────────────────────────────────────────── footer_tbl = Table([[ Paragraph("Sources: Fuster & Hurst's The Heart 15e · Grainger & Allison's Diagnostic Radiology · Braunwald's Heart Disease", sFooter), Paragraph("DNB Radiology Rapid Review Card", sFooter), ]], colWidths=[COL_W*0.72, COL_W*0.28]) footer_tbl.setStyle(TableStyle([ ('VALIGN',(0,0),(-1,-1),'MIDDLE'), ('LEFTPADDING',(0,0),(-1,-1), 0), ('RIGHTPADDING',(0,0),(-1,-1), 0), ])) elems.append(footer_tbl) # ── BUILD ───────────────────────────────────────────────────────────── doc.build(elems) print(f"PDF created: {OUTPUT}") PYEOF

Running Command

python3 << 'PYEOF' from reportlab.platypus import ( SimpleDocTemplate, Table, TableStyle, Paragraph, Spacer, HRFlowable, PageBreak ) from reportlab.lib.styles import getSampleStyleSheet, ParagraphStyle from reportlab.lib import colors from reportlab.lib.units import mm from reportlab.lib.pagesizes import A4 from reportlab.lib.enums import TA_CENTER, TA_LEFT, TA_JUSTIFY OUTPUT = "/tmp/workspace/cardiac-xray-card/Cardiac_Chamber_Enlargement_CXR.pdf" # ── Colour palette ────────────────────────────────────────────────── C_NAVY = colors.HexColor("#0A2540") C_BLUE = colors.HexColor("#1565C0") C_SKY = colors.HexColor("#E3F0FF") C_TEAL = colors.HexColor("#006D77") C_TEAL_LT = colors.HexColor("#D9F0F2") C_AMBER = colors.HexColor("#B45309") C_AMBER_LT = colors.HexColor("#FEF3C7") C_RED = colors.HexColor("#B91C1C") C_RED_LT = colors.HexColor("#FEE2E2") C_GREEN = colors.HexColor("#166534") C_GREEN_LT = colors.HexColor("#DCFCE7") C_PURPLE = colors.HexColor("#6B21A8") C_PURP_LT = colors.HexColor("#F3E8FF") C_GREY_LT = colors.HexColor("#F1F5F9") C_GREY = colors.HexColor("#64748B") C_WHITE = colors.white C_BLACK = colors.HexColor("#1E293B") W, H = A4 MARGIN = 14*mm COL_W = W - 2*MARGIN doc = SimpleDocTemplate( OUTPUT, pagesize=A4, leftMargin=MARGIN, rightMargin=MARGIN, topMargin=12*mm, bottomMargin=12*mm, title="Cardiac Chamber Enlargement – CXR Signs", author="DNB Radiology Quick Reference" ) # ── Base style helpers (no parent kwarg conflict) ──────────────────── base = getSampleStyleSheet()["Normal"] def mkS(name, fontSize=8, leading=11, fontName="Helvetica", textColor=C_BLACK, alignment=TA_LEFT, leftIndent=0, spaceAfter=1, spaceBefore=0): return ParagraphStyle(name, fontSize=fontSize, leading=leading, fontName=fontName, textColor=textColor, alignment=alignment, leftIndent=leftIndent, spaceAfter=spaceAfter, spaceBefore=spaceBefore) sTitle = mkS("sTitle", 17, 22, "Helvetica-Bold", C_WHITE, TA_CENTER, spaceAfter=2) sSub = mkS("sSub", 8, 11, "Helvetica", colors.HexColor("#CBD5E1"), TA_CENTER) sSec = mkS("sSec", 9.5,13, "Helvetica-Bold", C_WHITE, TA_CENTER) sBold = mkS("sBold", 8.2,11.5,"Helvetica-Bold",C_BLACK) sNorm = mkS("sNorm", 8.2,11.5,"Helvetica", C_BLACK, leftIndent=6) sNote = mkS("sNote", 7.5,10.5,"Helvetica-Oblique", C_GREY, TA_JUSTIFY) sHdr = mkS("sHdr", 8, 11, "Helvetica-Bold", C_WHITE, TA_CENTER) sCell = mkS("sCell", 7.8,11, "Helvetica", C_BLACK) sCellB = mkS("sCellB", 7.8,11, "Helvetica-Bold", C_BLACK) sFooter = mkS("sFooter", 7, 9, "Helvetica-Oblique", C_GREY, TA_CENTER) def sp(h=3): return Spacer(1, h) def hr(c=C_GREY, t=0.5): return HRFlowable(width="100%", thickness=t, color=c, spaceAfter=3, spaceBefore=3) def bul(txt): return Paragraph(f"\u2022 {txt}", sNorm) def pbul(b,r): return Paragraph(f"\u2022 {b} {r}", sNorm) def banner(text, bg, sub=None): rows = [[Paragraph(text, sTitle)]] if sub: rows.append([Paragraph(sub, sSub)]) t = Table(rows, colWidths=[COL_W]) t.setStyle(TableStyle([ ('BACKGROUND',(0,0),(-1,-1), bg), ('TOPPADDING',(0,0),(-1,0), 9), ('BOTTOMPADDING',(0,-1),(-1,-1), 8), ('ROWPADDING',(0,0),(-1,-1), 4), ])) return t def sec_hdr(txt, bg): t = Table([[Paragraph(txt, sSec)]], colWidths=[COL_W]) t.setStyle(TableStyle([ ('BACKGROUND',(0,0),(-1,-1), bg), ('ROWPADDING',(0,0),(-1,-1), 5), ])) return t def make_inner(pa_items, ex_items, ca_items, bg, border): cw = [(COL_W-4)*0.42, (COL_W-4)*0.32, (COL_W-4)*0.26] def col(items, w): rows = [[i] for i in items] t = Table(rows, colWidths=[w]) t.setStyle(TableStyle([ ('BACKGROUND',(0,0),(-1,-1), bg), ('LEFTPADDING',(0,0),(-1,-1), 6), ('RIGHTPADDING',(0,0),(-1,-1), 6), ('TOPPADDING',(0,0),(-1,-1), 2), ('BOTTOMPADDING',(0,0),(-1,-1), 2), ('TOPPADDING',(0,0),(0,0), 5), ('BOTTOMPADDING',(0,-1),(0,-1), 5), ('VALIGN',(0,0),(-1,-1),'TOP'), ])) return t t = Table([[col(pa_items, cw[0]), col(ex_items, cw[1]), col(ca_items, cw[2])]], colWidths=cw) t.setStyle(TableStyle([ ('BOX',(0,0),(-1,-1), 0.8, border), ('INNERGRID',(0,0),(-1,-1), 0.4, border), ('VALIGN',(0,0),(-1,-1),'TOP'), ('LEFTPADDING',(0,0),(-1,-1), 0), ('RIGHTPADDING',(0,0),(-1,-1), 0), ('TOPPADDING',(0,0),(-1,-1), 0), ('BOTTOMPADDING',(0,0),(-1,-1), 0), ])) return t def sub_label(txt, c): return Paragraph(f"{txt}", mkS(f"sl_{txt[:4]}", 7.8, 11, "Helvetica-Bold", c)) def chamber_section(title, hdr_col, bg_col, brd_col, pa, ex, ca): elems = [] elems.append(sec_hdr(title, hdr_col)) elems.append(sp(3)) pa_col = [sub_label("PA VIEW SIGNS", hdr_col), sp(2)] + [bul(s) for s in pa] ex_col = [sub_label("LATERAL / EXTRA SIGNS", hdr_col), sp(2)] + [bul(s) for s in ex] ca_col = [sub_label("CAUSES", hdr_col), sp(2)] + [bul(s) for s in ca] elems.append(make_inner(pa_col, ex_col, ca_col, bg_col, brd_col)) elems.append(sp(5)) return elems # ═══════════════════════════════════════════ # PAGE 1 # ═══════════════════════════════════════════ E = [] E.append(banner("CARDIAC CHAMBER ENLARGEMENT",C_NAVY, "CXR Signs · PA View · DNB Radiology Rapid Exam Reference")) E.append(sp(5)) # CARDIAC BORDERS E.append(sec_hdr("CARDIAC BORDERS ON PA CXR", C_TEAL)) E.append(sp(3)) HW = (COL_W-5)/2 def border_col(items, bg, brd, w): rows = [[i] for i in items] t = Table(rows, colWidths=[w]) t.setStyle(TableStyle([ ('BACKGROUND',(0,0),(-1,-1), bg), ('BOX',(0,0),(-1,-1), 0.8, brd), ('LEFTPADDING',(0,0),(-1,-1), 8), ('RIGHTPADDING',(0,0),(-1,-1), 8), ('TOPPADDING',(0,0),(-1,-1), 2), ('BOTTOMPADDING',(0,0),(-1,-1), 2), ('TOPPADDING',(0,0),(0,0), 7), ('BOTTOMPADDING',(0,-1),(0,-1), 7), ('VALIGN',(0,0),(-1,-1),'TOP'), ])) return t right_items = [ Paragraph("RIGHT CARDIAC BORDER (Top \u2192 Bottom)", mkS("rh",8.5,12,"Helvetica-Bold",C_TEAL)), sp(3), Paragraph("\u2460 Superior Vena Cava (SVC)", sNorm), Paragraph("\u2461 Ascending Aorta — partial (elderly / hypertensive)", sNorm), Paragraph("\u2462 Right Atrium (RA) — entire lower right border", sNorm), sp(2), Paragraph("RA forms right cardiophrenic angle; IVC enters here", sNote), ] left_items = [ Paragraph("LEFT CARDIAC BORDER (Top \u2192 Bottom)", mkS("lh",8.5,12,"Helvetica-Bold",C_BLUE)), sp(3), Paragraph("\u2460 Aortic Knob (transverse aortic arch)", sNorm), Paragraph("\u2461 Main Pulmonary Artery (pulmonary trunk)", sNorm), Paragraph("\u2462 Left Atrial Appendage (LAA) — normally flat/inapparent", sNorm), Paragraph("\u2463 Left Ventricle (LV) — bulk of left border + apex", sNorm), sp(2), Paragraph("Mnemonic left border: A \u2013 P \u2013 L \u2013 L (Aorta · PA · LAA · LV)", sNote), ] brd_row = Table([[border_col(right_items,C_TEAL_LT,C_TEAL,HW), border_col(left_items, C_SKY, C_BLUE,HW)]], colWidths=[HW,HW]) brd_row.setStyle(TableStyle([ ('LEFTPADDING',(0,0),(-1,-1),0),('RIGHTPADDING',(0,0),(-1,-1),0), ('TOPPADDING',(0,0),(-1,-1),0),('BOTTOMPADDING',(0,0),(-1,-1),0), ('VALIGN',(0,0),(-1,-1),'TOP'), ])) E.append(brd_row) E.append(sp(6)) E += chamber_section( "LEFT ATRIUM (LA) ENLARGEMENT", C_BLUE, C_SKY, C_BLUE, pa=[ "Double density sign — retrocardiac 2nd opacity on right side of heart (most specific)", "Widening of subcarinal (carinal) angle > 70°", "Elevation of left main bronchus (horizontal left bronchus)", "LAA convexity / 3rd mogul sign — bulge/straightening below PA segment", "Straightening or rightward bulge of right heart border if massive LA", ], ex=[ "Posterior esophageal displacement (barium / lateral)", "Splaying of carina on lateral view", "Posterior displacement of descending aorta", "Double density best seen on well-penetrated PA", ], ca=["Mitral stenosis", "Mitral regurgitation", "LV failure (chronic)", "Atrial fibrillation (chronic)"] ) E += chamber_section( "LEFT VENTRICLE (LV) ENLARGEMENT", C_PURPLE, C_PURP_LT, C_PURPLE, pa=[ "Cardiac apex displaced downward, outward, leftward (drooping apex)", "Rounding and increased convexity of left cardiac border", "Increased CTR > 0.5 (volume overload causes more cardiomegaly than pressure overload)", "Localized left border bulge = LV aneurysm (post-MI)", "Boot-shaped heart: pressure overload hypertrophy + small PA", ], ex=[ "LV projects posterior to IVC on lateral view", "Posterior cardiac border > 1.8 cm behind IVC", "Pressure overload (AS, HTN): near-normal cardiac size despite hypertrophy", ], ca=["Aortic regurgitation", "Mitral regurgitation", "Dilated CMP", "Hypertension", "Aortic stenosis", "Post-MI aneurysm"] ) E.append(PageBreak()) # ═══════════════════════════════════════════ # PAGE 2 # ═══════════════════════════════════════════ E.append(banner("CARDIAC CHAMBER ENLARGEMENT — CXR SIGNS | Page 2", C_NAVY)) E.append(sp(5)) E += chamber_section( "RIGHT VENTRICLE (RV) ENLARGEMENT", C_AMBER, C_AMBER_LT, C_AMBER, pa=[ "Cardiac apex elevated and displaced upward/leftward (RV pushes LV up)", "Prominent pulmonary trunk — cardiac rotation brings PA laterally", "Coeur en sabot (boot-shaped heart) = RV hypertrophy + concave PA bay (Tetralogy of Fallot)", "Widened right border if RV + RA both enlarged", "Oligemic lung fields if associated PS/ToF", ], ex=[ "Retrosternal airspace obliteration on lateral view — MOST SENSITIVE sign of RV enlargement", "RV-sternum contact > 1/3 of sternal height on lateral", "Diaphragmatic surface = RV (not LV) on lateral", ], ca=["Pulmonary hypertension", "Cor pulmonale (COPD)", "ASD / VSD", "PS / Tetralogy of Fallot", "Tricuspid regurgitation", "Eisenmenger syndrome"] ) E += chamber_section( "RIGHT ATRIUM (RA) ENLARGEMENT", C_RED, C_RED_LT, C_RED, pa=[ "Increased convexity and rightward bulging of right heart border", "Increased height of right cardiac arc", "Right cardiophrenic angle becomes rounded and widened", "Globular right border extending from SVC to cardiophrenic angle", "Massive RA + straightened left border = severe MS with secondary TR", ], ex=[ "Dilated right border without PA enlargement = tricuspid stenosis", "Ebstein anomaly: massively enlarged RA + severely decreased PBF (wall-to-wall heart)", ], ca=["Tricuspid regurgitation", "Tricuspid stenosis", "Right heart failure", "ASD", "Ebstein anomaly", "Severe MS → TR"] ) E += chamber_section( "BIVENTRICULAR ENLARGEMENT", C_GREEN, C_GREEN_LT, C_GREEN, pa=[ "Global cardiomegaly — CTR > 0.5", "All cardiac borders enlarged: Rt border bulges right, Lt border bulges left", "Apex displaced downward AND right border prominent", "Flask / globular shape in dilated CMP", "Pulmonary venous congestion + Kerley B lines (CHF)", ], ex=[ "Combined retrosternal filling + posterior cardiac extension on lateral", "Pericardial effusion mimics: water-bottle shape, sharp borders, rapid size change", ], ca=["Dilated cardiomyopathy", "Advanced MR + AR", "End-stage CHF", "Myocarditis"] ) E.append(sp(4)) E.append(hr(C_GREY, 0.8)) E.append(sp(3)) # QUICK-REFERENCE TABLE E.append(sec_hdr("PATHOGNOMONIC & CLASSIC CXR SIGNS — QUICK REFERENCE", C_NAVY)) E.append(sp(4)) signs = [ ["Double density sign", "Left atrium", "LA enlargement (MS, MR)"], ["3rd mogul / LAA bump", "Left atrial appendage", "Mitral valve disease (MS/MR)"], ["Subcarinal angle > 70°", "Carina splayed by LA", "LA enlargement"], ["Coeur en sabot (boot heart)", "RV hypertrophy + absent PA", "Tetralogy of Fallot"], ["Water-bottle / flask heart", "Pericardial sac", "Pericardial effusion"], ["Drooping / downward apex", "LV dilatation", "AR, MR, DCM"], ["Elevated / uplifted apex", "RV pushing LV upward", "RV enlargement"], ["Localized left border bulge", "LV wall", "LV aneurysm (post-MI)"], ["Widened Rt + straight Lt border","RA + LA/PA", "Severe MS \u2192 TR"], ["3-sign / E-sign (aorta)", "Aortic arch", "Coarctation of aorta"], ["Retrosternal obliteration", "RV (lateral view)", "RV enlargement (most sensitive)"], ["Pruning of peripheral PAs", "Pulmonary arteries", "Pre-capillary PH / Eisenmenger"], ["Kerley B lines", "Interstitial / lymphatics","PVH Grade II (18–25 mmHg)"], ["Butterfly / bat-wing oedema", "Alveoli (perihilar)", "Acute LV failure"], ] hdr_row = [Paragraph(h, sHdr) for h in ["SIGN", "STRUCTURE", "DIAGNOSIS"]] all_rows = [hdr_row] + [[Paragraph(c, sCell) for c in r] for r in signs] cw3 = [COL_W*0.33, COL_W*0.28, COL_W*0.39] t = Table(all_rows, colWidths=cw3, repeatRows=1) ts = [ ('BACKGROUND',(0,0),(-1,0), C_NAVY), ('FONTNAME',(0,0),(-1,0),'Helvetica-Bold'), ('FONTSIZE',(0,0),(-1,-1), 7.8), ('ROWPADDING',(0,0),(-1,-1), 4), ('VALIGN',(0,0),(-1,-1),'MIDDLE'), ('INNERGRID',(0,0),(-1,-1), 0.3, C_GREY), ('BOX',(0,0),(-1,-1), 0.8, C_NAVY), ] for i in range(1, len(all_rows)): ts.append(('BACKGROUND',(0,i),(-1,i), C_GREY_LT if i%2==0 else C_WHITE)) t.setStyle(TableStyle(ts)) E.append(t) E.append(sp(5)) E.append(PageBreak()) # ═══════════════════════════════════════════ # PAGE 3 # ═══════════════════════════════════════════ E.append(banner("CARDIAC CHAMBER ENLARGEMENT — CXR SIGNS | Page 3", C_NAVY)) E.append(sp(5)) # CTR E.append(sec_hdr("CARDIOTHORACIC RATIO (CTR)", C_TEAL)) E.append(sp(3)) ctr_rows = [ ["Formula", "Max transverse cardiac diameter \u00f7 Max internal thoracic diameter (at same level)"], ["Normal (erect PA)", "\u2264 0.5"], ["Cardiomegaly", "> 0.5"], ["AP CXR caution", "AP view OVERESTIMATES cardiac size (magnification); CTR assessment unreliable on AP"], ["Acute MI", "CTR > 0.42 on acute MI CXR associated with worse in-hospital and long-term outcome"], ["Volume vs Pressure", "Volume overload (AR, MR) \u2192 significant cardiomegaly; Pressure overload alone (AS, HTN) \u2192 near-normal size despite hypertrophy"], ] ctr_tbl = Table([[Paragraph(r[0],sCell), Paragraph(r[1],sCell)] for r in ctr_rows], colWidths=[COL_W*0.26, COL_W*0.74]) ctr_ts = [ ('BOX',(0,0),(-1,-1), 0.8, C_TEAL), ('INNERGRID',(0,0),(-1,-1), 0.3, C_TEAL_LT), ('BACKGROUND',(0,0),(0,-1), C_TEAL_LT), ('ROWPADDING',(0,0),(-1,-1), 5), ('VALIGN',(0,0),(-1,-1),'MIDDLE'), ] for i in range(len(ctr_rows)): ctr_ts.append(('BACKGROUND',(1,i),(1,i), C_GREY_LT if i%2==0 else C_WHITE)) ctr_tbl.setStyle(TableStyle(ctr_ts)) E.append(ctr_tbl) E.append(sp(6)) # PULMONARY VASCULARITY E.append(sec_hdr("PULMONARY VASCULARITY PATTERNS IN CARDIAC DISEASE", C_PURPLE)) E.append(sp(3)) pv_data = [ ["Cephalization\n(Redistribution)", "Post-capillary PH; lower lobe vessel constriction", "Upper lobe vessels dilated; lower lobe constricted", "MS, LV failure, increased LVEDP"], ["Centralization", "Pre-capillary PH; central PA dilatation", "Enlarged trunk + central PAs; peripheral pruning", "Primary PH, Eisenmenger, recurrent PE, COPD"], ["Increased PBF\n(Shunt vascularity)", "L-to-R shunt; increased pulmonary flow", "Uniform bilateral vessel dilatation; Rt PA > 16 mm", "ASD, VSD, PDA"], ["Decreased PBF", "RV outflow obstruction / right heart failure", "Small, short PAs; lucent lung fields", "Tetralogy of Fallot, right heart failure"], ["Lateralization", "Unilateral PA obstruction", "Asymmetric PBF; one lung oligemic", "Massive unilateral PE; valvular PS"], ] pv_hdr = [Paragraph(h, sHdr) for h in ["Pattern","Mechanism","CXR Appearance","Causes"]] pv_rows = [pv_hdr] + [[Paragraph(c, sCell) for c in r] for r in pv_data] cw4 = [COL_W*0.17, COL_W*0.24, COL_W*0.31, COL_W*0.28] pv_tbl = Table(pv_rows, colWidths=cw4, repeatRows=1) pv_ts = [ ('BACKGROUND',(0,0),(-1,0), C_PURPLE), ('FONTNAME',(0,0),(-1,0),'Helvetica-Bold'), ('FONTSIZE',(0,0),(-1,-1), 7.5), ('ROWPADDING',(0,0),(-1,-1), 4), ('VALIGN',(0,0),(-1,-1),'TOP'), ('INNERGRID',(0,0),(-1,-1), 0.3, C_GREY), ('BOX',(0,0),(-1,-1), 0.8, C_PURPLE), ] for i in range(1, len(pv_rows)): pv_ts.append(('BACKGROUND',(0,i),(-1,i), C_GREY_LT if i%2==0 else C_WHITE)) pv_tbl.setStyle(TableStyle(pv_ts)) E.append(pv_tbl) E.append(sp(6)) # MEMORY AIDS E.append(sec_hdr("MEMORY AIDS & HIGH-YIELD EXAM FACTS", C_AMBER)) E.append(sp(3)) mem = [ ["Left border (top\u2192bottom)", "A \u2013 P \u2013 L \u2013 L (Aorta \xb7 Pulmonary trunk \xb7 LAA \xb7 LV)"], ["Right border (top\u2192bottom)", "S \u2013 A \u2013 R (SVC \xb7 Ascending Aorta \xb7 RA)"], ["LA enlargement signs (5)", "Double density \xb7 Carina >70\xb0 \xb7 Elevated left bronchus \xb7 3rd mogul \xb7 Posterior esoph. displacement"], ["RV enlargement — best sign", "Retrosternal airspace obliteration on LATERAL view"], ["Boot-shaped heart", "RV hypertrophy + concave PA bay = Tetralogy of Fallot"], ["3-sign on aorta / E-sign esophagus", "Coarctation of aorta"], ["Ascending aorta dilatation ONLY", "Valvular aortic stenosis (post-stenotic dilatation)"], ["Whole thoracic aorta enlarged", "Aortic regurgitation and/or systemic hypertension"], ["Water-bottle / flask heart", "Pericardial effusion — sharp borders, rapid change in size"], ["Acute LV failure", "Butterfly oedema + NORMAL-sized heart (no time for remodelling)"], ["Chronic LV failure", "Gross cardiomegaly + cephalization + Kerley B lines"], ["Ebstein anomaly", "Massive RA enlargement + severely decreased PBF ('wall-to-wall heart')"], ["PA trunk prominent — exceptions", "NOT RV if: ToF (PA hypoplasia), idiopathic PA dilatation, PDA, pectus excavatum / straight-back syndrome"], ["Right desc. PA > 16 mm", "Suggests increased pulmonary blood flow / L-to-R shunt"], ] mem_rows = [[Paragraph(f"{r[0]}", mkS(f"mk{i}",7.8,11,"Helvetica-Bold",C_AMBER)), Paragraph(r[1], sCell)] for i,r in enumerate(mem)] mem_tbl = Table(mem_rows, colWidths=[COL_W*0.30, COL_W*0.70]) mem_ts = [ ('BOX',(0,0),(-1,-1), 0.8, C_AMBER), ('INNERGRID',(0,0),(-1,-1), 0.3, C_AMBER_LT), ('BACKGROUND',(0,0),(0,-1), C_AMBER_LT), ('ROWPADDING',(0,0),(-1,-1), 4), ('VALIGN',(0,0),(-1,-1),'TOP'), ] for i in range(len(mem_rows)): mem_ts.append(('BACKGROUND',(1,i),(1,i), C_WHITE if i%2==0 else C_GREY_LT)) mem_tbl.setStyle(TableStyle(mem_ts)) E.append(mem_tbl) E.append(sp(6)) E.append(hr(C_GREY, 0.5)) E.append(sp(3)) # FOOTER ft = Table([[ Paragraph("Sources: Fuster & Hurst's The Heart 15e \xb7 Grainger & Allison's Diagnostic Radiology \xb7 Braunwald's Heart Disease", sFooter), Paragraph("DNB Radiology Rapid Review \xb7 For educational use only", sFooter), ]], colWidths=[COL_W*0.70, COL_W*0.30]) ft.setStyle(TableStyle([('VALIGN',(0,0),(-1,-1),'MIDDLE'), ('LEFTPADDING',(0,0),(-1,-1),0), ('RIGHTPADDING',(0,0),(-1,-1),0)])) E.append(ft) doc.build(E) print(f"SUCCESS: {OUTPUT}") PYEOF

Your 3-page reference card is ready:

Cardiac Chamber Enlargement CXR

PDF Document · PDF

Here's what's packed into each page:

Page 1 - Foundations

Cardiac borders on PA CXR (right: SVC / Ascending Aorta / RA; left: Aortic knob / PA trunk / LAA / LV) with the mnemonic A-P-L-L
Left Atrium enlargement: all 5 PA signs (double density, carina >70°, elevated left bronchus, 3rd mogul, LAA bulge) + lateral signs
Left Ventricle enlargement: drooping apex, rounded border, LV aneurysm bulge, volume vs pressure overload distinction

Page 2 - Chambers + Master Signs Table

Right Ventricle: boot-shaped heart, elevated apex, prominent PA trunk, retrosternal obliteration on lateral
Right Atrium: globular right border, Ebstein anomaly pattern, severe MS-TR pattern
Biventricular enlargement: global cardiomegaly vs pericardial effusion distinction
Quick-reference table of 14 pathognomonic/classic signs (double density, boot heart, water-bottle, 3-sign, butterfly oedema, etc.)

Page 3 - Measurements, Vascularity & Mnemonics

CTR formula, normal values, AP vs PA caveat, volume vs pressure overload rule
Pulmonary vascularity table: cephalization / centralization / shunt / decreased PBF / lateralization - each with mechanism, CXR appearance, and causes
Memory aids table: 14 high-yield exam facts for rapid last-minute review

This is a shared conversation. Sign in to Orris to start your own chat.
