Here is a thorough overview of the vagus nerve drawn from Gray's Anatomy for Students, Scott-Brown's Otorhinolaryngology, Yamada's Gastroenterology, and Bradley and Daroff's Neurology.

Vagus Nerve (Cranial Nerve X)

The name comes from the Latin vagus ("wandering"), reflecting its remarkably extensive course from the brainstem all the way into the abdomen. It is the 10th cranial nerve and the primary nerve of the parasympathetic nervous system.

Fiber Types

The vagus is a mixed nerve carrying four functional fiber types:
Fiber typeFunction
General visceral efferent (GVE)Parasympathetic motor to thoracic and abdominal viscera (heart, lungs, GI tract to mid-transverse colon)
Special visceral efferent (SVE)Voluntary motor to pharyngeal and laryngeal striated muscles (via nucleus ambiguus)
General visceral afferent (GVA)Sensory from thoracic/abdominal organs - more than half of vagal fibers are sensory; cell bodies in the nodose (inferior) ganglion
General somatic afferent (GSA)Sensory from external ear/tympanic membrane (Arnold's nerve); cell bodies in the superior (jugular) ganglion

Brainstem Nuclei

NucleusRole
Dorsal motor nucleus of CN XPreganglionic parasympathetic efferents to thoracic/abdominal viscera
Nucleus ambiguusSpecial visceral efferents; motor to pharynx, larynx, upper esophagus
Nucleus tractus solitarius (NTS)Receives all visceral afferents; integrates signals for cardiovascular, respiratory, and GI reflex arcs

Course and Key Branches

Exit from skull

  • Leaves the brainstem as multiple rootlets from the lateral medulla (dorsolateral sulcus)
  • Exits the skull through the middle compartment of the jugular foramen, alongside CN IX and XI
  • Two ganglia lie near the foramen: the superior (jugular) ganglion (somatic afferent cell bodies) and the inferior (nodose) ganglion (visceral afferent cell bodies)

In the Neck

Runs in the carotid sheath, posterior to the internal jugular vein (IJV) and common carotid artery. Key branches:
  • Auricular branch (Arnold's nerve) - passes between mastoid and tympanic plate; sensory to tympanic membrane, posterior pinna, posterior ear canal. Stimulation can trigger the "vagal cough reflex" and referred otalgia.
  • Carotid body branches - supplements CN IX supply to carotid body chemoreceptors
  • Pharyngeal branch - carries spinal accessory fibers; motor to pharyngeal constrictors and soft palate via the pharyngeal plexus
  • Superior laryngeal nerve (SLN) - divides at hyoid level into:
    • Internal laryngeal nerve: sensory to laryngeal mucosa above the glottis and piriform fossa; penetrates thyrohyoid membrane
    • External laryngeal nerve: motor to cricothyroid muscle (the only intrinsic laryngeal muscle NOT supplied by the recurrent laryngeal nerve)
  • Cardiac branches - descend to the cardiac plexus

Right vs. Left in the Thorax

Right vagus nerve passing through the superior mediastinum alongside trachea, azygos vein, esophagus, and phrenic nerve - Gray's Anatomy for Students
Right vagus nerve:
  • Enters the superior mediastinum between the right brachiocephalic vein and the brachiocephalic trunk
  • Crossed by the arch of the azygos vein
  • Right recurrent laryngeal nerve hooks around the right subclavian artery in the root of the neck
Left vagus nerve:
  • Enters posterior to the left brachiocephalic vein, between the left common carotid and subclavian arteries
  • Crosses the arch of the aorta (medial to mediastinal pleura)
  • Left recurrent laryngeal nerve hooks under the arch of the aorta just lateral to the ligamentum arteriosum, then ascends in the tracheoesophageal groove

Recurrent Laryngeal Nerve (RLN)

The asymmetric looping of the RLN on each side is explained by its embryological origin as the nerve of the 6th branchial arch. The right 6th arch artery involutes, so the right RLN recurs around the subclavian; the left 6th arch persists as the ductus arteriosus/ligamentum arteriosum, so the left RLN must loop further inferior around the aortic arch. The RLN supplies all intrinsic laryngeal muscles except cricothyroid.

In the Abdomen

Both vagus nerves form the esophageal plexus around the lower esophagus, then condense into:
  • Anterior vagal trunk (mostly left vagus) - enters abdomen through esophageal hiatus
  • Posterior vagal trunk (mostly right vagus) - enters the same hiatus
Supply: stomach, small intestine, ascending colon, transverse colon (to the splenic flexure), liver, pancreas, kidneys.

Physiological Roles

Cardiovascular

  • Slows heart rate (negative chronotropy) via M2 muscarinic receptors at the SA node
  • Baroreceptor reflex: afferents from the carotid sinus and aortic arch travel via CN IX and X to the NTS, which modulates the dorsal motor nucleus to regulate heart rate

Respiratory

  • Hering-Breuer reflex: pulmonary stretch receptors signal via vagal afferents to stop inhalation

Gastrointestinal

  • Controls gastric acid secretion, gut motility, and the lower esophageal sphincter
  • Vagal afferents carry satiety signals - cholecystokinin (CCK) released post-meal acts on vagal afferents in the gut via the CCK-A receptor to reduce meal size and initiate satiation
  • More than half of all vagal fibers are sensory, relaying real-time information from the GI tract (up to the right colon) to the NTS

Metabolic/Appetite Regulation

Vagal sensory neurons in the nodose ganglion convey visceral satiety and hunger signals to the NTS. The NTS then relays to the hypothalamus, amygdala, and cortex - forming a brain-gut axis critical to energy balance.

Central Afferent Projections (NTS Onward)

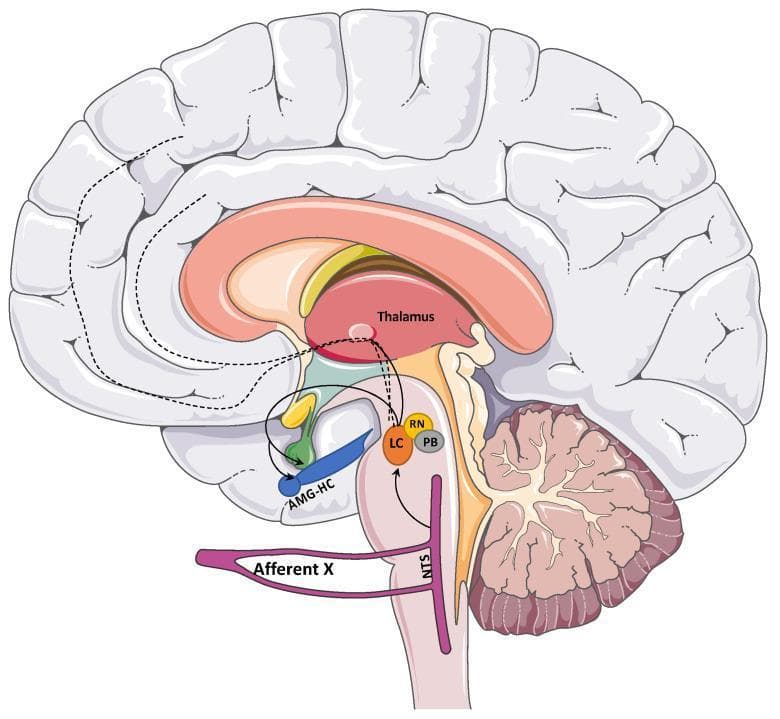

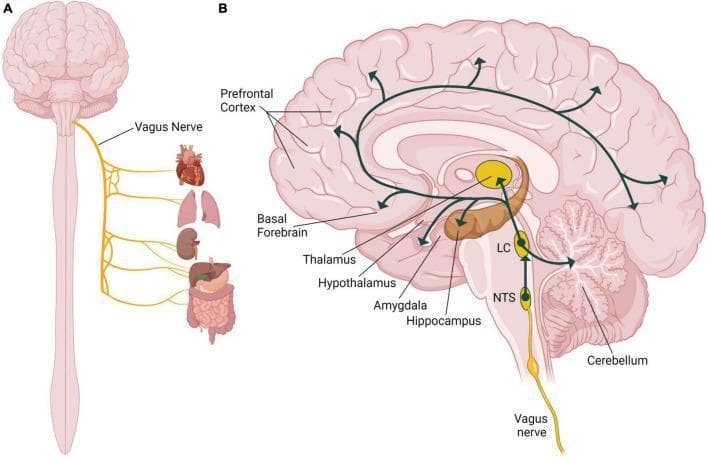

Vagus nerve central afferent pathways: NTS -> Locus Coeruleus -> Prefrontal Cortex, Thalamus, Amygdala, Hippocampus
Vagal afferents synapse in the NTS, which projects to:
  • Locus coeruleus (LC) - noradrenergic arousal and attention
  • Raphe nuclei - serotonergic modulation
  • Parabrachial nucleus
  • Thalamus - relay to cortex
  • Amygdala and hippocampus - emotional and memory processing
This anatomy underpins vagus nerve stimulation (VNS) as a therapy for epilepsy and treatment-resistant depression.

Clinical Pearls

FindingMechanism
Hoarseness (unilateral)RLN palsy - most often left side (longer course); causes include lung/mediastinal tumors, aortic aneurysm, thyroid surgery
DysphagiaPharyngeal branch / nucleus ambiguus lesion
Absent gag reflexLoss of efferent arc (CN X) or afferent arc (CN IX)
Referred otalgiaArnold's nerve carries pain from deep structures to the external ear
Vasovagal syncopeExaggerated vagal slowing of heart rate + vasodilation
Carotid sinus hypersensitivityExcess vagal tone triggered by carotid baroreceptors
Hiccups (intractable)Vagal/phrenic nerve irritation - sometimes treated with vagal maneuvers

Vagus Nerve Stimulation (VNS)

Approved uses include refractory epilepsy and treatment-resistant depression. A device implanted in the neck delivers electrical impulses to the left vagus, which ascend via the NTS-LC-cortical pathway to broadly modulate excitability and monoaminergic tone across the brain. - Bradley and Daroff's Neurology in Clinical Practice
Sources: Scott-Brown's Otorhinolaryngology Head & Neck Surgery | Gray's Anatomy for Students | Yamada's Textbook of Gastroenterology, 7th ed. | Bradley and Daroff's Neurology in Clinical Practice | Sleisenger and Fordtran's Gastrointestinal and Liver Disease
