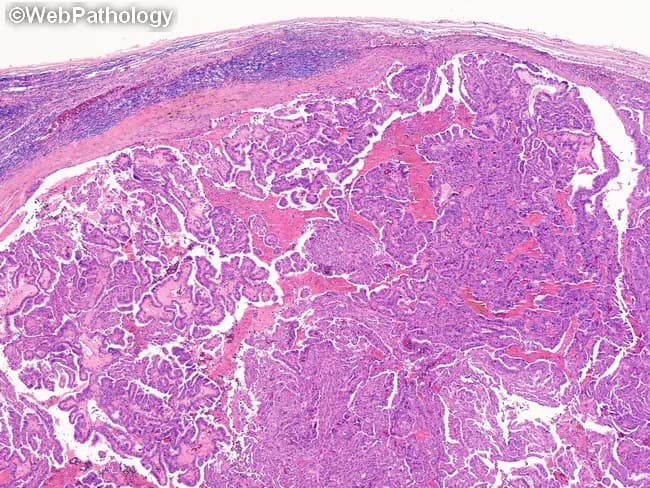

This histopathology image depicts thyroid tissue demonstrating papillary thyroid carcinoma features on bright-field light microscopy after Hematoxylin and Eosin staining. The specimen, a surgical thyroid tissue section, reveals papillary architecture with branching fronds and fibrovascular cores infiltrating the surrounding parenchyma. Tumor cells are columnar to cuboidal with enlarged, optically dense nuclei showing characteristic clearing (Orphan Annie eye), nuclear grooves, and occasional intranuclear inclusions. The nuclear features are conspicuous and serve as the diagnostic hallmark of PTC, distinguishing it from benign thyroid tissue and other malignancies. In many regions, the papillary cores and tumor clusters are surrounded by delicate fibrous stroma, with occasional calcified psammoma bodies that may be present within the papillae. Capsular or lymphovascular invasion may be evident in invasive disease, correlating with higher staging. The image highlights the propensity of PTC to metastasize to cervical lymph nodes, a clinically relevant consideration in surgical planning, neck dissection, and prognosis. This slide also provides a reference for differential diagnosis including follicular variant of papillary thyroid carcinoma, follicular thyroid carcinoma, medullary thyroid carcinoma, and anaplastic/poorly differentiated thyroid carcinomas. Clinically, these histologic features guide treatment strategies and correlate with tumor behavior and patient outcome.

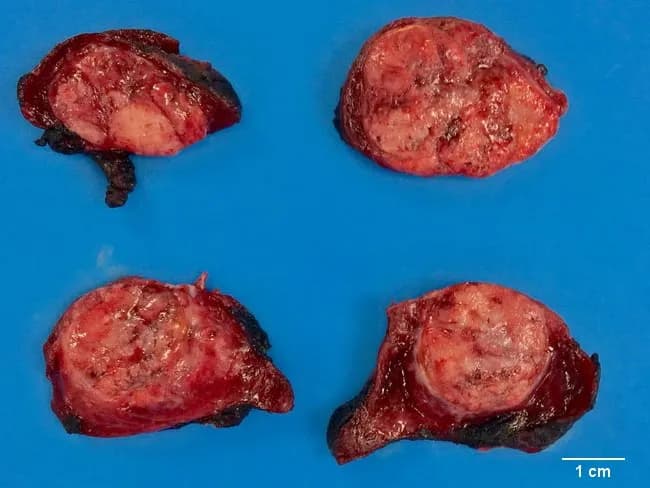

This gross pathology photograph shows four cross-sectional views of a thyroid tumor resected from the neck in a patient with medullary thyroid carcinoma. Imaging modality: gross surgical pathology photography; blue background and a 1 cm scale bar provide size reference. The four specimens display solid, tan-gray to pink-tan nodules with lobulated contours and variable firmness. Cut surfaces reveal heterogeneous texture with pale, fibrous to yellowish tissue and focal hemorrhagic areas; margins appear irregular, reflecting tumor invasion into adjacent thyroid parenchyma. Overall architecture shows complete or near-complete replacement of normal thyroid tissue by focal to multifocal neoplastic nodules. While definitive diagnosis requires microscopic evaluation, these gross features are compatible with a malignant neuroendocrine neoplasm of parafollicular C-cell origin. Medullary thyroid carcinoma often demonstrates pale, tan to gray cut surfaces with firm consistency and gross heterogeneity; histology typically shows nests of polygonal cells with amyloid stroma and calcitonin immunoreactivity. Clinically, MTC may secrete calcitonin and CEA and is associated with MEN2 syndromes; surgical management and prognosis hinge on stage and nodal involvement. This image is valuable for education on gross morphology, differential diagnosis versus papillary, follicular, and anaplastic carcinomas, and for correlating gross findings with radiologic and histopathologic workflows.

Reading File

I now have comprehensive data. Let me compile the complete short note:

Thyroid Neoplasms - Short Note (Exam Format)

I. CLASSIFICATION

A. Benign

Follicular Adenoma - most common benign thyroid tumor
- Solitary, encapsulated, spherical nodule
- Subtypes: simple/macrofollicular, microfollicular, fetal, embryonal, Hurthle cell (oxyphilic)
- Key feature: intact capsule (no capsular/vascular invasion)

B. Malignant (Carcinomas)

Type	Origin	Frequency
Papillary Thyroid Carcinoma (PTC)	Follicular epithelium	~85% (most common)
Follicular Thyroid Carcinoma (FTC)	Follicular epithelium	~10%
Medullary Thyroid Carcinoma (MTC)	Parafollicular C cells	~5%
Anaplastic (Undifferentiated)	Follicular epithelium	~1-2% (most aggressive)

Also: Hurthle cell (oncocytic) carcinoma, NIFTP (noninvasive follicular thyroid neoplasm with papillary-like nuclear features)

II. PAPILLARY THYROID CARCINOMA (PTC)

Epidemiology

Most common thyroid malignancy (~85%)
F > M; peaks at 20-50 years
Strongly linked to ionizing radiation (especially in first 2 decades of life - e.g., Chernobyl)

Genetics / Pathogenesis

MAP kinase pathway activation
- BRAF mutation - most common (40-65%)
- RET/PTC gene rearrangements (10-20%)
- RAS mutations (10-30%)
These are mutually exclusive of each other

Morphology (KEY FEATURES)

Solitary or multifocal
Papillary architecture with fibrovascular stalks
Nuclear features (hallmark):
- "Orphan Annie eye" nuclei - optically clear/empty, ground-glass appearance
- Intranuclear pseudo-inclusions
- Nuclear grooves
Psammoma bodies (concentric calcifications) - characteristic; absent in follicular/medullary
Lymphatic invasion common; blood vessel invasion uncommon

Spread

Primarily lymphatic - cervical lymph node metastasis in up to 50% of cases
Blood-borne spread uncommon in early disease

Clinical Features

Painless neck mass (most common presentation)
"Cold" nodule on radionuclide scan
FNA biopsy shows characteristic nuclear features
Cervical node metastases do NOT significantly worsen prognosis

Prognosis

Excellent - 10-year survival >95%
Most indolent thyroid malignancy

III. FOLLICULAR THYROID CARCINOMA (FTC)

Pathogenesis

RAS mutations (most common)
PAX8-PPARG fusion (2;3)(q13;p25) translocation - in ~50%
PI3K/AKT pathway mutations (PIK3CA gain-of-function, PTEN loss-of-function)
Associated with dietary iodine deficiency / endemic goiter

Morphology (KEY FEATURES)

Looks similar to follicular adenoma on gross/histology
Capsular invasion AND/OR vascular invasion - the diagnostic hallmark (distinguishes from adenoma)
Minimal invasive: only capsular breakthrough
Widely invasive: extensive vascular/tissue invasion

Spread

Primarily hematogenous - metastasizes to lung, bone, liver, brain ("cannon-ball" metastases)
Lymph node metastasis uncommon (unlike PTC)

Clinical Features

Cold nodule on scan
FNA cannot distinguish from adenoma (need excision + capsular exam)

Prognosis

10-year survival ~85%
Widely invasive form has poor prognosis

IV. MEDULLARY THYROID CARCINOMA (MTC)

Origin

Parafollicular C cells (not follicular epithelium)
Secretes calcitonin (diagnostic marker; also CEA)

Types

	Sporadic	Familial
%	~70%	~30%
Age	5th-6th decade	Younger
RET mutation	Acquired (~50%)	Germline (all cases)
Associated with	-	MEN 2A, MEN 2B, FMTC

Genetics

RET proto-oncogene mutations (constitutive activation of RET tyrosine kinase)
Germline RET mutation = screen family members

Morphology

Nests/sheets of polygonal to spindle cells
Amyloid deposits in stroma (calcitonin-derived; stains with Congo red)
Amyloid is pathognomonic

Clinical Features

Neck mass ± diarrhea (from calcitonin/VIP secretion)
Elevated serum calcitonin - tumor marker
Elevated CEA
If MEN 2A: associated with hyperparathyroidism + phaeochromocytoma
If MEN 2B: associated with phaeochromocytoma + mucosal neuromas + marfanoid habitus

Prognosis

Intermediate - 10-year survival ~50-65%
Worse than PTC/FTC, far better than anaplastic

V. ANAPLASTIC (UNDIFFERENTIATED) THYROID CARCINOMA

Pathogenesis

Arises de novo or by dedifferentiation (transformation) of pre-existing PTC or FTC
Key mutations: TP53 loss-of-function (most specific), RAS, PIK3CA

Morphology

Highly pleomorphic undifferentiated cells
Mitoses abundant, necrosis common
3 patterns: spindle cell, giant cell, small cell

Clinical Features

Elderly patients (usually >65 years)
Rapidly enlarging neck mass, firm/fixed
Compresses/invades trachea, esophagus, vessels
Causes: dysphagia, hoarseness, stridor

Prognosis

Most lethal thyroid malignancy - median survival 6 months
Near 100% mortality; essentially stage IV at diagnosis

VI. QUICK COMPARISON TABLE

Feature	Papillary	Follicular	Medullary	Anaplastic
Frequency	85%	10%	5%	1-2%
Origin	Follicular epi	Follicular epi	C cells	Follicular epi
Spread	Lymphatic	Hematogenous	Both	Direct invasion
Marker	-	-	Calcitonin, CEA	-
Key mutation	BRAF	RAS, PAX8-PPARG	RET	TP53
Psammoma bodies	Yes	No	No	No
Amyloid stroma	No	No	Yes	No
10-yr survival	>95%	~85%	~50-65%	<5%
Prognosis	Best	Good	Intermediate	Worst

VII. FOLLICULAR ADENOMA vs. FOLLICULAR CARCINOMA

Feature	Adenoma	Carcinoma
Capsule	Intact, complete	Breached (capsular invasion)
Vascular invasion	Absent	Present
FNA	Cannot distinguish	Cannot distinguish
Definitive diagnosis	Histology after excision	Histology after excision

VIII. NIFTP (High-Yield Emerging Concept)

Non-Invasive Follicular Thyroid Neoplasm with Papillary-like Nuclear Features
Previously classified as encapsulated follicular variant of PTC
Now reclassified as a borderline/low-risk neoplasm (not carcinoma)
Behavior: indolent, does NOT require radioiodine ablation
Requires: encapsulated, no vascular/capsular invasion, papillary nuclear features

IX. RISK FACTORS (Summary)

Radiation exposure - PTC (most important)
Iodine deficiency - FTC
MEN 2 / RET germline mutation - MTC
Pre-existing PTC/FTC - Anaplastic

Source: Robbins & Kumar Basic Pathology, Chapter 18 (Endocrine System)

Exam tip: Most examiners ask: (1) nuclear features of PTC, (2) how to distinguish follicular adenoma vs. carcinoma, (3) amyloid in MTC, (4) prognosis order, and (5) mutations (BRAF = PTC, RAS = FTC, RET = MTC, TP53 = Anaplastic).

Here are some relevant histology images for reference:

Papillary thyroid carcinoma - Histology (Orphan Annie eye nuclei, papillary architecture):

PTC histology showing papillary architecture and ground-glass nuclei

Medullary thyroid carcinoma - Amyloid stroma and C-cell nests:

MTC histology showing amyloid deposits in stroma
