Diffusion Hypoxia and Second Gas Effect
Reference: Miller's Anesthesia, 10th Edition (pp. 1945-1948, 1977)
Second Gas Effect
Prerequisite: Concentration Effect
When N2O represents a large fraction of the inhaled gas mixture, its rapid uptake into pulmonary blood causes a significant reduction in alveolar gas volume. This reduction in volume concentrates the remaining alveolar gases, so the fractional concentration of N2O drops proportionally less than expected. This is the concentration effect (Miller's, p. 1945).
Example from Miller's: When 66% N2O / 33% O2 / 1% isoflurane is delivered, assuming cardiac output = 5 L/min, the initial N2O uptake rate = 5000 mL/min × 0.47 × 0.66 atm = ~1550 mL/min. If 50% of N2O is taken up in early breaths, the remaining alveolar N2O concentration is only 24% less than its initial value - far less reduction than stoichiometric math alone would predict.
The Second Gas Effect Proper
The second gas effect operates through two simultaneous mechanisms (Miller's, p. 1948):
-
Concentration mechanism: Rapid uptake of large volumes of N2O (the "first gas") shrinks alveolar gas volume. The remaining co-administered anesthetic (e.g., isoflurane, sevoflurane) and O2 - the "second gases" - become concentrated in that reduced volume, raising their alveolar partial pressures and thereby accelerating their uptake.
-
Augmented ventilation mechanism: The volume contraction caused by rapid N2O absorption creates a mismatch between inspired and expired gas volumes, effectively augmenting alveolar ventilation under conditions of constant expiration. This brings fresh anesthetic-laden gas in more rapidly.
"The second gas effect is also evident: the rapid uptake of N2O and reduced gas volume increases alveolar Piso and PO2, thereby augmenting uptake of these 'second' gases." - Miller's Anesthesia, 10e, p. 1948
Clinical significance: The second gas effect accelerates the rise in FA/FI ratio of volatile agents at induction, speeding onset of anesthesia. Clinical studies and mathematical modeling confirm the effect is greater in arterial blood than in expired gas, is influenced by the blood solubility of volatile agents, and significantly affects anesthetic onset even at relatively low rates of N2O uptake (Miller's, p. 1948-1949).
Diffusion Hypoxia (Fink Effect)
Mechanism
Diffusion hypoxia is a sequel of rapid outgassing ("washout") of N2O from tissues and blood at the end of anesthesia. During the initial 5-10 minutes after discontinuation of N2O, the flow of N2O from blood into the alveoli can reach several liters per minute (Miller's, p. 1977).
This massive outpouring of N2O into the alveoli causes two problems simultaneously:
| Effect | Consequence |
|---|---|
| Dilution of alveolar O2 (↓ FAO2) | Alveolar hypoxia → arterial hypoxemia |
| Dilution of alveolar CO2 (↓ FACO2 / ↓ PaCO2) | Reduced respiratory drive → hypoventilation |
Why It Is Dangerous
The hazard is compounded by the fact that residual anesthetic agents and neuromuscular blocking drugs already depress respiration at this exact same time window. The combined effects of:
- Respiratory depression from residual anesthetics
- Reduced alveolar FCO (fractional CO2)
- Reduced alveolar PCO2 (blunted hypercapnic drive)
...can result in hypoventilation and oxyhemoglobin desaturation (Miller's, p. 1977).
Prevention
"This outcome is avoided by routinely providing supplemental O2 for the first 5 to 10 minutes of recovery, together with vigilant attention to respiration and oxygenation." - Miller's Anesthesia, 10e, p. 1977
Administering 100% O2 (or at least high FiO2) for 5-10 minutes at emergence displaces N2O from the alveoli and maintains adequate oxygen tension despite the massive N2O outpouring.
Summary Table
| Feature | Second Gas Effect | Diffusion Hypoxia |
|---|---|---|
| Timing | Induction | Emergence |
| N2O direction | Into blood from alveoli (uptake) | Out of blood into alveoli (washout) |
| Primary gas affected | Volatile agent + O2 (concentrated) | O2 + CO2 (diluted) |
| Clinical effect | Faster anesthetic induction | Hypoxemia + reduced ventilatory drive |
| Management | Utilized clinically (benefit) | Prevented with supplemental O2 for 5-10 min |
Reference: Miller RD, et al. Miller's Anesthesia, 10th ed. Chapter 18: Inhaled Anesthetics - Pharmacokinetics and Pharmacodynamics. Elsevier; 2025. Pages 1945-1949 (Second Gas Effect) and Page 1977 (Diffusion Hypoxia).
Please give me another example for concentration effect and second gas effect. With explanation.
Here's a clear worked example for both effects:
Concentration Effect - Step by Step Example
Starting Conditions (at first breath)
Imagine the alveoli contain 100 molecules of gas total:
- 80 molecules N2O (80%)
- 20 molecules O2 (20%)
N2O is rapidly taken up into pulmonary blood. Suppose 40 molecules of N2O are absorbed in the first few seconds.
What Happens?
| Before absorption | After absorption (no top-up) | |
|---|---|---|
| N2O molecules | 80 | 40 |
| O2 molecules | 20 | 20 |
| Total molecules | 100 | 60 |
| N2O concentration | 80% | 40/60 = 67% |
| O2 concentration | 20% | 20/60 = 33% |
The Key Point
Without the concentration effect, you'd expect N2O to drop from 80% to 40% (halved). But because the total gas volume also shrank, N2O only dropped to 67% - far less than expected. The remaining gas was concentrated into a smaller space.
This is the concentration effect: high-concentration gas uptake → volume shrinkage → the remaining fraction of that same gas is preserved at a higher-than-expected concentration.
Second Gas Effect - Same Example Extended
Now add 1% isoflurane (1 molecule) to the original 100-molecule alveolar space. After N2O absorption shrinks the volume from 100 to 60 molecules:
| Before absorption | After N2O absorption | |
|---|---|---|
| N2O | 80 molecules | 40 |
| O2 | 20 molecules | 20 |
| Isoflurane | 1 molecule | 1 |
| Total | 101 | 61 |
| Isoflurane concentration | 1/101 = 0.99% | 1/61 = 1.64% |
| O2 concentration | 20/101 = 19.8% | 20/61 = 32.8% |
What Happened to Isoflurane?
Nobody gave more isoflurane. The vaporizer setting didn't change. Yet the alveolar isoflurane concentration jumped from ~1% to ~1.64% simply because the total volume shrank when N2O was absorbed. Isoflurane and O2 are now packed into a smaller space.
This higher alveolar partial pressure of isoflurane creates a steeper gradient from alveolus → blood → brain, so isoflurane is taken up faster into blood. Anesthesia deepens more quickly.
Two Mechanisms Operating Together
Mechanism 1 - Concentration (passive):
N2O absorption shrinks alveolar volume → second gases (iso, O2) are physically concentrated → their partial pressures rise → faster uptake.
Mechanism 2 - Augmented ventilation (active):
The volume deficit created by absorbing 40 molecules of N2O is like a vacuum - it pulls fresh gas in from the trachea to refill the alveoli. This incoming fresh gas carries more isoflurane and O2 from the circuit, delivering an extra "top-up" beyond normal tidal breathing.
Side-by-Side Analogy
Think of the alveolus as a room with 10 people (gas molecules):
- 8 people are N2O, 1 is O2, 1 is isoflurane
- 4 N2O people leave through the blood "door"
- Now only 6 people remain in the same room
- The density (concentration) of the remaining people is higher
- Isoflurane went from being 1 in 10 → 1 in 6 people in the room
- This higher "density" means isoflurane reaches the bloodstream faster
Why Does N2O Work as the "First Gas"?
N2O is uniquely suited to produce both effects because:
- Used at very high concentrations (50-70%) - small molecules cause large absolute volume changes
- High blood uptake rate early on - blood/gas partition coefficient is low (0.47), so it rapidly moves into blood down its partial pressure gradient
- Insoluble enough that uptake is rapid and large in volume terms
A volatile agent like isoflurane at 1-2% cannot cause the same effect - the volume absorbed is too small to meaningfully shrink alveolar gas volume.
Clinical Bottom Line
| Concentration Effect | Second Gas Effect | |
|---|---|---|
| Which gas benefits? | N2O itself | Co-administered agents (iso, sevo, O2) |
| Mechanism | Volume shrinkage concentrates remaining N2O | Volume shrinkage + augmented ventilation concentrates second gas |
| Net result | FA/FI of N2O rises faster | FA/FI of volatile agent + O2 rises faster |
| Clinical use | N2O induction is accelerated | Combining N2O with volatile agents speeds induction |
What is Link 25 proportioning system? What are the steps of checking the anesthesia machine before induction of anesthesia? Three plus seven, 10 marks. I want Miller's reference.
Finding Sources
Finding Sources
Reading File
Finding Sources
Reading File
Finding Sources
Finding Sources
Finding Sources
Reading File
Loading Image
Reading File
Reading File
Reading File
Reading File
I now have all the content needed from Miller's. Let me compile the complete 10-mark answer.
Link-25 Proportioning System + Pre-Anesthesia Machine Checkout
Reference: Miller's Anesthesia, 10th Edition, Chapter 20
PART A: Link-25 Proportioning System (3 marks)
(Miller's, pp. 2257-2260)
Background: Why a Proportioning System is Needed
Anesthesia machines with mechanically controlled flowmeters carry the risk that an operator could inadvertently set N2O and O2 flows to produce a hypoxic mixture (below 21% O2, or practically below 25%). Proportioning systems exist to prevent this.
Two major systems are in use:
- GE/Datex-Ohmeda Link-25 (mechanical)
- North American Dräger SORC (pneumatic-mechanical)
The Link-25 System: Mechanism
The Link-25 is a purely mechanical proportioning system that physically links the N2O and O2 flow control valves to maintain a maximum N2O:O2 ratio of 3:1 (75% N2O : 25% O2).
Components (as shown in Fig. 20.12, Miller's):

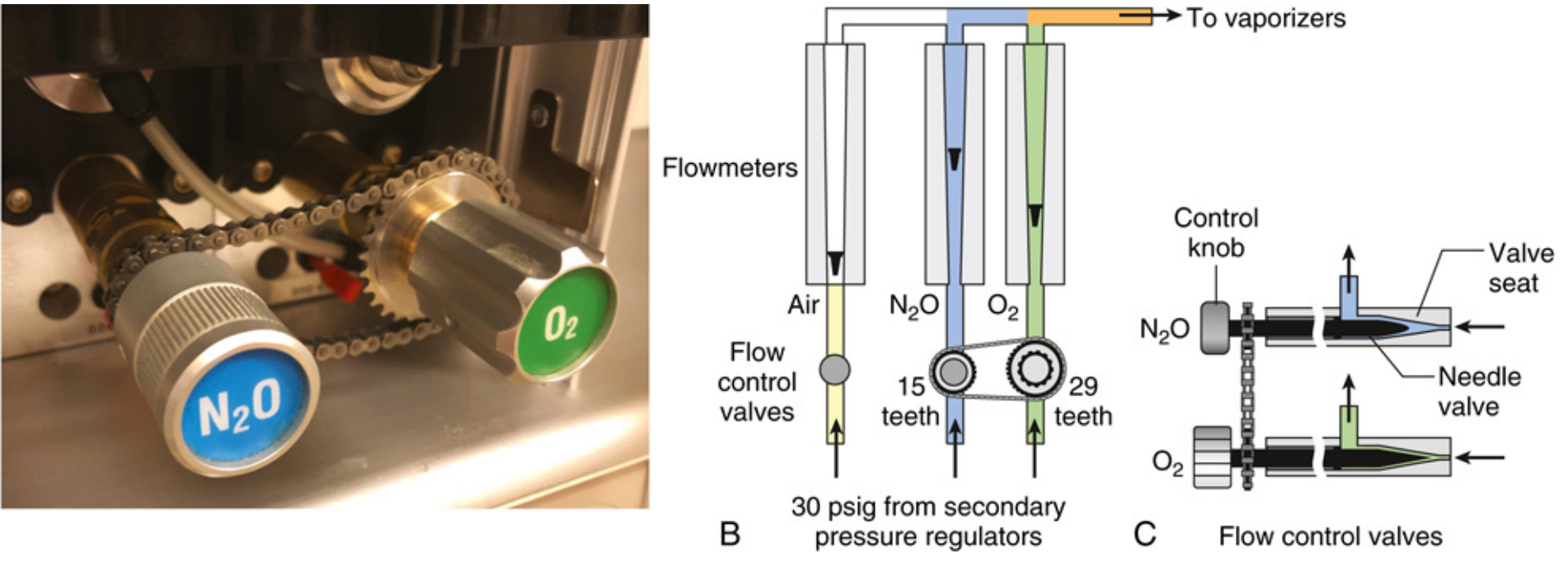

Fig. 20.12 GE/Datex-Ohmeda Link-25 proportioning system - Miller's Anesthesia, 10e
| Component | Detail |
|---|---|
| N2O sprocket | 15 teeth |
| O2 sprocket | 29 teeth |
| Linkage | A bicycle-type chain connecting both sprockets |
| Valve design | Faster taper on the N2O needle valve (more flow per turn than O2 valve) |
| Minimum O2 flow | N2O cannot flow unless O2 is at least 200 mL/min |
How It Works - Step by Step
-
Independent adjustment is allowed as long as the mixture is ≥25% O2. Each valve has a stop tab on its stem that permits free movement within safe range.
-
If the operator turns the N2O flow up too high (approaching >75%), the chain mechanically forces the O2 control valve to also open, automatically increasing O2 flow to maintain the safe ratio.
-
If the operator turns O2 flow down too low, the chain physically repositions the N2O valve to decrease N2O flow proportionally.
-
The 29:15 sprocket ratio combined with the faster-taper N2O needle work together to achieve exactly a 3:1 maximum ratio.
"The Link-25 automatically increases oxygen flow when the nitrous oxide flow is increased above the 3:1 ratio. It also will lower nitrous oxide flow if oxygen flow is decreased below that ratio." - Miller's, p. 2257
Behavior Differences: Link-25 vs SORC
| Situation | Link-25 Response | SORC Response |
|---|---|---|
| O2 turned down then back up | N2O stays at the new lower value (mechanical valve was physically repositioned) | N2O returns to previous higher setting |
| N2O turned up beyond safe range | O2 flow is increased (O2 knob physically turns) | N2O flow is simply prevented from increasing |
Limitations of the Link-25
The proportioning system only operates at the flowmeter level. It cannot protect against:
- A wrong supply gas (e.g., N2O accidentally piped into the O2 inlet) - the machine has no way to detect this
- Leaks downstream from the flow control valves (a broken O2 flow tube will deliver hypoxic mixture despite the system functioning correctly)
- Any electronic or mechanical failure of the system itself
"The most important point to understand about the proportioning systems... is that they cannot guarantee a non-hypoxic mixture if the wrong gas is supplied." - Miller's, p. 2260
PART B: Pre-Anesthesia Machine Checkout - 15 Steps (7 marks)
(Miller's, pp. 2402-2420; ASA 2008 Recommendations)
"A complete pre-anesthesia checkout (PAC) procedure must be performed each day before the anesthesia workstation is first used, and an abbreviated version should be performed before each subsequent case." - Miller's, p. 2402
The ASA 2008 Recommendations contain 15 items total:
- 7 items: Daily only (Items 1, 3, 5, 6, 8, 9, 10)
- 8 items: Before EACH case (Items 2, 4, 7, 11, 12, 13, 14, 15)
DAILY CHECKS (Items performed once at the start of the day)
Item 1: Verify Auxiliary Oxygen Cylinder and Self-Inflating Manual Ventilation Device
- Frequency: Daily
- A self-inflating bag (Ambu bag) + a separate cylinder O2 source must be present at every anesthetizing location - independent of the pipeline and machine
- The auxiliary O2 tank must be full with an attached flowmeter; valve should remain closed to prevent inadvertent loss
- A Mapleson circuit alone is not adequate as a backup
Item 3: Turn on Anesthesia Delivery System and Confirm AC Power
- Frequency: Daily
- Contemporary workstations have battery backup; a case inadvertently started on battery power may suffer catastrophic shutdown when batteries are exhausted
- Functioning AC power must be confirmed before commencing the day
Item 5: Verify Pressure on Spare O2 Cylinder on the Machine
- Frequency: Daily
- Open the cylinder valve on the back of the machine and check the tank gauge
- Other gas cylinders (air, N2O) are checked only if required for the anesthetic
Item 6: Verify Piped Gas Pressures ≥ 50 psig
- Frequency: Daily
- Pipeline supply pressures for O2, air, and N2O must all read ≥50 psig on the workstation's pipeline gauges
Item 8: Verify That Vaporizers Are Adequately Filled and, If Applicable, Not Tipped
- Frequency: Daily
- Check liquid level sight glass; fill if needed
- Verify the filler port cap is tightly closed
- A tipped vaporizer may have flooded the bypass chamber with liquid agent - these should not be used until cleared
Item 9: Verify That No Leaks Are Present in the Gas Supply Lines Between the Flowmeters and the Common Gas Outlet (Low-Pressure System Leak Check)
- Frequency: Daily
- The low-pressure circuit (from flowmeters to fresh gas outlet) is the most vulnerable segment for leaks
- Traditional negative-pressure (suction bulb) test: The suction bulb is attached to the common gas outlet; if it re-expands within 10 seconds, a leak is present
- Key point: The vaporizer must be turned ON during the check to detect leaks within the vaporizer itself
Item 10: Calibrate or Verify Calibration of Oxygen Monitor; Check Low O2 Alarm
- Frequency: Daily
- Galvanic cell sensors drift with age and require daily calibration
- Sidestream multi-gas analyzers should be verified to read 21% in room air
- Low-O2 concentration alarm must be tested (set alarm limit >21%, expose sensor to room air, alarm should trigger)
BEFORE EACH CASE CHECKS (Items required before every anesthetic)
Item 2: Verify Patient Suction Is Adequate to Clear the Airway
- Frequency: Before each case
- Adequate suction with tubing of appropriate length + Yankauer suction tip must be confirmed
- Usually shared between provider and technician, but provider must verify
Item 4: Verify Availability of Required Monitors and Check Alarms
- Frequency: Before each case
- Confirm BP cuffs, pulse oximetry probes, capnography are present and connected
- Test alarm conditions; confirm audible alarms are active
- Provider must confirm alarm thresholds are set appropriately for the specific patient
Item 7: Confirm That Breathing System Is Complete, Undamaged, and Unobstructed
- Frequency: Before each case
- Visually inspect all circuit components: corrugated tubing, Y-piece, masks, ETT adaptors
- Confirm CO2 absorber canister is properly seated and locked
Item 11: Verify CO2 Absorbent Is Not Exhausted
- Frequency: Before each case
- Color change indicator is not reliable - providers must not rely solely on color
- The most reliable indicator of exhausted absorbent is inspired CO2 >0 on capnography during the case
- It is no longer advised to breathe into the circuit manually to test absorbent function
Item 12: Breathing System Pressure and Leak Test
- Frequency: Before each case
- Machine set to manual/bag mode, gas flows set to zero, APL valve closed, Y-piece occluded
- Pressurize with O2 flush to ~30 cm H2O - circuit passes if pressure holds for at least 10 seconds
- After pressurizing, open APL valve wide - pressure should drop rapidly to zero (APL valve competence test)
- Most common leak location: absorber canister - especially after absorbent change
Item 13: Verify Gas Flows Properly Through Breathing Circuit (Flow Test / Unidirectional Valve Check)
- Frequency: Before each case
- Attach a test lung or spare breathing bag at the Y-piece
- "Ventilate" the test lung with the circuit bag, then "exhale" the test lung back
- Inspiratory valve opens on inspiration, closes on expiration - and vice versa for expiratory valve
- Critical: Circuit leak testing does NOT detect circuit obstruction or unidirectional valve malfunction - these are entirely different tests
Item 14: Document Completion of Checkout Procedures
- Frequency: Before each case
- Documentation within the anesthetic record is mandatory
- A departmental log serves as a quality assurance tool
Item 15: Confirm Ventilator Settings and Evaluate Readiness (Anesthesia Time Out)
- Frequency: Immediately before each anesthetic
- Responsible party: Provider only
- The MS MAIDS mnemonic (Miller's Box 20.3) is a useful final pre-induction checklist:
| Letter | Check |
|---|---|
| M - Machine | Checkout complete; vaporizers filled, closed, set to "0"; gas flows at zero; ventilator set for upcoming patient; APL valve open |
| S - Suction | Adequate suction available to clear airway |
| M - Monitors | All ASA standard monitors present and ready |
| A - Airway | Primary + backup airway equipment ready |
| I - IV | IV lines, fluids, and equipment ready |
| D - Drugs | All medications available and properly labeled |
| S - Special | Any special monitors or equipment for this specific case available |
Summary: Daily vs Before Each Case
| Frequency | Items |
|---|---|
| Daily (7) | Auxiliary O2 + Ambu bag; AC power; machine-mounted O2 cylinder; pipeline pressures ≥50 psig; vaporizer fill; low-pressure leak test; O2 monitor calibration + alarm |
| Before each case (8) | Suction; monitors + alarms; circuit integrity; CO2 absorbent; pressure/leak test; flow test/valve check; documentation; anesthesia time-out |
Reference: Miller RD, et al. Miller's Anesthesia, 10th ed. Chapter 20: Anesthesia Delivery System. Elsevier; 2025. Pages 2255-2260 (Link-25), Pages 2402-2420 (Pre-Anesthesia Checkout).
This is a shared conversation. Sign in to Orris to start your own chat.
