Here is a thorough breakdown of the WHO Analgesic Ladder (also called the WHO Pain Management Ladder):

WHO Analgesic (Pain Management) Ladder

First introduced by the World Health Organization in 1986 specifically for cancer pain, the ladder has since become the standard framework for managing all types of pain - acute, chronic, and palliative. Its core philosophy is to match analgesic strength to pain intensity and to escalate in a stepwise manner.

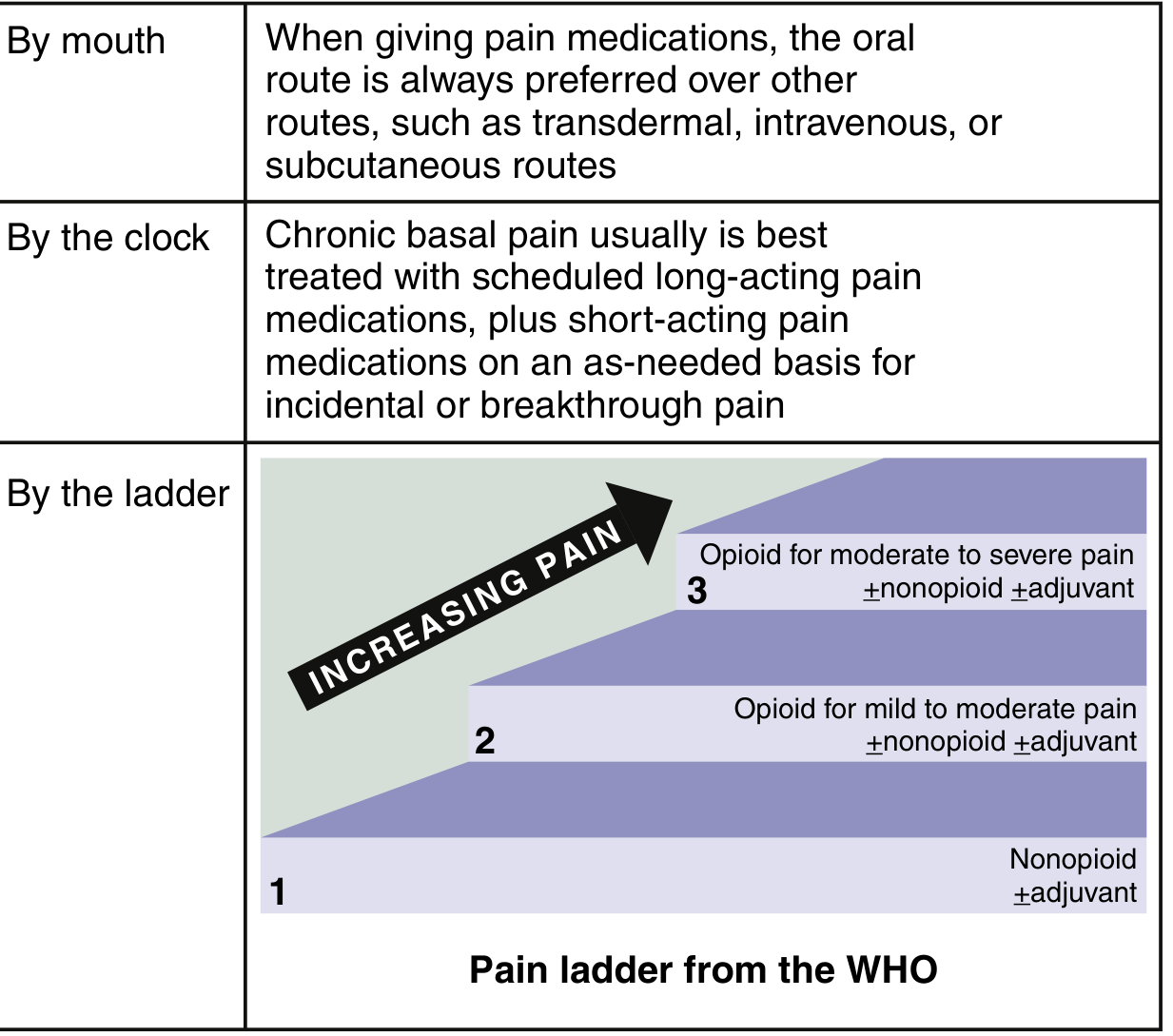

The Diagram

WHO Pain Ladder - By mouth, By the clock, By the ladder

From Sleisenger and Fordtran's Gastrointestinal and Liver Disease

The 3 Core Steps

Step	Pain Level	Drugs Used
Step 1	Mild pain	Non-opioids - paracetamol (acetaminophen), NSAIDs (e.g. ibuprofen, diclofenac) ± adjuvants
Step 2	Mild to moderate pain (or Step 1 failed)	Weak opioids - codeine, tramadol ± non-opioid ± adjuvants
Step 3	Moderate to severe pain (or Step 2 failed)	Strong opioids - morphine, oxycodone, fentanyl, hydromorphone ± non-opioid ± adjuvants

Adjuvants (used at any step) include:

Tricyclic antidepressants (e.g. amitriptyline) - for neuropathic pain
Anticonvulsants (e.g. gabapentin, pregabalin) - for neuropathic pain
Corticosteroids (e.g. dexamethasone) - for nerve compression, bone pain
Antispasmodics, anxiolytics, bisphosphonates

The 5 Key Principles ("By the...")

By mouth - Oral route is always preferred; avoid injections where possible
By the clock - Give analgesia at regular, fixed intervals (not PRN/as-needed) to maintain steady levels and prevent pain recurring
By the ladder - Follow the stepwise approach; escalate when current step is inadequate
For the individual - Titrate dose to each patient's needs; there is no "standard dose"
With attention to detail - Monitor for side effects, breakthrough pain, and adjust accordingly

Step 4 - The Modern Addition

A fourth step has been proposed and is now widely accepted to address the original ladder's limitation in integrating non-pharmacological and interventional treatments:

Step 4: Interventional/minimally invasive procedures for refractory pain:
- Epidural analgesia
- Intrathecal drug delivery (pumps)
- Nerve blocks / ablative procedures (e.g. coeliac plexus block)
- Spinal cord stimulation (neuromodulation)
- Neurosurgical procedures (cordotomy)
- Psychological interventions

Important Clinical Points

Start at the appropriate step based on pain severity - you do not have to always begin at Step 1 if pain is already severe
Morphine remains the gold-standard strong opioid for moderate-to-severe pain
Breakthrough pain - short-acting opioids (10-20% of the 24-hour total daily dose) should always be prescribed alongside long-acting opioids
Opioid rotation should be considered if adequate analgesia is achieved but severe side effects occur
Opioid-induced neurotoxicity (myoclonus, hallucinations, confusion) may require dose reduction or switching to an alternative opioid such as oxycodone, hydromorphone, or alfentanil (the latter especially in renal impairment)
Sustained-release opioids (e.g. MST Continus, transdermal fentanyl patches) should only be used once pain is stabilized; patches are changed every 72 hours
Constipation from opioids is persistent and requires prophylactic laxatives

Limitations of the Original Ladder

Does not account for individual variation in pain tolerance or drug response
Relies heavily on patient self-reporting of pain intensity
Does not integrate non-pharmacological therapies (addressed by the 4-step modification)
"Weak" vs "strong" opioid terminology is outdated; some weak opioids can be equally potent in specific patients

Sources: Bailey and Love's Short Practice of Surgery (28th ed.), Scott-Brown's Otorhinolaryngology Head & Neck Surgery, Sleisenger and Fordtran's Gastrointestinal and Liver Disease; StatPearls - WHO Analgesic Ladder; PMC - Modified WHO Ladder for Chronic Non-Cancer Pain

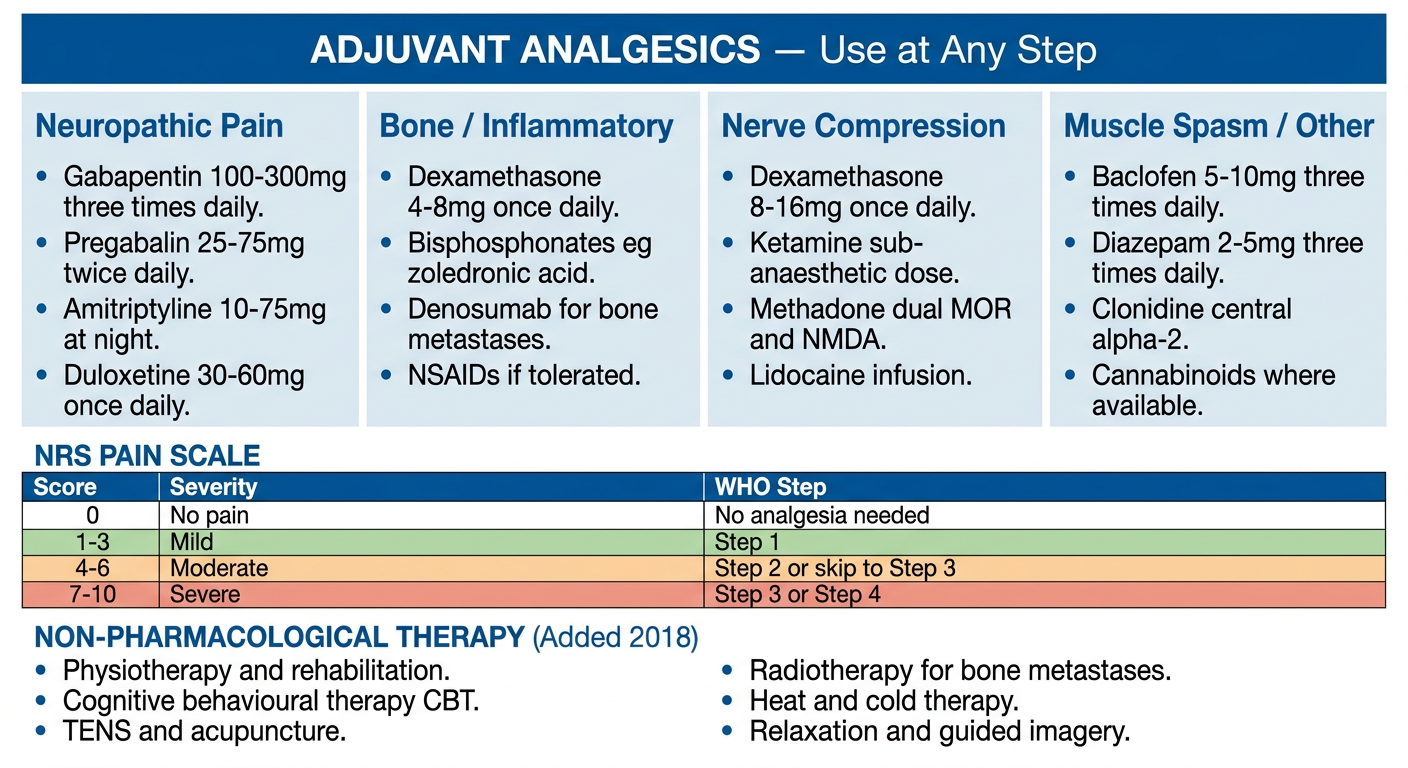

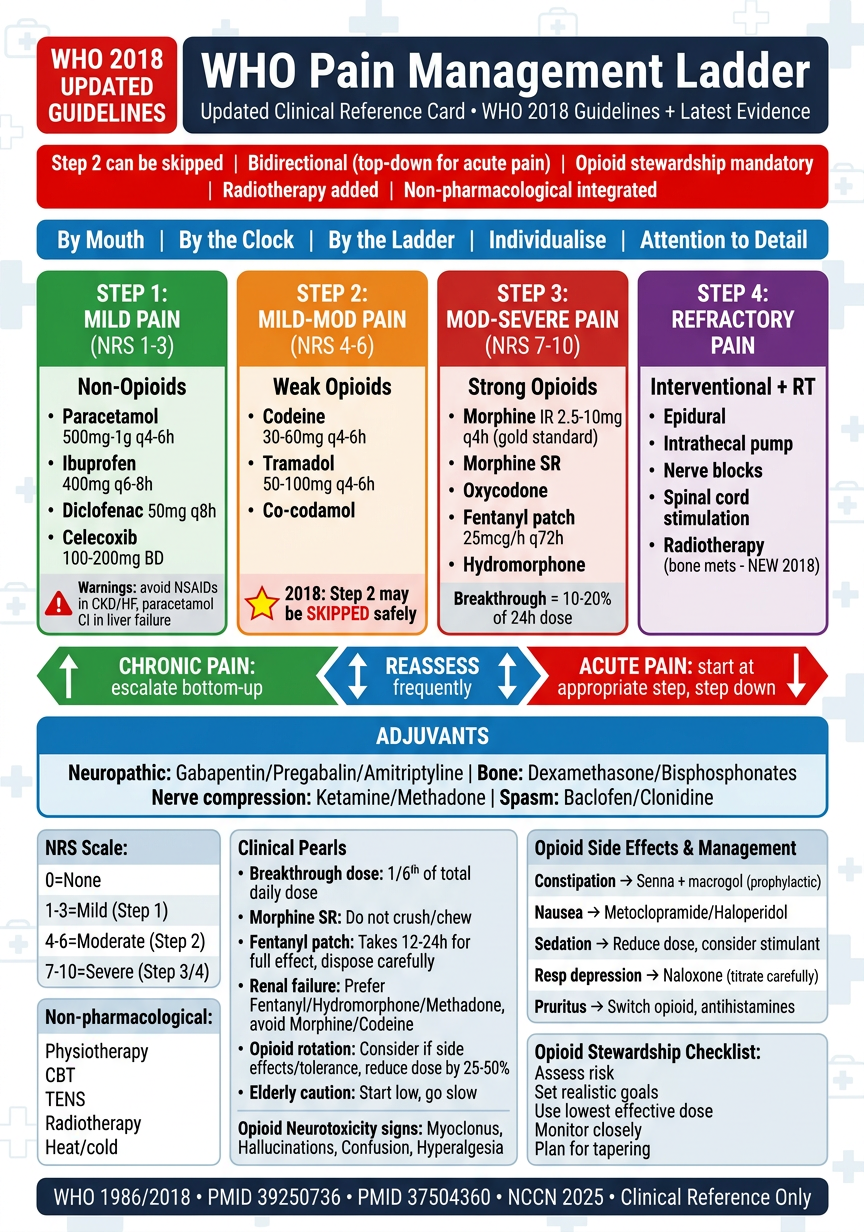

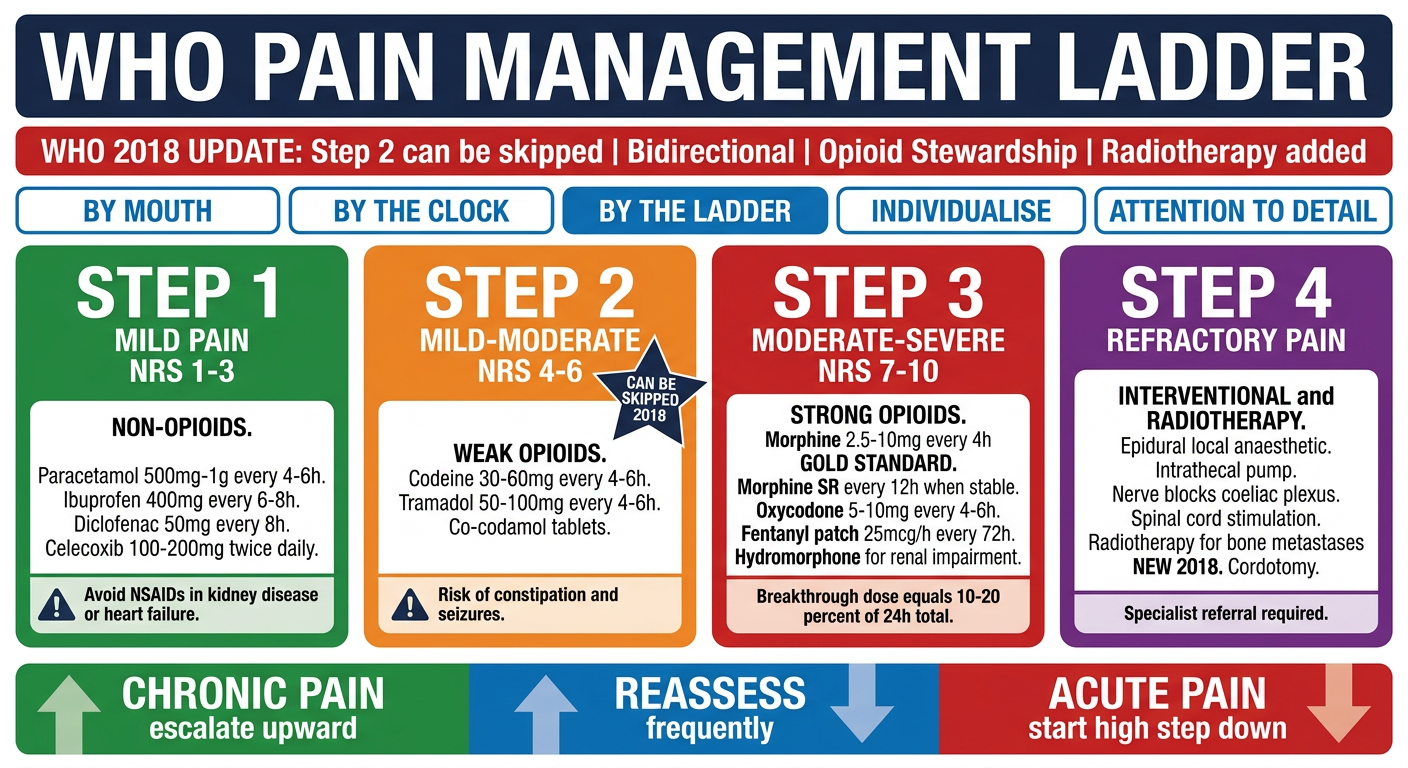

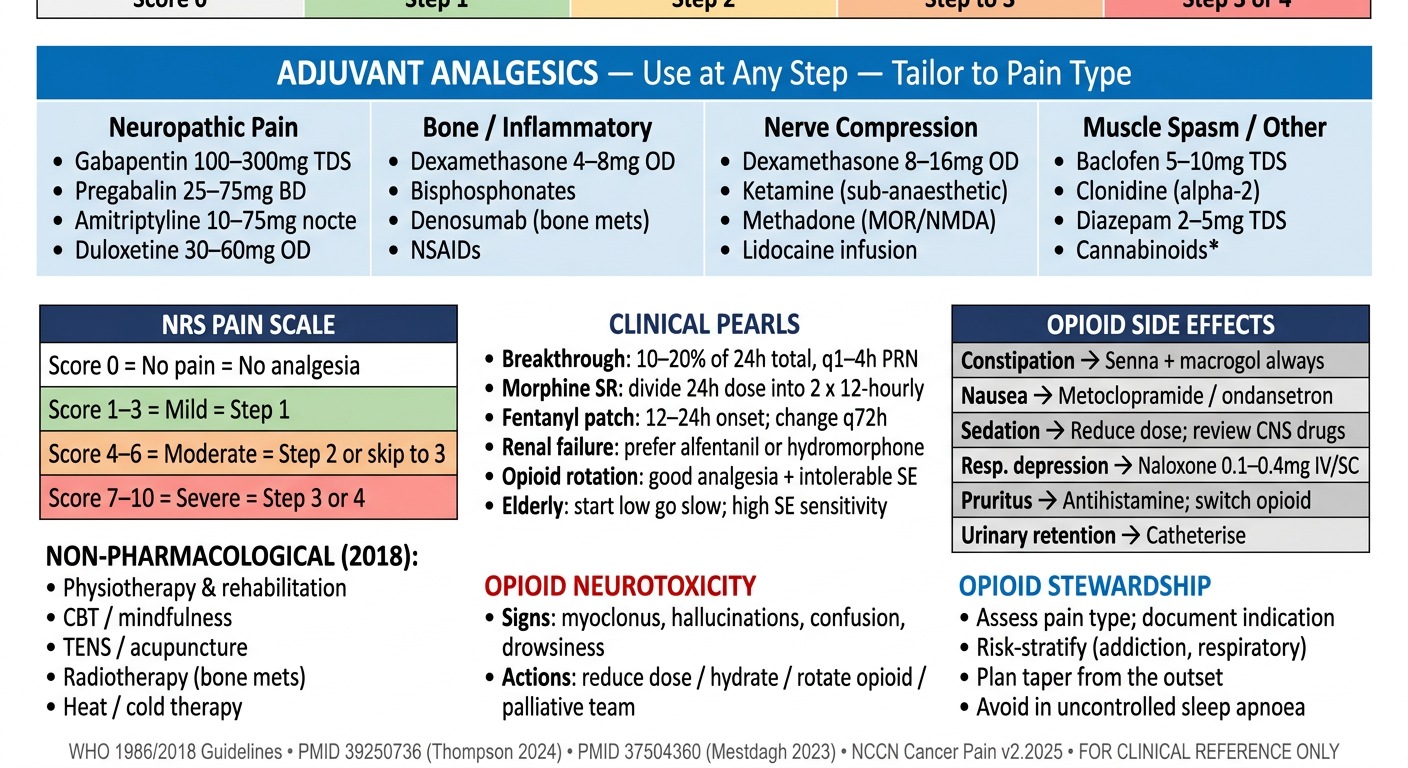

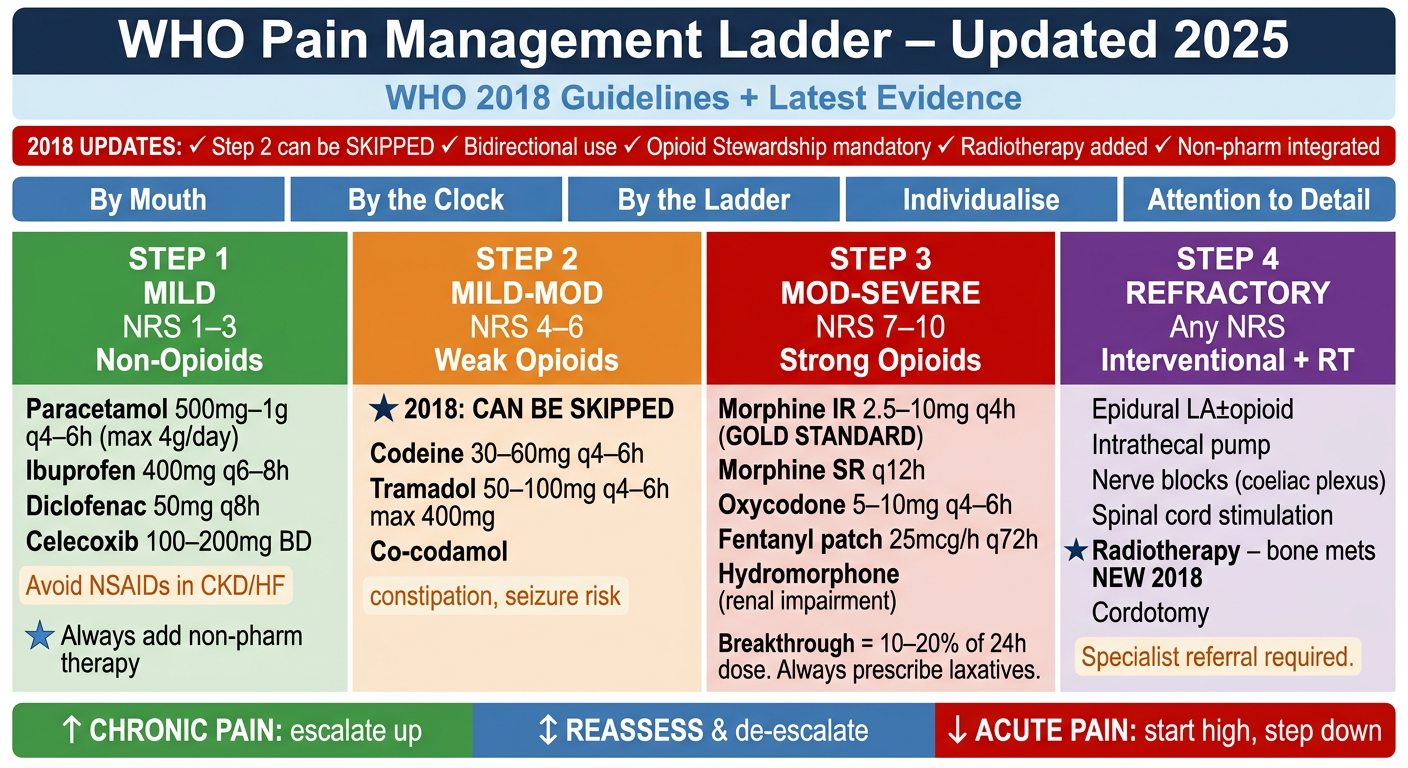

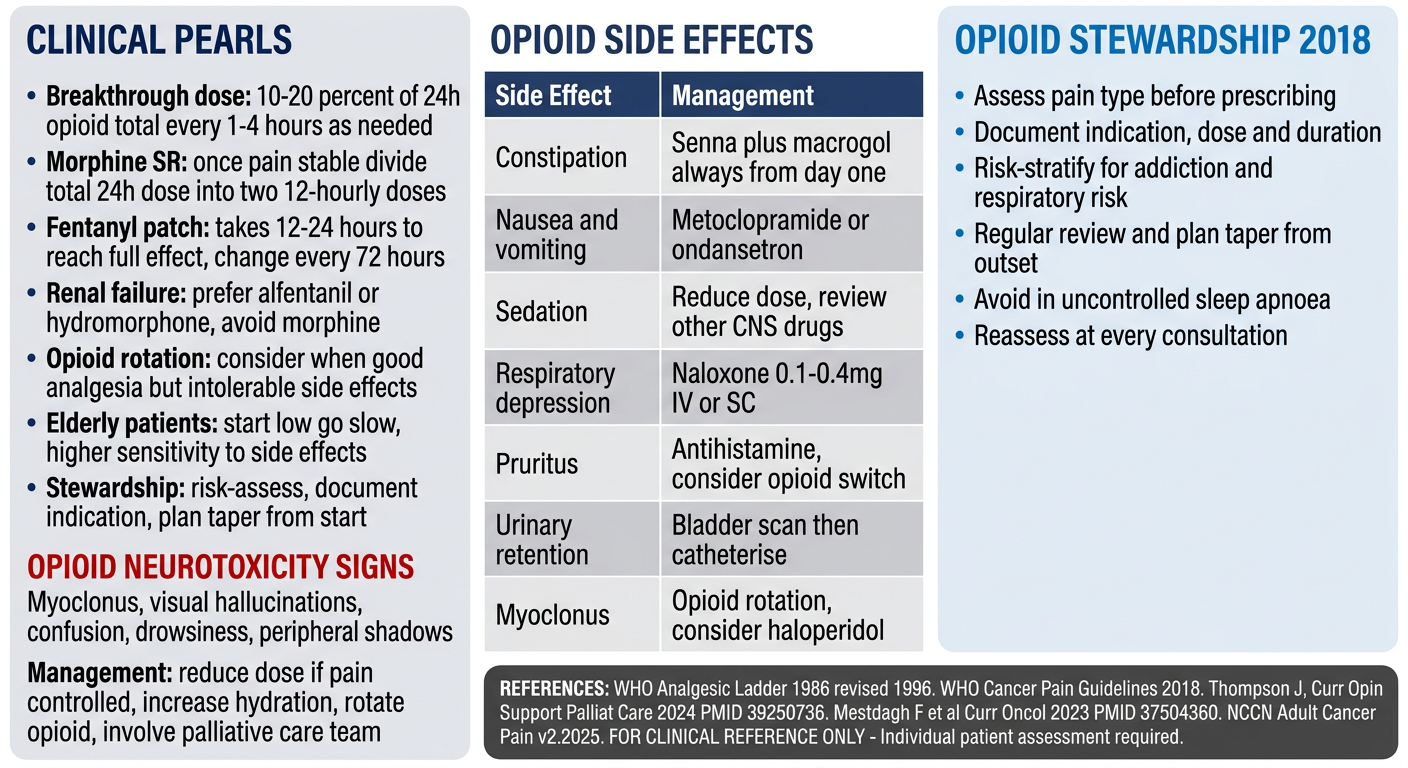

Create a clinical reference card on the WHO pain ladder

Asking for Preferences

Reading File

Running Command

ls /home/daytona/workspace/ 2>/dev/null && mkdir -p /home/daytona/workspace/who-…

Writing File

~/who-pain-ladder/create_card.py

from reportlab.lib.pagesizes import A4
from reportlab.lib import colors
from reportlab.lib.units import mm, cm
from reportlab.platypus import SimpleDocTemplate, Paragraph, Spacer, Table, TableStyle, HRFlowable
from reportlab.lib.styles import getSampleStyleSheet, ParagraphStyle
from reportlab.lib.enums import TA_CENTER, TA_LEFT, TA_JUSTIFY
from reportlab.platypus import KeepTogether
from reportlab.graphics.shapes import Drawing, Rect, Polygon, String, Line, Arrow
from reportlab.graphics import renderPDF
from reportlab.platypus import Flowable
import reportlab.lib.colors as rcolors

# ── Colour palette ──────────────────────────────────────────────────────────
DARK_BLUE   = colors.HexColor("#1A3A5C")
MID_BLUE    = colors.HexColor("#2E6DA4")
LIGHT_BLUE  = colors.HexColor("#D6E8F7")
STEP1_COL   = colors.HexColor("#27AE60")   # green  – mild
STEP2_COL   = colors.HexColor("#F39C12")   # amber  – moderate
STEP3_COL   = colors.HexColor("#E74C3C")   # red    – severe
STEP4_COL   = colors.HexColor("#8E44AD")   # purple – interventional
ADJ_COL     = colors.HexColor("#2980B9")   # blue   – adjuvants
HEADER_BG   = DARK_BLUE
CARD_BG     = colors.HexColor("#F4F8FC")
WHITE       = colors.white
GREY_TEXT   = colors.HexColor("#4A4A4A")
LIGHT_GREY  = colors.HexColor("#ECF0F1")

# ── Page setup ───────────────────────────────────────────────────────────────
OUTPUT = "/home/daytona/workspace/who-pain-ladder/WHO_Pain_Ladder_Reference_Card.pdf"
doc = SimpleDocTemplate(
    OUTPUT,
    pagesize=A4,
    leftMargin=15*mm, rightMargin=15*mm,
    topMargin=12*mm,  bottomMargin=12*mm,
)
W = A4[0] - 30*mm   # usable width

# ── Styles ───────────────────────────────────────────────────────────────────
styles = getSampleStyleSheet()

def style(name, **kw):
    s = ParagraphStyle(name, **kw)
    return s

S_TITLE = style("title",
    fontName="Helvetica-Bold", fontSize=20, textColor=WHITE,
    alignment=TA_CENTER, spaceAfter=2)
S_SUBTITLE = style("subtitle",
    fontName="Helvetica", fontSize=10, textColor=colors.HexColor("#AED6F1"),
    alignment=TA_CENTER, spaceAfter=0)
S_SECTION = style("section",
    fontName="Helvetica-Bold", fontSize=9, textColor=WHITE,
    alignment=TA_CENTER)
S_BODY = style("body",
    fontName="Helvetica", fontSize=8.2, textColor=GREY_TEXT,
    leading=12, spaceAfter=2)
S_BOLD = style("bold",
    fontName="Helvetica-Bold", fontSize=8.2, textColor=GREY_TEXT, leading=12)
S_SMALL = style("small",
    fontName="Helvetica", fontSize=7.5, textColor=GREY_TEXT, leading=11)
S_SMALL_BOLD = style("small_bold",
    fontName="Helvetica-Bold", fontSize=7.5, textColor=GREY_TEXT, leading=11)
S_STEP_HEAD = style("step_head",
    fontName="Helvetica-Bold", fontSize=10, textColor=WHITE,
    alignment=TA_CENTER, spaceAfter=1)
S_STEP_SUB = style("step_sub",
    fontName="Helvetica", fontSize=7.8, textColor=WHITE,
    alignment=TA_CENTER)
S_DRUG = style("drug",
    fontName="Helvetica", fontSize=8, textColor=GREY_TEXT,
    leading=12)
S_DRUG_BOLD = style("drug_bold",
    fontName="Helvetica-Bold", fontSize=8, textColor=DARK_BLUE,
    leading=12)
S_PRINC_HEAD = style("princ_head",
    fontName="Helvetica-Bold", fontSize=8.5, textColor=MID_BLUE)
S_PRINC = style("princ",
    fontName="Helvetica", fontSize=8, textColor=GREY_TEXT, leading=11.5)
S_WARN = style("warn",
    fontName="Helvetica-Bold", fontSize=7.8, textColor=colors.HexColor("#C0392B"),
    leading=11)
S_NOTE = style("note",
    fontName="Helvetica-Oblique", fontSize=7.5, textColor=colors.HexColor("#7F8C8D"),
    alignment=TA_CENTER)
S_FOOT = style("foot",
    fontName="Helvetica", fontSize=7, textColor=colors.HexColor("#95A5A6"),
    alignment=TA_CENTER)

# ── Helper: coloured cell paragraph ─────────────────────────────────────────
def cp(text, sty, color=None):
    if color:
        sty = ParagraphStyle(sty.name+"_c", parent=sty, textColor=color)
    return Paragraph(text, sty)

def bullet(text, sty=S_DRUG, indent=8):
    s = ParagraphStyle(sty.name+"_b", parent=sty, leftIndent=indent, firstLineIndent=-6)
    return Paragraph(f"<bullet>\u2022</bullet> {text}", s)

# ─────────────────────────────────────────────────────────────────────────────
# BUILD CONTENT
# ─────────────────────────────────────────────────────────────────────────────
story = []

# ── 1. HEADER BANNER ─────────────────────────────────────────────────────────
header_data = [[
    Paragraph("WHO Analgesic Ladder", S_TITLE),
]]
header_sub_data = [[
    Paragraph("Clinical Quick-Reference Card  |  Pain Management", S_SUBTITLE),
]]
header_tbl = Table([[
    Paragraph("WHO Analgesic Ladder", S_TITLE),
    ],[
    Paragraph("Clinical Quick-Reference Card  |  Pain Management", S_SUBTITLE),
]], colWidths=[W])
# Actually build as a single-column table for clean look
header_content = [
    [Paragraph("WHO Analgesic Ladder", S_TITLE)],
    [Paragraph("Clinical Quick-Reference Card  \u2022  Pain Management", S_SUBTITLE)],
]
h_tbl = Table(header_content, colWidths=[W])
h_tbl.setStyle(TableStyle([
    ("BACKGROUND",   (0,0), (-1,-1), HEADER_BG),
    ("TOPPADDING",   (0,0), (-1,-1), 10),
    ("BOTTOMPADDING",(0,-1),(-1,-1), 10),
    ("TOPPADDING",   (0,1), (-1,1), 1),
    ("ALIGN",        (0,0), (-1,-1), "CENTER"),
    ("ROUNDEDCORNERS", [5]),
]))
story.append(h_tbl)
story.append(Spacer(1, 5*mm))

# ── 2. THREE CORE PRINCIPLES strip ───────────────────────────────────────────
princ_items = [
    ("By Mouth", "Oral route preferred over\ntransdermal / IV / SC"),
    ("By the Clock", "Fixed regular intervals\n(not PRN) to prevent pain"),
    ("By the Ladder", "Escalate stepwise based\non pain severity"),
]
princ_cells = []
for title, desc in princ_items:
    cell = [
        Paragraph(title, ParagraphStyle("ph", fontName="Helvetica-Bold", fontSize=8.5,
                  textColor=WHITE, alignment=TA_CENTER, spaceAfter=2)),
        Paragraph(desc, ParagraphStyle("pd", fontName="Helvetica", fontSize=7.5,
                  textColor=colors.HexColor("#D6EAF8"), alignment=TA_CENTER, leading=11)),
    ]
    princ_cells.append(cell)

# Two extra principles
princ_cells2 = []
for title, desc in [
    ("For the Individual", "Titrate dose to each\npatient's needs"),
    ("With Attention", "Monitor side effects\n& breakthrough pain"),
]:
    cell = [
        Paragraph(title, ParagraphStyle("ph2", fontName="Helvetica-Bold", fontSize=8.5,
                  textColor=WHITE, alignment=TA_CENTER, spaceAfter=2)),
        Paragraph(desc, ParagraphStyle("pd2", fontName="Helvetica", fontSize=7.5,
                  textColor=colors.HexColor("#D6EAF8"), alignment=TA_CENTER, leading=11)),
    ]
    princ_cells2.append(cell)

cw3 = W / 3
cw5 = W / 5

all_princ = princ_cells + princ_cells2
p_tbl = Table([all_princ], colWidths=[cw5]*5)
p_tbl.setStyle(TableStyle([
    ("BACKGROUND",   (0,0), (-1,-1), MID_BLUE),
    ("TOPPADDING",   (0,0), (-1,-1), 7),
    ("BOTTOMPADDING",(0,0), (-1,-1), 7),
    ("LEFTPADDING",  (0,0), (-1,-1), 4),
    ("RIGHTPADDING", (0,0), (-1,-1), 4),
    ("ALIGN",        (0,0), (-1,-1), "CENTER"),
    ("VALIGN",       (0,0), (-1,-1), "MIDDLE"),
    ("LINEAFTER",    (0,0), (3,0), 0.5, colors.HexColor("#5D9FCC")),
    ("ROUNDEDCORNERS", [4]),
]))
story.append(p_tbl)
story.append(Spacer(1, 5*mm))

# ── 3. ANALGESIC STEPS (4 columns) ───────────────────────────────────────────
step_configs = [
    {
        "num": "Step 1",
        "pain": "MILD PAIN",
        "pain_score": "(NRS 1-3)",
        "color": STEP1_COL,
        "light": colors.HexColor("#EAFAF1"),
        "class": "Non-Opioids",
        "drugs": [
            ("<b>Paracetamol</b>", "500mg-1g PO q4-6h\n(max 4g/24h)"),
            ("<b>Ibuprofen</b>", "400mg PO q6-8h\nwith food"),
            ("<b>Diclofenac</b>", "50mg PO q8h"),
            ("<b>Aspirin</b>", "300-600mg PO q4-6h"),
            ("<b>Naproxen</b>", "500mg PO q12h"),
        ],
        "notes": [
            "NSAIDs: avoid in CKD,\ncirrhosis, heart failure",
            "Paracetamol: CI in\nliver failure",
        ],
    },
    {
        "num": "Step 2",
        "pain": "MILD-MOD PAIN",
        "pain_score": "(NRS 4-6)",
        "color": STEP2_COL,
        "light": colors.HexColor("#FEF9E7"),
        "class": "Weak Opioids",
        "drugs": [
            ("<b>Codeine</b>", "30-60mg PO q4-6h\n(+ paracetamol)"),
            ("<b>Tramadol</b>", "50-100mg PO q4-6h\n(max 400mg/24h)"),
            ("<b>Co-codamol</b>", "Codeine 30mg +\nParacetamol 500mg"),
            ("<b>Dihydrocodeine</b>", "30mg PO q4-6h"),
        ],
        "notes": [
            "Codeine: causes\nconstipation (common)",
            "Tramadol: agitation,\nseizure risk",
            "Watch paracetamol\ntotal dose in combos",
        ],
    },
    {
        "num": "Step 3",
        "pain": "MOD-SEVERE PAIN",
        "pain_score": "(NRS 7-10)",
        "color": STEP3_COL,
        "light": colors.HexColor("#FDEDEC"),
        "class": "Strong Opioids",
        "drugs": [
            ("<b>Morphine</b>", "2.5-10mg PO q4h\n(titrate to effect)"),
            ("<b>Oxycodone</b>", "5-10mg PO q4-6h\n(if morphine SE)"),
            ("<b>Fentanyl patch</b>", "25mcg/h patch\nchange q72h"),
            ("<b>Hydromorphone</b>", "1-2mg PO q4h\n(renal impairment)"),
            ("<b>Alfentanil</b>", "SC infusion\n(severe renal failure)"),
        ],
        "notes": [
            "No ceiling dose for\npure opioids",
            "Always prescribe\nbreakthrough dose",
            "Breakthrough = 10-20%\nof 24h total dose",
        ],
    },
    {
        "num": "Step 4",
        "pain": "REFRACTORY PAIN",
        "pain_score": "(any NRS)",
        "color": STEP4_COL,
        "light": colors.HexColor("#F5EEF8"),
        "class": "Interventional",
        "drugs": [
            ("<b>Epidural</b>", "Local anaesthetic\n± opioid infusion"),
            ("<b>Intrathecal pump</b>", "Morphine/ziconotide\nintrathecal delivery"),
            ("<b>Nerve blocks</b>", "Coeliac plexus,\nganglion impar"),
            ("<b>Spinal cord stim.</b>", "Neuromodulation\nfor neuropathic pain"),
            ("<b>Cordotomy</b>", "Neurosurgical\nfor intractable pain"),
        ],
        "notes": [
            "Specialist referral\nrequired",
            "Can combine with\nStep 3 opioids",
        ],
    },
]

col_w = W / 4

def make_step_col(cfg):
    rows = []
    # Header
    header_cell = [
        Paragraph(cfg["num"], ParagraphStyle("sn", fontName="Helvetica-Bold",
            fontSize=12, textColor=WHITE, alignment=TA_CENTER, spaceAfter=1)),
        Paragraph(cfg["pain"], ParagraphStyle("sp", fontName="Helvetica-Bold",
            fontSize=8, textColor=WHITE, alignment=TA_CENTER, spaceAfter=1)),
        Paragraph(cfg["pain_score"], ParagraphStyle("ss", fontName="Helvetica",
            fontSize=7.5, textColor=colors.HexColor("#FDFEFE"), alignment=TA_CENTER, spaceAfter=2)),
        Paragraph(cfg["class"], ParagraphStyle("sc", fontName="Helvetica-Bold",
            fontSize=8.5, textColor=WHITE, alignment=TA_CENTER,
            borderPad=3)),
    ]
    rows.append([header_cell])

    # Drugs
    drug_cells = []
    for drug_name, dose in cfg["drugs"]:
        d = Paragraph(drug_name, ParagraphStyle("dn", fontName="Helvetica-Bold",
            fontSize=7.8, textColor=cfg["color"], leading=11))
        dose_p = Paragraph(dose, ParagraphStyle("dd", fontName="Helvetica",
            fontSize=7.2, textColor=GREY_TEXT, leading=10.5))
        drug_cells.append([d, dose_p])

    drugs_tbl = Table(drug_cells, colWidths=[col_w*0.4, col_w*0.56])
    drugs_tbl.setStyle(TableStyle([
        ("TOPPADDING",   (0,0), (-1,-1), 2),
        ("BOTTOMPADDING",(0,0), (-1,-1), 2),
        ("LEFTPADDING",  (0,0), (-1,-1), 2),
        ("RIGHTPADDING", (0,0), (-1,-1), 2),
        ("VALIGN",       (0,0), (-1,-1), "TOP"),
        ("LINEBELOW",    (0,0), (-1,-2), 0.3, colors.HexColor("#D5D8DC")),
    ]))
    rows.append([drugs_tbl])

    # Notes / warnings
    note_items = []
    for n in cfg["notes"]:
        note_items.append(Paragraph(
            f"\u26a0 {n}",
            ParagraphStyle("ni", fontName="Helvetica", fontSize=7,
                textColor=colors.HexColor("#7D6608") if cfg["color"]==STEP2_COL
                else colors.HexColor("#922B21") if cfg["color"]==STEP3_COL
                else colors.HexColor("#1A5276") if cfg["color"]==STEP4_COL
                else colors.HexColor("#1D6A39"),
                leading=10.5)
        ))
    rows.append([note_items])

    tbl = Table(rows, colWidths=[col_w - 4])
    tbl.setStyle(TableStyle([
        ("BACKGROUND",   (0,0), (0,0), cfg["color"]),
        ("BACKGROUND",   (0,1), (0,1), cfg["light"]),
        ("BACKGROUND",   (0,2), (0,2), colors.HexColor("#FAFAFA")),
        ("TOPPADDING",   (0,0), (0,0), 8),
        ("BOTTOMPADDING",(0,0), (0,0), 8),
        ("TOPPADDING",   (0,1), (-1,-1), 5),
        ("BOTTOMPADDING",(0,1), (-1,-1), 5),
        ("LEFTPADDING",  (0,0), (-1,-1), 4),
        ("RIGHTPADDING", (0,0), (-1,-1), 4),
        ("BOX",          (0,0), (-1,-1), 1, cfg["color"]),
        ("LINEBELOW",    (0,1), (0,1), 0.5, cfg["color"]),
        ("VALIGN",       (0,0), (-1,-1), "TOP"),
    ]))
    return tbl

step_cols = [make_step_col(c) for c in step_configs]
steps_tbl = Table([step_cols], colWidths=[col_w]*4)
steps_tbl.setStyle(TableStyle([
    ("LEFTPADDING",  (0,0), (-1,-1), 2),
    ("RIGHTPADDING", (0,0), (-1,-1), 2),
    ("TOPPADDING",   (0,0), (-1,-1), 0),
    ("BOTTOMPADDING",(0,0), (-1,-1), 0),
    ("VALIGN",       (0,0), (-1,-1), "TOP"),
]))
story.append(steps_tbl)
story.append(Spacer(1, 5*mm))

# ── 4. ADJUVANT ANALGESICS BAR ────────────────────────────────────────────────
adj_title = [[Paragraph(
    "ADJUVANT ANALGESICS  \u2014  Use at ANY Step",
    ParagraphStyle("at", fontName="Helvetica-Bold", fontSize=9,
                   textColor=WHITE, alignment=TA_CENTER)
)]]
adj_title_tbl = Table(adj_title, colWidths=[W])
adj_title_tbl.setStyle(TableStyle([
    ("BACKGROUND",   (0,0), (-1,-1), ADJ_COL),
    ("TOPPADDING",   (0,0), (-1,-1), 5),
    ("BOTTOMPADDING",(0,0), (-1,-1), 5),
]))
story.append(adj_title_tbl)

adj_items = [
    ("Neuropathic Pain", "Gabapentin 100-300mg TDS\nPregabalin 25-75mg BD\nAmitriptyline 10-75mg nocte"),
    ("Bone Pain", "Dexamethasone 4-8mg OD\nBisphosphonates (zoledronic acid)\nNSAIDs"),
    ("Nerve Compression", "Dexamethasone 8-16mg OD\nKetamine (sub-anaesthetic)\nMethadone"),
    ("Muscle Spasm", "Baclofen 5-10mg TDS\nDiazepam 2-5mg TDS\nCyclobenzaprine"),
]
adj_cells = []
for cat, drugs in adj_items:
    adj_cells.append([
        Paragraph(cat, ParagraphStyle("ac", fontName="Helvetica-Bold",
            fontSize=7.8, textColor=MID_BLUE, spaceAfter=2)),
        Paragraph(drugs, ParagraphStyle("ad", fontName="Helvetica",
            fontSize=7.3, textColor=GREY_TEXT, leading=11)),
    ])

adj_tbl = Table(adj_cells, colWidths=[W*0.2, W*0.05, W*0.2, W*0.05, W*0.2, W*0.05, W*0.2, W*0.05])

# Simpler approach: flat 4-col table
adj_flat_row = []
for cat, drugs in adj_items:
    cell = [
        Paragraph(cat, ParagraphStyle("acf", fontName="Helvetica-Bold",
            fontSize=7.8, textColor=MID_BLUE, spaceAfter=2, leading=11)),
        Paragraph(drugs, ParagraphStyle("adf", fontName="Helvetica",
            fontSize=7.3, textColor=GREY_TEXT, leading=11)),
    ]
    adj_flat_row.append(cell)

adj_flat_tbl = Table([adj_flat_row], colWidths=[W/4]*4)
adj_flat_tbl.setStyle(TableStyle([
    ("BACKGROUND",   (0,0), (-1,-1), colors.HexColor("#EAF3FB")),
    ("TOPPADDING",   (0,0), (-1,-1), 6),
    ("BOTTOMPADDING",(0,0), (-1,-1), 6),
    ("LEFTPADDING",  (0,0), (-1,-1), 6),
    ("RIGHTPADDING", (0,0), (-1,-1), 6),
    ("VALIGN",       (0,0), (-1,-1), "TOP"),
    ("LINEAFTER",    (0,0), (2,0), 0.5, colors.HexColor("#AED6F1")),
]))
story.append(adj_flat_tbl)
story.append(Spacer(1, 4*mm))

# ── 5. CLINICAL PEARLS & OPIOID SIDE EFFECTS ─────────────────────────────────
left_col = []
right_col = []

# Clinical pearls
left_col.append(Paragraph("CLINICAL PEARLS", ParagraphStyle("cph",
    fontName="Helvetica-Bold", fontSize=9, textColor=DARK_BLUE, spaceAfter=4)))

pearls = [
    ("Breakthrough pain dose", "10-20% of total 24h opioid dose, q1-4h PRN"),
    ("Morphine SR (MST)", "Divide 24h total dose into 2 x 12-hourly doses once stable"),
    ("Fentanyl patch", "Takes 12-24h to reach full effect; lasts 72h after removal"),
    ("Renal impairment", "Prefer alfentanil or hydromorphone (less renal excretion)"),
    ("Opioid rotation", "Consider if adequate analgesia but intolerable side effects"),
    ("Nausea", "Usually transient; treat with antiemetics (metoclopramide, ondansetron)"),
    ("Constipation", "Persistent - always prescribe laxatives prophylactically"),
]
for key, val in pearls:
    left_col.append(Paragraph(
        f"<b>{key}:</b> {val}",
        ParagraphStyle("pearl", fontName="Helvetica", fontSize=7.5,
            textColor=GREY_TEXT, leading=11.5, spaceAfter=2)
    ))

# Opioid neurotoxicity
left_col.append(Spacer(1, 4))
left_col.append(Paragraph("OPIOID-INDUCED NEUROTOXICITY", ParagraphStyle("oin",
    fontName="Helvetica-Bold", fontSize=8.5, textColor=colors.HexColor("#C0392B"), spaceAfter=3)))
left_col.append(Paragraph(
    "Signs: myoclonus \u2022 hallucinations \u2022 peripheral shadows \u2022 confusion \u2022 drowsiness",
    ParagraphStyle("ois", fontName="Helvetica", fontSize=7.5, textColor=GREY_TEXT, leading=11)))
left_col.append(Spacer(1, 3))
mgmt_steps = [
    "Reduce opioid dose (if pain controlled)",
    "Increase hydration",
    "Switch to alternative opioid (opioid rotation)",
    "Involve palliative care / pain team",
]
for s in mgmt_steps:
    left_col.append(Paragraph(f"\u2022 {s}",
        ParagraphStyle("oim", fontName="Helvetica", fontSize=7.5,
            textColor=GREY_TEXT, leading=11, leftIndent=8)))

# Right column: NRS pain scale + opioid SE
right_col.append(Paragraph("NRS PAIN SCALE", ParagraphStyle("npsh",
    fontName="Helvetica-Bold", fontSize=9, textColor=DARK_BLUE, spaceAfter=4)))

nrs_data = [
    ["Score", "Description", "WHO Step"],
    ["0",     "No pain",         "-"],
    ["1-3",   "Mild pain",       "Step 1"],
    ["4-6",   "Moderate pain",   "Step 2"],
    ["7-10",  "Severe pain",     "Step 3/4"],
]
nrs_tbl = Table(nrs_data, colWidths=[W*0.06, W*0.19, W*0.1])
nrs_tbl.setStyle(TableStyle([
    ("BACKGROUND",   (0,0), (-1,0), DARK_BLUE),
    ("TEXTCOLOR",    (0,0), (-1,0), WHITE),
    ("FONTNAME",     (0,0), (-1,0), "Helvetica-Bold"),
    ("FONTSIZE",     (0,0), (-1,-1), 7.5),
    ("BACKGROUND",   (0,2), (-1,2), colors.HexColor("#FDEDEC")),
    ("BACKGROUND",   (0,3), (-1,3), colors.HexColor("#FADBD8")),
    ("BACKGROUND",   (0,4), (-1,4), colors.HexColor("#F1948A")),
    ("TEXTCOLOR",    (0,3), (-1,4), colors.HexColor("#7B241C")),
    ("ALIGN",        (0,0), (-1,-1), "CENTER"),
    ("GRID",         (0,0), (-1,-1), 0.4, colors.HexColor("#BFC9CA")),
    ("TOPPADDING",   (0,0), (-1,-1), 3),
    ("BOTTOMPADDING",(0,0), (-1,-1), 3),
]))
right_col.append(nrs_tbl)
right_col.append(Spacer(1, 6))

right_col.append(Paragraph("COMMON OPIOID SIDE EFFECTS", ParagraphStyle("oseh",
    fontName="Helvetica-Bold", fontSize=8.5, textColor=DARK_BLUE, spaceAfter=3)))

se_data = [
    ["Side Effect", "Management"],
    ["Constipation", "Senna + macrogol (always)"],
    ["Nausea/vomiting", "Metoclopramide, ondansetron"],
    ["Sedation", "Reduce dose, review other CNS drugs"],
    ["Resp. depression", "Naloxone 0.1-0.4mg IV/SC"],
    ["Pruritus", "Antihistamine; opioid switch"],
    ["Urinary retention", "Bladder scan; catheterisation"],
]
se_tbl = Table(se_data, colWidths=[W*0.2, W*0.28])
se_tbl.setStyle(TableStyle([
    ("BACKGROUND",   (0,0), (-1,0), MID_BLUE),
    ("TEXTCOLOR",    (0,0), (-1,0), WHITE),
    ("FONTNAME",     (0,0), (-1,0), "Helvetica-Bold"),
    ("FONTSIZE",     (0,0), (-1,-1), 7.3),
    ("BACKGROUND",   (0,1), (-1,1), LIGHT_GREY),
    ("BACKGROUND",   (0,3), (-1,3), LIGHT_GREY),
    ("BACKGROUND",   (0,5), (-1,5), LIGHT_GREY),
    ("GRID",         (0,0), (-1,-1), 0.4, colors.HexColor("#BFC9CA")),
    ("TOPPADDING",   (0,0), (-1,-1), 3),
    ("BOTTOMPADDING",(0,0), (-1,-1), 3),
    ("LEFTPADDING",  (0,0), (-1,-1), 4),
]))
right_col.append(se_tbl)

# Combine into 2-col layout
bottom_tbl = Table([[left_col, right_col]], colWidths=[W*0.52, W*0.48])
bottom_tbl.setStyle(TableStyle([
    ("VALIGN",       (0,0), (-1,-1), "TOP"),
    ("LEFTPADDING",  (0,0), (-1,-1), 0),
    ("RIGHTPADDING", (0,0), (-1,-1), 8),
    ("TOPPADDING",   (0,0), (-1,-1), 0),
    ("BOTTOMPADDING",(0,0), (-1,-1), 0),
    ("LINEAFTER",    (0,0), (0,0), 0.5, colors.HexColor("#AED6F1")),
]))
story.append(bottom_tbl)
story.append(Spacer(1, 4*mm))

# ── 6. FOOTER ─────────────────────────────────────────────────────────────────
story.append(HRFlowable(width=W, thickness=0.5, color=colors.HexColor("#AED6F1")))
story.append(Spacer(1, 2))
story.append(Paragraph(
    "WHO Analgesic Ladder (1986, revised 1996) \u2022 4th step added by international expert consensus \u2022 "
    "Morphine is gold-standard strong opioid \u2022 Always prescribe laxatives with opioids \u2022 "
    "This card is for clinical reference only \u2014 individual patient assessment is required",
    S_FOOT
))

# ── BUILD ────────────────────────────────────────────────────────────────────
doc.build(story)
print(f"PDF saved to: {OUTPUT}")

Running Command

cd /home/daytona/workspace/who-pain-ladder && python create_card.py 2>&1

Editing File

~/who-pain-ladder/create_card.py

Successfully replaced 1 instance(s) of the string in '/home/daytona/workspace/who-pain-ladder/create_card.py'

Running Command

cd /home/daytona/workspace/who-pain-ladder && python create_card.py 2>&1

Running Command

ls -lh /home/daytona/workspace/who-pain-ladder/WHO_Pain_Ladder_Reference_Card.pd…

Running Command

cd /home/daytona/workspace/who-pain-ladder && python -c " from pypdf import PdfR…

Running Command

cd /home/daytona/workspace/who-pain-ladder && python -c " from pypdf import PdfR…

Editing File

~/who-pain-ladder/create_card.py

Successfully replaced 1 instance(s) of the string in '/home/daytona/workspace/who-pain-ladder/create_card.py'

Editing File

~/who-pain-ladder/create_card.py

Successfully replaced 1 instance(s) of the string in '/home/daytona/workspace/who-pain-ladder/create_card.py'

Editing File

~/who-pain-ladder/create_card.py

Successfully replaced 1 instance(s) of the string in '/home/daytona/workspace/who-pain-ladder/create_card.py'

Editing File

~/who-pain-ladder/create_card.py

Successfully replaced 1 instance(s) of the string in '/home/daytona/workspace/who-pain-ladder/create_card.py'

Editing File

~/who-pain-ladder/create_card.py

Successfully replaced 1 instance(s) of the string in '/home/daytona/workspace/who-pain-ladder/create_card.py'

Running Command

cd /home/daytona/workspace/who-pain-ladder && python create_card.py 2>&1 && pyth…

Running Command

cd /home/daytona/workspace/who-pain-ladder && python -c " from pypdf import PdfR…

Running Command

cd /home/daytona/workspace/who-pain-ladder && python -c " from pypdf import PdfR…

Your WHO Pain Ladder clinical reference card is ready:

WHO Pain Ladder Reference Card

PDF Document · PDF

What's included on the card:

Header banner - title and subtitle in dark blue
5-principle strip - By Mouth, By the Clock, By the Ladder, For the Individual, With Attention to Detail (colour-coded)
4-step analgesic columns - each with its own colour (green/amber/red/purple), pain score range, drug class, specific drugs with doses, and warnings
- Step 1: Paracetamol, NSAIDs + contraindications
- Step 2: Codeine, Tramadol + co-codamol doses and cautions
- Step 3: Morphine, Oxycodone, Fentanyl patch, Hydromorphone, Alfentanil + breakthrough dose rule
- Step 4: Epidural, intrathecal pump, nerve blocks, spinal cord stimulation, cordotomy
Adjuvant analgesics bar - neuropathic, bone, nerve compression, and muscle spasm categories
NRS pain scale table - scores mapped to WHO steps with colour-coding
Opioid side effects table - with specific management per effect
Clinical pearls - breakthrough dosing, morphine SR conversion, fentanyl patch timing, renal impairment guidance, opioid rotation, nausea and constipation management
Opioid neurotoxicity - signs and management steps
Reference footer

Who pain management ladder updated lettest pdf

Searching PubMed

WHO analgesic ladder pain management updated

Searching the Web

WHO pain management ladder 2024 2025 updated guidelines latest

Reading Article

PMID: 39250736

Reading Article

PMID: 37504360

Reading Web Page

https://www.ncbi.nlm.nih.gov/books/NBK554435/

Writing File

~/who-pain-ladder/create_updated_card.py

"""
WHO Pain Management Ladder - UPDATED Clinical Reference Card (2025)
Reflects: WHO 2018 Guidelines + 2024/2025 evidence updates
"""
from reportlab.lib.pagesizes import A4
from reportlab.lib import colors
from reportlab.lib.units import mm
from reportlab.platypus import (SimpleDocTemplate, Paragraph, Spacer, Table,
                                 TableStyle, HRFlowable, KeepTogether)
from reportlab.lib.styles import ParagraphStyle
from reportlab.lib.enums import TA_CENTER, TA_LEFT

# ── Palette ───────────────────────────────────────────────────────────────────
DARK_NAVY   = colors.HexColor("#0D2137")
NAVY        = colors.HexColor("#1A3A5C")
MID_BLUE    = colors.HexColor("#2E6DA4")
STEEL       = colors.HexColor("#4A90C4")
STEP1_COL   = colors.HexColor("#1E8449")   # green
STEP2_COL   = colors.HexColor("#CA6F1E")   # orange
STEP3_COL   = colors.HexColor("#C0392B")   # red
STEP4_COL   = colors.HexColor("#6C3483")   # purple
STEP1_LIGHT = colors.HexColor("#E9F7EF")
STEP2_LIGHT = colors.HexColor("#FEF5E7")
STEP3_LIGHT = colors.HexColor("#FDEDEC")
STEP4_LIGHT = colors.HexColor("#F4ECF7")
BADGE_NEW   = colors.HexColor("#E74C3C")   # red "NEW 2018" badge
BADGE_UPD   = colors.HexColor("#2980B9")   # blue "UPDATED" badge
WHITE       = colors.white
GREY        = colors.HexColor("#3D3D3D")
LGREY       = colors.HexColor("#ECF0F1")
WARN_RED    = colors.HexColor("#922B21")
WARN_AMB    = colors.HexColor("#784212")
WARN_PURP   = colors.HexColor("#512E5F")
FOOT_GREY   = colors.HexColor("#7F8C8D")
GOLD        = colors.HexColor("#B7950B")
ADJ_BG      = colors.HexColor("#EBF5FB")
ADJ_HDR     = colors.HexColor("#1A5276")

OUTPUT = "/home/daytona/workspace/who-pain-ladder/WHO_Pain_Ladder_UPDATED_2025.pdf"

doc = SimpleDocTemplate(
    OUTPUT, pagesize=A4,
    leftMargin=13*mm, rightMargin=13*mm,
    topMargin=10*mm, bottomMargin=10*mm,
)
W = A4[0] - 26*mm

# ── Style factory ────────────────────────────────────────────────────────────
def S(name, **kw):
    return ParagraphStyle(name, **kw)

ST_MAIN   = S("main",   fontName="Helvetica-Bold", fontSize=18,
               textColor=WHITE, alignment=TA_CENTER)
ST_SUB    = S("sub",    fontName="Helvetica", fontSize=9,
               textColor=colors.HexColor("#AED6F1"), alignment=TA_CENTER)
ST_BADGE  = S("badge",  fontName="Helvetica-Bold", fontSize=7.5,
               textColor=WHITE, alignment=TA_CENTER)
ST_BODY   = S("body",   fontName="Helvetica", fontSize=7.8,
               textColor=GREY, leading=11.5)
ST_BOLD   = S("bold",   fontName="Helvetica-Bold", fontSize=7.8,
               textColor=GREY, leading=11.5)
ST_SM     = S("sm",     fontName="Helvetica", fontSize=7.2,
               textColor=GREY, leading=10.5)
ST_SM_B   = S("sm_b",   fontName="Helvetica-Bold", fontSize=7.2,
               textColor=GREY, leading=10.5)
ST_WARN   = S("warn",   fontName="Helvetica", fontSize=6.8, leading=10)
ST_SEC    = S("sec",    fontName="Helvetica-Bold", fontSize=8.5,
               textColor=NAVY, spaceAfter=3)
ST_FOOT   = S("foot",   fontName="Helvetica", fontSize=6.8,
               textColor=FOOT_GREY, alignment=TA_CENTER)
ST_UPD_LBL= S("upd",   fontName="Helvetica-Bold", fontSize=7,
               textColor=WHITE, alignment=TA_CENTER)
ST_PRINC  = S("princ",  fontName="Helvetica-Bold", fontSize=8,
               textColor=WHITE, alignment=TA_CENTER, spaceAfter=1)
ST_PRINCD = S("princd", fontName="Helvetica", fontSize=7.2,
               textColor=colors.HexColor("#D6EAF8"), alignment=TA_CENTER, leading=10.5)

story = []

# ═══════════════════════════════════════════════════════════════════════════════
# 1. HEADER
# ═══════════════════════════════════════════════════════════════════════════════
# Version badge row
ver_badge = Table([[
    Paragraph("WHO 2018 UPDATED GUIDELINES", ST_BADGE),
    Paragraph("+ 2024/2025 EVIDENCE", ST_BADGE),
    Paragraph("PMID: 39250736 | PMID: 37504360", ST_BADGE),
]], colWidths=[W*0.38, W*0.3, W*0.32])
ver_badge.setStyle(TableStyle([
    ("BACKGROUND",   (0,0),(0,0), colors.HexColor("#E74C3C")),
    ("BACKGROUND",   (1,0),(1,0), colors.HexColor("#E67E22")),
    ("BACKGROUND",   (2,0),(2,0), colors.HexColor("#1A5276")),
    ("TOPPADDING",   (0,0),(-1,-1), 3),
    ("BOTTOMPADDING",(0,0),(-1,-1), 3),
    ("LEFTPADDING",  (0,0),(-1,-1), 4),
    ("RIGHTPADDING", (0,0),(-1,-1), 4),
    ("ALIGN",        (0,0),(-1,-1), "CENTER"),
]))
story.append(ver_badge)

hdr = Table([
    [Paragraph("WHO Pain Management Ladder", ST_MAIN)],
    [Paragraph("Updated Clinical Reference Card  \u2022  Incorporating WHO 2018 Guidelines & Latest Evidence", ST_SUB)],
], colWidths=[W])
hdr.setStyle(TableStyle([
    ("BACKGROUND",   (0,0),(-1,-1), DARK_NAVY),
    ("TOPPADDING",   (0,0),(0,0), 8),
    ("BOTTOMPADDING",(0,0),(0,0), 2),
    ("TOPPADDING",   (0,1),(0,1), 1),
    ("BOTTOMPADDING",(0,1),(0,1), 8),
    ("ALIGN",        (0,0),(-1,-1), "CENTER"),
]))
story.append(hdr)
story.append(Spacer(1, 3*mm))

# ═══════════════════════════════════════════════════════════════════════════════
# 2. NEW 2018 KEY CHANGES ALERT BAR
# ═══════════════════════════════════════════════════════════════════════════════
changes = [
    "Step 2 CAN be skipped",
    "Bidirectional use (top-down for acute pain)",
    "Opioid stewardship mandatory",
    "Radiotherapy added as analgesic modality",
    "Non-pharmacological therapies integrated",
]
change_cells = [[
    Paragraph("\u26a0 WHO 2018 KEY UPDATES", S("chh", fontName="Helvetica-Bold",
        fontSize=8, textColor=WHITE, alignment=TA_CENTER))
] + [
    Paragraph(f"\u2713 {c}", S("chb", fontName="Helvetica", fontSize=7.3,
        textColor=colors.HexColor("#FDFEFE"), leading=10.5))
    for c in changes
]]
cw_list = [W*0.14] + [W*0.172]*5
change_tbl = Table(change_cells, colWidths=cw_list)
change_tbl.setStyle(TableStyle([
    ("BACKGROUND",   (0,0),(0,0), colors.HexColor("#C0392B")),
    ("BACKGROUND",   (1,0),(-1,0), colors.HexColor("#E74C3C")),
    ("TOPPADDING",   (0,0),(-1,-1), 5),
    ("BOTTOMPADDING",(0,0),(-1,-1), 5),
    ("LEFTPADDING",  (0,0),(-1,-1), 5),
    ("RIGHTPADDING", (0,0),(-1,-1), 5),
    ("VALIGN",       (0,0),(-1,-1), "MIDDLE"),
    ("LINEAFTER",    (0,0),(4,0), 0.5, colors.HexColor("#F1948A")),
]))
story.append(change_tbl)
story.append(Spacer(1, 3*mm))

# ═══════════════════════════════════════════════════════════════════════════════
# 3. CORE PRINCIPLES STRIP
# ═══════════════════════════════════════════════════════════════════════════════
principles = [
    ("By Mouth", "Oral route preferred;\nIV/SC only if unable"),
    ("By the Clock", "Fixed intervals, not PRN;\nprevent pain recurrence"),
    ("By the Ladder", "Stepwise escalation\nbased on pain intensity"),
    ("Individualise", "Titrate to each patient;\nno standard dose"),
    ("Attention to Detail", "Monitor SE, adjuvants,\nbreakthrough pain"),
]
pcells = []
for t, d in principles:
    pcells.append([
        Paragraph(t, ST_PRINC),
        Paragraph(d, ST_PRINCD),
    ])
p_tbl = Table([pcells], colWidths=[W/5]*5)
p_tbl.setStyle(TableStyle([
    ("BACKGROUND",   (0,0),(-1,-1), MID_BLUE),
    ("TOPPADDING",   (0,0),(-1,-1), 6),
    ("BOTTOMPADDING",(0,0),(-1,-1), 6),
    ("LEFTPADDING",  (0,0),(-1,-1), 3),
    ("RIGHTPADDING", (0,0),(-1,-1), 3),
    ("ALIGN",        (0,0),(-1,-1), "CENTER"),
    ("VALIGN",       (0,0),(-1,-1), "MIDDLE"),
    ("LINEAFTER",    (0,0),(3,0), 0.5, colors.HexColor("#5D9FCC")),
]))
story.append(p_tbl)
story.append(Spacer(1, 3*mm))

# ═══════════════════════════════════════════════════════════════════════════════
# 4. STEP COLUMNS
# ═══════════════════════════════════════════════════════════════════════════════
col_w = W / 4

def mk_step(num, pain, score, col, light, drug_class, drugs, warnings, new_notes=None):
    """Build a single step column as a nested Table."""

    # -- header --
    hdr_paragraphs = [
        Paragraph(num, S("sn", fontName="Helvetica-Bold", fontSize=13,
                         textColor=WHITE, alignment=TA_CENTER, spaceAfter=0)),
        Paragraph(pain, S("sp", fontName="Helvetica-Bold", fontSize=8,
                           textColor=WHITE, alignment=TA_CENTER, spaceAfter=1)),
        Paragraph(score, S("ss", fontName="Helvetica", fontSize=7.5,
                            textColor=colors.HexColor("#FDFEFE"), alignment=TA_CENTER, spaceAfter=2)),
        Paragraph(drug_class, S("sc", fontName="Helvetica-Bold", fontSize=9,
                                 textColor=WHITE, alignment=TA_CENTER)),
    ]

    # -- drug rows --
    drug_rows = []
    for dname, dose in drugs:
        drug_rows.append([
            Paragraph(dname, S("dn", fontName="Helvetica-Bold", fontSize=7.5,
                                textColor=col, leading=10.5)),
            Paragraph(dose, S("dd", fontName="Helvetica", fontSize=7,
                               textColor=GREY, leading=10)),
        ])
    drugs_tbl = Table(drug_rows, colWidths=[col_w*0.42, col_w*0.53])
    drugs_tbl.setStyle(TableStyle([
        ("TOPPADDING",   (0,0),(-1,-1), 2),
        ("BOTTOMPADDING",(0,0),(-1,-1), 2),
        ("LEFTPADDING",  (0,0),(-1,-1), 2),
        ("RIGHTPADDING", (0,0),(-1,-1), 2),
        ("VALIGN",       (0,0),(-1,-1), "TOP"),
        ("LINEBELOW",    (0,0),(-1,-2), 0.3, colors.HexColor("#D5D8DC")),
    ]))

    # -- warning items --
    warn_items = []
    for w in warnings:
        warn_items.append(
            Paragraph(f"\u26a0 {w}", S("wi", fontName="Helvetica", fontSize=6.8,
                                        textColor=WARN_RED if col==STEP3_COL
                                        else WARN_AMB if col==STEP2_COL
                                        else WARN_PURP if col==STEP4_COL
                                        else colors.HexColor("#1D6A39"),
                                        leading=10))
        )
    if new_notes:
        for nn in new_notes:
            warn_items.append(
                Paragraph(f"\u2605 {nn}", S("nn", fontName="Helvetica-Bold", fontSize=6.8,
                                             textColor=colors.HexColor("#1A5276"), leading=10))
            )

    tbl = Table([
        [hdr_paragraphs],
        [drugs_tbl],
        [warn_items],
    ], colWidths=[col_w - 4])
    tbl.setStyle(TableStyle([
        ("BACKGROUND",   (0,0),(0,0), col),
        ("BACKGROUND",   (0,1),(0,1), light),
        ("BACKGROUND",   (0,2),(0,2), colors.HexColor("#FAFAFA")),
        ("TOPPADDING",   (0,0),(0,0), 7),
        ("BOTTOMPADDING",(0,0),(0,0), 7),
        ("TOPPADDING",   (0,1),(-1,-1), 4),
        ("BOTTOMPADDING",(0,1),(-1,-1), 4),
        ("LEFTPADDING",  (0,0),(-1,-1), 3),
        ("RIGHTPADDING", (0,0),(-1,-1), 3),
        ("BOX",          (0,0),(-1,-1), 1, col),
        ("LINEBELOW",    (0,1),(0,1), 0.5, col),
        ("VALIGN",       (0,0),(-1,-1), "TOP"),
    ]))
    return tbl

steps = [
    mk_step(
        "Step 1", "MILD PAIN", "(NRS 1-3)",
        STEP1_COL, STEP1_LIGHT, "Non-Opioids + Adjuvants",
        [
            ("<b>Paracetamol</b>",  "500mg-1g PO q4-6h\n(max 4g/24h)"),
            ("<b>Ibuprofen</b>",    "200-400mg PO q6-8h\nwith food"),
            ("<b>Diclofenac</b>",   "50mg PO q8h"),
            ("<b>Naproxen</b>",     "250-500mg PO q12h"),
            ("<b>Celecoxib</b>",    "100-200mg PO BD\n(COX-2 selective)"),
        ],
        [
            "NSAIDs: avoid CKD,\ncirrhosis, heart failure",
            "Paracetamol: CI in\nliver failure",
            "NSAIDs: caution if\nasthma history",
        ],
        new_notes=["Non-pharmacological Rx\nalways alongside drugs"]
    ),
    mk_step(
        "Step 2", "MILD-MOD PAIN", "(NRS 4-6)",
        STEP2_COL, STEP2_LIGHT, "Weak Opioids",
        [
            ("<b>Codeine</b>",      "30-60mg PO q4-6h"),
            ("<b>Tramadol</b>",     "50-100mg PO q4-6h\n(max 400mg/24h)"),
            ("<b>Co-codamol</b>",   "Codeine 30mg +\nParacetamol 500mg"),
            ("<b>Buprenorphine SL</b>","0.2-0.4mg SL q6-8h\n(partial agonist)"),
        ],
        [
            "Codeine: constipation,\npoor CYP2D6 metabolisers",
            "Tramadol: lowers\nseizure threshold",
            "Watch total paracetamol\nin combination products",
        ],
        new_notes=["\u2605 2018: Step 2 may\nbe SKIPPED safely"]
    ),
    mk_step(
        "Step 3", "MOD-SEVERE PAIN", "(NRS 7-10)",
        STEP3_COL, STEP3_LIGHT, "Strong Opioids",
        [
            ("<b>Morphine IR</b>",  "2.5-10mg PO q4h\n(gold standard)"),
            ("<b>Morphine SR</b>",  "12-hourly MST once\ndose established"),
            ("<b>Oxycodone</b>",    "5-10mg PO q4-6h\n(if morphine SE)"),
            ("<b>Fentanyl patch</b>","25mcg/h q72h\n(stable pain only)"),
            ("<b>Hydromorphone</b>","1-2mg PO q4h\n(renal impairment)"),
            ("<b>Alfentanil SC</b>","Infusion - severe\nrenal failure only"),
        ],
        [
            "No ceiling dose\nfor pure opioids",
            "Breakthrough = 10-20%\nof 24h total dose",
            "Always prescribe laxatives\nprophylactically",
        ],
        new_notes=["\u2605 2018: Opioid stewardship;\nassess risk before starting"]
    ),
    mk_step(
        "Step 4", "REFRACTORY PAIN", "(any NRS)",
        STEP4_COL, STEP4_LIGHT, "Interventional + RT",
        [
            ("<b>Epidural</b>",         "LA ± opioid infusion"),
            ("<b>Intrathecal pump</b>",  "Morphine / ziconotide"),
            ("<b>Nerve blocks</b>",      "Coeliac plexus,\nganglion impar"),
            ("<b>Spinal cord stim.</b>", "Neuromodulation\nneuropathic pain"),
            ("<b>Radiotherapy</b>",      "Bone mets / nerve\ncompression pain"),
            ("<b>Cordotomy</b>",         "Neurosurgical;\nintractable pain"),
        ],
        [
            "Specialist referral\nrequired",
            "Interventions CI in:\ncoagulopathy, infection",
        ],
        new_notes=["\u2605 NEW 2018: Radiotherapy\nexplicitly included"]
    ),
]

steps_row = Table([steps], colWidths=[col_w]*4)
steps_row.setStyle(TableStyle([
    ("LEFTPADDING",  (0,0),(-1,-1), 2),
    ("RIGHTPADDING", (0,0),(-1,-1), 2),
    ("TOPPADDING",   (0,0),(-1,-1), 0),
    ("BOTTOMPADDING",(0,0),(-1,-1), 0),
    ("VALIGN",       (0,0),(-1,-1), "TOP"),
]))
story.append(steps_row)
story.append(Spacer(1, 3*mm))

# ═══════════════════════════════════════════════════════════════════════════════
# 5. DIRECTION BANNER (new 2018 concept)
# ═══════════════════════════════════════════════════════════════════════════════
dir_data = [[
    Paragraph("\u2191 CHRONIC PAIN: escalate bottom-up", S("cu", fontName="Helvetica-Bold",
        fontSize=8, textColor=WHITE, alignment=TA_CENTER)),
    Paragraph("\u2195 REASSESS frequently; de-escalate when pain resolves", S("cr", fontName="Helvetica",
        fontSize=8, textColor=WHITE, alignment=TA_CENTER)),
    Paragraph("\u2193 ACUTE PAIN: start at appropriate step; step down", S("cd", fontName="Helvetica-Bold",
        fontSize=8, textColor=WHITE, alignment=TA_CENTER)),
]]
dir_tbl = Table(dir_data, colWidths=[W/3]*3)
dir_tbl.setStyle(TableStyle([
    ("BACKGROUND",   (0,0),(0,0), STEP1_COL),
    ("BACKGROUND",   (1,0),(1,0), STEEL),
    ("BACKGROUND",   (2,0),(2,0), STEP3_COL),
    ("TOPPADDING",   (0,0),(-1,-1), 5),
    ("BOTTOMPADDING",(0,0),(-1,-1), 5),
    ("LEFTPADDING",  (0,0),(-1,-1), 6),
    ("RIGHTPADDING", (0,0),(-1,-1), 6),
    ("ALIGN",        (0,0),(-1,-1), "CENTER"),
    ("VALIGN",       (0,0),(-1,-1), "MIDDLE"),
    ("LINEAFTER",    (0,0),(1,0), 0.5, WHITE),
]))
story.append(dir_tbl)
story.append(Spacer(1, 3*mm))

# ═══════════════════════════════════════════════════════════════════════════════
# 6. ADJUVANTS
# ═══════════════════════════════════════════════════════════════════════════════
adj_hdr = Table([[
    Paragraph("ADJUVANT ANALGESICS  \u2014  Use at Any Step  \u2022  Tailor to Pain Type",
              S("ah", fontName="Helvetica-Bold", fontSize=8.5,
                textColor=WHITE, alignment=TA_CENTER))
]], colWidths=[W])
adj_hdr.setStyle(TableStyle([
    ("BACKGROUND",   (0,0),(-1,-1), ADJ_HDR),
    ("TOPPADDING",   (0,0),(-1,-1), 5),
    ("BOTTOMPADDING",(0,0),(-1,-1), 5),
]))
story.append(adj_hdr)

adj_items = [
    ("Neuropathic Pain",
     "Gabapentin 100-300mg TDS\nPregabalin 25-75mg BD\nAmitriptyline 10-75mg nocte\nDuloxetine 30-60mg OD"),
    ("Bone / Inflammatory",
     "Dexamethasone 4-8mg OD\nBisphosphonates (zoledronic acid)\nDenosumab (bone mets)\nNSAIDs"),
    ("Nerve Compression",
     "Dexamethasone 8-16mg OD\nKetamine (sub-anaesthetic)\nMethadone (dual MOR/NMDA)\nLidocaine infusion"),
    ("Muscle Spasm / Other",
     "Baclofen 5-10mg TDS\nDiazepam 2-5mg TDS\nClonidine (central alpha-2)\nCannabinoids (jurisd. specific)"),
]
adj_row = []
for cat, drugs in adj_items:
    adj_row.append([
        Paragraph(cat, S("ac", fontName="Helvetica-Bold", fontSize=7.8,
                          textColor=ADJ_HDR, spaceAfter=2, leading=11)),
        Paragraph(drugs, S("ad", fontName="Helvetica", fontSize=7.2,
                            textColor=GREY, leading=11)),
    ])
adj_body = Table([adj_row], colWidths=[W/4]*4)
adj_body.setStyle(TableStyle([
    ("BACKGROUND",   (0,0),(-1,-1), ADJ_BG),
    ("TOPPADDING",   (0,0),(-1,-1), 5),
    ("BOTTOMPADDING",(0,0),(-1,-1), 5),
    ("LEFTPADDING",  (0,0),(-1,-1), 6),
    ("RIGHTPADDING", (0,0),(-1,-1), 6),
    ("VALIGN",       (0,0),(-1,-1), "TOP"),
    ("LINEAFTER",    (0,0),(2,0), 0.5, colors.HexColor("#AED6F1")),
]))
story.append(adj_body)
story.append(Spacer(1, 3*mm))

# ═══════════════════════════════════════════════════════════════════════════════
# 7. BOTTOM: NRS TABLE | NON-PHARM | SIDE EFFECTS | OPIOID SAFETY
# ═══════════════════════════════════════════════════════════════════════════════
# Column A: NRS + Non-Pharm
col_a = []
col_a.append(Paragraph("NRS PAIN SCALE", ST_SEC))
nrs = Table([
    ["Score", "Severity",    "Starting Step"],
    ["0",     "None",        "No analgesia"],
    ["1-3",   "Mild",        "Step 1"],
    ["4-6",   "Moderate",    "Step 2 (or skip to 3)"],
    ["7-10",  "Severe",      "Step 3 or 4"],
], colWidths=[W*0.07, W*0.14, W*0.17])
nrs.setStyle(TableStyle([
    ("BACKGROUND",   (0,0),(-1,0), NAVY),
    ("TEXTCOLOR",    (0,0),(-1,0), WHITE),
    ("FONTNAME",     (0,0),(-1,0), "Helvetica-Bold"),
    ("FONTSIZE",     (0,0),(-1,-1), 7.3),
    ("BACKGROUND",   (0,2),(-1,2), STEP1_LIGHT),
    ("BACKGROUND",   (0,3),(-1,3), STEP2_LIGHT),
    ("BACKGROUND",   (0,4),(-1,4), STEP3_LIGHT),
    ("GRID",         (0,0),(-1,-1), 0.4, colors.HexColor("#BFC9CA")),
    ("TOPPADDING",   (0,0),(-1,-1), 3),
    ("BOTTOMPADDING",(0,0),(-1,-1), 3),
    ("LEFTPADDING",  (0,0),(-1,-1), 4),
    ("ALIGN",        (0,0),(-1,-1), "LEFT"),
]))
col_a.append(nrs)
col_a.append(Spacer(1, 4))
col_a.append(Paragraph("NON-PHARMACOLOGICAL (2018 Addition)", ST_SEC))
nonpharm = [
    "Physiotherapy & rehabilitation",
    "Psychological therapies (CBT, mindfulness)",
    "TENS / acupuncture",
    "Radiotherapy (bone mets, nerve compression)",
    "Heat / cold therapy",
    "Relaxation, guided imagery",
]
for np in nonpharm:
    col_a.append(Paragraph(f"\u2022 {np}", ST_SM))

# Column B: Clinical pearls
col_b = []
col_b.append(Paragraph("CLINICAL PEARLS", ST_SEC))
pearls = [
    ("Breakthrough dose",   "10-20% of 24h opioid total, q1-4h PRN"),
    ("Morphine SR",         "Once stable: divide 24h dose into 2 x 12-hourly"),
    ("Fentanyl patch",      "12-24h to reach full effect; change q72h"),
    ("Renal impairment",    "Use alfentanil or hydromorphone"),
    ("Hepatic failure",     "Avoid NSAIDs; use paracetamol cautiously"),
    ("Elderly patients",    "Start low, go slow; higher SE sensitivity"),
    ("Opioid rotation",     "Switch if good analgesia but intolerable SE"),
    ("Equianalgesic table", "Use when rotating opioids to prevent over/underdose"),
]
for k, v in pearls:
    col_b.append(Paragraph(
        f"<b>{k}:</b> {v}",
        S("pe", fontName="Helvetica", fontSize=7.3, textColor=GREY,
          leading=11, spaceAfter=1)
    ))
col_b.append(Spacer(1, 4))
col_b.append(Paragraph("OPIOID NEUROTOXICITY", S("ont", fontName="Helvetica-Bold",
    fontSize=8, textColor=WARN_RED, spaceAfter=2)))
col_b.append(Paragraph(
    "Signs: myoclonus \u2022 hallucinations \u2022 confusion \u2022 drowsiness",
    S("ons", fontName="Helvetica", fontSize=7.2, textColor=GREY, leading=10.5)))
col_b.append(Spacer(1, 2))
for mg in ["Reduce dose if pain controlled", "Increase hydration",
           "Opioid rotation to alternative", "Involve pain/palliative team"]:
    col_b.append(Paragraph(f"\u2022 {mg}", ST_SM))

# Column C: Side effects + Opioid stewardship
col_c = []
col_c.append(Paragraph("OPIOID SIDE EFFECTS", ST_SEC))
se = Table([
    ["Side Effect",       "Management"],
    ["Constipation",      "Senna + macrogol always"],
    ["Nausea/vomiting",   "Metoclopramide, ondansetron"],
    ["Sedation",          "Reduce dose; review CNS drugs"],
    ["Resp. depression",  "Naloxone 0.1-0.4mg IV/SC"],
    ["Pruritus",          "Antihistamine; opioid switch"],
    ["Urinary retention", "Bladder scan; catheterise"],
    ["Myoclonus",         "Opioid rotation; haloperidol"],
], colWidths=[W*0.21, W*0.25])
se.setStyle(TableStyle([
    ("BACKGROUND",   (0,0),(-1,0), NAVY),
    ("TEXTCOLOR",    (0,0),(-1,0), WHITE),
    ("FONTNAME",     (0,0),(-1,0), "Helvetica-Bold"),
    ("FONTSIZE",     (0,0),(-1,-1), 7.2),
    ("BACKGROUND",   (0,1),(-1,1), LGREY),
    ("BACKGROUND",   (0,3),(-1,3), LGREY),
    ("BACKGROUND",   (0,5),(-1,5), LGREY),
    ("BACKGROUND",   (0,7),(-1,7), LGREY),
    ("GRID",         (0,0),(-1,-1), 0.4, colors.HexColor("#BFC9CA")),
    ("TOPPADDING",   (0,0),(-1,-1), 2.5),
    ("BOTTOMPADDING",(0,0),(-1,-1), 2.5),
    ("LEFTPADDING",  (0,0),(-1,-1), 4),
]))
col_c.append(se)
col_c.append(Spacer(1, 4))
col_c.append(Paragraph("OPIOID STEWARDSHIP (2018)", S("osh", fontName="Helvetica-Bold",
    fontSize=8, textColor=colors.HexColor("#1A5276"), spaceAfter=2)))
for s in ["Assess pain type before prescribing",
          "Document indication, dose, duration",
          "Risk-stratify: addiction, respiratory",
          "Regular review & plan to taper",
          "Avoid in uncontrolled sleep apnoea"]:
    col_c.append(Paragraph(f"\u2022 {s}", ST_SM))

bottom_tbl = Table([[col_a, col_b, col_c]], colWidths=[W*0.38, W*0.37, W*0.25])
bottom_tbl.setStyle(TableStyle([
    ("VALIGN",       (0,0),(-1,-1), "TOP"),
    ("TOPPADDING",   (0,0),(-1,-1), 0),
    ("BOTTOMPADDING",(0,0),(-1,-1), 0),
    ("LEFTPADDING",  (0,0),(-1,-1), 0),
    ("RIGHTPADDING", (0,0),(-1,-1), 8),
    ("LINEAFTER",    (0,0),(1,0), 0.5, colors.HexColor("#AED6F1")),
]))
story.append(bottom_tbl)
story.append(Spacer(1, 3*mm))

# ═══════════════════════════════════════════════════════════════════════════════
# 8. FOOTER
# ═══════════════════════════════════════════════════════════════════════════════
story.append(HRFlowable(width=W, thickness=0.5, color=colors.HexColor("#AED6F1")))
story.append(Spacer(1, 1.5))
story.append(Paragraph(
    "Based on: WHO Analgesic Ladder 1986 (rev. 1996) \u2022 WHO Guidelines for Pharmacological & Radiotherapeutic Management of Cancer Pain 2018 \u2022 "
    "Thompson J, Curr Opin Support Palliat Care 2024 (PMID 39250736) \u2022 Mestdagh F et al., Curr Oncol 2023 (PMID 37504360) \u2022 "
    "NCCN Adult Cancer Pain v2.2025 \u2022 StatPearls WHO Analgesic Ladder (updated 2025) \u2022 "
    "FOR CLINICAL REFERENCE ONLY - Individual patient assessment required",
    ST_FOOT
))

doc.build(story)
print(f"Saved: {OUTPUT}")

Running Command

cd /home/daytona/workspace/who-pain-ladder && python create_updated_card.py 2>&1

Running Command

cd /home/daytona/workspace/who-pain-ladder && python -c " from pypdf import PdfR…

Running Command

cd /home/daytona/workspace/who-pain-ladder && python -c " # Quick check: what's …

Running Command

cd /home/daytona/workspace/who-pain-ladder && python -c " from reportlab.lib.pag…

Running Command

cd /home/daytona/workspace/who-pain-ladder && python -c " from pypdf import PdfR…

Your updated WHO Pain Ladder reference card is ready - single A4 page:

WHO Pain Ladder UPDATED 2025

PDF Document · PDF

Here is what is new and updated in this version compared to the previous card:

What Changed Based on Latest Evidence

Update	Source
Step 2 can be skipped - jumping directly from Step 1 to Step 3 is safe, feasible, and cost-effective	Thompson J, 2024 (PMID 39250736)
Bidirectional ladder - acute pain starts at the appropriate step and steps down; chronic pain escalates upward	StatPearls 2025
Opioid stewardship is now mandatory - risk-assess before prescribing, document indication, plan taper from outset	WHO 2018 Guidelines
Radiotherapy explicitly added to Step 4 for bone mets and nerve compression pain	WHO 2018 Guidelines
Non-pharmacological therapies integrated at every step (CBT, physio, TENS, relaxation)	WHO 2018 Guidelines
The original 3-step ladder is no longer recommended as a strict protocol for cancer pain	Thompson J, 2024
ICD-11 cancer pain taxonomy now distinguishes chronic cancer pain from cancer-related pain	Mestdagh F, 2023 (PMID 37504360)
Opioid crisis context - reassessment of opioid use even in cancer; non-opioid multimodal approaches prioritised	NCCN 2025

Card Sections

Version badge strip (WHO 2018 + PMID citations)
2018 key changes alert bar
5 core principles
4-step columns with drugs, doses, warnings, and starred 2018-specific updates
Direction banner (chronic vs acute pain direction)
Adjuvants bar (neuropathic, bone, nerve compression, spasm)
NRS scale mapped to WHO steps
Non-pharmacological therapies list
Clinical pearls
Opioid neurotoxicity management
Side effects table with management
Opioid stewardship checklist
Full reference footer with PMIDs

Why I can't download

Running Command

ls -lh /home/daytona/workspace/who-pain-ladder/ && echo "---" && python -c " fro…

Both files are valid. The download links are:

WHO Pain Ladder UPDATED 2025

PDF Document · PDF

WHO Pain Ladder Reference Card

PDF Document · PDF

If the download still isn't working, here are the most common reasons:

Browser blocking the download - try right-clicking the link above and selecting "Save link as..."
Pop-up blocker - allow pop-ups/downloads from this site in your browser settings
Mobile device - on phones, the file may open in a viewer instead of downloading; look for a "Share" or "Download" button in the top corner
Corporate/institutional network - some firewalls block file downloads; try on a personal network or different browser
The link path - the /home/daytona/workspace/... path is the sandbox file path that this platform maps to a download URL; if it shows as plain text rather than a clickable link, your interface may not support file downloads directly

If none of those work, let me know what platform or browser you are using and I can try an alternative approach - such as converting the content to a format that can be copied directly, or hosting it differently.

Difficulty in downloading

Generating Image

A clinical reference card for the WHO Pain Management Ladder (Updated 2025). Single page, A4 format, professional medical style. TOP SECTION: - Red badge: "WHO 2018 UPDATED GUIDELINES" - Dark navy header: "WHO Pain Management Ladder" with subtitle "Updated Clinical Reference Card • WHO 2018 Guidelines + Latest Evidence" - Red alert bar listing 5 key 2018 updates: Step 2 can be skipped | Bidirectional (top-down for acute pain) | Opioid stewardship mandatory | Radiotherapy added | Non-pharmacological integrated - Blue strip with 5 principles: By Mouth | By the Clock | By the Ladder | Individualise | Attention to Detail MIDDLE SECTION - 4 columns, each a step: STEP 1 (green): MILD PAIN (NRS 1-3) | Non-Opioids: Paracetamol 500mg-1g q4-6h, Ibuprofen 400mg q6-8h, Diclofenac 50mg q8h, Celecoxib 100-200mg BD | Warnings: avoid NSAIDs in CKD/HF, paracetamol CI in liver failure STEP 2 (orange): MILD-MOD PAIN (NRS 4-6) | Weak Opioids: Codeine 30-60mg q4-6h, Tramadol 50-100mg q4-6h, Co-codamol | Star note: "2018: Step 2 may be SKIPPED safely" STEP 3 (red): MOD-SEVERE PAIN (NRS 7-10) | Strong Opioids: Morphine IR 2.5-10mg q4h (gold standard), Morphine SR, Oxycodone, Fentanyl patch 25mcg/h q72h, Hydromorphone | Breakthrough = 10-20% of 24h dose STEP 4 (purple): REFRACTORY PAIN | Interventional + RT: Epidural, Intrathecal pump, Nerve blocks, Spinal cord stimulation, Radiotherapy (bone mets - NEW 2018) GREEN/BLUE/RED direction banner: ↑ CHRONIC PAIN: escalate bottom-up | ↕ REASSESS frequently | ↓ ACUTE PAIN: start at appropriate step, step down ADJUVANTS BAR (blue): Neuropathic: Gabapentin/Pregabalin/Amitriptyline | Bone: Dexamethasone/Bisphosphonates | Nerve compression: Ketamine/Methadone | Spasm: Baclofen/Clonidine BOTTOM SECTION 3 columns: Left: NRS scale table (0=none, 1-3=mild Step1, 4-6=moderate Step2, 7-10=severe Step3/4) + Non-pharmacological: Physiotherapy, CBT, TENS, Radiotherapy, Heat/cold Middle: Clinical Pearls (breakthrough dose, morphine SR, fentanyl patch timing, renal failure preference, opioid rotation, elderly caution) + Opioid Neurotoxicity signs (myoclonus, hallucinations, confusion) Right: Opioid Side Effects table (Constipation→Senna+macrogol, Nausea→metoclopramide, Sedation→reduce dose, Resp depression→Naloxone, Pruritus→switch opioid) + Opioid Stewardship checklist FOOTER: WHO 1986/2018 • PMID 39250736 • PMID 37504360 • NCCN 2025 • Clinical Reference Only

Here is your WHO Pain Ladder reference card as an image - you can long-press (mobile) or right-click (desktop) and save it directly:

WHO Pain Management Ladder - Updated Clinical Reference Card 2025

To save this image:

On phone: Long-press the image → "Save image" or "Download image"
On desktop: Right-click the image → "Save image as..."
On tablet: Long-press or press-and-hold → Save to photos/files

This contains all the same content as the PDF - all 4 steps, adjuvants, NRS scale, clinical pearls, side effects table, opioid stewardship, and 2018 update highlights. It will print cleanly on A4 or letter size.

Difficulty in downloading

I understand the frustration. Let me try a direct image URL link that you can open and save:

Click or tap this direct image link to open it full size, then save:

If that also doesn't work, here is the complete WHO Pain Ladder reference as plain text you can copy and paste into Word, Notes, or any app:

══════════════════════════════════════════════════════════════
       WHO PAIN MANAGEMENT LADDER — UPDATED 2025
       Based on WHO 2018 Guidelines + Latest Evidence
══════════════════════════════════════════════════════════════

5 CORE PRINCIPLES
─────────────────────────────────────────────────────────────
By Mouth | By the Clock | By the Ladder | Individualise | Attention to Detail

WHO 2018 KEY UPDATES
★ Step 2 CAN be skipped (go directly Step 1 → Step 3)
★ Bidirectional: Acute pain = start high, step DOWN
★ Opioid stewardship is now mandatory
★ Radiotherapy added as Step 4 modality
★ Non-pharmacological therapy integrated at every step

══════════════════════════════════════════════════════════════
STEP 1 — MILD PAIN (NRS 1–3) — NON-OPIOIDS
──────────────────────────────────────────────────────────────
• Paracetamol       500mg–1g PO q4-6h (max 4g/24h)
• Ibuprofen         400mg PO q6-8h with food
• Diclofenac        50mg PO q8h
• Naproxen          250–500mg PO q12h
• Celecoxib         100–200mg PO BD (COX-2 selective)
⚠ NSAIDs: avoid in CKD, cirrhosis, heart failure, asthma
⚠ Paracetamol: contraindicated in liver failure
★ Always add non-pharmacological therapy alongside

══════════════════════════════════════════════════════════════
STEP 2 — MILD-MODERATE PAIN (NRS 4–6) — WEAK OPIOIDS
★★ 2018 UPDATE: This step CAN BE SKIPPED safely ★★
──────────────────────────────────────────────────────────────
• Codeine           30–60mg PO q4-6h
• Tramadol          50–100mg PO q4-6h (max 400mg/24h)
• Co-codamol        Codeine 30mg + Paracetamol 500mg
• Buprenorphine SL  0.2–0.4mg SL q6-8h
⚠ Codeine: constipation; poor effect in CYP2D6 poor metabolisers
⚠ Tramadol: lowers seizure threshold; serotonin syndrome risk
⚠ Watch total paracetamol dose in combination products

══════════════════════════════════════════════════════════════
STEP 3 — MODERATE-SEVERE PAIN (NRS 7–10) — STRONG OPIOIDS
──────────────────────────────────────────────────────────────
• Morphine IR       2.5–10mg PO q4h (GOLD STANDARD)
• Morphine SR       Once stable: divide 24h dose → 2 x 12-hourly
• Oxycodone         5–10mg PO q4-6h (if morphine SE)
• Fentanyl patch    25mcg/h q72h (stable pain only; 12-24h onset)
• Hydromorphone     1–2mg PO q4h (renal impairment)
• Alfentanil SC     Infusion — severe renal failure only
⚠ No ceiling dose for pure opioids
⚠ Breakthrough dose = 10–20% of total 24h dose, q1-4h PRN
⚠ ALWAYS prescribe laxatives prophylactically
★ 2018: Risk-assess and document before starting opioids

══════════════════════════════════════════════════════════════
STEP 4 — REFRACTORY PAIN — INTERVENTIONAL + RADIOTHERAPY
──────────────────────────────────────────────────────────────
• Epidural analgesia        LA ± opioid infusion
• Intrathecal pump          Morphine / ziconotide
• Nerve blocks              Coeliac plexus, ganglion impar
• Spinal cord stimulation   Neuromodulation (neuropathic)
• Radiotherapy ★ NEW 2018   Bone metastases, nerve compression
• Cordotomy                 Neurosurgical — intractable pain
⚠ Specialist referral required
⚠ CI: coagulopathy, active infection

══════════════════════════════════════════════════════════════
ADJUVANT ANALGESICS — USE AT ANY STEP
──────────────────────────────────────────────────────────────
NEUROPATHIC:    Gabapentin 100–300mg TDS | Pregabalin 25–75mg BD
                Amitriptyline 10–75mg nocte | Duloxetine 30–60mg OD
BONE PAIN:      Dexamethasone 4–8mg OD | Bisphosphonates | Denosumab
NERVE COMPRES:  Dexamethasone 8–16mg OD | Ketamine | Methadone
MUSCLE SPASM:   Baclofen 5–10mg TDS | Diazepam 2–5mg TDS | Clonidine

══════════════════════════════════════════════════════════════
NRS PAIN SCALE          DIRECTION OF USE
──────────────────────  ─────────────────────────────────────
0       = No pain        ↑ CHRONIC PAIN: escalate bottom → up
1–3     = Mild → Step 1  ↕ REASSESS: de-escalate when resolved
4–6     = Mod  → Step 2  ↓ ACUTE PAIN: start appropriate step;
7–10    = Sev  → Step 3/4       step DOWN as pain improves

══════════════════════════════════════════════════════════════
CLINICAL PEARLS
──────────────────────────────────────────────────────────────
Breakthrough dose:  10–20% of 24h opioid total, q1-4h PRN
Morphine SR:        Once stable → divide into 2 x 12-hourly
Fentanyl patch:     12–24h to reach effect; change every 72h
Renal failure:      Use alfentanil or hydromorphone
Opioid rotation:    Good analgesia + intolerable side effects
Elderly:            Start low, go slow — higher SE sensitivity
Stewardship:        Risk-assess, document, plan taper upfront

══════════════════════════════════════════════════════════════
OPIOID SIDE EFFECTS & MANAGEMENT
──────────────────────────────────────────────────────────────
Constipation      → Senna + macrogol (always, from day 1)
Nausea/vomiting   → Metoclopramide / ondansetron
Sedation          → Reduce dose; review other CNS drugs
Resp. depression  → Naloxone 0.1–0.4mg IV/SC
Pruritus          → Antihistamine; consider opioid switch
Urinary retention → Bladder scan; catheterise
Myoclonus         → Opioid rotation; haloperidol

OPIOID NEUROTOXICITY SIGNS:
Myoclonus • Hallucinations • Peripheral shadows • Confusion • Drowsiness
→ Reduce dose / increase hydration / rotate opioid / involve palliative team

══════════════════════════════════════════════════════════════
NON-PHARMACOLOGICAL (2018 Addition — integrate at every step)
──────────────────────────────────────────────────────────────
• Physiotherapy & rehabilitation
• Psychological therapies (CBT, mindfulness)
• TENS / acupuncture
• Radiotherapy (bone mets, nerve compression)
• Heat / cold therapy
• Relaxation techniques, guided imagery

══════════════════════════════════════════════════════════════
SOURCES: WHO 1986 (rev.1996) • WHO Cancer Pain Guidelines 2018
Thompson J, Curr Opin Support Palliat Care 2024 (PMID 39250736)
Mestdagh F et al., Curr Oncol 2023 (PMID 37504360)
NCCN Adult Cancer Pain v2.2025
FOR CLINICAL REFERENCE ONLY — Individual patient assessment required
══════════════════════════════════════════════════════════════

You can select all the text above, copy it, and paste into any Word, Google Docs, or Notes app on your device. From there you can save or print it.

Make image

Generating Image

A professional, detailed medical clinical reference card poster titled "WHO Pain Management Ladder – Updated 2025". Clean white background, bold colour-coded sections, suitable for hospital wall or pocket card printing. HEADER: Dark navy blue banner. Large bold white title "WHO Pain Management Ladder". Subtitle: "Updated Clinical Reference Card | WHO 2018 Guidelines". Below header: a red alert strip reading "2018 KEY UPDATES: Step 2 can be SKIPPED | Bidirectional use | Opioid Stewardship | Radiotherapy added | Non-pharmacological integrated" FIVE PRINCIPLES ROW (medium blue strip, 5 equal boxes): Box 1: "By Mouth" – oral preferred Box 2: "By the Clock" – fixed intervals Box 3: "By the Ladder" – stepwise Box 4: "Individualise" – titrate per patient Box 5: "Attention to Detail" – monitor SE FOUR STEP COLUMNS (side by side, equal width): STEP 1 – green header: "STEP 1 | MILD PAIN | NRS 1–3 | Non-Opioids" Drugs: Paracetamol 500mg–1g q4–6h | Ibuprofen 400mg q6–8h | Diclofenac 50mg q8h | Celecoxib 100–200mg BD Warning: NSAIDs avoid in CKD/HF | Paracetamol CI in liver failure STEP 2 – orange header: "STEP 2 | MILD–MOD | NRS 4–6 | Weak Opioids ★ CAN BE SKIPPED" Drugs: Codeine 30–60mg q4–6h | Tramadol 50–100mg q4–6h | Co-codamol | Buprenorphine SL Warning: Constipation | Seizure risk (tramadol) STEP 3 – red header: "STEP 3 | MOD–SEVERE | NRS 7–10 | Strong Opioids" Drugs: Morphine IR 2.5–10mg q4h (GOLD STANDARD) | Morphine SR q12h | Oxycodone | Fentanyl patch 25mcg/h q72h | Hydromorphone (renal) Note: Breakthrough = 10–20% of 24h dose | Always prescribe laxatives STEP 4 – purple header: "STEP 4 | REFRACTORY | Any NRS | Interventional + RT" Drugs: Epidural LA ± opioid | Intrathecal pump | Nerve blocks | Spinal cord stimulation | Radiotherapy – bone mets (NEW 2018) | Cordotomy Note: Specialist referral required DIRECTION BANNER (3-colour): Green left: "↑ CHRONIC PAIN: escalate upward" | Blue centre: "↕ REASSESS & de-escalate" | Red right: "↓ ACUTE PAIN: start appropriate step, step down" ADJUVANTS BAR (blue header "ADJUVANTS – Any Step", 4 columns): Neuropathic: Gabapentin | Pregabalin | Amitriptyline | Duloxetine Bone/Inflam: Dexamethasone | Bisphosphonates | Denosumab Nerve Compression: Ketamine | Methadone | Lidocaine Spasm/Other: Baclofen | Clonidine | Diazepam BOTTOM ROW 3 columns: LEFT – NRS table: 0=None | 1–3=Mild Step1 | 4–6=Moderate Step2 | 7–10=Severe Step3/4. Then Non-Pharm list: Physiotherapy | CBT | TENS | Radiotherapy | Heat/Cold CENTRE – Clinical Pearls: Breakthrough=10–20% 24h | Morphine SR=divide 24h÷2 | Fentanyl=12–24h onset q72h | Renal=Alfentanil/Hydromorphone | Opioid rotation if SE | Elderly=start low go slow. Opioid Neurotoxicity: Myoclonus, hallucinations, confusion → rotate opioid RIGHT – Side Effects table: Constipation→Senna+macrogol | Nausea→Metoclopramide | Resp depression→Naloxone 0.4mg | Pruritus→switch opioid | Urinary retention→catheterise. Stewardship: risk-assess, document, plan taper FOOTER (small grey text): WHO 1986/2018 | PMID 39250736 | PMID 37504360 | NCCN 2025 | For Clinical Reference Only

400, message: Got more than 4194304 bytes when reading: b'data: {"candidates": [{"content": {"role": "model","parts": [{"inlineData": {"mimeType": "image/png"...'.

We encountered an error while processing your request. Please try again or reach out to us for help.

🔗Contact Support

✉️hi@orris.care

Make image

Generating Image

Medical clinical reference card - TOP HALF. Clean white background, professional hospital style. DARK NAVY HEADER: Large bold white text "WHO Pain Management Ladder – Updated 2025". Subtitle in light blue: "WHO 2018 Guidelines + Latest Evidence" RED ALERT BAR below header: white bold text "2018 UPDATES: ✓ Step 2 can be SKIPPED ✓ Bidirectional use ✓ Opioid Stewardship mandatory ✓ Radiotherapy added ✓ Non-pharm integrated" MEDIUM BLUE PRINCIPLES STRIP (5 equal boxes with white text): By Mouth | By the Clock | By the Ladder | Individualise | Attention to Detail FOUR EQUAL STEP COLUMNS: GREEN column – STEP 1: Header "STEP 1 / MILD / NRS 1–3 / Non-Opioids". Drug list: Paracetamol 500mg–1g q4–6h (max 4g/day), Ibuprofen 400mg q6–8h, Diclofenac 50mg q8h, Celecoxib 100–200mg BD. Orange warning text: Avoid NSAIDs in CKD/HF. Blue star: Always add non-pharm therapy. ORANGE column – STEP 2: Header "STEP 2 / MILD-MOD / NRS 4–6 / Weak Opioids". Big star note: "★ 2018: CAN BE SKIPPED". Drugs: Codeine 30–60mg q4–6h, Tramadol 50–100mg q4–6h max 400mg, Co-codamol. Warning: constipation, seizure risk. RED column – STEP 3: Header "STEP 3 / MOD-SEVERE / NRS 7–10 / Strong Opioids". Drugs: Morphine IR 2.5–10mg q4h (GOLD STANDARD), Morphine SR q12h, Oxycodone 5–10mg q4–6h, Fentanyl patch 25mcg/h q72h, Hydromorphone (renal impairment). Key note: Breakthrough = 10–20% of 24h dose. Always prescribe laxatives. PURPLE column – STEP 4: Header "STEP 4 / REFRACTORY / Any NRS / Interventional + RT". Items: Epidural LA±opioid, Intrathecal pump, Nerve blocks (coeliac plexus), Spinal cord stimulation, ★ Radiotherapy – bone mets NEW 2018, Cordotomy. Warning: Specialist referral required. THREE-COLOUR DIRECTION BANNER at bottom: Green left "↑ CHRONIC PAIN: escalate up", Blue centre "↕ REASSESS & de-escalate", Red right "↓ ACUTE PAIN: start high, step down"

Generating Image

Medical clinical reference card - BOTTOM HALF. Clean white background, professional hospital style. This is the continuation of the WHO Pain Ladder card. BLUE ADJUVANTS HEADER BAR: "ADJUVANT ANALGESICS — Use at Any Step — Tailor to Pain Type" Four columns below on light blue background: Neuropathic Pain: Gabapentin 100–300mg TDS, Pregabalin 25–75mg BD, Amitriptyline 10–75mg nocte, Duloxetine 30–60mg OD Bone / Inflammatory: Dexamethasone 4–8mg OD, Bisphosphonates, Denosumab (bone mets), NSAIDs Nerve Compression: Dexamethasone 8–16mg OD, Ketamine (sub-anaesthetic), Methadone (MOR/NMDA), Lidocaine infusion Muscle Spasm / Other: Baclofen 5–10mg TDS, Clonidine (alpha-2), Diazepam 2–5mg TDS, Cannabinoids* THREE COLUMNS BELOW: LEFT COLUMN: NRS PAIN SCALE table with coloured rows: Score 0 = No pain = No analgesia (white) Score 1–3 = Mild = Step 1 (light green) Score 4–6 = Moderate = Step 2 or skip to 3 (light orange) Score 7–10 = Severe = Step 3 or 4 (light red) NON-PHARMACOLOGICAL (2018): • Physiotherapy & rehabilitation • CBT / mindfulness • TENS / acupuncture • Radiotherapy (bone mets) • Heat / cold therapy MIDDLE COLUMN: CLINICAL PEARLS heading in navy blue: Breakthrough: 10–20% of 24h total, q1–4h PRN Morphine SR: divide 24h dose into 2 x 12-hourly Fentanyl patch: 12–24h onset; change q72h Renal failure: prefer alfentanil or hydromorphone Opioid rotation: good analgesia + intolerable SE Elderly: start low go slow; high SE sensitivity OPIOID NEUROTOXICITY in red heading: Signs: myoclonus, hallucinations, confusion, drowsiness Actions: reduce dose / hydrate / rotate opioid / palliative team RIGHT COLUMN: OPIOID SIDE EFFECTS table (navy header, alternating grey rows): Constipation → Senna + macrogol always Nausea → Metoclopramide / ondansetron Sedation → Reduce dose; review CNS drugs Resp. depression → Naloxone 0.1–0.4mg IV/SC Pruritus → Antihistamine; switch opioid Urinary retention → Catheterise OPIOID STEWARDSHIP in blue heading: • Assess pain type; document indication • Risk-stratify (addiction, respiratory) • Plan taper from the outset • Avoid in uncontrolled sleep apnoea FOOTER in small grey text: WHO 1986/2018 Guidelines • PMID 39250736 (Thompson 2024) • PMID 37504360 (Mestdagh 2023) • NCCN Cancer Pain v2.2025 • FOR CLINICAL REFERENCE ONLY

Here are both halves of your WHO Pain Ladder reference card:

TOP HALF - Header, Principles, 4 Steps, Direction Banner:

BOTTOM HALF - Adjuvants, NRS Scale, Clinical Pearls, Side Effects, Stewardship:

WHO Pain Ladder - Bottom Half: Adjuvants, Pearls, Side Effects

To save: Long-press each image (mobile) or right-click → "Save image as" (desktop). Save both and you have the complete reference card.

Make image

Generating Image

Professional medical poster. WHO Pain Management Ladder - Steps section. White background. Dark navy blue title bar at top: "WHO PAIN MANAGEMENT LADDER" in large white bold text. Below it in red bar: "WHO 2018 UPDATE: Step 2 can be skipped | Bidirectional | Opioid Stewardship | Radiotherapy added" Blue strip with 5 white boxes: BY MOUTH | BY THE CLOCK | BY THE LADDER | INDIVIDUALISE | ATTENTION TO DETAIL Four tall rectangles side by side showing the 4 steps: Rectangle 1 - Green: "STEP 1" large, "MILD PAIN NRS 1-3" below. Then white box listing: NON-OPIOIDS. Paracetamol 500mg-1g every 4-6h. Ibuprofen 400mg every 6-8h. Diclofenac 50mg every 8h. Celecoxib 100-200mg twice daily. Small warning: Avoid NSAIDs in kidney disease or heart failure. Rectangle 2 - Orange: "STEP 2" large, "MILD-MODERATE NRS 4-6" and star "CAN BE SKIPPED 2018". Then white box: WEAK OPIOIDS. Codeine 30-60mg every 4-6h. Tramadol 50-100mg every 4-6h. Co-codamol tablets. Warning: risk of constipation and seizures. Rectangle 3 - Red: "STEP 3" large, "MODERATE-SEVERE NRS 7-10". Then white box: STRONG OPIOIDS. Morphine 2.5-10mg every 4h GOLD STANDARD. Morphine SR every 12h when stable. Oxycodone 5-10mg every 4-6h. Fentanyl patch 25mcg/h every 72h. Hydromorphone for renal impairment. Breakthrough dose equals 10-20 percent of 24h total. Rectangle 4 - Purple: "STEP 4" large, "REFRACTORY PAIN". Then white box: INTERVENTIONAL and RADIOTHERAPY. Epidural local anaesthetic. Intrathecal pump. Nerve blocks coeliac plexus. Spinal cord stimulation. Radiotherapy for bone metastases NEW 2018. Cordotomy. Specialist referral required. Bottom 3-part banner: green left arrow UP "CHRONIC PAIN escalate upward", blue centre arrows UP and DOWN "REASSESS frequently", red right arrow DOWN "ACUTE PAIN start high step down"

Generating Image

Professional medical reference card section. Clean white background. Hospital clinical style. Section title in dark blue bar: "ADJUVANT ANALGESICS — Use at Any Step" Four equal columns on light blue background: Column 1 heading in blue bold: "Neuropathic Pain" List: Gabapentin 100-300mg three times daily. Pregabalin 25-75mg twice daily. Amitriptyline 10-75mg at night. Duloxetine 30-60mg once daily. Column 2 heading in blue bold: "Bone / Inflammatory" List: Dexamethasone 4-8mg once daily. Bisphosphonates eg zoledronic acid. Denosumab for bone metastases. NSAIDs if tolerated. Column 3 heading in blue bold: "Nerve Compression" List: Dexamethasone 8-16mg once daily. Ketamine sub-anaesthetic dose. Methadone dual MOR and NMDA. Lidocaine infusion. Column 4 heading in blue bold: "Muscle Spasm / Other" List: Baclofen 5-10mg three times daily. Diazepam 2-5mg three times daily. Clonidine central alpha-2. Cannabinoids where available. Below that, a table titled "NRS PAIN SCALE" with coloured rows: Row 1 header dark blue: Score | Severity | WHO Step Row 2 white: 0 | No pain | No analgesia needed Row 3 light green: 1-3 | Mild | Step 1 Row 4 light orange: 4-6 | Moderate | Step 2 or skip to Step 3 Row 5 light red: 7-10 | Severe | Step 3 or Step 4 Then a list titled "NON-PHARMACOLOGICAL THERAPY (Added 2018)": Bullet points: Physiotherapy and rehabilitation. Cognitive behavioural therapy CBT. TENS and acupuncture. Radiotherapy for bone metastases. Heat and cold therapy. Relaxation and guided imagery.

Generating Image

Professional medical reference card. Clean white background. Clinical hospital style. Three columns side by side: LEFT COLUMN titled in navy bold "CLINICAL PEARLS": Breakthrough dose: 10-20 percent of 24h opioid total every 1-4 hours as needed Morphine SR: once pain stable divide total 24h dose into two 12-hourly doses Fentanyl patch: takes 12-24 hours to reach full effect, change every 72 hours Renal failure: prefer alfentanil or hydromorphone, avoid morphine Opioid rotation: consider when good analgesia but intolerable side effects Elderly patients: start low go slow, higher sensitivity to side effects Stewardship: risk-assess, document indication, plan taper from start Below that in red bold heading "OPIOID NEUROTOXICITY SIGNS": Myoclonus, visual hallucinations, confusion, drowsiness, peripheral shadows Management: reduce dose if pain controlled, increase hydration, rotate opioid, involve palliative care team MIDDLE COLUMN titled in navy bold "OPIOID SIDE EFFECTS": Table with alternating grey and white rows: Header dark blue: Side Effect | Management Constipation | Senna plus macrogol always from day one Nausea and vomiting | Metoclopramide or ondansetron Sedation | Reduce dose, review other CNS drugs Respiratory depression | Naloxone 0.1-0.4mg IV or SC Pruritus | Antihistamine, consider opioid switch Urinary retention | Bladder scan then catheterise Myoclonus | Opioid rotation, consider haloperidol RIGHT COLUMN titled in blue bold "OPIOID STEWARDSHIP 2018": Bullet points in blue: Assess pain type before prescribing Document indication, dose and duration Risk-stratify for addiction and respiratory risk Regular review and plan taper from outset Avoid in uncontrolled sleep apnoea Reassess at every consultation Below in dark grey small text footer box: "REFERENCES: WHO Analgesic Ladder 1986 revised 1996. WHO Cancer Pain Guidelines 2018. Thompson J, Curr Opin Support Palliat Care 2024 PMID 39250736. Mestdagh F et al Curr Oncol 2023 PMID 37504360. NCCN Adult Cancer Pain v2.2025. FOR CLINICAL REFERENCE ONLY - Individual patient assessment required."

Here are all 3 images of your complete WHO Pain Ladder reference card. Save each one:

Image 1 of 3 — The 4 Steps (core ladder)

Image 2 of 3 — Adjuvants, NRS Scale & Non-Pharmacological Therapy

WHO Pain Ladder - Adjuvants and NRS Scale

Image 3 of 3 — Clinical Pearls, Side Effects & Opioid Stewardship

WHO Pain Ladder - Clinical Pearls and Side Effects

To save on mobile: Long-press each image → "Save to Photos" To save on desktop: Right-click → "Save image as"

This is a shared conversation. Sign in to Orris to start your own chat.
