Basics of Pacemakers

What Is a Pacemaker?

A pacemaker is an implantable (or temporary) electronic device that delivers controlled electrical impulses to stimulate cardiac contraction when the heart's intrinsic conduction system fails or is too slow. It senses intrinsic cardiac signals and delivers a pacing pulse only when needed (demand pacing), or continuously at a fixed rate (asynchronous pacing).

Components

A pacemaker has two main parts:

1. Pulse Generator

  • A hermetically sealed titanium/metal casing housing a lithium-iodine battery (~30 g) and a semiconductor microprocessor chip
  • Battery life: typically 7-12 years (4-10+ years in modern devices); lithium cells decline gradually - no sudden failure
  • Reprogrammable radiotelemetrically after implantation (rate, output, sensitivity, refractory period, pacing mode)

2. Lead System

  • Insulated wires connecting the pulse generator to the endocardium

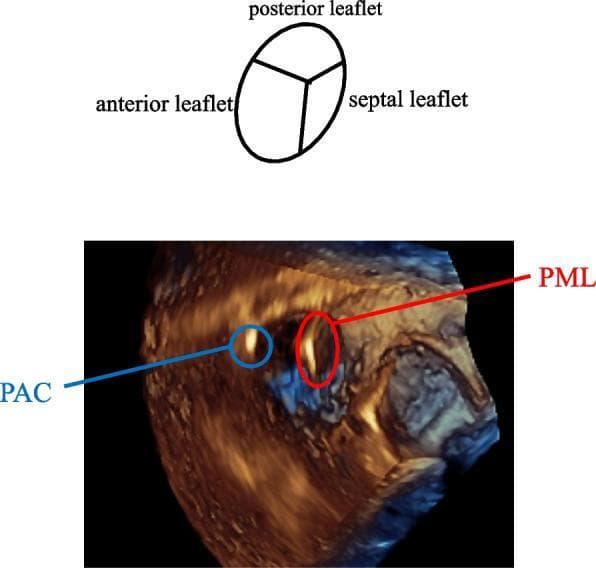

  • Inserted via the subclavian or cephalic vein; leads are placed under fluoroscopic guidance in the right ventricle (and right atrium for dual-chamber devices)
  • Delivers current of 0.1-20 mA for 2 ms at ~15 V
Lead configurations:
TypeDescriptionNotes
UnipolarNegative electrode at lead tip (cathode); pulse generator casing = anodeProne to oversensing myopotentials and EMI; not compatible with ICD
BipolarBoth electrodes within the heart (~2 cm apart)Preferred; less susceptible to interference
Lead types by location:
  • Single-chamber: lead in RV only (VVI) or RA only (AAI)
  • Dual-chamber: leads in both RA and RV (DDD) - maintains AV synchrony
  • Biventricular (CRT): RA lead + RV lead + LV lead via coronary sinus - used in heart failure with LBBB
Leadless pacemakers: self-contained generator + electrode implanted directly in the RV via femoral vein - no transvenous lead required.
  • ROSEN's Emergency Medicine, p. 1071 | Roberts and Hedges' Clinical Procedures in Emergency Medicine, p. 327

The NBG Pacemaker Code

The North American Society of Pacing and Electrophysiology/British Pacing and Electrophysiology Group (NBG) code is a 5-letter standardized system. In practice, only the first 3 letters are routinely used.
PositionLetterMeaningOptions
IChamber PacedWhere the stimulus is deliveredA (Atrium), V (Ventricle), D (Dual), O (None)
IIChamber SensedWhere intrinsic activity is detectedA, V, D, O
IIIResponse to sensingWhat the pacemaker does when it sensesI (Inhibited), T (Triggered), D (Dual), O (None)
IVRate modulationProgrammability / rate-adaptive functionR (Rate modulation), M (Multi), C (Communicating), O (None)
VAntitachycardia functionShock or overdrive pacingP (Antitachycardia pacing), S (Shock), D (Dual), O (None)

Common Pacing Modes

ModeMeaningUse
VOOPace ventricle, no sensing, no responseAsynchronous (fixed rate); used with magnet
VVIPace & sense ventricle, inhibit if sensedSimplest demand pacing; AF with bradycardia
AAIPace & sense atrium, inhibit if sensedSinus node dysfunction with intact AV conduction
DDDPace & sense both chambers, dual responseMost physiologic; maintains AV synchrony
VVIRVVI + rate modulationActive patients with chronotropic incompetence
DDDRDDD + rate modulationOptimal for most patients
  • Roberts and Hedges' Clinical Procedures in Emergency Medicine, p. 328

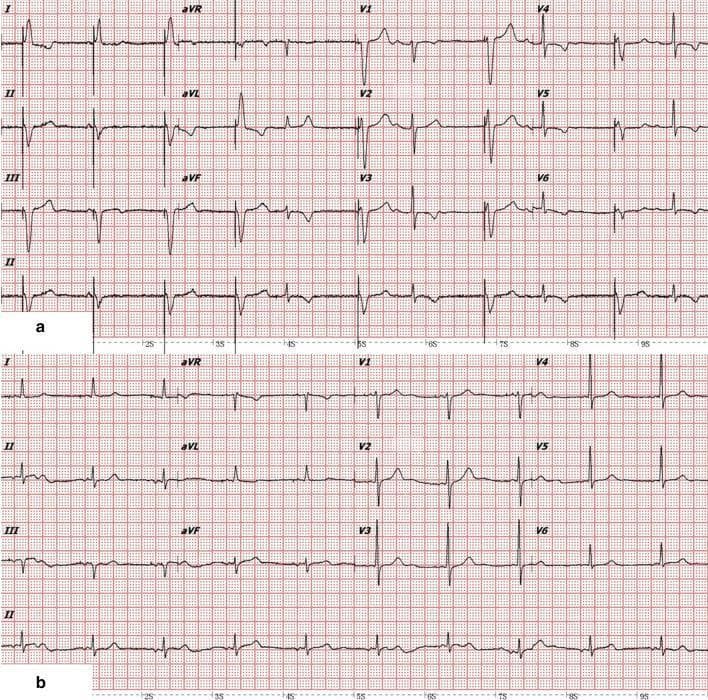

Here is a DDD pacing ECG showing sequential atrial and ventricular spikes with wide QRS (LBBB pattern from RV apical pacing):
DDD pacemaker ECG with atrial and ventricular spikes

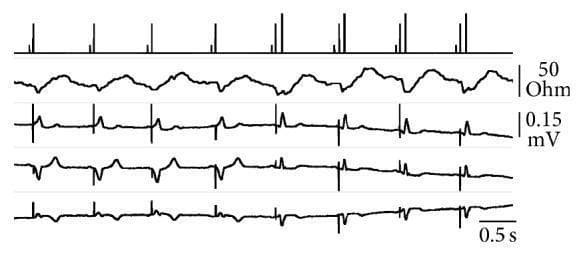

And a comparison of VVI vs DDD pacing (note AV dissociation in VVI vs restored AV synchrony in DDD):
VVI vs DDD pacing comparison ECG

Indications for Permanent Pacing (Class I)

  1. Sinus node dysfunction with attributable symptoms
  2. Symptomatic AV block from guideline-directed therapy (unavoidable drug)
  3. Permanent AF with symptomatic bradycardia
  4. 2nd-degree Mobitz type II AV block, high-grade AV block, or 3rd-degree (complete) heart block - regardless of symptoms
  5. Syncope + BBB with HV interval > 70 ms or infra-nodal block
  6. Alternating bundle branch block
  7. Neuromuscular diseases (muscular dystrophy, Kearns-Sayre syndrome) with 2nd/3rd-degree AV block
  8. Post-cardiac surgery (CABG, valve surgery) with persistent sinus or AV node dysfunction
  • ROSEN's Emergency Medicine, p. 1072 - Box 66.1

Special Pacemaker Features

Rate Modulation (R in position IV)

Sensors detect physiologic variables (motion, minute ventilation, QT interval, temperature, O2 saturation) and increase the pacing rate with physical activity - important for patients with chronotropic incompetence.

Hysteresis

Pacing is triggered at a rate higher than the patient's intrinsic rate, allowing the native rhythm to remain dominant as long as possible while still providing backup pacing.

Magnet Application

Placing a pacemaker magnet over the pulse generator closes a reed switch, inactivating the sensing mechanism and converting the device to fixed-rate (asynchronous) pacing at the "magnet rate." This is used to:
  • Assess capture when native rate exceeds paced rate
  • Prevent pacemaker inhibition during electrosurgery

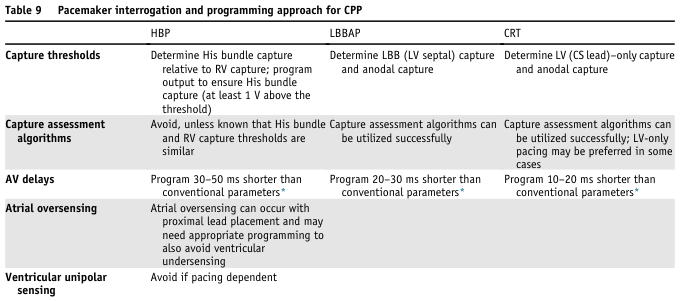

Cardiac Resynchronization Therapy (CRT / Biventricular Pacing)

Used in heart failure with reduced EF + wide QRS (LBBB pattern). The LV lead is placed via the coronary sinus to pace both ventricles simultaneously, restoring mechanical synchrony and improving cardiac output.

Pacemaker Malfunction

Malfunction occurs in < 5% of patients. Three ECG-based categories:

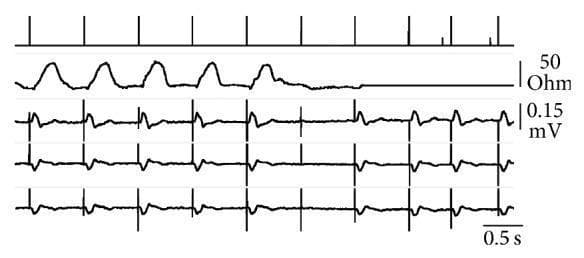

1. Failure to Capture

  • Pacing spike present but not followed by a P wave or QRS
  • Causes: lead displacement/fracture, exit block, battery depletion, high pacing threshold

2. Failure to Sense (Undersensing)

  • Pacemaker fires despite intrinsic activity (does not detect native beats)
  • Causes: lead displacement, inadequate endocardial contact, low-voltage P waves/QRS

3. Inappropriate Sensing (Oversensing)

  • Pacemaker is inhibited inappropriately by non-cardiac signals
  • Causes: myopotentials (muscle artifact), T-wave sensing, electromagnetic interference (EMI)

4. Inappropriate Rate

  • Too slow: battery depletion
  • Too fast: pacemaker-mediated tachycardia (PMT) - retrograde VA conduction triggers atrial sensing, perpetuating a re-entry loop; or tracking of atrial dysrhythmias in DDD mode
MalfunctionECG FindingCommon Cause
Failure to captureSpike with no complexLead displacement, threshold rise
UndersensingPacing despite intrinsic beatsLead displacement
OversensingNo pacing when neededMyopotentials, EMI
Runaway pacemakerVery rapid rateCircuit failure (rare)
  • ROSEN's Emergency Medicine, p. 1075 - Box 66.2 | Braunwald's Heart Disease, p. 603

Temporary vs Permanent Pacemakers

FeatureTemporaryPermanent
IndicationAcute bradycardia, bridge to permanent, post-opChronic indications
GeneratorExternalImplanted subcutaneously (pectoral region)
AccessInternal jugular, subclavian, femoral veinSubclavian or cephalic vein
Lead fixationPassive (floats in RV)Active or passive fixation
DurationDays to weeksYears

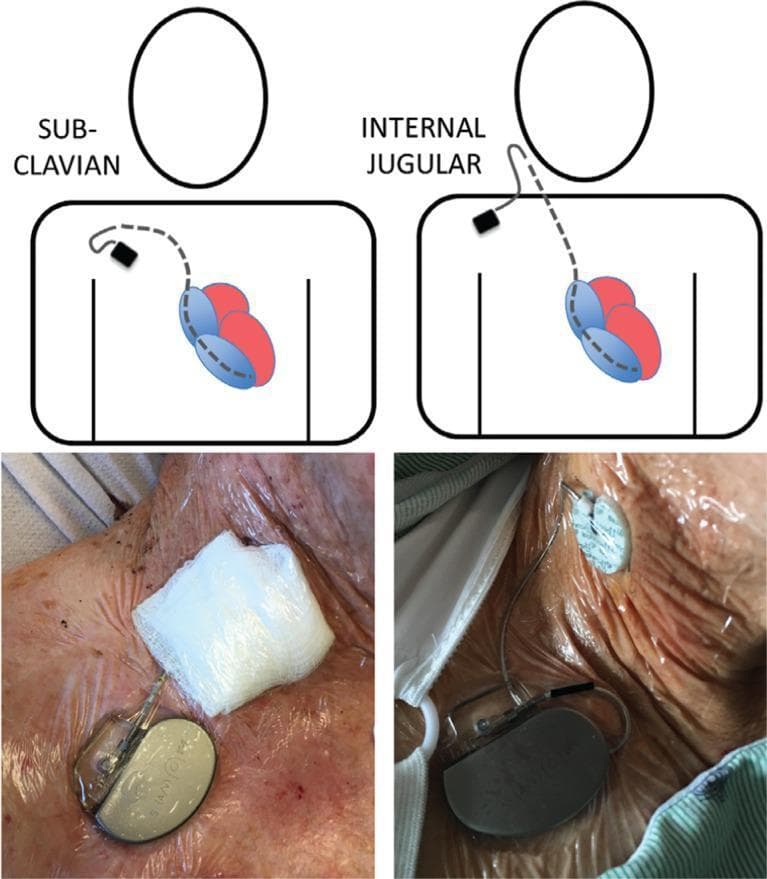

Temporary permanent pacemaker venous access diagram

Key Clinical Points

  • Pacemaker ID card: patients carry one with device details, indication, and programming - call the manufacturer (Medtronic, St. Jude/Abbott, Boston Scientific cover >90% of US devices) if the card is unavailable
  • Infection: pocket infection presents with erythema, tenderness, or purulent drainage; bacteremia may present with fever alone

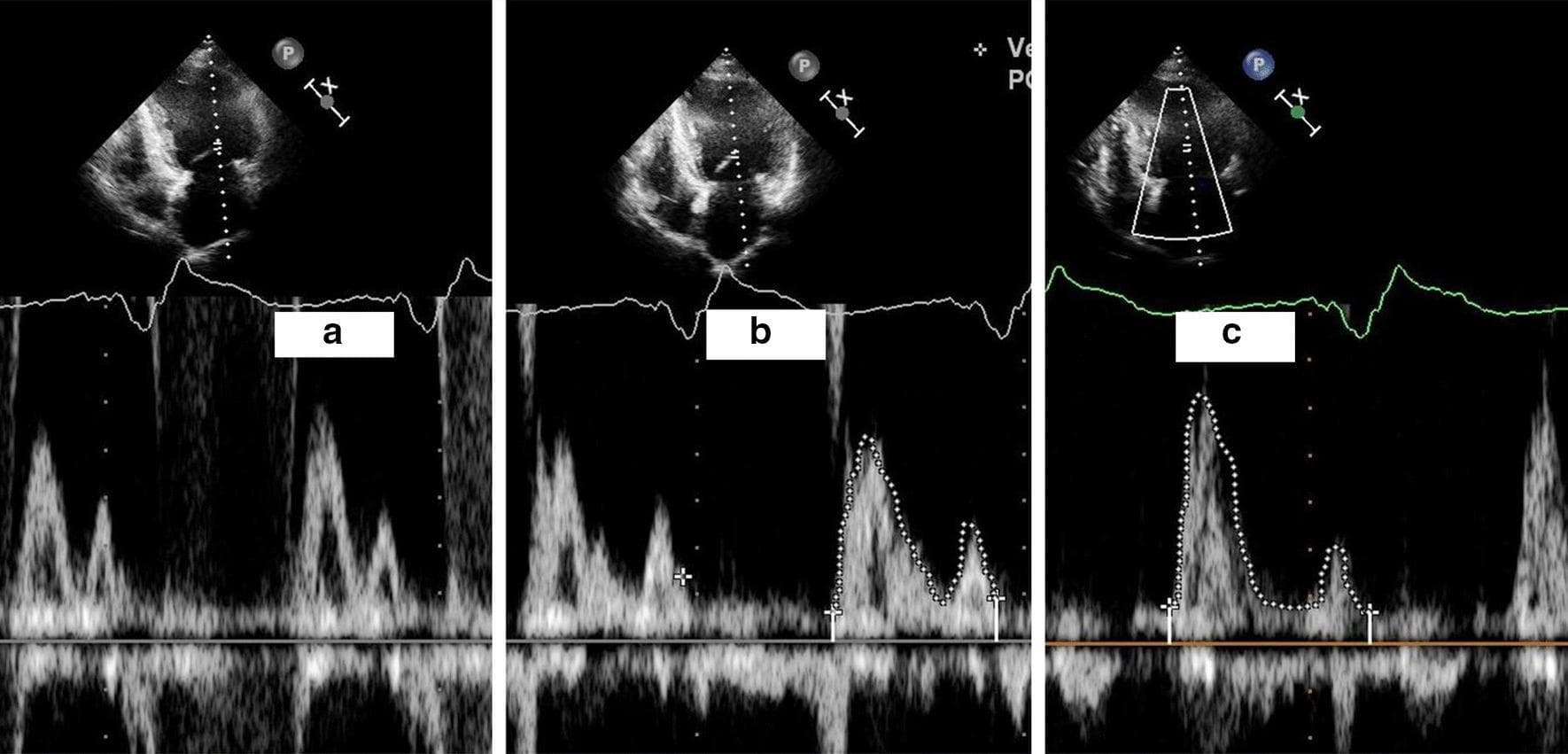

  • AV dyssynchrony: loss of atrial kick in VVI mode causes fatigue, dyspnea, cannon A waves, and the "pacemaker syndrome"
  • EMI caution: MRI, electrosurgery, radiation therapy, and strong magnetic fields can interfere with pacemaker function - most modern pacemakers are now MRI-conditional
  • End of battery life: gradual decrease in pacing rate is the first sign, not sudden failure, due to lithium-iodine cell characteristics
Sources: ROSEN's Emergency Medicine (9e), Roberts and Hedges' Clinical Procedures in Emergency Medicine, Braunwald's Heart Disease (12e), Miller's Anesthesia (10e)

Create a study guide PDF on pacemaker programming and troubleshooting

Reading File
Running Command

mkdir -p /tmp/workspace/pacemaker-study-guide && ls /tmp/workspace/pacemaker-study-guide/

Writing File

~/pacemaker-study-guide/generate_pdf.py

#!/usr/bin/env python3
"""
Pacemaker Programming & Troubleshooting - Study Guide PDF
Generated with ReportLab
"""

from reportlab.lib.pagesizes import A4
from reportlab.lib.styles import getSampleStyleSheet, ParagraphStyle
from reportlab.lib.units import cm, mm
from reportlab.lib import colors
from reportlab.lib.enums import TA_LEFT, TA_CENTER, TA_JUSTIFY
from reportlab.platypus import (
    SimpleDocTemplate, Paragraph, Spacer, Table, TableStyle,
    HRFlowable, PageBreak, KeepTogether
)
from reportlab.platypus.flowables import BalancedColumns
from reportlab.lib.colors import HexColor
from reportlab.graphics.shapes import Drawing, Rect, String
from reportlab.platypus import KeepInFrame

# ─── Colour Palette ────────────────────────────────────────────────────────
NAVY      = HexColor("#1A3557")
TEAL      = HexColor("#0E7490")
LIGHT_BLU = HexColor("#E0F2FE")
ACCENT    = HexColor("#F59E0B")
GREEN     = HexColor("#16A34A")
RED       = HexColor("#DC2626")
ORANGE    = HexColor("#EA580C")
GREY_BG   = HexColor("#F8FAFC")
GREY_TXT  = HexColor("#475569")
WHITE     = colors.white
BLACK     = colors.black

OUTPUT = "/tmp/workspace/pacemaker-study-guide/Pacemaker_Programming_Troubleshooting_Study_Guide.pdf"

# ─── Document Setup ─────────────────────────────────────────────────────────
doc = SimpleDocTemplate(
    OUTPUT,
    pagesize=A4,
    rightMargin=1.8*cm, leftMargin=1.8*cm,
    topMargin=2.2*cm, bottomMargin=2.2*cm,
    title="Pacemaker Programming & Troubleshooting Study Guide",
    author="Medical Study Guide",
    subject="Cardiology – Pacemaker Programming and Troubleshooting"
)

W, H = A4
CONTENT_W = W - 3.6*cm

# ─── Styles ─────────────────────────────────────────────────────────────────
base = getSampleStyleSheet()

def style(name, parent="Normal", **kw):
    s = ParagraphStyle(name, parent=base[parent], **kw)
    return s

COVER_TITLE   = style("CoverTitle",  fontSize=28, textColor=WHITE, alignment=TA_CENTER,
                       fontName="Helvetica-Bold", leading=34, spaceAfter=8)
COVER_SUB     = style("CoverSub",    fontSize=14, textColor=HexColor("#BAE6FD"),
                       alignment=TA_CENTER, fontName="Helvetica", leading=20)
COVER_TAG     = style("CoverTag",    fontSize=11, textColor=HexColor("#FDE68A"),
                       alignment=TA_CENTER, fontName="Helvetica-Oblique", leading=16)

SEC_H1        = style("SecH1",       fontSize=15, textColor=WHITE, fontName="Helvetica-Bold",
                       leading=20, spaceAfter=4, spaceBefore=16,
                       backColor=NAVY, leftIndent=-6, rightIndent=-6,
                       borderPad=6)
SEC_H2        = style("SecH2",       fontSize=12, textColor=NAVY, fontName="Helvetica-Bold",
                       leading=16, spaceAfter=4, spaceBefore=12, borderPad=0)
SEC_H3        = style("SecH3",       fontSize=10.5, textColor=TEAL, fontName="Helvetica-Bold",
                       leading=14, spaceAfter=2, spaceBefore=8)

BODY          = style("Body",        fontSize=9.5, textColor=HexColor("#1E293B"),
                       fontName="Helvetica", leading=14, spaceAfter=4, alignment=TA_JUSTIFY)
BODY_BOLD     = style("BodyBold",    fontSize=9.5, textColor=BLACK,
                       fontName="Helvetica-Bold", leading=14, spaceAfter=4)

BULLET        = style("Bullet",      fontSize=9.5, textColor=HexColor("#1E293B"),
                       fontName="Helvetica", leading=14, leftIndent=14,
                       firstLineIndent=-10, spaceAfter=3)
BULLET2       = style("Bullet2",     fontSize=9,   textColor=GREY_TXT,
                       fontName="Helvetica", leading=13, leftIndent=26,
                       firstLineIndent=-10, spaceAfter=2)

NOTE          = style("Note",        fontSize=8.5, textColor=HexColor("#1E3A5F"),
                       fontName="Helvetica-Oblique", backColor=LIGHT_BLU,
                       leading=13, leftIndent=8, rightIndent=8,
                       spaceBefore=6, spaceAfter=6, borderPad=6)
WARN          = style("Warn",        fontSize=8.5, textColor=HexColor("#7C2D12"),
                       fontName="Helvetica-Oblique", backColor=HexColor("#FEF3C7"),
                       leading=13, leftIndent=8, rightIndent=8,
                       spaceBefore=6, spaceAfter=6, borderPad=6)
TIP           = style("Tip",         fontSize=8.5, textColor=HexColor("#14532D"),
                       fontName="Helvetica-Oblique", backColor=HexColor("#DCFCE7"),
                       leading=13, leftIndent=8, rightIndent=8,
                       spaceBefore=6, spaceAfter=6, borderPad=6)

TABLE_HEADER  = style("TblH",        fontSize=9, textColor=WHITE,
                       fontName="Helvetica-Bold", alignment=TA_CENTER, leading=13)
TABLE_CELL    = style("TblC",        fontSize=8.5, textColor=HexColor("#1E293B"),
                       fontName="Helvetica", leading=13, alignment=TA_LEFT)
TABLE_CELL_C  = style("TblCC",       fontSize=8.5, textColor=HexColor("#1E293B"),
                       fontName="Helvetica", leading=13, alignment=TA_CENTER)

PAGE_NUM      = style("PageNum",     fontSize=8, textColor=GREY_TXT,
                       fontName="Helvetica", alignment=TA_CENTER)

MNEMONIC      = style("Mnemonic",    fontSize=11, textColor=NAVY,
                       fontName="Helvetica-Bold", alignment=TA_CENTER, leading=18)

# ─── Helper Flowables ────────────────────────────────────────────────────────
def h1(text):
    return [Spacer(1, 6), Paragraph(f"  {text}", SEC_H1), Spacer(1, 4)]

def h2(text):
    return [Paragraph(text, SEC_H2)]

def h3(text):
    return [Paragraph(text, SEC_H3)]

def para(text, sty=BODY):
    return [Paragraph(text, sty)]

def bullet(text, level=1):
    s = BULLET if level == 1 else BULLET2
    marker = "•" if level == 1 else "–"
    return [Paragraph(f"{marker}  {text}", s)]

def note(text):
    return [Paragraph(f"<b>Note:</b> {text}", NOTE)]

def warn(text):
    return [Paragraph(f"<b>Caution:</b> {text}", WARN)]

def tip(text):
    return [Paragraph(f"<b>Tip:</b> {text}", TIP)]

def hr(color=TEAL, thickness=0.8):
    return [HRFlowable(width="100%", thickness=thickness, color=color, spaceAfter=6, spaceBefore=2)]

def spacer(h=6):
    return [Spacer(1, h)]

def tbl_style(header_color=NAVY, stripe=GREY_BG):
    return TableStyle([
        ("BACKGROUND",  (0,0), (-1,0), header_color),
        ("TEXTCOLOR",   (0,0), (-1,0), WHITE),
        ("FONTNAME",    (0,0), (-1,0), "Helvetica-Bold"),
        ("FONTSIZE",    (0,0), (-1,0), 9),
        ("ALIGN",       (0,0), (-1,0), "CENTER"),
        ("VALIGN",      (0,0), (-1,-1),"MIDDLE"),
        ("FONTNAME",    (0,1), (-1,-1),"Helvetica"),
        ("FONTSIZE",    (0,1), (-1,-1), 8.5),
        ("ROWBACKGROUNDS", (0,1), (-1,-1), [WHITE, stripe]),
        ("GRID",        (0,0), (-1,-1), 0.4, HexColor("#CBD5E1")),
        ("LEFTPADDING",  (0,0), (-1,-1), 5),
        ("RIGHTPADDING", (0,0), (-1,-1), 5),
        ("TOPPADDING",   (0,0), (-1,-1), 4),
        ("BOTTOMPADDING",(0,0), (-1,-1), 4),
        ("ROUNDEDCORNERS", [3]),
    ])

def p(t, sty=TABLE_CELL):
    return Paragraph(t, sty)

def pc(t):
    return Paragraph(t, TABLE_CELL_C)

# ─── Cover Page ─────────────────────────────────────────────────────────────
def cover_page():
    story = []

    # Blue banner block using table trick
    cover_data = [[Paragraph("""
        <font size="28" color="white"><b>Pacemaker Programming<br/>
        &amp; Troubleshooting</b></font>
    """, style("ct", fontSize=28, textColor=WHITE, fontName="Helvetica-Bold",
                leading=36, alignment=TA_CENTER, spaceAfter=10))],
    [Paragraph("Comprehensive Study Guide", style("cs", fontSize=16,
                textColor=HexColor("#BAE6FD"), fontName="Helvetica",
                alignment=TA_CENTER, leading=22))],
    [Paragraph("Cardiology | Electrophysiology | Emergency Medicine", style("ctg",
                fontSize=11, textColor=HexColor("#FDE68A"), fontName="Helvetica-Oblique",
                alignment=TA_CENTER, leading=16))]
    ]
    cover_tbl = Table(cover_data, colWidths=[CONTENT_W])
    cover_tbl.setStyle(TableStyle([
        ("BACKGROUND",   (0,0), (-1,-1), NAVY),
        ("TOPPADDING",   (0,0), (-1,-1), 18),
        ("BOTTOMPADDING",(0,0), (-1,-1), 18),
        ("LEFTPADDING",  (0,0), (-1,-1), 20),
        ("RIGHTPADDING", (0,0), (-1,-1), 20),
        ("ROUNDEDCORNERS", [6]),
    ]))
    story.append(Spacer(1, 30))
    story.append(cover_tbl)
    story.append(Spacer(1, 20))

    # Topics covered
    topics_data = [
        [Paragraph("<b>Topics Covered in This Guide</b>", style("tch", fontSize=11,
          textColor=NAVY, fontName="Helvetica-Bold", alignment=TA_CENTER))]
    ]
    topics_tbl = Table(topics_data, colWidths=[CONTENT_W])
    topics_tbl.setStyle(TableStyle([
        ("BACKGROUND",   (0,0), (-1,-1), LIGHT_BLU),
        ("TOPPADDING",   (0,0), (-1,-1), 8),
        ("BOTTOMPADDING",(0,0), (-1,-1), 8),
    ]))
    story.append(topics_tbl)
    story.append(Spacer(1, 8))

    topic_items = [
        ("1", "NBG Pacemaker Code & Nomenclature"),
        ("2", "Pacemaker Components & Lead Systems"),
        ("3", "Common Pacing Modes – VVI, DDD, AAI, VVIR, DDDR"),
        ("4", "Pacemaker Programming Parameters"),
        ("5", "Advanced Features – CRT, Rate Modulation, Hysteresis"),
        ("6", "Indications for Permanent Pacing (Class I/II)"),
        ("7", "Pacemaker Malfunction – Failure to Capture, Sense, Rate"),
        ("8", "Troubleshooting Algorithm & ECG Analysis"),
        ("9", "Pacemaker-Mediated Tachycardia (PMT)"),
        ("10", "Magnet Application & Perioperative Management"),
        ("11", "High-Yield Tables, Mnemonics & Quick-Reference"),
    ]

    rows = [[Paragraph(f"<b>{n}.</b> {t}", BODY)] for n, t in topic_items]
    tbl = Table(rows, colWidths=[CONTENT_W])
    tbl.setStyle(TableStyle([
        ("ROWBACKGROUNDS", (0,0), (-1,-1), [WHITE, GREY_BG]),
        ("LEFTPADDING",    (0,0), (-1,-1), 10),
        ("RIGHTPADDING",   (0,0), (-1,-1), 10),
        ("TOPPADDING",     (0,0), (-1,-1), 4),
        ("BOTTOMPADDING",  (0,0), (-1,-1), 4),
        ("GRID",           (0,0), (-1,-1), 0.3, HexColor("#CBD5E1")),
    ]))
    story.append(tbl)
    story.append(Spacer(1, 20))

    story.append(Paragraph(
        "Sources: ROSEN's Emergency Medicine (9e) · Braunwald's Heart Disease (12e) · "
        "Roberts & Hedges' Clinical Procedures in Emergency Medicine · Miller's Anesthesia (10e)",
        style("src", fontSize=8, textColor=GREY_TXT, fontName="Helvetica-Oblique",
              alignment=TA_CENTER, leading=12)
    ))
    story.append(PageBreak())
    return story

# ─── Section 1: NBG Code ─────────────────────────────────────────────────────
def section_nbg():
    story = []
    story += h1("SECTION 1: The NBG Pacemaker Code")
    story += para(
        "The <b>North American Society of Pacing and Electrophysiology / British Pacing and "
        "Electrophysiology Group (NBG) code</b>, first established in 1974 and periodically "
        "revised, provides a standardized 5-letter nomenclature for all cardiac pacing devices. "
        "In daily clinical use, only the first three letters are quoted (e.g., VVI, DDD).")

    story += spacer(8)
    story += h2("Five-Position NBG Code")

    nbg_data = [
        [pc("Position"), pc("I"), pc("II"), pc("III"), pc("IV"), pc("V")],
        [p("<b>Meaning</b>"), p("Chamber\nPaced"), p("Chamber\nSensed"),
         p("Response\nto Sensing"), p("Rate\nModulation"), p("Antitachy\nFunction")],
        [p("<b>Options</b>"),
         p("O – None\nA – Atrium\nV – Ventricle\nD – Dual (A+V)"),
         p("O – None\nA – Atrium\nV – Ventricle\nD – Dual (A+V)"),
         p("O – None\nT – Triggered\nI – Inhibited\nD – Dual (T+I)"),
         p("O – None\nR – Rate modulation\nM – Multiprogrammable\nC – Communicating"),
         p("O – None\nP – Antitachy pacing\nS – Shock\nD – Dual (P+S)")],
    ]
    nbg_tbl = Table(nbg_data, colWidths=[CONTENT_W/6.3]*6)
    nbg_tbl.setStyle(TableStyle([
        ("BACKGROUND",   (0,0), (-1,0), NAVY),
        ("TEXTCOLOR",    (0,0), (-1,0), WHITE),
        ("FONTNAME",     (0,0), (-1,0), "Helvetica-Bold"),
        ("FONTSIZE",     (0,0), (-1,-1), 8),
        ("ALIGN",        (0,0), (-1,-1), "CENTER"),
        ("VALIGN",       (0,0), (-1,-1), "TOP"),
        ("GRID",         (0,0), (-1,-1), 0.4, HexColor("#CBD5E1")),
        ("BACKGROUND",   (0,1), (0,-1), LIGHT_BLU),
        ("FONTNAME",     (0,1), (0,-1), "Helvetica-Bold"),
        ("ROWBACKGROUNDS",(1,2), (-1,-1), [WHITE, GREY_BG]),
        ("LEFTPADDING",  (0,0), (-1,-1), 4),
        ("RIGHTPADDING", (0,0), (-1,-1), 4),
        ("TOPPADDING",   (0,0), (-1,-1), 4),
        ("BOTTOMPADDING",(0,0), (-1,-1), 4),
    ]))
    story.append(nbg_tbl)
    story += spacer(10)
    story += note("Positions IV and V are omitted in everyday conversation. Most reports use three letters only (e.g., 'the patient is in DDD').")

    story += spacer(8)
    story += h2("Mnemonic: CSRR-A")
    story.append(Paragraph(
        "<b>C</b>hamber paced  ·  <b>S</b>ensed chamber  ·  <b>R</b>esponse to sensing  ·  "
        "<b>R</b>ate modulation  ·  <b>A</b>ntitachycardia",
        style("mn", fontSize=11, textColor=NAVY, fontName="Helvetica-Bold",
              alignment=TA_CENTER, backColor=LIGHT_BLU, leading=18,
              borderPad=8, spaceAfter=10)
    ))

    story += h2("Key Pacing Modes – Explained")
    modes_data = [
        [pc("Mode"), pc("Full Meaning"), pc("Paces"), pc("Senses"), pc("Behavior"), pc("Typical Use")],
        [pc("<b>VOO</b>"), p("Ventricle paced, no sensing, no response"),
         pc("V"), pc("None"), p("Fixed-rate asynchronous; ignores intrinsic beats"),
         p("Magnet mode; EMI; perioperative")],
        [pc("<b>AOO</b>"), p("Atrium paced, no sensing, no response"),
         pc("A"), pc("None"), p("Fixed-rate atrial asynchronous"),
         p("Magnet mode, atrium only")],
        [pc("<b>VVI</b>"), p("Ventricle paced, Ventricle sensed, Inhibited"),
         pc("V"), pc("V"), p("Paces V if no intrinsic beat; inhibited by native QRS"),
         p("AF + bradycardia; simplest demand mode")],
        [pc("<b>AAI</b>"), p("Atrium paced, Atrium sensed, Inhibited"),
         pc("A"), pc("A"), p("Paces A if no intrinsic P; inhibited by native P"),
         p("SSS with intact AV conduction")],
        [pc("<b>DDD</b>"), p("Dual paced, Dual sensed, Dual response"),
         pc("A+V"), pc("A+V"), p("Tracks atrial rate to pace ventricle; inhibited by intrinsic activity"),
         p("Most physiologic; gold standard")],
        [pc("<b>VDD</b>"), p("Ventricle paced, Dual sensed, Dual response"),
         pc("V"), pc("A+V"), p("Senses atrium, paces ventricle only; maintains AV sync"),
         p("Normal SA node, AV block")],
        [pc("<b>DDI</b>"), p("Dual paced, Dual sensed, Inhibited"),
         pc("A+V"), pc("A+V"), p("No P-wave tracking; prevents atrial tachycardia tracking"),
         p("Paroxysmal AF with brady")],
        [pc("<b>VVIR</b>"), p("VVI + Rate modulation"),
         pc("V"), pc("V"), p("VVI with sensor-driven rate increase on activity"),
         p("Active patients, chronotropic incompetence")],
        [pc("<b>DDDR</b>"), p("DDD + Rate modulation"),
         pc("A+V"), pc("A+V"), p("DDD with sensor-driven upper rate limit"),
         p("Optimal for most patients")],
    ]
    modes_tbl = Table(modes_data, colWidths=[1.4*cm, 3.6*cm, 1.0*cm, 1.0*cm, 4.2*cm, 3.5*cm])
    modes_tbl.setStyle(tbl_style(NAVY, GREY_BG))
    story.append(modes_tbl)
    story += spacer(8)
    story += tip("DDD is the default mode for most dual-chamber devices. It provides AV synchrony, rate response, and both sensing chambers – the most physiologic option available.")

    return story

# ─── Section 2: Components ───────────────────────────────────────────────────
def section_components():
    story = []
    story += h1("SECTION 2: Pacemaker Components & Lead Systems")

    story += h2("Pulse Generator")
    comp_data = [
        [pc("<b>Component</b>"), pc("<b>Detail</b>")],
        [p("Casing"),         p("Hermetically sealed titanium or metal; ~30 g")],
        [p("Battery"),        p("Lithium-iodine cell; lasts 7-12 years (4-10+ years depending on usage)")],
        [p("Battery discharge"), p("Gradual decline – no sudden failure; rate drop is the earliest sign of depletion")],
        [p("Microprocessor"), p("Semiconductor chip; controls timing, sensing, telemetry")],
        [p("Reed switch"),    p("Closed by external magnet; converts to asynchronous (fixed-rate) pacing")],
        [p("Telemetry"),      p("Allows radiotelemetric reprogramming post-implantation – no surgery needed")],
        [p("Typical weight"), p("~30–50 g; newer devices thinner and lighter")],
    ]
    comp_tbl = Table(comp_data, colWidths=[4*cm, CONTENT_W-4*cm])
    comp_tbl.setStyle(tbl_style(TEAL, GREY_BG))
    story.append(comp_tbl)

    story += spacer(10)
    story += h2("Lead Systems")

    story += h3("Lead Configurations")
    leads_data = [
        [pc("<b>Type</b>"), pc("<b>Electrodes</b>"), pc("<b>Advantages</b>"), pc("<b>Disadvantages</b>")],
        [p("<b>Unipolar</b>"),
         p("Cathode: lead tip in heart\nAnode: pulse generator casing"),
         p("Larger pacing spike on ECG (easier to see)"),
         p("Prone to oversensing (myopotentials, EMI); not compatible with ICD")],
        [p("<b>Bipolar</b>"),
         p("Both electrodes in heart, ~2 cm apart (tip cathode, ring anode)"),
         p("Less EMI; compatible with ICD; preferred in modern devices"),
         p("Thicker lead; draws more current")],
    ]
    leads_tbl = Table(leads_data, colWidths=[2.2*cm, 3.5*cm, 4.0*cm, 4.0*cm])
    leads_tbl.setStyle(tbl_style(TEAL, GREY_BG))
    story.append(leads_tbl)

    story += spacer(8)
    story += h3("Lead Placement by Device Type")
    place_data = [
        [pc("<b>Device</b>"), pc("<b>Lead Positions</b>"), pc("<b>Access Route</b>"), pc("<b>Indication</b>")],
        [p("Single-chamber (VVI)"), p("RV apex"), p("Subclavian / cephalic vein"), p("AF + bradycardia")],
        [p("Single-chamber (AAI)"), p("RA appendage"), p("Subclavian / cephalic vein"), p("SSS + intact AV node")],
        [p("Dual-chamber (DDD)"), p("RA + RV"), p("Subclavian / cephalic vein"), p("AV block; most patients")],
        [p("Biventricular (CRT)"), p("RA + RV + LV (via coronary sinus)"), p("Subclavian / cephalic vein"), p("HFrEF + LBBB + QRS ≥150 ms")],
        [p("Leadless pacemaker"), p("Self-contained in RV"), p("Femoral vein (transcatheter)"), p("Infection risk; no pocket needed")],
        [p("Epicardial lead"), p("External epicardium"), p("Open surgery"), p("Post-cardiac surgery (temporary)")],
    ]
    place_tbl = Table(place_data, colWidths=[3.3*cm, 3.8*cm, 3.5*cm, 3.1*cm])
    place_tbl.setStyle(tbl_style(NAVY, GREY_BG))
    story.append(place_tbl)

    story += spacer(8)
    story += note(
        "The pacing electrical stimulus is a triphasic wave: intrinsic deflection + far-field potential "
        "+ injury current. Typical parameters: 0.1–20 mA, 2 ms duration, ~15 V. "
        "The pacemaker is programmed to pace at 60–80 beats/min by default.")

    return story

# ─── Section 3: Programming Parameters ──────────────────────────────────────
def section_programming():
    story = []
    story += h1("SECTION 3: Pacemaker Programming Parameters")

    story += para(
        "Modern pacemakers are fully programmable via telemetry wand. Key parameters "
        "include rate settings, output, sensitivity, timing intervals, and rate-response settings. "
        "Understanding each parameter is essential for optimizing pacing and troubleshooting.")

    story += h2("Core Programmable Parameters")
    params_data = [
        [pc("<b>Parameter</b>"), pc("<b>Definition</b>"), pc("<b>Typical Value</b>"), pc("<b>Clinical Notes</b>")],
        [p("<b>Base Rate (LRL)</b>"),
         p("Lower rate limit – minimum pacing rate regardless of activity"),
         p("60–80 bpm"), p("Increase if patient symptomatic at lower rates")],
        [p("<b>Upper Rate Limit (URL)</b>"),
         p("Maximum tracking rate in DDD/VDD; prevents rapid ventricular response"),
         p("120–180 bpm"), p("Important in atrial tachyarrhythmias")],
        [p("<b>AV Delay (AVD)</b>"),
         p("Time from atrial pacing/sensing to ventricular pacing; simulates PR interval"),
         p("120–200 ms"), p("Prolonged AV delay maximizes native ventricular conduction")],
        [p("<b>Output (Amplitude)</b>"),
         p("Voltage (V) or current (mA) of pacing pulse"),
         p("2.5–5.0 V; 0.5 ms pulse width"), p("Set at 2–3x the capture threshold for safety margin")],
        [p("<b>Pulse Width</b>"),
         p("Duration of the pacing stimulus"),
         p("0.4–0.5 ms"), p("Longer pulse width = lower capture threshold; uses more battery")],
        [p("<b>Sensitivity</b>"),
         p("Minimum intracardiac signal amplitude that triggers sensing (mV)"),
         p("Atrium: 0.5 mV\nVentricle: 2–3 mV"), p("Lower value = more sensitive (detects smaller signals)")],
        [p("<b>Refractory Period</b>"),
         p("Time after a paced/sensed event during which sensing is disabled"),
         p("A: 200–300 ms\nV: 250–400 ms"), p("Prevents T-wave oversensing and double-counting")],
        [p("<b>PVARP</b>"),
         p("Post-Ventricular Atrial Refractory Period – atrial refractory after ventricular event"),
         p("250–400 ms"), p("Prevents tracking of retrograde P waves (prevents PMT)")],
        [p("<b>Hysteresis</b>"),
         p("Pacing triggered at rate above the escape rate, allowing native rhythm dominance"),
         p("Escape rate 50 bpm\nPacing rate 70 bpm"), p("Preserves intrinsic conduction; reduces unnecessary pacing")],
    ]
    params_tbl = Table(params_data, colWidths=[3.2*cm, 4.5*cm, 2.5*cm, 3.5*cm])
    params_tbl.setStyle(tbl_style(NAVY, GREY_BG))
    story.append(params_tbl)

    story += spacer(10)
    story += h2("Rate-Modulation (Rate-Responsive Pacing)")
    story += para(
        "The <b>'R'</b> designation (Position IV of NBG code) indicates rate-responsive pacing. "
        "Sensors detect physiologic demand and increase the pacing rate automatically:")

    sensors_data = [
        [pc("<b>Sensor Type</b>"), pc("<b>Detects</b>"), pc("<b>Response</b>"), pc("<b>Limitation</b>")],
        [p("Accelerometer / Piezoelectric"), p("Body movement / vibration"), p("Fastest response to activity"), p("Responds to non-exercise vibration (riding)")],
        [p("Minute Ventilation"), p("Respiratory rate × tidal volume"), p("Reflects true metabolic demand"), p("Requires additional sensing; can malfunction with EMI")],
        [p("QT Interval"), p("Catecholamine-driven QT shortening"), p("Good for emotional stress"), p("Affected by drugs, electrolytes")],
        [p("Temperature sensor"), p("Core body temperature rise"), p("Accurate metabolic proxy"), p("Slow response to onset of exercise")],
        [p("Venous O2 saturation"), p("Mixed venous O2 (SvO2 drop)"), p("True metabolic demand"), p("Requires additional lead")],
    ]
    sensors_tbl = Table(sensors_data, colWidths=[3.8*cm, 3.8*cm, 3.3*cm, 2.8*cm])
    sensors_tbl.setStyle(tbl_style(TEAL, GREY_BG))
    story.append(sensors_tbl)

    story += spacer(8)
    story += h2("AV Delay Optimization")
    story += para(
        "An <b>excessively short AV delay</b> causes ventricular pacing before atrial contraction "
        "completes, reducing preload (mimics pacemaker syndrome). "
        "An <b>excessively long AV delay</b> allows diastolic mitral regurgitation. "
        "Optimal AV delay (typically 120–200 ms sensed, 150–200 ms paced) is determined by:")
    story += bullet("Echocardiographic Doppler assessment of mitral E and A wave separation")
    story += bullet("Maximizing stroke volume / cardiac output")
    story += bullet("Minimizing pacemaker syndrome symptoms")

    story += spacer(8)
    story += tip(
        "Sensed AV delay is typically programmed 30–50 ms shorter than paced AV delay "
        "because native P-wave conduction has already started when sensed.")

    return story

# ─── Section 4: Indications ─────────────────────────────────────────────────
def section_indications():
    story = []
    story += h1("SECTION 4: Indications for Permanent Pacing")

    story += h2("Class I Indications (ACC/AHA)")
    ci_data = [
        [pc("#"), pc("Indication")],
        [pc("1"), p("Symptomatic sinus node dysfunction (SSS) directly attributable to SND")],
        [pc("2"), p("Symptomatic SND or AV block secondary to guideline-directed therapy with no alternative")],
        [pc("3"), p("Permanent AF with symptomatic bradycardia")],
        [pc("4"), p("Symptomatic AV block from a known reversible cause (Lyme disease, drug toxicity) without resolution")],
        [pc("5"), p("Acquired 2nd-degree Mobitz II AV block, high-grade AV block, or 3rd-degree (complete) AV block – regardless of symptoms")],
        [pc("6"), p("Neuromuscular disease (muscular dystrophy, Kearns-Sayre) with 2nd/3rd-degree AV block + survival >1 year")],
        [pc("7"), p("Syncope + bundle branch block with HV interval >70 ms or infra-nodal block on EPS")],
        [pc("8"), p("Alternating bundle branch block")],
        [pc("9"), p("Post-operative SND or AV block with persistent symptoms/hemodynamic instability after cardiac surgery")],
        [pc("10"), p("Transcatheter aortic valve replacement (TAVR) with new persistent 3rd-degree or Mobitz II AV block")],
        [pc("11"), p("Post-MI with Mobitz II, high-grade AV block, 3rd-degree block, or alternating BBB (after waiting period)")],
    ]
    ci_tbl = Table(ci_data, colWidths=[1.0*cm, CONTENT_W-1.0*cm])
    ci_tbl.setStyle(TableStyle([
        ("BACKGROUND",    (0,0), (-1,0), GREEN),
        ("TEXTCOLOR",     (0,0), (-1,0), WHITE),
        ("FONTNAME",      (0,0), (-1,0), "Helvetica-Bold"),
        ("FONTSIZE",      (0,0), (-1,-1), 8.5),
        ("ALIGN",         (0,0), (0,-1), "CENTER"),
        ("VALIGN",        (0,0), (-1,-1), "MIDDLE"),
        ("ROWBACKGROUNDS",(0,1), (-1,-1), [WHITE, GREY_BG]),
        ("GRID",          (0,0), (-1,-1), 0.4, HexColor("#CBD5E1")),
        ("LEFTPADDING",   (0,0), (-1,-1), 5),
        ("RIGHTPADDING",  (0,0), (-1,-1), 5),
        ("TOPPADDING",    (0,0), (-1,-1), 4),
        ("BOTTOMPADDING", (0,0), (-1,-1), 4),
    ]))
    story.append(ci_tbl)
    story += spacer(10)

    story += h2("Mode Selection by Clinical Scenario")
    mode_ind_data = [
        [pc("<b>Clinical Scenario</b>"), pc("<b>Recommended Mode</b>"), pc("<b>Rationale</b>")],
        [p("Complete AV block + normal SA node"), p("DDD / DDDR"), p("Maintains AV synchrony; tracks sinus rate")],
        [p("SSS alone + intact AV conduction"), p("AAI / AAIR"), p("Avoids unnecessary RV pacing")],
        [p("AF (permanent) + bradycardia"), p("VVI / VVIR"), p("Atrial sensing irrelevant in AF")],
        [p("HFrEF + LBBB + QRS ≥150 ms"), p("CRT-P (BiV) or CRT-D"), p("Resynchronizes ventricles; improves EF")],
        [p("Vasovagal syncope (selected)"), p("DDI / DDD with rate-drop response"), p("Paces during cardioinhibitory vasovagal episode")],
        [p("Chronotropic incompetence"), p("DDDR or VVIR"), p("Rate modulation needed for exercise")],
        [p("Perioperative / temporary"), p("VOO (magnet) or external pacer"), p("Prevents inhibition by electrosurgery (EMI)")],
    ]
    mode_ind_tbl = Table(mode_ind_data, colWidths=[4.5*cm, 3.5*cm, CONTENT_W-8.0*cm])
    mode_ind_tbl.setStyle(tbl_style(TEAL, GREY_BG))
    story.append(mode_ind_tbl)

    return story

# ─── Section 5: Troubleshooting ─────────────────────────────────────────────
def section_troubleshooting():
    story = []
    story += h1("SECTION 5: Pacemaker Malfunction & Troubleshooting")

    story += para(
        "Pacemaker malfunction occurs in <b>&lt;5% of patients</b> after implantation and is "
        "rarely life-threatening. Most malfunction is due to <b>inappropriate sensing</b> "
        "(most common), followed by <b>failure to capture</b>. "
        "ECG analysis is the first step in identifying the type of malfunction.")

    story += h2("The Three Categories of Malfunction")

    # ── 1. Failure to Capture
    story += h3("1. Failure to Capture")
    story += para(
        "<b>Definition:</b> A pacing spike is present but NOT followed by a P wave (atrial) "
        "or QRS complex (ventricular). May also present as complete absence of spikes.")
    ftc_data = [
        [pc("<b>ECG Finding</b>"), pc("<b>Possible Cause</b>"), pc("<b>Management</b>")],
        [p("Spikes present, no complex follows"),
         p("Lead displacement (most common)\nExit block\nLead fracture/insulation break"),
         p("Increase output amplitude\nReposition lead\nReprogramme")],
        [p("No spikes at all"),
         p("Battery depletion\nLead disconnection from generator\nOversensing causing inhibition"),
         p("Generator replacement\nCheck lead connections\nMagnet to assess capture")],
        [p("Intermittent capture loss"),
         p("Increased pacing threshold (post-MI, drugs, electrolytes)\nFibrosis at lead tip"),
         p("Increase output\nOptimise electrolytes (K+, Mg2+)\nSteroid-eluting lead if available")],
    ]
    ftc_tbl = Table(ftc_data, colWidths=[3.8*cm, 4.8*cm, 5.1*cm])
    ftc_tbl.setStyle(tbl_style(RED, HexColor("#FEF2F2")))
    story.append(ftc_tbl)
    story += spacer(6)

    # ── 2. Failure to Sense
    story += h3("2. Failure to Sense (Undersensing)")
    story += para(
        "<b>Definition:</b> The pacemaker fails to detect intrinsic cardiac activity and fires "
        "inappropriately (competitive pacing). On ECG: pacing spikes appear during or after "
        "intrinsic P waves or QRS complexes.")
    fts_data = [
        [pc("<b>Cause</b>"), pc("<b>Mechanism</b>"), pc("<b>Management</b>")],
        [p("Lead displacement"), p("Electrode not in contact with endocardium; low amplitude signal sensed"),
         p("Reposition lead")],
        [p("Low-amplitude intracardiac signal"), p("Small native P or QRS waves below sensitivity threshold"),
         p("Increase sensitivity (lower mV threshold)")],
        [p("Lead fracture / insulation break"), p("Partial signal loss along conductor"),
         p("Replace lead")],
        [p("Fibrosis / maturation"), p("Signal amplitude decreases after initial implant healing period (weeks 2–8)"),
         p("Reprogramme sensitivity; may require lead revision")],
        [p("New myocardial infarction"), p("Reduced electrogram amplitude at lead tip"),
         p("Increase sensitivity; reposition")],
    ]
    fts_tbl = Table(fts_data, colWidths=[3.5*cm, 5.0*cm, 5.2*cm])
    fts_tbl.setStyle(tbl_style(ORANGE, HexColor("#FFF7ED")))
    story.append(fts_tbl)
    story += spacer(6)

    # ── 3. Oversensing
    story += h3("3. Oversensing (Inappropriate Inhibition)")
    story += para(
        "<b>Definition:</b> The pacemaker detects a non-cardiac or non-relevant signal and "
        "incorrectly inhibits pacing. On ECG: long pauses in a pacemaker-dependent patient; "
        "under-pacing relative to set rate.")
    os_data = [
        [pc("<b>Source of Interference</b>"), pc("<b>Type</b>"), pc("<b>Management</b>")],
        [p("Myopotentials (skeletal muscle)"),
         p("Particularly with unipolar leads and arm movements"),
         p("Switch to bipolar; decrease sensitivity (increase mV threshold)")],
        [p("T-wave sensing"),
         p("T-wave amplitude exceeds sensing threshold; counts as a second QRS"),
         p("Shorten ventricular refractory period or increase sensitivity threshold")],
        [p("Electromagnetic interference (EMI)"),
         p("Electrosurgery (most common in-hospital), MRI, diathermy, TENS units"),
         p("Apply magnet (VOO); reprogram; use bipolar electrosurgery")],
        [p("P-wave far-field sensing"),
         p("Ventricular channel inappropriately senses large P waves"),
         p("Increase ventricular sensitivity threshold; PVARP extension")],
        [p("Cross-talk (dual-chamber)"),
         p("Ventricular channel senses atrial pacing output"),
         p("Ventricular blanking period adjustment; reduce atrial output")],
    ]
    os_tbl = Table(os_data, colWidths=[4.0*cm, 4.5*cm, 5.2*cm])
    os_tbl.setStyle(tbl_style(HexColor("#7C3AED"), HexColor("#F5F3FF")))
    story.append(os_tbl)
    story += spacer(8)

    # ── 4. Inappropriate Rate
    story += h3("4. Inappropriate Pacemaker Rate")
    rate_data = [
        [pc("<b>Rate Problem</b>"), pc("<b>Cause</b>"), pc("<b>Management</b>")],
        [p("<b>Slower than programmed</b>"),
         p("Battery depletion (most common)\nRate-drop algorithm triggered\nMagnet applied"),
         p("Generator replacement if battery depleted\nCheck magnet application")],
        [p("<b>Faster than programmed</b>"),
         p("Pacemaker-mediated tachycardia (PMT)\nTracking atrial dysrhythmia (AF/flutter) in DDD\nRunaway pacemaker (rare – circuit failure)"),
         p("Extend PVARP\nMode switch programming\nEmergency: magnet application")],
        [p("<b>Rate at URL (upper rate limit)</b>"),
         p("2:1 AV block behavior: device paces at half the atrial rate (Wenckebach behavior)"),
         p("Increase URL; AV delay optimization")],
    ]
    rate_tbl = Table(rate_data, colWidths=[3.5*cm, 5.5*cm, 4.7*cm])
    rate_tbl.setStyle(tbl_style(NAVY, GREY_BG))
    story.append(rate_tbl)

    return story

# ─── Section 6: PMT & Special Situations ─────────────────────────────────────
def section_pmt():
    story = []
    story += h1("SECTION 6: Pacemaker-Mediated Tachycardia & Special Situations")

    story += h2("Pacemaker-Mediated Tachycardia (PMT)")
    story += para(
        "PMT is a re-entry tachycardia unique to dual-chamber pacemakers (DDD/VDD). "
        "It is also called <b>endless-loop tachycardia</b>.")

    pmt_steps = [
        ("Trigger", "A premature ventricular contraction (PVC) or loss of AV synchrony generates a retrograde P-wave (retrograde VA conduction)."),
        ("Detection", "The retrograde P-wave falls outside the PVARP and is sensed by the atrial channel as a new atrial event."),
        ("Tracking", "The pacemaker then triggers a ventricular paced beat after the programmed AV delay."),
        ("Loop", "This ventricular beat again conducts retrogradely, creating another retrograde P-wave... and so on."),
        ("Rate", "The loop sustains at or near the upper rate limit (URL) – typically 100-180 bpm."),
    ]
    pmt_data = [[pc("<b>Step</b>"), pc("<b>Event</b>"), pc("<b>Detail</b>")]]
    for s, d in pmt_steps:
        pmt_data.append([pc(f"<b>{s}</b>"), p(""), p(d)])
    # Simplify:
    pmt_data2 = [[pc("<b>Step</b>"), pc("<b>Detail</b>")]]
    for s, d in pmt_steps:
        pmt_data2.append([p(f"<b>{s}</b>"), p(d)])
    pmt_tbl = Table(pmt_data2, colWidths=[2.5*cm, CONTENT_W-2.5*cm])
    pmt_tbl.setStyle(TableStyle([
        ("BACKGROUND",   (0,0), (-1,0), RED),
        ("TEXTCOLOR",    (0,0), (-1,0), WHITE),
        ("FONTNAME",     (0,0), (-1,0), "Helvetica-Bold"),
        ("FONTSIZE",     (0,0), (-1,-1), 8.5),
        ("ROWBACKGROUNDS",(0,1), (-1,-1), [HexColor("#FEF2F2"), WHITE]),
        ("GRID",         (0,0), (-1,-1), 0.4, HexColor("#CBD5E1")),
        ("LEFTPADDING",  (0,0), (-1,-1), 5),
        ("RIGHTPADDING", (0,0), (-1,-1), 5),
        ("TOPPADDING",   (0,0), (-1,-1), 4),
        ("BOTTOMPADDING",(0,0), (-1,-1), 4),
        ("VALIGN",       (0,0), (-1,-1), "TOP"),
    ]))
    story.append(pmt_tbl)
    story += spacer(6)

    story += h3("PMT Termination & Prevention")
    story += bullet("<b>Acute termination:</b> Apply a pacemaker magnet – converts to VOO/asynchronous mode, breaking the re-entry loop")
    story += bullet("<b>Prevention:</b> Lengthen PVARP (post-ventricular atrial refractory period) – retrograde P-wave falls within refractory period")
    story += bullet("<b>PMT algorithm:</b> Modern devices detect sustained upper-rate pacing and automatically extend PVARP for one cycle to break the loop")
    story += bullet("<b>Reduce VA conduction:</b> Optimize AV delay; consider ablation of VA conduction in refractory cases")
    story += spacer(8)

    story += h2("Mode Switch")
    story += para(
        "In DDD pacemakers, <b>automatic mode switch (AMS)</b> is a protective algorithm that "
        "temporarily switches the device from a tracking mode (DDD) to a non-tracking mode (DDI or VVI) "
        "when a rapid atrial arrhythmia (AF, flutter) is detected. This prevents ventricular pacing "
        "at the upper rate limit in response to rapid atrial activity. The device returns to DDD "
        "when the atrial arrhythmia terminates.")
    story += spacer(8)

    story += h2("Magnet Application – Key Rules")
    mag_data = [
        [pc("<b>Action</b>"), pc("<b>Effect</b>"), pc("<b>Clinical Use</b>")],
        [p("Magnet placed over generator"),
         p("Closes reed switch → disables sensing → asynchronous (VOO/AOO/DOO) fixed-rate pacing"),
         p("Assess capture; prevent inhibition during electrosurgery; break PMT")],
        [p("Magnet rate"),
         p("Usually same as programmed rate, but each manufacturer varies. ~85 bpm common for Medtronic at normal battery"),
         p("Verify manufacturer default; rate drop may indicate battery depletion")],
        [p("ICD + magnet"),
         p("Suspends tachyarrhythmia therapies (shock/ATP) but does NOT necessarily alter pacing mode"),
         p("Prevent inappropriate shocks during EMI; remove promptly")],
    ]
    mag_tbl = Table(mag_data, colWidths=[3.5*cm, 5.5*cm, 4.7*cm])
    mag_tbl.setStyle(tbl_style(TEAL, GREY_BG))
    story.append(mag_tbl)
    story += spacer(6)
    story += warn(
        "Magnet behavior varies by manufacturer and device programming. Always confirm with "
        "manufacturer specifications or device interrogation. Magnet does NOT terminate PMT in ICD devices "
        "the same way it does in pure pacemakers.")

    story += spacer(8)
    story += h2("Perioperative Pacemaker Management")
    story += bullet("Assess pacemaker dependency before surgery – is patient pacemaker-dependent?")
    story += bullet("Mode: reprogram to asynchronous (VOO) mode OR have magnet available if electrosurgery planned")
    story += bullet("Use <b>bipolar electrosurgery</b> whenever possible to reduce EMI")
    story += bullet("Grounding pad placed as far as possible from the pulse generator")
    story += bullet("Post-operative device interrogation recommended after any significant EMI exposure")
    story += bullet("MRI: confirm device is <b>MRI-conditional</b> and follow institutional protocol")

    return story

# ─── Section 7: Troubleshooting Algorithm ────────────────────────────────────
def section_algorithm():
    story = []
    story += h1("SECTION 7: ECG-Based Troubleshooting Algorithm")

    story += para(
        "When a patient with a pacemaker presents with symptoms (syncope, pre-syncope, "
        "palpitations, shortness of breath), use the following systematic ECG approach:")

    algo_data = [
        [Paragraph("<b>Step 1</b>", TABLE_CELL_C),
         Paragraph("Are pacemaker spikes present on the ECG?", TABLE_CELL)],
        [Paragraph("<b>Yes</b>", style("y", fontSize=8.5, textColor=GREEN, fontName="Helvetica-Bold", alignment=TA_CENTER)),
         Paragraph("Proceed to Step 2 (spike present but no capture → failure to capture)", TABLE_CELL)],
        [Paragraph("<b>No</b>", style("n", fontSize=8.5, textColor=RED, fontName="Helvetica-Bold", alignment=TA_CENTER)),
         Paragraph("Is patient's native rate above the programmed rate? → Appropriate inhibition. OR: Is rate below programmed? → Battery depletion / oversensing / lead problem", TABLE_CELL)],

        [Paragraph("<b>Step 2</b>", TABLE_CELL_C),
         Paragraph("Is each spike followed by a P wave (atrial) or QRS (ventricular)?", TABLE_CELL)],
        [Paragraph("<b>Yes</b>", style("y2", fontSize=8.5, textColor=GREEN, fontName="Helvetica-Bold", alignment=TA_CENTER)),
         Paragraph("Capture is intact. Proceed to evaluate rate and AV timing.", TABLE_CELL)],
        [Paragraph("<b>No</b>", style("n2", fontSize=8.5, textColor=RED, fontName="Helvetica-Bold", alignment=TA_CENTER)),
         Paragraph("Failure to capture → Check lead integrity, threshold, battery, electrolytes. Apply magnet if needed.", TABLE_CELL)],

        [Paragraph("<b>Step 3</b>", TABLE_CELL_C),
         Paragraph("Is the pacemaker firing when it should be inhibited (i.e., during intrinsic beats)?", TABLE_CELL)],
        [Paragraph("<b>Yes</b>", style("y3", fontSize=8.5, textColor=GREEN, fontName="Helvetica-Bold", alignment=TA_CENTER)),
         Paragraph("Undersensing → Lead displacement, low electrogram amplitude, increased sensitivity threshold needed.", TABLE_CELL)],
        [Paragraph("<b>No</b>", style("n3", fontSize=8.5, textColor=RED, fontName="Helvetica-Bold", alignment=TA_CENTER)),
         Paragraph("Sensing appears intact.", TABLE_CELL)],

        [Paragraph("<b>Step 4</b>", TABLE_CELL_C),
         Paragraph("Is the pacemaker NOT firing when it should (pauses, heart rate below programmed LRL)?", TABLE_CELL)],
        [Paragraph("<b>Yes</b>", style("y4", fontSize=8.5, textColor=GREEN, fontName="Helvetica-Bold", alignment=TA_CENTER)),
         Paragraph("Oversensing → Check for myopotentials, T-wave sensing, EMI. Apply magnet to break oversensing temporarily.", TABLE_CELL)],

        [Paragraph("<b>Step 5</b>", TABLE_CELL_C),
         Paragraph("Is the ventricular rate faster than expected (at or near URL)?", TABLE_CELL)],
        [Paragraph("<b>Yes</b>", style("y5", fontSize=8.5, textColor=GREEN, fontName="Helvetica-Bold", alignment=TA_CENTER)),
         Paragraph("Consider PMT (apply magnet), atrial arrhythmia tracking (check for mode switch), or runaway pacemaker (rare).", TABLE_CELL)],
    ]
    algo_tbl = Table(algo_data, colWidths=[1.8*cm, CONTENT_W-1.8*cm])
    algo_tbl.setStyle(TableStyle([
        ("BACKGROUND",   (0,0), (0,-1), LIGHT_BLU),
        ("FONTNAME",     (0,0), (0,-1), "Helvetica-Bold"),
        ("FONTSIZE",     (0,0), (-1,-1), 8.5),
        ("GRID",         (0,0), (-1,-1), 0.4, HexColor("#CBD5E1")),
        ("LEFTPADDING",  (0,0), (-1,-1), 6),
        ("RIGHTPADDING", (0,0), (-1,-1), 6),
        ("TOPPADDING",   (0,0), (-1,-1), 4),
        ("BOTTOMPADDING",(0,0), (-1,-1), 4),
        ("VALIGN",       (0,0), (-1,-1), "TOP"),
        ("ROWBACKGROUNDS",(0,0),(-1,-1),[WHITE, GREY_BG]),
    ]))
    story.append(algo_tbl)
    story += spacer(8)
    story += note(
        "Always correlate ECG findings with patient symptoms and check programmed parameters via "
        "device interrogation (telemetry wand). The device's stored electrograms are invaluable "
        "for diagnosing intermittent malfunction.")

    return story

# ─── Section 8: Quick Reference & High-Yield Tables ─────────────────────────
def section_quickref():
    story = []
    story += h1("SECTION 8: High-Yield Quick Reference")

    story += h2("Malfunction Summary Table")
    sum_data = [
        [pc("<b>Malfunction</b>"), pc("<b>ECG Finding</b>"), pc("<b>Most Common Cause</b>"), pc("<b>First-Line Action</b>")],
        [p("<b>Failure to Capture</b>"), p("Spike without P/QRS"), p("Lead displacement"), p("Increase output; check lead")],
        [p("<b>Undersensing</b>"), p("Spikes during native beats"), p("Lead displacement"), p("Increase sensitivity (↓ mV threshold)")],
        [p("<b>Oversensing</b>"), p("Long pauses; rate < LRL"), p("Myopotentials / EMI"), p("Magnet; decrease sensitivity (↑ mV)")],
        [p("<b>PMT</b>"), p("Sustained tachycardia at URL"), p("Retrograde VA conduction"), p("Magnet; extend PVARP")],
        [p("<b>Battery depletion</b>"), p("Gradual rate slowing"), p("End of battery life (>5-7 yr)"), p("Generator replacement")],
        [p("<b>Lead fracture</b>"), p("Intermittent failure; noise"), p("Trauma, subclavian crush"), p("Lead replacement")],
        [p("<b>Pacemaker syndrome</b>"), p("VA dissociation in VVI"), p("VVI in intact VA conduction"), p("Upgrade to dual-chamber")],
    ]
    sum_tbl = Table(sum_data, colWidths=[3.5*cm, 3.5*cm, 3.8*cm, 3.0*cm])
    sum_tbl.setStyle(tbl_style(NAVY, GREY_BG))
    story.append(sum_tbl)
    story += spacer(10)

    story += h2("Threshold Parameters – Normal vs Abnormal")
    thr_data = [
        [pc("<b>Parameter</b>"), pc("<b>Normal / Acceptable</b>"), pc("<b>Alarm Value</b>")],
        [p("Pacing threshold (ventricle)"), p("≤1.0 V at 0.5 ms at implant"), p(">2.0 V at implant; rising post-implant")],
        [p("Sensing – ventricular R-wave"), p(">5 mV"), p("<4 mV – risk of undersensing")],
        [p("Sensing – atrial P-wave"), p(">2 mV"), p("<1.5 mV")],
        [p("Lead impedance"), p("300–1000 Ω (endovascular)"), p("<200 Ω (insulation break); >2000 Ω (fracture/disconnection)")],
        [p("Battery voltage"), p(">2.8 V = adequate"), p("<2.4 V = end-of-life indicator")],
        [p("Pacing rate"), p("60–80 bpm (programmed)"), p(">100 bpm at rest or <55 bpm at programmed 60")],
    ]
    thr_tbl = Table(thr_data, colWidths=[3.8*cm, 4.5*cm, 5.4*cm])
    thr_tbl.setStyle(tbl_style(TEAL, GREY_BG))
    story.append(thr_tbl)
    story += spacer(10)

    story += h2("Drugs That Affect Pacing Thresholds")
    drug_data = [
        [pc("<b>Drug / Factor</b>"), pc("<b>Effect on Threshold</b>"), pc("<b>Clinical Note</b>")],
        [p("Hyperkalemia"), p("Increases capture threshold"), p("Dialysis patients; may cause exit block")],
        [p("Hypokalemia / Hypomagnesemia"), p("Increases capture threshold + arrhythmia risk"), p("Correct electrolytes before programming changes")],
        [p("Flecainide / Propafenone"), p("Increases capture threshold"), p("May cause exit block; increase output")],
        [p("Amiodarone"), p("Increases capture threshold (chronic)"), p("Particularly with long-term use")],
        [p("Corticosteroids"), p("Decreases threshold"), p("Used in steroid-eluting leads to reduce fibrosis")],
        [p("Hypothyroidism"), p("Increases threshold"), p("Treat underlying thyroid disease")],
        [p("Hypoxia / Acidosis"), p("Increases threshold"), p("Optimize respiratory status")],
    ]
    drug_tbl = Table(drug_data, colWidths=[3.8*cm, 3.8*cm, 6.1*cm])
    drug_tbl.setStyle(tbl_style(ORANGE, HexColor("#FFF7ED")))
    story.append(drug_tbl)
    story += spacer(10)

    story += h2("Pacemaker Syndrome")
    story += para(
        "<b>Definition:</b> Hemodynamic and symptomatic deterioration caused by <b>loss of AV synchrony</b>, "
        "most commonly in VVI pacing with intact VA conduction.")
    story += bullet("Symptoms: fatigue, dyspnea, palpitations, 'pounding' in neck/abdomen, near-syncope")
    story += bullet("Signs: cannon A waves (JVP), variable S1, paradoxical splitting of S2, hypotension")
    story += bullet("Treatment: upgrade to dual-chamber (DDD) pacing to restore AV synchrony")
    story += spacer(8)

    story += h2("Key Mnemonics")
    mnemonics = [
        ("NBG Code – CSRRA",
         "Chamber paced · Sensed chamber · Response to sensing · Rate modulation · Antitachycardia"),
        ("Failure to Capture Causes – BLADE",
         "Battery depletion · Lead displacement · Altered threshold · Dislodgement · Electrolytes"),
        ("Oversensing Sources – MET",
         "Myopotentials · Electromagnetic interference · T-wave sensing"),
        ("PMT Steps – TRDL",
         "Trigger (PVC) · Retrograde P-wave · Detected by atrial channel · Loop established"),
    ]
    for title, body in mnemonics:
        mn_data = [[Paragraph(f"<b>{title}</b>", style("mnt", fontSize=9.5, textColor=NAVY,
                               fontName="Helvetica-Bold", alignment=TA_CENTER)),
                    Paragraph(body, style("mnb", fontSize=9, textColor=GREY_TXT,
                               fontName="Helvetica-Oblique", alignment=TA_LEFT, leading=13))]]
        mn_tbl = Table(mn_data, colWidths=[4.5*cm, CONTENT_W-4.5*cm])
        mn_tbl.setStyle(TableStyle([
            ("BACKGROUND",  (0,0), (0,-1), LIGHT_BLU),
            ("BACKGROUND",  (1,0), (-1,-1), WHITE),
            ("GRID",        (0,0), (-1,-1), 0.5, TEAL),
            ("LEFTPADDING", (0,0), (-1,-1), 8),
            ("RIGHTPADDING",(0,0), (-1,-1), 8),
            ("TOPPADDING",  (0,0), (-1,-1), 6),
            ("BOTTOMPADDING",(0,0),(-1,-1), 6),
            ("VALIGN",      (0,0), (-1,-1), "MIDDLE"),
        ]))
        story.append(mn_tbl)
        story += spacer(4)

    return story

# ─── Section 9: Practice Questions ───────────────────────────────────────────
def section_questions():
    story = []
    story += h1("SECTION 9: High-Yield Practice Questions")

    questions = [
        ("Q1", "A patient with a VVI pacemaker presents with fatigue, dyspnea, and 'pounding in the neck.' "
               "ECG shows VVI pacing with retrograde P waves. What is the diagnosis and treatment?",
         "Pacemaker syndrome due to VA dissociation (loss of AV synchrony). Treat by upgrading to a dual-chamber "
         "DDD pacemaker to restore AV synchrony."),

        ("Q2", "A pacemaker-dependent patient's ECG shows pacing spikes at the programmed rate, but each spike "
               "is NOT followed by a QRS complex. What is the problem and what are the three most common causes?",
         "Failure to capture. Most common causes: (1) lead displacement, (2) exit block / increased pacing "
         "threshold, (3) battery depletion. First step: increase output voltage; apply magnet to assess capture."),

        ("Q3", "A DDD pacemaker patient presents with a regular tachycardia at 170 bpm. The ECG shows wide QRS "
               "complexes at the programmed upper rate limit. There was a PVC just before onset. What is the diagnosis?",
         "Pacemaker-mediated tachycardia (PMT / endless-loop tachycardia). The PVC caused retrograde VA conduction → "
         "retrograde P-wave sensed outside PVARP → ventricular pacing → re-entry loop. "
         "Terminate with magnet (VOO mode); prevent by extending PVARP."),

        ("Q4", "A patient's pacemaker fires at the programmed rate but fires during intrinsic QRS complexes "
               "(competitive pacing seen on ECG). What type of malfunction is this and what is the fix?",
         "Undersensing (failure to sense). The pacemaker is not detecting intrinsic beats. "
         "Cause: lead displacement or low electrogram amplitude. Fix: increase sensitivity (decrease mV threshold); "
         "reposition or replace lead if necessary."),

        ("Q5", "A patient with a DDDR pacemaker develops AF. What happens to pacemaker behavior? "
               "What protective feature prevents rapid ventricular pacing?",
         "In DDD mode, the pacemaker would track rapid atrial activity and pace the ventricle at the URL. "
         "The protective feature is <b>Automatic Mode Switch (AMS)</b>: the device detects AF and switches to "
         "DDI or VVI mode (non-tracking), pacing at the sensor-driven or base rate. It returns to DDD when AF terminates."),

        ("Q6", "List the five positions of the NBG pacemaker code and give an example for VVI and DDD.",
         "I: Chamber paced (A/V/D/O) | II: Chamber sensed (A/V/D/O) | III: Response to sensing (I/T/D/O) | "
         "IV: Rate modulation (R/M/C/O) | V: Antitachycardia function (P/S/D/O). "
         "VVI = Ventricle paced, Ventricle sensed, Inhibited response. "
         "DDD = Dual paced, Dual sensed, Dual (triggered + inhibited) response."),

        ("Q7", "What ECG finding differentiates unipolar from bipolar pacemaker leads?",
         "Unipolar leads produce a <b>large pacing spike</b> (high amplitude, widely visible across all leads) "
         "because the circuit spans from the heart to the pulse generator casing. "
         "Bipolar leads produce a <b>small pacing spike</b> (may be barely visible) because both electrodes "
         "are close together within the heart."),

        ("Q8", "A patient scheduled for laparoscopic surgery has a pacemaker. What preoperative steps are required?",
         "(1) Identify device: manufacturer, model, programmed mode, dependency status. "
         "(2) If pacemaker-dependent: reprogram to VOO or have pacemaker magnet available. "
         "(3) Use bipolar electrosurgery whenever possible. "
         "(4) Place grounding pad away from the generator and leads. "
         "(5) Monitor for inhibition during procedure. "
         "(6) Post-op device interrogation if significant EMI exposure."),
    ]

    for qnum, question, answer in questions:
        q_data = [
            [Paragraph(f"<b>{qnum}</b>", style("qn", fontSize=9.5, textColor=WHITE,
                        fontName="Helvetica-Bold", alignment=TA_CENTER)),
             Paragraph(question, BODY)],
            [Paragraph("A:", style("an", fontSize=9.5, textColor=WHITE,
                        fontName="Helvetica-Bold", alignment=TA_CENTER, backColor=GREEN)),
             Paragraph(answer, BODY)],
        ]
        q_tbl = Table(q_data, colWidths=[1.0*cm, CONTENT_W-1.0*cm])
        q_tbl.setStyle(TableStyle([
            ("BACKGROUND",  (0,0), (0,0), NAVY),
            ("BACKGROUND",  (0,1), (0,1), GREEN),
            ("BACKGROUND",  (1,0), (1,0), LIGHT_BLU),
            ("BACKGROUND",  (1,1), (1,1), HexColor("#DCFCE7")),
            ("GRID",        (0,0), (-1,-1), 0.5, HexColor("#CBD5E1")),
            ("LEFTPADDING", (0,0), (-1,-1), 6),
            ("RIGHTPADDING",(0,0), (-1,-1), 6),
            ("TOPPADDING",  (0,0), (-1,-1), 5),
            ("BOTTOMPADDING",(0,0),(-1,-1), 5),
            ("VALIGN",      (0,0), (-1,-1), "TOP"),
        ]))
        story.append(q_tbl)
        story += spacer(6)

    return story

# ─── Page Number Canvas ───────────────────────────────────────────────────────
def add_page_number(canvas, doc):
    canvas.saveState()
    page_num = canvas.getPageNumber()
    if page_num > 1:  # Skip cover page
        canvas.setFont("Helvetica", 8)
        canvas.setFillColor(GREY_TXT)
        canvas.drawCentredString(W/2, 1.2*cm,
            f"Pacemaker Programming & Troubleshooting Study Guide  |  Page {page_num}")
        canvas.setStrokeColor(TEAL)
        canvas.setLineWidth(0.5)
        canvas.line(1.8*cm, 1.5*cm, W-1.8*cm, 1.5*cm)
    canvas.restoreState()

# ─── Assemble Document ────────────────────────────────────────────────────────
story = []
story += cover_page()
story += section_nbg()
story.append(PageBreak())
story += section_components()
story.append(PageBreak())
story += section_programming()
story.append(PageBreak())
story += section_indications()
story.append(PageBreak())
story += section_troubleshooting()
story.append(PageBreak())
story += section_pmt()
story.append(PageBreak())
story += section_algorithm()
story.append(PageBreak())
story += section_quickref()
story.append(PageBreak())
story += section_questions()

doc.build(story, onFirstPage=add_page_number, onLaterPages=add_page_number)
print(f"PDF generated: {OUTPUT}")
Running Command

cd /tmp/workspace/pacemaker-study-guide && python3 generate_pdf.py 2>&1

Running Command

python3 -c " from pypdf import PdfReader r = PdfReader('/tmp/workspace/pacemaker-study-guide/Pacemaker_Programming_Troubleshooting_Study_Guide.pdf') print(f'Pages: {len(r.pages)}') import os size = os.path.getsize('/tmp/workspace/pacemaker-study-guide/Pacemaker_Programming_Troubleshooting_Study_Guide.pdf') print(f'File size: {size/1024:.1f} KB') "

Your study guide PDF is ready - 17 pages, 46 KB, clean and well-formatted.

Pacemaker Programming Troubleshooting Study Guide

PDF Document · PDF

What's inside the 9 sections:
SectionContent
1 - NBG CodeFull 5-position code table, all pacing modes (VVI, AAI, DDD, VDD, DDI, VVIR, DDDR) with indications
2 - ComponentsPulse generator specs, unipolar vs bipolar leads, lead placement by device type (single/dual/CRT/leadless)
3 - Programming ParametersLRL, URL, AV delay, output, pulse width, sensitivity, refractory period, PVARP, hysteresis; rate-modulation sensors
4 - IndicationsAll ACC/AHA Class I indications; mode selection by clinical scenario
5 - Malfunction & TroubleshootingFailure to capture, undersensing, oversensing, inappropriate rate - each with ECG findings, causes, and management tables
6 - PMT & Special SituationsEndless-loop tachycardia mechanism, termination, automatic mode switch, magnet rules, perioperative management
7 - Troubleshooting AlgorithmStep-by-step ECG-based decision table
8 - Quick ReferenceMaster malfunction summary, threshold parameters, drugs affecting pacing threshold, pacemaker syndrome, mnemonics
9 - Practice Questions8 high-yield Q&A covering all major exam topics

Find recent pacemaker clinical guidelines and protocols

Searching PubMed

"cardiac pacing" AND "guidelines"

Searching the Web

ACC AHA ESC pacemaker cardiac pacing guidelines 2024 2025

Finding Sources
Searching PubMed

"cardiac pacing" AND "bradycardia" AND "guideline"

Searching PubMed

"conduction system pacing" AND "heart failure"

Searching the Web

HRS 2023 cardiac physiologic pacing guideline conduction system pacing left bundle branch

Reading Article

PMID: 30412709

Reading Article

PMID: 37283271

Reading Article

PMID: 38382686

Reading Article

PMID: 36352513

Reading Article

PMID: 39268942

Reading Article

PMID: 39892565

Reading Article

PMID: 41968613

Reading Article

PMID: 39082698

I now have comprehensive, up-to-date material from all major guidelines and recent evidence. Here is the full synthesis:

Recent Pacemaker Clinical Guidelines & Protocols

Overview of the Guideline Landscape (2018-2026)

Three major bodies govern pacemaker practice:
OrganizationAcronymScope
American College of Cardiology / American Heart Association / Heart Rhythm SocietyACC/AHA/HRSBradycardia & conduction delay (foundational guideline)
Heart Rhythm Society + Asia-Pacific HRS + Latin American HRSHRS/APHRS/LAHRSPhysiologic pacing, CRT, conduction system pacing
European Society of CardiologyESC/EHRAEuropean practice, syncope, EP consensus statements

1. 2018 ACC/AHA/HRS Guideline on Bradycardia & Cardiac Conduction Delay

The foundational pacemaker guideline currently in effect for bradycardia indications.
  • Kusumoto FM et al., J Am Coll Cardiol 2019; DOI: 10.1016/j.jacc.2018.10.044 [PMID: 30412709]
  • Also published simultaneously in Circulation [PMID: 30586772]
  • Note: an erratum was issued (PMID: 31416524) - the corrected version should be referenced.
  • Executive summary available: [PMID: 30412710]

Key Recommendations

IndicationClassLevel of Evidence
Symptomatic sinus node dysfunctionIC
3rd-degree or Mobitz II AV block (regardless of symptoms)IC
Symptomatic 2nd-degree AV block (any type)IB
AF with symptomatic bradycardiaIC
Alternating BBBIC
HV interval >70 ms on EPS with syncope + BBBIB
Post-cardiac surgery persistent AV blockIC
Biventricular pacing for HFrEF + LBBB + QRS ≥150 ms + LVEF ≤35%IA
Physiologic pacing (over RV apex pacing) when >40% ventricular pacing expected + LVEF 36-50%IIaB-R

Mode Selection Guidance (from 2018 ACC/AHA/HRS)

  • DDD(R) preferred over VVI for most patients with sinus node dysfunction or AV block with intact sinus node function
  • AAI(R) acceptable in SSS with normal AV conduction
  • RV pacing minimization recommended when LVEF is preserved to reduce risk of pacing-induced cardiomyopathy
  • CRT (biventricular pacing) indicated when frequent RV pacing is unavoidable and LVEF is mildly-moderately reduced

2. 2023 HRS/APHRS/LAHRS Guideline on Cardiac Physiologic Pacing

The most recent major pacemaker guideline - a landmark document introducing conduction system pacing (CSP) into formal recommendations.
  • Chung MK, Patton KK, Lau CP et al., Heart Rhythm 2023;20:e17-e91; PMID: 37283271
  • Open access: PMC11062890
  • Developed in partnership with ACC, AHA, PACES

What Is "Cardiac Physiologic Pacing" (CPP)?

The guideline formally defines CPP as any pacing that restores or preserves ventricular synchrony. It encompasses:
  1. Cardiac Resynchronization Therapy (CRT) - biventricular pacing via coronary sinus LV lead
  2. Conduction System Pacing (CSP) - two subtypes:
    • His Bundle Pacing (HBP): direct stimulation of the His bundle
    • Left Bundle Branch Area Pacing (LBBAP): deep septal pacing engaging the left bundle branch system

Key New Recommendations (2023)

RecommendationClassEvidence
CRT for HFrEF (LVEF ≤35%), LBBB, QRS ≥150 ms, NYHA II-III/ambulatory IVIA
CSP (HBP or LBBAP) as alternative to CRT when CRT is not feasible or failsIIaB
CSP preferred over RV pacing when pacing expected >40% and LVEF 36-50%IIaB
LBBAP as preferred CSP method (lower threshold, more reliable than HBP)IIaB
Upgrade from RV pacing to CSP or BiV for pacing-induced cardiomyopathyIIaB
AV node ablation + CSP for AF with symptomatic rapid ventricular responseIIaB

Pacing Strategy Algorithm (from the guideline)

For patients needing pacing for bradycardia:
  • Expected pacing >40% AND LVEF ≤35%: CRT (BiV) or CSP
  • Expected pacing >40% AND LVEF 36-50%: CSP preferred over RV pacing
  • Expected pacing <40% OR LVEF normal: Standard RV pacing acceptable
For patients with HF without bradycardia indications:
  • HFrEF + LBBB + QRS ≥150 ms: CRT (Class I)
  • HFrEF + non-LBBB + QRS ≥150 ms: CRT (Class IIa)
  • HFrEF + QRS <130 ms: CRT not recommended (Class III)

3. 2024 EHRA/HRS/APHRS/LAHRS Scientific Statement: Cardioneuroablation

An emerging alternative to pacemaker implantation for selected patients with reflex syncope.
  • Aksu T, Brignole M et al., Europace 2024; PMID: 39082698 - Note: erratum published (PMID: 39932921)

Key Points

  • Cardioneuroablation (CNA) targets cardiac ganglionated plexi to reduce vagal tone
  • Indicated for: vasovagal syncope (cardioinhibitory type), extrinsic vagally-induced sinus bradycardia/arrest, vagally-mediated AV block
  • Provides a non-device, catheter-based alternative to pacemaker implantation in young patients
  • Patient selection is critical: only for documented vagally-mediated bradyarrhythmias, not intrinsic conduction disease
  • Still considered investigational in many centers; not yet in mainstream indications lists

4. Recent High-Impact Evidence (2023-2026)

A. Conduction System Pacing vs. Biventricular Pacing in HFrEF

Ferreira Felix I et al., Heart Rhythm 2024 - PMID: 38382686 | Meta-analysis of 7 RCTs, 408 patients
CSP vs. BiV pacing: CSP produced significantly greater QRS narrowing (-13.3 ms, p=0.02), improved NYHA class (p=0.02), and higher LVEF gain (+2.1%, p=0.03). No significant difference in lead threshold or procedure time.
Bottom line: CSP is at least equivalent to - and possibly better than - BiV pacing for cardiac resynchronization in HFrEF.

B. Upgrading RV Pacemakers to BiV or CSP

Kaza N et al., Europace 2023 - PMID: 36352513 | Meta-analysis, 6 RCTs + 47 observational studies
Upgrade to CRT: LVEF improved +8.4% from baseline 35.5% (RCTs). Upgrade to LBBAP: LVEF improved +11.1% from 39.0%. NYHA class improved with all upgrade strategies. Complication rates: BiV upgrade ~3.7% infection over 24 months; CSP upgrade lead complications 1.8%.
Bottom line: Upgrading is effective and recommended when pacing-induced cardiomyopathy develops. CSP upgrade shows promising results with lower complication rates.

C. Conduction System Pacing in Pacing-Induced Cardiomyopathy (PICM) - 2026 Data

Jin Q et al., Pacing Clin Electrophysiol 2026 - PMID: 41968613 | 20 studies, 821 patients
CSP vs. BiV for PICM: CSP produced greater QRS shortening (-53.3 ms vs. -30.7 ms, p<0.001), higher response rate (84.7% vs. 67.6%), and fewer device-related complications (14.0% vs. 20.1%). HBP had greater QRS shortening; LBBAP had lower pacing thresholds.
Bottom line: The most recent 2026 evidence further supports CSP as a superior strategy to BiV pacing for PICM patients.

D. His Bundle Pacing + AV Node Ablation for AF

Xu L et al., Expert Rev Med Devices 2024 - PMID: 39268942 | 13 studies, 1115 patients
HBP + AVNA for AF: LVEF improved +9.24%, NYHA class improved (-1.12). HBP had comparable efficacy to BiV pacing and LBBP for AF ablation, but lower success rate (85.97%) and more complications (16.1%) than LBBAP.
Bottom line: LBBAP + AVNA is now favored over HBP + AVNA for AF management given better procedural success rates.

E. Rate-Adaptive Pacing in Chronotropic Incompetence

Kuroda S et al., Int J Cardiol 2025 - PMID: 39892565 | 12 RCTs, 1199 patients
Rate-adaptive pacing (DDDR/VVIR) vs. fixed-rate: RAP-on improved peak VO2 (+1.35 mL/kg/min), exercise duration (+0.74 min), and peak HR (+19 bpm). However, benefit was much smaller in patients with HF (VO2 +0.36 vs. +1.95 in non-HF patients, non-significant in HF).
Bottom line: Rate modulation is effective for chronotropic incompetence in non-HF patients; in HF patients, optimization of CRT/CSP should take priority over rate-response programming.

5. Perioperative Pacemaker Protocol (2026 Training Standards)

The 2026 ACC/AHA/HRS Advanced Training Statement on Cardiac Electrophysiology now mandates trainees be proficient in:
  • Left bundle branch area pacing (LBBAP) - "universally adopted as a new way to deploy cardiac stimulation to mitigate pacing-mediated cardiomyopathy"
  • Full knowledge of CSP implantation anatomy and technique
  • CRT optimization including AV and VV delay programming
  • Troubleshooting device malfunction via multi-modality approach (ECG, programmer, stored electrograms)

6. What's Coming: Research Gaps & Emerging Areas

AreaStatus
LBBAP vs. CRT (RCT data)Multiple ongoing RCTs; current data mostly observational
Leadless dual-chamber pacingMicra AV approved; larger trials underway
Conduction system pacing in non-LBBBUncertain benefit; 2025 meta-analysis (PMID: 40731870) shows no advantage over BiV in non-LBBB
Cardioneuroablation vs. pacemakerHead-to-head RCTs needed
MRI-conditional all-pacemaker systemsNear universal; specific protocols still center-dependent
AI-guided pacemaker programmingEmerging; no formal guidelines yet

Quick Reference: Guideline Hierarchy

GuidelineYearSocietyFocus
Bradycardia & Conduction Delay2018ACC/AHA/HRSCore indications, mode selection
Cardiac Physiologic Pacing2023HRS/APHRS/LAHRSCRT, CSP, LBBAP, HBP
Cardioneuroablation2024EHRA/HRS/APHRS/LAHRSCNA as pacemaker alternative
2026 EP Training Standards2026ACC/AHA/HRSTraining + competency in CSP
Important note on the 2018 ACC/AHA/HRS guideline: As of mid-2026, this remains the primary reference for bradycardia indications. The 2023 HRS guideline specifically updates the physiologic pacing strategy and CRT indications but does not replace the 2018 document for fundamental pacemaker indications (sinus node dysfunction, AV block criteria, etc.). Always use both documents together.

Create a comparison table: CSP (HBP/LBBAP) vs CRT vs RV pacing with outcomes

Searching PubMed

"conduction system pacing" AND "biventricular" AND "right ventricular pacing" AND outcomes

Searching PubMed

"left bundle branch area pacing" AND "ejection fraction" AND comparison

Finding Sources
Reading Article

PMID: 42092782

Reading Article

PMID: 40644356

Reading Article

PMID: 40835365

Reading Article

PMID: 40880214

Reading Article

PMID: 41038277

Finding Sources
Excellent data. I have comprehensive outcomes from 5 fresh studies (2025-2026). Now I'll build the comparison table.

CSP (HBP / LBBAP) vs CRT (BiV) vs RV Pacing - Comprehensive Comparison

Evidence synthesized from the 2023 HRS/APHRS/LAHRS Guideline (PMID: 37283271), the CSPACE RCT (JACC 2025, PMID: 40835365), the TREEBEARD registry-RCT (Europace 2025, PMID: 40880214), a 2026 meta-analysis in BMC Cardiovasc Disord (19 studies, n=5,390; PMID: 42092782), a 2024 Heart Rhythm meta-analysis of 7 RCTs (PMID: 38382686), and a 2026 PACE meta-analysis for PICM (PMID: 41968613).

Table 1 - Core Characteristics

FeatureRV PacingCRT (BiV Pacing)HBPLBBAP
MechanismElectrical stimulus to RV apex or septum; non-physiologic spread via myocardiumSimultaneous LV (via coronary sinus) + RV pacing; narrows QRS externallyDirect His bundle stimulation; uses native conduction system below the bundleDeep septal pacing engages left bundle branch fascicles; more distal than HBP
Lead count1 (RV)2-3 (RA + RV + LV)1-2 (His lead ± RV backup)1-2 (LBB lead ± RV backup)
Lead positionRV apex or septumRV apex + coronary sinus (LV) + RAMembranous/para-Hisian septumDeep interventricular septum (3.5-4.5 mm deep)
Ventricular activationAbnormal (LBBB-like), ~160-180 ms QRSNear-normal, 120-140 ms; depends on LV lead positionNarrow (native conduction), typically <130 ms; corrects LBBBNarrow, 120-130 ms; slightly broader than HBP; corrects LBBB
Guideline class (bradycardia, high pacing burden)Class I (standard), but Class IIa for minimizationClass I when LVEF ≤35% + LBBB + QRS ≥150 msClass IIa (alternative to CRT or when CRT not feasible)Class IIa (preferred CSP method)
Year of guideline endorsementDecades; foundational2018 ACC/AHA/HRS2023 HRS guideline2023 HRS guideline

Table 2 - Electrical Outcomes

OutcomeRV PacingCRT (BiV)HBPLBBAP
Paced QRS duration160-185 ms (LBBB-like morphology)120-140 ms (-30 to -40 ms vs. RVP)100-130 ms (near-native); narrows by ~50-60 ms vs. baseline110-135 ms; narrows by ~45-55 ms vs. RVP
QRS narrowing vs. RVP (meta-analysis)Reference~-30 ms-53 ms (PICM meta-analysis, PMID: 41968613)-53 ms (combined CSP estimate)
QRS narrowing vs. BiV-Reference-13 to -36 ms further reduction-13 to -36 ms further reduction
LBBB correctionNo; creates LBBB-like patternPartial (external resynchronization)Yes - corrects native LBBB by pacing at or above blockYes - corrects LBBB by engaging LBB below block
AV synchronyMaintained in DDDMaintained (with RA lead)MaintainedMaintained

Table 3 - Echocardiographic / Functional Outcomes

OutcomeRV PacingCRT (BiV)CSP (combined)Source
LVEF change vs. baseline-3 to -5% (over time, high pacing burden)+8-10% (RCTs in HFrEF)+9-12%Meta-analyses; Kaza et al. 2023
LVEF change: CSP vs. BiV-Reference+2.1% more (p=0.03)Ferreira Felix et al. 2024 (PMID: 38382686)
LVEF change: CSP vs. RVP (AV block, meta-analysis)Reference-+2.60% (p<0.0001)Ahmed et al. 2026 (PMID: 42092782)
LV end-diastolic diameter (LVEDD)Increases (adverse remodeling)Decreases-1.54 mm vs. RVP (p<0.0001)Ahmed et al. 2026 (PMID: 42092782)
NYHA class improvementMinimal-0.8 to -1.2-1.0 to -1.2Kaza et al. 2023
NYHA: CSP vs. BiV-Reference-0.37 SMD (p=0.02)Ferreira Felix et al. 2024
NYHA: CSP vs. BiV (AVNA for AF)-Reference-0.53 (p=0.03)Mavilakandy et al. 2025 (PMID: 40644356)
6-min walk / peak VO2Reduced vs. normal+2.6 mL/kg/min (vs. no CRT)Comparable to BiV; limited dataVarious

Table 4 - Clinical Hard Outcomes

OutcomeRV PacingCRT (BiV)CSP (combined HBP+LBBAP)Source
All-cause mortalityReference (highest risk in high-pacing)Reduced in HFrEF (NNT ~18 in CARE-HF, COMPANION)RR 0.50 vs. RVP (p<0.0001)Ahmed et al. 2026 (PMID: 42092782)
HF hospitalizationReferenceReduced ~37% vs. RVPRR 0.39 vs. RVP (p<0.0001)Ahmed et al. 2026
Pacing-induced cardiomyopathy (PICM)10-20% incidence with high pacing burdenPrevented when used upfrontRR 0.36 vs. RVP (p=0.039); 84.7% response rate vs. 67.6% BiVAhmed et al. 2026; Jin et al. 2026 (PMID: 41968613)
CRT upgrade required10-15% of patients over timeN/A (already CRT)HR 0 vs. RVP (p=0.043; no upgrades needed)CSPACE RCT 2025 (PMID: 40835365)
Composite PICM + CRT upgrade + HFH + mortalityReference-HR 0.35 (65% relative risk reduction vs. RV septal pacing)CSPACE RCT 2025
CV death + HFH (LBBAP vs. RVP, <65 yrs)Reference-HR 0.78 (22% RRR); driven by HFH reductionTREEBEARD RCT 2025 (PMID: 40880214)
AF developmentHigher incidence (atrial remodeling from dyssynchrony)Reduced vs. RVPLess data; expected benefitObservational data

Table 5 - Procedural Characteristics

FeatureRV PacingCRT (BiV)HBPLBBAP
Procedure complexitySimple (low)Moderate-high (CS lead challenging)High (small His target, steep learning curve)Moderate (more forgiving than HBP)
Procedure timeShort (~45-60 min)Long (~90-150 min)Similar to BiV (longer than RVP)~60-90 min; comparable to BiV
Fluoroscopy timeShortLongerLonger than RVPLonger than RVP
Success rate~100%85-95% (CS lead placement)80-90% (lower than LBBAP; His is small target)90-96% (higher than HBP)
Lead revision rateLow ~1-2%3-5% (CS lead most prone)8-12% (high threshold drift over time)3-5% (improving with experience)
Pacing threshold at implantLow (0.5-1.0 V)Variable (CS lead: 1.0-2.5 V)Higher (1.0-2.0 V; rises with time)Lower than HBP (0.6-1.2 V)
Lead impedance stabilityStableModerate (CS lead variable)Variable (fibrosis-related rise)More stable than HBP
Backup ventricular lead neededNot usuallyBuilt-in RV leadOften (for high-threshold backup)Sometimes (if LBBAP threshold marginal)
Septal perforation riskNoneNoneRareLow but possible (deep septal penetration)

Table 6 - Complications

ComplicationRV PacingCRT (BiV)HBPLBBAP
Pneumothorax~1-2%~2% (BiV upgrade)~1-2%~1-2%
Cardiac tamponade<1%~1.4% (BiV upgrade)RareLow
Infection (pocket/lead)~1-2%~3.7% at 24 months (upgrades)~1-2%~1-2%
Threshold rise / exit blockRareRare (CS lead variable)More common (fibrosis, 8-12% lead issues)Less common than HBP
Septal hematoma (LBBAP-specific)NoneNoneNoneRare (<1%)
Phrenic nerve stimulationNone2-4% (LV lead)RareRare
Device-related adverse outcomes (PICM cohort)20.1%-14.0% (CSP combined; p<0.001)14.0% (CSP combined; p<0.001)
Lead revision (CSPACE RCT)1%-7.9% (CSP combined)7.9%

Table 7 - Indications & Patient Selection

Clinical ScenarioBest ChoiceEvidence LevelRationale
AV block, normal LVEF, low pacing burden expectedRV pacingClass I / Level CSimple, safe, effective
AV block, expected pacing >40%, LVEF 36-50%CSP (LBBAP preferred)Class IIa / Level BPrevents PICM; 2023 HRS guideline
AV block, expected pacing >40%, LVEF ≤35%CRT or CSPClass I / Level A (CRT); IIa (CSP)CRT has strongest evidence; CSP emerging
HFrEF + LBBB + QRS ≥150 msCRTClass I / Level AMADIT-CRT, RAFT, CARE-HF, COMPANION
HFrEF + non-LBBB + QRS ≥130 msCRT (Class IIa)IIa / BLess robust evidence than LBBB subgroup
CRT non-responder (~30% of patients)Upgrade to CSP (HBP or LBBAP)Class IIa / Level BCSP corrects true electrical dyssynchrony
Pacing-induced cardiomyopathy (PICM)Upgrade to CSP preferred over BiVIIa / BCSP: 84.7% response rate vs. 67.6% BiV
AF + fast ventricular rate + failed rate controlAVNA + CSP (LBBAP preferred)IIa / BLBBAP + AVNA: better success rate than HBP
SSS with intact AV conductionAAI(R) or DDD(R) standard RV pacingClass ICSP not routinely needed
Vasovagal syncope, cardioinhibitory typeConsider CNA (catheter-based) vs. pacemakerIIbEmerging EHRA/HRS 2024 statement

Table 8 - HBP vs. LBBAP Head-to-Head

FeatureHBPLBBAPWinner
QRS narrowingGreater (stimulates above LBBB)Slightly less narrowHBP
LBBB correctionBetter correctionGood but slightly lessHBP
Success rate80-90%90-96%LBBAP
Pacing thresholdHigher; rises over timeLower; more stableLBBAP
Lead revision rate8-12%3-5%LBBAP
Procedural difficultyHigher (small His target)More manageableLBBAP
Long-term reliabilityLower (threshold instability)HigherLBBAP
QRS duration at follow-upNarrowestNear-narrowHBP (marginally)
Overall: 2023 HRS preferenceIIaIIa (preferred CSP method)LBBAP

Summary Hierarchy (Current Evidence Consensus)

Physiologic superiority:
HBP ≈ LBBAP > CRT (BiV) >> RV Pacing

Procedural reliability:
LBBAP > CRT (BiV) > HBP > RV Pacing

Evidence base (RCT volume):
CRT (BiV) >> LBBAP ≈ HBP >> RV Pacing (as comparator)

Guideline strength:
CRT (Class I, Level A) > LBBAP/HBP (Class IIa, Level B)
Key takeaway from the CSPACE RCT (JACC, Aug 2025): This landmark trial - the most rigorous RCT to date - showed CSP achieves a 65% relative reduction in the composite of PICM, CRT upgrade, HF hospitalization, and death vs. RV septal pacing (HR 0.35, p<0.001) in AV block. No patient in the CSP arm required CRT upgrade. This trial strongly supports upfront CSP as the preferred strategy when high pacing burden is anticipated.
LBBAP has now overtaken HBP as the preferred CSP modality due to higher success rates, lower thresholds, and fewer lead revisions - though HBP offers marginally narrower QRS when it works. The 2023 HRS guideline acknowledges this, and the 2026 ACC/AHA/HRS training statement designates LBBAP as "universally adopted."

Normal parameters inpacemaker

Finding Sources
Finding Sources
Searching Images

pacemaker programming parameters chart threshold sensing impedance

This image presents a multi-channel real-time telemetry recording of a ventricular pacing threshold analysis in VVI mode. It consists of five synchronous tracings: 1) Event markers at the top, where long vertical bars represent ventricular pacing spikes and short bars indicate atrial sensing. 2) Transvalvular impedance (TVI) tracing measured in Ohms (0–50 Ohm scale), serving as a hemodynamic sensor for ventricular ejection. 3–5) Simultaneous surface ECG recordings (leads I, III, and aVR) scaled to 0.15 mV. The sequence illustrates a capture failure at the sixth pacing spike, where the pulse energy falls below the threshold. Visually, the successful pacing in the first five beats is confirmed by periodic TVI waveform rises (indicating mechanical ejection) and wide QRS complexes on the ECG. Upon the sixth spike (capture failure), the TVI tracing remains flat at the diastolic baseline, and the ECG shows a pacing spike without an ensuing QRS complex. The final segments show the pacemaker's response by increasing pulse amplitude to restore effective ventricular stimulation and mechanical capture.

This image presents a multi-channel real-time telemetry recording of a ventricular pacing threshold analysis in VVI mode. It consists of five synchronous tracings: 1) Event markers at the top, where long vertical bars represent ventricular pacing spikes and short bars indicate atrial sensing. 2) Transvalvular impedance (TVI) tracing measured in Ohms (0–50 Ohm scale), serving as a hemodynamic sensor for ventricular ejection. 3–5) Simultaneous surface ECG recordings (leads I, III, and aVR) scaled to 0.15 mV. The sequence illustrates a capture failure at the sixth pacing spike, where the pulse energy falls below the threshold. Visually, the successful pacing in the first five beats is confirmed by periodic TVI waveform rises (indicating mechanical ejection) and wide QRS complexes on the ECG. Upon the sixth spike (capture failure), the TVI tracing remains flat at the diastolic baseline, and the ECG shows a pacing spike without an ensuing QRS complex. The final segments show the pacemaker's response by increasing pulse amplitude to restore effective ventricular stimulation and mechanical capture.

This diagnostic image displays real-time cardiac telemetry and surface ECG tracings (leads I, II, and aVR) during a ventricular pacing threshold analysis in VDD mode. The top tracing shows event markers: short vertical bars indicate atrial sensing, intermediate bars represent ventricular pacing pulses, and the longest bars signify ventricular sensing within the refractory period. The second tracing illustrates transvalvular impedance (TVI), used as a hemodynamic sensor to confirm ventricular ejection. Initially, the ECG shows wide QRS complexes evoked by ventricular pacing. From the fifth pulse onward, the stimulation intensity falls below the myocardial threshold, resulting in a transition to narrow QRS complexes indicative of intrinsic conduction. Despite the loss of electrical capture, the TVI tracing maintains rhythmic fluctuations, demonstrating that mechanical ventricular ejection continues via natural activation. This comparison highlights the clinical utility of TVI in distinguishing between electrical capture loss and the total absence of mechanical contraction, facilitating safer pacemaker autoregulation and capture surveillance.

This diagnostic image displays real-time cardiac telemetry and surface ECG tracings (leads I, II, and aVR) during a ventricular pacing threshold analysis in VDD mode. The top tracing shows event markers: short vertical bars indicate atrial sensing, intermediate bars represent ventricular pacing pulses, and the longest bars signify ventricular sensing within the refractory period. The second tracing illustrates transvalvular impedance (TVI), used as a hemodynamic sensor to confirm ventricular ejection. Initially, the ECG shows wide QRS complexes evoked by ventricular pacing. From the fifth pulse onward, the stimulation intensity falls below the myocardial threshold, resulting in a transition to narrow QRS complexes indicative of intrinsic conduction. Despite the loss of electrical capture, the TVI tracing maintains rhythmic fluctuations, demonstrating that mechanical ventricular ejection continues via natural activation. This comparison highlights the clinical utility of TVI in distinguishing between electrical capture loss and the total absence of mechanical contraction, facilitating safer pacemaker autoregulation and capture surveillance.

Table 9 Pacemaker interrogation and programming approach for CPP <table><thead><tr><th></th><th>HBP</th><th>LBBAP</th><th>CRT</th></tr></thead><tbody><tr><td>Capture thresholds</td><td>Determine His bundle capture relative to RV capture; program output to ensure His bundle capture (at least 1 V above the threshold)</td><td>Determine LBB (LV septal) capture and anodal capture</td><td>Determine LV (CS lead)-only capture and anodal capture</td></tr><tr><td>Capture assessment algorithms</td><td>Avoid, unless known that His bundle and RV capture thresholds are similar</td><td>Capture assessment algorithms can be utilized successfully</td><td>Capture assessment algorithms can be utilized successfully; LV-only pacing may be preferred in some cases</td></tr><tr><td>AV delays</td><td>Program 30–50 ms shorter than conventional parameters*</td><td>Program 20–30 ms shorter than conventional parameters*</td><td>Program 10–20 ms shorter than conventional parameters*</td></tr><tr><td>Atrial oversensing</td><td>Atrial oversensing can occur with proximal lead placement and may need appropriate programming to also avoid ventricular undersensing</td><td></td><td></td></tr><tr><td>Ventricular unipolar sensing</td><td>Avoid if pacing dependent</td><td></td><td></td></tr></tbody></table>

Table 9 Pacemaker interrogation and programming approach for CPP <table><thead><tr><th></th><th>HBP</th><th>LBBAP</th><th>CRT</th></tr></thead><tbody><tr><td>Capture thresholds</td><td>Determine His bundle capture relative to RV capture; program output to ensure His bundle capture (at least 1 V above the threshold)</td><td>Determine LBB (LV septal) capture and anodal capture</td><td>Determine LV (CS lead)-only capture and anodal capture</td></tr><tr><td>Capture assessment algorithms</td><td>Avoid, unless known that His bundle and RV capture thresholds are similar</td><td>Capture assessment algorithms can be utilized successfully</td><td>Capture assessment algorithms can be utilized successfully; LV-only pacing may be preferred in some cases</td></tr><tr><td>AV delays</td><td>Program 30–50 ms shorter than conventional parameters*</td><td>Program 20–30 ms shorter than conventional parameters*</td><td>Program 10–20 ms shorter than conventional parameters*</td></tr><tr><td>Atrial oversensing</td><td>Atrial oversensing can occur with proximal lead placement and may need appropriate programming to also avoid ventricular undersensing</td><td></td><td></td></tr><tr><td>Ventricular unipolar sensing</td><td>Avoid if pacing dependent</td><td></td><td></td></tr></tbody></table>
