Frontal Sinus: Anatomy, Anatomical Variations, Fronto-Ethmoidal Complex, Frontal Recess, and Onodi Cells

1. FRONTAL SINUS - BASIC ANATOMY AND DEVELOPMENT

Embryology and Development

• Radiologically visible in most children by age 8 years
• Significant pneumatization occurs in early adolescence
• Development continues until 18 years of age
• Adult proportions are essentially reached by age 10-12 years

2. ANATOMICAL VARIATIONS OF THE FRONTAL SINUS

Size and Pneumatization Variants

Mucociliary Flow Pattern (Messerklinger, 1955)

3. THE FRONTO-ETHMOIDAL COMPLEX

Key Structural Components

• The most anterior ethmoidal air cell, present in over 90% of patients
• Its posterior wall forms the anterior boundary of the frontal recess
• The degree of agger nasi pneumatization directly influences the position of the superior uncinate process and the thickness of the nasofrontal beak
• Endoscopically appears as a bulge at the middle turbinate attachment

• Crescent-shaped bony structure whose superior attachment determines the direction of frontal sinus drainage
• Attachment patterns (Scott-Brown; multiple attachments in >50% of cases):
  • Medial orbital wall (lamina papyracea): 85% of cases → frontal drainage is medial to the uncinate
  • Skull base: 10% of cases → frontal drainage is lateral to the uncinate
  • Middle turbinate: → frontal drainage is lateral to the uncinate
  • Combination attachments: ~57% of cases
• The classic teaching of three distinct uncinate attachments is "neither surgically relevant nor accurate" (Wormald/Scott-Brown)
• Surgical rule: The frontal recess is medial to the remnant uncinate ("vertical bar") in 85% of cases

• The largest and most constant anterior ethmoidal cell
• Forms the posterior boundary of the frontal recess when it extends to the skull base
• The bulla lamella is the posterior wall of the bulla; if absent superiorly, the suprabullar space communicates directly with the frontal recess (placing the anterior ethmoidal artery at risk during dissection)

• Traverses the skull base from lateral-posterior to medial-anterior
• More likely to lie in a mesentery (suspended below the skull base) when olfactory fossa depth >4 mm (Keros II-III)
• From anterior to posterior, lies just behind the bulla ethmoidalis or any stacked cells above it
• On CT: "nipple sign" - pierces medial orbit just posterior to the globe where the superior oblique and medial rectus are closely adjacent

4. THE FRONTAL RECESS

Boundaries

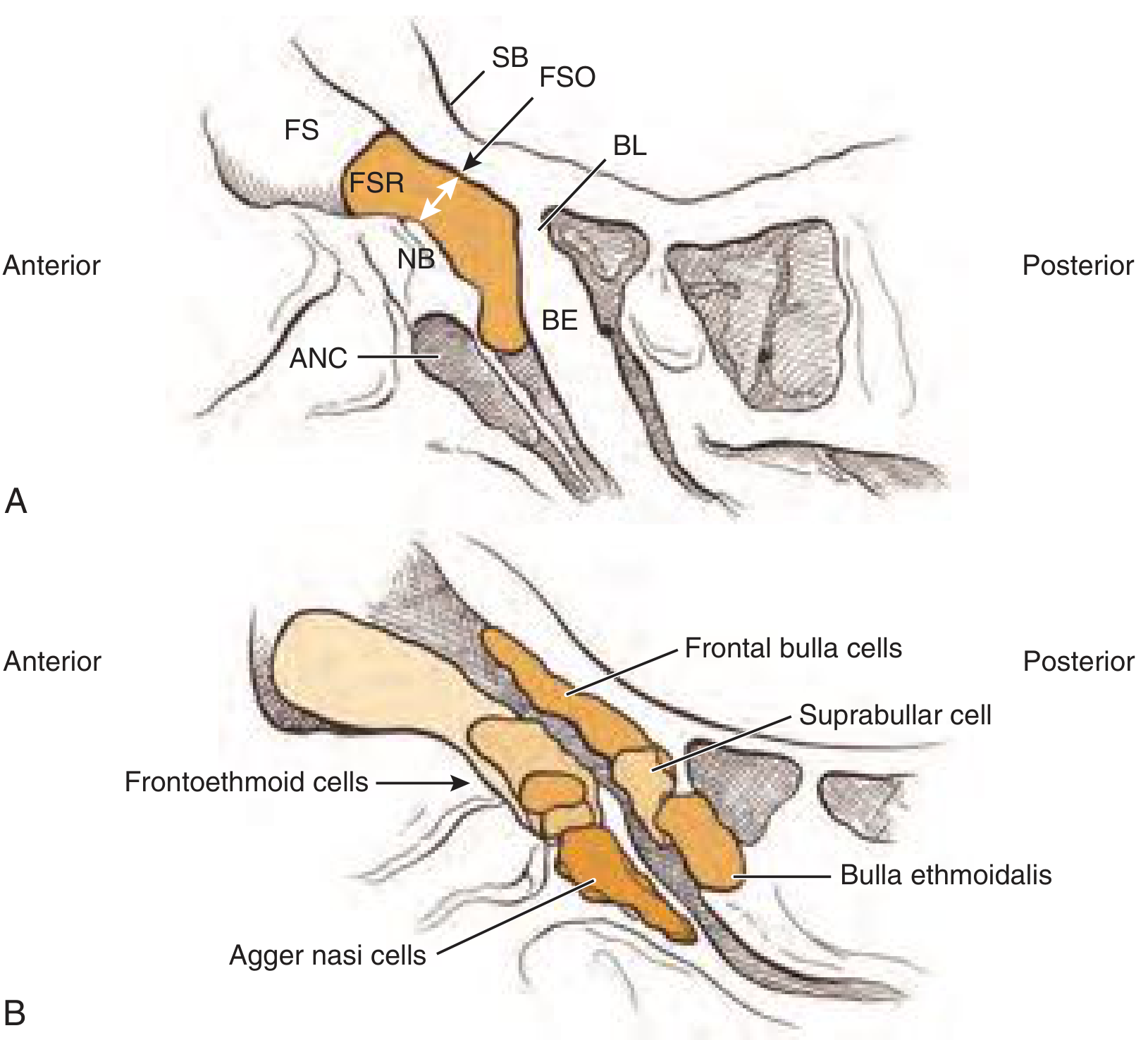

Fig. (A) The frontal sinus recess (FSR, shaded) is an hourglass with its waist at the frontal sinus ostium (FSO). ANC = agger nasi cell, NB = nasal beak, BE = bulla ethmoidalis, BL = bulla lamella, SB = skull base, FS = frontal sinus. (B) Frontoethmoidal cells pneumatizing around the frontal recess. - Cummings Otolaryngology

Drainage Pathway

• The middle meatus (most common)
• The superior aspect of the infundibulum (less common)

5. FRONTAL RECESS CELLS (FRONTOETHMOIDAL CELLS)

The Paranasal Surgical Box (Scott-Brown)

• Medially: Intersinus septum and middle turbinate
• Laterally: Lamina papyracea
• Anteriorly: Nasofrontal beak
• Posteriorly: Skull base

Classification Systems

A. Kuhn Classification (Classic) - with IFAC equivalents

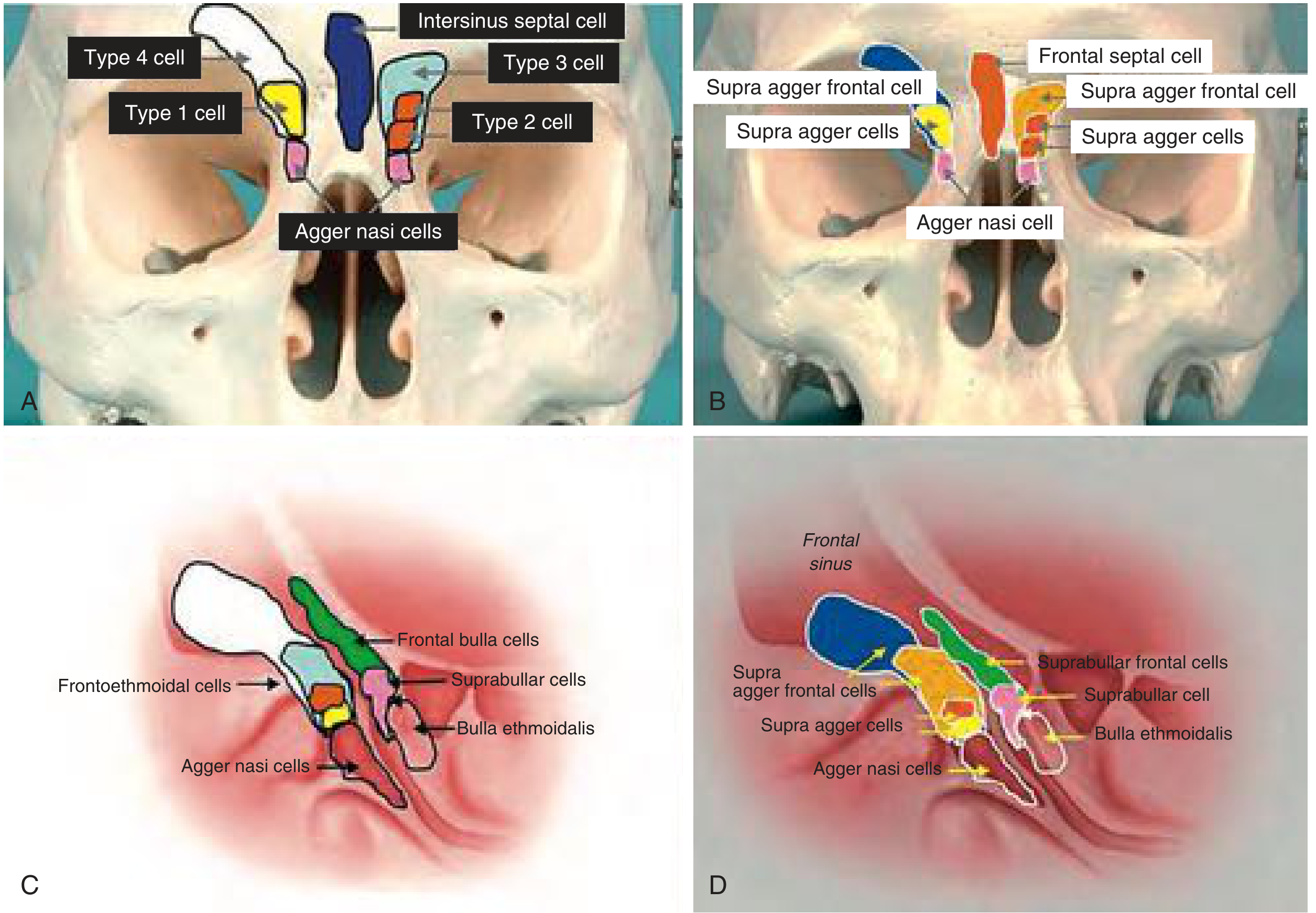

Fig. Frontal cells depicted on skull model. (A, C) Kuhn nomenclature; (B, D) IFAC nomenclature. - Cummings Otolaryngology, p. 872

B. IFAC (International Frontal Sinus Anatomy Classification, 2016)

• Anterior cells: Supra agger cells (SAC) and Supra agger frontal cells (SAFC)
• Posterior cells: Supra bulla cells and Supra bulla frontal cells (SBFC)
• Medial cells: Frontal septal cell

• Anterior cells (frontal ethmoidal/Kuhn type cells) → push the drainage pathway posteriorly and/or medially
• Posterior cells (frontal bulla cells) → push the drainage pathway anteriorly
• Medial cells (intersinus septal cells) → push the drainage pathway laterally

6. ONODI CELLS (SPHENOETHMOIDAL CELLS)

Definition

Key Facts

Clinical Significance

1. Risk of optic nerve injury - The optic nerve projects along the superolateral wall of the Onodi cell, placing it at increased risk of iatrogenic injury during posterior ethmoid/sphenoid surgery
2. Risk of mistaken identity - Onodi cells can be mistaken for the true sphenoid sinus, leading to incomplete surgery
3. Pyramidal shape on CT - The most posterior ethmoidal cell has a pyramidal shape with the apex pointing posteriorly, laterally, and superiorly toward the optic nerve
4. Surgical identification: When an Onodi cell is present, the sphenoid sinus ostium lies inferiorly and medially; applying the maxillary sinus roof/orbital floor landmark identifies the correct level of the sphenoid ostium
5. When the Onodi cell is opened during surgery, the partition between it and the sphenoid sinus must be removed; the bony prominences of the optic and carotid canals should be clearly identified

Summary Table: Key Cell Relationships
