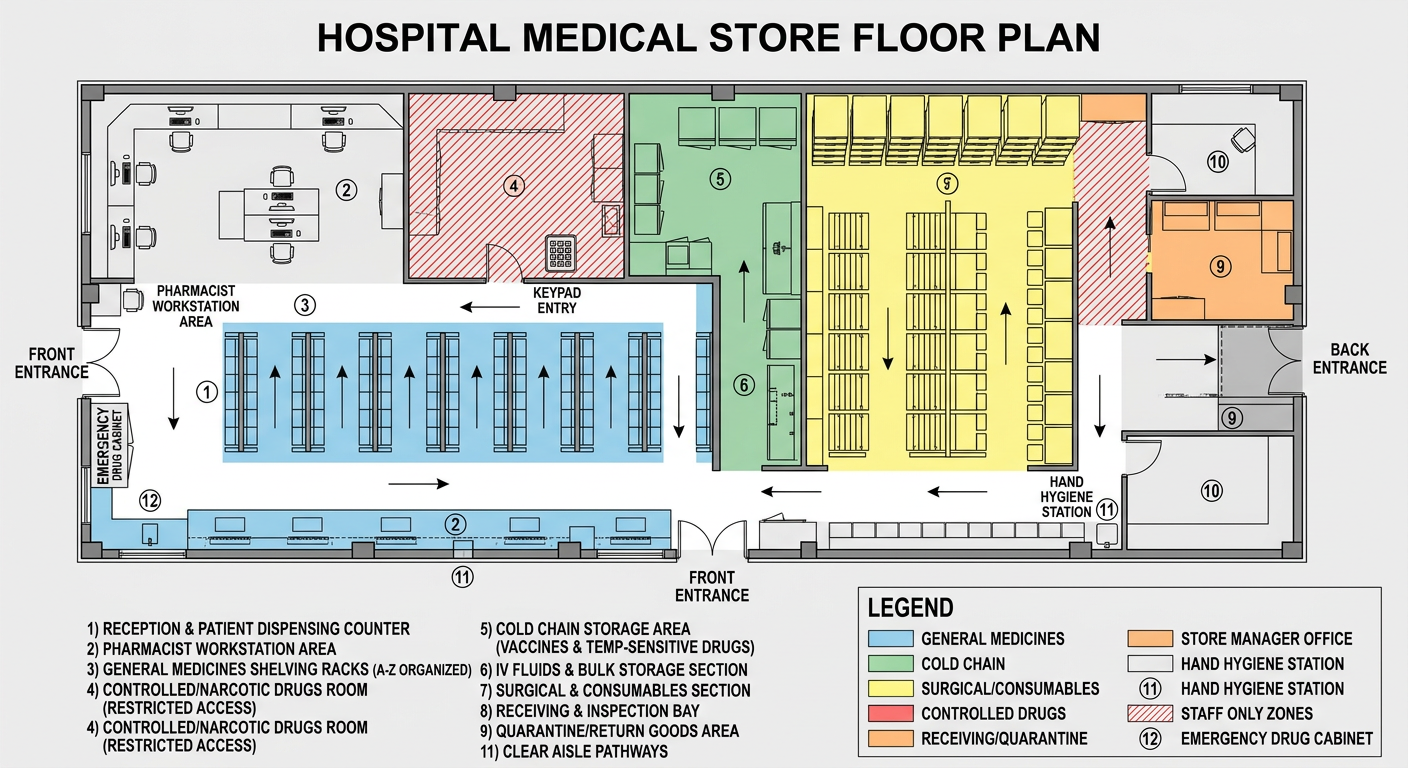

Visual Floor Plan

---

Physical Layout and Setup of a Well-Managed Hospital Medical Store (Pharmacy)

---

1. Overview: Purpose and Goals

1. Patient Safety - Minimizes dispensing errors and medication mix-ups
2. Workflow Efficiency - Eliminates unnecessary staff movement, separates goods-in traffic from dispensing traffic
3. Regulatory Compliance - Satisfies the Drugs & Cosmetics Act, 1940, NDPS Act, 1985, and NABH accreditation standards
4. Inventory Integrity - Protects stock from degradation, theft, and unauthorized access
5. Infection Control - Prevents cross-contamination through clean circulation routes
6. Scalability - Accommodates growth in patient load, formulary expansion, and technology upgrades

---

2. Key Zones and Their Design

2.1 Reception and Patient Dispensing Counter

• Location: Front of pharmacy, directly accessible from OPD corridor
• Counter height: 90-100 cm; counter depth 60-75 cm (staff side)
• Minimum length: 3 meters (single counter); 6-9 meters (combined inpatient/outpatient)
• Fixtures: Computer terminal with barcode scanner, label printer, glass/polycarbonate partition screens (45-60 cm above counter), queue management system with token displays
• Key rule: A physical barrier must always separate patients from pharmacy stock areas

2.2 Pharmacist Workstation

• Location: Set back from the dispensing counter, clear line-of-sight to dispensing area, staff-only access
• Area: 10-18 sq. meters (depending on staff size)
• Fixtures: High-spec computer with dual monitors, reference library (Indian Pharmacopoeia, BNF, CIMS India, hospital formulary), lockable filing cabinet, direct telephone lines to ICU, wards, and Medical Superintendent

2.3 General Medicines Storage Area

• Area: Minimum 50-80 sq. meters for a 100-bed hospital
• Aisle width: 1.2 meters minimum; 1.5 meters on primary aisles for trolleys
• Ceiling height: 3-3.5 meters for high-density shelving
• Organization: Strict alphabetical order by approved generic (INN) name - mandatory under NABH
• Bin coding: Unique location code on every shelf (e.g., G-A-3-L = General, Aisle A, Bay 3, Left)
• Color-coded shelf-edge labels:

• LASA management: Look-alike/sound-alike pairs must be physically separated by at least one shelf position, flagged with a yellow LASA sticker, and listed in the hospital's LASA register (NABH requirement)

2.4 Controlled and Narcotic Drug Room

• Location: Fully enclosed interior room, no external windows, no patient visibility
• Area: 6-10 sq. meters (100-bed hospital); 12-15 sq. meters (200+ beds)
• Security requirements:
  • Double-lock system: Outer solid steel door (1.8 mm gauge minimum) with deadbolt + inner steel cabinet with separate padlock or digital combination lock - keys held by two different staff members, never together
  • CCTV: Minimum one camera inside with a 30-day footage retention (90 days for NDPS areas)
  • Access log: Every entry recorded - name, designation, date, time, purpose
  • Narcotic register: Separate bound register per NDPS drug, audited weekly by Chief Pharmacist and monthly by Medical Superintendent
  • Lighting: Minimum 300 lux, shadow-free overhead fixtures

2.5 Cold Chain Area

• Equipment: Pharmaceutical-grade refrigerators (2-8°C); separate pharmaceutical freezer (-15 to -25°C) if required; minimum 2 refrigerator units for any 50+ bed hospital
• Temperature monitoring: Electronic data loggers recording at 30-minute intervals; manual temperature log twice daily; alarm thresholds set for any deviation beyond 2-8°C range
• Power supply: Dedicated UPS with generator changeover within 30 seconds; voltage stabilizers on every unit
• Physical setup: 15 cm clearance on each side, 30 cm at rear for heat dissipation; nothing stored in door trays

2.6 IV Fluids and Bulk Storage Area

• Location: Near receiving bay, ground floor strongly preferred
• Area: Minimum 20 sq. meters (100-bed); 35-50 sq. meters (larger hospitals)
• Floor load capacity: 500-750 kg per sq. meter (engineered requirement)
• Fixtures: Heavy-duty industrial steel racking with pallet bays, pallet jack/hand truck
• Stock management: Strict First Expiry, First Out (FEFO) basis; visual inspection of all IV bags on receipt

2.7 Surgical and Consumables Section

• Area: Minimum 15 sq. meters (100-bed hospital)
• Organization: By product category - sutures, cannulas, catheters, dressings, gloves; sterile packs kept separate from non-sterile consumables
• Shelving: Open-face metal, 45-60 cm depth for boxed items; each shelf labeled with product name, specification, bin code, and minimum stock level

2.8 Receiving and Inspection Bay

• Location: At external goods entrance; delivery personnel must not enter main storage area
• Area: 12-18 sq. meters; 4 sq. meters waiting area for delivery personnel
• Fixtures: Inspection counter (2 m x 75 cm), computer/tablet for stock receipt, barcode scanner, weighing scale, CCTV camera
• Lighting: Minimum 500 lux for accurate label reading
• One-way principle: Accepted goods proceed inward; rejected goods proceed to quarantine - never mixed

2.9 Quarantine and Return Goods Area

• Location: Adjacent to receiving bay, physically separated by partition wall or lockable cage
• Area: 6-8 sq. meters
• Sub-zones within: "Returned from Ward," "Damaged on Receipt," "Near-Expiry," "Manufacturer Recall," "Awaiting Disposal" - each clearly labeled
• Quarantine sticker: Every item tagged with a red "QUARANTINE" sticker bearing date, reason, and pharmacist's name
• Cold chain quarantine: Separate temperature-controlled holding space for cold chain items in quarantine

2.10 Store Manager's Office

• Area: 10-12 sq. meters
• Location: Inside pharmacy with glass partition/internal window to oversee dispensing area
• Fixtures: Management desk with computer/printer/telephone, lockable filing cabinets, meeting table (4 chairs), safe/strong-box for emergency cash and key duplicates

---

3. Infrastructure Requirements

3.1 Flooring

• Industrial-grade epoxy-coated or vitrified tiles - seamless, non-porous, chemical-resistant
• Anti-slip properties in receiving bay and cold chain area
• Color-coded vinyl floor marking tape for zone boundaries and traffic lanes
• Cove skirting at floor-wall junction to eliminate dirt traps
• IV fluid zone: minimum 500 kg/sq. meter structural floor load capacity

3.2 Lighting

• General storage: minimum 300 lux at shelf label level
• Dispensing counter and workstation: minimum 500 lux
• Receiving bay: minimum 500 lux
• Emergency backup lighting: 30 lux on exit routes for 60 minutes minimum
• Flush-mounted or recessed fixtures only - no open fluorescent strips (dust accumulation)
• No natural light as primary light source (UV degrades pharmaceuticals)

3.3 Ventilation and Air Conditioning

• General storage temperature: 18-25°C; relative humidity (RH): 45-65%
• Air changes: 6-8 per hour in storage areas; 4-6 per hour in administrative areas
• Separate AHU for the pharmacy (not shared with other departments)
• Exhaust fans in receiving bay, quarantine zone, and IV fluid storage

3.4 Humidity Control

• Humidity data loggers in all storage areas and dispensing zone
• Deviations above 65% RH require investigation and corrective action within 24 hours
• Pharmaceutical-grade dehumidifiers during monsoon months if required

3.5 Electrical Requirements

• Dedicated electrical sub-panel with clearly labeled circuit breakers per zone
• UPS backup for all computer terminals and refrigerators; generator changeover within 30 seconds
• Minimum 4 earthed sockets per dispensing bay; 6 at pharmacist workstation
• All wiring in conduit per IS: 732 standard; earthing verified annually

---

4. Safety and Security Features

4.1 Fire Safety

• Smoke and heat detectors connected to the hospital's central fire alarm panel
• CO2 extinguishers at all zone exit points; ABC dry powder in receiving bay
• Flammable materials (alcohol, solvents, aerosols) in dedicated flameproof steel cabinet
• Minimum two marked emergency fire exits with push-bar panic hardware
• Fire-rated partition wall (minimum 60-minute fire resistance) between controlled drug room and main storage
• Automatic sprinkler system throughout; pre-action sprinklers in cold chain area

4.2 CCTV Surveillance

• Cameras at: dispensing counter, receiving bay, inside controlled drug room, all storage aisles, main entry/exit
• Minimum 2 megapixel IP cameras with infrared capability
• Continuous 24/7 recording; 30-day retention (90 days for NDPS-related areas)
• Connected to hospital security control room for live monitoring

4.3 Access Control

• Biometric/swipe card access control at main pharmacy entry - authorized staff only
• Separate access mechanism for controlled drug room
• Access logs reviewed weekly by the Chief Pharmacist
• After-hours entry requires dual authorization (two staff members)

4.4 Emergency Drug Cabinet

• Wall-mounted, lockable cabinet adjacent to dispensing counter
• Contents defined by the hospital's clinical pharmacology committee (Adrenaline, Atropine, Hydrocortisone, Dextrose 50%, Salbutamol, etc.)
• Checked at every shift handover with date, time, and pharmacist signature recorded
• Items used must be replaced within 30 minutes with full documentation

---

5. Flow Design

5.1 Goods-In Flow

5.2 Dispensing Flow

5.3 Staff Movement

5.4 Patient Flow

5.5 One-Way Principle

---

6. Space Recommendations by Hospital Size

6.1 50-Bed Hospital (Total minimum: ~103 sq. meters / 1,109 sq. ft.)

6.2 100-Bed Hospital (Total minimum: ~176 sq. meters / 1,894 sq. ft.)

6.3 200-Bed and Above (Total minimum: ~324 sq. meters / 3,488 sq. ft.)

General benchmark: 4-6 sq. meters per hospital bed for total pharmacy complex area (inclusive of all zones and circulation space).

---

7. Regulatory Compliance Summary

---

8. Key Design Principles for Administrators

1. Get the layout right at design stage. Retrofit modifications cost 3-5 times more than correct initial planning.
2. Involve a senior pharmacist from day one. Architects lack the specialized knowledge of pharmaceutical storage science and dispensing workflow.
3. Do not undersize the receiving bay or quarantine area. These are the first line of defense against substandard or counterfeit medicines entering stock.
4. Cold chain power backup is non-negotiable. A single excursion can render an entire refrigerator of vaccines unusable - a patient safety risk and significant financial loss.
5. Design for NABH audit readiness from the start. Surveyors assess the pharmacy physically: zone separation, temperature logs, narcotic registers, bin labeling, CCTV, and access control are all physically inspected.
6. Build in 20% additional capacity. Pharmaceutical needs grow faster than most administrators anticipate due to formulary expansion and rising patient volumes.

---
