The Periotic (Bony/Osseous) Labyrinth

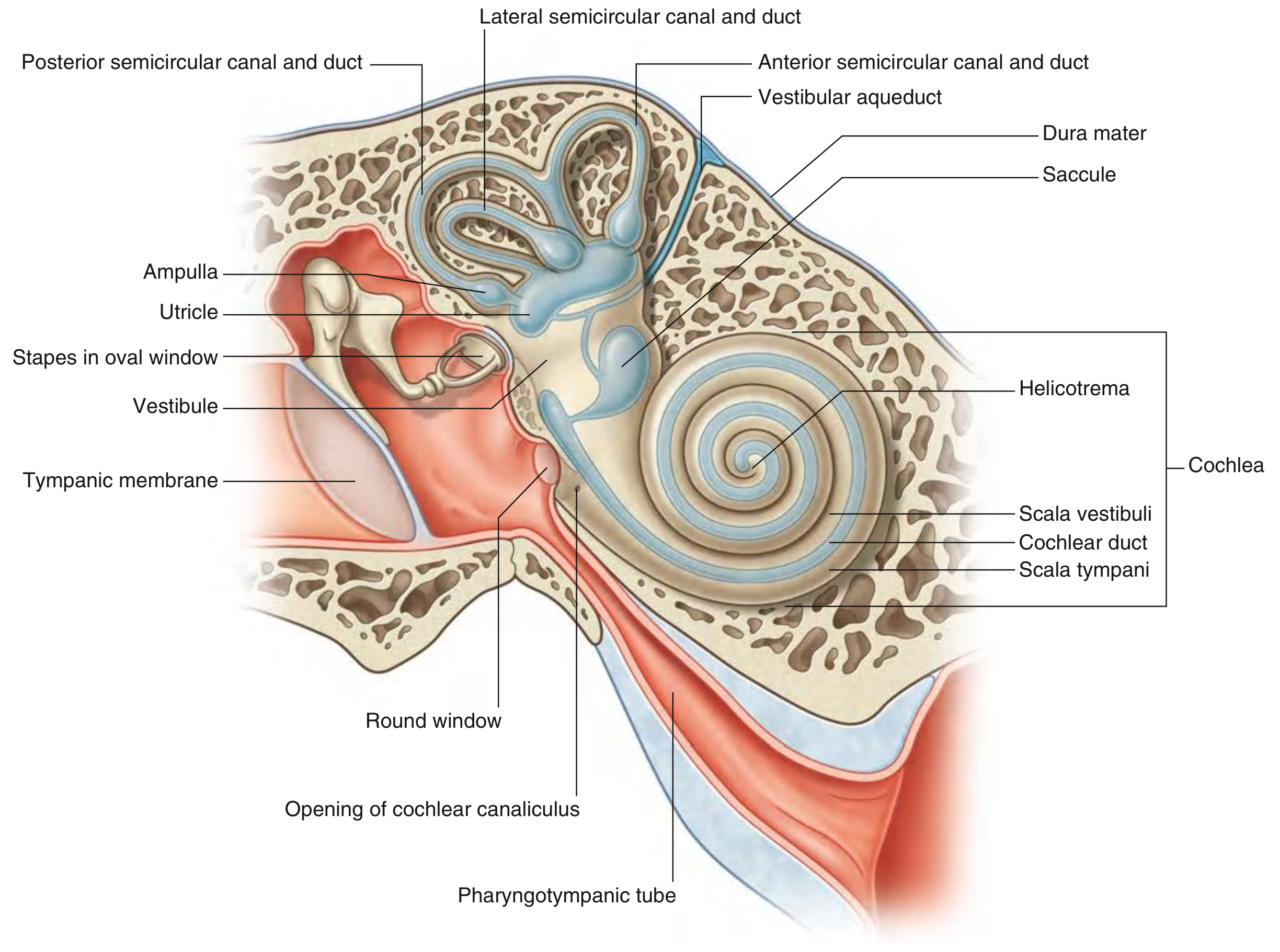

Parts of the Bony Labyrinth

1. Vestibule

• The central part of the bony labyrinth
• Contains the oval window in its lateral wall (where the stapes footplate transmits sound vibrations into the perilymph)
• Communicates anteriorly with the cochlea and posterosuperiorly with the semicircular canals
• Houses two sacs of the membranous labyrinth: the saccule and utricle (the otolith organs for linear acceleration and gravity detection)
• The vestibular aqueduct (endolymphatic duct) exits the vestibule and passes through the petrous bone to the posterior cranial fossa

2. Semicircular Canals

• Three canals - anterior (superior), posterior, and lateral - project posterosuperiorly from the vestibule
• Each canal forms two-thirds of a circle and opens at both ends into the vestibule
• The canals are oriented at right angles to each other, maximizing sensitivity to rotational movement in any plane
• One end of each canal is dilated to form the ampulla, which contains the crista ampullaris (sensory receptor for angular acceleration)

3. Cochlea

• Projects anteriorly from the vestibule
• A bony, snail-shaped structure that spirals 2.5 turns around a central bony axis called the modiolus
• The base faces posteromedially (near the internal acoustic meatus, where CN VIII enters)
• The osseous spiral lamina extends from the modiolus and, together with the cochlear duct (membranous labyrinth), divides the cochlear canal into:
  • Scala vestibuli (superior) - continuous with the vestibule
  • Scala tympani (inferior) - separated from the middle ear by the round window membrane
  • The two scalae communicate at the apex via the helicotrema
• The round window (cochlear fenestra) is sealed by the secondary tympanic membrane

Fluid Compartments

Development (Embryology)

• Around day 22-23, an ectodermal thickening called the otic placode forms on the side of the embryonic head
• It deepens to form the otic pit, then pinches off as the otocyst (otic vesicle)
• The surrounding mesenchyme chondrifies to form the otic capsule, which then expands as the membranous labyrinth grows
• Ossification of the cartilaginous otic capsule begins at approximately week 16 from multiple centers, eventually fusing into the extremely dense petrous bone - notably without suture lines
• The perilymphatic spaces form by dedifferentiation (resorption) of the cartilaginous otic capsule surrounding the membranous labyrinth

Clinical Relevance

• Otosclerosis: Abnormal remodeling of the otic capsule bone, typically at the oval window, causing conductive (and later sensorineural) hearing loss
• Labyrinthine fistula: Abnormal communication between perilymph and middle ear, causing fluctuating sensorineural hearing loss and vertigo
• Cochlear aqueduct patency: Important during intracranial surgery - raised ICP can transmit to the perilymph
• Temporal bone fractures: Transverse fractures (cutting across the petrous bone) can disrupt the bony labyrinth, causing profound sensorineural hearing loss and vertigo

Development of the Inner Ear

Phylogenetic Background

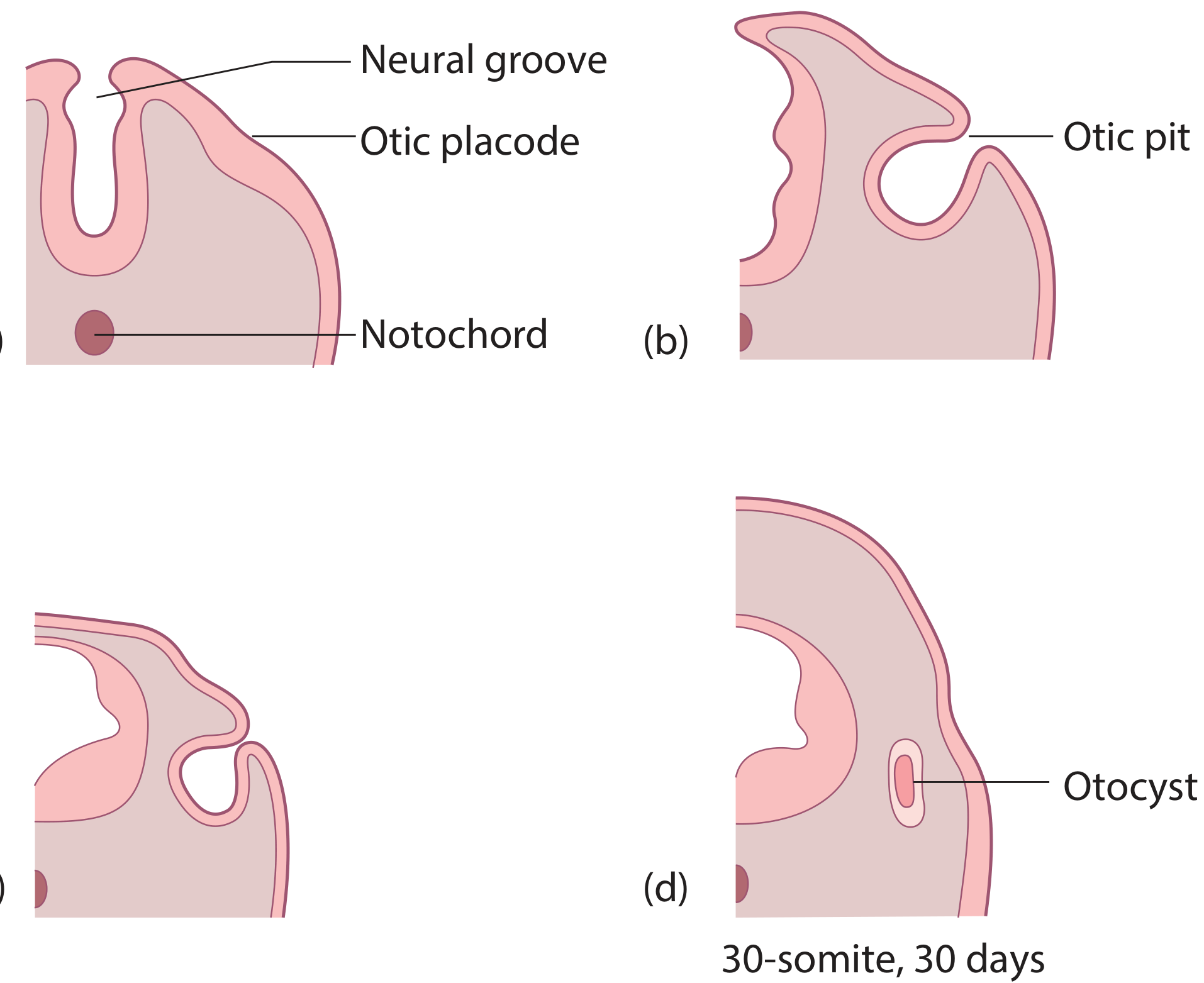

Stage 1 - Otic Placode Formation (~Day 22-23)

• The placode deepens into an otic pit (auditory pit) by invaginating into the underlying mesenchyme
• The pit closes off to form the otocyst (otic vesicle) - a fluid-filled sac completely separated from the surface by ~day 30
• Associated with the otocyst is a cluster of neural crest cells that will become the:
  • Facial (geniculate) ganglion
  • Auditory (spiral/cochlear) ganglion
  • Vestibular (Scarpa's) ganglion
• The endolymphatic appendage appears at this stage, ahead of the semicircular or cochlear structures

Stage 2 - Otocyst Differentiation (Weeks 4-8)

• Lumina of all three semicircular ducts have formed
• The macula communis (primordial sensory patch) divides into superior and inferior segments:
  • Superior segment → maculae of utricle + cristae of superior and lateral semicircular ducts
  • Inferior segment → macula of saccule + crista of posterior semicircular canal
• The cochlear duct has extended from the saccule and completed 1 turn

Stage 3 - Sensory Differentiation (Weeks 8-20)

• Cristae ampullares of the semicircular ducts develop hair cells and gelatinous cupula
• Maculae of the otolithic organs (utricle and saccule) develop hair cells and otolithic membranes
• The proximal endolymphatic sac develops a rugose epithelium (resorptive/immune function)
• The cochlear duct changes from a circular to triangular outline as the basal turn begins differentiating into the organ of Corti

• The superior semicircular duct reaches adult size; posterior and lateral follow
• All cristae ampullares are fully differentiated
• The endolymphatic duct begins to develop a bend as it is dragged inferiorly/laterally by growth of the sigmoid sinus
• The organ of Corti is sufficiently differentiated that the fetus can respond to fluid-borne sounds

• Organ of Corti approximates adult structure

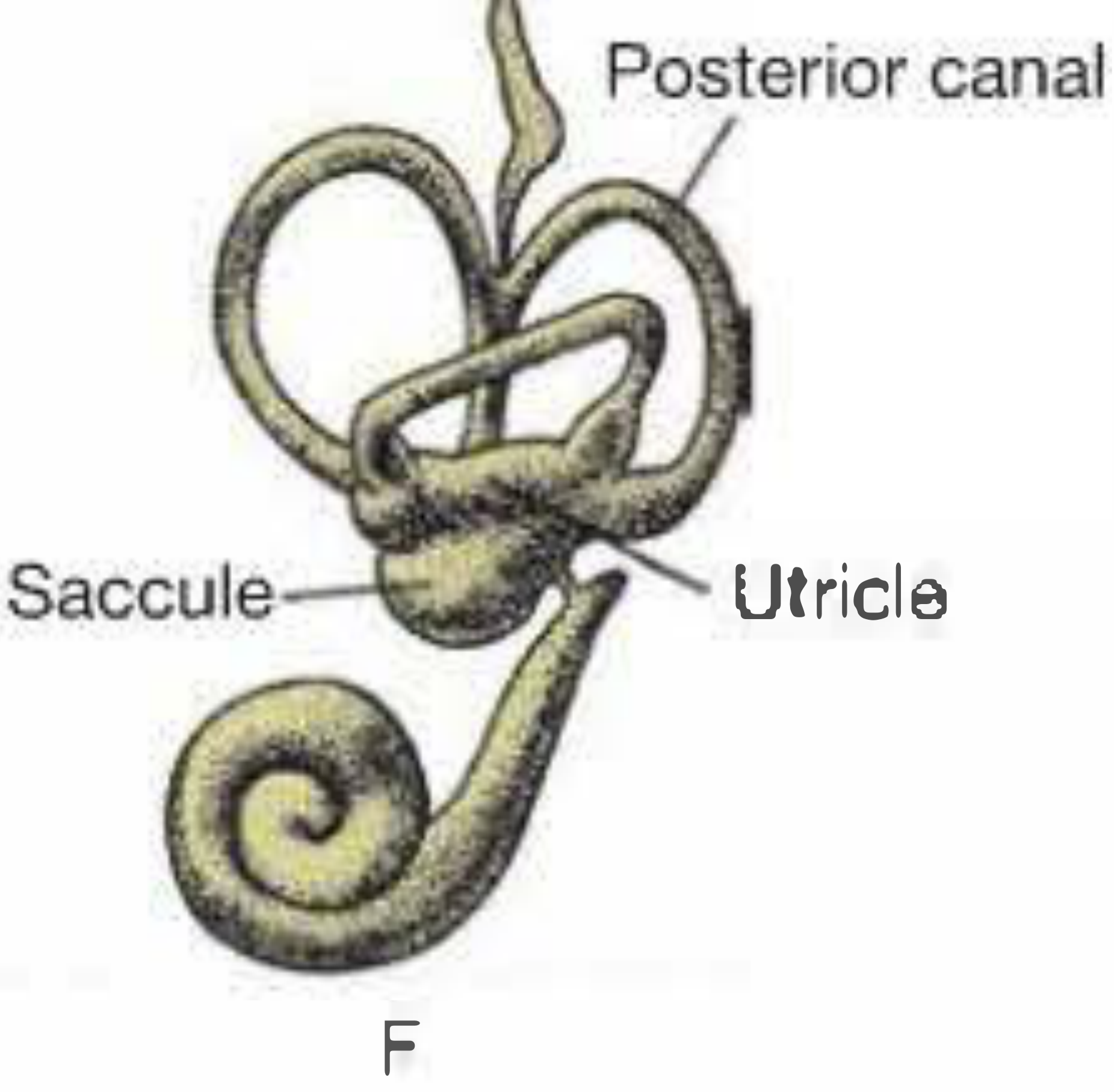

• Full 2.5-coil outline of the membranous labyrinth is established

Stage 4 - Bony Labyrinth (Otic Capsule) Formation

• The perilymphatic spaces arise by selective resorption (dedifferentiation) of the cartilaginous otic capsule - this does NOT occur where nerves enter sensory regions
• Ossification proceeds from multiple centers that fuse without suture lines, forming the exceptionally dense petrous bone
• The cochlear aqueduct develops to connect the scala tympani to the posterior cranial fossa (CSF-perilymph communication)
• At the oval window, part of the otic capsule becomes the stapes footplate and annular ligament

Summary Timeline

Clinical Relevance of Developmental Timing

• Mondini malformation: Cochlear development arrested at ~7 weeks (1.5 turns instead of 2.5) - associated with enlarged vestibular aqueduct
• Michel aplasia: Complete failure of otocyst development - total absence of inner ear structures
• Enlarged vestibular aqueduct (EVA): Abnormal endolymphatic duct/sac development; most common inner ear malformation causing sensorineural hearing loss
• Rubella embryopathy: Damage at 6-10 weeks targets cochlear hair cells before full differentiation
• Superior SCC dehiscence: Failure of otic capsule bone formation over the superior canal
