OSTEOMYELITIS - Radiology PG Seminar

1. DEFINITION & OVERVIEW

Osteomyelitis is inflammation of bone and bone marrow, virtually always secondary to infection. It may complicate any systemic infection but frequently manifests as a solitary primary focus. - Robbins & Kumar Pathologic Basis of Disease

2. CLASSIFICATION

By Duration

Type	Duration	Key Features
Acute	<2 weeks	Neutrophilic reaction, bone edema, no sequestrum yet
Subacute	2 weeks - 3 months	Brodie abscess, periosteal reaction
Chronic	>3 months	Sequestrum, involucrum, sinus tracts, sclerosis

By Route of Infection

Hematogenous - most common in children; metaphysis of long bones
Contiguous spread - from adjacent soft tissue infection (diabetic foot, pressure sores)
Direct inoculation - post-trauma, post-surgery, open fractures

Cierny-Mader Classification (Chronic Osteomyelitis - Surgical Staging)

Anatomic Type:

Type I: Medullary (endosteal)
Type II: Superficial (cortical surface only)
Type III: Localized (cortical + medullary, stable bone)
Type IV: Diffuse (entire bone circumference, unstable)

Physiologic Class:

Class A: Normal host (good immune response)
Class B: Compromised host (local or systemic)
Class C: Treatment worse than disease

3. PATHOLOGY & PATHOPHYSIOLOGY

Acute Phase (within 48 hours)

Bacteria proliferate → neutrophilic reaction
Necrosis of bone cells and marrow within 48 hours
Spread through Haversian canals → reaches periosteum
Periosteum loosely attached in children → subperiosteal abscess forms
Lifting of periosteum impairs blood supply → further necrosis

Chronic Phase (evolution)

Devascularized dead bone = Sequestrum (the hallmark of chronic infection)
New reactive bone shell around it = Involucrum
Gaps in involucrum = Cloaca (through which pus discharges)
Pus tracking to skin = Sinus tracts
In chronic infection, walled-off abscess with sclerotic rim = Brodie Abscess

Resected femur showing the involucrum (shell of new bone) with exposed inner sequestrum (pale dead cortex) - Robbins & Kumar

Key definitions for viva:

Sequestrum: Dead devascularized bone surrounded by pus/granulation tissue. Dense, sclerotic on imaging.
Involucrum: Shell of periosteal new bone formed around sequestrum.
Cloaca: Opening in involucrum through which pus discharges into soft tissue.
Sinus tract: Channel connecting the infected bone to the skin surface.
Brodie Abscess: Subacute/chronic intraosseous abscess with sclerotic rim; typically in metaphysis of long bones.

4. MICROBIOLOGY

Setting	Organism
Children (most common)	Staphylococcus aureus (80-90% of culture-positive cases)
Neonates	Group B Streptococcus, E. coli
Sickle cell disease	Salmonella spp. (also S. aureus)
Post-surgical / implants	Coagulase-negative staphylococci
Diabetic foot	Mixed gram-positive and gram-negative
IV drug users	Pseudomonas aeruginosa
Immunocompromised	Fungi (Candida, Aspergillus)
TB-endemic areas	Mycobacterium tuberculosis

S. aureus staphylococcal cell wall proteins bind to bone matrix collagen, facilitating adherence - this is why it predominates. - Robbins & Kumar

5. LOCATION BY AGE (Critical for Viva)

Vascular anatomy of bone changes with age, which determines where infection localizes:

Age Group	Location	Reason
Neonates (<1 yr)	Metaphysis + Epiphysis	Metaphyseal vessels penetrate growth plate
Children (1-16 yrs)	Metaphysis only	Growth plate is avascular barrier; rich metaphyseal sinusoids
Adults (>16 yrs)	Epiphysis + Subchondral	Growth plate closure creates anastomoses
Adults (spine)	Vertebral endplates	Dense end-arterial network at endplates

Consequence in neonates: Epiphyseal involvement → spread to joint → septic arthritis with articular cartilage destruction and permanent disability.

6. IMAGING MODALITIES - SEQUENTIAL APPROACH

6A. Plain Radiograph (X-Ray)

First-line investigation, but has significant limitations
Lag period: Radiographic changes lag behind disease by 10-21 days (up to 2 weeks)
At least 30-50% bone mineral must be destroyed before lytic change is visible on X-ray

Acute findings:

Soft tissue swelling (earliest sign, within days)
Periosteal reaction (linear/laminated)
Focal cortical irregularity / destruction
Ill-defined lucency in metaphysis

Chronic findings:

Sequestrum: Dense opaque fragment within area of destruction ("dead bone in a sea of pus")
Involucrum: Periosteal new bone shell (bone-within-a-bone appearance)
Mixed lytic and sclerotic pattern
Sclerosis and cortical thickening

Brodie Abscess on X-ray:

Well-defined oval lytic lesion with sclerotic rim
Classically in distal tibia metaphysis in children
May show a "channel sign" - track extending to growth plate

Tuberculous Dactylitis (Spina Ventosa):

Rare; cyst-like cavities with diaphyseal expansion
More commonly in hand bones than feet
Predominantly in children

6B. Ultrasound (USG)

Particularly useful in infants and children
Detects subperiosteal collections (fluid between periosteum and cortex) very early
Can detect periosteal elevation and soft tissue edema before X-ray changes
Guides aspiration and drainage procedures
A difference of 1-2 mm in capsular distance between sides is suggestive of hip effusion
Cannot evaluate intramedullary involvement

6C. CT Scan

Role:

Best for defining cortical destruction
Detects sequestrum clearly (dense fragment within lytic cavity)
Identifies intraosseous gas (pathognomonic of infection)
Demonstrates cloacae (channels/gaps in involucrum)
Guides CT-directed biopsy/aspiration
Evaluates sinus tracts (CT sinogram/fistulogram)
Demonstrates vacuum phenomenon in disc (favors degeneration over infection in spine)
Limitation: Radiation, poor soft tissue contrast, metal artefact

6D. MRI - The Gold Standard

MRI has the highest sensitivity and specificity for detecting osteomyelitis. Bone marrow edema is the earliest feature and can be detected as early as 1-2 days after onset. - Radiopaedia / Grainger & Allison

MRI Protocol:

T1 coronal + axial
T2/STIR (fat-suppressed)
Post-gadolinium T1 fat-suppressed
DWI (increasingly used)

Signal Characteristics:

Sequence	Normal Marrow	Acute OM	Sequestrum	Abscess
T1	High (fat)	Low	Very low	Low rim
T2/STIR	Low	High	Low	High center
Post-Gad	None	Enhancement	No enhancement	Rim enhancement

Key MRI Signs:

Bone marrow edema (T1 low, STIR high): Earliest finding - present within 1-2 days
Subperiosteal abscess: T2 high signal collection lifting periosteum with rim enhancement
Sequestrum: T1 and T2 low signal fragment with no enhancement (dead, avascular)
Involucrum: T1 low, T2 low (cortical bone)
Sinus tracts: Linear T2 high signal tracts extending from bone to skin
Soft tissue edema/abscess: STIR high signal in surrounding muscles

Penumbra Sign (Subacute/Brodie Abscess):

Peripheral relatively high-signal ring on T1 (granulation tissue) surrounding a low-signal central zone (abscess)
Granulation tissue shows avid gadolinium enhancement
Helps differentiate Brodie abscess from aggressive tumors like Ewing's sarcoma

Caution: On T2 sequences, reactive edema may exaggerate the extent of infection.

For Diabetic Foot Osteomyelitis:

"High likelihood of osteomyelitis" phrase is recommended where there is bone marrow high signal on fluid-weighted sequences adjacent to an ulcer, abscess, or sinus tract, regardless of T1 signal. (ACR Appropriateness Criteria 2025)
DWI + dynamic contrast-enhanced MRI improves diagnostic accuracy (Wudhikulprapan et al., Clin Radiol 2024 - systematic review, PMID 39168784)

6E. Nuclear Medicine / Radionuclide Imaging

Bone Scan (Tc-99m MDP):

3-phase bone scan: Flow, blood pool, delayed
Very sensitive (>90%) but low specificity
Positive in 24-48 hours of infection
Remains positive for weeks even after treatment
Limitation: Cannot distinguish tumor, fracture, inflammation

Gallium-67 Scan:

Accumulates in areas of inflammation/infection
Combined with bone scan increases specificity
If Ga scan shows increased uptake where bone scan is normal → active infection

Labeled White Cell Scan (In-111 or Tc-99m HMPAO WBC):

Most specific nuclear medicine study for infection
Requires blood withdrawal, labeling, and reinjection
Best for peripheral osteomyelitis
Less useful in spine (normally active red marrow mimics WBC uptake)

FDG-PET/CT:

Increasingly used, especially for:
- Chronic osteomyelitis monitoring
- Diabetic foot osteomyelitis
- Skull base osteomyelitis (malignant external otitis)
- Vertebral osteomyelitis
High sensitivity and specificity
Can monitor treatment response using SUV values
A 2024 meta-analysis (Jin et al., Clin Radiol 2024, PMID 38880677) and 2026 systematic review (Laidlaw et al., Tomography 2026, PMID 41893827) confirm FDG-PET accuracy for skull base OM treatment response

7. VERTEBRAL OSTEOMYELITIS (SPONDYLODISCITIS)

Epidemiology

Incidence: 2.4/100,000/year, increasing with age
Lumbar spine most common (58%), then thoracic (30%), cervical (11%)
Primary sources: UTI, skin/soft tissue, IV access, endocarditis, dental

Pathogenesis

Starts at vertebral endplates (dense end-arterial network)
Spreads to adjacent disc space
Through disc → contiguous vertebral endplate destruction
Extension into paravertebral soft tissues and epidural space

Imaging in Vertebral Osteomyelitis

Plain X-ray:

Earliest (but late) sign: loss of disc height and endplate irregularity
Later: vertebral body destruction, loss of disc space
Even later: kyphosis (Gibbus deformity in TB)

MRI - Investigation of Choice:

T1: Low signal in vertebral bodies (loss of normal fat marrow signal)
T2/STIR: High signal in vertebral bodies and disc
Post-gadolinium: Enhancement of vertebral bodies and disc
Key finding: Involvement of disc + BOTH adjacent vertebral bodies (disc "protected" in TB but destroyed in pyogenic)

Pyogenic vs TB Spondylodiscitis (High-Yield Comparison):

Feature	Pyogenic	Tuberculous
Disc involvement	Early, prominent disc destruction	Relatively preserved disc (initially)
Vertebral bodies	2 adjacent levels (skip rare)	Multiple levels, skip lesions possible
Paraspinal abscess	Smaller, phlegmon	Large cold abscess (psoas, paraspinal)
Endplate	Irregular, destroyed	Anterior wedging, gibbus deformity
Vacuum in disc	Favors degeneration	Against infection
Enhancement	Homogeneous	Peripheral rim-enhancing abscess
Calcification	Absent	May be present (chronically)
Cord compression	Less common	More common (Pott's paraplegia)

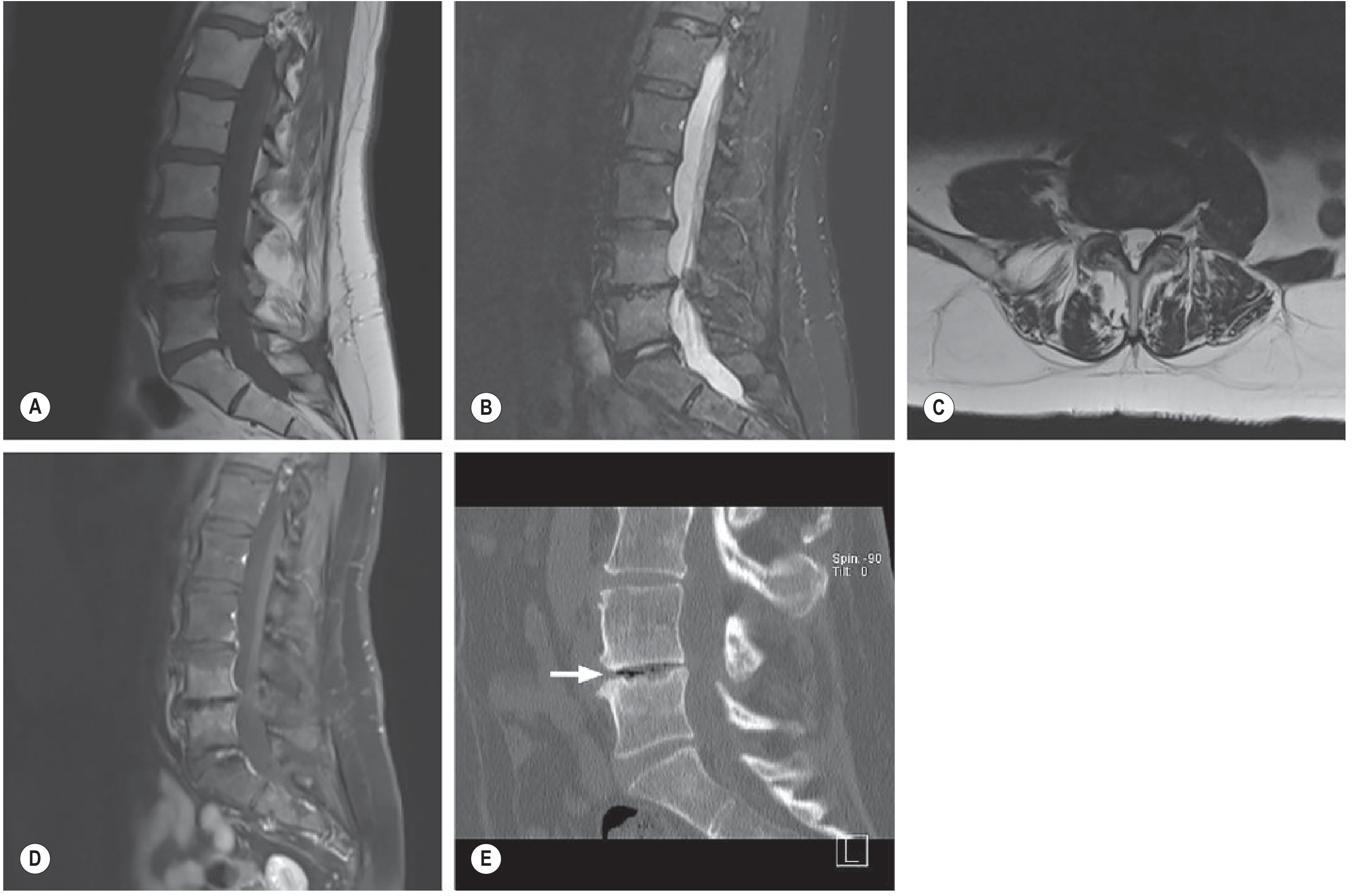

MRI of vertebral osteomyelitis/spondylodiscitis: Sagittal T1 (A), STIR (B), and post-gadolinium fat-suppressed T1 (D), showing marrow edema and endplate irregularity at L4-L5; CT (E) demonstrating vacuum phenomenon in disc space - favoring degeneration - Grainger & Allison

Complications to identify on imaging:

Epidural abscess (MRI - T2 high, rim enhancing collection posterior/anterior to cord)
Paravertebral abscess
Psoas abscess (CT/MRI)
Cord compression / myelopathy

Modic Type I changes vs Infection - Key Differentiator:

Modic I: T1 low, T2 high endplate changes without disc enhancement, normal disc height OR osteophytes
Vacuum phenomenon on CT = Degeneration (infection virtually excluded)

8. PEDIATRIC OSTEOMYELITIS - SPECIAL POINTS

Commonest organisms: S. aureus (older children), Group B Strep + E. coli (neonates), Kingella kingae (infants < 4 yrs - increasingly recognized)
Kingella kingae: K. kingae is difficult to culture, often requiring PCR for identification, and has probably been historically underdiagnosed. Presents with mild musculoskeletal symptoms and only mild elevation of inflammatory markers. - Grainger & Allison
Metaphyseal infections in neonates can cross the growth plate → epiphyseal involvement → septic arthritis
Whole-body MRI or skeletal scintigraphy should be considered in neonates/infants to exclude multifocal infection
Complications: Premature growth plate fusion ("chevron" epiphysis in meningococcal), limb length discrepancy, angular deformity

9. DIABETIC FOOT OSTEOMYELITIS

Most common cause: Contiguous spread from overlying ulcer/cellulitis
Predominantly involves forefoot (metatarsal heads, phalanges)
Probe-to-bone test: Positive if a blunt probe through ulcer reaches bone (high specificity for OM ~90%)
MRI is the recommended investigation
Challenge: Differentiating OM from Charcot neuroarthropathy (both show marrow edema)
ACR Appropriateness Criteria 2025 (PMID 41193054): MRI with and without contrast is the most appropriate initial advanced imaging; FDG-PET is appropriate when MRI is non-diagnostic or contraindicated

Feature	Osteomyelitis	Charcot Neuroarthropathy
Location	Beneath ulcer/pressure point	Midfoot (Lisfranc, Chopart)
Skin	Ulcer present	No ulcer
Bone edema	Focal	Diffuse, multiple bones
Joint	May be involved	Fragmentation, dislocation
Enhancement	Present	Present
Sinus tract	Often present	Absent

10. CHRONIC OSTEOMYELITIS - IMAGING OVERVIEW

Hallmarks: Sequestrum + Involucrum + Sinus tracts + Sclerosis
Plain X-ray usually sufficient to establish diagnosis; MRI for activity assessment
CT: Best for surgical planning (extent of sequestrum, cloacae)
MRI: Active infection shows enhancing marrow; healed/quiescent infection shows fatty conversion of marrow (T1 high)
Squamous cell carcinoma can develop in chronic draining sinus tracts (Marjolin's ulcer) - complication of longstanding chronic OM

11. DIFFERENTIAL DIAGNOSES

For Periosteal Reaction + Bone Destruction

Ewing's Sarcoma - can look identical on plain film; onion-skin periosteal reaction; usually diaphysis; aggressive; MRI shows large soft tissue mass; biopsy required
Osteosarcoma - aggressive periosteal reaction (Codman triangle, sunburst), metaphyseal
Langerhans Cell Histiocytosis - lytic lesion, periosteal reaction, younger patients
Stress fracture - history, location, linear lucency

For Brodie Abscess

Osteoid Osteoma - nidus < 2 cm, nocturnal pain relieved by aspirin
Giant Cell Tumor - epiphyseal, adults, no sclerotic rim
Chondroblastoma - epiphyseal in children
Bone cyst - no sclerotic rim, no clinical infection

For Vertebral Lesion

Metastasis - disc usually preserved (unlike pyogenic infection), pedicle destruction (vertebra plana), no endplate irregularity
Multiple Myeloma - diffuse or focal, no disc involvement
Modic Changes - vacuum disc, no paraspinal soft tissue

12. INVESTIGATIONS SUMMARY

Investigation	Sensitivity	Specificity	Key Role
Plain X-ray	Low (early)	Moderate	First line; sequestrum, involucrum
USG	Good (soft tissue)	Moderate	Subperiosteal abscess, guided aspiration
CT	Moderate	Good	Sequestrum, cortical destruction, biopsy guide
MRI	90-100%	80-90%	Gold standard; earliest detection
Tc-99m bone scan	High (>90%)	Low	Multifocal disease, early detection
Labeled WBC scan	High	High	Most specific nuclear medicine modality
FDG-PET/CT	High	High	Monitoring treatment, chronic OM, diabetic foot

13. VIVA QUESTIONS AND MODEL ANSWERS

Q1: What is the earliest radiological sign of acute osteomyelitis? A: Soft tissue swelling is the earliest plain film sign. On MRI, bone marrow edema (T1 low, STIR high signal) is the earliest sign, detectable within 1-2 days of infection.

Q2: Why do plain X-rays have a lag in osteomyelitis? A: Radiographic changes lag behind disease by 10-21 days because at least 30-50% of bone mineral must be lost before a lytic lesion becomes visible on plain films.

Q3: Define sequestrum, involucrum, and cloaca. A: Sequestrum = devascularized dead bone fragment (dense, sclerotic on X-ray, very low signal on all MRI sequences, no enhancement). Involucrum = shell of periosteal new bone surrounding the sequestrum. Cloaca = gap/opening in the involucrum through which pus discharges.

Q4: What is the Penumbra sign on MRI? A: Seen in Brodie abscess (subacute osteomyelitis). A peripheral T1 high-signal ring of granulation tissue surrounding the central T1-low abscess cavity. The granulation tissue shows avid gadolinium enhancement. Helps differentiate Brodie abscess from Ewing's sarcoma.

Q5: Why is the metaphysis affected in childhood osteomyelitis? A: The metaphyseal sinusoidal vessels are sluggish, fenestrated, and lack phagocytic lining cells. This slowed flow, combined with microtrauma in the metaphysis, allows bacterial seeding during transient bacteremia.

Q6: Where does osteomyelitis localize in neonates vs. older children vs. adults? A: Neonates: Metaphysis + epiphysis (metaphyseal vessels penetrate growth plate). Older children: Metaphysis only (growth plate is an avascular barrier). Adults: Epiphysis and subchondral region (growth plate closure creates anastomoses).

Q7: Which organism is most common in sickle cell osteomyelitis? A: Salmonella species. Osteonecrosis in sickle cell disease creates nidus for bacterial seeding, and impaired splenic function reduces immune response to gram-negative organisms.

Q8: How do you differentiate pyogenic from tuberculous spondylodiscitis on MRI? A: Pyogenic: Early disc destruction, adjacent two vertebral bodies, smaller paraspinal abscess, homogeneous enhancement. TB: Disc relatively preserved initially, large cold paraspinal/psoas abscess, anterior wedging, gibbus deformity, rim-enhancing abscess, may have skip lesions.

Q9: What is the role of vacuum phenomenon on CT in vertebral lesions? A: Vacuum phenomenon (gas within disc) strongly favors degeneration over infection. It virtually excludes infective discitis because bacterial metabolism in the disc does not produce nitrogen gas.

Q10: What complication can develop in a chronic draining sinus tract? A: Squamous cell carcinoma (Marjolin's ulcer) can develop in chronic draining sinus tracts of osteomyelitis. This is a rare but well-recognized complication of longstanding infection.

Q11: What is the Cierny-Mader classification? A: An anatomico-physiological staging system for chronic osteomyelitis. It classifies the infection anatomically (Type I-IV: medullary, superficial, localized, diffuse) and the host physiologically (Class A: normal; Class B: locally or systemically compromised; Class C: treatment worse than disease).

Q12: Which is the best imaging modality for osteomyelitis in the diabetic foot? A: MRI with and without contrast is recommended as first-line by ACR Appropriateness Criteria 2025. FDG-PET/CT is appropriate when MRI is non-diagnostic or contraindicated. A 2024 meta-analysis confirmed DWI + DCE-MRI improves accuracy.

Q13: What is Kingella kingae and why is it important? A: It is a gram-negative β-hemolytic bacillus increasingly recognized as a cause of osteomyelitis and septic arthritis in infants and children under 4 years. It causes infection with almost normal blood markers and only mild fever, making diagnosis difficult. It requires PCR for identification as it is difficult to culture, and has been historically underdiagnosed.

Q14: What is the role of labeled WBC scan in osteomyelitis? A: Labeled white cell scan (In-111 or Tc-99m HMPAO) is the most specific nuclear medicine study for bone infection. It is best for peripheral osteomyelitis. It is less useful in spinal osteomyelitis because normal active red marrow mimics WBC uptake.

Q15: What is spina ventosa? A: Tuberculous dactylitis. Cystic cavities associated with diaphyseal expansion of bones of the hand (more than feet). Seen in children. The name refers to the "windswept" appearance of the expanded, air-filled bony digit on X-ray.

14. KEY IMAGING FINDINGS - QUICK RECALL TABLE

Finding	Modality	Significance
Soft tissue swelling	X-ray	Earliest plain film sign
Subperiosteal abscess	USG / MRI	Early sign, especially in children
Sequestrum	X-ray / CT / MRI	Hallmark of chronic OM
Involucrum	X-ray / CT	Shell of new bone around sequestrum
Sinus tract	MRI / CT sinogram	Chronic OM, communication to skin
Penumbra sign	MRI T1	Brodie abscess
Endplate erosion + disc destruction	MRI	Pyogenic spondylodiscitis
Large cold abscess	MRI	Tuberculous spondylodiscitis
Vacuum phenomenon	CT	Degeneration (NOT infection)
FDG uptake	PET/CT	Active infection / treatment monitoring

15. RECENT EVIDENCE (PubMed 2024-2026)

DWI + DCE-MRI in Diabetic Foot OM - A 2024 systematic review and meta-analysis (Clin Radiol) confirms that diffusion-weighted imaging and dynamic contrast-enhanced MRI improve diagnostic accuracy for diabetic foot osteomyelitis.
ACR Appropriateness Criteria 2025 for Diabetic Foot OM - The 2025 ACR update recommends MRI with/without contrast as first-line; FDG-PET/CT when MRI is non-diagnostic.
FDG-PET in Skull Base OM - A 2026 meta-analysis (Tomography) demonstrates FDG-PET is accurate for treatment response assessment in skull base osteomyelitis (malignant external otitis).

Suggested Seminar Structure (30-45 minutes)

Definition + Epidemiology (2 min)
Classification - by duration, route, Cierny-Mader (5 min)
Pathophysiology - acute to chronic, key terms (5 min)
Microbiology by clinical setting (3 min)
Imaging approach - modality by modality with images (15 min)
- X-ray findings (acute/chronic/Brodie/TB dactylitis)
- USG role
- CT role
- MRI (gold standard - protocol, sequences, key signs)
- Nuclear medicine
Special scenarios: Vertebral OM, Diabetic foot, Pediatric OM (8 min)
Differentials (5 min)
Recent evidence / ACR guidelines (2 min)
Summary table + Viva Q&A

Sources:

Grainger & Allison's Diagnostic Radiology (Elsevier)
Robbins & Kumar Pathologic Basis of Disease (2024)
Bailey & Love's Short Practice of Surgery (28th ed.)
Campbell's Operative Orthopaedics (15th ed., 2026)
ACR Appropriateness Criteria - Diabetic Foot Osteomyelitis (2025, PMID 41193054)
Wudhikulprapan et al., Clin Radiol 2024 (PMID 39168784)
Laidlaw et al., Tomography 2026 (PMID 41893827)

Good luck with your seminar! Focus especially on the MRI sequences and signal characteristics, the pyogenic vs TB spine comparison, and the age-based localization - these are the most common viva topics for radiology PG residents.

This is a shared conversation. Sign in to Orris to start your own chat.
