Ultrasound (USG) Basic Reading - Step by Step
Sources: Murray & Nadel's Textbook of Respiratory Medicine | Rosen's Emergency Medicine | Comprehensive Clinical Nephrology | Pfenninger & Fowler's Procedures for Primary Care
STEP 1: How Ultrasound Works (The Physics)
Ultrasound imaging is based on the "pulse-echo" principle:
- A short burst of sound is emitted from the transducer into tissue
- Echoes return to the transducer after bouncing off structures
- The machine calculates distance by timing how long the echo takes to return
- This builds a 2D image on the screen
Key physics facts:
- Diagnostic ultrasound operates in the 1-18 MHz range (above human hearing)
- Higher frequency = better resolution, but less penetration (for superficial structures)
- Lower frequency = deeper penetration, but less detail (for deep structures)
- The ideal frequency depends on the depth of the structure you want to see
STEP 2: Know Your Transducers
There are 3 main transducer (probe) types. Always choose the one that matches your depth need:
| Transducer | Frequency | Field Shape | Best For |
|---|---|---|---|
| Linear (high-freq) | 5-13 MHz | Rectangular | Veins, arteries, tendons, thyroid, breast |
| Curvilinear (low-freq) | 2-5 MHz | Fan/wide arc | Abdomen, kidneys, liver, bladder |
| Phased array (low-freq) | 1-5 MHz | Pie/sector | Heart (fits between ribs), lungs |
Rule: Use the highest frequency that still gives you enough penetration for what you need to see.

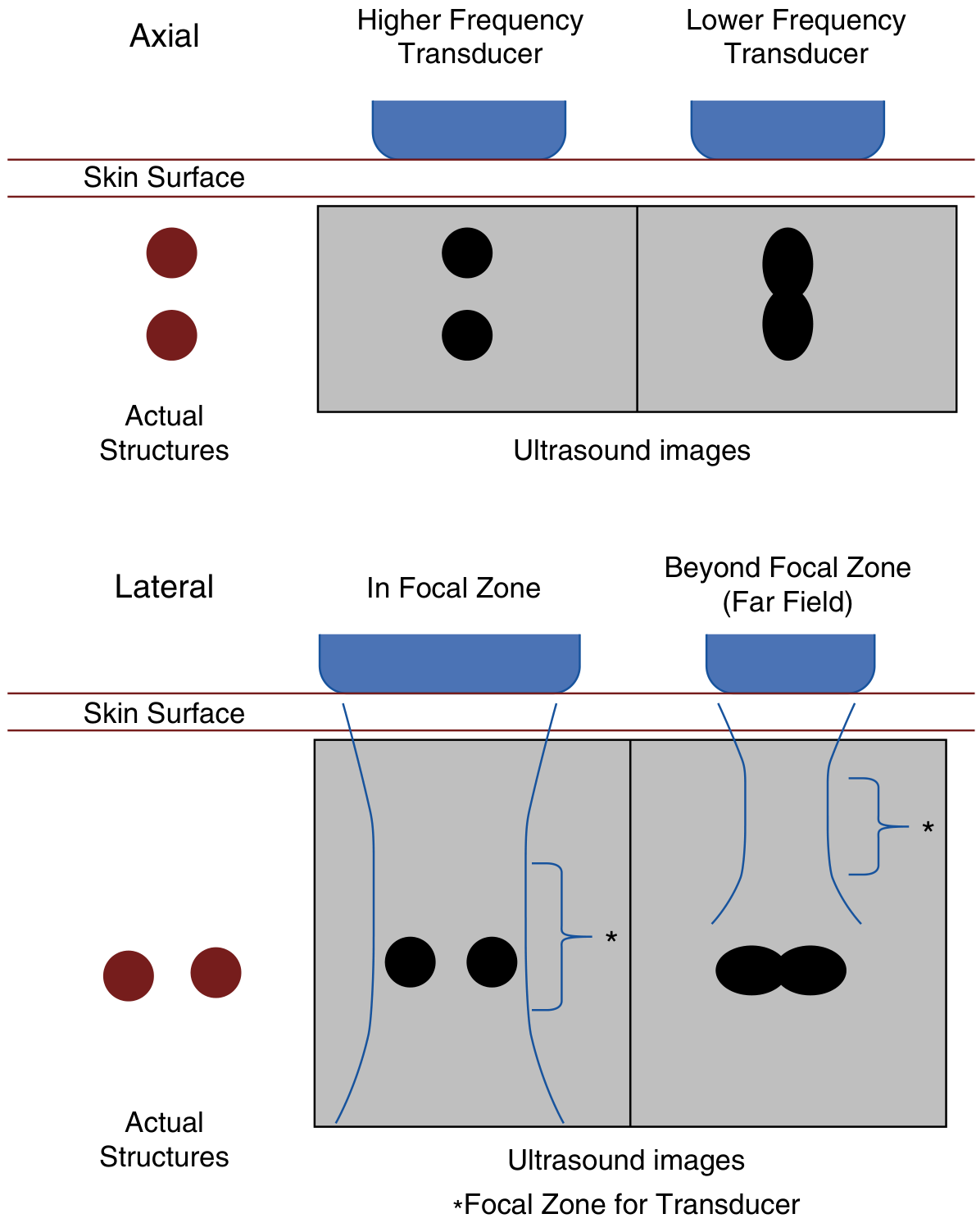

Figure: Axial resolution (structures in line with the beam) is better with higher frequencies. Lateral resolution (structures side-by-side) is best at the focal zone - the narrowest part of the beam. Beyond the focal zone, neighboring structures blur together.
STEP 3: Reading the Screen - Orientation
Before interpreting any image, orient yourself:
- Top of screen = structure closest to the transducer (shallowest)
- Bottom of screen = structure farthest from the transducer (deepest)
- Left vs right on screen depends on the probe marker direction
The Probe Marker Rule:
The probe has a palpable dot, ridge, or light on one side. This marker corresponds to an indicator dot on the screen (usually on the left side for abdominal presets).
For abdominal exams: point the probe marker toward the patient's head for longitudinal views. This puts the superior pole on the LEFT of your screen and inferior pole on the RIGHT.
For cardiac echo: the screen indicator is on the right side - the exception to the rule.
STEP 4: Echogenicity - Understanding Brightness
This is the most fundamental skill: interpreting shades of grey.
| Term | Appearance | Examples |
|---|---|---|
| Anechoic | Black (no echoes) | Urine, blood, bile, simple cysts |
| Hyperechoic | Bright white (strong reflection) | Bone, diaphragm, stones, calcifications |
| Hypoechoic | Darker grey than surroundings | Renal cortex vs liver |
| Isoechoic | Same brightness as surroundings | Cortex = medulla in chronic kidney disease |
| Echogenic | General term for "bright/white" | Used for reflective structures |
What determines echogenicity?
- Fluid transmits sound without reflection → appears black
- Dense/fibrous structures reflect sound strongly → appear white
- Soft tissues reflect partially → appear in shades of grey
STEP 5: Machine Controls You Must Know
Gain - brightness control for the whole image. Adjust until simple fluid (urine, blood) looks black and normal tissue looks mid-grey.
Time Gain Compensation (TGC) - adjusts brightness at specific depths. Deeper structures naturally appear darker due to attenuation - TGC compensates for this.
Depth - controls how deep the image goes. Set so your structure of interest is in the middle third of the screen.
Focus - the zone where the beam is narrowest and lateral resolution is best. Set the focus at the depth of the structure you are examining.
Freeze - stops the live image for measurement or documentation.
STEP 6: Ultrasound Modes
B-Mode (Brightness mode) - the standard 2D greyscale image. Most routine scanning is done in B-mode.
M-Mode (Motion mode) - displays a single line of the image plotted over time. Used for:
- Measuring fetal heart rate
- Evaluating cardiac valves and wall motion
- Detecting pleural sliding (seashore sign)
Color Flow Doppler - shows direction and velocity of blood flow as colors (red = toward probe, blue = away).
Power Doppler - shows velocity only (no direction), more sensitive for slow flow.
Pulsed Wave Doppler - displays flow velocity as a waveform; used for quantifying stenosis.
STEP 7: Common Artifacts - Recognize, Don't Misread
A. Acoustic Shadowing
Dense structures (bone, calculi) absorb or reflect nearly all sound. The area deep to the structure appears black - this is NOT empty space, it's a shadow.
Clinical use: A gallstone or renal stone shows a hyperechoic structure with a dark "shadow" below it.
B. Posterior Acoustic Enhancement
Fluid transmits sound easily. The area deep to a fluid-filled structure appears brighter than surrounding tissue.
Clinical use: A simple cyst shows posterior enhancement - a solid mass does not. This helps distinguish cysts from solid lesions.

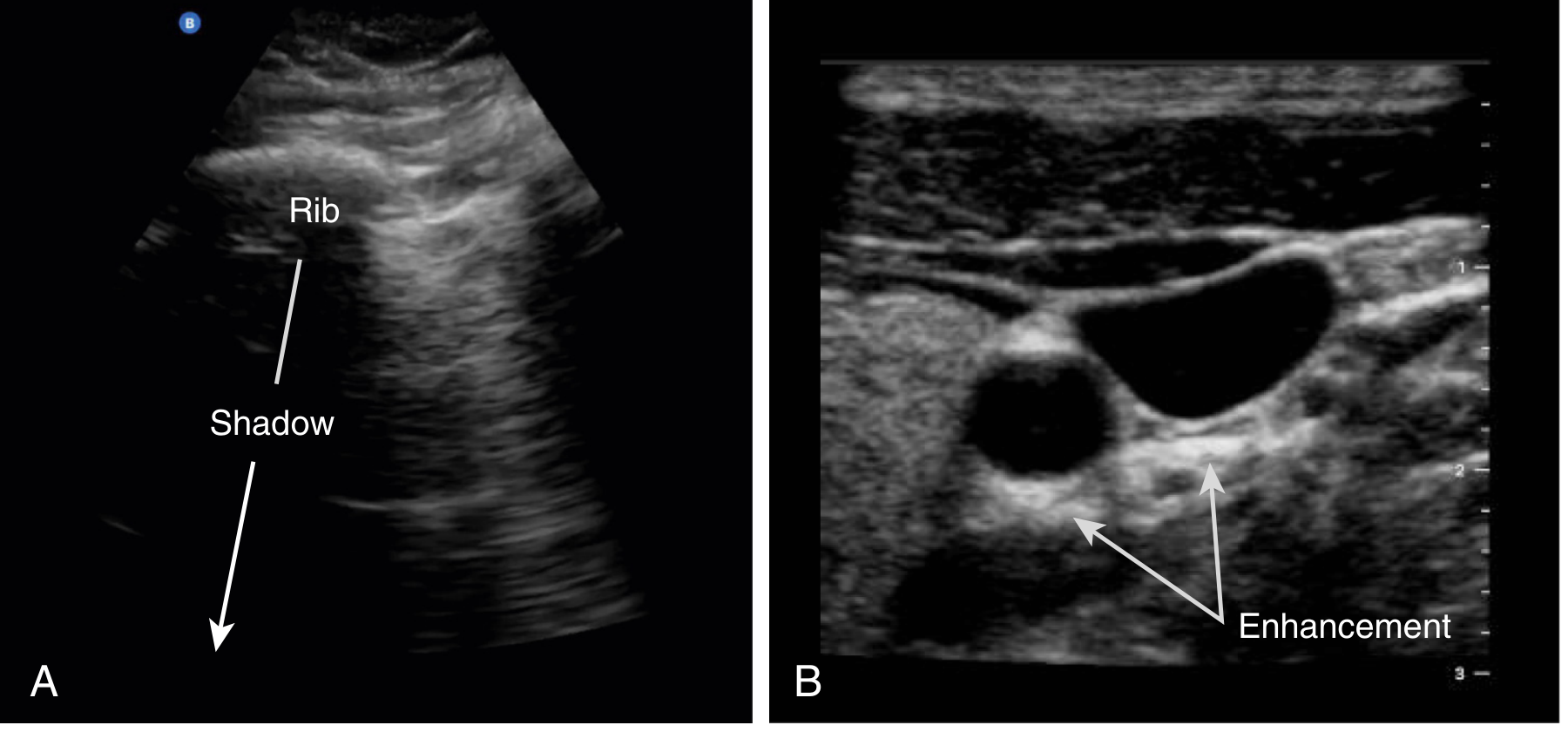

Figure: (A) A rib casts an acoustic shadow below it. (B) Acoustic enhancement - the bright "tail" deep to fluid-filled carotid and jugular vessels.
C. Reverberation Artifact (A-Lines)
When the beam bounces between two strong reflectors (e.g., skin and pleural surface), the machine misinterprets each returning signal as an additional deeper structure - producing equidistant horizontal lines repeating down the screen.
A-lines in lung indicate aerated lung (normal) or pneumothorax.

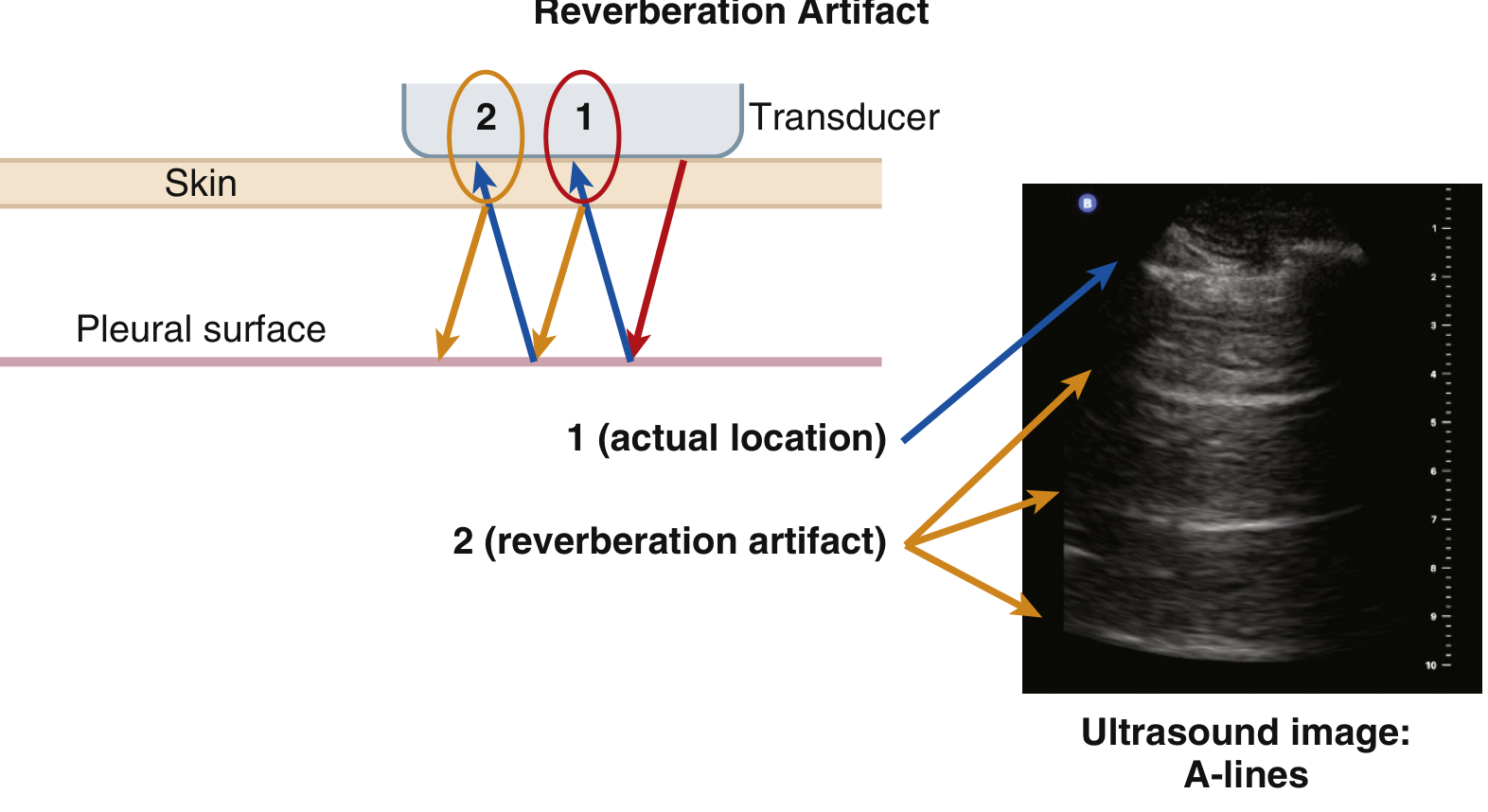

Figure: The beam bounces between skin and pleura, producing "phantom" lines (A-lines) at equal intervals below the real pleural line.
D. Mirroring Artifact
A structure appears on both sides of a highly reflective surface (like the diaphragm). Classic example: the liver appears both below AND above the diaphragm.
E. B-Lines (Lung)
Vertical, laser-like lines that extend from the pleural line to the bottom of the screen without fading. They move with respiration. Multiple B-lines indicate interstitial fluid (pulmonary edema, pneumonia, interstitial lung disease).
STEP 8: Probe Movements - How to Navigate
| Movement | Description | Used For |
|---|---|---|
| Sliding | Moving the probe across the skin | Survey a larger area |
| Tilting/Fanning | Angling the probe while keeping footprint in place | Opening up a view, getting behind structures |
| Rotating | Spinning the probe on its axis | Switching between long-axis and short-axis |
| Rocking | Tilting along the plane of view | Extending the image up or down |
| Compression | Pressing down to displace bowel gas | Improves abdominal views |
STEP 9: Safety - ALARA Principle
ALARA = As Low As Reasonably Achievable
- Only scan when clinically indicated
- Keep scan time as short as needed
- Minimize Doppler over sensitive tissue: early embryo, eye, germinal matrix, neural tissue
- Disinfection: Surface probes need low-level disinfection after each use. Endocavitary probes require high-level disinfection.
- Use sterile covers and gel for procedures
STEP 10: Practical Reading Checklist
When you look at any ultrasound image, go through these steps:
- What preset/mode is this? (B-mode, Doppler, M-mode)
- Which probe was used? (Linear/curvilinear/phased array)
- Orient the image - find the probe marker indicator on the screen
- Identify the depth scale on the side - how deep are you looking?
- Gain correct? - Is fluid black? Is tissue mid-grey, not washed out?
- Name the structures - identify key landmarks first
- Note echogenicity - is the structure anechoic, hypo, iso, or hyperechoic?
- Look for artifacts - shadow, enhancement, reverberation, B-lines
- Apply Doppler if flow is relevant
- Measure if needed - always outer wall to outer wall
Bonus: Focused Cardiac Ultrasound (FoCUS) Standard Views
Once you know the basics, cardiac scanning is a great application. Four standard windows:

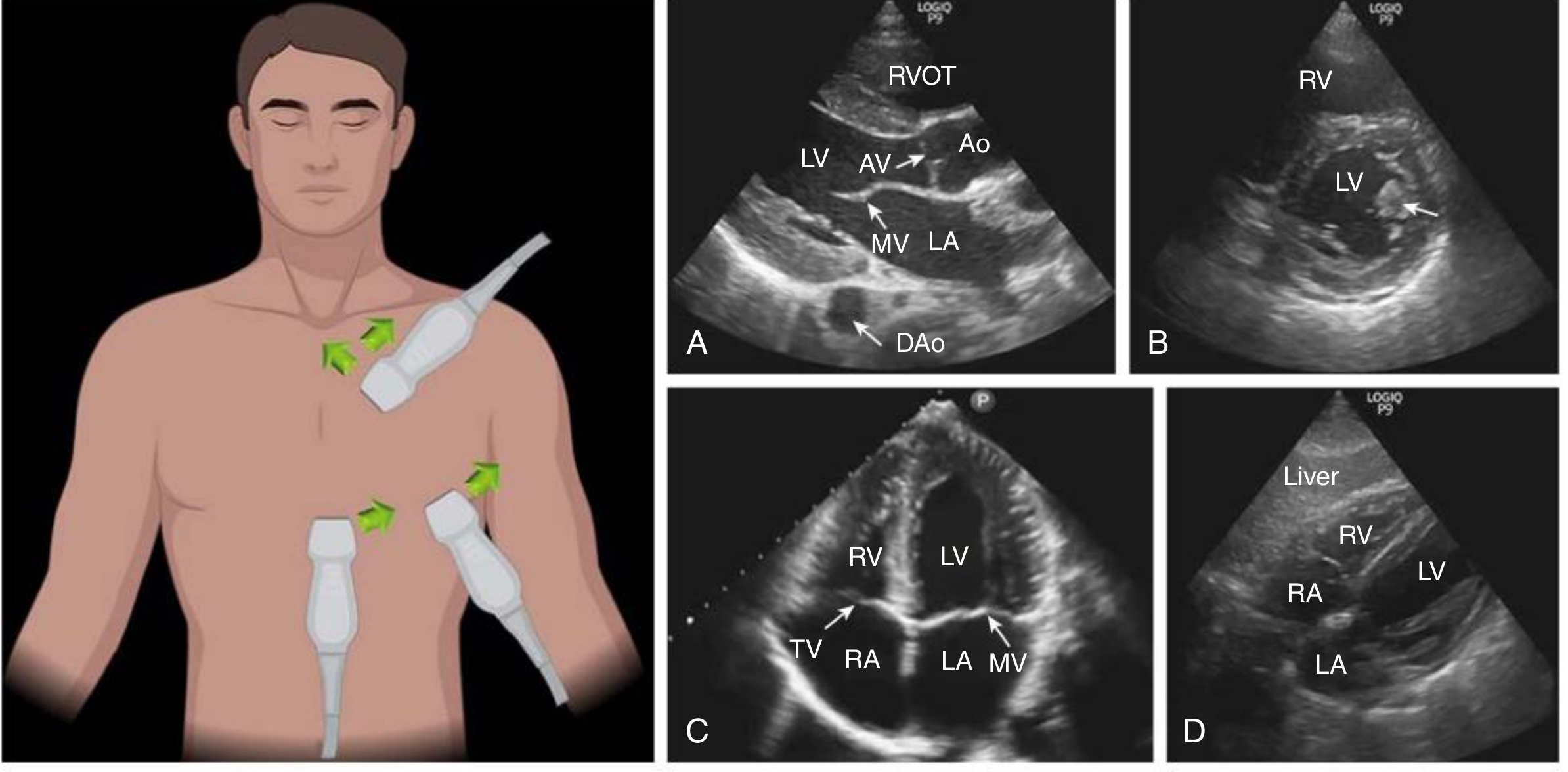

Figure: (A) Parasternal long axis - LV, aorta, mitral valve, LA. (B) Parasternal short axis - cross-section of LV with papillary muscles. (C) Apical 4-chamber - all 4 chambers + MV and TV. (D) Subcostal - heart through the liver. Probe marker directions shown as green arrows.
| View | Probe Position | What You See |
|---|---|---|
| Parasternal long axis (PLAX) | Left sternal border, 3rd-4th ICS | LV, MV, AV, aorta, LA |
| Parasternal short axis (PSAX) | Same position, rotate 90° | Cross-section of LV, papillary muscles, RV |
| Apical 4-chamber | Cardiac apex (4th-5th ICS) | All 4 chambers, both AV valves |
| Subcostal | Below xiphoid, through liver | Heart + pericardial effusion |
Sources:
- Murray & Nadel's Textbook of Respiratory Medicine (Chapter 23)
- Rosen's Emergency Medicine (Chapter e3)
- Comprehensive Clinical Nephrology, 7th Ed. (Chapter 5)
- Pfenninger & Fowler's Procedures for Primary Care (Chapter 121)
