Radiology Findings in Knee Ligament Tears

Modality of choice: MRI - it is the gold standard for evaluating knee ligament injuries, providing excellent soft tissue contrast for all four major ligaments.

ACL (Anterior Cruciate Ligament)

Normal ACL appears as fan-shaped bundles of low-to-mixed signal running parallel to Blumensaat's line (the roof of the intercondylar notch). Two bundles - the anteromedial and posterolateral - can sometimes be differentiated on coronal and axial sequences.

Direct MRI signs of ACL tear:

Fibre discontinuity - gap or interruption in the ligament substance
Increased signal within the ligament (T2/PD fat-sat)
Laxity - abnormal orientation, often with a more horizontal course than the expected 45° angle
Retraction of torn fibres (complete tears)

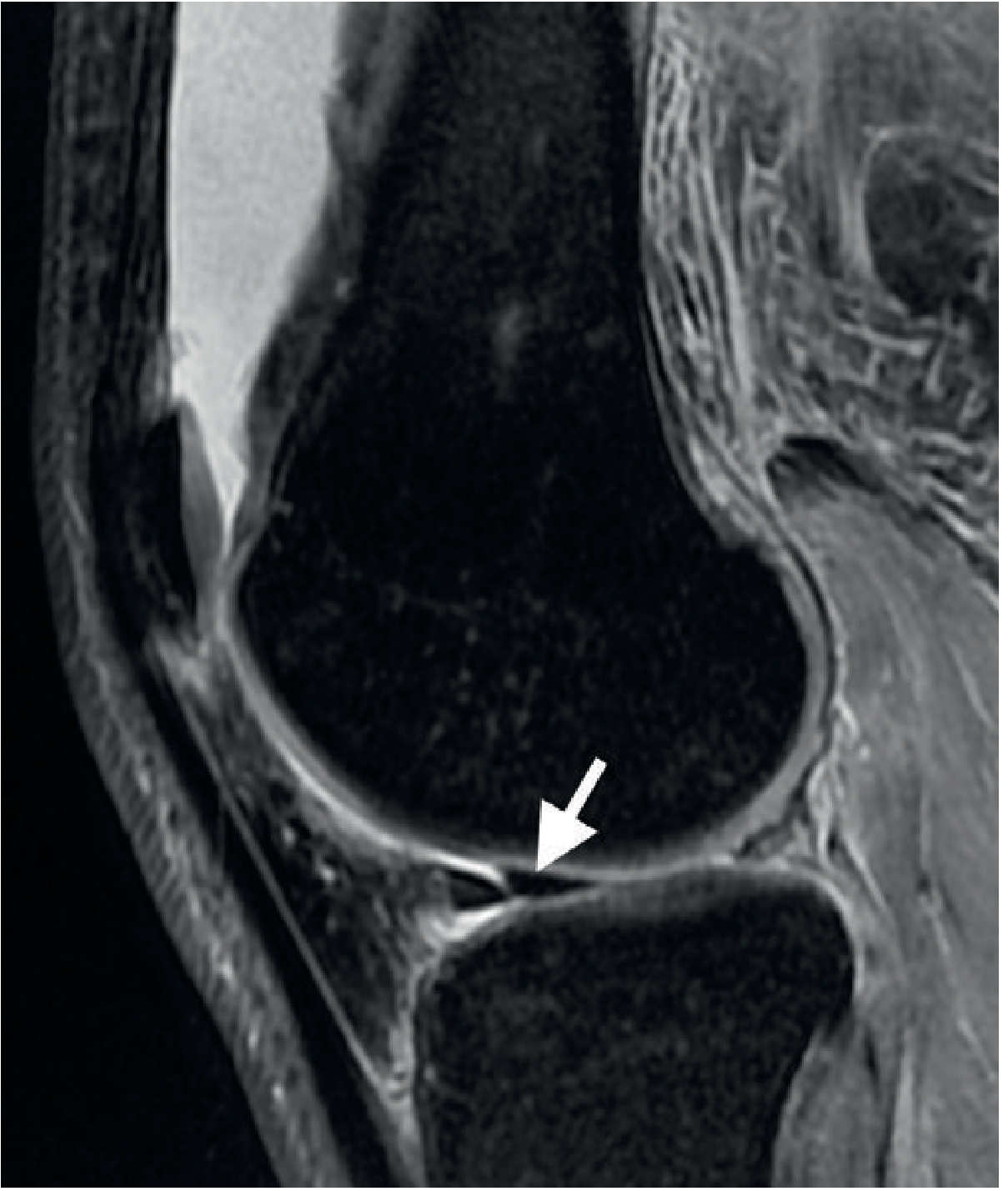

Complete ACL tear - sagittal PD fat-sat showing retracted distal fibres (arrow)

Fig: Complete intrasubstance ACL tear. Sagittal PD fat-saturated image reveals retracted distal ACL fibres with no intact proximal fibres (arrow). - Grainger & Allison's Diagnostic Radiology

Partial tears show altered signal and/or laxity with continuity of some fibres.

Secondary (Indirect) Signs of ACL Tear:

Sign	Description
Bone marrow "kissing" contusions	Posterolateral tibial plateau + lateral femoral condyle (pivot-shift mechanism)
Anterior tibial translation	≥7 mm shift of tibia relative to femur
PCL buckling	Posterior cruciate ligament takes on a curved/buckled shape due to anterior tibial shift
Deep sulcus sign	Deep indentation of the condylopatellar sulcus on the lateral femoral condyle (>1.5 mm)
Segond fracture	Avulsion of the lateral tibial plateau margin at the joint capsule attachment - has high association with ACL tear; may be subtle on MRI but better seen on plain X-ray

Commonly associated injuries: medial meniscus tear, posterolateral corner injury, MCL tear (O'Donoghue's "unhappy triad" = ACL + MCL + medial meniscus).

PCL (Posterior Cruciate Ligament)

Normal PCL appears as a thick, uniform low-signal bundle on all MRI planes - the most consistently visualised knee ligament.

MRI findings:

Partial (more common): middle-third intrasubstance thickening + increased signal while maintaining apparent continuity
Complete tear: overt fibre discontinuity
Contusion pattern: anterolateral tibial plateau + lateral femoral condyle (suggesting hyperextension or dashboard mechanism)

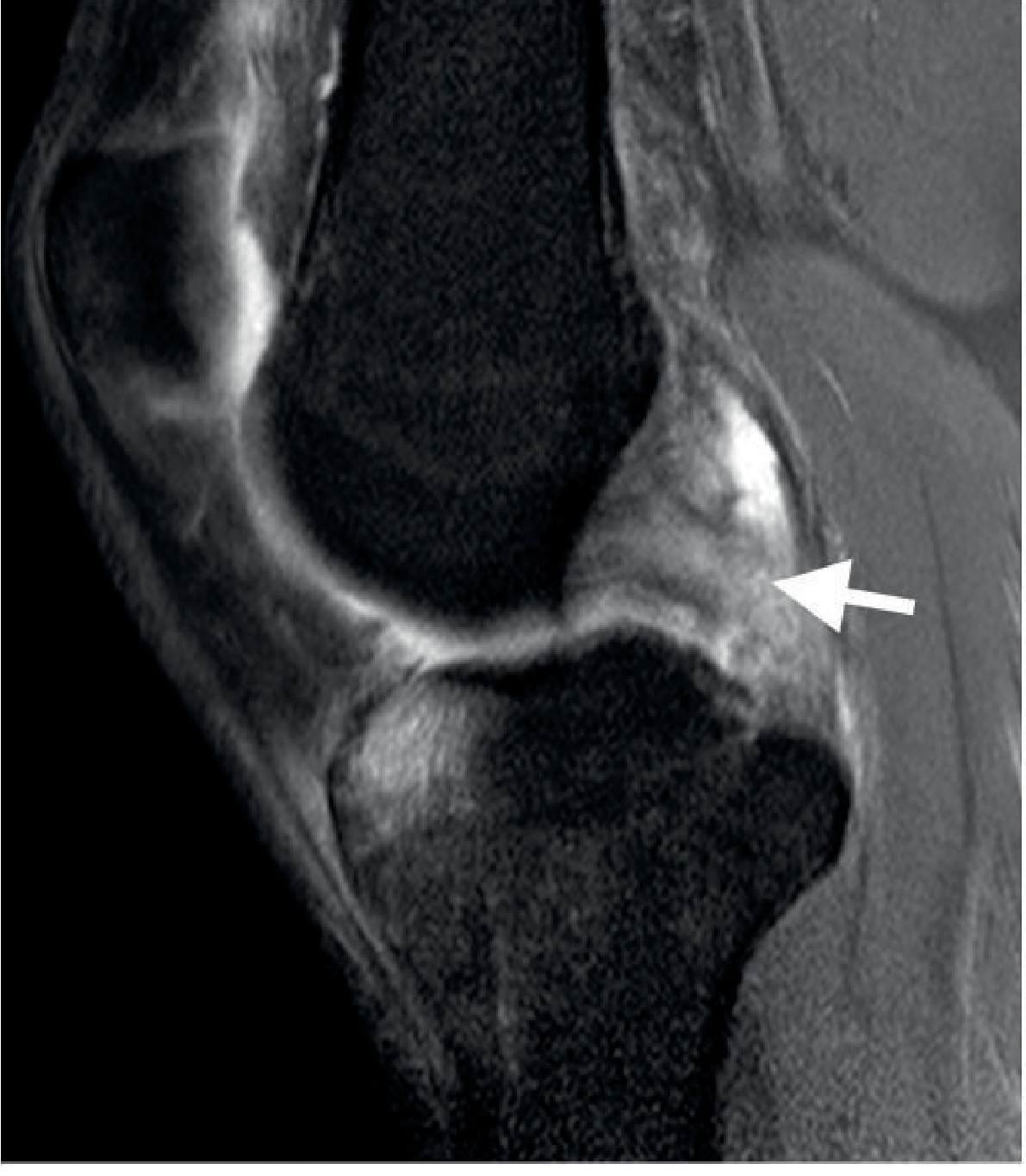

PCL rupture - sagittal PD fat-sat showing thickened ligament with fibre discontinuity (arrow)

Fig: PCL rupture. Sagittal PD fat-saturated image shows abnormal signal and thickening with fibre discontinuity (arrow). Note the anterior tibial plateau contusion. - Grainger & Allison's Diagnostic Radiology

MCL (Medial Collateral Ligament)

Normal MCL is seen on coronal MRI as a thin low-signal band. The superficial component (most important for valgus stability) is longer and distinguishable from the shorter deep meniscotibial/meniscofemoral bands.

Grading system on MRI:

Grade	MRI Finding
Grade 1	Periligamentous oedema only; ligament intact
Grade 2	Partial rupture with focal intraligamentous thickening + oedema
Grade 3	Complete rupture - fibre discontinuity

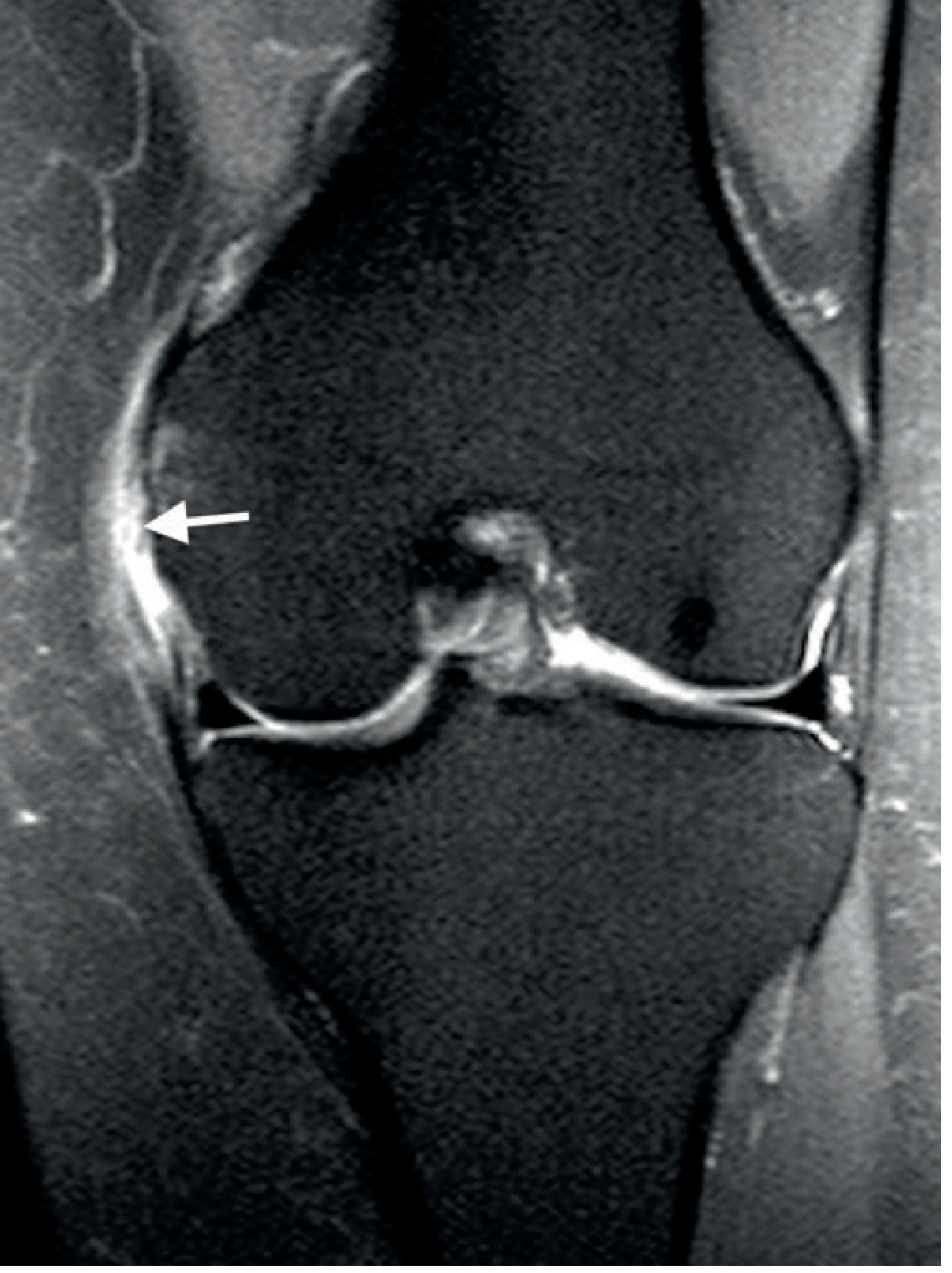

MCL Grade 3 tear - coronal PD fat-sat showing fibre discontinuity at proximal superficial MCL (arrow)

Fig: MCL tear. Coronal PD fat-saturated image showing fibre discontinuity and signal change at the proximal superficial MCL (arrow). - Grainger & Allison's Diagnostic Radiology

Pellegrini-Stieda lesion = chronic ossification at the proximal MCL following healed/calcified injury, visible on plain X-ray.

LCL (Lateral Collateral Ligament) & Posterolateral Corner

The LCL (fibular collateral ligament) passes from the lateral femoral condyle to the fibular head. It is part of the posterolateral corner (PLC) complex, which also includes the popliteus tendon, biceps femoris, arcuate ligament, and popliteofibular ligament.

MRI findings:

LCL tears: intrasubstance signal change with thickening, or avulsion from the fibular head
PLC injuries are often difficult to fully characterise on MRI due to the small size of individual structures
Frequently associated with ACL tears - check always when ACL is torn
Carries important surgical implications (affects ACL reconstruction outcomes if untreated)

Plain X-ray clue: Fibular head avulsion fracture = "arcuate sign" - high association with PLC injury.

Quick Reference Summary

Ligament	Best Plane	Key Direct Signs	Key Indirect Signs
ACL	Sagittal	Fibre discontinuity, increased signal, laxity	Kissing contusions, anterior tibial translation, Segond fracture
PCL	Sagittal	Thickening + intrasubstance signal, discontinuity	Anterolateral tibial/lateral condyle contusions
MCL	Coronal	Perilig. oedema (G1), partial tear (G2), discontinuity (G3)	Pellegrini-Stieda (chronic)
LCL/PLC	Coronal/Axial	Intrasubstance signal, fibular head avulsion	Arcuate sign on X-ray

Preferred sequences: Proton density fat-saturated (PD FS) and T2 fat-saturated in sagittal, coronal, and axial planes. Fat suppression markedly improves detection of bone marrow oedema and periligamentous fluid.

Source: Grainger & Allison's Diagnostic Radiology, Chapter 39 (The Knee)
