Pediatric Leukodystrophy

Leukodystrophies are a group of >50 inherited neurological disorders that impair the development or maintenance of central nervous system (CNS) myelin. As a group, their combined incidence is at least 1 in 4,700 live births (some estimates: 1 in 7,663 per Bonkowski et al., 2010), making them a significant cause of pediatric neurological morbidity and death.

Definition and Core Concept

The term "leukodystrophy" (Greek: leuko = white, dystrophy = abnormal growth/maintenance) refers to disorders where the primary defect lies in the white matter - specifically in myelin production or maintenance. The pathology can affect:

Oligodendrocytes (CNS myelin-forming cells)
Schwann cells (PNS myelin)
Astrocytes (as in Alexander disease)
Peroxisomal or lysosomal enzymes critical for myelin lipid metabolism

Classification

Leukodystrophies are broadly grouped by their underlying mechanism:

Category	Examples
Lysosomal storage disorders	MLD (arylsulfatase A deficiency), Krabbe disease (galactocerebrosidase deficiency)
Peroxisomal disorders	X-linked adrenoleukodystrophy (X-ALD), Zellweger spectrum
Myelin structural protein defects	Pelizaeus-Merzbacher disease (PLP1 gene)
Astrocyte dysfunction	Alexander disease (GFAP mutation)
eIF2B / integrated stress response	Vanishing white matter disease
Mitochondrial	MERRF, MELAS (overlap)
Aminoacidopathy	Canavan disease (aspartoacylase deficiency)

Key Diseases in Detail

1. Metachromatic Leukodystrophy (MLD)

Gene/Enzyme: ARSA gene (chromosome 22q13) → arylsulfatase A (ASA) deficiency; rarely PSAP gene → saposin B deficiency
Inheritance: Autosomal recessive
Pathophysiology: Sulfatide accumulates in CNS/PNS myelin, causing progressive demyelination; affects both central and peripheral myelin
Subtypes by age of onset:
- Late infantile (6 months-2 years) - most common; gait disorder, hypotonia, lower-limb areflexia early; CNS involvement follows
- Juvenile (3-16 years) - intellectual impairment, behavioral difficulties, ataxia, upper motor neuron signs, peripheral neuropathy
- Adult - dementia, psychiatric features (psychosis, hallucinations), dementia; subtle neuropathic signs
Diagnosis:
- MRI: large confluent symmetrical T2-hyperintense areas in cerebral white matter, brainstem, cerebellum
- Elevated urinary sulfatide excretion
- Reduced ASA enzyme in leukocytes/fibroblasts (confirmed by molecular testing, since pseudodeficiency exists)
- Elevated CSF protein; reduced nerve conduction velocities
Treatment:
- LENMELDY (atidarsagene autotemcel) - FDA-approved in 2024; ex vivo lentiviral HSC gene therapy using the patient's own stem cells transduced with a healthy ARSA gene. Indicated for pre-symptomatic or early-symptomatic late infantile/early juvenile MLD
- Hematopoietic stem cell transplantation (HSCT) can slow progression in pre-symptomatic patients
- Long-term follow-up data (Fumagalli et al., NEJM 2025) support durability of gene therapy
Bradley and Daroff's Neurology in Clinical Practice; Goldman-Cecil Medicine

2. Krabbe Disease (Globoid Cell Leukodystrophy)

Gene/Enzyme: GALC gene (chromosome 14q31) → galactocerebrosidase (galactocerebroside β-galactosidase) deficiency
Inheritance: Autosomal recessive
Pathophysiology: Galactocerebroside and psychosine (galactosylsphingosine) accumulate → oligodendrocyte destruction → marked demyelination; characteristic globoid cells (multinucleated macrophages filled with galactocerebroside) in cerebral white matter
Clinical features:
- Early infantile (classic): Onset 3-6 months; rapid deterioration, hypertonicity, opisthotonic posturing, optic atrophy, seizures, peripheral neuropathy
- Late-onset: Peripheral neuropathy and spasticity may be the only features
Diagnosis: Galactocerebrosidase enzyme assay; NBS programs use lyso-Gb1 as a biomarker; MRI shows symmetric white matter involvement; very slow nerve conduction velocities
Treatment: HSCT/cord blood transplantation if performed before symptom onset (newborn screening urgency); no disease-modifying treatment once symptomatic
Bradley and Daroff's Neurology in Clinical Practice; Goldman-Cecil Medicine

3. X-Linked Adrenoleukodystrophy (X-ALD)

Gene/Enzyme: ABCD1 gene (Xq28) → ALDP (peroxisomal membrane protein) deficiency → VLCFA accumulate (not transported into peroxisomes for beta-oxidation)
Inheritance: X-linked recessive
Prevalence: ~1 in 20,000 - the most common peroxisomal disorder
Phenotypes in males:
- Childhood cerebral ALD (CCALD): Onset 4-8 years; deteriorating school performance, behavioral changes, vision deficits, adrenal insufficiency; symmetrical white matter lesions on MRI; rapidly progressive to total disability and death
- Adrenomyeloneuropathy (AMN): Adult onset; progressive spastic paraparesis, cerebral demyelination, adrenal insufficiency
- Isolated adrenal insufficiency (Addison's disease): ~20% of males
- Carrier females may develop symptoms (spastic paraparesis, sphincter dysfunction) but are typically spared from cerebral ALD and adrenal insufficiency
Diagnosis: Elevated plasma very-long-chain fatty acids (VLCFAs), especially C26:0 and C26:0/C22:0 ratio; ABCD1 mutation confirmation; MRI brain
Monitoring: Cortisol stimulation testing every 6-9 months for adrenal insufficiency in all males; regular MRI surveillance
Treatment:
- Adrenal insufficiency: oral corticosteroid supplementation (life-saving)
- CCALD before MRI lesion progression: HSCT or hematopoietic stem cell gene therapy (Skysona/elivaldogene autotemcel - approved in Europe)
- "Lorenzo's oil" (dietary therapy): has proved disappointing for reversing neurological disease but may slow VLCFA accumulation in asymptomatic boys
Tietz Textbook of Laboratory Medicine; Emery's Elements of Medical Genetics and Genomics

4. Pelizaeus-Merzbacher Disease (PMD)

Gene: PLP1 gene (X-linked) → proteolipid protein deficiency or dysfunction
Inheritance: X-linked recessive
Onset: 3 months to 9 years
Clinical features: Slowly progressive myelopathy, nystagmus (pendular), cerebellar involvement, spasticity, cognitive impairment; death between 6-25 years in classic form; milder forms (spastic paraplegia type 2) recognized in adults
Variants: PMD-like disease type 1 and spastic paraplegia type 44 caused by GJC2 mutations (autosomal recessive)
Diagnosis: MRI (hypomyelination pattern - T2 signal does not suppress white matter); genetic testing for PLP1 mutations
Treatment: Supportive only; no specific therapy
Goldman-Cecil Medicine

5. Canavan Disease

Gene/Enzyme: ASPA gene → aspartoacylase deficiency → N-acetylaspartate (NAA) accumulates → brain edema and dysmyelination
Inheritance: Autosomal recessive (enriched in Ashkenazi Jewish population)
Clinical features: Developmental delay appearing in first months of life, macrocephaly, hypotonia progressing to spasticity, seizures; diffuse symmetrical white matter degeneration involving subcortical areas and globus pallidus on MRI
Diagnosis: Elevated NAA on urine organic acids or MR spectroscopy; ASPA gene testing
Treatment: No approved treatment; gene therapy trials are ongoing
Goldman-Cecil Medicine

6. Alexander Disease

Gene: GFAP (glial fibrillary acidic protein) - gain-of-function mutation
Inheritance: Usually de novo (sporadic dominant)
Pathophysiology: Mutant GFAP accumulates → abundant Rosenthal fibers in periventricular, perivascular, and subpial locations (hallmark)
Subtypes:
- Type I (early/infantile): Seizures, motor deficits, macrocephaly, hydrocephalus from CSF pathway obstruction (requires neurosurgical monitoring); frontal-predominant white matter changes on MRI
- Type II (late onset, older child/adult): Bulbar/pseudobulbar features, ataxia, sleep apnea, autonomic dysfunction; spinal cord involvement
Diagnosis: MRI (frontal T2 signal with periventricular rim); GFAP mutation; elevated GFAP in CSF/serum (biomarker)
Treatment: Supportive; antisense oligonucleotide (ASO) therapy targeting GFAP mRNA is in clinical trials
Robbins Pathologic Basis of Disease; PMC5712822

7. Vanishing White Matter Disease (VWM)

Gene: EIF2B1-5 genes → eIF2B proteins (involved in integrated cellular stress response)
Inheritance: Autosomal recessive
Clinical features: Broad spectrum; from rapidly progressive infantile forms to slowly progressive adult disease; characteristic stress-triggered episodes (episodes triggered by fever or minor trauma causing acute/subacute neurological deterioration); vacuolated myelin, cystic appearance on MRI
Treatment: Avoidance of triggers (fever, stress, head trauma); no specific therapy; research into the integrated stress response pathway is active
Goldman-Cecil Medicine

Clinical Presentation: Red Flags for Leukodystrophy

Age of Presentation	Common Features
Neonatal/early infancy	Hypotonia, seizures, dysmorphic features (Zellweger), failure to achieve milestones
Late infancy (6-24 months)	Developmental regression after a period of normal development, gait disturbance, hypotonia
Childhood (2-10 years)	Cognitive/behavioral decline, school failure, spasticity, ataxia, visual loss
Adolescence/adulthood	Progressive spastic paraparesis, psychiatric features, cognitive decline

Key features that should specifically raise suspicion:

Developmental regression (not just delay)
Progressive gait disorder + areflexia in young children (MLD, Krabbe)
Adrenal insufficiency in boys + neurological decline (X-ALD)
Macrocephaly + megalencephalic leukoencephalopathy patterns
White matter changes on MRI that are confluent, symmetric, and periventricular

Diagnosis: Stepwise Approach

Clinical history and exam: Age of onset, regression vs. delay, family history (consanguinity, ethnicity), adrenal symptoms, peripheral neuropathy
MRI brain (with spectroscopy): Pattern of white matter involvement guides specific diagnosis; some leukodystrophies have near-pathognomonic MRI patterns
Metabolic screen:
- Plasma VLCFAs (X-ALD)
- Enzyme assays in leukocytes/fibroblasts (arylsulfatase A, galactocerebrosidase, etc.)
- Urine organic acids (elevated NAA in Canavan; sulfatides in MLD)
Genetic/genomic testing: Gene panel or whole exome sequencing (WES) - now preferred as first-line for undiagnosed cases
Newborn screening (NBS): Several states/countries now screen for X-ALD (lysophosphatidylcholine C26:0) and Krabbe (galactocerebrosidase activity); MLD NBS programs are emerging

Treatment Overview

Disease	Available Treatment
MLD	LENMELDY (gene therapy, FDA 2024); HSCT (pre-symptomatic)
X-ALD	HSCT or gene therapy (Skysona) for early CCALD; steroids for adrenal insufficiency
Krabbe	HSCT (pre-symptomatic only - NBS is critical)
PMD	Supportive only
Canavan	Gene therapy trials (no approved therapy)
Alexander	Supportive; ASO trials
VWM	Stress avoidance; supportive

General supportive measures (all leukodystrophies):

Antiepileptic medications for seizures
Spasticity management (baclofen, botulinum toxin, orthopedic care)
Nutritional support (gastrostomy if severe dysphagia)
Physical, occupational, speech therapy
Palliative/hospice care planning
Psychological and family support

Recent Evidence (2024-2026)

LENMELDY (atidarsagene autotemcel) received FDA approval in 2024 for early-onset MLD; long-term NEJM 2025 data confirm durable benefit (Fumagalli et al., NEJM 2025 [PMID 40577679])
2024 European consensus recommendations on MLD NBS and clinical management were published
A 2025 systematic review on POLR3-related leukodystrophies (Michell-Robinson et al., HGG Adv 2025 [PMID 40684265]) provides comprehensive genotype-phenotype data for this subgroup
Gene therapy platforms (lentiviral HSC, AAV intrathecal, ASOs) represent the most active therapeutic frontier

Key Practical Takeaways (AAP Clinical Report)

Leukodystrophies are collectively common enough that general pediatricians must be familiar with them
Some leukodystrophies require urgent treatment - stage of disease determines efficacy (especially Krabbe and MLD)
Developmental regression - not just delay - is the cardinal warning sign
NBS for X-ALD and Krabbe is available and critical for treatment timing
MRI and metabolic/genetic testing should be pursued promptly when a leukodystrophy is suspected

In the context of a radiology pg

Reading File

Good - this is a Visual + Special Population query. Let me search aggressively in parallel for radiology-specific leukodystrophy content.

Finding Sources

Searching the Web

pediatric leukodystrophy MRI patterns radiology diagnosis white matter 2024

Excellent - found the Grainger & Allison radiology textbook section. Let me read that plus get the detailed MRI content from Adams & Victor and a PMC imaging paper.

Reading File

Finding Sources

Reading Web Page

https://pmc.ncbi.nlm.nih.gov/articles/PMC10885080

Now let me search for more radiology-specific content on all the major leukodystrophies and get the specific MRI imaging descriptions from the radiology textbook.

Finding Sources

Let me search with broader terms in the radiology textbook and look for specific MRI features of major leukodystrophies.

Finding Sources

Found some great images. Let me read the Grainger & Allison radiology section and fetch the key MRI images.

Reading File

Loading Image

Excellent - I have an actual MRI image of X-ALD. Now let me get a few more key images and read more of the radiology-specific content from Grainger & Allison.

Reading File

Loading Image

Now let me get more radiology-specific content covering the key leukodystrophies in the Grainger & Allison radiology textbook:

Finding Sources

Reading File

I have Alexander disease MRI images too. Let me fetch those and get the Krabbe/Canavan/VWM MRI descriptions:

Loading Image

Reading File

I now have comprehensive radiology-specific content. Let me also get the Canavan disease and VWM imaging descriptions and one more MRI image showing the posterior white matter changes in Krabbe:

Reading File

Loading Image

I now have rich radiology-specific content including actual MRI images. Let me now compile the comprehensive radiology PG-focused answer.

Pediatric Leukodystrophy: A Radiology PG Perspective

The radiologist's role in leukodystrophy is central - MRI is the primary modality for detection, characterization, and follow-up. The key skill is pattern recognition: the distribution, signal characteristics, enhancement behavior, and associated findings on MRI allow you to narrow the differential significantly even before biochemistry returns.

The Pattern-Based Approach (PG Must-Know Framework)

Four broad MRI patterns serve as the entry point:

Pattern	Key Examples
Central/periventricular white matter predominant	MLD, Krabbe, X-ALD (posterior), PMD
Subcortical U-fiber predominant	Canavan, MLC, L-2-hydroxyglutaricaciduria
Frontal predominant	Alexander disease
Posterior predominant	X-ALD (childhood cerebral), Krabbe

Additional clues:

Enhancement at the leading edge of demyelination → X-ALD (active inflammatory zone)
Tigroid/leopard skin pattern → MLD
Macrocephaly on imaging → Alexander, Canavan, MLC
Basal ganglia involvement → Krabbe (thalami), Canavan (globus pallidus), Alexander (basal ganglia + thalami)
U-fiber sparing → MLD, Krabbe (early), X-ALD
Cystic degeneration → VWM, MLC, late Alexander

Disease-by-Disease MRI Features

1. X-Linked Adrenoleukodystrophy (X-ALD)

The most high-yield leukodystrophy for a radiology exam.

Location: Posterior > anterior; starts at peritrigonal / splenial region (posterior parietal-occipital white matter and splenium of corpus callosum); progresses anteriorly over time
Signal: Confluent symmetric T2/FLAIR hyperintensity in posterior periventricular white matter; T1 hypointensity in same regions
Pathognomonic feature: Three-zone pattern (Loes staging):
- Zone 1 (innermost): central necrosis/gliosis - T1 low, T2 high, no enhancement
- Zone 2 (middle): active demyelination - T2 high, enhances (breakdown of blood-brain barrier, active inflammation)
- Zone 3 (outermost/leading edge): early demyelination - T2 slightly elevated
Enhancement: Rim/marginal enhancement at the leading edge - characteristic and important for staging
Corpus callosum: Splenium involved early; involvement bridges across midline
Loes MRI Severity Score (0-34): Used to stage disease and guide treatment decisions (HSCT indicated when score < 9)
Adrenal: Look for small adrenal glands on abdominal MRI/CT

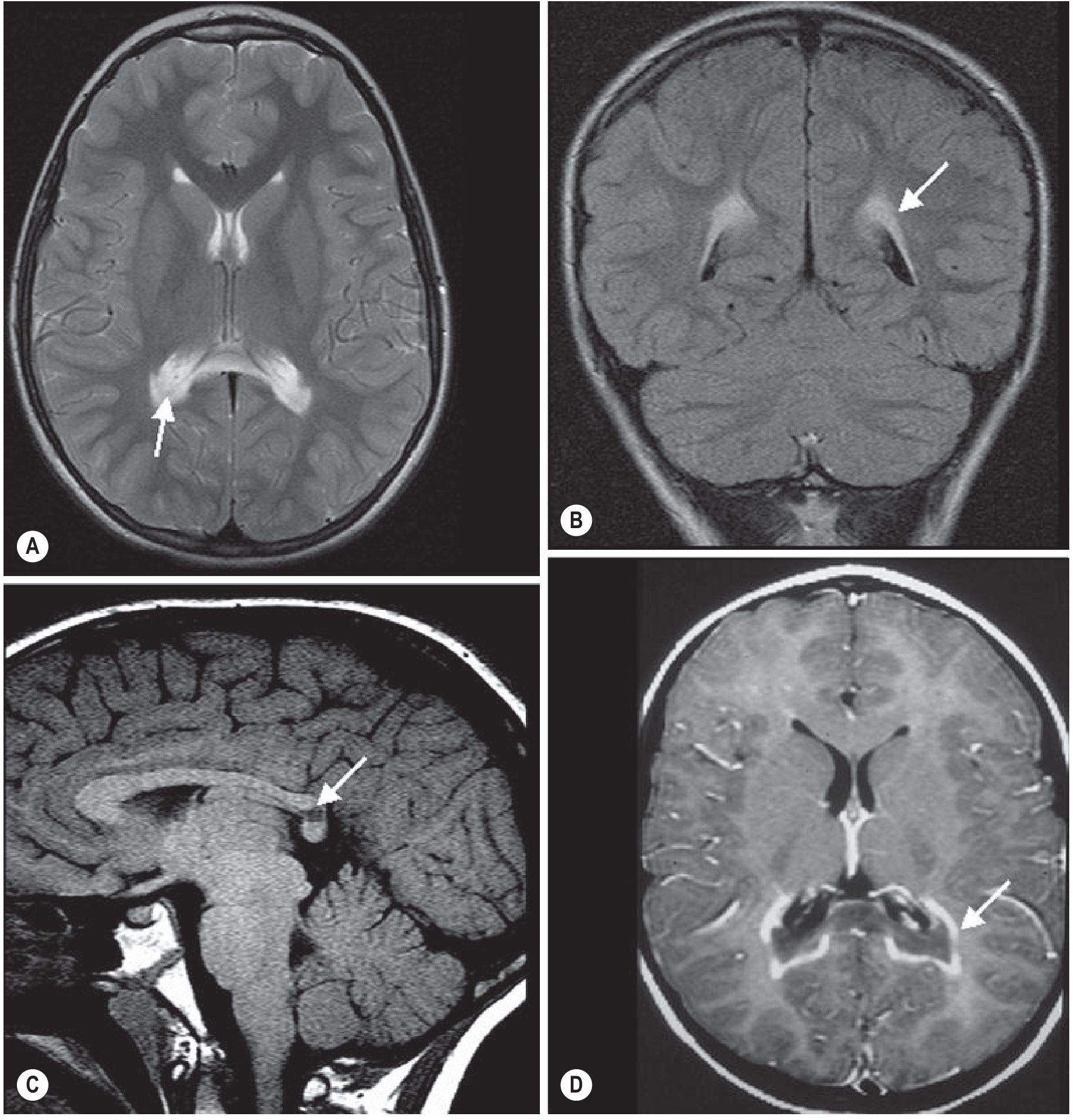

X-ALD MRI: Peritrigonal and splenial T2 hyperintensity with marginal enhancement at leading edge in a 6-year-old boy

Fig. 76.43 - Grainger & Allison: X-ALD in a 6-year-old with gait disturbance and impaired vision. Peritrigonal and splenial signal abnormality with marginal enhancement at the leading edges (arrows A-D) indicating active inflammation - a pathognomonic finding.

2. Metachromatic Leukodystrophy (MLD)

Location: Bilateral, symmetric periventricular and central white matter; frontal and parietal predominance; corpus callosum involved (especially splenium); internal capsule and corticospinal tracts involved; cerebellar white matter also affected
U-fibers: Spared initially (subcortical U-fibers preserved until late disease)
Signal: Confluent T2/FLAIR hyperintensity; confluent sheet-like pattern
Pathognomonic patterns:
- "Tigroid" pattern: Alternating stripes of demyelinated (T2 bright) and spared (T2 dark) white matter - sparing of perivascular white matter creates a striped appearance; seen in periventricular WM and centrum semiovale
- "Leopard skin" pattern: Punctate foci of T2 sparing within the demyelinated white matter (seen in centrum semiovale)
Enhancement: Typically no contrast enhancement, even in active disease - important differentiator from X-ALD
Progression: As disease worsens, inner subcortical WM is eventually involved; corpus callosum, internal capsule, and corticospinal tracts affected

Grainger & Allison: "The tigroid pattern emerges as severe disease develops, with the sheet of white matter signal-intensity abnormality involving the inner half of the subcortical white matter."

3. Krabbe Disease (Globoid Cell Leukodystrophy)

Location: Posterior > anterior; starts centrally; specific involvement of:
- Corticospinal tracts as they course through internal capsule and brainstem
- Cerebellar white matter (but dentate nuclei spared)
- Basal ganglia and thalami - characteristically dark thalami on T2 (T2 hypointensity due to iron/mineralization in globoid cells)
- Optic nerves - enlarged/T2 bright in infantile form
- Cervical spinal cord - enlargement in infantile form
Signal: T2 hyperintensity in white matter; T2 hypointensity in thalami is highly specific
Enhancement: Can be present in early/active phases
Infantile form: Very early and severe; optic nerve + cervical cord enlargement is classic
Adult form: Corticospinal tract hyperintensity prominent

Grainger & Allison: "White matter changes more severely posteriorly and centrally; basal ganglia and thalamic involvement, specifically dark signal in the thalamus on T2 weighted images; cerebellar white matter abnormality, sparing the dentate nuclei; and involvement of the pyramidal tracts within the brainstem."

4. Alexander Disease

Location: Frontal predominant (anterior > posterior) - this is the key differentiator
Leukoencephalopathy pattern (van der Knaap criteria - 4 of 5 must be present):
1. Extensive cerebral white matter change with frontal predominance
2. Rim of T1 hyperintensity / T2 hypointensity around the frontal horns (periventricular rim)
3. Abnormality of basal ganglia and thalami
4. Brainstem abnormalities (midbrain, medullary involvement)
5. Contrast enhancement of one or more of: ventricular lining, frontal WM, basal ganglia, brainstem structures
Macrocephaly: Almost universal in infantile (Type I) - key clinical-imaging correlation
Infantile (Type I): Frontal white matter swelling + T2 hyperintensity; basal ganglia and thalami involved; periventricular rim; enhancement
Juvenile/Adult (Type II): Dorsal medulla + upper cervical cord involvement with enhancement is highly characteristic; less frontal predominance; may have cervicomedullary atrophy
Rosenthal fibers accumulate in periventricular, perivascular, and subpial locations - the histologic hallmark reflected in the periventricular rim sign

Alexander Disease MRI: Bilateral frontal predominant white matter T2 hyperintensity with macrocephaly

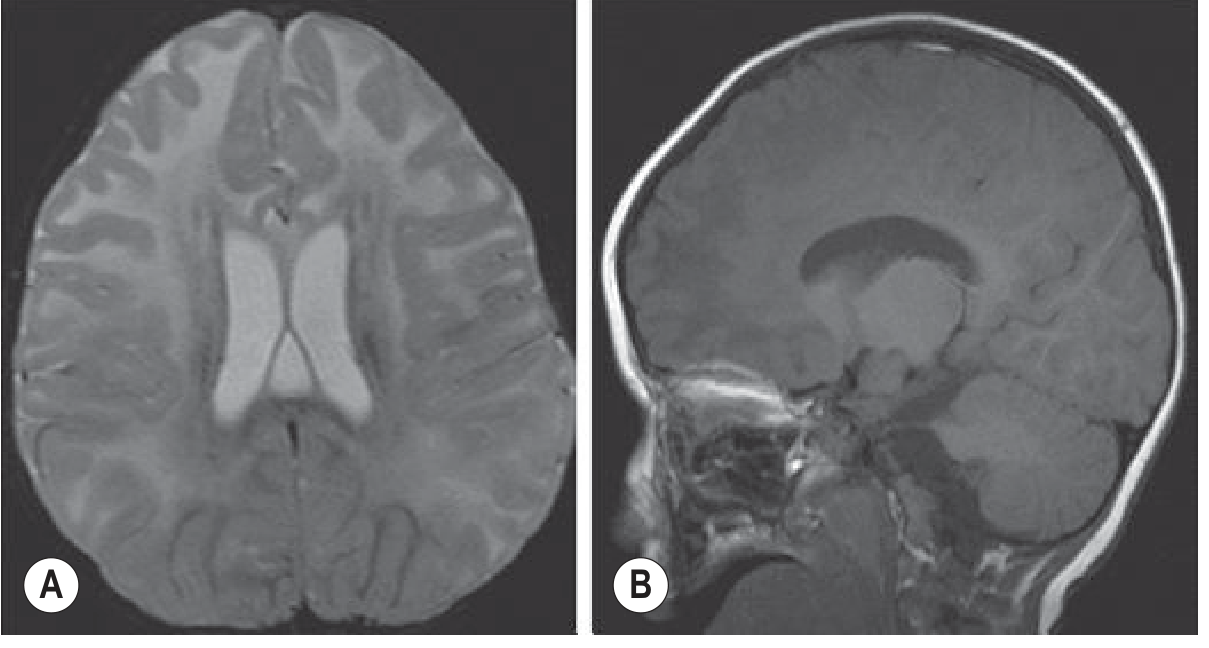

Fig. 76.44 - Grainger & Allison: Child with macrocephaly. (A) Axial T2 shows extensive bilateral symmetric deep and subcortical white matter hyperintensity with frontal predominance and mild swelling. (B) Sagittal T1 shows corresponding low signal consistent with edema.

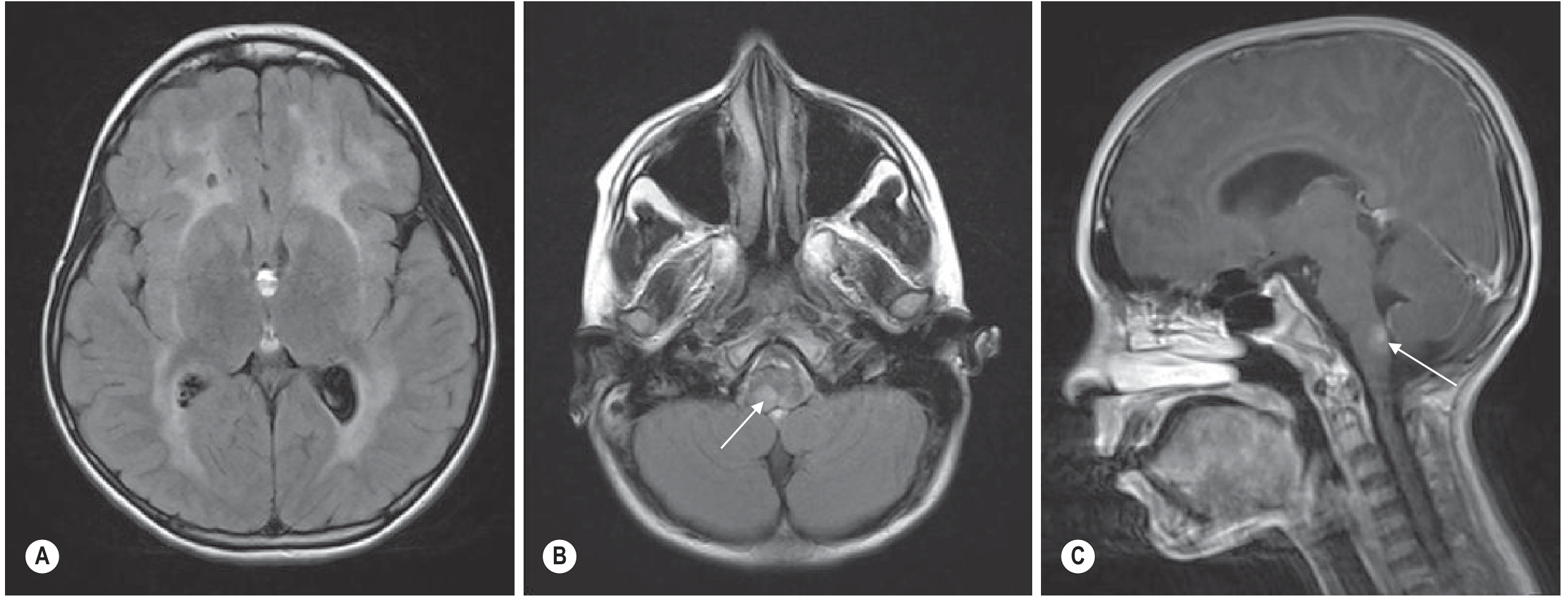

Fig. 76.45 - Grainger & Allison: (A) Bilateral periventricular and deep white matter FLAIR hyperintensity with cystic lesions (B, C). Asymmetric enhancing lesion in the dorsal medulla - typical of juvenile/adult Alexander disease (arrows).

5. Canavan Disease

Location: Subcortical U-fibers involved early (unlike most leukodystrophies); globus pallidus and thalami involved; cerebellar white matter affected
Signal: Diffuse T2 hyperintensity throughout white matter including subcortical U-fibers; T2 increase in globus pallidus
Macrocephaly: Present (due to NAA accumulation causing osmotic brain swelling)
Key MRS finding: Markedly elevated NAA peak (N-acetylaspartate) at 2.0 ppm - pathognomonic; due to aspartoacylase deficiency
Diffusion: Restricted diffusion in white matter in early disease (cytotoxic component)
Late stage: Diffuse cerebral atrophy

Memory hook: Canavan = Canavan → Cortical U-fibers + Cerebellum + Corpus callosum + elevated NAA on MRS

6. Pelizaeus-Merzbacher Disease (PMD)

Pattern: Hypomyelination (not demyelination) - this is a key distinction
MRI appearance: The white matter never properly myelinates - it has the appearance of a newborn/young infant brain regardless of actual age; T2 signal in white matter does not suppress (remains bright like unmyelinated WM); T1 WM remains hypointense
Distribution: Diffuse; cerebellar and brainstem WM also affected; no clear focal pattern
No enhancement (no inflammatory component)
Thinned corpus callosum common
Key distinguishing point: In demyelinating leukodystrophies, there is initial normal myelination followed by loss. In PMD, myelination is arrested from the start.

7. Vanishing White Matter Disease (VWM)

Hallmark: White matter eventually becomes isointense with CSF on all sequences (literally vanishes)
Signal: T2/FLAIR hyperintensity in white matter; as disease progresses the signal follows CSF (T1 dark, T2 bright, FLAIR suppressed)
Cystic change: WM undergoes vacuolation and cavitation - rarefied/cystic appearance
Distribution: Diffuse cerebral white matter; relative sparing of subcortical U-fibers and posterior fossa (early)
Trigger: Episodes of acute neurological deterioration follow febrile illness or head trauma - radiologically, acute worsening of white matter changes is seen after stress
MRS: Absent NAA and Cho peaks over white matter (no viable tissue); lactate/lipid peaks in cystic areas

The Radiology Differential: Quick Comparison Table (High-Yield for PG)

Feature	X-ALD	MLD	Krabbe	Alexander	Canavan	PMD	VWM
Distribution	Posterior→anterior	Central periventricular	Posterior + central	Frontal predominant	U-fibers + pallidi	Diffuse hypomyelination	Diffuse→cystic
Corpus callosum	Splenium early	Splenium involved	Involved	Involved	Diffuse	Thin	Involved
U-fibers	Spared early	Spared early	Spared early	Involved later	Involved early	Diffuse	Spared early
Enhancement	Yes - leading edge	No	Occasionally	Yes - rim/frontal	No	No	No
Thalami/BG	Spared	Spared	T2 dark thalami	Involved	Globus pallidus	Spared	Spared
Special sign	3-zone, Loes score	Tigroid/leopard skin	Dark thalami	Periventricular rim, frontal	Elevated NAA (MRS)	Arrested myelination	WM→CSF signal
Macrocephaly	No	No	No	Yes	Yes	No	No
Gene	ABCD1 (X-linked)	ARSA (AR)	GALC (AR)	GFAP (AD)	ASPA (AR)	PLP1 (X-linked)	EIF2B (AR)

MRI Protocol for Suspected Leukodystrophy

A complete MRI workup should include:

T1 axial + sagittal - assess myelination pattern; corpus callosum
T2 axial - white matter signal; distribution of lesions
FLAIR - periventricular lesion conspicuity; cystic vs. solid
DWI/ADC - active demyelination often shows restricted diffusion at the leading edge; cystic WM shows facilitated diffusion
Post-gadolinium T1 - enhancement pattern (critical for X-ALD staging; Alexander disease)
MR Spectroscopy - NAA (Canavan ↑↑↑), Cho/NAA ratio, lactate (mitochondrial), absent peaks (VWM)
Spinal cord MRI if clinically indicated (X-ALD/AMN, Krabbe infantile - cord enlargement)

Radiology PG Mnemonics

"Posterior to Anterior" = X-ALD (Parieto-occipital first, then advances forward)
"Frontal = Alexander" (F for Frontal = F for GFAP/Alexander)
"Tigroid = MLD" (the only leukodystrophy with this striped pattern, and no enhancement)
"Dark thalami = Krabbe" (T2 hypointense thalami due to globoid cell accumulation)
"Macrocephaly + elevated NAA = Canavan"
"Arrested myelination (not demyelination) = PMD"
"WM becomes CSF = VWM"
"Enhancement at leading edge = always think X-ALD first"

Sources

Grainger & Allison's Diagnostic Radiology: Chapter 76, Inborn Metabolic Brain Disorders
Adams and Victor's Principles of Neurology, 12th Edition
Goldman-Cecil Medicine
Leukodystrophy Imaging review, PMC 2024 (Thakkar et al., 2024 - 22 citations)

Barium swallow and meal radiology findings and everything and pathologies and their appearance in meal and swallow

Reading File

This is a broad visual/radiology topic. Let me run parallel searches across the library for barium swallow, barium meal, esophageal pathologies, and gastric pathologies all at once.

Finding Sources

Searching the Web

barium swallow meal radiology findings pathologies esophagus stomach appearances fluoroscopy

The heading FTS didn't match - let me try broader paragraph searches for the specific pathologies and look for the radiology textbook content on GI barium studies.

Finding Sources

Found relevant content. Let me now do targeted reads of the surgery textbooks and search for more specific pathologies in parallel.

Reading File

Finding Sources

Let me now read more of this highly relevant surgery textbook content and also search for esophageal-specific radiology findings:

Reading File

Finding Sources

I have great textbook content. Now let me fetch the key images and search for more images in the medical library:

Loading Image

Searching Images

achalasia barium esophagus bird beak tapering fluoroscopy

This diagnostic fluoroscopy figure displays two barium swallow (esophagogram) images illustrating the progression of achalasia. Image A shows a classic presentation with significant esophageal dilation and a large column of retained barium. The distal esophagus exhibits a smooth, symmetric tapering toward the gastroesophageal junction, creating the characteristic 'bird's beak' appearance, which indicates failure of the lower esophageal sphincter (LES) to relax. An air-fluid level is visible at the top of the barium column. Image B demonstrates advanced, end-stage achalasia, characterized by a 'sigmoid esophagus.' In this stage, the esophagus is markedly dilated, elongated, and tortuous (deformed). There is a mottled appearance within the barium column caused by a mixture of retained food particles and secretions. These images highlight the loss of primary peristalsis and chronic obstruction resulting in structural remodeling. They serve as key educational examples for gastroenterology and radiology students to differentiate early-stage and decompensated motor disorders of the esophagus.

**Imaging Modality:** Barium swallow (esophagram) under fluoroscopy. **Anatomical Region:** Distal esophagus and gastroesophageal junction (GEJ). **Observed Pathology:** The image demonstrates findings highly suggestive of achalasia. There is a distinct "bird’s beak" appearance characterized by smooth, symmetric tapering of the distal esophagus. **Characteristic Visual Features:** - **Proximal Dilation:** The esophageal body shows significant proximal luminal dilation above the level of obstruction. - **Distal Tapering:** Sharp, conical narrowing at the gastroesophageal junction. - **Contrast Flow:** Abrupt cessation of the barium column with only a thin, filiform stream (trickling) of contrast medium passing through the hypertonic lower esophageal sphincter into the gastric cardia. - **Mucosal Integrity:** The margins of the narrowing appear smooth, without evidence of irregular filling defects or mucosal ulceration, typically distinguishing this from malignant pseudoachalasia. **Key Diagnostic Features:** Symmetric tapering ("bird’s beak" sign) and delayed esophageal emptying, indicative of impaired lower esophageal sphincter relaxation and aperistalsis.

This diagnostic image is a barium swallow fluoroscopy (X-ray radiography) of the upper gastrointestinal tract, specifically the esophagus and stomach. The image demonstrates classic radiological features of achalasia. There is marked dilation of the distal esophagus, which is filled with an opaque accumulation of pooled barium contrast (indicated by the black arrow). At the gastroesophageal junction, there is a smooth, abrupt tapering of the esophageal lumen, creating a 'bird's beak' deformity (indicated by the white arrow) representing the failure of the lower esophageal sphincter (LES) to relax. Minimal contrast is seen trickling into the stomach, indicating delayed bolus transit. The study illustrates the secondary effects of aperistalsis and LES dysfunction on esophageal morphology and emptying. This material is highly relevant for medical education in gastroenterology and radiology for identifying esophageal motility disorders and obstructive pathologies at the gastroesophageal junction.

Excellent - I now have actual barium study images. Let me search for more specific pathology images and fetch more content from the textbook:

Searching Images

esophageal carcinoma barium swallow irregular stricture shouldering rat tail

**Imaging Modality:** Fluoroscopic contrast study (Barium Swallow/Esophagram). **Anatomical Region:** Lower esophagus and gastroesophageal junction. **Observed Pathology:** There is a significant, high-grade irregular narrowing involving the distal segment of the esophagus. The lesion demonstrates asymmetric mucosal irregularities and abrupt luminal tapering, characteristic of a malignant stricture. **Characteristic Visual Features:** - **Apple-core configuration:** The circumferential narrowing displays "shouldering" at the proximal margin where the normal esophageal lumen meets the stenotic segment. - **Proximal Dilation:** Mild pre-stenotic dilation is visible superior to the narrowing, indicating chronic partial obstruction. - **Mucosal Pattern:** The contrast column within the narrowed segment appears jagged and thread-like (rat-tail appearance), suggesting infiltrative mucosal destruction rather than a smooth, benign process. **Diagnostic Significance:** These features are highly suggestive of primary esophageal neoplasia (e.g., adenocarcinoma or squamous cell carcinoma) or secondary malignant infiltration. The image provides critical visual evidence for differentiating malignant strictures from benign esophageal webs, rings, or peptic strictures based on the irregularity and shouldered margins.

**Imaging Modality:** Barium swallow (fluoroscopic contrast esophagram). **Anatomical Region:** Lower third of the esophagus extending to the gastroesophageal junction (GEJ). **Observed Pathology:** Long-segment, high-grade luminal narrowing (stricture) of the distal esophagus. The stricture appears irregular with significant reduction in the diameter of the barium column. **Characteristic Visual Features:** * **Proximal Dilatation:** There is mild pre-stenotic dilatation of the mid-esophagus above the level of the narrowing. * **Stricture Morphology:** The narrowing demonstrates tapered, "rat-tail" or "bird-beak" like appearance as it approaches the diaphragm, though the mucosal irregularity suggests an organic rather than purely functional etiology. * **Contrast Flow:** Delayed passage of contrast media through the stenotic segment into the gastric cardia. * **Mucosal Pattern:** Loss of normal longitudinal mucosal folds within the strictured zone, replaced by an irregular, thread-like contrast trail. **Diagnostic Context:** Findings are highly suggestive of an organic lower esophageal stricture, frequently associated with advanced gastroesophageal reflux disease (peptic stricture) or malignant infiltration (esophageal carcinoma). The imaging differentiates this from achalasia by the degree of luminal irregularity and the length of the involved segment.

**Imaging Modality:** Fluoroscopic esophagram (barium swallow), spot film. **Anatomical Region:** Mid-to-distal esophagus and adjacent tracheobronchial tree. **Observed Pathology:** The image demonstrates a high-grade malignant esophageal stricture secondary to squamous cell carcinoma. There is an irregular, circumferential mucosal pattern with associated luminal narrowing and "apple-core" apple-core-like shouldering (indicated by the large arrow). **Characteristic Visual Features:** - **Esophageal Findings:** Severe luminal narrowing with irregular, nodular mucosal surfaces and abrupt transition zones. - **Tracheoesophageal Fistula (TEF):** A definitive fistulous tract is visible (indicated by the arrowhead), where contrast medium extravasates anteriorly from the esophageal lumen into the trachea and primary bronchi. - **Contrast Distribution:** Radiopaque contrast outlines the bronchial tree, confirming aspiration or fistulous communication between the digestive and respiratory tracts. **Diagnostic Differentiating Features:** The presence of irregular mucosal destruction and luminal eccentricity is highly suggestive of primary esophageal malignancy. The visualization of barium within the tracheobronchial tree following esophageal opacification is the pathognomonic finding for an acquired tracheoesophageal fistula, a known complication of advanced esophageal carcinoma.

Searching Images

gastric ulcer barium meal niche crater lesser curvature

**Imaging Modality:** Barium meal (upper gastrointestinal fluoroscopy with oral contrast). **Anatomical Region:** Distal stomach, specifically the antrum and pyloric region. **Observed Pathology:** The image demonstrates a significant gastric outlet obstruction. A prominent barium-filled collection, characteristic of an ulcer crater, is visible along the lesser curvature of the stomach (indicated by the black arrow). Distal to this, there is a marked narrowing and abrupt termination of the contrast column at the pylorus (indicated by the white arrow), suggesting luminal obstruction. **Characteristic Visual Features:** * **Ulcer Niche:** An out-pouching of contrast material representing a localized mucosal defect or crater. * **Luminal Narrowing:** Severe attenuation of the gastric lumen in the prepyloric region. * **Contrast Retention:** Significant pooling of barium within a dilated gastric body and antrum, with minimal to no contrast passing into the duodenum. **Clinical Significance:** These findings are highly suggestive of chronic peptic ulcer disease leading to cicatricial pyloric stenosis or acute inflammatory edema resulting in gastric outlet obstruction. This description is optimized for retrieval in databases concerning gastrointestinal radiology and obstructive gastric pathologies.

This diagnostic image is an upper gastrointestinal barium meal radiograph (X-ray) focusing on the stomach and pyloric region. The contrast study reveals a significantly distended stomach filled with radiopaque barium. Two key pathological findings are annotated: a black arrow indicates a localized, irregular projection of contrast along the lesser curvature, representing an ulcer crater. A white arrow points to the distal antrum/pylorus, where there is an abrupt, tapered termination of the contrast column with no visible passage into the duodenum, characteristic of a high-grade gastric outlet obstruction. The vertebral column is visible to the left of the gastric shadow. This radiographic appearance is clinically significant for diagnosing mechanical obstruction and mucosal lesions, such as those caused by peptic ulcer disease or gastric malignancy. The image is intended for intermediate to advanced medical learners studying gastrointestinal radiology and surgical pathology.

This diagnostic image consists of two side-by-side contrast-enhanced X-ray radiographs (barium swallow/upper GI series) illustrating clinical features of von Presser syndrome. Both cases demonstrate massive gastric dilatation (gastromegaly) involving the fundus and body, with a markedly elongated greater curvature occupying a significant portion of the abdominal cavity. A key diagnostic feature visible in both images is a distinct gastric ulcer located at the lesser curvature, specifically at the incisura angularis. This is characterized by a radiopaque niche or barium-filled outpouching projecting beyond the normal gastric contour, indicative of an active ulcer crater. The pyloric region appears relatively normal in diameter despite the proximal dilatation. These radiographic findings are used in gastroenterology and radiology to identify specific patterns of chronic gastric stasis associated with benign peptic ulcer disease at the incisura.

Loading Image

Excellent - I have a rich collection of actual barium study images and textbook content. Let me get a few more key images for hiatal hernia, duodenal ulcer, and carcinoma of stomach, then compile the full answer.

Searching Images

hiatal hernia barium swallow sliding gastric fundus above diaphragm

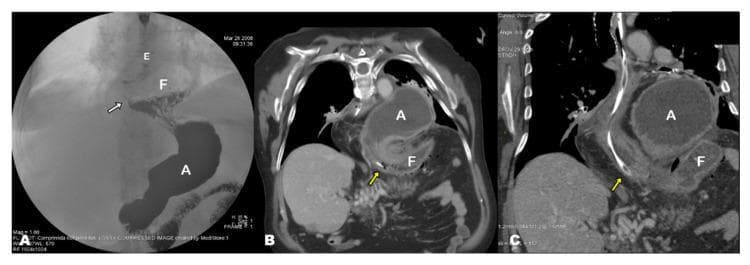

This composite figure demonstrates the progression and diagnosis of gastric pathologies using fluoroscopy and computed tomography (CT). Panel A is an anteroposterior barium swallow image showing a sliding hiatal hernia. The gastroesophageal junction (indicated by a white arrow) and a portion of the gastric fundus (F) are seen herniated above the diaphragm, while the gastric antrum (A) remains in the subdiaphragmatic abdominal cavity. Panels B and C are coronal-oblique contrast-enhanced CT reconstructions during an acute presentation of gastric volvulus. These images reveal a significant anatomical shift: a severely dilated gastric antrum (A) has herniated into the thoracic cavity, while the fundus (F) is located inferiorly below the diaphragm. A nasogastric tube (yellow arrows) is visible traversing the esophageal hiatus, likely for gastric decompression. This comparison highlights the transition from a simple hiatal hernia to an acute, complicated mesentero-axial gastric volvulus characterized by abnormal rotation and displacement of gastric segments relative to the diaphragm.

This diagnostic image is an upper gastrointestinal (UGI) barium swallow radiograph. It demonstrates a large sliding hiatal hernia characterized by the intrathoracic migration of a significant portion of the stomach. The barium contrast medium clearly outlines a distended gastric pouch residing in the posterior mediastinum, well above the level of the diaphragm (indicated by white arrowheads). The gastroesophageal junction, identified by a black arrow, is also displaced superiorly into the thoracic cavity, confirming the diagnosis. Key anatomical landmarks include the vertebral column, ribs, and the distinct interface between the contrast-filled herniated stomach and the radiolucent lung fields. This clinical photograph is highly relevant for gastroenterology and radiology education, illustrating the radiographic appearance of a large hiatus hernia and the loss of the normal subdiaphragmatic positioning of the stomach. The image is optimized for teaching diagnostic imaging patterns related to esophageal and gastric motility disorders.

Searching Images

duodenal ulcer barium meal deformity duodenal cap clover leaf

**Imaging Modality:** Fluoroscopic barium meal study, supine view. **Anatomical Region:** Upper gastrointestinal tract, specifically the stomach and duodenum. **Observed Pathology and Visual Features:** - **Duodenal Obstruction:** A distinct, linear vertical filling defect is visible across the proximal third (D3 segment) of the duodenum. This extrinsic compression results in significant pre-stenotic dilatation of the second part (D2 segment) of the duodenum, characteristic of Superior Mesenteric Artery (SMA) syndrome. - **Duodenal Bulb Deformity:** A "trifoliate" or "clover-leaf" deformity of the duodenal bulb is present. This morphology is characterized by central narrowing with multiple surrounding pseudodiverticula or sacculations. **Key Diagnostic Features:** - The vertical indentation on the transverse duodenum suggests extrinsic vascular compression. - The clover-leaf deformity is a pathognomonic radiologic sign of a chronic, healed duodenal ulcer with secondary scarring and retraction of the bulb. **Clinical Significance:** The image demonstrates dual pathology: mechanical duodenal obstruction consistent with SMA syndrome and structural remodeling from prior peptic ulcer disease.

This diagnostic fluoroscopic image is a barium meal study of the upper gastrointestinal tract, specifically focusing on the stomach. The image reveals a significant structural deformity in the median third of the gastric body. A giant ulcer is visible, characterized by a large, deep, and irregular barium-filled cavity that projects beyond the normal gastric contour. This lesion exhibits a classic 'clover-leaf deformity,' where the barium collection is divided into multiple lobes or outpouchings, often resulting from extensive tissue loss and associated scarring or muscular contraction. The surrounding gastric anatomy appears distorted by the size and depth of the crater. This radiographic presentation is typical of a pseudoneoplastic benign giant gastric ulcer, which can mimic malignant processes due to its morphology and extent. Key educational concepts illustrated include contrast radiography for peptic ulcer disease, recognition of the clover-leaf sign, and the differentiation of giant benign ulcers from neoplastic gastric lesions.

Searching Images

carcinoma stomach barium meal linitis plastica leather bottle

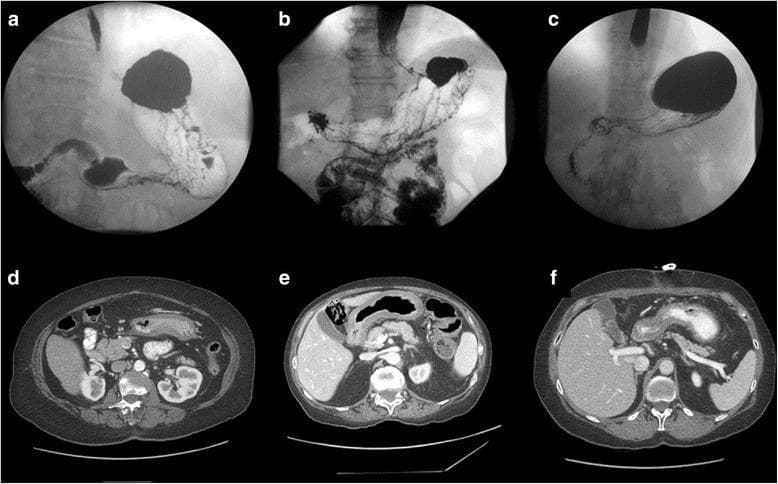

This composite medical image presents diagnostic features of linitis plastica (scirrhous gastric carcinoma) in three different patients using two imaging modalities. The top row (a–c) displays upper gastrointestinal (UGI) contrast studies (barium meals), while the bottom row (d–f) shows corresponding axial computed tomography (CT) scans. In the UGI images, the stomach exhibits characteristic 'leather bottle' morphology, marked by significant loss of distensibility, tubular contraction, and irregular mucosal outlines (especially visible in patient 2). The contrast flow highlights restricted gastric volume and rigid wall structure. The CT scans demonstrate circumferential, diffuse gastric wall thickening across all patients. Patient 1 (d) shows heterogeneous wall thickening, while Patient 2 (e) and Patient 3 (f) exhibit more uniform thickening, with some haziness in the perigastric fat suggesting inflammatory or infiltrative changes. These visual markers illustrate the infiltrative nature of Borrmann type IV tumors, emphasizing the primary pathological features of submucosal and muscularis propria involvement typical of advanced gastric cancer.

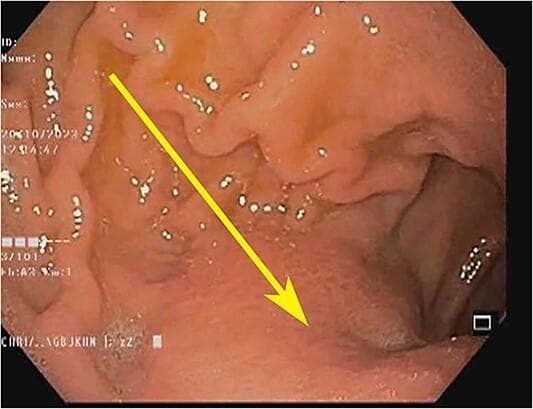

This endoscopic image displays the gastric antrum and distal stomach, highlighting key diagnostic features of linitis plastica. The mucosal surface shows a marked loss of rugosity, where the typical gastric folds are absent or flattened, resulting in a smooth and rigid appearance. There is widespread mucosal erythema, indicating inflammation. A yellow arrow points to an extramucosal bulge, suggesting a submucosal or infiltrating process. These findings are clinically significant as they represent diffuse infiltration of the gastric wall by signet-ring cell carcinoma, characterized by a lack of stomach expansion during insufflation. The image serves as a clinical example of the 'leather bottle' appearance of the stomach in advanced gastric malignancy, often associated with Krukenberg tumors in a systemic context.

I now have a comprehensive set of images and textbook content. Let me compile the complete answer.

Barium Swallow & Barium Meal: Complete Radiology PG Guide

PART 1: OVERVIEW AND TECHNIQUE

Barium Swallow (Esophagram)

Studies: Pharynx + esophagus (oro- to gastroesophageal junction)
Technique: Single contrast (thick barium) or double contrast (barium + gas-forming agent)
Views: Fluoroscopy in real-time; spot films in AP, oblique, lateral positions; patient upright then prone (Trendelenburg to detect reflux)
Indications: Dysphagia, odynophagia, suspected foreign body, GERD, stricture, suspected perforation (use water-soluble contrast - Gastrografin first)
Contraindications: Known/suspected perforation (use Gastrografin); aspiration risk; pregnancy

Barium Meal (Upper GI Series)

Studies: Stomach + duodenum (sometimes includes distal esophagus)
Technique: Double contrast preferred (high-density barium + gas granules = mucosal coating + distension); single contrast for suspected obstruction
Positions: Erect, supine, oblique; right lateral decubitus (to fill duodenum)
Special variants:
- Hypotonic duodenography: IV hyoscine/glucagon → atonic duodenum → delineates pancreatic head pathology
- Barium meal follow-through: Serial images over 2-4 hours → small bowel

PART 2: BARIUM SWALLOW - PATHOLOGIES

1. Achalasia

Pathophysiology: Failure of LES relaxation + aperistalsis of esophageal body (loss of Auerbach's plexus ganglion cells)

Barium appearances:

Dilated esophagus (massively so in advanced disease) with retained food/fluid level
"Bird's beak" / "Rat's tail" tapering at the gastroesophageal junction - smooth, symmetric, progressive narrowing
Air-fluid level above the barium column
Absence of gastric air bubble (classic)
"Sigmoid esophagus" in advanced/end-stage disease - markedly dilated, tortuous, deformed esophagus
Poor/absent primary peristalsis - no stripping wave seen on fluoroscopy
Contrast trickles through the LES in small amounts

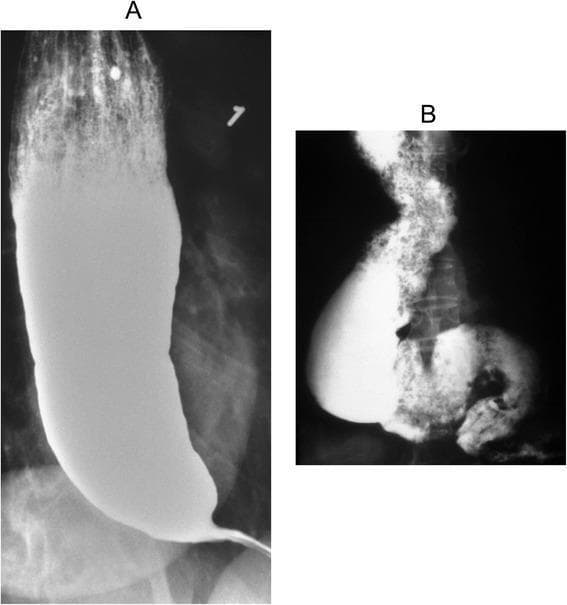

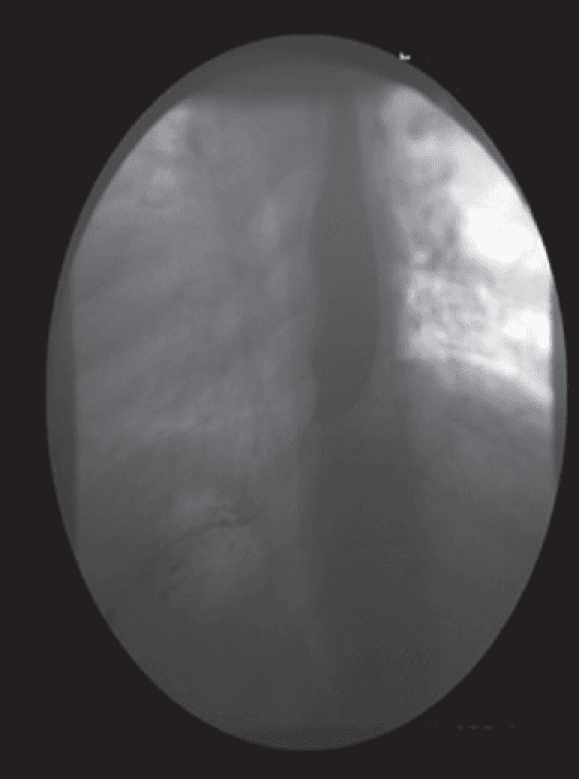

Achalasia - Bird's beak appearance on barium swallow: A shows classic bird's beak tapering with proximal dilatation; B shows end-stage sigmoid esophagus

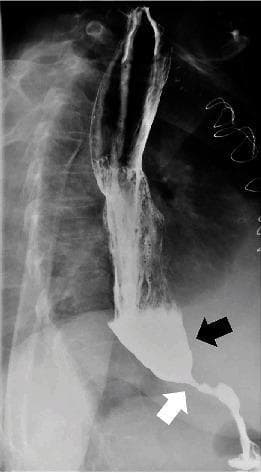

Achalasia - Smooth symmetric distal tapering at GEJ (bird's beak sign)

Key differentiator from carcinoma: Smooth margins (vs. irregular/shouldered margins in malignancy). Pseudoachalasia (carcinoma infiltrating LES) must always be excluded.

2. Carcinoma of the Esophagus

Types: Squamous cell carcinoma (mid-esophagus, F-lower third/GEJ = adenocarcinoma/Barrett's related)

Barium appearances:

Irregular mucosal destruction - rat-tail/thread-like contrast column within the stricture
"Shouldering" (Apple-core lesion) - abrupt transition between normal and narrowed lumen with overhanging/shelf-like edges at proximal margin
Pre-stenotic dilatation above the lesion
Mucosal irregularity - nodular, destroyed folds
Asymmetric narrowing (vs. smooth in benign strictures)
Tracheoesophageal fistula - barium enters the tracheobronchial tree (complication of advanced disease)

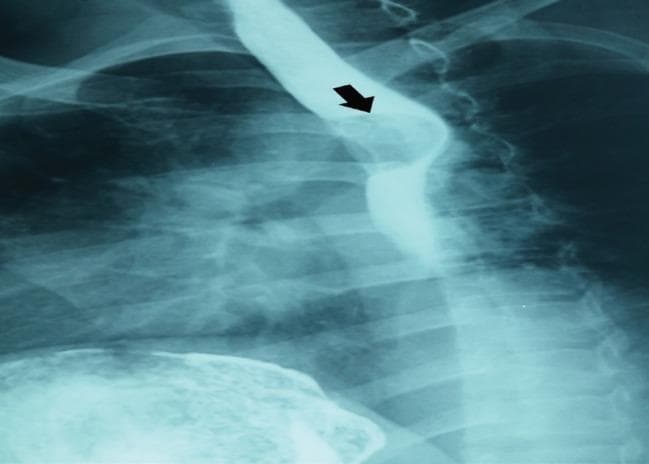

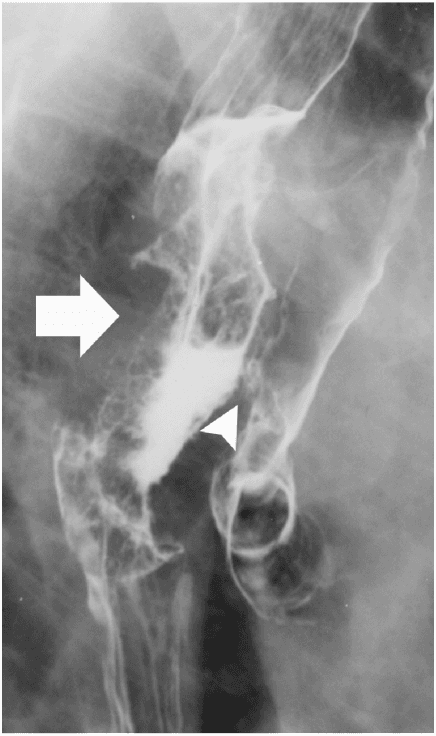

Esophageal carcinoma - Apple-core shouldering, irregular narrowing, rat-tail appearance, with tracheoesophageal fistula

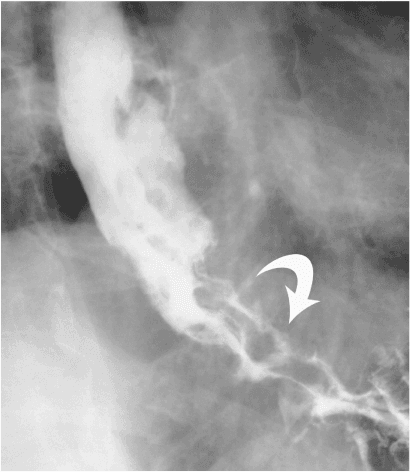

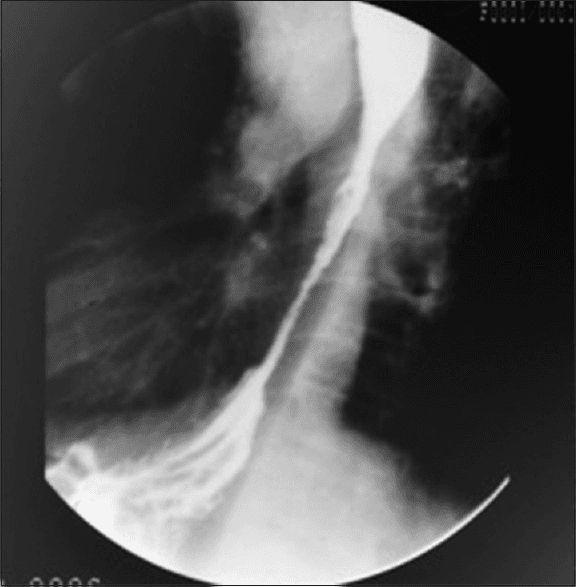

Esophageal malignant stricture - Irregular luminal narrowing with shouldering and pre-stenotic dilation

3. Esophageal Leiomyoma

Barium appearances:

Smooth, semilunar/crescent-shaped filling defect - moves with swallowing
Sharply demarcated from adjacent mucosa
Makes an acute angle at its margins with the esophageal wall (submucosal origin)
Mucosa overlying the lesion is intact and smooth
No shouldering or mucosal destruction

Schwartz's Surgery: "In profile, the tumor appears as a smooth, semilunar, or crescent-shaped filling defect that moves with swallowing, is sharply demarcated, and makes an acute angle at its margins."

4. Hiatal Hernia

Types:

Type I (Sliding): GEJ + gastric cardia herniate above diaphragm (most common, 95%)
Type II (True paraesophageal): GEJ stays below diaphragm; fundus herniates through
Type III (Mixed): Both GEJ and fundus herniate

Barium appearances - Sliding:

Gastric folds seen above the diaphragm
GEJ above the level of the hiatus (>2 cm above diaphragm)
"B-ring" (Schatzki ring) - mucosal ring at GEJ
"A-ring" (muscular ring) may also be visible
Widened esophageal hiatus (>3.5 cm)

Barium appearances - Paraesophageal:

Gastric fundus herniated into the thoracic cavity
GEJ at or below the diaphragm (key differentiator from sliding)
Risk of gastric volvulus (organoaxial rotation)

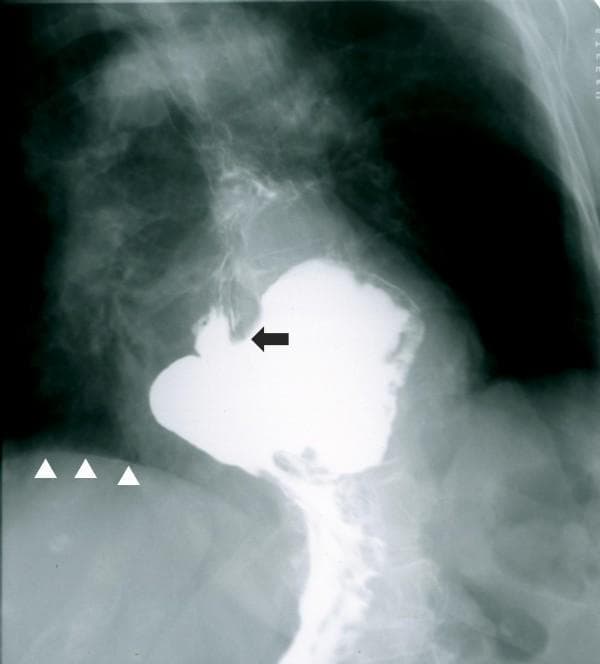

Hiatal hernia - Barium swallow showing gastric fundus and GEJ herniated above the diaphragm into the posterior mediastinum

5. Pharyngeal/Zenker's Diverticulum

Barium appearances:

Posterior outpouching at the pharyngoesophageal junction (Killian's dehiscence)
Barium-filled pouch seen projecting posteriorly on lateral view
May displace the esophagus anteriorly when large
Retention of barium within the pouch after swallowing

6. Esophageal Web / Stricture

Barium appearances:

Web: Thin, shelf-like defect projecting from the anterior wall, usually upper esophagus (Plummer-Vinson syndrome in women with iron deficiency)
Peptic stricture: Smooth, tapered narrowing at the distal esophagus (reflux-related); no shouldering; may be short segment
Post-corrosive stricture: Long, smooth, irregular narrowing; affects mid-esophagus preferentially

7. Esophageal Varices

Barium appearances:

Serpentine/worm-like filling defects in the lower esophagus
Parallel longitudinal columns of varices creating irregular wavy filling defects
Best seen on prone oblique view with collapsed (non-distended) esophagus
Mucosal folds appear thickened and tortuous

8. Esophageal Foreign Body

Opaque FBs visible on plain X-ray; barium used for radiolucent FBs
Coin: Coronal orientation in esophagus (vs. sagittal in trachea) on AP view
Filling defect on barium; proximal hold-up of contrast

PART 3: BARIUM MEAL - GASTRIC PATHOLOGIES

1. Gastric (Peptic) Ulcer

Direct Signs:

Ulcer niche/crater - projecting bud of barium beyond the normal gastric outline on lesser curvature (en face = ring shadow of barium)
"Halo sign" - radiolucent zone surrounding the crater (mound of edema around the ulcer)
Hampton's line - thin radiolucent line across the mouth of the ulcer (overhanging mucosa)
Mucosal folds converging (radiating) toward the crater

Indirect Signs:

Persistent spasm on the greater curvature opposite the ulcer ("incisura" on greater curvature = pointing arrow toward the ulcer site)
Hourglass deformity of stomach (with healing/fibrosis of mid-body ulcer)
Delayed gastric emptying

Locations: Most commonly lesser curvature of the body/antrum; any ulcer on the greater curvature is suspect for malignancy.

S. Das Surgery: "A gastric ulcer is recognized by projecting bud of barium meal from the normal smooth outline — known as ulcer crater or niche. A fleck of barium in the crater with a clear zone around it and corona of mucosal rugae converging towards the crater."

Gastric ulcer - Barium meal showing ulcer niche on lesser curvature with mucosal folds radiating toward the crater

2. Carcinoma of the Stomach (Gastric Carcinoma)

Barium appearances (by type):

a) Polypoid/Fungating (Borrmann I):

Irregular filling defect (constant in all films - key!)
Lobulated soft-tissue mass
Mucosal destruction, absent peristalsis in that segment

b) Ulcerating (Borrmann II/III):

Malignant ulcer - inside the lumen (vs. benign ulcer projecting outside)
"Carman's meniscus sign" - large ulcer with a concave inner margin + radiolucent halo (Kirklin complex) = malignant ulcer
Codman's triangle - mucosal folds stop abruptly at the edge of the ulcer (no converging folds)
Mucosal folds are amputated/clubbed, not radiating toward the crater

c) Infiltrating/Linitis Plastica (Borrmann IV):

"Leather bottle stomach" - markedly shrunken, rigid, non-distensible stomach
Loss of normal rugal folds throughout
Stomach does not expand with insufflation/peristalsis is absent
Narrowed lumen; resembles a rigid tube

Key differentiators - Malignant vs. Benign ulcer:

Feature	Benign (Peptic)	Malignant
Location	Outside gastric outline	Inside gastric outline
Mucosal folds	Converge toward ulcer	Amputated/stop at edge
Surrounding mucosa	Normal	Nodular/destroyed
Halo	Hampton's line (thin line)	Wide mound of tissue
Wall	Pliable, peristalsis present	Rigid, loss of peristalsis
Emptying	Normal	Slow or obstructed

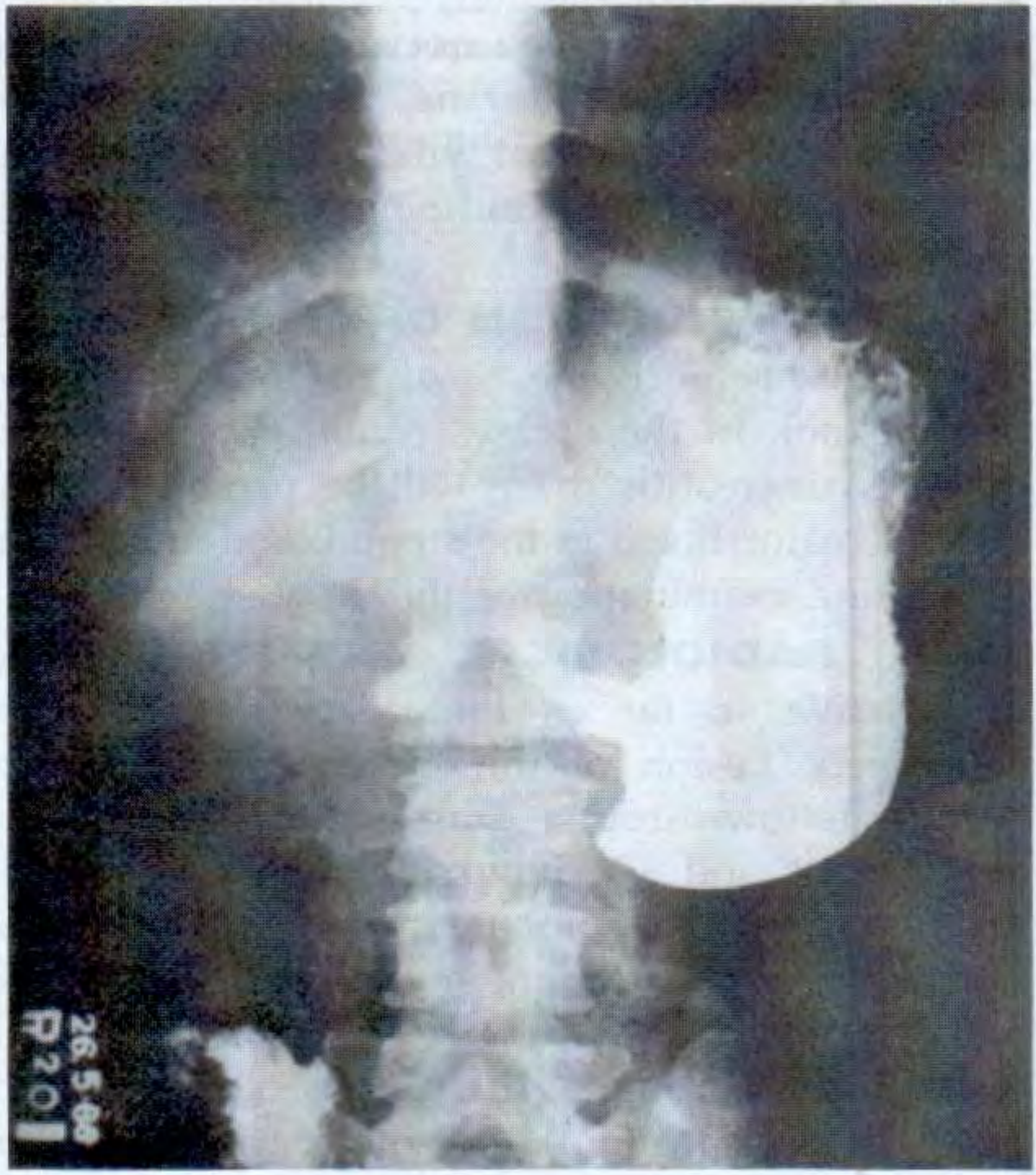

Carcinoma of stomach - Irregular filling defect of pyloric region due to gastric carcinoma (barium meal)

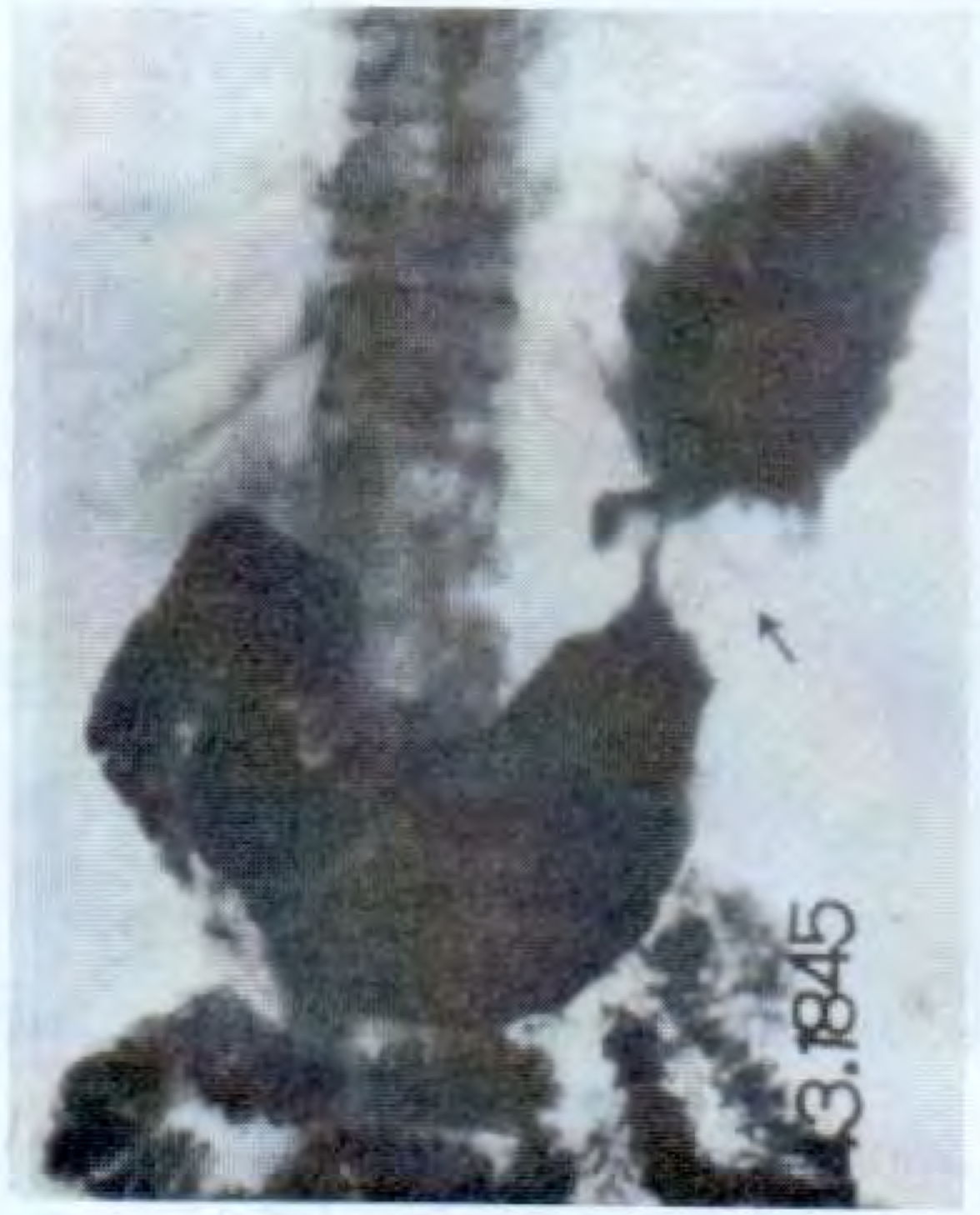

Gastric carcinoma causing hour-glass contracture (arrow)

Linitis plastica - Leather bottle appearance on barium meal: loss of rugal folds, rigid non-distensible stomach

3. Duodenal Ulcer

Direct Signs:

Ulcer crater in the duodenal cap (1st part) - seen as a niche or fleck of barium
Often on the posterior wall - seen in profile on lateral view

Indirect Signs (more common diagnostically):

Persistent deformity of duodenal cap - most reliable sign
"Cloverleaf deformity" - chronic scarring deforms the duodenal cap into 3 pseudodiverticula (patho-gnomonic of chronic healed DU)
Rapid emptying of stomach
Localized tenderness over duodenum on fluoroscopy
Pyloric spasm
Residue at 6 hours = pyloric obstruction; residue at 24 hours = organic pyloric stenosis (almost certain)

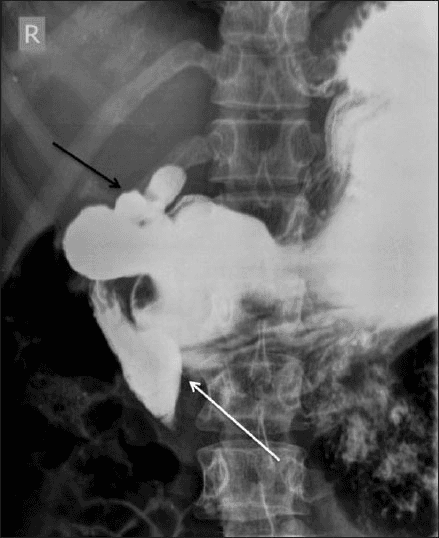

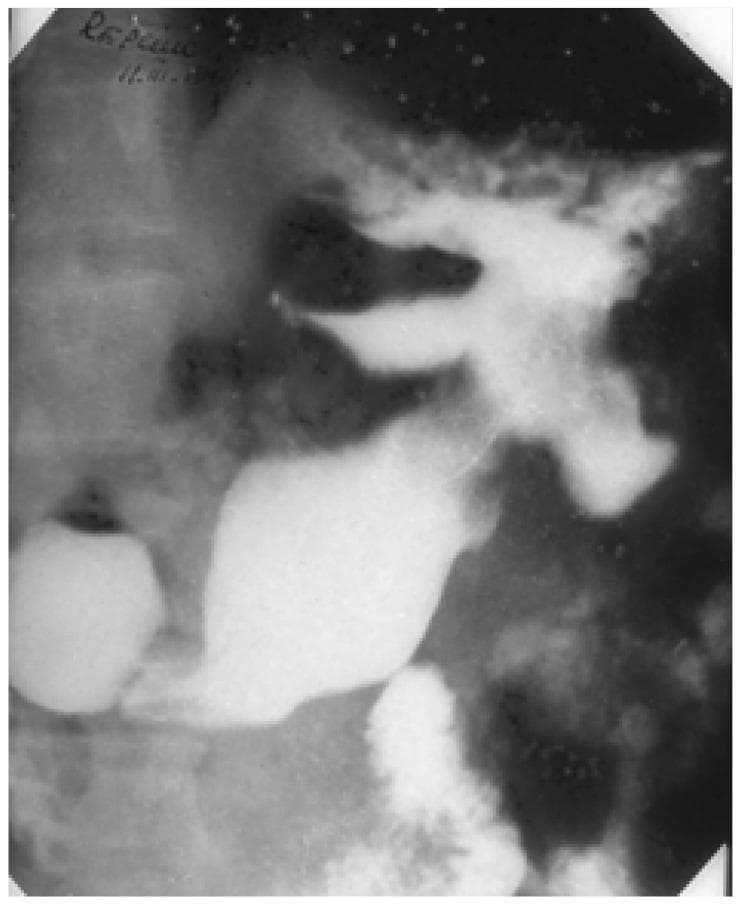

Duodenal ulcer - Cloverleaf deformity of duodenal cap on barium meal

4. Pyloric Stenosis

Adult (peptic/malignant):

Prolonged gastric emptying
Dilated stomach with food residue
Narrowed pyloric channel

Infantile Hypertrophic Pyloric Stenosis (IHPS):

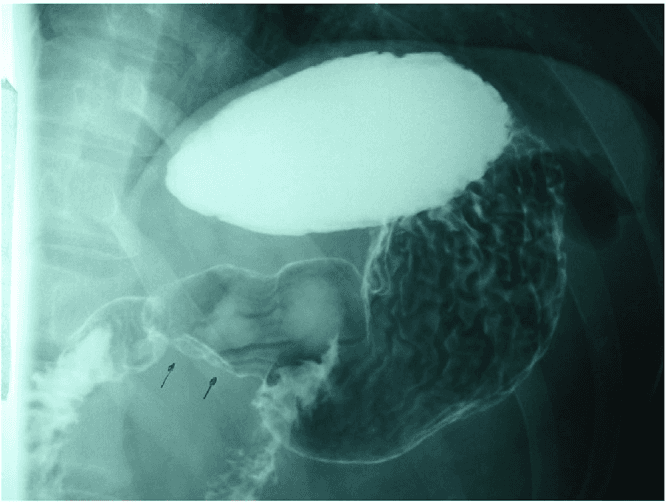

"String sign" - thin thread of barium passing through elongated, narrow pyloric canal
"Mushroom/umbrella sign" - inverted V indentation on the base of duodenal cap by the hypertrophied pylorus
"Shoulder sign" - pyloric muscle bulges into antrum making shoulder impression
NB: Ultrasound is now preferred over barium for IHPS

5. Gastric Volvulus

Barium appearances:

Organoaxial volvulus: Stomach rotated along its long axis; greater curvature appears above lesser curvature; barium in a double-bubble configuration within the thorax
Mesenteroaxial volvulus: Antrum and pylorus flip upward; pylorus seen above the gastric body

PART 4: DUODENAL AND ADJACENT PATHOLOGIES ON BARIUM MEAL

1. Carcinoma of the Head of Pancreas

"Pad sign" (Frostberg's inverted 3 / epsilon sign): Barium-filled duodenal loop is widened; duodenal sweep is widened medially
The reversed 3/ε sign on duodenum - indentation on both the inner margin of the 2nd part of duodenum superiorly and inferiorly with central convexity (due to tumor mass)

2. Carcinoma of the Ampulla of Vater

"Reversed 3" (ε sign) - filling defect at the ampullary region with symmetric indentations above and below

3. Pseudopancreatic Cyst

Lateral view: Anterior displacement of the stomach by the retrogastric cystic mass
On AP: Gastric body displaced anteriorly

4. Chronic Pancreatitis (Hypotonic Duodenography)

Early: Definite flattening of the medial margin of the duodenal loop
Late: Inverted "3" sign = thickened folds with ulceration at the major papilla (Frostberg's sign)
Small filling defects or areas of constriction in carcinoma

PART 5: BARIUM MEAL FOLLOW-THROUGH

Used for pathology of the terminal ileum, appendix, cecum:

Condition	Barium Appearance
Crohn's disease	"String sign of Kantor" - long narrow string-like terminal ileum; skip lesions; "cobblestone" mucosa; fistulae
Ileocaecal TB	Cecum displaced upward; distal ileum narrowed and near vertical; "Stierlin's sign" = rapid emptying of the cecum; conical/shrunken cecum
Appendicitis	Non-filling of appendix; fixity and tenderness on fluoroscopy when filled
Carcinoma of cecum	Irregular filling defect in cecum
Intussusception	"Coiled spring" appearance - barium passes around the intussusceptum

PART 6: KEY SIGNS - QUICK REFERENCE TABLE

Sign	Appearance	Condition
Bird's beak / Rat tail	Smooth symmetric distal tapering	Achalasia
Sigmoid esophagus	Tortuous massively dilated esophagus	Advanced achalasia
Shouldering / Apple-core	Abrupt overhanging edges at tumor margins	Esophageal/gastric carcinoma
Rat tail (malignant)	Irregular thread-like narrowing	Esophageal carcinoma
Niche / Crater	Barium pouch projecting outside gastric outline	Benign gastric ulcer
Carman's meniscus sign	Concave inner ulcer margin + halo	Malignant gastric ulcer
Hampton's line	Thin lucent line across ulcer mouth	Benign peptic ulcer
Mucosal convergence	Rugal folds radiating to crater	Benign gastric ulcer
Leather bottle	Rigid, shrunken non-distensible stomach	Linitis plastica (Borrmann IV)
Hourglass stomach	Mid-body constriction	Chronic peptic ulcer/fibrosis
String sign of Kantor	Thread-like terminal ileum	Crohn's disease
Cloverleaf deformity	Trilobed duodenal cap	Chronic healed DU
Pad sign / ε sign	Widened C-loop with indentation	Ca head of pancreas
Reversed 3 (ε)	Symmetric indentations in 2nd part D	Carcinoma of ampulla
String sign (IHPS)	Thin pyloric channel	Infantile hypertrophic pyloric stenosis
Mushroom/umbrella sign	Duodenal cap base indentation	IHPS
Serpentine filling defects	Worm-like defects in lower esophagus	Esophageal varices
Stierlin's sign	Rapid emptying of cecum	Ileocaecal TB
Coiled spring	Spiral barium around intussusceptum	Intussusception

PART 7: BENIGN vs. MALIGNANT FILLING DEFECT - KEY DIFFERENTIATORS

Feature	Benign	Malignant
Margins	Smooth, rounded	Irregular, shouldered, nodular
Peristalsis	Present	Absent in involved segment
Mucosal folds	Normal or converging	Destroyed, amputated
Wall	Flexible	Rigid
Consistency	Changes with peristalsis	Constant in all films
Ulcer position	Projects outside lumen	Within lumen

S. Das Manual of Clinical Surgery, 13th Edition
Schwartz's Principles of Surgery, 11th Edition
Mulholland & Greenfield's Surgery, 7th Edition
Radiology Info - Upper GI Examination

Create a study PDF with all pathognomonic barium signs and images

Reading File

Now let me collect all needed images in parallel - I know the URLs from the previous session, so let me gather additional ones and start building the PDF simultaneously:

Searching Images

esophageal varices barium swallow worm-like filling defects

**Imaging Modality:** Fluoroscopic contrast study (Esophagram/Barium Swallow). **Anatomical Region:** Distal esophagus and gastroesophageal junction. **Observed Pathology:** Varicoid carcinoma of the distal esophagus. **Characteristic Visual Features:** The image demonstrates multiple, prominent serpiginous and longitudinal filling defects within the contrast-filled esophageal lumen. These defects create a tortuous, "cobblestone" or "worm-like" appearance, highlighted by a curved white arrow in the distal segment. Unlike traditional esophageal varices, these findings represent a fixed mucosal/submucosal neoplastic infiltration. **Key Diagnostic Features:** - **Pattern:** Serpiginous, longitudinal filling defects mimicking the appearance of esophageal varices (varicoid pattern). - **Distribution:** Concentrated in the distal third of the esophagus. - **Differentiating Factors:** Fixed nature of filling defects on fluoroscopy (typical of varicoid carcinoma) as opposed to the dynamic changes in caliber seen with true venous varices during peristalsis or Valsalva maneuvers. **Clinical Context:** Squamous cell carcinoma or adenocarcinoma presenting with varicoid morphology, necessitating differentiation from portal hypertension-related varices.

This diagnostic image is a barium swallow radiograph (upper GI series) showing the thoracic esophagus. The image demonstrates a well-defined, semilunar (half-moon shaped) filling defect in the upper thoracic esophagus, indicated by a black arrow. The defect has smooth, regular margins and causes a localized displacement of the contrast column, suggesting an intramural or extramural mass rather than an intraluminal primary mucosal lesion. The surrounding esophageal lumen remains patent but distorted. Relevant anatomical landmarks include the posterior ribcage and the distal trachea. Such findings are classically associated with benign esophageal tumors, such as leiomyomas, which present as smooth filling defects with obtuse angles to the esophageal wall. The image is an essential teaching tool for identifying esophageal filling defects and distinguishing between mucosal and submucosal pathologies in gastroenterology and radiology.

Searching Images

Crohn disease barium string sign Kantor terminal ileum cobblestone

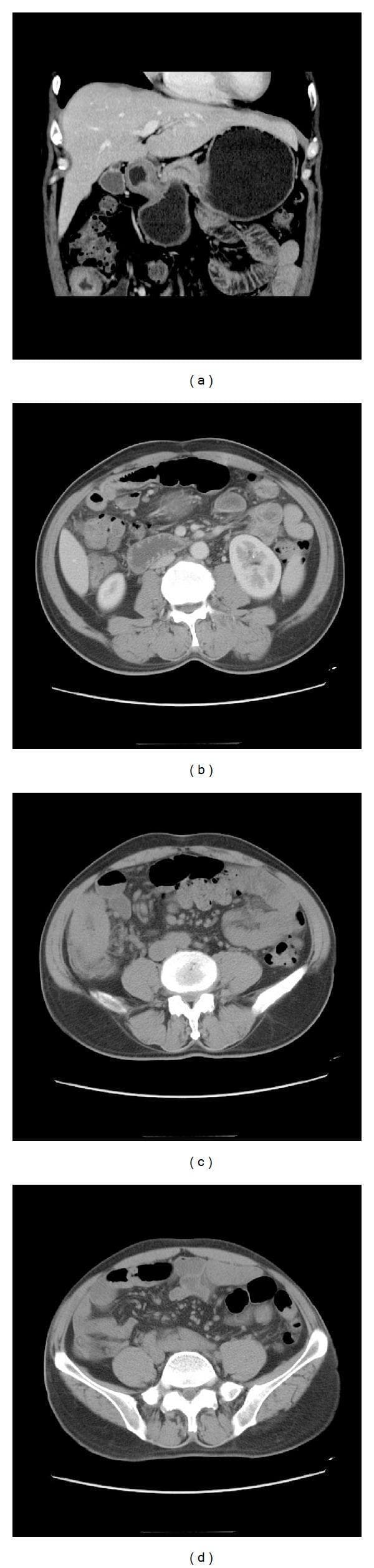

This composite of abdominal Computed Tomography (CT) images, including coronal (a) and axial (b-d) views, demonstrates classic radiographic findings associated with inflammatory bowel disease, specifically Crohn's disease. The primary anatomical focus is the terminal ileum, which exhibits significant small-bowel wall thickening and severe segmental narrowing of the intestinal lumen, often referred to as the 'string sign'. The mucosal surface of the affected ileal segment shows a 'cobblestone appearance,' representing alternating areas of deep ulceration and intramural edema. Associated mesenteric features include mesenteric adenopathy, characterized by enlarged, rounded lymph nodes within the surrounding fat. These diagnostic features illustrate chronic transmural inflammation and are clinically significant for identifying intestinal stenosis and potential fistulization in a gastroenterological context. The images serve as an educational resource for medical students and radiology residents to recognize the complications of chronic granulomatous inflammation in the gastrointestinal tract.

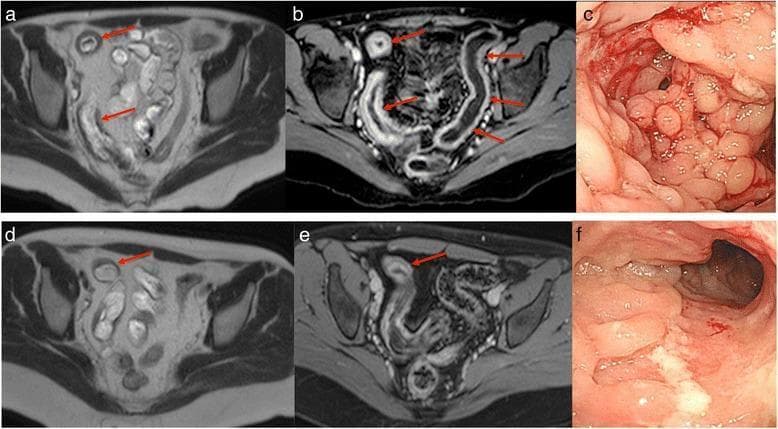

This composite figure illustrates the progression and monitoring of Crohn's disease (CD) in the distal ileum using magnetic resonance imaging (MRI) and endoscopy. Panels (a, b) show axial MRI baseline scans demonstrating severe active inflammation characterized by marked bowel wall thickening, mural edema, and prominent stratified hyperenhancement (target sign) in the terminal ileum. Panel (c) provides the corresponding baseline endoscopic view, revealing classic 'cobblestone' mucosal patterns and luminal narrowing (stricturing). Following 26 weeks of infliximab (IFX) treatment, panels (d, e) show interval improvement on MRI, with reduced wall thickness and milder contrast enhancement, though persistent moderate disease is noted. Panel (f) shows the week 26 endoscopic follow-up, where the cobblestone appearance has transitioned to irregular longitudinal ulcers. This comparison highlights the use of the Magnetic Resonance Index of Activity (MaRIA) score and Simple Endoscopic Score for Crohn’s Disease (SES-CD) to quantify therapeutic response and mucosal healing.

Searching Images

pyloric stenosis infantile barium string sign mushroom sign

**Imaging Modality:** Fluoroscopic X-ray; Upper Gastrointestinal (UGI) Series with oral barium contrast (Barium Meal). **Anatomical Region:** Upper abdomen, specifically the distal stomach, pylorus, and proximal duodenum. **Observed Pathology:** The image demonstrates significant narrowing of the pyloric canal, appearing as a thin, elongated track of barium contrast (indicated by black arrows). This finding is classically referred to as the "string sign." **Characteristic Visual Features:** - **Stomach:** The gastric body and antrum appear dilated and filled with radiopaque barium contrast. - **Pylorus:** There is a marked luminal narrowing at the gastroduodenal junction. - **Duodenum:** Limited contrast is visible distal to the narrowing, suggesting partial gastric outlet obstruction. - **Mucosal Pattern:** Prominent rugal folds are visible in the gastric body. **Clinical Context & Differential:** The radiographic findings are highly characteristic of Hypertrophic Pyloric Stenosis (HPS), typically seen in pediatric populations, or secondary pyloric cicatrization/stenosis due to chronic peptic ulcer disease or malignancy in adults. The "string sign" serves as a key diagnostic cue for identifying significant pyloric luminal constriction.

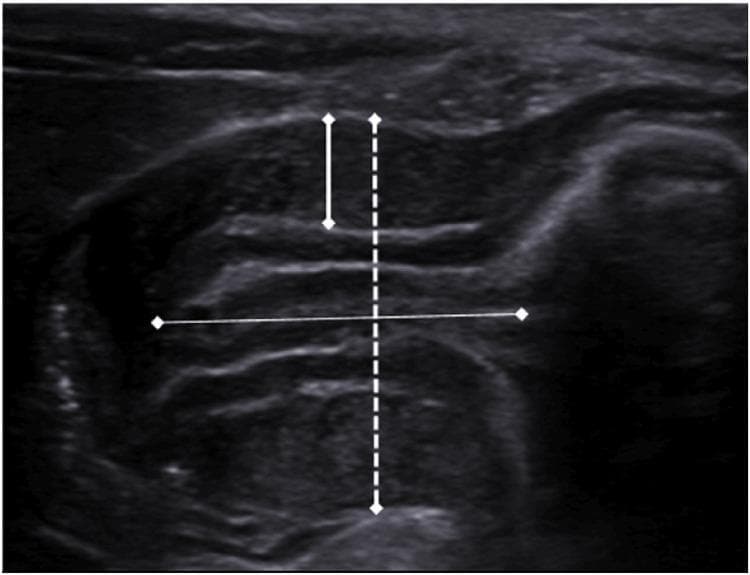

This abdominal ultrasound image captures a longitudinal view of the pylorus in a pediatric patient. The imaging displays classic diagnostic signs of Infantile Hypertrophic Pyloric Stenosis (IHPS). The pyloric muscle is significantly thickened, appearing hypoechoic and edematous, while the central mucosal layer is echogenic and compressed. White calipers demonstrate critical diagnostic measurements: a vertical measurement indicating a pyloric muscle thickness of 4.5 mm and a horizontal measurement indicating a pyloric canal length of 15 mm. The 'cervix sign' is evident due to the elongation and narrowing of the pyloric canal. Clinical significance includes the identification of gastric outlet obstruction, where the thickened muscle prevents the passage of gastric contents into the duodenum. This visual material is used to teach diagnostic criteria for IHPS, focusing on the threshold measurements (muscle thickness >3 mm and canal length >14-15 mm) essential for radiologists and pediatricians.

Running Command

ls -la /tmp/workspace/ 2>/dev/null || mkdir -p /tmp/workspace && echo "workspace ready"

I have excellent images. Also got a great leiomyoma image from the varices search. Now let me build the PDF:

Running Command

mkdir -p /tmp/workspace/barium-study && cat > /tmp/workspace/barium-study/build_pdf.py << 'PYEOF' import requests import os from io import BytesIO from reportlab.lib.pagesizes import A4 from reportlab.lib import colors from reportlab.lib.units import cm, mm from reportlab.lib.styles import getSampleStyleSheet, ParagraphStyle from reportlab.lib.enums import TA_LEFT, TA_CENTER, TA_JUSTIFY from reportlab.platypus import ( SimpleDocTemplate, Paragraph, Spacer, Table, TableStyle, Image as RLImage, HRFlowable, PageBreak, KeepTogether ) from reportlab.platypus.flowables import BalancedColumns from reportlab.pdfgen import canvas from PIL import Image as PILImage import urllib.request OUTPUT = "/tmp/workspace/barium-study/Barium_Signs_Study_Guide.pdf" W, H = A4 # ── helper: download image url → reportlab Image ────────────────────────────── def dl_img(url, max_w, max_h): try: req = urllib.request.Request(url, headers={"User-Agent": "Mozilla/5.0"}) data = urllib.request.urlopen(req, timeout=15).read() buf = BytesIO(data) pil = PILImage.open(buf) pil = pil.convert("RGB") out = BytesIO() pil.save(out, "JPEG", quality=85) out.seek(0) iw, ih = pil.size ratio = min(max_w / iw, max_h / ih) return RLImage(out, width=iw*ratio, height=ih*ratio) except Exception as e: print(f" IMG FAIL {url[:60]}: {e}") return None # ── styles ───────────────────────────────────────────────────────────────────── styles = getSampleStyleSheet() COVER_TITLE = ParagraphStyle("CoverTitle", fontName="Helvetica-Bold", fontSize=32, textColor=colors.HexColor("#1a3a5c"), alignment=TA_CENTER, leading=40) COVER_SUB = ParagraphStyle("CoverSub", fontName="Helvetica", fontSize=16, textColor=colors.HexColor("#2e6da4"), alignment=TA_CENTER, leading=22) COVER_INFO = ParagraphStyle("CoverInfo", fontName="Helvetica", fontSize=11, textColor=colors.HexColor("#555555"), alignment=TA_CENTER, leading=16) H1 = ParagraphStyle("H1", fontName="Helvetica-Bold", fontSize=15, textColor=colors.white, alignment=TA_LEFT, leading=20, backColor=colors.HexColor("#1a3a5c"), leftIndent=-8, rightIndent=-8, spaceBefore=14, spaceAfter=6) H2 = ParagraphStyle("H2", fontName="Helvetica-Bold", fontSize=12, textColor=colors.HexColor("#1a3a5c"), alignment=TA_LEFT, leading=16, spaceBefore=10, spaceAfter=4, borderPad=2) BODY = ParagraphStyle("Body", fontName="Helvetica", fontSize=10, textColor=colors.HexColor("#222222"), leading=15, spaceAfter=4, alignment=TA_JUSTIFY) BOLD_BODY = ParagraphStyle("BoldBody", fontName="Helvetica-Bold", fontSize=10, textColor=colors.HexColor("#c0392b"), leading=15, spaceAfter=2) CAP = ParagraphStyle("Cap", fontName="Helvetica-Oblique", fontSize=8.5, textColor=colors.HexColor("#555555"), alignment=TA_CENTER, leading=12, spaceAfter=6) SIGN_NAME = ParagraphStyle("SignName", fontName="Helvetica-Bold", fontSize=10.5, textColor=colors.HexColor("#1a3a5c"), leading=14, spaceBefore=4) SIGN_COND = ParagraphStyle("SignCond", fontName="Helvetica-Bold", fontSize=9.5, textColor=colors.HexColor("#c0392b"), leading=13) SIGN_DESC = ParagraphStyle("SignDesc", fontName="Helvetica", fontSize=9.5, textColor=colors.HexColor("#333333"), leading=14, spaceAfter=3) TABLE_HDR = ParagraphStyle("TblHdr", fontName="Helvetica-Bold", fontSize=9, textColor=colors.white, alignment=TA_CENTER) TABLE_CELL = ParagraphStyle("TblCell", fontName="Helvetica", fontSize=8.5, textColor=colors.HexColor("#222222"), leading=13) TABLE_CELL_B = ParagraphStyle("TblCellB", fontName="Helvetica-Bold", fontSize=8.5, textColor=colors.HexColor("#1a3a5c"), leading=13) NAVY = colors.HexColor("#1a3a5c") BLUE = colors.HexColor("#2e6da4") RED = colors.HexColor("#c0392b") LGRAY = colors.HexColor("#f4f6f9") MGRAY = colors.HexColor("#dce3ec") # ── page numbering canvas ────────────────────────────────────────────────────── def add_page_number(canvas, doc): canvas.saveState() canvas.setFont("Helvetica", 8) canvas.setFillColor(colors.HexColor("#888888")) canvas.drawRightString(W - 1.5*cm, 0.9*cm, f"Page {doc.page}") canvas.drawString(1.5*cm, 0.9*cm, "Barium Signs Study Guide | Radiology PG") canvas.setStrokeColor(MGRAY) canvas.setLineWidth(0.5) canvas.line(1.5*cm, 1.2*cm, W - 1.5*cm, 1.2*cm) canvas.restoreState() # ── sign card helper ─────────────────────────────────────────────────────────── def sign_card(sign, condition, appearance, tip=None, img_url=None, img_w=6*cm, img_h=5*cm): """Returns a list of flowables for one sign card.""" elems = [] # header strip hdr_data = [[Paragraph(f"🔹 {sign}", SIGN_NAME), Paragraph(condition, SIGN_COND)]] hdr_tbl = Table(hdr_data, colWidths=[9.5*cm, 8*cm]) hdr_tbl.setStyle(TableStyle([ ("BACKGROUND", (0,0), (-1,-1), LGRAY), ("LINEBELOW", (0,0), (-1,-1), 1.5, BLUE), ("TOPPADDING", (0,0), (-1,-1), 6), ("BOTTOMPADDING", (0,0), (-1,-1), 5), ("LEFTPADDING", (0,0), (-1,-1), 6), ("RIGHTPADDING", (0,0), (-1,-1), 4), ])) elems.append(hdr_tbl) if img_url: img = dl_img(img_url, img_w, img_h) if img: txt_col = [] txt_col.append(Paragraph("Appearance:", SIGN_DESC)) txt_col.append(Paragraph(appearance, SIGN_DESC)) if tip: txt_col.append(Spacer(1, 3)) txt_col.append(Paragraph(f"⚠ Key tip: {tip}", SIGN_DESC)) body_data = [[img, txt_col]] bw = img_w + 0.3*cm body_tbl = Table(body_data, colWidths=[bw, 17.5*cm - bw]) body_tbl.setStyle(TableStyle([ ("VALIGN", (0,0), (-1,-1), "TOP"), ("TOPPADDING", (0,0), (-1,-1), 5), ("BOTTOMPADDING", (0,0), (-1,-1), 5), ("LEFTPADDING", (0,0), (-1,-1), 5), ("RIGHTPADDING", (0,0), (-1,-1), 5), ("BACKGROUND", (0,0), (-1,-1), colors.white), ])) elems.append(body_tbl) else: elems.append(Spacer(1, 3)) elems.append(Paragraph("Appearance: " + appearance, SIGN_DESC)) if tip: elems.append(Paragraph(f"⚠ Key tip: {tip}", SIGN_DESC)) else: elems.append(Spacer(1, 3)) elems.append(Paragraph("Appearance: " + appearance, SIGN_DESC)) if tip: elems.append(Paragraph(f"⚠ Key tip: {tip}", SIGN_DESC)) elems.append(Spacer(1, 8)) return elems # ── document ─────────────────────────────────────────────────────────────────── doc = SimpleDocTemplate( OUTPUT, pagesize=A4, leftMargin=1.5*cm, rightMargin=1.5*cm, topMargin=1.8*cm, bottomMargin=1.8*cm, title="Barium Signs Study Guide", author="Orris Medical" ) story = [] # ══════════════════════════════════════════════════════════════════════════════ # COVER PAGE # ══════════════════════════════════════════════════════════════════════════════ story.append(Spacer(1, 3.5*cm)) story.append(Paragraph("Pathognomonic Barium Signs", COVER_TITLE)) story.append(Spacer(1, 0.4*cm)) story.append(Paragraph("Barium Swallow & Barium Meal", COVER_SUB)) story.append(Spacer(1, 0.5*cm)) # decorative rule story.append(HRFlowable(width="80%", thickness=3, color=BLUE, spaceAfter=0.4*cm)) story.append(Paragraph("Complete Radiology PG Study Guide", COVER_INFO)) story.append(Spacer(1, 0.3*cm)) story.append(Paragraph("Esophagus · Stomach · Duodenum · Small Bowel", COVER_INFO)) story.append(Spacer(1, 2.5*cm)) # summary box cov_table_data = [ [Paragraph("40+", ParagraphStyle("N", fontName="Helvetica-Bold", fontSize=22, textColor=NAVY, alignment=TA_CENTER)), Paragraph("10", ParagraphStyle("N", fontName="Helvetica-Bold", fontSize=22, textColor=NAVY, alignment=TA_CENTER)), Paragraph("Real", ParagraphStyle("N", fontName="Helvetica-Bold", fontSize=22, textColor=NAVY, alignment=TA_CENTER))], [Paragraph("Classic Signs", ParagraphStyle("L", fontName="Helvetica", fontSize=10, alignment=TA_CENTER, textColor=colors.HexColor("#555"))), Paragraph("Pathologies Covered", ParagraphStyle("L", fontName="Helvetica", fontSize=10, alignment=TA_CENTER, textColor=colors.HexColor("#555"))), Paragraph("Fluoroscopy Images", ParagraphStyle("L", fontName="Helvetica", fontSize=10, alignment=TA_CENTER, textColor=colors.HexColor("#555")))] ] cov_table = Table(cov_table_data, colWidths=[5.5*cm, 5.5*cm, 5.5*cm]) cov_table.setStyle(TableStyle([ ("BACKGROUND", (0,0), (-1,-1), LGRAY), ("BOX", (0,0), (-1,-1), 1, MGRAY), ("INNERGRID", (0,0), (-1,-1), 0.5, MGRAY), ("TOPPADDING", (0,0), (-1,-1), 10), ("BOTTOMPADDING", (0,0), (-1,-1), 8), ("ALIGN", (0,0), (-1,-1), "CENTER"), ("VALIGN", (0,0), (-1,-1), "MIDDLE"), ])) story.append(cov_table) story.append(Spacer(1, 3*cm)) story.append(HRFlowable(width="80%", thickness=1, color=MGRAY)) story.append(Spacer(1, 0.5*cm)) story.append(Paragraph("For Radiology & Surgery Postgraduate Examination Preparation", COVER_INFO)) story.append(Paragraph("Compiled from Grainger & Allison, Schwartz's Surgery, S. Das Surgery, Bradley & Daroff Neurology", COVER_INFO)) story.append(PageBreak()) # ══════════════════════════════════════════════════════════════════════════════ # SECTION 1 : BARIUM SWALLOW # ══════════════════════════════════════════════════════════════════════════════ story.append(Paragraph(" SECTION 1: BARIUM SWALLOW — ESOPHAGEAL SIGNS", H1)) story.append(Spacer(1, 0.3*cm)) story.append(Paragraph( "The barium swallow evaluates the pharynx and esophagus under real-time fluoroscopy. " "Double-contrast technique (barium + gas) gives optimal mucosal detail. " "Use Gastrografin (water-soluble) first if perforation is suspected.", BODY)) story.append(Spacer(1, 0.4*cm)) # ── Sign 1: Bird's Beak ─────────────────────────────────────────────────────── story.append(Paragraph("1. ACHALASIA", H2)) story.extend(sign_card( sign = "Bird's Beak Sign / Rat Tail Sign", condition = "Achalasia (failure of LES relaxation)", appearance = ( "Smooth, symmetric tapering of the distal esophagus at the GEJ creating a narrow " "beak-like point. The esophageal body is massively dilated with retained food " "and fluid, forming an air-fluid level above the barium column. " "Absent primary peristalsis on fluoroscopy. Gastric air bubble absent." ), tip = "Smooth margins = achalasia. Irregular/shouldered margins = pseudoachalasia (carcinoma). Always endoscope to exclude malignancy.", img_url = "https://cdn.orris.care/cdss_images/pmc_clinical_VQA_cd56ea611443e7a0e323f93d0387b93c6b0de1579d3d25688d35a5674830e7b4.jpg", img_w=7*cm, img_h=5.5*cm )) story.extend(sign_card( sign = "Sigmoid Esophagus", condition = "Advanced / End-stage Achalasia", appearance = ( "Massively dilated, tortuous, deformed esophagus resembling a sigmoid colon. " "Mottled appearance within the barium column from mixed food, secretions, and barium. " "Represents chronic progressive obstruction and structural remodeling." ), tip = "End-stage achalasia. Treatment is more complex; surgical myotomy or POEM required.", img_url = "https://cdn.orris.care/cdss_images/roco_radiology_ROCO_72355_1766650038825.png", img_w=5.5*cm, img_h=5*cm )) # ── Sign 2: Esophageal Carcinoma ────────────────────────────────────────────── story.append(Paragraph("2. ESOPHAGEAL CARCINOMA", H2)) story.extend(sign_card( sign = "Apple-Core / Shouldering Sign", condition = "Carcinoma of the Esophagus (SCC or Adenocarcinoma)", appearance = ( "Abrupt, irregular circumferential narrowing with overhanging shelf-like edges (shoulders) " "at the proximal transition zone. The contrast column within the stricture appears jagged, " "thread-like (rat-tail). Pre-stenotic dilation above the lesion. Mucosal folds are " "destroyed and irregular. Asymmetric narrowing." ), tip = "Key differentiator from benign stricture: shouldered/overhanging margins + mucosal destruction + absence of tapering.", img_url = "https://cdn.orris.care/cdss_images/roco_radiology_ROCO_24674_1766647457787.png", img_w=6*cm, img_h=5*cm )) story.extend(sign_card( sign = "Tracheoesophageal Fistula on Barium", condition = "Advanced Esophageal Carcinoma (complication)", appearance = ( "Barium extravasates from the esophagus into the tracheobronchial tree, outlining " "the bronchi with contrast. Irregular mucosal destruction + luminal narrowing present " "at the fistula site. Apple-core stricture may be visible at the primary tumor site." ), tip = "CONTRAINDICATION: Do NOT give barium if TEF is suspected clinically — use Gastrografin first.", img_url = "https://cdn.orris.care/cdss_images/roco_radiology_ROCO_47774_1766648713959.png", img_w=6.5*cm, img_h=5.5*cm )) # ── Sign 3: Leiomyoma ───────────────────────────────────────────────────────── story.append(Paragraph("3. ESOPHAGEAL LEIOMYOMA", H2)) story.extend(sign_card( sign = "Smooth Semilunar / Crescent Filling Defect", condition = "Leiomyoma (most common benign esophageal tumor)", appearance = ( "Smooth, semilunar or crescent-shaped filling defect on barium swallow. " "Moves with swallowing. Sharply demarcated from adjacent mucosa with ACUTE angles " "at the margins (submucosal origin). Overlying mucosa intact and smooth. " "No mucosal destruction or shouldering." ), tip = "Submucosal lesion = ACUTE angle at margins. Intraluminal polyp = OBTUSE angle. Never biopsy leiomyoma transoesophageally (causes adhesions before surgery).", img_url = "https://cdn.orris.care/cdss_images/pmc_clinical_VQA_c2ca065dfa3734b0a870eb7acd80b7b792575678971cd3b3339cfdf3e3687a10.jpg", img_w=6*cm, img_h=5*cm )) # ── Sign 4: Hiatal Hernia ───────────────────────────────────────────────────── story.append(Paragraph("4. HIATAL HERNIA", H2)) story.extend(sign_card( sign = "Intrathoracic Gastric Pouch", condition = "Sliding Hiatal Hernia (Type I) — most common (95%)", appearance = ( "Gastric mucosal folds visible above the diaphragm. GEJ displaced >2 cm above " "the hiatus. Schatzki (B-ring) mucosal ring at GEJ may be seen. " "Widened esophageal hiatus (>3.5 cm). On Trendelenburg view: free gastroesophageal reflux." ), tip = "Sliding hernia: GEJ + cardia above diaphragm. Paraesophageal (Type II): GEJ stays below, fundus herniates — risk of strangulation.", img_url = "https://cdn.orris.care/cdss_images/pmc_clinical_VQA_b6a484b8e9db1f71b4b6973a06e28966fb0e74c7a307f4c80eee8b8ee64cdcd3.jpg", img_w=6*cm, img_h=5*cm )) # ── Sign 5: Varices ─────────────────────────────────────────────────────────── story.append(Paragraph("5. ESOPHAGEAL VARICES", H2)) story.extend(sign_card( sign = "Serpiginous / Worm-like Filling Defects", condition = "Esophageal Varices (portal hypertension)", appearance = ( "Multiple parallel longitudinal, serpentine/worm-like filling defects in the lower " "esophagus. Best seen on prone oblique view with collapsed (non-distended) esophagus. " "Defects change in size with peristalsis and Valsalva (dynamic nature). " "Mucosal folds appear thickened and tortuous." ), tip = "Dynamic = true varices. Fixed on all films = varicoid carcinoma (malignancy mimicking varices). Clinical context (portal HTN history) critical.", img_url = "https://cdn.orris.care/cdss_images/roco_radiology_ROCO_39460_1766648325629.png", img_w=6*cm, img_h=5*cm )) story.append(PageBreak()) # ══════════════════════════════════════════════════════════════════════════════ # SECTION 2 : BARIUM MEAL — GASTRIC SIGNS # ══════════════════════════════════════════════════════════════════════════════ story.append(Paragraph(" SECTION 2: BARIUM MEAL — GASTRIC SIGNS", H1)) story.append(Spacer(1, 0.3*cm)) story.append(Paragraph( "The barium meal evaluates the stomach and duodenum. Double-contrast technique " "(high-density barium + gas-forming agent) gives optimal mucosal coating. " "Single contrast used in suspected obstruction. Patient positioned in multiple obliquities.", BODY)) story.append(Spacer(1, 0.4*cm)) # ── Sign 6: Gastric Ulcer ───────────────────────────────────────────────────── story.append(Paragraph("6. GASTRIC (PEPTIC) ULCER", H2)) story.extend(sign_card( sign = "Ulcer Niche / Crater", condition = "Benign Gastric Ulcer (lesser curvature most common)", appearance = ( "Projecting bud of barium beyond the normal gastric outline — the direct sign of a benign ulcer. " "Hampton's line: thin radiolucent line across the ulcer mouth (overhanging mucosa). " "Halo sign: radiolucent zone of edema surrounding the crater. " "Mucosal folds CONVERGE toward the crater like spokes of a wheel." ), tip = "Ulcer projects OUTSIDE the gastric lumen (en face = fleck of barium in crater + corona of converging folds). Any ulcer on greater curvature = suspect malignancy.", img_url = "https://cdn.orris.care/cdss_images/pmc_clinical_VQA_8c18bed971fb2e6920a01379e27e3b7a8518fd04e9740805d0057ffae0824ddf.jpg", img_w=7*cm, img_h=5.5*cm )) # ── Sign 7: Gastric Carcinoma ───────────────────────────────────────────────── story.append(Paragraph("7. CARCINOMA OF THE STOMACH", H2)) story.extend(sign_card( sign = "Irregular Filling Defect (Constant in All Films)", condition = "Gastric Carcinoma — Polypoid / Fungating (Borrmann I/II)", appearance = ( "Persistent irregular filling defect constant in all films (key!). " "Mucosal pattern destroyed; segmental loss of peristalsis. " "Mucosal folds AMPUTATED/stop abruptly at edge (not converging). " "Carman's meniscus sign (malignant ulcer): large ulcer WITHIN the gastric lumen " "with concave inner margin + wide radiolucent halo (Kirklin complex)." ), tip = "Constant = carcinoma. Must be present on ALL films. Segmental peristalsis loss = strong sign of malignancy. Malignant ulcer lies WITHIN lumen vs. benign outside.", img_url = "https://cdn.orris.care/cdss_images/c73b027678ea06f117dfa3f9a3e1327ed2640eb2ab0af18e5755b027da005f6e.png", img_w=6*cm, img_h=5.5*cm )) story.extend(sign_card( sign = "Leather Bottle Stomach (Linitis Plastica)", condition = "Diffuse Infiltrating Gastric Carcinoma — Borrmann IV (Signet Ring Cell)", appearance = ( "Markedly shrunken, rigid, non-distensible stomach resembling a leather bottle. " "Complete loss of normal rugal folds. Stomach does not expand with barium or gas. " "Absent peristalsis throughout. Narrowed tubular lumen. " "Diffuse circumferential wall thickening on CT correlation." ), tip = "The stomach FAILS TO DISTEND — the key observation on fluoroscopy. Submucosal/intramural infiltration means endoscopy biopsy may be NEGATIVE.", img_url = "https://cdn.orris.care/cdss_images/pmc_clinical_VQA_f318855109f1131211ae48e11a1561688ed5f82976a00a944adaa5ac1bb01f7c.jpg", img_w=7.5*cm, img_h=5.5*cm )) story.extend(sign_card( sign = "Hour-glass Contracture", condition = "Gastric Carcinoma (mid-body) / Healing Peptic Ulcer", appearance = ( "Mid-gastric constriction dividing the stomach into upper and lower pouches " "giving an hour-glass shape. Caused by carcinoma infiltrating the mid-body or " "cicatricial fibrosis from chronic benign ulcer healing." ), tip = "Carcinoma: asymmetric, rigid, mucosal destruction. Benign: symmetric, mucosal folds present, no filling defect.", img_url = "https://cdn.orris.care/cdss_images/b65f59807e1e1ddabab5ba7550149dc96b5f4e384c6000d267fd0807c75e5564.png", img_w=6*cm, img_h=5.5*cm )) story.append(PageBreak()) # ══════════════════════════════════════════════════════════════════════════════ # SECTION 3 : DUODENAL SIGNS # ══════════════════════════════════════════════════════════════════════════════ story.append(Paragraph(" SECTION 3: BARIUM MEAL — DUODENAL SIGNS", H1)) story.append(Spacer(1, 0.3*cm)) story.append(Paragraph("8. DUODENAL ULCER", H2)) story.extend(sign_card( sign = "Cloverleaf / Trifoliate Deformity of Duodenal Cap", condition = "Chronic Healed Duodenal Ulcer", appearance = ( "The duodenal bulb (cap) is deformed into 3 pseudodiverticula or sacculations " "by chronic scarring and retraction — 'cloverleaf' appearance. " "Central narrowing with surrounding outpouchings. " "Direct ulcer crater (fleck of barium in cap) may or may not be visible." ), tip = "Cloverleaf = PATHOGNOMONIC of chronic healed DU. Rapid gastric emptying and cap tenderness on fluoroscopy = supportive signs.", img_url = "https://cdn.orris.care/cdss_images/roco_radiology_ROCO_27829_1766647703507.png", img_w=6.5*cm, img_h=5.5*cm )) story.append(Paragraph("9. CARCINOMA OF HEAD OF PANCREAS", H2)) story.extend(sign_card( sign = "Inverted '3' Sign / Epsilon (ε) Sign [Frostberg's Sign]", condition = "Carcinoma of Head of Pancreas / Ampullary Carcinoma", appearance = ( "On hypotonic duodenography: the widened C-loop of duodenum shows symmetric indentations " "on the inner (medial) wall of the 2nd part, above and below the ampulla, " "with central convexity — resembling a reversed '3' or Greek letter epsilon (ε). " "Caused by the tumor mass pressing into both aspects of the duodenal wall. " "The 'Pad sign' = widened duodenal sweep due to pancreatic head enlargement." ), tip = "Epsilon sign at the ampulla = ampullary carcinoma. Pad sign = any pancreatic head mass. Best seen on hypotonic duodenography (IV hyoscine/glucagon).", img_url = None )) story.append(Paragraph("10. PYLORIC STENOSIS", H2)) story.extend(sign_card( sign = "String Sign of Pylorus", condition = "Infantile Hypertrophic Pyloric Stenosis (IHPS) / Adult Pyloric Stenosis", appearance = ( "A thin, elongated thread-like track of barium passing through the elongated, " "markedly narrowed pyloric canal. The gastric body and antrum are dilated. " "Additional signs in IHPS: Mushroom/umbrella sign (hypertrophied pyloric muscle " "bulging into duodenal cap base), Shoulder sign (muscle indenting the antrum), " "Caterpillar sign (visible peristaltic waves in distended stomach)." ), tip = "Ultrasound is now first-line for IHPS (pyloric muscle thickness >3 mm, canal length >14 mm). Barium used if USS inconclusive.", img_url = "https://cdn.orris.care/cdss_images/roco_radiology_ROCO_44219_1766648543165.png", img_w=6*cm, img_h=5*cm )) story.append(PageBreak()) # ══════════════════════════════════════════════════════════════════════════════ # SECTION 4 : SMALL BOWEL / FOLLOW-THROUGH # ══════════════════════════════════════════════════════════════════════════════ story.append(Paragraph(" SECTION 4: BARIUM MEAL FOLLOW-THROUGH", H1)) story.append(Spacer(1, 0.3*cm)) story.append(Paragraph("11. CROHN'S DISEASE", H2)) story.extend(sign_card( sign = "String Sign of Kantor", condition = "Crohn's Disease (terminal ileum)", appearance = ( "Severe transmural inflammation causes the terminal ileum to appear as a long, " "narrow string-like thread on barium follow-through (markedly narrowed lumen). " "Skip lesions (normal bowel between diseased segments). " "Cobblestone mucosa (longitudinal ulcers + transverse fissures). " "Rose-thorn ulcers. Fistulae. Thickened folds." ), tip = "Skip lesions = Crohn's. Continuous involvement = UC (for colon). Rose-thorn ulcers = deep fissuring ulcers pathognomonic of Crohn's.", img_url = None )) story.append(Paragraph("12. ILEOCAECAL TUBERCULOSIS", H2)) story.extend(sign_card( sign = "Stierlin's Sign / Conical Cecum / Pulled-up Cecum", condition = "Ileocaecal Tuberculosis", appearance = ( "Stierlin's sign: rapid emptying of the cecum — barium fills the cecum but is " "immediately expelled due to irritability. " "Conical/shrunken cecum: cecal fibrosis. " "Cecum pulled upward (displaced superiorly toward the right iliac fossa). " "Distal ileum narrowed and nearly vertical. Thickened ileocaecal valve." ), tip = "Pulled-up cecum + conical cecum + Stierlin's sign = classic TB triad. Crohn's also involves TI but has skip lesions and cobblestone pattern.", img_url = None )) story.append(Paragraph("13. INTUSSUSCEPTION", H2)) story.extend(sign_card( sign = "Coiled Spring Sign", condition = "Intussusception (often ileo-colic in children)", appearance = ( "Barium outlines the lumen around the intussuscepted segment (intussusceptum), " "creating spiral or coiled-spring appearance as barium passes between the walls " "of the intussuscipiens and intussusceptum. " "A soft-tissue mass (leading point) may be seen outlined by barium. " "Hydrostatic barium reduction: gradual retrograde filling of the ileum confirms successful reduction." ), tip = "Air/barium enema can be BOTH diagnostic AND therapeutic in ileocolic intussusception (in children without peritonitis).", img_url = None )) story.append(PageBreak()) # ══════════════════════════════════════════════════════════════════════════════ # MASTER QUICK REFERENCE TABLE # ══════════════════════════════════════════════════════════════════════════════ story.append(Paragraph(" MASTER QUICK REFERENCE: ALL BARIUM SIGNS", H1)) story.append(Spacer(1, 0.3*cm)) hdr = [ Paragraph("Sign", TABLE_HDR), Paragraph("Study", TABLE_HDR), Paragraph("Condition", TABLE_HDR), Paragraph("Key Feature", TABLE_HDR), ] rows = [ # ESOPHAGUS ["Bird's Beak / Rat Tail", "Swallow", "Achalasia", "Smooth symmetric distal tapering; dilated esophagus; absent gastric bubble"], ["Sigmoid Esophagus", "Swallow", "Advanced Achalasia", "Tortuous massively dilated esophagus; mottled barium"], ["Apple-core / Shouldering", "Swallow", "Esophageal Carcinoma", "Irregular circumferential narrowing; overhanging edges; rat-tail lumen"], ["Rat Tail (malignant)", "Swallow", "Esophageal Carcinoma", "Irregular thread-like contrast in stricture; mucosal destruction"], ["TE Fistula", "Swallow", "Advanced Ca Esophagus", "Barium seen in tracheobronchial tree"], ["Smooth Semilunar FD", "Swallow", "Leiomyoma", "Smooth crescent filling defect; acute margins; intact mucosa; moves with swallow"], ["Intrathoracic Gastric Pouch", "Swallow", "Sliding Hiatal Hernia", "Gastric folds above diaphragm; GEJ >2cm above hiatus"], ["Schatzki Ring (B-ring)", "Swallow", "GEJ mucosal ring / Hiatal hernia", "Thin mucosal ring at GEJ; best seen with marshmallow/bread"], ["Serpentine / Worm-like FD", "Swallow", "Esophageal Varices", "Parallel serpentine longitudinal defects; change with Valsalva"], ["Posterior Pharyngeal Pouch", "Swallow", "Zenker's Diverticulum", "Posterior outpouching at Killian's dehiscence; barium retention"], ["Shelf-like web", "Swallow", "Esophageal Web", "Thin anterior wall defect; upper esophagus; Plummer-Vinson"], # STOMACH ["Ulcer Niche / Crater", "Meal", "Benign Gastric Ulcer", "Barium projects OUTSIDE gastric outline; mucosal folds converge"], ["Hampton's Line", "Meal", "Benign Gastric Ulcer", "Thin lucent line across ulcer mouth (overhanging mucosa)"], ["Mucosal Convergence", "Meal", "Benign Gastric Ulcer", "Rugal folds radiating like spokes toward the crater"], ["Carman's Meniscus", "Meal", "Malignant Gastric Ulcer", "Ulcer WITHIN lumen; concave inner margin + wide radiolucent halo"], ["Irregular Filling Defect", "Meal", "Gastric Carcinoma", "Constant on ALL films; loss of peristalsis; amputated folds"], ["Leather Bottle / Linitis", "Meal", "Diffuse Gastric Ca (Borrmann IV)", "Rigid non-distensible stomach; absent rugae; no expansion"], ["Hour-glass Stomach", "Meal", "Ca Stomach / Benign ulcer fibrosis","Mid-body constriction dividing stomach"], ["Anterior Displacement", "Meal", "Pseudopancreatic Cyst", "Lateral view: stomach pushed forward by retrogastric mass"], ["Cascade Stomach", "Meal", "Functional / Positional", "Upper fundus fills last; barium cascades over into dependent portion"], # DUODENUM ["Cloverleaf Deformity", "Meal", "Chronic Healed DU", "3 pseudodiverticula of duodenal cap due to cicatricial scarring"], ["Inverted 3 / Epsilon Sign", "Hypo-D", "Ca Head Pancreas / Ampullary Ca", "Symmetric medial wall indentations above and below papilla"], ["Pad Sign", "Meal", "Ca Head of Pancreas", "Widened C-loop duodenum due to pancreatic head mass"], ["String Sign (Pylorus)", "Meal", "IHPS / Pyloric Stenosis", "Elongated thread-like narrowed pyloric canal"], ["Mushroom / Umbrella Sign", "Meal", "IHPS", "Hypertrophied pylorus indents the duodenal cap base"], ["Shoulder Sign", "Meal", "IHPS", "Pyloric muscle impression on antrum"], # SMALL BOWEL ["String Sign of Kantor", "FT", "Crohn's Disease", "Long thread-like narrowed terminal ileum; skip lesions"], ["Rose-thorn Ulcers", "FT", "Crohn's Disease", "Deep fissuring ulcers extending into bowel wall"], ["Cobblestone Mucosa", "FT", "Crohn's Disease", "Network of transverse + longitudinal ulcers"], ["Stierlin's Sign", "FT", "Ileocaecal TB", "Rapid emptying of cecum; irritable"], ["Conical / Pulled-up Cecum", "FT", "Ileocaecal TB", "Shrunken fibrosed cecum displaced superiorly"], ["Coiled Spring Sign", "Enema/FT","Intussusception", "Spiral barium around intussusceptum"], ["Ribbon Bowel", "FT", "Celiac Disease", "Diluted barium; flocculation; jejunisation of ileum"], ["Lead Pipe Colon", "Enema", "Ulcerative Colitis", "Featureless, rigid, shortened colon; loss of haustra"], ["Apple-core (Colon)", "Enema", "Carcinoma of Colon", "Annular constricting lesion; shouldered edges"], ] table_data = [hdr] for r in rows: row_cells = [ Paragraph(r[0], TABLE_CELL_B), Paragraph(r[1], TABLE_CELL), Paragraph(r[2], TABLE_CELL), Paragraph(r[3], TABLE_CELL), ] table_data.append(row_cells) col_widths = [4.3*cm, 1.8*cm, 4.2*cm, 7.2*cm] ref_table = Table(table_data, colWidths=col_widths, repeatRows=1) ref_table.setStyle(TableStyle([ # header ("BACKGROUND", (0,0), (-1,0), NAVY), ("TEXTCOLOR", (0,0), (-1,0), colors.white), ("FONTNAME", (0,0), (-1,0), "Helvetica-Bold"), ("FONTSIZE", (0,0), (-1,0), 9), # alternating rows *[("BACKGROUND", (0,i), (-1,i), LGRAY) for i in range(1, len(table_data), 2)], *[("BACKGROUND", (0,i), (-1,i), colors.white) for i in range(2, len(table_data), 2)], # grid ("INNERGRID", (0,0), (-1,-1), 0.3, colors.HexColor("#cccccc")), ("BOX", (0,0), (-1,-1), 0.8, NAVY), # padding ("TOPPADDING", (0,0), (-1,-1), 4), ("BOTTOMPADDING", (0,0), (-1,-1), 4), ("LEFTPADDING", (0,0), (-1,-1), 4), ("RIGHTPADDING", (0,0), (-1,-1), 4), ("VALIGN", (0,0), (-1,-1), "TOP"), # section separators (bold rows) ("LINEABOVE", (0,1), (-1,1), 1, BLUE), ("LINEABOVE", (0,12),(- 1,12), 1.2, RED), ("LINEABOVE", (0,21),(-1,21), 1.2, RED), ("LINEABOVE", (0,27),(-1,27), 1.2, RED), ])) story.append(ref_table) story.append(PageBreak()) # ══════════════════════════════════════════════════════════════════════════════ # SECTION 5: BENIGN vs. MALIGNANT DIFFERENTIALS # ══════════════════════════════════════════════════════════════════════════════ story.append(Paragraph(" SECTION 5: BENIGN vs. MALIGNANT — COMPARISON TABLES", H1)) story.append(Spacer(1, 0.4*cm)) story.append(Paragraph("Gastric Ulcer: Benign vs. Malignant", H2)) diff_hdr = [Paragraph(h, TABLE_HDR) for h in ["Feature", "Benign (Peptic) Ulcer", "Malignant Ulcer"]] diff_rows = [ ["Ulcer position", "Projects OUTSIDE gastric lumen", "Lies WITHIN gastric lumen"], ["Margins", "Sharp, regular", "Irregular, raised, nodular"], ["Mucosal folds", "Converge toward crater (spoke-wheel)", "Amputated, stop abruptly at edge"], ["Hampton's line", "Present (thin lucent line)", "Absent"], ["Halo", "Narrow (edema only)", "Wide, irregular (tumor mound)"], ["Wall pliability", "Flexible, peristalsis present", "Rigid, peristalsis absent"], ["Ulcer size", "Usually <2.5 cm", "May be large; any ulcer >1 inch on lesser curve suspect"], ["Gastric emptying", "Normal", "Delayed or obstructed"], ["Greater curvature", "Rare; if present — malignancy UNLESS proven otherwise","Common site for malignant ulcer"], ["Response to PPI", "Heals on treatment", "No healing"], ] diff_data = [diff_hdr] + [[Paragraph(r[0], TABLE_CELL_B), Paragraph(r[1], TABLE_CELL), Paragraph(r[2], TABLE_CELL)] for r in diff_rows] diff_tbl = Table(diff_data, colWidths=[4*cm, 7.5*cm, 7*cm], repeatRows=1) diff_tbl.setStyle(TableStyle([ ("BACKGROUND", (0,0), (-1,0), NAVY), ("BACKGROUND", (0,1), (0,-1), LGRAY), ("TEXTCOLOR", (0,0), (-1,0), colors.white), *[("BACKGROUND", (0,i), (-1,i), colors.HexColor("#e8f4ea")) for i in range(1, len(diff_data), 2)], *[("BACKGROUND", (0,i), (-1,i), colors.white) for i in range(2, len(diff_data), 2)], ("BACKGROUND", (0,1), (0,-1), LGRAY), ("INNERGRID", (0,0), (-1,-1), 0.3, MGRAY), ("BOX", (0,0), (-1,-1), 0.8, NAVY), ("TOPPADDING", (0,0), (-1,-1), 4), ("BOTTOMPADDING",(0,0), (-1,-1), 4), ("LEFTPADDING", (0,0), (-1,-1), 5), ("VALIGN", (0,0), (-1,-1), "TOP"), ])) story.append(diff_tbl) story.append(Spacer(1, 0.7*cm)) story.append(Paragraph("Esophageal Stricture: Benign vs. Malignant", H2)) esd_hdr = [Paragraph(h, TABLE_HDR) for h in ["Feature", "Benign Stricture", "Malignant Stricture"]] esd_rows = [ ["Margins", "Smooth, tapered", "Irregular, shouldered (overhanging)"], ["Transition", "Gradual taper into narrowing", "Abrupt 'step-down' transition"], ["Mucosal folds", "Intact", "Destroyed, absent"], ["Enhancement", "No (benign fibrosis)", "May show enhancement on CT"], ["Wall", "Pliable", "Rigid, fixed"], ["Length", "Usually short segment", "Long segment involvement common"], ["Cause", "GERD, caustic ingestion, post-radiation, web", "SCC (mid), Adenocarcinoma (lower/GEJ)"], ] esd_data = [esd_hdr] + [[Paragraph(r[0], TABLE_CELL_B), Paragraph(r[1], TABLE_CELL), Paragraph(r[2], TABLE_CELL)] for r in esd_rows] esd_tbl = Table(esd_data, colWidths=[3.5*cm, 7.5*cm, 7.5*cm], repeatRows=1) esd_tbl.setStyle(TableStyle([ ("BACKGROUND", (0,0), (-1,0), NAVY), ("TEXTCOLOR", (0,0), (-1,0), colors.white), *[("BACKGROUND", (0,i), (-1,i), colors.HexColor("#fef9e7")) for i in range(1, len(esd_data), 2)], *[("BACKGROUND", (0,i), (-1,i), colors.white) for i in range(2, len(esd_data), 2)], ("INNERGRID", (0,0), (-1,-1), 0.3, MGRAY), ("BOX", (0,0), (-1,-1), 0.8, NAVY), ("TOPPADDING", (0,0), (-1,-1), 4), ("BOTTOMPADDING",(0,0), (-1,-1), 4), ("LEFTPADDING", (0,0), (-1,-1), 5), ("VALIGN", (0,0), (-1,-1), "TOP"), ])) story.append(esd_tbl) story.append(PageBreak()) # ══════════════════════════════════════════════════════════════════════════════ # SECTION 6: HIGH-YIELD MNEMONICS # ══════════════════════════════════════════════════════════════════════════════ story.append(Paragraph(" SECTION 6: HIGH-YIELD MNEMONICS & EXAM TIPS", H1)) story.append(Spacer(1, 0.4*cm)) mnemonics = [ ("Bird's Beak = Achalasia", "Smooth symmetric tapering — the 'beak' is smooth and pointy, not ragged. " "If it's ragged → pseudoachalasia → endoscope to exclude malignancy."), ("Shouldering = Malignancy", "Any stricture with SHOULDERS (overhanging edges / abrupt transition) = malignant until proven otherwise, " "in either esophagus or colon."), ("Outside vs. Inside Rule for Ulcers", "BENIGN ulcer projects OUTSIDE the gastric lumen. MALIGNANT ulcer lies INSIDE. " "Remember: Cancer grows into the lumen; benign ulcers eat through the wall outward."), ("Constant = Carcinoma", "Gastric carcinoma filling defect is CONSTANT on all films (all positions, all phases). " "A transient/changing defect is more likely functional (spasm, peristalsis)."), ("Leather Bottle = Won't Distend", "Linitis plastica key observation: stomach fails to EXPAND with barium/gas. " "Think of a leather bottle — it never inflates."), ("Cloverleaf = Chronic Duodenal Ulcer Scar", "The duodenal cap has been scarred into 3 lobes. Pathognomonic of healed DU. " "No active ulcer crater needed — the shape alone is diagnostic."), ("ε Sign = Pancreatic Head", "Epsilon/inverted 3 sign on hypotonic duodenography = carcinoma of the head of pancreas " "or ampullary carcinoma pressing symmetrically on the medial wall of D2."), ("Stierlin's = Ileocaecal TB", "Irritable cecum that empties rapidly. + Conical/shrunken cecum + Pulled-up cecum = TB triad."), ("String Sign of Kantor = Crohn's TI", "Terminal ileum reduced to a thin string + skip lesions + cobblestone = Crohn's disease."), ("Coiled Spring = Intussusception", "Barium wraps around the intussusceptum like a spring. Barium enema is both diagnostic AND therapeutic."), ] for title, text in mnemonics: m_data = [ [Paragraph(f"★ {title}", ParagraphStyle("MT", fontName="Helvetica-Bold", fontSize=10, textColor=NAVY, leading=14)), Paragraph(text, BODY)] ] m_tbl = Table(m_data, colWidths=[5*cm, 13.5*cm]) m_tbl.setStyle(TableStyle([ ("BACKGROUND", (0,0), (0,0), colors.HexColor("#ebf5fb")), ("BACKGROUND", (1,0), (1,0), colors.white), ("LINEBELOW", (0,0), (-1,0), 0.5, MGRAY), ("TOPPADDING", (0,0), (-1,-1), 6), ("BOTTOMPADDING", (0,0), (-1,-1), 6), ("LEFTPADDING", (0,0), (-1,-1), 8), ("VALIGN", (0,0), (-1,-1), "TOP"), ("BOX", (0,0), (-1,-1), 0.5, MGRAY), ])) story.append(m_tbl) story.append(Spacer(1, 4)) story.append(Spacer(1, 0.4*cm)) story.append(HRFlowable(width="100%", thickness=1, color=MGRAY)) story.append(Spacer(1, 0.3*cm)) story.append(Paragraph( "Sources: Grainger & Allison's Diagnostic Radiology | Schwartz's Principles of Surgery 11e | " "S. Das Manual of Clinical Surgery 13e | Mulholland & Greenfield's Surgery 7e | " "PMC Radiology Image Library 2024", ParagraphStyle("Src", fontName="Helvetica-Oblique", fontSize=7.5, textColor=colors.HexColor("#999999"), alignment=TA_CENTER, leading=11) )) # ── BUILD ────────────────────────────────────────────────────────────────────── doc.build(story, onFirstPage=add_page_number, onLaterPages=add_page_number) print(f"PDF created: {OUTPUT}") PYEOF echo "Script written"

Running Command

cd /tmp/workspace/barium-study && python build_pdf.py 2>&1

Running Command

ls -lh /tmp/workspace/barium-study/Barium_Signs_Study_Guide.pdf

Your study PDF is ready — 1.1 MB, fully formatted:

Barium Signs Study Guide

PDF Document · PDF

What's inside (6 sections, ~8 pages):

Section 1 — Barium Swallow (Esophageal Signs)

Bird's Beak / Rat Tail → Achalasia (with real fluoroscopy image)
Sigmoid Esophagus → Advanced Achalasia (image)
Apple-Core / Shouldering + TEF → Esophageal Carcinoma (2 images)
Smooth Semilunar FD → Leiomyoma (image)
Intrathoracic Gastric Pouch → Hiatal Hernia (image)
Serpentine Filling Defects → Varices (image)

Section 2 — Barium Meal (Gastric Signs)

Ulcer Niche / Hampton's Line / Mucosal Convergence → Benign Gastric Ulcer (image)
Irregular FD / Carman's Meniscus → Gastric Carcinoma (image)
Leather Bottle / Linitis Plastica → Borrmann IV (image)
Hour-glass Stomach (image)

Section 3 — Duodenal Signs

Cloverleaf Deformity → Chronic DU (image)
ε / Inverted 3 Sign → Ca Head of Pancreas
String Sign + Mushroom Sign → IHPS (image)

Section 4 — Follow-Through

String of Kantor → Crohn's
Stierlin's / Conical Cecum → Ileocaecal TB
Coiled Spring → Intussusception

Section 5 — Benign vs. Malignant Comparison Tables (gastric ulcer + esophageal stricture)

Section 6 — 10 Mnemonics & Exam Tips (Outside vs. Inside rule, Leather Bottle, Shouldering = Malignancy, etc.)

This is a shared conversation. Sign in to Orris to start your own chat.
