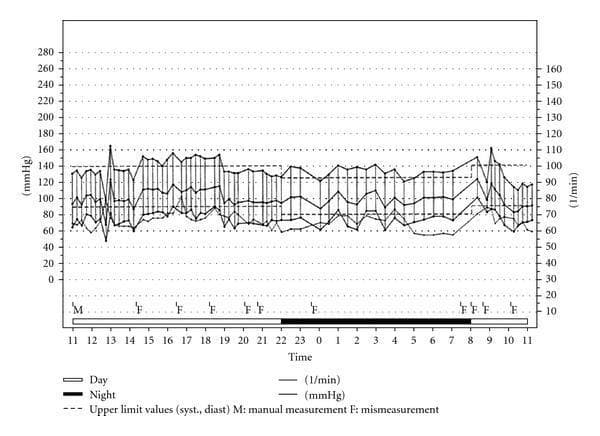

This Comparison Chart displays a 24-hour ambulatory blood pressure (ABP) recording, typically used to evaluate circadian blood pressure patterns in clinical cardiology and neurology. The x-axis represents a 24-hour timeline from 11:00 to 11:00, with horizontal bars at the bottom indicating 'Day' (white) and 'Night' (black) periods. The primary y-axis (left) measures blood pressure in mmHg (0–280), and the secondary y-axis (right) measures heart rate or flow rate in l/min (10–160). The graph plots systolic and diastolic blood pressure fluctuations throughout the day and night. Dashed horizontal lines indicate clinical upper limit thresholds for hypertension diagnosis. A key educational feature is the 'non-dipping' profile, where the expected 10–20% nocturnal decrease in blood pressure is absent, a common finding in patients with autonomic dysfunction, such as those with Parkinson's disease. The chart also contains annotations for 'M' (manual measurement) and 'F' (mismeasurement), illustrating the data cleaning process in diagnostic monitoring.

This Comparison Chart displays a 24-hour ambulatory blood pressure (ABP) recording, typically used to evaluate circadian blood pressure patterns in clinical cardiology and neurology. The x-axis represents a 24-hour timeline from 11:00 to 11:00, with horizontal bars at the bottom indicating 'Day' (white) and 'Night' (black) periods. The primary y-axis (left) measures blood pressure in mmHg (0–280), and the secondary y-axis (right) measures heart rate or flow rate in l/min (10–160). The graph plots systolic and diastolic blood pressure fluctuations throughout the day and night. Dashed horizontal lines indicate clinical upper limit thresholds for hypertension diagnosis. A key educational feature is the 'non-dipping' profile, where the expected 10–20% nocturnal decrease in blood pressure is absent, a common finding in patients with autonomic dysfunction, such as those with Parkinson's disease. The chart also contains annotations for 'M' (manual measurement) and 'F' (mismeasurement), illustrating the data cleaning process in diagnostic monitoring.

Reading Web Page

https://www.muslimuniversity.edu.af/uploads/library/Essentia…

I now have comprehensive Sembulingam content. Let me compile the full answer.

Hypertension - MBBS Physiology

Reference: Sembulingam's Essentials of Medical Physiology, 6th Edition


Definition

Hypertension is defined as the persistent elevation of blood pressure above the normal range.
According to Sembulingam: Hypertension is clinically diagnosed when systolic pressure remains persistently elevated above 150 mm Hg and/or diastolic pressure above 90 mm Hg at rest.
Normal BP: Systolic < 120 mm Hg | Diastolic < 80 mm Hg

Classification of Hypertension

Hypertension is broadly divided into two main types:

1. Primary (Essential) Hypertension

  • Elevated blood pressure in the absence of any underlying disease
  • Cause is unknown
  • Arterial pressure increases due to increased peripheral resistance from an unknown cause
  • Accounts for ~90-95% of all hypertension cases
Primary hypertension is further divided into:
SubtypeFeatures
Benign HypertensionLong, symptomless course; systolic ~200 mmHg, diastolic ~100 mmHg; BP normalizes during rest/sleep initially; later becomes persistent; leads to vascular, cardiac, or renal disease over years
Malignant (Accelerated) HypertensionSevere form; rapid course; systolic ~250 mmHg, diastolic ~150 mmHg; causes severe damage to tunica intima of small vessels; affects retina, heart, brain, kidneys; fatal within few years; results from combined effects of primary and secondary hypertension

2. Secondary Hypertension

High blood pressure due to an identifiable underlying disorder.
Secondary hypertension is classified into the following forms:

i. Cardiovascular Hypertension

  • Coarctation of aorta
  • Arteriosclerosis

ii. Endocrine Hypertension

  • Pheochromocytoma - tumor of adrenal medulla causing excess catecholamine secretion
  • Hyperaldosteronism - excess aldosterone from adrenal cortex (causes Na+ and water retention)
  • Cushing's Syndrome - excess glucocorticoids from adrenal cortex

iii. Renal Hypertension

  • Stenosis of renal arteries (Goldblatt hypertension)
  • Tumor of juxtaglomerular cells - excess angiotensin II production
  • Glomerulonephritis

iv. Neurogenic Hypertension

  • Increased intracranial pressure
  • Lesion in tractus solitarius (NTS)
  • Sectioning of nerve fibers from carotid sinus

Pathophysiology of Primary Hypertension

The fundamental hemodynamic equation for blood pressure is:
BP = Cardiac Output (CO) × Total Peripheral Resistance (TPR)
Hypertension results when either CO or TPR (or both) are persistently elevated.
Key mechanisms (as in Sembulingam and supported by Guyton & Hall):

1. Increased Peripheral Resistance

The primary mechanism in established hypertension. Vasoconstriction of arterioles raises TPR. This may be due to:
  • Increased sympathetic activity
  • Excess circulating catecholamines
  • Excess angiotensin II

2. Renin-Angiotensin-Aldosterone System (RAAS) Activation

  • Renal ischemia or excess renin secretion triggers angiotensin II formation
  • Angiotensin II causes:
    1. Immediate effect - Arteriolar vasoconstriction → raises TPR → raises BP
    2. Long-term effect - Stimulates aldosterone secretion → Na+ and water retention → raises blood volume → raises cardiac output → raises BP
  • This two-step mechanism is central to renovascular and endocrine hypertension

3. Impaired Renal Pressure Natriuresis

  • Normally, the kidney excretes excess salt and water when BP rises ("pressure natriuresis"), resetting BP toward normal
  • In hypertension, this mechanism is blunted - the kidney requires a higher set-point pressure to excrete adequate salt and water
  • This is the fundamental long-term mechanism for sustained hypertension (Guyton's concept)

4. Sympathetic Nervous System Overactivity

  • Increases heart rate and contractility → raises CO
  • Increases arteriolar tone → raises TPR
  • Stimulates renal renin release
  • Particularly prominent in obesity-related hypertension

5. Volume Loading (Salt-Sensitive Hypertension)

  • Excess salt intake → expanded extracellular fluid and blood volume → raised cardiac output → raised BP
  • Especially prominent when renal mass is reduced

Effects / Complications of Hypertension (Sembulingam)

Severe manifestations of hypertension include:
  1. Renal failure - hypertensive nephropathy
  2. Left ventricular failure - from chronically increased afterload
  3. Myocardial infarction - accelerated coronary atherosclerosis
  4. Cerebral hemorrhage - rupture of cerebral vessels ("stroke")
  5. Retinal hemorrhage - hypertensive retinopathy

Treatment Overview (Sembulingam)

  • Secondary hypertension - treat the underlying cause
  • Primary hypertension - can be controlled but not cured
Antihypertensive drug classes:
  1. Beta-blockers - block beta-adrenoceptors; reduce cardiac output and vasoconstriction
  2. Diuretics - reduce blood volume
  3. ACE inhibitors / ARBs - block RAAS
  4. Calcium channel blockers - reduce arteriolar tone
  5. Alpha-blockers - reduce peripheral resistance

Summary Diagram

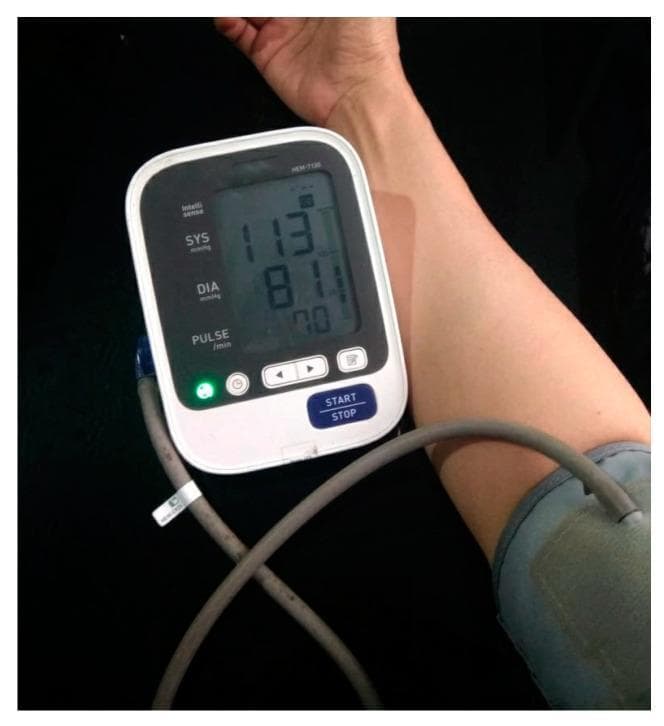

Blood pressure measurement device

Quick Reference Table

FeaturePrimary HTNSecondary HTN
CauseUnknownIdentifiable
Prevalence90-95%5-10%
TreatmentControlled (not cured)Treat underlying cause
SubtypesBenign, MalignantRenal, Endocrine, Neurogenic, Cardiovascular

References:
  • Essentials of Medical Physiology by K. Sembulingam & Prema Sembulingam, 6th Edition - Section 8, Cardiovascular System (Applied Physiology: Hypertension, p. 614 onwards)
  • Guyton and Hall Textbook of Medical Physiology, 14th Edition - Chapter 19 (Role of the Kidneys in Long-Term Arterial Pressure Control and Hypertension) - used to supplement and cross-verify mechanism details

Describe coronary circulation its regulation and applied aspects mbbs physiology take referring sembulingam boook

Quick answer: Coronary circulation supplies blood to the myocardium via the right and left coronary arteries. It is unique because it flows mainly during diastole (systole compresses intramural vessels). Regulation involves local metabolic factors (adenosine is the key), neural, and humoral mechanisms. Applied aspects include angina pectoris, myocardial infarction, and coronary artery disease.
Searching sources...
Finding Sources
Searching the Web

Sembulingam physiology coronary circulation regulation applied aspects MBBS

Now let me read the Guyton coronary circulation section AND extract the Sembulingam PDF content simultaneously:
Reading File
Reading Web Page

https://www.muslimuniversity.edu.af/uploads/library/Essentia…

Finding Sources
Excellent - I have rich Sembulingam content directly. Now let me get more details - the metabolic regulation, nervous factors, and applied parts from Guyton and more Sembulingam content:
Reading File
Reading Web Page

https://www.muslimuniversity.edu.af/uploads/library/Essentia…

Excellent! Now let me get the Guyton coronary regulation continuation and search for images:
Reading File
Searching Images

coronary arteries heart anatomy diagram right left coronary artery

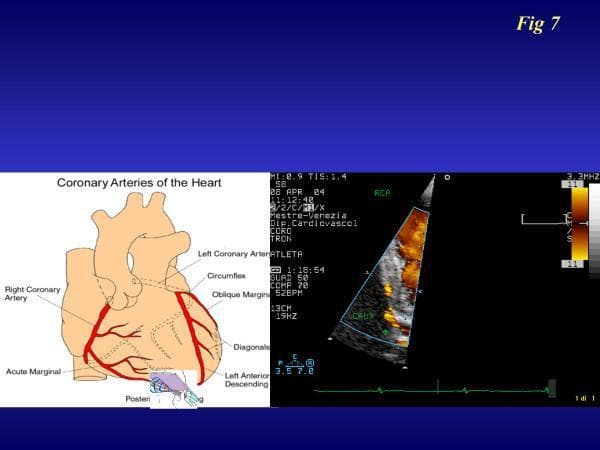

A dual-panel medical illustration and diagnostic image set demonstrating the transthoracic imaging of the right coronary artery (RCA). The left panel is an anatomical diagram of the 'Coronary Arteries of the Heart,' highlighting the major epicardial vessels including the Right Coronary Artery, Acute Marginal artery, Left Coronary Artery, Circumflex, Oblique Marginal, Diagonals, and Left Anterior Descending (LAD) artery. The right panel is a color Doppler transthoracic echocardiogram (TTE) in a specialized apical off-axis view. It displays real-time blood flow within the RCA, labeled as 'RCA' and 'CRUX' (indicating the crux of the heart), represented by a red and yellow color scale signifying flow velocity. A vertical color velocity bar and an electrocardiogram (ECG) trace are visible on the periphery. This comparison is used to guide non-invasive assessment of coronary flow reserve (CFR) by correlating anatomical landmarks with functional Doppler flow signals in a clinical cardiology setting.

A dual-panel medical illustration and diagnostic image set demonstrating the transthoracic imaging of the right coronary artery (RCA). The left panel is an anatomical diagram of the 'Coronary Arteries of the Heart,' highlighting the major epicardial vessels including the Right Coronary Artery, Acute Marginal artery, Left Coronary Artery, Circumflex, Oblique Marginal, Diagonals, and Left Anterior Descending (LAD) artery. The right panel is a color Doppler transthoracic echocardiogram (TTE) in a specialized apical off-axis view. It displays real-time blood flow within the RCA, labeled as 'RCA' and 'CRUX' (indicating the crux of the heart), represented by a red and yellow color scale signifying flow velocity. A vertical color velocity bar and an electrocardiogram (ECG) trace are visible on the periphery. This comparison is used to guide non-invasive assessment of coronary flow reserve (CFR) by correlating anatomical landmarks with functional Doppler flow signals in a clinical cardiology setting.

This historical anatomical diagram consists of two side-by-side sketches by Leonardo da Vinci, rendered in brown ink on aged parchment. The illustrations provide a detailed study of the human heart's gross anatomy and vascular distribution. Each heart is depicted with a characteristic conical shape and downward-pointing apex. The left sketch emphasizes the coronary circulation, showing the branching of coronary arteries across the ventricular surface and the texture of the atria. The right sketch provides an alternative view, highlighting the emergence of major great vessels from the superior aspect, including the aorta, pulmonary artery, and venae cavae. The cylindrical vessels are drawn with varying diameters to represent different vascular functions. Surrounding the sketches is mirror-writing in Italian, characteristic of Da Vinci's scientific notes. This content serves as a foundational example of historical clinical imaging and anatomical specimen study, illustrating early scientific understanding of cardiac morphology and the complex hemodynamics of the aortic root.

This historical anatomical diagram consists of two side-by-side sketches by Leonardo da Vinci, rendered in brown ink on aged parchment. The illustrations provide a detailed study of the human heart's gross anatomy and vascular distribution. Each heart is depicted with a characteristic conical shape and downward-pointing apex. The left sketch emphasizes the coronary circulation, showing the branching of coronary arteries across the ventricular surface and the texture of the atria. The right sketch provides an alternative view, highlighting the emergence of major great vessels from the superior aspect, including the aorta, pulmonary artery, and venae cavae. The cylindrical vessels are drawn with varying diameters to represent different vascular functions. Surrounding the sketches is mirror-writing in Italian, characteristic of Da Vinci's scientific notes. This content serves as a foundational example of historical clinical imaging and anatomical specimen study, illustrating early scientific understanding of cardiac morphology and the complex hemodynamics of the aortic root.

A side-by-side comparison of two cardiac imaging modalities demonstrating coronary artery anatomy. The left image is a 3D Magnetic Resonance Coronary Angiography (MRCA) utilizing a b-SSFP whole-heart sequence. It provides a volume-rendered overview of the cardiac chambers, the ascending aorta, and the pulmonary artery, specifically highlighting the absence of a normal origin for the left coronary artery from the left aortic sinus of Valsalva. The right image is a conventional X-ray coronary angiography frame, showing the detailed lumen of the coronary arterial tree with contrast opacification. The angiography reveals the branching pattern of the coronary arteries, including the left anterior descending and circumflex systems, and serves as definitive confirmation of the anatomical anomalies or obstructions suggested by the non-invasive MRCA. This comparison is used in cardiovascular medicine to assess complex congenital anomalies, surgical outcomes like the Takeuchi repair, or suspected coronary artery stenosis and obstruction.

A side-by-side comparison of two cardiac imaging modalities demonstrating coronary artery anatomy. The left image is a 3D Magnetic Resonance Coronary Angiography (MRCA) utilizing a b-SSFP whole-heart sequence. It provides a volume-rendered overview of the cardiac chambers, the ascending aorta, and the pulmonary artery, specifically highlighting the absence of a normal origin for the left coronary artery from the left aortic sinus of Valsalva. The right image is a conventional X-ray coronary angiography frame, showing the detailed lumen of the coronary arterial tree with contrast opacification. The angiography reveals the branching pattern of the coronary arteries, including the left anterior descending and circumflex systems, and serves as definitive confirmation of the anatomical anomalies or obstructions suggested by the non-invasive MRCA. This comparison is used in cardiovascular medicine to assess complex congenital anomalies, surgical outcomes like the Takeuchi repair, or suspected coronary artery stenosis and obstruction.

Now let me fetch the coronary artery diagram from Guyton and also search for a phasic blood flow image:
Loading Image
Searching Images

phasic coronary blood flow systole diastole left ventricle graph

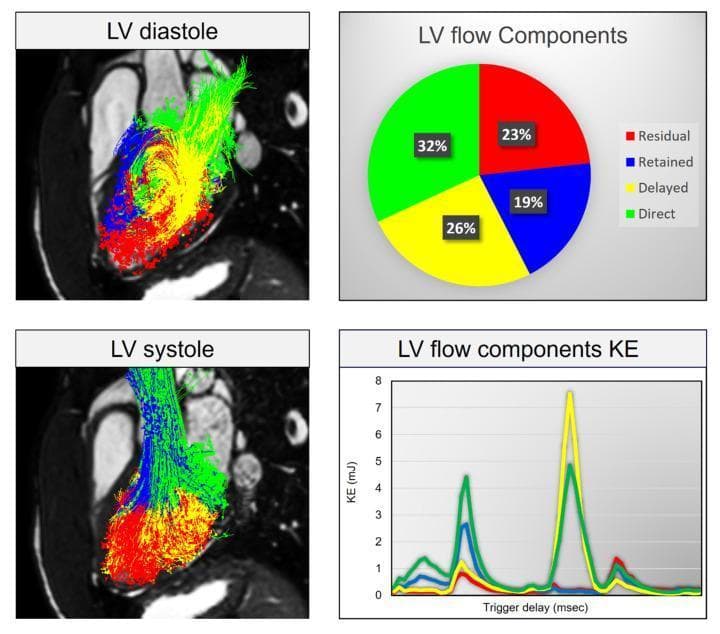

This composite educational graphic illustrates a 4D flow cardiac magnetic resonance (CMR) analysis of blood flow components in the left ventricle (LV). The top-left and bottom-left panels display long-axis diagnostic images with color-coded streamline visualizations. 'LV diastole' shows a swirling pattern of dispersed flow components, while 'LV systole' depicts a directed, streamlined ejection of blood toward the outflow tract. The top-right panel is a pie chart quantifying LV flow components: Direct flow (32%, green), Delayed flow (26%, yellow), Residual flow (23%, red), and Retained flow (19%, blue). The bottom-right panel is a line graph plotting kinetic energy (KE in mJ) against trigger delay (msec). It demonstrates hemodynamic peaks throughout the cardiac cycle, with Delayed (yellow) and Direct (green) flow components reaching the highest peak kinetic energies during late diastole/early systole. This tool is clinically relevant for assessing intraventricular energetics and risk-stratifying patients with cardiovascular disorders such as myocardial infarction or cardiomyopathy.

This composite educational graphic illustrates a 4D flow cardiac magnetic resonance (CMR) analysis of blood flow components in the left ventricle (LV). The top-left and bottom-left panels display long-axis diagnostic images with color-coded streamline visualizations. 'LV diastole' shows a swirling pattern of dispersed flow components, while 'LV systole' depicts a directed, streamlined ejection of blood toward the outflow tract. The top-right panel is a pie chart quantifying LV flow components: Direct flow (32%, green), Delayed flow (26%, yellow), Residual flow (23%, red), and Retained flow (19%, blue). The bottom-right panel is a line graph plotting kinetic energy (KE in mJ) against trigger delay (msec). It demonstrates hemodynamic peaks throughout the cardiac cycle, with Delayed (yellow) and Direct (green) flow components reaching the highest peak kinetic energies during late diastole/early systole. This tool is clinically relevant for assessing intraventricular energetics and risk-stratifying patients with cardiovascular disorders such as myocardial infarction or cardiomyopathy.

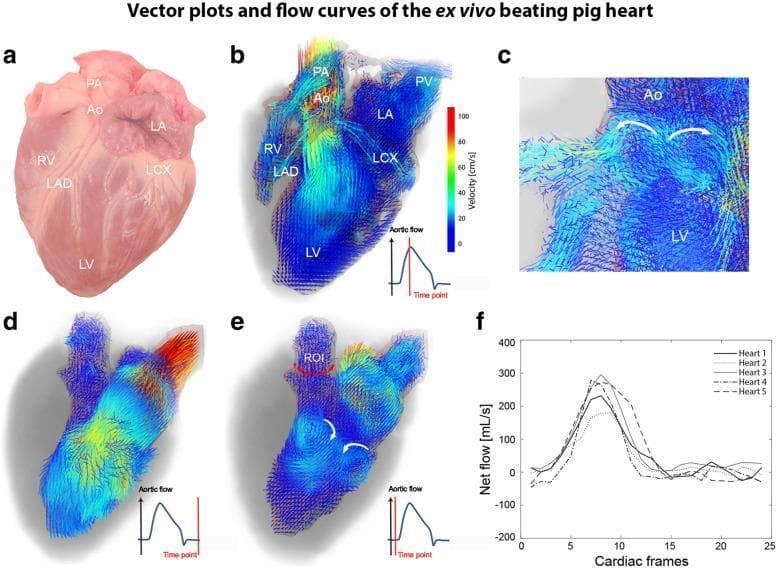

This composite educational graphic illustrates hemodynamic modeling in a beating ex vivo pig heart, a common model for human cardiac research. (a) A clinical photograph provides an anatomical reference, labeling the aorta (Ao), pulmonary artery (PA), left atrium (LA), left ventricle (LV), and coronary arteries (LAD, LCX). (b) A 4D flow MRI velocity vector plot during the systolic ejection phase shows blood accelerating (red-yellow vectors) from the LV into the aorta. (c) A magnified view of the aortic root demonstrates diastolic vortex formation and retrograde filling of the coronaries. (d, e) Comparison vector plots of a segmented LV depict flow dynamics at end-systole (d) versus end-diastole (e). The latter highlights complex intracardiac flow, including the formation of late diastolic vortices (white arrows) as the ventricle fills. A color-coded velocity scale (0–100 cm/s) assists in quantifying flow intensity. (f) A line graph displays net aortic flow (mL/s) across 25 cardiac frames for five separate experiments, demonstrating consistent peak systolic flow and minor diastolic regurgitation across subjects.

This composite educational graphic illustrates hemodynamic modeling in a beating ex vivo pig heart, a common model for human cardiac research. (a) A clinical photograph provides an anatomical reference, labeling the aorta (Ao), pulmonary artery (PA), left atrium (LA), left ventricle (LV), and coronary arteries (LAD, LCX). (b) A 4D flow MRI velocity vector plot during the systolic ejection phase shows blood accelerating (red-yellow vectors) from the LV into the aorta. (c) A magnified view of the aortic root demonstrates diastolic vortex formation and retrograde filling of the coronaries. (d, e) Comparison vector plots of a segmented LV depict flow dynamics at end-systole (d) versus end-diastole (e). The latter highlights complex intracardiac flow, including the formation of late diastolic vortices (white arrows) as the ventricle fills. A color-coded velocity scale (0–100 cm/s) assists in quantifying flow intensity. (f) A line graph displays net aortic flow (mL/s) across 25 cardiac frames for five separate experiments, demonstrating consistent peak systolic flow and minor diastolic regurgitation across subjects.

I now have all the content needed for a comprehensive answer. Let me compile it.---

Coronary Circulation - MBBS Physiology

Reference: Sembulingam's Essentials of Medical Physiology, 6th Ed. - Chapter 108


Introduction

The coronary circulation is the blood supply to the myocardium (heart muscle) itself. About one-third of all deaths in industrialized countries result from coronary artery disease. The heart has a very high metabolic demand and, unlike other tissues, extracts 70-80% of the oxygen from every mL of blood that passes through it - leaving almost no oxygen reserve. This makes an adequate coronary blood flow absolutely essential for cardiac function.

I. DISTRIBUTION OF CORONARY BLOOD VESSELS

A. Coronary Arteries

The heart muscle is supplied by two coronary arteries arising from the aortic sinuses (sinuses of Valsalva), just above the aortic valve cusps:
Coronary arteries - Right and Left coronary artery branches (Guyton & Hall)

1. Right Coronary Artery (RCA)

  • Arises from the right aortic sinus
  • Runs in the right atrioventricular (AV) groove
  • Supplies:
    • Right atrium
    • Right ventricle
    • Posterior wall of the left ventricle (in 80-90% of people - "right dominant")
    • SA node (in ~60% of people) and AV node (in ~80% of people)
  • Main branch: Posterior descending artery (PDA)

2. Left Coronary Artery (LCA)

  • Arises from the left aortic sinus
  • A short left main stem (~2-3 cm) divides into:
    • Left Anterior Descending (LAD) - also called "widow maker"; supplies anterior wall of LV, interventricular septum (anterior 2/3), and apex
    • Left Circumflex (LCX) - runs in left AV groove; supplies lateral and posterior wall of left ventricle and left atrium
  • Supplies anterior and left lateral portions of the left ventricle
Clinical Point (Sembulingam): The LAD is the most commonly occluded coronary artery. Its blockage causes extensive anterior wall myocardial infarction.

B. Venous Drainage

Coronary venous drainage occurs via three pathways:
PathwayDrains IntoDrains From
Coronary sinus (largest)Right atrium~75% of left ventricular muscle
Anterior cardiac veinsRight atrium directlyMost of right ventricular muscle
Thebesian veins (smallest)All cardiac chambersA small portion of myocardium

C. Physiological Shunt

  • A small portion of aortic blood flows directly into the myocardium via the thebesian veins (venae cordis minimae), bypassing the coronary arteries
  • This represents a right-to-left shunt - it returns deoxygenated blood to the left heart, slightly reducing the oxygen saturation of arterial blood
  • This is called the physiological shunt in the heart

II. CORONARY BLOOD FLOW

A. Normal Coronary Blood Flow

  • At rest: ~70 mL/min per 100 g of heart weight
  • Total resting coronary flow: approximately 225 mL/min (~4-5% of cardiac output)
  • During strenuous exercise: increases 3 to 4 times (coronary reserve)
  • The heart consumes ~8-10 mL O₂/min/100g of tissue at rest (much higher than most other organs)
  • 70-80% of oxygen is extracted from coronary blood (compared to ~25% in skeletal muscle)

B. Measurement of Coronary Blood Flow

  • Fick's principle - using oxygen consumption
  • Electromagnetic flowmeter on coronary arteries
  • Thermodilution method
  • Radioactive microspheres

III. PHASIC CHANGES IN CORONARY BLOOD FLOW

This is one of the most unique and exam-important features of coronary circulation.

Left Ventricle (Sembulingam, Fig. 108.1)

The phasic changes in the left coronary artery occur in three phases:
PhaseWhat HappensWhy
Isovolumetric contractionSharp fall in coronary flow to near zeroIntramyocardial pressure rises sharply, compressing intramural vessels
Ejection periodRise in aortic pressure causes a brief rise in flow into the LCA, but capillary flow remains lowMyocardial compression continues to impede flow through capillaries
DiastoleMaximum coronary blood flow occursCardiac muscle relaxes, intramural vessels open, and high aortic diastolic pressure drives blood through the coronaries
Key Point: The left ventricle receives most of its blood supply during diastole. This is why a fast heart rate (short diastole) or low diastolic BP can critically reduce coronary perfusion.

Right Ventricle

  • Right ventricular muscle contracts with much less force than the left
  • Intramural pressure rise during systole is smaller
  • Therefore, phasic changes in the right coronary artery are less pronounced
  • Some flow continues even during systole

Epicardial vs. Subendocardial Blood Flow

  • Epicardial coronary arteries lie on the surface and are less affected by myocardial compression
  • Subendocardial arteries are most susceptible to systolic compression
  • A subendocardial plexus of vessels compensates for the reduced systolic flow
  • In disease (e.g., hypertrophy, high diastolic pressure), subendocardial ischemia occurs first - this is why subendocardial MI is more common than epicardial MI in diffuse disease

IV. FACTORS REGULATING CORONARY BLOOD FLOW

Coronary flow is regulated by local metabolic response primarily, supported by nervous and humoral factors.

1. Need for Oxygen (Most Important - Sembulingam)

  • Oxygen is the single most important factor regulating coronary blood flow
  • Coronary blood flow is directly proportional to oxygen consumption of cardiac muscle
  • Even at rest, 70-80% of oxygen is extracted - almost maximal
  • When oxygen demand increases, the only way to supply more O₂ is to increase flow
  • Any decrease in O₂ triggers vasodilation immediately

2. Metabolic Factors

When oxygen delivery falls (hypoxia), cardiac cells release vasodilator metabolites:
MetaboliteEffect
Adenosine (most important)ATP → AMP → Adenosine; potent coronary vasodilator
CO₂Vasodilator
H⁺ (lactic acid)Vasodilator
K⁺ ionsVasodilator
ProstaglandinsVasodilator
Nitric oxide (NO)Endothelium-derived; potent vasodilator
Adenosine phosphate compoundsVasodilator
Adenosine mechanism (Guyton): When O₂ falls in muscle cells, ATP degrades to AMP, then to adenosine. Adenosine leaks out of cells and causes arteriolar vasodilation, increasing coronary flow to match metabolic needs. This is the primary local regulatory mechanism.

3. Coronary Perfusion Pressure

  • Coronary Perfusion Pressure = Aortic Diastolic Pressure - Left Ventricular End-Diastolic Pressure (LVEDP)
  • Flow increases when aortic diastolic pressure rises
  • Flow decreases when LVEDP rises (e.g., heart failure) - this is why cardiac failure worsens coronary ischemia
  • Coronary autoregulation: blood flow remains constant over a mean arterial pressure range of 60-180 mmHg (autoregulatory plateau)

4. Nervous Factors

Autonomic nerves have both direct and indirect effects on coronary vessels:

Sympathetic Stimulation:

  • Direct effect: Norepinephrine acts on:
    • Alpha receptors (predominant on epicardial arteries) → vasoconstriction
    • Beta-2 receptors (predominant on intramuscular arteries) → vasodilation
  • Indirect (dominant) effect: Increased heart rate and contractility → increased metabolism → metabolic vasodilation overrides direct constriction
  • Net result: Coronary flow increases (metabolic override prevails)
Sembulingam: Stimulation of sympathetic nerves increases rate and force of cardiac contraction → liberation of more metabolites → vasodilation → increased coronary flow.

Parasympathetic (Vagal) Stimulation:

  • Direct effect: Acetylcholine → mild coronary vasodilation
  • Indirect (dominant) effect: Slows heart rate, decreases contractility → less O₂ demand → less metabolites → coronary vasoconstriction
  • Net result: Coronary flow decreases

V. SPECIAL FEATURES OF CARDIAC METABOLISM

  • At rest, cardiac muscle derives ~70% energy from fatty acids, ~30% from glucose
  • During ischemia or anaerobiosis, switches to glucose utilization
  • Heart has minimal anaerobic capacity - very sensitive to ischemia
  • Energy stored as creatine phosphate (short-term reserve only)
  • Capillary density in myocardium is much higher than skeletal muscle - optimises O₂ delivery

VI. APPLIED PHYSIOLOGY - CORONARY ARTERY DISEASE (Sembulingam, Chapter 108)

A. Coronary Occlusion

Definition: Partial or complete obstruction of a coronary artery.
Causes:
  • Atherosclerosis (most common) - plaque formation narrows lumen
  • Thrombosis - clot forms on ruptured atheromatous plaque
  • Embolism - thrombus or detached plaque fragment blocks smaller vessels
  • Coronary vasospasm - especially with sympathetic excess (Prinzmetal/variant angina)

B. Myocardial Ischemia and Necrosis

Myocardial Ischemia

  • Defined as reaction of myocardium to hypoxia due to severely reduced coronary flow
  • Develops when blood flow decreases but cell death has not yet occurred
  • Reversible if blood flow is restored quickly (especially within 20-40 minutes)
  • Small areas of ischemia may recover via coronary collateral circulation

Myocardial Stunning

  • Transient mechanical dysfunction of the heart caused by a mild reduction in coronary blood flow
  • Insufficient to cause necrosis but causes brief contractile dysfunction
  • Heart recovers completely once flow is restored

Necrosis

  • Death of myocardial cells - occurs when ischemia is severe and prolonged
  • Irreversible once completed
  • Leads to myocardial infarction

C. Myocardial Infarction (Heart Attack) - Sembulingam

Definition: Death (necrosis) of a portion of myocardium following complete or near-complete coronary occlusion.
Types:
TypeFeatures
STEMI (ST-elevation MI)Complete occlusion; full-thickness (transmural) necrosis
NSTEMI (Non-ST-elevation MI)Partial occlusion; subendocardial necrosis
Symptoms of Myocardial Infarction (Sembulingam):
  1. Cardiac pain (severe, crushing chest pain)
  2. Nausea
  3. Vomiting
  4. Palpitations
  5. Difficulty in breathing (dyspnea)
  6. Extreme weakness
  7. Sweating
  8. Anxiety
Changes in the body after MI:
  • ECG changes: ST elevation, Q waves, T-wave inversion
  • Cardiac enzymes rise: Troponin I/T (most specific), CK-MB, LDH
  • Collateral vessels may develop if occlusion is gradual
  • In sudden complete occlusion - no time for collaterals → large infarct

D. Cardiac Pain - Angina Pectoris (Sembulingam)

Definition: Chest pain caused by myocardial ischemia (inadequate O₂ supply to heart muscle).
Character of pain:
  • Starts beneath the sternum (retrosternal)
  • Radiates to the left arm, left shoulder, jaw, and neck
  • Described as crushing, tightening, or pressure-like
  • Lasts 2-15 minutes (if longer, suspect MI)
  • Relieved by rest and nitrates
Why it is a Referred Pain:
  • The heart and left arm develop from the same dermatomal segment in the embryo (C8-T4)
  • Pain impulses from the heart travel via cardiac sympathetic nerves to T1-T5 spinal segments
  • The brain interprets these as arising from the somatic areas of the same segments - hence referred to left arm and chest wall
Types of Angina:
TypeFeatures
Stable anginaPredictable, triggered by exertion/stress; relieved by rest + nitrates
Unstable anginaOccurs at rest; unpredictable; pre-infarction state
Variant (Prinzmetal) anginaDue to coronary vasospasm; occurs at rest, especially at night

Summary Flow Chart

Coronary Occlusion (Atherosclerosis/Thrombus)
        ↓
Reduced Coronary Blood Flow
        ↓
Myocardial Hypoxia → Release of Adenosine, CO₂, H⁺, K⁺
        ↓
↑ Coronary vasodilation (compensatory) ←→ If inadequate → Ischemia
        ↓                                             ↓
 Restored blood flow                     Angina Pectoris (Pain)
  (Myocardial Stunning)                              ↓
                                           Necrosis → Infarction

Quick Revision Points for Exams

PointFact
Normal coronary flow (rest)70 mL/min/100g (~225 mL/min total)
% of cardiac output4-5%
O₂ extraction from coronary blood70-80%
Flow during cardiac cycle (LV)Mainly during diastole
Most important regulatorOxygen demand / Metabolic factors
Key vasodilator metaboliteAdenosine
Most common cause of CADAtherosclerosis
Most common site of occlusionLAD artery
Pain in angina radiates toLeft arm and shoulder (referred pain)
Why referred pain?Same dermatomal origin as left arm (embryological)

References:
  • Essentials of Medical Physiology - K. Sembulingam & Prema Sembulingam, 6th Edition, Chapter 108: Coronary Circulation (pp. 629-633)
  • Guyton and Hall Textbook of Medical Physiology, 14th Edition, Chapter 21 - used to cross-verify and supplement regulation details

Conducting system of the heart - origin propogation of cardiac impulse

Quick answer: The cardiac impulse originates in the SA node (pacemaker), spreads through the atria, reaches the AV node where it is delayed, then travels rapidly via the Bundle of His → left and right bundle branches → Purkinje fibers to the ventricular myocardium. This ensures coordinated atrial then ventricular contraction.
Searching sources...
Finding Sources
Finding Sources
Searching the Web

Sembulingam physiology conducting system of heart SA node AV node Bundle of His Purkinje fibers MBBS

Finding Sources
Finding Sources
Reading Web Page

https://www.muslimuniversity.edu.af/uploads/library/Essentia…

Finding Sources
Finding Sources
Good - I found key sections. Let me now read the Guyton and Ganong physiology content on the conducting system in parallel:
Finding Sources
Reading File
Reading File
Excellent content. Now let me get more from Ganong on SA node action potential, AV delay, conduction velocities, and the Guyton section on conducting system:
Reading File
Finding Sources
Searching Images

conducting system of heart SA node AV node bundle of His Purkinje fibers diagram anatomy

Anatomical Diagram over a clinical photograph of a gross cardiac specimen, viewed from the atrial aspect (superior view) of the cardiac base. The image illustrates the complex anatomy of the cardiac conduction system and vestigial embryonic structures. Key landmarks include the atrioventricular (AV) node (white star with red borders) and the retroaortic node (red star with white borders). The conduction pathway is delineated by a solid red line representing the bundle of His. Supplemental embryonic and auxiliary tracts are marked with dotted lines: a green dotted line shows the 'dead-end tract' continuing from the AV conduction axis toward the outflow tract; a yellow dotted line marks the retro-aortic ring branch; and a white dotted line traces the path of the embryonic atrioventricular ring. This visual is designed for advanced medical education in cardiac electrophysiology and embryology, highlighting the anatomical basis for idiopathic ventricular arrhythmias and the clinical significance of persistent embryonic tissues within the heart's conduction framework.

Anatomical Diagram over a clinical photograph of a gross cardiac specimen, viewed from the atrial aspect (superior view) of the cardiac base. The image illustrates the complex anatomy of the cardiac conduction system and vestigial embryonic structures. Key landmarks include the atrioventricular (AV) node (white star with red borders) and the retroaortic node (red star with white borders). The conduction pathway is delineated by a solid red line representing the bundle of His. Supplemental embryonic and auxiliary tracts are marked with dotted lines: a green dotted line shows the 'dead-end tract' continuing from the AV conduction axis toward the outflow tract; a yellow dotted line marks the retro-aortic ring branch; and a white dotted line traces the path of the embryonic atrioventricular ring. This visual is designed for advanced medical education in cardiac electrophysiology and embryology, highlighting the anatomical basis for idiopathic ventricular arrhythmias and the clinical significance of persistent embryonic tissues within the heart's conduction framework.

This composite medical illustration demonstrates the pathophysiology of right ventricular (RV) pacing-induced left ventricular (LV) dyssynchrony. The left side features a schematic anatomical diagram of the heart showing the cardiac conduction system (Sinus node, AV node, Bundle branches, and Purkinje fibers). A red line represents a pacing lead traversing the right atrium to the RV apex (marked by a red star). Red wavefront arcs illustrate electrical activation spreading from the RV pacing site to the LV, highlighting the late activation of the LV lateral wall. The right side contains diagnostic images, including a color tissue Doppler echocardiogram and a corresponding velocity-time tracing. The Doppler tracing shows two distinct myocardial velocity curves (green) with vertical blue and red marker lines indicating the significant temporal delay between segmental contractions. A label and arrows point to both the LV basal lateral segment on the diagram and the delayed peak on the Doppler tracing, identifying the mechanical dyssynchrony resulting from the non-physiological electrical sequence of RV apical pacing.

This composite medical illustration demonstrates the pathophysiology of right ventricular (RV) pacing-induced left ventricular (LV) dyssynchrony. The left side features a schematic anatomical diagram of the heart showing the cardiac conduction system (Sinus node, AV node, Bundle branches, and Purkinje fibers). A red line represents a pacing lead traversing the right atrium to the RV apex (marked by a red star). Red wavefront arcs illustrate electrical activation spreading from the RV pacing site to the LV, highlighting the late activation of the LV lateral wall. The right side contains diagnostic images, including a color tissue Doppler echocardiogram and a corresponding velocity-time tracing. The Doppler tracing shows two distinct myocardial velocity curves (green) with vertical blue and red marker lines indicating the significant temporal delay between segmental contractions. A label and arrows point to both the LV basal lateral segment on the diagram and the delayed peak on the Doppler tracing, identifying the mechanical dyssynchrony resulting from the non-physiological electrical sequence of RV apical pacing.

This anatomical diagram illustrates the cardiac conduction system within the left ventricle of a human heart. The visual highlights the left bundle branch (LBB) and its subsequent fascicular branching patterns, rendered in a bold red color against a neutral-toned anatomical background. Key structures identified via labels include the membranous septum and the right coronary aortic leaflet, providing critical landmarks for the origin of the left bundle. The diagram depicts the hierarchical organization of the conduction fibers, showing how the main left bundle branch emerges near the membranous septum and diverges into anterior and posterior divisions. These divisions further subdivide into an intricate, reticular network of Purkinje fibers that spread extensively across the ventricular myocardium. This illustration serves an educational purpose in cardiology and anatomy, demonstrating the subendocardial distribution of the electrical pathways responsible for synchronous ventricular contraction.

This anatomical diagram illustrates the cardiac conduction system within the left ventricle of a human heart. The visual highlights the left bundle branch (LBB) and its subsequent fascicular branching patterns, rendered in a bold red color against a neutral-toned anatomical background. Key structures identified via labels include the membranous septum and the right coronary aortic leaflet, providing critical landmarks for the origin of the left bundle. The diagram depicts the hierarchical organization of the conduction fibers, showing how the main left bundle branch emerges near the membranous septum and diverges into anterior and posterior divisions. These divisions further subdivide into an intricate, reticular network of Purkinje fibers that spread extensively across the ventricular myocardium. This illustration serves an educational purpose in cardiology and anatomy, demonstrating the subendocardial distribution of the electrical pathways responsible for synchronous ventricular contraction.

Reading File
Loading Image
That's a perfect diagram from Ganong showing the entire conducting system with action potentials and ECG correlation. Now let me get the Guyton content specifically on the conducting system and conduction velocities:
Finding Sources
Finding Sources
Reading Web Page

https://www.muslimuniversity.edu.af/uploads/library/Essentia…

I now have all the detailed Sembulingam content along with Ganong and Guyton material. Let me get the Guyton AV node delay section to complete the details:
Reading File
Loading Image
I now have comprehensive content from Sembulingam (directly extracted), Ganong, and Guyton. I have the perfect diagram showing the complete conducting system with action potentials and ECG correlation. Let me write the full answer now.

Conducting System of the Heart - Origin and Propagation of Cardiac Impulse

Reference: Sembulingam's Essentials of Medical Physiology, 6th Ed. - Chapters 90 & 96


Introduction

The cardiac muscle is unique in that it can generate and conduct its own electrical impulses without any external nerve supply - this property is called automaticity (self-excitability). The specialized tissues responsible for generating and rapidly conducting these impulses to all parts of the myocardium form the conducting (conductive) system of the heart.
According to Sembulingam, the conducting system is formed by modified cardiac muscle fibers called junctional tissues, which conduct impulses rapidly from the SA node to the ventricles.

Components of the Conducting System (Sembulingam)

The conducting system consists of the following components:
  1. Sinoatrial (SA) node - the primary pacemaker
  2. Internodal fibers - connect SA node to AV node
  3. Atrioventricular (AV) node - delays conduction
  4. Bundle of His (AV bundle) - common bundle
  5. Right and Left Bundle Branches - divide at the interventricular septum
  6. Purkinje fibers - terminal distribution to ventricular myocardium
Conducting system of the heart showing all components with action potentials at each region and ECG correlation (Ganong's Review of Medical Physiology)

1. Sinoatrial (SA) Node - The Primary Pacemaker

Location

  • Situated in the right atrium, just below (inferior to) the opening of the superior vena cava
  • Also called the Keith and Flack's node

Structure (Sembulingam)

  • Spindle-shaped collection of specialized muscle cells
  • Cells are small, poorly striated, with fewer myofibrils
  • Surrounded by fibrous connective tissue
  • Richly supplied by both sympathetic and parasympathetic nerve fibers

Why is the SA Node the Pacemaker?

  • All parts of the conductive system can generate impulses spontaneously (automaticity)
  • The SA node discharges at the fastest intrinsic rate (70-80/min), outpacing all others
  • Because it fires fastest, it depolarizes all other pacemaker tissues before they can fire spontaneously
  • Therefore, SA node sets the rhythm for the entire heart

Intrinsic Rates of Different Parts (Sembulingam)

StructureIntrinsic Rate (impulses/min)
SA node70-80 (dominant pacemaker)
AV node40-60
Bundle of His40
Purkinje fibers35
Ventricular muscle~20
Key concept: If the SA node fails, the next fastest site takes over - this is the escape pacemaker or latent pacemaker.

2. Origin of the Cardiac Impulse

Ionic Mechanism - Pacemaker Potential (Sembulingam + Ganong)

The SA node does not have a stable resting membrane potential. Instead, it shows a characteristic prepotential (pacemaker potential / spontaneous diastolic depolarization) that automatically drifts toward threshold.
Action potential of ventricular myocyte (A) vs pacemaker tissue - SA node (B) showing phases and ionic currents (Ganong)

Phases of SA Node Action Potential

PhaseEventIon Responsible
Phase 4 (Prepotential)Spontaneous slow depolarization from ~-60 mV toward threshold1. K⁺ efflux decreases (IK declines) → 2. Funny current Ih (Na⁺ + K⁺ influx) → 3. T-type Ca²⁺ channels open (ICa-T)
Phase 0 (Upstroke)Rapid depolarization to ~+20 mVL-type Ca²⁺ channel opening (ICa-L) - NOT Na⁺ as in ventricular muscle
Phase 3 (Repolarization)Return toward resting levelK⁺ efflux through K⁺ channels
Important distinction: The SA/AV node action potential is driven by Ca²⁺ (not Na⁺). That is why:
  • There is no sharp spike before the plateau
  • Ca²⁺ channel blockers (verapamil, diltiazem) slow the SA and AV nodes
  • TTX (Na⁺ channel blocker) does not affect nodal tissue

3. Propagation of the Cardiac Impulse

Step-by-Step Sequence (Sembulingam)

SA Node
   ↓  (via internodal fibers)
Atrial Myocardium (simultaneous R and L atria)
   ↓
AV Node (DELAY - 0.09 sec)
   ↓
Bundle of His (common bundle)
   ↓  (at top of interventricular septum)
Left Bundle Branch → Left and Right ventricles
Right Bundle Branch ↗
   ↓
Purkinje Fibers (rapid spread)
   ↓
Ventricular Myocardium (from apex → base)

Internodal Fibers (Sembulingam - Chapter 90)

Impulses travel from the SA node to the AV node via three internodal tracts containing Purkinje-type fibers (conduct faster than ordinary atrial muscle):
TractEponym
Anterior internodal tractBachmann's bundle (also connects left atrium)
Middle internodal tractWenckebach's tract
Posterior internodal tractThorel's tract
  • Conduction through atrial muscle also occurs but is slower
  • The Bachmann bundle provides the fastest inter-atrial conduction

AV Node - The Gatekeeper

Location: Right posterior portion of the interatrial septum, near the opening of the coronary sinus, above the tricuspid valve
Function - Critically Important: The AV node delays the impulse from reaching the ventricles. This delay:
  • Allows the atria to complete their contraction and empty blood into ventricles first
  • Prevents too-rapid ventricular filling and protects against atrial arrhythmias flooding the ventricles
Why is conduction slow in AV node?
  • Fewer gap junctions between cells → high resistance to ionic spread
  • Smaller cells with higher internal resistance
  • Ca²⁺-dependent action potentials (slower than Na⁺-dependent)
Timing of AV delay (Guyton):
SegmentDelay
SA node → AV node (via internodal fibers)0.03 sec
Within AV node0.09 sec
Penetrating AV bundle0.04 sec
Total SA → ventricular muscle~0.16 sec
This 0.16 sec = PR interval on ECG

Bundle of His (AV Bundle)

  • Direct continuation of the AV node
  • Runs along the lower border of the membranous interventricular septum
  • Surrounded by fibrous connective tissue - insulated from surrounding myocardium
  • Only electrically active connection between atria and ventricles (normally)
  • Divides into Right Bundle Branch and Left Bundle Branch at the top of the muscular interventricular septum

Bundle Branches

Right Bundle Branch (RBB)

  • Runs down the right side of the interventricular septum
  • Reaches the apex
  • Enters the moderator band (septomarginal trabecula)
  • Reaches the anterior papillary muscle and spreads to the right ventricular wall

Left Bundle Branch (LBB)

  • Runs down the left side of the interventricular septum
  • Divides into two fascicles:
    • Left Anterior Fascicle (LAF) - supplies anterior and superior wall of LV
    • Left Posterior Fascicle (LPF) - supplies posterior and inferior wall of LV

Purkinje Fibers

  • Arise from the terminal ends of the bundle branches
  • Spread as a subendocardial network over both ventricular walls
  • Largest cells in the conductive system (larger than ventricular myocytes)
  • Rich in gap junctions → very high conduction velocity
  • First reach papillary muscles and apex, then spread toward the base
Consequence: Ventricular contraction proceeds from apex to base - this squeezes blood upward toward the aorta and pulmonary artery. This is physiologically optimal for ejection.

4. Conduction Velocities at Different Parts (Sembulingam - Chapter 90)

Part of Conductive SystemConduction Velocity
Atrial muscle fibers0.3 m/sec
Internodal fibers1.0 m/sec
AV node0.05 m/sec (slowest - protective delay)
Bundle of His0.12 m/sec
Purkinje fibers4.0 m/sec (fastest)
Ventricular muscle fibers0.5 m/sec

5. ECG Correlation with Impulse Propagation

ECG WaveRepresentsCorresponding Event
P waveAtrial depolarizationSA node fires → atria depolarize
PR interval (0.12-0.20s)Atria → AV node delay → bundle systemAV nodal delay
QRS complex (≤0.10s)Ventricular depolarizationPurkinje → ventricular muscle activation
T waveVentricular repolarizationVentricles repolarize

6. Applied Physiology - Arrhythmias of the Conducting System (Sembulingam - Chapter 96)

A. Heart Block

Definition: Blockage of impulses generated by SA node anywhere in the conductive system.

i. Sinoatrial (SA) Block

  • Failure of impulse transmission from SA node → AV node
  • Heart momentarily stops → AV node takes over as pacemaker
  • Produces AV nodal rhythm at 40-60/min
  • On ECG: P wave absent in affected beats

ii. Atrioventricular (AV) Block

Three degrees:
DegreeFeaturesECG
1st degreeProlonged PR interval (>0.20 sec); all impulses conductedPR > 0.20 sec
2nd degreeSome impulses blocked; occasional dropped beatsSome P waves not followed by QRS
3rd degree (Complete)All impulses blocked; atria and ventricles beat independentlyComplete AV dissociation

iii. Infranodal Block (Bundle Branch Block)

  • Block in branches of Bundle of His (below AV node)
  • Purkinje fibers become pacemaker → rate ~35/min
  • If ventricular muscle takes over → rate ~20/min
  • Right bundle branch block (RBBB): Wide QRS with RSR' pattern in V1
  • Left bundle branch block (LBBB): Wide QRS with broad notched R in V5-V6

B. Ectopic Pacemakers

When the SA node fails or conduction is blocked, latent pacemakers take over at their intrinsic (slower) rates:
SA node fails
    ↓
AV node (40-60/min) → "Junctional rhythm"
    ↓ (if also blocked)
Bundle of His (40/min)
    ↓
Purkinje fibers (35/min) → "Ventricular escape rhythm"
    ↓
Ventricular muscle (20/min) → "Idioventricular rhythm"

C. Other Important Arrhythmias (Sembulingam)

ArrhythmiaMechanism
Extrasystole (Ectopic beat)Ectopic focus fires before SA node
Paroxysmal tachycardiaEctopic focus fires rapidly in bursts
Atrial flutterRapid, regular atrial firing at 250-350/min
Atrial fibrillationChaotic, irregular atrial depolarization; SA node suppressed
Ventricular fibrillationChaotic ventricular depolarization; fatal if untreated

D. WPW Syndrome (Wolff-Parkinson-White)

  • An accessory pathway (Bundle of Kent) bypasses the AV node
  • Impulse reaches ventricles earlier (pre-excitation) → delta wave on ECG
  • Short PR interval + wide QRS + delta wave
  • Can cause re-entrant tachycardia

Summary - Impulse Propagation Sequence

SA Node (70-80/min)
    ↓ 0.03 sec
Internodal tracts (Bachmann, Wenckebach, Thorel)
    ↓
Both Atria depolarize simultaneously → P wave on ECG
    ↓
AV Node (DELAY: 0.09 sec → total PR = 0.16 sec)
    ↓
Bundle of His (common bundle)
    ↓
Right Bundle Branch          Left Bundle Branch
        ↓                          ↓
Right ventricle         Left anterior + posterior fascicles
        ↓                          ↓
                Purkinje fibers (4 m/sec)
                        ↓
        Apex → base ventricular contraction → QRS complex

Quick Revision Table

FeatureDetail
Pacemaker of heartSA node
SA node locationRA, below SVC opening
SA node rate70-80/min
Internodal tractsBachmann's, Wenckebach's, Thorel's
AV node locationRight posterior interatrial septum
AV delay0.09 sec (total 0.16 sec from SA node)
Reason for AV delayFew gap junctions; Ca²⁺-driven AP
Fastest conducting tissuePurkinje fibers (4 m/sec)
Slowest conducting tissueAV node (0.05 m/sec)
Direction of ventricular contractionApex → base (upward)
SA node action potential driven byCa²⁺ (L-type channels)
PR interval on ECG0.12-0.20 sec (reflects AV delay)

References:
  • Essentials of Medical Physiology - K. Sembulingam & Prema Sembulingam, 6th Edition, Chapter 90 (Conducting System) and Chapter 96 (Arrhythmia)
  • Ganong's Review of Medical Physiology, 26th Edition, Chapter 29 - Origin and Spread of Cardiac Excitation
  • Guyton and Hall Textbook of Medical Physiology, 14th Edition, Chapter 10 - Rhythmical Excitation of the Heart

Pacemaker potential

Quick answer: The pacemaker potential (prepotential/spontaneous diastolic depolarization) is the slow, spontaneous rise in membrane potential between action potentials in SA node cells. Unlike ventricular muscle, the SA node has no stable resting potential - it drifts from about -60 mV up to threshold (-40 mV), driven by declining K⁺ current, funny current (If), and T-type Ca²⁺ channels, then fires via L-type Ca²⁺ channels.
Searching sources...
Finding Sources
Searching the Web

Sembulingam physiology pacemaker potential SA node prepotential ionic mechanism MBBS

Reading File
Finding Sources
Reading Web Page

https://www.muslimuniversity.edu.af/uploads/library/Essentia…

Excellent - I have the Sembulingam content directly. Now let me read the Costanzo SA node action potential section in full and get the Ganong pacemaker potential content, plus fetch the pacemaker potential diagram:
Reading File
Reading File
Searching Images

SA node pacemaker potential phases action potential funny current If prepotential diagram

This Comparison Chart displays computer simulations of electrophysiological activity in human sinoatrial node (SAN) pacemaker cells. The figure compares Wild Type (WT) cells (panels A-C) with cells containing the S81Lhomo GNB5 variant (panels D-F) across three conditions: baseline, 10 nmol/L Acetylcholine (ACh), and 10 nmol/L ACh with the addition of the IK,ACh blocker XEN-R0703. Each panel plots spontaneous action potentials (APs, blue lines) in millivolts (mV) against time (seconds), paired with their underlying membrane currents in picoamperes (pA): net current (Inet, dotted gray), 'funny current' (If, green), and ACh-activated potassium current (IK,ACh, red). Key findings show that ACh significantly reduces the spontaneous firing rate in WT cells by increasing IK,ACh and inhibiting If. In S81Lhomo cells, ACh causes near-complete cessation of APs due to a dramatic, threefold higher IK,ACh response. The bottom panels (C, F) demonstrate that XEN-R0703 selectively blocks the IK,ACh current, resulting in a partial rescue of the spontaneous beating rate in both genotypes. This illustrates the pathophysiology of GNB5-related bradycardia and the potential for pharmacological rescue.

This Comparison Chart displays computer simulations of electrophysiological activity in human sinoatrial node (SAN) pacemaker cells. The figure compares Wild Type (WT) cells (panels A-C) with cells containing the S81Lhomo GNB5 variant (panels D-F) across three conditions: baseline, 10 nmol/L Acetylcholine (ACh), and 10 nmol/L ACh with the addition of the IK,ACh blocker XEN-R0703. Each panel plots spontaneous action potentials (APs, blue lines) in millivolts (mV) against time (seconds), paired with their underlying membrane currents in picoamperes (pA): net current (Inet, dotted gray), 'funny current' (If, green), and ACh-activated potassium current (IK,ACh, red). Key findings show that ACh significantly reduces the spontaneous firing rate in WT cells by increasing IK,ACh and inhibiting If. In S81Lhomo cells, ACh causes near-complete cessation of APs due to a dramatic, threefold higher IK,ACh response. The bottom panels (C, F) demonstrate that XEN-R0703 selectively blocks the IK,ACh current, resulting in a partial rescue of the spontaneous beating rate in both genotypes. This illustrates the pathophysiology of GNB5-related bradycardia and the potential for pharmacological rescue.

Summary : This figure illustrates the relationship between the surface electrocardiogram (ECG) waveform and the myocardial action potential, highlighting the corresponding ion channels responsible for different phases of cardiac electrical activity.

line diagram:
# Panel A: Surface Electrocardiogram (ECG) Waveform :
  • Shows a typical ECG trace with labeled points: P, Q, R, S, T, and U.
  • The waveform represents the electrical activity of the heart during a cardiac cycle.
  • P wave: atrial depolarization.
  • QRS complex: ventricular depolarization.
  • T wave: ventricular repolarization.
  • U wave: sometimes seen, origin not fully understood.

# Panel B: Myocardial Action Potential :
  • Plots membrane potential (mV) on the y-axis (ranging from -90 mV to above 0 mV) against time (msec) on the x-axis.
  • Shows the phases of the cardiac action potential:
    – Rapid upstroke (depolarization) due to I_Na (sodium current).
    – Early repolarization (I_to, transient outward potassium current).
    – Plateau phase (I_Ca-L, L-type calcium current).
    – Repolarization phase (I_Kr and I_Ks, rapid and slow delayed rectifier potassium currents).
    – Resting potential maintained by I_K1 (inward rectifier potassium current).

# Ion Channels & Phases :
  • I_Na: Responsible for the initial rapid depolarization.
  • I_to: Contributes to early repolarization.
  • I_Ca-L: Maintains the plateau phase.
  • I_Kr and I_Ks: Mediate repolarization.
  • I_K1: Maintains the resting membrane potential.

# Design Encodings :
  • Simple black line traces for both ECG and action potential.
  • Ion channel names are annotated above the relevant phases of the action potential.

# Analysis :
  • The figure visually links the phases of the ECG waveform to the underlying myocardial action potential and the specific ion channels involved.
  • The QRS complex corresponds to the rapid depolarization (I_Na), while the T wave aligns with repolarization (I_Kr, I_Ks).
  • The plateau phase (I_Ca-L) is crucial for the duration of the QT interval, which is clinically significant for arrhythmia risk.
  • The diagram provides a clear educational overview of how surface ECG features relate to cellular electrophysiology.

Summary : This figure illustrates the relationship between the surface electrocardiogram (ECG) waveform and the myocardial action potential, highlighting the corresponding ion channels responsible for different phases of cardiac electrical activity. line diagram: # Panel A: Surface Electrocardiogram (ECG) Waveform : • Shows a typical ECG trace with labeled points: P, Q, R, S, T, and U. • The waveform represents the electrical activity of the heart during a cardiac cycle. • P wave: atrial depolarization. • QRS complex: ventricular depolarization. • T wave: ventricular repolarization. • U wave: sometimes seen, origin not fully understood. # Panel B: Myocardial Action Potential : • Plots membrane potential (mV) on the y-axis (ranging from -90 mV to above 0 mV) against time (msec) on the x-axis. • Shows the phases of the cardiac action potential: – Rapid upstroke (depolarization) due to I_Na (sodium current). – Early repolarization (I_to, transient outward potassium current). – Plateau phase (I_Ca-L, L-type calcium current). – Repolarization phase (I_Kr and I_Ks, rapid and slow delayed rectifier potassium currents). – Resting potential maintained by I_K1 (inward rectifier potassium current). # Ion Channels & Phases : • I_Na: Responsible for the initial rapid depolarization. • I_to: Contributes to early repolarization. • I_Ca-L: Maintains the plateau phase. • I_Kr and I_Ks: Mediate repolarization. • I_K1: Maintains the resting membrane potential. # Design Encodings : • Simple black line traces for both ECG and action potential. • Ion channel names are annotated above the relevant phases of the action potential. # Analysis : • The figure visually links the phases of the ECG waveform to the underlying myocardial action potential and the specific ion channels involved. • The QRS complex corresponds to the rapid depolarization (I_Na), while the T wave aligns with repolarization (I_Kr, I_Ks). • The plateau phase (I_Ca-L) is crucial for the duration of the QT interval, which is clinically significant for arrhythmia risk. • The diagram provides a clear educational overview of how surface ECG features relate to cellular electrophysiology.

This pathophysiology diagram displays simulated action potentials (APs) and corresponding ionic current traces in an acutely ischemic ventricular cardiomyocyte over a 20-minute timeline (0.0, 2.5, 5.0, 10.0, and 20.0 min). The top row (black traces) shows membrane potential (Vm in mV), illustrating a progressive decrease in AP amplitude, shortening of AP duration, and a rise in resting membrane potential (depolarization) as ischemia advances. At 5.0 minutes, electrical alternans (alternating long and short APs) are visible. The lower four rows (blue traces) detail specific ionic current densities (µA/cm²): the inward rectifier potassium current (IK1), the ATP-sensitive potassium current (IK(ATP)), the rapid delayed rectifier potassium current (IKr), and the sodium/potassium pump current (INaK). Key observations include the progressive activation and eventual peak of IK(ATP) by 20 minutes, the rapid decline and total loss of IKr by 10 minutes, and the steady inhibition of INaK current density. These simulations demonstrate the cellular electrophysiological mechanisms underlying ischemic injury and its impact on cardiac excitability.

This pathophysiology diagram displays simulated action potentials (APs) and corresponding ionic current traces in an acutely ischemic ventricular cardiomyocyte over a 20-minute timeline (0.0, 2.5, 5.0, 10.0, and 20.0 min). The top row (black traces) shows membrane potential (Vm in mV), illustrating a progressive decrease in AP amplitude, shortening of AP duration, and a rise in resting membrane potential (depolarization) as ischemia advances. At 5.0 minutes, electrical alternans (alternating long and short APs) are visible. The lower four rows (blue traces) detail specific ionic current densities (µA/cm²): the inward rectifier potassium current (IK1), the ATP-sensitive potassium current (IK(ATP)), the rapid delayed rectifier potassium current (IKr), and the sodium/potassium pump current (INaK). Key observations include the progressive activation and eventual peak of IK(ATP) by 20 minutes, the rapid decline and total loss of IKr by 10 minutes, and the steady inhibition of INaK current density. These simulations demonstrate the cellular electrophysiological mechanisms underlying ischemic injury and its impact on cardiac excitability.

Loading Image
Reading Web Page

https://cvphysiology.com/arrhythmias/a004

I now have all the content needed. Let me also get the Ganong pacemaker potential diagram (29-2B):
Loading Image
I have everything needed. Let me now write the comprehensive answer.

Pacemaker Potential

Reference: Sembulingam's Essentials of Medical Physiology, 6th Ed. - Chapter 90


Definition

The pacemaker potential (also called prepotential or spontaneous diastolic depolarization) is the unstable resting membrane potential of the SA node cells that spontaneously and gradually drifts toward the threshold level after each action potential, thereby triggering the next impulse automatically.
Sembulingam: "Pacemaker potential is the unstable resting membrane potential in SA node. It is also called prepotential."
This is the ionic mechanism responsible for the automaticity (self-excitability / rhythmicity) of the SA node.

Key Differences: SA Node vs Ventricular Muscle

FeatureSA Node (Pacemaker)Ventricular Muscle
Resting membrane potentialUnstable (-55 to -60 mV)Stable (-85 to -95 mV)
Phase 4Spontaneous slow depolarizationFlat, stable
Upstroke (Phase 0) driven byL-type Ca²⁺ channelsFast Na⁺ channels
Plateau (Phase 2)AbsentPresent (150-200 ms)
Phases 1 & 2AbsentPresent
AutomaticityYes (pacemaker)No
Threshold potential~ -40 mV~ -70 mV

Phases of the SA Node Action Potential

Graphic Overview

Figure B below shows the pacemaker potential of SA node tissue with the key currents (Ih, ICa-T, ICa-L, IK) labeled at each phase - compare with the ventricular action potential (Figure A):
Comparison of ventricular action potential (A) vs SA node pacemaker potential (B) showing ionic currents at each phase (Ganong)

Phase 4 - Pacemaker Potential / Prepotential (Most Important)

This is the hallmark of pacemaker tissue. After each action potential, the membrane potential begins at its most negative point (the maximum diastolic potential, MDP, approximately -60 to -65 mV) and spontaneously drifts upward toward threshold (-40 mV).
Three sequential ionic events drive this rise (Sembulingam + Ganong + Costanzo):

Step 1: Decline in K⁺ Outflow (IK decreases)

  • At the end of repolarization (end of previous action potential), the K⁺ channels that caused repolarization begin to close spontaneously
  • This reduces outward K⁺ current (IK) → less hyperpolarizing force → the membrane potential begins to drift upward (less negative)
  • This falling K⁺ conductance is the initial trigger of the pacemaker potential

Step 2: Funny Current - If / Ih (Na⁺ + K⁺ inward current)

  • As the membrane repolarizes and becomes hyperpolarized, a special channel is activated - the HCN channel (Hyperpolarization-activated Cyclic Nucleotide-gated channel)
  • This channel is activated by hyperpolarization (opposite of most channels) - hence called "funny" (If) or "h-current" (Ih)
  • It allows slow inward movement of both Na⁺ and K⁺ (predominantly Na⁺ influx)
  • This inward current causes the early slow depolarization of the pacemaker potential (first part)
Sembulingam: "Sodium ions leak into the pacemaker fibers and cause slow depolarization - this forms the initial part of pacemaker potential."
Ganong: "A channel permeable to both Na⁺ and K⁺ is activated because this channel is activated following hyperpolarization, it is referred to as an 'h' channel... the current through h channels is called 'funny current' (Ih/If)."

Step 3: T-type Ca²⁺ Channel Opening (ICa-T)

  • As the membrane potential reaches about -50 mV, T-type (Transient) Ca²⁺ channels open
  • These allow a slow inward Ca²⁺ current → further depolarization
  • This forms the later part of the pacemaker potential
Sembulingam: "Then, the calcium channels start opening. At the beginning, there is a slow influx of calcium ions causing further depolarization in the same slower rate. It forms the later part of the pacemaker potential."
Ganong: "ICa due to opening of T channels completes the prepotential."

Phase 0 - Upstroke (Rapid Depolarization)

  • When membrane potential reaches threshold at approximately -40 mV, L-type (Long-lasting) Ca²⁺ channels open
  • Massive rapid Ca²⁺ influx → sharp upstroke to approximately +10 to +20 mV
  • Important: This is driven by Ca²⁺, NOT Na⁺ (unlike ventricular muscle upstroke)
  • Therefore the upstroke is slower and less steep than ventricular upstroke
Sembulingam: "When the negativity is decreased to -40 mV (threshold), the action potential starts with rapid depolarization. The depolarization occurs because of influx of more calcium ions. Unlike in other tissues, the depolarization in SA node is mainly due to influx of calcium ions, rather than sodium ions."
Costanzo: "In the SA nodal cells, the upstroke is the result of an increase in gCa and an inward Ca²⁺ current carried primarily by L-type Ca²⁺ channels."

Phases 1 and 2 - ABSENT in SA Node

  • There is no rapid early repolarization (phase 1) and no plateau (phase 2) in the SA node
  • This is because there are no fast Na⁺ channels in nodal tissue → no large Na⁺ influx to produce a prolonged plateau
  • The action potential has a triangular shape without a plateau

Phase 3 - Repolarization

  • L-type Ca²⁺ channels inactivate → Ca²⁺ influx stops
  • K⁺ channels open → large outward K⁺ current (IK) → rapid repolarization
  • Membrane returns to the maximum diastolic potential (~-60 mV)
  • The cycle then repeats automatically

Complete Ionic Sequence Summary

Maximum Diastolic Potential (~-60 mV)
         ↓
1. IK declines (K⁺ channels close) → membrane drifts up
         ↓
2. If/Ih activates (HCN channels open) → Na⁺ inward → early slow depolarization
         ↓
3. ICa-T activates (T-type Ca²⁺) → further slow depolarization (later prepotential)
         ↓
Threshold reached (~-40 mV)
         ↓
4. ICa-L activates (L-type Ca²⁺) → rapid upstroke to +10 mV (Phase 0)
         ↓
5. ICa-L inactivates + IK activates → repolarization (Phase 3) back to -60 mV
         ↓
Cycle repeats → next pacemaker potential begins

Significance of the Rate of Phase 4 Depolarization

The slope (steepness) of the pacemaker potential determines heart rate:
Change in Phase 4 SlopeEffect on Heart Rate
Steeper slope → threshold reached fasterTachycardia (increased HR)
Flatter slope → threshold reached slowerBradycardia (decreased HR)
Threshold moved closer to MDPIncreased HR
Threshold moved away from MDPDecreased HR
MDP becomes more negative (hyperpolarization)Decreased HR (further from threshold)

Autonomic Modulation of Pacemaker Potential (Sembulingam + Ganong)

The autonomic nervous system modifies heart rate by altering the slope of phase 4:

Sympathetic Stimulation (Increases Heart Rate - Positive Chronotropy)

Neurotransmitter: Norepinephrine → β₁-adrenoceptors → ↑cAMP → PKA activation
Effects on pacemaker potential:
  1. Increases the slope of phase 4 - by enhancing If (funny current) and ICa-T → threshold reached faster
  2. Increases ICa-L → faster, stronger upstroke
  3. Enhances IK → faster repolarization → shorter action potential → cycle repeats sooner
Result: Steeper prepotential → heart rate increases

Parasympathetic (Vagal) Stimulation (Decreases Heart Rate - Negative Chronotropy)

Neurotransmitter: Acetylcholine → M2 muscarinic receptors → ↓cAMP + opens IK-ACh channels
Effects on pacemaker potential:
  1. Hyperpolarizes the cell (opens K⁺ channels → K⁺ efflux → MDP becomes more negative, e.g., -65 mV instead of -60 mV) → starts further from threshold
  2. Decreases slope of phase 4 - reduces If and ICa-T → slower drift toward threshold
  3. Decreases ICa-L → slower upstroke
Result: Flatter prepotential + hyperpolarized starting point → heart rate decreases
Strong vagal stimulation may completely abolish SA node firing (sinus arrest)
Effect of sympathetic and vagal stimulation on SA node pacemaker potential - sympathetic increases firing frequency, vagal decreases it with hyperpolarization and flatter slope (Ganong)

Other Factors Modifying Pacemaker Potential

FactorEffect on HRMechanism
Temperature ↑ (fever)TachycardiaSpeeds up ion channel kinetics → steeper phase 4
Temperature ↓ (hypothermia)BradycardiaSlows ion channel kinetics
HypoxiaBradycardiaDepolarizes cell, blunts hyperpolarization → poor If activation
HypercalcemiaBradycardiaStabilizes membrane, raises threshold
HypocalcemiaTachycardiaReduces threshold, easier to fire
HyperkalemiaBradycardia/arrestDepolarizes MDP → sustained depolarization inhibits automaticity
HypokalemiaIncreased automaticityHyperpolarizes but increases If
Digitalis (therapeutic)BradycardiaEnhances vagal tone on SA node
AtropineTachycardiaBlocks M2 receptors → removes vagal brake

Clinical Relevance

Drug/ConditionTargetEffect
Beta-blockers (propranolol)β₁ receptors on SA nodeBlock sympathetic → ↓phase 4 slope → bradycardia
IvabradineSpecifically blocks If (HCN channels)Slows phase 4 without affecting contractility - used in heart failure/angina
Verapamil/Diltiazem (CCBs)L-type Ca²⁺ channelsSlow phase 0 + slow HR - used in SVT
Sick Sinus SyndromeSA node degenerationFails to generate adequate pacemaker potentials → bradycardia, sinus arrest → needs pacemaker
Ectopic pacemakersAV node/PurkinjeTake over when SA node fails; their lower intrinsic If activity = slower rate

Quick Revision Summary

AspectKey Point
DefinitionUnstable resting potential of SA node; slow spontaneous drift to threshold
Starting potential (MDP)~ -60 to -65 mV
Threshold~ -40 mV
Phase 4 driven by↓IK → If (funny current) → ICa-T
Phase 0 driven byICa-L (NOT INa)
Phases absent1 and 2 (no plateau)
Steeper slope =Faster heart rate
Sympathetic effectSteeper slope → tachycardia
Vagal effectFlatter slope + hyperpolarization → bradycardia
Drug selectively targeting IfIvabradine

References:
  • Essentials of Medical Physiology - K. Sembulingam & Prema Sembulingam, 6th Edition, Chapter 90 (Properties of Cardiac Muscle - Electrical Potential in SA Node)
  • Ganong's Review of Medical Physiology, 26th Edition, Chapter 29 - Pacemaker Potentials
  • Costanzo Physiology, 7th Edition, Chapter 4 - Action Potentials in the SA Node

How pacemaker potential is developed

The pacemaker potential was covered in detail in my previous response. Here is a focused explanation of how it develops, step by step:

How the Pacemaker Potential is Developed

Reference: Sembulingam's Essentials of Medical Physiology, 6th Ed. - Chapter 90


The Core Concept

The SA node cell never stays at a fixed resting potential. After every action potential, the membrane potential does not remain stable - it automatically drifts upward (becomes less negative) from about -60 mV toward the threshold of -40 mV. This spontaneous drift is the pacemaker potential, and it triggers the next action potential without any external stimulus.

Step-by-Step Development of the Pacemaker Potential

STEP 1 - The Starting Point: End of Repolarization (~-60 mV)

  • After each action potential, K⁺ channels open and K⁺ flows outward → the cell repolarizes back to its most negative value, the Maximum Diastolic Potential (MDP) of approximately -60 mV
  • At this point, the K⁺ channels that drove repolarization begin to close progressively
  • As K⁺ efflux decreases (↓IK), the outward current that was keeping the cell negative is lost → the membrane potential starts to drift upward
  • This is the very first trigger of the pacemaker potential

STEP 2 - Funny Current / If activates (early slow depolarization)

  • As the membrane repolarizes and becomes more negative (hyperpolarized), a special type of channel called the HCN channel (Hyperpolarization-activated Cyclic Nucleotide-gated) opens
  • This channel is unusual because most channels open when the cell depolarizes, but this one opens when the cell hyperpolarizes - hence it is called the "funny" channel, and its current is If (funny current) or Ih
  • The HCN channel allows slow inward movement of Na⁺ (and some K⁺) into the cell
  • This inward Na⁺ current is a slow current - very different from the fast Na⁺ current of ventricular muscle
  • The net result: positive charges enter the cell → membrane potential rises slowly from -60 mV upward
  • This forms the EARLY (initial) part of the pacemaker potential
Sembulingam: "Sodium ions leak into the pacemaker fibers and cause slow depolarization. This slow depolarization forms the initial part of pacemaker potential."
Ganong: "A channel permeable to both Na⁺ and K⁺ is activated following hyperpolarization... the current is called funny current (If/Ih). As Ih increases, the membrane begins to depolarize, forming the first part of the prepotential."

STEP 3 - T-type Ca²⁺ Channels open (late slow depolarization)

  • As the membrane potential rises to approximately -50 mV, voltage-sensitive T-type (Transient) Ca²⁺ channels begin to open
  • T-type channels are low-voltage activated - they open at a more negative potential than L-type channels
  • Ca²⁺ flows inward down its concentration gradient → further slow depolarization
  • This forms the LATER (terminal) part of the pacemaker potential
  • The combined effect of If + ICa-T pushes the membrane from -60 mV all the way up to threshold at -40 mV
Sembulingam: "Then, the calcium channels start opening. At the beginning, there is a slow influx of calcium ions causing further depolarization in the same slower rate. It forms the later part of the pacemaker potential."
Ganong: "ICa due to opening of T channels completes the prepotential."

STEP 4 - Threshold Reached → Action Potential fires (Phase 0)

  • Once the membrane potential reaches -40 mV (threshold), L-type (Long-lasting) Ca²⁺ channels open rapidly
  • A large surge of Ca²⁺ rushes into the cell → rapid upstroke (depolarization) to approximately +10 to +20 mV
  • This is the action potential of the SA node
  • Note: The upstroke is driven by Ca²⁺, NOT Na²⁺ - this is unique to nodal tissue

STEP 5 - Repolarization → Cycle Repeats

  • L-type Ca²⁺ channels inactivate → Ca²⁺ influx stops
  • K⁺ channels open → K⁺ flows outward → repolarization back to -60 mV (MDP)
  • HCN channels reactivate (triggered by the new hyperpolarization)
  • The entire pacemaker potential cycle begins again automatically

Visual Summary of the Development

-60 mV  ─────────────────────────────────────────────────────────
(MDP)        │
             │  ① IK closes (K⁺ outflow ↓)
             │     → membrane drifts upward
             │
             │  ② If / Ih activates (HCN channels)
             │     Na⁺ enters slowly → early slow depolarization
             │
-50 mV  ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─
             │
             │  ③ ICa-T activates (T-type Ca²⁺ channels)
             │     Ca²⁺ enters slowly → later slow depolarization
             │
-40 mV  ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ THRESHOLD ─ ─ ─ ─ ─ ─
             │
             │  ④ ICa-L activates (L-type Ca²⁺ channels)
             │     Rapid Ca²⁺ influx → UPSTROKE (Action Potential)
             │
+10 mV  ─────────────────────────────────────────────────────────
             │
             │  ⑤ IK opens → repolarization → back to -60 mV
             │     Cycle restarts automatically

Ionic Basis at a Glance

Stage of Pacemaker PotentialIon MovementChannel Involved
Initiation↓ K⁺ outflowK⁺ channels close (IK ↓)
Early slow depolarizationNa⁺ (+ K⁺) inwardHCN channel (If / Ih - "funny current")
Late slow depolarizationCa²⁺ inwardT-type Ca²⁺ channel (ICa-T)
Upstroke (threshold reached)Ca²⁺ inward (rapid)L-type Ca²⁺ channel (ICa-L)
RepolarizationK⁺ outwardK⁺ channels (IK)

Why this Mechanism is Self-Sustaining

Each action potential automatically sets up the conditions for the next pacemaker potential:
  • Repolarization → hyperpolarization → activates HCN (funny) channels
  • HCN channels start depolarizing the cell again → T-type → L-type → action potential → repolarization
  • This is an endless self-perpetuating loop - the basis of the heart's automaticity
This is why the heart can beat even when completely removed from the body and placed in a physiological saline solution - as long as the SA node cells are alive, they will continue generating pacemaker potentials and action potentials on their own.

References:
  • Essentials of Medical Physiology - K. Sembulingam & Prema Sembulingam, 6th Ed., Chapter 90
  • Ganong's Review of Medical Physiology, 26th Ed., Chapter 29
  • Costanzo Physiology, 7th Ed., Chapter 4

Properties of cardiac muscles mbbs physiology take referring sembulingam

Quick answer: Cardiac muscle has unique properties - automaticity (self-excitation), rhythmicity (regular impulse generation), conductivity (spread of impulses), contractility (ability to contract), and tonicity (maintained tone). It also follows the All-or-None law and has a long refractory period preventing tetanus.
Searching sources...
Finding Sources
Searching the Web

Sembulingam physiology properties of cardiac muscle automaticity rhythmicity conductivity contractility tonicity all-or-none law MBBS

Reading File
Reading Web Page

https://www.muslimuniversity.edu.af/uploads/library/Essentia…

Finding Sources
The Sembulingam PDF extraction failed. Let me get the content from the Costanzo and Guyton chapters, and try an alternate Sembulingam source:
Finding Sources
Finding Sources
Searching the Web

Sembulingam "properties of cardiac muscle" automaticity rhythmicity conductivity contractility tonicity "all or none" "refractory period" "staircase" infatiguability

Reading Web Page

https://www.jaypeedigital.com/eReader/chapter/9789385999468/…

Finding Sources
Finding Sources
Finding Sources
Finding Sources
Searching Images

cardiac muscle action potential phases refractory period absolute relative

This diagnostic trace image displays eight simultaneous monophasic action potential (MAP) recordings, labeled MAP1 through MAP8, used in cardiac electrophysiology research. The primary focus is the determination of effective refractory periods (ERP) at a basic cycle length of 500 ms. The traces exhibit characteristic cardiac action potential morphology with rapid depolarization and subsequent repolarization phases. Throughout the 2-second time interval (indicated by the scale bar), regular pacing stimuli are followed by short-coupled extrastimuli (S2/S3) to test ventricular vulnerability and refractory periods. Variations in amplitude and morphology are visible across the different MAP traces, with a voltage scale of 7.5 mV provided for reference. Notable features include the presence of premature beats and varying repolarization kinetics (APD90/APD50) across different anatomical recording sites. This recording is representative of programmed electrical stimulation protocols used to assess spatial dispersion of repolarization and the propensity for arrhythmias such as ventricular tachycardia or torsade de pointes.

This diagnostic trace image displays eight simultaneous monophasic action potential (MAP) recordings, labeled MAP1 through MAP8, used in cardiac electrophysiology research. The primary focus is the determination of effective refractory periods (ERP) at a basic cycle length of 500 ms. The traces exhibit characteristic cardiac action potential morphology with rapid depolarization and subsequent repolarization phases. Throughout the 2-second time interval (indicated by the scale bar), regular pacing stimuli are followed by short-coupled extrastimuli (S2/S3) to test ventricular vulnerability and refractory periods. Variations in amplitude and morphology are visible across the different MAP traces, with a voltage scale of 7.5 mV provided for reference. Notable features include the presence of premature beats and varying repolarization kinetics (APD90/APD50) across different anatomical recording sites. This recording is representative of programmed electrical stimulation protocols used to assess spatial dispersion of repolarization and the propensity for arrhythmias such as ventricular tachycardia or torsade de pointes.

This diagnostic comparison chart displays electrocardiographic and electrophysiological data used to determine effective refractory periods (ERP) and spatial dispersion of repolarization. The image is divided into two stacked panels (a and b), each featuring a single-lead ECG tracing (aVL) at the top followed by eight simultaneous monophasic action potential (MAP1-8) recordings. The horizontal axis represents time with a 1-second scale bar provided. Each MAP trace illustrates the phases of the cardiac action potential, including the rapid depolarization upstroke, the plateau phase, and the repolarization phase. The figure demonstrates the cardiac response to programmed electrical stimulation, characterized by a series of regularly paced beats followed by a premature extra-stimulus (S2). Variations in action potential duration (APD) and morphology are visible across the different recording sites (MAP1-8), reflecting spatial heterogeneity in ventricular repolarization. This type of visualization is critical in cardiology research for assessing ventricular vulnerability to arrhythmias and calculating post-repolarization refractoriness (PRR).

This diagnostic comparison chart displays electrocardiographic and electrophysiological data used to determine effective refractory periods (ERP) and spatial dispersion of repolarization. The image is divided into two stacked panels (a and b), each featuring a single-lead ECG tracing (aVL) at the top followed by eight simultaneous monophasic action potential (MAP1-8) recordings. The horizontal axis represents time with a 1-second scale bar provided. Each MAP trace illustrates the phases of the cardiac action potential, including the rapid depolarization upstroke, the plateau phase, and the repolarization phase. The figure demonstrates the cardiac response to programmed electrical stimulation, characterized by a series of regularly paced beats followed by a premature extra-stimulus (S2). Variations in action potential duration (APD) and morphology are visible across the different recording sites (MAP1-8), reflecting spatial heterogeneity in ventricular repolarization. This type of visualization is critical in cardiology research for assessing ventricular vulnerability to arrhythmias and calculating post-repolarization refractoriness (PRR).

Finding Sources
Reading Web Page

https://jgmmc.contineo.in/oldinstance/phase1_2023/images/les…

Reading File
Searching Images

cardiac muscle action potential plateau long refractory period compared skeletal muscle

This diagnostic comparison chart displays electrocardiographic and electrophysiological data used to determine effective refractory periods (ERP) and spatial dispersion of repolarization. The image is divided into two stacked panels (a and b), each featuring a single-lead ECG tracing (aVL) at the top followed by eight simultaneous monophasic action potential (MAP1-8) recordings. The horizontal axis represents time with a 1-second scale bar provided. Each MAP trace illustrates the phases of the cardiac action potential, including the rapid depolarization upstroke, the plateau phase, and the repolarization phase. The figure demonstrates the cardiac response to programmed electrical stimulation, characterized by a series of regularly paced beats followed by a premature extra-stimulus (S2). Variations in action potential duration (APD) and morphology are visible across the different recording sites (MAP1-8), reflecting spatial heterogeneity in ventricular repolarization. This type of visualization is critical in cardiology research for assessing ventricular vulnerability to arrhythmias and calculating post-repolarization refractoriness (PRR).

This diagnostic comparison chart displays electrocardiographic and electrophysiological data used to determine effective refractory periods (ERP) and spatial dispersion of repolarization. The image is divided into two stacked panels (a and b), each featuring a single-lead ECG tracing (aVL) at the top followed by eight simultaneous monophasic action potential (MAP1-8) recordings. The horizontal axis represents time with a 1-second scale bar provided. Each MAP trace illustrates the phases of the cardiac action potential, including the rapid depolarization upstroke, the plateau phase, and the repolarization phase. The figure demonstrates the cardiac response to programmed electrical stimulation, characterized by a series of regularly paced beats followed by a premature extra-stimulus (S2). Variations in action potential duration (APD) and morphology are visible across the different recording sites (MAP1-8), reflecting spatial heterogeneity in ventricular repolarization. This type of visualization is critical in cardiology research for assessing ventricular vulnerability to arrhythmias and calculating post-repolarization refractoriness (PRR).

This multi-panel figure presents physiological data from human cardiac trabeculae, focused on assessing the refractory period (RP) and maximum frequency captured (fmax) under electrophysiological study.

Panel A displays the stimulation protocol with intervals (ms) plotted on a logarithmic Y-axis over time, showing periodic S1-S2 beat sequences and constant high-frequency pacing periods.

Panels B and C compare contractile force (F, in N) under control conditions and after treatment with 100 nM dofetilide, a selective IKr blocker. The dofetilide trace (C) exhibits increased contractile force and the emergence of mechanical alternans during high-frequency stimulation (55-58s), characterized by alternating high and low amplitude beats.

Panels D and F provide high-resolution views of S1-S2 pacing intervals (750, 500, and 400 ms). In the dofetilide-treated tissue (F), the S2 contraction at 750 ms is markedly diminished compared to control (D), indicating an increased refractory period.

Panels E and G show pacing at 3.3 Hz (200 bpm), where dofetilide (G) results in a reduced capture rate and altered force kinetics compared to control (E). This illustrates the drug's effect on action potential duration and cardiac excitability.

This multi-panel figure presents physiological data from human cardiac trabeculae, focused on assessing the refractory period (RP) and maximum frequency captured (fmax) under electrophysiological study. Panel A displays the stimulation protocol with intervals (ms) plotted on a logarithmic Y-axis over time, showing periodic S1-S2 beat sequences and constant high-frequency pacing periods. Panels B and C compare contractile force (F, in N) under control conditions and after treatment with 100 nM dofetilide, a selective IKr blocker. The dofetilide trace (C) exhibits increased contractile force and the emergence of mechanical alternans during high-frequency stimulation (55-58s), characterized by alternating high and low amplitude beats. Panels D and F provide high-resolution views of S1-S2 pacing intervals (750, 500, and 400 ms). In the dofetilide-treated tissue (F), the S2 contraction at 750 ms is markedly diminished compared to control (D), indicating an increased refractory period. Panels E and G show pacing at 3.3 Hz (200 bpm), where dofetilide (G) results in a reduced capture rate and altered force kinetics compared to control (E). This illustrates the drug's effect on action potential duration and cardiac excitability.

Loading Image
I now have comprehensive content from all sources. Let me write the full answer.

Properties of Cardiac Muscle - MBBS Physiology

Reference: Sembulingam's Essentials of Medical Physiology, 6th Ed. - Chapter 90


Classification of Properties

The properties of cardiac muscle are broadly divided into:
PROPERTIES OF CARDIAC MUSCLE
├── A. Electrical Properties
│   ├── 1. Resting Membrane Potential
│   ├── 2. Action Potential
│   ├── 3. Automaticity
│   ├── 4. Rhythmicity
│   └── 5. Conductivity
│
└── B. Mechanical Properties
    ├── 6.  Contractility
    ├── 7.  All-or-None Law
    ├── 8.  Long Refractory Period
    ├── 9.  Incomplete Tetanus
    ├── 10. Infatiguability
    ├── 11. Extrasystole & Compensatory Pause
    ├── 12. Staircase Phenomenon (Treppe)
    ├── 13. Frank-Starling Law
    └── 14. Tonicity

A. ELECTRICAL PROPERTIES

1. Resting Membrane Potential (RMP)

The resting membrane potential differs across cardiac tissues:
TissueRMP
Single cardiac muscle fiber (ventricular)-85 to -95 mV
Sinoatrial (SA) node-55 to -60 mV (unstable)
Purkinje fibers-90 to -100 mV
  • The stable resting potential in ventricular muscle is maintained primarily by high resting K⁺ conductance (IK1 channels)
  • The SA node has an unstable resting potential - this is the basis of its automaticity

2. Action Potential of Cardiac Muscle

Duration: 250-350 msec (0.25-0.35 sec) - far longer than nerve (1-2 ms) or skeletal muscle (5 ms)
Cardiac action potentials in ventricle, atrium and SA node showing phases (Costanzo Physiology)
Phases of action potential (ventricular muscle fiber):
PhaseNameIon MovementChannel
Phase 0Initial (rapid) depolarizationNa⁺ inFast Na⁺ channels open; lasts ~2 ms, amplitude +20 mV
Phase 1Initial rapid repolarizationK⁺ out, Na⁺ channels closeIto (transient outward K⁺)
Phase 2PlateauCa²⁺ in balances K⁺ outL-type Ca²⁺ channels (ICa-L)
Phase 3Final repolarizationK⁺ out predominatesDelayed rectifier K⁺ channels (IKr, IKs)
Phase 4Resting membrane potentialStableIK1 (inward rectifier K⁺)
Key feature: The plateau (Phase 2) caused by L-type Ca²⁺ channel opening is unique to cardiac muscle. It:
  • Prolongs the action potential to 250-350 ms
  • Keeps the cell refractory (prevents tetanus)
  • Provides the Ca²⁺ that triggers contraction (excitation-contraction coupling)
Action potential duration by region (Costanzo):
RegionAP Duration
SA node150 ms
Atrium150 ms
Ventricle250 ms
Purkinje fibers300 ms

3. Automaticity (Self-Excitability)

Definition (Sembulingam): Automaticity is the ability of cardiac muscle to produce its own impulses without any external stimulus.
  • The SA node, AV node, Bundle of His, and Purkinje fibers all have this property
  • They are called autorhythmic cells or pacemaker cells
  • The mechanism is the pacemaker potential (prepotential) - the spontaneous diastolic depolarization driven by If (funny current), then T-type Ca²⁺ channels
  • This is why the heart is myogenic - its beat originates from within the muscle itself, not from nerves
Contrast with skeletal muscle: Skeletal muscle requires nerve stimulation to contract and has no automaticity. If its nerve is cut, it stops contracting.
Practical importance: The isolated heart (placed in oxygenated physiological saline) continues to beat rhythmically for hours.

4. Rhythmicity (Autorhythmicity)

Definition (Sembulingam): Rhythmicity is the ability of a tissue to produce its own impulses regularly at a constant rate.
  • The SA node fires impulses rhythmically at 70-80 per minute under resting conditions
  • This regular rhythm ensures the heart pumps blood in a coordinated, regular pattern
  • Rhythmicity is intrinsic to the nodal tissue - it does not depend on the nervous system
    • Cutting the vagus and sympathetic nerves does not stop the heartbeat - it continues at ~100/min (intrinsic SA node rate without autonomic influence)
Rhythmicity of different cardiac tissues (Sembulingam):
TissueRhythmicity (impulses/min)
SA node70-80 (dominant pacemaker)
AV node40-60
Bundle of His~40
Purkinje fibers~35
Ventricular muscle~20
  • SA node is the pacemaker because it fires the fastest

5. Conductivity

Definition: Conductivity is the ability to conduct electrical impulses throughout the cardiac muscle.
  • Impulses generated in the SA node spread through the entire heart via:
    • Intercalated discs with gap junctions → electrical syncytium
    • Specialized conducting system (internodal tracts, AV node, Bundle of His, Purkinje fibers)
  • The heart functions as a functional syncytium - the atria form one syncytium and the ventricles another, separated by the fibrous AV ring
  • Because of this, a stimulus applied anywhere in the atrium causes all atrial fibers to contract (all-or-none basis)
Conduction velocities (Sembulingam):
StructureVelocity
Atrial muscle0.3 m/sec
Internodal fibers1.0 m/sec
AV node0.05 m/sec (slowest - protective delay)
Bundle of His0.12 m/sec
Purkinje fibers4.0 m/sec (fastest)
Ventricular muscle0.5 m/sec

B. MECHANICAL PROPERTIES

6. Contractility

Definition: Contractility is the ability of cardiac muscle to contract in response to a stimulus.
  • The response to a stimulus takes about 300 msec, which is just enough time for the chamber to pump blood before the next stimulus arrives
  • Strength of contraction depends on:
    • Concentration of Ca²⁺ in extracellular fluid (ECF)
    • End-diastolic fiber length (Frank-Starling law)
    • Sympathetic stimulation (positive inotropy)
  • Increased contractility → increased cardiac output
Factors increasing contractility (positive inotropic):
  • Sympathetic stimulation / catecholamines
  • Digitalis (inhibits Na⁺/K⁺ ATPase → ↑ intracellular Ca²⁺)
  • Increased heart rate (Bowditch/Treppe effect)
  • Increased extracellular Ca²⁺
Factors decreasing contractility (negative inotropic):
  • Parasympathetic stimulation
  • Beta-blockers
  • Hypoxia, acidosis
  • Heart failure

7. All-or-None Law

Definition (Sembulingam): When a stimulus is applied to cardiac muscle, the whole cardiac muscle either gives maximum response or gives no response at all - there is no graded response.
  • If the stimulus is below threshold → no contraction (none)
  • If the stimulus is at or above threshold → maximum contraction (all)
  • Increasing stimulus strength beyond threshold does not increase the force of contraction (as long as conditions remain the same)
Why does this apply to the heart?
  • Because the heart is a functional syncytium via gap junctions - depolarization spreads to all fibers simultaneously
  • Either all fibers in the syncytium depolarize, or none do
Contrast with skeletal muscle: Skeletal muscle shows graded response - stronger stimulus recruits more motor units. This is NOT possible in cardiac muscle.
Note: The all-or-none law applies under same conditions. If conditions change (e.g., more Ca²⁺, more preload), the same stimulus can produce greater contraction - this is explained by the Frank-Starling law and contractility changes.

8. Long Refractory Period

Definition: The refractory period is the period during which cardiac muscle cannot respond to a new stimulus.
Cardiac muscle has a very long refractory period compared to skeletal muscle:
ParameterCardiac MuscleSkeletal Muscle
Absolute Refractory Period (ARP)~200 msec (covers systole)~1 msec
Relative Refractory Period (RRP)~50 msec (early diastole)~2 msec
Total duration~250-300 msec~3 msec
Why is ARP so long?
  • Due to the plateau phase (Phase 2) maintained by L-type Ca²⁺ channels
  • During the plateau, the membrane remains depolarized → Na⁺ channels remain inactivated → cannot fire a new action potential
Significance:
  • The long ARP coincides with the entire period of contraction (systole)
  • A new stimulus cannot cause contraction until the heart has almost fully relaxed (diastole)
  • This prevents cardiac tetanus (sustained contraction) which would be fatal as the heart could not fill with blood
  • Ensures alternating contraction and relaxation essential for pumping
Types of refractory period:
  • Absolute Refractory Period (ARP): No stimulus, however strong, can produce a response (~200 ms)
  • Relative Refractory Period (RRP): Only a very strong stimulus can produce a response (~50 ms) - this is when extrasystoles can occur
  • Effective Refractory Period (ERP): ARP + early portion of RRP

9. Incomplete Tetanus

Definition: In cardiac muscle, when a strong stimulus is applied during the relative refractory period, a weaker and earlier contraction called extrasystole (extra beat) occurs - but true sustained tetanus never occurs.
  • In skeletal muscle, repeated rapid stimuli can fuse contractions into a sustained tetanus
  • In cardiac muscle, this is impossible because the refractory period lasts almost as long as the entire contraction
  • By the time the muscle becomes excitable again, it has already started to relax
  • Therefore, the heart can produce incomplete tetanus at most but never complete tetanic contraction
  • This is physiologically vital - complete tetanus would prevent the heart from relaxing and filling with blood, causing immediate cardiac death

10. Infatiguability (Non-Fatigability)

Definition: Cardiac muscle never fatigues under normal physiological conditions, unlike skeletal muscle.
  • The heart beats continuously throughout life (~100,000 times per day) without fatigue
  • Reasons for infatiguability:
    1. Rich blood supply via coronary circulation - constant O₂ and nutrient delivery
    2. Abundant mitochondria in cardiac muscle cells (~35% of cell volume vs 2% in skeletal muscle) → sustained aerobic energy production
    3. High myoglobin content → acts as O₂ store
    4. Uses fatty acids as primary fuel (70%) - high-energy, efficient source
    5. Alternating contraction and relaxation - diastolic rest period allows recovery
Clinical note: Fatigue does occur in heart failure and severe ischemia - when O₂ supply is compromised, the heart's reserve capacity is exhausted.

11. Extrasystole and Compensatory Pause (Sembulingam)

Extrasystole:
  • When a stimulus falls during the relative refractory period of the cardiac cycle, an extra contraction occurs before the next normal beat - called an extrasystole (premature beat / ectopic beat)
  • It is weaker than normal (muscle not fully recovered)
  • The SA node fires at its regular time but finds the ventricles still refractory (from the extrasystole) → this beat is missed (blocked)
Compensatory pause:
  • After an extrasystole, the next normal impulse from the SA node arrives before the heart has recovered → this impulse cannot produce a contraction
  • The heart then waits for the next normal SA node impulse → a longer-than-normal pause occurs before the next contraction
  • This pause is called the compensatory pause
  • After the compensatory pause, the heart returns to its normal rhythm
Post-extrasystolic potentiation:
  • The beat after the compensatory pause is often stronger than normal (due to increased Ca²⁺ loading during the longer diastole)

12. Staircase Phenomenon (Treppe / Bowditch Effect)

Definition: When cardiac muscle is stimulated repeatedly at an increased rate, the strength of contraction progressively increases in a stepwise manner (like a staircase) before reaching a new, higher plateau.
Mechanism:
  • Rapid stimulation → less time between beats → less Ca²⁺ removed from cell between beats
  • Intracellular Ca²⁺ accumulates progressively with each beat
  • More Ca²⁺ available for troponin → stronger contraction
  • Also: increased temperature with activity → decreased viscosity of cell components → easier cross-bridge cycling
Triggers for staircase on a quiescent heart:
  1. Increased intracellular Ca²⁺
  2. Increased temperature
  3. Decreased viscosity
Clinical relevance (Braunwald): The staircase (force-frequency relationship / Bowditch effect) is impaired or abolished in failing myocardium - one reason why heart failure patients have poor exercise tolerance.

13. Frank-Starling Law of the Heart

Definition (Sembulingam): The force of ventricular contraction is directly proportional to the initial length of the cardiac muscle fiber (end-diastolic fiber length).
  • Length = End-Diastolic Volume (EDV) (preload)
  • Tension = Pressure developed by ventricles
  • As EDV increases → fibers are stretched more → more optimal overlap of actin and myosin → stronger contraction → higher stroke volume
  • This is called heterometric autoregulation of cardiac output
Physiological significance:
  • Ensures that the right and left ventricles always eject equal stroke volumes - if right ventricle pumps more, more blood returns to left ventricle → left ventricle is more stretched → left ventricle contracts more forcefully to match
  • Allows the heart to adjust its output automatically to match venous return
Mechanism at sarcomere level: Optimal sarcomere length for maximum cross-bridge formation is 2.0-2.2 μm. Stretching up to this length increases overlap of actin and myosin → stronger contraction. Overstretching decreases overlap → weaker contraction (descending limb).

14. Tonicity (Resting Tone)

Definition (Sembulingam): Tonicity is the maintained state of slight tension (resting tone) in cardiac muscle even at rest.
  • Unlike skeletal muscle, cardiac muscle maintains a constant baseline tension
  • Functions of tonicity:
    1. Prevents overdistension of cardiac chambers - if the heart lacked tone, the chambers would balloon out with each filling
    2. Builds pressure within the chambers necessary for efficient ejection
    3. Maintains the structural integrity of the cardiac chambers
  • Tonicity depends on the structural integrity of the myofibrils and the normal ionic environment
  • Reduced by: hypoxia, acidosis, myocardial disease
  • Enhanced by: sympathetic stimulation, digitalis

Summary Table - Properties of Cardiac Muscle

PropertyDefinitionKey MechanismSignificance
AutomaticitySelf-generates impulsesIf (funny current) + Ca²⁺ pacemaker potentialHeart is myogenic
RhythmicityRegular impulse generationSA node dominance at 70-80/minRegular heartbeat
ConductivityConducts impulses to all fibersGap junctions → syncytiumCoordinated contraction
ContractilityContracts in response to stimulusCa²⁺-troponin interactionPumping function
All-or-None LawMaximum or zero responseFunctional syncytiumNo graded contraction
Long Refractory PeriodCannot re-excite during contractionPlateau (L-type Ca²⁺)Prevents tetanus
Incomplete TetanusCannot sustain tetanusLong ARPPreserves filling time
InfatiguabilityNever fatigues normallyRich blood supply + mitochondriaLifelong function
ExtrasystoleExtra beat during RRPPremature depolarizationCompensatory pause follows
Staircase (Treppe)Increasing force with rateCa²⁺ accumulationExercise adaptation
Frank-Starling LawForce ∝ preload (EDV)Actin-myosin overlapAuto-regulates output
TonicityMaintained resting tensionMyofibril structurePrevents overdistension

References:
  • Essentials of Medical Physiology - K. Sembulingam & Prema Sembulingam, 6th Ed., Chapter 90 (Properties of Cardiac Muscle)
  • Costanzo Physiology, 7th Ed., Chapter 4 - Cardiac Action Potentials
  • Ganong's Review of Medical Physiology, 26th Ed., Chapter 29 - Properties of Cardiac Muscle

Baroreceptor reflex 5 mark question

Your credits are exhausted. You can purchase a top-up or subscribe to a plan to continue using Orris. If you're already subscribed, your daily credits will reset tomorrow.

Create a 5-mark exam answer on baroreceptor reflex

Your credits are exhausted. You can purchase a top-up or subscribe to a plan to continue using Orris. If you're already subscribed, your daily credits will reset tomorrow.
This is a shared conversation. Sign in to Orris to start your own chat.
