Lympho-Vascular Anatomy of the Stomach
Source: Sabiston Textbook of Surgery (Latest Edition) | Bailey & Love's Short Practice of Surgery (28th Ed.)
For the Dr. Sumit Gupta lecture specifically covering lymphatic drainage and nerve supply, watch here:
PART 1: ARTERIAL SUPPLY
The celiac artery provides the majority of blood supply. There are 4 main arteries forming two arcades:
Lesser Curvature Arcade
| Artery | Origin |
|---|
| Left gastric artery (largest) | Directly from celiac trunk |
| Right gastric artery | Proper hepatic artery |
Greater Curvature Arcade
| Artery | Origin |
|---|
| Left gastro-epiploic artery | Splenic artery |
| Right gastro-epiploic artery | Gastroduodenal artery |
Additional Supply
- Short gastric arteries (4-5 branches from splenic artery) - supply the fundus
- Inferior phrenic artery - minor supply to proximal stomach
High-yield fact: The stomach can survive if 3 out of 4 main arteries are ligated, provided the arcades along the curvatures are intact. This is the basis for gastric tube formation in esophageal surgery.
PART 2: VENOUS DRAINAGE
Veins parallel the arteries and all drain into the portal system.
| Vein | Drains Into |
|---|
| Left gastric (coronary) vein | Portal vein directly |
| Right gastric vein | Portal vein |
| Left gastro-epiploic vein | Splenic vein |
| Right gastro-epiploic vein | Forms Henle's trunk (with right colic + anterior superior pancreaticoduodenal veins) → Superior mesenteric vein |
| Short gastric veins | Splenic vein |
Clinical pearl: The left gastric (coronary) vein is the key vessel in portal hypertension - it enlarges and drains into esophageal veins forming oesophageal varices.
PART 3: LYMPHATIC DRAINAGE
This is the most exam-relevant section - especially for gastric cancer surgery.
Principle
Lymphatics of the stomach follow the blood vessels and drain into regional nodes, which ultimately drain to the coeliac axis (para-aortic) nodes → cisterna chyli → thoracic duct.
Regional Drainage by Zone
| Gastric Region | Lymph Nodes Draining |
|---|
| Lesser curvature / Antrum (upper) | Right gastric (suprapyloric) nodes |
| Antrum (lower) / Pylorus | Right gastro-epiploic + Subpyloric nodes (around gastroduodenal artery) |
| Greater curvature | Left gastro-epiploic nodes |
| Fundus / Upper greater curvature | Short gastric → Splenic hilar nodes |
| Cardia | Left gastric nodes + communicates freely with oesophageal lymphatics |
Efferent Drainage (Final Pathway)
- Suprapyloric nodes → Para-aortic nodes around coeliac axis
- Subpyloric nodes → Superior mesenteric lymph nodes (around SMA origin)
Japanese Classification (High-Yield for Exams)
The Japanese Research Society for Gastric Cancer numbered each nodal station (1-18) to standardize radical surgery:

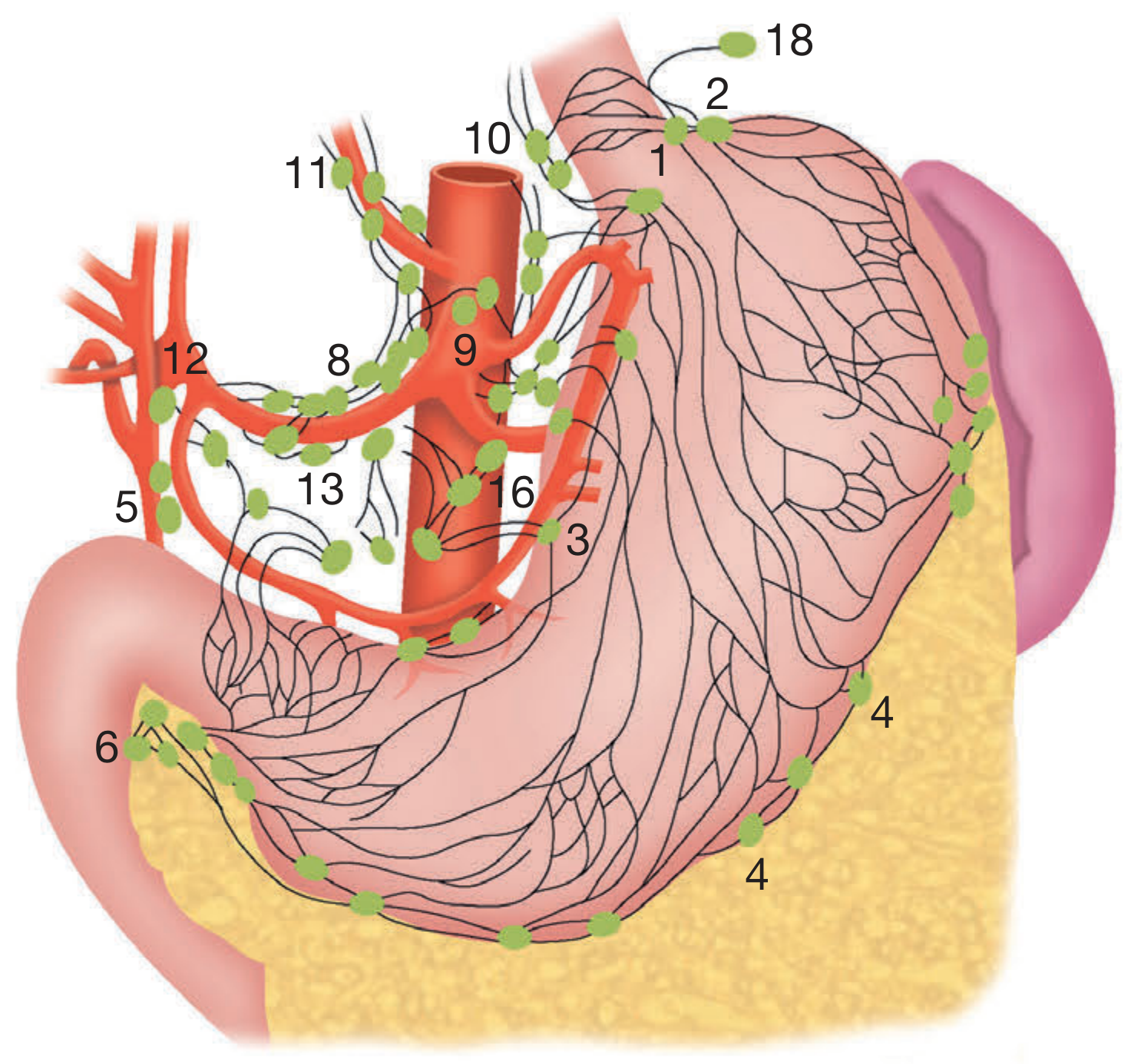

Anterior view: Numbered lymph node stations around gastric blood vessels - Bailey & Love, 28th Ed., Fig. 67.29(a)

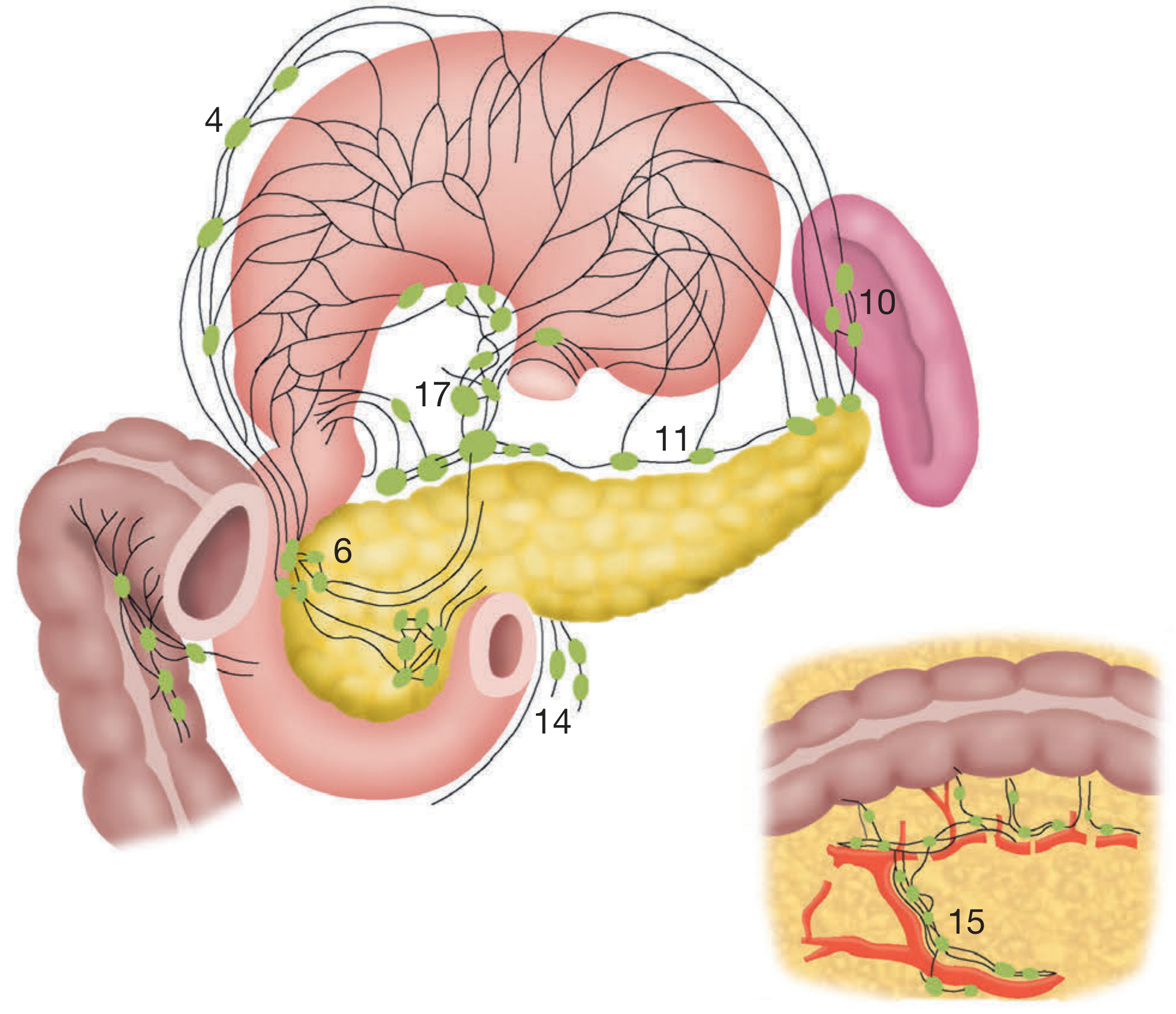

Posterior view: Nodal stations 4, 6, 10, 11, 14, 15, 17 - Bailey & Love, 28th Ed., Fig. 67.29(b)
Key stations to remember:
- Station 1 & 2 - Right and left cardia nodes
- Station 3 - Lesser curvature nodes
- Station 4 - Greater curvature nodes
- Station 5 & 6 - Suprapyloric and infrapyloric nodes
- Station 7 - Left gastric artery nodes
- Station 8 - Common hepatic artery nodes
- Station 9 - Coeliac axis nodes
- Station 10 - Splenic hilar nodes
- Station 11 - Splenic artery nodes
D1 vs D2 Lymphadenectomy
- D1 resection = remove Stations 1-6 (perigastric nodes only)
- D2 resection = remove Stations 1-11 (standard in Japan; recommended for curative gastric cancer surgery)
- D2 is the recommended standard for resectable gastric cancer
Retrograde spread: If upper lymphatics are blocked (e.g., by tumour), lymph flow can reverse downwards - this is why gastric cancer can spread unpredictably.
Memory Aid - "CLSS" for Arteries
| Letter | Artery | Origin |
|---|
| Celiac | Left gastric | Celiac trunk |
| Liver | Right gastric | Proper hepatic (from celiac) |
| Spleen | Left gastro-epiploic + Short gastric | Splenic artery |
| Stomach-duodenal | Right gastro-epiploic | Gastroduodenal artery |
Sources: Sabiston Textbook of Surgery, p. 1771 (Blood Supply section) | Bailey & Love's Short Practice of Surgery, 28th Ed., p. 67 (Lymphatic drainage of stomach)
