Here is a comprehensive 5-mark answer on Einthoven's Triangle:

Einthoven's Triangle

Definition & Concept

Einthoven's triangle is an equilateral triangle formed by the three standard bipolar limb leads (I, II, III) of the ECG, with the heart positioned at its centre. It is based on the assumption that the human body is a volume conductor, and that the two arms and left leg form the three apices of this equilateral triangle surrounding the heart.

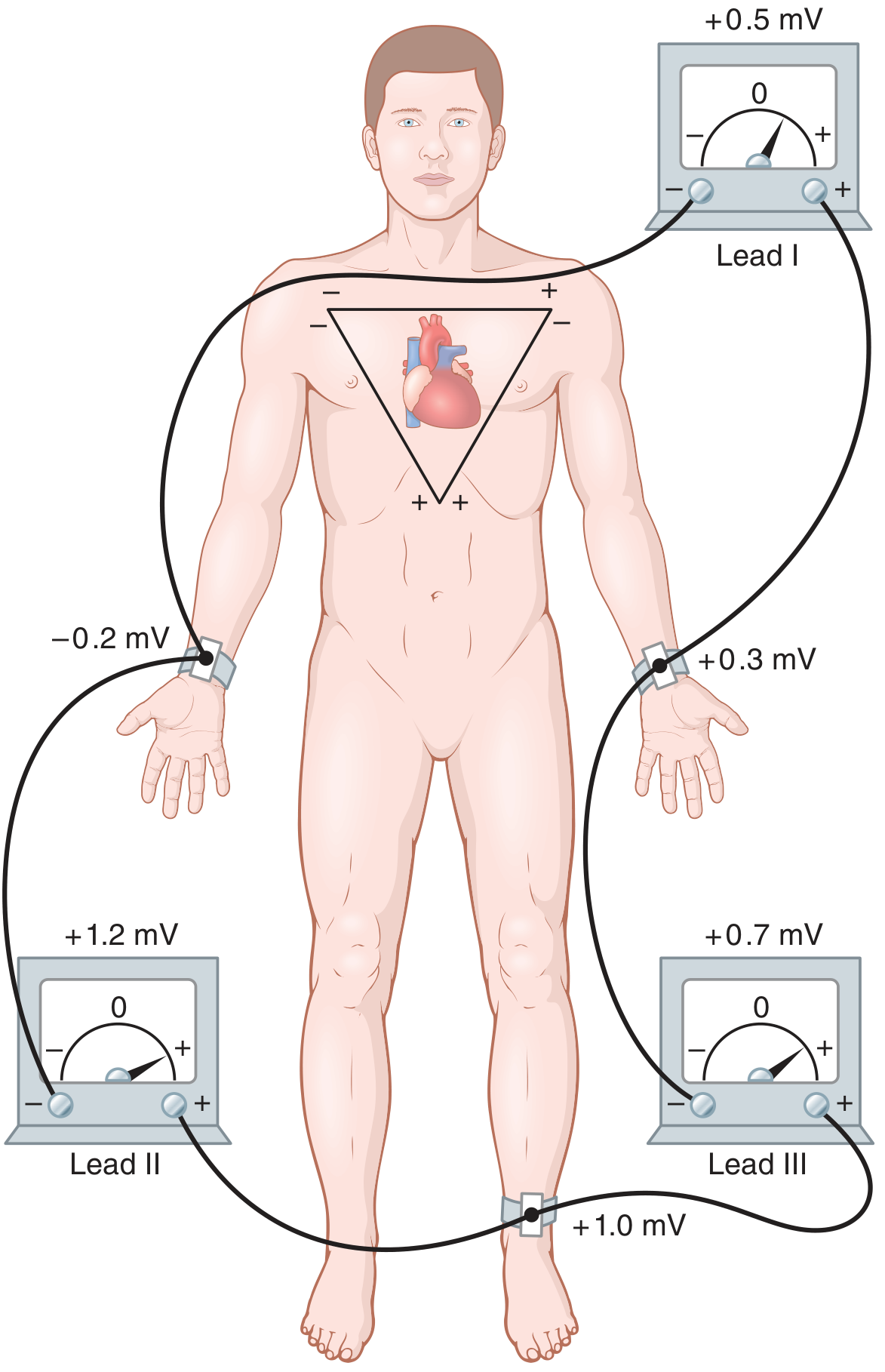

Einthoven's Triangle with Lead I (RA–LA), Lead II (RA–LL), Lead III (LA–LL)

The Three Sides (Leads)

Lead	Negative Pole	Positive Pole	Side of Triangle
Lead I	Right Arm (RA)	Left Arm (LA)	Top (horizontal)
Lead II	Right Arm (RA)	Left Leg (LL)	Left side
Lead III	Left Arm (LA)	Left Leg (LL)	Right side

Each side of the triangle represents one bipolar lead. The positive poles lie inferiorly and to the left, which is why deflections are predominantly upright in the normal ECG.

Key Assumptions

The body acts as a homogeneous volume conductor
The heart is located at the geometric centre of the triangle
The triangle is equilateral — though this is an approximation, it gives clinically useful results
In a volume conductor, the sum of potentials at the three points of an equilateral triangle with a current source at its center equals zero at all times

Einthoven's Law

A critical mathematical consequence of the triangle is Einthoven's Law:

Lead I + Lead III = Lead II

(Note: polarity signs must be respected)

Example: If RA = −0.2 mV, LA = +0.3 mV, LL = +1.0 mV:

Lead I = (+0.3) − (−0.2) = +0.5 mV
Lead III = (+1.0) − (+0.3) = +0.7 mV
Lead II = (+1.0) − (−0.2) = +1.2 mV ✓ (= Lead I + Lead III = 0.5 + 0.7)

Clinical Significance — Determining the Cardiac Vector/Axis

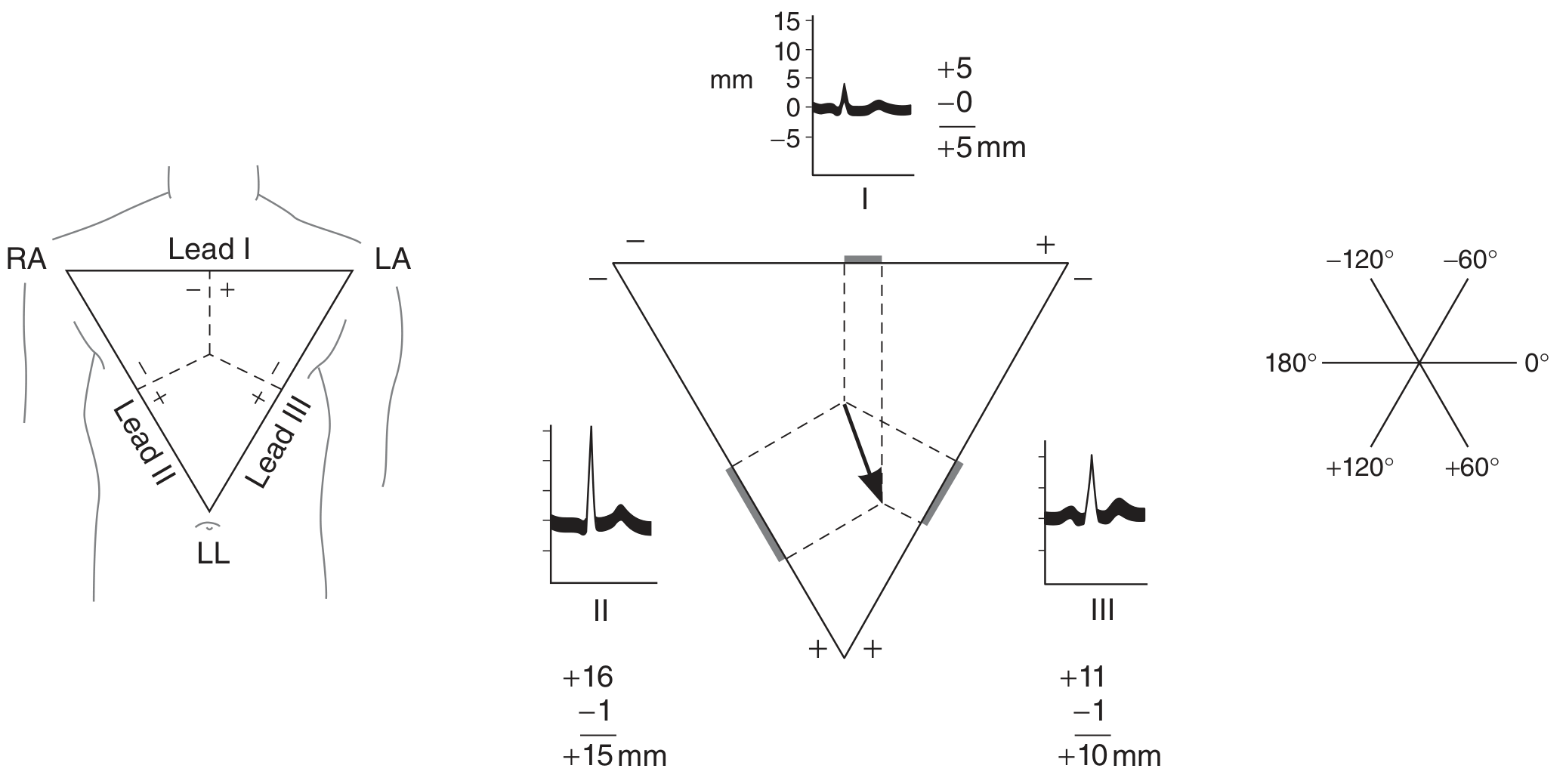

Cardiac vector calculation using Einthoven's triangle

The triangle is used to calculate the mean electrical axis of the heart (e.g., mean QRS vector):

Measure the net amplitude of the QRS complex in any two leads (e.g., I and II or II and III)
Plot these values as distances along the respective sides of the triangle from their midpoints
Drop perpendiculars from these points inward
The intersection of the perpendiculars gives the tip of the mean QRS vector
An arrow from the electrical centre to this point = magnitude and direction of the cardiac axis

Normal QRS axis = −30° to +90° in the frontal plane.

Summary Points (for 5 marks)

Einthoven's triangle = equilateral triangle formed by the 3 standard limb leads (I, II, III) with the heart at the centre
Three apices = Right arm, Left arm, Left leg
Einthoven's Law: Lead I + Lead III = Lead II (potentials are algebraically interdependent)
Basis: Body is a volume conductor; sum of potentials at three equilateral points around a central source = zero
Clinical use: Determination of the mean electrical axis of the heart (cardiac vector) in the frontal plane

Sources: Guyton & Hall Textbook of Medical Physiology; Ganong's Review of Medical Physiology, 26th ed.

axis deviation

Finding Sources

Searching Images

ECG axis deviation left right determination

Reading File

Finding Sources

Reading File

Loading Image

Here is a comprehensive note on Axis Deviation:

Axis Deviation

Normal QRS Axis

The mean electrical axis of the ventricles in the frontal plane normally lies between −30° and +90° (average ~59°). Even in healthy individuals, it can swing from about 20° to 100° due to anatomical variations in the Purkinje system and ventricular musculature.

Classification of Axis

Axis Range	Classification
−30° to +90°	Normal
More negative than −30°	Left Axis Deviation (LAD)
More than +90°	Right Axis Deviation (RAD)
−90° to ±180°	Extreme/Northwest axis (indeterminate)

Note: Mild RAD beyond +90° is a normal variant in children and adolescents.

Quick ECG Recognition

Lead I	Lead aVF	Axis
+	+	Normal
+	−	LAD
−	+	RAD
−	−	Extreme (NW) axis

A more precise method: find the lead where the QRS is most isoelectric → the axis is perpendicular to that lead.

Causes of Left Axis Deviation (LAD)

1. Change in Heart Position

End of deep expiration
Lying down (abdominal contents push diaphragm up)
Obesity (elevated diaphragm chronically)

2. Ventricular Hypertrophy

Left ventricular hypertrophy (LVH) — more muscle mass on the left generates a dominant leftward vector

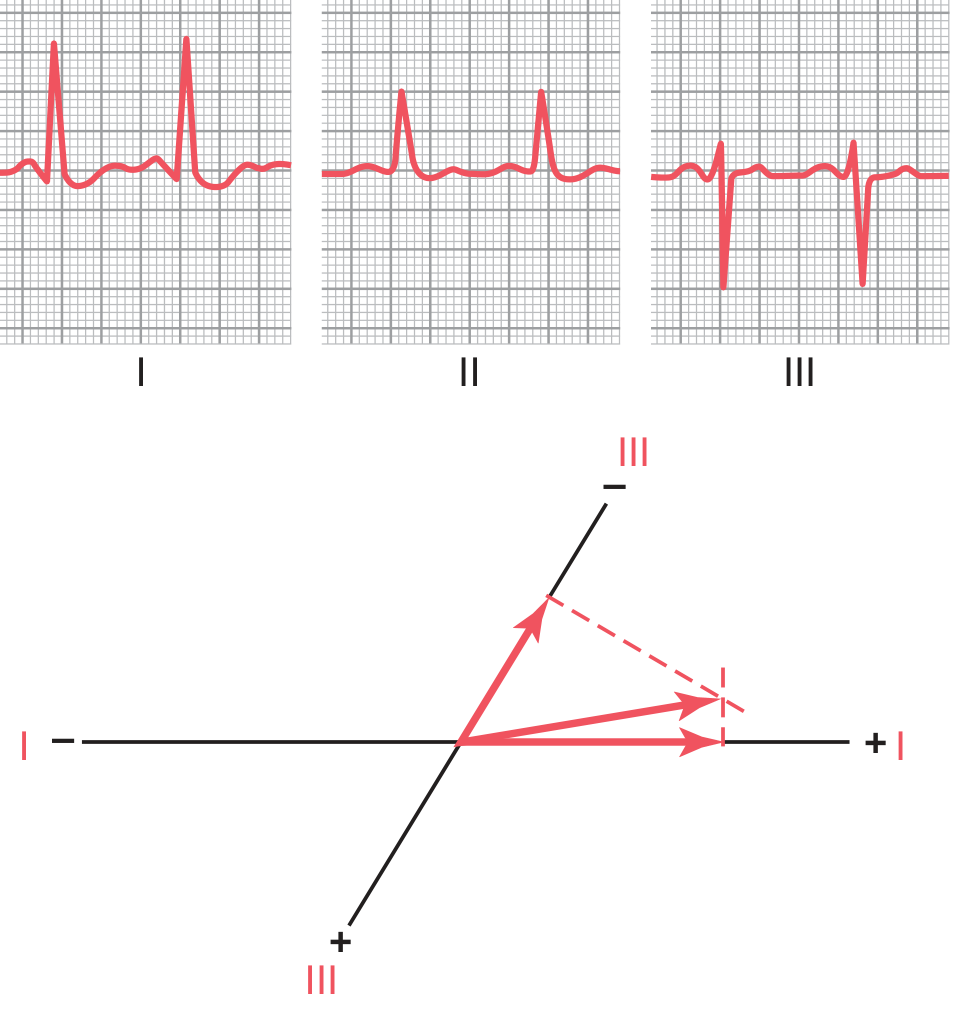

Left axis deviation — ECG leads I, II, III with vector diagram showing axis at −15°

Left axis deviation in hypertensive heart disease (LVH). Note the dominant negative deflection in Lead III and the vector pointing to about −15°.

Causes of LVH → LAD:

Systemic hypertension
Aortic valve stenosis / regurgitation
Congenital conditions with left ventricular dominance

3. Bundle Branch Block

Left bundle branch block (LBBB) → intense LAD (~−50°)
- Left ventricle depolarizes 2–3× more slowly than the right
- Right ventricle becomes electronegative first; vector points toward the electropositive left ventricle
- QRS complex is significantly widened (>0.12 s)

4. Hemiblock (Fascicular Block)

Left anterior fascicular block (LAFB) → abnormal LAD (most common cause of LAD on ECG)

Causes of Right Axis Deviation (RAD)

1. Change in Heart Position

End of deep inspiration
Standing up
Tall, thin individuals (vertical heart)
Neonates/infants (physiological, due to RV dominance)

2. Ventricular Hypertrophy

Right ventricular hypertrophy (RVH) — dominant rightward vector from increased right-sided muscle mass

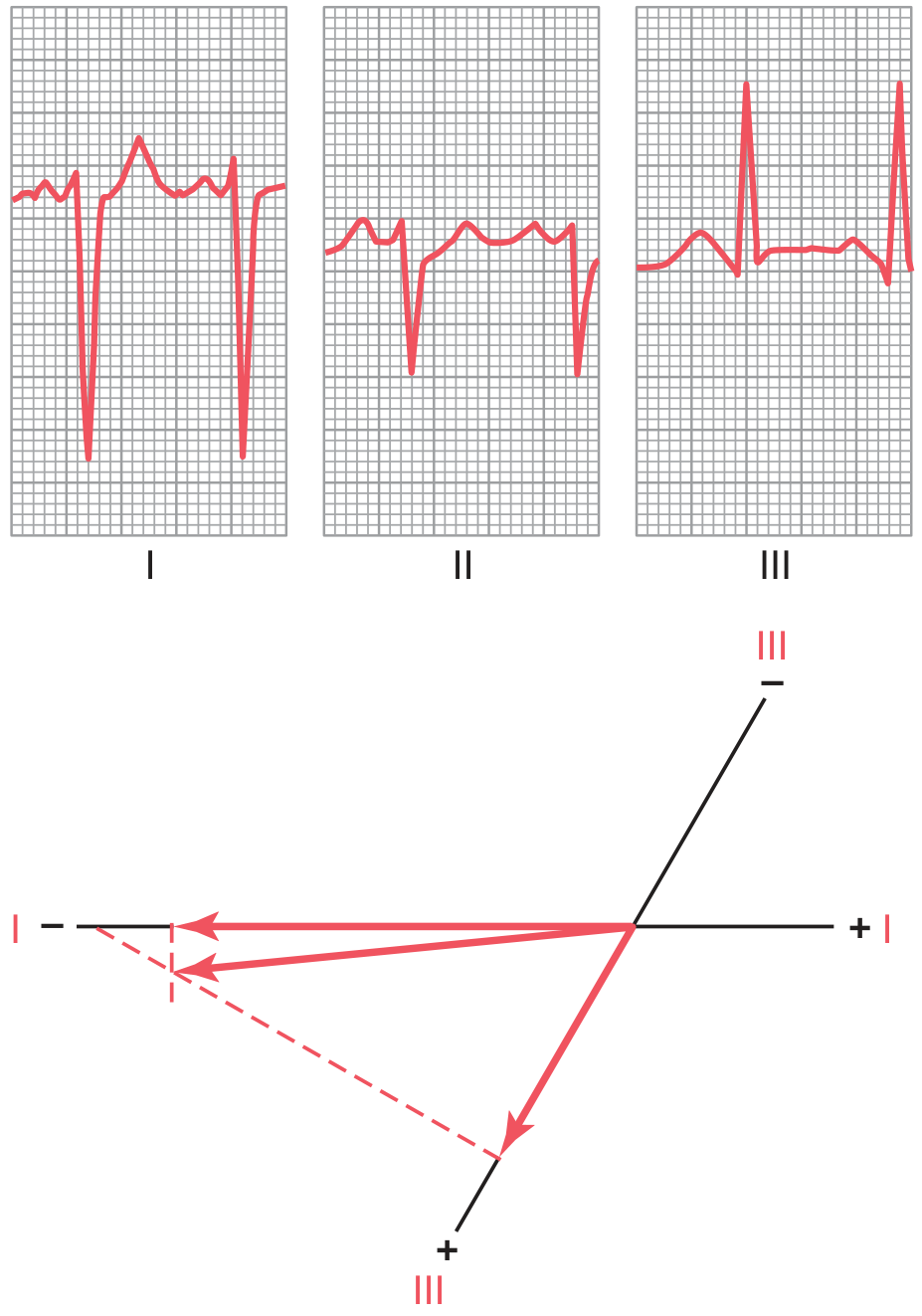

Right axis deviation — ECG leads I, II, III with vector pointing to +170°

Intense right axis deviation (170°) in congenital pulmonary valve stenosis with RVH. Lead I shows deep negative deflection; Lead III is markedly positive.

Causes of RVH → RAD:

Pulmonary valve stenosis
Tetralogy of Fallot
Interventricular septal defect (VSD)
Pulmonary hypertension

3. Bundle Branch Block

Right bundle branch block (RBBB) → right axis deviation
- Left ventricle depolarizes first → becomes electronegative; vector points toward the electropositive right ventricle
- QRS also widened

4. Hemiblock

Left posterior fascicular block (LPFB) → abnormal RAD

Why Axis Deviation Occurs in Hypertrophy

Two mechanisms drive the axis shift toward the hypertrophied ventricle:

Greater electrical potential generated by the larger muscle mass on the hypertrophied side
Longer depolarization time in the hypertrophied ventricle → the normal ventricle becomes electronegative first, creating a net vector pointing toward the hypertrophied (still electropositive) ventricle

Differentiating Bundle Branch Block from Hypertrophy

Feature	Bundle Branch Block	Hypertrophy
QRS width	>0.12 s (widened)	May be slightly widened
Axis deviation	Present	Present
Cause	Conduction block	Increased muscle mass

Summary

LAD (axis more negative than −30°): LVH, LBBB, LAFB, obesity, expiration
RAD (axis beyond +90°): RVH, RBBB, LPFB, thin/tall body, inspiration, neonates
Axis deviation toward a hypertrophied ventricle occurs because more muscle = more electrical potential + longer depolarization time
Bundle branch blocks cause axis deviation plus widened QRS — this distinguishes them from pure hypertrophy

Sources: Guyton & Hall Textbook of Medical Physiology; Goldman-Cecil Medicine, International Ed.; Ganong's Review of Medical Physiology, 26th ed.
