Cerebellopontine Angle (CPA) Tumors: Imaging & Treatment

Based on Scott-Brown's Otorhinolaryngology Head & Neck Surgery (Vol. 2) and Adams & Victor's Principles of Neurology, 12th Ed.

What is the CPA?

The cerebellopontine angle is a triangular cistern at the junction of the cerebellum, pons, and petrous bone. It contains cranial nerves VII (facial), VIII (vestibulocochlear), V (trigeminal), and the lower cranial nerves (IX, X, XI). Tumors here grow slowly, allowing some accommodation, but eventually compress these structures.

Types of CPA Tumors

Tumor% of CPA tumors
Vestibular Schwannoma (VS) (acoustic neuroma)~85%
Meningioma~10%
Epidermoid cyst (cholesteatoma)~5%
Others (facial nerve schwannoma, trigeminal schwannoma, glomus, lipoma)Rare
The term "acoustic neuroma" is technically inaccurate - the more precise term is vestibular schwannoma, as it arises from the vestibular (not cochlear) division of CN VIII.

Clinical Features (How the Patient Presents)

Early:
  • Unilateral sensorineural hearing loss (most common early symptom - in 70% of patients)
  • Tinnitus - usually high-pitched, unilateral
  • Vestibular imbalance (not acute vertigo - more a chronic unsteadiness)
Late:
  • Facial numbness (CN V compression)
  • Facial weakness (CN VII)
  • Headache, vomiting (raised ICP from hydrocephalus)
  • Gait ataxia
  • Cerebellar signs
Key point: Vertigo (sudden spinning attacks) is uncommon with CPA tumors. This helps distinguish VS from Meniere's disease. - Localization in Clinical Neurology, 8e

IMAGING

1. MRI with Gadolinium - Gold Standard

MRI is the investigation of choice for diagnosing VS and all CPA tumors. All patients with unexplained unilateral audiovestibular symptoms should proceed to MRI with gadolinium enhancement.
Why MRI?
  • Detects even small intracanalicular tumors (confined to the internal auditory canal/IAC)
  • Gadolinium-enhanced T1 shows bright, homogeneous enhancement of VS
  • Visualizes the tumor's relationship to brainstem, cranial nerves, and vessels
MRI features of VS:
  • T1 with gadolinium: Enhancing mass centered on the IAC, widening the porus acusticus
  • T2: Hypointense or heterogeneous; FIESTA/CISS (steady-state free precession) sequences give high-resolution detail of nerve-tumor relationships
  • Typical appearance: "Ice cream cone" shape - intracanalicular + extrameatal component
  • Large tumors may show rim enhancement or cystic degeneration

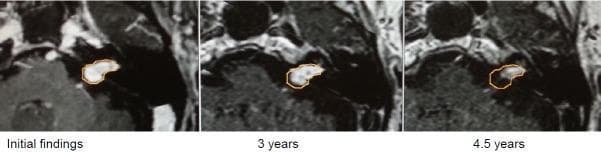

Vestibular schwannoma MRI - progression over 4.5 years
Axial contrast-enhanced T1 MRI showing vestibular schwannoma at initial diagnosis and regression over 4.5 years of follow-up

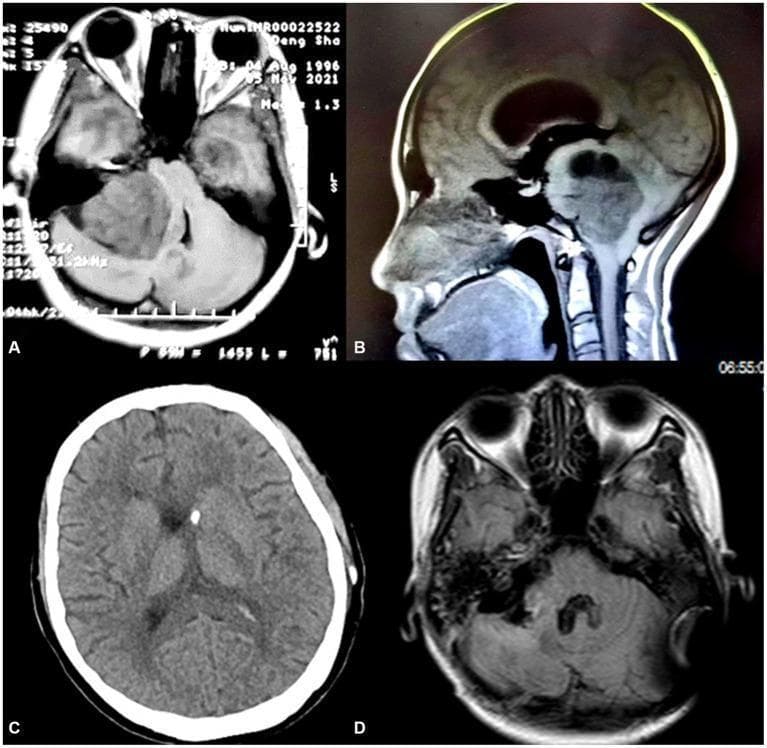

Large CPA tumor with brainstem compression and surgical resection
MRI showing large right-sided CPA tumor with significant brainstem compression (A, B), VP shunt placement (C), and post-surgical resection (D)
Special MRI sequences:
  • FIESTA/CISS/SPACE sequences (steady-state free precession): Define anatomical relations between tumor and adjacent cranial nerves with high resolution - essential for surgical planning
  • Thin-slice axial T2: Shows fluid in IAC
  • Adams & Victor's Principles of Neurology, p. 684

2. CT Scan

  • Less sensitive than MRI for small/intracanalicular tumors
  • CT detects VS >2 cm diameter or projecting >1.5 cm into the CPA cistern
  • High-resolution CT (HRCT) of petrous bone: Used for surgical planning to assess:
    • Position of the sigmoid sinus and jugular bulb
    • Degree of mastoid air cell pneumatization
    • Position of the facial nerve canal
  • CT also shows bony expansion/erosion of the IAC (characteristic of VS)
  • Cannot reliably detect small intracanalicular tumors

3. Audiological Tests

Though not imaging per se, these are integral to the workup:
  • Audiogram: Downward-sloping high-frequency SNHL on the tumor side
  • Brainstem Auditory Evoked Response (BAER/ABR): Most sensitive audiologic test for VS - shows prolonged/absent wave V and increased I-V interpeak latency
  • Speech discrimination: Poor speech discrimination out of proportion to pure-tone loss is characteristic
  • Caloric testing: Reduced or absent caloric response on the affected side ("dead labyrinth")

4. Plain X-rays (Historic)

  • Towne's view/Stenver's view: May show enlarged IAC
  • Obsolete in modern practice; replaced by MRI

Tumor Size Classification

CategoryExtrameatal diameter
Intrameatal (Stage 1)0 mm (confined to IAC)
Small (Stage 2)1-15 mm
Medium (Stage 3)16-30 mm
Large (Stage 4)>30 mm
Giant>40 mm
Size is measured as the largest extrameatal diameter on MRI (International Consensus Guidelines). Tumor size guides management.

TREATMENT

Three main strategies exist: Watchful Waiting (Observe and Scan), Surgery, and Stereotactic Radiosurgery

1. Watch-and-Scan (Conservative Management)

Who is it for?
  • Small (< 15-20 mm extrameatal), non-cystic VS
  • Elderly or medically unfit patients
  • Incidentally discovered VS with no or minimal symptoms
  • Bilateral VS in NF2 (to preserve hearing as long as possible)
Protocol (Scott-Brown's recommended schedule):
  • Annual MRI for 5 years
  • Then MRI every 2 years for 4 more years
  • Then one final MRI at 5 years (total ~14 years of follow-up)
  • If no growth occurs, observation can be ended
Why watch?
  • 60-70% of VS remain stable (never grow)
  • Intrameatal tumors: 83% remain intrameatal; 17% extend extrameally
  • Growth, if it occurs, mostly happens within the first 5 years of diagnosis
  • Quality of life is better with observation than with active treatment for small, non-growing VS
Trigger for intervention:
  • Growth of ≥3 mm in largest extrameatal diameter
  • Cystic change
  • Symptoms worsen
  • Patient preference

2. Surgery

Surgery remains the mainstay of treatment for symptomatic or growing VS.
Indications for surgery:
  • Large tumors (>30 mm maximal intracranial diameter)
  • Growing tumors
  • Cystic VS (not suitable for radiotherapy due to risk of sudden rapid growth)
  • Young patients with small tumors who want definitive treatment
  • Hearing preservation attempted in selected cases
Intraoperative monitoring (mandatory):
  • Continuous facial nerve EMG monitoring
  • Brainstem auditory evoked responses (BSER)
  • Neuromuscular blocking agents must NOT be used after intubation
Three main surgical approaches:

A. Translabyrinthine Approach

  • Best for: Medium to large VS, when hearing is already non-serviceable
  • Access: Through the mastoid and inner ear (labyrinth is sacrificed)
  • Advantage: Direct access to the IAC and facial nerve, widest exposure, lower retraction on cerebellum, safest for facial nerve
  • Disadvantage: Complete and permanent hearing loss
  • Steps (Scott-Brown's):
    1. Retroauricular skin incision
    2. Cortical mastoidectomy with wide exposure of middle fossa dura and sigmoid sinus
    3. Labyrinthectomy (removal of semicircular canals and vestibule)
    4. Skeletonization of jugular bulb and vertical facial nerve
    5. U-shaped drilling around the IAC (270-degree removal of bone around meatus)
    6. Posterior fossa dura opened
    7. Tumor removed under microsurgical technique
    8. Wound closed with abdominal fat graft to fill the defect

B. Suboccipital (Retrosigmoid) Approach

  • Best for: All sizes; particularly when hearing preservation is attempted
  • Access: Through a posterior craniotomy behind the sigmoid sinus
  • Advantage: Provides widest exposure of the CPA cistern; allows hearing preservation in tumors <2.5 cm
  • Disadvantage: Requires cerebellar retraction; higher risk of postoperative headache; facial nerve identification can be more difficult
  • Note: This was the approach favored by Harvey Cushing and Walter Dandy historically; modern variant uses retrosigmoid craniotomy with endoscopic assistance

C. Middle Cranial Fossa Approach

  • Best for: Small, purely intracanalicular VS when hearing preservation is desired
  • Access: Through the temporal bone superior surface via a temporal craniotomy
  • Advantage: Best approach for hearing preservation in intracanalicular/small tumors
  • Disadvantage: Limited exposure for larger tumors; risk of temporal lobe retraction
Hearing preservation surgery:
  • Possible in ~1/3 of patients with tumors <2.5 cm (Adams & Victor)
  • Middle fossa or retrosigmoid approaches used
  • Intraoperative BAER monitoring is essential
Facial nerve outcomes:
  • Facial nerve function can usually be preserved with intraoperative monitoring
  • Facial motor and sensory functions preserved in ~75% of cases

3. Stereotactic Radiosurgery (SRS)

Gamma Knife Radiosurgery (GKRS) - Most Common

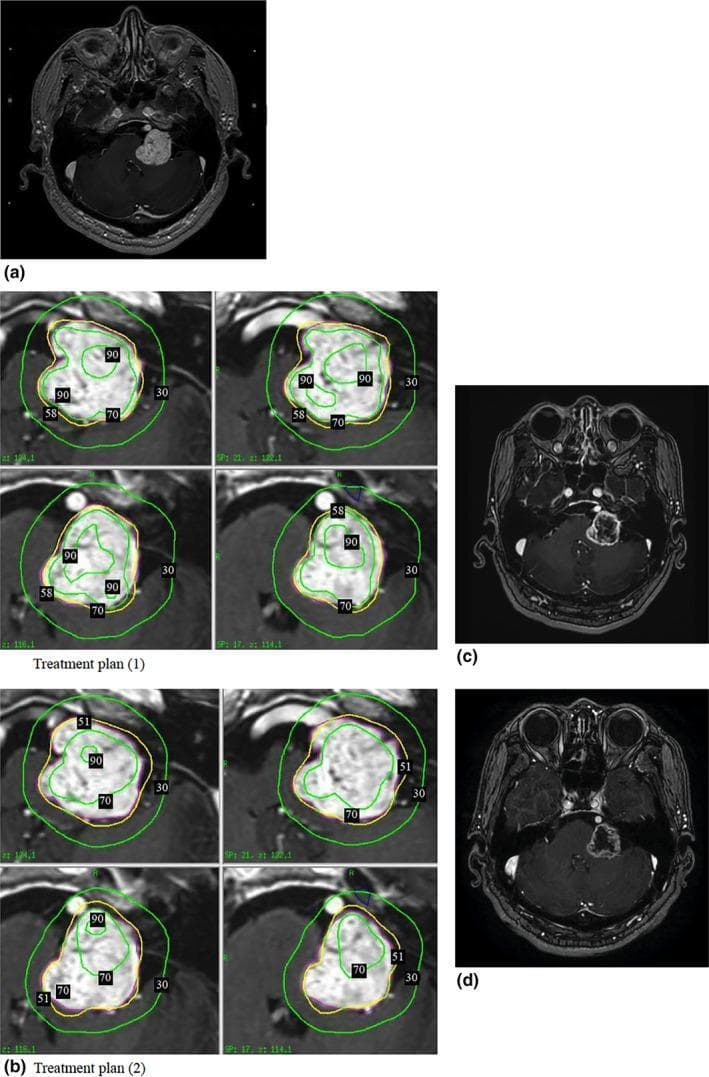

Gamma Knife radiosurgery treatment plan for acoustic neuroma

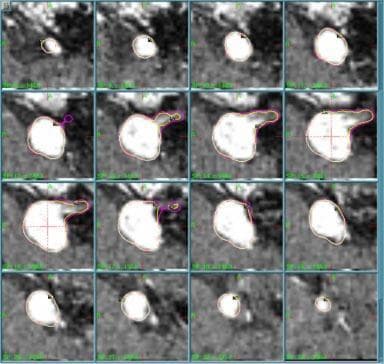

Stereotactic radiosurgery planning with isodose contours for a vestibular schwannoma
Who is it for?
  • Small to medium VS (< 30 mm) - the role is considered minimal for tumors >30 mm
  • Elderly or medically unfit patients
  • Patients refusing surgery
  • Recurrent tumors after surgery
  • Preferred in older patients with few symptoms
Principle:
  • Highly focused radiation delivered in a single high dose (Gamma Knife) or multiple fractions
  • Causes DNA damage and vascular thrombosis, arresting tumor growth
  • Does NOT "cure" the tumor; goal is tumor control (growth arrest)
Results:
  • Controls growth in most small-medium VS
  • Facial motor and sensory function preserved in ~75% of patients
  • After 28 months of observation, no new neurologic deficits in most patients
  • Hearing loss and facial weakness rates similar to or lower than surgery in short follow-up
Limitations:
  • Cystic VS: NOT suitable (can cause sudden dramatic expansion)
  • Long-term hearing outcomes may still deteriorate
  • Occasional radiation-induced complications (edema, new neurological deficits)
  • Some tumors continue to grow despite treatment
  • Preferred over surgery for recurrent tumors (Adams & Victor)
Fractionated stereotactic radiotherapy (FSRT):
  • Radiation delivered in multiple fractions
  • Used for tumors near sensitive structures
  • Covered elsewhere in the literature (beyond this scope)
Bevacizumab (anti-VEGF):
  • In NF2 patients with bilateral VS, the anti-angiogenic agent bevacizumab has shown tumor size reduction in preliminary reports
  • Not a first-line treatment

Summary Decision-Making Table

Tumor SizeHearing StatusRecommended Treatment
Intrameatal, small (<15 mm), non-growingGood hearingWatch and scan
Small (<15 mm), growingGood hearingSRS or middle fossa surgery
Small-medium (15-30 mm)Poor hearingTranslabyrinthine surgery or SRS
Small-medium (15-30 mm)Good hearingRetrosigmoid surgery (hearing preservation)
Large (>30 mm)AnySurgery (translabyrinthine or retrosigmoid)
Cystic VSAnySurgery (SRS contraindicated)
NF2 associatedAnyIndividual assessment

Complications of Treatment

Surgical Complications

  • Facial nerve palsy (most feared) - rates depend on tumor size
  • Hearing loss (inevitable in translabyrinthine; possible in retrosigmoid/MCF)
  • CSF leak (through wound or as rhinorrhea via eustachian tube)
  • Meningitis
  • Bleeding/hematoma
  • Hydrocephalus (obstructive, due to fourth ventricle compromise in large tumors)

Post-Radiosurgery Complications

  • Radiation-induced facial numbness/weakness
  • Trigeminal neuropathy
  • Tumor swelling (transient)
  • Small risk of malignant transformation (extremely rare)

Other CPA Tumors - Brief Notes

  • Meningioma: Does NOT arise from the IAC; does not cause early hearing loss; off-center on MRI; flat dural tail sign; treated surgically
  • Epidermoid cyst (cholesteatoma): Irregular pearly white lesion; does NOT enhance; "cauliflower" appearance on MRI; treated surgically (complete removal is curative)
  • Trigeminal schwannoma: Initial symptom is facial pain/numbness rather than hearing loss
  • Glomus jugulare: Pulsatile tinnitus, lower cranial nerve palsies; highly vascular; "salt and pepper" appearance on MRI
Sources:
  • Scott-Brown's Otorhinolaryngology Head & Neck Surgery, Vol. 2 - Chapters 101 & 102 (Vestibular Schwannoma; Surgical Approaches to the CPA)
  • Adams & Victor's Principles of Neurology, 12th Ed., Chapter 30 (p. 683-685)
  • Localization in Clinical Neurology, 8e
