Scapula — Bone Anatomy

from reportlab.lib.pagesizes import A4
from reportlab.lib import colors
from reportlab.lib.styles import getSampleStyleSheet, ParagraphStyle
from reportlab.lib.units import cm, mm
from reportlab.platypus import (
    SimpleDocTemplate, Paragraph, Spacer, Table, TableStyle,
    HRFlowable, KeepTogether
)
from reportlab.lib.enums import TA_CENTER, TA_LEFT, TA_JUSTIFY
from reportlab.platypus import BaseDocTemplate, PageTemplate, Frame
from reportlab.lib.colors import HexColor
import urllib.request
from reportlab.platypus import Image as RLImage
import io

# ── Colour Palette ────────────────────────────────────────────────
TEAL       = HexColor("#0097A7")
DEEP_TEAL  = HexColor("#006064")
ORANGE     = HexColor("#FF6F00")
AMBER      = HexColor("#FFA000")
PURPLE     = HexColor("#6A1B9A")
INDIGO     = HexColor("#283593")
GREEN      = HexColor("#2E7D32")
RED        = HexColor("#C62828")
LIGHT_TEAL = HexColor("#E0F7FA")
LIGHT_AMBER= HexColor("#FFF8E1")
LIGHT_PURPLE=HexColor("#F3E5F5")
LIGHT_GREEN= HexColor("#E8F5E9")
LIGHT_RED  = HexColor("#FFEBEE")
LIGHT_INDIGO=HexColor("#E8EAF6")
WHITE      = colors.white
DARK_GREY  = HexColor("#212121")
MID_GREY   = HexColor("#546E7A")

# ── Document setup ────────────────────────────────────────────────
OUTPUT = "/home/daytona/workspace/scapula-pdf/Scapula_Anatomy.pdf"
doc = SimpleDocTemplate(
    OUTPUT, pagesize=A4,
    leftMargin=1.8*cm, rightMargin=1.8*cm,
    topMargin=2*cm, bottomMargin=2*cm
)

# ── Styles ────────────────────────────────────────────────────────
styles = getSampleStyleSheet()

def S(name, **kw):
    return ParagraphStyle(name, **kw)

cover_title = S("CoverTitle",
    fontName="Helvetica-Bold", fontSize=36,
    textColor=WHITE, alignment=TA_CENTER,
    spaceAfter=6, leading=42)

cover_sub = S("CoverSub",
    fontName="Helvetica", fontSize=15,
    textColor=HexColor("#B2EBF2"), alignment=TA_CENTER,
    spaceAfter=4, leading=20)

cover_note = S("CoverNote",
    fontName="Helvetica-Oblique", fontSize=10,
    textColor=HexColor("#80DEEA"), alignment=TA_CENTER)

h1 = S("H1",
    fontName="Helvetica-Bold", fontSize=18,
    textColor=WHITE, alignment=TA_LEFT,
    spaceBefore=14, spaceAfter=6, leading=22,
    backColor=TEAL, leftIndent=-4, rightIndent=-4,
    borderPad=6)

h2 = S("H2",
    fontName="Helvetica-Bold", fontSize=13,
    textColor=DEEP_TEAL, alignment=TA_LEFT,
    spaceBefore=10, spaceAfter=4, leading=17,
    borderPad=3)

body = S("Body",
    fontName="Helvetica", fontSize=10.5,
    textColor=DARK_GREY, alignment=TA_JUSTIFY,
    spaceAfter=5, leading=15)

bullet = S("Bullet",
    fontName="Helvetica", fontSize=10.5,
    textColor=DARK_GREY, leftIndent=16, spaceAfter=3,
    leading=14, bulletIndent=6)

note_style = S("Note",
    fontName="Helvetica-Oblique", fontSize=9,
    textColor=MID_GREY, alignment=TA_CENTER, spaceAfter=4)

caption = S("Caption",
    fontName="Helvetica-Oblique", fontSize=8.5,
    textColor=MID_GREY, alignment=TA_CENTER, spaceAfter=6)

table_header = S("TH",
    fontName="Helvetica-Bold", fontSize=10,
    textColor=WHITE, alignment=TA_CENTER)

table_cell = S("TC",
    fontName="Helvetica", fontSize=9.5,
    textColor=DARK_GREY, alignment=TA_LEFT, leading=13)

table_cell_c = S("TCC",
    fontName="Helvetica", fontSize=9.5,
    textColor=DARK_GREY, alignment=TA_CENTER, leading=13)

clinical_title = S("ClinTitle",
    fontName="Helvetica-Bold", fontSize=11,
    textColor=RED, spaceAfter=2, leading=14)

# ── Helper: coloured section header box ──────────────────────────
def section_header(text, bg=TEAL):
    data = [[Paragraph(f"<font color='white'><b>{text}</b></font>",
                       S("SH", fontName="Helvetica-Bold", fontSize=13,
                         textColor=WHITE, leading=17, alignment=TA_LEFT))]]
    t = Table(data, colWidths=[doc.width])
    t.setStyle(TableStyle([
        ("BACKGROUND", (0,0), (-1,-1), bg),
        ("TOPPADDING",   (0,0), (-1,-1), 7),
        ("BOTTOMPADDING",(0,0), (-1,-1), 7),
        ("LEFTPADDING",  (0,0), (-1,-1), 10),
        ("RIGHTPADDING", (0,0), (-1,-1), 8),
        ("ROUNDEDCORNERS", [5]),
    ]))
    return t

# ── Helper: two-col info card ─────────────────────────────────────
def info_card(label, value, bg=LIGHT_TEAL, fg=DEEP_TEAL):
    data = [[
        Paragraph(f"<b>{label}</b>",
                  S("LC", fontName="Helvetica-Bold", fontSize=10,
                    textColor=fg, leading=13, alignment=TA_LEFT)),
        Paragraph(value,
                  S("VC", fontName="Helvetica", fontSize=10,
                    textColor=DARK_GREY, leading=13, alignment=TA_LEFT))
    ]]
    t = Table(data, colWidths=[5*cm, doc.width - 5*cm])
    t.setStyle(TableStyle([
        ("BACKGROUND", (0,0), (0,0), bg),
        ("BACKGROUND", (1,0), (1,0), WHITE),
        ("TOPPADDING",    (0,0),(-1,-1), 5),
        ("BOTTOMPADDING", (0,0),(-1,-1), 5),
        ("LEFTPADDING",   (0,0),(-1,-1), 8),
        ("GRID",          (0,0),(-1,-1), 0.4, HexColor("#B0BEC5")),
    ]))
    return t

# ── Helper: styled table ──────────────────────────────────────────
def make_table(headers, rows, col_widths, header_bg=TEAL):
    header_row = [Paragraph(f"<b>{h}</b>",
                            S("TH2", fontName="Helvetica-Bold", fontSize=10,
                              textColor=WHITE, alignment=TA_CENTER, leading=13))
                  for h in headers]
    data = [header_row]
    for i, row in enumerate(rows):
        data.append([Paragraph(str(c),
                               S(f"TC{i}", fontName="Helvetica", fontSize=9.5,
                                 textColor=DARK_GREY, alignment=TA_LEFT, leading=13))
                     for c in row])
    t = Table(data, colWidths=col_widths, repeatRows=1)
    style = [
        ("BACKGROUND",    (0,0), (-1,0), header_bg),
        ("TEXTCOLOR",     (0,0), (-1,0), WHITE),
        ("ROWBACKGROUNDS",(0,1), (-1,-1), [HexColor("#F5F5F5"), WHITE]),
        ("GRID",          (0,0), (-1,-1), 0.4, HexColor("#B0BEC5")),
        ("TOPPADDING",    (0,0), (-1,-1), 5),
        ("BOTTOMPADDING", (0,0), (-1,-1), 5),
        ("LEFTPADDING",   (0,0), (-1,-1), 7),
        ("RIGHTPADDING",  (0,0), (-1,-1), 7),
        ("VALIGN",        (0,0), (-1,-1), "MIDDLE"),
    ]
    t.setStyle(TableStyle(style))
    return t

# ── Fetch scapula image ───────────────────────────────────────────
IMG_URL = ("https://cdn.orris.care/cdss_images/"
           "9c6f7e6b8e97815a99e6d1f5590f84e3915f18b32de3e3745408422c93284ce0.png")
try:
    with urllib.request.urlopen(IMG_URL, timeout=15) as r:
        img_data = io.BytesIO(r.read())
    scapula_img = RLImage(img_data, width=14*cm, height=10*cm)
    scapula_img.hAlign = "CENTER"
    has_image = True
except Exception as e:
    print(f"Image download failed: {e}")
    has_image = False

# ══════════════════════════════════════════════════════════════════
# STORY
# ══════════════════════════════════════════════════════════════════
story = []
W = doc.width

# ── COVER PAGE ────────────────────────────────────────────────────
# Gradient-like cover block using a table
cover_data = [[
    Paragraph("🦴 SCAPULA", cover_title),
], [
    Paragraph("Bone Anatomy — Complete Reference", cover_sub),
], [
    Paragraph("Angles · Borders · Surfaces · Processes · Muscle Attachments · Clinical Correlates",
              cover_note),
], [
    Paragraph("Source: Gray's Anatomy for Students", cover_note),
]]
cover_tbl = Table(cover_data, colWidths=[W])
cover_tbl.setStyle(TableStyle([
    ("BACKGROUND",    (0,0), (-1,-1), DEEP_TEAL),
    ("TOPPADDING",    (0,0), (-1,-1), 14),
    ("BOTTOMPADDING", (0,0), (-1,-1), 14),
    ("LEFTPADDING",   (0,0), (-1,-1), 20),
    ("RIGHTPADDING",  (0,0), (-1,-1), 20),
    ("ROUNDEDCORNERS",[8]),
]))
story.append(cover_tbl)
story.append(Spacer(1, 0.5*cm))

# ── OVERVIEW ──────────────────────────────────────────────────────
story.append(section_header("📌  Overview", DEEP_TEAL))
story.append(Spacer(1, 3*mm))
story.append(Paragraph(
    "The scapula is a large, flat, <b>triangular bone</b> lying on the posterolateral thorax "
    "between ribs 2–7. It is entirely surrounded by muscles and has no direct bony articulation "
    "with the thorax. It connects the upper limb to the axial skeleton via the clavicle.",
    body))

# Quick-reference cards
story.append(Spacer(1, 3*mm))
overview_rows = [
    ("Bone Type", "Flat, triangular"),
    ("Location", "Posterolateral thorax — ribs 2 to 7"),
    ("Angles (3)", "Lateral (glenoid) · Superior · Inferior"),
    ("Borders (3)", "Superior · Lateral (axillary) · Medial (vertebral)"),
    ("Surfaces (2)", "Posterior (dorsal) · Costal (anterior/ventral)"),
    ("Processes (3)", "Spine · Acromion · Coracoid process"),
    ("Articulations", "Glenohumeral · Acromioclavicular · Scapulothoracic"),
]
for lbl, val in overview_rows:
    story.append(info_card(lbl, val))
story.append(Spacer(1, 5*mm))

# ── IMAGE ─────────────────────────────────────────────────────────
if has_image:
    story.append(section_header("🖼️  Anatomical Views", INDIGO))
    story.append(Spacer(1, 4*mm))
    story.append(scapula_img)
    story.append(Paragraph(

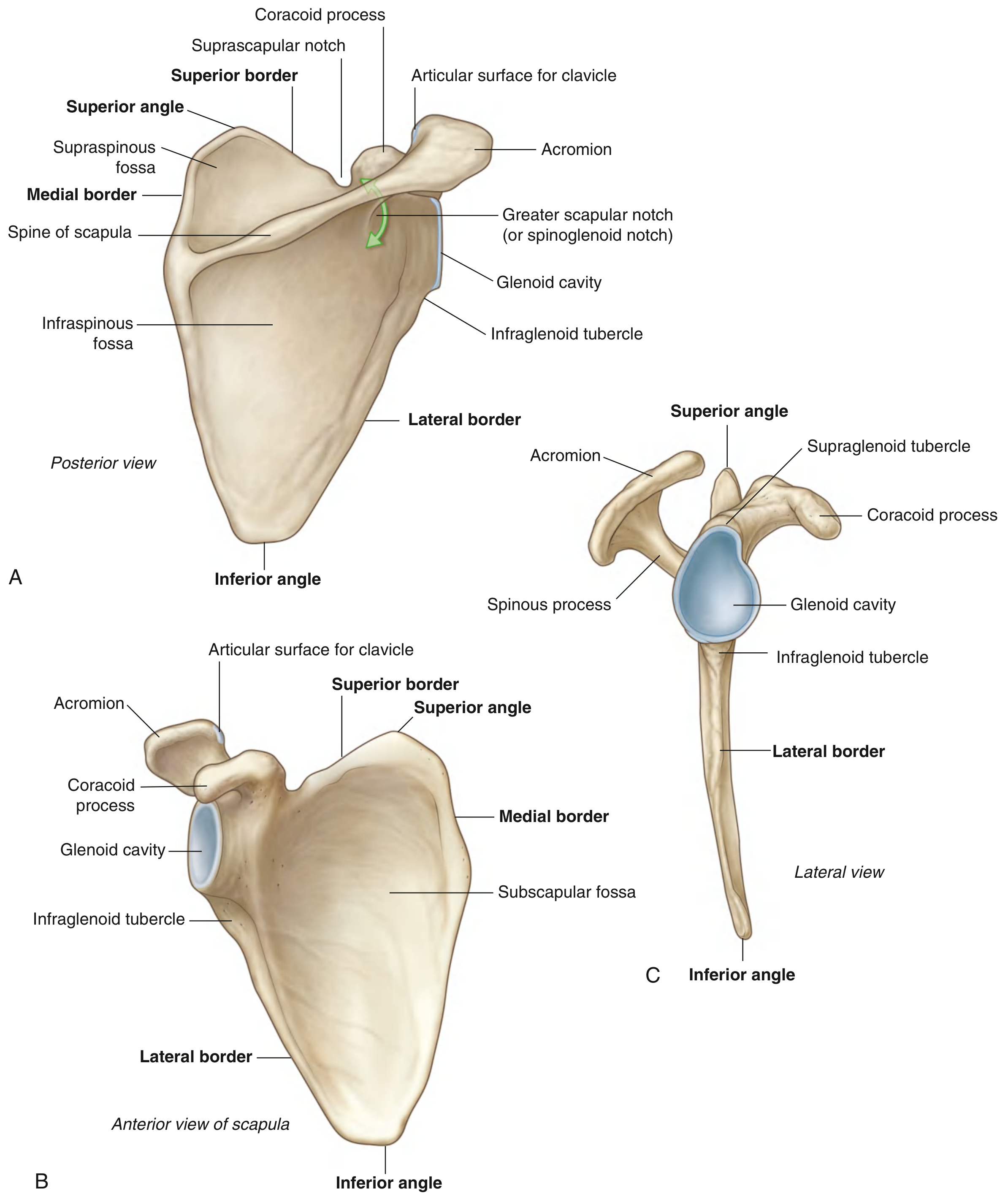

        "Fig. 7.21  Right Scapula — (A) Posterior view  (B) Anterior/Costal view  (C) Lateral view",
        caption))
    story.append(Spacer(1, 4*mm))

# ── SURFACES ─────────────────────────────────────────────────────
story.append(section_header("🔵  Surfaces", TEAL))
story.append(Spacer(1, 3*mm))

story.append(Paragraph("<b>Posterior Surface</b>", h2))
surf_data = [
    ("Supraspinous fossa", "Small, superior compartment above the spine — lodges <b>supraspinatus</b>"),
    ("Infraspinous fossa", "Larger, inferior compartment below the spine — lodges <b>infraspinatus</b>"),
    ("Spinoglenoid notch\n(greater scapular notch)", "Region between lateral angle and spine attachment; suprascapular nerve passes through here"),
]
story.append(make_table(["Structure", "Details"],
                        surf_data,
                        [5.5*cm, W-5.5*cm], TEAL))
story.append(Spacer(1, 4*mm))

story.append(Paragraph("<b>Costal (Anterior) Surface</b>", h2))
story.append(Paragraph(
    "Features a large, shallow concave <b>subscapular fossa</b> over most of its extent, "
    "lodging the <i>subscapularis</i> muscle. The costal surface and subscapularis glide "
    "freely over the thoracic wall (scapulothoracic 'joint').",
    body))
story.append(Spacer(1, 4*mm))

# ── BORDERS ──────────────────────────────────────────────────────
story.append(section_header("🟠  Borders", ORANGE))
story.append(Spacer(1, 3*mm))
border_rows = [
    ("Lateral (Axillary)", "Thick and strong", "Teres major, Teres minor"),
    ("Medial (Vertebral)", "Thin and sharp; parallel to spine", "Serratus anterior, Rhomboids"),
    ("Superior", "Thin and sharp; bears suprascapular notch", "Omohyoid (medial part)"),
]
story.append(make_table(
    ["Border", "Character", "Key Muscle Attachments"],
    border_rows,
    [4*cm, 5.5*cm, W-9.5*cm], ORANGE))
story.append(Spacer(1, 5*mm))

# ── ANGLES ────────────────────────────────────────────────────────
story.append(section_header("🟣  Angles", PURPLE))
story.append(Spacer(1, 3*mm))
angle_rows = [
    ("Lateral angle",  "Bears the glenoid cavity — shallow, comma-shaped articular surface",
     "Glenohumeral joint with humeral head"),
    ("Superior angle", "Junction of medial and superior borders",
     "Levator scapulae"),
    ("Inferior angle", "Junction of medial and lateral borders; palpable landmark; moves anterolaterally on arm elevation",
     "Teres major, lower serratus anterior"),
]
story.append(make_table(
    ["Angle", "Features", "Significance"],
    angle_rows,
    [3.5*cm, 7*cm, W-10.5*cm], PURPLE))
story.append(Spacer(1, 5*mm))

# ── PROCESSES ────────────────────────────────────────────────────
story.append(section_header("🟢  Processes", GREEN))
story.append(Spacer(1, 3*mm))

proc_rows = [
    ("Spine",
     "Prominent horizontal ridge on posterior surface, subdividing it into supra- and infraspinous fossae; rises laterally into acromion",
     "Trapezius (insertion)"),
    ("Acromion",
     "Anterolateral projection of spine; arches over glenohumeral joint; distal oval facet → acromioclavicular joint; easily palpated at shoulder tip",
     "Deltoid (origin); Trapezius (insertion)"),
    ("Coracoid process",
     "Hook-like structure projecting anterolaterally from superior border; lies inferior to lateral clavicle; palpable through deltopectoral groove",
     "Pectoralis minor; Short head biceps; Coracobrachialis; Coracoacromial / coracohumeral / coracoclavicular ligaments"),
]
story.append(make_table(
    ["Process", "Description", "Attachments"],
    proc_rows,
    [3.5*cm, 7*cm, W-10.5*cm], GREEN))
story.append(Spacer(1, 5*mm))

# ── TUBERCLES & NOTCHES ───────────────────────────────────────────
story.append(section_header("🔴  Tubercles & Notches", RED))
story.append(Spacer(1, 3*mm))
tn_rows = [
    ("Supraglenoid tubercle",   "Superior to glenoid cavity",           "Origin — long head of biceps brachii"),
    ("Infraglenoid tubercle",   "Inferior to glenoid cavity",           "Origin — long head of triceps brachii"),
    ("Suprascapular notch",     "Superior border, medial to coracoid root",
     "Suprascapular nerve passes through (under transverse scapular lig.); artery passes over"),
    ("Spinoglenoid notch",      "Between spine and lateral angle",      "Suprascapular nerve enters infraspinous fossa"),
]
story.append(make_table(
    ["Structure", "Location", "Clinical / Functional Significance"],
    tn_rows,
    [4.5*cm, 4.5*cm, W-9*cm], RED))
story.append(Spacer(1, 5*mm))

# ── MUSCLE ATTACHMENTS ────────────────────────────────────────────
story.append(section_header("💪  Muscle Attachments", INDIGO))
story.append(Spacer(1, 3*mm))
muscle_rows = [
    ("Supraspinatus",           "Supraspinous fossa",                  "Rotator cuff — abduction"),
    ("Infraspinatus",           "Infraspinous fossa",                  "Rotator cuff — external rotation"),
    ("Subscapularis",           "Subscapular fossa (costal surface)",  "Rotator cuff — internal rotation"),
    ("Teres minor",             "Lateral border (upper)",              "Rotator cuff — external rotation"),
    ("Teres major",             "Lateral border (lower) / inf. angle", "Adduction & internal rotation"),
    ("Serratus anterior",       "Medial border + inferior angle",      "Protraction; holds scapula against chest wall"),
    ("Rhomboids major & minor", "Medial border",                       "Retraction; elevation of medial border"),
    ("Trapezius",               "Spine and acromion",                  "Elevation, retraction, depression of scapula"),
    ("Levator scapulae",        "Superior angle + medial border",      "Elevation of scapula"),
    ("Pectoralis minor",        "Coracoid process (tip)",              "Protraction; depression of scapula"),
    ("Biceps brachii (short)",  "Coracoid process (tip)",              "Forearm flexion / supination"),
    ("Biceps brachii (long)",   "Supraglenoid tubercle",               "Forearm flexion / supination"),
    ("Triceps brachii (long)",  "Infraglenoid tubercle",               "Elbow extension"),
    ("Coracobrachialis",        "Coracoid process (tip)",              "Arm flexion / adduction"),
    ("Omohyoid (inf. belly)",   "Superior border (medial notch)",      "Depression of hyoid bone"),
]
story.append(make_table(
    ["Muscle", "Attachment Site", "Action"],
    muscle_rows,
    [5*cm, 6*cm, W-11*cm], INDIGO))
story.append(Spacer(1, 5*mm))

# ── ARTICULATIONS ─────────────────────────────────────────────────
story.append(section_header("🔗  Articulations", AMBER))
story.append(Spacer(1, 3*mm))
art_rows = [
    ("Glenohumeral joint",       "Glenoid cavity × head of humerus",  "Ball-and-socket (multiaxial); most mobile joint in body"),
    ("Acromioclavicular joint",  "Acromion × lateral clavicle",       "Plane synovial joint; stabilised by AC & CC ligaments"),
    ("Scapulothoracic 'joint'",  "Costal surface × thoracic wall",    "Physiological gliding interface (not true synovial); serratus anterior essential"),
]
story.append(make_table(
    ["Joint", "Articulating Surfaces", "Type / Notes"],
    art_rows,
    [5*cm, 5.5*cm, W-10.5*cm], AMBER))
story.append(Spacer(1, 5*mm))

# ── CLINICAL CORRELATES ───────────────────────────────────────────
story.append(section_header("🏥  Clinical Correlates", RED))
story.append(Spacer(1, 3*mm))

clinicals = [
    ("⚡ Winged Scapula",
     LIGHT_RED, RED,
     "Paralysis of <b>serratus anterior</b> due to damage of the <b>long thoracic nerve (C5–C7)</b> "
     "causes the medial border and inferior angle to protrude posteriorly. The 'wing' is accentuated "
     "on forward arm elevation. Arm abduction is limited beyond 90°.<br/>"
     "<i>Vulnerable during:</i> axillary dissection (mastectomy), rucksack/backpack compression, "
     "penetrating trauma."),
    ("⚡ Suprascapular Nerve Entrapment",
     LIGHT_AMBER, ORANGE,
     "Compression at the <b>suprascapular notch</b> (affects supraspinatus AND infraspinatus — "
     "weak abduction + external rotation) or at the <b>spinoglenoid notch</b> (affects infraspinatus "
     "only — weak external rotation). Presents as deep, poorly localised posterior shoulder pain."),
    ("⚡ Scapular Fractures",
     LIGHT_INDIGO, INDIGO,
     "Rare (<1% of all fractures) due to heavy muscular protection. Requires significant force "
     "(high-velocity trauma). The <b>body and neck</b> are most commonly fractured. Always evaluate "
     "for associated neurovascular injuries and pneumothorax."),
    ("⚡ Suprascapular Notch Variation",
     LIGHT_GREEN, GREEN,
     "The notch may be partially or completely ossified (forming a foramen), increasing risk of "
     "suprascapular nerve entrapment. Important consideration before surgical decompression."),
]

for title_text, bg_col, fg_col, content in clinicals:
    card_data = [[
        Paragraph(title_text,
                  S("CT", fontName="Helvetica-Bold", fontSize=11,
                    textColor=fg_col, leading=15)),
    ],[
        Paragraph(content,
                  S("CB", fontName="Helvetica", fontSize=10,
                    textColor=DARK_GREY, leading=14, alignment=TA_JUSTIFY)),
    ]]
    card = Table(card_data, colWidths=[W])
    card.setStyle(TableStyle([
        ("BACKGROUND",    (0,0), (-1,0), bg_col),
        ("BACKGROUND",    (0,1), (-1,1), WHITE),
        ("LEFTPADDING",   (0,0), (-1,-1), 10),
        ("RIGHTPADDING",  (0,0), (-1,-1), 10),
        ("TOPPADDING",    (0,0), (-1,-1), 6),
        ("BOTTOMPADDING", (0,0), (-1,-1), 6),
        ("BOX",           (0,0), (-1,-1), 0.8, fg_col),
        ("LINEBELOW",     (0,0), (-1,0), 0.5, fg_col),
    ]))
    story.append(KeepTogether([card, Spacer(1, 4*mm)]))

# ── FOOTER NOTE ───────────────────────────────────────────────────
story.append(HRFlowable(width="100%", thickness=1, color=TEAL))
story.append(Spacer(1, 2*mm))
story.append(Paragraph(
    "<i>Source: Gray's Anatomy for Students, p. 821–822 · Generated by Orris Medical AI</i>",
    note_style))

# ── BUILD ─────────────────────────────────────────────────────────
doc.build(story)
print(f"PDF saved to {OUTPUT}")
