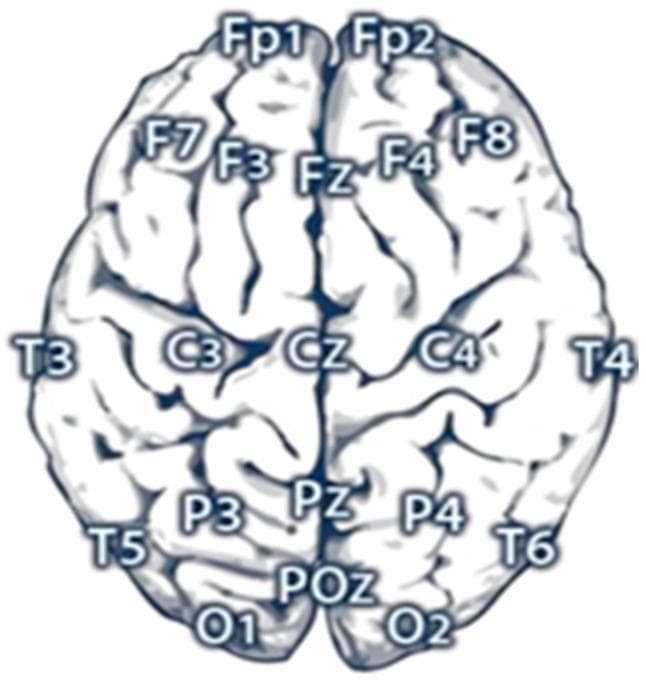

This anatomical diagram illustrates the standardized electrode placement for Electroencephalography (EEG) mapping over a superior view of the human brain. The visualization shows a 21-electrode configuration based on the International 10-20 system, emphasizing key cortical regions including frontal, central, parietal, temporal, and occipital lobes. Along the sagittal midline, the electrodes are labeled Fp (frontal pole), Fz (frontal), Cz (central), Pz (parietal), and POz (parietal-occipital). Bilateral symmetric electrodes are identified by odd numbers for the left hemisphere (Fp1, F3, F7, C3, T3, P3, T5, O1) and even numbers for the right hemisphere (Fp2, F4, F8, C4, T4, P4, T6, O2). The diagram serves as an educational tool for neuroscience and clinical neurophysiology, demonstrating the precise spatial distribution required for monitoring regional cerebral electrical activity and identifying cortical signal origins during diagnostic procedures like epilepsy monitoring or cognitive research.

This anatomical diagram illustrates the standardized electrode placement for Electroencephalography (EEG) mapping over a superior view of the human brain. The visualization shows a 21-electrode configuration based on the International 10-20 system, emphasizing key cortical regions including frontal, central, parietal, temporal, and occipital lobes. Along the sagittal midline, the electrodes are labeled Fp (frontal pole), Fz (frontal), Cz (central), Pz (parietal), and POz (parietal-occipital). Bilateral symmetric electrodes are identified by odd numbers for the left hemisphere (Fp1, F3, F7, C3, T3, P3, T5, O1) and even numbers for the right hemisphere (Fp2, F4, F8, C4, T4, P4, T6, O2). The diagram serves as an educational tool for neuroscience and clinical neurophysiology, demonstrating the precise spatial distribution required for monitoring regional cerebral electrical activity and identifying cortical signal origins during diagnostic procedures like epilepsy monitoring or cognitive research.

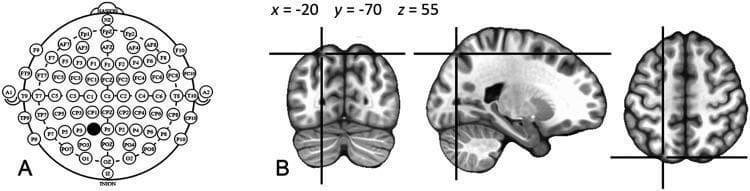

This composite educational graphic illustrates the localization of cortical stimulation targets. Panel A presents a top-down schematic diagram of the International 10-20 system for Electroencephalography (EEG) electrode placement. It displays a comprehensive grid of labeled electrode positions, including frontal (F), central (C), parietal (P), temporal (T), and occipital (O) sites. The P1 electrode position is highlighted with a black circle, indicating its selection as a stimulation target. Panel B provides a corresponding diagnostic visualization using a standardized MNI (Montreal Neurological Institute) brain template in three anatomical planes: coronal, sagittal, and axial. Crosshairs pinpoint the precise cortical projection of the P1 scalp coordinate at MNI coordinates x = -20, y = -70, z = 55, located in the posterior part of the left intraparietal sulcus (IPS). This visualization demonstrates the relationship between external scalp landmarks used in Transcranial Magnetic Stimulation (TMS) and underlying neuroanatomical structures, serving as a methodological guide for neuroimaging and brain stimulation research.

This composite educational graphic illustrates the localization of cortical stimulation targets. Panel A presents a top-down schematic diagram of the International 10-20 system for Electroencephalography (EEG) electrode placement. It displays a comprehensive grid of labeled electrode positions, including frontal (F), central (C), parietal (P), temporal (T), and occipital (O) sites. The P1 electrode position is highlighted with a black circle, indicating its selection as a stimulation target. Panel B provides a corresponding diagnostic visualization using a standardized MNI (Montreal Neurological Institute) brain template in three anatomical planes: coronal, sagittal, and axial. Crosshairs pinpoint the precise cortical projection of the P1 scalp coordinate at MNI coordinates x = -20, y = -70, z = 55, located in the posterior part of the left intraparietal sulcus (IPS). This visualization demonstrates the relationship between external scalp landmarks used in Transcranial Magnetic Stimulation (TMS) and underlying neuroanatomical structures, serving as a methodological guide for neuroimaging and brain stimulation research.

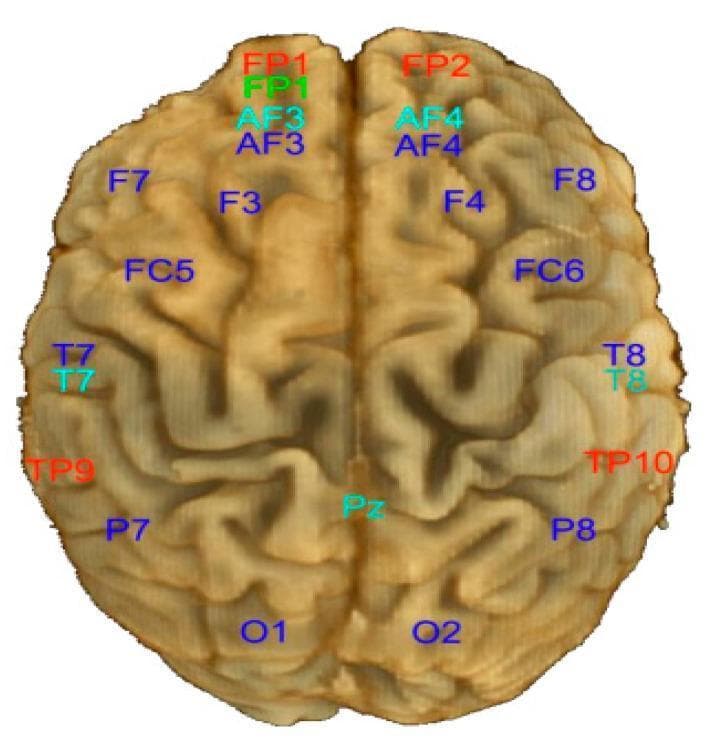

This anatomical diagram presents a superior (top-down) view of the human brain, illustrating the standardized electrode placement for the Emotiv EPOC 14-channel electroencephalography (EEG) system. The brain's cortical gyri and sulci are visible, with the longitudinal fissure dividing the left and right hemispheres. Electrodes are labeled according to the International 10-20 system nomenclature. In the left hemisphere, channels include AF3 (Anterior Frontal), F7 and F3 (Frontal), FC5 (Frontocentral), T7 (Temporal), P7 (Parietal), and O1 (Occipital). Symmetric placements in the right hemisphere are labeled AF4, F8, F4, FC6, T8, P8, and O2. Frontal pole labels (FP1 and FP2) are positioned at the anterior aspect, while a midline parietal electrode (Pz) is shown near the posterior vertex. Additionally, mastoid or temporoparietal reference points (TP9 and TP10) are marked. The diagram utilizes color-coded text to differentiate specific electrode groups, with the primary 14 recording channels typically highlighted in dark blue. This visual serves as a topographical map for clinical neurophysiology and research applications involving portable EEG cap configurations.

This anatomical diagram presents a superior (top-down) view of the human brain, illustrating the standardized electrode placement for the Emotiv EPOC 14-channel electroencephalography (EEG) system. The brain's cortical gyri and sulci are visible, with the longitudinal fissure dividing the left and right hemispheres. Electrodes are labeled according to the International 10-20 system nomenclature. In the left hemisphere, channels include AF3 (Anterior Frontal), F7 and F3 (Frontal), FC5 (Frontocentral), T7 (Temporal), P7 (Parietal), and O1 (Occipital). Symmetric placements in the right hemisphere are labeled AF4, F8, F4, FC6, T8, P8, and O2. Frontal pole labels (FP1 and FP2) are positioned at the anterior aspect, while a midline parietal electrode (Pz) is shown near the posterior vertex. Additionally, mastoid or temporoparietal reference points (TP9 and TP10) are marked. The diagram utilizes color-coded text to differentiate specific electrode groups, with the primary 14 recording channels typically highlighted in dark blue. This visual serves as a topographical map for clinical neurophysiology and research applications involving portable EEG cap configurations.

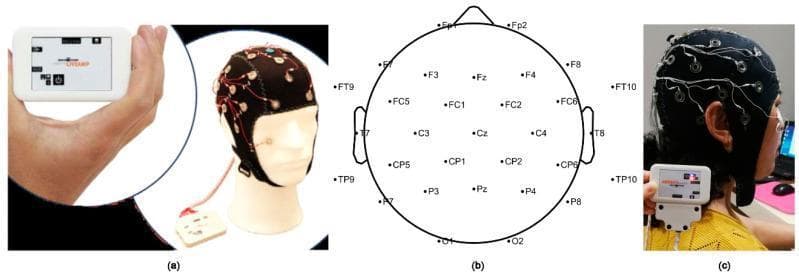

This composite educational graphic illustrates a clinical electroencephalography (EEG) setup and the standardized electrode placement system. Image (a) shows the physical components: a handheld Brain Products LiveAmp wireless amplifier and a black electrode cap fitted with active sensors and red wiring, secured with a chin strap. Image (b) is a technical diagram of the International 10-20 system for a 32-channel configuration. It details the anatomical distribution of electrodes across the frontal (Fp, F), central (C), parietal (P), temporal (T), and occipital (O) regions, along with frontocentral (FC), centroparietal (CP), and temporal-parietal (TP) nodes. Image (c) displays the clinical application on a human subject, demonstrating the lateral view of the electrode cap in use with the amplifier attached to the shoulder. This material is designed for medical training in neurophysiology, demonstrating how standardized topographical maps translate to real-world clinical equipment for monitoring cortical electrical activity.

This composite educational graphic illustrates a clinical electroencephalography (EEG) setup and the standardized electrode placement system. Image (a) shows the physical components: a handheld Brain Products LiveAmp wireless amplifier and a black electrode cap fitted with active sensors and red wiring, secured with a chin strap. Image (b) is a technical diagram of the International 10-20 system for a 32-channel configuration. It details the anatomical distribution of electrodes across the frontal (Fp, F), central (C), parietal (P), temporal (T), and occipital (O) regions, along with frontocentral (FC), centroparietal (CP), and temporal-parietal (TP) nodes. Image (c) displays the clinical application on a human subject, demonstrating the lateral view of the electrode cap in use with the amplifier attached to the shoulder. This material is designed for medical training in neurophysiology, demonstrating how standardized topographical maps translate to real-world clinical equipment for monitoring cortical electrical activity.

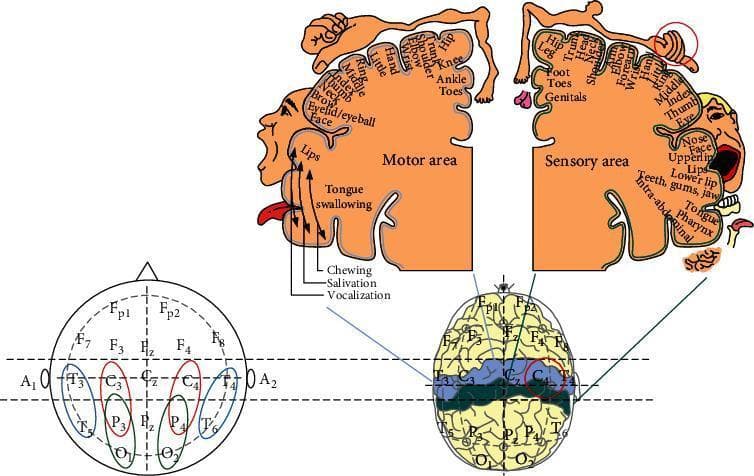

A multi-panel medical diagram illustrating electroencephalography (EEG) electrode placement and cortical mapping. The lower-left panel shows a standard 10-20 international system head map, labeling positions including Frontal-polar (Fp1, Fp2), Frontal (F3, Fz, F4), Central (C3, Cz, C4), Parietal (P3, Pz, P4), Temporal (T3-T6), and Occipital (O1, O2). Specific electrode pairs (T3-C3-P3-O1 and T4-C4-P4-O2) are highlighted, indicating bipolar recording configurations. The central lower figure depicts these electrodes on a 3D brain model, emphasizing the sensorimotor strip (precentral and postcentral gyri) in blue and green. The upper panels display the motor and sensory homunculi, providing a visual representation of somatotopic organization. The motor area maps cortical regions to body parts such as the thumb, face, and tongue for movement control, while the sensory area maps regions for tactile perception, including the genitals, feet, and hands. A red circle highlights the C4 electrode region, correlating with sensory input from the palm, demonstrating the relationship between specific scalp electrode locations and corresponding cortical functional zones.

A multi-panel medical diagram illustrating electroencephalography (EEG) electrode placement and cortical mapping. The lower-left panel shows a standard 10-20 international system head map, labeling positions including Frontal-polar (Fp1, Fp2), Frontal (F3, Fz, F4), Central (C3, Cz, C4), Parietal (P3, Pz, P4), Temporal (T3-T6), and Occipital (O1, O2). Specific electrode pairs (T3-C3-P3-O1 and T4-C4-P4-O2) are highlighted, indicating bipolar recording configurations. The central lower figure depicts these electrodes on a 3D brain model, emphasizing the sensorimotor strip (precentral and postcentral gyri) in blue and green. The upper panels display the motor and sensory homunculi, providing a visual representation of somatotopic organization. The motor area maps cortical regions to body parts such as the thumb, face, and tongue for movement control, while the sensory area maps regions for tactile perception, including the genitals, feet, and hands. A red circle highlights the C4 electrode region, correlating with sensory input from the palm, demonstrating the relationship between specific scalp electrode locations and corresponding cortical functional zones.

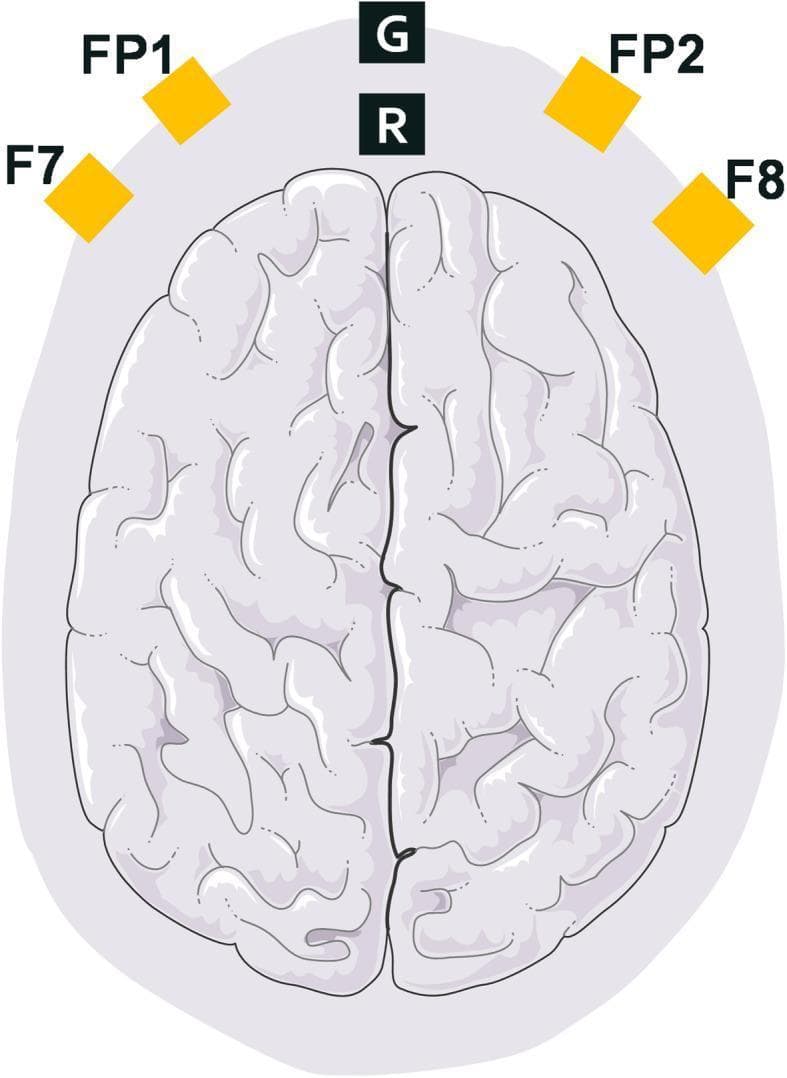

This anatomical diagram provides a superior view of the human brain, specifically illustrating the electrode montage for frontal-lobe electroencephalography (EEG) monitoring. The diagram highlights the placement of six electrodes relative to the cerebral cortex. Four active recording electrodes, marked by yellow squares, are positioned according to the International 10-20 system: FP1 and FP2 (pre-frontal) and F7 and F8 (frontal-temporal), situated over the frontal lobes of the left and right hemispheres respectively. Additionally, two central electrodes are positioned along the midline (longitudinal fissure): 'G' representing the Ground electrode and 'R' representing the Reference electrode. This specific array is commonly used in clinical anesthesia and critical care to monitor brain function, depth of sedation, and to perform coherence analysis during drug-induced loss of consciousness. The illustration effectively demonstrates the spatial distribution required for capturing bipolar frontal channel data in neurophysiological research and clinical monitoring.

This anatomical diagram provides a superior view of the human brain, specifically illustrating the electrode montage for frontal-lobe electroencephalography (EEG) monitoring. The diagram highlights the placement of six electrodes relative to the cerebral cortex. Four active recording electrodes, marked by yellow squares, are positioned according to the International 10-20 system: FP1 and FP2 (pre-frontal) and F7 and F8 (frontal-temporal), situated over the frontal lobes of the left and right hemispheres respectively. Additionally, two central electrodes are positioned along the midline (longitudinal fissure): 'G' representing the Ground electrode and 'R' representing the Reference electrode. This specific array is commonly used in clinical anesthesia and critical care to monitor brain function, depth of sedation, and to perform coherence analysis during drug-induced loss of consciousness. The illustration effectively demonstrates the spatial distribution required for capturing bipolar frontal channel data in neurophysiological research and clinical monitoring.

Reading File
Finding Sources
Searching Images

EEG brain waves alpha beta theta delta normal waveforms

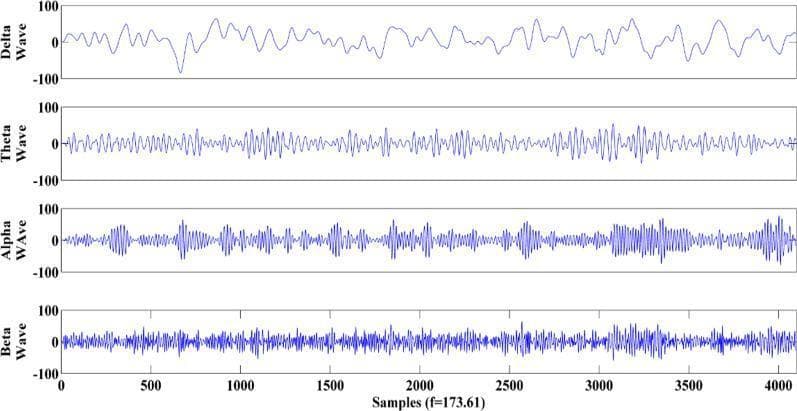

This Comparison Chart illustrates the four primary brain rhythm waveforms derived from human Electroencephalogram (EEG) data: Delta, Theta, Alpha, and Beta waves. The visualization displays each rhythm in a separate horizontal panel, plotted against a horizontal axis representing samples (0 to 4000) at a frequency of 173.61 Hz. The vertical axis for all panels indicates amplitude in microvolts (µV), ranging from -100 to 100. The Delta wave (0.5–4 Hz) shows the lowest frequency with broad, high-amplitude slow oscillations. The Theta wave (4–8 Hz) demonstrates increased frequency compared to Delta. The Alpha wave (8–14 Hz) exhibits a distinct intermediate frequency often characterized by synchronized bursts. The Beta wave (14–30 Hz) displays the highest frequency with rapid, dense oscillations and relatively lower amplitude. This educational diagram is used in neurology and clinical neurophysiology to teach the visual identification and frequency-amplitude relationships of different neurological states, such as wakefulness, relaxation, or sleep stages, based on EEG signal processing.

This Comparison Chart illustrates the four primary brain rhythm waveforms derived from human Electroencephalogram (EEG) data: Delta, Theta, Alpha, and Beta waves. The visualization displays each rhythm in a separate horizontal panel, plotted against a horizontal axis representing samples (0 to 4000) at a frequency of 173.61 Hz. The vertical axis for all panels indicates amplitude in microvolts (µV), ranging from -100 to 100. The Delta wave (0.5–4 Hz) shows the lowest frequency with broad, high-amplitude slow oscillations. The Theta wave (4–8 Hz) demonstrates increased frequency compared to Delta. The Alpha wave (8–14 Hz) exhibits a distinct intermediate frequency often characterized by synchronized bursts. The Beta wave (14–30 Hz) displays the highest frequency with rapid, dense oscillations and relatively lower amplitude. This educational diagram is used in neurology and clinical neurophysiology to teach the visual identification and frequency-amplitude relationships of different neurological states, such as wakefulness, relaxation, or sleep stages, based on EEG signal processing.

This diagnostic diagram illustrates the four primary temporal waveforms of electroencephalography (EEG) signal recording: Beta, Alpha, Theta, and Delta waves. Each waveform is displayed on a horizontal timeline from 0 to 4 seconds, demonstrating the relationship between frequency and amplitude. The Beta wave (13–30 Hz) shows the highest frequency with low-amplitude, rapid oscillations, typical of active concentration or an awake patient with open eyes. The Alpha wave (8–12 Hz) displays a slightly lower frequency with more rhythmic, synchronized peaks. The Theta wave (4–7 Hz) exhibits a further reduction in frequency with a regular, sawtooth-like pattern, often associated with deep relaxation or light sleep. The Delta wave (0.5–4 Hz) presents the lowest frequency with slow, high-amplitude irregular oscillations, characteristic of deep sleep or anesthesia. This comparison chart is essential for clinical neurophysiology to distinguish between different stages of consciousness, sleep, and neurological states based on cortical electrical activity.

This diagnostic diagram illustrates the four primary temporal waveforms of electroencephalography (EEG) signal recording: Beta, Alpha, Theta, and Delta waves. Each waveform is displayed on a horizontal timeline from 0 to 4 seconds, demonstrating the relationship between frequency and amplitude. The Beta wave (13–30 Hz) shows the highest frequency with low-amplitude, rapid oscillations, typical of active concentration or an awake patient with open eyes. The Alpha wave (8–12 Hz) displays a slightly lower frequency with more rhythmic, synchronized peaks. The Theta wave (4–7 Hz) exhibits a further reduction in frequency with a regular, sawtooth-like pattern, often associated with deep relaxation or light sleep. The Delta wave (0.5–4 Hz) presents the lowest frequency with slow, high-amplitude irregular oscillations, characteristic of deep sleep or anesthesia. This comparison chart is essential for clinical neurophysiology to distinguish between different stages of consciousness, sleep, and neurological states based on cortical electrical activity.

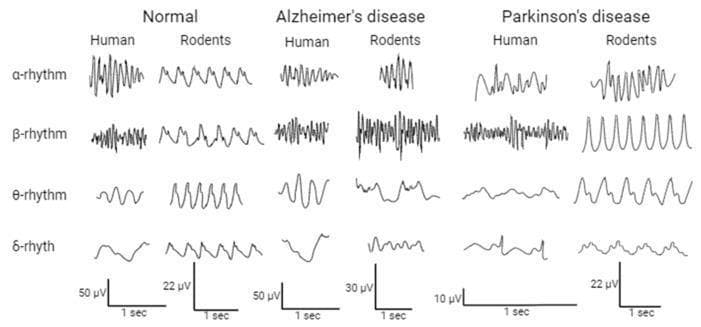

A comparative diagnostic chart displaying Electroencephalogram (EEG) waveforms across four frequency bands: alpha (α), beta (β), theta (θ), and delta (δ) rhythms. The grid compares brain activity in three cohorts: Normal subjects, Alzheimer's disease models, and Parkinson's disease models, with side-by-side sub-columns for humans and rodents. Key visual findings include the slowing and irregular shape of the human alpha rhythm in Alzheimer's disease compared to the rhythmic normal state. In Parkinson's disease, the human beta rhythm demonstrates increased variability and high-frequency oscillations, while the rodent beta rhythm shows a distinct, high-amplitude, repetitive sinusoidal-like pattern. Voltage and time scales (e.g., 50 μV per 1 sec) are provided for each human and animal model, highlighting differences in signal amplitude. This educational illustration demonstrates the translation of neurophysiological biomarkers between human clinical cases and animal research models in neurology and psychiatry.

A comparative diagnostic chart displaying Electroencephalogram (EEG) waveforms across four frequency bands: alpha (α), beta (β), theta (θ), and delta (δ) rhythms. The grid compares brain activity in three cohorts: Normal subjects, Alzheimer's disease models, and Parkinson's disease models, with side-by-side sub-columns for humans and rodents. Key visual findings include the slowing and irregular shape of the human alpha rhythm in Alzheimer's disease compared to the rhythmic normal state. In Parkinson's disease, the human beta rhythm demonstrates increased variability and high-frequency oscillations, while the rodent beta rhythm shows a distinct, high-amplitude, repetitive sinusoidal-like pattern. Voltage and time scales (e.g., 50 μV per 1 sec) are provided for each human and animal model, highlighting differences in signal amplitude. This educational illustration demonstrates the translation of neurophysiological biomarkers between human clinical cases and animal research models in neurology and psychiatry.

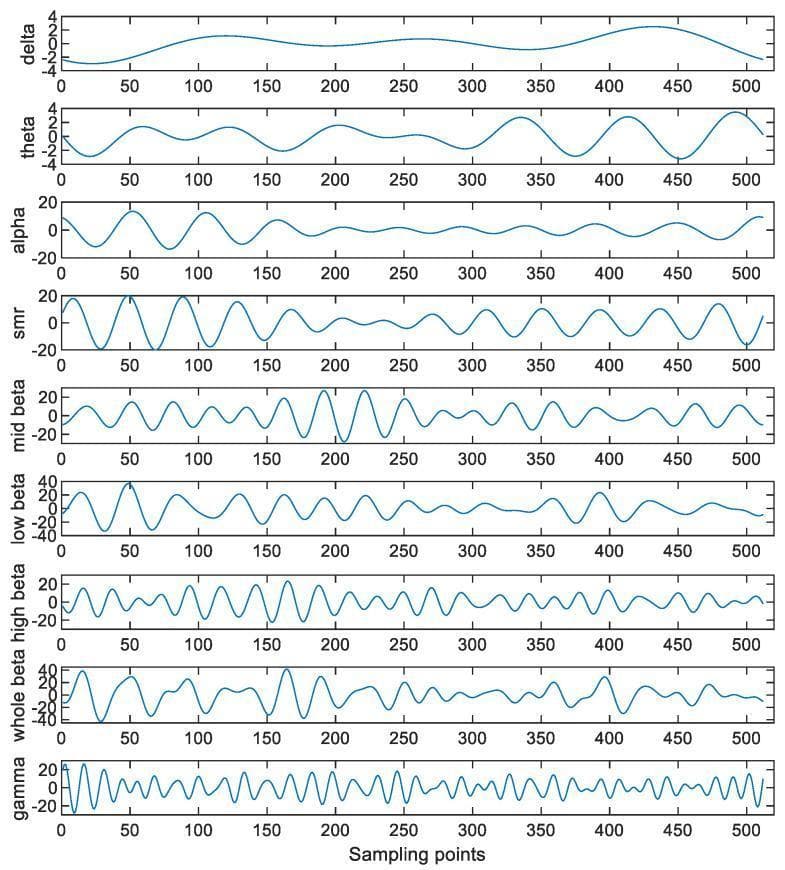

This diagnostic image displays a series of decomposed Electroencephalogram (EEG) waveforms extracted from a single-channel signal, categorized by standard neural oscillation frequency bands. The figure presents nine vertically stacked subplots, each plotted against 512 sampling points (representing one second of data at 512 Hz). From top to bottom, the waves demonstrate the inverse relationship between frequency and amplitude. The Delta and Theta waves show low-frequency, high-amplitude, slow oscillations. The Alpha wave displays a more rhythmic, sinusoidal pattern with a peak amplitude of approximately +/- 20. Mid-frequency bands including SMR, Mid Beta, Low Beta, High Beta, and Whole Beta show increasing oscillation density and more complex morphology. The bottom-most plot shows the Gamma wave (30-49 Hz), characterized by the highest frequency and most compressed peaks and troughs. This visualization is used in neurophysiology to analyze mental states—specifically concentration during cognitive activities—by decomposing raw EEG data into clinically relevant rhythmic components.

This diagnostic image displays a series of decomposed Electroencephalogram (EEG) waveforms extracted from a single-channel signal, categorized by standard neural oscillation frequency bands. The figure presents nine vertically stacked subplots, each plotted against 512 sampling points (representing one second of data at 512 Hz). From top to bottom, the waves demonstrate the inverse relationship between frequency and amplitude. The Delta and Theta waves show low-frequency, high-amplitude, slow oscillations. The Alpha wave displays a more rhythmic, sinusoidal pattern with a peak amplitude of approximately +/- 20. Mid-frequency bands including SMR, Mid Beta, Low Beta, High Beta, and Whole Beta show increasing oscillation density and more complex morphology. The bottom-most plot shows the Gamma wave (30-49 Hz), characterized by the highest frequency and most compressed peaks and troughs. This visualization is used in neurophysiology to analyze mental states—specifically concentration during cognitive activities—by decomposing raw EEG data into clinically relevant rhythmic components.

Reading File
Reading File
Loading Image
Reading File
Reading File
Reading File
I now have comprehensive, authoritative content from 4 major textbooks. Let me compile the full in-depth academic answer.

Electroencephalography (EEG) - In-Depth Academic Reference

1. Historical Background & Definition

The electroencephalograph was developed by Hans Berger in 1929. It records spontaneous electrical activity generated in the cerebral cortex - specifically voltage fluctuations arising from ionic currents in the extracellular spaces of the brain that represent the summated effects of innumerable excitatory and inhibitory synaptic potentials on cortical neurons.
  • Adams and Victor's Principles of Neurology, 12th Ed.

2. Physical Basis - What the EEG Actually Records

A single neuron's discharge can never be recorded from the scalp surface. Recording requires the synchronous firing of many thousands to millions of neurons. This has a critical implication:
"The intensity of brain waves from the scalp is determined mainly by the numbers of neurons firing in synchrony, not by the total level of electrical activity in the brain. Strong nonsynchronous nerve signals often nullify one another in the recorded brain waves because of opposing polarities."
  • Guyton & Hall Textbook of Medical Physiology
The surface EEG predominantly reflects the activity of cortical neurons in close proximity to each scalp electrode. Deep structures - the base of cortical gyri, mesial lobe walls, hippocampus, thalamus, and brainstem - do not contribute directly to the surface EEG.
  • Normal amplitude range: 20-100 μV
  • Normal frequency range: 1-30 Hz (some sources extend to 0.5-80 Hz)

3. Technical Setup

Electrodes

Silver or silver-silver chloride discs, ~0.5 cm diameter, applied to the scalp with conductive medium. Modern units have 8-32 or more amplifying channels. Display speed: 3 cm/second. Now stored in digital format; MRI-compatible electrodes are available.

The International 10-20 System

The standard electrode placement system. Electrodes are spaced at 10% or 20% intervals of the hemi-circumference of the head (nasion-to-inion and preauricular distances), ensuring reproducible positioning regardless of head size.
10-20 EEG electrode placement system - Adams and Victor's Principles of Neurology
Electrode naming convention:
  • F = Frontal, C = Central, P = Parietal, T = Temporal, O = Occipital, Fp = Frontopolar
  • Odd numbers = Left hemisphere; Even numbers = Right hemisphere
  • z suffix = Midline (Fz, Cz, Pz)

Montages & Recording

The output is a voltage-versus-time graph of simultaneous parallel channels ("wavy lines"). Each channel = voltage difference between two electrodes (bipolar recording). By convention: positive deflection = downward, negative = upward.
Spontaneous cortical activity is influenced and synchronized by subcortical structures - principally the thalamus and high brainstem reticular formation. Efferent impulses from these structures entrain cortical neurons into characteristic rhythmic patterns.

4. The Four Basic EEG Wave Types

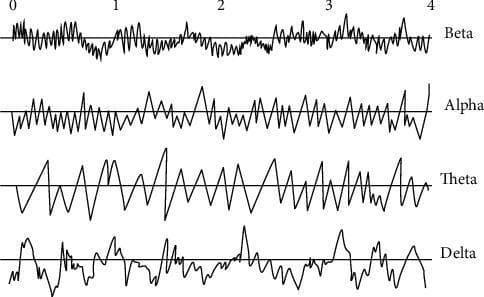

EEG brain waves: Delta, Theta, Alpha, Beta - frequency and amplitude comparison
WaveFrequencyAmplitudeStateLocation
Alpha (α)8-13 Hz~50 μVQuiet, relaxed wakefulness, eyes closedOccipital > Parietal > Frontal
Beta (β)13-30 Hz (up to 80 Hz)Low (~20 μV)Active mental effort, eyes open, anxietyParietal & Frontal
Theta (θ)4-7 HzMediumDrowsiness, light sleep; emotional stress; brain disordersParietal & Temporal (children), frontal-temporal in adults
Delta (δ)<3.5 Hz2-4x higher than othersDeep NREM sleep, infancy, severe organic brain diseaseDiffuse / cortical
Key clinical rule (Kandel - Principles of Neural Science): Theta and delta waves during wakefulness = sign of brain dysfunction.

Alpha Rhythm - Special Notes

  • Dominant rhythm of normal eyes-closed awake EEG
  • Alpha block / desynchronization: Opening eyes → alpha disappears, replaced by low-voltage high-frequency beta waves (EEG "desynchronization")
  • Can be altered by pharmacologic, metabolic, or endocrine variables

5. Origin of Brain Waves - Neural Mechanisms

Alpha Wave Origin

Alpha waves require intact cortical connections to the thalamus. Stimulation of the nonspecific reticular nuclei surrounding the thalamus or diffuse thalamic nuclei generates electrical oscillations at 8-13 Hz. Alpha waves therefore result from spontaneous feedback oscillation in the thalamocortical system, possibly also involving the reticular activating system. This oscillation periodically and synchronously activates millions of cortical neurons per wave cycle.

Delta Wave Origin

Unlike alpha, delta waves can arise independent of thalamic input - they persist even after transection of thalamocortical fibers. This implies a cortical-intrinsic synchronizing mechanism. Delta also appears during deep NREM sleep when the cortex is "released" from thalamic activating influences.
  • Guyton & Hall, Chapter 60

6. EEG with Varying Levels of Cerebral Activity

Level of ActivityDominant Pattern
Intense mental activity / frightAsynchronous beta (high frequency, low voltage)
Relaxed wakefulnessAlpha (synchronous, ~50 μV)
Drowsiness / light sleepTheta waves; sleep spindles (14 Hz bursts, also called sigma waves)
Deep NREM sleep (Stage 3-4)Delta waves (1-3 Hz)
Surgical anesthesiaDelta
Sleep progression: Alpha → irregular low-voltage theta (drowsy) → vertex sharp waves → sleep spindles (14 Hz / sigma waves) → high-voltage delta (deep sleep).

7. Activating Procedures

Standard clinical EEG includes three activating maneuvers to elicit latent abnormalities:
  1. Hyperventilation: Patient breathes deeply 20x/min for 3 minutes. Through an incompletely understood mechanism, this may activate characteristic seizure patterns or other abnormalities.
  2. Photic stimulation (Intermittent Photic Stimulation / IPS): A strobe light placed ~15 inches from the patient's eyes flashes at 1-20 Hz. In normal subjects, occipital leads show photic driving (visually evoked responses time-locked to each flash). In susceptible individuals (e.g., photosensitive epilepsy), it triggers a photoparoxysmal response - abnormal generalized spike-and-wave discharges.
  3. Sleep recording: The drowsy and sleep transition states can reveal abnormalities not present during wakefulness.
  • Adams and Victor's Principles of Neurology

8. Normal EEG - Age-Related Changes

Maturation progression (Kaplan & Sadock's Synopsis of Psychiatry):
  • Infant: Preponderance of irregular medium-to-high voltage delta activity
  • Early childhood: Rhythmic activity in upper theta-lower alpha range (7-8 Hz) in posterior areas
  • Mid-adolescence: EEG essentially has adult appearance

9. Abnormal EEG Patterns (Waking)

FindingSignificance
Generalized or focal delta in waking EEGStrongly indicative of pathophysiologic process
Excessive theta in waking EEGSuggests pathologic process (generalized or focal)
Focal slow waves (delta) in one regionStructural lesion (tumor, infarct, abscess, contusion) in that area
Focal spike-and-slow-wave dischargesEpileptogenic focus
Generalized spike-and-wave (3 Hz)Absence epilepsy (petit mal)
Phase reversalLocalizes the spike generator - found at the electrode where polarity reverses between adjacent channels

Phase Reversal

If a spike appears at T3, it will appear as a downward deflection in the F7-T3 channel and an upward deflection in T3-T5. The reversal point localizes the generator.

10. Clinical Applications

IndicationEEG Role
EpilepsyConfirm diagnosis, classify seizure type, localize epileptogenic focus
Brain deathElectrocerebral silence (isoelectric EEG) is one of the criteria
Sleep studies (polysomnography)Staging NREM/REM sleep
EncephalopathyMetabolic, toxic, infectious - generalized slow-wave activity
Creutzfeldt-Jakob disease (prion)Periodic sharp-wave complexes - useful adjunctive test
Intraoperative monitoringMonitor cerebral activity under anesthesia
ICU monitoringDetect non-convulsive status epilepticus, monitor depth of sedation
Note: EEG has largely been supplanted by CT and MRI for structural lesion localization, but remains essential for seizure assessment. - Adams and Victor's

Summary Table: EEG Waves at a Glance

AlphaBetaThetaDelta
Hz8-13>13 (up to 80)4-7<3.5
μV~50~20 (low)MediumVery high
Normal contextRelaxed, eyes closedAlert, activeDrowsy, childrenDeep sleep, infancy
Abnormal if present during wakefulnessReduced = dysfunctionExcess (some drugs)Excessive waking = pathologyAny significant waking delta = pathology
OriginThalamocortical feedbackCortical (activated)Cortical/limbicIntrinsic cortical (independent of thalamus)
Sources:
  • Adams and Victor's Principles of Neurology, 12th Ed. - Chapter 2 (EEG section, pp. 40-42)
  • Guyton and Hall Textbook of Medical Physiology - Chapter 60 (Brain Waves)
  • Kandel's Principles of Neural Science, 6th Ed. - Chapter 58
  • Kaplan and Sadock's Synopsis of Psychiatry - Chapter 33 (Normal and Abnormal EEG)
