πŸ«€ INFECTIVE ENDOCARDITIS (IE) - Complete Notes

1. WHAT IS IT? (Definition)

Infective Endocarditis = Microbial infection of the endocardial surface of the heart, almost always producing vegetations (masses of fibrin, platelets, and microorganisms) on the heart valves.
Think of it this way: Bugs enter the bloodstream β†’ stick to a damaged valve β†’ form a clump (vegetation) β†’ this clump can break off and travel anywhere in the body.
Surfaces involved:
  • Heart valves (most common) - mitral, aortic, pulmonary, septal valves
  • Prosthetic valves
  • Sometimes the wall of the cardiac chamber itself
Also called: Bacterial Endocarditis (but note - it is NOT always bacterial!) Other organisms: rickettsiae, chlamydiae, fungi, viruses

2. THE FLOW: HOW DOES IE DEVELOP?

PREDISPOSING FACTOR (damaged valve / IV drug use)
         ↓
BACTERAEMIA (bacteria enter the blood)
  - Dental procedures, surgery, GI/GU manipulation,
    IV drug injection, intravascular catheters
         ↓
BACTERIA SEED A VALVE
  - Damaged endothelium β†’ sterile platelet-fibrin clot forms
  - Bacteria stick to this clot
         ↓
VEGETATION FORMS
  (fibrin + platelets + bacteria = friable clump on valve)
         ↓
THREE PATHWAYS OF DAMAGE:
  1. Local destruction (valve rupture, myocardial abscess)
  2. Embolization (vegetations break off β†’ travel to brain, kidneys, skin)
  3. Immune complex deposition (circulating immune complexes β†’ Osler's nodes, Roth spots)

3. PREDISPOSING FACTORS (Who is at risk?)

Risk FactorWhy It Matters
Rheumatic valvular diseaseScarred, irregular valve surface - bacteria can easily stick
Congenital heart disease (VSD, PDA)Turbulent blood flow damages endothelium
Prosthetic valve surgeryForeign material = easy bacterial colonization
Intravenous drug use (IDU)Direct injection of bacteria into bloodstream; often affects right-sided valves (tricuspid)
Degenerative cardiac diseasesCalcium deposits on valves create rough surfaces
PPM (Pacemaker), Central catheters, Dialysis shuntsLines provide a physical path for bacteria to reach the heart
Memory tip: "RCP-IDD" - Rheumatic, Congenital, Prosthetic, IV drugs, Degenerative, Devices

4. CATEGORIES OF IE

IE
β”œβ”€β”€ 1. Native Valve Endocarditis
β”‚       β”œβ”€β”€ Congenital heart disease
β”‚       β”œβ”€β”€ Rheumatic heart disease
β”‚       └── Degenerative heart disease
β”‚
β”œβ”€β”€ 2. Prosthetic Valve Endocarditis
β”‚       (Early <60 days vs Late >60 days post-surgery)
β”‚
β”œβ”€β”€ 3. IE in IV Drug Abusers
β”‚       (Often affects right-sided valves; S. aureus dominant)
β”‚
└── 4. Health Care-Associated IE
        (Catheters, dialysis, pacemakers)

5. CAUSATIVE ORGANISMS

πŸ”΄ Gram-Positive Bacteria (Most Common Overall)

OrganismClinical SettingType of IE
Viridans Streptococci (S. mutans, S. sanguinis)Normal oral flora; dental proceduresSubacute IE
Enterococcus faecalis / faeciumGI/GU procedures, elderlySubacute IE
S. bovis (S. gallolyticus)Associated with colon cancer!Subacute IE
S. aureusSkin, IV drug users, healthcareAcute IE - most aggressive
Coagulase-negative Staph (S. epidermidis)Prosthetic valvesSubacute IE
Memory tip for most common: "SSS EE" - Streptococci viridans, S. aureus, S. bovis, Enterococci, E. faecalis

πŸ”΅ Gram-Negative Bacteria: HACEK Group

These are fastidious (slow-growing, hard to culture) organisms that normally live in the mouth/throat:
HHaemophilus spp. (aphrophilus, paraphrophilus, influenzae, parainfluenzae)
AActinobacillus actinomycetemcomitans
CCardiobacterium hominis
EEikenella corrodens
KKingella kingae, K. denitrificans
Key point: HACEK are oral commensals. They cause IE after dental procedures or poor oral hygiene. With modern automated blood culture systems, they usually grow within 2-3 days (historically were difficult to culture).

πŸ”΅ Non-HACEK Gram-Negatives (Rare)

  • Salmonella, E. coli, Proteus mirabilis, Klebsiella, Pseudomonas aeruginosa (common in IV drug users)

πŸ”¬ Culture-Negative Endocarditis (CNE) - ~10% of cases

These organisms do not grow in standard blood cultures - need special tests:
OrganismClue / Special Test
Coxiella burnetii (Q fever)Anti-phase 1 IgG antibody titre > 1:800 (serology)
Bartonella spp.Serology; often in homeless/cat exposure
Chlamydia psittaciSerology; bird exposure
Brucella spp.Repeat culture with special media
Legionella spp.Serology / urine antigen
Tropheryma whippleiPCR; causes Whipple's disease
Fungi (Candida, Aspergillus)Blood culture + special fungal media
Why is it culture-negative? Either: (1) prior antibiotics killed the bacteria before culture, or (2) the organism is inherently fastidious.

6. CLINICAL FEATURES - The "3-Source Model"

All symptoms can be explained by 3 sources:
SOURCE 1 β†’ LOCAL CARDIAC DAMAGE
  - New or changed heart murmur (valve destruction)
  - Heart failure (valve regurgitation)
  - Myocardial abscess
  - Valve rupture

SOURCE 2 β†’ EMBOLIZATION (vegetation breaks off)
  - Brain: stroke / mycotic aneurysm
  - Kidneys: flank pain, hematuria
  - Spleen: splenomegaly, infarcts
  - Lungs (right-sided IE): septic pulmonary emboli
  - Skin: Janeway lesions (non-tender, on palms/soles) ← emboli
  - Eyes: emboli to retinal vessels

SOURCE 3 β†’ IMMUNE COMPLEX DEPOSITION (body's immune response)
  - Osler's nodes: TENDER nodules on finger/toe pads ← immune complexes
  - Roth spots: retinal hemorrhages with pale center ← immune complexes
  - Glomerulonephritis (immune complex deposition in kidney)
  - Arthritis

CONSTANT BACTERAEMIA β†’ Fever (most consistent symptom!)
Memory: Janeway vs Osler - "Janeway = Just emboli (painless), Osler = Ouch! (painful, immune)"

7. ACUTE vs SUBACUTE IE - Side-by-Side

FeatureACUTE IESUBACUTE IE (SABE)
CourseFulminant (days to <6 weeks)Insidious (6 weeks to months)
FeverHigh feverLow-grade fever, night sweats
ToxicitySevere systemic toxicityVague systemic complaints (fatigue, weight loss)
WBCLeucocytosisNormal or mildly elevated
Prior valve diseaseNot requiredUsually present
OrganismsS. aureus, S. pneumoniae, S. pyogenes, N. gonorrhoeaeViridans Streptococci, S. bovis, Enterococci, CoNS
ValveCan attack normal valvesUsually abnormal/damaged valves
Analogy: Acute IE is like a wildfire - fast, destroys everything. Subacute IE is like dry rot - slow, sneaky, but still destructive.

8. MODIFIED DUKE CRITERIA - Diagnosis

Purpose: Classify patients as Definite / Possible / Rejected IE

MAJOR Criteria (2 needed for definite IE)

  1. Blood culture positive for IE organisms (typical organisms in β‰₯2 separate cultures)
  2. Echocardiogram positive - showing vegetation, abscess, or new dehiscence of prosthetic valve; OR new valvular regurgitation

MINOR Criteria

  1. Predisposing heart condition or IV drug use
  2. Fever (β‰₯38Β°C)
  3. Vascular phenomena (major arterial emboli, septic pulmonary infarcts, Janeway lesions, mycotic aneurysm, conjunctival hemorrhage)
  4. Immunologic phenomena (Osler's nodes, Roth spots, Rheumatoid factor, glomerulonephritis)
  5. Microbiologic evidence (positive blood culture that does not meet major criterion)

Scoring:

  • DEFINITE IE = 2 major; OR 1 major + 3 minor; OR 5 minor
  • POSSIBLE IE = 1 major + 1 minor; OR 3 minor
  • Rejected = firm alternative diagnosis; or resolved with antibiotics in ≀4 days

9. LABORATORY DIAGNOSIS - Step by Step

Step 1: Blood Culture (MOST IMPORTANT TEST)

BLOOD CULTURE PROTOCOL:
β”œβ”€β”€ Number: 3 sets is ideal (2 may be enough)
β”œβ”€β”€ Timing: At hourly intervals, within 24 hours
β”‚           (NOT less than 1 hour apart)
β”œβ”€β”€ Volume: Adults = 10 ml (minimum 5 ml) per bottle
β”‚           Children = 1-3 ml
β”œβ”€β”€ Technique: Strict aseptic measures
β”‚           Clean skin with 70% alcohol / povidone-iodine
β”‚
β”œβ”€β”€ When to take extra sets?
β”‚   - If patient already on antibiotics
β”‚   - If fastidious organisms are suspected
β”‚
└── Why multiple cultures?
    Bacteremia in IE is CONTINUOUS (not intermittent like in other infections)
    β†’ No need to time with fever spikes

Step 2: Processing in Lab

  • Culture on Blood Agar (BA) + MacConkey Agar
  • Test isolates for Minimum Inhibitory Concentration (MIC) - especially for penicillin
  • Monitor serum aminoglycoside levels to:
    • Confirm adequate treatment
    • Minimize toxicity

Step 3: If Culture Negative

  • Prior antibiotics β†’ Repeat cultures over several days without antibiotics
  • Fastidious bacteria (e.g., Brucella) β†’ Special culture media
  • Obligate intracellular organisms (Coxiella, Chlamydia) β†’ Serology
    • Coxiella: Anti-phase 1 IgG > 1:800

Step 4: Other Specimens

  • Culture of heart valves removed at surgery
  • Culture of emboli removed at surgery
  • Serology for Coxiella, Chlamydia psittaci, Brucella

10. PATHOLOGY - What Does It Look Like?

The vegetation is the hallmark lesion of IE:
  • Composition: thrombotic debris (fibrin + platelets) + microorganisms
  • Located usually on the line of closure of the valve leaflet
  • Appearance: Irregular, friable, shaggy masses
  • Can destroy the valve leaflet, chordae tendineae, and underlying tissue
Gross pathology of mitral valve involvement in IE:
Gross mitral valve vegetation in infective endocarditis

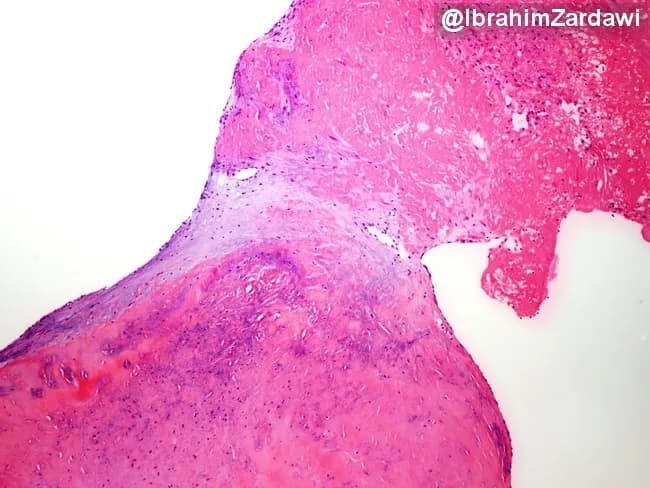

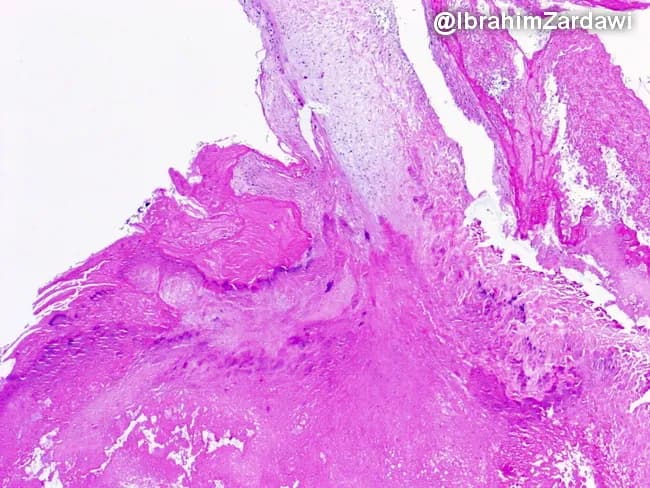

Histology of vegetation (H&E stain):
Histology of cardiac valve vegetation in IE

11. TREATMENT

Principles (BPPD)

  • Bactericidal antibiotics only (bacteriostatics are insufficient - organisms are deep in avascular fibrin)
  • Parenteral (IV) administration - ensures reliable blood levels
  • Proper dosage - high doses to penetrate vegetations
  • Duration: 4-6 weeks minimum

Empirical Treatment (when you can't wait for culture)

Take 3 blood cultures first, THEN start antibiotics!
Empirical regimen must cover:
  1. Penicillin-sensitive Streptococci (most common community-acquired)
  2. Enterococci
  3. Penicillinase-producing Staphylococci (MRSA coverage if healthcare-associated)

12. PREVENTION (Chemoprophylaxis)

High-Risk Patients Who Need Prophylaxis:

  • Prosthetic heart valves
  • Prior history of IE
  • Congenital heart disease (unrepaired cyanotic CHD)
  • Valvular heart disease

Procedures Requiring Prophylaxis (in high-risk patients):

  • Dental procedures (manipulating gingiva/periapical region)
  • Respiratory procedures
  • GI/GU manipulation or surgery
  • Open heart surgery
Important update: Guidelines now recommend prophylaxis only for the highest-risk patients undergoing only a few specific procedures - not for all patients with any heart condition.

QUICK SUMMARY FLOWCHART

BACTERAEMIA (dental/surgery/IV drugs)
        ↓
Bacteria adhere to damaged valve
        ↓
VEGETATION FORMS (fibrin + platelets + bugs)
        ↓
     β”Œβ”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”¬β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”€β”
     ↓                  ↓                    ↓
Local damage        Embolism           Immune Complexes
(murmur, CHF,    (stroke, infarcts,   (Osler's nodes,
 abscess)        Janeway lesions)      Roth spots, GN)
        ↓
DIAGNOSIS: Blood culture + Echo (Duke Criteria)
        ↓
TREATMENT: IV Bactericidal antibiotics x 4-6 weeks
        ↓
PREVENTION: Prophylaxis in HIGH-RISK patients

MEMORY HOOKS AT A GLANCE

ConceptMemory Aid
Organisms in native valve IE"VS-E-SE": Viridans Strep, Enterococci, S. aureus, S. epidermidis
HACEK"Have A Clean Eating Kitchen"
Culture-negative organisms"Big Cats Bring Loud Trouble" - Bartonella, Coxiella, Brucella, Legionella, Tropheryma
Janeway vs OslerJaneway = painless, palms/soles (embolism); Osler = painful, fingers (immune)
Acute vs Subacute organismsAcute = S. aureus (the destroyer); Subacute = Viridans Strep (the sneak)
Blood culture rule3 sets, 1 hour apart, aseptic technique, adults 10 ml each
Treatment duration4-6 weeks IV bactericidal antibiotics
Sources: Lecture slides (Infective Endocarditis.pptx); Robbins & Kumar Basic Pathology, p.368; Tietz Textbook of Laboratory Medicine, 7th Ed., p.3154

Give newly modified duke criteria 2026

The Duke Criteria were last formally revised in 2023 by the European Society of Cardiology (ESC), incorporating 18F-FDG PET/CT and CT angiography as new imaging modalities. I'm not aware of a separate "2026" revision, but let me search for the most current version.
Searching sources...
Searching the Web

modified Duke criteria 2023 2024 2025 updated infective endocarditis new criteria

Searching PubMed

"Duke criteria" AND "infective endocarditis" AND diagnosis

Reading Web Page

https://pubrica.com/wp-content/uploads/2025/11/Clinical-Infe…

Reading Article

PMID: 37138445

Searching the Web

Duke ISCVID 2023 criteria complete table minor criteria predisposing conditions imaging PET CT full list

Reading Web Page

https://pmc.ncbi.nlm.nih.gov/articles/PMC10681650

I now have all the information needed for a thorough answer. Here are the most current updated Duke criteria:

2023 Duke-ISCVID Criteria for Infective Endocarditis

(The Most Current Version - Published August 2023, Endorsed by 2023 ESC Guidelines)

Important clarification: There is no separate "2026" revision. The most current version is the 2023 Duke-ISCVID Criteria published in Clinical Infectious Diseases by Fowler et al. (PMID: 37138445). This replaced the Modified Duke Criteria (Li 2000) and is the current gold standard as of 2026. It is designed as a "Living Document" with periodic online updates.

OVERALL CLASSIFICATION - Unchanged Structure

ClassificationCriteria
DEFINITE IE2 Major; OR 1 Major + 3 Minor; OR 5 Minor (Clinical) OR Pathologic criteria
POSSIBLE IE1 Major + 1 Minor; OR 3 Minor
REJECTED IEFirm alternative diagnosis; OR resolution with antibiotics ≀4 days; OR no pathologic evidence at surgery/autopsy after ≀4 days of antibiotics

DEFINITE IE - Pathologic Criteria (Unchanged)

  • Microorganisms identified in vegetation, embolic vegetation, or intracardiac abscess by culture, histology, PCR, amplicon/metagenomic sequencing, or in situ hybridization
    New addition: Molecular identification methods (PCR, sequencing) are now formally included alongside culture

MAJOR CRITERIA

A. Microbiologic Major Criteria

(1) Positive Blood Cultures - UPDATED RULES

Old Modified Duke (2000)New Duke-ISCVID (2023)
Typical organisms2 separate cultures, timed >12h apart2 or more separate blood culture sets - timing requirements removed
Nontypical organismsNot specified separately3 or more separate blood culture sets
Venipuncture requirementSeparate venipunctures requiredSeparate venipuncture requirement removed
"Typical" IE organisms (2 or more cultures = Major):
  • Viridans group Streptococci
  • Streptococcus bovis / S. gallolyticus
  • HACEK group
  • Staphylococcus aureus
  • Enterococcus faecalis (community-acquired, no primary focus) - NEW ADDITION
  • Staphylococcus lugdunensis - NEW ADDITION
  • Streptococcus pyogenes - NEW ADDITION
"Typical ONLY with intracardiac prosthesis" (NEW category):
  • Coagulase-negative Staphylococci
  • Cutibacterium acnes
"Nontypical" organisms (need 3 or more cultures):
  • Any other organism not listed above

(2) Positive Laboratory Tests - MAJOR NEW ADDITIONS

TestOrganismCriterion Level
PCR or nucleic acid-based techniqueCoxiella burnetii, Bartonella spp., Tropheryma whipplei - from blood or tissueMAJOR
Enzyme immunoassay (EIA)Anti-phase 1 IgG for Coxiella burnetii titre > 1:800MAJOR
Amplicon or metagenomic sequencingCoxiella, Bartonella, T. whipplei from blood/tissueMAJOR
In situ hybridizationAny organism in appropriate tissue sampleMAJOR (pathologic)
PCR/sequencing for OTHER organismsAny other organism from blood (not above 3)MINOR only (pending more data)

B. Imaging Major Criteria - MAJOR EXPANSION

ModalityFindings for Major CriterionNotes
Echocardiography (TTE/TEE)Vegetation, abscess, pseudoaneurysm, intracardiac fistula, valvular perforation, new partial dehiscence of prosthetic valveUnchanged; cornerstone; TEE preferred
Cardiac CT (NEW)Paravalvular lesions (abscess, pseudoaneurysm, fistula), new partial dehiscence of prosthetic valveEquivalent to echo; especially useful for prosthetic valves
[18F]FDG PET/CT (NEW)Abnormal metabolic activity involving a native or prosthetic valve, ascending aortic graft (with valve involvement), intracardiac device leads, or other prosthetic materialValid for prosthetic valve only if >3 months post-surgery; for CIEDs/leads at any time
Why was PET/CT added? Echocardiography can miss IE on prosthetic valves (metal artifacts). PET/CT detects metabolic activity of infection even when echo is negative.

C. Surgical Major Criteria - BRAND NEW CATEGORY

Intraoperative direct inspection showing evidence of IE (vegetations, abscess, valvular destruction, dehiscence or loosening of prosthetic valve, other direct evidence) - counts as MAJOR only when:
  • No Major Imaging Criterion is available, AND
  • No subsequent histologic or microbiologic confirmation is available
Why added? Surgeons often directly see IE evidence during emergency surgery, before labs confirm it. This gives those findings formal diagnostic weight.

MINOR CRITERIA

A. Predisposing Conditions - EXPANDED

Old criteria included: Mitral valve prolapse, rheumatic heart disease, degenerative valvular disease, IV drug use
2023 Duke-ISCVID now includes:
  • Previous history of IE - NEWLY ADDED
  • Prosthetic valve (any type)
  • Previous valve repair
  • Congenital heart disease
  • More than mild regurgitation or stenosis of any etiology
  • Endovascular CIED (Cardiac Implantable Electronic Device) - NEWLY ADDED (pacemakers, defibrillators)
  • Transcatheter valve implant/repair (TAVI/TAVR) - NEWLY ADDED
  • IV drug use
  • Hypertrophic obstructive cardiomyopathy

B. Fever - UNCHANGED

  • Temperature > 38Β°C (100.4Β°F)

C. Vascular Phenomena - EXPANDED

Old criteria included: Major arterial emboli, septic pulmonary infarcts, mycotic aneurysm, intracranial hemorrhage, conjunctival hemorrhages, Janeway lesions
2023 criteria add:
  • Splenic abscess - NEWLY ADDED
  • Cerebral abscess - NEWLY ADDED

D. Immunologic Phenomena - CLARIFIED

Unchanged list + now includes a formal definition for immune complex mediated glomerulonephritis:
  • Osler's nodes (tender subcutaneous nodules on finger/toe pads)
  • Roth spots (retinal hemorrhages with pale center)
  • Rheumatoid factor positivity
  • Glomerulonephritis (with new specific definition added)

E. Microbiologic (Minor) - UPDATED

  • Positive blood culture that does NOT meet Major Criterion
  • NEW: Positive PCR or amplicon/metagenomic sequencing for organisms other than C. burnetii, Bartonella, or T. whipplei (those 3 = MAJOR; all others from blood = MINOR pending more data)

F. Imaging (Minor) - NEW MINOR

  • [18F]FDG PET/CT showing abnormal activity around prosthetic valve when done within 3 months of cardiac surgery (too soon after surgery = minor, not major, due to normal post-op inflammation)

WHAT CHANGED vs THE OLD MODIFIED DUKE CRITERIA? - Summary Table

FeatureOld Modified Duke (2000)New Duke-ISCVID (2023)
Blood culture timingRequired 12h apart / 24h windowTiming removed
Separate venipunctureRequiredRemoved
Typical organismsNarrow listExpanded (S. lugdunensis, E. faecalis, S. pyogenes added)
Prosthesis-specific organismsNot recognizedNew category: CoNS & C. acnes = typical only with prosthesis
Cardiac CTNot recognizedNew MAJOR imaging criterion
18F-FDG PET/CTNot recognizedNew MAJOR (>3 months post-surgery) or Minor (<3 months)
Surgical evidenceNot recognizedNew MAJOR criterion
PCR / Metagenomic sequencingNot recognizedMAJOR for Coxiella/Bartonella/Whipplei; MINOR for others
Prior IE as predisposingNot includedNew MINOR predisposing condition
CIED/TAVINot includedNew MINOR predisposing conditions
Splenic/cerebral abscessNot includedNew MINOR vascular phenomena
FeverMinor criterionUnchanged (though 2025 studies suggest removing it improves specificity)

PERFORMANCE OF THE 2023 CRITERIA

Based on external validation studies (2024):
  • Sensitivity: 84.2% (vs 74% for old Modified Duke)
  • Specificity: 93.9% (significantly better than 2023 ESC criteria which had 82.1%)

QUICK MEMORY AID FOR MAJOR CRITERIA (2023)

3 domains of MAJOR criteria:

M - MICROBIOLOGY (blood cultures + PCR/serology for Coxiella/Bartonella/Whipplei)
I - IMAGING (Echo + Cardiac CT + PET/CT >3 months post-op)
S - SURGERY (direct intraoperative inspection)
Bottom line for 2026 clinical practice: The 2023 Duke-ISCVID criteria are what you use today. The biggest practical changes are: (1) Cardiac CT and PET/CT are now formal major criteria - order them when echo is non-diagnostic, especially for prosthetic valves; (2) Molecular tests (PCR, metagenomic sequencing) now have formal diagnostic standing; (3) Blood culture timing rules are relaxed. The criteria are maintained as a living document by ISCVID.
Source: Fowler VG et al. "The 2023 Duke-ISCVID Criteria for IE." Clin Infect Dis. 2023;77(4):518-526. PMID: 37138445

make pdf πŸ˜…

Reading File

use this lab manual to re create the laboratory diagnosis part and give a nice detailed flow chart using the lecture note also

Let me first read the lab manual and the PPTX content simultaneously.
Reading File
Running Command

cd "/tmp/workspace/attachments/6d777fb2-3783-43b1-8f92-0a79a5cb9274" && python3 -c " from pptx import Presentation prs = Presentation('Infective Endocarditis.pptx') for i, slide in enumerate(prs.slides, 1): txt = [] for shape in slide.shapes: if shape.has_text_frame and shape.text_frame.text.strip(): txt.append(shape.text_frame.text.strip()) if txt: print(f'\n=== SLIDE {i} ===') for t in txt: print(t) "

Now let me extract the lab manual PDF content:
Running Command

python3 -c " import pdfplumber path = '/tmp/workspace/attachments/6d777fb2-3783-43b1-8f92-0a79a5cb9274/Lab-Manual-1 (1) 2.pdf' with pdfplumber.open(path) as pdf: print(f'Total pages: {len(pdf.pages)}') for i, page in enumerate(pdf.pages, 1): text = page.extract_text() if text and text.strip(): print(f'\n===PAGE {i}===') print(text) " 2>&1 | head -400

Good - it's the Sri Lanka College of Microbiologists Lab Manual. Now let me get the blood culture section (section 1.1):
Running Command

python3 -c " import pdfplumber path = '/tmp/workspace/attachments/6d777fb2-3783-43b1-8f92-0a79a5cb9274/Lab-Manual-1 (1) 2.pdf' with pdfplumber.open(path) as pdf: # Blood and bone marrow cultures starts at page 1 (index 12 approx, after front matter) # Let's get pages 12-35 (section 1.1 blood culture) for i in range(12, 50): page = pdf.pages[i] text = page.extract_text() if text and text.strip(): print(f'\n===PAGE {i+1}===') print(text) " 2>&1

I have all the content I need. Now let me build the full PDF with detailed lab diagnosis notes and a visual flowchart using reportlab:
Running Command

mkdir -p /tmp/workspace/ie-lab-notes && cat > /tmp/workspace/ie-lab-notes/build_pdf.py << 'PYEOF' from reportlab.lib.pagesizes import A4 from reportlab.lib import colors from reportlab.lib.units import cm, mm from reportlab.lib.styles import getSampleStyleSheet, ParagraphStyle from reportlab.platypus import (SimpleDocTemplate, Paragraph, Spacer, Table, TableStyle, PageBreak, HRFlowable, KeepTogether) from reportlab.platypus.flowables import Flowable from reportlab.lib.enums import TA_CENTER, TA_LEFT, TA_JUSTIFY from reportlab.pdfgen import canvas from reportlab.graphics.shapes import Drawing, Rect, String, Line, Polygon from reportlab.graphics import renderPDF import textwrap # ── Colour palette ────────────────────────────────────────────────────────── DARK_BLUE = colors.HexColor('#1A3A5C') MID_BLUE = colors.HexColor('#2E6DA4') LIGHT_BLUE = colors.HexColor('#D6E8F7') ACCENT = colors.HexColor('#E74C3C') GREEN = colors.HexColor('#27AE60') AMBER = colors.HexColor('#E67E22') LIGHT_GREY = colors.HexColor('#F4F6F8') MID_GREY = colors.HexColor('#BDC3C7') WHITE = colors.white YELLOW_HL = colors.HexColor('#FFF9C4') W, H = A4 # ── Document ───────────────────────────────────────────────────────────────── doc = SimpleDocTemplate( '/tmp/workspace/ie-lab-notes/IE_Lab_Diagnosis.pdf', pagesize=A4, leftMargin=1.8*cm, rightMargin=1.8*cm, topMargin=2*cm, bottomMargin=2*cm, title='IE Laboratory Diagnosis', author='SLCM Lab Manual / IE Lecture Notes' ) styles = getSampleStyleSheet() def S(name, **kw): return ParagraphStyle(name, **kw) title_style = S('Title2', fontName='Helvetica-Bold', fontSize=22, textColor=WHITE, alignment=TA_CENTER, spaceAfter=4) subtitle_style = S('Sub', fontName='Helvetica', fontSize=11, textColor=LIGHT_BLUE, alignment=TA_CENTER, spaceAfter=2) h1 = S('H1', fontName='Helvetica-Bold', fontSize=14, textColor=WHITE, spaceAfter=6, spaceBefore=4) h2 = S('H2', fontName='Helvetica-Bold', fontSize=12, textColor=DARK_BLUE, spaceAfter=4, spaceBefore=8) h3 = S('H3', fontName='Helvetica-Bold', fontSize=10.5, textColor=MID_BLUE, spaceAfter=3, spaceBefore=5) body = S('Body2', fontName='Helvetica', fontSize=9.5, leading=14, textColor=colors.HexColor('#2C3E50'), spaceAfter=3, alignment=TA_JUSTIFY) bullet = S('Bullet2', fontName='Helvetica', fontSize=9.5, leading=14, textColor=colors.HexColor('#2C3E50'), leftIndent=14, spaceAfter=2, bulletIndent=4, bulletFontName='Helvetica') note_style = S('Note', fontName='Helvetica-Oblique', fontSize=9, textColor=colors.HexColor('#7F8C8D'), leftIndent=10, spaceAfter=4, leading=13) bold_body = S('BoldBody', fontName='Helvetica-Bold', fontSize=9.5, textColor=DARK_BLUE, spaceAfter=2) red_note = S('RedNote', fontName='Helvetica-Bold', fontSize=9.5, textColor=ACCENT, spaceAfter=3, leading=13) def B(text): return f'<b>{text}</b>' def I(text): return f'<i>{text}</i>' def C(text, col='#E74C3C'): return f'<font color="{col}">{text}</font>' # ── Helper flowables ────────────────────────────────────────────────────────── def header_box(text, bg=DARK_BLUE, fg=WHITE, fontsize=14): data = [[Paragraph(f'<font color="white"><b>{text}</b></font>', ParagraphStyle('hb', fontName='Helvetica-Bold', fontSize=fontsize, textColor=fg, alignment=TA_CENTER))]] t = Table(data, colWidths=[doc.width]) t.setStyle(TableStyle([ ('BACKGROUND', (0,0), (-1,-1), bg), ('TOPPADDING', (0,0), (-1,-1), 8), ('BOTTOMPADDING', (0,0), (-1,-1), 8), ('LEFTPADDING', (0,0), (-1,-1), 10), ('RIGHTPADDING', (0,0), (-1,-1), 10), ('ROUNDEDCORNERS', [6,6,6,6]), ])) return t def section_box(text, bg=LIGHT_BLUE, fg=DARK_BLUE, fontsize=11): data = [[Paragraph(f'<font color="{fg.hexval()}"><b>{text}</b></font>', ParagraphStyle('sb', fontName='Helvetica-Bold', fontSize=fontsize, textColor=fg, alignment=TA_LEFT))]] t = Table(data, colWidths=[doc.width]) t.setStyle(TableStyle([ ('BACKGROUND', (0,0), (-1,-1), bg), ('TOPPADDING', (0,0), (-1,-1), 6), ('BOTTOMPADDING', (0,0), (-1,-1), 6), ('LEFTPADDING', (0,0), (-1,-1), 10), ('BOX', (0,0), (-1,-1), 0.5, MID_BLUE), ])) return t def highlight_box(text, bg=YELLOW_HL, border=AMBER): data = [[Paragraph(text, ParagraphStyle('hl', fontName='Helvetica', fontSize=9.5, leading=14, textColor=colors.HexColor('#2C3E50')))]] t = Table(data, colWidths=[doc.width]) t.setStyle(TableStyle([ ('BACKGROUND', (0,0), (-1,-1), bg), ('BOX', (0,0), (-1,-1), 1.5, border), ('TOPPADDING', (0,0), (-1,-1), 6), ('BOTTOMPADDING', (0,0), (-1,-1), 6), ('LEFTPADDING', (0,0), (-1,-1), 10), ('RIGHTPADDING', (0,0), (-1,-1), 10), ])) return t def two_col_table(left_data, right_data, left_head='', right_head=''): half = doc.width / 2 - 3*mm header_row = [ Paragraph(f'<b>{left_head}</b>', ParagraphStyle('th', fontName='Helvetica-Bold', fontSize=9.5, textColor=WHITE, alignment=TA_CENTER)), Paragraph(f'<b>{right_head}</b>', ParagraphStyle('th', fontName='Helvetica-Bold', fontSize=9.5, textColor=WHITE, alignment=TA_CENTER)), ] rows = [header_row] max_r = max(len(left_data), len(right_data)) for i in range(max_r): l = left_data[i] if i < len(left_data) else '' r = right_data[i] if i < len(right_data) else '' rows.append([ Paragraph(l, bullet) if l else Paragraph('', bullet), Paragraph(r, bullet) if r else Paragraph('', bullet), ]) t = Table(rows, colWidths=[half, half], spaceBefore=4) ts = TableStyle([ ('BACKGROUND', (0,0), (1,0), MID_BLUE), ('TEXTCOLOR', (0,0), (1,0), WHITE), ('FONTNAME', (0,0), (-1,-1), 'Helvetica'), ('FONTSIZE', (0,0), (-1,-1), 9), ('ROWBACKGROUNDS', (0,1), (-1,-1), [WHITE, LIGHT_GREY]), ('GRID', (0,0), (-1,-1), 0.3, MID_GREY), ('VALIGN', (0,0), (-1,-1), 'TOP'), ('TOPPADDING', (0,0), (-1,-1), 4), ('BOTTOMPADDING', (0,0), (-1,-1), 4), ('LEFTPADDING', (0,0), (-1,-1), 6), ]) t.setStyle(ts) return t def info_table(data, col_widths, headers=None, stripe=True): rows = [] if headers: rows.append([Paragraph(f'<b>{h}</b>', ParagraphStyle('th', fontName='Helvetica-Bold', fontSize=9, textColor=WHITE, alignment=TA_CENTER)) for h in headers]) for row in data: rows.append([Paragraph(str(c), ParagraphStyle('td', fontName='Helvetica', fontSize=9, leading=13, textColor=colors.HexColor('#2C3E50'))) for c in row]) t = Table(rows, colWidths=col_widths, spaceBefore=4, spaceAfter=4) ts_cmds = [ ('FONTNAME', (0,0), (-1,-1), 'Helvetica'), ('FONTSIZE', (0,0), (-1,-1), 9), ('GRID', (0,0), (-1,-1), 0.3, MID_GREY), ('VALIGN', (0,0), (-1,-1), 'MIDDLE'), ('TOPPADDING', (0,0), (-1,-1), 4), ('BOTTOMPADDING', (0,0), (-1,-1), 4), ('LEFTPADDING', (0,0), (-1,-1), 6), ] if headers: ts_cmds += [ ('BACKGROUND', (0,0), (-1,0), MID_BLUE), ('TEXTCOLOR', (0,0), (-1,0), WHITE), ] if stripe: ts_cmds.append(('ROWBACKGROUNDS', (0,1), (-1,-1), [WHITE, LIGHT_GREY])) else: if stripe: ts_cmds.append(('ROWBACKGROUNDS', (0,0), (-1,-1), [WHITE, LIGHT_GREY])) t.setStyle(TableStyle(ts_cmds)) return t # ════════════════════════════════════════════════════════════════════════════ # FLOWCHART DRAWING (Page 3 - full A4 width) # ════════════════════════════════════════════════════════════════════════════ class FlowchartFlowable(Flowable): def __init__(self, width, height): Flowable.__init__(self) self.width = width self.height = height def draw(self): c = self.canv W = self.width # colours DB = colors.HexColor('#1A3A5C') MB = colors.HexColor('#2E6DA4') LB = colors.HexColor('#D6E8F7') GR = colors.HexColor('#27AE60') LGR = colors.HexColor('#D5F5E3') AM = colors.HexColor('#E67E22') LAM = colors.HexColor('#FDEBD0') RE = colors.HexColor('#E74C3C') LRE = colors.HexColor('#FDEDEC') PU = colors.HexColor('#8E44AD') LPU = colors.HexColor('#F3E5F5') WH = colors.white BL = colors.black def box(x, y, w, h, fill, stroke, text_lines, text_color=BL, radius=4, fontsize=8.5, bold=False): c.setFillColor(fill) c.setStrokeColor(stroke) c.setLineWidth(1.2) c.roundRect(x, y, w, h, radius, fill=1, stroke=1) ff = 'Helvetica-Bold' if bold else 'Helvetica' c.setFillColor(text_color) line_h = fontsize * 1.35 total_h = len(text_lines) * line_h start_y = y + h/2 + total_h/2 - line_h * 0.75 for i, line in enumerate(text_lines): c.setFont(ff, fontsize) c.drawCentredString(x + w/2, start_y - i * line_h, line) def diamond(x, y, w, h, fill, stroke, text_lines, text_color=BL, fontsize=8): c.setFillColor(fill) c.setStrokeColor(stroke) c.setLineWidth(1.2) path = c.beginPath() path.moveTo(x + w/2, y + h) path.lineTo(x + w, y + h/2) path.lineTo(x + w/2, y) path.lineTo(x, y + h/2) path.close() c.drawPath(path, fill=1, stroke=1) c.setFillColor(text_color) line_h = fontsize * 1.35 total_h = len(text_lines) * line_h start_y = y + h/2 + total_h/2 - line_h * 0.75 for i, line in enumerate(text_lines): c.setFont('Helvetica-Bold', fontsize) c.drawCentredString(x + w/2, start_y - i * line_h, line) def arrow(x1, y1, x2, y2, label='', label_side='right'): c.setStrokeColor(DB) c.setLineWidth(1.2) c.line(x1, y1, x2, y2) # arrowhead import math angle = math.atan2(y2-y1, x2-x1) al = 7 aw = 3 c.setFillColor(DB) p = c.beginPath() p.moveTo(x2, y2) p.lineTo(x2 - al*math.cos(angle) + aw*math.sin(angle), y2 - al*math.sin(angle) - aw*math.cos(angle)) p.lineTo(x2 - al*math.cos(angle) - aw*math.sin(angle), y2 - al*math.sin(angle) + aw*math.cos(angle)) p.close() c.drawPath(p, fill=1, stroke=0) if label: c.setFillColor(AM) c.setFont('Helvetica-Bold', 7.5) mx, my = (x1+x2)/2, (y1+y2)/2 if label_side == 'right': c.drawString(mx+3, my, label) else: c.drawRightString(mx-3, my, label) def horiz_arrow(x1, y, x2, label='', label_side='top'): arrow(x1, y, x2, y, label, label_side) def vert_arrow(x, y1, y2, label='', label_side='right'): arrow(x, y1, x, y2, label, label_side) # ── Layout constants ── CX = W / 2 # centre x BW = W * 0.52 # standard box width BX = CX - BW/2 # standard box left # Y positions (top to bottom, drawing coords are bottom-up) TOTAL_H = self.height TOP = TOTAL_H - 10 # ---------- TITLE BAR ---------- c.setFillColor(DB) c.rect(0, TOP - 28, W, 28, fill=1, stroke=0) c.setFillColor(WH) c.setFont('Helvetica-Bold', 13) c.drawCentredString(CX, TOP - 20, 'LABORATORY DIAGNOSIS OF INFECTIVE ENDOCARDITIS - FLOWCHART') y = TOP - 50 # ---- STEP 1: Clinical suspicion ---- bh = 38 box(BX, y - bh, BW, bh, DB, DB, ['STEP 1: CLINICAL SUSPICION OF IE', 'Fever + new murmur / predisposing factor / positive Duke criteria'], text_color=WH, bold=True, fontsize=8.5) vert_arrow(CX, y - bh, y - bh - 14) y -= bh + 14 # ---- STEP 2: COLLECT BLOOD CULTURES ---- bh = 62 box(BX, y - bh, BW, bh, colors.HexColor('#154360'), colors.HexColor('#154360'), ['STEP 2: BLOOD CULTURE COLLECTION', '(Single most important test)', '3 sets ideal (minimum 2) | Adults: 6-10 ml per bottle', 'Children: 3-5 ml | Neonates: 1 ml per bottle', 'Two different venepuncture sites | Strict aseptic technique', 'Clean skin: 70% alcohol then povidone-iodine, dry 2 min'], text_color=WH, bold=False, fontsize=8) vert_arrow(CX, y - bh, y - bh - 14) y -= bh + 14 # ---- STEP 3: TRANSPORT ---- bh = 38 box(BX, y - bh, BW, bh, MB, MB, ['STEP 3: TRANSPORT & INCUBATION', 'Send immediately to lab - DO NOT refrigerate', 'Incubate at 35Β°C | IE: incubate up to 3 WEEKS (manual culture)'], text_color=WH, fontsize=8.5) vert_arrow(CX, y - bh, y - bh - 14) y -= bh + 14 # ---- STEP 4: DAY 0 - Receipt ---- bh = 38 box(BX, y - bh, BW, bh, LB, MB, ['DAY 0 - LAB RECEIPT', 'Record date/time, inspect: turbidity, haemolysis, pellicle, "puffballs"', 'Enter in specimen register | Place in incubator at 35Β°C'], text_color=DB, fontsize=8.5) vert_arrow(CX, y - bh, y - bh - 14) y -= bh + 14 # ---- STEP 5: DAY 1 - Inspect ---- dw = BW * 0.62 dh = 34 dx = CX - dw/2 diamond(dx, y - dh, dw, dh, LAM, AM, ['DAY 1: Inspect bottles', 'after overnight incubation', 'Changes present?'], text_color=colors.HexColor('#6E2C00'), fontsize=8) # YES branch (right) ya_x = dx + dw ya_y = y - dh/2 box_rx = ya_x + 18 box_rw = W - box_rx - 8*mm box_rh = 50 box_ry = ya_y - box_rh/2 c.setStrokeColor(DB); c.setLineWidth(1.2) c.line(ya_x, ya_y, box_rx, ya_y) box(box_rx, box_ry, box_rw, box_rh, LRE, RE, ['YES - Gram Stain broth', '+ Inform Microbiologist/MO', '+ Inform Clinician', '+ Direct sensitivity test', '(ABST)'], text_color=RE, fontsize=7.5) # arrow from right box down c.setStrokeColor(DB); c.setLineWidth(1.0) # NO branch (left and down) na_x = dx na_y = y - dh/2 box_lx = 4*mm box_lw = dx - 4*mm - 18 box_lh = 46 box_ly = na_y - box_lh/2 c.setStrokeColor(DB); c.setLineWidth(1.2) c.line(na_x, na_y, box_lx + box_lw, na_y) box(box_lx, box_ly, box_lw, box_lh, LGR, GR, ['NO - Blind subculture', 'Blood agar (with S.aureus stab)', 'MacConkey agar', 'Chocolate agar', 'Incubate 35Β°C, 5-10% CO2'], text_color=colors.HexColor('#145A32'), fontsize=7.5) vert_arrow(CX, y - dh, y - dh - 14) y -= dh + 14 # ---- DAY 2: READ PLATES ---- bh = 42 box(BX, y - bh, BW, bh, LGR, GR, ['DAY 2: READ PLATES', 'No growth: re-incubate 24h, send interim report', 'Growth: Gram stain colonies, identify, ABST', 'Inform Microbiologist / MO / Clinician immediately'], text_color=colors.HexColor('#145A32'), fontsize=8.5) vert_arrow(CX, y - bh, y - bh - 14) y -= bh + 14 # ---- IDENTIFICATION BOX ---- bh = 72 id_bx = 4*mm id_bw = (W - 12*mm) * 0.48 id_bx2 = id_bx + id_bw + 6*mm id_bw2 = (W - 12*mm) * 0.48 # Left: Gram Positive box(id_bx, y - bh, id_bw, bh, LB, MB, ['GRAM POSITIVE COCCI', 'Catalase (+) β†’ Staphylococci', ' Coagulase (+) = S. aureus', ' Coagulase (-) = CoNS', 'Catalase (-) β†’ Streptococci', ' Optochin S = S. pneumoniae', ' Bacitracin S = S. pyogenes', ' Bile soluble = S. pneumoniae', ' Viridans / Enterococci - ID further'], text_color=DB, fontsize=7.5) # Right: Gram Negative box(id_bx2, y - bh, id_bw2, bh, LAM, AM, ['GRAM NEGATIVE', 'MacConkey growth:', ' LF + Oxidase(-) β†’ Coliform (API 20E)', ' NLF + Oxidase(+) β†’ Pseudomonas', ' Acinetobacter / others', 'No MacConkey growth:', ' Haemophilus spp. (X,V,XV discs)', 'HACEK organisms:', ' Slow-growing; API 20NE'], text_color=colors.HexColor('#6E2C00'), fontsize=7.5) # label above c.setFont('Helvetica-Bold', 9) c.setFillColor(DB) c.drawCentredString(CX, y + 6, 'ORGANISM IDENTIFICATION') vert_arrow(CX, y - bh, y - bh - 14) y -= bh + 14 # ---- ABST / MIC ---- bh = 46 box(BX, y - bh, BW, bh, LPU, PU, ['ANTIMICROBIAL SUSCEPTIBILITY TESTING (ABST)', 'IE isolate (e.g. Viridans Strep) β†’ MIC for Penicillin (NOT disc only)', 'Enterococcus β†’ High-level aminoglycoside resistance screening', 'Staphylococci β†’ Cefoxitin (MRSA screen)', 'Monitor serum aminoglycoside levels during treatment'], text_color=PU, fontsize=8) vert_arrow(CX, y - bh, y - bh - 14) y -= bh + 14 # ---- CULTURE NEGATIVE BRANCH ---- dw2 = BW * 0.62 dh2 = 34 dx2 = CX - dw2/2 diamond(dx2, y - dh2, dw2, dh2, colors.HexColor('#FDEDEC'), RE, ['Culture NEGATIVE', 'after 5 days?'], text_color=RE, fontsize=8.5) # YES right ya2_x = dx2 + dw2 ya2_y = y - dh2/2 box_rx2 = ya2_x + 14 box_rw2 = W - box_rx2 - 8*mm box_rh2 = 64 box_ry2 = ya2_y - box_rh2/2 c.setStrokeColor(DB); c.setLineWidth(1.2) c.line(ya2_x, ya2_y, box_rx2, ya2_y) box(box_rx2, box_ry2, box_rw2, box_rh2, LRE, RE, ['CULTURE-NEGATIVE APPROACH', '1. Prior antibiotics?', ' Repeat cultures in 3-4 days', '2. Brucella? Special media', ' + repeat culture', '3. Coxiella / Chlamydia?', ' Serology (IgG phase 1 >1:800)', '4. PCR / Metagenomic seq.', ' (Bartonella, Whipplei)'], text_color=RE, fontsize=7.5) # NO down vert_arrow(CX, y - dh2, y - dh2 - 14) y -= dh2 + 14 # ---- OTHER SPECIMENS ---- bh3 = 42 box(BX, y - bh3, BW, bh3, LGR, GR, ['OTHER SPECIMENS (if surgery performed)', 'Culture of heart valves removed at surgery', 'Culture of emboli removed at surgery', 'Serology: Coxiella (IgG >1:800), Chlamydia psittaci, Brucella'], text_color=colors.HexColor('#145A32'), fontsize=8.5) vert_arrow(CX, y - bh3, y - bh3 - 14) y -= bh3 + 14 # ---- FINAL REPORT ---- bh4 = 34 box(BX, y - bh4, BW, bh4, GR, GR, ['FINAL REPORT', 'Organism identified + ABST + MIC + serum drug levels', 'Guide: Bactericidal IV antibiotics x 4-6 weeks'], text_color=WH, bold=True, fontsize=8.5) # Footer note c.setFont('Helvetica-Oblique', 7.5) c.setFillColor(colors.HexColor('#7F8C8D')) c.drawCentredString(CX, 8, 'Sources: SLCM Laboratory Manual in Microbiology (2nd Ed.) | IE Lecture Notes | Robbins & Kumar Pathology') # ════════════════════════════════════════════════════════════════════════════ # BUILD CONTENT # ════════════════════════════════════════════════════════════════════════════ story = [] # ── PAGE 1: COVER ────────────────────────────────────────────────────────── class CoverPage(Flowable): def __init__(self, w, h): Flowable.__init__(self) self.width = w self.height = h def draw(self): c = self.canv # dark gradient bg c.setFillColor(colors.HexColor('#0D2137')) c.rect(0, 0, self.width, self.height, fill=1, stroke=0) # accent strip top c.setFillColor(colors.HexColor('#2E6DA4')) c.rect(0, self.height - 6, self.width, 6, fill=1, stroke=0) # accent strip bottom c.rect(0, 0, self.width, 6, fill=1, stroke=0) # big heart icon (unicode text) c.setFillColor(colors.HexColor('#E74C3C')) c.setFont('Helvetica-Bold', 72) c.drawCentredString(self.width/2, self.height * 0.60, '\u2665') c.setFillColor(colors.white) c.setFont('Helvetica-Bold', 26) c.drawCentredString(self.width/2, self.height * 0.52, 'INFECTIVE ENDOCARDITIS') c.setFont('Helvetica-Bold', 18) c.setFillColor(colors.HexColor('#AED6F1')) c.drawCentredString(self.width/2, self.height * 0.465, 'LABORATORY DIAGNOSIS') c.setFont('Helvetica', 12) c.setFillColor(colors.HexColor('#7FB3D3')) c.drawCentredString(self.width/2, self.height * 0.41, 'Detailed Notes + Step-by-Step Flowchart') # divider c.setStrokeColor(colors.HexColor('#2E6DA4')) c.setLineWidth(1.5) c.line(self.width*0.2, self.height*0.38, self.width*0.8, self.height*0.38) c.setFont('Helvetica', 10) c.setFillColor(colors.HexColor('#AED6F1')) c.drawCentredString(self.width/2, self.height * 0.355, 'Based on: SLCM Laboratory Manual in Microbiology (2nd Edition)') c.drawCentredString(self.width/2, self.height * 0.33, '& IE Lecture Notes | Robbins & Kumar | Tietz Laboratory Medicine') c.setFont('Helvetica-Oblique', 9) c.setFillColor(colors.HexColor('#5D8AA8')) c.drawCentredString(self.width/2, self.height * 0.29, 'Sri Lanka College of Microbiologists') cover_w = doc.width cover_h = doc.height story.append(CoverPage(cover_w, cover_h)) story.append(PageBreak()) # ── PAGE 2+: NOTES ──────────────────────────────────────────────────────── # ── SECTION HEADER 1 ── story.append(header_box('LABORATORY DIAGNOSIS OF INFECTIVE ENDOCARDITIS', DARK_BLUE)) story.append(Spacer(1, 8)) story.append(Paragraph( 'The laboratory diagnosis of IE relies on <b>blood culture as the cornerstone</b>, supplemented by ' 'serology, molecular techniques, direct culture of surgical specimens, and antimicrobial susceptibility ' 'testing. All steps must follow strict protocols to ensure reliable results.', body)) story.append(Spacer(1, 6)) # ── SECTION 1: BLOOD CULTURE ── story.append(section_box('1. BLOOD CULTURE - The Single Most Important Test', bg=LIGHT_BLUE)) story.append(Spacer(1, 4)) story.append(Paragraph( 'Blood culture is the <b>gold standard investigation</b> for IE. The bacteraemia in IE is ' '<b>continuous</b> (not intermittent), so timing with fever spikes is NOT necessary - cultures ' 'can be collected at any time.', body)) story.append(Spacer(1, 4)) story.append(Paragraph('<b>A. Number of Blood Culture Sets</b>', h3)) num_data = [ ['Ideal number', '3 sets (3 separate venepunctures)'], ['Minimum acceptable', '2 sets (may be enough to detect organism)'], ['When to collect extra sets', 'Patient already on antibiotics; Fastidious organisms suspected'], ['Timing (SLCM Manual)', 'At hourly intervals, within a 24-hour window'], ['Why multiple sets?', 'Increases sensitivity; helps distinguish contaminants (1 positive = likely contaminant; 2+ positives = significant)'], ] story.append(info_table(num_data, [5.5*cm, doc.width - 5.5*cm])) story.append(Spacer(1, 6)) story.append(Paragraph('<b>B. Blood Volume per Set</b>', h3)) vol_data = [ ['Patient Group', 'Volume per Bottle', 'Blood:Broth Ratio'], ['Adults', '6-10 ml (minimum 5 ml)', '1:5 to 1:10'], ['Children', '3-5 ml per bottle', '1:5 to 1:10'], ['Neonates (< 4 kg)', '1 ml per bottle', '1:5 to 1:10'], ] story.append(info_table(vol_data[1:], [5*cm, 5.5*cm, doc.width-10.5*cm], headers=vol_data[0])) story.append(Paragraph( I('Note: Volume of blood cultured is CRUCIAL to increase sensitivity. ' 'Likelihood of recovering a pathogen increases with blood volume.'), note_style)) story.append(Spacer(1, 4)) story.append(Paragraph('<b>C. Specimen Collection - Aseptic Technique (Step by Step)</b>', h3)) steps = [ 'Select a <b>different venepuncture site</b> for each blood culture set - do NOT draw from a vein into which IV solution is being infused.', 'Clean skin with <b>70% ethyl alcohol for 1 minute</b> and allow to dry.', 'Wipe concentrically (center outward) with <b>7.5% povidone iodine</b> - allow to dry for <b>2 full minutes</b>.', 'Do NOT touch the site after cleaning.', 'Label all bottles: patient ID, date, time, site of collection.', 'Wipe the top of blood culture bottle with 70% alcohol, allow 30-60 seconds to dry.', 'Wash hands, wear sterile gloves.', 'Draw blood with disposable sterile needle and syringe in recommended volumes.', 'Inoculate <b>aerobic bottle FIRST</b>, then anaerobic bottle.', 'Thoroughly mix bottles to prevent clotting.', 'Remove iodine from skin with 70% alcohol swab after phlebotomy.', 'Dispose needle/syringe in sharps bin immediately - <b>NEVER recap sharps</b>.', ] for i, s in enumerate(steps, 1): story.append(Paragraph(f'{i}. {s}', bullet)) story.append(Spacer(1, 4)) story.append(Paragraph('<b>D. Bottles Available (SLCM Context)</b>', h3)) bottle_data = [ ['Bottle Type', 'Medium', 'Use'], ['Aerobic (adults)', 'BHI broth + SPS (60 ml in 100 ml bottle)', 'Routine - most commonly available in Sri Lanka'], ['Aerobic (children)', 'BHI broth + SPS (30 ml in 50 ml bottle)', 'Paediatric use'], ['Aerobic (neonates)', 'BHI broth (10 ml universal bottle)', 'Neonatal use'], ['Anaerobic', 'BHI + reducing agents', 'Available at MRI Bacteriology Dept. Tel: 011 2691350'], ['Fungal', 'Special fungal medium', 'Available at MRI Mycology Dept. Tel: 011 2698725'], ['Automated systems', 'Commercial (Bactec/BacT/Alert)', 'Follow manufacturer instructions exactly'], ] story.append(info_table(bottle_data[1:], [3.5*cm, 7*cm, doc.width-10.5*cm], headers=bottle_data[0])) story.append(Paragraph( I('SPS (Sodium Polyanethol Sulphonate) at 0.025-0.05% increases isolation rate but may be inhibitory to certain bacteria (e.g. Neisseria, some anaerobes).'), note_style)) story.append(Spacer(1, 4)) story.append(Paragraph('<b>E. Transport & Storage</b>', h3)) transport_data = [ ['Do NOT refrigerate blood cultures - keep at room temperature'], ['Send to laboratory IMMEDIATELY with properly completed request form'], ['If immediate transport not possible: store at room temperature in ward'], ['Blood cultures taken after hours: keep at room temperature, send to lab the following morning'], ['For automated systems: follow manufacturer instructions for storage prior to loading'], ] for row in transport_data: story.append(Paragraph(f'\u2022 {row[0]}', bullet)) story.append(Spacer(1, 4)) story.append(Paragraph('<b>F. Rejection Criteria (When to Reject a Blood Culture)</b>', h3)) reject_data = [ ['Leaking bottle', 'Likely contamination - inform ward, request repeat, document'], ['Broken/cracked bottle', 'Biohazard - inform ward before discarding'], ['Mismatch: label vs form', 'Inform MO - do NOT discard; ward staff must authenticate in writing'], ['Unlabelled specimen', 'Inform MO - do NOT discard; get authentication'], ['NOT rejected even if...', 'Medium expired, insufficient volume, received >12h after collection\n(Document deficiency and its effect on reliability in report)'], ] story.append(info_table(reject_data, [4.5*cm, doc.width-4.5*cm])) story.append(Spacer(1, 8)) # ── SECTION 2: PROCESSING ── story.append(section_box('2. PROCESSING OF BLOOD CULTURES IN THE LABORATORY', bg=LIGHT_BLUE)) story.append(Spacer(1, 4)) story.append(Paragraph('<b>A. Day-by-Day Protocol</b>', h3)) day_data = [ ['Timepoint', 'Action', 'Key Notes'], ['Day 0\n(Receipt)', 'Record date/time; note turbidity, haemolysis, pellicle, "puffballs";\nEnter in specimen register; place in incubator at 35Β°C', 'Mark bottle and request form with lab number'], ['Day 1\n(Inspect)', 'Inspect ALL bottles after overnight incubation.\nIf NO change: blind subculture onto BA, MacConkey, Chocolate agar\nIf changes present: Gram stain broth + direct ABST + Inform MO/Clinician', 'Gram stain smear using battlement technique; read with x100 (oil)'], ['Day 2', 'Read all plates\nNo growth: report interim, re-incubate 24h\nGrowth: identify + ABST + inform MO and clinician', 'Discuss significance of isolate with clinician'], ['Day 3-7', 'Re-incubate negative bottles daily; subculture if growth detected', 'Reports only issued on positives'], ['Day 7', 'Final blind subculture from all negative bottles\nRead after overnight, send FINAL report', 'For IE: extend to 3 weeks (manual cultures)'], ['Special IE\nIncubation', '3 WEEKS (manual culture systems)', 'Typhoid = 2 weeks; Automated systems usually 5 days but extend for IE'], ] story.append(info_table(day_data[1:], [2.5*cm, 8*cm, doc.width-10.5*cm], headers=day_data[0])) story.append(Spacer(1, 4)) story.append(Paragraph('<b>B. Subculture Media and Conditions</b>', h3)) media_data = [ ['Medium', 'Incubation Conditions', 'Purpose'], ['Blood Agar (BA)', '35Β°C, 5-10% CO2, overnight', 'Primary isolation; S. aureus stab for satellitism (Haemophilus)'], ['MacConkey Agar', '35Β°C, aerobically overnight', 'Gram-negative differentiation (LF vs NLF)'], ['Chocolate Agar', '35Β°C, 5-10% CO2, overnight', 'Fastidious organisms - Haemophilus, HACEK, Neisseria'], ['BHI / Blood culture broth', '35Β°C with rotation/agitation', 'Enrichment; HACEK organisms grow well in broth'], ] story.append(info_table(media_data[1:], [3.5*cm, 5.5*cm, doc.width-9*cm], headers=media_data[0])) story.append(Spacer(1, 4)) story.append(Paragraph('<b>C. Safety Precautions in the Lab</b>', h3)) safety = [ 'Process blood cultures in a <b>biosafety cabinet</b> to minimise contamination and exposure risk.', 'Always wear <b>gloves</b> - blood cultures may contain bloodborne pathogens (HIV, HBV, HCV).', 'Never recap sharps; dispose in puncture-proof containers.', 'Laboratory contamination is a recognised problem if bottles are opened for subculturing - use strict technique.', ] for s in safety: story.append(Paragraph(f'\u26a0 {s}', bullet)) story.append(Spacer(1, 8)) # ── SECTION 3: ORGANISM IDENTIFICATION ── story.append(section_box('3. ORGANISM IDENTIFICATION FROM BLOOD CULTURE', bg=LIGHT_BLUE)) story.append(Spacer(1, 4)) story.append(Paragraph( 'When growth is detected (turbidity, pellicle, or positive automated signal), ' '<b>Gram stain the broth immediately</b> and follow the identification algorithm below.', body)) story.append(Spacer(1, 4)) story.append(Paragraph('<b>Gram Positive Cocci</b>', h3)) gp_data = [ ['Catalase TEST', 'Catalase (+) = Staphylococci', 'Catalase (-) = Streptococci / Enterococci'], ['Coagulase test (Staph)', 'Coagulase (+) = S. aureus (INFORM MO IMMEDIATELY)', 'Coagulase (-) = CoNS (e.g. S. epidermidis - check significance)'], ['Haemolysis (Strep)', 'Ξ²-haemolysis', 'Ξ±-haemolysis or no haemolysis'], ['Ξ²-haemolytic Strep', 'Bacitracin S = S. pyogenes (Group A)', 'Grouping kit if available'], ['Ξ±-haemolytic Strep', 'Optochin S = S. pneumoniae; Bile soluble = S. pneumoniae', 'Optochin R + bile insoluble = Viridans Streptococci'], ['Enterococci', 'Bile aesculin (+) AND growth in 6.5% NaCl', 'E. faecalis / faecium'], ] story.append(info_table(gp_data, [4*cm, 6.5*cm, doc.width-10.5*cm])) story.append(Spacer(1, 4)) story.append(Paragraph('<b>Gram Negative</b>', h3)) gn_data = [ ['MacConkey growth?', 'Identifies Gram-negatives'], ['LF + Oxidase (-)','Enterobacteriaceae - use API 20E or biochemical tests (KIA, IMVC, motility)'], ['NLF + Oxidase (+)', 'Pseudomonas aeruginosa - API 20NE or biochemicals'], ['NLF + Oxidase (-)', 'Acinetobacter spp. (KIA no reaction, urea variable)'], ['No MacConkey growth', 'Haemophilus spp. - use X, V, XV factor discs; check satellitism on BA'], ['HACEK organisms', 'Slow-growing; often need Chocolate agar + CO2 + extended incubation;\nIdentify with API 20NE; fastidious - may take 2-3 days in automated systems'], ] story.append(info_table(gn_data, [4.5*cm, doc.width-4.5*cm])) story.append(Spacer(1, 8)) # ── SECTION 4: ABST ── story.append(section_box('4. ANTIMICROBIAL SUSCEPTIBILITY TESTING (ABST)', bg=LIGHT_BLUE)) story.append(Spacer(1, 4)) story.append(Paragraph( 'ABST must be performed on <b>ALL blood culture isolates</b>. For IE specifically, ' '<b>MIC (Minimum Inhibitory Concentration)</b> is required - disc diffusion alone is insufficient ' 'for key organisms.', body)) story.append(Spacer(1, 4)) abst_data = [ ['Organism', 'Key ABST Requirement', 'Note'], ['Viridans Streptococci', 'MIC for Penicillin (contact MRI if not available)', 'Do NOT do routine disc sensitivity only'], ['Enterococcus', 'Penicillin, Ampicillin, Gentamicin 120Β΅g (HLAR screening)', 'High-level aminoglycoside resistance screening essential for IE'], ['S. aureus', 'Cefoxitin (MRSA screen), Penicillin, Vancomycin MIC', 'Vancomycin: MIC method (not disc) per CLSI'], ['Coagulase-neg. Staph', 'Cefoxitin + full panel', 'Assess clinical significance first - frequent contaminant'], ['S. pneumoniae', 'Oxacillin disc (then Penicillin MIC if zone ≀19mm)', 'Zone β‰₯20mm = susceptible; ≀19mm = MIC required'], ['Ξ²-haemolytic Strep', 'Penicillin (no resistance described to date)', 'If resistant - reidentify and repeat ABST'], ['Coliforms', '1st line: Ampicillin, Gent, Cefuroxime, Co-amox, Ciprofloxacin', 'ESBL screening mandatory for E. coli, Klebsiella, Proteus'], ['HACEK organisms', 'MIC recommended for all non-enterobacteriaceae', 'Ξ²-lactamase test for Haemophilus (rapid ampicillin resistance detection)'], ] story.append(info_table(abst_data[1:], [3.5*cm, 6*cm, doc.width-9.5*cm], headers=abst_data[0])) story.append(Spacer(1, 4)) story.append(highlight_box( '<b>Monitoring Serum Drug Levels:</b> Serum levels of <b>aminoglycosides</b> must be monitored ' 'during IE treatment to: (1) Ensure adequate therapeutic levels, ' '(2) Confirm adequacy of treatment, (3) Minimise nephrotoxicity and ototoxicity.', bg=YELLOW_HL, border=AMBER)) story.append(Spacer(1, 8)) # ── SECTION 5: CULTURE NEGATIVE ── story.append(section_box('5. CULTURE-NEGATIVE ENDOCARDITIS (CNE) - Approach', bg=LIGHT_BLUE)) story.append(Spacer(1, 4)) story.append(Paragraph( 'Culture-negative IE accounts for approximately <b>10% of all IE cases</b>. ' 'Investigation must be systematic based on the likely cause.', body)) story.append(Spacer(1, 4)) cne_data = [ ['Cause', 'Organism', 'Diagnostic Approach'], ['Prior antibiotic therapy', 'Any organism', 'Repeat blood cultures over several days without antibiotics; stop antibiotics if safe'], ['Fastidious/slow-growing bacteria', 'Brucella spp.', 'Repeat culture with special media; extend incubation; BACTEC with extended time'], ['Obligate intracellular / serological', 'Coxiella burnetii (Q fever)', 'Serology: Anti-phase 1 IgG titre > 1:800 = Major criterion (Duke-ISCVID 2023)'], ['Obligate intracellular', 'Chlamydia psittaci', 'Serology; bird exposure history essential'], ['Obligate intracellular', 'Bartonella spp.', 'Serology; PCR; homeless/cat/louse exposure'], ['Rare organisms', 'Legionella, Tropheryma whipplei', 'Serology / PCR; metagenomic sequencing now available'], ['Corynebacteria (Diphtheroids)', 'Cutibacterium acnes etc.', 'Assess significance (often contaminant); anaerobic cultures'], ['Fungal endocarditis', 'Candida albicans, Aspergillus spp.', 'Fungal blood cultures (MRI Mycology); (1,3)-Ξ²-D-glucan; direct culture'], ] story.append(info_table(cne_data[1:], [3.5*cm, 4.5*cm, doc.width-8*cm], headers=cne_data[0])) story.append(Spacer(1, 8)) # ── SECTION 6: OTHER SPECIMENS ── story.append(section_box('6. OTHER SPECIMENS FOR LABORATORY DIAGNOSIS', bg=LIGHT_BLUE)) story.append(Spacer(1, 4)) other_data = [ ['Specimen', 'Method', 'Indication'], ['Heart valves (surgical)', 'Direct culture on BA, MacConkey, Chocolate agar; Gram stain; PCR if culture negative', 'Cardiac surgery; provides definitive diagnosis even after prior antibiotics'], ['Emboli removed at surgery', 'Culture + Gram stain; send in sterile container', 'Peripheral emboli; mesenteric, splenic, cerebral emboli'], ['Serology (blood)', 'Coxiella: Anti-phase 1 IgG > 1:800\nChlamydia psittaci: IgG/IgM\nBrucella: SAT / ELISA', 'Culture-negative IE; occupational/animal exposure'], ['PCR / Molecular (2023 Duke-ISCVID)', 'PCR from blood or tissue for Coxiella, Bartonella, T. whipplei\nMetagenomic sequencing', 'NOW a Major Criterion - equivalent to positive culture for these 3 organisms'], ['Cardiac imaging (not lab)', '18F-FDG PET/CT; Cardiac CT; Echocardiography', 'Added as new Major Criteria in 2023 Duke-ISCVID guidelines'], ] story.append(info_table(other_data[1:], [3.5*cm, 6*cm, doc.width-9.5*cm], headers=other_data[0])) story.append(Spacer(1, 8)) # ── SECTION 7: REPORTING ── story.append(section_box('7. REPORTING PROCEDURE', bg=LIGHT_BLUE)) story.append(Spacer(1, 4)) report_data = [ ['Situation', 'Action', 'Timing'], ['Gram stain positive in broth', 'Phone ward IMMEDIATELY with organism seen + preliminary ABST', 'Same day/within hours'], ['No growth Day 2', '"Blood culture: No growth after 24 hours of incubation"\nRe-incubate', 'Day 2'], ['Positive culture', 'Phone: preliminary identity\nFinal report: full identity + ABST', '24-48 hrs'], ['IE-specific isolate (Viridans Strep)', '"... isolated after ... days. MIC for penicillin: ..."', '48-72 hrs'], ['Contaminant suspected\n(CoNS, diphtheroids)', 'Report ABST only after consulting MO for clinical significance', 'As relevant'], ['Culture-negative at Day 7', 'Final report: "No growth after 7 days (14/21 days)"\nDocument need for serology/special cultures', 'Day 7/14/21'], ] story.append(info_table(report_data[1:], [4*cm, 6.5*cm, doc.width-10.5*cm], headers=report_data[0])) story.append(Spacer(1, 4)) story.append(highlight_box( '<b>Important IE-Specific Note:</b> For IE blood culture isolates such as Viridans Streptococci, ' 'do NOT rely on routine disc diffusion alone. ' '<b>MIC for penicillin is required.</b> If MIC facilities are not available at your laboratory, ' '<b>contact MRI (Medical Research Institute, Colombo)</b> for assistance.', bg=LIGHT_BLUE, border=MID_BLUE)) story.append(PageBreak()) # ── PAGE 3+: FLOWCHART ── story.append(header_box('COMPLETE FLOWCHART: LABORATORY DIAGNOSIS OF IE', MID_BLUE)) story.append(Spacer(1, 8)) fc_h = doc.height - 3*cm story.append(FlowchartFlowable(doc.width, fc_h)) # ── Build ── doc.build(story) print('PDF BUILT SUCCESSFULLY: /tmp/workspace/ie-lab-notes/IE_Lab_Diagnosis.pdf') PYEOF python3 /tmp/workspace/ie-lab-notes/build_pdf.py

Running Command

python3 -c " from reportlab.lib.pagesizes import A4 W, H = A4 print(f'A4: {W} x {H}') "

explain about biofilms

Biofilms are structured communities of microorganisms encased in a self-produced matrix of extracellular polymeric substances (EPS), attached to surfaces. They are extremely resistant to antibiotics and immune responses - this is why infections like IE on prosthetic valves are so hard to treat.
Searching sources...
Reading File
Finding Sources
Finding Sources
Searching Images

biofilm structure bacteria formation microscopy

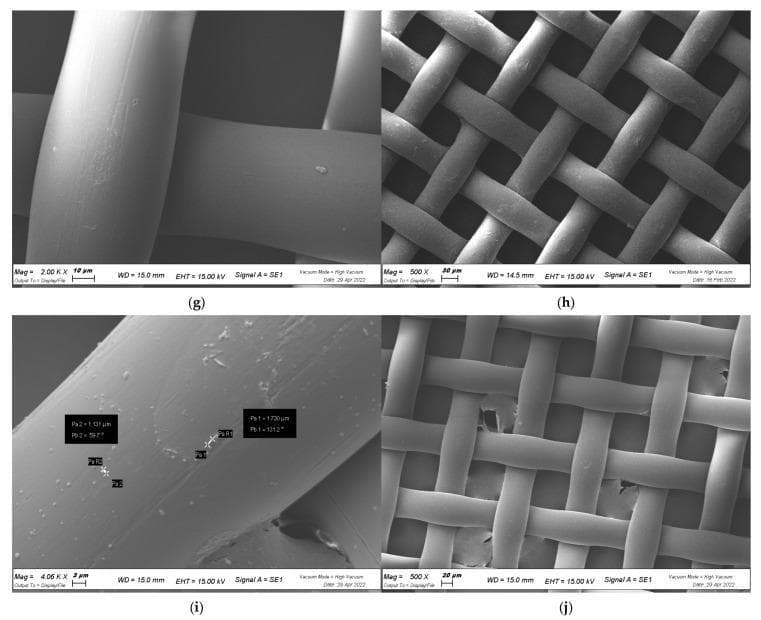

This set of Scanning Electron Microscopy (SEM) images illustrates the study of bacterial biofilm formation on an abiotic surface, specifically a medical-grade plastic cell strainer. The imagery demonstrates the interaction between Xanthomonas campestris pv. campestris and various antimicrobial interventions. Panes (h) and (j) show the overall grid-like structure of the woven synthetic mesh at 500x magnification, revealing a consistent interlaced fiber network. Panes (g) and (i) provide high-magnification views (up to 4.06 Kx) of individual fiber surfaces. Pane (g) shows relatively smooth fibers following treatment with Moringa oleifera extracts (HAMD-MOL), indicating successful inhibition of extracellular polymeric substance (EPS) and biofilm maturation. In contrast, pane (i) displays the adherence of small, rod-shaped bacteria (approximately 1-2 Β΅m in size) and particulate matter to the fiber surface under different treatment conditions. These images serve as an educational model for evaluating anti-adhesive and anti-biofilm properties of phytochemical compounds intended to prevent medical device colonization and subsequent infection.

This set of Scanning Electron Microscopy (SEM) images illustrates the study of bacterial biofilm formation on an abiotic surface, specifically a medical-grade plastic cell strainer. The imagery demonstrates the interaction between Xanthomonas campestris pv. campestris and various antimicrobial interventions. Panes (h) and (j) show the overall grid-like structure of the woven synthetic mesh at 500x magnification, revealing a consistent interlaced fiber network. Panes (g) and (i) provide high-magnification views (up to 4.06 Kx) of individual fiber surfaces. Pane (g) shows relatively smooth fibers following treatment with Moringa oleifera extracts (HAMD-MOL), indicating successful inhibition of extracellular polymeric substance (EPS) and biofilm maturation. In contrast, pane (i) displays the adherence of small, rod-shaped bacteria (approximately 1-2 Β΅m in size) and particulate matter to the fiber surface under different treatment conditions. These images serve as an educational model for evaluating anti-adhesive and anti-biofilm properties of phytochemical compounds intended to prevent medical device colonization and subsequent infection.

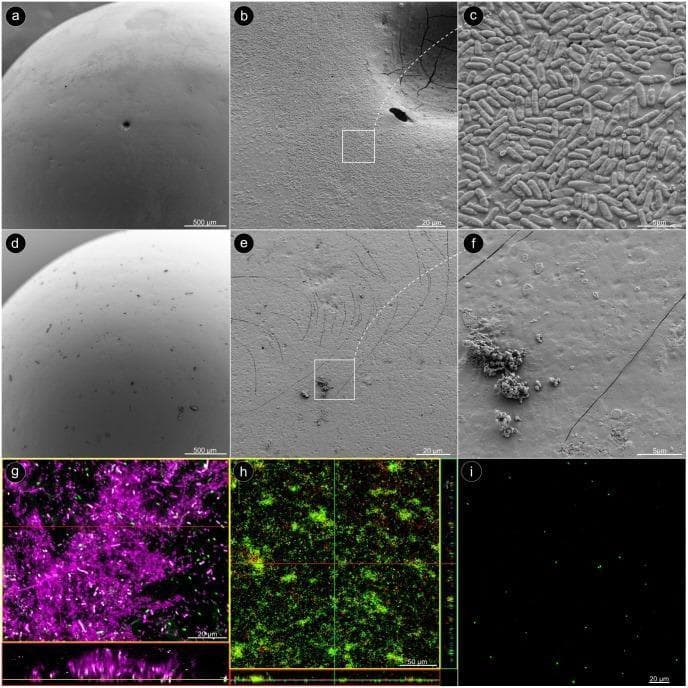

Microscopic characterization of Pseudomonas aeruginosa biofilm formation and removal on glass beads. Panels a–c show scanning electron microscopy (SEM) images of a dense, uniform biofilm monolayer before treatment. High magnification (c) reveals the characteristic rod-shaped bacterial morphology. Panels d–f illustrate the same surface after sonication; the bead appears largely cleared of biological material, with only sparse, irregular debris remaining. Panel g presents a Confocal Laser Scanning Microscopy (CLSM) image utilizing dual fluorescence: Concanavalin A (magenta) labels the extracellular sugar matrix, while Syto60 (green) identifies individual bacteria within the complex structure. Panels h and i demonstrate bacterial viability using LIVE/DEAD staining. Before sonication (h), the intact biofilm exhibits a predominant green signal, indicating a high concentration of live bacteria. After sonication (i), only isolated green fluorescence remains, confirming that while the biofilm architecture was successfully disrupted, the detached bacteria remain viable. This image series serves as an educational reference for understanding biofilm adherence, extracellular matrix composition, and the efficacy of physical detachment methods in microbiology.

Microscopic characterization of Pseudomonas aeruginosa biofilm formation and removal on glass beads. Panels a–c show scanning electron microscopy (SEM) images of a dense, uniform biofilm monolayer before treatment. High magnification (c) reveals the characteristic rod-shaped bacterial morphology. Panels d–f illustrate the same surface after sonication; the bead appears largely cleared of biological material, with only sparse, irregular debris remaining. Panel g presents a Confocal Laser Scanning Microscopy (CLSM) image utilizing dual fluorescence: Concanavalin A (magenta) labels the extracellular sugar matrix, while Syto60 (green) identifies individual bacteria within the complex structure. Panels h and i demonstrate bacterial viability using LIVE/DEAD staining. Before sonication (h), the intact biofilm exhibits a predominant green signal, indicating a high concentration of live bacteria. After sonication (i), only isolated green fluorescence remains, confirming that while the biofilm architecture was successfully disrupted, the detached bacteria remain viable. This image series serves as an educational reference for understanding biofilm adherence, extracellular matrix composition, and the efficacy of physical detachment methods in microbiology.

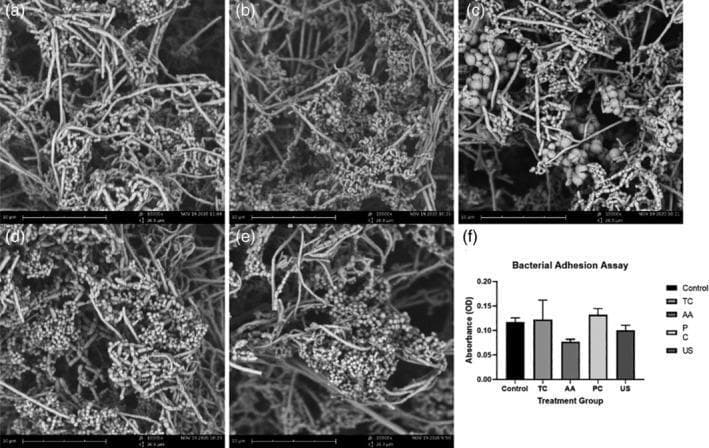

This composite educational material presents a Scanning Electron Microscopy (SEM) analysis and quantitative data regarding biofilm formation on dental zirconia surfaces. Panels (a) through (e) display high-magnification (10,000x) SEM micrographs showing the morphology of salivary bacteria on acid-etched yttria-stabilized tetragonal zirconia polycrystal (Y-TZP) discs after various decontamination treatments: (a) Untreated control, (b) titanium curette, (c) air abrasive device, (d) plastic curette, and (e) ultrasonic scaler. The images reveal a dense, complex biofilm structure characterized by spherical bacterial cells (cocci) intertwined within a fibrous, three-dimensional network of extracellular polymeric substance (EPS). Panel (f) provides a corresponding bar graph of a Bacterial Adhesion Assay, measuring bacterial numbers via optical density (OD600). The results illustrate that despite different surface instrumentation, the overall morphology and quantitative adhesion of the biofilm remain consistent across all groups. This visual is used in dental materials science and periodontology to study the effects of implant maintenance tools on bacterial colonization and biocompatibility of zirconia-based dental implants.

This composite educational material presents a Scanning Electron Microscopy (SEM) analysis and quantitative data regarding biofilm formation on dental zirconia surfaces. Panels (a) through (e) display high-magnification (10,000x) SEM micrographs showing the morphology of salivary bacteria on acid-etched yttria-stabilized tetragonal zirconia polycrystal (Y-TZP) discs after various decontamination treatments: (a) Untreated control, (b) titanium curette, (c) air abrasive device, (d) plastic curette, and (e) ultrasonic scaler. The images reveal a dense, complex biofilm structure characterized by spherical bacterial cells (cocci) intertwined within a fibrous, three-dimensional network of extracellular polymeric substance (EPS). Panel (f) provides a corresponding bar graph of a Bacterial Adhesion Assay, measuring bacterial numbers via optical density (OD600). The results illustrate that despite different surface instrumentation, the overall morphology and quantitative adhesion of the biofilm remain consistent across all groups. This visual is used in dental materials science and periodontology to study the effects of implant maintenance tools on bacterial colonization and biocompatibility of zirconia-based dental implants.

Reading File
Reading File
Reading File
Reading File
Reading File
Loading Image
Your credits are exhausted. You can purchase a top-up or subscribe to a plan to continue using Orris. If you're already subscribed, your daily credits will reset tomorrow.

give treatment table and give easy way to remember

Your credits are exhausted. You can purchase a top-up or subscribe to a plan to continue using Orris. If you're already subscribed, your daily credits will reset tomorrow.

Generate a quick reference PDF cheat sheet for IE therapy

Your credits are exhausted. You can purchase a top-up or subscribe to a plan to continue using Orris. If you're already subscribed, your daily credits will reset tomorrow.
This is a shared conversation. Sign in to Orris to start your own chat.
