Sevoflurane Vaporiser

Physical Basis of Vaporisation

Sevoflurane, like all volatile anaesthetics, must be vaporised before delivery to the patient. The key physical properties governing vaporiser design are:

Saturated Vapour Pressure (SVP): At 20°C and sea level, sevoflurane has an SVP of 160 mmHg, giving a saturated vapour concentration of 160/760 × 100 = ~21% — far higher than the clinically required 1–4%. The vaporiser must dilute this to a usable concentration.

Latent heat of vaporisation: Energy is consumed as liquid sevoflurane converts to vapour. Without compensation, the remaining liquid cools, decreasing SVP and reducing vaporiser output. Modern vaporisers are constructed of metals with high specific heat and thermal conductivity (e.g., copper alloys) to minimise this temperature drop.

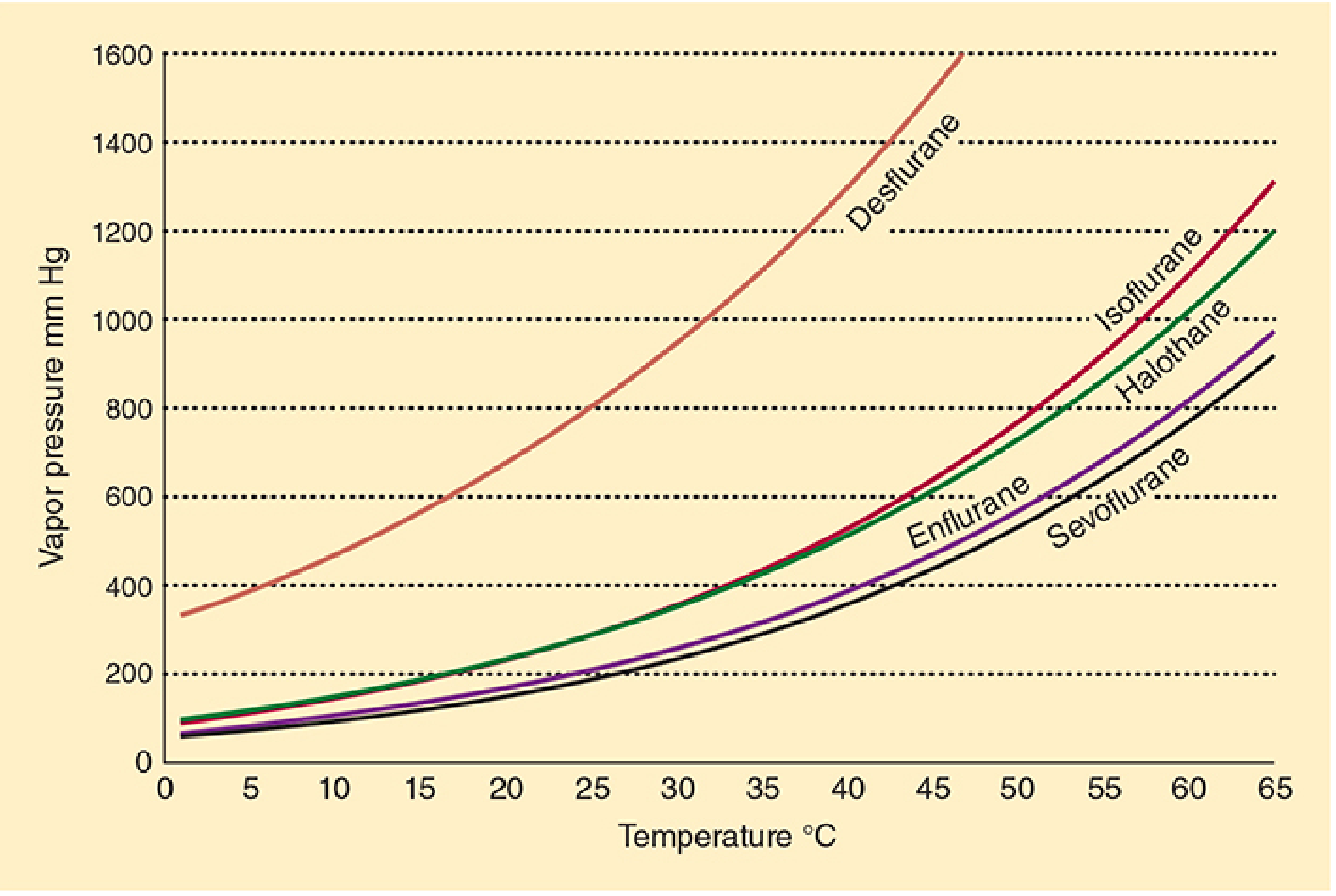

Vapour pressure of volatile anaesthetic agents vs temperature

Sevoflurane has the lowest SVP among commonly used agents at room temperature — the highest curve is desflurane, which requires a heated pressurised vaporiser.

Classification of the Sevoflurane Vaporiser

Sevoflurane is delivered by a variable bypass, flow-over, temperature-compensated, agent-specific, out-of-breathing-circuit vaporiser (e.g., GE Tec 7, Dräger Vapor 2000/3000).

Feature	Detail
Variable bypass	Concentration dial splits incoming fresh gas between bypass and vaporising chambers
Flow-over	Gas flows over a wick saturated with liquid sevoflurane (vs. obsolete bubble-through)
Temperature-compensated	Bimetallic strip or bellows adjusts bypass ratio automatically with temperature change
Agent-specific	Designed only for sevoflurane; keyed filling port prevents misfilling
Out-of-circuit	Located between flowmeters and common gas outlet, upstream of patient

Basic Operating Principle

Fresh gas from the flowmeters enters the vaporiser inlet. The concentration control dial sets a precise ratio of gas flow:

Bypass chamber: gas bypasses the liquid, carrying no anaesthetic
Vaporising chamber: gas flows over wicks saturated with liquid sevoflurane, becoming saturated with vapour (~21%)

The two streams recombine at the vaporiser outlet to yield the clinically set concentration.

Worked example (Barash): To deliver 2% sevoflurane, the vaporiser creates a bypass:vaporising ratio of 9.5:1 — i.e., 21 mL of sevoflurane vapour is added to every 950 mL of bypass gas. The dial essentially controls this split ratio automatically.

Temperature Compensation

Because SVP is temperature-dependent (falling vapour pressure at lower temperatures would reduce output), the vaporiser uses:

A bimetallic strip or aneroid bellows that expands/contracts with temperature
This physically alters the aperture of the bypass/vaporising split to maintain a constant output regardless of ambient temperature changes

Vaporiser materials are chosen for high specific heat (to buffer temperature swings) and high thermal conductivity (to equilibrate temperature rapidly).

Why Sevoflurane ≠ Desflurane Vaporiser

Sevoflurane can be delivered in a standard variable bypass vaporiser precisely because its SVP (160 mmHg) is moderate and manageable at room temperature. Desflurane (SVP 669 mmHg at 20°C, boiling point 22.8°C) cannot — it would boil uncontrollably in a conventional vaporiser and requires a specialised electrically heated, pressurised Tec 6 / D-Vapor system.

Misfilling

Sevoflurane vaporisers use agent-specific keyed filling ports (Quik-Fil / Saf-T-Fill) to prevent wrong-agent filling. However, if misfilling occurs:

A sevoflurane vaporiser filled with isoflurane: the isoflurane SVP (240 mmHg) is higher than sevoflurane's (160 mmHg), so the vaporiser will deliver a higher-than-set concentration — potentially dangerous.
An isoflurane vaporiser filled with sevoflurane: lower SVP means less drug delivered than dialled — inadequate anaesthesia.

Location and Interlock

Vaporisers must sit between the flowmeters and the common gas outlet
Machines with multiple vaporisers must have an interlocking (exclusion) device so only one vaporiser can be active at a time
When the dial is in the "off" position, internal leaks may go undetected — leak checks must be performed with the dial turned on

MRI Considerations

Standard sevoflurane vaporisers may contain internal ferrous components not detectable by a horseshoe magnet. Only MRI-certified non-ferrous vaporisers should be used in the MRI suite — a non-certified vaporiser poses a projectile hazard.

ICU Delivery (AnaConDa)

In the ICU, sevoflurane can be delivered via the AnaConDa (Anaesthetic Conserving Device) — a miniature vaporiser inserted directly into the ventilator circuit. It uses a syringe driver to inject liquid sevoflurane onto an activated charcoal filter that acts as a vaporising and heat-moisture exchange element, eliminating the need for a full anaesthetic workstation.

Sources: Barash, Clinical Anesthesia 9e, pp. 1970–1984; Morgan & Mikhail, Clinical Anesthesiology 7e, pp. 119–125
