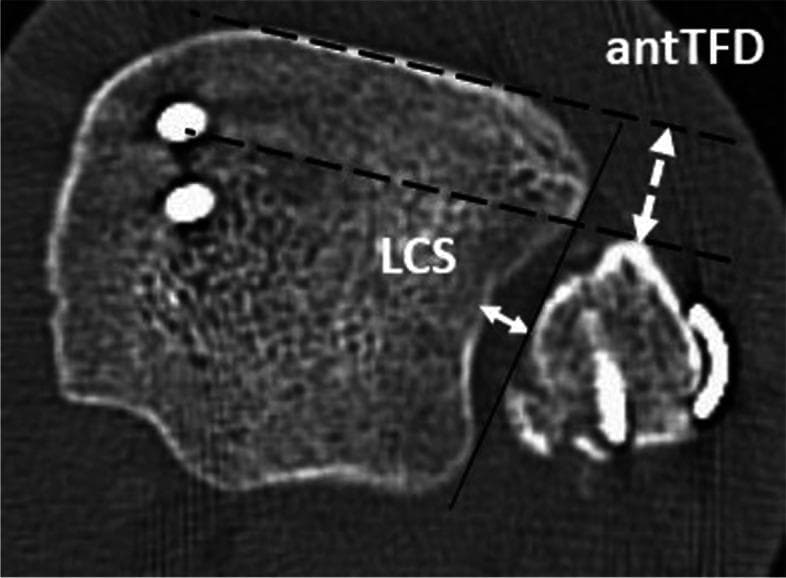

This diagnostic image is an axial (transversal) CT scan of a left ankle, taken approximately 10 mm proximal to the tibial plafond. It demonstrates post-operative osteosynthesis hardware and provides a visual guide for measuring distal tibio-fibular syndesmotic alignment. The image shows the distal tibia and fibula with metallic implants: the lateral malleolus is stabilized by two screws, while the medial malleolus shows a plate-and-screw construct. Educational annotations illustrate two critical 2D measurement parameters: the tibio-fibular clear space (LCS), shown as the horizontal distance between the lateral border of the posterior tibial incisura and the medial border of the fibula; and the anterior tibio-fibular distance (antTFD), represented by the dashed double-arrow line measuring the interval between the anterior tibial tubercle and the anterior aspect of the fibula. Reference lines indicate the anatomical landmarks used to standardize these measurements, which are essential for evaluating syndesmotic reduction and identifying post-operative malalignment such as diastasis or fibular translation. This material is designed for orthopedic surgery and radiology education to assess the quality of ankle fracture fixation.

This diagnostic image is an anteroposterior (AP) x-ray radiograph of the human ankle joint, demonstrating the methodology for measuring the Medial Malleolar Height Angle (MMHA). The radiograph clearly shows the distal tibia, distal fibula, and talus. Anatomical landmarks include the medial and lateral malleoli and the tibiotalar joint space. Superimposed on the anatomy are two red lines intersecting at point 'b' to define the MMHA. Line 'a-b' represents the distal tibial joint orientation line, where point 'b' is the lateral-most point of the tibiotalar joint line and point 'a' is on the medial side of the joint surface. Line 'b-c' connects the lateral point of the joint line to the most distal tip of the medial malleolus (point 'c'). This measurement is utilized in orthopedic assessment to evaluate bone geometry and morphological characteristics that may contribute to chronic ankle instability (CAI). The image serves as an educational tool for clinical imaging and orthopedic residency training in ankle alignment and morphometry.

Reading File

Finding Sources

Searching Images

ilium ischium pubis hip bone lateral medial view anatomy diagram labeled

Educational anatomical diagram set showing morphometric measurements of the human hip bone (os coxae). The top two panels demonstrate lateral and medial views of the ilium and ischium, identifying key landmarks including the Posterior Superior Iliac Spine (PSIS), Anterior Superior Iliac Spine (ASIS), Ischial Tuberosity (IT), Highest point of the Iliac Crest (HIC), Pubic Tuberosity (PT), and the Auricular Surface (AS). Linear measurements shown (Lab, Lcd, Lac, Lae, Laf) define the spatial relationships between these landmarks for skeletal analysis. The bottom three panels provide high-magnification views specifically focused on the PSIS morphology. These detailed frames illustrate measurements for surgical and forensic relevance, including the tip width (W0), maximum width (Wmax), tip thickness (T0), and the distance to the Transition of the Iliac Crest (TIC). The content is designed for orthopaedic, forensic, and anatomical education, illustrating the standardized methodology for quantifying pelvic skeletal variation and point-of-interest dimensions.

$This diagnostic image is a frog-leg lateral (Lauenstein view) X-ray radiograph of the pediatric pelvis and bilateral hip joints. The pelvic ring, including the ilium, ischium, and pubis, is visible with clear visualization of the acetabula. The proximal femurs are abducted and externally rotated. The primary pathology is a displaced avulsion fracture of the left lesser trochanter. This is characterized by a cortical bone fragment detached from the medial aspect of the left proximal femur and displaced inferiorly. The irregular bony contour at the donor site on the left femoral shaft is evident, while the right lesser trochanter remains intact and anatomically normal. The femoral heads appear well-seated within the hip joints with preserved joint spaces. This finding is typical of an adolescent traction injury at the iliopsoas muscle insertion point. The educational focus is on identifying apophyseal avulsion fractures in the pediatric population, specifically involving the lesser trochanter in the setting of athletic injury.$

This diagnostic image is a frog-leg lateral (Lauenstein view) X-ray radiograph of the pediatric pelvis and bilateral hip joints. The pelvic ring, including the ilium, ischium, and pubis, is visible with clear visualization of the acetabula. The proximal femurs are abducted and externally rotated. The primary pathology is a displaced avulsion fracture of the left lesser trochanter. This is characterized by a cortical bone fragment detached from the medial aspect of the left proximal femur and displaced inferiorly. The irregular bony contour at the donor site on the left femoral shaft is evident, while the right lesser trochanter remains intact and anatomically normal. The femoral heads appear well-seated within the hip joints with preserved joint spaces. This finding is typical of an adolescent traction injury at the iliopsoas muscle insertion point. The educational focus is on identifying apophyseal avulsion fractures in the pediatric population, specifically involving the lesser trochanter in the setting of athletic injury.

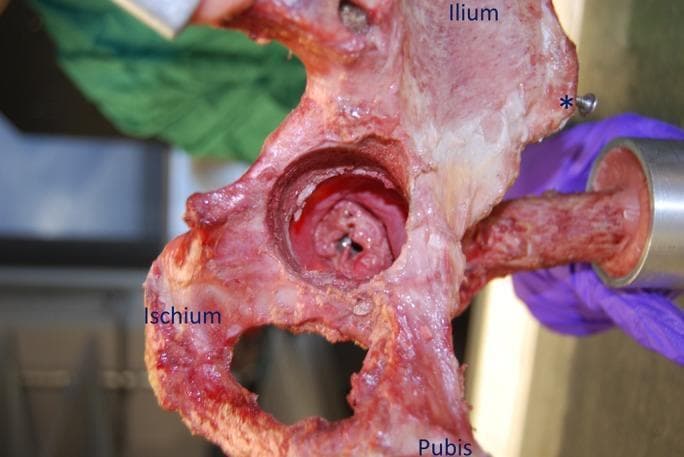

This clinical photograph shows a medial view of a right cadaveric hemipelvis specimen used in an orthopedic biomechanics study. The image highlights the internal pelvic anatomy, specifically identifying the ilium, ischium, and pubis. An asterisk marks the anterior superior iliac spine (ASIS) for orientation. Centrally, the medial wall of the acetabulum has been surgically opened (transpelvic portal) to reveal the intact hip capsule and acetabular fossa from the inside. The hip is positioned in a state of deep flexion, allowing for the visual assessment of the internal capsular structures. The specimen is mounted in a testing rig, visible via the femoral shaft extending to the right. This visual demonstrates a specialized surgical technique for total hip arthroplasty (THA) research, where components are implanted through the medial wall to preserve the entire native capsular ligamentous complex, facilitating the study of post-operative hip stability and range of motion.

Reading File

Finding Sources

Reading File

Finding Sources

Reading File

Finding Sources

Reading File

Searching Images

femur anatomy anterior posterior view labeled neck head shaft condyles

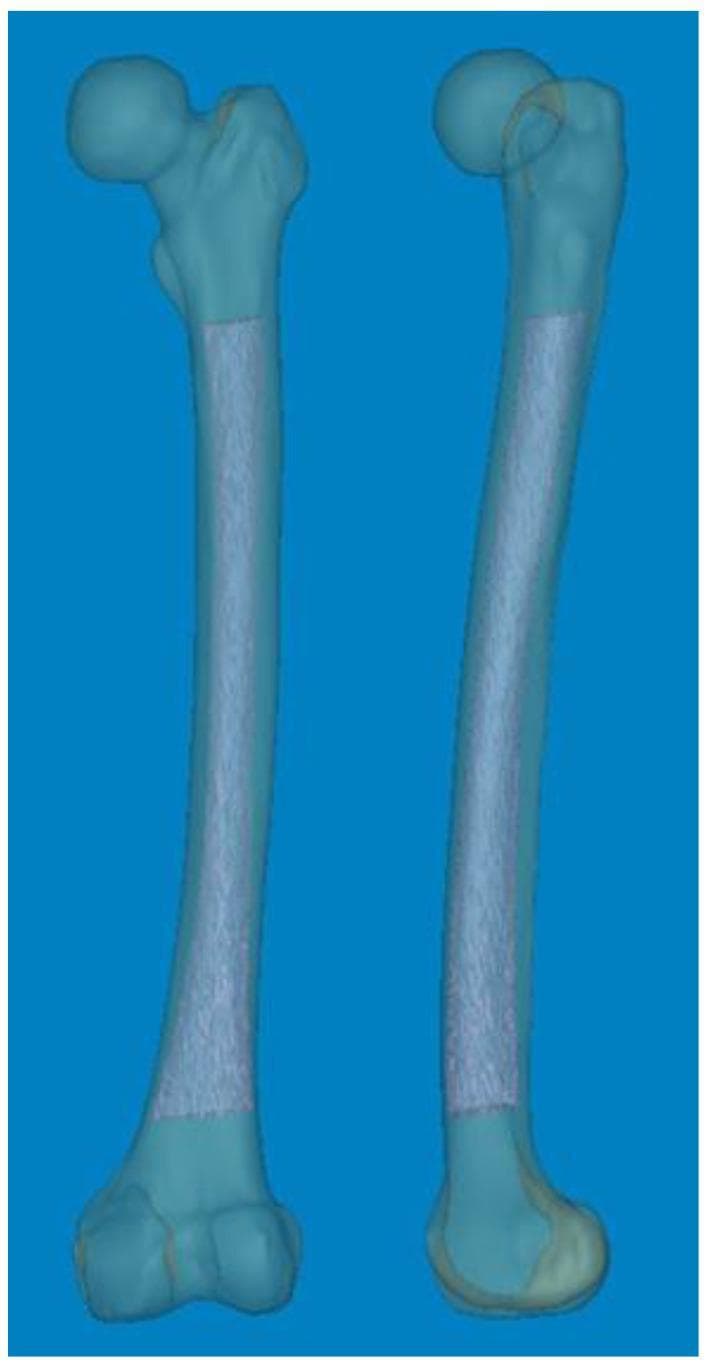

This diagnostic visualization features two 3D anatomical reconstructions of a human femur, created from CT data using Mimics® software. The models demonstrate the full anatomy of the femur, including the femoral head, neck, greater and lesser trochanters, the diaphyseal shaft, and the distal condyles. The model on the left is presented in an anterior-posterior (coronal) view, while the model on the right is shown in a lateral (sagittal) view, highlighting significant anterior bowing of the femoral shaft. A key feature of these models is the visualization of the medullary canal, rendered as a semi-transparent, textured internal volume extending through the diaphysis to the distal metaphysis. This 3D representation is utilized in orthopedic surgical planning, specifically for analyzing femoral shaft bowing (FSB) and determining the mechanical axis (MA) to optimize component alignment in total knee arthroplasty (TKA) and revision surgeries.

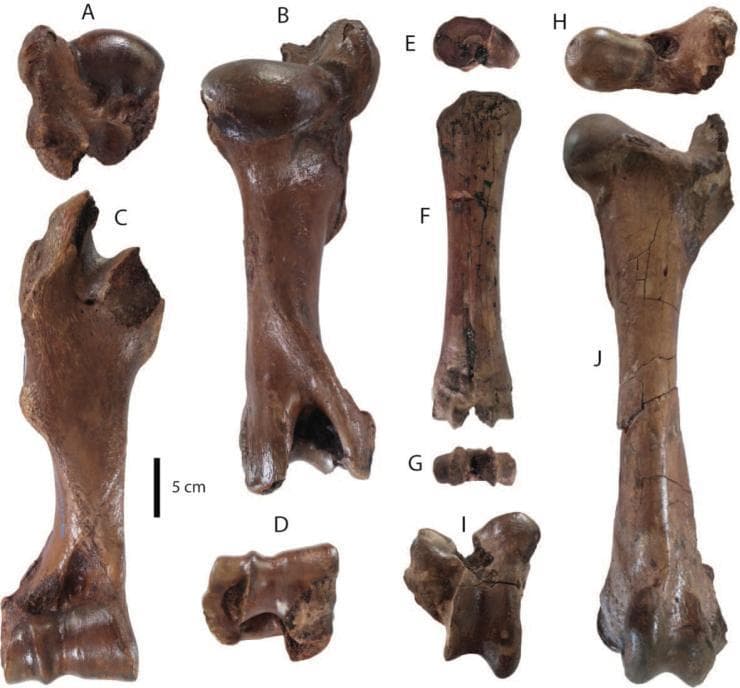

Anatomical comparison chart showing various views of long bones (humerus, metacarpus, and femur). A–D illustrate a right humerus: (A) proximal view showing the rounded humeral head and articular surface; (B) posterior view; (C) anterior view displaying the deltoid tuberosity; and (D) distal view featuring the trochlea and capitulum. E–G display a right metacarpus: (E) proximal view showing the flat articular surface; (F) anterior view of the cylindrical shaft; and (G) distal view showing the articulating condyles. H–J show a left femur: (H) proximal view highlighting the femoral head, neck, and greater trochanter; (I) distal view showing the medial and lateral condyles separated by the intercondylar fossa; and (J) anterior view showing the length of the shaft and the lesser trochanter. The specimens are fossilized, exhibiting a dark brown, mineralized texture with visible surface cracking. A 5 cm scale bar is included for anatomical measurement. These images demonstrate musculoskeletal landmarks used in osteology and comparative anatomy for structural identification.

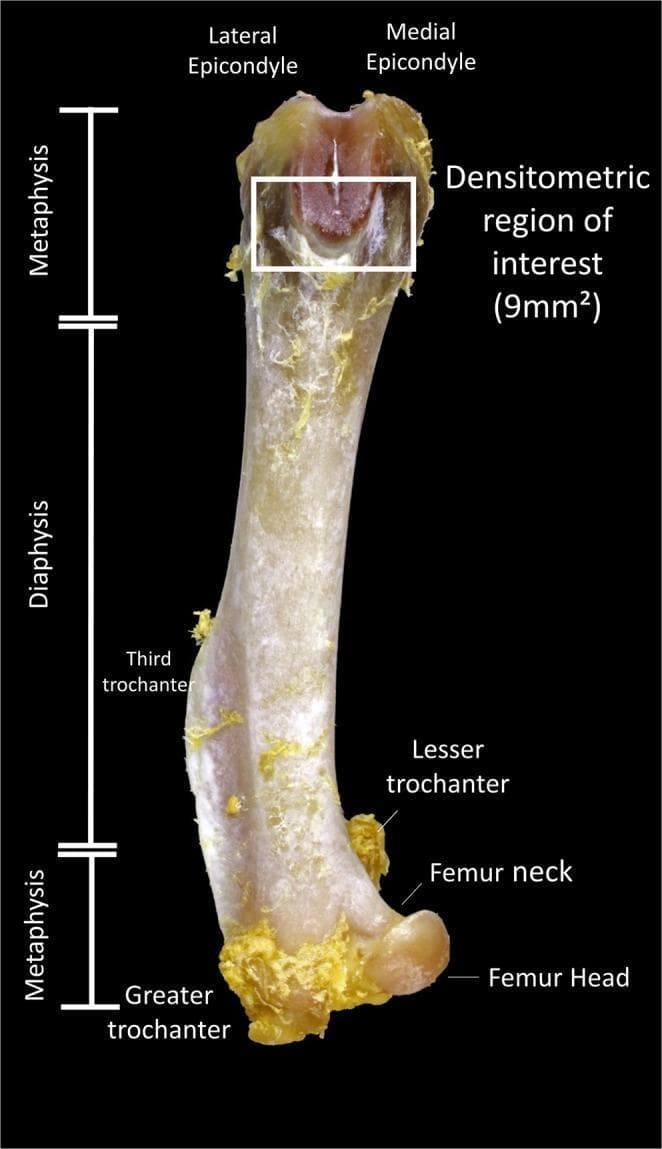

This clinical photograph displays a labeled anterior view of a femur bone, highlighting anatomical landmarks and research parameters for densitometric analysis. The image is divided into three main longitudinal segments: the proximal metaphysis, the central diaphysis (shaft), and the distal metaphysis. Key anatomical landmarks identified with text labels include the femur head, femur neck, greater trochanter, lesser trochanter, and third trochanter at the proximal end, as well as the lateral and medial epicondyles at the distal end. A white rectangular box outlines the 'Densitometric region of interest (9mm²)' located within the distal metaphysis, specifically positioned between the epicondyles on the femoral condyles. The bone surface shows visible remnants of fibrous connective tissue. This anatomical diagram serves as a reference for standardize bone mineral density measurements in experimental osteopenia studies, illustrating the precise location where densitometry data is collected to evaluate bone quality and the effects of pharmaceutical interventions like doxycycline.

Reading File

Note: BD Chaurasia (BDC) Vol 2 is not directly in the medical library database, but the same osteological content is covered authoritatively in the Imaging Anatomy Vol 3 (Saremi et al.) and THIEME General Anatomy & Musculoskeletal System Atlas - both of which follow the same landmark descriptions as BDC Vol 2 for the lower limb bones. The content below is organized exactly as BDC Vol 2 teaches these bones, covering all the same landmarks.

Lower Limb Bones - Landmarks for First Time Study

1. HIP BONE (Os Coxae / Innominate Bone)

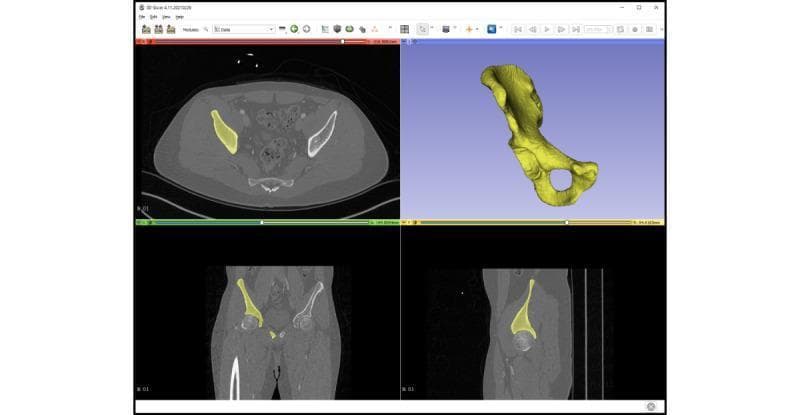

Hip bone landmark diagram showing ASIS, PSIS, iliac crest, ischial tuberosity and pubic landmarks

The hip bone is formed by the fusion of three bones - ilium, ischium, and pubis - which meet at the acetabulum (the cup-shaped socket for the femoral head). The triradiate cartilage connecting them fuses between ages 13-18 years.

A. ILIUM (Upper Part - Fan-shaped)

Landmark	Description & Importance
Iliac Crest	Upper curved border of ilium, extending from ASIS to PSIS. Palpable along its full length. Site of bone marrow biopsy.
Anterior Superior Iliac Spine (ASIS)	Anterior end of iliac crest. Origin of sartorius muscle and inguinal ligament attachment. Key landmark for measuring true leg length.
Anterior Inferior Iliac Spine (AIIS)	Below ASIS. Origin of rectus femoris (straight head). Site of avulsion fracture in kicking sports.
Posterior Superior Iliac Spine (PSIS)	Posterior end of iliac crest. Indicated by a "dimple" on skin (dimple of Venus). Lies opposite S2 vertebra.
Posterior Inferior Iliac Spine (PIIS)	Below PSIS. Forms the upper margin of the greater sciatic notch.
Greater Sciatic Notch	Large notch below PSIS/PIIS. Transmits sciatic nerve, superior/inferior gluteal vessels and nerves, pudendal nerve.
Iliac Fossa	Large concave medial surface of ilium. Contains iliacus muscle.
Iliac Tuberosity	Rough area posterior to auricular surface. For interosseous sacroiliac ligaments.
Auricular Surface	Ear-shaped articular surface on medial ilium. Forms the sacroiliac joint.
Arcuate Line	Smooth ridge running anteroinferiorly on medial ilium. Separates greater pelvis (above) from lesser pelvis (below). Forms part of pelvic brim.

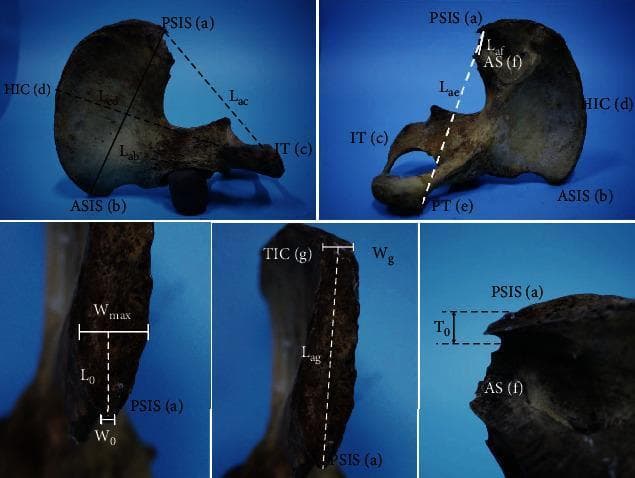

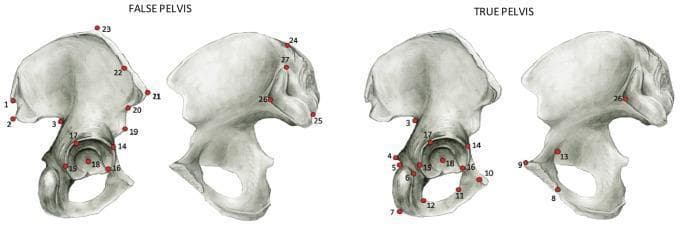

Os coxae morphometric diagram showing landmark locations including ASIS, PSIS, ischial tuberosity and auricular surface

B. ISCHIUM (Posteroinferior Part)

Landmark	Description & Importance
Ischial Spine	Sharp pointed projection. Separates greater sciatic notch (above) from lesser sciatic notch (below). Site of pudendal nerve block. Distance between ischial spines = bi-ischial diameter (obstetric importance).
Lesser Sciatic Notch	Below ischial spine. Converted to lesser sciatic foramen by sacrospinous ligament. Transmits tendon of obturator internus, pudendal nerve, and internal pudendal vessels on re-entry.
Ischial Tuberosity	Large rough mass of bone posteroinferiorly. We sit on these. Origin of hamstrings (semitendinosus, semimembranosus, biceps femoris long head) and adductor magnus. Common site of avulsion injury.
Ischial Ramus	Projects anteriorly from ischial tuberosity to join inferior pubic ramus.
Obturator Groove	On superior surface of ischial ramus. Contains obturator nerve and vessels.

C. PUBIS (Anteromedial Part)

Landmark	Description & Importance
Pubic Body	Medial part that joins opposite pubis at pubic symphysis.
Pubic Crest	Upper border of pubic body. Attachment of rectus abdominis and external oblique.
Pubic Tubercle	Lateral end of pubic crest. Attachment of inguinal ligament medially. Key landmark for femoral and inguinal hernias.
Pecten Pubis (Pectineal Line)	Sharp ridge on superior pubic ramus. Forms part of pelvic brim. Origin of pectineus muscle.
Superior Pubic Ramus	Runs from pubic body to iliopubic eminence.
Inferior Pubic Ramus	Runs from pubic body inferiorly to join ischial ramus.
Iliopubic (Iliopectineal) Eminence	Rounded elevation where ilium and pubis fuse (junction). Landmark on pelvic brim.
Obturator Foramen	Large oval foramen formed by pubis and ischium. Largely closed by obturator membrane.

D. ACETABULUM (Junction of all three bones)

Landmark	Description & Importance
Acetabular Fossa	Non-articular central pit. Contains fat pad.
Lunate Surface	Articular horseshoe-shaped surface. Covered by hyaline cartilage.
Acetabular Notch	Gap in inferior rim. Converted to acetabular foramen by transverse acetabular ligament.
Anterior/Posterior Columns	Structural buttresses connecting acetabulum to axial skeleton through sciatic buttress. Critical in acetabular fracture classification.

2. FEMUR (Thigh Bone - Longest Bone in the Body)

Femur anatomy showing femoral head, neck, greater and lesser trochanters with labeled landmarks

The femur is divided into a proximal end, shaft (body), and distal end.

A. PROXIMAL FEMUR

Landmark	Description & Importance
Femoral Head	2/3 sphere. Articular cartilage covers it except at fovea. Ossification begins 4-10 months after birth.
Fovea Capitis	Small pit on femoral head. Attachment of ligamentum teres (round ligament). Carries artery to femoral head (small contribution).
Femoral Neck	Connects head to shaft. Normal neck-shaft angle = 120-135° (coxa valga if >135°, coxa vara if <120°). Anteverted ~15° anteriorly. Most common site of osteoporotic hip fractures (intracapsular).
Greater Trochanter	Large bony prominence on lateral proximal femur. Palpable. Ossifies at 4 years. Site of: gluteus medius (superior), gluteus minimus (anterior), piriformis (medial surface). Location of greater trochanteric bursitis.
Lesser Trochanter	Conical projection posteromedially on proximal shaft. Ossifies at 11-12 years. Insertion of iliopsoas tendon.
Intertrochanteric Line	Runs between greater and lesser trochanters ANTERIORLY. Capsule of hip joint attaches here. Iliofemoral ligament attaches anteriorly.
Intertrochanteric Crest	Runs between greater and lesser trochanters POSTERIORLY. Has quadrate tubercle (insertion of quadratus femoris).
Trochanteric Fossa	Depression on medial surface of greater trochanter. Insertion of obturator internus and gemelli.

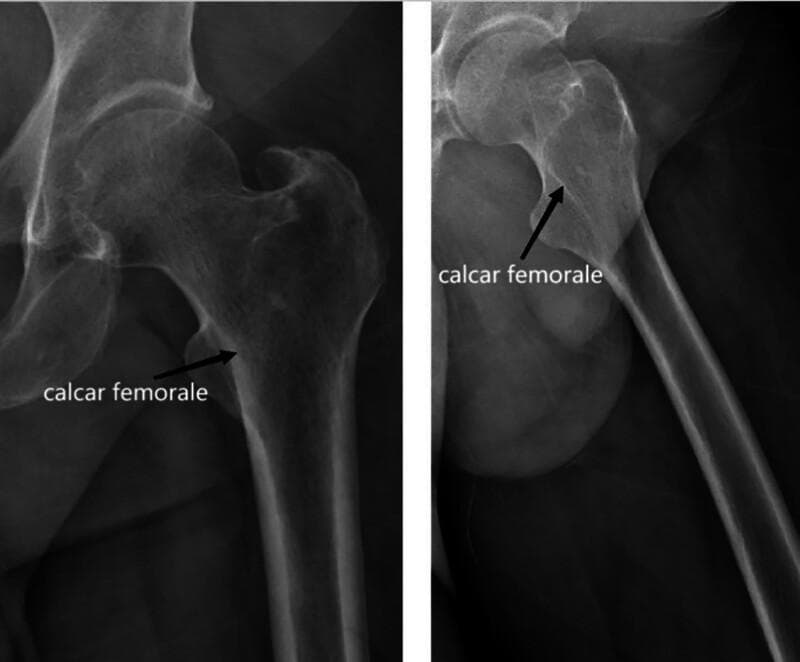

Calcar Femorale	Dense vertical plate of cortical bone in posteromedial femoral neck. Provides structural support against compressive forces. Important in hip arthroplasty planning.

B. SHAFT (BODY) OF FEMUR

Landmark	Description & Importance
Linea Aspera	Double ridge (medial and lateral lips) on posterior surface of femoral shaft. Major origin/insertion for thigh muscles. Medial lip continues as medial supracondylar line, lateral lip as lateral supracondylar line distally.
Gluteal Tuberosity	Upward continuation of medial lip of linea aspera. Insertion of gluteus maximus.
Pectineal Line	Line on posterior surface between lesser trochanter and linea aspera. Insertion of pectineus.
Spiral Line	Runs between intertrochanteric line and linea aspera anteriorly.
Nutrient Foramen	On posterior surface, directed upward (blood enters downward toward knee).

C. DISTAL FEMUR

Landmark	Description & Importance
Medial Condyle	Larger, projects more inferiorly. Articulates with medial tibial plateau.
Lateral Condyle	Smaller, but wider anteroposteriorly. Articulates with lateral tibial plateau.
Medial Epicondyle	Bony projection above medial condyle. Attachment of medial (tibial) collateral ligament and origin of medial head of gastrocnemius.
Lateral Epicondyle	Above lateral condyle. Attachment of lateral (fibular) collateral ligament and origin of lateral head of gastrocnemius.
Adductor Tubercle	Small prominence on medial epicondyle above. Insertion of adductor magnus.
Intercondylar (Popliteal) Notch/Fossa	Deep groove between condyles posteriorly. Contains ACL and PCL attachments.
Patellar Surface (Trochlea)	Anterior groove between condyles. Articulates with patella. Prevents lateral patellar dislocation by lateral lip being higher.
Medial & Lateral Supracondylar Lines	Continuations of linea aspera leading to epicondyles.
Popliteal Surface	Triangular area on posterior distal femur above intercondylar notch. Floor of popliteal fossa.

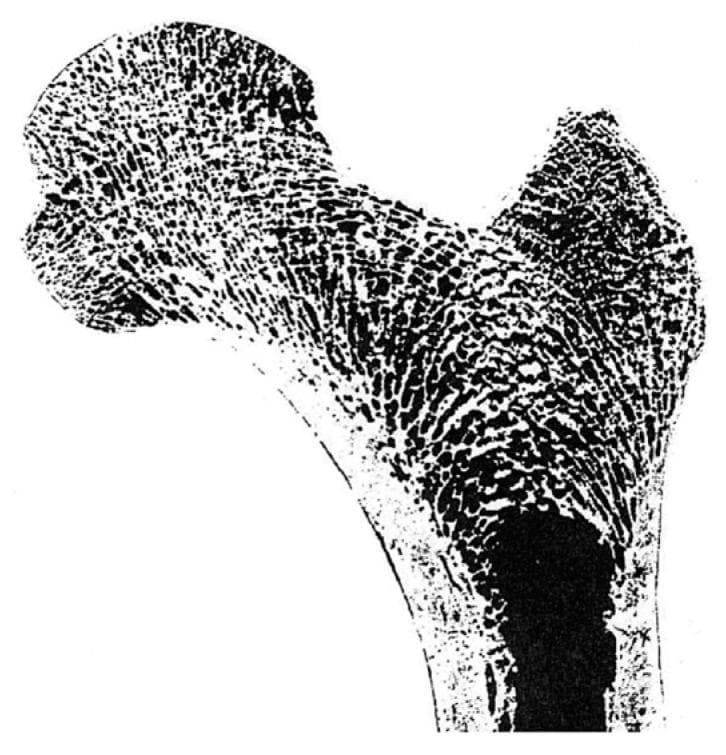

Femur cross-section showing trabecular pattern in femoral head and neck with calcar femorale

3. TIBIA (Shin Bone - Second Largest Bone)

The tibia is located anteromedially in the leg. It is the weight-bearing bone of the leg. Divided into proximal, shaft, and distal parts.

A. PROXIMAL TIBIA

Landmark	Description & Importance
Medial Condyle	Medial mass at proximal end. Larger and oval-shaped. Articulates with medial femoral condyle via medial meniscus.
Lateral Condyle	Lateral mass at proximal end. Smaller. Articulates with lateral femoral condyle via lateral meniscus.
Medial Tibial Plateau	Flat superior surface of medial condyle. Slightly concave.
Lateral Tibial Plateau	Flat superior surface of lateral condyle. Slightly convex. Has 5-7° posterior slope.
Intercondylar Eminence	Central bony ridge between medial and lateral plateaus. Consists of medial and lateral intercondylar tubercles (spines).
Anterior Intercondylar Area	Anterior to eminence. Attachment of anterior horn of both menisci and ACL.
Posterior Intercondylar Area	Posterior to eminence. Attachment of posterior horns and PCL.
Tibial Tuberosity	Bony prominence on anterior surface below condyles. Attachment of patellar tendon (quadriceps). Ossification center 8-14 years. Site of Osgood-Schlatter disease in adolescents.
Gerdy's Tubercle	On anterolateral surface of lateral condyle. Insertion of iliotibial band.
Fibular Articular Facet	On posteroinferior lateral condyle. Articulates with fibular head (proximal tibiofibular joint).

B. SHAFT (BODY) OF TIBIA

Landmark	Description & Importance
Anterior Border (Shin)	Begins at tibial tuberosity, extends to anterior surface of medial malleolus. Sharp, subcutaneous and palpable its entire length.
Medial Border	Extends from medial condyle to posterior border of medial malleolus.
Interosseous (Lateral) Border	Sharp border for attachment of interosseous membrane connecting to fibula.
Medial Surface	Broad, flat, subcutaneous - no muscle covers it. "Shin" is palpable here.
Posterior Surface	Has soleal line (oblique ridge) for origin of soleus muscle. Also has vertical ridge dividing surfaces for tibialis posterior origin.
Lateral Surface	Gives origin to extensor digitorum longus and peroneus (fibularis) tertius.
Soleal Line	Oblique line on posterior tibia. Origin of soleus. Nutrient foramen is just below and medial to it. Nutrient vessel directed downward (toward knee in tibia - opposite of femur).
Nutrient Foramen	On posterior surface below soleal line.

C. DISTAL TIBIA

Landmark	Description & Importance
Medial Malleolus	Bony projection on medial side of ankle. Palpable subcutaneously. Articular facet medially for medial surface of talus. Attachment of deltoid ligament.
Fibular Notch (Incisura Fibulae)	Groove on lateral side of distal tibia. Receives distal fibula to form tibiofibular syndesmosis.
Anterior Tibial Tubercle	More prominent than posterior. Prevents forward slipping of fibula.
Posterior Tibial Tubercle	Less prominent. Allows limited posterior fibular motion.
Inferior Articular Surface (Tibial Plafond)	Quadrilateral articular surface at ankle. Articulates with superior talar dome.
Groove for Flexor Hallucis Longus	Posteromedially on distal tibia.

4. FIBULA (Non-Weight-Bearing Lateral Bone of Leg)

The fibula is a slender bone located posterolaterally in the leg. It does NOT contribute to weight-bearing (only ~17% indirectly through syndesmosis). Its main functions are muscle attachment and ankle joint stabilization.

A. PROXIMAL FIBULA

Landmark	Description & Importance
Head of Fibula	Irregular knob at proximal end. Palpable on posterolateral knee. Articular surface for proximal tibiofibular joint.
Apex (Styloid Process)	Pointed projection at top of fibular head. Attachment of biceps femoris and fibular collateral ligament.
Articular Facet of Head	Faces anteromedially and slightly superiorly for tibial articulation.
Neck	Constricted part just below head. Common peroneal (fibular) nerve winds around lateral side here - vulnerable to injury (foot drop).

B. SHAFT OF FIBULA

Landmark	Description & Importance
Anterior Border	Gives attachment to anterior intermuscular septum.
Posterior Border	Gives attachment to posterior intermuscular septum.
Interosseous Border	Medial sharp border for interosseous membrane.
Medial Surface (Anterior)	Origin of extensor digitorum longus, extensor hallucis longus, peroneus tertius.
Lateral Surface (Posterior)	Origin of peroneus longus and brevis.
Posterior Surface	Origin of flexor hallucis longus, tibialis posterior.
Nutrient Foramen	On posterior surface. Directed downward (toward ankle).

C. DISTAL FIBULA (LATERAL MALLEOLUS)

Landmark	Description & Importance
Lateral Malleolus	Most distal part of fibula. Palpable prominently on lateral ankle. Projects more inferiorly (about 1 cm) than medial malleolus. This prevents lateral talus dislocation.
Articular Surface	On medial side of lateral malleolus. Triangular. Articulates with lateral facet of talus.
Malleolar Fossa	Posterior to articular surface on lateral malleolus. Contains posterior talofibular ligament and fibulocalcaneal ligament.
Anterior Tubercle	Attachment of anterior tibiofibular ligament.
Posterior Tubercle (Groove)	Groove for peroneus (fibularis) brevis and longus tendons.
Distal Tibiofibular Joint (Syndesmosis)	Fibrous joint between distal fibula and tibial incisura. Held by: anterior tibiofibular ligament (weakest), posterior tibiofibular ligament (strongest), transverse tibiofibular ligament, and interosseous ligament.

Tibia fibula labeled anatomy diagram showing tibial condyles, tibial tuberosity, and lateral malleolus

Quick Summary Table for Exam

Bone	Key Proximal Landmarks	Key Shaft Landmarks	Key Distal Landmarks
Hip Bone	ASIS, AIIS, PSIS, PIIS, iliac crest, ischial spine, ischial tuberosity, pubic tubercle	Arcuate line, obturator foramen, acetabulum	Pubic symphysis
Femur	Head, fovea capitis, neck, greater trochanter, lesser trochanter, intertrochanteric line/crest	Linea aspera, gluteal tuberosity, pectineal line, nutrient foramen	Medial/lateral condyles & epicondyles, adductor tubercle, intercondylar notch, patellar surface
Tibia	Medial/lateral condyles, tibial plateaus, intercondylar eminence, tibial tuberosity, Gerdy's tubercle	Anterior border (shin), soleal line, medial surface (subcutaneous), interosseous border	Medial malleolus, tibial plafond, fibular notch
Fibula	Head, apex (styloid), neck (common peroneal nerve here)	Anterior/posterior/interosseous borders, 3 surfaces	Lateral malleolus (1 cm below medial), malleolar fossa, syndesmosis

High-Yield Clinical Correlations

Clinical Point	Bone	Landmark Involved
Avascular necrosis after femoral neck fracture	Femur	Femoral head blood supply disrupted
Common peroneal nerve palsy (foot drop)	Fibula	Neck of fibula
Osgood-Schlatter disease	Tibia	Tibial tuberosity apophysis
ASIS avulsion injury (sprinting, kicking)	Hip bone	ASIS (sartorius origin)
AIIS avulsion (kicking)	Hip bone	AIIS (rectus femoris origin)
Pudendal nerve block landmark	Hip bone	Ischial spine
Ischial tuberosity bursitis (Weaver's bottom)	Hip bone	Ischial tuberosity

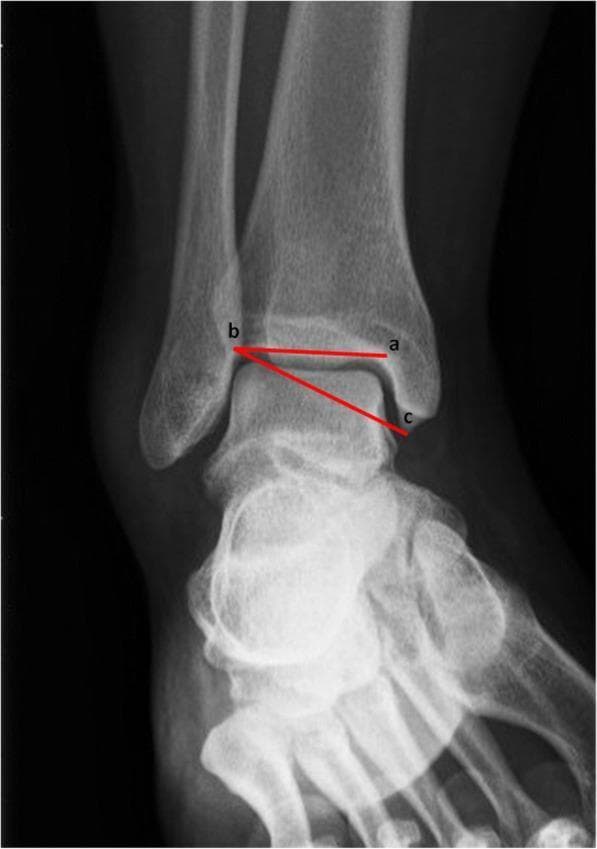

Ankle mortise widening (1 mm = significant instability)	Fibula + Tibia	Syndesmosis
True leg length measurement	Hip bone + Femur	ASIS to medial malleolus
Adductor tubercle - insertion of adductor magnus	Femur	Medial epicondyle region

Sources: Imaging Anatomy Text and Atlas Vol 3 - Bones, Joints, Vessels and Nerves (Saremi et al.); General Anatomy and Musculoskeletal System - THIEME Atlas of Anatomy. Content covers all landmarks as taught in BD Chaurasia Human Anatomy Vol 2 (Lower Limb).

Create a PDF quick reference card with labeled bone diagrams for easy exam study

Reading File

Running Command

ls -la /tmp/workspace/ 2>/dev/null || echo "workspace empty or not created"

Running Command

mkdir -p /tmp/workspace/bone-ref-card && python3 -c "from reportlab.lib import colors; print('reportlab OK')"

Writing File

~/bone-ref-card/generate_pdf.py

#!/usr/bin/env python3
"""
Lower Limb Bones Quick Reference Card PDF
Hip Bone | Femur | Tibia | Fibula - BDC Vol 2 Landmarks
"""

from reportlab.lib.pagesizes import A4
from reportlab.lib import colors
from reportlab.lib.units import mm, cm
from reportlab.platypus import (
    SimpleDocTemplate, Paragraph, Spacer, Table, TableStyle,
    HRFlowable, KeepTogether
)
from reportlab.lib.styles import getSampleStyleSheet, ParagraphStyle
from reportlab.lib.enums import TA_CENTER, TA_LEFT
from reportlab.platypus import Flowable
from reportlab.pdfgen import canvas
import io

# ── Colour palette ──────────────────────────────────────────────────────────
DARK_NAVY   = colors.HexColor("#1a2540")
MID_BLUE    = colors.HexColor("#2d5fa6")
ACCENT_TEAL = colors.HexColor("#1e8c8c")
ACCENT_GOLD = colors.HexColor("#d4a017")
ACCENT_RED  = colors.HexColor("#c0392b")
ACCENT_GRN  = colors.HexColor("#27ae60")
LIGHT_BG    = colors.HexColor("#f0f4fa")
TABLE_HDR   = colors.HexColor("#2d5fa6")
TABLE_ALT   = colors.HexColor("#eef3fb")
WHITE       = colors.white
LIGHT_GREY  = colors.HexColor("#f7f7f7")
MID_GREY    = colors.HexColor("#aaaaaa")

PAGE_W, PAGE_H = A4  # 595.27 x 841.89 pts

OUTPUT = "/tmp/workspace/bone-ref-card/Lower_Limb_Bones_Quick_Ref.pdf"

# ── Bone colours ─────────────────────────────────────────────────────────────
BONE_COLORS = {
    "Hip Bone": colors.HexColor("#8B4513"),   # saddle brown
    "Femur":    colors.HexColor("#2d5fa6"),   # blue
    "Tibia":    colors.HexColor("#27ae60"),   # green
    "Fibula":   colors.HexColor("#c0392b"),   # red
}

# ─────────────────────────────────────────────────────────────────────────────
# Custom Flowables
# ─────────────────────────────────────────────────────────────────────────────

class BoneDiagram(Flowable):
    """Hand-drawn-style schematic bone diagram using ReportLab canvas."""

    def __init__(self, bone_name, width=170*mm, height=200*mm):
        super().__init__()
        self.bone_name = bone_name
        self.width = width
        self.height = height

    def wrap(self, avail_w, avail_h):
        return self.width, self.height

    def draw(self):
        c = self.canv
        w, h = self.width, self.height
        cx = w / 2

        if self.bone_name == "Hip Bone":
            self._draw_hip_bone(c, cx, h)
        elif self.bone_name == "Femur":
            self._draw_femur(c, cx, h)
        elif self.bone_name == "Tibia":
            self._draw_tibia(c, cx, h)
        elif self.bone_name == "Fibula":
            self._draw_fibula(c, cx, h)

    # ── Drawing helpers ──────────────────────────────────────────────────────

    def _label(self, c, x, y, text, side="right", color=DARK_NAVY, size=6.5):
        c.setFont("Helvetica", size)
        c.setFillColor(color)
        if side == "right":
            c.drawString(x + 4, y - 3, text)
        else:
            tw = c.stringWidth(text, "Helvetica", size)
            c.drawString(x - tw - 4, y - 3, text)

    def _dot(self, c, x, y, r=2.5, color=ACCENT_GOLD):
        c.setFillColor(color)
        c.circle(x, y, r, fill=1, stroke=0)

    def _leader(self, c, x1, y1, x2, y2):
        c.setStrokeColor(MID_GREY)
        c.setLineWidth(0.5)
        c.line(x1, y1, x2, y2)

    # ── HIP BONE ─────────────────────────────────────────────────────────────
    def _draw_hip_bone(self, c, cx, h):
        bone_color = BONE_COLORS["Hip Bone"]
        c.setStrokeColor(bone_color)
        c.setFillColor(colors.HexColor("#f5e6d3"))
        c.setLineWidth(1.8)

        # Iliac crest (top arc)
        from reportlab.graphics.shapes import Path
        p = c.beginPath()
        p.moveTo(cx - 60, h - 30)           # left iliac crest start
        p.curveTo(cx - 80, h - 10,           # left curve up
                  cx + 80, h - 10,           # right curve up
                  cx + 60, h - 30)           # right end
        # Down to PSIS area
        p.curveTo(cx + 75, h - 55,
                  cx + 70, h - 80,
                  cx + 55, h - 100)          # posterior column
        # Sciatic notch area
        p.curveTo(cx + 50, h - 110,
                  cx + 60, h - 125,
                  cx + 45, h - 140)          # ischial spine
        p.curveTo(cx + 35, h - 155,
                  cx + 40, h - 170,
                  cx + 30, h - 185)          # ischial tuberosity
        # Inferior pubic ramus
        p.curveTo(cx + 10, h - 192,
                  cx - 10, h - 192,
                  cx - 25, h - 180)
        # Pubic area
        p.curveTo(cx - 40, h - 170,
                  cx - 45, h - 155,
                  cx - 55, h - 145)
        # Obturator foramen (we'll draw it separately)
        # Back up the anterior column
        p.curveTo(cx - 70, h - 120,
                  cx - 75, h - 90,
                  cx - 70, h - 60)
        p.curveTo(cx - 75, h - 45,
                  cx - 70, h - 35,
                  cx - 60, h - 30)
        c.drawPath(p, fill=1, stroke=1)

        # Acetabulum - circle on lateral surface (mid area)
        ac_x = cx + 15
        ac_y = h - 120
        c.setFillColor(colors.HexColor("#d4b896"))
        c.setStrokeColor(bone_color)
        c.setLineWidth(1.5)
        c.circle(ac_x, ac_y, 28, fill=1, stroke=1)
        # Acetabular notch (gap at bottom)
        c.setFillColor(colors.HexColor("#f5e6d3"))
        c.setLineWidth(0)
        c.rect(ac_x - 8, ac_y - 30, 16, 10, fill=1, stroke=0)
        # Lunate surface arc
        c.setStrokeColor(bone_color)
        c.setLineWidth(1)
        c.arc(ac_x - 22, ac_y - 22, ac_x + 22, ac_y + 22, startAng=20, extent=290)

        # Obturator foramen (oval)
        c.setFillColor(colors.HexColor("#ddd"))
        c.setStrokeColor(bone_color)
        c.setLineWidth(1.2)
        c.ellipse(cx - 30, h - 172, cx + 5, h - 148, fill=1, stroke=1)

        # ── Labels ──────────────────────────────────────────────────────────
        pts = [
            # (dot_x, dot_y, label, side)
            (cx,      h - 18,  "Iliac Crest",               "right"),
            (cx - 58, h - 30,  "ASIS",                      "left"),
            (cx - 62, h - 55,  "AIIS",                      "left"),
            (cx + 58, h - 30,  "PSIS",                      "right"),
            (cx + 55, h - 60,  "PIIS",                      "right"),
            (cx + 58, h - 112, "Greater Sciatic Notch",     "right"),
            (cx + 46, h - 140, "Ischial Spine",             "right"),
            (cx + 32, h - 185, "Ischial Tuberosity",        "right"),
            (cx - 12, h - 192, "Inf. Pubic Ramus",          "left"),
            (cx - 52, h - 148, "Pubic Tubercle",            "left"),
            (ac_x,    ac_y,    "Acetabulum",                "right"),
            (cx - 13, h - 160, "Obturator Foramen",         "left"),
            (cx - 55, h - 100, "Iliac Fossa",               "left"),
        ]
        for dx, dy, lbl, side in pts:
            self._dot(c, dx, dy)
            # leader line
            if side == "right":
                self._leader(c, dx + 2.5, dy, dx + 3, dy)
            else:
                self._leader(c, dx - 2.5, dy, dx - 3, dy)
            self._label(c, dx, dy, lbl, side)

    # ── FEMUR ────────────────────────────────────────────────────────────────
    def _draw_femur(self, c, cx, h):
        bone_color = BONE_COLORS["Femur"]
        fill_color = colors.HexColor("#d6e4f7")
        c.setStrokeColor(bone_color)
        c.setFillColor(fill_color)
        c.setLineWidth(1.8)

        # Head (circle at top-left, angled neck)
        head_x = cx - 30
        head_y = h - 28
        c.circle(head_x, head_y, 22, fill=1, stroke=1)
        # Fovea capitis
        c.setFillColor(colors.HexColor("#b8cde8"))
        c.circle(head_x, head_y, 5, fill=1, stroke=0)
        c.setFillColor(fill_color)

        # Neck (trapezoid connecting head to shaft)
        neck_path = c.beginPath()
        neck_path.moveTo(head_x + 15, head_y - 8)
        neck_path.lineTo(cx + 10, h - 65)
        neck_path.lineTo(cx + 22, h - 68)
        neck_path.lineTo(head_x + 20, head_y + 5)
        neck_path.close()
        c.setStrokeColor(bone_color)
        c.drawPath(neck_path, fill=1, stroke=1)

        # Greater trochanter (top right bump)
        gt_x = cx + 35
        gt_y = h - 60
        gt_path = c.beginPath()
        gt_path.moveTo(cx + 10, h - 60)
        gt_path.curveTo(cx + 15, h - 45, cx + 45, h - 40, gt_x + 10, h - 65)
        gt_path.curveTo(gt_x + 12, h - 75, gt_x, h - 80, cx + 20, h - 80)
        gt_path.close()
        c.drawPath(gt_path, fill=1, stroke=1)

        # Shaft (tapered rectangle)
        shaft_top_y = h - 80
        shaft_bot_y = h - 190
        c.setFillColor(fill_color)
        shaft_path = c.beginPath()
        shaft_path.moveTo(cx - 12, shaft_top_y)
        shaft_path.lineTo(cx - 14, shaft_bot_y + 20)
        shaft_path.lineTo(cx - 22, shaft_bot_y)
        shaft_path.lineTo(cx + 22, shaft_bot_y)
        shaft_path.lineTo(cx + 14, shaft_bot_y + 20)
        shaft_path.lineTo(cx + 15, shaft_top_y)
        shaft_path.close()
        c.drawPath(shaft_path, fill=1, stroke=1)

        # Lesser trochanter (medial bump at top of shaft)
        lt_x = cx - 22
        lt_y = h - 90
        lt_path = c.beginPath()
        lt_path.moveTo(cx - 12, h - 85)
        lt_path.curveTo(cx - 18, h - 88, cx - 32, h - 88, lt_x - 5, h - 96)
        lt_path.curveTo(lt_x - 5, h - 104, cx - 20, h - 100, cx - 12, h - 98)
        lt_path.close()
        c.drawPath(lt_path, fill=1, stroke=1)

        # Linea aspera (dashed line on posterior shaft)
        c.setStrokeColor(bone_color)
        c.setLineWidth(1.2)
        c.setDash([3, 2])
        c.line(cx + 5, shaft_top_y - 5, cx + 8, shaft_bot_y + 25)
        c.setDash([])

        # Distal condyles
        med_c_x = cx - 20
        lat_c_x = cx + 20
        dist_y   = shaft_bot_y
        c.setLineWidth(1.8)
        c.setFillColor(fill_color)
        # Medial condyle
        mc_path = c.beginPath()
        mc_path.moveTo(cx - 14, dist_y)
        mc_path.curveTo(cx - 14, dist_y - 12, cx - 35, dist_y - 12, cx - 35, dist_y - 5)
        mc_path.curveTo(cx - 35, dist_y + 8, cx - 14, dist_y + 5, cx - 14, dist_y)
        c.drawPath(mc_path, fill=1, stroke=1)
        # Lateral condyle
        lc_path = c.beginPath()
        lc_path.moveTo(cx + 14, dist_y)
        lc_path.curveTo(cx + 14, dist_y - 12, cx + 35, dist_y - 12, cx + 35, dist_y - 5)
        lc_path.curveTo(cx + 35, dist_y + 8, cx + 14, dist_y + 5, cx + 14, dist_y)
        c.drawPath(lc_path, fill=1, stroke=1)
        # Intercondylar notch
        c.setFillColor(colors.HexColor("#b8cde8"))
        c.ellipse(cx - 12, dist_y - 10, cx + 12, dist_y + 2, fill=1, stroke=0)

        # ── Labels ──────────────────────────────────────────────────────────
        pts = [
            (head_x,     head_y,       "Femoral Head",            "left"),
            (head_x,     head_y,       "Fovea Capitis (pit)",     "right"),
            (cx - 5,     h - 50,       "Femoral Neck",            "left"),
            (gt_x + 5,   gt_y - 10,    "Greater Trochanter",      "right"),
            (lt_x - 3,   lt_y - 2,     "Lesser Trochanter",       "left"),
            (cx + 10,    h - 72,       "Intertrochanteric Line",  "right"),
            (cx + 8,     h - 130,      "Linea Aspera (post.)",    "right"),
            (cx - 32,    dist_y - 5,   "Medial Condyle",          "left"),
            (cx + 32,    dist_y - 5,   "Lateral Condyle",         "right"),
            (cx - 35,    dist_y + 5,   "Medial Epicondyle",       "left"),
            (cx + 35,    dist_y + 5,   "Lateral Epicondyle",      "right"),
            (cx,         dist_y - 5,   "Intercondylar Fossa",     "right"),
        ]
        for dx, dy, lbl, side in pts:
            self._dot(c, dx, dy)
            self._label(c, dx, dy, lbl, side, size=6.2)

    # ── TIBIA ────────────────────────────────────────────────────────────────
    def _draw_tibia(self, c, cx, h):
        bone_color = BONE_COLORS["Tibia"]
        fill_color = colors.HexColor("#d4f0e0")
        c.setStrokeColor(bone_color)
        c.setFillColor(fill_color)
        c.setLineWidth(1.8)

        # Proximal expanded end
        prox_top = h - 25
        prox_bot = h - 70
        prox_path = c.beginPath()
        prox_path.moveTo(cx - 45, prox_bot)
        prox_path.curveTo(cx - 50, prox_top + 10, cx - 20, prox_top, cx, prox_top)
        prox_path.curveTo(cx + 20, prox_top, cx + 50, prox_top + 10, cx + 45, prox_bot)
        prox_path.lineTo(cx + 20, prox_bot)
        prox_path.lineTo(cx + 18, prox_bot - 8)
        prox_path.lineTo(cx - 18, prox_bot - 8)
        prox_path.lineTo(cx - 20, prox_bot)
        prox_path.close()
        c.drawPath(prox_path, fill=1, stroke=1)

        # Intercondylar eminence
        c.setFillColor(colors.HexColor("#a8dfc0"))
        em_path = c.beginPath()
        em_path.moveTo(cx - 10, prox_top + 2)
        em_path.curveTo(cx - 8, prox_top - 8, cx - 3, prox_top - 12, cx, prox_top - 15)
        em_path.curveTo(cx + 3, prox_top - 12, cx + 8, prox_top - 8, cx + 10, prox_top + 2)
        em_path.close()
        c.drawPath(em_path, fill=1, stroke=1)
        c.setFillColor(fill_color)

        # Tibial tuberosity (anterior bump)
        tt_y = h - 85
        tt_path = c.beginPath()
        tt_path.moveTo(cx - 18, prox_bot - 8)
        tt_path.curveTo(cx - 20, tt_y - 5, cx - 25, tt_y, cx - 22, tt_y + 10)
        tt_path.curveTo(cx - 18, tt_y + 18, cx - 12, tt_y + 15, cx - 12, prox_bot - 8)
        c.drawPath(tt_path, fill=1, stroke=1)

        # Shaft (slightly triangular cross-section feel)
        shaft_top = h - 88
        shaft_bot = h - 195
        shaft_path = c.beginPath()
        shaft_path.moveTo(cx - 14, shaft_top)
        shaft_path.lineTo(cx - 10, shaft_bot + 15)
        shaft_path.lineTo(cx - 18, shaft_bot)
        shaft_path.lineTo(cx + 14, shaft_bot)
        shaft_path.lineTo(cx + 10, shaft_bot + 15)
        shaft_path.lineTo(cx + 12, shaft_top)
        shaft_path.close()
        c.drawPath(shaft_path, fill=1, stroke=1)

        # Anterior border - sharp line
        c.setStrokeColor(colors.HexColor("#1a6640"))
        c.setLineWidth(2)
        c.line(cx - 22, tt_y + 10, cx - 14, shaft_bot + 15)
        c.setStrokeColor(bone_color)
        c.setLineWidth(1.8)

        # Soleal line (oblique, posterior)
        c.setStrokeColor(bone_color)
        c.setDash([4, 2])
        c.setLineWidth(1)
        c.line(cx + 5, shaft_top - 5, cx + 10, shaft_top - 38)
        c.setDash([])

        # Distal end
        dist_top = shaft_bot
        dist_bot = h - 218
        dist_path = c.beginPath()
        dist_path.moveTo(cx - 18, dist_top)
        dist_path.curveTo(cx - 22, dist_top - 8, cx - 28, dist_bot + 5, cx - 24, dist_bot)
        dist_path.lineTo(cx + 20, dist_bot)
        dist_path.curveTo(cx + 24, dist_bot + 5, cx + 18, dist_top - 8, cx + 14, dist_top)
        dist_path.close()
        c.drawPath(dist_path, fill=1, stroke=1)

        # Medial malleolus
        mm_path = c.beginPath()
        mm_path.moveTo(cx - 20, dist_bot + 3)
        mm_path.curveTo(cx - 28, dist_bot - 5, cx - 30, dist_bot - 12, cx - 22, dist_bot - 14)
        mm_path.curveTo(cx - 15, dist_bot - 15, cx - 12, dist_bot - 8, cx - 10, dist_bot)
        c.drawPath(mm_path, fill=1, stroke=1)

        # ── Labels ──────────────────────────────────────────────────────────
        pts = [
            (cx - 45, prox_top + 5,   "Medial Condyle",             "left"),
            (cx + 45, prox_top + 5,   "Lateral Condyle",            "right"),
            (cx,      prox_top - 15,  "Intercondylar Eminence",     "right"),
            (cx - 22, tt_y + 5,       "Tibial Tuberosity",          "left"),
            (cx - 22, shaft_top,      "Anterior Border (Shin)",     "left"),
            (cx + 10, shaft_top - 20, "Soleal Line (post.)",        "right"),
            (cx - 14, h - 140,        "Medial Surface (subcut.)",   "left"),
            (cx - 22, dist_bot - 8,   "Medial Malleolus",           "left"),
            (cx + 14, dist_top - 4,   "Fibular Notch",              "right"),
            (cx + 10, dist_bot + 2,   "Tibial Plafond",             "right"),
        ]
        for dx, dy, lbl, side in pts:
            self._dot(c, dx, dy, color=ACCENT_GRN)
            self._label(c, dx, dy, lbl, side, size=6.2)

    # ── FIBULA ───────────────────────────────────────────────────────────────
    def _draw_fibula(self, c, cx, h):
        bone_color = BONE_COLORS["Fibula"]
        fill_color = colors.HexColor("#fce8e6")
        c.setStrokeColor(bone_color)
        c.setFillColor(fill_color)
        c.setLineWidth(1.8)

        # Head (irregular knob)
        head_x = cx
        head_y = h - 30
        head_path = c.beginPath()
        head_path.moveTo(head_x - 18, head_y - 12)
        head_path.curveTo(head_x - 22, head_y + 2, head_x - 10, head_y + 12, head_x, head_y + 14)
        head_path.curveTo(head_x + 10, head_y + 12, head_x + 20, head_y + 5, head_x + 18, head_y - 8)
        head_path.curveTo(head_x + 14, head_y - 15, head_x + 8, head_y - 18, head_x, head_y - 18)
        head_path.curveTo(head_x - 10, head_y - 18, head_x - 16, head_y - 22, head_x - 18, head_y - 12)
        head_path.close()
        c.drawPath(head_path, fill=1, stroke=1)

        # Apex (styloid process - small spike on top)
        apex_path = c.beginPath()
        apex_path.moveTo(head_x - 5, head_y + 12)
        apex_path.lineTo(head_x - 10, head_y + 25)
        apex_path.lineTo(head_x + 5, head_y + 13)
        apex_path.close()
        c.drawPath(apex_path, fill=1, stroke=1)

        # Neck (constricted)
        neck_y_top = head_y - 18
        neck_y_bot = head_y - 38
        c.rect(cx - 9, neck_y_bot, 18, neck_y_top - neck_y_bot, fill=1, stroke=1)

        # Shaft (slender)
        shaft_top = h - 70
        shaft_bot = h - 190
        shaft_path = c.beginPath()
        shaft_path.moveTo(cx - 9, shaft_top)
        shaft_path.lineTo(cx - 8, shaft_bot + 20)
        shaft_path.lineTo(cx - 12, shaft_bot)
        shaft_path.lineTo(cx + 12, shaft_bot)
        shaft_path.lineTo(cx + 8, shaft_bot + 20)
        shaft_path.lineTo(cx + 9, shaft_top)
        shaft_path.close()
        c.drawPath(shaft_path, fill=1, stroke=1)

        # Lateral malleolus (distal expanded end)
        lm_top = shaft_bot
        lm_bot = h - 218
        lm_path = c.beginPath()
        lm_path.moveTo(cx - 12, lm_top)
        lm_path.curveTo(cx - 16, lm_top - 8, cx - 20, lm_bot + 8, cx - 18, lm_bot)
        lm_path.lineTo(cx + 18, lm_bot)
        lm_path.curveTo(cx + 22, lm_bot + 5, cx + 18, lm_top - 8, cx + 12, lm_top)
        lm_path.close()
        c.drawPath(lm_path, fill=1, stroke=1)

        # Malleolar fossa (posterior pit)
        c.setFillColor(colors.HexColor("#e8b0a8"))
        c.ellipse(cx + 6, lm_bot + 3, cx + 16, lm_bot + 12, fill=1, stroke=0)
        c.setFillColor(fill_color)

        # ── Labels ──────────────────────────────────────────────────────────
        pts = [
            (head_x - 10, head_y + 22, "Apex (Styloid Process)",    "left"),
            (head_x,      head_y,      "Head of Fibula",             "right"),
            (head_x,      head_y - 28, "Neck (common peroneal n.)",  "right"),
            (cx + 9,      shaft_top,   "Interosseous Border",        "right"),
            (cx - 9,      h - 110,     "Post. Surface (FHL, TP)",    "left"),
            (cx + 9,      h - 130,     "Lat. Surface (peroneals)",   "right"),
            (cx,          lm_top + 5,  "Lateral Malleolus",          "right"),
            (cx + 12,     lm_bot + 7,  "Malleolar Fossa",            "right"),
            (cx - 15,     lm_bot + 2,  "Articular Surface",          "left"),
            (cx,          lm_bot + 14, "Ant. Tubercle (ATFL)",       "right"),
        ]
        for dx, dy, lbl, side in pts:
            self._dot(c, dx, dy, color=ACCENT_RED)
            self._label(c, dx, dy, lbl, side, size=6.2)


# ─────────────────────────────────────────────────────────────────────────────
# Header Banner
# ─────────────────────────────────────────────────────────────────────────────
class HeaderBanner(Flowable):
    def __init__(self, width, height=42):
        super().__init__()
        self.width = width
        self.height = height

    def wrap(self, aw, ah):
        return self.width, self.height

    def draw(self):
        c = self.canv
        # Gradient-like banner
        c.setFillColor(DARK_NAVY)
        c.rect(0, 0, self.width, self.height, fill=1, stroke=0)
        c.setFillColor(MID_BLUE)
        c.rect(0, 0, self.width * 0.6, self.height, fill=1, stroke=0)
        # Title text
        c.setFillColor(WHITE)
        c.setFont("Helvetica-Bold", 16)
        c.drawString(10, self.height - 24, "LOWER LIMB BONES  —  QUICK REFERENCE CARD")
        c.setFont("Helvetica", 8)
        c.setFillColor(ACCENT_GOLD)
        c.drawString(10, 6, "Hip Bone  |  Femur  |  Tibia  |  Fibula  —  BDC Vol 2 Landmarks for Exam Study")


class SectionHeader(Flowable):
    def __init__(self, text, color, width=165*mm):
        super().__init__()
        self.text = text
        self.color = color
        self.width = width
        self.height = 18

    def wrap(self, aw, ah):
        return self.width, self.height

    def draw(self):
        c = self.canv
        c.setFillColor(self.color)
        c.roundRect(0, 0, self.width, self.height, 4, fill=1, stroke=0)
        c.setFillColor(WHITE)
        c.setFont("Helvetica-Bold", 11)
        c.drawString(8, 4, self.text)


# ─────────────────────────────────────────────────────────────────────────────
# Table builder
# ─────────────────────────────────────────────────────────────────────────────
def make_landmark_table(rows, bone_color, col_widths=None):
    """rows: list of (landmark, description) tuples."""
    styles = getSampleStyleSheet()
    small = ParagraphStyle("small", fontSize=6.8, leading=9, fontName="Helvetica")
    bold_small = ParagraphStyle("boldsmall", fontSize=6.8, leading=9,
                                fontName="Helvetica-Bold")

    data = [["Landmark", "Description / Clinical Importance"]]
    for lm, desc in rows:
        data.append([
            Paragraph(lm, bold_small),
            Paragraph(desc, small),
        ])

    if col_widths is None:
        col_widths = [48*mm, 117*mm]

    t = Table(data, colWidths=col_widths, repeatRows=1)
    ts = TableStyle([
        ("BACKGROUND",   (0, 0), (-1, 0),  bone_color),
        ("TEXTCOLOR",    (0, 0), (-1, 0),  WHITE),
        ("FONTNAME",     (0, 0), (-1, 0),  "Helvetica-Bold"),
        ("FONTSIZE",     (0, 0), (-1, 0),  7.5),
        ("TOPPADDING",   (0, 0), (-1, 0),  3),
        ("BOTTOMPADDING",(0, 0), (-1, 0),  3),
        ("ROWBACKGROUNDS", (0, 1), (-1, -1), [WHITE, TABLE_ALT]),
        ("GRID",         (0, 0), (-1, -1),  0.4, colors.HexColor("#cccccc")),
        ("TOPPADDING",   (0, 1), (-1, -1),  2),
        ("BOTTOMPADDING",(0, 1), (-1, -1),  2),
        ("LEFTPADDING",  (0, 0), (-1, -1),  4),
        ("VALIGN",       (0, 0), (-1, -1),  "TOP"),
    ])
    t.setStyle(ts)
    return t


# ─────────────────────────────────────────────────────────────────────────────
# Content data
# ─────────────────────────────────────────────────────────────────────────────
HIP_ILIUM = [
    ("Iliac Crest",        "Curved upper border, ASIS to PSIS. Palpable throughout. Site of bone marrow biopsy. Subcutaneous throughout."),
    ("ASIS",               "Anterior Superior Iliac Spine. Origin of sartorius; medial attachment of inguinal ligament. True leg-length landmark. Avulsion in sprinters."),
    ("AIIS",               "Anterior Inferior Iliac Spine. Origin of rectus femoris (direct head). Avulsion in kicking sports."),
    ("PSIS",               "Posterior Superior Iliac Spine. Skin dimple (Dimple of Venus). Opposite S2 vertebra."),
    ("PIIS",               "Posterior Inferior Iliac Spine. Upper margin of greater sciatic notch."),
    ("Greater Sciatic Notch", "Between PIIS and ischial spine. Transmits sciatic nerve, superior/inferior gluteal vessels & nerves, pudendal nerve."),
    ("Iliac Fossa",        "Concave medial surface. Contains iliacus muscle."),
    ("Auricular Surface",  "Ear-shaped medial surface. Forms sacroiliac joint with sacrum."),
    ("Arcuate Line",       "Medial ridge. Separates greater (above) from lesser (below) pelvis. Part of pelvic brim."),
]

HIP_ISCHIUM = [
    ("Ischial Spine",      "Sharp projection between greater and lesser sciatic notches. Landmark for pudendal nerve block. Bi-ischial diameter = obstetric measure."),
    ("Lesser Sciatic Notch","Below ischial spine. Converted to foramen by sacrospinous ligament. Re-entry of pudendal nerve + internal pudendal vessels."),
    ("Ischial Tuberosity", "Large rough mass we sit on. Origin: hamstrings (semitendinosus, semimembranosus, biceps femoris LH) and adductor magnus. Avulsion common."),
    ("Ischial Ramus",      "Joins inferior pubic ramus below obturator foramen. Origin of obturator externus."),
]

HIP_PUBIS = [
    ("Pubic Body",         "Medial mass. Unites at pubic symphysis (fibrocartilage disc). Allows slight movement in pregnancy (relaxin effect)."),
    ("Pubic Crest",        "Upper border. Attachment of rectus abdominis, external oblique."),
    ("Pubic Tubercle",     "Lateral end of pubic crest. Medial attachment of inguinal ligament. Key hernia landmark."),
    ("Pecten Pubis",       "Sharp ridge on superior ramus. Part of pelvic brim. Origin of pectineus."),
    ("Iliopubic Eminence", "Rounded junction of ilium + pubis on pelvic brim."),
    ("Obturator Foramen",  "Large oval foramen (pubis + ischium). Mostly closed by obturator membrane. Obturator nerve and vessels pass through superior canal."),
]

HIP_ACETAB = [
    ("Acetabular Fossa",   "Non-articular central pit. Contains fat pad (Haversian gland) and ligamentum teres attachment."),
    ("Lunate Surface",     "Horseshoe-shaped articular cartilage. Bears weight through femoral head."),
    ("Acetabular Notch",   "Gap in inferior rim. Bridged by transverse acetabular ligament forming acetabular foramen (for vessels)."),
    ("Ant/Post Columns",   "Structural buttresses. Ant. column: iliopectineal line. Post. column: ilioischial line. Basis of Letournel acetabular fracture classification."),
]

FEMUR_PROX = [
    ("Femoral Head",       "2/3 sphere, articular cartilage. Blood supply: medial circumflex femoral (main), lateral circumflex femoral, obturator (ligamentum teres - minor). Disrupted in neck fractures → AVN."),
    ("Fovea Capitis",      "Small pit in head. Attachment of ligamentum teres. Small artery contribution from obturator."),
    ("Femoral Neck",       "Normal angle 120-135°. Anteversion ~15°. Intracapsular. Most common osteoporotic fracture. Blood supply enters via retinacular vessels."),
    ("Greater Trochanter", "Lateral prominence. Palpable. Ossifies age 4. Attachments: gluteus medius (sup), gluteus minimus (ant), piriformis (trochanteric fossa), obturator internus + gemelli (trochanteric fossa)."),
    ("Lesser Trochanter",  "Posteromedial conical projection. Ossifies 11-12 yrs. Insertion of iliopsoas (psoas major + iliacus). Avulsion in adolescents."),
    ("Intertrochanteric Line", "ANTERIOR. Joins trochanters anteriorly. Hip capsule attaches here. Iliofemoral ligament (Y ligament of Bigelow) attaches."),
    ("Intertrochanteric Crest","POSTERIOR. Has quadrate tubercle (insertion of quadratus femoris)."),
    ("Trochanteric Fossa", "Depression on medial greater trochanter. Obturator internus + gemelli insert."),
    ("Calcar Femorale",    "Dense cortical plate posteromedially in neck. Resists compressive forces. Critical in hip arthroplasty planning."),
]

FEMUR_SHAFT = [
    ("Linea Aspera",       "Double ridge (medial + lateral lip) on posterior shaft. Attachments of vastus medialis (medial lip), vastus lateralis (lateral lip), biceps femoris SH, adductors longus/brevis/magnus."),
    ("Gluteal Tuberosity", "Upward continuation of medial lip of linea aspera. Insertion of gluteus maximus."),
    ("Pectineal Line",     "Between lesser trochanter and linea aspera posteriorly. Insertion of pectineus."),
    ("Nutrient Foramen",   "Posterior surface, directed proximally (toward hip). Nutrient artery from profunda femoris."),
]

FEMUR_DIST = [
    ("Medial Condyle",     "Larger, projects more inferiorly. Articulates with medial tibial plateau. Longer radius of curvature."),
    ("Lateral Condyle",    "Smaller but wider A-P. Articulates with lateral tibial plateau. Has popliteal groove (popliteus tendon)."),
    ("Medial Epicondyle",  "Above medial condyle. MCL (tibial collateral ligament). Medial head of gastrocnemius origin."),
    ("Lateral Epicondyle", "Above lateral condyle. LCL (fibular collateral ligament). Lateral head of gastrocnemius origin."),
    ("Adductor Tubercle",  "Small eminence on medial epicondyle. Insertion of adductor magnus (tendinous part)."),
    ("Intercondylar Fossa","Posterior groove between condyles. ACL (lateral wall) and PCL (medial wall) attachments."),
    ("Patellar Surface",   "Anterior groove. Articulates with patella. Lateral lip higher → prevents lateral patellar dislocation."),
]

TIBIA_PROX = [
    ("Medial Condyle",     "Medial mass at proximal end. Oval. Slightly concave surface. Medial meniscus sits here."),
    ("Lateral Condyle",    "Lateral mass. Smaller. Slightly convex. Has facet for fibular head posteroinferiorly."),
    ("Tibial Plateau",     "Flat superior articular surfaces. 5-7° posterior slope (tibial slope). Medial: slightly concave. Lateral: slightly convex."),
    ("Intercondylar Eminence","Central bony ridge between plateaus. Medial + lateral intercondylar tubercles (spines). Anterior area: ACL + menisci. Posterior area: PCL."),
    ("Tibial Tuberosity",  "Anterior bump below condyles. Patellar tendon attachment (extensor mechanism). Ossifies 8-14 yrs. Osgood-Schlatter = traction apophysitis here."),
    ("Gerdy's Tubercle",   "Anterolateral surface of lateral condyle. Iliotibial band insertion."),
]

TIBIA_SHAFT = [
    ("Anterior Border",    "SHARP subcutaneous border from tibial tuberosity to anterior medial malleolus. Palpable throughout ('shin'). Site of stress fractures."),
    ("Medial Surface",     "Broad, flat, subcutaneous - no muscle cover. Directly under skin. Easily palpated."),
    ("Lateral (Interosseous) Border","Gives attachment to interosseous membrane connecting tibia to fibula."),
    ("Soleal Line",        "Oblique line on posterior surface. Origin of soleus muscle. Nutrient foramen just below (vessels directed downward - toward ankle, opposite femur)."),
    ("Vertical Posterior Ridge","Divides posterior surface. Medial: tibialis posterior. Lateral: flexor digitorum longus."),
]

TIBIA_DIST = [
    ("Medial Malleolus",   "Medial projection of distal tibia. Subcutaneous. Articular facet for medial talar surface. Deltoid ligament attachment. Extends lower than fibular malleolus."),
    ("Fibular Notch (Incisura Fibulae)","Lateral groove receiving distal fibula. Held by 4 syndesmotic ligaments. Even 1 mm widening of ankle mortise significantly reduces tibiotalar contact."),
    ("Tibial Plafond",     "Quadrilateral inferior articular surface. Articulates with superior talar dome. Key in pilon fractures."),
    ("Ant. Tibial Tubercle","More prominent - prevents anterior fibular slip."),
]

FIBULA_PROX = [
    ("Head",               "Irregular knob. Palpable posterolaterally at knee. Proximal tibiofibular joint. Biceps femoris and LCL attach to apex (styloid process)."),
    ("Apex (Styloid)",     "Pointed projection on head. Insertion of biceps femoris tendon and fibular collateral ligament."),
    ("Neck",               "Constricted part. COMMON PERONEAL (FIBULAR) NERVE winds around here → vulnerable to fracture/compression → foot drop."),
]

FIBULA_SHAFT = [
    ("Interosseous Border","Medial sharp border. Interosseous membrane attachment (with tibia). Transmits force to tibia."),
    ("Anterior Surface",   "Origin: extensor digitorum longus, extensor hallucis longus, peroneus (fibularis) tertius."),
    ("Lateral Surface",    "Origin: peroneus (fibularis) longus and brevis."),
    ("Posterior Surface",  "Origin: flexor hallucis longus, tibialis posterior."),
    ("Nutrient Foramen",   "On posterior surface. Directed downward (toward ankle)."),
]

FIBULA_DIST = [
    ("Lateral Malleolus",  "Most distal fibula. Palpable. Extends ~1 cm lower than medial malleolus - resists lateral talar dislocation. Most commonly fractured bone in ankle injuries."),
    ("Articular Surface",  "Triangular medial surface. Articulates with lateral facet of talus."),
    ("Malleolar Fossa",    "Posterior pit on lateral malleolus. Posterior talofibular ligament and calcaneofibular ligament attachments."),
    ("Syndesmosis",        "Distal tibiofibular fibrous joint. 4 ligaments: ATFL (weakest), PTFL (strongest), transverse tibfib lig, interosseous lig. Disruption = ankle instability."),
]

CLINICAL_PEARLS = [
    ("AVN of femoral head",        "Femoral neck fracture disrupts retinacular vessels → avascular necrosis"),
    ("Foot drop",                  "Common peroneal nerve at fibular neck → compression/fracture → loss of dorsiflexion + eversion"),
    ("Osgood-Schlatter disease",   "Tibial tuberosity apophysitis in adolescent athletes due to patellar tendon traction"),
    ("ASIS avulsion",              "Sartorius origin. Sprinting. AIIS avulsion = rectus femoris origin. Kicking."),
    ("Pudendal nerve block",       "Landmark: ischial spine (palpated transvaginally or per rectum)"),
    ("Ankle mortise widening",     "1 mm widening of tibiofibular syndesmosis = 42% reduction in tibiotalar contact → instability + OA"),
    ("True leg length",            "Measured ASIS to medial malleolus (apparent = umbilicus to medial malleolus)"),
    ("Weaver's bottom (ischial bursitis)", "Inflammation of ischial bursa over ischial tuberosity"),
    ("Coxa valga / vara",          "Femoral neck-shaft angle: normal 120-135°. Valga >135°, vara <120°"),
    ("Calcar femorale",            "Dense posteromedial femoral neck cortex - guides prosthesis positioning in THA"),
]


# ─────────────────────────────────────────────────────────────────────────────
# PDF build
# ─────────────────────────────────────────────────────────────────────────────
def build_pdf():
    doc = SimpleDocTemplate(
        OUTPUT,
        pagesize=A4,
        leftMargin=12*mm,
        rightMargin=12*mm,
        topMargin=10*mm,
        bottomMargin=10*mm,
        title="Lower Limb Bones Quick Reference - BDC Vol 2",
        author="Orris Medical"
    )

    styles = getSampleStyleSheet()
    sub_hdr = ParagraphStyle("sub_hdr", fontSize=8, fontName="Helvetica-Bold",
                             textColor=DARK_NAVY, spaceBefore=4, spaceAfter=2)
    tiny = ParagraphStyle("tiny", fontSize=6.5, fontName="Helvetica", leading=9)
    note_style = ParagraphStyle("note", fontSize=6, fontName="Helvetica-Oblique",
                                textColor=colors.grey, leading=8)

    content = []

    # Header
    content.append(HeaderBanner(PAGE_W - 24*mm))
    content.append(Spacer(1, 4*mm))

    # ── PAGE 1: Hip Bone ─────────────────────────────────────────────────────
    hb_color = BONE_COLORS["Hip Bone"]

    content.append(SectionHeader("1.  HIP BONE (Os Coxae / Innominate Bone)", hb_color))
    content.append(Spacer(1, 2*mm))

    # Two-column layout: diagram left, intro text right
    intro_text = (
        "Formed by fusion of <b>ilium</b> (upper fan), <b>ischium</b> (posteroinferior), and "
        "<b>pubis</b> (anteromedial), meeting at the <b>acetabulum</b>. Triradiate cartilage "
        "fuses 13-18 yrs. Right + left hip bones + sacrum + coccyx = bony pelvis."
    )
    intro_para = Paragraph(intro_text, ParagraphStyle("intro", fontSize=7.5, leading=10,
                                                       fontName="Helvetica"))

    diag_cell = BoneDiagram("Hip Bone", width=75*mm, height=195*mm)
    text_content = [
        [intro_para],
        [Spacer(1, 2*mm)],
        [Paragraph("<b>ILIUM</b>", sub_hdr)],
        [make_landmark_table(HIP_ILIUM, hb_color, col_widths=[35*mm, 81*mm])],
        [Spacer(1, 1.5*mm)],
        [Paragraph("<b>ISCHIUM</b>", sub_hdr)],
        [make_landmark_table(HIP_ISCHIUM, hb_color, col_widths=[35*mm, 81*mm])],
        [Spacer(1, 1.5*mm)],
        [Paragraph("<b>PUBIS</b>", sub_hdr)],
        [make_landmark_table(HIP_PUBIS, hb_color, col_widths=[35*mm, 81*mm])],
        [Spacer(1, 1.5*mm)],
        [Paragraph("<b>ACETABULUM</b>", sub_hdr)],
        [make_landmark_table(HIP_ACETAB, hb_color, col_widths=[35*mm, 81*mm])],
    ]

    # Flatten text content into a single column
    from reportlab.platypus import KeepInFrame
    inner_col = []
    for row in text_content:
        inner_col.append(row[0])

    layout = Table(
        [[diag_cell, inner_col]],
        colWidths=[77*mm, 92*mm],
    )
    layout.setStyle(TableStyle([
        ("VALIGN",      (0, 0), (-1, -1), "TOP"),
        ("LEFTPADDING", (0, 0), (-1, -1), 0),
        ("RIGHTPADDING",(0, 0), (-1, -1), 2),
        ("TOPPADDING",  (0, 0), (-1, -1), 0),
        ("BOTTOMPADDING",(0,0), (-1, -1), 0),
    ]))
    # Note: Reportlab doesn't allow list as cell; put inner items in a separate table
    # Use a nested Table for the text column
    text_rows = [[item] for item in inner_col]
    text_tbl = Table(text_rows, colWidths=[92*mm])
    text_tbl.setStyle(TableStyle([
        ("LEFTPADDING",  (0, 0), (-1, -1), 0),
        ("RIGHTPADDING", (0, 0), (-1, -1), 0),
        ("TOPPADDING",   (0, 0), (-1, -1), 0),
        ("BOTTOMPADDING",(0, 0), (-1, -1), 0),
    ]))

    layout2 = Table([[diag_cell, text_tbl]], colWidths=[77*mm, 95*mm])
    layout2.setStyle(TableStyle([
        ("VALIGN",       (0, 0), (-1, -1), "TOP"),
        ("LEFTPADDING",  (0, 0), (-1, -1), 0),
        ("RIGHTPADDING", (0, 0), (-1, -1), 2),
        ("TOPPADDING",   (0, 0), (-1, -1), 0),
        ("BOTTOMPADDING",(0, 0), (-1, -1), 0),
    ]))
    content.append(layout2)
    content.append(Spacer(1, 3*mm))

    # ── PAGE 2: Femur ────────────────────────────────────────────────────────
    content.append(HRFlowable(width="100%", thickness=1, color=MID_GREY))
    content.append(Spacer(1, 2*mm))
    fem_color = BONE_COLORS["Femur"]
    content.append(SectionHeader("2.  FEMUR  (Longest, Heaviest Bone in the Body)", fem_color))
    content.append(Spacer(1, 2*mm))

    fem_intro = Paragraph(
        "Consists of a <b>proximal end</b> (head, neck, trochanters), a <b>shaft</b> (body), and "
        "a <b>distal end</b> (condyles, epicondyles). Directed obliquely downward and medially "
        "forming the anatomical axis of the lower limb. Neck-shaft angle ~127°, anteversion ~15°.",
        ParagraphStyle("intro", fontSize=7.5, leading=10, fontName="Helvetica")
    )

    fem_inner = [
        fem_intro, Spacer(1, 2*mm),
        Paragraph("<b>PROXIMAL FEMUR</b>", sub_hdr),
        make_landmark_table(FEMUR_PROX, fem_color, col_widths=[35*mm, 81*mm]),
        Spacer(1, 1.5*mm),
        Paragraph("<b>SHAFT OF FEMUR</b>", sub_hdr),
        make_landmark_table(FEMUR_SHAFT, fem_color, col_widths=[35*mm, 81*mm]),
        Spacer(1, 1.5*mm),
        Paragraph("<b>DISTAL FEMUR</b>", sub_hdr),
        make_landmark_table(FEMUR_DIST, fem_color, col_widths=[35*mm, 81*mm]),
    ]
    fem_rows = [[item] for item in fem_inner]
    fem_tbl = Table(fem_rows, colWidths=[92*mm])
    fem_tbl.setStyle(TableStyle([
        ("LEFTPADDING", (0,0),(-1,-1), 0),("RIGHTPADDING",(0,0),(-1,-1),0),
        ("TOPPADDING",(0,0),(-1,-1),0),("BOTTOMPADDING",(0,0),(-1,-1),0),
    ]))

    fem_diag = BoneDiagram("Femur", width=75*mm, height=210*mm)
    fem_layout = Table([[fem_diag, fem_tbl]], colWidths=[77*mm, 95*mm])
    fem_layout.setStyle(TableStyle([
        ("VALIGN",(0,0),(-1,-1),"TOP"),
        ("LEFTPADDING",(0,0),(-1,-1),0),("RIGHTPADDING",(0,0),(-1,-1),2),
        ("TOPPADDING",(0,0),(-1,-1),0),("BOTTOMPADDING",(0,0),(-1,-1),0),
    ]))
    content.append(fem_layout)
    content.append(Spacer(1, 3*mm))

    # ── PAGE 3: Tibia + Fibula ───────────────────────────────────────────────
    content.append(HRFlowable(width="100%", thickness=1, color=MID_GREY))
    content.append(Spacer(1, 2*mm))

    tib_color = BONE_COLORS["Tibia"]
    fib_color = BONE_COLORS["Fibula"]

    # Tibia
    content.append(SectionHeader("3.  TIBIA  (Second Largest Bone — Weight-bearing)", tib_color))
    content.append(Spacer(1, 2*mm))

    tib_intro = Paragraph(
        "Located <b>anteromedially</b> in the leg. Bears ~85% of body weight. "
        "Has a <b>triangular cross-section</b> in mid-shaft with anterior border (shin) as the "
        "subcutaneous apex. Articulates with femur (above), fibula (both ends), and talus (below).",
        ParagraphStyle("intro", fontSize=7.5, leading=10, fontName="Helvetica")
    )
    tib_inner = [
        tib_intro, Spacer(1, 2*mm),
        Paragraph("<b>PROXIMAL TIBIA</b>", sub_hdr),
        make_landmark_table(TIBIA_PROX, tib_color, col_widths=[35*mm, 81*mm]),
        Spacer(1, 1.5*mm),
        Paragraph("<b>SHAFT OF TIBIA</b>", sub_hdr),
        make_landmark_table(TIBIA_SHAFT, tib_color, col_widths=[35*mm, 81*mm]),
        Spacer(1, 1.5*mm),
        Paragraph("<b>DISTAL TIBIA</b>", sub_hdr),
        make_landmark_table(TIBIA_DIST, tib_color, col_widths=[35*mm, 81*mm]),
    ]
    tib_rows = [[item] for item in tib_inner]
    tib_tbl = Table(tib_rows, colWidths=[92*mm])
    tib_tbl.setStyle(TableStyle([
        ("LEFTPADDING",(0,0),(-1,-1),0),("RIGHTPADDING",(0,0),(-1,-1),0),
        ("TOPPADDING",(0,0),(-1,-1),0),("BOTTOMPADDING",(0,0),(-1,-1),0),
    ]))
    tib_diag = BoneDiagram("Tibia", width=75*mm, height=200*mm)
    tib_layout = Table([[tib_diag, tib_tbl]], colWidths=[77*mm, 95*mm])
    tib_layout.setStyle(TableStyle([
        ("VALIGN",(0,0),(-1,-1),"TOP"),
        ("LEFTPADDING",(0,0),(-1,-1),0),("RIGHTPADDING",(0,0),(-1,-1),2),
        ("TOPPADDING",(0,0),(-1,-1),0),("BOTTOMPADDING",(0,0),(-1,-1),0),
    ]))
    content.append(tib_layout)
    content.append(Spacer(1, 3*mm))

    # Fibula
    content.append(HRFlowable(width="100%", thickness=0.5, color=MID_GREY))
    content.append(Spacer(1, 2*mm))
    content.append(SectionHeader("4.  FIBULA  (Non-Weight-bearing Lateral Bone)", fib_color))
    content.append(Spacer(1, 2*mm))

    fib_intro = Paragraph(
        "Slender bone, <b>posterolateral</b> to tibia. Provides <b>no weight-bearing</b> directly "
        "but stabilizes ankle mortise via syndesmosis. Main functions: muscle attachment, "
        "ankle stability. Common peroneal nerve at neck is a critical landmark.",
        ParagraphStyle("intro", fontSize=7.5, leading=10, fontName="Helvetica")
    )
    fib_inner = [
        fib_intro, Spacer(1, 2*mm),
        Paragraph("<b>PROXIMAL FIBULA</b>", sub_hdr),
        make_landmark_table(FIBULA_PROX, fib_color, col_widths=[35*mm, 81*mm]),
        Spacer(1, 1.5*mm),
        Paragraph("<b>SHAFT OF FIBULA</b>", sub_hdr),
        make_landmark_table(FIBULA_SHAFT, fib_color, col_widths=[35*mm, 81*mm]),
        Spacer(1, 1.5*mm),
        Paragraph("<b>DISTAL FIBULA</b>", sub_hdr),
        make_landmark_table(FIBULA_DIST, fib_color, col_widths=[35*mm, 81*mm]),
    ]
    fib_rows = [[item] for item in fib_inner]
    fib_tbl = Table(fib_rows, colWidths=[92*mm])
    fib_tbl.setStyle(TableStyle([
        ("LEFTPADDING",(0,0),(-1,-1),0),("RIGHTPADDING",(0,0),(-1,-1),0),
        ("TOPPADDING",(0,0),(-1,-1),0),("BOTTOMPADDING",(0,0),(-1,-1),0),
    ]))
    fib_diag = BoneDiagram("Fibula", width=75*mm, height=200*mm)
    fib_layout = Table([[fib_diag, fib_tbl]], colWidths=[77*mm, 95*mm])
    fib_layout.setStyle(TableStyle([
        ("VALIGN",(0,0),(-1,-1),"TOP"),
        ("LEFTPADDING",(0,0),(-1,-1),0),("RIGHTPADDING",(0,0),(-1,-1),2),
        ("TOPPADDING",(0,0),(-1,-1),0),("BOTTOMPADDING",(0,0),(-1,-1),0),
    ]))
    content.append(fib_layout)
    content.append(Spacer(1, 4*mm))

    # ── CLINICAL PEARLS ──────────────────────────────────────────────────────
    content.append(HRFlowable(width="100%", thickness=1.5, color=ACCENT_GOLD))
    content.append(Spacer(1, 2*mm))

    pearl_hdr = SectionHeader("HIGH-YIELD CLINICAL PEARLS  — Exam Focus", ACCENT_GOLD)
    content.append(pearl_hdr)
    content.append(Spacer(1, 2*mm))

    pearl_style_b = ParagraphStyle("pb", fontSize=7, fontName="Helvetica-Bold",
                                   textColor=DARK_NAVY)
    pearl_style   = ParagraphStyle("p",  fontSize=7, fontName="Helvetica", leading=9)

    pearl_data = [["Clinical Scenario", "Key Landmark / Anatomy Point"]]
    for scenario, point in CLINICAL_PEARLS:
        pearl_data.append([
            Paragraph(scenario, pearl_style_b),
            Paragraph(point, pearl_style),
        ])

    pearl_tbl = Table(pearl_data, colWidths=[65*mm, 105*mm])
    pearl_tbl.setStyle(TableStyle([
        ("BACKGROUND",   (0,0), (-1,0),  ACCENT_GOLD),
        ("TEXTCOLOR",    (0,0), (-1,0),  DARK_NAVY),
        ("FONTNAME",     (0,0), (-1,0),  "Helvetica-Bold"),
        ("FONTSIZE",     (0,0), (-1,0),  7.5),
        ("TOPPADDING",   (0,0), (-1,0),  3),
        ("BOTTOMPADDING",(0,0), (-1,0),  3),
        ("ROWBACKGROUNDS",(0,1),(-1,-1), [WHITE, colors.HexColor("#fffbef")]),
        ("GRID",         (0,0), (-1,-1), 0.4, colors.HexColor("#dddddd")),
        ("TOPPADDING",   (0,1), (-1,-1), 2),
        ("BOTTOMPADDING",(0,1), (-1,-1), 2),
        ("LEFTPADDING",  (0,0), (-1,-1), 4),
        ("VALIGN",       (0,0), (-1,-1), "TOP"),
    ]))
    content.append(pearl_tbl)
    content.append(Spacer(1, 3*mm))

    # ── SUMMARY COMPARISON TABLE ─────────────────────────────────────────────
    content.append(SectionHeader("QUICK COMPARISON — All Four Bones at a Glance", MID_BLUE))
    content.append(Spacer(1, 2*mm))

    summary_hdr_style = ParagraphStyle("sh", fontSize=7, fontName="Helvetica-Bold",
                                       textColor=WHITE)
    cell_style = ParagraphStyle("cs", fontSize=6.5, fontName="Helvetica", leading=8.5)

    summary_data = [
        ["Bone", "Proximal Landmark(s)", "Shaft Landmark(s)", "Distal Landmark(s)"],
        ["Hip Bone",
         "ASIS, AIIS, PSIS, PIIS\nIliac crest, Ischial spine\nIschial tuberosity, Pubic tubercle",
         "Arcuate line, Obturator foramen\nAcetabulum (3-bone junction)\nIliac fossa",
         "Pubic symphysis\nPecten pubis\nObturator groove"],
        ["Femur",
         "Femoral head + fovea capitis\nFemoral neck, Greater trochanter\nLesser trochanter\nIntertrochanteric line/crest",
         "Linea aspera (post.)\nGluteal tuberosity\nPectineal line\nNutrient foramen",
         "Medial + lateral condyles\nMedial + lateral epicondyles\nAdductor tubercle\nIntercondylar fossa"],
        ["Tibia",
         "Med + lat condyles\nTibial plateaus\nIntercondylar eminence\nTibial tuberosity, Gerdy's tubercle",
         "Anterior border (shin)\nMedial surface (subcutaneous)\nSoleal line (post.)\nInterosseous border",
         "Medial malleolus\nTibial plafond\nFibular notch\nAnt + post tibial tubercles"],
        ["Fibula",
         "Head + apex (styloid)\nNeck (common peroneal nerve!)",
         "Interosseous border\n3 surfaces (ant, lat, post)\nNutrient foramen (→ ankle)",
         "Lateral malleolus\n(1 cm below medial malleolus)\nMalleolar fossa\nSyndesmosis"],
    ]

    col_w = [25*mm, 50*mm, 48*mm, 49*mm]
    sum_tbl = Table(summary_data, colWidths=col_w)
    sum_tbl.setStyle(TableStyle([
        ("BACKGROUND",    (0,0), (-1,0),  MID_BLUE),
        ("TEXTCOLOR",     (0,0), (-1,0),  WHITE),
        ("FONTNAME",      (0,0), (-1,0),  "Helvetica-Bold"),
        ("FONTSIZE",      (0,0), (-1,0),  7.5),
        ("BACKGROUND",    (0,1), (0,1),   colors.HexColor("#f5e6d3")),
        ("BACKGROUND",    (0,2), (0,2),   colors.HexColor("#d6e4f7")),
        ("BACKGROUND",    (0,3), (0,3),   colors.HexColor("#d4f0e0")),
        ("BACKGROUND",    (0,4), (0,4),   colors.HexColor("#fce8e6")),
        ("FONTNAME",      (0,1), (0,-1),  "Helvetica-Bold"),
        ("FONTSIZE",      (0,1), (-1,-1), 6.5),
        ("GRID",          (0,0), (-1,-1), 0.4, colors.HexColor("#bbbbbb")),
        ("TOPPADDING",    (0,0), (-1,-1), 3),
        ("BOTTOMPADDING", (0,0), (-1,-1), 3),
        ("LEFTPADDING",   (0,0), (-1,-1), 4),
        ("VALIGN",        (0,0), (-1,-1), "TOP"),
        ("ROWBACKGROUNDS",(0,1),(-1,-1),  [colors.HexColor("#ffffff"),
                                           colors.HexColor("#f4f8ff")]),
    ]))
    content.append(sum_tbl)
    content.append(Spacer(1, 2*mm))

    # Footer note
    content.append(Paragraph(
        "Sources: Imaging Anatomy Vol 3 (Saremi et al.) | THIEME General Anatomy & Musculoskeletal System Atlas | "
        "BD Chaurasia Human Anatomy Vol 2  |  Prepared by Orris Medical",
        note_style
    ))

    # ── Page numbering ────────────────────────────────────────────────────────
    def add_page_number(canvas_obj, doc_obj):
        canvas_obj.saveState()
        canvas_obj.setFont("Helvetica", 7)
        canvas_obj.setFillColor(MID_GREY)
        page_num = f"Page {doc_obj.page}"
        canvas_obj.drawRightString(PAGE_W - 12*mm, 6*mm, page_num)
        canvas_obj.drawString(12*mm, 6*mm, "Lower Limb Bones Quick Reference  |  BDC Vol 2")
        canvas_obj.restoreState()

    doc.build(content, onFirstPage=add_page_number, onLaterPages=add_page_number)
    print(f"PDF created: {OUTPUT}")


if __name__ == "__main__":
    build_pdf()

Running Command

cd /tmp/workspace/bone-ref-card && python3 generate_pdf.py 2>&1

Running Command

python3 -c " from pypdf import PdfReader r = PdfReader('/tmp/workspace/bone-ref-card/Lower_Limb_Bones_Quick_Ref.pdf') print(f'Pages: {len(r.pages)}') import os size = os.path.getsize('/tmp/workspace/bone-ref-card/Lower_Limb_Bones_Quick_Ref.pdf') print(f'File size: {size/1024:.1f} KB') "

Your PDF quick reference card is ready:

Lower Limb Bones Quick Ref

PDF Document · PDF

What's inside (5 pages, A4):

Page(s)	Content
1	Hip Bone - schematic diagram with labeled ASIS/AIIS/PSIS/PIIS/iliac crest/ischial spine/tuberosity/acetabulum/obturator foramen + full landmark tables for Ilium, Ischium, Pubis, Acetabulum
2	Femur - diagram with head/neck/trochanters/linea aspera/condyles labeled + tables for proximal, shaft, distal femur
3	Tibia - diagram with tibial tuberosity/anterior border/malleolus labeled + proximal/shaft/distal tables
4	Fibula - diagram with head/neck/lateral malleolus labeled + proximal/shaft/distal tables
5	High-yield Clinical Pearls (AVN, foot drop, Osgood-Schlatter, etc.) + Quick Comparison Table of all 4 bones side-by-side

Each bone section has a color code: Hip Bone = brown, Femur = blue, Tibia = green, Fibula = red - making it easy to flip between bones at a glance during revision.

Absecess of rt vulva

Reading File

Finding Sources

Searching Images

Bartholin gland abscess vulva clinical appearance

**Modality:** Ultrasonography (Grayscale) **Anatomical Region:** Vulva / Perineal soft tissue **Description:** The image displays a grayscale ultrasound of the vulvar region. Centered within the field of view is a well-circumscribed, predominantly hypoechoic mass measuring approximately 2.9 × 2.5 × 2.1 cm. The internal echo texture of the lesion is heterogeneous, containing subtle internal echoes and areas of low-level echogenicity. **Characteristic Visual Features:** * **Margination:** The borders of the mass appear relatively distinct from the surrounding subcutaneous tissue. * **Echogenicity:** The lesion is hypoechoic compared to the adjacent fibroadipose tissue. * **Acoustic Features:** There is evidence of posterior acoustic enhancement, suggesting a fluid-filled or highly cellular cystic nature, often associated with lesions such as a Bartholin’s gland cyst or abscess. * **Artifacts:** Significant posterior acoustic shadowing is absent; however, lateral edge shadowing is visible at the margins of the mass. **Clinical Significance:** Findings are consistent with a localized vulvar mass or cyst. The appearance requires differentiation between inflammatory processes (e.g., abscess), benign cystic lesions (e.g., Bartholin's cyst), or solid soft tissue neoplasms.

Clinical photograph of a vulvar mass, specifically ectopic mammary gland-like tissue (EMGLT), captured during a surgical procedure. The image depicts a 2 cm irregular, nodular mass located on the right vulva at the labia minora juncture. The lesion exhibits a pinkish-red, erythematous color with a rough, multinodular surface texture. Some areas show pale protrusions and signs of recent biopsy instrumentation. The surrounding vulvar skin appears tanned and more regular in texture compared to the focal pathology. A gloved hand is visible at the top and left, retracting the tissue for visualization, while blue surgical draping is seen in the background. This image serves to illustrate the clinical appearance of accessory breast tissue located along the embryonic milk line, demonstrating why it may be mistaken for other vulvar neoplasms like Bartholin gland cysts or hidradenoma papilliferum.

This clinical photograph displays a gross surgical specimen of an excised vulvar tumor, later histologically confirmed as a desmoid tumor (aggressive fibromatosis). The specimen is a solid, irregularly shaped, and lobulated mass with a predominantly pinkish-tan, fleshy appearance. Its surface is moist and glistening, revealing a dense, fibrous texture with visible fascicular striations across the parenchyma. There is no clear evidence of a distinct capsule, which correlates with the infiltrative growth pattern typical of desmoid fibromatosis and the clinical report of a difficult dissection with an absent cleavage plane. The mass shows focal areas of congestion and small irregular voids. This image illustrates the macroscopic features of a mesenchymal tumor arising from the deep soft tissues of the vulva, emphasizing the non-encapsulated, fibrous nature that distinguishes aggressive fibromatosis from simple cysts of the Bartholin gland.

Reading File

Loading Image

Reading File

I now have everything needed for a comprehensive answer. Let me also fetch the hemostat procedure illustration.

Bartholin gland anatomy and abscess - normal location at 5 and 7 o'clock in the posterior vestibule (Panel A), and appearance of a Bartholin gland abscess (Panel B)

Abscess of the Right Vulva (Bartholin Gland Abscess)

Anatomy & Pathophysiology

The Bartholin glands (greater vestibular glands) are two pea-sized mucus-secreting glands located bilaterally in the labia minora. Their ducts open into the posterior vestibule at the 4 o'clock and 8 o'clock positions (classically described as 5 and 7 o'clock in some texts). They become active at puberty, secreting moisture to the vestibule, and involute with age.

Pathogenesis:

Obstruction of the Bartholin duct → mucus accumulates → cyst forms
Secondary infection of the cyst/gland → abscess
A pre-existing cyst is NOT required - abscesses can arise de novo from duct obstruction + infection
Presents as a unilateral (in this case, right-sided) painful vulvar mass

Microbiology - typically polymicrobial:

Organism	Frequency
E. coli	Most common isolate
Anaerobes	Common (polymicrobial)
N. gonorrhoeae	Less common; must consider in STI context
Chlamydia trachomatis	Less common
MRSA	Increasingly reported

Risk Factors

Reproductive age women (peak incidence)
Occurs in ~2% of women
Diabetes mellitus
Obesity
Immunosuppression
Pregnancy
Trauma / prior vulvar surgery

Clinical Features

Feature	Description
Location	Posterior introitus, right side - at the 5 o'clock position
Pain	Exquisitely tender, often severe; worsens with walking, sitting
Swelling	Fluctuant mass, variable size - may become very large
Skin changes	Overlying erythema, induration, local warmth
Systemic symptoms	Fever and chills are rarely present (unlike deeper infections)
Onset	Develops over several days (faster than a cyst alone)
Labia minora position	Labia minora transects the abscess - a classic identifying feature

Key distinction: A right vulvar abscess of the labia majora (not Bartholin's) requires gynaecologic consultation rather than ED management.

Diagnosis

Clinical - history + examination is usually sufficient
Ultrasound - confirms discrete hypoechoic fluid collection when diagnosis is uncertain; useful to distinguish from solid mass, cellulitis, or labia majora abscess
Swab/culture - send pus for MC&S including gonorrhoea and chlamydia
Biopsy - indicated if solid components present or malignancy suspected (especially in women >40 years, as Bartholin gland carcinoma can mimic a cyst/abscess)

Important: In women aged >40, biopsy the wall of a Bartholin "cyst" or abscess to exclude Bartholin gland carcinoma. About 10% of Bartholin gland carcinomas have a prior history of inflammation.

Differential Diagnosis of Right Vulvar Swelling

Condition	Distinguishing Features
Bartholin duct cyst	Non-tender, soft, posterior vestibule
Labial abscess (non-Bartholin)	Labia majora, does NOT transect labia minora
Hidradenitis suppurativa	Chronic, recurrent, sinus tracts, apocrine glands, inguinal folds
Vulvar Crohn's disease	"Knife-cut ulcerations," perianal involvement, history of Crohn's
Necrotizing fasciitis	Rapidly spreading, systemic sepsis, crepitus, disproportionate pain
Sebaceous/epidermal inclusion cyst	Anterior labia majora, non-tender
Inguinal hernia	Reducible, impulse on cough
Bartholin gland carcinoma	Solid, irregular, age >40, does not resolve

Treatment

Step 1 - Is the abscess ready for drainage?

Incision and drainage should only be performed when the abscess is a well-defined, walled-off, fluctuant structure. If not yet defined: prescribe broad-spectrum antibiotics + analgesics + warm sitz baths + short-term follow-up.

General rule: A vulvar abscess >2 cm will typically require surgical intervention.

Step 2 - Choose the drainage method

Option A: Word Catheter (First-line, preferred in ED)

A Word catheter is a #10 Foley-sized catheter with a short (1-inch) stem and an inflatable balloon. It maintains a tract, allowing epithelialization and reducing recurrence.

Procedure:

Position patient in dorsal lithotomy with feet in stirrups
Premedicate - IV opioids ± sedation (propofol, etomidate, or benzodiazepine); nitrous oxide is acceptable
Clean area with antiseptic solution
Inject local anaesthetic (2% lidocaine, 25-27 gauge needle) through the mucosal surface (NOT through skin)
Stab incision with #11 scalpel on the mucosal surface of the vestibule (just lateral to hymenal ring, at the point of greatest fluctuance)
Incision should be small - just large enough for catheter but not so large the balloon extrudes
Alternatively - skewer the abscess onto a hemostat (held steady while the abscess is pushed onto it - easier technique)
Entry confirmed by a palpable "pop" or free flow of pus
Insert Word catheter to the hilt, inflate balloon with 2-4 mL of saline/water (25-gauge needle)
Tuck free end of catheter into vagina
Leave in place 4-6 weeks to allow a fistula tract to epithelialize

Option B: Marsupialization (Definitive surgical procedure)

Indicated for:

Recurrent Bartholin abscess
Abscess too large for Word catheter
Patient preference for definitive treatment

Technique: An elliptical wedge of skin is excised to create a permanent opening; the cyst/abscess wall is sutured to the skin edges, creating a new drainage tract.

Option C: Excision of Bartholin gland

Indicated for:

Repeated recurrences after marsupialization
Suspected malignancy
Postmenopausal women (involuted gland)

Step 3 - Antibiotics

Scenario	Antibiotic
After I&D (no risk factors)	Not routinely required post-drainage
Pre-drainage / poorly-defined abscess	Broad-spectrum (e.g., amoxicillin-clavulanate)
Risk of N. gonorrhoeae/C. trachomatis	Add ceftriaxone + doxycycline
MRSA risk	Add trimethoprim-sulfamethoxazole or clindamycin
Significant surrounding cellulitis	Systemic antibiotics warranted
Immunocompromised / diabetic / systemically unwell	Admit, IV antibiotics, gynaecology consult

Step 4 - Special situations requiring Gynaecology referral

Very large abscess / distorted anatomy
Uncertain diagnosis
Significant cellulitis
Immunocompromised patient
Unstable vital signs / sepsis
Bleeding dyscrasia
Abscess of labia majora (not Bartholin's)
Suspicion of malignancy
Vulvar necrotizing fasciitis (emergency surgical debridement)

Necrotizing Fasciitis of the Vulva - Red Flags (Surgical Emergency)

This is a life-threatening complication to never miss:

Rapidly spreading erythema beyond the initial swelling
Disproportionate pain relative to skin findings
Crepitus (gas in tissues)
Systemic sepsis (high fever, hypotension, tachycardia)
Skin necrosis / purplish discoloration
High risk patients: diabetics, tobacco users, postoperative / postpartum

Management: Immediate IV broad-spectrum antibiotics + emergency surgical debridement (multidisciplinary).

Follow-up & Recurrence

Treatment	Recurrence Rate
Simple I&D alone (no catheter)	High
Word catheter I&D	~10-15%
Marsupialization	~5-10% (lowest)
Excision	Lowest, but highest morbidity

Recurrent abscess patients should be referred to gynaecology for marsupialization or excision.

Ultrasound Appearance

Ultrasound of vulvar mass - well-circumscribed hypoechoic lesion with posterior acoustic enhancement consistent with Bartholin abscess

A Bartholin abscess on ultrasound appears as a well-circumscribed hypoechoic mass with heterogeneous internal echoes, posterior acoustic enhancement (fluid-filled), and distinct margins from surrounding tissue - as shown above.

Sources: Roberts & Hedges' Clinical Procedures in Emergency Medicine; Tintinalli's Emergency Medicine; Sabiston Textbook of Surgery 21st ed.

This is a shared conversation. Sign in to Orris to start your own chat.
