Uremic Encephalopathy (Metabolic Encephalopathy via Kidney Disease)

Uremic encephalopathy (UE) is the metabolic encephalopathy that results from renal failure - acute kidney injury (AKI) or end-stage kidney disease (ESKD). It represents a spectrum of brain dysfunction ranging from imperceptible cognitive changes to coma and death.

Pathophysiology

Uremic Toxin Accumulation

The central mechanism is the retention of solutes that are normally cleared by the kidney. Among the 75 solutes in the European Uremic Toxin (EUTox) database, ~9% (7 solutes) are directly associated with neurologic effects. - Comprehensive Clinical Nephrology, 7th Ed.

Guanidino compounds are the most important neurotoxins:

Guanidinouscinic acid and methylguanidine are increased 100-fold in uremic brain tissue and cerebrospinal fluid
They antagonize GABA receptors (inhibitory) while simultaneously acting as NMDA receptor agonists (excitatory)
Net effect: marked enhancement of cortical excitability and seizure threshold lowering
Several guanidine compounds (guanidinosuccinic acid, methylguanidine, homoarginine) can directly induce seizures via NMDA receptor modulation and calcium channel effects

Brenner & Rector's The Kidney; Bradley & Daroff's Neurology

Blood-Brain Barrier Disruption

Kidney injury activates inflammatory cytokines that cross or disrupt the blood-brain barrier (BBB), facilitating access of toxins to the brain. Animal models of uremic encephalopathy in AKI show increased brain inflammation in conjunction with vascular permeability - a pattern different from hepatic encephalopathy. - Brenner & Rector's The Kidney

Asymmetric dimethylarginine (ADMA), which is elevated in CKD, inhibits endothelial nitric oxide synthase (eNOS) and correlates with cerebrovascular complications. Gut microbial metabolites (phenylalanine, benzoate, glutamate metabolites) also link to cognitive impairment in dialysis patients.

Secondary Hyperparathyroidism

PTH has direct CNS effects:

Brain calcium content doubles within days of acute renal failure onset
EEG slowing correlates with elevation of N-terminal PTH fragment
PTH raises alkaline phosphatase in the brain, which promotes tau protein binding to muscarinic receptors in the hippocampus, increasing intracellular Ca²+ and causing neuronal cell death
Treatment with 1,25-dihydroxyvitamin D improves EEG and reduces PTH levels

Comprehensive Clinical Nephrology; Bradley & Daroff's Neurology

Neurotransmitter Disruption

Norepinephrine depletion and central dopamine suppression - linked to impaired motor activity
Serotonin excess - high tryptophan entry across the BBB in uremia increases serotonin synthesis, contributing to anorexia
Myoinositol, carnitine, indoxyl sulfate, and polyamines accumulate and impair neuronal function

Drug Accumulation

Reduced renal clearance leads to toxic accumulation of drug metabolites:

Meperidine metabolites (via cation secretory transport impairment)
Cimetidine, acyclovir (via OAT3 inhibition)
Metoclopramide, phenothiazines, antiepileptics (gabapentin), opioids - provoke asterixis and myoclonus in CKD patients

Anemia

Erythropoietin administration in short-term studies has been associated with improved cognitive function and electrophysiologic testing, suggesting anemia contributes to UE. - Brenner & Rector's The Kidney

Clinical Manifestations

Early Encephalopathy (Mental)

Mood swings, irritability, apathy, fatigue
Impaired concentration, loss of recent memory
Insomnia, depression (often underdiagnosed)
Subtle attention and visuospatial deficits

Early Encephalopathy (Motor)

Fine action tremor
Asterixis - intermittent loss of antigravity muscle tone (negative myoclonus); classically tested with hands outstretched; also visible in protruded tongue
Myoclonus - lightning-quick, arrhythmic, asynchronous jerks involving parts of muscles, whole muscles, or limbs; present during wakefulness AND sleep
Hyperreflexia, dysarthria, altered gait

Late / Severe Encephalopathy

Confusion, delirium, psychosis (hallucinations, delusions)
Seizures (the "uremic twitch-convulsive syndrome" described by Adams & Victor)
Stupor and coma (typically quiet, not agitated)
Kussmaul breathing → Cheyne-Stokes breathing (from concurrent metabolic acidosis)

Key point: The degree of azotemia alone correlates poorly with the presence or severity of encephalopathy. Symptoms characteristically fluctuate hour to hour or day to day. About 30% of dialysis patients have mild neuropsychiatric symptoms; ~10% have severe impairment.

Adams & Victor's Principles of Neurology, 12th Ed.; Comprehensive Clinical Nephrology, 7th Ed.

Investigations

Test	Finding
EEG	Generalized slowing with excess theta and delta activity; bilateral spike-wave complexes possible; EEG severity tracks clinical status and improves with treatment
CSF	Increased protein (<1 g/L); slight pleocytosis (<25 cells/mL); pressure normal
Brain MRI	White matter lesions (small vessel disease); brain edema on DWI; decreased brain volume in chronic cases; reduced frontal cortical perfusion
Brain imaging vs liver	In hepatic encephalopathy, characteristic signal changes (T1 hyperintensity in globus pallidus); in uremia, imaging is largely non-specific
Serum Ca, Mg	Check - hypocalcemia and hypomagnesemia can mimic uremic encephalopathy

Bradley & Daroff's Neurology; Brenner & Rector's The Kidney

Diagnosis

Diagnosis requires:

Characteristic symptoms (as above)
Severe renal dysfunction
Exclusion of other causes (hypertensive encephalopathy, subdural hematoma - important because uremic patients are prone to intracranial hemorrhage due to coagulopathy and hypertension; meningitis; drug toxicity; metabolic acidosis; hypo/hypercalcemia)

Confirmation: Symptoms disappear with successful renal replacement therapy.

Distinguish from:

Hypertensive encephalopathy (PRES): Myoclonic-twitch syndrome is NOT a feature of hypertensive encephalopathy - its presence points to true uremia. Volhard introduced the term "pseudouremia" for hypertensive cerebral effects.
Dialysis dysequilibrium syndrome: A separate entity from dialysis treatment itself

Treatment

Primary Treatment - Renal Replacement Therapy (RRT)

Hemodialysis or peritoneal dialysis: Symptoms typically regress within days to weeks after initiation
Renal transplantation: Most effective - results in symptom resolution within days; eliminates uremic solutes across a wide molecular-weight range
Mild symptoms may persist even after adequate dialysis

Supportive Management

Correct metabolic acidosis
Treat secondary hyperparathyroidism (1,25-dihydroxyvitamin D)
Treat anemia (erythropoietin)
Avoid or dose-adjust renally-cleared neurotoxic drugs (opioids especially meperidine, gabapentin, metoclopramide)
Seizure management: use antiepileptics with caution - many require dose adjustment in renal failure

Key Differences from Hepatic Encephalopathy

Feature	Uremic Encephalopathy	Hepatic Encephalopathy
Primary toxins	Guanidino compounds	Ammonia
Receptor effect	NMDA agonism + GABA antagonism (excitatory)	GABAergic enhancement (inhibitory)
Motor	Myoclonus, twitch-convulsive syndrome prominent	Asterixis prominent
Brain imaging	Non-specific, no characteristic signal change	T1 hyperintensity globus pallidus (Mn deposition)
Brain inflammation	Prominent (vascular permeability increased)	Less prominent
Treatment	RRT / transplant	Lactulose, rifaximin, liver transplant

Sources:

Comprehensive Clinical Nephrology, 7th Edition (Elsevier)
Brenner and Rector's The Kidney (Elsevier) - dedicated chapter on neurologic complications
Bradley and Daroff's Neurology in Clinical Practice
Adams and Victor's Principles of Neurology, 12th Edition

copd

Reading File

COPD is a broad topic. Let me search for dedicated sections across the library in parallel.

Searching sources...

Finding Sources

Searching PubMed

"chronic obstructive pulmonary disease"[MeSH Terms] AND management

Good sources found. Let me read the key blocks in parallel - Fishman's (the pulmonary gold standard), Robbins (pathology), Katzung (pharmacology), and Costanzo (physiology).

Reading File

Good foundation. Now let me get the Fishman's overview/definition block and search for GOLD staging + pathology details.

Reading File

Finding Sources

Now let me get the key clinical/management content from Fishman's main COPD chapter and Murray & Nadel.

Reading File

Finding Sources

I now have comprehensive material from multiple top-tier textbooks. Let me compile the full, detailed answer.

Chronic Obstructive Pulmonary Disease (COPD)

Definition

COPD is a common, preventable, and treatable disease characterized by persistent, not fully reversible airflow limitation that is progressive and associated with an enhanced chronic inflammatory response of the lungs to noxious particles or gases - most importantly cigarette smoke. It encompasses two overlapping conditions: emphysema and chronic bronchitis.

Chronic bronchitis is defined clinically: persistent productive cough for at least 3 consecutive months in at least 2 consecutive years
Emphysema is defined anatomically: enlargement of airspaces distal to terminal bronchioles with destruction of alveolar walls

Robbins & Kumar Basic Pathology; Katzung's Basic & Clinical Pharmacology, 16th Ed.

Epidemiology & Risk Factors

Third most common cause of death in the United States
Accounts for >$40 billion/year in direct and indirect healthcare costs
Cigarette smoking is the major risk factor; historically assumed to affect only 15-30% of habitual smokers, but radiographic evidence shows progressive changes in bronchial wall thickness and loss of lung tissue even in smokers with normal spirometry
Other risk factors: air pollution, occupational dusts/fumes, recurrent respiratory infections, genetic factors

Key genetic risk factor: Alpha-1 antitrypsin (A1AT) deficiency - A1AT is a serine protease inhibitor that inactivates neutrophil elastase. Deficiency → unchecked protease activity → panacinar emphysema, particularly in lower lobes. Screen for A1AT deficiency in all patients with persistent airflow obstruction, especially young patients or non-smokers.

Katzung; Murray & Nadel's Textbook of Respiratory Medicine

Pathology

Emphysema Subtypes

Subtype	Location	Primary Cause
Centriacinar (centrilobular)	Central acinus, respiratory bronchioles; upper lobe predominant	Cigarette smoking (most common type)
Panacinar (panlobular)	Entire acinus uniformly; lower lobe predominant	Alpha-1 antitrypsin deficiency
Paraseptal	Distal acinus, subpleural	Associated with spontaneous pneumothorax in young adults

Mechanism of tissue destruction:

Neutrophils (and macrophages) recruited by cigarette smoke release proteases (especially neutrophil elastase and matrix metalloproteinases)
These destroy elastin in alveolar walls
A1AT (and other antiproteases) normally counterbalance this; when this balance is disrupted, emphysema results
"Protease-antiprotease imbalance" is the central theory

Chronic Bronchitis Pathology

Hyperplasia of mucus-secreting glands in the trachea and large airways (Reid index - ratio of gland thickness to wall thickness - increased)
Goblet cell metaplasia in small airways
Small airway inflammation = chronic bronchiolitis (this causes the obstruction, not the mucus gland hypertrophy)
Histology: enlarged mucous glands, goblet cell metaplasia, inflammatory infiltrate, bronchiolar wall fibrosis

Mucus in COPD

MUC5AC concentration is increased 10-fold and MUC5B 3-fold in severe COPD. Mucus hyperconcentration leads to failure of mucociliary transport and mucus adhesion to airway surfaces. Small airway mucus occlusion correlates with degree of airflow obstruction and predicts longevity.

Fishman's Pulmonary Diseases and Disorders; Robbins & Kumar

Pathophysiology

Airflow Obstruction

Reduced FEV1 with normal or near-normal FVC → reduced FEV1/FVC ratio (<0.70 post-bronchodilator = diagnostic criterion)
In emphysema: loss of elastic recoil → airways collapse on expiration → airtrapping
In chronic bronchitis: luminal narrowing from inflammation, mucus, and wall remodeling

Hyperinflation

Static hyperinflation: Increased lung compliance (emphysema) raises the equilibrium volume of the respiratory system
Dynamic hyperinflation: During exercise or increased ventilation demand, insufficient expiratory time → air trapping → end-expiratory lung volume (EELV) fails to decline, inspiratory reserve volume (IRV) shrinks, tidal volume augmentation is impaired
Results in: increased work of breathing, inspiratory muscle weakness (diaphragm flattened and mechanically disadvantaged), "neuromechanical uncoupling" - disparity between respiratory effort and ventilatory output
Classic sign: barrel chest (increased AP diameter)

Ventilation-Perfusion (V/Q) Mismatch

The major cause of hypoxemia in COPD
Underventilated units with continued perfusion → shunt-like effect → PaO2 falls
Alveolar gas equation demonstrates widened A-a gradient
Exercise-related desaturation is more common in emphysema-predominant than bronchitis-predominant disease

Gas Exchange Failure

Type 1 respiratory failure (hypoxemia alone): V/Q mismatch in early/moderate COPD; patient hyperventilates to compensate → PaCO2 normal or low, pH alkalotic
Type 2 respiratory failure (hypoxemia + hypercapnia): PaCO2 does not usually rise until FEV1 falls to 20-25% of predicted
- Mechanisms: increased dead space (Vds/VT unfavorable), inspiratory muscle weakness, blunted ventilatory response to CO2, dynamic hyperinflation
- Diaphragm muscle changes: reduced force per cross-sectional area, reduced myosin heavy chain content, decreased Ca²+ sensitivity, slower cross-bridge cycling
- Persistent hypercapnia = poor prognostic indicator; survival is shorter than in normocapnic COPD

Fishman's; Costanzo Physiology 7th Ed.

Clinical Subtypes (Classic Phenotypes)

Feature	"Pink Puffer" (Emphysema)	"Blue Bloater" (Chronic Bronchitis)
Build	Thin, cachectic	Overweight
Color	Pink (no cyanosis at rest)	Cyanotic ("blue")
Cough	Minimal	Prominent, productive
Dyspnea	Severe	Moderate
PaO2	Near normal at rest	Low
PaCO2	Low or normal	Elevated
Cor pulmonale	Late	Early
Polycythemia	Absent	Present

Note: Most patients have a mixture of both; pure phenotypes are less common clinically.

Spirometry & GOLD Classification

Diagnosis requires: Post-bronchodilator FEV1/FVC < 0.70

GOLD Spirometric Grades (based on post-BD FEV1 % predicted):

GOLD Grade	Severity	FEV1 % Predicted
GOLD 1	Mild	≥ 80%
GOLD 2	Moderate	50-79%
GOLD 3	Severe	30-49%
GOLD 4	Very Severe	< 30%

GOLD A/B/E Groups (symptom + exacerbation history assessment for treatment guidance):

Group A: Low symptoms (mCAT<10 or mMRC<2), 0-1 exacerbation (not leading to hospitalization)
Group B: High symptoms (mCAT≥10 or mMRC≥2), 0-1 exacerbation
Group E: ≥2 exacerbations OR ≥1 leading to hospitalization

Clinical Features

Symptoms:

Progressive exertional dyspnea (hallmark)
Chronic productive cough (especially morning sputum in bronchitis)
Wheezing
Exercise intolerance (reduced ventilatory capacity + increased ventilatory requirement)

Signs:

Barrel chest, increased AP diameter
Hyperresonance to percussion
Diminished breath sounds
Prolonged expiratory phase, expiratory wheeze
Use of accessory muscles
Cyanosis (bronchitic type)
Asterixis (in hypercapnic encephalopathy)
Signs of cor pulmonale: elevated JVP, peripheral edema, loud P2

ABG example in moderate COPD with hyperventilation:

pH 7.47 (alkalotic), PaO2 60 mmHg, PaCO2 30 mmHg, SaO2 90%
Interpretation: Hypoxemia from V/Q mismatch + compensatory respiratory alkalosis from hyperventilation driven by hypoxemia stimulating peripheral chemoreceptors

Costanzo Physiology; Fishman's

Complications

Cor pulmonale: Pulmonary hypertension from hypoxic vasoconstriction → right ventricular hypertrophy/failure
Polycythemia: Compensatory erythrocytosis from chronic hypoxemia
Acute exacerbations (AECOPD): Usually triggered by viral URTI (rhinovirus most common) or bacterial infection (H. influenzae, S. pneumoniae, M. catarrhalis); also air pollution, pulmonary embolism
Spontaneous pneumothorax (emphysema with bullae)
Respiratory failure: Type 1 or 2
Lung cancer: Risk independently elevated in smokers with COPD
Cardiovascular disease: Major comorbidity and leading cause of death in mild-moderate COPD
Cachexia, muscle wasting, osteoporosis, depression, anxiety

Treatment

Pharmacological (Stable COPD)

Bronchodilators are the cornerstone of therapy:

Drug Class	Examples	Notes
Short-acting β2 agonist (SABA)	Albuterol (salbutamol)	Rescue therapy; also effective in COPD despite incomplete reversibility
Short-acting anticholinergic (SAMA)	Ipratropium bromide	Blocks muscarinic receptors; SABA + SAMA combination more effective than either alone
Long-acting β2 agonist (LABA)	Salmeterol, formoterol, indacaterol	For persistent dyspnea; can combine with LAMA
Long-acting anticholinergic/antimuscarinic (LAMA)	Tiotropium, umeclidinium, glycopyrronium	Preferred long-acting bronchodilator in COPD; reduces exacerbations more than LABA alone
LABA + LAMA combination	Indacaterol/glycopyrronium, etc.	Superior to monotherapy; first-line for Group B and many Group E

Inhaled corticosteroids (ICS):

Less central than in asthma; associated with increased pneumonia risk
Recommended only in: severe airflow obstruction, history of exacerbations, features of asthma-COPD overlap
Blood eosinophil count guides ICS use: higher eosinophils (≥300 cells/µL) = greater benefit from ICS; low eosinophils = little/no ICS benefit

Other agents:

Roflumilast: Selective PDE4 inhibitor; reduces exacerbation frequency; for severe COPD with chronic bronchitis phenotype
Theophylline: Older agent; possible diaphragm contractility benefit and corticosteroid sensitization, but a large RCT of low-dose theophylline failed to show benefit on exacerbation frequency
Azithromycin (long-term): Reduces exacerbations in selected patients; risk of hearing loss, cardiac arrhythmia, antibiotic resistance

Katzung's Basic & Clinical Pharmacology; GOLD guidelines

Non-Pharmacological

Intervention	Evidence/Notes
Smoking cessation	Most effective intervention to slow decline; reduces FEV1 loss rate
Long-term oxygen therapy (LTOT)	For PaO2 ≤55 mmHg (or ≤59 mmHg with cor pulmonale); improves survival in hypoxemic COPD
Pulmonary rehabilitation	Improves exercise tolerance, dyspnea, and quality of life; reduces hospitalizations
Vaccination	Influenza, pneumococcal, COVID-19, RSV (newer evidence)
Non-invasive ventilation (NIV/NIPPV)	For chronic hypercapnia, especially nocturnal; reduces persistent hypercapnia
Lung volume reduction surgery (LVRS)	Selected patients with upper-lobe emphysema and low exercise capacity after rehabilitation
Endobronchial valves	Bronchoscopic lung volume reduction for suitable emphysema
Lung transplantation	End-stage disease; improves quality of life

Acute Exacerbations of COPD (AECOPD)

Definition: Acute worsening of respiratory symptoms beyond normal day-to-day variation requiring change in therapy
Management differs from asthma exacerbations mainly by routine use of antibiotics (bacterial infection frequent)
- Antibiotics: beta-lactams (amoxicillin-clavulanate), macrolides, doxycycline, or fluoroquinolones
- Short-course systemic corticosteroids (5-day course equivalent to longer courses)
- Bronchodilators (SABA ± SAMA)
- Controlled oxygen therapy (target SpO2 88-92% to avoid suppressing hypoxic drive in chronic CO2 retainers)
- NIV (BiPAP) for hypercapnic respiratory failure - reduces need for intubation and mortality
- Invasive mechanical ventilation if NIV fails
Mortality of AECOPD is greater than asthma exacerbations due to older age and cardiovascular comorbidities

Katzung; Fishman's Pulmonary Diseases

Prognosis

BODE Index (Body mass index, airflow Obstruction, Dyspnea, Exercise capacity) - better predictor of mortality than FEV1 alone:

Incorporates: BMI, FEV1 %, mMRC dyspnea score, 6-minute walk distance

Persistent hypercapnia is a poor prognostic sign - survival shorter than normocapnic COPD patients.

Sources:

Robbins & Kumar Basic Pathology (Elsevier)
Fishman's Pulmonary Diseases and Disorders, 2-Volume Set (McGraw-Hill)
Katzung's Basic and Clinical Pharmacology, 16th Edition
Costanzo Physiology, 7th Edition
Murray & Nadel's Textbook of Respiratory Medicine
GOLD Guidelines - Global Initiative for Chronic Obstructive Lung Disease

give both in a pdf

Reading File

Running Command

mkdir -p /tmp/workspace/medical-notes && ls /tmp/workspace/medical-notes/

Writing File

~/medical-notes/generate_notes_pdf.py

from reportlab.lib.pagesizes import A4
from reportlab.lib import colors
from reportlab.lib.styles import getSampleStyleSheet, ParagraphStyle
from reportlab.lib.units import cm
from reportlab.platypus import (
    SimpleDocTemplate, Paragraph, Spacer, Table, TableStyle,
    HRFlowable, PageBreak, KeepTogether
)
from reportlab.lib.enums import TA_LEFT, TA_CENTER, TA_JUSTIFY
from reportlab.platypus import ListFlowable, ListItem

OUTPUT = "/tmp/workspace/medical-notes/Medical_Notes_UE_COPD.pdf"

doc = SimpleDocTemplate(
    OUTPUT,
    pagesize=A4,
    leftMargin=2*cm, rightMargin=2*cm,
    topMargin=2.2*cm, bottomMargin=2.2*cm,
    title="Medical Notes: Uremic Encephalopathy & COPD",
    author="Orris Medical Assistant"
)

W = A4[0] - 4*cm  # usable width

# ── Colour palette ──────────────────────────────────────────────────────────
C_DARK_BLUE  = colors.HexColor("#1a3a5c")
C_MID_BLUE   = colors.HexColor("#2c6fad")
C_LIGHT_BLUE = colors.HexColor("#d6e8f8")
C_ACCENT     = colors.HexColor("#e8f4e8")
C_ORANGE     = colors.HexColor("#e07b39")
C_TBL_HDR    = colors.HexColor("#2c6fad")
C_TBL_ALT    = colors.HexColor("#eef5fb")
C_RULE       = colors.HexColor("#2c6fad")
C_BOX_BG     = colors.HexColor("#fff8e1")
C_BOX_BORDER = colors.HexColor("#f0a500")

# ── Styles ───────────────────────────────────────────────────────────────────
styles = getSampleStyleSheet()

def make_style(name, parent="Normal", **kwargs):
    s = ParagraphStyle(name, parent=styles[parent])
    for k, v in kwargs.items():
        setattr(s, k, v)
    return s

sTitle       = make_style("sTitle",      fontName="Helvetica-Bold",   fontSize=22,
                           textColor=C_DARK_BLUE, alignment=TA_CENTER, spaceAfter=4)
sSubtitle    = make_style("sSubtitle",   fontName="Helvetica",        fontSize=11,
                           textColor=C_MID_BLUE,  alignment=TA_CENTER, spaceAfter=14)
sChapterHead = make_style("sChapterHead",fontName="Helvetica-Bold",   fontSize=17,
                           textColor=colors.white, spaceBefore=6, spaceAfter=6, leading=22)
sH1          = make_style("sH1",         fontName="Helvetica-Bold",   fontSize=13,
                           textColor=C_DARK_BLUE, spaceBefore=12, spaceAfter=4, leading=17)
sH2          = make_style("sH2",         fontName="Helvetica-Bold",   fontSize=11,
                           textColor=C_MID_BLUE,  spaceBefore=8,  spaceAfter=3, leading=15)
sBody        = make_style("sBody",       fontName="Helvetica",        fontSize=9.5,
                           leading=14, spaceAfter=4, alignment=TA_JUSTIFY)
sBullet      = make_style("sBullet",     fontName="Helvetica",        fontSize=9.5,
                           leading=13, spaceAfter=2, leftIndent=14, firstLineIndent=-10)
sNote        = make_style("sNote",       fontName="Helvetica-Oblique",fontSize=9,
                           textColor=colors.HexColor("#555555"), leading=13, spaceAfter=4)
sSource      = make_style("sSource",     fontName="Helvetica-Oblique",fontSize=8.5,
                           textColor=colors.HexColor("#444444"), leading=12, spaceAfter=2)
sTableHdr    = make_style("sTableHdr",   fontName="Helvetica-Bold",   fontSize=9,
                           textColor=colors.white, alignment=TA_CENTER, leading=12)
sTableCell   = make_style("sTableCell",  fontName="Helvetica",        fontSize=9,
                           leading=12, alignment=TA_LEFT)
sTableCellC  = make_style("sTableCellC", fontName="Helvetica",        fontSize=9,
                           leading=12, alignment=TA_CENTER)

# ── Helpers ───────────────────────────────────────────────────────────────────
def rule(color=C_RULE, thickness=1.2):
    return HRFlowable(width="100%", thickness=thickness, color=color, spaceAfter=6, spaceBefore=2)

def h1(txt):
    return [Spacer(1, 4), Paragraph(txt, sH1), rule(C_MID_BLUE, 0.8)]

def h2(txt):
    return [Paragraph(txt, sH2)]

def body(txt):
    return Paragraph(txt, sBody)

def bullet(items):
    rows = []
    for it in items:
        rows.append(Paragraph(f"• {it}", sBullet))
    return rows

def spacer(h=6):
    return Spacer(1, h)

def chapter_banner(text, color=C_DARK_BLUE):
    """Full-width coloured banner for chapter heading."""
    tbl = Table([[Paragraph(text, sChapterHead)]], colWidths=[W])
    tbl.setStyle(TableStyle([
        ("BACKGROUND", (0,0), (-1,-1), color),
        ("LEFTPADDING",  (0,0), (-1,-1), 12),
        ("RIGHTPADDING", (0,0), (-1,-1), 12),
        ("TOPPADDING",   (0,0), (-1,-1), 8),
        ("BOTTOMPADDING",(0,0), (-1,-1), 8),
        ("ROUNDEDCORNERS", [4]),
    ]))
    return tbl

def make_table(headers, rows, col_widths=None, alt=True):
    data = [[Paragraph(h, sTableHdr) for h in headers]]
    for i, row in enumerate(rows):
        data.append([Paragraph(str(c), sTableCell) for c in row])
    if col_widths is None:
        col_widths = [W / len(headers)] * len(headers)
    tbl = Table(data, colWidths=col_widths, repeatRows=1)
    style = [
        ("BACKGROUND",    (0,0), (-1,0),  C_TBL_HDR),
        ("ROWBACKGROUNDS",(0,1), (-1,-1), [colors.white, C_TBL_ALT] if alt else [colors.white]),
        ("GRID",          (0,0), (-1,-1), 0.4, colors.HexColor("#bbbbbb")),
        ("VALIGN",        (0,0), (-1,-1), "TOP"),
        ("LEFTPADDING",   (0,0), (-1,-1), 6),
        ("RIGHTPADDING",  (0,0), (-1,-1), 6),
        ("TOPPADDING",    (0,0), (-1,-1), 4),
        ("BOTTOMPADDING", (0,0), (-1,-1), 4),
    ]
    tbl.setStyle(TableStyle(style))
    return tbl

def key_box(label, text):
    inner = Table([
        [Paragraph(f"<b>{label}</b>", sTableCell)],
        [Paragraph(text, sTableCell)],
    ], colWidths=[W-16])
    inner.setStyle(TableStyle([
        ("BACKGROUND",   (0,0), (-1,-1), C_BOX_BG),
        ("BOX",          (0,0), (-1,-1), 1.2, C_BOX_BORDER),
        ("LEFTPADDING",  (0,0), (-1,-1), 8),
        ("RIGHTPADDING", (0,0), (-1,-1), 8),
        ("TOPPADDING",   (0,0), (-1,-1), 5),
        ("BOTTOMPADDING",(0,0), (-1,-1), 5),
    ]))
    return inner

# ════════════════════════════════════════════════════════════════════════════
# CONTENT
# ════════════════════════════════════════════════════════════════════════════
story = []

# ── Cover ────────────────────────────────────────────────────────────────────
story.append(Spacer(1, 3*cm))
story.append(Paragraph("Medical Notes", sTitle))
story.append(Paragraph("Uremic Encephalopathy  |  COPD", sSubtitle))
story.append(Spacer(1, 0.5*cm))
story.append(rule(C_DARK_BLUE, 2))
story.append(Spacer(1, 0.3*cm))
story.append(Paragraph(
    "Sources: Comprehensive Clinical Nephrology 7th Ed. · Brenner &amp; Rector's The Kidney · "
    "Adams &amp; Victor's Neurology 12th Ed. · Bradley &amp; Daroff's Neurology · "
    "Fishman's Pulmonary Diseases · Robbins &amp; Kumar Basic Pathology · "
    "Katzung's Pharmacology 16th Ed. · Costanzo Physiology 7th Ed.", sSource))
story.append(PageBreak())

# ════════════════════════════════════════════════════════════════════════════
# PART 1 – UREMIC ENCEPHALOPATHY
# ════════════════════════════════════════════════════════════════════════════
story.append(chapter_banner("PART 1 — UREMIC ENCEPHALOPATHY (Metabolic Encephalopathy via Kidney)", C_DARK_BLUE))
story.append(spacer(10))

story.append(body(
    "Uremic encephalopathy (UE) is a syndrome of brain dysfunction resulting from renal failure — "
    "either acute kidney injury (AKI) or end-stage kidney disease (ESKD). It ranges from "
    "imperceptible cognitive changes to coma and death. Importantly, <b>the degree of azotemia "
    "alone correlates poorly</b> with the presence or severity of encephalopathy, and symptoms "
    "characteristically fluctuate hour to hour or day to day."
))
story.append(spacer())

# Pathophysiology
story += h1("1. Pathophysiology")

story += h2("1.1 Uremic Toxin Accumulation")
story.append(body(
    "Among the 75 solutes in the European Uremic Toxin (EUTox) database, ~9% (7 solutes) are "
    "directly associated with neurologic effects. The most important are the <b>guanidino compounds</b>:"
))
story += bullet([
    "Guanidinouscinic acid and methylguanidine are increased <b>100-fold</b> in uremic brain tissue and CSF.",
    "Antagonize <b>GABA receptors</b> (inhibitory) while simultaneously acting as <b>NMDA receptor agonists</b> (excitatory) → enhanced cortical excitability.",
    "Guanidinosuccinic acid, methylguanidine, and homoarginine can directly induce seizures via NMDA receptors and calcium channel modulation.",
    "Gut microbial metabolites (phenylalanine, benzoate, glutamate metabolites) also linked to cognitive impairment in dialysis patients.",
])
story.append(spacer())

story += h2("1.2 Blood-Brain Barrier Disruption")
story += bullet([
    "Kidney injury activates inflammatory cytokines that cross or disrupt the BBB.",
    "Animal models show increased brain inflammation + vascular permeability in uremic encephalopathy (distinct pattern from hepatic encephalopathy).",
    "<b>Asymmetric dimethylarginine (ADMA)</b> — elevated in CKD — inhibits eNOS and correlates with cerebrovascular complications.",
    "Indoxyl sulfate, polyamines, myoinositol, carnitine disrupt solute transport and neuronal membrane permeability.",
])
story.append(spacer())

story += h2("1.3 Secondary Hyperparathyroidism")
story += bullet([
    "Brain calcium content doubles within days of acute renal failure onset.",
    "PTH elevates alkaline phosphatase in brain → promotes tau binding to muscarinic receptors in hippocampus → increased intracellular Ca²⁺ → neuronal cell death.",
    "EEG slowing correlates with N-terminal PTH fragment levels.",
    "1,25-dihydroxyvitamin D treatment improves EEG and reduces PTH.",
    "High FGF-23 (via α-klotho interaction) and low α-klotho both associated with increased dementia risk.",
])
story.append(spacer())

story += h2("1.4 Neurotransmitter Disruption")
story += bullet([
    "Norepinephrine depletion and central <b>dopamine suppression</b> — impairs motor activity.",
    "High tryptophan entry across BBB → excess serotonin synthesis → anorexia.",
    "Neuropeptide Y (NPY) levels dysregulated — promotes endothelial dysfunction.",
])
story.append(spacer())

story += h2("1.5 Drug Accumulation")
story.append(body("Reduced renal clearance → toxic accumulation of:"))
story += bullet([
    "<b>Meperidine metabolites</b> (renal cation secretory transport impairment)",
    "<b>Cimetidine, acyclovir</b> (OAT3 inhibition)",
    "<b>Metoclopramide, phenothiazines, gabapentin, opioids</b> — provoke asterixis and myoclonus in CKD",
])
story.append(spacer(10))

# Clinical Manifestations
story += h1("2. Clinical Manifestations")
story.append(make_table(
    ["Stage", "Mental Features", "Motor Features"],
    [
        ["Early", "Mood swings, irritability, apathy, fatigue\nImpaired concentration, loss of recent memory\nInsomnia, depression", "Fine action tremor\nAsterixis (intermittent loss of antigravity muscle tone)\nMyoclonus (lightning-quick arrhythmic jerks)\nHyperreflexia, dysarthria, altered gait"],
        ["Late / Severe", "Confusion, delirium, psychosis\nHallucinations, delusions\nSeizures (uremic twitch-convulsive syndrome)\nStupor → quiet coma", "Incessant myoclonic twitches (wakefulness and sleep)\nCheyne-Stokes breathing\nKussmaul breathing (metabolic acidosis)"],
    ],
    col_widths=[2.5*cm, 7.5*cm, 7.5*cm]
))
story.append(spacer(4))
story.append(Paragraph(
    "About <b>30%</b> of dialysis patients have mild neuropsychiatric symptoms; ~<b>10%</b> exhibit severe impairment. "
    "Advanced UE with confusion/coma is now predominantly seen in patients where a decision has been made not to start dialysis.",
    sNote))
story.append(spacer(10))

# Investigations
story += h1("3. Investigations")
story.append(make_table(
    ["Test", "Finding"],
    [
        ["EEG", "Generalised slowing with excess theta and delta activity; bilateral spike-wave complexes; severity tracks clinical status; normalises with treatment"],
        ["CSF", "Increased protein (<1 g/L); slight pleocytosis (<25 cells/mL); pressure normal"],
        ["Brain MRI", "Non-specific; white matter lesions (small vessel disease); brain oedema on DWI; decreased brain volume in chronic disease; reduced frontal perfusion on perfusion imaging"],
        ["Serum Ca/Mg", "Must check — hypocalcaemia and hypomagnesaemia can mimic UE"],
        ["Serum BUN/Creatinine", "Elevated but degree does NOT directly correlate with encephalopathy severity"],
    ],
    col_widths=[3.5*cm, 14*cm]
))
story.append(spacer(10))

# Diagnosis
story += h1("4. Diagnosis")
story.append(key_box("Diagnostic Criteria",
    "1. Characteristic symptoms (as above) in a patient with severe renal dysfunction. "
    "2. Exclusion of other causes. "
    "3. Confirmation: symptoms disappear with successful renal replacement therapy."))
story.append(spacer(6))
story.append(body("<b>Key differential:</b> Hypertensive encephalopathy (PRES) — the myoclonic-twitch syndrome "
    "is NOT a feature of hypertensive encephalopathy; its presence points to true uremia. "
    "Volhard introduced 'pseudouremia' for hypertensive cerebral effects. "
    "Also exclude: subdural haematoma (coagulopathy/hypertension in uremia), meningitis, drug toxicity, metabolic acidosis."))
story.append(spacer(10))

# Comparison with Hepatic Encephalopathy
story += h1("5. Uremic vs Hepatic Encephalopathy")
story.append(make_table(
    ["Feature", "Uremic Encephalopathy", "Hepatic Encephalopathy"],
    [
        ["Primary toxins", "Guanidino compounds", "Ammonia"],
        ["Receptor effect", "NMDA agonism + GABA antagonism (excitatory)", "GABAergic enhancement (inhibitory)"],
        ["Dominant motor sign", "Myoclonus; uremic twitch-convulsive syndrome", "Asterixis prominent"],
        ["Brain MRI", "Non-specific; no characteristic signal change", "T1 hyperintensity globus pallidus (Mn deposition)"],
        ["Brain inflammation", "Prominent; increased vascular permeability", "Less prominent"],
        ["Treatment", "Renal replacement therapy / transplant", "Lactulose, rifaximin, liver transplant"],
    ],
    col_widths=[4*cm, 8*cm, 5.5*cm]
))
story.append(spacer(10))

# Treatment
story += h1("6. Treatment")
story += h2("6.1 Renal Replacement Therapy (Primary Treatment)")
story += bullet([
    "<b>Haemodialysis or peritoneal dialysis</b> — symptoms typically regress within days to weeks.",
    "<b>Renal transplantation</b> — most effective; resolution within days; eliminates uremic solutes across a wide molecular-weight range.",
    "Mild symptoms may persist even after adequate dialysis.",
])
story.append(spacer(4))
story += h2("6.2 Supportive Management")
story += bullet([
    "Correct metabolic acidosis",
    "Treat secondary hyperparathyroidism (1,25-dihydroxyvitamin D)",
    "Treat anaemia with erythropoietin",
    "Avoid or dose-adjust renally-cleared neurotoxic drugs (especially meperidine, gabapentin, metoclopramide)",
    "Antiepileptics for seizures — use with caution and dose-adjust for renal failure",
])

story.append(PageBreak())

# ════════════════════════════════════════════════════════════════════════════
# PART 2 – COPD
# ════════════════════════════════════════════════════════════════════════════
story.append(chapter_banner("PART 2 — CHRONIC OBSTRUCTIVE PULMONARY DISEASE (COPD)", C_MID_BLUE))
story.append(spacer(10))

story.append(body(
    "COPD is a common, preventable, and treatable disease characterised by <b>persistent, "
    "not fully reversible airflow limitation</b> that is progressive and associated with an "
    "enhanced chronic inflammatory response to noxious particles or gases — primarily cigarette smoke. "
    "It is the <b>third most common cause of death</b> in the United States and accounts for "
    "&gt;$40 billion/year in direct and indirect healthcare costs."
))
story.append(spacer())

# Definition
story += h1("1. Definition & Subtypes")
story.append(make_table(
    ["Subtype", "Definition", "Key Features"],
    [
        ["Chronic Bronchitis", "Persistent productive cough ≥3 months/year for ≥2 consecutive years", "Mucus hypersecretion from large airway gland hyperplasia; obstruction from small airway inflammation (chronic bronchiolitis)"],
        ["Emphysema", "Enlargement of airspaces distal to terminal bronchioles with alveolar wall destruction", "Loss of elastic recoil; air trapping; increased lung compliance; barrel chest"],
    ],
    col_widths=[3.5*cm, 6*cm, 8*cm]
))
story.append(spacer(6))
story.append(Paragraph(
    "Most patients have a mixture of both subtypes. The two classic phenotypes are the "
    "'<b>Pink Puffer</b>' (emphysema-predominant: thin, non-cyanotic, severe dyspnoea, near-normal PaO₂) "
    "and the '<b>Blue Bloater</b>' (bronchitis-predominant: cyanotic, productive cough, elevated PaCO₂, cor pulmonale).",
    sNote))
story.append(spacer(10))

# Epidemiology & Risk Factors
story += h1("2. Risk Factors")
story += bullet([
    "<b>Cigarette smoking</b> — major risk factor; radiographic evidence of progressive changes even in smokers with normal spirometry.",
    "<b>Alpha-1 antitrypsin (A1AT) deficiency</b> — A1AT inhibits neutrophil elastase; deficiency → unchecked protease activity → panacinar emphysema (lower lobe predominant). Screen all patients with persistent airflow obstruction, especially young patients/non-smokers.",
    "Air pollution, occupational dusts and fumes",
    "Recurrent respiratory infections in childhood",
    "Asthma (risk factor for accelerated FEV₁ decline)",
])
story.append(spacer(10))

# Pathology
story += h1("3. Pathology")
story += h2("3.1 Emphysema Subtypes")
story.append(make_table(
    ["Subtype", "Location", "Cause"],
    [
        ["Centriacinar (centrilobular)", "Central acinus, respiratory bronchioles; upper lobe predominant", "Cigarette smoking (most common type)"],
        ["Panacinar (panlobular)", "Entire acinus uniformly; lower lobe predominant", "Alpha-1 antitrypsin deficiency"],
        ["Paraseptal", "Distal acinus, subpleural", "Associated with spontaneous pneumothorax in young adults"],
    ],
    col_widths=[4.5*cm, 6.5*cm, 6.5*cm]
))
story.append(spacer(6))

story += h2("3.2 Mechanism — Protease-Antiprotease Imbalance")
story += bullet([
    "Cigarette smoke recruits <b>neutrophils and macrophages</b> → release of <b>neutrophil elastase</b> and matrix metalloproteinases (MMPs).",
    "These destroy <b>elastin</b> in alveolar walls.",
    "A1AT normally counterbalances this; when balance is disrupted → emphysema.",
])
story.append(spacer(6))

story += h2("3.3 Chronic Bronchitis Pathology")
story += bullet([
    "Hyperplasia of mucus-secreting glands (Reid index increased — ratio of gland thickness to wall thickness).",
    "Goblet cell metaplasia in small airways.",
    "Chronic bronchiolitis causes obstruction (not the large-airway mucus gland hypertrophy).",
    "MUC5AC concentration increased <b>10-fold</b> and MUC5B <b>3-fold</b> in severe COPD.",
    "Small airway mucus occlusion correlates with degree of airflow obstruction and <b>predicts longevity</b>.",
])
story.append(spacer(10))

# Pathophysiology
story += h1("4. Pathophysiology")
story += h2("4.1 Airflow Obstruction")
story += bullet([
    "Reduced FEV₁ with normal or near-normal FVC → reduced <b>FEV₁/FVC ratio (&lt;0.70 post-bronchodilator)</b> = diagnostic criterion.",
    "Emphysema: loss of elastic recoil → dynamic airway collapse on expiration → air trapping.",
    "Chronic bronchitis: luminal narrowing from inflammation, mucus, and wall remodelling.",
])
story.append(spacer(4))

story += h2("4.2 Hyperinflation")
story += bullet([
    "<b>Static hyperinflation:</b> Increased lung compliance raises equilibrium volume of respiratory system.",
    "<b>Dynamic hyperinflation:</b> During exercise, insufficient expiratory time → air trapping → EELV fails to decline → IRV shrinks → tidal volume augmentation impaired.",
    "Results in: increased work of breathing, <b>diaphragm flattening</b> (mechanical disadvantage), 'neuromechanical uncoupling'.",
    "Diaphragm muscle changes: reduced force/cross-sectional area, reduced myosin heavy chain content, decreased Ca²⁺ sensitivity, slower cross-bridge cycling kinetics.",
    "Classic sign: <b>barrel chest</b> (increased AP diameter).",
])
story.append(spacer(4))

story += h2("4.3 V/Q Mismatch & Gas Exchange")
story += bullet([
    "Primary cause of hypoxemia in COPD — underventilated alveoli with continued perfusion.",
    "Widened <b>A-a gradient</b>; PaO₂ falls below calculated PAO₂.",
    "Exercise-related desaturation more common in emphysema-predominant than bronchitis-predominant disease.",
    "<b>Type 1 RF</b> (hypoxaemia alone): early/moderate COPD; patient hyperventilates → PaCO₂ normal or low.",
    "<b>Type 2 RF</b> (hypoxaemia + hypercapnia): PaCO₂ does not usually rise until FEV₁ falls to <b>20-25% of predicted</b>.",
    "Persistent hypercapnia = poor prognostic sign; survival shorter than normocapnic COPD.",
])
story.append(spacer(4))

story.append(key_box("ABG Example — Moderate COPD with Hyperventilation",
    "pH 7.47 (alkalotic) | PaO₂ 60 mmHg | PaCO₂ 30 mmHg | SaO₂ 90%\n"
    "Interpretation: Hypoxaemia from V/Q mismatch + compensatory respiratory alkalosis "
    "driven by hypoxaemia stimulating peripheral chemoreceptors."))
story.append(spacer(10))

# Spirometry / GOLD
story += h1("5. Spirometry & GOLD Classification")
story.append(body("<b>Diagnosis requires:</b> Post-bronchodilator FEV₁/FVC &lt; 0.70"))
story.append(spacer(4))
story.append(make_table(
    ["GOLD Grade", "Severity", "FEV₁ % Predicted"],
    [
        ["GOLD 1", "Mild", "≥ 80%"],
        ["GOLD 2", "Moderate", "50–79%"],
        ["GOLD 3", "Severe", "30–49%"],
        ["GOLD 4", "Very Severe", "< 30%"],
    ],
    col_widths=[4*cm, 6*cm, 7.5*cm]
))
story.append(spacer(6))
story.append(make_table(
    ["GOLD Group", "Symptoms (mCAT/mMRC)", "Exacerbation History"],
    [
        ["Group A", "Low (mCAT<10 or mMRC<2)", "0–1 exacerbation (no hospitalisation)"],
        ["Group B", "High (mCAT≥10 or mMRC≥2)", "0–1 exacerbation (no hospitalisation)"],
        ["Group E", "Any", "≥2 exacerbations OR ≥1 leading to hospitalisation"],
    ],
    col_widths=[3*cm, 7*cm, 7.5*cm]
))
story.append(spacer(10))

# Clinical Features
story += h1("6. Clinical Features")
story += h2("Symptoms")
story += bullet([
    "Progressive exertional <b>dyspnoea</b> (hallmark)",
    "Chronic productive cough (especially morning sputum in bronchitis)",
    "Wheezing",
    "Exercise intolerance",
])
story += h2("Signs")
story += bullet([
    "Barrel chest, increased AP diameter",
    "Hyperresonance to percussion",
    "Diminished breath sounds",
    "Prolonged expiratory phase, expiratory wheeze",
    "Use of accessory muscles",
    "Cyanosis (bronchitic type)",
    "Asterixis (in hypercapnic encephalopathy)",
    "Signs of cor pulmonale: elevated JVP, peripheral oedema, loud P₂",
])
story.append(spacer(10))

# Complications
story += h1("7. Complications")
story.append(make_table(
    ["Complication", "Mechanism / Notes"],
    [
        ["Cor pulmonale", "Pulmonary hypertension from hypoxic vasoconstriction → RV hypertrophy/failure"],
        ["Polycythaemia", "Compensatory erythrocytosis from chronic hypoxaemia"],
        ["Acute exacerbations (AECOPD)", "Usually viral URTI (rhinovirus) or bacterial (H. influenzae, S. pneumoniae, M. catarrhalis), air pollution, PE"],
        ["Spontaneous pneumothorax", "Emphysema with bullae rupture"],
        ["Respiratory failure (Type 1 or 2)", "Progressive airflow obstruction and muscle fatigue"],
        ["Lung cancer", "Risk independently elevated; smoking common aetiology"],
        ["Cardiovascular disease", "Major comorbidity and leading cause of death in mild-moderate COPD"],
        ["Cachexia / muscle wasting", "Systemic inflammation, hypoxaemia, nutritional depletion"],
    ],
    col_widths=[5*cm, 12.5*cm]
))
story.append(spacer(10))

# Treatment
story += h1("8. Treatment")
story += h2("8.1 Pharmacological — Stable COPD")
story.append(make_table(
    ["Drug Class", "Examples", "Role"],
    [
        ["SABA", "Albuterol (salbutamol)", "Rescue; acute symptom relief"],
        ["SAMA", "Ipratropium bromide", "Rescue; blocks muscarinic receptors; combines with SABA"],
        ["LABA", "Salmeterol, formoterol, indacaterol", "Persistent dyspnoea; combine with LAMA for additive benefit"],
        ["LAMA", "Tiotropium, umeclidinium, glycopyrronium", "Preferred long-acting bronchodilator; reduces exacerbations more than LABA alone"],
        ["LABA + LAMA", "Indacaterol/glycopyrronium etc.", "Superior to monotherapy; first-line for Groups B and E"],
        ["ICS", "Fluticasone, budesonide", "Only in severe obstruction, frequent exacerbations, or asthma overlap. Use blood eosinophils to guide: ≥300/µL = benefit; low = avoid (pneumonia risk)"],
        ["Roflumilast (PDE4 inhibitor)", "Roflumilast", "Severe COPD with chronic bronchitis phenotype; reduces exacerbation frequency"],
        ["Azithromycin (long-term)", "Azithromycin", "Reduces exacerbations in selected patients; monitor for hearing loss, arrhythmia, resistance"],
    ],
    col_widths=[4*cm, 4.5*cm, 9*cm]
))
story.append(spacer(6))

story += h2("8.2 Non-Pharmacological")
story.append(make_table(
    ["Intervention", "Notes"],
    [
        ["Smoking cessation", "Most effective; slows FEV₁ decline rate"],
        ["Long-term O₂ therapy (LTOT)", "PaO₂ ≤55 mmHg (or ≤59 mmHg with cor pulmonale); improves survival"],
        ["Pulmonary rehabilitation", "Improves exercise tolerance, dyspnoea, QoL; reduces hospitalisations"],
        ["Vaccination", "Influenza, pneumococcal, COVID-19, RSV"],
        ["NIV / NIPPV (BiPAP)", "For chronic hypercapnia (nocturnal); reduces persistent CO₂ retention"],
        ["Lung volume reduction surgery", "Selected patients: upper-lobe emphysema + low exercise capacity post-rehabilitation"],
        ["Endobronchial valves", "Bronchoscopic lung volume reduction in suitable emphysema"],
        ["Lung transplantation", "End-stage disease; improves QoL"],
    ],
    col_widths=[5*cm, 12.5*cm]
))
story.append(spacer(6))

story += h2("8.3 Acute Exacerbations (AECOPD)")
story += bullet([
    "<b>Short-acting bronchodilators</b> (SABA ± SAMA) — increase dose and frequency.",
    "<b>Systemic corticosteroids</b> — 5-day oral prednisolone course (equivalent to longer courses).",
    "<b>Antibiotics</b> — routinely given (unlike asthma); β-lactams, macrolides, doxycycline, or fluoroquinolones.",
    "<b>Controlled O₂</b> — target SpO₂ <b>88–92%</b> to avoid suppressing hypoxic drive in chronic CO₂ retainers.",
    "<b>NIV (BiPAP)</b> — for hypercapnic respiratory failure; reduces need for intubation and mortality.",
    "Mortality of AECOPD greater than asthma exacerbations due to older age and cardiovascular comorbidities.",
])
story.append(spacer(10))

# Prognosis
story += h1("9. Prognosis — BODE Index")
story.append(body(
    "The <b>BODE Index</b> is a better predictor of mortality than FEV₁ alone. It incorporates:"
))
story += bullet([
    "<b>B</b>ody mass index (low BMI = worse prognosis)",
    "airflow <b>O</b>bstruction (FEV₁ % predicted)",
    "<b>D</b>yspnoea (mMRC score)",
    "<b>E</b>xercise capacity (6-minute walk distance)",
])
story.append(spacer(4))
story.append(Paragraph(
    "Persistent hypercapnia after an acute exacerbation is an independent poor prognostic indicator. "
    "Survival in hypercapnic COPD is shorter than in normocapnic COPD.",
    sNote))

story.append(spacer(16))
story.append(rule(C_DARK_BLUE, 1.5))
story.append(Paragraph(
    "Sources: Comprehensive Clinical Nephrology 7th Ed. · Brenner &amp; Rector's The Kidney · "
    "Adams &amp; Victor's Principles of Neurology 12th Ed. · Bradley &amp; Daroff's Neurology · "
    "Fishman's Pulmonary Diseases and Disorders · Robbins &amp; Kumar Basic Pathology · "
    "Katzung's Basic &amp; Clinical Pharmacology 16th Ed. · Costanzo Physiology 7th Ed. · "
    "Murray &amp; Nadel's Textbook of Respiratory Medicine · GOLD Guidelines (goldcopd.org)",
    sSource))

# ── Build ─────────────────────────────────────────────────────────────────────
doc.build(story)
print(f"PDF saved to {OUTPUT}")

Running Command

cd /tmp/workspace/medical-notes && python generate_notes_pdf.py 2>&1

Running Command

ls -lh /tmp/workspace/medical-notes/Medical_Notes_UE_COPD.pdf

Your PDF is ready. It contains both topics in a single, well-formatted A4 document:

Medical Notes UE COPD

PDF Document · PDF

What's inside:

Cover page with title, subtitle, and all source citations
Part 1 — Uremic Encephalopathy covering pathophysiology (toxins, BBB disruption, PTH, neurotransmitters, drug accumulation), clinical manifestations table (early vs late), investigations, diagnosis, comparison with hepatic encephalopathy, and treatment
Part 2 — COPD covering definition/subtypes, risk factors, pathology (emphysema subtypes, protease-antiprotease imbalance, chronic bronchitis histology), pathophysiology (hyperinflation, V/Q mismatch, gas exchange failure with ABG example), GOLD classification tables, clinical features, complications, full pharmacology table (SABA/SAMA/LABA/LAMA/ICS/roflumilast), non-pharmacological interventions, AECOPD management, and BODE index

common ecg pattern

Reading File

This is a visual + broad topic — ECG patterns. Let me search for ECG sections with images in the library.

Searching sources...

Finding Sources

Good - Tintinalli's Emergency Medicine and Braunwald's Heart Disease have rich ECG content. Let me read the key ECG blocks.

Reading File

Finding Sources

Let me read the detailed ECG sections from Tintinalli's and get images from Braunwald's.

Reading File

Finding Sources

Now let me get the arrhythmia ECG content from Miller's and Tintinalli's atrial flutter/fibrillation sections, plus fetch key images.

Reading File

Finding Sources

Excellent content. Now let me fetch the key ECG images and the heart block ECG images from Washington Manual.

Loading Image

Reading File

Excellent - I have rich content and real ECG images. Let me fetch a few more key images: AV block diagram and torsades.

Loading Image

I have excellent real ECG images and comprehensive textbook content. Now I'll compile the full answer.

Common ECG Patterns

Here is a systematic guide to the most important ECG patterns, with real textbook tracings.

ECG Basics: What Each Wave Represents

Wave/Interval	What It Represents	Normal Value
P wave	Atrial depolarization (SA node → AV node)	<120 ms, upright in II, inverted in aVR
PR interval	AV conduction time (atria → ventricles)	120-200 ms
QRS complex	Ventricular depolarization	<120 ms (narrow)
ST segment	Early ventricular repolarization	Isoelectric (flat)
T wave	Ventricular repolarization	Upright in most leads
QT interval	Total ventricular electrical activity	Corrected QTc <440 ms (men), <460 ms (women)

1. Normal Sinus Rhythm

Rate: 60-100 bpm
P wave before every QRS, upright in lead II, inverted in aVR
PR interval 120-200 ms
QRS narrow (<120 ms)
Regular R-R intervals

2. Atrial Arrhythmias

Atrial Flutter

ECG features:

"Sawtooth" flutter waves in inferior leads (II, III, aVF) and V1 — the pathognomonic sign
Atrial rate typically 300 bpm (range 250-350 bpm)
Ventricular rate depends on AV block ratio:
- 2:1 block → ventricular rate ~150 bpm
- 3:1 block → ~100 bpm
A regular narrow-complex tachycardia at approximately 150 bpm strongly suggests atrial flutter with 2:1 conduction
P waves of a single morphology (organised rhythm, unlike AF)

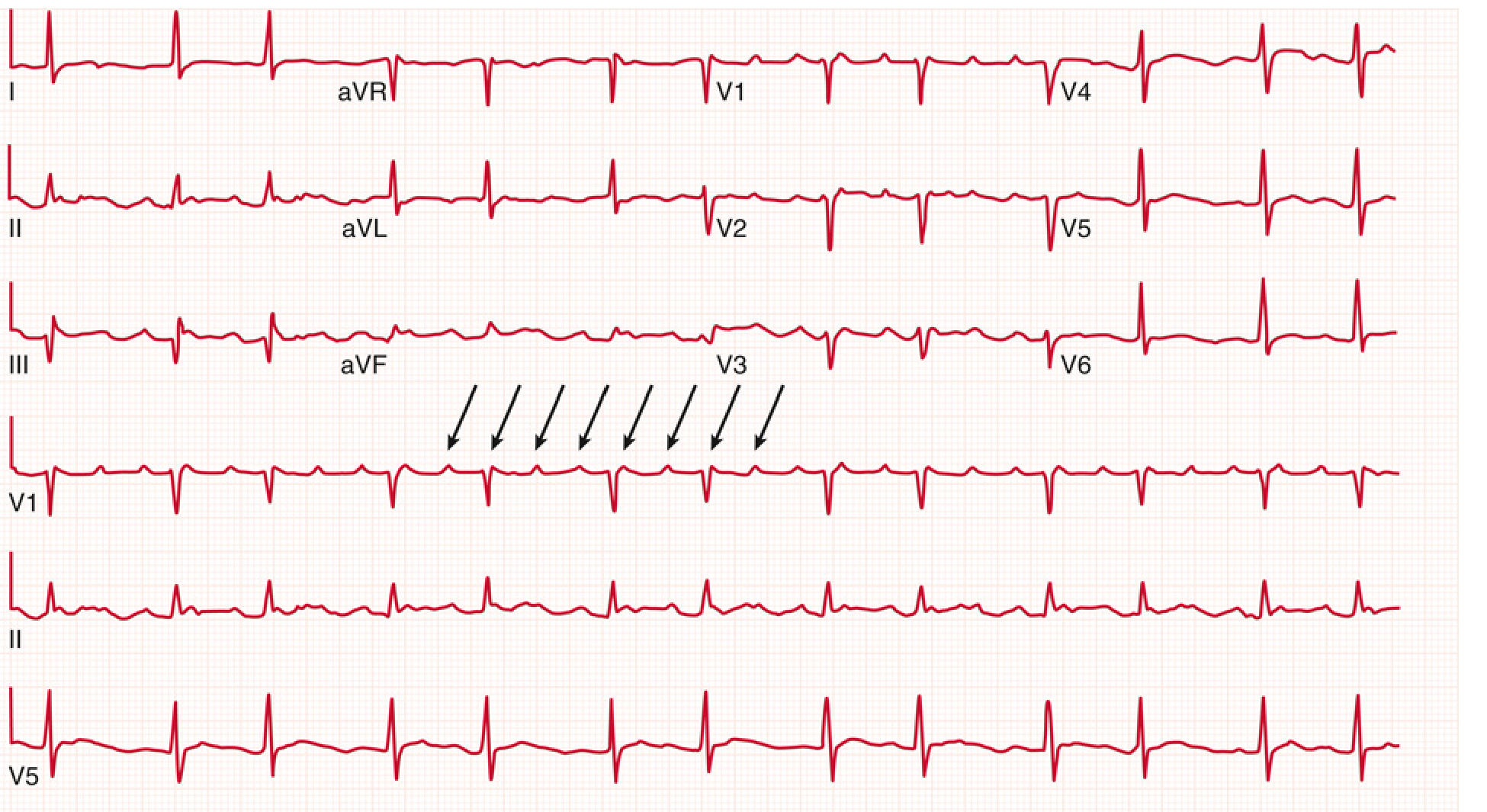

Atrial flutter — sawtooth flutter waves visible in V1 (arrows)

Atrial flutter. Note the sawtooth flutter wave pattern in lead V1 (arrows). - Miller's Anesthesia, 10th Ed.

Atrial Fibrillation (AF)

ECG features (Tintinalli's Emergency Medicine):

Absence of discernible P waves — flat or chaotic isoelectric baseline
Irregularly irregular ventricular rhythm (no two R-R intervals the same)
QRS complexes narrow (unless pre-existing bundle branch block or pre-excitation)
Rate typically 110-160 bpm (uncontrolled)

Clinical causes: ischaemic/valvular heart disease, heart failure, alcohol ("holiday heart"), thyrotoxicosis, myocarditis, blunt chest trauma.

Clinical consequences:

Loss of atrial contraction (can precipitate HF)
Rapid ventricular rate impairs filling
Thromboembolic risk: conversion after >12 hrs carries embolic risk; after >48 hrs requires 3-4 weeks anticoagulation before cardioversion

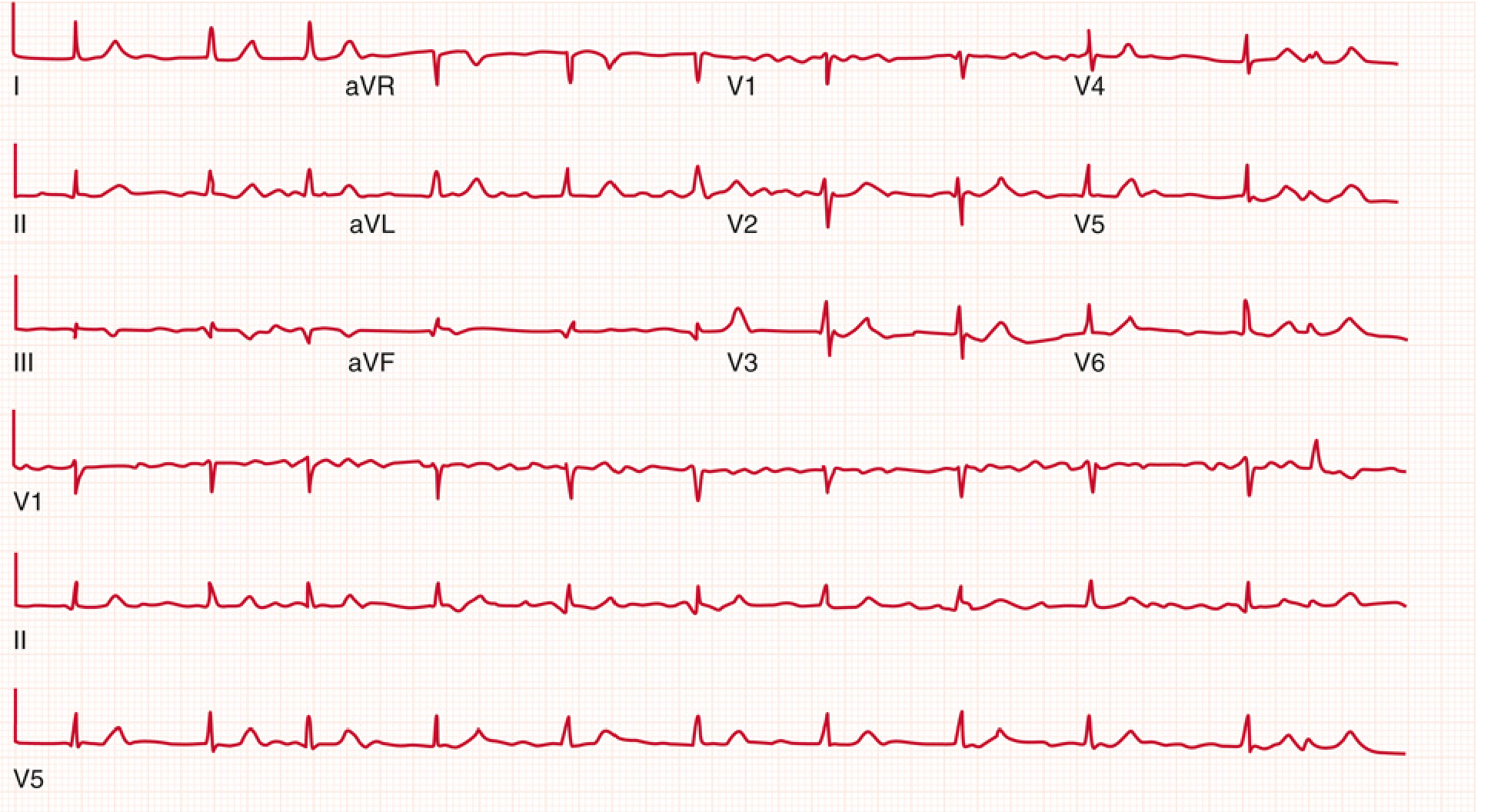

Atrial fibrillation — irregularly irregular rhythm, no distinct P waves

Atrial fibrillation. Irregularly irregular rhythm with no identifiable P waves. - Miller's Anesthesia, 10th Ed.

3. AV Conduction Blocks (Heart Blocks)

AV block ECG examples A-E: first-degree (A), Mobitz I/Wenckebach (B), Mobitz II (C), 2:1 block (D), complete heart block (E)

AV block examples: A=1st degree, B=Mobitz I (Wenckebach), C=Mobitz II, D=2:1 block, E=3rd degree (complete heart block). - Washington Manual of Medical Therapeutics

First-Degree AV Block

PR interval >200 ms (one large box) on every beat
Every P wave conducts — no dropped beats
Usually benign; can be from vagal tone, inferior MI, digoxin, AV nodal disease

Second-Degree AV Block — Mobitz Type I (Wenckebach)

Progressive PR prolongation with successive beats until one P wave is not conducted (dropped QRS)
RR intervals shorten before the dropped beat
"Group beating" pattern
Block usually within the AV node - more benign; progression to complete heart block unlikely

Second-Degree AV Block — Mobitz Type II

Constant PR interval (not lengthening) followed by sudden dropped QRS without warning
Often associated with bundle branch block (wide QRS)
Block below the AV node — more serious; high risk of progression to complete heart block
Pacemaker usually required

Third-Degree (Complete) Heart Block

Complete AV dissociation — atria and ventricles beat independently
More P waves than QRS complexes; P waves "march through" QRS complexes with no relationship
Ventricular escape rhythm: narrow if junctional (40-60 bpm), wide if ventricular (20-40 bpm)
Emergency: requires temporary/permanent pacing

4. Ischaemia and Infarction

STEMI (ST-Elevation MI)

Diagnostic criteria (Tintinalli's):

New ST-segment elevation ≥1 mm in at least two contiguous leads
Represents acute transmural myocardial injury requiring emergency reperfusion

Territory localisation (culprit artery mapping):

ECG Leads with ST Elevation	Infarct Territory	Culprit Artery
V1-V4 (anterior)	Anterior wall	LAD (left anterior descending)
II, III, aVF (inferior)	Inferior wall	RCA or LCx
I, aVL, V5-V6 (lateral)	Lateral wall	LCx or diagonal branch of LAD
V1-V2 tall R wave (posterior)	Posterior wall	RCA or LCx
V4R (right-sided lead)	Right ventricle	Proximal RCA

Key ECG clues:

aVR elevation > V1 → suggests left main or proximal LAD occlusion
ST elevation in III > II + V1 elevation → proximal RCA with RV infarction
Inferior MI with lateral ST elevation (V5/V6 or aVL) → suggests LCx over RCA
Reciprocal changes (ST depression in leads opposite to elevation) = larger injury zone, higher mortality

NSTEMI / Ischaemia

ST depression ≥0.5-1 mm (subendocardial ischaemia)
T-wave inversions (Wellens' syndrome in V2-V3 = critical LAD stenosis)
May have normal ECG (5-10% of AMI have normal or near-normal ECG at presentation)

Q Waves (Old/Evolving MI)

Pathological Q waves: ≥40 ms wide AND ≥25% of QRS amplitude
Indicate completed transmural infarction (necrosis)

5. Ventricular Arrhythmias

Ventricular Tachycardia (VT)

ECG features (Miller's Anesthesia):

≥3 consecutive ectopic beats at rate >100 bpm
Wide QRS complex (>120 ms)
Regular or near-regular rhythm
AV dissociation (P waves unrelated to QRS) - pathognomonic when present
Fusion beats and capture beats confirm VT
Sustained VT: lasts >30 seconds; Nonsustained: terminates spontaneously within 30 seconds

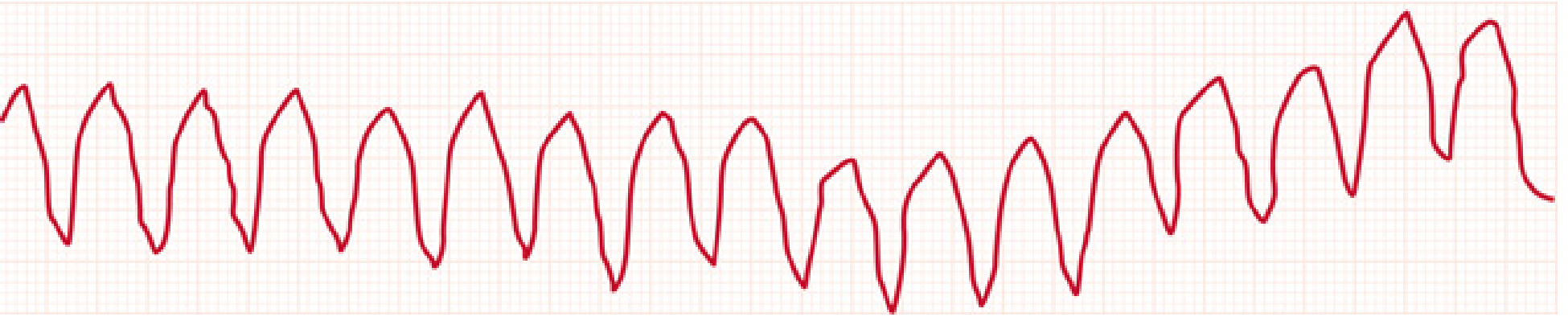

Ventricular tachycardia — wide complex regular tachycardia

Ventricular tachycardia — broad, regular complexes at >100 bpm. - Miller's Anesthesia, 10th Ed.

Monomorphic VT: one morphology — reentry from scar (ischaemic or dilated cardiomyopathy) Polymorphic VT: changing morphology — acquired long QT, electrolyte disturbances

Torsades de Pointes

A form of polymorphic VT associated with prolonged QT interval
ECG: QRS complexes "twist" around the isoelectric baseline (literally "twisting of the points")
Rate 200-250 bpm
May terminate spontaneously or degenerate to VF
Causes: drugs (antiarrhythmics, antipsychotics, antibiotics), hypokalaemia, hypomagnesaemia, congenital long QT

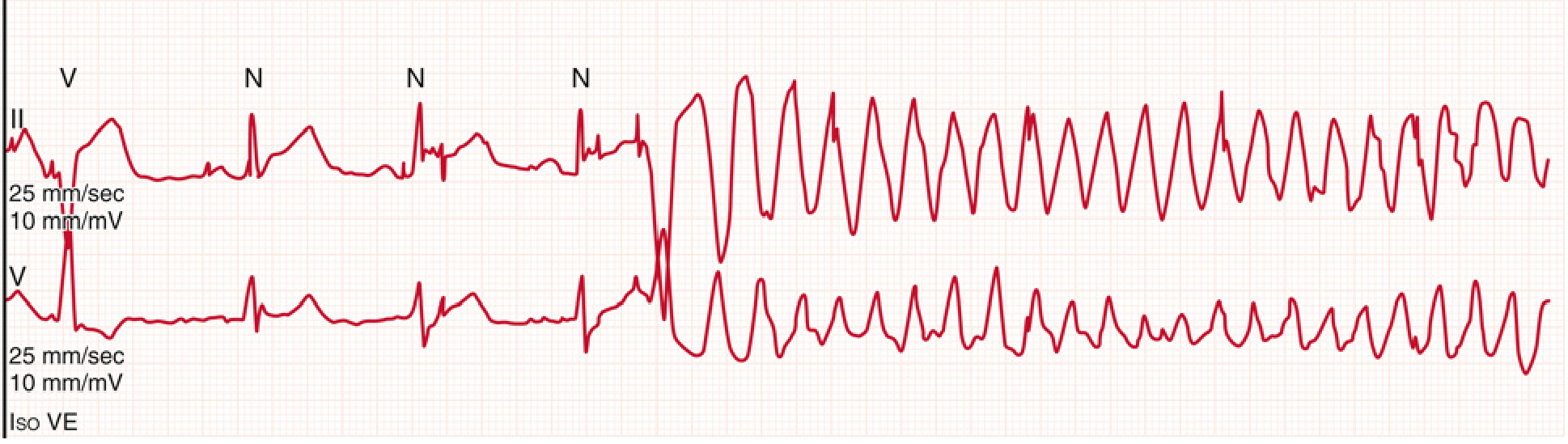

Torsades de pointes — note the initiating beats with prolonged QT (V, N, N, N labels), then twisting polymorphic VT. - Miller's Anesthesia, 10th Ed.

Ventricular Fibrillation (VF)

Chaotic, irregular wide complex activity — no identifiable QRS, ST, or T waves
No cardiac output → cardiac arrest
Requires immediate defibrillation

6. Bundle Branch Blocks

Right Bundle Branch Block (RBBB)

QRS ≥120 ms
RSR' ("rabbit ears") pattern in V1-V2 — terminal R wave
Wide S wave in I, V5-V6 (slurred terminal S)
Can be normal variant or indicate RV strain, PE, ASD

Left Bundle Branch Block (LBBB)

QRS ≥120 ms
Broad notched R wave in I, aVL, V5-V6 (M-shaped pattern)
No septal Q waves in lateral leads
Deep QS in V1
New LBBB in the context of chest pain is treated as STEMI-equivalent (Sgarbossa criteria can help identify superimposed STEMI)

7. Pulmonary Embolism — S1Q3T3 Pattern

S wave in lead I
Q wave in lead III
T-wave inversion in lead III
Also: right axis deviation, incomplete or complete RBBB, sinus tachycardia (most common), right heart strain (T-wave inversions V1-V4)
Neither sensitive nor specific alone — diagnosis requires clinical context + CT pulmonary angiography

8. Electrolyte and Metabolic Patterns

Condition	Key ECG Finding
Hyperkalaemia	Peaked T waves → widened QRS → sine wave → VF/asystole
Hypokalaemia	Flattened/inverted T waves, prominent U waves, prolonged QU
Hypercalcaemia	Short QT interval
Hypocalcaemia	Prolonged QT interval
Digoxin toxicity	"Salvador Dali moustache" (scooped ST depression), bradycardia, AV blocks
Hypothermia	Osborn (J) waves — positive deflection at J point, bradycardia
Pericarditis	Diffuse saddle-shaped ST elevation in all leads except aVR; PR depression

9. Pulmonary Hypertension

Most common finding: right axis deviation
R/S ratio >1 in V1; R/S ratio <1 in V5 and V6
qR complex in V1
S1Q3T3 pattern
Right atrial enlargement (tall P waves in inferior leads - "P pulmonale")
Incomplete or complete RBBB
Most common dysrhythmias: atrial fibrillation, atrial flutter, AVNRT

Source: Tintinalli's Emergency Medicine

Quick-Reference Summary Table

Pattern	Rate	Rhythm	P Waves	QRS	Key Clue
Normal sinus	60-100	Regular	Upright in II, every QRS	Narrow	Baseline
Atrial flutter	75-150 (V rate)	Regular	Sawtooth ~300/min	Narrow	150 bpm tachycardia
Atrial fibrillation	Variable	Irregularly irregular	Absent/chaotic	Narrow	No two R-R equal
1° AV block	Normal	Regular	Normal	Narrow	PR >200 ms
Mobitz I	Normal	Regularly irregular	Group beating	Narrow	Progressive PR → dropped beat
Mobitz II	Normal/slow	Regularly irregular	Fixed PR then dropped	Wide	Sudden dropped beat
Complete heart block	Slow escape	Regular (2 independent)	Dissociated from QRS	Wide/narrow escape	P unrelated to QRS
STEMI	Variable	Variable	Variable	ST elevated	Contiguous leads, reciprocal changes
VT	>100	Regular	Dissociated (AV dissoc.)	Wide (>120 ms)	Fusion/capture beats
Torsades	200-250	Irregular	Absent	Wide, twisting	Long QT precedes it
RBBB	Normal	Regular	Normal	Wide: RSR' in V1	Terminal R in V1
LBBB	Normal	Regular	Normal	Wide: broad R I/V6	No Q in lateral leads

Sources: Tintinalli's Emergency Medicine · Miller's Anesthesia, 10th Ed. · Washington Manual of Medical Therapeutics · Harrison's Principles of Internal Medicine 22E · Braunwald's Heart Disease

explain me with all basic and neccessary details as i am a new student

Finding Sources

Good sources found. Let me read the foundational ECG content from Guyton & Hall (best physiology textbook for beginners) and Goldman-Cecil, and fetch the key diagrams.

Reading File

Excellent foundational content. Now let me fetch the key diagrams and get the lead placement / electrical axis content.

Loading Image

Finding Sources

I have excellent diagrams and foundational content. Let me get the lead placement details and the cardiac conduction system description.

Reading File

Finding Sources

Reading File

Loading Image

Now let me fetch the cardiac conduction system diagram and then compile the full beginner guide.

Loading Image

I now have everything needed - excellent diagrams, conduction system image, wave diagrams, lead placement, and grid explanation. Let me write the complete beginner's guide.

ECG for Beginners — Complete Foundation Guide

PART 1: What Is an ECG and Why Do We Do It?

An Electrocardiogram (ECG or EKG) is a completely painless test that records the electrical activity of the heart over time. Every heartbeat is triggered by an electrical signal. By placing electrodes on the skin, we can "listen" to those electrical signals and display them as waves on paper or a screen.

Why it matters: The ECG can detect:

Heart attacks (myocardial infarction)
Abnormal heart rhythms (arrhythmias)
Blocked electrical pathways (heart blocks)
Enlarged heart chambers (hypertrophy)
Electrolyte imbalances (potassium, calcium problems)
Drug toxicity effects

PART 2: The Heart's Electrical System — What Creates the ECG

Before reading an ECG, you must understand why the waves appear. Every wave on the ECG corresponds to a specific electrical event in the heart.

Cardiac conduction system — SA node to Purkinje fibers showing the pathway of electrical activation

The cardiac conduction system — electrical signal travels from SA node → AV node → Bundle of His → Bundle branches → Purkinje fibers. - Costanzo Physiology, 7th Ed.

The Electrical Pathway — Step by Step

1. SA Node (Sinoatrial Node) — "The Pacemaker"

Located in the right atrium (upper right part of the heart)
Spontaneously generates an electrical impulse 60-100 times per minute
This is the "natural pacemaker" — it sets the heart rate
The impulse spreads outward through both atria like a ripple in water

2. AV Node (Atrioventricular Node) — "The Gatekeeper"

Located between the atria and ventricles
Deliberately slows conduction (conduction velocity here is the slowest of any cardiac tissue)
This delay (about 0.1 second) is critical — it gives the ventricles time to fill with blood from the atria before they contract
Think of it as a traffic light — it pauses the signal before letting it through

3. Bundle of His → Right & Left Bundle Branches

After the AV node, the signal enters the Bundle of His (a specialised cable running down the septum)
It splits into the right bundle branch (to right ventricle) and left bundle branch (to left ventricle)

4. Purkinje Fibers — "The Express Network"

Fine, branching fibres that spread rapidly throughout both ventricles
Conduction velocity here is the fastest in the heart (4 m/s)
Ensures both ventricles contract almost simultaneously and efficiently

Costanzo Physiology, 7th Ed.; Goldman-Cecil Medicine

PART 3: Depolarization and Repolarization — The Two Key Concepts

These are the two processes that produce all ECG waves.

Depolarization (upstroke) and repolarization (recovery) shown above, with corresponding ECG waves P, QRS, T below

Top: ventricular action potential (depolarization = contraction trigger; repolarization = recovery). Bottom: corresponding ECG waves. - Guyton & Hall Textbook of Medical Physiology

Depolarization = The cell becomes electrically excited. Sodium ions rush into the cell, reversing the charge. This triggers muscle contraction.

Repolarization = The cell returns to its resting state (potassium flows out). The muscle relaxes. This must happen before the next beat.

Simple rule:

Depolarization → contraction → appears as an upward wave on ECG (if moving toward the electrode)
Repolarization → relaxation → appears as T wave

PART 4: The ECG Paper — How to Read the Grid

Before reading any wave, understand the paper:

ECG grid showing small and large boxes with time (horizontal) and voltage (vertical) measurements, plus all intervals labeled

Standard ECG paper grid with all measurements. Small box = 1 mm = 0.04 sec. Large box = 5 mm = 0.2 sec. - Goldman-Cecil Medicine

Axis	What It Measures	Small Box (1 mm)	Large Box (5 mm)
Horizontal (X-axis)	Time	0.04 seconds (40 ms)	0.20 seconds (200 ms)
Vertical (Y-axis)	Voltage (amplitude)	0.1 mV	0.5 mV

Standard recording speed = 25 mm/second

So if you see a wave that spans 5 small boxes wide, it took 5 × 0.04 = 0.20 seconds to occur.

PART 5: The ECG Waves — Each One Explained

Normal ECG showing two complete cardiac cycles with all waves (P, Q, R, S, T) and all intervals (PR, QRS, ST, QT, RR) labeled with normal values

Normal ECG with all waves and intervals labeled. PR interval = 0.16 sec; QRS interval <0.12 sec. - Guyton & Hall Medical Physiology

ECG from lead II showing all key components. - Costanzo Physiology, 7th Ed.

P Wave

What it is: Atrial depolarization — the SA node fires and the electrical wave spreads through both atria
What it means physically: The atria are contracting, pushing blood into the ventricles
Normal: Small, rounded, upright in lead II; duration <120 ms (3 small boxes)
Abnormal: Wide P wave = atrial enlargement or delayed conduction; absent P wave = atrial fibrillation

PR Interval

What it is: Time from the start of the P wave to the start of the QRS complex
What it measures: Total conduction time through the atria + the AV node
The flat "PR segment" (between P wave end and QRS start) = the AV node delay
Normal: 120-200 ms (3-5 small boxes)
Short PR (<120 ms) = pre-excitation (e.g., Wolff-Parkinson-White syndrome)
Long PR (>200 ms) = first-degree heart block (AV node is conducting slowly)

QRS Complex

What it is: Ventricular depolarization — the large muscle of both ventricles activates
What it means physically: The ventricles contract and pump blood to the lungs (right) and body (left)
Made of three waves:
- Q wave = small downward deflection (first negative wave)
- R wave = the tall upward spike (most prominent feature)
- S wave = downward deflection after the R
Normal: <120 ms wide (3 small boxes)
Wide QRS (≥120 ms) = bundle branch block or ventricular origin beat
Pathological Q waves (wide + deep) = old heart attack (scar tissue)

Why is QRS narrow even though ventricles are large? Because the His-Purkinje system conducts extremely fast — it distributes the impulse to all parts of the ventricles almost simultaneously. Costanzo Physiology

ST Segment

What it is: The flat line between the end of QRS (J point) and the start of the T wave
What it means: The entire ventricle is depolarized (uniformly excited) — no current flows between regions so the line is flat
Normal: Flat (isoelectric)
ST Elevation = acute transmural injury (heart attack — STEMI, pericarditis)
ST Depression = subendocardial ischaemia, digoxin effect

T Wave

What it is: Ventricular repolarization — the ventricles are resetting electrically
What it means physically: The ventricles are relaxing
Normal: Rounded, upright in most leads (inverted in aVR normally)
Peaked T waves = hyperkalaemia
Inverted T waves = ischaemia, ventricular hypertrophy, bundle branch block

QT Interval

What it is: From start of QRS to end of T wave
What it measures: The total time for ventricular depolarization + repolarization (the entire electrical cycle of the ventricle)
Normal: Corrected QTc <440 ms (men), <460 ms (women)
Prolonged QT = risk of dangerous arrhythmia (Torsades de Pointes)
Causes: drugs (some antibiotics, antipsychotics), electrolyte imbalances (low K⁺, Mg²⁺, Ca²⁺)

U Wave

Small, positive wave after the T wave (not always visible)
Represents repolarisation of the Purkinje fibres or papillary muscles
Prominent U waves = hypokalaemia, bradycardia

RR Interval

Distance between two consecutive R waves
Used to calculate heart rate: Heart Rate = 300 ÷ number of large boxes between R waves
- e.g., 1 large box apart = 300 bpm; 5 large boxes apart = 60 bpm (normal)

PART 6: The 12 Leads — Different Camera Angles of the Heart

A standard ECG has 12 leads. Think of each lead as a camera looking at the heart from a different angle. No electrodes are placed in 12 places — only 10 electrodes are used, but they are combined mathematically to give 12 different views.

The 10 Electrode Positions

4 Limb Electrodes:

Right Arm (RA)
Left Arm (LA)
Right Leg (RL) — this is the ground/reference electrode only
Left Leg (LL)

6 Chest (Precordial) Electrodes:

Chest electrode placement showing V1-V6 positions on the chest wall with sternal angle and fourth intercostal space labeled

Precordial electrode placement V1-V6. Start at sternal angle → 4th intercostal space for V1/V2. - Roberts & Hedges' Clinical Procedures in Emergency Medicine

Lead	Position
V1	Right sternal border, 4th intercostal space
V2	Left sternal border, 4th intercostal space
V3	Midway between V2 and V4
V4	Left midclavicular line, 5th intercostal space
V5	Left anterior axillary line, same horizontal level as V4
V6	Left midaxillary line, same horizontal level as V4

Tip to find 4th intercostal space: Feel the sternal angle (the bony ridge on the sternum, ~5 cm from the notch at the top). Just below it is the 2nd rib → count down two more spaces → 4th intercostal space.

The 12 Leads and What Part of the Heart They "See"

Frontal (Limb) Leads — derived from the 4 limb electrodes:

Lead	View	Part of Heart Seen
I	Left (0°)	Lateral wall
II	Inferior-left (60°)	Inferior wall — best for P waves
III	Inferior-right (120°)	Inferior wall
aVR	Right arm (−150°)	Cavity/right side — normally negative
aVL	Left arm (−30°)	Lateral wall
aVF	Feet/inferior (90°)	Inferior wall

Horizontal (Precordial) Leads — from chest electrodes:

Lead	Part of Heart Seen
V1-V2	Right ventricle + anterior septum
V3-V4	Anterior wall (left ventricle, LAD territory)
V5-V6	Lateral wall (left ventricle)

Memory tip for the territory of the heart by lead groups:

Inferior: II, III, aVF
Anterior: V1-V4
Lateral: I, aVL, V5-V6
Right ventricle: V1, V3R, V4R (special right-sided leads)

PART 7: How to Calculate Heart Rate

Method 1 — The 300 Rule (quick, for regular rhythms): Count the number of large boxes between two R waves, then divide 300 by that number.

Large boxes between R waves	Heart Rate
1	300 bpm
2	150 bpm
3	100 bpm
4	75 bpm
5	60 bpm
6	50 bpm

Mnemonic: 300 → 150 → 100 → 75 → 60 → 50

Method 2 — Count QRS complexes: Count all QRS complexes in a 10-second strip, then multiply by 6.

Normal rate: 60-100 bpm

<60 = Bradycardia (slow heart rate)
100 = Tachycardia (fast heart rate)

PART 8: Systematic Approach to Reading Any ECG

As a student, always read an ECG in the same order every time. Never skip steps.

The 7-Step Systematic Approach

Step 1 — Rate

Count using the 300 rule or QRS counting method
Normal: 60-100 bpm; Slow (<60) = bradycardia; Fast (>100) = tachycardia

Step 2 — Rhythm

Is it regular? (All R-R intervals equal?)
Is it irregular? If so, is it regularly irregular (a pattern) or irregularly irregular (totally random)?
Irregularly irregular = almost always atrial fibrillation

Step 3 — P Waves

Are P waves present?
Is there one P wave before every QRS?
Are they upright in lead II?
If yes to all → origin is the SA node (sinus rhythm)

Step 4 — PR Interval

Measure from start of P to start of QRS
Normal: 120-200 ms (3-5 small boxes)
Short → WPW; Long → 1st degree block; Missing (P not followed by QRS) → 2nd or 3rd degree block

Step 5 — QRS Complex

Is it narrow (<3 small boxes / <120 ms)?
Narrow = normal conduction through His-Purkinje
Wide (≥120 ms) = bundle branch block, or beat originating from the ventricle itself

Step 6 — ST Segment and T Waves

Is the ST segment flat (isoelectric)?
Any elevation? (STEMI, pericarditis)
Any depression? (Ischaemia, NSTEMI)
Are T waves upright, inverted, or peaked?

Step 7 — QT Interval

Measure from start of QRS to end of T wave
Correct for heart rate (QTc)
Prolonged = danger of arrhythmia (Torsades)

PART 9: Quick Summary of Normal Values

Parameter	Normal Value	What Happens If Abnormal
Heart rate	60-100 bpm	<60 = bradycardia; >100 = tachycardia
P wave duration	<120 ms	Wide = atrial enlargement
P wave axis	Upright in II, inverted in aVR	Otherwise = ectopic origin
PR interval	120-200 ms	Long = AV block; Short = pre-excitation
QRS duration	<120 ms	Wide = BBB or ventricular beat
ST segment	Isoelectric (flat)	Elevated = injury; Depressed = ischaemia
T wave	Upright in most leads	Inverted = ischaemia; Peaked = hyperkalaemia
QTc	<440 ms (M), <460 ms (F)	Prolonged = risk of Torsades

PART 10: One-Line Summary of Each Wave

Think of the ECG as telling a story from top to bottom of the heart:

SA node fires  →  P wave       (atria depolarize → atria contract)
         ↓
AV node delay  →  PR segment   (flat line = waiting at the "gate")
         ↓
Ventricles fire →  QRS complex  (ventricles depolarize → ventricles contract)
         ↓
Ventricles rest →  ST segment   (flat — whole ventricle still depolarized)
         ↓
Ventricles recover → T wave     (ventricles repolarize → ventricles relax)

Sources: Guyton & Hall Textbook of Medical Physiology · Costanzo Physiology, 7th Ed. · Goldman-Cecil Medicine · Roberts & Hedges' Clinical Procedures in Emergency Medicine · Katzung's Basic & Clinical Pharmacology, 16th Ed.

give me also this in a pdf

Running Command

ls /tmp/workspace/medical-notes/ && python3 -c "import requests; print('requests ok')" && python3 -c "from reportlab.platypus import Image; print('reportlab ok')"

Writing File

~/medical-notes/generate_ecg_pdf.py

import os, io, requests
from reportlab.lib.pagesizes import A4
from reportlab.lib import colors
from reportlab.lib.styles import getSampleStyleSheet, ParagraphStyle
from reportlab.lib.units import cm
from reportlab.platypus import (
    SimpleDocTemplate, Paragraph, Spacer, Table, TableStyle,
    HRFlowable, PageBreak, Image, KeepTogether
)
from reportlab.lib.enums import TA_LEFT, TA_CENTER, TA_JUSTIFY

OUTPUT = "/tmp/workspace/medical-notes/ECG_Beginner_Guide.pdf"
IMG_DIR = "/tmp/workspace/medical-notes/ecg_imgs"
os.makedirs(IMG_DIR, exist_ok=True)

# ── Palette ──────────────────────────────────────────────────────────────────
C_NAVY       = colors.HexColor("#1a3a5c")
C_BLUE       = colors.HexColor("#2c6fad")
C_LIGHT_BLUE = colors.HexColor("#d6e8f8")
C_TEAL       = colors.HexColor("#1a7a6e")
C_LIGHT_TEAL = colors.HexColor("#d0efec")
C_ORANGE     = colors.HexColor("#c75b1e")
C_LIGHT_ORG  = colors.HexColor("#fde8da")
C_TBL_HDR    = colors.HexColor("#2c6fad")
C_TBL_ALT    = colors.HexColor("#eef5fb")
C_BOX_BG     = colors.HexColor("#fffbea")
C_BOX_BORDER = colors.HexColor("#e0a800")
C_TIP_BG     = colors.HexColor("#e8f5e9")
C_TIP_BORDER = colors.HexColor("#388e3c")

W = A4[0] - 4*cm

# ── Styles ───────────────────────────────────────────────────────────────────
styles = getSampleStyleSheet()

def ms(name, parent="Normal", **kw):
    s = ParagraphStyle(name, parent=styles[parent])
    for k, v in kw.items(): setattr(s, k, v)
    return s

sTitle    = ms("sTitle",  fontName="Helvetica-Bold",   fontSize=24, textColor=C_NAVY, alignment=TA_CENTER, spaceAfter=4)
sSub      = ms("sSub",    fontName="Helvetica",        fontSize=12, textColor=C_BLUE, alignment=TA_CENTER, spaceAfter=10)
sBanner   = ms("sBanner", fontName="Helvetica-Bold",   fontSize=16, textColor=colors.white, leading=22, spaceBefore=2, spaceAfter=2)
sH1       = ms("sH1",     fontName="Helvetica-Bold",   fontSize=13, textColor=C_NAVY,  spaceBefore=10, spaceAfter=3, leading=17)
sH2       = ms("sH2",     fontName="Helvetica-Bold",   fontSize=11, textColor=C_BLUE,  spaceBefore=7,  spaceAfter=3, leading=15)
sBody     = ms("sBody",   fontName="Helvetica",        fontSize=9.5, leading=14, spaceAfter=4, alignment=TA_JUSTIFY)
sBullet   = ms("sBullet", fontName="Helvetica",        fontSize=9.5, leading=13, spaceAfter=2, leftIndent=14, firstLineIndent=-10)
sCaption  = ms("sCap",    fontName="Helvetica-Oblique",fontSize=8.5, textColor=colors.HexColor("#444"), leading=12, spaceAfter=6, alignment=TA_CENTER)
sNote     = ms("sNote",   fontName="Helvetica-Oblique",fontSize=9,   textColor=colors.HexColor("#555"), leading=13, spaceAfter=4)
sCode     = ms("sCode",   fontName="Courier",          fontSize=9,   leading=13, spaceAfter=4, leftIndent=10)
sSource   = ms("sSource", fontName="Helvetica-Oblique",fontSize=8,   textColor=colors.HexColor("#555"), leading=12, spaceAfter=2)
sTblHdr   = ms("sTblHdr", fontName="Helvetica-Bold",   fontSize=9,   textColor=colors.white, alignment=TA_CENTER, leading=12)
sTblCell  = ms("sTblCell",fontName="Helvetica",        fontSize=9,   leading=12)
sTblCellC = ms("sTblCC",  fontName="Helvetica",        fontSize=9,   leading=12, alignment=TA_CENTER)

# ── Helpers ───────────────────────────────────────────────────────────────────
def rule(c=C_BLUE, t=1.0): return HRFlowable(width="100%", thickness=t, color=c, spaceAfter=6, spaceBefore=2)
def sp(h=6): return Spacer(1, h)

def banner(text, color=C_NAVY):
    t = Table([[Paragraph(text, sBanner)]], colWidths=[W])
    t.setStyle(TableStyle([
        ("BACKGROUND",    (0,0),(-1,-1), color),
        ("LEFTPADDING",   (0,0),(-1,-1), 12),
        ("RIGHTPADDING",  (0,0),(-1,-1), 12),
        ("TOPPADDING",    (0,0),(-1,-1), 8),
        ("BOTTOMPADDING", (0,0),(-1,-1), 8),
    ]))
    return t

def h1(txt): return [sp(4), Paragraph(txt, sH1), rule(C_BLUE, 0.8)]
def h2(txt): return [Paragraph(txt, sH2)]
def body(txt): return Paragraph(txt, sBody)

def bullets(items):
    return [Paragraph(f"• {it}", sBullet) for it in items]

def tip_box(label, text, bg=C_BOX_BG, border=C_BOX_BORDER):
    inner = Table([[Paragraph(f"<b>{label}</b>", sTblCell)],
                   [Paragraph(text, sTblCell)]], colWidths=[W-20])
    inner.setStyle(TableStyle([
        ("BACKGROUND",    (0,0),(-1,-1), bg),
        ("BOX",           (0,0),(-1,-1), 1.2, border),
        ("LEFTPADDING",   (0,0),(-1,-1), 10),
        ("RIGHTPADDING",  (0,0),(-1,-1), 10),
        ("TOPPADDING",    (0,0),(-1,-1), 6),
        ("BOTTOMPADDING", (0,0),(-1,-1), 6),
    ]))
    return inner

def make_table(headers, rows, col_widths=None, alt=True):
    data = [[Paragraph(h, sTblHdr) for h in headers]]
    for row in rows:
        data.append([Paragraph(str(c), sTblCell) for c in row])
    if not col_widths:
        col_widths = [W/len(headers)]*len(headers)
    t = Table(data, colWidths=col_widths, repeatRows=1)
    t.setStyle(TableStyle([
        ("BACKGROUND",    (0,0),(-1,0),  C_TBL_HDR),
        ("ROWBACKGROUNDS",(0,1),(-1,-1), ([colors.white, C_TBL_ALT] if alt else [colors.white])),
        ("GRID",          (0,0),(-1,-1), 0.4, colors.HexColor("#bbbbbb")),
        ("VALIGN",        (0,0),(-1,-1), "TOP"),
        ("LEFTPADDING",   (0,0),(-1,-1), 6),
        ("RIGHTPADDING",  (0,0),(-1,-1), 6),
        ("TOPPADDING",    (0,0),(-1,-1), 4),
        ("BOTTOMPADDING", (0,0),(-1,-1), 4),
    ]))
    return t

# ── Image downloader ─────────────────────────────────────────────────────────
def dl_img(url, fname):
    path = os.path.join(IMG_DIR, fname)
    if not os.path.exists(path):
        r = requests.get(url, timeout=20)
        with open(path,"wb") as f: f.write(r.content)
    return path

def rl_img(url, fname, width=None, caption=None):
    """Return [Image, caption_para] or [] on failure."""
    try:
        path = dl_img(url, fname)
        w = width or (W - 1*cm)
        img = Image(path, width=w, kind='proportional')
        items = [img]
        if caption:
            items.append(Paragraph(caption, sCaption))
        return items
    except Exception as e:
        print(f"  img failed {fname}: {e}")
        return [Paragraph(f"[Image: {caption or fname}]", sCaption)]

# ── Download all images ───────────────────────────────────────────────────────
IMGS = {
    "conduction.png":  "https://cdn.orris.care/cdss_images/030588aeee4867ca308e5f1a0fcc6940480805730b60fd0ddf1014b5c2254def.png",
    "depol_repol.png": "https://cdn.orris.care/cdss_images/3ff4ade6e91f416f4524029de46348fb5a7f4028e8eeb50fbec86abab89ca495.png",
    "normal_ecg.png":  "https://cdn.orris.care/cdss_images/68a6c0397e45eefcc080b0f11d262dc072c272ed0d5af899d58637b80a828f29.png",
    "ecg_grid.png":    "https://cdn.orris.care/cdss_images/ef815eeb06c673b405e3c7f9112d1e9ff6fbea96a00a2723b233d384156386bd.png",
    "waves_diagram.png":"https://cdn.orris.care/cdss_images/042124084c74430362fb12de1758340e2dd3b129abd476a16698a7fda88e0376.png",
    "leads_placement.png":"https://cdn.orris.care/cdss_images/34b5cf1bc5d662ff1987fcfcf9b03809ef79a5df151f04aef5c6801e52912fa4.png",
    "af.png":          "https://cdn.orris.care/cdss_images/a689a14cc2a98bf071158972c8f1347d8ea29e130b73423f1c5e4b08b55013e3.png",
    "aflutter.png":    "https://cdn.orris.care/cdss_images/f88a5b8505299d45830bb8150a7f9b0883e3b58f7dc8f674472c6cbf759d1bb7.png",
    "vt.png":          "https://cdn.orris.care/cdss_images/c0d1a542a338c6ef89618bdb32851c880180b009a3e5a183ba0a4c6d0ee4a4ae.png",
    "torsades.png":    "https://cdn.orris.care/cdss_images/30c4930e3e293fec6b7deb34cb1b92926ade8033cb34b8e94bda927c4149eb9a.png",
    "av_blocks.png":   "https://cdn.orris.care/cdss_images/a77f39e9879dd484b3b4417e45932db78c25cf99328cac41ff8f2f9c3937b4b3.png",
}
print("Downloading images...")
for fname, url in IMGS.items():
    try:
        dl_img(url, fname)
        print(f"  OK: {fname}")
    except Exception as e:
        print(f"  FAIL: {fname} — {e}")

# ════════════════════════════════════════════════════════════════════════════
# BUILD STORY
# ════════════════════════════════════════════════════════════════════════════
doc = SimpleDocTemplate(OUTPUT, pagesize=A4,
    leftMargin=2*cm, rightMargin=2*cm, topMargin=2.2*cm, bottomMargin=2.2*cm,
    title="ECG for Beginners — Complete Foundation Guide",
    author="Orris Medical Assistant")

story = []

# ── Cover ─────────────────────────────────────────────────────────────────────
story.append(sp(3*cm))
story.append(Paragraph("ECG for Beginners", sTitle))
story.append(Paragraph("Complete Foundation Guide — Waves, Intervals, Leads & Patterns", sSub))
story.append(sp(0.4*cm))
story.append(rule(C_NAVY, 2))
story.append(sp(0.3*cm))
story.append(Paragraph(
    "Sources: Guyton &amp; Hall Medical Physiology · Costanzo Physiology 7th Ed. · "
    "Goldman-Cecil Medicine · Roberts &amp; Hedges' Clinical Procedures · "
    "Katzung's Pharmacology 16th Ed. · Tintinalli's Emergency Medicine · "
    "Miller's Anesthesia 10th Ed. · Washington Manual of Medical Therapeutics",
    sSource))
story.append(PageBreak())

# ════════════════════════════════════════════════════════════════════════════
# PART 1: WHAT IS AN ECG
# ════════════════════════════════════════════════════════════════════════════
story.append(banner("PART 1 — What Is an ECG and Why Do We Do It?", C_NAVY))
story.append(sp(8))
story.append(body(
    "An <b>Electrocardiogram (ECG or EKG)</b> is a completely painless test that records the "
    "<b>electrical activity of the heart</b> over time. Every heartbeat is triggered by an "
    "electrical signal. By placing small sticky electrodes on the skin, we can 'listen' to "
    "those signals and display them as waves on paper or a screen. "
    "No electricity enters the body — the machine only reads signals coming out."
))
story.append(sp(4))
story.append(body("<b>The ECG can detect:</b>"))
story += bullets([
    "Heart attacks (myocardial infarction — ST elevation, Q waves)",
    "Abnormal heart rhythms (arrhythmias — atrial fibrillation, VT, heart block)",
    "Blocked electrical pathways (bundle branch blocks, AV blocks)",
    "Enlarged heart chambers (ventricular hypertrophy)",
    "Electrolyte imbalances (potassium, calcium, magnesium problems)",
    "Drug toxicity effects (digoxin, prolonged QT from medications)",
])
story.append(sp(10))

# ════════════════════════════════════════════════════════════════════════════
# PART 2: CONDUCTION SYSTEM
# ════════════════════════════════════════════════════════════════════════════
story.append(banner("PART 2 — The Heart's Electrical System", C_TEAL))
story.append(sp(8))
story.append(body(
    "Before reading an ECG, you must understand <b>why</b> the waves appear. "
    "Every wave corresponds to a specific electrical event in the heart. "
    "The heart has its own built-in electrical wiring — the <b>cardiac conduction system</b>."
))
story.append(sp(6))
story += rl_img("conduction.png", "conduction.png", width=W-2*cm,
    caption="The cardiac conduction system — SA node (pacemaker) → AV node → Bundle of His → Bundle branches → Purkinje fibers.\n(Costanzo Physiology, 7th Ed.)")
story.append(sp(8))

story += h1("The Electrical Pathway — Step by Step")

pathway = [
    ["Step", "Structure", "Function", "Speed"],
    ["1", "SA Node\n(Sinoatrial)", "Natural pacemaker. Fires spontaneously 60–100x/min.\nSpreads impulse through both atria.", "Slowest to start\n~0.05 m/s"],
    ["2", "AV Node\n(Atrioventricular)", "Deliberate DELAY of 0.1 second.\nGives ventricles time to fill with blood.\nThink of it as a traffic light.", "Slowest node\n~0.05 m/s"],
    ["3", "Bundle of His", "Conducts impulse from AV node down\nthe interventricular septum.", "~1 m/s"],
    ["4", "Bundle Branches\n(Left + Right)", "Left branch → left ventricle\nRight branch → right ventricle", "~2 m/s"],
    ["5", "Purkinje Fibers", "Fine network spreading impulse\nthroughout all of both ventricles.\nFastest conduction — ensures simultaneous contraction.", "~4 m/s\n(fastest)"],
]
story.append(make_table(pathway[0], pathway[1:], col_widths=[1.2*cm, 3.5*cm, 8.3*cm, 3.5*cm]))
story.append(sp(6))
story.append(tip_box("Key Concept",
    "The AV node delay is protective — it ensures atria finish contracting and filling the ventricles "
    "BEFORE the ventricles contract. If the AV node conducts too fast, cardiac output drops.",
    C_TIP_BG, C_TIP_BORDER))
story.append(sp(10))

# ════════════════════════════════════════════════════════════════════════════
# PART 3: DEPOLARIZATION & REPOLARIZATION
# ════════════════════════════════════════════════════════════════════════════
story.append(banner("PART 3 — Depolarization and Repolarization", C_ORANGE))
story.append(sp(8))
story.append(body(
    "These are the two fundamental processes that produce ALL ECG waves. "
    "Understanding them makes every wave logical, not memorised."
))
story.append(sp(6))
story += rl_img("depol_repol.png", "depol_repol.png", width=W-1*cm,
    caption="Top: ventricular action potential — depolarization (upstroke) triggers contraction; repolarization (return) = relaxation.\n"
            "Bottom: corresponding ECG waves P, QRS (depolarization), T (repolarization). (Guyton & Hall Medical Physiology)")
story.append(sp(6))

story.append(make_table(
    ["Process", "What Happens at Cell Level", "What Triggers", "ECG Appearance"],
    [
        ["Depolarization", "Na⁺ rushes INTO the cell → membrane charge reverses from negative to positive", "Muscle CONTRACTION", "P wave (atria), QRS complex (ventricles)"],
        ["Repolarization", "K⁺ flows OUT → membrane returns to negative resting state", "Muscle RELAXATION", "T wave (ventricles)\n(Atrial repolarization buried inside QRS)"],
    ],
    col_widths=[3.5*cm, 5.5*cm, 4*cm, 4.5*cm]
))
story.append(sp(6))
story.append(tip_box("Simple Rule",
    "Depolarization = contraction → upward deflection on ECG (if wave moves toward the electrode).\n"
    "Repolarization = relaxation → T wave. No current when heart is fully depolarized or fully repolarized → flat line (ST segment).",
    C_BOX_BG, C_BOX_BORDER))
story.append(sp(10))

# ════════════════════════════════════════════════════════════════════════════
# PART 4: THE ECG PAPER & GRID
# ════════════════════════════════════════════════════════════════════════════
story.append(banner("PART 4 — The ECG Paper and Grid", C_NAVY))
story.append(sp(8))
story.append(body(
    "Before reading any wave, you must understand the paper. "
    "The ECG grid has two axes: the <b>horizontal axis measures TIME</b> and "
    "the <b>vertical axis measures VOLTAGE (amplitude)</b>."
))
story.append(sp(6))
story += rl_img("ecg_grid.png", "ecg_grid.png", width=W-1*cm,
    caption="Standard ECG paper. Horizontal: 1 small box = 0.04 sec; 1 large box = 0.2 sec.\n"
            "Vertical: 1 small box = 0.1 mV; 1 large box = 0.5 mV. (Goldman-Cecil Medicine)")
story.append(sp(6))

story.append(make_table(
    ["Axis", "What It Measures", "Small Box (1 mm)", "Large Box (5 mm)"],
    [
        ["Horizontal (X-axis)", "TIME", "0.04 seconds (40 ms)", "0.20 seconds (200 ms)"],
        ["Vertical (Y-axis)", "VOLTAGE (Amplitude)", "0.1 mV", "0.5 mV"],
    ],
    col_widths=[4*cm, 4*cm, 5*cm, 4.5*cm]
))
story.append(sp(4))
story.append(Paragraph(
    "<b>Standard recording speed = 25 mm/second</b> — this is the same worldwide so measurements are universal.",
    sNote))
story.append(sp(10))

# ════════════════════════════════════════════════════════════════════════════
# PART 5: WAVES AND INTERVALS
# ════════════════════════════════════════════════════════════════════════════
story.append(banner("PART 5 — The ECG Waves and Intervals Explained", C_TEAL))
story.append(sp(8))
story += rl_img("normal_ecg.png", "normal_ecg.png", width=W,
    caption="Normal ECG showing two complete cardiac cycles — P wave, Q, R, S, T, and all intervals labeled.\n"
            "PR interval = 0.16 sec; QRS < 0.12 sec; RR interval shows heart rate. (Guyton & Hall Medical Physiology)")
story.append(sp(6))
story += rl_img("waves_diagram.png", "waves_diagram.png", width=W-2*cm,
    caption="ECG components from lead II: P wave, PR interval, QRS complex, ST segment, T wave, QT interval, J point. (Costanzo Physiology, 7th Ed.)")
story.append(sp(8))

story += h1("Each Wave — What It Is and What It Means")

story += h2("P Wave")
story += bullets([
    "<b>Electrical event:</b> Atrial depolarization (SA node fires → impulse spreads through both atria)",
    "<b>Physical event:</b> Atria contract, pushing blood into ventricles (atrial kick)",
    "<b>Normal appearance:</b> Small, rounded, upright in lead II; duration &lt;120 ms (3 small boxes)",
    "<b>Abnormal:</b> Wide P = atrial enlargement; Absent P = atrial fibrillation or junctional rhythm; Inverted P in II = ectopic atrial origin",
])
story.append(sp(6))

story += h2("PR Interval")
story += bullets([
    "<b>Measured from:</b> Start of P wave → Start of QRS complex",
    "<b>Represents:</b> Total conduction time through atria + AV node + His bundle (the 'AV node delay' is the flat PR segment)",
    "<b>Normal: 120–200 ms (3–5 small boxes)</b>",
    "<b>Short PR (&lt;120 ms):</b> Pre-excitation syndrome (e.g., Wolff-Parkinson-White — a bypass tract bypasses the AV node)",
    "<b>Long PR (&gt;200 ms):</b> First-degree heart block (AV node conducts slowly)",
    "Sympathetic stimulation shortens PR; parasympathetic (vagal) stimulation lengthens it",
])
story.append(sp(6))

story += h2("QRS Complex")
story += bullets([
    "<b>Electrical event:</b> Ventricular depolarization — both ventricles activate via the His-Purkinje system",
    "<b>Physical event:</b> Ventricles contract powerfully, pumping blood to lungs (right) and body (left)",
    "<b>Q wave:</b> First negative (downward) deflection — small initial septal activation",
    "<b>R wave:</b> Tall upward spike — main ventricular activation wave",
    "<b>S wave:</b> Downward deflection after R — terminal forces moving away from the electrode",
    "<b>Normal QRS duration: &lt;120 ms (3 small boxes)</b>",
    "<b>Wide QRS (≥120 ms):</b> Bundle branch block (signal not using the fast Purkinje system) OR ventricular ectopic beat",
    "<b>Pathological Q waves (wide &gt;40 ms AND deep &gt;25% QRS height):</b> Completed heart attack (scar tissue cannot depolarize)",
])
story.append(sp(4))
story.append(tip_box("Why is QRS narrow despite large ventricular mass?",
    "The His-Purkinje system conducts at ~4 m/s — it distributes the impulse to ALL parts of both ventricles "
    "almost simultaneously. Compare this to the AV node (0.05 m/s) — 80x slower! "
    "Fast, simultaneous activation = narrow, efficient QRS. (Costanzo Physiology)"))
story.append(sp(6))

story += h2("ST Segment")
story += bullets([
    "<b>What it is:</b> Flat line between end of QRS (J point) and start of T wave",
    "<b>Why it's flat:</b> The entire ventricle is uniformly depolarized — no current flows between regions → no deflection",
    "<b>Normal: Isoelectric (flat — at the baseline)</b>",
    "<b>ST Elevation:</b> Acute transmural (full-thickness) injury → STEMI (heart attack), pericarditis, Brugada syndrome",
    "<b>ST Depression:</b> Subendocardial ischaemia (inner layer starved of oxygen) → NSTEMI, digoxin effect",
    "The J point is the exact junction of QRS end and ST start",
])
story.append(sp(6))

story += h2("T Wave")
story += bullets([
    "<b>Electrical event:</b> Ventricular repolarization — ventricles reset electrically",
    "<b>Physical event:</b> Ventricles relax (diastole begins)",
    "<b>Normal:</b> Rounded, upright in most leads; inverted in aVR normally",
    "<b>Peaked (tall, narrow) T waves:</b> Hyperkalaemia (high potassium) — first sign",
    "<b>Inverted T waves:</b> Ischaemia, ventricular hypertrophy, bundle branch block, pulmonary embolism",
    "<b>Atrial repolarization:</b> Occurs during this time too but is hidden inside the QRS complex (too small to see)",
])
story.append(sp(6))

story += h2("QT Interval")
story += bullets([
    "<b>Measured from:</b> Start of QRS → End of T wave",
    "<b>Represents:</b> Total ventricular electrical activity (depolarization + repolarization)",
    "<b>Must be corrected for heart rate</b> (faster heart rate = shorter QT naturally) → QTc",
    "<b>Normal QTc: &lt;440 ms (men), &lt;460 ms (women)</b>",
    "<b>Prolonged QTc:</b> Risk of fatal arrhythmia (Torsades de Pointes). Causes: drugs (antiarrhythmics, antipsychotics, some antibiotics), low K⁺/Mg²⁺/Ca²⁺, congenital long QT syndrome",
    "<b>Short QTc:</b> Hypercalcaemia",
])
story.append(sp(6))

story += h2("U Wave")
story += bullets([
    "Small, positive wave after the T wave (not always visible)",
    "Thought to represent repolarization of Purkinje fibers or papillary muscles",
    "<b>Prominent U waves = hypokalaemia</b> (low potassium) or bradycardia",
])
story.append(sp(6))

story += h2("RR Interval")
story += bullets([
    "Distance between two consecutive R wave peaks",
    "Used to calculate heart rate: <b>Heart Rate = 1 / (RR interval in seconds)</b>",
    "Or use the quick 300 Rule (explained in Part 7)",
])
story.append(sp(10))

# ════════════════════════════════════════════════════════════════════════════
# PART 6: THE 12 LEADS
# ════════════════════════════════════════════════════════════════════════════
story.append(PageBreak())
story.append(banner("PART 6 — The 12 Leads: Different Camera Angles of the Heart", C_ORANGE))
story.append(sp(8))
story.append(body(
    "A standard ECG uses <b>12 leads</b>, but only <b>10 physical electrodes</b> are placed. "
    "Each lead looks at the heart from a different angle — like cameras surrounding the heart. "
    "The 12 views are mathematically derived from the 10 electrode signals."
))
story.append(sp(6))

story += h1("Chest (Precordial) Electrode Placement — V1 to V6")
story += rl_img("leads_placement.png", "leads_placement.png", width=W-1*cm,
    caption="Precordial electrode placement V1–V6. Start at the sternal angle to find the 4th intercostal space.\n"
            "(Roberts & Hedges' Clinical Procedures in Emergency Medicine)")
story.append(sp(6))

story.append(make_table(
    ["Lead", "Exact Position"],
    [
        ["V1", "Right sternal border, 4th intercostal space"],
        ["V2", "Left sternal border, 4th intercostal space"],
        ["V3", "Midway between V2 and V4"],
        ["V4", "Left midclavicular line, 5th intercostal space"],
        ["V5", "Left anterior axillary line, same horizontal level as V4"],
        ["V6", "Left midaxillary line, same horizontal level as V4 and V5"],
    ],
    col_widths=[2.5*cm, 15*cm]
))
story.append(sp(4))
story.append(tip_box("How to find the 4th intercostal space",
    "Feel the sternal angle (the bony ridge on the breastbone, about 5 cm below the top notch). "
    "Just lateral to it is the 2nd rib. Count downward: 2nd rib → 2nd space → 3rd rib → 3rd space → 4th rib → 4th space. "
    "V1 and V2 go here. V4–V6 are at the same horizontal level (NOT all in the 5th intercostal space)."))
story.append(sp(8))

story += h1("What Each Lead Group 'Sees'")
story.append(make_table(
    ["Lead Group", "Leads Included", "Wall of Heart Viewed", "Artery at Risk"],
    [
        ["Inferior", "II, III, aVF", "Inferior (bottom) wall of LV", "Right coronary artery (RCA) or LCx"],
        ["Anterior", "V1, V2, V3, V4", "Anterior (front) wall of LV + septum", "Left anterior descending (LAD)"],
        ["Lateral", "I, aVL, V5, V6", "Lateral (side) wall of LV", "Left circumflex (LCx) or diagonal branch of LAD"],
        ["Septal", "V1, V2", "Interventricular septum", "LAD (septal branches)"],
        ["Right Ventricle", "V1, V3R, V4R (special right-sided leads)", "Right ventricular wall", "Proximal RCA"],
    ],
    col_widths=[2.8*cm, 4*cm, 5.2*cm, 5.5*cm]
))
story.append(sp(6))

story += h1("The Limb Leads")
story.append(make_table(
    ["Lead", "View (Angle)", "Normal Appearance"],
    [
        ["I",   "Lateral (0°)",        "Upright P, R, T"],
        ["II",  "Inferior-left (60°)", "Best lead for P waves; upright P, R, T — most used for rhythm monitoring"],
        ["III", "Inferior-right (120°)","Upright P, R, T"],
        ["aVR", "Right arm (–150°)",   "Normally NEGATIVE (looking into the heart from upper right — opposite direction of main current)"],
        ["aVL", "Left arm (–30°)",     "Lateral view; may have small Q wave"],
        ["aVF", "Inferior (90°)",      "Looking from below; inferior wall"],
    ],
    col_widths=[1.8*cm, 4.5*cm, 11.2*cm]
))
story.append(sp(10))

# ════════════════════════════════════════════════════════════════════════════
# PART 7: HEART RATE
# ════════════════════════════════════════════════════════════════════════════
story.append(banner("PART 7 — How to Calculate Heart Rate", C_TEAL))
story.append(sp(8))

story += h2("Method 1 — The 300 Rule (for regular rhythms)")
story.append(body(
    "Count the number of <b>large boxes</b> between two consecutive R waves, "
    "then divide 300 by that number."
))
story.append(sp(4))
story.append(make_table(
    ["Large Boxes between R–R", "Heart Rate", "Interpretation"],
    [
        ["1", "300 bpm", "Very fast (rare)"],
        ["2", "150 bpm", "Tachycardia (e.g., atrial flutter 2:1)"],
        ["3", "100 bpm", "Upper limit of normal / mild tachycardia"],
        ["4", "75 bpm",  "Normal"],
        ["5", "60 bpm",  "Normal (lower limit)"],
        ["6", "50 bpm",  "Bradycardia"],
        ["7+", "<43 bpm","Significant bradycardia"],
    ],
    col_widths=[5.5*cm, 4*cm, 8*cm]
))
story.append(sp(4))
story.append(tip_box("Memory mnemonic",
    "300 → 150 → 100 → 75 → 60 → 50  (one R-R large box at a time)"))
story.append(sp(6))

story += h2("Method 2 — Count QRS Complexes")
story += bullets([
    "Find a 10-second strip (usually the bottom rhythm strip on a standard ECG)",
    "Count all QRS complexes in that 10 seconds",
    "Multiply by 6 → heart rate per minute",
    "Use this for irregular rhythms (e.g., atrial fibrillation)",
])
story.append(sp(6))
story.append(make_table(
    ["Heart Rate Category", "Rate (bpm)", "Common Causes"],
    [
        ["Normal Sinus Rhythm", "60–100", "Healthy baseline"],
        ["Sinus Bradycardia", "<60", "Athletes, vagal tone, beta-blockers, hypothyroidism, inferior MI, hypothermia"],
        ["Sinus Tachycardia", ">100", "Pain, fever, anaemia, anxiety, PE, thyrotoxicosis, heart failure"],
    ],
    col_widths=[4.5*cm, 3.5*cm, 9.5*cm]
))
story.append(sp(10))

# ════════════════════════════════════════════════════════════════════════════
# PART 8: SYSTEMATIC APPROACH
# ════════════════════════════════════════════════════════════════════════════
story.append(banner("PART 8 — Systematic Approach to Reading Any ECG", C_NAVY))
story.append(sp(8))
story.append(body(
    "Always read an ECG in the <b>same order every single time</b>. This prevents you from "
    "being distracted by one obvious finding and missing something equally important."
))
story.append(sp(6))

story.append(make_table(
    ["Step", "What to Assess", "Normal", "Abnormal = Think..."],
    [
        ["1", "RATE\nCount large boxes between R-R", "60–100 bpm", "<60 = bradycardia\n>100 = tachycardia"],
        ["2", "RHYTHM\nAre all R-R intervals equal?\nIs it regular or irregular?", "Regular; all R-R equal", "Irregular = AF, heart block, ectopics\nRegularly irregular = 2nd degree block"],
        ["3", "P WAVES\nPresent? One before every QRS?\nUpright in lead II?", "Yes, Yes, Yes", "Absent = AF, junctional rhythm\nNo P before QRS = AV block, ectopic ventricular beat"],
        ["4", "PR INTERVAL\nMeasure onset P to onset QRS", "120–200 ms\n(3–5 small boxes)", "Short = WPW; Long = 1st degree block\nMissing/variable = 2nd/3rd degree block"],
        ["5", "QRS COMPLEX\nDuration? Morphology?", "<120 ms (narrow)", "Wide ≥120 ms = BBB or ventricular beat\nDeep Q waves = old MI"],
        ["6", "ST SEGMENT & T WAVES\nFlat baseline? T wave direction?", "ST isoelectric\nT upright in most leads", "ST elevation = STEMI, pericarditis\nST depression = ischaemia, NSTEMI, digoxin\nT inversion = ischaemia, PE, hypertrophy"],
        ["7", "QT INTERVAL\nMeasure QRS start to T wave end", "QTc <440 ms (M)\nQTc <460 ms (F)", "Prolonged = Torsades risk\nShort = hypercalcaemia"],
    ],
    col_widths=[0.8*cm, 4.5*cm, 3.8*cm, 8.4*cm]
))
story.append(sp(10))

# ════════════════════════════════════════════════════════════════════════════
# PART 9: COMMON PATTERNS (with images)
# ════════════════════════════════════════════════════════════════════════════
story.append(PageBreak())
story.append(banner("PART 9 — Common ECG Patterns (With Real Tracings)", C_ORANGE))
story.append(sp(8))

story += h1("9.1 Atrial Flutter")
story += bullets([
    "Sawtooth (saw-blade) flutter waves — most visible in leads II, III, aVF and V1",
    "Atrial rate: ~300 bpm (range 250–350 bpm)",
    "Ventricular rate depends on AV block ratio: 2:1 = 150 bpm, 3:1 = 100 bpm",
    "<b>Key clue: A regular narrow tachycardia at ~150 bpm almost always = atrial flutter with 2:1 block</b>",
])
story.append(sp(4))
story += rl_img("aflutter.png", "aflutter.png", width=W,
    caption="Atrial flutter — sawtooth flutter waves clearly visible in lead V1 (black arrows). (Miller's Anesthesia, 10th Ed.)")
story.append(sp(8))

story += h1("9.2 Atrial Fibrillation (AF)")
story += bullets([
    "<b>Absent P waves</b> — no organised atrial activity; chaotic or flat baseline",
    "<b>Irregularly irregular</b> ventricular rhythm — no two R-R intervals are equal",
    "Narrow QRS (unless bundle branch block or pre-excitation)",
    "Causes: ischaemia, valvular disease, alcohol, thyrotoxicosis, heart failure",
    "Risk: thromboembolism — blood pools in atrium → clot → stroke",
])
story.append(sp(4))
story += rl_img("af.png", "af.png", width=W,
    caption="Atrial fibrillation — irregularly irregular rhythm with no identifiable P waves. (Miller's Anesthesia, 10th Ed.)")
story.append(sp(8))

story += h1("9.3 AV Heart Blocks")
story += rl_img("av_blocks.png", "av_blocks.png", width=W,
    caption="AV block examples: A = 1st degree (long PR), B = Mobitz I/Wenckebach (progressive PR then dropped beat),\n"
            "C = Mobitz II (sudden dropped beat, constant PR), D = 2:1 block, E = 3rd degree/complete heart block.\n(Washington Manual of Medical Therapeutics)")
story.append(sp(6))

story.append(make_table(
    ["Type", "ECG Finding", "Site of Block", "Risk / Action"],
    [
        ["1st Degree", "PR interval >200 ms every beat. No dropped beats.", "AV node (slow conduction)", "Benign. Monitor. No treatment usually needed."],
        ["2nd Degree\nMobitz I\n(Wenckebach)", "Progressive PR prolongation → one dropped QRS → cycle repeats. Group beating pattern.", "Within AV node (proximal)", "Usually benign. Rarely needs pacemaker."],
        ["2nd Degree\nMobitz II", "Constant PR interval → sudden dropped QRS without warning. Often wide QRS.", "Below AV node (distal His-Purkinje)", "Serious. High risk of progressing to complete block. Pacemaker often required."],
        ["3rd Degree\n(Complete)", "Complete AV dissociation. Atria and ventricles beat independently. More P waves than QRS complexes.", "Complete block at any level", "Emergency. Haemodynamic compromise. Temporary then permanent pacemaker needed."],
    ],
    col_widths=[2.8*cm, 5.5*cm, 4*cm, 5.2*cm]
))
story.append(sp(8))

story += h1("9.4 Ventricular Tachycardia (VT)")
story += bullets([
    "≥3 consecutive beats originating from the ventricles at rate >100 bpm",
    "<b>Wide QRS (≥120 ms)</b> — signal not using the fast Purkinje system",
    "AV dissociation (P waves unrelated to QRS) — pathognomonic when visible",
    "Fusion beats and capture beats confirm VT",
    "Can cause haemodynamic compromise; may degenerate to VF (cardiac arrest)",
    "Sustained VT: lasts >30 seconds; Non-sustained: stops within 30 seconds spontaneously",
])
story.append(sp(4))
story += rl_img("vt.png", "vt.png", width=W,
    caption="Ventricular tachycardia — broad, regular complexes at >100 bpm. (Miller's Anesthesia, 10th Ed.)")
story.append(sp(8))

story += h1("9.5 Torsades de Pointes")
story += bullets([
    "A form of polymorphic VT (QRS morphology changes from beat to beat)",
    "QRS complexes appear to 'twist' around the isoelectric baseline",
    "Rate: 200–250 bpm",
    "Preceded by prolonged QT interval — always check QT before initiating certain drugs",
    "Causes: drugs (class Ia/III antiarrhythmics, antipsychotics, some antibiotics), low K⁺/Mg²⁺, congenital long QT",
    "Treatment: IV magnesium sulphate; correct electrolytes; temporary pacing if recurrent",
])
story.append(sp(4))
story += rl_img("torsades.png", "torsades.png", width=W,
    caption="Torsades de Pointes — initiating beats with prolonged QT then twisting polymorphic VT. (Miller's Anesthesia, 10th Ed.)")
story.append(sp(10))

# ════════════════════════════════════════════════════════════════════════════
# PART 10: NORMAL VALUES REFERENCE TABLE
# ════════════════════════════════════════════════════════════════════════════
story.append(banner("PART 10 — Normal Values Quick Reference", C_TEAL))
story.append(sp(8))

story.append(make_table(
    ["Parameter", "Normal Value", "What Abnormal Means"],
    [
        ["Heart Rate",       "60–100 bpm",            "<60 = bradycardia; >100 = tachycardia"],
        ["P wave duration",  "<120 ms",               "Wide = atrial enlargement or inter-atrial block"],
        ["P wave axis",      "Upright in II, inverted in aVR", "Inverted in II = ectopic/junctional origin"],
        ["PR interval",      "120–200 ms",            "<120 = pre-excitation (WPW); >200 = 1st degree AV block"],
        ["QRS duration",     "<120 ms",               "≥120 ms = bundle branch block or ventricular beat"],
        ["QRS axis",         "–30° to +90°",          "Left axis = LBBB, LVH, inferior MI; Right axis = RVH, PE, RBBB"],
        ["ST segment",       "Isoelectric (flat)",    "Elevation = STEMI, pericarditis; Depression = ischaemia, digoxin"],
        ["T wave",           "Upright in I, II, V3–V6", "Peaked = hyperkalaemia; Inverted = ischaemia, PE, hypertrophy"],
        ["QTc (men)",        "<440 ms",               "Prolonged = risk of Torsades de Pointes"],
        ["QTc (women)",      "<460 ms",               "Women have slightly longer QT physiologically"],
        ["U wave",           "Small, upright (may be absent)", "Prominent = hypokalaemia; inverted = ischaemia"],
    ],
    col_widths=[4*cm, 4.5*cm, 9*cm]
))
story.append(sp(10))

# ════════════════════════════════════════════════════════════════════════════
# PART 11: THE STORY OF ONE HEARTBEAT
# ════════════════════════════════════════════════════════════════════════════
story.append(banner("PART 11 — The Story of One Heartbeat on ECG", C_NAVY))
story.append(sp(8))
story.append(body(
    "Think of the ECG as telling a sequential story from top to bottom of the heart each time the heart beats:"
))
story.append(sp(6))

story.append(make_table(
    ["Event", "ECG Feature", "What the Heart Is Doing"],
    [
        ["SA node fires",           "No visible deflection",     "Pacemaker triggers a signal — starts the beat"],
        ["Atria depolarize",        "P wave",                    "Atria contract, pushing blood into the ventricles"],
        ["AV node delays signal",   "PR segment (flat line)",    "Traffic light pause — ventricles fill with blood"],
        ["Ventricles depolarize",   "QRS complex",               "Both ventricles contract powerfully, ejecting blood"],
        ["Ventricles fully excited","ST segment (flat)",         "All ventricular cells depolarized — brief plateau"],
        ["Ventricles repolarize",   "T wave",                    "Ventricles relax, refill — ready for next beat"],
        ["Heart at rest",           "TP segment (flat baseline)","Electrical silence between beats (diastole)"],
    ],
    col_widths=[4.5*cm, 4*cm, 9*cm]
))
story.append(sp(8))
story.append(tip_box("The Golden Memory Trick",
    "P = Pump atria    •    QRS = Squeeze ventricles    •    T = Time to recover\n"
    "PR flat = Gate closed at AV node    •    ST flat = Whole ventricle lit up    •    TP flat = Heart resting"))

story.append(sp(16))
story.append(rule(C_NAVY, 1.5))
story.append(Paragraph(
    "Sources: Guyton &amp; Hall Textbook of Medical Physiology · Costanzo Physiology 7th Ed. · "
    "Goldman-Cecil Medicine · Roberts &amp; Hedges' Clinical Procedures · "
    "Katzung's Basic &amp; Clinical Pharmacology 16th Ed. · Tintinalli's Emergency Medicine · "
    "Miller's Anesthesia 10th Ed. · Washington Manual of Medical Therapeutics",
    sSource))

# ── Build ─────────────────────────────────────────────────────────────────────
doc.build(story)
print(f"\nPDF saved: {OUTPUT}")

Running Command

cd /tmp/workspace/medical-notes && python generate_ecg_pdf.py 2>&1

The error is in the Image helper — kind='proportional' needs both width and height. Let me fix the image helper to set explicit height.

Editing File

~/medical-notes/generate_ecg_pdf.py

Successfully replaced 1 instance(s) of the string in '/tmp/workspace/medical-notes/generate_ecg_pdf.py'

Running Command

cd /tmp/workspace/medical-notes && python generate_ecg_pdf.py 2>&1

Running Command

ls -lh /tmp/workspace/medical-notes/ECG_Beginner_Guide.pdf

Your ECG beginner guide PDF is ready — 6.7 MB with all 11 real textbook images embedded:

ECG Beginner Guide

PDF Document · PDF

What's inside (11 parts):

What Is an ECG — purpose and what it detects
Cardiac Conduction System — SA node → AV node → Bundle of His → Purkinje fibers with the full anatomy diagram
Depolarization & Repolarization — action potential diagram vs ECG waves side by side
The ECG Paper & Grid — how to read time and voltage from the grid
All Waves Explained — P, PR, QRS, ST, T, QT, U, RR with normal values and what abnormalities mean
The 12 Leads — precordial placement photo, limb lead angles, territory table (which leads = which heart wall)
Heart Rate Calculation — 300 rule table + count method
Systematic 7-Step Reading Approach — never miss a finding
Common Patterns with real ECG tracings — Atrial Flutter, AF, AV blocks (all degrees), VT, Torsades
Normal Values Quick Reference Table
The Story of One Heartbeat — a sequential summary table + golden memory trick

This is a shared conversation. Sign in to Orris to start your own chat.
