KTP Laser - Comprehensive Answer (50 Marks)

1. INTRODUCTION

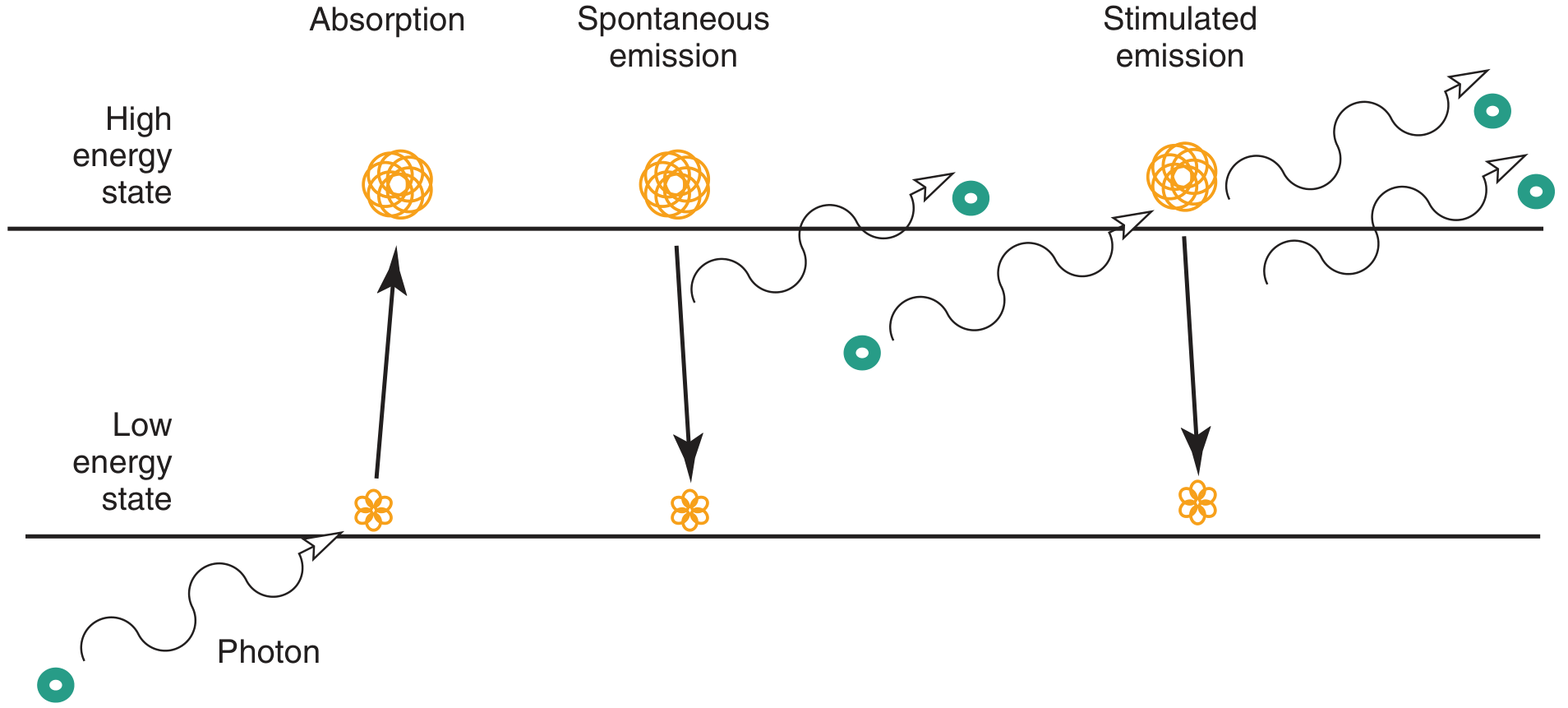

2. LASER PHYSICS - BASIC PRINCIPLES

2.1 What is LASER?

2.2 Laser Generation - Flow Chart

EXTERNAL ENERGY SOURCE (electricity / flashlamp)
            |
            ▼
ACTIVE MEDIUM (atoms raised to higher energy state)
            |
            ▼
POPULATION INVERSION (>50% atoms in excited state)
            |
            ▼
SPONTANEOUS EMISSION → Photons reflect off mirrors
            |
            ▼
STIMULATED EMISSION → Pairs of identical photons produced
            |
            ▼
OPTICAL RESONATING CAVITY (2 mirrors - 1 fully reflective,
            |           1 partially transmissive)
            ▼
AMPLIFICATION (photons multiply with each pass)
            |
            ▼
LASER BEAM OUTPUT (through partially transmissive mirror)
            |
            ▼
Properties: MONOCHROMATIC + COLLIMATED + COHERENT + INTENSE

2.3 Properties of Laser Light

3. KTP LASER - SPECIFIC PHYSICS

3.1 Generation

Nd:YAG Laser (1064 nm, infrared, invisible)
            |
            ▼
    KTP Crystal (Potassium Titanyl Phosphate)
    [Frequency doubling = wavelength halved]
            |
            ▼
KTP Laser Output: 532 nm (visible GREEN light)

• The KTP crystal doubles the frequency and halves the wavelength of the parent Nd:YAG beam
• Wavelength: 532 nm (visible green spectrum)
• Because the output can be switched, one device can deliver BOTH 532 nm (KTP) and 1064 nm (Nd:YAG) light

3.2 Chromophores and Tissue Absorption

• The KTP laser's chromophore is primarily oxyhemoglobin - this gives it excellent selective vascular photothermolysis
• Absorption by oxyhemoglobin is stronger than with the argon laser
• Scattering and absorption by skin pigments is nearly the same as with the argon laser
• Because water absorption is low, tissue penetration is deeper than the CO2 laser

3.3 Modes of Delivery

KTP Laser Delivery Systems
├── Continuous Wave (CW) Mode
│   - Standard delivery
│   - Most common clinical use
│   - Sustained thermal effect
│
└── Pulsed Mode
    - Takes advantage of thermal relaxation time
    - Minimizes collateral thermal damage
    - Used for selective vascular effects
    - Ideal for laryngeal papilloma, dysplasia
    - Allows office-based procedures

• Fiber-optic delivery: light travels through a flexible optical glass fiber
• Can pass through rigid pediatric bronchoscopes as small as 3 mm
• Handheld probes available for sinus surgery, middle ear, microlaryngoscopy

4. COMPARISON OF KTP WITH OTHER ENT LASERS

5. LASER-TISSUE INTERACTIONS

Temperature-Tissue Effect Flowchart

Rising Tissue Temperature → Sequential Changes:

37-60°C → DENATURATION (protein uncoiling, reversible)
           ↓
60-65°C → COAGULATION (protein coagulates, hemostasis)
           ↓
100°C   → VAPORIZATION (water boils → tissue ablation/cutting)
           ↓
>200°C  → CARBONIZATION (black eschar formation)
           ↓
>300°C  → INCANDESCENCE (tissue glows)

• Cutting with a laser = narrow, controlled vaporization
• Lateral thermal spread → coagulation of small vessels → hemostasis
• The lateral thermal effect varies with wavelength, rate of energy application, fluence, and tissue type

Controllable Parameters

1. Power (Watts) - least useful variable in isolation
2. Spot size (mm²) - critical; irradiance = Power/Spot Area (W/cm²)
3. Exposure time (seconds)
4. Irradiance (W/cm²) - the most important operating parameter at a given wavelength

6. ENT APPLICATIONS OF KTP LASER

Flow Chart of KTP Applications in ENT

KTP LASER APPLICATIONS IN ENT
│
├── OTOLOGY
│   ├── Stapedotomy (primary and revision)
│   ├── Chronic ear surgery
│   │   ├── Remove hyperplastic infected mucosa
│   │   ├── Disarticulate mobile stapes superstructure
│   │   └── Remove middle ear implants
│   └── Tympanomastoid surgery
│
├── RHINOLOGY
│   ├── FESS (functional endoscopic sinus surgery)
│   ├── Endonasal DCR (dacryocystorhinostomy)
│   ├── Turbinate reduction
│   ├── Telangiectasia destruction
│   ├── Antrostomy creation
│   ├── Nasal/sinus tumor surgery
│   └── Epistaxis control (hereditary hemorrhagic telangiectasia)
│
├── LARYNGOLOGY
│   ├── Recurrent Respiratory Papillomatosis (RRP)
│   ├── Vocal fold dysplasia / leukoplakia
│   ├── Early glottic carcinoma (T1, T2)
│   ├── Vascular polyps
│   ├── Vocal fold ectasias and varices
│   ├── Reinke's edema
│   └── Office-based laryngeal procedures (via channeled flexible scope)
│
├── TRACHEO-BRONCHIAL
│   ├── Subglottic/tracheal papilloma
│   ├── Bronchial papilloma
│   └── Endobronchial lesions (through pediatric bronchoscope ≥ 3mm)
│
└── OROPHARYNX / HEAD AND NECK
    ├── Tonsillectomy
    └── Pigmented dermal lesions

7. OTOLOGICAL APPLICATIONS IN DETAIL

7.1 KTP Laser Stapedotomy

1. Stabilization of the prosthesis in the center of the oval window
2. Reduced trauma to the inner ear (less postoperative sensorineural loss and dizziness)
3. Less mechanical trauma to the middle ear (reduced adhesions, less risk to facial nerve)
4. No footplate mobilization or fracture (unlike trocar or microdrill)

• The 200-μm EndoOtoprobe is the most popular delivery system
• Rosette technique: A series of tiny rosettes (0.05-0.2 mm) are vaporized in the center of the stapes footplate
• Result is an irregular, scalloped stapedotomy - precise diameter control is difficult
• Surgeons usually seal the visible laser stapedotomy with a vein or perichondrium graft

• A KTP 200-μ fiber did not deliver adequate energy for some applications
• Visible lasers (KTP, argon) produce irregular scalloped stapedotomies - harder to achieve the precise 0.6 mm round hole preferred by many surgeons
• CO2 laser is preferred by some experts (Shambaugh) for a precisely round, sized stapedotomy that minimizes collagen contracture and prosthesis migration

7.2 Chronic Ear Surgery (Thedinger)

• Removing hyperplastic infected mucosa in cholesteatoma surgery
• Disarticulating mobile stapes superstructure for complete cholesteatoma removal
• Removing previously inserted middle ear implants

8. LARYNGOLOGICAL APPLICATIONS IN DETAIL

8.1 Recurrent Respiratory Papillomatosis (RRP)

CO2 Laser (Traditional)          KTP / Nd:YAG Laser
─────────────────────────────    ──────────────────────────────────
- Easy with microscope &         - Equally effective for ablation
  micromanipulator                 and haemostasis
- Minimal bleeding               - FIBER DELIVERY → can treat
- Treatment of choice for many     TRACHEAL and BRONCHIAL papillomas
- Late soft-tissue complications:- Can be delivered through flexible
  fibrosis, webbing, stenosis      bronchoscope for adult patients
  (13-45% rate)                  - Fiber guidance system with bendable
                                   distal tip: 50° directional range

• Plume extractor mandatory (infectious viral load in laser plume)
• KTP plays a key role in subglottic and infraglottic disease inaccessible to CO2

8.2 Office-Based KTP Laser Laryngology (Pulsed Mode)

IN-OFFICE KTP PROCEDURE FLOW:
Patient awake (topical anesthesia)
        ↓
Flexible channeled laryngoscope introduced transnasally
        ↓
KTP laser fiber passed through working channel
        ↓
Pulsed KTP delivered to target (papilloma, polyp, dysplasia, varix)
        ↓
Selective vascular photothermolysis → lesion ablation
        ↓
No general anesthesia required

• Office-based (no GA required)
• Selective for vascular lesions
• Minimal thermal spread in pulsed mode
• Avoids microlaryngoscopy risks in frail patients
• Ideal for performers/professional voice users

• RRP (adult, accessible lesions)
• Vocal fold dysplasia/leukoplakia
• Vascular polyps, ectasias, varices
• Reinke's edema debulking
• Early glottic lesions

8.3 KTP Laser for Glottic Neoplasms

• 8 studies included; mean follow-up 3.3 years
• Overall survival: 90.7% (95% CI 85%-96.5%)
• Disease-free survival: 98.5% (95% CI 97.3%-99.8%)
• Pooled recurrence: 7.7% (95% CI 3.4%-12%)
• Voice Handicap Index (VHI) at 6 months: 6.76; at 1 year: 5.21
• Conclusion: KTP laser ablation is safe and effective for early glottic neoplasms with excellent oncological and voice outcomes [PMID: 36606671]

9. RHINOLOGICAL APPLICATIONS

9.1 Endonasal DCR (Dacryocystorhinostomy)

• KTP laser creates the rhinostomy through a fiber passed endonasally
• Comparable to Holmium:YAG for this application
• Avoids external scar

9.2 Turbinate Reduction and FESS

• Handheld fiber probes used intranasally
• Reduces inferior turbinate bulk with good hemostasis
• Can treat nasal telangiectasias in Hereditary Hemorrhagic Telangiectasia (HHT/Osler-Weber-Rendu)

10. LASER SAFETY

Safety Protocol Flowchart

LASER SAFETY MEASURES
│
├── PATIENT SAFETY
│   ├── Wet gauze/fire-proof material shield
│   ├── Laser-safe endotracheal tube (airway fire prevention)
│   └── Wet cottonoids around target area
│
├── STAFF SAFETY
│   ├── Appropriate wavelength-specific eye protection
│   │   (KTP 532 nm → optical density ≥ 4 green-filter goggles)
│   ├── Plume extractor / smoke evacuator
│   └── Mandatory training + signed documentation
│
├── ENVIRONMENTAL SAFETY
│   ├── Warning sign + locked operating room doors
│   ├── Laser-protected windows/walls
│   └── Blackened endoscopic instruments (reduce reflections)
│
└── EQUIPMENT SAFETY
    ├── Key to laser held by senior surgeon only
    ├── Laser in STANDBY mode when not actively firing
    └── Regular equipment checks per Medical Devices Agency guidelines

• All personnel must wear green-wavelength-blocking goggles
• The patient's cornea and retina are at high risk as 532 nm is a visible wavelength that can be focused by the lens onto the retina

11. COMPLICATIONS OF KTP LASER

General Complications

KTP LASER COMPLICATIONS
│
├── THERMAL INJURY
│   ├── Even pulsed mode can cause deeper damage
│   │   (computer modeling shows inadequate cooling between pulses)
│   └── Adjacent tissue necrosis
│
├── OTOLOGICAL
│   ├── Postoperative sensorineural hearing loss
│   ├── Vestibular disturbance / dizziness (high fluence)
│   └── Facial nerve injury (rare)
│
├── LARYNGOLOGICAL
│   ├── Airway fire (with unprotected tube)
│   ├── Posterior glottic/subglottic stenosis
│   ├── Scarring / fibrosis
│   └── Incomplete ablation → recurrence
│
├── RHINOLOGICAL
│   ├── Crusting and adhesions
│   └── Septal perforation (rare)
│
└── SYSTEMIC / OCCUPATIONAL
    ├── Laser plume inhalation (viral load in RRP)
    └── Retinal injury (eye protection breach)

12. ADVANTAGES AND DISADVANTAGES

Advantages of KTP Laser

1. Fiber-optic delivery - flexible fiber enables access to difficult anatomical sites (trachea, bronchi, pediatric airways, office laryngoscopy)
2. Selective vascular absorption - ideal for vascular lesions (papilloma, polyps, ectasias, varices, telangiectasias)
3. Excellent hemostasis - stronger oxyhemoglobin absorption than argon
4. Dual-mode operation - CW for ablation; pulsed for selective photothermolysis
5. Switchable with Nd:YAG - same device can deliver both wavelengths
6. Office use possible - pulsed KTP through channeled flexible scope avoids general anesthesia
7. Visible beam - no separate aiming beam needed (unlike CO2 or Nd:YAG)
8. Versatility - applicable in otology, rhinology, laryngology, head and neck

Disadvantages

1. Irregular stapedotomy - rosette technique gives scalloped edges, less precise than CO2 for exact fenestration sizing
2. Deeper penetration than CO2 - greater risk of thermal damage to inner ear structures
3. Pulsed mode inadequate cooling - computer modeling shows potential for deeper damage between pulses
4. Less precise than CO2 for microlaryngeal cutting
5. Eye hazard - visible green beam at 532 nm is particularly dangerous (direct retinal absorption)
6. Cost - expensive equipment

13. RECENT ADVANCES (RGUHS Perspective)

13.1 Office-Based KTP Laser Surgery

• Benign vocal fold lesions (ectasias, varices, polyps)
• RRP in adult patients
• Vocal fold dysplasia/leukoplakia

13.2 KTP in Professional Voice Users

13.3 KTP for Vocal Fold Dysplasia and Leukoplakia

13.4 KTP in RRP - Office Setting

13.5 Technological Advances

• Pulsed KTP systems with computer-controlled pulse parameters
• Distal-tip articulating fiber delivery systems
• Integration with office-based laryngoscopy platforms
• 532 nm diode laser systems that mimic KTP without requiring Nd:YAG source

14. SUMMARY TABLE - KTP LASER AT A GLANCE

15. MNEMONICS FOR RGUHS EXAMS

16. REFERENCES / SOURCE TEXTBOOKS

1. Cummings Otolaryngology Head and Neck Surgery (7th Ed.) - Chapter 59: Lasers in Otolaryngology - detailed laser physics, KTP specific section p. 1099-1100
2. Scott-Brown's Otorhinolaryngology Head & Neck Surgery Vol 1 - Laser applications chapter, p. 631-632
3. Scott-Brown's Otorhinolaryngology Head & Neck Surgery Vol 2 - KTP in RRP management, p. 3107-3114
4. Shambaugh Surgery of the Ear - Laser stapedotomy, thermocouple experiments, safety parameters, p. 5878-6141
5. Dhingra - Diseases of ENT (for laser classification and basic applications)
6. Hazarika - Textbook of ENT and Head-Neck Surgery (for Indian standard of ENT laser practice)
7. Zakir Hussain - Synopsis of Diseases of ENT (for exam-oriented laser summary)
8. Stell and Maran's Head and Neck Surgery (for head and neck laser oncology context)

• Suppah M et al. "Outcomes of KTP Laser Ablation in Glottic Neoplasms: A Systematic Review and Meta-Analysis." Laryngoscope 2023;133:1806-1814 [PMID: 36606671] - View on PubMed
• Bhat AM et al. "Photoangiolytic Lasers for Treatment of Benign Laryngeal Lesions: A Systematic Review and Meta-Analysis." Laryngoscope 2024 Dec [PMID: 39119758] - View on PubMed
• Miri M et al. "Surgical and Voice Outcomes of Office-Based RRP Surgery: A Systematic Review." Otolaryngol Head Neck Surg 2026 Jun [PMID: 41848235]
• Mizoguchi Y et al. "High fluence in laser stapedotomy aggravates transient subjective dizziness." Acta Otolaryngol 2024 [PMID: 38546378]

APPENDIX: KEY DIAGRAMS SUMMARY

[Nd:YAG source] → 1064 nm ──→ [KTP Crystal] ──→ 532 nm output
                  infrared                          visible green

Examiner's Note for RGUHS 50-mark answer: A complete answer should cover physics (10 marks), generation/properties of KTP specifically (8 marks), laser-tissue interactions (7 marks), ENT applications with details (15 marks), safety (5 marks), complications (3 marks), and recent advances (2 marks). This answer addresses all these domains comprehensively.
