What is intrafocal k wire?

The intrafocal (Kapandji) technique is a method of K-wire fixation used in distal radius fractures where the wires are inserted directly into the fracture site rather than through bone proximal to it. The wires act as levers to reduce and then hold the fracture in position.
Searching sources...
Reading File
Searching the Web

intrafocal Kapandji K wire technique distal radius fracture

Finding Sources
Reading Web Page

https://www.wheelessonline.com/trauma-fractures/distal-radiu…

Reading File
Reading File
Loading Image
Reading File
Here is a thorough explanation of the intrafocal K-wire technique, drawn from multiple authoritative orthopaedic textbooks:

Intrafocal K-Wire (Kapandji Technique)

What It Is

The intrafocal (Kapandji) K-wire technique is a method of percutaneous pin fixation for distal radius fractures in which the K-wires are inserted directly into the fracture site itself - "intrafocal" meaning within the fracture focus. This contrasts with standard K-wire fixation where pins are placed through intact bone proximal to the fracture.
The technique was originally described by Alain Kapandji in 1976 and remains a recognised option for closed reduction and percutaneous pinning (CRPP) of distal radius fractures.

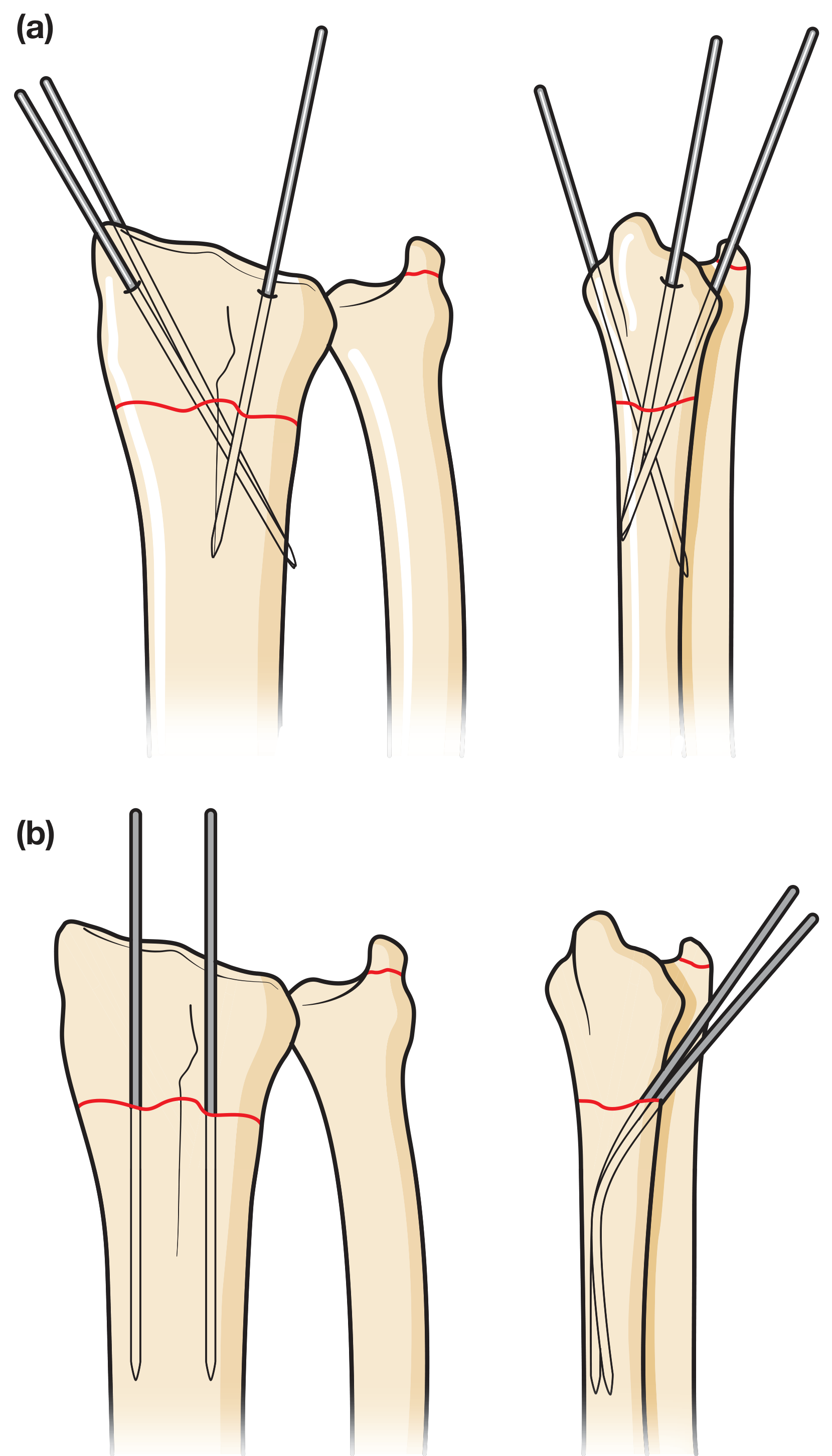

K-wire placement diagrams showing (a) wires placed across fracture fragments vs (b) intrafocal K-wires inserted into the fracture site used to lever and reduce the fracture
Diagram: (a) Standard transfixion K-wires placed across fragments; (b) Intrafocal K-wires inserted into the fracture gap and used to lever the distal fragment into position - Bailey & Love's Short Practice of Surgery, 28th Ed.

Mechanism: How It Works

The pins act as a lever or crowbar. Under fluoroscopy, they are driven into the fracture gap in a proximal-to-distal direction, then used to pry the distal fragment back into the correct anatomical position before being advanced into the proximal cortex to hold the reduction:
  • To correct dorsal angulation (restore volar tilt): A pin is inserted from the dorsal-ulnar aspect of the fracture site, levered in a volar direction (pressing against the dorsal cortex), then driven into the volar cortex of the proximal fragment.
  • To correct radial shortening / lost radial inclination: A pin is inserted from the volar-radial side, levered distally and radially to restore radial length and inclination, then driven into the proximal fragment's radial cortex.
Once the lever maneuver restores anatomy, the pin is advanced proximally and obliquely into the cortex of the proximal fragment - so it now bridges the fracture and acts as a stabiliser.
As described in Rockwood and Green's Fractures in Adults (10th ed., 2025): "Working directly through the fracture plane, a K-wire can be introduced through the fracture and used to distract and rotate one fragment relative to the other, similar to the Holmann technique. This has been described in distal radius fractures as the Kapandji technique."

Indications

  • Extra-articular distal radius fractures (e.g., Colles' fracture) with good bone stock
  • Younger patients without significant osteoporosis
  • Used as an isolated technique or as an adjunct to external fixation

Step-by-Step Technique (Summary)

  1. Closed reduction is first attempted by manipulation.
  2. Under fluoroscopy, K-wires are inserted into the fracture gap (not through intact bone).
  3. The wire is used as a lever to restore volar tilt and/or radial inclination.
  4. Once reduction is confirmed, the wire tip is advanced into the proximal fragment cortex to hold the position.
  5. Typically 2-3 wires are used (one dorsal-ulnar for tilt, one radial for inclination, sometimes a third).
  6. A supplemental plaster cast is applied for 4-6 weeks.

Advantages

  • Simultaneous reduction AND fixation in one maneuver
  • Minimally invasive (no open surgery)
  • No need for traction or external fixation in many cases

Disadvantages / Limitations

  • Does not provide rigid fixation on its own - often needs supplemental external fixation or cast
  • Prone to loss of reduction in older patients, especially with metaphyseal comminution (fragments can slide along the pin)
  • Less commonly used today with the widespread adoption of volar locking plates (ORIF), which provide more reliable fixation, especially in osteoporotic bone

Current Role

Per Miller's Review of Orthopaedics (9th Ed.) and Campbell's Operative Orthopaedics (15th Ed., 2026), CRPP including the Kapandji intrafocal technique is indicated mainly for extra-articular fractures in younger patients without osteoporosis. ORIF with volar plating has become the dominant method for unstable fractures, but intrafocal pinning remains a valid, less resource-intensive option - particularly in settings where plating is unavailable or in pediatric fractures.

What is reductuioj criteria of DER fracture

The reduction criteria for distal end radius (DER) fractures include restoring radial height (~11-13 mm), radial inclination (~22-23°), and volar tilt (~11°), with less than 2 mm of intra-articular step-off.
Searching sources...
Finding Sources
Searching the Web

distal end radius fracture reduction criteria acceptable radiological parameters

Finding Sources
Reading File
Reading File
Reading File
Reading File
Here is a complete, textbook-based breakdown of the reduction criteria for Distal End Radius (DER) fractures:

Reduction Criteria for Distal End Radius (DER) Fractures

Normal Anatomy - The Baseline ("11 : 22 : 11" Rule)

A simple mnemonic to remember normal radiological parameters:
ParameterNormal Value
Radial height11 mm
Radial inclination22°
Volar tilt11°
Ulnar variance±2 mm (lunate facet level with ulnar head)

Acceptable Reduction Criteria

From Campbell's Operative Orthopaedics (15th Ed., 2026) - Table 62.13:
CriterionNormalAcceptable After Reduction
Radial height12 mmLess than 3 mm shortening
Radial inclination20° (lunate facet to radial styloid)No less than 10°
Palmar (volar) tilt11°Less than 10° dorsal tilt
Ulnar variance±2 mmNo more than 2 mm shortening relative to ulnar head
Intra-articular step/gapNoneLess than 2 mm of either

AAOS Guideline Benchmarks (Post-reduction)

(Miller's Review of Orthopaedics, 9th Ed.)
  • Radial shortening < 3 mm
  • Dorsal tilt < 10°
  • Intra-articular step-off < 2 mm

Criteria for Acceptable Healing (Graham's Criteria)

(Campbell's Operative Orthopaedics, Table 63.4)
CriterionAcceptable
Radiolunate lengthRadial shortening < 5 mm vs. contralateral wrist
Radial inclination15° on PA film
Radial tilt (sagittal)Between 15° dorsal tilt and 20° volar tilt
Articular incongruity2 mm at radiocarpal joint

Why These Parameters Matter - Clinical Consequences of Malreduction

From Rockwood & Green's Fractures in Adults (10th Ed., 2025) and Campbell's:
  • Dorsal tilt > 10° - decreased wrist flexion, worse DASH scores, midcarpal instability
  • Dorsal tilt > 20-30° - alters force distribution across radiocarpal joint; considered a prearthritic condition
  • Radial shortening > 4-6 mm - DRUJ dysfunction, ulnar-sided wrist pain, reduced grip strength
  • Radial inclination < 10° - reduced grip strength, higher DASH scores
  • Intra-articular step-off > 2 mm - increased risk of post-traumatic arthritis

Malunion Definition (Rockwood & Green)

A distal radius is considered malunited if ANY of the following are present:
  • Radial inclination < 10°
  • Volar tilt > 20° or dorsal tilt > 20°
  • Radial height < 10 mm
  • Ulnar variance > +2 mm

Quick Summary Mnemonic

Normal = 11 : 22 : 11 (height : inclination : volar tilt) Accept = <3 mm short | >10° inclination | <10° dorsal tilt | <2 mm step-off

What we checked in xray of post operative neck of femur fracture treated with bipolar prosthesis

On post-op X-ray after bipolar hemiarthroplasty for neck of femur fracture, you check stem position, cement mantle, leg length, offset, cup position, and look for complications like periprosthetic fracture or dislocation.
Searching sources...
Finding Sources
Searching the Web

postoperative xray assessment bipolar hemiarthroplasty neck of femur fracture radiological evaluation

Reading File
Finding Sources
Reading File
Finding Sources
Finding Sources
Reading File
Reading File
Loading Image
Here is a comprehensive guide to what you assess on a post-operative X-ray after bipolar hemiarthroplasty for neck of femur fracture:

Post-Op X-Ray Assessment: Bipolar Hemiarthroplasty for NOF Fracture

Pre-op AP and lateral views of displaced intracapsular hip fracture, and post-op AP view showing a well-positioned cemented bipolar hemiarthroplasty
Pre-op fracture (AP and lateral) and post-op cemented bipolar hemiarthroplasty in good position - Rockwood & Green, 10th Ed.
Views taken: AP pelvis (both hips for comparison) + Lateral of the operated hip.

1. Femoral Stem Position

ParameterWhat to Look ForIdeal
Varus / Valgus alignmentStem axis vs. femoral axisNeutral or slight valgus (within femoral canal axis)
AnteversionBest seen on lateral view~10-15° anteversion (prevents dislocation)
Stem fit / fillHow well stem fills the canalGood canal fill without cortical breach
Neck cut levelHeight of femoral neck resectionAt the appropriate level per implant design

2. Leg Length

  • Compare the lesser trochanter level bilaterally on AP pelvis
  • Should be equal or within ~1 cm of the contralateral side
  • Leg length inequality causes limp, hip instability, and patient dissatisfaction
  • (Miller's Review of Orthopaedics, 9th Ed.): "Goal is to optimize limb length and femoral offset"

3. Femoral Offset

  • Distance from femoral shaft axis to centre of the prosthetic head
  • Adequate offset restores abductor tension and reduces dislocation risk
  • Reduced offset → increased joint reaction force, abductor weakness, limp

4. Bipolar Head Position

  • The outer metallic shell should sit concentrically within the acetabulum
  • Head should be completely within the acetabular fossa - no subluxation
  • The bipolar shell should not protrude into the pelvis (acetabular protrusion)
  • Head size should match the anatomical femoral head size

5. Cement Mantle (Cemented Stems - Most Common in Elderly)

From Campbell's Operative Orthopaedics (15th Ed., 2026) - signs of loosening to watch for:
  • Radiolucency between stem and cement at superolateral (Gruen zone 1) = debonding
  • Radiolucency between cement mantle and bone = possible aseptic loosening
  • Cement mantle fracture - most common near tip of stem (Gruen zone 4)
  • Cement fragmentation at superomedial stem/neck junction (Gruen zone 7)
  • Ideal: uniform 2-3 mm cement mantle all around, no radiolucent lines immediately post-op

6. Gruen Zones (for Systematic Radiolucency Assessment)

The 7 Gruen zones divide the femoral component radiographically:
  • Zones 1-7 on AP view (1 = proximal lateral, 7 = proximal medial, 4 = tip)
  • Radiolucency in any zone is noted and followed serially

7. Greater and Lesser Trochanter

  • Look for trochanteric fracture (intraoperative or postoperative complication)
  • Trochanteric wires/cables intact if trochanteric osteotomy was used

8. Complications to Actively Exclude

ComplicationX-ray Finding
DislocationFemoral head not concentric in acetabulum; femoral head displaced from shell
Periprosthetic fractureFracture line around stem (Vancouver classification: A = trochanter, B = around stem, C = distal to stem)
Acetabular protrusionOuter bipolar shell migrating medially through acetabular floor
Stem subsidenceChange in distance from stem tip/shoulder to bony landmark on serial films
Cortical breachPerforation of femoral cortex by stem tip
Heterotopic ossificationNew bone around hip (Brooker classification)

9. Comparison with Contralateral Normal Hip

  • Neck-shaft angle (normal ~130°)
  • Leg length equality
  • Trochanteric height
  • Femoral offset

Summary Checklist (Post-Op Bipolar Hemiarthroplasty)

✅ Stem alignment (varus/valgus/anteversion) ✅ Leg length equality ✅ Femoral offset ✅ Bipolar head position in acetabulum (no dislocation, no protrusion) ✅ Cement mantle quality (Gruen zones - no early radiolucency) ✅ Trochanteric integrity ✅ No periprosthetic fracture ✅ No cortical breach ✅ Appropriate head size vs. native acetabulum

What we checked in xray of post operative neck of femur with bipolar prosthesis

This is the same question you just asked — here is the complete answer from the previous response:

Post-Op X-Ray Assessment: Bipolar Hemiarthroplasty for NOF Fracture

Views taken: AP pelvis (both hips for comparison) + Lateral of the operated hip.

1. Femoral Stem Position

ParameterWhat to CheckIdeal
Varus / ValgusStem axis vs. femoral axis on AP viewNeutral or slight valgus
AnteversionStem orientation on lateral view~10-15° anteversion
Stem fillHow well stem fills the canalGood canal fill, no cortical breach
Neck cut levelHeight of resectionAppropriate for implant design

2. Leg Length

  • Compare lesser trochanter level on both sides on AP pelvis
  • Should be equal or within ~1 cm of contralateral side
  • Inequality → limp, instability, patient dissatisfaction

3. Femoral Offset

  • Distance from femoral shaft axis to centre of prosthetic head
  • Adequate offset restores abductor tension and prevents dislocation
  • Reduced offset → weak abductors, Trendelenburg gait

4. Bipolar Head / Acetabular Relationship

  • Head sits concentrically within the acetabular fossa
  • No subluxation or dislocation
  • No acetabular protrusion (shell pushing through acetabular floor medially)
  • Outer shell diameter matches native femoral head size

5. Cement Mantle (Gruen Zones - for Cemented Stems)

Systematic assessment using 7 Gruen zones (AP view):
SignMeaning
Radiolucency between stem and cement (Zone 1)Debonding - early loosening
Radiolucency between cement and boneAseptic loosening
Cement mantle fracture (Zone 4 - tip)Mechanical failure
Cement fragmentation (Zone 7 - medial neck)Loosening
Stem subsidenceMeasured serially against bony landmarks
Stem varus shiftLate sign of loosening
Harris loosening grades:
  • Definite - migration of stem/cement
  • Probable - complete radiolucency around cement mantle
  • Possible - radiolucency around >50% of cement

6. Trochanteric Region

  • Greater trochanter intact (no intraoperative fracture)
  • If trochanteric osteotomy was done - check wires/cables intact and trochanter well-seated

7. Complications to Actively Exclude

ComplicationX-ray Finding
DislocationHead not concentric in acetabulum; shell displaced
Periprosthetic fractureVancouver A (trochanter), B (around stem), C (distal to stem)
Acetabular protrusionShell migrating medially through acetabular floor
Stem subsidenceChange in stem position on serial films
Cortical perforationStem tip through femoral cortex
Heterotopic ossificationNew bone around hip (Brooker grading)

8. Comparison with Contralateral Side

  • Neck-shaft angle (normal ~130°)
  • Leg length
  • Offset
  • Trochanteric height

Quick Summary Checklist

✅ Stem alignment (varus/valgus, anteversion) ✅ Leg length equality ✅ Femoral offset ✅ Head concentric in acetabulum (no dislocation, no protrusion) ✅ Cement mantle (Gruen zones, no radiolucency) ✅ Trochanteric integrity ✅ No periprosthetic fracture ✅ No cortical breach ✅ Appropriate head size

Olecranon fracture treated with tension band wiring Procedure

Tension band wiring (TBW) for olecranon fractures converts the distracting triceps force into a compressive force across the fracture. Two parallel K-wires are passed across the fracture and a figure-of-8 wire loop is placed through a transosseous drill hole and around the K-wire ends.
Searching sources...
Finding Sources
Searching the Web

olecranon fracture tension band wiring surgical technique step by step procedure

Finding Sources
Reading File
Reading File
Reading File
Reading File
Loading Image
Loading Image
Reading File
Here is the complete step-by-step procedure for tension band wiring (TBW) of olecranon fractures, drawn directly from Rockwood & Green's Fractures in Adults (10th Ed., 2025):

Olecranon Fracture - Tension Band Wiring: Procedure

Principle

The tension band principle converts the distracting force of the triceps (which pulls the proximal fragment proximally) into a compressive force at the fracture site. The wire must lie on the tensile (posterior/dorsal) surface of the bone, and compression increases dynamically with elbow flexion.
Indication: Simple, transverse, non-comminuted olecranon fractures proximal to the coronoid, in a stable elbow.

Equipment Required

  • Two 0.062-inch (1.6 mm) K-wires
  • 20-gauge stainless steel cerclage wire
  • Pointed reduction clamps
  • Power drill, Angiocatch catheter
  • Radiolucent table + C-arm fluoroscopy

Patient Positioning

  • Lateral or prone position on radiolucent table
  • Radiolucent arm board under the arm (allows full elbow flexion/extension)
  • C-arm brought in from the head of the table
  • Sterile tourniquet available

Surgical Approach

  • Posterior midline incision, placed just radial to the tip of the olecranon (not directly over it - reduces wound complication risk)
  • Full-thickness medial and lateral fasciocutaneous flaps raised
  • Identify and protect the ulnar nerve (do not fully release from cubital tunnel)
  • Develop interval between ECU and FCU
  • Elevate FCU from olecranon (ulnar side) to visualize joint
  • Incise anconeus fascia (radial side) if further visualization needed

Step-by-Step Technique

Step 1 - Fracture Exposure and Inspection
  • Expose fracture edges and clean the fracture hematoma
  • Inspect joint for trochlear damage or loose bodies
  • Extend the elbow to reduce the fracture
Step 2 - Provisional Reduction and Clamping
Two K-wires placed from olecranon tip crossing fracture site into anteromedial cortex
  • Drill holes on both radial and ulnar sides of the ulnar shaft
  • Apply a pointed reduction clamp with tines in the drill holes to hold and compress the reduction
  • A shoulder hook or dental pick helps hold small fragments
Step 3 - K-Wire Placement
  • Drive two parallel 0.062-inch K-wires from the tip of the olecranon (superior aspect), crossing the fracture site, exiting the anteromedial cortex of the ulna
  • Back out the wires slightly to allow for later impaction
  • ⚠️ Avoid lateral placement - K-wires exiting laterally can irritate the bicipital tuberosity → heterotopic ossification and radioulnar synostosis
  • ⚠️ Avoid excessive length of the medial K-wire → ulnar or median nerve injury
Step 4 - Transosseous Drill Hole
  • Drill a hole in the dorsal cortex of the ulnar shaft, distal to the coronoid (approximately 2-4 cm distal to the fracture line, 5 mm from posterior cortex)
  • This is the anchor point for the figure-of-8 wire
Step 5 - Figure-of-8 Wire Placement
Figure-of-8 wire looped around K-wire ends and through transosseous drill hole, being tensioned
  • Pass a 20-gauge stainless steel wire using an Angiocatch catheter:
    • Deep to the triceps tendon around the proximal K-wire ends
    • Through the transosseous drill hole distally
    • Creating a figure-of-8 configuration
  • One or two figure-of-8 wire loops may be used
Step 6 - Wire Tensioning
  • Tension the wire simultaneously on both the radial and ulnar sides
  • Equal bilateral tightening ensures uniform compression across the fracture
  • Confirm anatomic reduction under fluoroscopy
Step 7 - K-Wire Impaction
  • Bend K-wire tips 180°
  • Impact/bury the bent wire tips underneath the triceps tendon into the olecranon tip through small incisions in the triceps
  • This reduces hardware prominence
Step 8 - Final Check
  • Take elbow through full range of motion - especially full flexion
  • Confirm fixation is secure under fluoroscopy
  • No hardware should impinge on the radioulnar joint
Step 9 - Wound Closure
  • Layered closure so early range of motion can begin while sutures are still in place

Postoperative Protocol

  • Long-arm splint in semi-extended position for 48 hours
  • At 48 hours: start active and active-assisted flexion + gravity-assisted extension
  • 6 weeks: active exercises against gravity
  • 3 months (or when united): full resistive exercises

Pitfalls and Prevention

PitfallPrevention
Loss of fixationAnatomic reduction; use only for simple non-comminuted fractures
Prominent hardware (most common complication - >50% need removal)Bury K-wire tips under triceps; bury cerclage wire knots
Biceps tuberosity impingement / synostosisAvoid lateral K-wire placement
Ulnar/median nerve injuryAvoid excessive K-wire length through anteromedial cortex

Key Points Summary

  • Principle: distraction → compression by posterior wire loop
  • Two parallel K-wires from olecranon tip → anteromedial cortex
  • Figure-of-8 wire through transosseous drill hole + around K-wire ends
  • Tension wire simultaneously on both sides
  • Bend and bury K-wire tips under triceps
  • Compression increases with elbow flexion (dynamic fixation)
  • Best for simple transverse fractures proximal to coronoid only
  • Most common complication: hardware prominence requiring removal

Operative procedure for comminuted olecranon fracture with tension band wiring

An important clarification first: tension band wiring is generally NOT indicated for comminuted olecranon fractures. TBW is best suited for simple, transverse, non-comminuted fractures. Comminution is a relative contraindication because the figure-of-8 wire cannot maintain reduction when there are multiple fragments.
Searching sources...
Finding Sources
Searching the Web

comminuted olecranon fracture tension band wiring vs plate fixation surgical treatment

Reading File
Reading File
Reading File
Reading File
Reading File
Here is a complete, textbook-based answer addressing this question - including the critical clarification about TBW in comminuted fractures:

Comminuted Olecranon Fracture: Treatment and the Role of TBW

⚠️ Critical Point: TBW is Contraindicated in Comminuted Fractures

From multiple authoritative sources (Rockwood & Green 10th Ed., Campbell's 15th Ed., Schwartz's Surgery 11th Ed.):
"Simple olecranon fractures without comminution or instability may be managed with tension band wiring... Comminuted fractures or those associated with elbow instability should be managed with plate fixation." — Rockwood & Green's Fractures in Adults, 10th Ed.
"We infrequently use the tension-band technique for displaced olecranon fractures because of the high complication and reoperation rates compared with other techniques. Plate fixation has the advantage of maintaining fixation in fractures with comminution." — Campbell's Operative Orthopaedics, 15th Ed.
Why TBW fails in comminution:
  • The figure-of-8 wire relies on two solid cortical surfaces to compress against each other
  • With comminuted fragments, there is no stable fulcrum - the wire cannot maintain reduction
  • Fragments slide along the K-wires causing loss of reduction
  • Hardware complications (wire migration, prominence) are extremely high (~80% require removal)

Mayo Classification - Treatment Guide

TypeDescriptionTreatment
IUndisplacedNon-operative
IIADisplaced, stable, non-comminutedTBW or intramedullary screw
IIBDisplaced, stable, comminutedPlate fixation
IIIADisplaced, unstable, non-comminutedPlate fixation
IIIBDisplaced, unstable, comminutedPlate fixation

Correct Treatment for Comminuted Olecranon Fracture: Plate Fixation

Indications for Plating

  • Comminuted fractures (Mayo IIB, IIIB)
  • Fractures with elbow instability (transolecranon fracture-dislocation)
  • Fractures extending distal to the coronoid
  • Posterior Monteggia injuries (shaft extension)

Plate Fixation: Step-by-Step Procedure

(Rockwood & Green, 10th Ed.)
Equipment:
  • Precontoured proximal ulna plates (locking or non-locking)
  • 3.5-mm reconstruction plates or 2.7-mm plates
  • Small fragment set, pointed reduction clamps, provisional K-wires
Positioning:
  • Lateral, prone, or supine with arm over chest
  • Radiolucent table, C-arm from the head
Surgical Approach:
  • Posterior midline incision, just radial to olecranon tip
  • Full-thickness fasciocutaneous flaps
  • Identify and protect ulnar nerve
  • FCU elevated from olecranon (ulnar side); anconeus elevated (radial side)
Step 1 - Fracture Reduction
  • Expose and clean fracture ends
  • Reduce fragments with pointed reduction clamp + provisional K-wires
  • For comminuted patterns - indirect reduction techniques to preserve biology
Step 2 - Plate Positioning
  • Split triceps longitudinally in the midline to accommodate proximal plate end
  • Precontoured or manually contoured plate placed around olecranon tip and distally along ulnar border (between ECU and FCU)
  • Check plate position with fluoroscopy before screw insertion
  • Plate contouring adjusted to ensure flush bone contact
Step 3 - Plate Fixation
  • Short screw at the plate tip (away from lag hole) to draw plate to bone
  • Lag screw across fracture for non-comminuted components (interfragmentary compression)
  • For comminution - bridging/neutralisation mode rather than lag screw
  • Remaining screws placed to secure both proximal and distal fragments
  • Locking screws preferred in osteoporotic bone
Step 4 - Proximal Fragment Augmentation
  • For short proximal fragments with tenuous fixation: place a Krackow (triceps interlocking) suture through the triceps tendon and secure to the plate as backup
  • This protects against proximal fragment pullout
Step 5 - Check
  • Full elbow range of motion under fluoroscopy
  • Confirm articular reduction
  • No hardware in radioulnar joint
Step 6 - Closure
  • Layered closure; fascia over plate distally where possible
  • Incision radial to olecranon tip reduces wound complication risk

Fixation Types Compared (Campbell's Table 62.12)

MethodBest ForKey Disadvantage
TBWSimple transverse only80% require hardware removal; fails in comminution
Plate fixationComminuted, unstable, distal10% symptomatic hardware; wound complications
IM screw (6.5 mm)Non-comminuted, simpleRisk of malreduction if wrong start point

Special Situation: Elderly / Osteoporotic + Severe Comminution

When internal fixation is not feasible due to bone quality:
Olecranon Excision + Triceps Advancement
  • Excise all comminuted fragments (safe if < 75% of the articular surface)
  • Advance triceps tendon to remaining ulna with non-absorbable sutures (No. 2 FiberWire/Ticon) through 2-mm transosseous drill holes
  • Reserved for low-demand elderly patients only
  • Not suitable for young/active patients (loses elbow extension strength)

Summary

Comminuted olecranon fracture = Plate fixation (NOT TBW) ✅ TBW is only for simple transverse, non-comminuted, stable fractures (Mayo IIA) ✅ Plate provides stable bridging/neutralisation regardless of comminution ✅ Supplement with Krackow triceps suture for short proximal fragments ✅ Elderly with unreconstructable comminution = excision + triceps advancement
This is a shared conversation. Sign in to Orris to start your own chat.
