Here is a detailed, organized explanation of all the major methods used to strengthen dental ceramics.

Methods of Strengthening Dental Ceramics

Dental ceramics are prized for their aesthetics and biocompatibility, but their fundamental weaknesses - brittleness, low tensile strength, and low fracture toughness - make them vulnerable to fracture under masticatory forces. Strengthening strategies target these weaknesses either by introducing compressive residual stresses, reinforcing the microstructure, optimizing design, or supporting the ceramic with stiffer materials.

1. Thermal Tempering (Thermal Strengthening)

This is one of the earliest and most straightforward methods. The ceramic is heated to just below its softening point and then rapidly cooled (quenched) with cold air.
Mechanism:
  • The outer surface cools and solidifies first, while the interior remains hot and fluid.
  • As the interior later cools and contracts, it pulls inward - placing the already-solidified surface under residual compressive stress.
  • Since ceramics fail primarily in tension, this compressive layer must first be overcome before tensile failure can occur, significantly increasing apparent strength.
Clinical relevance: The greater the temperature differential between surface and core during cooling, the higher the compressive stress. However, over-rapid cooling creates excessive stress gradients and can cause spontaneous fracture.

2. Ion Exchange (Chemical Tempering)

This is considered the most sophisticated and effective method of inducing surface compression, also called chemical tempering.
Mechanism:
  • The ceramic (which contains sodium ions in its glassy matrix) is immersed in a bath of molten potassium nitrate (KNO₃) at a temperature approximately 80% of the glass transition temperature (Tg).
  • Potassium ions (K⁺) from the bath exchange places with the smaller sodium ions (Na⁺) in the glass surface.
  • Because K⁺ is approximately 35% larger than Na⁺, the larger ions are "squeezed" into the sodium vacancies and cannot expand freely - this creates very large compressive stresses within the surface layer.
  • On cooling, these compressive stresses are locked in, greatly resisting crack propagation.
Clinical performance:
  • Increases in flexural strength and fracture toughness of up to ~150% have been reported.
  • Particularly effective for leucite-containing porcelains (KAlSi₂O₆ dispersed in glass matrix).
  • A two-step ion exchange (KNO₃ bath followed by a mixed KNO₃/NaNO₃ bath) further improves the Weibull modulus and resistance to slow crack growth (SCG).
Paste method: KNO₃ paste can be applied to the ceramic surface, making this clinically feasible as a chairside or laboratory procedure.

3. Matching Thermal Expansion Coefficients (CTE Matching)

In metal-ceramic (porcelain-fused-to-metal, PFM) restorations, the coefficient of thermal expansion (CTE) of the porcelain must be slightly lower than that of the metal substructure.
Mechanism:
  • On cooling after firing, the metal contracts slightly more than the porcelain.
  • This places the porcelain veneer under residual compressive stress, which opposes crack propagation.
  • If the CTE of the porcelain is too high (higher than the metal), it contracts more and is placed under tension - causing spontaneous cracking or delamination.
Practical rule: The CTE of the porcelain should be 0.5-1.0 × 10⁻⁶/°C less than that of the metal alloy to ensure optimal compressive stress development in the ceramic veneer.

4. Dispersion Strengthening

Dental ceramics that consist primarily of a glass phase can be significantly strengthened by dispersing high-strength crystalline particles throughout the glassy matrix.
Mechanism:
  • The dispersed crystals act as crack deflectors and crack stoppers - when a crack encounters a crystal, it must travel around it, requiring more energy and slowing propagation.
  • The crystals also have a different elastic modulus and CTE compared to the glass matrix, creating micro-residual stresses at crystal-glass interfaces that further impede crack propagation.
Reinforcing crystals used in dental ceramics:
Crystal PhaseExample Products
Leucite (KAlSi₂O₆)IPS Empress, conventional feldspathic porcelain
Lithium disilicate (Li₂Si₂O₅)IPS e.max Press/CAD
Alumina (Al₂O₃)In-Ceram Alumina, Hi-Ceram
Magnesia-alumina spinel (MgAl₂O₄)In-Ceram Spinel
Zirconia (ZrO₂)In-Ceram Zirconia, Y-TZP systems
As crystal content increases (e.g., from ~35% in leucite ceramics to ~70% in alumina-based systems), fracture resistance increases substantially.

5. Transformation Toughening (Zirconia)

This is a unique and particularly powerful mechanism exclusive to zirconia-based ceramics.
Mechanism:
  • Pure zirconia (ZrO₂) is polymorphic, existing in three crystallographic forms:
    • Monoclinic (M) - stable at room temperature
    • Tetragonal (T) - stable above ~1170°C
    • Cubic (C) - stable above ~2370°C
  • On cooling from sintering temperatures, zirconia would normally transform from tetragonal to monoclinic - accompanied by a ~3-5% volume expansion - causing catastrophic spontaneous cracking.
  • Stabilizing oxides (typically yttria, Y₂O₃, at 3 mol%) are added to "trap" the tetragonal phase in a metastable state at room temperature (creating Y-TZP: yttria-stabilized tetragonal zirconia polycrystals).
  • When a crack begins to propagate through the material, the stress field at the crack tip triggers the metastable tetragonal grains to transform to monoclinic, with the associated volume expansion.
  • This expansion closes the crack tip, places the surrounding region in compression, and requires much greater energy for the crack to continue - effectively toughening the material.
Result: Y-TZP achieves flexural strengths of 900-1200 MPa and fracture toughness of 5-10 MPa·m^(1/2), compared to ~60-100 MPa for feldspathic porcelain.
Aging concern: Prolonged exposure to water/humidity can cause spontaneous tetragonal-to-monoclinic transformation at the surface ("low-temperature degradation" or hydrothermal aging), which can ultimately weaken the zirconia - an important clinical consideration.

6. Metal Substructure Support (Ceramo-Metal Systems)

Introduced by Weinstein in 1962, metal-ceramic systems support the inherently weak ceramic with a rigid metal coping.
Mechanism:
  • The metal substructure (noble alloys: high-gold, low-gold, gold-free; or base metal alloys: NiCr, CoCr, Ti) provides a high-modulus core that absorbs tensile and shear forces before they reach the porcelain veneer.
  • Micro-fractures in the ceramic are arrested when they reach the strong metal core.
  • The CTE relationship (as described above) simultaneously places the porcelain under compression.
Modern variants include titanium substructures and refractory metal foils (swaged platinum/gold-palladium foils) bonded to feldspathic porcelain, offering porcelain butt-margin fit and reduced internal microcracks.

7. Shot Peening

Shot peening is a mechanical surface treatment adapted from metallurgy.
Mechanism:
  • Small balls (shot) of steel, ceramic, or glass beads are blasted at the ceramic surface at high velocity.
  • The impact causes localized plastic deformation at the surface, inducing compressive residual stresses in the surface layer.
  • These surface compressive stresses inhibit crack initiation and growth under both static and cyclic (fatigue) loading.
  • Also increases surface hardness and resistance to stress-corrosion cracking (slow crack growth in humid environments).

8. Controlled Crystallization of Glasses (Glass-Ceramics)

Rather than sintering crystalline particles in a glass matrix, controlled crystallization starts with a homogeneous glass that is then heat-treated to nucleate and grow crystals uniformly throughout.
Mechanism:
  • A nucleating agent (e.g., TiO₂, ZrO₂, P₂O₅) is incorporated into the parent glass.
  • A two-stage heat treatment: first a nucleation stage (at lower temperature), then a crystal growth stage (at higher temperature).
  • The result is a fine-grained, uniformly distributed crystalline microstructure with very few defects (pores, large grains).
  • The high crystal volume fraction and small crystal size greatly improve strength and fracture toughness.
Examples: IPS e.max (lithium disilicate glass-ceramic), Vita TriLuxe (multilayer), Dicor (mica-based glass-ceramic).

9. Adhesive Bonding to Tooth Structure

Adhesively bonding ceramic restorations to the underlying tooth structure (using resin cements) indirectly strengthens the ceramic by providing structural support from the tooth/dentin substrate.
Mechanism:
  • Resin cement fills microscopic surface flaws on the ceramic's intaglio surface, effectively blunting crack tips (crack tip blunting) and preventing them from becoming stress concentrators.
  • The bonded tooth acts as a stiff supporting structure, preventing flexure of the ceramic under load.
  • The resin layer also provides some energy absorption during loading.
Prerequisite: The ceramic must be surface-treated prior to bonding:
  • Etching with hydrofluoric acid (HF) for glass-ceramics to create micro-retentions.
  • Application of silane coupling agent to create chemical bonds between ceramic (SiO₂) and the resin cement.
  • Air-abrasion with Al₂O₃ (sandblasting) for zirconia, followed by 10-MDP (Panavia) primers for chemical bonding.

10. Minimizing Firing Cycles

Each porcelain firing cycle introduces thermal stresses and can enlarge pre-existing microcracks.
Practical points:
  • Limit the number of firings to the minimum necessary (ideally no more than 3-4 cycles for veneering porcelain).
  • Use proper programmed heating and cooling rates to reduce thermal gradients.
  • Ensure adequate vacuum during firing to minimize porosity.
  • Good powder condensation technique in the wet stage reduces air bubble entrapment and shrinkage defects.
  • An undisturbed glazed surface is significantly stronger than a ground or adjusted surface - avoid post-glaze grinding whenever possible.

11. Optimal Restoration Design (Minimizing Tensile Stress)

Clinician-controlled factors at the design stage can significantly reduce the magnitude of tensile stresses that ceramics must bear.
Key principles:
  • Avoid sharp internal line angles and thin cross-sections that act as stress concentrators (stress raisers).
  • Ensure adequate ceramic thickness (minimum ~1.5 mm for posterior all-ceramic crowns).
  • Design connector areas in FPDs to be large enough to reduce tensile stress at the gingival connector (the most common fracture site in ceramic FPDs).
  • Use rounded connector embrasures rather than sharp angles.
  • Favor bonded (adhesive) luting over conventional cement where possible.
  • Avoid cantilever designs for all-ceramic FPDs.

Summary Table

MethodPrimary MechanismWhere Applied
Thermal temperingResidual surface compressionManufacturer
Ion exchange (chemical tempering)Residual surface compression (chemical)Manufacturer / Lab
CTE matchingPorcelain under compression from metalManufacturer / Lab
Dispersion strengtheningCrack deflection and arrestManufacturer
Transformation tougheningCrack-tip volume expansionManufacturer (zirconia)
Metal substructureTensile load absorptionLab
Shot peeningSurface compressive stressManufacturer / Lab
Controlled crystallizationHomogeneous fine crystal microstructureManufacturer
Adhesive bondingCrack tip blunting + structural supportClinician
Minimize firing cyclesReduce thermal damage and porosityLab
Optimal designReduce tensile stress concentrationClinician

The most clinically impactful advances have been transformation toughening (zirconia, enabling monolithic posterior restorations), dispersion strengthening (lithium disilicate, enabling anterior and premolar monolithic restorations), and adhesive bonding (enabling ultra-thin ceramic veneers and overlays that would otherwise fracture under load). These three mechanisms have together driven the near-complete shift from PFM to all-ceramic restorations in modern prosthodontics.
Here is a fractographic SEM image illustrating how surface treatments alter crack propagation in dental zirconia:
Fractographic SEM of zirconia dental ceramics showing crack propagation patterns under different surface treatments

Explain in detail residual compressive stress

Finding Sources
Searching the Web

residual compressive stress dental ceramics mechanism thermal ion exchange strengthening detailed

Reading Web Page

https://www.intechopen.com/chapters/48902

Searching Images

residual compressive stress thermal tempering dental ceramic surface layer diagram stress profile

This pathophysiology diagram illustrates the stress generation mechanism and atomic migration during the thermal oxidation of copper (Cu), relevant to the study of dental alloys or biocompatible metallic materials. The illustration is divided into two states: 'before heating' and 'after heating'. In the initial state, copper grains are shown on a Cu substrate. Upon heating, a copper(I) oxide (Cu2O) layer forms, resulting in volume expansion. The diagram uses color-coded arrows and labels to depict complex physical interactions: dark blue arrows indicate compressive stress within the Cu2O grains, while yellow arrows signify tensile stress at the Cu2O/Cu interface. Vertical gradient stress (dashed blue arrows) drives the diffusion of Cu atoms (red dots) from the substrate toward the surface. Red arrows at the surface indicate surface diffusion. This visual model explains how thermal stress and oxidation speeds influence the morphology of oxide structures, such as flower-like or grass-like nano-architectures, which are critical in biomedical engineering for surface functionalization and biocompatibility.

This pathophysiology diagram illustrates the stress generation mechanism and atomic migration during the thermal oxidation of copper (Cu), relevant to the study of dental alloys or biocompatible metallic materials. The illustration is divided into two states: 'before heating' and 'after heating'. In the initial state, copper grains are shown on a Cu substrate. Upon heating, a copper(I) oxide (Cu2O) layer forms, resulting in volume expansion. The diagram uses color-coded arrows and labels to depict complex physical interactions: dark blue arrows indicate compressive stress within the Cu2O grains, while yellow arrows signify tensile stress at the Cu2O/Cu interface. Vertical gradient stress (dashed blue arrows) drives the diffusion of Cu atoms (red dots) from the substrate toward the surface. Red arrows at the surface indicate surface diffusion. This visual model explains how thermal stress and oxidation speeds influence the morphology of oxide structures, such as flower-like or grass-like nano-architectures, which are critical in biomedical engineering for surface functionalization and biocompatibility.

This three-part figure illustrates the mechanical properties and interface morphology of bilayered zirconia all-ceramic dental crowns. Section (a) provides a cross-sectional diagram of a crown under vertical compressive force (P), highlighting the zirconia core and the veneering ceramic layer with a red line indicating the liner treatment interface. Sections (b) and (c) offer a comparative analysis between untreated and liner-treated samples using high-resolution field emission scanning electron microscopy (HR FE-SEM) alongside corresponding stress distribution diagrams. In the untreated group (b), the SEM image reveals a prominent microgap between the zirconia core and the veneering ceramic, while the stress diagram shows significant stress concentration at this gap. In contrast, the liner-treated group (c) demonstrates a robust 'bonding zone' with an interwoven fibrous structure in the SEM image, eliminating the microgap. The associated diagram illustrates stress relaxation and a more uniform load distribution across the bonding interface. This comparison highlights how lithium-disilicate liner treatment enhances interfacial bonding strength and improves the fracture resistance of prosthetic dental restorations by reducing stress concentrations.

This three-part figure illustrates the mechanical properties and interface morphology of bilayered zirconia all-ceramic dental crowns. Section (a) provides a cross-sectional diagram of a crown under vertical compressive force (P), highlighting the zirconia core and the veneering ceramic layer with a red line indicating the liner treatment interface. Sections (b) and (c) offer a comparative analysis between untreated and liner-treated samples using high-resolution field emission scanning electron microscopy (HR FE-SEM) alongside corresponding stress distribution diagrams. In the untreated group (b), the SEM image reveals a prominent microgap between the zirconia core and the veneering ceramic, while the stress diagram shows significant stress concentration at this gap. In contrast, the liner-treated group (c) demonstrates a robust 'bonding zone' with an interwoven fibrous structure in the SEM image, eliminating the microgap. The associated diagram illustrates stress relaxation and a more uniform load distribution across the bonding interface. This comparison highlights how lithium-disilicate liner treatment enhances interfacial bonding strength and improves the fracture resistance of prosthetic dental restorations by reducing stress concentrations.

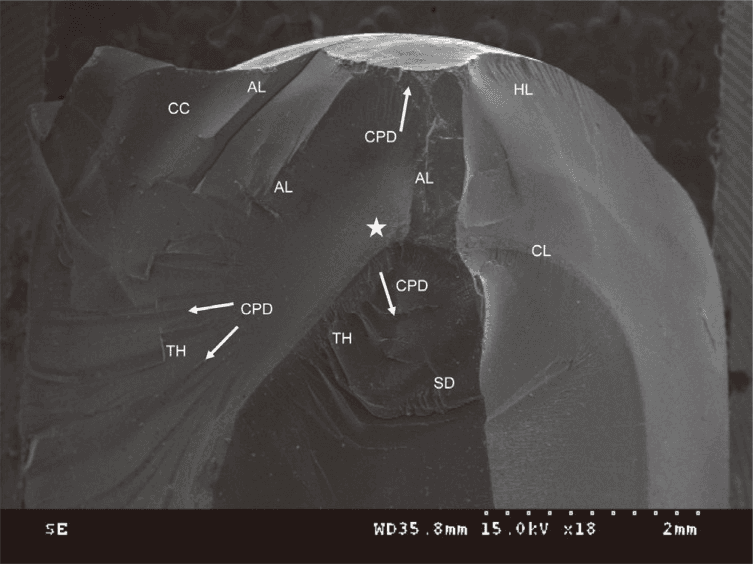

**Imaging Modality:** Scanning Electron Microscopy (SEM) fractography image.

**Anatomical Region/Subject:** Fracture surface of a dental crown (CAD/CAM lithium disilicate or similar ceramic) with a 1.5 mm occlusal thickness, mounted on a supporting die (SD) with an interfacial cementation layer (CL).

**Observed Pathology/Findings:** The image displays a detailed topographical analysis of a structural failure. The origin of the fracture (marked with a white star) is centrally located. Crack propagation directions (CPD) radiate outward from this origin toward the occlusal and cervical margins.

**Characteristic Visual Features:**
*   **Hackles:** Hackle lines (HL) and twist hackles (TH) are visible, indicating rapid crack growth and stress orientation changes.
*   **Arrest Lines (AL):** Discernible markings indicating temporary pauses in crack front progression.
*   **Compression Curl (CC):** Located at the terminal edge of the fracture, representing the final stage of failure under compressive stress.
*   **Interface:** The transition between the ceramic crown material, the thin cementation layer (CL), and the underlying supporting die (SD) is visible at the lower margins.

**Diagnostic Significance:** These fractographic features are characteristic of brittle material failure, used to determine the initiation point and energy dynamics of dental restorative fractures.

**Imaging Modality:** Scanning Electron Microscopy (SEM) fractography image. **Anatomical Region/Subject:** Fracture surface of a dental crown (CAD/CAM lithium disilicate or similar ceramic) with a 1.5 mm occlusal thickness, mounted on a supporting die (SD) with an interfacial cementation layer (CL). **Observed Pathology/Findings:** The image displays a detailed topographical analysis of a structural failure. The origin of the fracture (marked with a white star) is centrally located. Crack propagation directions (CPD) radiate outward from this origin toward the occlusal and cervical margins. **Characteristic Visual Features:** * **Hackles:** Hackle lines (HL) and twist hackles (TH) are visible, indicating rapid crack growth and stress orientation changes. * **Arrest Lines (AL):** Discernible markings indicating temporary pauses in crack front progression. * **Compression Curl (CC):** Located at the terminal edge of the fracture, representing the final stage of failure under compressive stress. * **Interface:** The transition between the ceramic crown material, the thin cementation layer (CL), and the underlying supporting die (SD) is visible at the lower margins. **Diagnostic Significance:** These fractographic features are characteristic of brittle material failure, used to determine the initiation point and energy dynamics of dental restorative fractures.

This dental biomechanics diagram displays a finite element analysis (FEA) of the maximum principal stress distribution in two lower right second premolar specimens (S23 in row A, S81 in row B). Each row includes five views: occlusal, buccal, lingual, mesial, and distal. A color-coded scale measures stress in Megapascals (MPa), ranging from compressive stress (blue, ≤ -6.0 MPa) to tensile stress (red, ≥ 6.0 MPa).

In both specimens, blue spots on the occlusal surface indicate contact areas with antagonistic teeth during maximum intercuspation. High tensile stresses (red/orange) are localized in different regions: Specimen S23 shows significant tensile stress in the cervical half of the root on the buccal side, while Specimen S81 exhibits high tensile stress in the lower third of the crown on the buccal side and a concentrated area on the distal side. These maps illustrate how variations in tooth morphology and wear stages influence biomechanical stress patterns, potentially relating to the etiology of non-carious cervical lesions (NCCLs) and root fractures.

This dental biomechanics diagram displays a finite element analysis (FEA) of the maximum principal stress distribution in two lower right second premolar specimens (S23 in row A, S81 in row B). Each row includes five views: occlusal, buccal, lingual, mesial, and distal. A color-coded scale measures stress in Megapascals (MPa), ranging from compressive stress (blue, ≤ -6.0 MPa) to tensile stress (red, ≥ 6.0 MPa). In both specimens, blue spots on the occlusal surface indicate contact areas with antagonistic teeth during maximum intercuspation. High tensile stresses (red/orange) are localized in different regions: Specimen S23 shows significant tensile stress in the cervical half of the root on the buccal side, while Specimen S81 exhibits high tensile stress in the lower third of the crown on the buccal side and a concentrated area on the distal side. These maps illustrate how variations in tooth morphology and wear stages influence biomechanical stress patterns, potentially relating to the etiology of non-carious cervical lesions (NCCLs) and root fractures.

Here is a detailed explanation of residual compressive stress in the context of dental ceramics.

Residual Compressive Stress in Dental Ceramics

What Is Residual Stress?

Stress is force per unit area acting within a material. Residual stress is internal stress that exists within a material in the absence of any external load. It is "locked in" during processing (heating, cooling, chemical treatment) and remains permanently until the material is altered or fails.
Residual stress can be:
  • Compressive - the material is being "squeezed"; layers push against each other.
  • Tensile - the material is being "pulled apart"; layers try to separate.
A fundamental law of mechanics is that residual stresses must self-equilibrate - meaning wherever there is a compressive residual stress in one region, a compensating tensile residual stress must exist in an adjacent region. The two must balance across the cross-section.

Why Ceramics Need Compressive Stress

Ceramics fail almost exclusively in tension, not compression. This is because:
  1. Ceramics are full of microscopic surface and subsurface flaws - tiny cracks, pores, grinding scratches, and microstructural defects created during manufacturing and finishing.
  2. When a tensile stress is applied, these flaws act as stress concentrators - the stress at the tip of a flaw is amplified far beyond the average applied stress.
  3. Once the stress at a crack tip exceeds a critical value (fracture toughness, K_Ic), the crack propagates rapidly and catastrophically (brittle fracture).
  4. Ceramics have almost no plasticity to redistribute these stress concentrations, unlike metals.
The solution: If the surface of the ceramic is placed under a permanent compressive residual stress, any applied tensile stress must first overcome (cancel out) the compression before it can place the material in net tension. This effectively raises the apparent strength of the ceramic.
Expressed simply:
Net surface stress = Applied tensile stress - Residual compressive stress
Fracture occurs only when: Applied tensile stress > Residual compressive stress + Fracture toughness

How Residual Compressive Stress Is Generated - Detailed Mechanisms

There are three principal ways to generate residual compressive stress in dental ceramics:

Method 1: Thermal Tempering

The concept:
Thermal tempering exploits the differential cooling rates between the surface and the interior of a ceramic.
Step-by-step mechanism:
  1. Heating: The ceramic is heated uniformly to just below its softening point. At this temperature, the material is viscous enough to allow stress relaxation - any previously existing stresses are relieved.
  2. Rapid quenching: The ceramic is suddenly cooled (quenched) using cold air jets or controlled cooling. The surface cools first because it is directly exposed to the cooling medium.
  3. Surface solidification: The surface layers solidify and attempt to contract, but the interior is still hot, soft, and viscous. The soft interior accommodates the surface contraction - the surface settles into a slightly compressed state relative to the interior.
  4. Interior cooling: As the interior finally cools, it too contracts. But now it is constrained by the already-solidified, rigid surface. The interior tries to shrink but the surface resists - this places the interior under residual tension and the surface under residual compression.
  5. Final stress profile: The result is a parabolic-like stress distribution:
    • Surface and sub-surface zone: Residual compressive stress (beneficial)
    • Interior / mid-zone: Residual tensile stress (the compensating stress required by equilibrium)
Critical variables:
  • The temperature differential between surface and core during quenching determines the magnitude of the compressive stress. A greater differential = higher compressive stress.
  • The viscosity of the ceramic at the quenching temperature matters. Too viscous = stresses relax before they can be locked in. Too fluid = material deforms.
  • Cooling too rapidly can generate excessive stress gradients, causing spontaneous fracture of the ceramic before it reaches room temperature.
Analogy: This is exactly the same principle as thermally toughened (tempered) safety glass used in car windows. When safety glass breaks, it shatters into small granules (not sharp shards) because the interior tensile stress causes multiple simultaneous fractures.

Method 2: Ion Exchange (Chemical Tempering)

This is the most sophisticated and effective method of generating residual compressive stress. It is also called chemical tempering.
The principle - "Ion Stuffing":
Residual compressive stress is generated by forcing large ions into lattice sites previously occupied by smaller ions, causing a localized volume expansion that is constrained by the surrounding glass - creating compression.
Step-by-step mechanism:
  1. Ceramic composition: Dental porcelains are aluminosilicate glasses containing sodium ions (Na⁺) in their network structure. The glass network consists of SiO₄ and AlO₄ tetrahedra with Na⁺ ions occupying interstitial positions as network modifiers.
  2. Treatment: The ceramic is immersed in a bath of molten potassium nitrate (KNO₃) at a temperature approximately 80% of the glass transition temperature (Tg) (typically around 450-470°C) for 15-30 minutes.
  3. Ion exchange: At this temperature, the glass network is rigid enough not to relax (below Tg), but there is sufficient thermal energy for solid-state ion diffusion. K⁺ ions from the bath diffuse into the glass surface and exchange places with the smaller Na⁺ ions, which migrate out into the bath.
  4. Volume mismatch: The ionic radius of K⁺ (~1.38 Å) is approximately 35% larger than Na⁺ (~1.02 Å). The large K⁺ ion is forced into a site that was sized for the smaller Na⁺ ion. It physically cannot expand because it is constrained by the rigid glass network around it.
  5. Compressive stress generation: This mismatch creates a biaxial compressive stress running parallel to the surface in the K⁺-enriched zone. The stress is proportional to the concentration of exchanged ions.
  6. Stress gradient: The K⁺ concentration is highest at the surface and decreases with depth (following a diffusion gradient). Therefore:
    • At the surface: Maximum compressive stress
    • Moving inward: Compressive stress decreases with depth
    • Below the exchanged zone: Compensating residual tensile stress to maintain equilibrium
  7. Depth of the compressive layer: Typically very shallow (a few micrometers to tens of micrometers), but the surface is exactly where the most damaging flaws reside - so even a thin compressive layer is highly effective.
Temperature - the critical balance:
  • Too low: Ion diffusion is too slow, insufficient exchange occurs.
  • Too high (approaching or above Tg): Stress relaxation occurs - the glass network becomes viscous and the compressed ions "settle in," relieving the compressive stress. This is why the temperature must be kept below Tg.
Leucite content complication:
  • Porcelains with very high leucite content (e.g., >22 vol%) may show no strengthening response to ion exchange, because the leucite crystals interfere with the continuity of the glassy matrix and prevent uniform ion diffusion, or because viscoplastic relaxation occurs in the glass channels between crystals.
Two-step ion exchange: A more refined protocol uses two sequential baths:
  1. First bath: KNO₃ at ~450°C (generates deep but moderate compression from K⁺/Na⁺ exchange)
  2. Second bath: Mixed KNO₃/NaNO₃ (30/70 mol%) at ~400°C (slightly reverses the extreme surface compression to produce a more gradual, deeper stress profile)
This two-step method produces a more favorable residual stress depth profile, higher Weibull modulus (more reliable, less scatter in fracture strength), and improved resistance to slow crack growth.

Method 3: CTE Mismatch in Porcelain-Fused-to-Metal (PFM) Systems

This method generates residual compressive stress in the ceramic veneer through differential thermal contraction between the ceramic and the metal substructure.
The principle:
When two materials with different coefficients of thermal expansion (CTE) are bonded together and then cooled from a high temperature, they attempt to contract by different amounts. Since they are bonded, neither can contract freely - one ends up in compression and the other in tension.
Step-by-step mechanism:
  1. CTE values: The CTE of the metal alloy (e.g., ~14 × 10⁻⁶/°C) is deliberately designed to be slightly higher than the CTE of the veneering porcelain (e.g., ~13 × 10⁻⁶/°C). The difference is typically 0.5-1.0 × 10⁻⁶/°C.
  2. Bonding during firing: Porcelain is fired onto the metal coping at high temperature (~950-1000°C). At this temperature, both are hot; the porcelain is fluid and bonds intimately to the metal. At this elevated temperature, there is no significant stress because the system is in thermal equilibrium.
  3. Cooling: As the system cools from firing temperature to room temperature, both materials contract. However, since the metal's CTE is higher, it contracts more than the porcelain.
  4. Differential contraction: The metal "pulls inward" more than the porcelain wants to. Since they are rigidly bonded together at the interface, the metal forces the porcelain to contract along with it. The porcelain is compressed by the metal pulling its base layer inward while the porcelain tries to stay longer.
  5. Result: The porcelain veneer is placed in biaxial residual compression (in the plane parallel to the metal-ceramic interface). The metal is placed in slight residual tension.
Consequences of CTE mismatch in the wrong direction:
  • If the porcelain's CTE is higher than the metal's CTE, the porcelain contracts more than the metal on cooling. The metal constrains this contraction - the porcelain is placed in residual tension. This is catastrophic: it causes spontaneous porcelain cracking, crazing, or delamination from the metal during cooling. This is called "compression cracking" or, confusingly, "porcelain crazing."
  • If the CTE difference is too large (even with porcelain CTE lower), the compressive stress is excessive and can also cause spontaneous fracture.
The optimal CTE difference:
  • Porcelain CTE should be 0.5-1.0 × 10⁻⁶/°C lower than the metal alloy CTE.
  • This ensures a modest, controlled compressive stress in the porcelain without being so large as to cause failure.

The Stress Profile: What It Looks Like Across a Cross-Section

For any method of generating residual compressive stress, the stress distribution through the thickness of the ceramic follows a characteristic pattern:
Surface                           Core                          Surface
  |←— Compressive —→|←——— Tensile ———→|←— Compressive —→|

Stress:
  (+)  ___                                    ___
  (0)--   -----___________________-----    ---
  (-)          ___________________
  • The outer zones (surface layers) are in compression (negative/beneficial).
  • The central zone (interior) is in tension (positive/compensating).
  • The two must integrate to zero across the section (self-equilibrium).
The depth and magnitude of the compressive layer differ by method:
  • Thermal tempering: relatively deep compressive layer, moderate magnitude.
  • Ion exchange: shallow but very steep compressive gradient, high surface magnitude.
  • CTE mismatch: affects the whole porcelain thickness but is most effective near the metal-ceramic interface.

Practical Significance in Dentistry

AspectDetail
Crack arrestSurface cracks cannot propagate until the compressive stress is overcome
Slow crack growth resistanceCompressive layer slows environmentally assisted crack growth in moist oral environment
Apparent strength increaseFlexural strength may increase by 50-150%
Flaw toleranceSurface grinding, polishing scratches, and adjustments introduce flaws - a compressive layer limits their impact
Clinical implicationDo NOT grind or adjust a thermally tempered ceramic restoration after delivery - grinding removes the compressive layer and destroys the strengthening benefit

Why Grinding Destroys the Benefit

This is one of the most important clinical points. When a dentist adjusts a ceramic restoration with a bur or diamond:
  • The surface compressive layer is physically removed.
  • The underlying material (which carries compensating tensile stress) is now exposed.
  • The grinding also introduces new surface flaws (scratches, microcracks).
  • The net result is a ceramic that is significantly weaker than an unadjusted restoration.
Recommendation: If chairside adjustment is unavoidable, the ceramic should be repolished to the highest possible finish, and ideally re-glazed in the laboratory to partially restore surface integrity.

Summary

Residual compressive stress is essentially a "pre-loaded shield" built into the surface of the ceramic. It does not eliminate cracks or flaws, but it forces any applied tensile stress to first neutralize the compression before the material can fracture. The three methods of generating it in dental ceramics - thermal tempering, ion exchange, and CTE mismatch - all rely on the same fundamental principle: locking a compressed state into the surface by exploiting differential contraction or ion size mismatches, with the material's own rigidity maintaining those stresses permanently.

Explain about castable ceramic Including definition uses advantage and disadvantage And other important aspects as well for a 11 marks professional exam answer

Finding Sources
Searching the Web

castable ceramics dentistry definition composition uses advantages disadvantages Dicor glass ceramic lost wax

Finding Sources
Reading Web Page

https://pocketdentistry.com/14-dental-ceramics

Searching the Web

Dicor castable ceramic dentistry composition tetrasilicic fluoromica ceraming heat treatment properties clinical uses

Searching Images

Dicor castable ceramic lost wax casting process dental restoration crown inlay

This composite figure illustrates the multi-stage manufacturing process for dental ceramic crowns. Image (a) shows the initial wax-up phase, featuring two conical, anatomical tooth patterns (red/white and blue/white gradients) attached to green sprues, which serve as channels for material flow. Image (b) displays the dental ceramic ingots and powdered material used as the substrate. Image (c) depicts the ceramic pressing cylinder positioned within a specialized dental laboratory furnace, while (d) shows the digital control interface of the pressing equipment, monitoring temperature and pressure parameters for sintering. Image (e) illustrates the clinical outcome: a final, tooth-colored, opaque ceramic crown seated accurately on a class 4 dental stone model. The model represents a mandibular dental arch, showing the restoration's relationship with adjacent teeth and the gingival margin. This sequence demonstrates the lost-wax technique and hot-pressing method used in prosthodontics for creating high-strength, esthetic dental restorations.

This composite figure illustrates the multi-stage manufacturing process for dental ceramic crowns. Image (a) shows the initial wax-up phase, featuring two conical, anatomical tooth patterns (red/white and blue/white gradients) attached to green sprues, which serve as channels for material flow. Image (b) displays the dental ceramic ingots and powdered material used as the substrate. Image (c) depicts the ceramic pressing cylinder positioned within a specialized dental laboratory furnace, while (d) shows the digital control interface of the pressing equipment, monitoring temperature and pressure parameters for sintering. Image (e) illustrates the clinical outcome: a final, tooth-colored, opaque ceramic crown seated accurately on a class 4 dental stone model. The model represents a mandibular dental arch, showing the restoration's relationship with adjacent teeth and the gingival margin. This sequence demonstrates the lost-wax technique and hot-pressing method used in prosthodontics for creating high-strength, esthetic dental restorations.

A clinical laboratory photograph showing sprued wax patterns prepared for dental casting in prosthodontics. The image displays six large rectangular blocks arranged in two parallel rows against a green background. Each block is composed of multiple individual gypsum die stone units, upon which blue inlay wax copings have been fabricated. Centrally attached to each wax pattern is a 2 mm loop-shaped wax sprue, appearing as dark, oval, or elongated structures. These sprues serve as the future channels for molten metal during the lost-wax casting process. The patterns are organized to demonstrate various preparation subgroups, likely varying by crown height (3.5 mm vs. 2.5 mm) and retentive features such as proximal grooves or boxes. This setup is a critical step in dental biomaterials research for evaluating the tensile bond strength and retention of cast nickel-chromium crowns using a universal testing machine.

A clinical laboratory photograph showing sprued wax patterns prepared for dental casting in prosthodontics. The image displays six large rectangular blocks arranged in two parallel rows against a green background. Each block is composed of multiple individual gypsum die stone units, upon which blue inlay wax copings have been fabricated. Centrally attached to each wax pattern is a 2 mm loop-shaped wax sprue, appearing as dark, oval, or elongated structures. These sprues serve as the future channels for molten metal during the lost-wax casting process. The patterns are organized to demonstrate various preparation subgroups, likely varying by crown height (3.5 mm vs. 2.5 mm) and retentive features such as proximal grooves or boxes. This setup is a critical step in dental biomaterials research for evaluating the tensile bond strength and retention of cast nickel-chromium crowns using a universal testing machine.

This composite figure illustrates the multi-stage digital manufacturing process of an all-ceramic incisor single crown for dental implants. (a, b) Initial clinical wax-up of a central incisor on a zirconia abutment, characterized by an opaque, creamy appearance. (c, d) Digital scanning phase showing the wax-up and bare abutment coated in anti-reflective scanning powder. (e) 3D Computer-Aided Design (CAD) model of the restoration. (f, g) Computer-Aided Manufacturing (CAM) sequence, showing the milling of a lithium disilicate (IPS e.max CAD) block into the anatomical crown shape; the material appears in a pre-sintered purple/pink state. (h) Manual application of glaze to the crown surface prior to final firing. (i, j) The final monolithic restoration after sintering and glazing, demonstrating clinical-grade translucency, ivory coloration, and a high-gloss reflective surface finish. This sequence highlights the transition from analog diagnostic planning to precision digital prosthodontic fabrication.

This composite figure illustrates the multi-stage digital manufacturing process of an all-ceramic incisor single crown for dental implants. (a, b) Initial clinical wax-up of a central incisor on a zirconia abutment, characterized by an opaque, creamy appearance. (c, d) Digital scanning phase showing the wax-up and bare abutment coated in anti-reflective scanning powder. (e) 3D Computer-Aided Design (CAD) model of the restoration. (f, g) Computer-Aided Manufacturing (CAM) sequence, showing the milling of a lithium disilicate (IPS e.max CAD) block into the anatomical crown shape; the material appears in a pre-sintered purple/pink state. (h) Manual application of glaze to the crown surface prior to final firing. (i, j) The final monolithic restoration after sintering and glazing, demonstrating clinical-grade translucency, ivory coloration, and a high-gloss reflective surface finish. This sequence highlights the transition from analog diagnostic planning to precision digital prosthodontic fabrication.

Reading Web Page

https://www.slideshare.net/slideshow/metal-free-castable-gla…

Here is a complete, examination-ready answer on castable ceramics structured for an 11-mark professional exam.

Castable Ceramics

Definition

Castable ceramics (also called castable glass-ceramics) are a category of dental ceramic materials that can be cast into a mold using the lost-wax technique (similar to metal casting) in their initial glassy state, and then subjected to a controlled heat treatment called ceramming to convert the amorphous glass into a partially crystalline glass-ceramic with superior mechanical properties.
The prototype and first commercially available castable glass-ceramic for dental use was DICOR, developed by Corning Glass Works (New York) and introduced in 1984.

Classification of Castable Ceramics

Castable dental glass ceramics are broadly divided into:
  1. Fluoromica-based - e.g., DICOR (tetrasilicic fluoromica)
  2. Apatite glass ceramics - contain calcium phosphate crystals
  3. Other glass ceramics - various crystalline phases in glass matrices

Composition of DICOR (Prototype)

DICOR is a polycrystalline fluorine-containing tetrasilicic mica glass-ceramic.
After ceramming, the microstructure consists of:
  • 55% by volume - Tetrasilicic fluoromica crystalline phase
  • 45% by volume - Residual glass matrix (non-crystalline)
Chemical formula of the mica crystal: K₂Mg₅Si₈O₂₀F₄ (also written as K₂Mg₅·Si₄O₁₀F₂)
Crystal morphology: Small, interlocking, plate-like mica crystals approximately 1 µm thick and 5-6 µm in diameter, uniformly distributed throughout the glass matrix.
DICOR MGC (Machinable Glass Ceramic):
  • An improved version with ~70% tetrasilicic fluoromica crystals
  • Designed for CAD/CAM milling from prefabricated blanks or ingots
Oxide composition of the base glass (approximate):
  • SiO₂ ~64%
  • MgO ~9%
  • K₂O ~14%
  • Al₂O₃ ~2%
  • ZrO₂ ~4%
  • F ~5%

Fabrication Process

The fabrication of castable ceramics follows a three-stage workflow: wax pattern fabrication → casting → ceramming.

Stage 1: Wax Pattern Fabrication

  • A wax pattern of the restoration is made on a refractory die, identical to the lost-wax process for metal casting.
  • Sharp internal line angles are avoided to reduce stress concentration.
  • The pattern is invested using a special castable ceramic investment (phosphate-bonded or other refractory investment that can withstand ceramic casting temperatures).
  • A double-lined casting ring is used to accommodate the thermal expansion of the investment.

Stage 2: Casting

  • Burnout: The invested pattern is burned out at 900°C for 30 minutes, eliminating all wax.
  • Casting: DICOR glass ingots are placed in a special zirconia crucible inside the electronically controlled DICOR Casting Machine.
  • The glass liquefies at approximately 1370°C and is centrifugally cast into the mold under controlled conditions.
  • Result: The fresh casting is amorphous and fragile - it is pure glass with no crystalline phase yet.
  • After cooling, it is divested, sandblasted (with 25 µm Al₂O₃ particles at 40 psi), and carefully separated from the sprue.

Stage 3: Ceramming (Critical Step)

  • The cast glass coping is embedded in a gypsum-based castable ceramic embedment material to protect it during heat treatment.
  • It is placed in the DICOR Ceramming Furnace on a ceramming tray.
  • Heat treatment is applied for 1.5 to up to 6 hours at controlled temperatures (typically around 1075°C).
  • Mechanism: The heat treatment causes:
    1. Nucleation - TiO₂/ZrO₂ nucleating agents within the glass initiate formation of crystal nuclei
    2. Crystal growth - Tetrasilicic fluoromica crystals grow from these nuclei throughout the glass matrix
    3. The result is a dense, homogeneous, semi-crystalline glass-ceramic with interlocking mica plate microstructure
  • Appearance after ceramming: The casting becomes whitish and opaque (achromatic) - it has lost its original glass transparency.

Stage 4: Shading and Finishing

  • Because the cerammed casting is achromatic (colorless/white), external colorants must be applied.
  • DICOR shading porcelain (self-glazing, premixed, supplied by the manufacturer) is applied to the external surface to develop the required tooth shade, characterization, and surface glaze.
  • This is unique compared to other ceramics - the color is on the external surface only, not intrinsic to the body of the material.

Properties of Castable Ceramics

PropertyValue / Description
Flexural strength~150 MPa (after ceramming)
Fracture toughness (K_Ic)~1.5 MPa·m^(1/2)
Hardness~362 VHN
CTE~7.2 × 10⁻⁶/°C (compatible with resin cements)
OpticalHigh translucency - mimics natural enamel
Chemical solubilityVery low - excellent chemical durability
Wear resistanceModerate - comparable to natural enamel
BiocompatibilityExcellent

Uses / Indications

  1. Single unit anterior crowns - optimal use due to high translucency and moderate strength
  2. Single unit posterior crowns - premolars and first molars under moderate occlusal load
  3. Inlays and onlays - particularly in patients with metal allergy
  4. Ceramic veneers - facial veneers for anterior teeth
  5. Endodontic access restorations - when metal-free is required
  6. Patients with metal allergies or those requesting metal-free restorations
  7. DICOR MGC blanks - for CAD/CAM milled restorations

Advantages

1. Lost-Wax Compatibility

  • Uses familiar wax pattern and casting techniques already known to dental technicians from metal casting - minimal new skill acquisition required.

2. Superior Aesthetics

  • The interlocking transparent mica crystals scatter and distribute incoming light over the entire glass-ceramic, producing chameleon-like optical properties that closely mimic natural enamel translucency.
  • Provides the most natural-looking optical effect among ceramics available at the time of introduction.

3. Excellent Marginal Adaptation

  • Casting in a fluid state produces accurate marginal fit, comparable to metal castings, and superior to manually stacked feldspathic porcelain.

4. Chemical and Physical Homogeneity

  • The controlled crystallization produces a uniform, homogeneous microstructure free from the porosity and density variations seen in sintered porcelains.
  • No layering-related defects or internal voids.

5. Improved Mechanical Properties After Ceramming

  • Interlocking mica crystals resist crack propagation (crack deflection mechanism).
  • Increased fracture toughness, abrasion resistance, and thermal resistance compared to the parent glass.

6. Ease of Adjustment

  • Mica crystals have a cleavage plane - the ceramic cleaves rather than fracturing catastrophically. This makes chairside grinding and adjustment easier than with conventional feldspathic porcelain.

7. Biocompatibility

  • Metal-free, fluoride-containing mica glass - excellent gingival and systemic biocompatibility.
  • Ideal for patients with metal sensitivities.

8. Adhesive Bonding Capability

  • Can be etched with hydrofluoric acid (HF) and silanated, allowing excellent adhesive bonding with resin cements - which further strengthens the restoration in situ.

9. Wear Properties

  • Wears at a rate similar to natural enamel - does not cause excessive wear of opposing dentition.

10. Available in CAD/CAM Form

  • DICOR MGC can be milled from prefabricated blocks, allowing digital workflow integration.

Disadvantages

1. Low Strength

  • Flexural strength of ~150 MPa is relatively low. This is significantly less than lithium disilicate (~400 MPa) or zirconia (~1000 MPa).
  • Makes it unsuitable for high-load posterior situations.

2. External Shading Only

  • The cerammed casting is achromatic (colorless/opaque white). Color must be applied externally with shading porcelain.
  • External shading layers can wear off over time, leading to color change and aesthetic deterioration.
  • Unlike intrinsically colored ceramics, there is no depth of color in the body of the material.

3. Requires Specialized and Expensive Equipment

  • The DICOR Casting Machine and DICOR Ceramming Furnace are proprietary, expensive pieces of equipment not universally available in all dental laboratories.
  • High setup cost limits widespread adoption.

4. Multiple Processing Steps

  • The four-stage fabrication (wax pattern → casting → ceramming → shading) is time-consuming and technically demanding compared to newer pressed or CAD/CAM ceramics.

5. Contraindicated for Fixed Partial Dentures (FPDs/Bridges)

  • Low fracture toughness makes it unsuitable for multi-unit bridges or posterior FPDs where connector areas are subjected to high tensile stress.

6. Not Suitable for High-Occlusal-Load Cases

  • Parafunctional habits (bruxism), deep bite, or heavy occlusal forces are relative/absolute contraindications.

7. Technique Sensitivity

  • Each step (wax pattern, investing, burnout, casting temperature, ceramming time/temperature) must be precise. Deviations lead to casting defects, improper crystallization, or poor fit.

8. Limited Fracture Toughness

  • Despite ceramming, K_Ic of ~1.5 MPa·m^(1/2) is still low for posterior load-bearing applications.

9. Color Matching Difficulty

  • External shading with manufacturer-supplied shading porcelain offers limited shade customization compared to conventional stacked or pressed ceramics.

Contraindications

  • Multi-unit fixed partial dentures (bridges)
  • Patients with parafunctional habits (bruxism, clenching)
  • Thin occlusal clearance (<1.5 mm)
  • Heavily loaded posterior molars
  • Short clinical crowns with limited preparation height

Tooth Preparation Requirements

  • Shoulder or deep chamfer margin (90° butt joint)
  • Rounded internal line angles - avoids stress concentration (sharp angles create fracture initiation sites)
  • Occlusal reduction: 1.5-2.0 mm for posterior; 1.0-1.5 mm for anterior
  • Axial wall reduction: 1.0-1.5 mm
  • Adequate taper (6-12°) for proper casting flow

Strengthening Mechanism in Castable Ceramics

Post-ceramming, the mica crystals strengthen the glass matrix through two mechanisms:
  1. Crack deflection - Propagating cracks are deflected by the plate-like mica crystals, forced to travel a longer tortuous path, requiring more energy.
  2. Crack bridging - The interlocking crystals bridge across the crack faces, providing resistance to crack opening.
Additionally, adhesive bonding with HF-etched and silanized surfaces provides a third layer of strengthening by crack-tip blunting and structural support from the tooth.

Comparison: DICOR vs. Conventional Feldspathic Porcelain

FeatureDICOR (Castable)Feldspathic Porcelain
FabricationCast + cerammedSintered/stacked
Marginal fitExcellentVariable
HomogeneityHighLower (porosity risk)
Strength~150 MPa~60-100 MPa
TranslucencyHighModerate-high
ColorExternal shadingIntrinsic layering
EquipmentSpecializedStandard
FPD useNoNo

Clinical Significance and Current Status

DICOR represented a landmark development in all-ceramic dentistry when introduced - it was the first system to bring casting technology to ceramics, offering superior marginal fit and homogeneity over conventional stacked porcelains. However, with the arrival of heat-pressed ceramics (IPS Empress, 1991) and later lithium disilicate (IPS e.max, 2005) and zirconia-based systems, DICOR's limitations in strength, external-only shading, and specialized equipment requirements led to its gradual discontinuation in clinical use.
Its conceptual legacy - controlled crystallization (ceramming) to produce glass-ceramics - lives on directly in modern pressed and CAD/CAM glass-ceramics. The principle of converting a cast or pressed glass into a stronger glass-ceramic through heat treatment remains one of the most important innovations in ceramic material science for dentistry.

Summary for Exam (Key Points to Memorize)

  • Type: Glass-ceramic; castable by lost-wax technique
  • Brand: DICOR (Corning Glass Works, 1984)
  • Crystal: Tetrasilicic fluoromica - K₂Mg₅Si₈O₂₀F₄
  • Crystal content: 55% (Dicor) / 70% (Dicor MGC)
  • Key process: Ceramming (controlled crystallization by heat treatment)
  • Strength: ~150 MPa (after ceramming)
  • Best use: Anterior single crowns, inlays, onlays
  • Cannot be used for: Multi-unit bridges, parafunctional patients
  • Color: External shading only (achromatic after ceramming)
  • Strengthening by: Crack deflection by interlocking mica plates + adhesive bonding

Difference between ceramic and porcelain 10 points

Finding Sources
Finding Sources
Finding Sources
Searching the Web

difference between ceramic and porcelain dentistry definition composition structure properties comparison

Here are 10 clear, exam-ready points differentiating ceramic from porcelain in dentistry.

Difference Between Ceramic and Porcelain

Core concept to understand first: Porcelain is NOT the opposite of ceramic - it is a subset of ceramic. All porcelains are ceramics, but not all ceramics are porcelains. The relationship is: Ceramic (broad category) ⊃ Porcelain (specific type).

10-Point Comparison Table

PointCERAMICPORCELAIN
1. DefinitionBroad group of inorganic, non-metallic materials formed by heating compounds of metals and non-metals (especially oxygen). Includes any material made of ionic/covalent bonds fired at high temperature.A specific type of ceramic made by firing a mixture of feldspar, quartz (silica), and kaolin with fluxes. Porcelain is always a ceramic, but ceramic is not always porcelain.
2. ScopeBroad category that includes porcelain, glass-ceramics (e.g., lithium disilicate), crystalline ceramics (alumina, zirconia), castable ceramics (DICOR), and CAD/CAM ceramics.Narrow, specific material - refers only to feldspathic (feldspar-based) ceramic. Also called feldspathic porcelain or feldspathic ceramic in dentistry.
3. Raw materials / CompositionVaries widely. Examples: Al₂O₃ (alumina), ZrO₂ (zirconia), Li₂Si₂O₅ (lithium disilicate), SiO₂ + MgO + K₂O (mica glass-ceramic). No fixed raw material formula.Fixed raw materials: Feldspar (K₂O·Al₂O₃·6SiO₂) + Quartz (SiO₂) + Kaolin (Al₂O₃·2SiO₂·2H₂O) + fluxes (Na₂CO₃, K₂CO₃). This specific combination defines porcelain.
4. MicrostructureCan be predominantly crystalline (zirconia, alumina), glassy/amorphous (feldspathic porcelain), or a mixture of both (glass-ceramics with controlled crystal phases).Predominantly amorphous (glassy) structure with small islands of leucite (KAlSi₂O₆) crystalline phase dispersed within. Leucite forms during firing of feldspar.
5. StrengthRanges widely. Zirconia: 900-1200 MPa. Lithium disilicate: 350-450 MPa. Alumina: >500 MPa. Advanced ceramics are significantly stronger.Relatively weak - flexural strength of only 60-100 MPa. The predominantly glassy, amorphous structure offers minimal resistance to crack propagation. It is the weakest dental ceramic.
6. Translucency / AestheticsVaries by type. Zirconia (early generations) was opaque; newer zirconia is translucent. Alumina is opaque. Glass-ceramics offer excellent translucency.Has excellent, natural-looking translucency due to its glassy matrix - best optical match to natural enamel among all ceramic types. This is its main clinical strength.
7. Fabrication methodCan be fabricated by multiple methods - sintering, casting, hot-pressing, CAD/CAM milling, slip casting, glass infiltration. Each type has its own processing.Fabricated almost exclusively by condensation (stacking/powder build-up) and sintering in a porcelain furnace. The powder-liquid slurry is built up layer by layer and fired.
8. Clinical applicationsEntire spectrum of dental restorations: anterior/posterior crowns, bridges (FPDs), implant frameworks, inlays, onlays, veneers - depending on the specific ceramic type used.Primarily limited to anterior veneers, veneering porcelain over metal/ceramic cores (PFM), and anterior crowns under light load - due to its low strength and brittleness.
9. Wear on opposing teethVaries widely. High-strength crystalline ceramics (zirconia, alumina) can cause significant wear of opposing natural teeth due to their hardness.Wears at a rate closer to natural enamel (Vickers hardness ~460 VHN) - generally considered more "tooth-friendly" in terms of opposing tooth wear, though still harder than enamel.
10. Examples in dentistryZirconia (Y-TZP), lithium disilicate (IPS e.max), leucite-reinforced glass-ceramic (IPS Empress), DICOR (castable mica glass-ceramic), In-Ceram Alumina, In-Ceram Spinel, resin-nano ceramics.Feldspathic porcelain - used as veneering material in PFM restorations, all-ceramic veneers, and conventional anterior porcelain crowns. Brand examples: VITA VMK Master, Ceramco.

Summary in Simple Terms

  • Ceramic = the entire family. Think of it as the "genus."
  • Porcelain = one specific species within that genus - the traditional, feldspar-based, predominantly glassy, translucent but fragile ceramic.
  • When clinicians say "all-ceramic restoration," they mean no metal - but the material could be zirconia, lithium disilicate, or porcelain.
  • When clinicians say "porcelain restoration," they specifically mean the feldspathic/glassy type.
  • In common (non-dental) usage, "ceramic" and "porcelain" are used interchangeably - but in dental materials science, they are distinct and specific terms.

Quick Memory Aid

FeaturePorcelainAdvanced Ceramics (Zirconia, Li-disilicate)
StrengthLow (~80 MPa)High (350-1200 MPa)
AestheticsBest (most translucent)Good to excellent (varies)
UseAnterior/veneeringAnterior + posterior + bridges
StructureMostly glassy (amorphous)Mostly crystalline
"Parent" categoryIs a ceramicIs also a ceramic
This is a shared conversation. Sign in to Orris to start your own chat.
