Audiogram Summary: Arjun K A (now 18 years old, Male)

Comparison of the Two Audiograms

• Left DPOAE absent - outer hair cell dysfunction confirmed
• Left DPOAE present on right - cochlear function intact on right
• Bilateral Type A tympanograms - normal middle ear mechanics bilaterally, no conductive component
• Absent acoustic reflexes on left (ipsilateral and most contralateral) - consistent with severe cochlear damage
• Weber lateralizes to right - confirms left-sided sensorineural loss
• The hearing loss is mixed-type in left ear (AC PTA 98 dB, BC PTA 32 dB means there is a 66 dB air-bone gap, but this is almost certainly due to the Carhart notch / interaural attenuation artifact rather than true middle ear disease, given the Type A tympanogram and normal compliance)

Etiological Workup (Critical First Step)

1. MRI of the internal auditory meati (IAMs) with gadolinium - to exclude vestibular schwannoma (acoustic neuroma), cochlear nerve aplasia/hypoplasia, or endolymphatic hydrops (Meniere's disease in young patients). This is the single most important investigation in a young patient with unilateral progressive SNHL.
2. CT temporal bones (high resolution) - to evaluate cochlear abnormalities (Mondini dysplasia, enlarged vestibular aqueduct), which are important for cochlear implant candidacy assessment.
3. Genetic testing - GJB2 (Connexin 26), SLC26A4 mutations, and a comprehensive hearing loss gene panel. These are common causes of progressive SNHL in young patients.
4. Autoimmune workup - ANA, anti-dsDNA, complement levels, anti-cochlear antibodies (autoimmune inner ear disease can be unilateral and progressive).
5. Syphilis serology (FTA-ABS) - uncommon but treatable cause of progressive SNHL.
6. Thyroid function - hypothyroidism can contribute.

Treatment Options

1. Hearing Aid Trial (Left Ear)

• Appropriate when: Some residual cochlear function exists that can be amplified
• For this patient: Left AC PTA of 98 dB and absent DPOAEs make conventional hearing aid benefit very limited. A high-power behind-the-ear (BTE) aid may provide some environmental sound awareness but will not restore speech clarity.
• The audiologist's recommendation already includes a hearing aid trial and fitting as a first step.
• Harrison's Principles of Internal Medicine, 22E notes: "Patients with mild, moderate, and severe sensorineural hearing losses are regularly rehabilitated with hearing aids of varying configuration and strength."

2. CROS Hearing Aid (Contralateral Routing of Signal)

• Pros: Non-invasive, no surgery, relatively low cost, can be tried immediately.
• Cons: Does not restore hearing in the left ear. Sound localization is not restored. Both sounds arrive at one ear, which can cause confusion in noise.
• Wireless/digital CROS systems (Phonak CROS, Oticon CROS) are the current standard.

3. Bone-Anchored Hearing Aid (BAHA / BCHA)

• Mechanism: Bone conduction sound transfer to the contralateral functioning cochlea.
• Options:
  • Transcutaneous (skin-intact) BAHA - magnetic coupling, no exposed abutment, lower infection risk. Examples: Oticon Ponto Attract, Cochlear Osia, Cochlear BAHA 6 Max.
  • Percutaneous BAHA - titanium abutment through skin, slight higher risk of skin irritation.
  • Softband BAHA - non-surgical trial option using a headband. Excellent for assessing benefit before committing to surgery.
• For this patient: Softband BAHA trial is a good bridge option and can be done immediately without surgery.
• Harrison's, 22E: "The same result may be obtained with a Baha, in which a hearing aid clamps to a screw integrated into the skull on the hearing-impaired side... it does so by vibrating the skull."

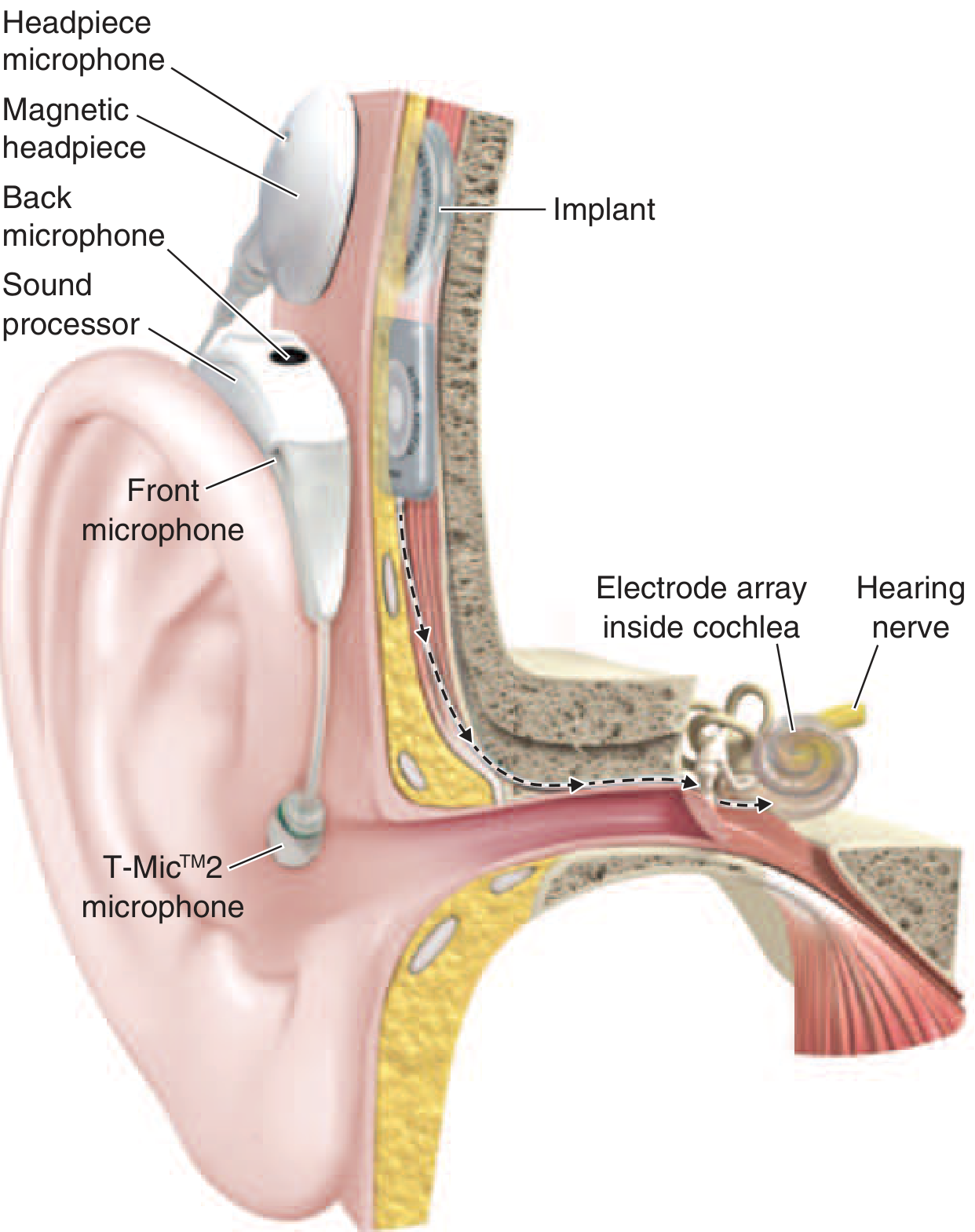

4. Cochlear Implant (CI) - Best Long-Term Option

• He is 18 years old - young, with a plastic auditory cortex that will adapt well to electrical stimulation
• The right ear is functionally normal - he has a good reference for sound, which helps CI learning
• Left DPOAE absent confirms cochlear (not retrocochlear) pathology - CI electrodes will find viable auditory nerve fibers to stimulate
• The progressive nature means acting sooner preserves more auditory nerve fiber survival (nerve fibers degenerate after prolonged cochlear silence)

• Profound SNHL in one ear (AC PTA ≥ 90 dB) - Yes (98 dB)
• Little or no benefit from conventional hearing aids in that ear - Likely (absent DPOAEs)
• Normal middle ear (no active infection, normal tympanogram) - Yes
• No anatomical contraindication (needs MRI/CT to confirm cochlear nerve and cochlear patency)

5. Supportive / Educational Strategies (Adjunct to Any Above)

• Preferential seating in classroom - always seat with the right (good) ear toward the teacher/speaker
• FM systems / remote microphone technology - teacher wears a lapel microphone, signal goes directly to the student's hearing device, dramatically improving signal-to-noise ratio in classroom noise
• Counseling - adjustment to SSD, fatigue management (SSD causes listening fatigue due to constant compensatory effort)
• Routine audiological monitoring - re-testing every 6 months given the progressive course, to track the right ear

Recommended Priority Plan

• Harrison's Principles of Internal Medicine, 22E, p. 294
• Eric Kandel, Principles of Neural Science, 6th Ed.
• Scott-Brown's Otorhinolaryngology, Vol. 2

On the Autoimmune Question - A Partial Correction

Revised Differential Priority for This Patient

High Priority (most likely)

• Young age of onset
• Progressive SNHL
• Can be unilateral (though bilateral in ~87% of cases, 13% are unilateral)
• Often fluctuant - worsens with minor head trauma or straining
• Associated with SLC26A4 (Pendrin) gene mutations - testable

• GJB2 (Connexin 26) mutations - most common cause of non-syndromic SNHL, autosomal recessive. Usually presents in early childhood and is stable, but can be progressive.
• SLC26A4 - associated with EVAS (see above)
• Mitochondrial mutations (e.g., MT-RNR1, m.1555A>G) - maternally inherited, often triggered or worsened by aminoglycoside exposure. Ask about any past antibiotic use.

• Any episodes of vertigo lasting 20 minutes to several hours?
• Any sense of ear pressure/fullness in the left ear?
• Any tinnitus?

What This Means Practically

• MRI rules out vestibular schwannoma
• CT identifies EVAS (aqueduct width >1.5 mm at midpoint or >2 mm at operculum), Mondini dysplasia, and cochlear malformations
• These two pieces of imaging together will clarify the etiology in a large proportion of young patients with unilateral progressive SNHL

• Predicting right ear risk (EVAS and genetic causes can affect both ears)
• CI surgical planning (EVAS can be associated with cochlear malformations that affect electrode insertion)
• Counseling the patient and family accurately

MRI Report Analysis (KIMSHEALTH, 23 Nov 2024)

What the MRI Shows

• No vestibular schwannoma / acoustic neuroma - bilateral CP angles are normal, no mass in the internal auditory canals
• No intracranial structural lesion, no demyelination, no diffusion restriction
• No evidence of neurofibromatosis type 2 features
• Brainstem, cerebellum, and cranial nerves V, right VII-VIII, IX are all normal

"Grade I neurovascular contact is noted between the left VII/VIII nerve complex and a tortuous ipsilateral AICA loop without indentation or distortion."

What is AICA Loop Contact?

• Grade I (this patient) - simple contact, no displacement or distortion of the nerve
• Grade II - displacement or distortion of the nerve
• Grade III - severe compression of the nerve

• Some studies suggest that even Grade I contact can impair cochlear blood supply, since the AICA also gives off the labyrinthine artery, which is the sole blood supply to the cochlea. A tortuous AICA loop may cause intermittent ischemia or mechanical irritation of cochlear nerve fibers.
• However, AICA loop contact is also found incidentally in people with normal hearing - its prevalence is high in the general population.
• The fact that the MRI specifically notes it (and the radiologist highlighted it) in the context of unilateral left hearing loss suggests the reporting radiologist considered it potentially relevant.

• Cochlear nerve caliber (is it normal, thin, or absent?)
• Cochlear fluid signals (endolymphatic hydrops)
• Subtle enhancement suggesting a very small schwannoma not visible on standard brain MRI
• Detailed cochlear and vestibular aqueduct anatomy

What This MRI Does NOT Tell Us

1. Cochlear nerve diameter - a thin or hypoplastic cochlear nerve cannot be reliably evaluated on standard T2 sequences. This matters enormously for cochlear implant candidacy (a thin nerve may give poor CI outcomes).
2. Enlarged vestibular aqueduct - EVAS requires HRCT temporal bones for diagnosis; it cannot be excluded on brain MRI.
3. Cochlear malformations (Mondini, incomplete partition) - need HRCT.
4. Small intralabyrinthine schwannoma - rare but can be missed on standard sequences.

Revised Management Based on MRI Findings

Immediate Next Steps

• Properly characterize the AICA loop and its relationship to the nerve
• Assess cochlear nerve caliber (critical for CI planning)
• Rule out intralabyrinthine schwannoma
• Evaluate cochlear fluid / endolymphatic hydrops

• Look for enlarged vestibular aqueduct (the most common structural cause of progressive SNHL in young patients)
• Assess cochlear anatomy for CI electrode planning
• Evaluate ossification of the cochlea (labyrinthitis ossificans would complicate CI insertion)

Summary Table: What We Now Know vs. What's Still Missing

Treatment Path Forward

Addressing Each of Arjun's Concerns Directly

1. "CI damages the inner ear and residual hearing will be gone"

• At 98 dB AC PTA with absent DPOAEs, Arjun has very little functional residual hearing in the left ear. The BC threshold of 32 dB is present but that represents cochlear reserve, not usable sound perception given the absent OHCs.
• Modern "hearing preservation" / "soft surgery" CI techniques and shorter, more flexible electrodes (e.g., Nucleus Slim Modiolar, MED-EL FLEX electrodes) are specifically designed to preserve residual hearing - but success is not guaranteed, especially with profound loss.
• His concern is still clinically valid and the decision to decline CI is entirely reasonable.

2. "Might be ineligible for future regenerative medicines"

• Current gene therapies target specific known genetic mutations (OTOF/DFNB9, GJB2, etc.). They are not generic hearing restoration therapies - they work only if the patient has the specific gene defect that therapy addresses.
• Arjun has not yet had genetic testing done. His etiology is still unknown. If his loss is due to AICA vascular compression, EVAS, or a non-genetic cause, current gene therapies would not apply regardless of whether he has a CI or not.
• Even if a genetic cause is found, the current therapies work best in patients with surviving hair cell support structures (stereocilia, supporting cells). In profound loss of long duration, these structures degenerate progressively - whether CI is placed or not. The cochlea is already severely damaged.
• Cochlear implantation does not necessarily block future gene therapy - this is an evolving area. Some research is exploring whether CI recipients could still receive intracochlear gene therapy through the existing access port, and animal studies suggest the two approaches may be compatible in future.

3. "The sound won't be natural"

Non-CI Options: Full Breakdown

Option 1: CROS Hearing Aid (Wireless)

• Fully non-invasive, no surgery
• Invisible or nearly invisible (ITE or RIC style)
• Reduces the head shadow effect - sounds from the left side are no longer missed
• Integrates with smartphones via Bluetooth - direct streaming of calls, music, navigation
• Cost: ~₹50,000-1,20,000 in India for a quality wireless CROS pair

• Does not restore hearing in the left ear
• Both sounds arrive at the right ear - brain receives two signals in one ear, which requires adjustment
• Sound localization is not restored
• Background noise can be more distracting

Option 2: Bone Conduction Device (BCD / BAHA)

• A bone conduction processor is worn on a soft headband or adhesive pad on the mastoid
• No surgery required - can be fitted immediately
• Good for trialing benefit before any decision
• Devices: Cochlear BAHA SoundArc, Oticon Ponto on a softband
• Cost: ~₹60,000-1,50,000

• Transcutaneous (skin-intact) BAHA - a small titanium implant placed under the skin, no exposed abutment, lower infection risk, cosmetically superior. Examples: Cochlear Osia 2, BAHA Attract
• Percutaneous BAHA - traditional abutment through skin, slightly more powerful

• Like CROS, sound still ultimately reaches only the right cochlea - binaural hearing is not restored
• Sound localization improvement is modest
• Quality of bone-conducted sound is somewhat different from air-conducted sound

Option 3: Wireless CROS vs. BAHA - Which Is Better for Arjun?

Option 4: FM / Remote Microphone System (Classroom-Specific)

• Teacher/speaker wears a small lapel transmitter
• Signal streams directly to Arjun's receiver (worn as a lanyard, or paired with a hearing device)
• Overcomes distance, noise, and reverberation in classroom entirely
• Roger systems (Phonak) are the gold standard
• Can be used standalone or paired with any CROS/BAHA device

Option 5: Environmental and Educational Strategies

• Preferential seating - always left side of classroom so the right (hearing) ear faces the teacher
• Note-taking support or lecture recording
• Captioning / CART services for lectures
• Awareness among teachers about the condition

What About Regenerative Medicine - Realistic Timeline?

Recommended Plan (CI Declined)

Lifestyle, Diet and Supplements for SNHL - What the Evidence Actually Says

The Honest Starting Point

What Has Biological Rationale (and Some Evidence)

1. Antioxidants - Most Studied Category

2. Vitamin D

3. Diet - Mediterranean / Anti-Inflammatory Pattern

• Increase oily fish (sardines, mackerel, salmon) - omega-3 EPA/DHA
• Dark leafy greens, berries, nuts - antioxidant-rich
• Avoid excess sodium (can worsen endolymphatic pressure if there is any hydrops component)
• Stay well hydrated - dehydration reduces endolymph volume and cochlear perfusion

4. Avoid Ototoxic Agents - Most Important "Lifestyle" Factor

• Avoid aminoglycoside antibiotics (gentamicin, streptomycin, neomycin) if at all possible - even a single dose can worsen existing cochlear damage significantly. He must inform every doctor he visits about his hearing loss.
• Avoid loop diuretics (furosemide) unless absolutely necessary
• Avoid high-dose aspirin / NSAIDs chronically
• Avoid quinine (antimalarials)
• Noise protection - even though his left ear is already profoundly deaf, the right ear must be protected religiously. Loud concerts, headphones at high volume, crackers/fireworks - all require ear protection. At 18, cumulative noise exposure over decades is a real risk.

5. Exercise

6. Avoid Head Trauma

The Bottom Line - What to Tell Arjun

Audiovit Z - Full Composition and Assessment

• Alpha Lipoic Acid - 200 mg
• Ginkgo Biloba - 120 mg
• Chromium Picolinate - 200 mcg
• Methylcobalamin (B12) - 1500 mcg
• Magnesium - 10 mg
• Zinc - 12 mg
• Vitamin B6 (Pyridoxine) - 3 mg
• Vitamin C - 3 mg
• Vitamin E - 10 IU

Assessment of Each Component

Strong Rationale Components

Weaker Components at These Doses

Overall Verdict on Audiovit Z

• Protect surviving cochlear nerve fibers from further oxidative damage
• Support cochlear microvascular perfusion (Ginkgo + Magnesium)
• Maintain spiral ganglion neuron health (Methylcobalamin)
• Possibly slow progression in the right ear
• May help with any associated tinnitus

• Regenerate destroyed hair cells
• Reverse established profound SNHL
• Restore speech discrimination that is already lost

His Supplement Regimen - Complete Picture

Can Audiovit Z Be Taken Continuously Without Stopping?

Component-by-Component Safety for Long-Term Use

• Stop 2 weeks before any planned surgery or invasive dental work
• Stop if he ever starts anticoagulants or antiplatelet drugs (aspirin, warfarin, clopidogrel)
• Rarely can cause headache or mild GI upset initially

Omega-3 (Daily)

Vitamin D3 (Lumia 60K monthly)

Summary Table

The Core Problem: What Happens Without Stimulation

1. Spiral ganglion neurons (SGNs) - the nerve cells that carry signals from hair cells to the brain - progressively die through apoptosis. This starts within weeks to months of profound hearing loss and continues for years.
2. The auditory cortex undergoes cross-modal reorganization - other sensory systems (particularly vision) gradually take over the deprived auditory cortex. The longer this goes on, the harder it becomes to "reclaim" that cortex for hearing - whether by CI or future gene therapy.
3. Central auditory processing weakens from disuse.

Ways to Keep the Auditory Pathway Stimulated

1. High-Power Hearing Aid on the Left Ear - Most Important

• A power BTE or super-power aid delivers amplified sound at 130+ dB SPL output
• Even if he "hears nothing useful" from it, the vibration stimulates remaining nerve fibers
• This is standard practice in cochlear implant programs - patients are kept in hearing aids up until the day of surgery specifically to preserve SGNs

2. BAHA / Bone Conduction Device on Left Side

3. Auditory Training and Cognitive Engagement

• Dichotic listening exercises - deliberately paying attention to sounds from the left side, trying to localize sources
• Music exposure - even with the left ear perceiving only distorted/minimal sound, keeping the auditory cortex engaged with musical patterns helps maintain central pathway activity
• Apps like Listening and Communication Enhancement (LACE) provide structured auditory training
• Playing a musical instrument - this has strong evidence for maintaining auditory cortical plasticity

4. Vibro-Tactile Stimulation Devices

• Neosensory Duo - a wrist-worn device that translates sound into vibration patterns. Marketed for SSD and profound HL.
• Evidence is early-stage but the concept is sound - it maintains cross-modal sensory integration and provides an alternative pathway for auditory cortex stimulation
• No harm, completely non-invasive
• More relevant as a bridge tool while waiting for future therapies

5. Sound Therapy / Acoustic Environment

• Avoid complete acoustic occlusion of the left ear (no earplug in the left ear)
• Sleep with ambient sound (fan, white noise) - gives passive low-level cochlear stimulation throughout the night
• Avoid silence - keep environmental sounds present

6. What About Transcutaneous Electrical Stimulation?

Priority Summary for Arjun

Lifestyle Guide for Arjun (18 years)

The Goal

🔊 Protecting Your Ears - Non-Negotiable Rules

• Never use earphones at more than 60% volume - this is called the 60/60 rule (60% volume, max 60 minutes at a stretch)
• Never use earphones in noisy environments (on a bike, in traffic, on a bus) - because you compensate by turning volume up without realizing it
• Prefer over-ear headphones over in-ear earbuds - they seal better at lower volumes and reduce the urge to increase volume
• When using earphones, use only the right ear or over-ear headphones. Do not block the left ear with an earplug or earbud - that ear needs to stay open to ambient sound for nerve stimulation

• Concerts, weddings, crackers, construction sites, loud festivals - always carry foam earplugs for the right ear and keep them in your pocket at all times
• One evening at a loud concert without protection can cause permanent high-frequency damage to the right ear
• Download a free sound meter app (NIOSH SLM, Decibel X) on your phone. If ambient noise reads above 85 dB, put in the right earplug immediately

• Aminoglycoside antibiotics (gentamicin, tobramycin, streptomycin, neomycin) must be completely avoided if at all possible. If a doctor prescribes an antibiotic, specifically ask if it is an aminoglycoside and request an alternative.
• Avoid long-term or high-dose NSAIDs (ibuprofen, aspirin) unless necessary
• Carry a small card or phone note saying: "I have profound SNHL in left ear. Please avoid aminoglycoside antibiotics and ototoxic medications."

🏃 Exercise - Directly Benefits the Cochlea

• 30 minutes of moderate aerobic exercise, 5 days a week - brisk walking, cycling, swimming, jogging, badminton - whatever he enjoys
• Swimming is particularly good - it is low-impact, cardiovascular, and water provides a gentle vibro-acoustic environment
• Avoid heavy contact sports (boxing, football heading, wrestling) until CT temporal bones is done - if enlarged vestibular aqueduct is present, head impact can trigger sudden hearing drops
• Avoid heavy straining (very heavy weightlifting, holding breath during exertion) for the same reason - increased intracranial pressure can transmit to the inner ear

🥗 Diet - What to Eat and What to Avoid

• Oily fish (sardines, mackerel, tuna, salmon) - 2-3 times per week. Omega-3 EPA/DHA reduces cochlear inflammation and supports vascular endothelial health
• Dark green vegetables (spinach, broccoli, methi) - folate, magnesium, antioxidants
• Berries, citrus, amla - natural Vitamin C, anthocyanins which protect cochlear microvessels
• Nuts and seeds (almonds, sunflower seeds) - Vitamin E, magnesium, zinc
• Eggs - B12, choline, quality protein for nerve repair
• Dark chocolate (70%+) - magnesium, antioxidants, mild cochlear vasodilation
• Turmeric (with black pepper) - curcumin has cochlear anti-inflammatory properties in animal studies

• Excess salt - high sodium can worsen endolymphatic pressure fluctuations. Avoid processed foods, packaged snacks, excess pickle
• Excess caffeine (>2 cups of coffee/tea per day) - can worsen tinnitus and may affect cochlear microcirculation at high doses
• Alcohol - cochlear neurotoxic, affects auditory processing. Social, occasional use is fine but heavy or regular drinking is harmful
• Smoking - cochlear vascular damage, significantly associated with SNHL progression. If he smokes - stop completely.
• Energy drinks - high caffeine + taurine + sugar combination, known to spike blood pressure transiently which can affect cochlear perfusion

• Drink 2-2.5 litres of water daily - dehydration reduces endolymph volume and cochlear blood flow. Especially important in Kerala's heat.

😴 Sleep - Underappreciated Factor

• 7-9 hours of sleep per night - sleep deprivation impairs cochlear antioxidant defense and increases inflammatory markers. It also worsens any tinnitus.
• Sleep on the right side (good ear up) - this keeps the right ear facing upward, less compressed against the pillow, better blood flow to it
• Avoid sleeping with earphones in

🎵 Keep the Left Ear and Brain Stimulated

• Do not block the left ear or live in silence - ambient sounds, fan noise, background music all passively stimulate surviving cochlear nerve fibers
• Learn to play a musical instrument - guitar, piano, any instrument. Music engages the auditory cortex deeply and maintains central auditory pathway plasticity. This is one of the most powerful non-invasive ways to keep the brain's hearing centers active
• Active listening practice - once daily, sit in a quiet room and try to consciously detect sounds from the left side. Even minimal awareness keeps neural connections active
• Wear the hearing aid or BAHA on the left ear daily - even if he hears nothing useful from it, the vibration keeps spiral ganglion neurons alive

🧠 Stress Management

• Regular physical activity already handles this (covered above)
• Breathing exercises / meditation - even 10 minutes of deep breathing daily reduces cortisol levels measurably
• Sleep hygiene - already covered
• Avoid all-night study sessions - sleep deprivation is directly cochleotoxic

📋 Medical Follow-Up - His Responsibility

• Audiogram every 6 months - monitoring the right ear is as important as anything else on this list
• Get CT temporal bones done - this is pending and important
• Get genetic testing done - a blood test, simple, done once. Will determine if future gene therapy applies to him
• Check Vitamin D levels - blood test, once every 6 months while on monthly D3

Quick Summary Card for Arjun
