Here is a thorough guide to laparoscopic instruments, drawing from surgical textbooks (Maingot's Abdominal Operations, Fischer's Mastery of Surgery, Berek & Novak's Gynecology, Campbell-Walsh Urology) and current surgical references.
Laparoscopic Instruments
Laparoscopic (minimally invasive) surgery requires a distinct set of instruments that work through small ports in the abdominal wall. They fall into several functional categories.
1. Access and Insufflation Instruments
Veress Needle
A spring-loaded needle (2–3 mm) used for closed-entry pneumoperitoneum. The outer needle is sharp to penetrate the abdominal wall; the inner spring-loaded blunt obturator retracts when resistance is felt and springs forward once inside the peritoneal cavity to protect viscera. CO₂ is insufflated to 12–15 mmHg.
- Initial insufflation pressure should not exceed 10 mmHg (higher pressure suggests misplacement, e.g., preperitoneal placement)

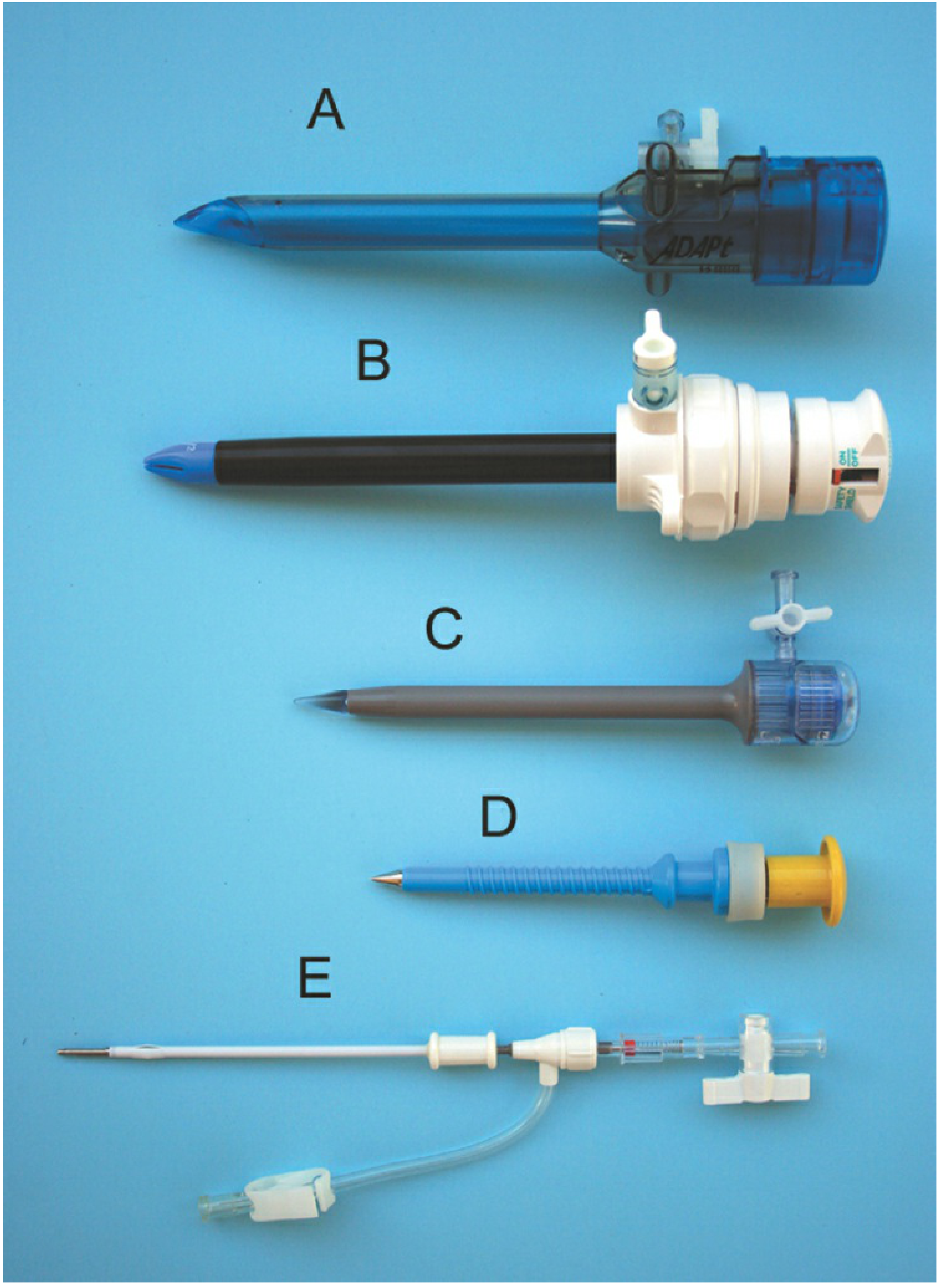

Trocars and Cannulas
A trocar is the full assembly of an obturator (pointed/blunt rod) + cannula (hollow tube). Once the obturator penetrates the abdominal wall, it is removed, leaving the cannula as a working channel.
Types of trocars:
| Type | Description |
|---|---|
| Bladed (sharp) | Traditional pyramidal/conical cutting tip; faster entry but higher vessel injury risk |
| Bladeless (dilating) | Dilates rather than cuts; less bleeding |
| Optical | Transparent tip allows visualization of each tissue layer during insertion |
| Hasson (blunt/open) | Used for open-entry technique; a purse-string suture secures it; safest for patients with prior abdominal surgery |
| Threaded (Ternamian EndoTIP) | Corkscrew design; rotated in without a sharp obturator |
Common sizes:
- 5 mm - for smaller instruments, clips, dissectors
- 10–12 mm - for camera, staplers, clip appliers, retrieval bags
- 15 mm - for large staplers or retrieval
Port placement rules (from Maingot's):
- All secondary cannulas must be inserted under direct laparoscopic vision
- Cannulas should be far enough apart to prevent instrument handle collision ("sword fighting")
- Direct them toward the surgical field for tension-free maneuverability
2. Visualization Equipment
Laparoscope (Telescope)
- A rigid Hopkins rod-lens telescope that transmits light and image
- 0° (forward-viewing) - straight view; simpler to use
- 30° (angled) - most commonly used; allows views "around corners"; standard for most abdominal procedures
- 45° - used in specific thoracoscopic or pelvic procedures
- Available in 5 mm and 10 mm diameters (10 mm gives brighter, higher-resolution image)
Camera System
- A CCD or CMOS camera head attaches to the laparoscope eyepiece
- Connected to a video processing unit and HD/4K monitor
- White balance and focus must be set before each case
Light Source and Fiber-Optic Cable
- Cold light (xenon or LED) transmitted via a fiber-optic cable to the laparoscope
- Provides illumination without heat inside the body cavity
CO₂ Insufflator
- Delivers CO₂ gas to maintain pneumoperitoneum at a set pressure (typically 12–15 mmHg)
- Monitors flow rate, total volume, and intraperitoneal pressure in real time
3. Graspers and Forceps
The workhorses of laparoscopic surgery. All are long-shafted (typically 33–45 cm) instruments inserted through 5 mm or 10 mm ports.
| Instrument | Jaw type | Use |
|---|---|---|
| Babcock forceps | Broad, rounded, atraumatic | Grasping bowel, appendix, fallopian tube - applied alongside bowel or on mesentery |
| Bowel grasper | Broad, perforated/fenestrated, atraumatic | Holding bowel with minimal serosal trauma |
| Alligator/Crocodile forceps | Wide flat jaws with serrations | Large surface contact; bowel mobilization |
| Blunt grasper | Smooth jaws | Gentle tissue retraction |
| DeBakey forceps | Fine longitudinal serrations | Delicate vascular tissue |
| Duckbill (fundus) grasper | Wide flat jaw | Uterine fundus, gallbladder |
| Allis forceps | Interlocking teeth | Firmer grip on tissue to be excised |
| Rat-tooth / Claw forceps | Sharp teeth | Specimen retrieval; traumatic grip |
| Tenaculum forceps | Single sharp tooth | Uterine or cervical manipulation |
| Gallbladder grasper | Curved serrated jaws | Gripping gallbladder wall |
| Appendix grasper | Atraumatic wide jaws | Holding appendix base |
Fenestrated graspers have "windows" (openings) in the jaws, which distribute grip pressure and prevent slippage.
4. Dissectors
Used for separating tissue planes by blunt dissection.
| Instrument | Description |
|---|---|
| Plain dissecting forceps | Fine-tipped, for blunt spreading dissection |
| Maryland dissector | Most widely used; fine curved jaws; can also be used with monopolar electrosurgery |
| Mixter (right-angle) forceps | L-shaped jaw; passes behind vessels/ducts for clipping or ligation; essential in cholecystectomy (dissecting the cystic duct/artery) |
| Bullet-nose forceps | Blunt rounded tip; safer near vessels |
| Dolphin-nose forceps | Tapered tip for fine plane dissection |
5. Scissors
| Type | Use |
|---|---|
| Straight scissors | Clean linear cuts on tissue/suture |
| Curved (Metzenbaum) | Fine dissection along curved planes |
| Hook scissors | Often coupled with monopolar cautery; cut and coagulate simultaneously |
Curved scissors allow more maneuverability and cauterization capability, saving operating time (Maingot's).
6. Energy Devices (Electrosurgical and Ultrasonic)
Monopolar Electrosurgery
- Hook electrode, spatula electrode, or scissors with cautery attachment
- Current passes from the instrument tip through the patient to a return plate
- Used for cutting and coagulation
- Risk: thermal spread to adjacent structures
Bipolar Forceps
- Current passes between the two jaws only - confined thermal effect
- Safer near nerves and delicate structures
- Used for vessel sealing and hemostasis
LigaSure (Vessel Sealing Device)
- Combines bipolar electrical energy + pressure to fuse vessel walls and collagen/elastin
- Seals vessels up to 7 mm diameter reliably
- Tissue bundles and mesenteric vessels in colorectal surgery
Harmonic Scalpel (Ultrasonic Dissector)
- Uses ultrasonic vibration (55,000 Hz) to cut and coagulate simultaneously
- Minimal thermal spread (~1.5 mm lateral spread vs. ~3 mm for monopolar)
- Better precision; preferred near delicate structures
- Can seal vessels up to 5 mm
7. Clip Appliers
- Automatic clip applier - applies titanium or polymer (Hem-o-lok) clips to seal ducts and vessels
- Available in single-fire or multi-fire (reloadable) formats
- Standard in cholecystectomy (cystic duct/artery) and other procedures
- Vascular pedicles in colorectal, urologic, and gynecologic surgery
8. Staplers
| Type | Use |
|---|---|
| Linear stapler (Endo-GIA) | Cuts and staples simultaneously; bowel transection, vascular pedicles |
| Circular stapler (EEA) | Intraluminal anastomosis; colocolic, ileocolic, esophagogastric joins |
The linear stapler has a dual purpose: a standard load for bowel and a vascular load for pedicles. Special maneuvers allow creation of J-pouches and side-to-side anastomoses.
Long instruments (38–40 cm) are required for procedures reaching the flexures or deep pelvis (e.g., total proctocolectomy, APR).
9. Suturing Instruments
| Instrument | Description |
|---|---|
| Laparoscopic needle holder | Straight or curved-head; straight or curved handles (curved handles reduce wrist angulation); various jaw configurations |
| Knot pusher | Allows extracorporeal knot tying; pushes tied knot down the suture into the body |
| Endo Stitch device (Medtronic) | Automated suture passing; needle toggles between jaws; widely used |
| Laparoscopic loop ligature | Pre-tied loop (e.g., Endoloop); one-handed application; quick ligation of appendix stump, ducts |
| Articulating suturing devices | Manual or motorized; greater degrees of freedom; useful in single-site surgery |
Surgeons should practice with multiple needle holder configurations to find what suits their technique best (Fischer's Mastery of Surgery).
10. Retractors
- Fan retractor - wide, deployable fan shape; liver retraction during upper abdominal surgery
- Paddle/flat retractors - organ displacement
- Must be placed to maintain exposure without obstructing the camera or instrument triangulation
11. Irrigation and Suction
- Combined suction-irrigator device: delivers warmed saline to wash the field and aspirates blood/smoke
- Smoke evacuator via the suction channel is standard in electrosurgery cases
12. Specimen Retrieval Bags
- Impermeable plastic bags introduced through a port
- Specimen (gallbladder, appendix, ovarian cyst, lymph nodes) is placed inside before extraction
- Prevents port-site contamination and spillage of bile, pus, or malignant cells
General Instrument Principles
- All laparoscopic instruments share a common structure: handle - shaft - working tip
- Shaft length is typically 33–45 cm; longer instruments needed for deep pelvic/colonic work
- Reusable vs. disposable versions exist for most instruments
- Handles may have a ratcheting lock (maintains grip without continuous pressure) or a slide lock
- Insulation of the shaft is critical for monopolar instruments to prevent capacitive coupling injuries
Sources: Maingot's Abdominal Operations; Fischer's Mastery of Surgery, 8th ed.; Berek & Novak's Gynecology; Operative Review of Surgery - Laparoscopic Instruments; Lapex Surgical A-to-Z Guide
