Here is a clear, easy breakdown of the Medial Wall of the Middle Ear (Labyrinthine Wall):

Medial Wall of the Middle Ear - Easy Diagram & Notes

The diagram below (from ENT Lecture) shows the tympanic cavity as a "box" - the medial wall is the back face (the inner/labyrinthine wall):

Structures on the Medial Wall (from top to bottom)

SUPERIOR
┌─────────────────────────────────────────┐
│  Prominence of LATERAL SEMICIRCULAR     │  ← bulge above facial canal
│             CANAL                       │
├─────────────────────────────────────────┤
│  FACIAL NERVE CANAL (Canal of Fallopius)│  ← runs horizontally here
├─────────────────────────────────────────┤
│  OVAL WINDOW (Fenestra Vestibuli)       │  ← kidney-shaped, ~3.25×1.75 mm
│  (stapes footplate sits here)           │    connects to vestibule
├─────────────────────────────────────────┤
│  PROMONTORY (central bulge)             │  ← basal turn of cochlea beneath
│  (tympanic plexus on its surface)       │    most prominent landmark
├─────────────────────────────────────────┤
│  ROUND WINDOW (Fenestra Cochleae)       │  ← below & behind oval window
│  (closed by secondary tympanic membrane)│    connects to scala tympani
└─────────────────────────────────────────┘
INFERIOR

5 Key Structures - Quick Memory Aid

Structure	What it is	Clinical Point
Promontory	Bony bulge from basal cochlear turn	Tympanic plexus (CN IX) runs over it
Oval Window	Opening to vestibule; kidney-shaped	Stapes footplate here; otosclerosis fixes it
Round Window	Opening to scala tympani	Covered by secondary tympanic membrane
Facial Nerve Canal	Horizontal segment of CN VII	Most common site of facial nerve injury in ear surgery
Lateral SCC prominence	Bulge of horizontal semicircular canal	Landmark in mastoid surgery

Two Important Bony Ridges (between oval and round windows)

Ponticulus - ridge from promontory to the pyramid (posterior wall), above the round window niche
Subiculum - ridge separating the oval window from the round window niche

These ridges divide the posterior mesotympanum into the sinus tympani (medially) and facial recess (laterally).

Cadaveric View (Scott-Brown's ENT textbook, Fig 46.7)

Medial wall of mesotympanum - cadaveric specimen showing tympanic branch of CN IX (IX) crossing the promontory

Medial wall of mesotympanum after tympanic membrane removal. CN IX (tympanic branch of glossopharyngeal nerve) crosses the promontory. - Scott-Brown's Otorhinolaryngology, Vol 2

Easy Mnemonic to Remember Structures (Top to Bottom)

"Lateral Frogs Often Pose Ridiculously"

Lateral semicircular canal prominence
Facial nerve canal (horizontal segment)
Oval window
Promontory
Round window

More easy

Generating Image

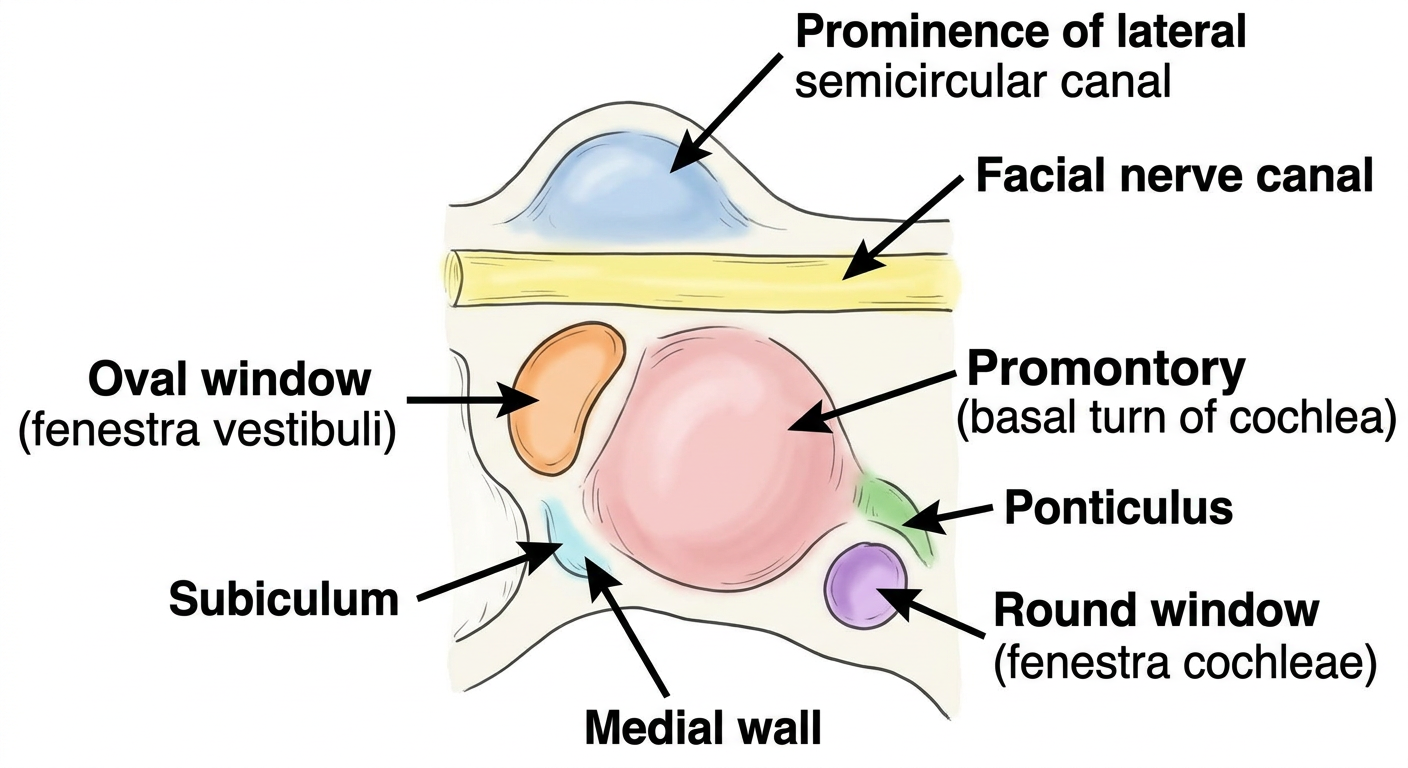

Simple clean labeled anatomical diagram of the medial wall of the middle ear (labyrinthine wall), showing all key structures clearly labeled with arrows: Prominence of lateral semicircular canal (at top), Facial nerve canal (horizontal segment, below semicircular canal), Oval window (fenestra vestibuli, kidney-shaped opening, middle area), Promontory (large central rounded bulge, basal turn of cochlea), Round window (fenestra cochleae, below and behind oval window), Ponticulus (bony ridge above round window), Subiculum (bony ridge below oval window). White background, simple illustration style like a medical textbook diagram, bold clear labels, color-coded structures, easy to understand for students

Here's the simplest way to remember it - just 5 structures, top to bottom:

Medial Wall = "The Inner Wall" (faces the inner ear)

        ┌──────────────────────────────┐
  TOP   │  🔵 Lateral SCC prominence   │  ← bump from semicircular canal
        │                              │
        │  🟡 Facial nerve canal       │  ← CN VII runs across here
        │                              │
        │  ⬜ OVAL WINDOW              │  ← stapes sits here
        │                              │
 MIDDLE │  🔴 PROMONTORY (big bump)    │  ← most important landmark
        │                              │
        │  ⬜ ROUND WINDOW             │  ← has a membrane covering it
  BOT   └──────────────────────────────┘

Super Simple Summary

#	Structure	Remember it as
1	Lateral SCC prominence	"Bump at the top"
2	Facial nerve canal	"CN7 highway"
3	Oval window	"Where stapes fits"
4	Promontory	"Big central hill" = cochlea underneath
5	Round window	"Closed hole below"

One-Line Mnemonic

"Lazy Foxes Often Play Roundly" Lateral SCC → Facial nerve → Oval window → Promontory → Round window

That's it - everything on the medial wall in order from top to bottom!

Course of tensor tympani muscle in ear

Finding Sources

Searching the Web

tensor tympani muscle origin course insertion function anatomy middle ear

Reading File

Loading Image

Generating Image

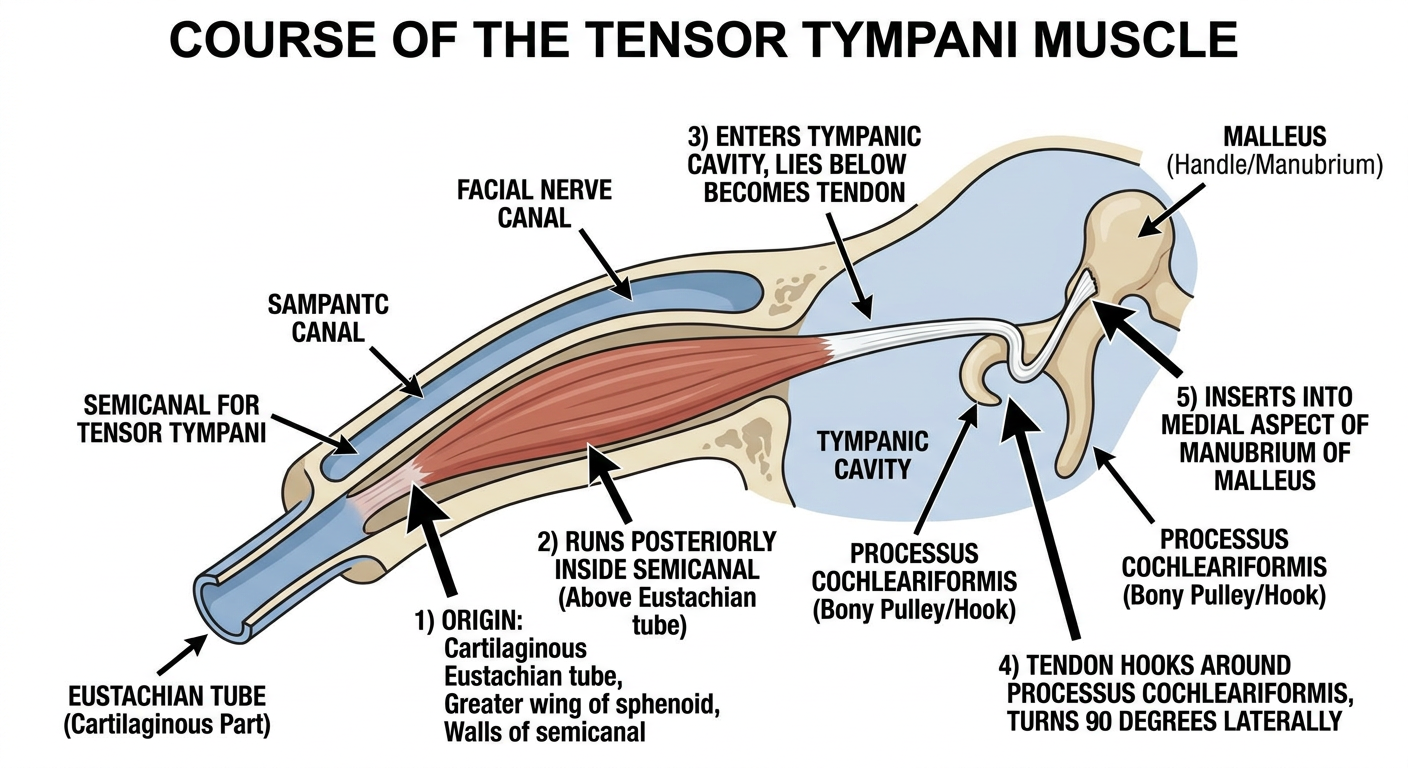

Simple clear anatomical diagram showing the complete course of the tensor tympani muscle in the middle ear, step by step labeled: 1) Origin - from cartilaginous part of Eustachian tube, greater wing of sphenoid, and walls of its own bony canal (semicanal), 2) The muscle runs posteriorly inside the semicanal (bony canal above Eustachian tube), 3) Enters tympanic cavity, lies on medial wall just below facial nerve canal, becomes a slender tendon, 4) Tendon hooks around the processus cochleariformis (a small bony pulley/hook), turning 90 degrees laterally, 5) Inserts into the medial aspect of the handle (manubrium) of the malleus. Show the Eustachian tube below, facial nerve canal above, processus cochleariformis as a small hook/pulley, and the malleus with tensor tympani tendon attached. White background, simple medical textbook style, bold clear arrows and labels, easy for students

Tensor Tympani Muscle - Course & Anatomy

Course of Tensor Tympani Muscle - Step by Step

🔴 ORIGIN (3 sources)

Cartilaginous part of Eustachian tube
Greater wing of sphenoid
Walls of its own bony canal (semicanal for tensor tympani)

➡️ COURSE

ORIGIN                    COURSE                        INSERTION
──────                    ──────                        ─────────
Cartilage of         Runs POSTERIORLY         Hooks around
Eustachian tube  →   inside semicanal    →    PROCESSUS         →   Handle of
Greater wing         (above ET, in            COCHLEARIFORMIS       MALLEUS
of sphenoid          petrous temporal         (turns 90° LATERAL)   (medial aspect,
Walls of             bone)                                          upper part)
semicanal

The KEY Step - Processus Cochleariformis

This is a small bony pulley/hook at the anterior end of the medial wall
The tendon of tensor tympani bends 90 degrees around it
Then travels laterally to reach the malleus handle
Think of it like a rope over a pulley

Easy Summary Table

Feature	Detail
Type	Long, slender muscle
Location	Semicanal - above Eustachian tube
Origin	Cartilage of ET + sphenoid + bony canal walls
Direction	Runs posteriorly → turns 90° laterally
Pulley	Processus cochleariformis
Insertion	Medial aspect, upper handle of malleus
Nerve supply	Medial pterygoid nerve (branch of V3 - mandibular)
Blood supply	Superior tympanic branch of middle meningeal artery
Action	Pulls malleus medially → tenses tympanic membrane → dampens loud sounds

One-Line Memory Trick

"Tensor Tympani - Eustachian tube travels Posteriorly, Pulley (processus cochleariformis), then Pulls malleus medially" = E → P → P → P

Clinical Point

Supplied by V3 (trigeminal) - NOT facial nerve (facial nerve supplies stapedius)
Contraction tenses the eardrum - protective reflex against loud sounds
Paralysis = hypersensitivity to sound (hyperacusis can occur in combination with stapedius paralysis in Bell's palsy)

(Sources: Scott-Brown's Otorhinolaryngology Vol 2; Gray's Anatomy for Students)
