SPACES AND MUCOSAL FOLDS OF THE MIDDLE EAR CAVITY

With Development | 20 Marks | RGUHS ENT

INTRODUCTION

PART I: COMPARTMENTS (SPACES) OF THE MIDDLE EAR CAVITY

Vertical Divisions

VERTICAL DIVISIONS OF TYMPANIC CAVITY
┌─────────────────────────────────────────────────────┐
│         EPITYMPANUM (ATTIC)                         │
│  ← Above level of tympanic membrane                 │
│  Contains: Head of malleus, body + short process    │
│  of incus, lateral incudomalleal fold               │
├─────────────────────────────────────────────────────┤
│         MESOTYMPANUM                                │
│  ← At level of tympanic membrane                    │
│  Contains: Manubrium, long process incus,           │
│  stapes, chorda tympani, tensor tympani tendon,     │
│  tympanic plexus                                    │
├─────────────────────────────────────────────────────┤
│         HYPOTYMPANUM                                │
│  ← Below annular ring of tympanic membrane          │
│  Floor: jugular bulb, ICA; extends to cochlea       │
└─────────────────────────────────────────────────────┘

Antero-Posterior Divisions

A. EPITYMPANUM (ATTIC)

            EPITYMPANUM
                │
   ┌────────────┼────────────┐
   ▼            ▼            ▼
PRUSSAK'S   ANTERIOR    POSTERIOR
 SPACE     EPITYMPANIC  EPITYMPANIC
(Lateral)    SPACE        SPACE

1. Prussak's Space (Superior recess / Lateral epitympanic space)

• Ventilation: Via posterior pouch of von Troeltsch (a separate, distinct pathway from the tympanic isthmus that ventilates the rest of the attic)
• Clinical significance: Primary origin of pars flaccida (attic) cholesteatoma

2. Anterior Epitympanic Space

• Anterior to the superior malleal fold
• Contains: anterior portion of malleus head
• Bordered anteriorly by the cog (a bony ridge projecting inferiorly from the tegmen plate, just anterior to the head of the malleus)
• Ventilated via the tensor fold pathway when the tensor fold is patent/open

3. Posterior Epitympanic Space

• Posterior to superior malleal fold
• Contains: posterior malleus head, incus body, short process of incus
• Main ventilation route to the attic via the tympanic isthmus
• Communicates posteriorly with mastoid antrum via the aditus ad antrum
• Further subdivided by the lateral incudomalleal fold into superior lateral attic and inferior lateral attic

B. MESOTYMPANUM

• Superior: Tympanic diaphragm (open to epitympanum)
• Inferior: Open to hypotympanum
• Medial: Promontory (cochlea, oval window, round window)
• Lateral: Pars tensa of tympanic membrane
• Anterior: Eustachian tube orifice (protympanum)
• Posterior: Open to retrotympanum

C. RETROTYMPANUM

PART II: MUCOSAL FOLDS OF THE MIDDLE EAR

• Organize the epitympanum into distinct compartments
• Transmit blood vessels and ligaments to the ossicles
• Form barriers to and pathways for cholesteatoma spread
• Are formed embryologically at the planes of contact between the four primary sacci

THE TYMPANIC DIAPHRAGM

TYMPANIC DIAPHRAGM COMPONENTS
(Anterior → Posterior)
═══════════════════════════════════════════════════════
(a) Anterior malleal fold + anterior malleal ligament
(b) Tensor tympani fold (= tensor fold)
(c) Lateral malleal fold + lateral malleal ligament ←[ROOF of Prussak's space]
(d) Lateral incudomalleal fold (imlf)
(e) Posterior incudal ligament
(f) Anterior malleal ligament
═══════════════════════════════════════════════════════

THE 10 PRINCIPAL MUCOSAL FOLDS

TYMPANIC ISTHMUS

TYMPANIC ISTHMUS
┌─────────────────────────────────────────────────────────┐
│  ANTERIOR TYMPANIC ISTHMUS (ATI)                        │
│  Between: incudostapedial joint AND tensor tympani      │
│  muscle tendon                                          │
│  → Largest; most important ventilation route to attic   │
├─────────────────────────────────────────────────────────┤
│  POSTERIOR TYMPANIC ISTHMUS (PTI)                       │
│  Posterior to incudostapedial joint;                    │
│  Between: stapedial tendon, pyramidal eminence, and     │
│  short process of incus                                 │
└─────────────────────────────────────────────────────────┘
Divided into ATI + PTI by the medial incudal fold

VENTILATION PATHWAY - FLOWCHART

VENTILATION OF MIDDLE EAR CAVITY
(Normal pathway from Eustachian tube to Mastoid)

   Eustachian Tube (ET)
           │
           ▼
   Mesotympanum (main chamber)
           │
     ┌─────┴─────────────────────────────────┐
     │ via TYMPANIC ISTHMUS                  │ via Posterior Pouch
     ▼ (main route)                          ▼ of Von Troeltsch
Posterior Epitympanum               PRUSSAK'S SPACE
(ossicular mass region)             (lateral epitympanum)
     │
     ├──→ Anterior Epitympanum
     │    (via open tensor fold - accessory)
     │
     ▼
Aditus ad Antrum
     │
     ▼
Mastoid Antrum → Mastoid Air Cells

PART III: PROCTOR'S MIDDLE EAR PARTITIONING (1964)

PART IV: DEVELOPMENT OF MIDDLE EAR SPACES AND MUCOSAL FOLDS

A. EMBRYOLOGICAL OVERVIEW - DEVELOPMENTAL TIMELINE

DEVELOPMENTAL TIMELINE OF MIDDLE EAR
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Week 3  → First pharyngeal pouch forms;
          Tubotympanic recess begins as outpouching
Week 4  → Endoderm of 1st pharyngeal pouch expands laterally
Week 5  → Tubotympanic recess contacts 1st pharyngeal cleft
          (ectoderm between them → future tympanic membrane)
Week 6  → Precartilage in ossicles; tubotympanic recess established
Week 7  → 2nd branchial arch growth constricts tubotympanic recess
          - Lateral part → primary tympanic cavity
          - Medial part → primordial Eustachian tube
Week 8  → Ossicles nearly complete; tympanic ring forming
Week 10 → Pneumatization of tympanic cavity begins
Week 12 → Four primary mucosal sacci begin to develop
Week 16 → Ossicles reach adult size; ossification begins
          (begins at long process of incus → then malleus neck)
Week 20 → Mesenchymal resorption begins; sacci expand
Week 21 → Pneumatization reaches mastoid antrum
Week 23 → Antrum appears
Week 28 → Tympanic membrane formed (all three layers)
Week 30 → Tympanic cavity essentially complete
Week 32 → Ossicles fully ossified; mastoid pneumatization
Birth   → Antrum = adult size; mesenchymal resolution may
          continue until 1 year (residual = connective tissue
          strands over oval/round windows in adults)
Age 1   → Mastoid process appears
Age 3   → Tympanic ring and bony canal calcified
Age 19  → Mastoid growth complete
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

B. ORIGIN AND FORMATION - FLOWCHART

DEVELOPMENTAL ORIGIN OF MIDDLE EAR SPACES
══════════════════════════════════════════════════════

First Pharyngeal Pouch (ENDODERM)  [Week 3]
              │
              ▼
      Tubotympanic Recess
              │
      ┌───────┴────────┐
      ▼                ▼
  Proximal Part     Distal Part
      │                │
      ▼                ▼
 Pharyngotympanic   Primitive Tympanic Cavity
 (Eustachian) Tube   (expands laterally)
                          │
                          ▼
               MESENCHYMAL RESORPTION
                (3rd to 7th fetal month)
                          │
                          ▼
         FOUR PRIMARY MUCOSAL SACCI develop
         (between 12th and 28th week)
    ┌──────────┬──────────┬──────────┬──────────┐
    ▼          ▼          ▼          ▼
 SACCUS    SACCUS     SACCUS     SACCUS
 ANTICUS   MEDIUS    SUPERIOR   POSTICUS
    │          │          │          │
    ▼          ▼          ▼          ▼
Anterior    Epitympanum  Posterior  Round +
pouch of  + Petrous      pouch of   Oval window
von Troeltsch  apex      von         niches +
                         Troeltsch   Sinus tympani
                       + part of
                         mastoid +
                         inferior
                         incudal
                         space

C. MECHANISM OF MUCOSAL FOLD FORMATION

HOW MUCOSAL FOLDS FORM - STEP-BY-STEP
════════════════════════════════════════════════════════

STEP 1 (Week 3-7):
  Tubotympanic recess lined by endoderm
  Interior filled with loose MESENCHYME
  (gelatinous mesoderm derivative)

STEP 2 (Week 7-12):
  Terminal end of 1st pharyngeal pouch
  BUDS INTO 4 sacci:
  anticus, medius, superior, posticus

STEP 3 (Week 12-20):
  Each saccus EXPANDS into mesenchyme
  SIMULTANEOUSLY mesenchyme is RESORBED
  (like air pneumatizing a balloon)

STEP 4 (Week 20-30):
  Two neighboring sacci come into CONTACT
  ↓ AT THE PLANE OF CONTACT ↓
  → MUCOSAL FOLD IS CREATED
  (= mesentery-like structure, like peritoneum)

STEP 5:
  Between mucosal layers of fold:
  → Remnant mesoderm = blood vessels + ligaments
  → These become ossicular ligaments and vascular supply
  Walls of sacci = mucosal lining of middle ear

Key principle:
Mucosa envelops ossicles like peritoneum envelops intestines

D. ORIGIN OF THE TYMPANIC MEMBRANE

TYMPANIC MEMBRANE - TRILAMINAR ORIGIN
═══════════════════════════════════════════════
Layer               Origin
───────────────────────────────────────────────
Outer squamous layer    ECTODERM (1st branchial groove)
Middle fibrous layer    MESODERM
Inner mucosal layer     ENDODERM (1st pharyngeal pouch)
═══════════════════════════════════════════════
Fully formed: 28th week of gestation

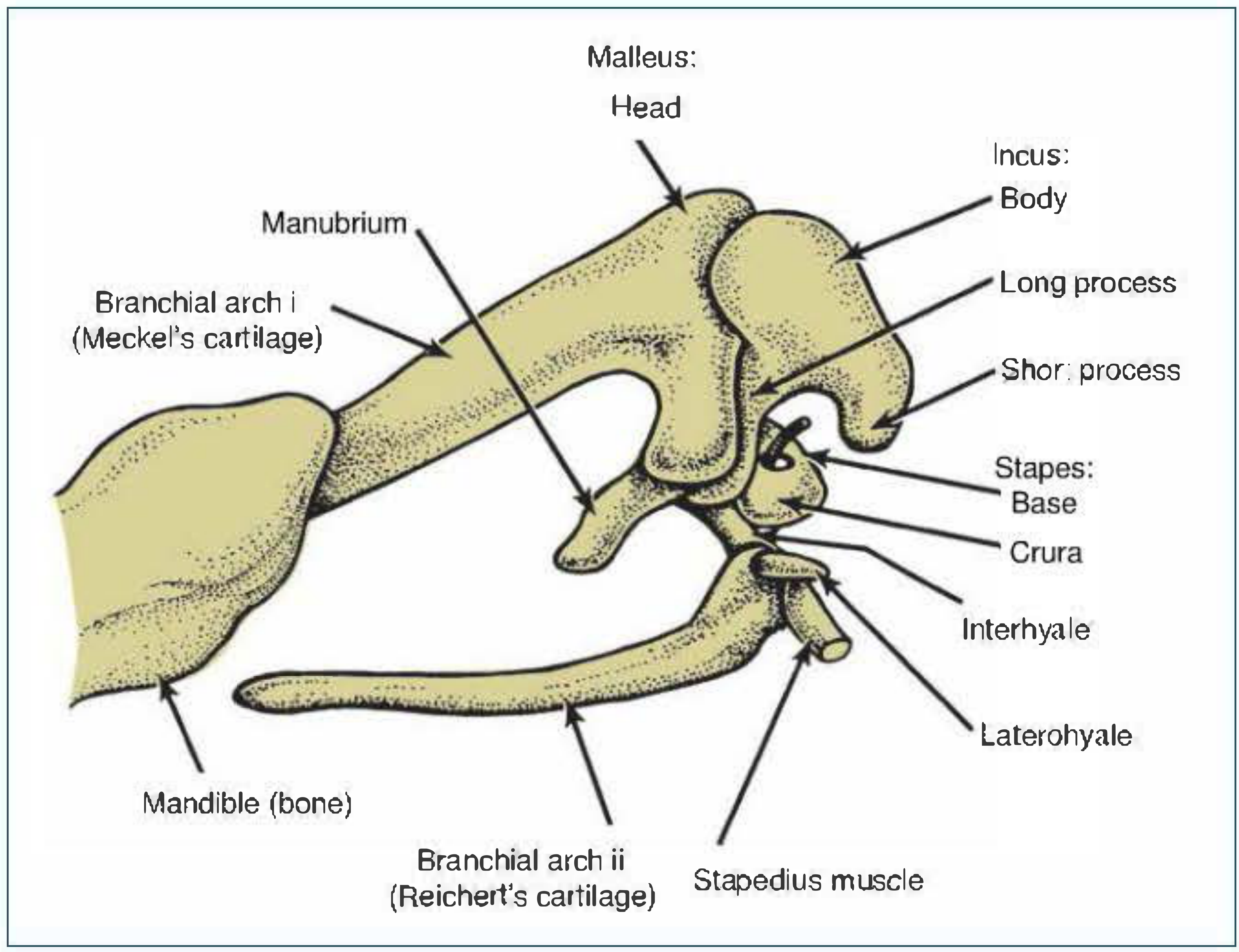

E. OSSICULAR DEVELOPMENT (PARALLEL PROCESS)

OSSICULAR ORIGINS - BRANCHIAL ARCH TABLE
══════════════════════════════════════════════════
Ossicle Part          Origin              Arch
──────────────────────────────────────────────────
Head of malleus       Meckel's cartilage    I
Neck of malleus       Meckel's cartilage    I
Manubrium             Reichert's cartilage  II
Body of incus         Meckel's cartilage    I
Short process incus   Meckel's cartilage    I
Long process incus    Reichert's cartilage  II
Stapes (arch+head)    Reichert's cartilage  II
Stapes footplate      Otic capsule mesenchyme
Tensor tympani m.     1st arch mesenchyme   I (V nerve)
Stapedius muscle      2nd arch mesenchyme   II (VII nerve)
══════════════════════════════════════════════════
Note: Anterior process of malleus = process of Folius
(membranous bone from mesenchyme, not arch cartilage)

F. MASTOID PNEUMATIZATION

MASTOID PNEUMATIZATION
═══════════════════════════════════════════════════
Week 21   Pneumatization reaches antrum
Week 23   Antrum appears
Week 33   Mastoid pneumatization begins
Birth     Antrum is adult-size; rest of mastoid immature
Age 1     Mastoid process appears
Continues until age 19

FACTORS AFFECTING MASTOID PNEUMATIZATION:
1. Heredity (most significant factor)
2. Eustachian tube patency and function
3. Nutritional status
4. Bacterial infection (recurrent otitis media)
5. Adequate middle ear ventilation
═══════════════════════════════════════════════════

PART V: CLINICAL APPLICATIONS

Cholesteatoma Spread via Mucosal Fold Pathways

PARS FLACCIDA CHOLESTEATOMA - SPREAD PATHWAY
(Via middle ear spaces and mucosal folds)

Eustachian tube dysfunction
        ↓
Tympanic isthmus blockage (granulation tissue)
        ↓
Negative pressure in attic / Prussak's space
        ↓
Pars flaccida retraction pocket (Prussak's space)
        ↓
Spread posteriorly (via posterior opening of Prussak's space)
        ↓
Posterior epitympanum
(lateral to incus body, medial to lateral incudomalleal fold)
        ↓
Aditus ad antrum → Mastoid antrum
        ↓
(Advanced) Medial to ossicles → Anterior attic
→ Requires removal of incus + malleus head in surgery

• Cog: Bony ridge from tegmen anterior to malleus head; marks anterior limit of attic cholesteatoma; visible on CT = dysventilation of anterior epitympanum
• Scutum: Lateral wall of attic; eroded early in attic retraction cholesteatoma
• Tensor fold: If complete (closed), anterior attic is not ventilated; must be opened surgically
• Tympanic isthmus: Must be enlarged during surgery to restore ventilation

PART VI: RECENT ADVANCES

1. Endoscopic ear surgery (EES): Endoscopic transcanal and transmastoid approaches allow visualization of the tympanic diaphragm, Prussak's space, and tympanic isthmi with intact anatomy - without disturbing mucosal architecture. The three malleal ligamental folds (anterior, lateral, posterior) and two membranous folds (tensor tympani fold + lateral incudomalleal fold) constituting the tympanic diaphragm are now endoscopically demonstrable. (PMC9411314 - Indian J Otolaryngol, 2022)
2. 3D modeling of epitympanic folds: 3D anatomical models of the middle ear cavity with epitympanum now allow better surgical teaching and cholesteatoma spread visualization, demonstrating ventilation routes to anterior and posterior epitympanic spaces and Prussak's space. (PMC9139137)
3. Cog as CT indicator: The cog is now recognized as a radiological indicator of anterior epitympanic dysventilation syndrome on temporal bone CT (PMID: 37206854, Indian J Otolaryngol, 2023).
4. Selective/sectorial dysventilation concept: Selective obstruction of the posterior pouch of von Troeltsch → isolated Prussak's space dysventilation → pars flaccida retraction WITHOUT involving anterior epitympanum or mastoid - a refined concept guiding less radical, function-preserving surgery. (K.J. Lee's, p. 499)
5. Temporal bone CT anatomy and cholesteatoma correlation: CT-based anatomical parameters of middle ear spaces are now correlated with cholesteatoma development, identifying at-risk anatomical variants (PMID: 37537372, Radiol Med, 2023).
6. Molecular embryology: FGF, BMP, and Wnt signaling pathways have been identified as governing first pharyngeal pouch expansion, tubotympanic recess formation, and ossicular development - relevant to understanding congenital middle ear malformations (Cummings Ch. 202, citing Dev Biol 231:410-419, 2001).

SUMMARY TABLE

REFERENCES

• Cummings Otolaryngology Head and Neck Surgery, 7th Ed., Ch. 126 (Anatomy) and Ch. 144 (Epitympanic Spaces/Folds), Elsevier
• Scott-Brown's Otorhinolaryngology Head & Neck Surgery, Vol. 2, Ch. 46, CRC Press/Taylor & Francis
• Shambaugh's Surgery of the Ear, Ch. 1 (Development of Tympanomastoid Compartment), BC Decker
• K.J. Lee's Essential Otolaryngology, 11th Ed., Ch. 25, McGraw-Hill
• Proctor B (1964). The development of the middle ear spaces and their surgical significance. J Laryngol Otol 78(7):631-648 - foundational reference
• Von Troeltsch A - Described anterior and posterior epitympanic pouches (19th century)
• Prussak A (1867) - Described the lateral epitympanic space
• Hammar JA (cited by Proctor) - Original description of primary tympanic sacci
• PMC9411314 - Intricacies of the Epitympanum-Endoscopically Revisited (2022)
• PMID 37206854 - Cog: Radiological indicator of dysventilation (2023)
• The Developing Human, Moore & Persaud, Ch. 18

Note on Dhingra, Hazarika, and Zakir Hussain: These standard Indian ENT textbooks are not part of the accessed digital library, but their content on middle ear spaces follows the same framework - four sacci (saccus anticus/medius/superior/posticus) and 10 mucosal folds - as described in Shambaugh, KJ Lee, and Scott-Brown above, which are the authoritative international sources. All concepts above are standard RGUHS examination content.
