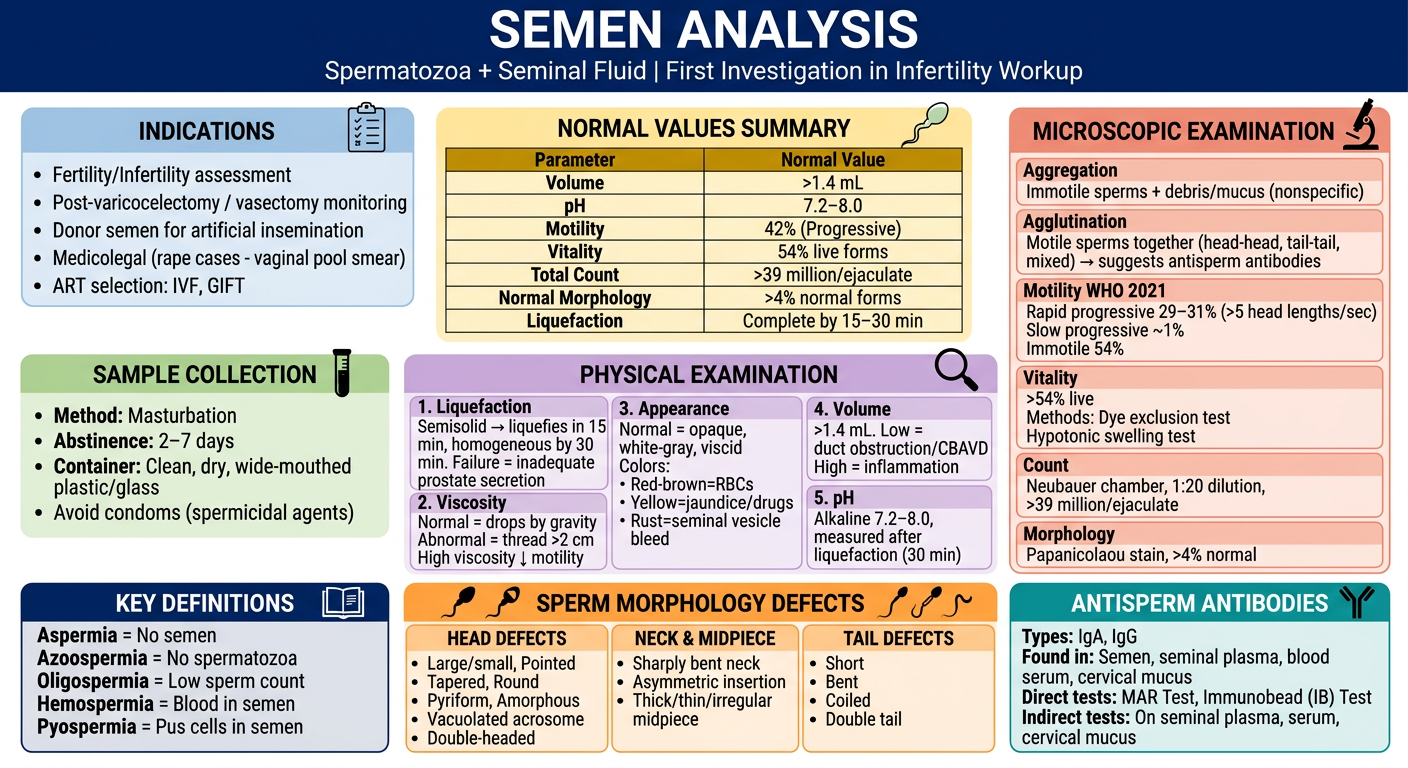

A single-page medical masterchart/infographic titled "SEMEN ANALYSIS" with a clean, professional clinical layout on a white background. Organize all content into clearly labeled color-coded sections using boxes, tables, and icons. Top banner: "SEMEN ANALYSIS" in bold large navy blue text with subtitle "Spermatozoa + Seminal Fluid | First Investigation in Infertility Workup" Section 1 - INDICATIONS (light blue box, left column): • Fertility/Infertility assessment • Post-varicocelectomy / vasectomy monitoring • Donor semen for artificial insemination • Medicolegal (rape cases - vaginal pool smear) • ART selection: IVF, GIFT Section 2 - SAMPLE COLLECTION (light green box, left column): • Method: Masturbation • Abstinence: 2–7 days • Container: Clean, dry, wide-mouthed plastic/glass • Avoid condoms (spermicidal agents) Section 3 - NORMAL VALUES SUMMARY (prominent golden/amber highlighted box, center-top): Large table with 2 columns: Parameter | Normal Value Volume | >1.4 mL pH | 7.2–8.0 Motility | 42% (Progressive) Vitality | 54% live forms Total Count | >39 million/ejaculate Normal Morphology | >4% normal forms Liquefaction | Complete by 15–30 min Section 4 - PHYSICAL EXAMINATION (light purple box, center): Divided into 5 sub-boxes: 1. Liquefaction: Semisolid → liquefies in 15 min, homogeneous by 30 min. Failure = inadequate prostate secretion 2. Viscosity: Normal = drops by gravity. Abnormal = thread >2 cm. High viscosity ↓ motility 3. Appearance: Normal = opaque, white-gray, viscid. Colors: Red-brown=RBCs, Yellow=jaundice/drugs, Rust=seminal vesicle bleed 4. Volume: >1.4 mL. Low = duct obstruction/CBAVD. High = inflammation 5. pH: Alkaline 7.2–8.0, measured after liquefaction (30 min) Section 5 - MICROSCOPIC EXAMINATION (light coral/red box, right column): Sub-sections: • Aggregation: Immotile sperms + debris/mucus (nonspecific) • Agglutination: Motile sperms together (head-head, tail-tail, mixed) → suggests antisperm antibodies • Motility WHO 2021: Rapid progressive 29–31% (>5 head lengths/sec), Slow progressive ~1%, Immotile 54% • Vitality: >54% live. Methods: Dye exclusion test, Hypotonic swelling test • Count: Neubauer chamber, 1:20 dilution, >39 million/ejaculate • Morphology: Papanicolaou stain, >4% normal Section 6 - SPERM MORPHOLOGY DEFECTS (orange box, bottom center): Three columns: HEAD DEFECTS: Large/small, Pointed, Tapered, Round, Pyriform, Amorphous, Vacuolated acrosome, Double-headed NECK & MIDPIECE: Sharply bent neck, Asymmetric insertion, Thick/thin/irregular midpiece TAIL DEFECTS: Short, Bent, Coiled, Double tail Section 7 - KEY DEFINITIONS (dark navy box, bottom left): Aspermia = No semen Azoospermia = No spermatozoa Oligospermia = Low sperm count Hemospermia = Blood in semen Pyospermia = Pus cells in semen Section 8 - ANTISPERM ANTIBODIES (teal box, bottom right): Types: IgA, IgG Found in: Semen, seminal plasma, blood serum, cervical mucus Direct tests: MAR Test, Immunobead (IB) Test Indirect tests: On seminal plasma, serum, cervical mucus All text is sharp, clearly readable. Use colored section headers, small icons where appropriate (microscope, test tube, sperm icons). Dense but organized layout. No wasted space. Professional medical school study chart style.

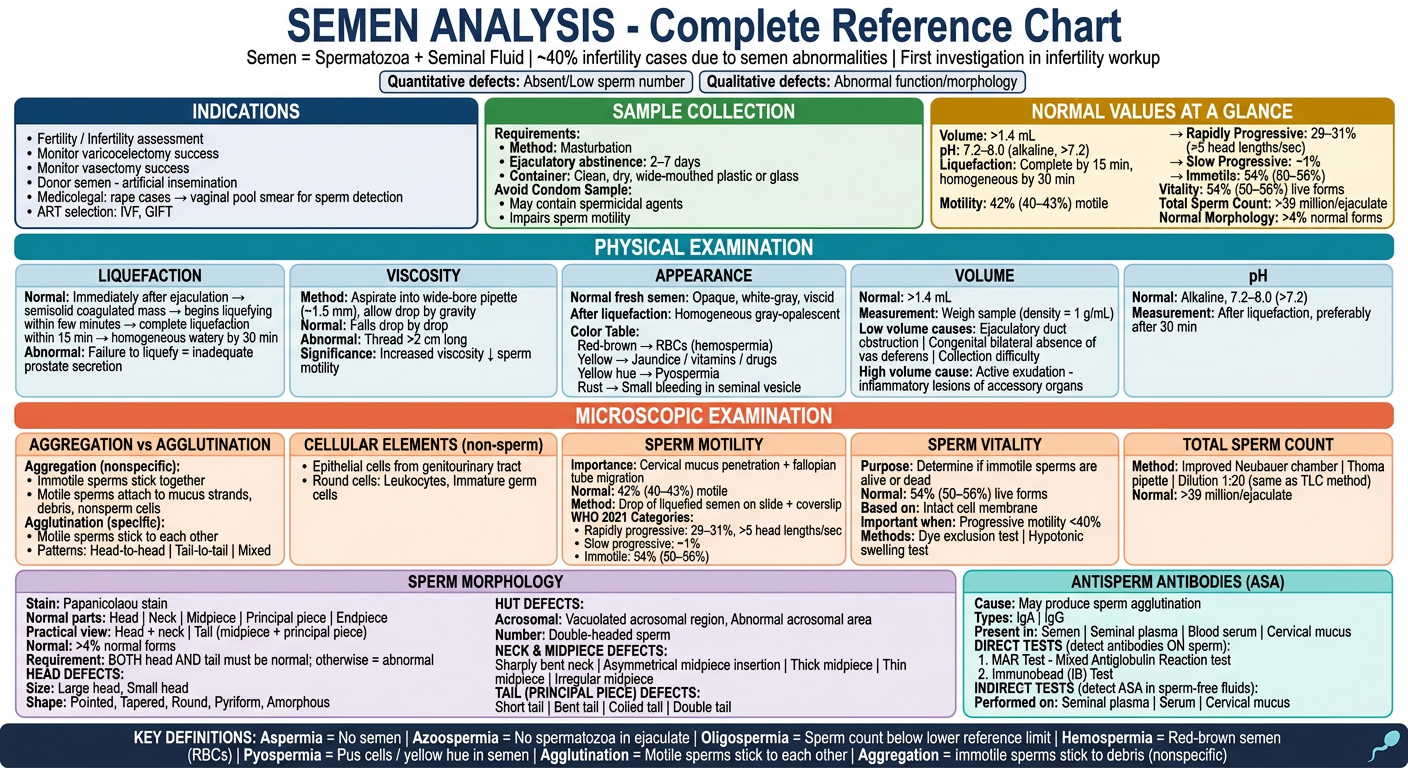

A highly detailed, dense, single-page medical reference masterchart titled "SEMEN ANALYSIS - Complete Reference Chart" on white background. Use very small but readable fonts, tight spacing, and color-coded bordered boxes to fit ALL content. Professional medical textbook style with navy/teal/orange/green color scheme. ===TOP BANNER=== Large bold title: "SEMEN ANALYSIS" | Subtitle: "Semen = Spermatozoa + Seminal Fluid | ~40% infertility cases due to semen abnormalities | First investigation in infertility workup" Two tags below: "Quantitative defects: Absent/Low sperm number" | "Qualitative defects: Abnormal function/morphology" ===ROW 1 - Three columns=== [COL 1 - Navy blue box] INDICATIONS • Fertility / Infertility assessment • Monitor varicocelectomy success • Monitor vasectomy success • Donor semen - artificial insemination • Medicolegal: rape cases → vaginal pool smear for sperm detection • ART selection: IVF, GIFT [COL 2 - Green box] SAMPLE COLLECTION Requirements: • Method: Masturbation • Ejaculatory abstinence: 2–7 days • Container: Clean, dry, wide-mouthed plastic or glass Avoid Condom Sample: • May contain spermicidal agents • Impairs sperm motility [COL 3 - Golden/amber box, bold border] NORMAL VALUES AT A GLANCE Volume: >1.4 mL pH: 7.2–8.0 (alkaline, >7.2) Liquefaction: Complete by 15 min, homogeneous by 30 min Motility: 42% (40–43%) motile → Rapidly Progressive: 29–31% (>5 head lengths/sec) → Slow Progressive: ~1% → Immotile: 54% (50–56%) Vitality: 54% (50–56%) live forms Total Sperm Count: >39 million/ejaculate Normal Morphology: >4% normal forms ===ROW 2 - PHYSICAL EXAMINATION (full width teal header, then 5 sub-boxes)=== [Sub-box 1 - pale blue] LIQUEFACTION Normal: Immediately after ejaculation → semisolid coagulated mass → begins liquefying within few minutes → complete liquefaction within 15 min → homogeneous watery by 30 min Abnormal: Failure to liquefy = inadequate prostate secretion [Sub-box 2 - pale blue] VISCOSITY Method: Aspirate into wide-bore pipette (~1.5 mm), allow drop by gravity Normal: Falls drop by drop Abnormal: Thread >2 cm long Significance: Increased viscosity ↓ sperm motility [Sub-box 3 - pale blue] APPEARANCE Normal fresh semen: Opaque, white-gray, viscid After liquefaction: Homogeneous gray-opalescent Color Table: Red-brown → RBCs (hemospermia) Yellow → Jaundice / vitamins / drugs Yellow hue → Pyospermia Rust → Small bleeding in seminal vesicle [Sub-box 4 - pale blue] VOLUME Normal: >1.4 mL Measurement: Weigh sample (density = 1 g/mL) Low volume causes: Ejaculatory duct obstruction | Congenital bilateral absence of vas deferens | Collection difficulty High volume cause: Active exudation - inflammatory lesions of accessory organs [Sub-box 5 - pale blue] pH Normal: Alkaline, 7.2–8.0 (>7.2) Measurement: After liquefaction, preferably after 30 min ===ROW 3 - MICROSCOPIC EXAMINATION (full width coral header, then 5 sub-boxes)=== [Sub-box 1 - pale orange] AGGREGATION vs AGGLUTINATION Aggregation (nonspecific): • Immotile sperms stick together • Motile sperms attach to mucus strands, debris, nonsperm cells Agglutination (specific): • Motile sperms stick to each other • Patterns: Head-to-head | Tail-to-tail | Mixed [Sub-box 2 - pale orange] CELLULAR ELEMENTS (non-sperm) • Epithelial cells from genitourinary tract • Round cells: Leukocytes, Immature germ cells [Sub-box 3 - pale orange] SPERM MOTILITY Importance: Cervical mucus penetration + fallopian tube migration Normal: 42% (40–43%) motile Method: Drop of liquefied semen on slide + coverslip WHO 2021 Categories: • Rapidly progressive: 29–31%, >5 head lengths/sec • Slow progressive: ~1% • Immotile: 54% (50–56%) [Sub-box 4 - pale orange] SPERM VITALITY Purpose: Determine if immotile sperms are alive or dead Normal: 54% (50–56%) live forms Based on: Intact cell membrane Important when: Progressive motility <40% Methods: Dye exclusion test | Hypotonic swelling test [Sub-box 5 - pale orange] TOTAL SPERM COUNT Method: Improved Neubauer chamber | Thoma pipette | Dilution 1:20 (same as TLC method) Normal: >39 million/ejaculate ===ROW 4 - Two columns=== [COL 1 - Light purple box] SPERM MORPHOLOGY Stain: Papanicolaou stain Normal parts: Head | Neck | Midpiece | Principal piece | Endpiece Practical view: Head + neck | Tail (midpiece + principal piece) Normal: >4% normal forms Requirement: BOTH head AND tail must be normal; otherwise = abnormal HEAD DEFECTS: Size: Large head, Small head Shape: Pointed, Tapered, Round, Pyriform, Amorphous Acrosomal: Vacuolated acrosomal region, Abnormal acrosomal area Number: Double-headed sperm NECK & MIDPIECE DEFECTS: Sharply bent neck | Asymmetrical midpiece insertion | Thick midpiece | Thin midpiece | Irregular midpiece TAIL (PRINCIPAL PIECE) DEFECTS: Short tail | Bent tail | Coiled tail | Double tail [COL 2 - Teal/cyan box] ANTISPERM ANTIBODIES (ASA) Cause: May produce sperm agglutination Types: IgA | IgG Present in: Semen | Seminal plasma | Blood serum | Cervical mucus DIRECT TESTS (detect antibodies ON sperm): 1. MAR Test - Mixed Antiglobulin Reaction test 2. Immunobead (IB) Test INDIRECT TESTS (detect ASA in sperm-free fluids): Performed on: Seminal plasma | Serum | Cervical mucus ===BOTTOM BANNER - Dark navy full-width box=== KEY DEFINITIONS: Aspermia = No semen | Azoospermia = No spermatozoa in ejaculate | Oligospermia = Sperm count below lower reference limit | Hemospermia = Red-brown semen (RBCs) | Pyospermia = Pus cells / yellow hue in semen | Agglutination = Motile sperms stick to each other | Aggregation = Immotile sperms stick to debris (nonspecific) All text must be clearly readable. Use tight compact layout. Include small sperm cell icon in corner. Every single detail from the source text must appear somewhere on this chart. Dense medical reference poster style.
