Invasive Arterial Blood Pressure (IABP) Monitoring

Definition and Principle

Invasive arterial blood pressure monitoring involves the placement of an intra-arterial catheter connected via fluid-filled, low-compliance tubing to an external strain-gauge transducer. The transducer converts mechanical pressure waves into electrical signals that are amplified and displayed as a continuous waveform on a monitor, with digital readouts for systolic, diastolic, and mean arterial pressure (MAP).

Morgan and Mikhail's Clinical Anesthesiology, 7e, p. 163
Schwartz's Principles of Surgery, 11e

Indications

Current or anticipated hypotension or wide blood pressure swings
End-organ disease requiring beat-to-beat blood pressure regulation
Need for repeated arterial blood gas (ABG) sampling or other blood analyses
Hemodynamic instability in critically ill patients

Contraindications

Smaller end arteries without collateral blood flow
Extremities with known or suspected vascular insufficiency

Arterial Sites for Cannulation

Site	Notes
Radial artery (most common)	Superficial, good collateral via ulnar artery and palmar arches; ~5% of patients have incomplete palmar arches
Ulnar artery	Deeper, more tortuous; avoid if ipsilateral radial artery has been punctured
Brachial artery	Large, close to aorta (less waveform distortion), but prone to kinking at elbow
Femoral artery	Excellent access; higher risk of atheroma, pseudoaneurysm, infection, and thrombosis
Axillary artery	Risk of nerve damage (axillary plexus); retrograde cerebral embolism possible; useful in burn patients
Dorsalis pedis / posterior tibial	Most distal; highest waveform distortion

Peripheral vs. central pressure: Systolic pressure is higher and diastolic is lower in peripheral arteries compared to the aorta, but MAP is approximately the same.

Allen Test and Collateral Flow Assessment

Before radial artery cannulation, collateral flow should be confirmed:

Modified Allen test: Compress radial and ulnar arteries while the patient makes a fist. Release ulnar pressure - normal flushing of the thumb within 5 seconds confirms adequate collateral flow. >10 seconds indicates poor collateral circulation.
Limitation: The Allen test is of questionable reliability; many practitioners prefer Doppler probe, plethysmography, or pulse oximetry over the radial artery occlusion, which do not require patient cooperation.

Radial Artery Cannulation Technique

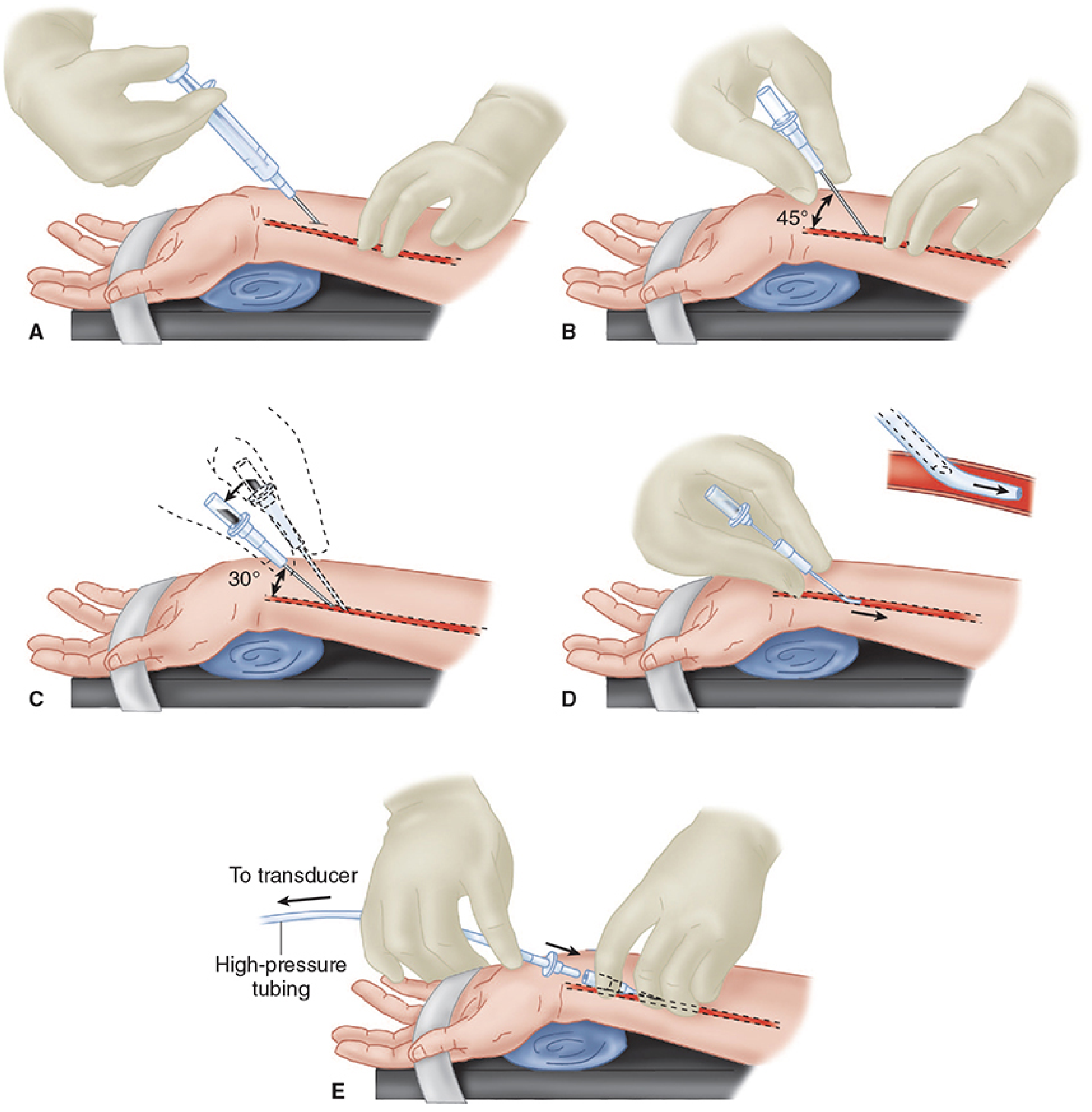

Steps: (A) Supinate and extend wrist; palpate radial pulse; prep skin and infiltrate lidocaine. (B) Insert 20- or 22-gauge catheter at 45° angle. (C) On blood flashback, lower to 30° and advance 1-2 mm to confirm intraluminal position. (D) Advance catheter over needle; withdraw needle. (E) Apply proximal pressure to prevent blood loss; connect high-pressure tubing to transducer.

The Catheter-Tubing-Transducer System

Frequency Response and Damping

The arterial pulse waveform is a complex signal with a natural frequency of approximately 16-24 Hz
The measuring system's natural frequency must exceed the pulse frequency for accurate reproduction
Disposable transducers have frequencies >200 Hz, but tubing, stopcocks, and air bubbles all lower this
The optimal damping coefficient (β) is 0.6 to 0.7

System State	Systolic	Diastolic	MAP
Underdamped	Overestimated (overshoot)	Underestimated	Accurate
Overdamped	Underestimated	Overestimated	Accurate
Optimal	Accurate	Accurate	Accurate

Key clinical point: Even in poorly damped systems, MAP remains accurately measured as long as the system is properly calibrated. Clinical decisions should be based on MAP.

To optimize the system: minimize tubing length, eliminate unnecessary stopcocks, remove air bubbles, and use low-compliance tubing.

Transducer Mechanism

The transducer diaphragm is distorted by pressure waves, converting mechanical energy into electrical signal. Sensing elements are arranged as a Wheatstone bridge circuit - stretching a wire or silicone crystal changes its electrical resistance, and the resulting voltage differential is proportional to the applied pressure.

Waveform Interpretation

The arterial waveform is the summation of forward-traveling waves (from the LV) and reflected waves from the periphery:

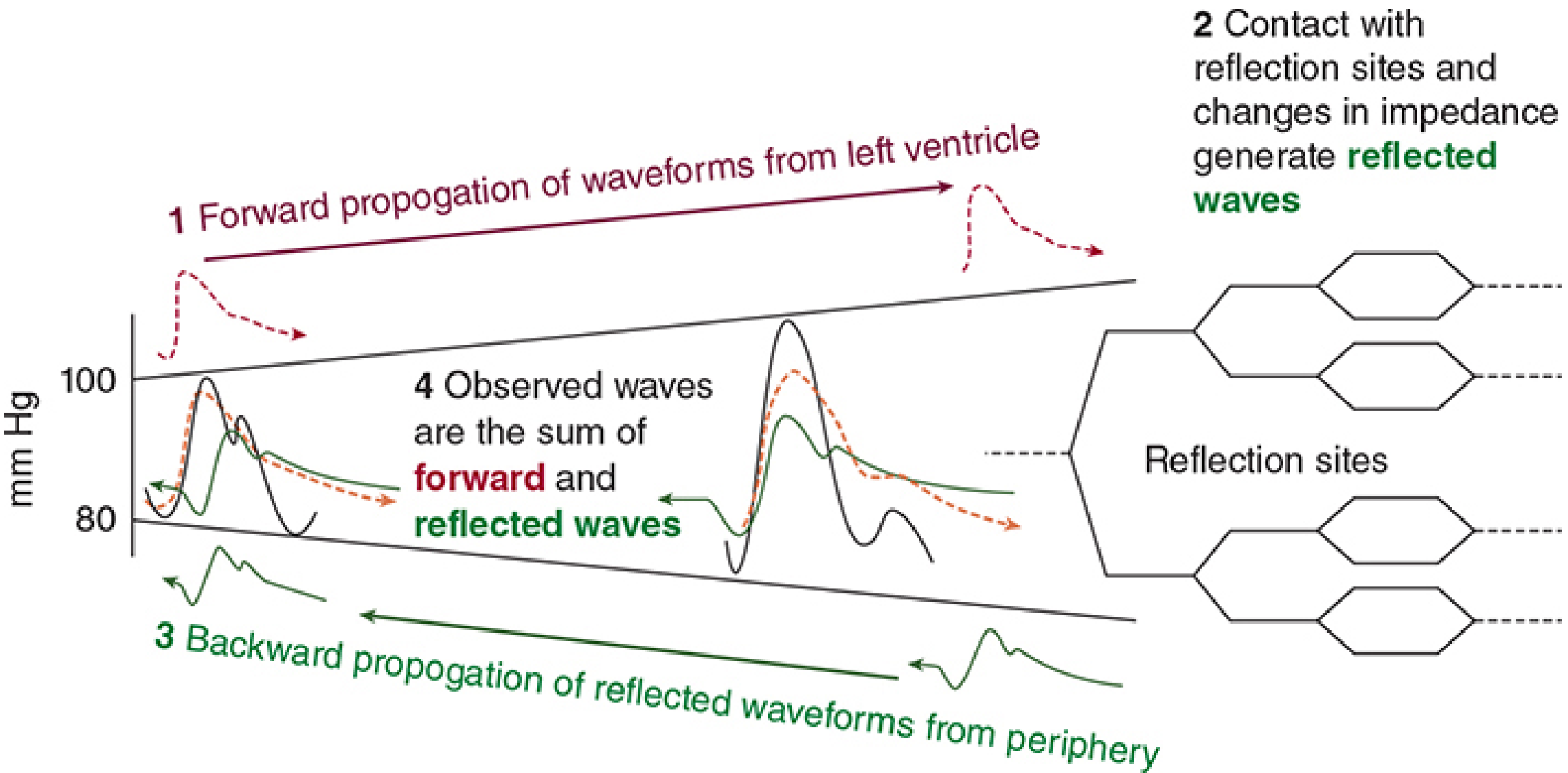

Arterial waveform - forward and reflected wave summation

Clinically useful waveform features:

Feature	Clinical Significance
Rate of upstroke	Reflects myocardial contractility
Rate of downstroke	Reflects peripheral vascular resistance
Exaggerated respiratory variation in pulse pressure	Suggests hypovolemia or excessive tidal volumes
Pulse pressure increases toward periphery	Normal physiological phenomenon (mean pressure decreases)

Zeroing and Calibration

Open a stopcock at the level of the desired measurement point (usually the midaxillary line) to atmosphere, then activate the zero trigger
If the table is repositioned, the transducer must be moved in tandem or re-zeroed
In seated patients (e.g., craniotomy), zero at the level of the ear (circle of Willis) to reflect cerebral perfusion pressure
Re-zero regularly as transducer readings can drift

Complications

Complication	Notes
Hematoma	Most common
Arterial thrombosis	Increased with large catheters, prolonged cannulation; minimize with 20-gauge or smaller
Distal ischemia / digit necrosis	Ensure adequate collateral flow pre-insertion
Retrograde embolization (air/thrombi)	Avoid flushing when air is present; especially risky at axillary site
Pseudoaneurysm	More common at femoral site
Infection	Higher at femoral site
Nerve damage	Risk at axillary site (axillary plexus)
Bleeding / disconnection	Continuous waveform monitoring helps detect
Unintentional intraarterial drug injection	Risk if line is confused for IV

Factors increasing complication risk: prolonged cannulation, repeated insertion attempts, extracorporeal circulation, large catheters in small vessels, vasopressors, and hyperlipidemia.

Additional Utility

Continuous ABG access without repeated punctures
Cardiac output estimation via arterial waveform analysis (pulse contour/pulse power methods)
Beat-to-beat assessment of fluid responsiveness (stroke volume variation, pulse pressure variation)

Sources: Morgan and Mikhail's Clinical Anesthesiology, 7e (pp. 163-169) | Schwartz's Principles of Surgery, 11e

Roman Urdu ma bh samjao Sath Sath he aur difficult word kki bh definition roman Urdu ma he

Invasive Arterial Blood Pressure (IABP) Monitoring

Roman Urdu Mein Mukammal Wazahat

Tareef aur Buniyadi Usool

(Definition and Basic Principle)

Invasive arterial blood pressure monitoring (seedha khoon ki nali mein daal kar blood pressure naapna) ek aisi technique hai jisme ek intra-arterial catheter (khoon ki nali ke andar daali jaane wali patli nali) lagayi jati hai. Yeh catheter fluid-filled tubing ke zariye ek strain-gauge transducer (pressure ko bijli ke signal mein badalne wala آlat) se juri hoti hai.

Transducer pressure waves ko electrical signals mein convert karta hai, jo monitor par ek continuous waveform (musalsal lahar jaisi tasveer) ke roop mein dikhti hai — saath mein systolic, diastolic, aur MAP (Mean Arterial Pressure) (ausat sharaani dabao) ke digital numbers bhi.

Indications (Zaroorat kab hoti hai?)

Hypotension (blood pressure ka bohat zyada girna) ya iske andeshay mein
Blood pressure mein achanak bohat zyada upar-neechay hona
End-organ disease (dil, gurday, dimagh jaisi zaruri azao ki bimari) jisme har dhadkan par BP control zaroori ho
Baar baar ABG (Arterial Blood Gas) (khoon mein oxygen aur CO2 ka test) lene ki zaroorat ho
ICU mein critically ill (bohat zyada beemar) marizo mein

Contraindications (Kab nahi lagana chahiye?)

Woh arteries (khoon ki naliyan) jo choti hon aur jinka koi collateral blood flow (alternative rasta jisse khoon aata ho) na ho
Jis haath ya paon mein pehle se vascular insufficiency (khoon ki naliyon ki kamzori ya blockage) ho

Arterial Sites (Kahan kahan laga sakte hain?)

Site	Roman Urdu Notes
Radial artery (kalai)	Sab se zyada use hoti hai; upar se saaf dikh ti hai; collateral flow (alternative khoon ka rasta) ulnar artery se milta hai
Ulnar artery (kalai ka doosra hissa)	Gehra aur tedha rasta; agar radial fail ho jaaye tab bhi is taraf nahi jaana chahiye
Brachial artery (kohni ke paas)	Bari nali; aorta ke qareeb hone se waveform (lahar) achi milti hai; kohni par bend hone se kink *(band) hone ka khatra
Femoral artery (ran ki nali)	Asaani se milti hai; magar infection aur thrombosis (khoon ka jamna) ka risk zyada
Axillary artery (bagal ki nali)	Nerve damage (nerve ki takleef) ka khatra; jale hue mariz mein use hoti hai
Dorsalis pedis / Posterior tibial (paon)	Sab se door; waveform (lahar) sabse zyada distorted (bigri hui) hoti hai

Yaad rakho: Peripheral arteries (dorr ki naliyon) mein systolic pressure aorta se zyada hoti hai, diastolic kam hoti hai — lekin MAP (ausat dabao) dono jagah approximately barabar rehta hai.

Allen Test (Collateral Flow Check)

Radial artery mein catheter daalne se pehle yeh test karo:

Mareed apna haath band kare (mutthi) — khoon nikaal bahar
Aap dono arteries (radial aur ulnar) ko angliyon se dabaao
Haath khulwaao — haath safed ho jayega
Ulnar artery par se pressure hatao
Agar 5 seconds mein angootha laal ho jaye — collateral flow theek hai ✓
10 seconds se zyada lage — collateral flow poori nahi — test negative ✗

Important: Allen test zyada reliable nahi hai. Behtar hai Doppler probe (sound waves se khoon ka flow check karna), pulse oximetry (oxygen level sensor), ya plethysmography (khoon ke volume ki measurement) use karo — inhe mareez ki cooperation bhi nahi chahiye.

Radial Artery Cannulation Technique (Tareeqa)

Step by Step:

(A) Kalai ko seedha aur peeche ki taraf extend (kheencho) karo. Radial pulse (nabz) palpo karo. Skin saaf karo, lidocaine (dard khatam karne ki dawa) inject karo
(B) 20- ya 22-gauge catheter ko 45° angle par skin mein daalo
(C) Jab blood flashback (catheter mein khoon aaye) dikhe — angle 30° par lao aur 1-2 mm aur andar daalo taake catheter nali ke andar poori tarah ho
(D) Catheter ko needle ke upar se nali mein aage push karo; needle nikaalo
(E) Proximal *(upar wali) jagah par pressure rakho taake khoon na nikle; high-pressure tubing (mazboot nali) transducer se connect karo

Catheter-Tubing-Transducer System (Poora Setup)

Frequency Response aur Damping (Signal ki Quality)

Natural frequency (qudrati tarddud) — system ki apni vibration speed. Arterial pulse ki frequency 16-24 Hz hoti hai. System ka natural frequency is se zyada hona chahiye warna signal bigad jaata hai.

Damping (signal ka dheema hona) — Optimal damping coefficient (behtar hone ka andaza) 0.6 se 0.7 hona chahiye.

System ki Halat	Systolic	Diastolic	MAP
Underdamped (zyada bounce)	Galat zyada (overestimated)	Galat kam (underestimated)	Sahi ✓
Overdamped (zyada manda)	Galat kam (underestimated)	Galat zyada (overestimated)	Sahi ✓
Optimal (bilkul theek)	Sahi ✓	Sahi ✓	Sahi ✓

Sabse ahem baat: Chahe system underdamped ho ya overdamped — MAP har haal mein sahi aata hai (jab tak calibration theek ho). Isliye clinical decisions MAP par karo, na sirf systolic par.

System behtar banane ke liye:

Tubing (nali) ki lambai kam karo
Faaltu stopcocks (band/khulne wale valves) hatao
Air bubbles (hawa ke bulbule) bilkul nahi hone chahiye
Low-compliance tubing (sakht, kam kheenchne wali nali) use karo

Transducer ka Kaam (Kaise Kaam Karta Hai?)

Transducer ke andar ek diaphragm (patli jhilli) hoti hai jo pressure se hilti hai. Yeh hilna Wheatstone bridge circuit (ek khaas bijli ka circuit jo pressure measure karta hai) ke zariye voltage (bijli ka dabao) mein badal jaata hai — jitna zyada pressure, utna zyada voltage signal.

Waveform Interpretation (Lahar ko Samajhna)

Arterial waveform do cheezon ka jod hai:

Forward waves (seedhi lehrein) — LV (left ventricle / dil ka baayaan kamra) se aane wali
Reflected waves (wapas aane wali lehrein) — periphery (door ke hisson) se palat kar aane wali

Arterial waveform - forward and reflected waves

Waveform ki Khasiyat	Kya Batata Hai?
Upstroke ki speed (upar jaane ki tezi)	Dil ki contractility (dhadhakne ki taaqat)
Downstroke ki speed (neechay aane ki tezi)	Peripheral vascular resistance (door ki naliyon mein resistance/rukawat)
Saans ke saath zyada upar-neechay hona	Hypovolemia (khoon/pani ki kami) ya zyada bari saans (tidal volume)
Pulse pressure (systolic minus diastolic) periphery mein zyada	Yeh normal hai — mean pressure wahan thoda kam hota hai

Zeroing aur Calibration (Sifar par Laana)

Transducer ko midaxillary line (baazu ke beech ki line) ke level par rakho — stopcock kholo aur zero trigger dabao
Agar table upar neechay ho — transducer bhi saath mein hilao ya dubara zero karo
Baithe hue mareed mein (maslan brain surgery) — transducer ko kaan ke level par zero karo — yeh circle of Willis (dimagh ki khoon ki naliyon ka gol chakkar) ke barabar hai
Waqt ke saath drift (readings ka khud ba khud badalna) ho sakta hai — isliye baar baar zero verify karo

Complications (Kya Masaail Aa Sakte Hain?)

Masla	Roman Urdu Wazahat
Hematoma (khoon ka jama hua dhair)	Sab se aam masla
Arterial thrombosis (nali mein khoon ka jamna)	Badi catheter ya zyada waqt tak lagay rakhne se
Distal ischemia (aage ke hisson mein khoon na pahunchna)	Haath ya ungliyan kaali pad sakti hain
Retrograde embolization (hawa ya khoon ka chhota tukda wapas dimagh ki taraf jaana)	Hawa hone par flush mat karo
Pseudoaneurysm (nakli gilthi — nali ki dewar mein sourag)	Femoral site par zyada
Infection (jrasoomat)	Femoral site par zyada khatra
Nerve damage (nerve ko nuqsan)	Axillary site par zyada
Accidental intra-arterial drug injection (galti se nali mein dawa)	Line ko IV samajh lene par

Khatra zyada in mareezon mein:

Zyada waqt tak catheter laga rahe
Baar baar try kiya jaaye
Bari catheter choti nali mein
Vasopressors (blood pressure barhane wali dawaen) use ho rahi hon
Hyperlipidemia (khoon mein zyada charbi) ho

Fayde (Extra Clinical Uses)

Baar baar ABG lena bina needle chubhaye
Cardiac output (dil kitna khoon pump karta hai) ka andaza waveform se lagana
Pulse pressure variation / Stroke volume variation (saans ke saath khoon ke waali mein farq) dekh kar fluid responsiveness (pani dene se faida hoga ya nahi) janchhna — ICU mein bohat kaam aata hai

Summary ek line mein: Invasive arterial BP monitoring ICU aur OT mein sab se reliable, continuous, beat-to-beat blood pressure monitor hai — radial artery sab se zyada use hoti hai, MAP sab se bharosemand reading hai, aur transducer ko sahi level par zero karna sab se zaroori step hai.

Sources: Morgan & Mikhail's Clinical Anesthesiology, 7e | Schwartz's Principles of Surgery, 11e


Isko samjao aur related cheezen bh batana aur important exam tips bh aur phely English ma phr roman Urdu phr difficult words ki definition thk hai

analyse_media

Finding Sources

Reading File

Ab mere paas saari zaruri malumat hai. Chalo poora jawab likhte hain:

Arterial Catheterization Techniques

(Khoon Ki Nali Mein Catheter Daalne ke Tarikey)

PART 1 — ENGLISH EXPLANATION

1. Catheter-Over-Wire Technique

(Primary / Main Approach)

This is the main method used for arterial catheterization. It has two sub-types:

A. Seldinger Technique

Uses separate, individual components one by one:

Step	Action
1	Insert needle into the artery
2	Pass guidewire through the needle's hub into the artery
3	Remove the needle, leaving the guidewire in place
4	Slide the catheter over the guidewire into the artery
5	Remove the guidewire; catheter stays in artery

Best for central vessels (deeper arteries like femoral, axillary) that run deep into the body
All components (needle, guidewire, catheter) are separate items

B. Modified Seldinger Technique

Uses an integrated needle-catheter-wire system — everything is combined in one device:

Step	Action
1	Insert introducer needle (which already has a fine catheter over it)
2	Remove the introducer needle
3	Push the fine catheter forward
4	Pass the guidewire through the fine catheter
5	Remove the fine catheter
6	Slide the final arterial catheter over the guidewire

More streamlined because the needle and catheter are pre-assembled
Reduces the number of loose components

2. Catheter-Over-Needle Technique

This is similar to how a regular IV cannula (drip) is inserted in peripheral veins:

Step	Action
1	Localize the artery by palpation or ultrasound
2	Directly puncture the artery with catheter-over-needle device at 30-45°
3	Blood flashback seen in needle hub = artery confirmed
4	Lower angle to 30°, advance 2 mm to ensure tip is inside lumen
5	Slide catheter forward over the needle into the artery
6	Remove needle; attach pressure tubing

Most effective for superficial arteries — especially the radial artery at the wrist
Simple, fast, no guidewire needed
Same concept as inserting a standard IV cannula

3. Arterial Cutdown

A surgical procedure where the artery is physically cut open and exposed:

Skin and subcutaneous tissue are incised to visually expose the artery
Two vessel loops (sutures) are passed under the artery to control and stabilize it
Then the artery is directly cannulated under direct vision
Strongly discouraged - only a last resort when all other methods have failed
Must only be done by trained physicians/surgeons
Most commonly demonstrated at the brachial artery in the antecubital fossa (inner elbow)
Risk of damage to nearby structures: median nerve, brachial vein, ulnar nerve

Comparison Table: All Three Techniques

Feature	Seldinger	Modified Seldinger	Catheter-over-Needle	Arterial Cutdown
Components	Separate	Integrated (one unit)	Single device	Surgical kit
Guidewire used?	Yes	Yes	No	No
Best for	Deep vessels	Deep vessels	Superficial (radial)	Last resort only
Complexity	Moderate	Moderate	Simple	Most complex
Training needed	Moderate	Moderate	Basic	Advanced surgical
Speed	Moderate	Moderate	Fastest	Slowest

Related Important Concepts

Ultrasound Guidance

Now the preferred method for artery localization
Reduces failed attempts and complications
Can be used with any of the above techniques

Why Guidewire Technique is Superior

Studies show guidewire-directed (Seldinger) techniques have higher overall success rates than direct over-the-needle cannulation
Especially useful when direct cannulation has already failed - Modified Seldinger can "rescue" a failed attempt

Arterial Cutdown Anatomy (from diagram)

The diagram shows brachial artery cutdown at the antecubital fossa with 4 panels:

Panel A: Surface anatomy showing brachial artery path in the arm
Panel B: After skin incision - brachial artery and median nerve exposed
Panel C: Vessel loops placed under brachial artery (also showing brachial vein and ulnar nerve)
Panel D: Artery fully elevated and ready for direct cannulation

⭐ EXAM TIPS

"Primary approach" = Catheter-over-wire technique - this is the standard/default method
Seldinger = SEPARATE components; Modified Seldinger = INTEGRATED system - this distinction is a common MCQ trap
Catheter-over-needle = best for radial artery (superficial) - same principle as a peripheral IV
Arterial cutdown = last resort only - if MCQ says "all else has failed" or "last resort" → answer is cutdown
Seldinger technique order: Needle → Guidewire → Remove needle → Catheter over wire → Remove wire
Modified Seldinger order: Needle+fine catheter → Remove needle → Push fine catheter → Guidewire → Remove fine catheter → Arterial catheter
Cutdown = surgeon only - if MCQ asks who performs it → physician with adequate/surgical training
Guidewire success rates > direct cannulation (Roberts & Hedges)
Never force a catheter - if it doesn't thread easily, it's not in the lumen
Ultrasound = preferred guidance for difficult arterial access

PART 2 — ROMAN URDU WAZAHAT

1. Catheter-Over-Wire Technique

(Taar ke Upar Catheter Daalney ka Tareeqa)

Yeh arterial catheterization ka sabse pehla aur aam tareeqa hai. Iske do qism hain:

A. Seldinger Technique

Isme sab cheezein alag alag istemal hoti hain, ek ke baad ek:

Qadam	Kya Karo
1	Needle ko artery mein daalo
2	Needle ke andar se guidewire (patla taar) artery mein dhakailo
3	Needle nikaalo — taar andar rehta hai
4	Catheter (patli nali) ko taar ke upar se nali mein dhakailo
5	Taar nikaalo — catheter artery mein reh jaata hai ✓

Central vessels (gehra wali badi naliyan — jaise femoral, axillary) ke liye best hai
Har cheez alag alag hoti hai

B. Modified Seldinger Technique

Isme sab kuch ek hi device mein hota hai:

Qadam	Kya Karo
1	Introducer needle (shuru karne wali sui) daalo — iske upar already ek fine catheter (bohat patli nali) hoti hai
2	Needle nikaalo
3	Fine catheter aage badhao
4	Guidewire (taar) fine catheter ke zariye andar bhejo
5	Fine catheter nikaalo
6	Asli badi arterial catheter taar ke upar se andar daalo

Sab ek saath integrated (juda hua) hota hai
Loose cheezein kam hoti hain

2. Catheter-Over-Needle Technique

(Needle ke Upar Catheter Wala Tareeqa)

Yeh bilkul normal drip lagane jaisa hai — jaise hospital mein haath mein pani ki nali lagate hain:

Qadam	Kya Karo
1	Artery dhoondhon — hath se ya ultrasound (sound waves wala machine) se
2	Catheter-over-needle device ko 30-45 degree angle par skin mein ghusao
3	Needle ke sar mein khoon aaye (blood flashback) = artery confirm
4	Angle 30° karo aur 2mm aur andar jao
5	Catheter ko needle ke upar se artery mein aage dhakailo
6	Needle nikaalo; tubing lagao

Radial artery (kalai ki nali — jo upar se saaf dikh ti hai) ke liye sab se best
Koi taar nahi chahiye — seedha simple
Agar catheter aasaani se nahi jaata — zorr mat karo — matlab andar sahi nahi hai

3. Arterial Cutdown

(Surgery Karke Nali Kholna)

Yeh ek surgical procedure (operation wala tareeqa) hai jisme artery ko physically kaat kar khola jaata hai:

Skin aur neechay ki tissue kaati jaati hai taake artery aankh se dikh sake
Artery ke neechay se do vessel loops (suture ki loop — artery ko pakarne ke liye) daalay jaate hain
Artery ko upar uthaaya jaata hai, phir seedha nazar ke saamne catheter daalte hain
Bohat discouraged hai — sirf tab karo jab koi aur tareeqa kaam na kare (last resort)
Sirf trained surgeon/doctor hi kar sakta hai
Brachial artery (kohni ke andar wali nali) par aksar dikhaya jaata hai
Khatre: median nerve (ek nerve), brachial vein (nali ke paas khoon ki ragein), ulnar nerve (doosri nerve) ko nuqsan ho sakta hai

Teeno Ka Comparison (Farq Samajhna)

Cheez	Seldinger	Modified Seldinger	Catheter-over-Needle	Cutdown
Parts	Alag alag	Sab ek mein	Ek hi piece	Surgical set
Taar (guidewire)?	Haan	Haan	Nahi	Nahi
Kis ke liye best	Gehra nali	Gehra nali	Kalai (radial)	Aakhri chaara
Mushkil?	Darmiyaana	Darmiyaana	Aasaan	Sabse mushkil
Teez?	Darmiyaana	Darmiyaana	Sabse teez	Sabse slow

⭐ EXAM TIPS — Roman Urdu Mein

"Primary approach" = Catheter-over-wire — yeh standard tareeqa hai, yaad rakho
Seldinger = ALAG parts; Modified Seldinger = INTEGRATED (juda hua) ek system — MCQ mein yahi farq poochhte hain
Catheter-over-needle = radial artery ke liye best — wajah: yeh superficial (upar se dikh ti) hai
Cutdown = SIRF last resort — MCQ mein "jab sab fail ho jaaye" → answer = cutdown
Seldinger ka order yaad karo: Needle → Taar andar → Needle bahar → Catheter taar par → Taar bahar
Modified Seldinger ka order: Needle+thin catheter → Needle bahar → Thin catheter aage → Taar andar → Thin catheter bahar → Badi catheter
Cutdown = sirf surgeon — MCQ mein "kaun karta hai" → trained physician/surgeon
Taar (guidewire) wala tareeqa seedha needle wale se zyada successful hota hai
Catheter nahi ghus raha → zorr mat karo — matlab nali ke andar sahi nahi
Ultrasound = mushkil access mein preferred tareeqa

PART 3 — DIFFICULT WORDS KI DEFINITIONS

(Roman Urdu Mein)

Mushkil Lafz	Roman Urdu Definition
Catheterization	Khoon ki nali ya kisi nali mein patli tube (catheter) daalne ka amal
Arterial	Artery se mutalliq — artery woh nali hai jisme dil se saaf khoon jaata hai
Catheter	Ek patli, lachkili nali jo khoon ki nali, masaana, ya kisi aur jagah mein daali jaati hai
Guidewire	Ek bohat patla, lachkila taar jiske upar catheter daala jaata hai — raasta guide karta hai
Seldinger	Ek Swedish doctor ka naam jisne yeh technique 1953 mein ijaad ki — taar ke zariye catheter daalna
Integrated	Sab kuch ek hi cheez mein milaya hua — alag alag nahi
Introducer needle	Woh pehli sui jo shuru mein artery mein daali jaati hai — raasta kholne ke liye
Superficial	Jild (skin) ke qareeb — upar wala — asaani se nazar aane wala
Surgical procedure	Operation wala kaam — surgeon karta hai — skin kaatna padta hai
Last resort	Aakhri chaara — tab karo jab koi aur kaam na kare
Arterial cutdown	Surgery karke artery ko ankhon ke saamne expose (kholna) karna — phir catheter daalna
Vessel loops	Suture ya loop jo artery ke neechay daali jaati hai — artery ko pakarne aur control karne ke liye
Antecubital fossa	Kohni ke andar wali jagah — jahan aap BP cuff lagate hain — brachial artery yahan hoti hai
Median nerve	Haath ki ek ahem nerve jo antecubital fossa mein hoti hai — cutdown mein isko nuqsan hone ka khatra
Brachial artery	Baazu ki badi artery jo kohni ke paas se guzarti hai
Cannulation	Kisi nali (artery/vein) mein catheter daalne ka amal
Lumen	Nali ke andar ka khali hissa — jahan se khoon guzarta hai
Blood flashback	Jab needle sahi jagah (artery/vein mein) jaaye to khoon needle ke sar mein aata hai — confirm karti hai
Proximal	Dil ki taraf — jism ke markaz ki taraf
Distal	Door wala hissa — haath, paon ki taraf
Peripheral	Jism ke kinaray wala — door ki naliyan
Percutaneous	Skin ke zariye — bina kaat ke — seedha skin mein se ghusana

Sources: Roberts & Hedges' Clinical Procedures in Emergency Medicine | Morgan & Mikhail's Clinical Anesthesiology, 7e | Tintinalli's Emergency Medicine


Ye bh same aise he samja do jiase phely waly samjain hain

analyse_media

Finding Sources

Reading File

Finding Sources

Ab mere paas saari zaruri details hain. Poora jawab likhte hain:

Basic Principle, Catheter-Tubing Transducer System & Zeroing

(Buniyadi Usool, Setup aur Zero Karna)

PART 1 — ENGLISH EXPLANATION

Slide 1: Basic Principle

How Does the Whole System Work?

The core idea is a signal conversion chain — pressure → fluid → electrical signal → visual display:

Artery (pressure wave)
        ↓
Fluid column in tubing
        ↓
Pressure Transducer (converts pressure → electrical signal)
        ↓
Microprocessor (processes, amplifies)
        ↓
Monitor (visual waveform + numbers)

Step by step:

The heart beats → creates a pressure waveform (a wave of pressure) in the artery
This pressure wave travels through the fluid inside the tubing (fluid is incompressible, so it transmits the wave perfectly)
The fluid pushes against the transducer diaphragm (a thin membrane inside the transducer)
The transducer converts this mechanical pressure into an electrical signal
The microprocessor processes and amplifies (makes stronger) this signal
The monitor displays a visual waveform + digital numbers for systolic, diastolic, and MAP

Two things that determine accuracy:

Factor	Why it matters
Transducer's precise positioning	If placed too high or too low, readings will be wrong (gravity affects fluid pressure)
System's effective dampening	Controls how faithfully the wave is reproduced — too much or too little dampening = false readings

Slide 2: Catheter-Tubing Transducer System

The Complete Setup — Components from Left to Right:

![Full arterial line setup diagram]

Component	What it is	Function
Catheter	Thin tube inside patient's artery	Senses arterial pressure directly
Stopcock	3-way valve with a lever	Controls fluid flow; used to draw blood samples (ABG)
High-pressure tubing	Thick, rigid, non-stretchy tubing	Transmits pressure waves without absorbing or distorting them
Dome	Clear plastic fluid-filled chamber	Sits on top of transducer; fluid-filled interface between tubing and sensor
Transducer	Cylindrical sensor device	Converts pressure → electrical signal (Wheatstone bridge inside)
Flush pigtail	Small pull-tab on the dome	Used to flush the system with saline to clear air/blood clots
To pressurized flush solution	Tube going down to saline bag	Keeps fluid flowing at ~3 mL/hr to prevent catheter clotting
To monitor	Electrical cable	Carries electrical signal from transducer to bedside monitor

Why must tubing be HIGH-pressure and non-compressible?

Regular soft IV tubing would absorb the pressure wave instead of transmitting it
This would cause overdamping → falsely low systolic, falsely high diastolic
Rigid tubing faithfully transmits every pressure change

Why is the pressure bag needed?

A pressure bag inflated to 300 mmHg surrounds the saline bag
This maintains a constant slow flush (~3 mL/hr) through the catheter
Prevents blood from backing up into the tubing and clotting the catheter

Slide 3: Zeroing the Stopcock for Lying Down (Supine) Position

What is "Zeroing"?

Zeroing means telling the monitor: "This is zero pressure (atmospheric pressure)" — so all readings are relative to this reference point.

If you don't zero correctly, every reading will be shifted up or down by the error.

The Phlebostatic Axis — Your Reference Point

The phlebostatic axis is the anatomical reference point that represents the level of the right atrium (the heart's right upper chamber):

Location: Intersection of the 4th intercostal space (4th rib gap) and the mid-axillary line (midpoint of the armpit line) on the side of the chest

This point is used because blood pressure is measured relative to the heart — not relative to the floor or the bed.

How to Zero Correctly (Supine Patient):

Place the air-fluid interface (the zeroing stopcock port) at the exact level of the phlebostatic axis
Use a Carpenter's level (a bubble-level tool) to confirm they are perfectly horizontal
Open the stopcock to atmosphere (air)
Press the "zero" button on the monitor

What Happens if Transducer is in Wrong Position?

Error	Effect on Reading
Transducer too LOW (below heart level)	Reads falsely HIGH (extra fluid column weight adds to reading)
Transducer too HIGH (above heart level)	Reads falsely LOW (fluid column weight subtracts from reading)
Rule: Every 1 cm error = ~0.74 mmHg error

The Complete System Diagram (Bottom Panel):

The full setup from top to bottom:

Pressure bag (300 mmHg, on IV pole) → keeps flush flowing
→ Pressure transducer + flushing system (mounted on IV pole bracket)
→ Colour-coded non-compressible tubing (rigid, colour-coded so you don't confuse it with IV lines)
→ Sample port (red stopcock — for drawing ABG blood)
→ Arterial line catheter (in patient's radial artery at wrist)
Transducer → cable → Monitor (shows waveform on screen)

⭐ EXAM TIPS

Signal path order (very common MCQ): Artery → Fluid → Transducer → Electrical signal → Microprocessor → Monitor display
Accuracy depends on TWO things: Transducer position + Effective dampening
Phlebostatic axis = 4th ICS + mid-axillary line = level of right atrium — memorize this exactly
Zeroing is always at phlebostatic axis for supine patients
Transducer too low = falsely HIGH reading; transducer too high = falsely LOW reading
High-pressure tubing = non-compressible — regular soft tubing causes overdamping
Pressure bag inflated to 300 mmHg — maintains ~3 mL/hr slow flush
Stopcock = used for blood sampling (ABG) — NOT for changing pressure settings
Overdamping causes: underestimated systolic + overestimated diastolic (but MAP stays correct)
Underdamping causes: overestimated systolic + underestimated diastolic (but MAP stays correct)
MAP is always accurate regardless of damping — use MAP for clinical decisions
Air bubbles in tubing → overdamping → must be removed immediately
Flush pigtail = clears air/blood from dome — pull briefly, not continuously

PART 2 — ROMAN URDU WAZAHAT

Slide 1: Buniyadi Usool (Basic Principle)

Poora System Kaise Kaam Karta Hai?

Seedhi baat — yeh ek signal ka safar hai pressure se picture tak:

Artery (dil ki dhadkan se pressure)
        ↓
Tubing mein fluid (pani ka column)
        ↓
Transducer (pressure ko bijli ke signal mein badalta hai)
        ↓
Microprocessor (signal ko process aur amplify karta hai)
        ↓
Monitor (screen par waveform aur numbers)

Qadam ba qadam:

Dil dhadhakta hai → artery mein ek pressure wave (dabao ki lahar) banti hai
Yeh lahar tubing ke andar fluid (pani) ke zariye aage chalti hai — pani press nahi hota, isliye wave seedhi pahunchti hai
Pani transducer diaphragm (patli jhilli) ko dhaka deta hai
Transducer yeh mechanical dabao ko electrical signal (bijli ka ishara) mein badal deta hai
Microprocessor (chhota computer) is signal ko process karke mazboot banata hai
Monitor par visual waveform (lahron ki tasveer) + systolic, diastolic, MAP ke numbers dikhte hain

Sahi reading ke liye 2 cheezein zaruri hain:

Cheez	Kyun Zaroori?
Transducer ki sahi jagah (precise positioning)	Agar upar ya neechay ho to reading galat aayegi
System ka sahi dampening	Wave theek se pohnche — zyada ya kam dampening = galat reading

Slide 2: Catheter-Tubing Transducer System (Poora Setup)

Left se Right — Har Part ka Kaam:

Part	Kya Hai	Kya Kaam Karta Hai
Catheter	Artery ke andar patli nali	Seedha artery ka pressure feel karta hai
Stopcock	Teen rasta wala valve (band/khulne wala)	Fluid control karta hai; khoon (ABG) nikalne ke liye use hota hai
High-pressure tubing	Mota, sakht, kam kheenchne wali nali	Pressure wave ko bina bigaade aage pahunchata hai
Dome	Saaf plastic ka fluid-bhra gumbad	Transducer ke upar baithta hai; fluid aur sensor ke beech ka waasta
Transducer	Sensor wala cylindrical (gol) aala	Pressure → Bijli ka signal banata hai
Flush pigtail	Dome par chota pull-tab	System ko saline se saaf karne ke liye — hawa ya khoon ki gaath hatata hai
To pressurized flush solution	Saline bag wali nali	Lagatar thodi thodi saline aati rehti hai — nali band na ho
To monitor	Bijli ki taar	Transducer se signal monitor tak pahunchati hai

High-pressure tubing kyun zaruri hai?

Aam naram IV nali pressure wave ko absorb (choos) kar leti hai
Isse overdamping (zyada manda hona) hota hai → systolic galat kam, diastolic galat zyada
Sakht nali wave ko seedha aur bina bigarey pahunchati hai

Pressure bag kyun lagaate hain?

Pressure bag ko 300 mmHg tak inflate (phula) karte hain
Isse saline lagatar ~3 mL/hr ki raftaar se catheter mein jaata rehta hai
Isse catheter mein khoon wapas nahi aata aur clot (gaath) nahi banti

Slide 3: Zeroing (Sifar par Laana) — Leyte hue Mareed ke liye

Zeroing kya hoti hai?

Zeroing matlab monitor ko batana: "Yeh hai zero pressure" — taake baad ki saari readings is base se naapi jayein.

Agar zeroing sahi nahi — har reading upar ya neechay shift ho jaayegi — galat treatment ho sakta hai!

Phlebostatic Axis — Reference Point

Phlebostatic axis woh jagah hai jo right atrium (dil ka daaya upar wala kamra) ki level daraazti hai:

Jagah: Chaathi ki 4th intercostal space (chautha ribs ka darmiyana fark) aur mid-axillary line (bagal ki bich wali line) ka mila hua muqam

Hum isi jagah use karte hain kyunki BP hamesha dil ki level par naapna chahiye.

Sahi Zeroing Kaise Karein? (Leyte hue mareed mein)

Air-fluid interface (zeroing stopcock ka khula sar) ko phlebostatic axis ki exact level par rakho
Carpenter's level (bubble wala level tool) se confirm karo ke dono bilkul ek seedhi line mein hain
Stopcock ko atmosphere (hawa) ki taraf kholo
Monitor par "Zero" button dabao

Galat Position ka Asar:

Galti	Reading par Asar
Transducer zyada neechay (dil se neechay)	Reading galat zyada (falsely high) aayegi
Transducer zyada upar (dil se upar)	Reading galat kam (falsely low) aayegi
Rule: Har 1 cm galti = 0.74 mmHg galti

Poora System Ek Nazar Mein (Bottom Diagram):

Pressure bag (300 mmHg) — IV pole par
        ↓
Pressure transducer + flushing system
        ↓
Colour-coded non-compressible tubing (sakht, rang wali nali)
        ↓
Sample port (red stopcock — ABG lene ke liye)
        ↓
Arterial line catheter (radial artery mein — kalai par)

Transducer → Taar → Monitor (screen par waveform dikhta hai)

Colour-coding (rang) kyon? Taake yeh nali aam IV drip ki nali se confuse na ho — arterial line mein galti se dawa nahi daalni
Sample port woh jagah hai jahan se bina needle ke baar baar khoon (ABG) nikalte hain

⭐ EXAM TIPS — Roman Urdu Mein

Signal ka safar yaad karo: Artery → Fluid → Transducer → Bijli → Microprocessor → Monitor
Accuracy ke liye 2 cheezein: Transducer ki jagah + Dampening — dono exam mein aate hain
Phlebostatic axis = 4th ICS + mid-axillary line = Right Atrium ki level — yeh definition ratta lagao
Zeroing = phlebostatic axis par — leyte hue mareed ke liye
Transducer neechay = reading zyada; Transducer upar = reading kam — yeh seedha logic hai
High-pressure tubing = sakht = overdamping nahi hogi — naram nali = overdamping = galat reading
300 mmHg pressure bag — slow flush ke liye — clot rokne ke liye
Overdamping (zyada manda) → systolic kam, diastolic zyada aata hai → MAP theek rehta hai
Underdamping (zyada bounce) → systolic zyada, diastolic kam → MAP theek rehta hai
MAP hamesha sahi rehta hai — damping ka MAP par asar nahi padta
Air bubbles = overdamping — tubing mein hawa bilkul nahi honi chahiye
Flush pigtail = saaf karna — zaroorat par, hamesha nahi

PART 3 — DIFFICULT WORDS KI DEFINITIONS

(Roman Urdu Mein)

Mushkil Lafz	Roman Urdu Definition
Pressure waveform	Dil ki har dhadkan se banne wali pressure ki lahar — monitor par ek undulating (hilti hui) line ke roop mein dikh ti hai
Transmitted	Ek jagah se doosri jagah pahunchaya gaya — yahan pressure wave fluid ke zariye aage jaati hai
Fluid column	Tubing ke andar pani ka thamb (khari lambai) — pressure is ke zariye transducer tak pahunchta hai
Transducer	Aik aisa aala jo ek qism ki energy ko doosri mein badalta hai — yahan pressure (mechanical) ko bijli (electrical) mein
Electrical signal	Bijli ka chota ishara/wave — yeh signal monitor tak jaata hai aur reading banata hai
Microprocessor	Ek bohat chhota computer chip jo signal ko receive, process, aur amplify karta hai
Amplified	Mazboot banana — kamzor signal ko zyada taqatwar banana taake monitor par saaf dikhe
Accuracy	Sahi hona — reading asli value ke kitni qareeb hai
Contingent upon	Depend karna — is cheez par mauqoof hona
Precise positioning	Bilkul sahi jagah par rakhna — zyada ya kam nahi
Effective dampening	Sahi miqdar mein signal ko slow karna — na zyada na kam
Stopcock	Teen rasta wala valve — ek taraf se khoon/fluid aata hai, doosri se jaata hai, teesri se band kar sakte hain
High-pressure tubing	Sakht, mota, non-compressible (nahi kheenchne wali) nali — pressure wave ko bina absorb kiye aage pahunchaati hai
Dome	Gumbad numan saaf plastic ka hissa — transducer ke upar fluid-filled chamber
Flush pigtail	Chota pull-tab — system ko saline se saaf karne ke liye
Pressurized flush solution	300 mmHg pressure par rakha saline bag — catheter ko saaf aur open rakhta hai
Zeroing	Monitor ko "zero" batana — atmosphere (hawa ke pressure) ko reference point banana
Phlebostatic axis	4th intercostal space aur mid-axillary line ka mila hua muqam — right atrium (dil ke kamre) ki level
Air-fluid interface	Stopcock ka woh hissa jahan hawa aur fluid milte hain — zeroing ke waqt yahan se zero karte hain
Carpenter's level	Ek aam tool jisme bubble hota hai — do cheezon ko bilkul ek hi horizontal level par confirm karne ke liye
Supine position	Seedha lait kar — peeth ke bal — yeh zeroing ki standard position hai
Colour-coded tubing	Rang se pahchani wali nali — taake arterial line ko IV line se ghalta na milayein
Sample port	Khoon nikalne ki jagah — yahan se ABG test ke liye baar baar sample lete hain bina needle ke
Right atrium	Dil ka daaya upar wala kamra — phlebostatic axis isi ki level dikhata hai
Non-compressible	Nahi dabne wala — pressure wave isko absorb nahi kar sakti — isliye ye tubing zyada sakht hoti hai
Overdamping	Signal zyada mand ho jaata hai — waveform flat — systolic galat kam aata hai
Underdamping	Signal zyada bounce karta hai — waveform spike wali — systolic galat zyada aata hai

Sources: Fischer's Mastery of Surgery, 8e | Morgan & Mikhail's Clinical Anesthesiology, 7e | Roberts & Hedges' Clinical Procedures in Emergency Medicine

This is a shared conversation. Sign in to Orris to start your own chat.
