Here is a thorough guide to 10 common heart diseases with their ECG changes, followed by a detailed breakdown of all major types of myocardial infarction.

ECG Reference: Understanding the Waveform

ECG waveform intervals and segments
The standard ECG records P (atrial depolarization), QRS (ventricular depolarization), and T (ventricular repolarization) waves. The ST segment sits between QRS and T - it is the most clinically important zone for detecting ischemia, infarction, and pericarditis.

10 Common Heart Diseases with ECG Changes

1. ST-Elevation Myocardial Infarction (STEMI)

Pathophysiology: Complete occlusion of a coronary artery causes transmural ischemia with full-thickness myocardial injury.
Key ECG Changes:
  • ST elevation ≥1 mm in 2 or more contiguous leads (the hallmark finding)
  • Hyperacute T waves (tall, broad, peaked T waves) - often the earliest change
  • Pathological Q waves develop within hours to days (indicates necrosis)
  • T wave inversion in the evolution phase
  • Reciprocal ST depression in mirror-image leads (confirms STEMI diagnosis)
ECG Evolution over time:
  1. Minutes: Hyperacute tall T waves
  2. Hours: ST elevation, loss of R waves
  3. Hours-Days: Q wave formation, T wave inversion
  4. Weeks-Months: ST returns to baseline, T waves may normalize (Q waves persist permanently)

2. Inferior Myocardial Infarction

Artery involved: Right Coronary Artery (RCA) in 80-85%; Left Circumflex (LCx) in 15-20%
ECG Leads Affected: II, III, aVF
Key ECG Changes:
  • ST elevation in leads II, III, aVF
  • Reciprocal ST depression in leads I and aVL (highly specific - 90% sensitive for RCA occlusion when elevation is greater in III than II)
  • ST elevation greater in III than II = RCA occlusion
  • ST elevation greater in II than III = LCx occlusion
  • ST elevation in V1 during inferior STEMI = right ventricular involvement

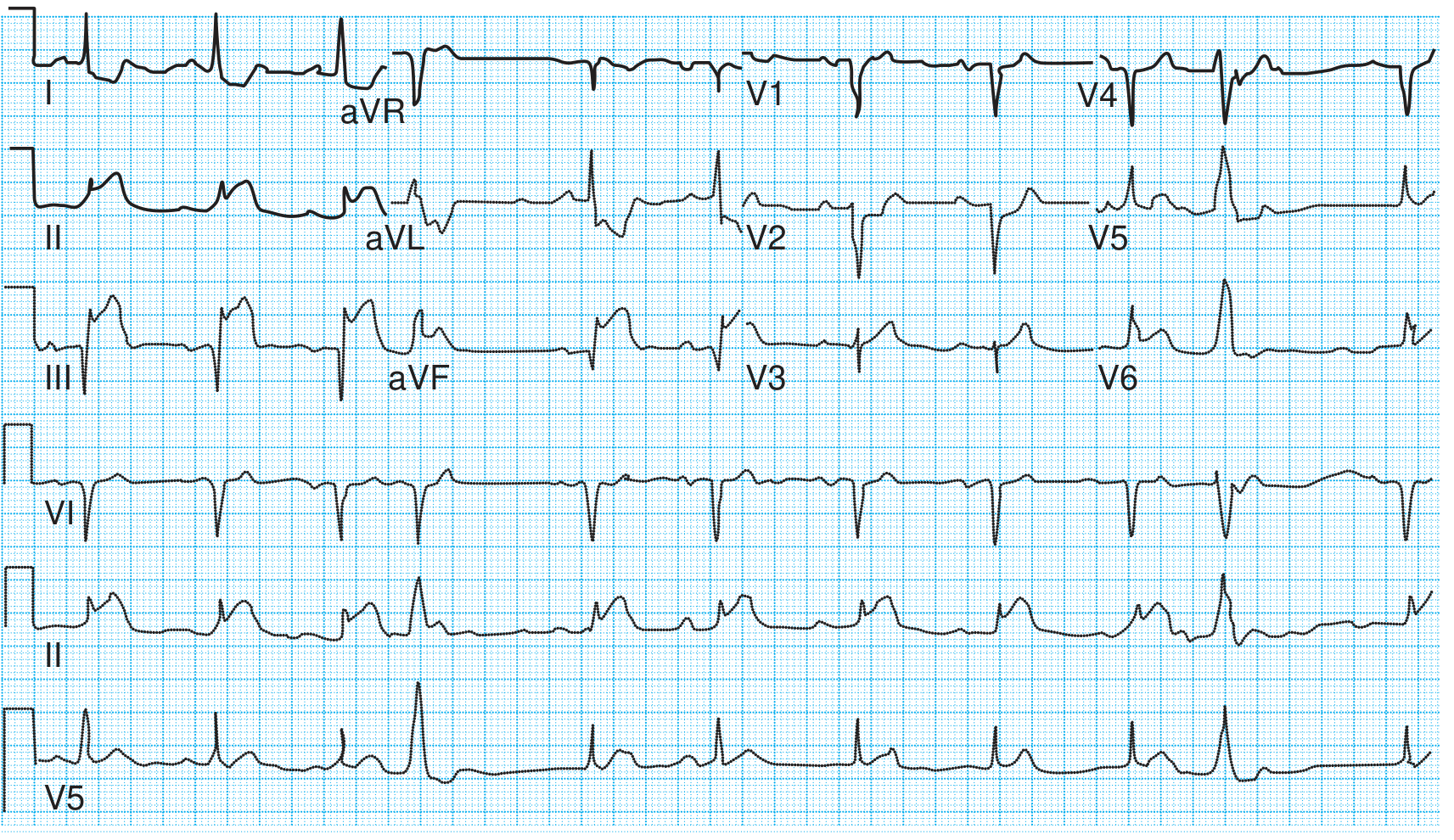

Acute Inferior MI - ST elevation in inferior leads with reciprocal changes
Acute Inferior MI: ST elevation in leads II, III, aVF (inferior leads) - Textbook of Family Medicine
Inferior MI with reciprocal ST depression in aVL and lateral leads
Inferior MI with marked reciprocal ST depression in leads I and aVL - Rosen's Emergency Medicine

3. Anterior Myocardial Infarction

Artery involved: Left Anterior Descending (LAD)
ECG Leads Affected: V1-V4 (and V5-V6 if anterolateral)
Key ECG Changes:
  • ST elevation in V1-V4
  • QS or pathological Q waves in V1-V3 (anteroseptal subtype)
  • R wave regression (loss of normal R wave progression)
  • Reciprocal ST depression may be absent (unlike inferior MI)
  • Wellens Syndrome - biphasic or deeply inverted T waves in V2-V3 indicating critical proximal LAD stenosis (pre-infarction pattern)
  • de Winter Pattern - J-point depression with upsloping ST depression in precordial leads + ST elevation in aVR = proximal LAD occlusion equivalent

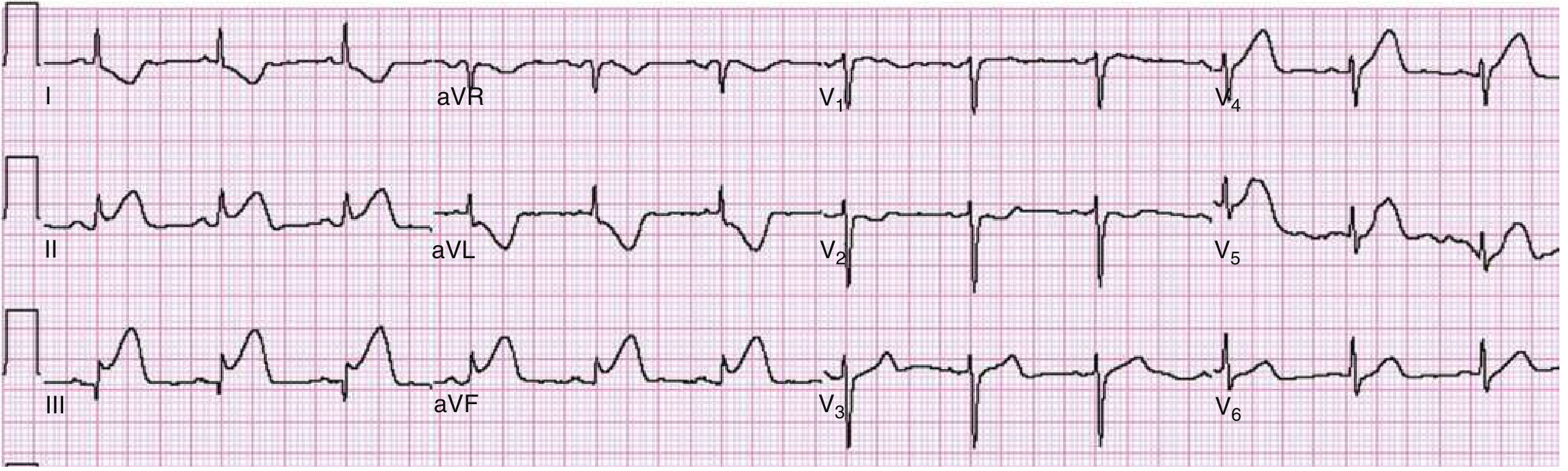

Anterolateral STEMI - ST elevation V1-V6, I, aVL
Anterolateral STEMI: ST elevation in V2-V6, leads I and aVL. Emergency cath found proximal LAD occlusion - Rosen's Emergency Medicine

4. Lateral Myocardial Infarction

Artery involved: Left Circumflex (LCx) or first Diagonal branch of LAD
ECG Leads Affected: I, aVL (high lateral), V5-V6 (low lateral)
Key ECG Changes:
  • ST elevation in I, aVL, V5, V6
  • Reciprocal ST depression in III, aVF, and V1
  • "High lateral" MI: changes only in I and aVL
  • Isolated lateral STEMI can be subtle and missed
High Lateral MI - ST elevation in I and aVL
High Lateral MI: ST elevation in leads I and aVL with reciprocal depression in III, aVF. LAD/D1 bifurcation lesion found at catheterization - Rosen's Emergency Medicine

5. Anterolateral Myocardial Infarction

Artery involved: Proximal LAD (large territory)
ECG Leads Affected: V1-V6, I, aVL (combined anterior + lateral)
Key ECG Changes:
  • Broad ST elevation spanning V1-V6 plus leads I and aVL
  • Large infarct territory = worse prognosis
  • More leads involved = larger infarct, higher mortality

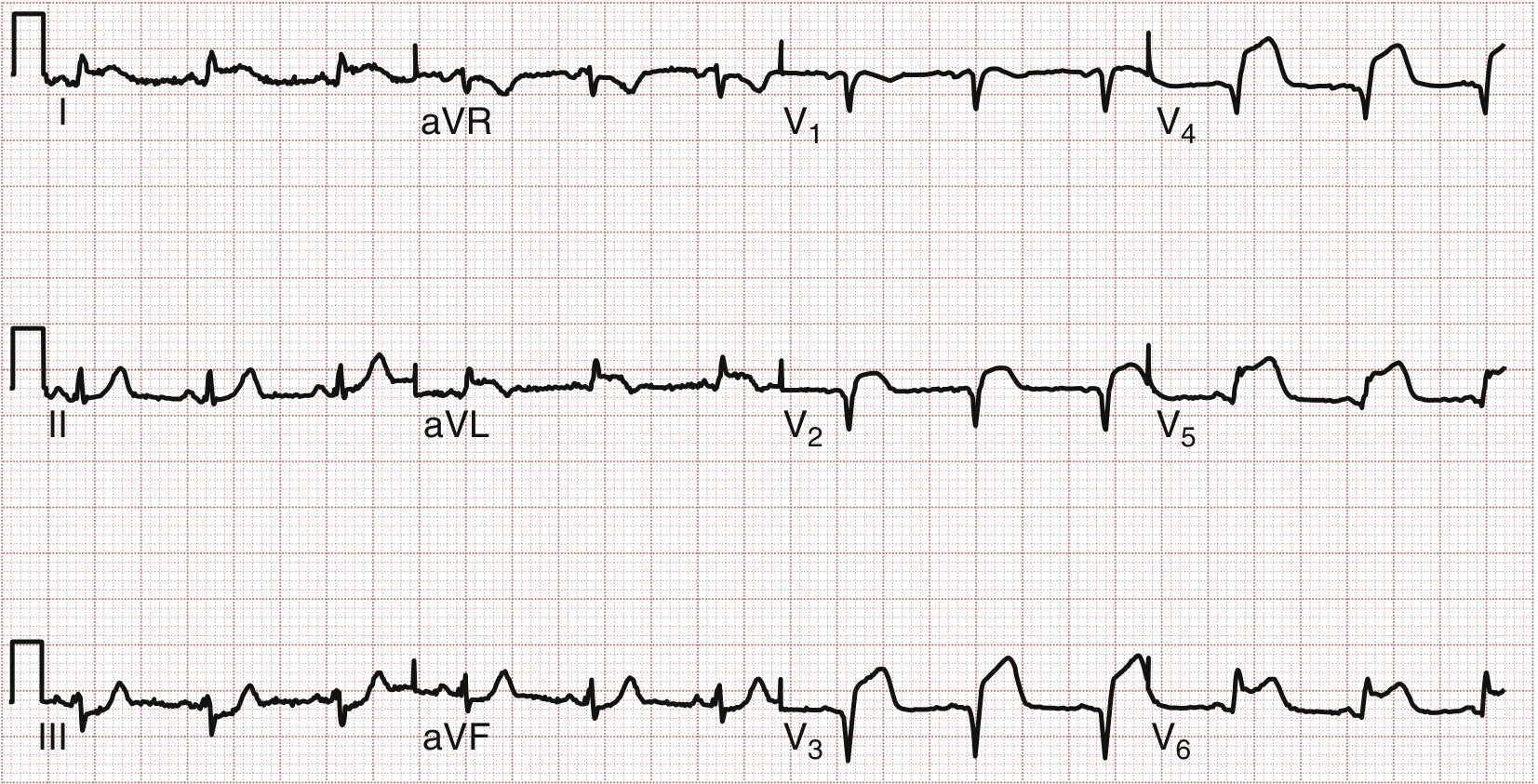

Anterolateral STEMI
Anterolateral STEMI: ST elevation from V1-V4 (anterior leads) extending to I, aVL, V5-V6 (lateral leads). Proximal LAD lesion at PCI - Rosen's Emergency Medicine

6. Posterior Myocardial Infarction

Artery involved: RCA (posterior descending branch) or LCx
ECG Leads Affected: Reciprocal changes in V1-V3; direct changes in V7-V9 (posterior leads)
Key ECG Changes (V1-V3 - reciprocal/mirror image):
  • ST depression (horizontal) in V1-V3 - the mirror image of posterior ST elevation
  • Tall, broad R waves in V1-V2 (R/S ratio >1 in V1 = pathological, equivalent to Q wave in posterior infarction)
  • Large upright T waves in V1-V3
  • Posterior leads V7-V9: ST elevation ≥0.5 mm confirms diagnosis
Clinical tip: Posterior MI accompanies 15-20% of all STEMIs, usually with inferior or lateral MI. Isolated posterior MI (5-10% of infarcts) is frequently missed on standard 12-lead ECG.
Posterior MI reciprocal relationship - V2 pattern and its inverted image showing equivalent STEMI appearance
Top: Posterior MI appearance in V2 (tall R, ST depression, upright T). Bottom: The same lead flipped/inverted = classic STEMI. This demonstrates the reciprocal (mirror-image) relationship - LITFL ECG Library

7. Right Ventricular (RV) Infarction

Artery involved: Proximal RCA (before RV branches)
Setting: Almost always accompanies inferior STEMI
ECG Leads Affected: Right-sided leads (V3R, V4R)
Key ECG Changes:
  • Inferior STEMI (II, III, aVF) PLUS
  • ST elevation ≥1 mm in V4R (right-sided lead) = highly specific for RV infarction
  • ST elevation in V1 during an inferior MI
  • ST elevation greater in III than aVF
  • Bradycardia/AV block common (RCA supplies AV node)
Clinical significance: RV infarction causes haemodynamic collapse with hypotension, elevated JVP, and clear lung fields. Must avoid nitrates (will worsen hypotension).

8. Atrial Fibrillation (AF)

Pathophysiology: Chaotic atrial electrical activity - multiple reentrant wavelets firing at 350-600 bpm, causing disorganized atrial contraction and irregular ventricular response.
Key ECG Changes:
  • Absent P waves - replaced by irregular fibrillatory baseline (fine or coarse undulations, especially visible in V1)
  • Irregularly irregular RR intervals (no fixed pattern between beats) - the signature finding
  • Narrow QRS (unless aberrant conduction or pre-existing bundle branch block)
  • Rate: ventricular rate 100-180 bpm in uncontrolled AF; slower with rate control or AV nodal disease
  • No organized atrial activity
Key distinction: AF with complete heart block shows absent P waves but REGULAR ventricular rhythm (escape rhythm takes over).
Sources: Tintinalli's Emergency Medicine; Goldman-Cecil Medicine; Guyton & Hall Physiology

9. Complete (Third-Degree) Heart Block

Pathophysiology: Complete failure of AV conduction - atrial and ventricular activity are completely dissociated.
Key ECG Changes:
  • P waves and QRS complexes fire independently at different rates
  • Atrial rate (P waves) > Ventricular rate (QRS complexes)
  • No fixed PR interval - PR interval varies beat to beat (AV dissociation)
  • Wide QRS if escape rhythm originates below the bundle of His (ventricular escape, 20-40 bpm)
  • Narrow QRS if escape rhythm is junctional (AV nodal escape, 40-60 bpm)
  • Ventricular rate is slow (bradycardia, often 30-50 bpm)
Complete heart block - P waves and QRS dissociated, wide QRS escape rhythm
Complete (3rd degree) heart block: P waves march out independently at a faster rate than the wide-complex QRS escape rhythm. No consistent PR relationship - LITFL ECG Library

10. Acute Pericarditis

Pathophysiology: Inflammation of the pericardium causes diffuse epicardial irritation affecting all leads simultaneously.
Key ECG Changes (4 stages):
StageTimingChanges
Stage 1Hours to daysDiffuse concave ("saddle-shaped") ST elevation in most leads (except aVR and V1); PR depression in same leads; PR elevation in aVR
Stage 2DaysST returns to baseline; PR depression resolves
Stage 3WeeksDiffuse T wave inversion
Stage 4Weeks-monthsECG normalizes
Key differentiating features from STEMI:
  • ST elevation is diffuse (multiple non-contiguous territories) vs. regional in STEMI
  • ST morphology is concave upward (saddle-shape) vs. convex (tombstone) in STEMI
  • PR depression is unique to pericarditis
  • No reciprocal ST depression (except in aVR/V1 - normal in pericarditis)
  • No Q waves develop

ECG Lead Localization Summary

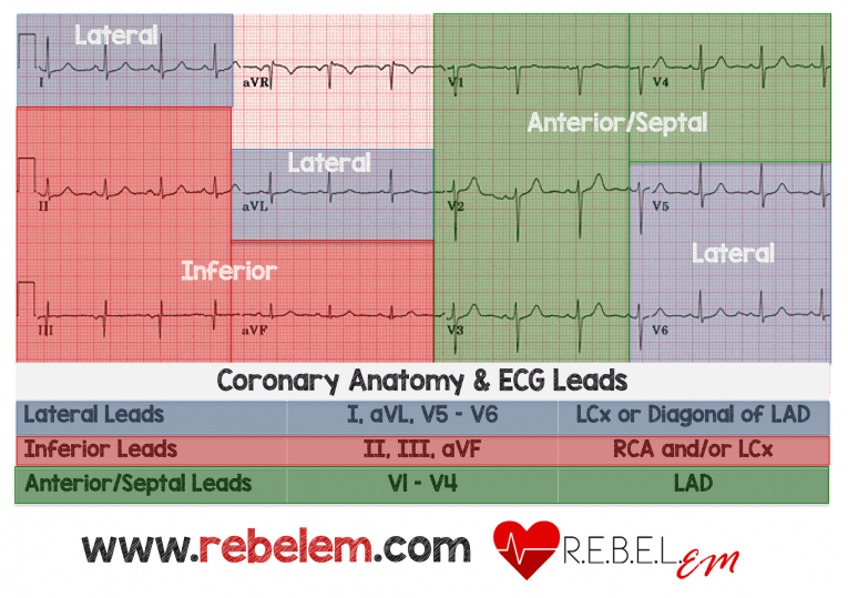

Coronary anatomy and ECG lead territory map
Coronary anatomy and ECG lead territories: Lateral = I, aVL, V5-V6 (LCx/Diagonal LAD); Inferior = II, III, aVF (RCA/LCx); Anterior/Septal = V1-V4 (LAD)

Quick Reference: All MI Types at a Glance

MI TypeLeads with ST ElevationArteryReciprocal Changes
AnteroseptalV1-V3LAD (septal)None typical
AnteriorV2-V4LADNone typical
AnterolateralV1-V6, I, aVLProximal LADNone typical
High LateralI, aVLLCx/D1III, aVF, V1
Low LateralV5-V6LCxNone typical
InferiorII, III, aVFRCA (80%) / LCx (20%)I, aVL
PosteriorV7-V9 (direct); ST depression V1-V3 (reciprocal)RCA/LCxTall R, ST depression V1-V3
Right VentricularV4R (right-sided leads)Proximal RCAAccompanies inferior STEMI
Left Main / Multi-vesselST elevation aVR + widespread ST depressionLMCA / LADWidespread depression in I, II, V4-V6

Additional Conditions (Bonus)

Left Ventricular Hypertrophy (LVH)

  • Sokolow-Lyon criteria: S in V1 + R in V5 or V6 ≥35 mm
  • Cornell criteria: R in aVL + S in V3 >28 mm (men) or >20 mm (women)
  • ST depression and T wave inversion in lateral leads (V5-V6, I, aVL) = "strain pattern"
  • Left axis deviation
  • Broad, notched P wave (P mitrale) indicating left atrial enlargement
  • Sources: Harrison's 22e; Tintinalli's Emergency Medicine

Hypertrophic Cardiomyopathy (HCM)

  • LVH voltage criteria
  • Deep, narrow septal Q waves in lateral leads (I, aVL, V5-V6) - due to septal hypertrophy
  • ST depression and T wave inversions
  • Markedly abnormal ECG in ~95% of symptomatic patients
  • Associated with atrial fibrillation, ventricular tachycardia, and sudden cardiac death

Wolff-Parkinson-White (WPW) Syndrome

  • Short PR interval (<120 ms)
  • Delta wave - slurred initial upstroke of the QRS complex (pre-excitation via accessory pathway)
  • Wide QRS complex
  • Secondary ST-T changes (discordant to delta wave direction)
  • Risk of very rapid AF conducting down the accessory pathway (dangerous)

Key ECG Patterns to Memorize

FindingThink of
Diffuse saddle-shaped ST elevation + PR depressionAcute pericarditis
Regional ST elevation with reciprocal depressionSTEMI
ST depression V1-V3 + tall R wave in V1Posterior MI
ST elevation II, III, aVF + V4RInferior MI + RV infarction
Absent P waves + irregularly irregular QRSAtrial fibrillation
P-QRS dissociation + slow wide QRSComplete heart block
Short PR + delta wave + wide QRSWPW
Giant R waves in precordial leads + strain patternLVH
ST elevation aVR + widespread ST depressionLeft main / proximal LAD / multi-vessel
Sources:
  • Rosen's Emergency Medicine (Rosen's EM), Electrocardiographic Differential Diagnosis
  • Tintinalli's Emergency Medicine, Electrocardiography chapter
  • Harrison's Principles of Internal Medicine 22e (2025)
  • Goldman-Cecil Medicine
  • LITFL ECG Library (litfl.com)
  • ECG Utah Learning Center (ecg.utah.edu)
