Spinal Cord Injuries (SCI) - Medical Student Overview

1. Epidemiology & Causes

SCI is handled by a multidisciplinary team (neurologists, neurosurgeons, trauma surgeons, physiatrists) and predominantly affects younger people. The estimated prevalence in the US is approximately 259,000 patients. Leading causes:

Motor vehicle collisions - most common overall
Falls - increasingly common, especially in elderly
Penetrating trauma (gunshot wounds, stab wounds)
Sports injuries

2. Classification: ASIA Impairment Scale (AIS)

The American Spinal Injury Association (ASIA) Impairment Scale is the standard classification, based on sacral sparing (S4-S5 sensation and voluntary anal contraction):

Grade	Type	Description
A	Complete	No sensory or motor function in sacral segments S4-5
B	Sensory incomplete	Sensory preserved below neurological level including S4-5; no motor function >3 levels below motor level
C	Motor incomplete	Motor preserved; <50% of key muscles below NLI have grade ≥3
D	Motor incomplete	Motor preserved; ≥50% of key muscles below NLI have grade ≥3
E	Normal	Sensation and motor function tested as normal (only assigned if prior deficits existed)

Important exam tip: AIS cannot be determined during spinal shock - wait for resolution (bulbocavernosus reflex returns).

Rockwood and Green's Fractures in Adults, 10th Ed., Table 144.A

3. Spinal Shock vs. Neurogenic Shock

These two terms are not interchangeable - a classic exam trap:

	Spinal Shock	Neurogenic Shock
Nature	Neurological phenomenon	Hemodynamic phenomenon
Definition	Temporary loss of all spinal reflexes below injury (including bulbocavernosus, cremasteric)	Hypotension + bradycardia due to loss of sympathetic tone
Resolution	Return of bulbocavernosus reflex marks end	Treated with vasopressors (norepinephrine preferred, especially if bradycardic)
Skin	Variable	Warm, dry (vasodilation)

In high cervical injuries (C5 and above), bradycardia accompanies hypotension because sympathetic innervation to the heart is lost. In injuries below C5, a reflex tachycardia occurs despite hypotension.

Sabiston Textbook of Surgery, p. 934; Miller's Review of Orthopaedics 9th Ed.

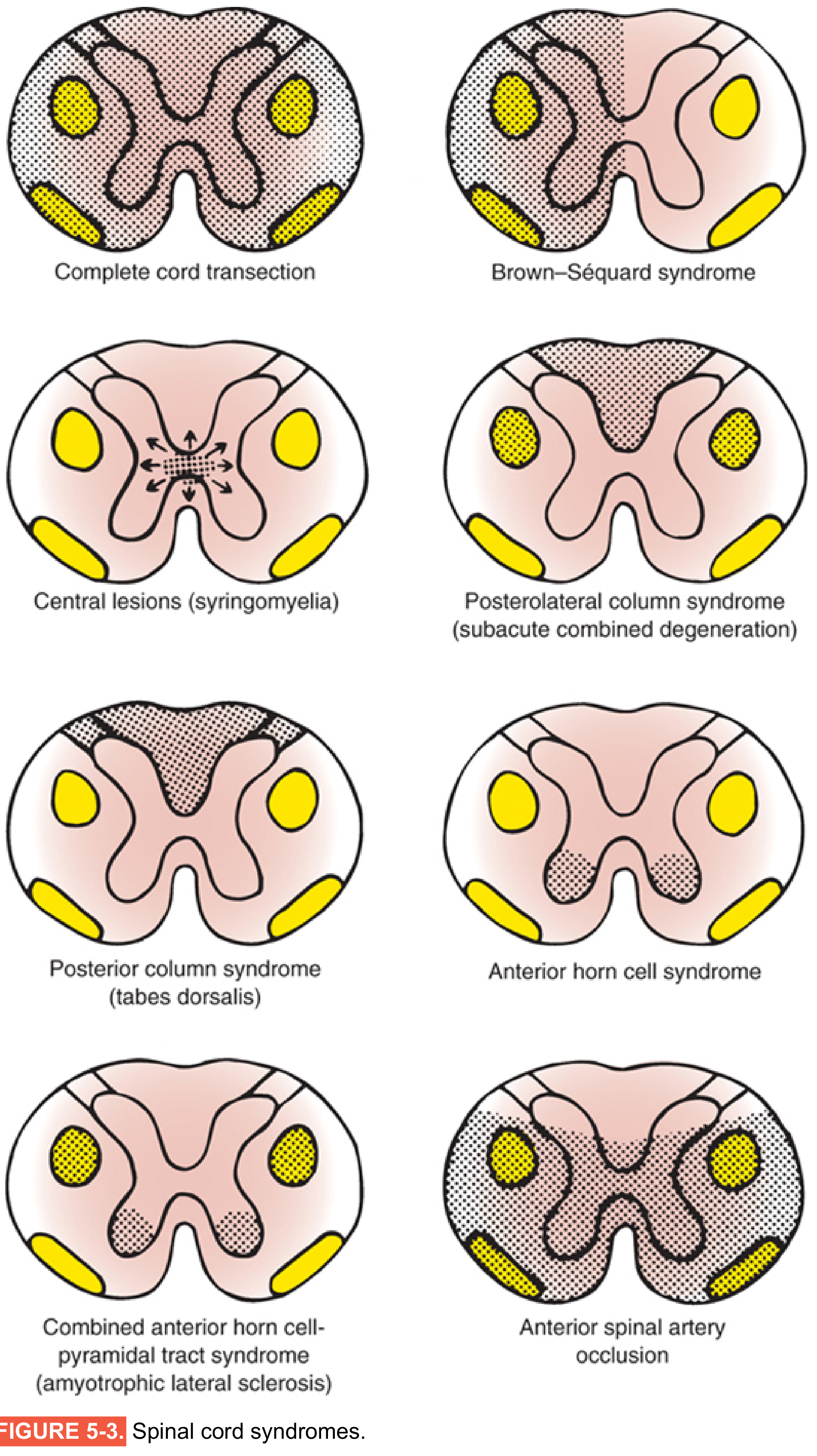

4. Incomplete Spinal Cord Syndromes

Central Cord Syndrome - cross-section of spinal cord showing central injury pattern

Central Cord Syndrome - injury to corticospinal tracts supplying arm/hand function

A. Central Cord Syndrome (Most Common - ~70% of incomplete SCIs)

Mechanism: Hyperextension injury in older patients with pre-existing cervical spondylosis; cord pinched between disc/osteophyte anteriorly and buckled ligamentum flavum posteriorly
Deficit: UE weakness > LE weakness (arm fibers are most medial in corticospinal tracts); variable sensory loss; bladder dysfunction
Sacral sensation: Usually preserved
Prognosis: Good - >50% regain bowel/bladder control and become ambulatory
Bradley and Daroff's Neurology; Campbell's Operative Orthopaedics 15th Ed.

B. Anterior Cord Syndrome

Mechanism: Flexion injury, retropulsed disc/bone, or thrombosis of the anterior spinal artery
Deficit: Loss of motor function + pain/temperature below lesion (spinothalamic + corticospinal involvement); posterior columns SPARED - vibration, proprioception, and crude touch intact
Prognosis: Worst of the incomplete syndromes - poor recovery expected
Tintinalli's Emergency Medicine, Table 258-3

C. Brown-Séquard Syndrome

Mechanism: Hemisection of cord - most common cause is penetrating trauma
Deficit: Classic crossed pattern:
- Ipsilateral: Spastic paresis + loss of proprioception/vibration (dorsal column)
- Contralateral: Loss of pain and temperature (spinothalamic tract, crosses within 1-2 levels)
Prognosis: Good

D. Posterior Column Syndrome (rare, <1%)

Mechanism: Hyperextension injuries
Deficit: Loss of vibration and proprioception; spinothalamic function (pain/temperature) retained

E. Cauda Equina Syndrome

Compression of lower lumbar and sacral roots (below L1, below conus)
Saddle anesthesia (S3-S5), asymmetric flaccid leg weakness, decreased reflexes, urinary/bowel incontinence (areflexic bladder), loss of rectal tone
Pure LMN signs
Surgical emergency - decompress urgently

F. Conus Medullaris Syndrome

Similar to cauda equina but involves the tip of the spinal cord (L1-L2)
Mixed UMN + LMN signs - this distinguishes it from cauda equina
The Washington Manual of Medical Therapeutics

Summary Table: Incomplete SCI Syndromes

Syndrome	Motor	Pain/Temp	Proprioception/Vibration	Prognosis
Central Cord	Arms > Legs	Variable	Often preserved (sacral sparing)	Good
Anterior Cord	Lost below	Lost below	Preserved	Poor
Brown-Séquard	Ipsilateral lost	Contralateral lost	Ipsilateral lost	Good
Posterior Column	Intact	Intact	Lost	Good
Cauda Equina	Flaccid (LMN)	Saddle anesthesia	Lost	Variable

5. Acute Management

Pre-hospital / Field

Immobilize the spine (cervical collar, backboard) to prevent further injury
Airway - high cervical injuries (C3-C5 supply diaphragm via phrenic nerve) require immediate intubation without neck manipulation

Emergency Department

ABC first - ensure oxygenation and perfusion
Immobilization of the neck is essential
Neurogenic shock: IV fluids + vasopressors; norepinephrine preferred (especially with bradycardia); maintain MAP 85-90 mmHg for 7 days post-injury
Foley catheter for urinary retention
Do NOT give high-dose methylprednisolone - previously standard of care, now no longer recommended (evidence of harm outweighs benefit per current guidelines)

Imaging

MRI is gold standard - confirms level and extent of injury; emergent full cord MRI preferred
CT is NOT sufficient to rule out spinal cord compression
Plain X-rays: reveal fractures, subluxation, metastatic disease

SCIWORA

Spinal Cord Injury Without Radiographic Abnormality - SCI in the absence of any X-ray or CT abnormality; occurs especially in children; MRI may show cord signal changes

6. Complications (High-Yield for Exams)

Autonomic Dysreflexia

Occurs in injuries at T6 and above (above major splanchnic sympathetic outflow)
Triggered by noxious stimuli below level of injury: bladder distension (most common), constipation, rectal fissure, pressure sores, uterine contractions
Presentation: Severe paroxysmal hypertension, pounding headache, bradycardia, diaphoresis above lesion level, piloerection, flushing, nasal congestion
Treatment: Sit patient upright (reduces BP), identify and remove the trigger (catheterize bladder, disimpact bowel); if persists, antihypertensives (nifedipine, nitrates)
Distinguish from preeclampsia in pregnant patients: in AD, symptoms resolve once stimulus is removed; in preeclampsia, symptoms/labs persist
Rosen's Emergency Medicine; Bradley and Daroff's Neurology

Respiratory Complications

C3-C5 injuries: diaphragm paralysis, ventilatory failure
All cervical injuries: impaired cough, pneumonia risk

Venous Thromboembolism

Chronic immobilization + hypercoagulability: high DVT/PE risk
In pregnant SCI patients, risk of VTE is 9 times higher than controls
Prophylaxis mandatory: LMWH + compression stockings

Bladder Dysfunction

Suprasacral injuries (UMN): detrusor overactivity, vesicoureteral reflux, hydronephrosis - historically a leading cause of death in SCI (before modern management)
Sacral/infrasacral injuries (LMN): flaccid areflexic bladder, urinary retention
Management: clean intermittent catheterization (CIC), anticholinergics, botulinum toxin

Pressure Ulcers, Spasticity, Neuropathic Pain

Spasticity (UMN injuries): baclofen (oral or intrathecal), tizanidine, botulinum toxin
Neuropathic pain: gabapentin, pregabalin, tricyclics
Posttraumatic syringomyelia: delayed cystic cavity formation; presents with ascending deficit, pain, hyperhidrosis

7. Prognosis Pearls

Greater sparing of function caudal to the injury = better expected recovery
Earlier and faster onset of recovery = better prognosis
Age <50 years has better prognosis than older patients with the same deficit
Recovery can occur over 12-15 months; once progress stops, further recovery is unlikely
Complete injuries (AIS A): prognosis for functional recovery is poor; patients may recover in the zone of partial preservation only

Campbell's Operative Orthopaedics 15th Ed.

Key sources: Bradley and Daroff's Neurology in Clinical Practice | Campbell's Operative Orthopaedics 15th Ed. 2026 | Tintinalli's Emergency Medicine | Rosen's Emergency Medicine | Sabiston Textbook of Surgery | The Washington Manual of Medical Therapeutics | Rockwood and Green's Fractures in Adults 10th Ed. 2025
