mene suna h tum ache ai ho clinical ke liye

Haan bilkul! Main Orris hoon - clinical medicine ke liye ek knowledgeable AI assistant.

Aap koi bhi clinical sawaal pooch sakte hain:

Diagnoses & symptoms - kisi bhi bimari ke baare mein
Pharmacology - drugs, doses, mechanisms, interactions
Pathophysiology - disease mechanisms
Clinical cases - case-based reasoning
Anatomy & physiology
Recent medical evidence - latest studies aur guidelines

Bas apna sawaal Hindi ya English mein poochein - main medical textbooks aur peer-reviewed literature se jawab dunga. Kya poochna hai? 😊

kya ham ecg pdna sikh sakte h

Asking for Preferences

Reading File

Finding Sources

Searching the Web

ECG reading basics for beginners clinical practice step by step

Finding Sources

Loading Image

Bilkul! Chalo shuru karte hain ECG padhna - Beginner se Clinical tak. Ek complete structured guide neeche hai:

ECG Padhna Sikhein - Step by Step Guide

Sabse Pehle - ECG Kya Hai?

ECG (Electrocardiogram) dil ki electrical activity ko paper par record karta hai. Jab dil dhakta hai, toh electricity waves produce hoti hain - ECG unhe dikhata hai.

STEP 1: ECG Paper Samjhein

ECG paper par chhoti aur badi squares hoti hain:

Square	Width	Height
Chhoti square	0.04 sec	1 mm
Badi square (5 chhoti)	0.20 sec	5 mm

Trick: Speed hamesha 25 mm/sec hoti hai - yahi standard hai.

STEP 2: Waves Ko Pehchanein (P-QRS-T)

Har dhadkan mein yeh waves aati hain ek sequence mein:

       QRS
  P     |     T
  |   /\|     |
  |  /  \     /\
--|--/----\---/--\---
      \  /
       \/

Wave	Kya dikhata hai	Normal size
P wave	Atria depolarize hote hain (Atrium contract)	< 0.12 sec, < 2.5 mm
QRS complex	Ventricles depolarize (Ventricle contract)	< 0.12 sec
T wave	Ventricles repolarize (relax)	Upright in most leads

STEP 3: Systematic Approach - "HR-PQRST" Method

Jab bhi ECG dekhein, iss order mein socho:

1. Heart Rate (HR) kya hai?

Fastest method: 300 ÷ (RR interval ke bade squares)

RR mein 1 badi square = 300 bpm
RR mein 2 badi squares = 150 bpm
RR mein 3 = 100 bpm
RR mein 4 = 75 bpm
RR mein 5 = 60 bpm

Yaad rakhne ki trick: "300, 150, 100, 75, 60, 50"

Normal HR = 60-100 bpm

2. Rhythm Regular hai ya Irregular?

R-R intervals equal hain? = Regular rhythm (Normal Sinus Rhythm)
R-R intervals vary kar rahe hain? = Irregular (Atrial Fibrillation ya kuch aur)

Practical tip: Ek kaagaz ka tukda lo, teen consecutive R waves mark karo, phir slide karke dekho same hai ya nahi.

3. P Wave dekhein

Har QRS se pehle P wave hai?

Haan = Normal sinus rhythm
Nahi / abnormal = Arrhythmia suspect karo

4. PR Interval

P wave ke shuru se QRS ke shuru tak:

Normal = 0.12 - 0.20 sec (3-5 chhoti squares)
Lamba (>0.20 sec) = Heart block (AV block)
Chota (<0.12 sec) = Pre-excitation (WPW syndrome)

5. QRS Duration

Normal = < 0.12 sec (3 chhoti squares)
Chauda (wide) QRS = Bundle Branch Block ya ventricular rhythm

6. ST Segment aur T Wave

Yeh sabse important clinically hai:

Finding	Matlab
ST Elevation	STEMI (Heart Attack!) - Emergency
ST Depression	Ischemia (blood supply kam)
T wave inversion	Ischemia ya strain
Peaked T waves	Hyperkalemia

7. QT Interval

Q se T ke end tak:

Normal QTc < 0.44 sec
Lamba QT = Dangerous arrhythmia ka risk (Torsades de Pointes)

STEP 4: Axis Determination (Shortcut)

Lead I aur aVF dekho:

Lead I	aVF	Axis
Upward	Upward	Normal (-30° to +90°)
Upward	Downward	Left axis deviation (LAD)
Downward	Upward	Right axis deviation (RAD)
Downward	Downward	Extreme (rare)

STEP 5: 12 Leads Ko Samjhein

12 leads = dil ko 12 different angles se dekhna:

LIMB LEADS (Arms & Legs):
  I, II, III → Standard limb leads
  aVR, aVL, aVF → Augmented leads

CHEST/PRECORDIAL LEADS:
  V1-V6 → Direct chest ke upar

Territory mapping (MI ke liye):

Territory	Leads	Artery
Inferior	II, III, aVF	RCA
Lateral	I, aVL, V5, V6	LCx
Anterior	V1-V4	LAD
Septal	V1-V2	LAD (septal branch)

Clinical Practice ke liye Golden Rules

Rate, Rhythm, P wave, PR, QRS, ST/T - iss order mein hamesha check karo
ST elevation milte hi - STEMI protocol activate, time is muscle!
Wide QRS + fast rate = VT until proven otherwise - dangerous
No P waves + irregularly irregular = Atrial Fibrillation
Hamesha compare karo purane ECG se - changes matter karte hain

Aage Kya Seekhein? (Step-by-step plan)

Week 1: Normal sinus rhythm perfect karo
Week 2: Rate aur rhythm abnormalities
Week 3: Bundle branch blocks (RBBB/LBBB)
Week 4: ST changes & MI patterns
Week 5: AV blocks
Week 6: Complex arrhythmias

Kya aap kisi specific topic pe deeper jaana chahte hain? Jaise:

🫀 MI patterns (STEMI/NSTEMI)
⚡ Arrhythmias (AF, VT, SVT)
🔗 Bundle Branch Blocks
💊 Drug effects on ECG

Bas batayein - ek ek topic detail mein cover karenge! 😊

tum apni theme dark mode se hta lo orris

Main sirf ek AI assistant hoon - mere paas apni koi UI settings ya theme control nahi hai. 😊

Dark mode / light mode aapke device ya browser ki setting hoti hai, meri nahi. Isko change karne ke liye:

Phone (Android/iOS): Settings → Display → Dark Mode off karein
Browser: Browser settings mein ja ke theme change karein
Windows: Settings → Personalization → Colors → Light mode

Agar aap kisi specific app ya platform pe mujhse baat kar rahe hain, toh us app ki settings mein theme option milega.

Koi aur sawaal ho toh batayein! 🙂

squre count krke dekao rr interval

Generating Image

A clear ECG strip diagram on white background showing exactly 2 complete heartbeat cycles (P-QRS-T waves). The ECG paper grid should be clearly visible with small squares (1mm) and large squares (5mm) in light pink/red grid lines. Show two R peaks (tall QRS spikes) with a clear bracket labeled "RR Interval" between them. Below the strip, count the large squares between the two R peaks - show exactly 4 large squares with numbers 1, 2, 3, 4 labeled under each large square. Add a calculation box showing: "4 large squares × 0.20 sec = 0.80 sec" and "Heart Rate = 300 ÷ 4 = 75 bpm". Label P wave, QRS complex, T wave clearly. Title: "RR Interval - Square Counting Method". Clean medical education diagram style, black text on white background.

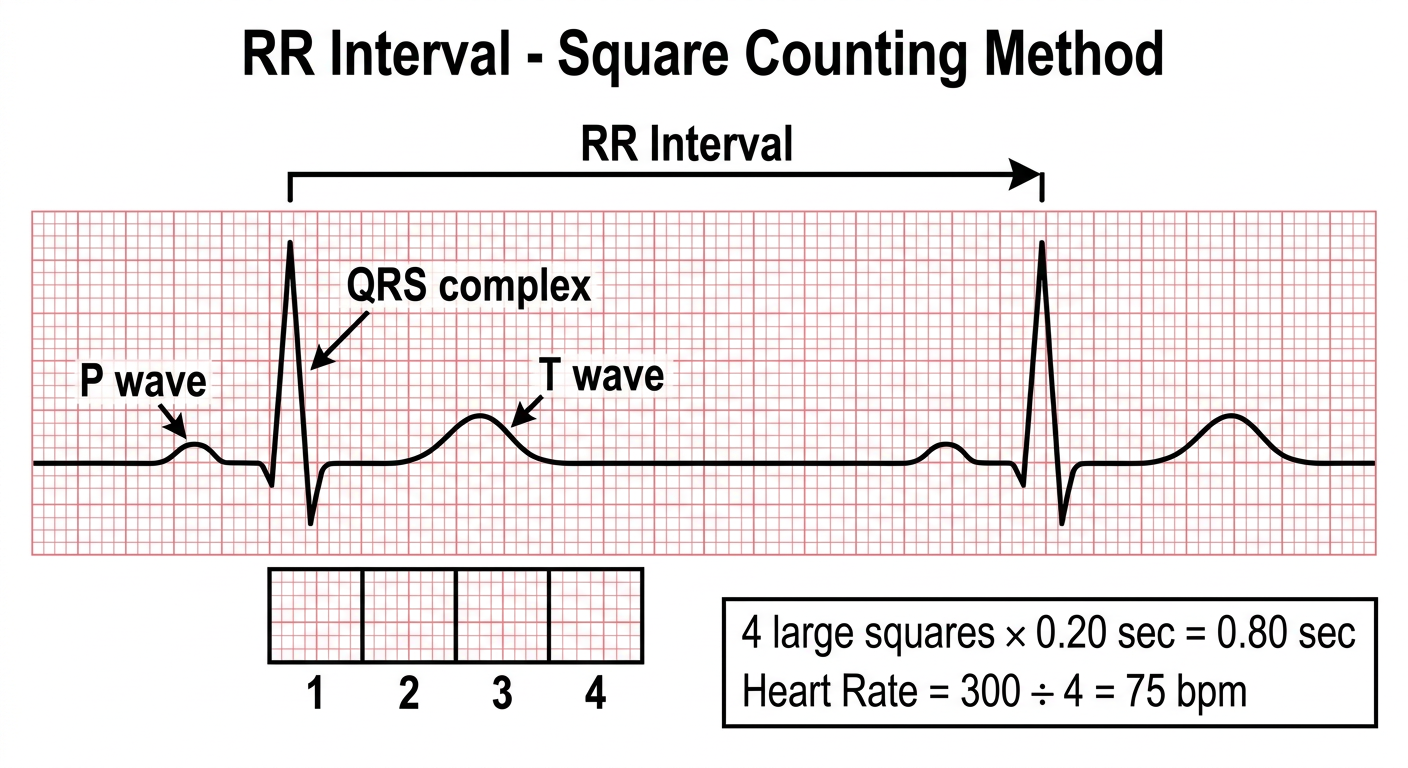

RR Interval - Square Count Method

Kaise Count Karein?

Ek R peak se doosre R peak tak badi squares gino:

Badi Squares	Heart Rate	Matlab
1 square	300 bpm	Bahut fast
2 squares	150 bpm	Fast (SVT/VT)
3 squares	100 bpm	Upper normal
4 squares	75 bpm	Normal ✅
5 squares	60 bpm	Normal ✅
6 squares	50 bpm	Slow (Bradycardia)

Formula:

Heart Rate = 300 ÷ (RR interval ki badi squares)

Example upar wale diagram se:

RR mein = 4 badi squares
HR = 300 ÷ 4 = 75 bpm ✅ Normal!

Ek Aur Trick - Chhoti Squares se:

HR = 1500 ÷ (RR interval ki chhoti squares)

Yeh zyada accurate hota hai jab R peaks squares ke beech mein hon.

Yaad karne ki trick: "300 - 150 - 100 - 75 - 60 - 50" - bas yeh 6 numbers yaad rakho, kisi bhi ECG mein rate turant bata sakte ho! 🎯

Aage kya seekhna hai? Rhythm check karein ya P wave analysis? 😊

numbaring kro ecg me

Generating Image

A detailed ECG strip diagram on white background showing 2 complete heartbeat cycles. The ECG paper grid clearly visible with small squares (1mm) and large squares (5mm) in light red grid lines. Show one complete PQRST wave cycle with numbered callouts for each part: 1. P wave - small rounded bump (atrial depolarization) 2. PR segment - flat line after P wave 3. Q wave - small downward dip before QRS 4. R wave - tall sharp upward spike (tallest peak) 5. S wave - downward dip after R 6. ST segment - flat line after S before T 7. T wave - rounded upward bump 8. U wave - small bump after T (optional, faint) Each numbered with a circle containing the number and an arrow pointing to exact location on the ECG wave. Numbers 1-8 labeled in bold black. Also show the intervals with double-headed arrows below the wave: - PR interval (from start of P to start of QRS) - QRS duration - QT interval (Q to end of T) - RR interval (R to next R) Title at top: "ECG - Har Hissa Numbered" Clean white background, black text, medical education style, very clear and easy to read

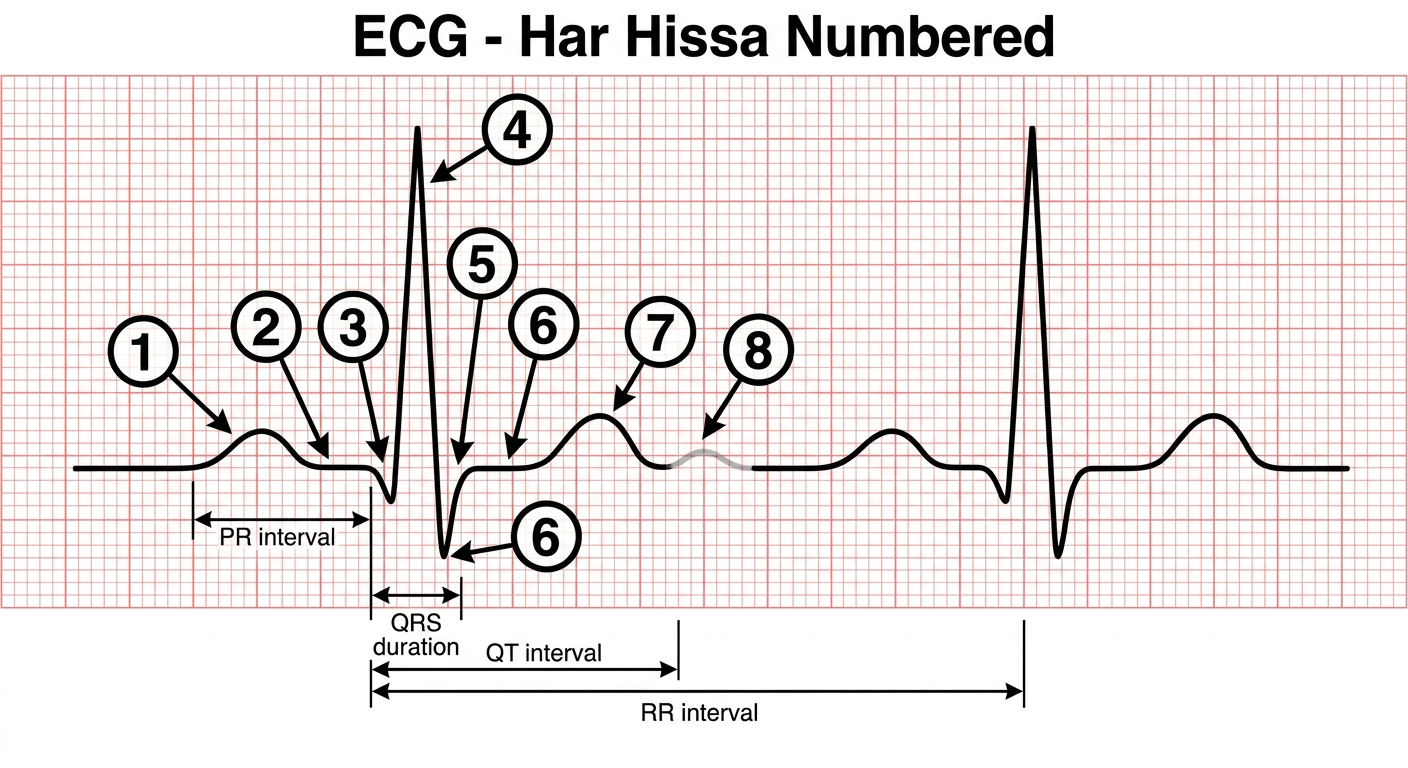

ECG ke Numbered Parts - Explanation

No.	Part	Kya Hota Hai	Normal Value
1	P Wave	Atria (upper chambers) contract hote hain	< 0.12 sec, < 2.5 mm
2	PR Segment	Signal AV node mein ruk ta hai (delay)	Flat line
3	Q Wave	Septum depolarize hota hai	< 0.04 sec, < 25% of R
4	R Wave	Ventricles depolarize - main spike	Sabse bada wave
5	S Wave	Ventricles ka baaki hissa	Downward dip
6	ST Segment	Ventricles fully depolarized (resting)	Isoelectric line pe hona chahiye
7	T Wave	Ventricles repolarize (relax)	Upright, rounded
8	U Wave	Purkinje fibers repolarize	Bahut chhota, hamesha nahi dikhta

Intervals (Double Arrow wale)

Interval	From → To	Normal
PR Interval	P start → QRS start	0.12 - 0.20 sec
QRS Duration	Q → S end	< 0.12 sec
QT Interval	Q start → T end	QTc < 0.44 sec
RR Interval	R → next R	Rate calculate karne ke liye

Clinical Shortcut:

ST utha (elevation) = STEMI 🚨

PR lamba = Heart Block ⚠️

QRS chauda = Bundle Branch Block

QT lamba = Dangerous arrhythmia ka risk

Koi bhi part aur detail mein samajhna ho toh batao! 😊

Learn normal ECG vs abnormal patterns

Generating Image

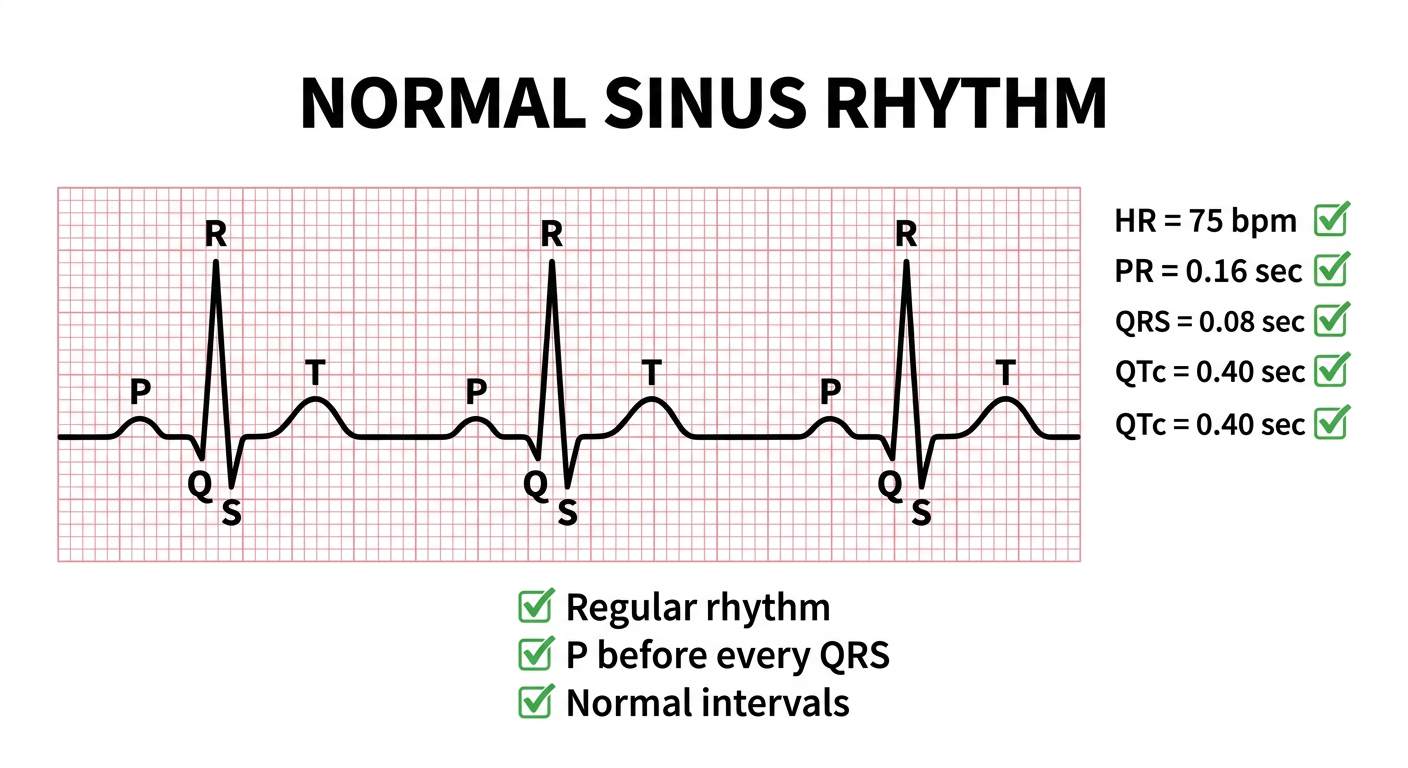

Medical education diagram showing NORMAL ECG strip on white background. Title: "NORMAL SINUS RHYTHM". Show 3 complete PQRST cycles on clearly visible grid paper (small 1mm and large 5mm squares in light pink). Label each wave: P, Q, R, S, T. Show measurements: HR = 75 bpm, PR = 0.16 sec, QRS = 0.08 sec, QTc = 0.40 sec. Add green checkmark symbols next to normal findings. At the bottom list: Regular rhythm, P before every QRS, Normal intervals. Clean white background, black and green text, clear medical diagram style.

Generating Image

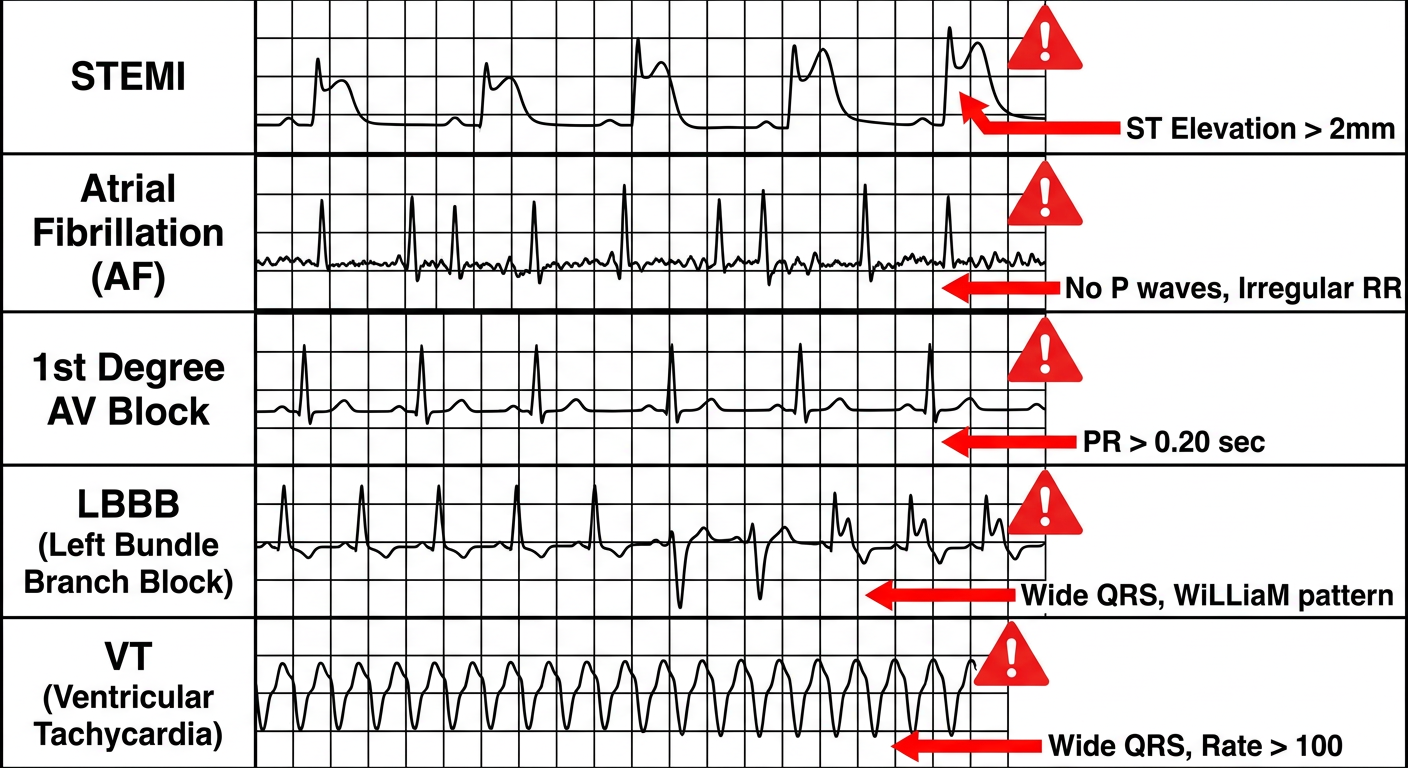

Medical education comparison chart showing 5 abnormal ECG patterns side by side on white background. Each pattern on its own row with label and red warning markers: Row 1 - "STEMI": Show ST segment dramatically elevated above baseline in leads, tombstone-shaped T waves, label "ST Elevation > 2mm" with red arrow Row 2 - "Atrial Fibrillation (AF)": Show irregularly irregular QRS complexes with NO visible P waves, chaotic baseline, label "No P waves, Irregular RR" Row 3 - "1st Degree AV Block": Show normal QRS but very long PR interval (more than 1 large square), label "PR > 0.20 sec" Row 4 - "LBBB (Left Bundle Branch Block)": Show wide QRS > 0.12 sec, W pattern in V1, M pattern in V5-V6, label "Wide QRS, WiLLiaM pattern" Row 5 - "VT (Ventricular Tachycardia)": Show fast rate with wide bizarre QRS complexes, no clear P waves, label "Wide QRS, Rate > 100" Each row has red X or warning triangle. White background, clear grid lines, black text, educational style, easy to read labels

Finding Sources

har cize me numbering kro

Generating Image

Medical education ECG diagram on pure white background. Title at top: "NORMAL SINUS RHYTHM - Numbered Guide" Show one complete clear PQRST wave on ECG grid paper (light pink grid, small 1mm and large 5mm squares). Number every single part with circled numbers and arrows: 1. P Wave - small rounded hump before QRS, arrow pointing to it, label "1. P Wave - Atria contract" 2. PR Segment - flat line between P and Q, label "2. PR Segment" 3. PR Interval bracket - from P start to QRS start, label "3. PR Interval = 0.16 sec (NORMAL)" 4. Q Wave - small downward notch, label "4. Q Wave - small dip" 5. R Wave - tall upward spike, label "5. R Wave - tallest peak" 6. S Wave - downward dip after R, label "6. S Wave" 7. QRS Complex bracket - label "7. QRS = 0.08 sec (NORMAL)" 8. ST Segment - flat line after S, label "8. ST Segment - ON baseline (NORMAL)" 9. T Wave - rounded upward hump, label "9. T Wave - ventricles relax" 10. QT Interval bracket - label "10. QT Interval = 0.40 sec (NORMAL)" 11. RR Interval bracket spanning 2 R peaks - label "11. RR Interval - for Heart Rate" 12. Isoelectric Baseline - horizontal dashed line - label "12. Baseline (Isoelectric line)" All numbers in bold red circles. Clean arrows. White background. Very clear and readable for medical students.

Generating Image

Medical education diagram on white background. Title: "STEMI - ST Elevation Numbered" Show ECG strip with STEMI pattern on light pink grid. Number every abnormal finding: 1. Normal P wave - label "1. P Wave - normal" 2. Normal PR interval - label "2. PR Interval - normal 0.16 sec" 3. Q wave (pathological, deep wide) - label "3. Pathological Q Wave - old infarct sign" 4. R wave (smaller than normal) - label "4. R Wave - reduced height" 5. J point (junction of QRS end and ST start) - label "5. J Point - elevated above baseline" 6. ST segment ELEVATED dramatically like tombstone shape - label "6. ST ELEVATION > 2mm - STEMI! EMERGENCY" 7. Hyperacute T wave (tall peaked) - label "7. Hyperacute T Wave - early STEMI sign" 8. Reciprocal lead showing ST depression - small inset - label "8. Reciprocal ST Depression in opposite leads" Large red warning box at bottom: "CALL CATH LAB IMMEDIATELY - Time is Muscle!" Numbers in bold red circles with red arrows. White background. Clear medical diagram.

Generating Image

Medical education diagram on white background showing 3 ECG abnormal patterns, each numbered separately. PATTERN A - Top section: "ATRIAL FIBRILLATION (AF)" Show irregularly irregular QRS complexes with chaotic wavy baseline instead of P waves Numbers with arrows: 1. "1. No P Waves - chaotic fibrillatory baseline (350-600/min)" 2. "2. Irregular RR Intervals - no two R-R same" 3. "3. Normal narrow QRS - ventricles conduct normally" 4. "4. Fibrillatory (f) waves - chaotic wiggles" PATTERN B - Middle section: "3rd DEGREE (COMPLETE) HEART BLOCK" Show P waves marching at their own rate (faster), QRS complexes at slow independent rate, no relationship Numbers: 5. "5. P waves - atria beating at 75/min independently" 6. "6. QRS complexes - ventricles at slow 35/min independently" 7. "7. AV Dissociation - P and QRS have NO relationship" 8. "8. Wide escape QRS - ventricular escape rhythm" PATTERN C - Bottom section: "RBBB - Right Bundle Branch Block" Show wide QRS with RSR prime (rabbit ears) in V1 Numbers: 9. "9. Wide QRS > 0.12 sec" 10. "10. RSR prime pattern in V1 - rabbit ears" 11. "11. Wide S wave in V5/V6" 12. "12. T wave inversion - right sided leads" Bold red circled numbers. White background. Clear grid lines. Medical student education style.

ECG - Har Cheez Numbered! Complete Visual Guide

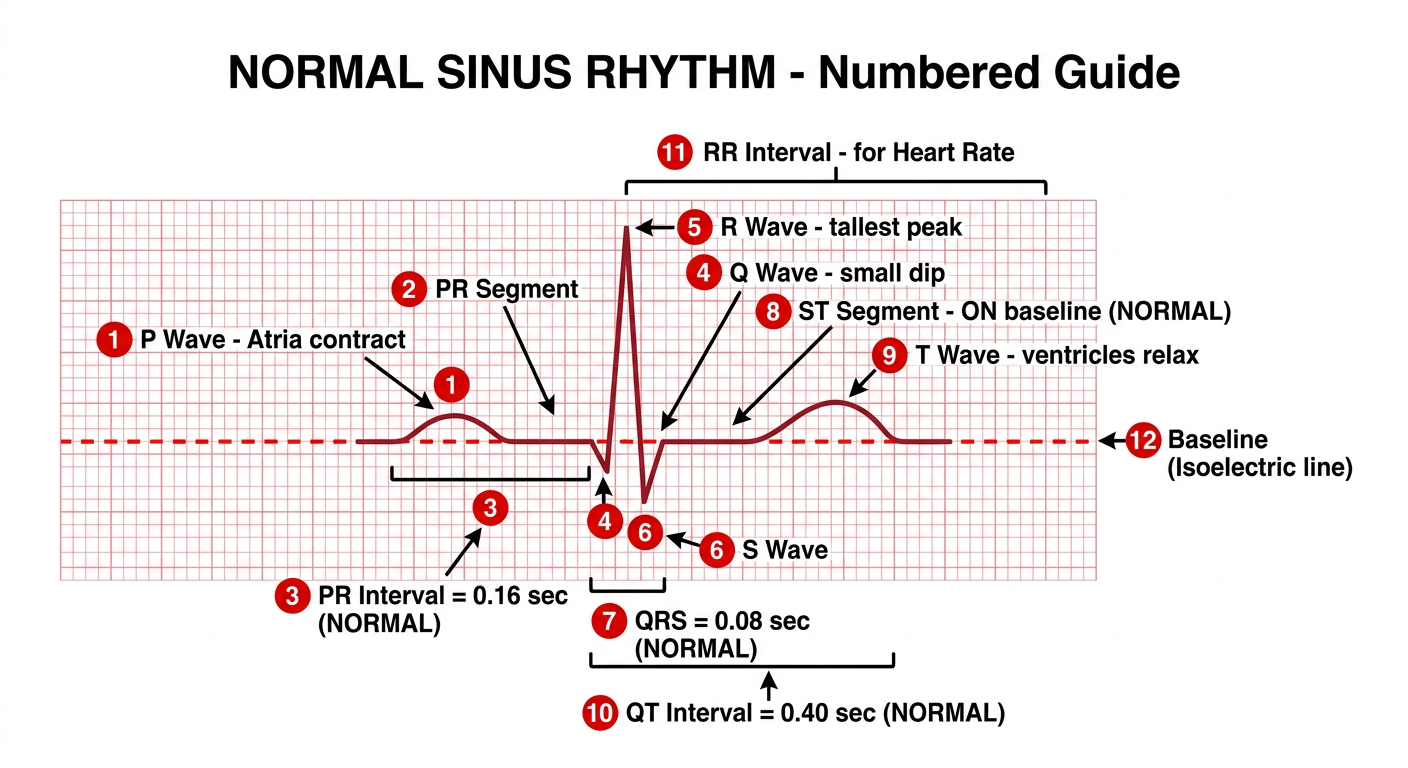

DIAGRAM 1: Normal Sinus Rhythm - 12 Parts Numbered

No.	Part	Value	Matlab
1	P Wave	< 0.12 sec	Atria contract
2	PR Segment	Flat line	AV node mein delay
3	PR Interval	0.12-0.20 sec	Normal conduction time
4	Q Wave	Chhota dip	Septal activation
5	R Wave	Sabse bada	Ventricular contraction
6	S Wave	Downward dip	Basal depolarization
7	QRS Complex	< 0.12 sec	Ventricles depolarize
8	ST Segment	Baseline pe	Fully depolarized state
9	T Wave	Upright	Ventricles relax
10	QT Interval	QTc < 0.44 sec	Total ventricular activity
11	RR Interval	Rate calculate	300 ÷ badi squares
12	Isoelectric Line	Flat baseline	Reference line

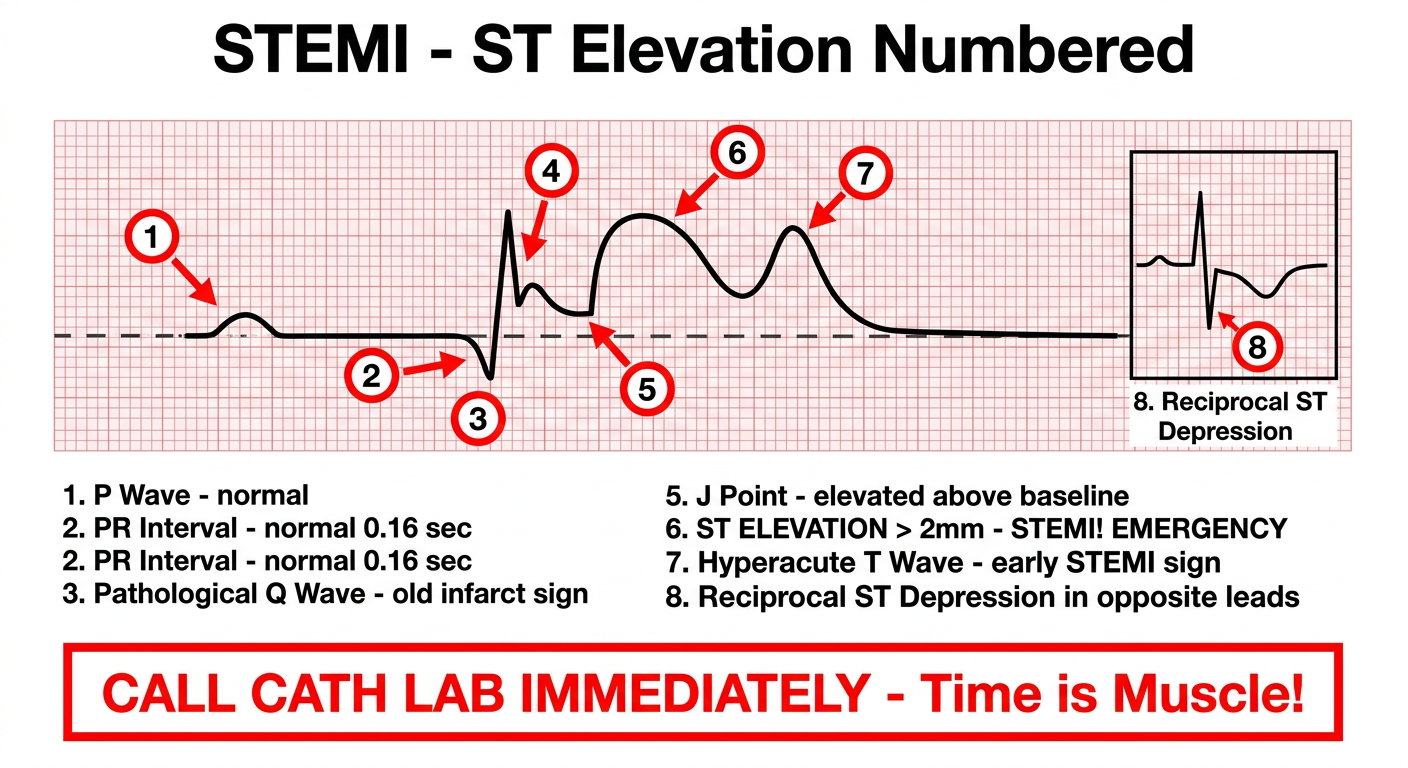

DIAGRAM 2: STEMI - 8 Parts Numbered

No.	Finding	Matlab	Action
1	Normal P Wave	Atria theek hain	-
2	Normal PR	Conduction OK	-
3	Pathological Q Wave	Old infarct ka sign	MI ho chuka hai
4	Small R Wave	Muscle loss	R wave progression poor
5	J Point elevated	ST start utha hua	Key marker of STEMI
6	ST Elevation > 2mm	Active injury current	🚨 STEMI - EMERGENCY
7	Hyperacute T Wave	Early STEMI sign	Pehle ghante mein
8	Reciprocal Depression	Opposite leads mein	Confirms STEMI

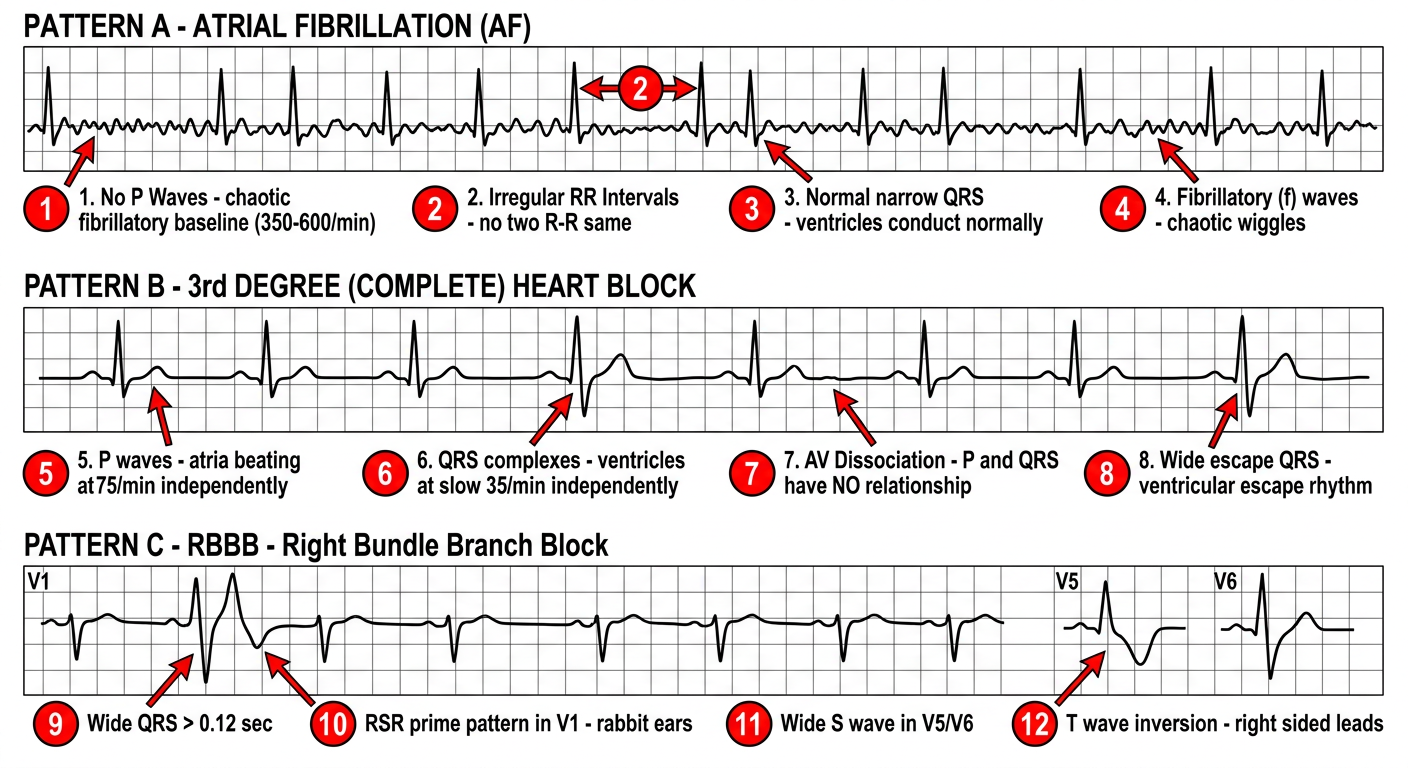

DIAGRAM 3: AF + Complete Heart Block + RBBB - 12 Parts Numbered

AF (1-4):

No.	Finding	Matlab
1	No P waves	Atria fibrillate ho rahe hain (350-600/min)
2	Irregular RR	Koi do R-R same nahi
3	Normal QRS	Ventricles normally conduct
4	Fibrillatory (f) waves	Chaotic baseline wiggles

Complete Heart Block (5-8):

No.	Finding	Matlab
5	P waves (fast, ~75/min)	Atria apni speed se beat kar rahe
6	QRS (slow, ~35/min)	Ventricles apni slow speed se
7	AV Dissociation	P aur QRS ka ZERO relationship
8	Wide escape QRS	Ventricular escape rhythm

RBBB (9-12):

No.	Finding	Matlab
9	Wide QRS > 0.12 sec	Right bundle ne signal delay kiya
10	RSR' in V1 (Rabbit ears)	Right bundle block ka hallmark
11	Wide S wave in V5/V6	Lateral leads mein slurred S
12	T wave inversion	Right-sided leads mein

Ek Nazar Mein - Master Summary

Normal    → 12 parts sahi hain, sab normal range mein
STEMI     → ST utha hua (6 no.) = Heart Attack Emergency 🚨
AF        → P waves gayab (1 no.) + irregular rhythm (2 no.)
Heart Block → P aur QRS ka rishta toot gaya (7 no.) = Pacemaker
RBBB      → Rabbit ears V1 mein (10 no.) = Wide QRS

Kaunsa pattern aur practice karni hai? VT, LBBB, Hyperkalemia ya AV blocks step by step bhi cover kar sakte hain! 😊
