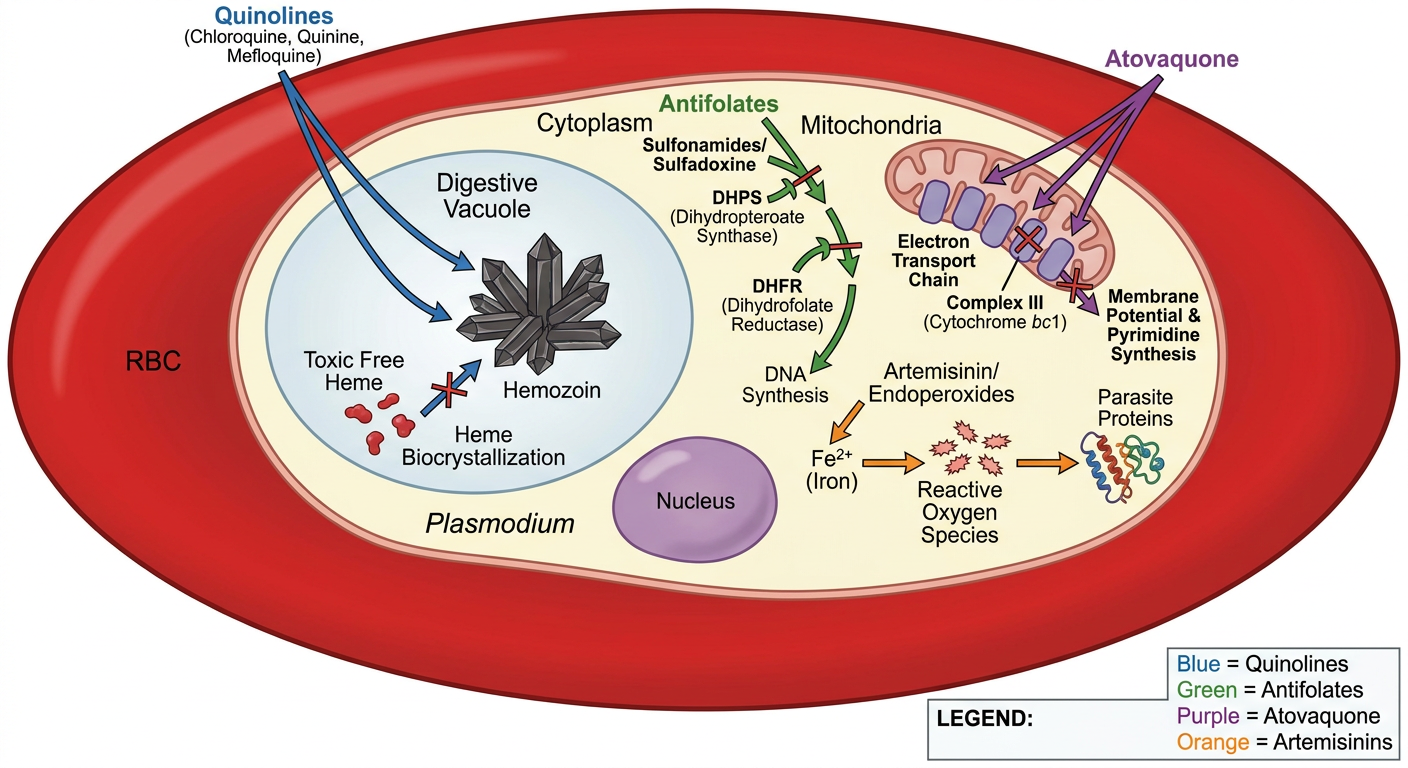

A detailed medical education diagram showing the mechanisms of action of major antimalarial drug classes inside a Plasmodium-infected red blood cell. The diagram should show: 1) The parasite food vacuole where quinolines (chloroquine, quinine, mefloquine) block heme biocrystallization/hemozoin formation, trapping toxic free heme; 2) The folate synthesis pathway in the parasite cytoplasm where antifolates act - sulfonamides/sulfadoxine inhibit dihydropteroate synthase (DHPS) and pyrimethamine/proguanil inhibit dihydrofolate reductase (DHFR), blocking DNA synthesis; 3) The mitochondrial electron transport chain where atovaquone blocks complex III (cytochrome bc1), disrupting membrane potential and pyrimidine synthesis; 4) Artemisinin/endoperoxides activated by intraparasitic iron (Fe2+) generating reactive oxygen species that alkylate parasite proteins. Show the malaria parasite inside a red blood cell with labeled compartments: digestive vacuole, cytoplasm, mitochondria, nucleus. Use color-coded arrows for each drug class. Clean, professional medical textbook style with clear labels and legend.
Antimalarial Mechanisms of Action
Mechanism Diagram
Chemical Structures of Major Antimalarials
Drug Classes and Their Mechanisms
1. Quinoline Blood Schizonticides (Digestive Vacuole)
- Asexual parasites digest host hemoglobin inside their food (digestive) vacuole, releasing toxic free heme (ferriprotoporphyrin IX) as a by-product
- Normally, parasites detoxify heme by biocrystallizing it into insoluble, inert hemozoin (malaria pigment)
- Quinoline drugs concentrate in the acidic digestive vacuole (being weak bases) and inhibit heme biocrystallization, causing toxic free heme and drug-heme complexes to accumulate
- This leads to oxidative damage to parasite membranes and other biomolecules, killing the parasite
- Resistance (PfCRT mutations) works by pumping chloroquine out of the vacuole
2. Artemisinins (Endoperoxides) - Multi-target
- Contain a unique endoperoxide bridge (sesquiterpene lactone structure)
- Inside the parasite, intraparasitic Fe²+ (from hemoglobin digestion) cleaves the endoperoxide bridge, generating highly reactive free radicals and carbon-centered radicals
- These radicals alkylate specific malarial proteins and cause widespread oxidative damage
- Artemisinins act extremely rapidly against blood-stage asexual parasites and also reduce gametocyte carriage
- Always used in combination (ACTs - Artemisinin Combination Therapies) to prevent resistance
3. Antifolates (Cytoplasm - Folate Pathway)
| Drug | Target Enzyme | Effect |
|---|---|---|
| Sulfadoxine, Dapsone | Dihydropteroate synthase (DHPS) | Blocks folate synthesis (step 1) |
| Pyrimethamine, Proguanil (active metabolite cycloguanil) | Dihydrofolate reductase (DHFR) | Blocks folate reduction (step 2) |
- Blockade of folate synthesis ultimately impairs DNA synthesis and cell replication
- Combining DHPS + DHFR inhibitors provides sequential blockade (synergistic)
4. Atovaquone (Mitochondria)
- Atovaquone is a hydroxynaphthoquinone that selectively targets the parasite mitochondrial electron transport chain
- It inhibits Complex III (cytochrome bc1 complex), collapsing the mitochondrial membrane potential
- This halts pyrimidine biosynthesis (parasites cannot salvage pyrimidines, unlike human cells), causing DNA synthesis to fail
- Proguanil synergizes by enhancing atovaquone's collapse of mitochondrial membrane potential (independent of its antifolate activity)
5. 8-Aminoquinolines (Liver Stages / Hypnozoites)
- The only drugs active against dormant liver hypnozoites of P. vivax and P. ovale (required for radical cure)
- Exact mechanism unclear, but involves generation of reactive oxygen metabolites that are toxic to liver-stage parasites and gametocytes
- Require G6PD testing before use - can cause hemolytic anemia in G6PD-deficient patients
Summary Table
| Drug Class | Example | Target Site | Mechanism |
|---|---|---|---|
| 4-Aminoquinolines | Chloroquine | Digestive vacuole | Inhibit heme detoxification (hemozoin) |
| Quinoline methanols | Quinine, Mefloquine | Digestive vacuole | Inhibit heme polymerization |
| Artemisinins | Artesunate | Multiple | Fe²+-activated free radicals; protein alkylation |
| Antifolates (DHPS) | Sulfadoxine | Cytoplasm | Block dihydropteroate synthase |
| Antifolates (DHFR) | Pyrimethamine | Cytoplasm | Block dihydrofolate reductase |
| Quinones | Atovaquone | Mitochondria | Block Complex III; collapse membrane potential |
| 8-Aminoquinolines | Primaquine | Liver/gametocytes | Oxidative damage (hypnozoiticidal) |
