Structure and Functions of Haemoglobin

Overview

Haemoglobin (Hb) is an oxygen-transport protein found exclusively in red blood cells (RBCs). In adults, the predominant form is HbA (α₂β₂), with a molecular weight of approximately 64,500 Da. Its primary role is transporting O₂ from the lungs to peripheral tissues, but it also carries CO₂, H⁺, and modulates its own O₂ affinity through allosteric regulation.

Structure

1. Primary Structure (Amino Acid Sequence)

HbA consists of four polypeptide (globin) chains: 2 α-chains (141 amino acids each) and 2 β-chains (146 amino acids each).
Each chain is encoded by a separate gene; mutations in these genes cause haemoglobinopathies (e.g., HbS in sickle cell disease, where Glu→Val at position 6 of the β-chain).

2. Secondary Structure

Each globin chain contains stretches of α-helical segments (conventionally labeled A through H from the amino terminus).
These helices fold to create a hydrophobic heme-binding pocket near the surface of each subunit.

3. Tertiary Structure (Individual Subunit)

Each globin chain folds around a single heme group — a protoporphyrin IX ring containing a central ferrous iron (Fe²⁺) atom.
The Fe²⁺ forms six coordination bonds:
- Four bonds to the pyrrole nitrogens of the porphyrin ring
- One bond to the imidazole nitrogen of the proximal histidine (His F8 — 87th residue in α-chain, 92nd in β-chain) of the globin chain
- One bond reversibly available for O₂ binding
A distal histidine (His E7) lies on the opposite side of the heme, stabilising the bound O₂ and preventing Fe²⁺ oxidation to Fe³⁺ (methaemoglobin).

4. Quaternary Structure (Tetramer)

This is the defining structural feature that distinguishes haemoglobin from myoglobin.

Haemoglobin tetramer showing α₁β₁ and α₂β₂ dimers with heme groups (black disks) in hydrophobic pockets

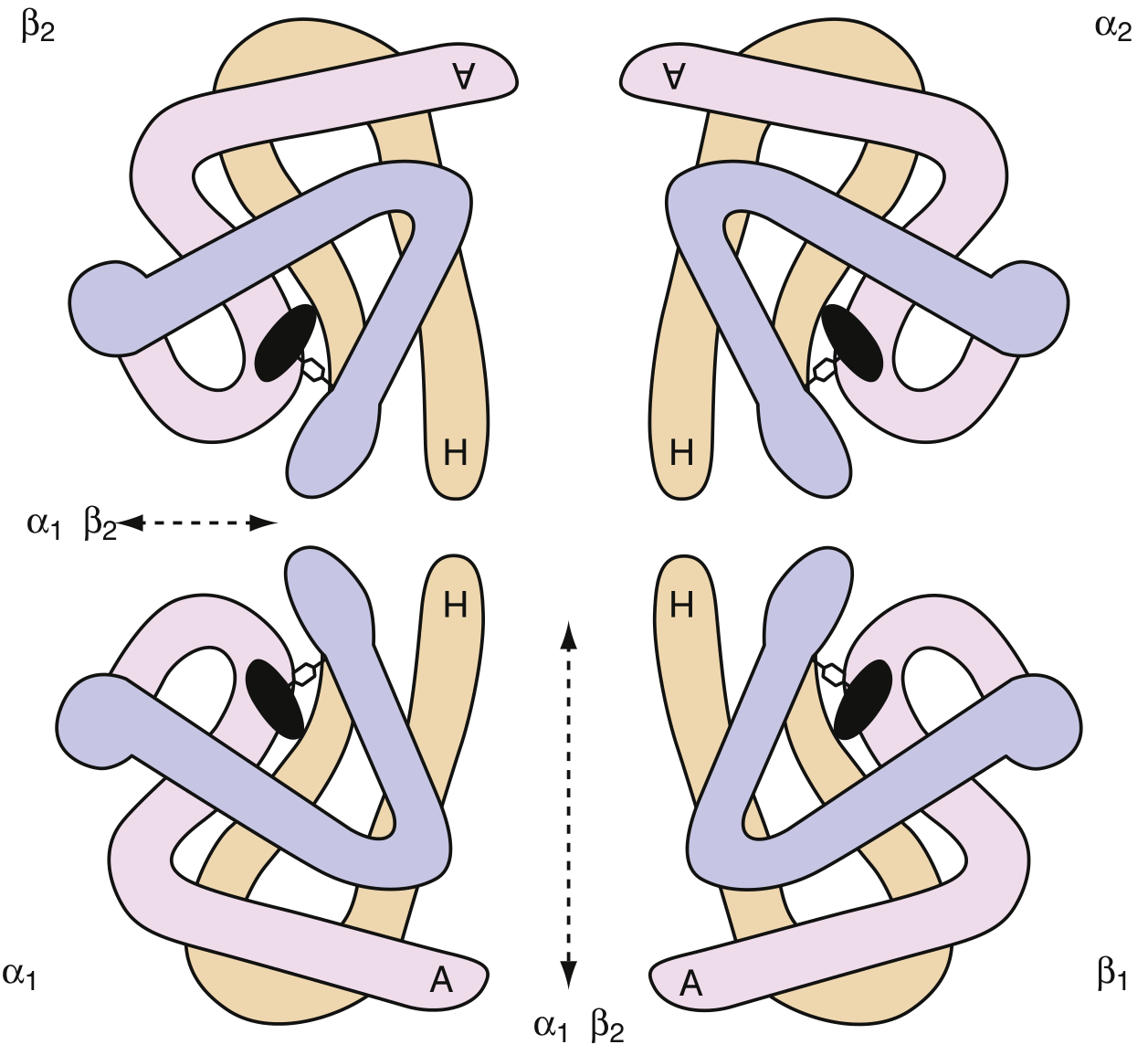

The haemoglobin tetramer (α₁β₁α₂β₂). Each black disk represents a heme group nestled in a hydrophobic pocket of its globin chain. Labels A and H indicate the α-helix segments. — Henry's Clinical Diagnosis and Management by Laboratory Methods, p. 660

The four subunits are arranged as two αβ dimers (α₁β₁ and α₂β₂):

Contact type	Location	Bond type	Significance
α₁β₁ (and α₂β₂)	Within each dimer	Strong hydrophobic	Stabilising — largely fixed
α₁β₂ (and α₂β₁)	Between dimers	Weaker polar/ionic	Functional — allows movement during O₂ binding

The movement at the α₁β₂ interface is the molecular basis of the T↔R conformational switch:

T form (Taut / Deoxy form)

The two αβ dimers are constrained by an extensive network of ionic bonds and hydrogen bonds.
Fe²⁺ is displaced slightly out of the plane of the heme ring.
Low O₂ affinity — stabilised by H⁺, CO₂, 2,3-BPG, and Cl⁻.

R form (Relaxed / Oxy form)

Binding of O₂ pulls Fe²⁺ into the plane of the heme; this movement pulls the proximal histidine and the attached helix, breaking some of the inter-dimer polar bonds.
High O₂ affinity — once one O₂ binds, subsequent binding is facilitated (cooperativity).

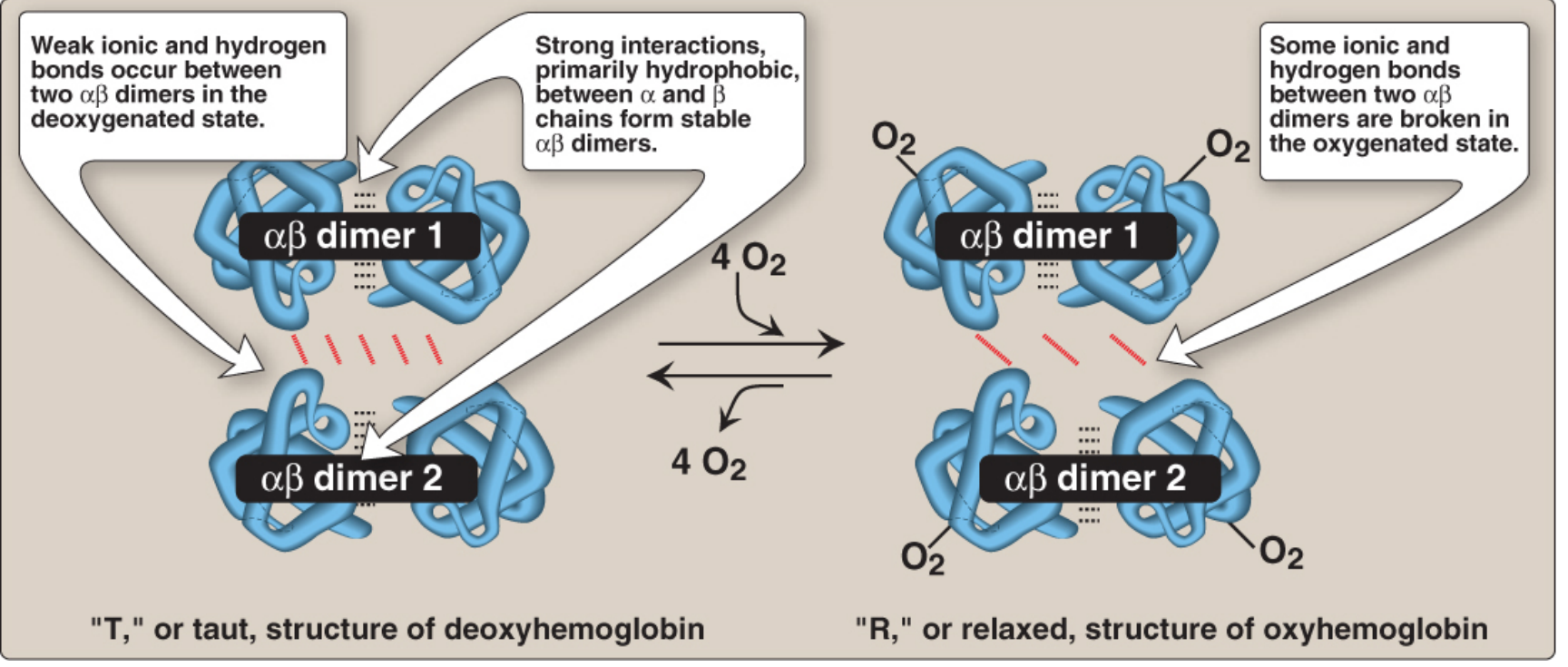

T form (deoxyhemoglobin) and R form (oxyhemoglobin) showing structural transition upon O₂ binding

Structural changes on oxygenation/deoxygenation: The T form is stabilised by weak ionic/H-bonds between dimers; the R form results from rupture of these bonds after O₂ binding. — Lippincott's Illustrated Reviews: Biochemistry, 8th ed., p. 95

Heme Group

Heme = iron protoporphyrin IX: a porphyrin ring (four pyrrole units linked by methine bridges) with a central Fe²⁺.
Synthesised from succinyl-CoA + glycine → δ-aminolevulinic acid (ALA) → porphobilinogen → protoporphyrin IX → heme.
Fe must remain as Fe²⁺ (ferrous) to bind O₂ reversibly. Oxidation to Fe³⁺ produces methaemoglobin, which cannot carry O₂.

Developmental Variants

Different globin chains are expressed at different stages:

Stage	Haemoglobin	Chains
Embryonic	HbGower 1, HbGower 2, HbPortland	ζ/ε, α/ε, ζ/γ
Fetal	HbF	α₂γ₂
Adult (major)	HbA	α₂β₂ (~97%)
Adult (minor)	HbA₂	α₂δ₂ (~2.5%)

HbF has a higher O₂ affinity than HbA because its γ-chains bind 2,3-BPG less avidly, facilitating O₂ transfer from maternal to fetal blood.

Functions

1. Oxygen Transport

Each Hb molecule carries up to 4 O₂ molecules (one per heme).
O₂ binding is cooperative (sigmoidal dissociation curve), meaning the affinity increases as each successive O₂ binds — the basis of efficient loading in the lungs and unloading in the tissues.
Without haemoglobin, plasma can carry only ~0.3 mL O₂ per 100 mL blood; with HbA, this rises to ~20 mL/100 mL.

2. Carbon Dioxide Transport

~20–23% of CO₂ is carried as carbamino-haemoglobin (CO₂ bound to the N-terminal amino groups of globin chains as carbamate).
CO₂ binding to the T form stabilises deoxyhaemoglobin and promotes O₂ release (Bohr effect).

3. Buffering (Bohr Effect)

Hb is one of the most important blood buffers.
In tissues, rising CO₂ → ↑ H⁺ (via carbonic anhydrase) → H⁺ binds to specific histidine residues on globin chains → T form stabilised → O₂ released.
In the lungs, CO₂ is expelled → ↓ H⁺ → R form favoured → O₂ loaded.
This reciprocal relationship between H⁺/CO₂ and O₂ affinity is the Bohr effect.

4. Regulation via 2,3-Bisphosphoglycerate (2,3-BPG)

2,3-BPG is a product of glycolysis in RBCs (Rapoport–Luebering shunt).
It binds in the central cavity between the β-chains of the T form, forming ionic bonds and reducing O₂ affinity (right-shifts the O₂ dissociation curve).
Elevated at high altitude and in chronic anaemia → enhances O₂ delivery to tissues.
HbF binds 2,3-BPG poorly → higher O₂ affinity (important for placental gas exchange).

5. Nitric Oxide (NO) Transport

Haemoglobin can bind NO at the Fe²⁺ of heme (forming nitrosyl-Hb) or at cysteine β-93 (forming S-nitrosyl-Hb), modulating vascular tone.

6. Proton Transport (Haldane Effect)

Deoxyhaemoglobin has a higher affinity for H⁺ than oxyhaemoglobin; this helps carry H⁺ from tissues to the lungs for excretion as H₂O after combining with HCO₃⁻.

Summary Table

Property	Detail
Molecular weight	~64,500 Da
Subunits	α₂β₂ (adult HbA)
Prosthetic group	Heme (Fe²⁺-protoporphyrin IX)
O₂ binding sites	4 per molecule
O₂ dissociation curve	Sigmoidal (cooperative)
Low-affinity form	T (taut/deoxy) — stabilised by H⁺, CO₂, 2,3-BPG
High-affinity form	R (relaxed/oxy)
Key allosteric effectors	H⁺, CO₂, 2,3-BPG, Cl⁻, temperature

Sources: Lippincott's Illustrated Reviews: Biochemistry, 8th ed., pp. 94–96; Henry's Clinical Diagnosis and Management by Laboratory Methods, pp. 660–663; Harrison's Principles of Internal Medicine, 22nd ed., pp. 813–815
