SURGICAL ANATOMY OF LATERAL WALL OF NOSE WITH NOTE ON OSTIOMEATAL COMPLEX (OMC)

(20 Marks - RGUHS ENT Examination)

INTRODUCTION

PART I: SURGICAL ANATOMY OF THE LATERAL WALL OF NOSE

A. BONY FRAMEWORK

┌─────────────────────────────────────────────────┐
│     BONES FORMING THE LATERAL WALL OF NOSE     │
├────────────────────────┬────────────────────────┤
│ Bone                   │ Contribution            │
├────────────────────────┼────────────────────────┤
│ Nasal bone             │ Superior-anterior       │
│ Frontal process of     │ Anterosuperior          │
│   maxilla              │                         │
│ Lacrimal bone          │ Anterior middle         │
│ Ethmoid (labyrinth)    │ Middle portion          │
│ Inferior turbinate     │ Separate bone           │
│   (concha)             │ (only independent bone) │
│ Perpendicular plate    │ Posterior inferior      │
│   of palatine          │                         │
│ Medial pterygoid plate │ Posterior               │
│   of sphenoid          │                         │
└────────────────────────┴────────────────────────┘

B. TURBINATES (CONCHAE) AND MEATUSES

1. INFERIOR TURBINATE

• A separate, independent bone (not part of the ethmoid)
• Largest and most vascular turbinate
• Covered by specialized erectile mucosa with venous sinusoids
• Attached to the inferolateral nasal wall from just anterior to the Eustachian tube opening to the nasal valve anteriorly
• Blood supply: Lateral branch of the sphenopalatine artery (posteriorly); anterior ethmoid artery (anteriorly)
• Nerve supply: Trigeminal nerve (sensation); sympathetic fibers (vasoconstriction) and parasympathetic via Vidian nerve - sphenopalatine ganglion (vasodilation and secretion)

• Widest, longest, lowest meatus
• The nasolacrimal duct opens here - guarded by Hasner's valve (plica lacrimalis), 1-2 cm from the anterior end
• Site of puncture during Caldwell-Luc antral washout - trocar passed below the inferior turbinate through the thin medial wall of the maxillary sinus (Scott-Brown's, Vol. 1)
• Surgical significance: During crying, tears flow into the nose via this duct (explains "watery nose" with crying)

2. MIDDLE TURBINATE

• Part of the ethmoid bone
• Critical landmark in FESS - protects contents of the middle meatus
• Boomerang-shaped (Cummings)
• Has three distinct attachments (the basal lamella):

┌──────────────────────────────────────────────────────────────┐
│        THREE PARTS OF MIDDLE TURBINATE BASAL LAMELLA        │
├──────────────┬──────────────────────────────────────────────┤
│ Part         │ Orientation & Attachment                      │
├──────────────┼──────────────────────────────────────────────┤
│ 1. Anterior  │ Sagittal/vertical plane                       │
│   (vertical) │ Attaches to cribriform plate / crista         │
│              │ ethmoidalis of maxilla superiorly             │
├──────────────┼──────────────────────────────────────────────┤
│ 2. Middle    │ Coronal/oblique plane (45°)                   │
│   (oblique)  │ Attaches to lamina papyracea (key landmark)   │
│              │ = the TRUE basal lamella                      │
│              │ Divides ANTERIOR and POSTERIOR ethmoids       │
├──────────────┼──────────────────────────────────────────────┤
│ 3. Posterior │ Horizontal plane                              │
│  (horizontal)│ Attaches to medial wall of maxillary sinus   │
│              │ and lamina papyracea                          │
└──────────────┴──────────────────────────────────────────────┘

3. SUPERIOR TURBINATE

• Smallest turbinate; part of the ethmoid
• Superior meatus: Receives the openings of the posterior ethmoid cells
• Sphenoethmoidal recess (between superior turbinate and nasal septum): Receives the sphenoid sinus ostium

C. STRUCTURES IN THE MIDDLE MEATUS (KEY CONTENTS)

1. Uncinate process (sickle-shaped)
2. Hiatus semilunaris
3. Ethmoidal infundibulum
4. Ethmoid bulla (bulla ethmoidalis)
5. Agger nasi region
6. Frontal recess
7. Maxillary sinus ostium (natural)

D. BLOOD SUPPLY OF LATERAL WALL

                BLOOD SUPPLY - LATERAL WALL OF NOSE
                ┌─────────────────────────────────┐
                │                                   │
     ┌──────────┴─────────┐         ┌──────────────┴──────────┐
     │  INTERNAL CAROTID  │         │   EXTERNAL CAROTID      │
     │  (via Ophthalmic A.)│         │   (via Maxillary A.)    │
     └──────────┬─────────┘         └──────────────┬──────────┘
                │                                   │
     ┌──────────┴──────────┐         ┌─────────────┴──────────────┐
     │ Anterior Ethmoidal  │         │ Sphenopalatine artery       │
     │ Artery (AEA)        │         │ → Posterolateral nasal      │
     │ Posterior Ethmoidal │         │   branches (to turbinates)  │
     │ Artery (PEA)        │         │ → Posterior septal branches │
     └─────────────────────┘         │ Greater Palatine artery     │
                                      │ (inferior)                  │
                                      └─────────────────────────────┘

• Kiesselbach's plexus (Little's area): Anastomosis on anterior nasal septum
• Woodruff's plexus: Posterior lateral wall, behind middle turbinate - site of posterior epistaxis

E. NERVE SUPPLY OF LATERAL WALL

         NERVE SUPPLY - LATERAL WALL
         ┌────────────────────────────────────┐
         │           TRIGEMINAL (CN V)         │
         └────────┬─────────────────┬──────────┘
                  │                  │
         ┌────────┴──────┐  ┌────────┴──────────┐
         │ Anterior 1/3  │  │  Posterior 2/3    │
         │               │  │                    │
         │ V1 - Anterior │  │ V2 - Posterolateral│
         │ Ethmoidal N.  │  │ nasal branches of  │
         │               │  │ sphenopalatine     │
         └───────────────┘  │ ganglion (via V2)  │
                            └────────────────────┘
         Autonomic supply via Vidian nerve (CN VII + sympathetic)
         → Sphenopalatine ganglion → nasal mucosa

F. LYMPHATIC DRAINAGE

• Anterior part: Submandibular nodes
• Posterior part: Upper deep cervical and retropharyngeal nodes

PART II: OSTIOMEATAL COMPLEX (OMC) - DETAILED NOTE

A. DEFINITION AND CONCEPT

B. COMPONENTS OF THE OMC

1. UNCINATE PROCESS

┌────────────────────────────────────────────────────────────────┐
│                    UNCINATE PROCESS                            │
├────────────────────────────────────────────────────────────────┤
│ Shape:    Sickle/hook-shaped; sagittally oriented              │
│ Size:     3-4 mm wide, 1.5-2 cm long                          │
│           (K.J. Lee's Essential Otolaryngology)               │
├────────────────────────────────────────────────────────────────┤
│ ATTACHMENTS:                                                    │
│ • Anterior/Superior: Frontal process of maxilla,              │
│   ethmoidal crest of maxilla, posterior lacrimal bone         │
│ • Posterior/Inferior: Ethmoidal process of inferior           │
│   turbinate, perpendicular plate of palatine bone             │

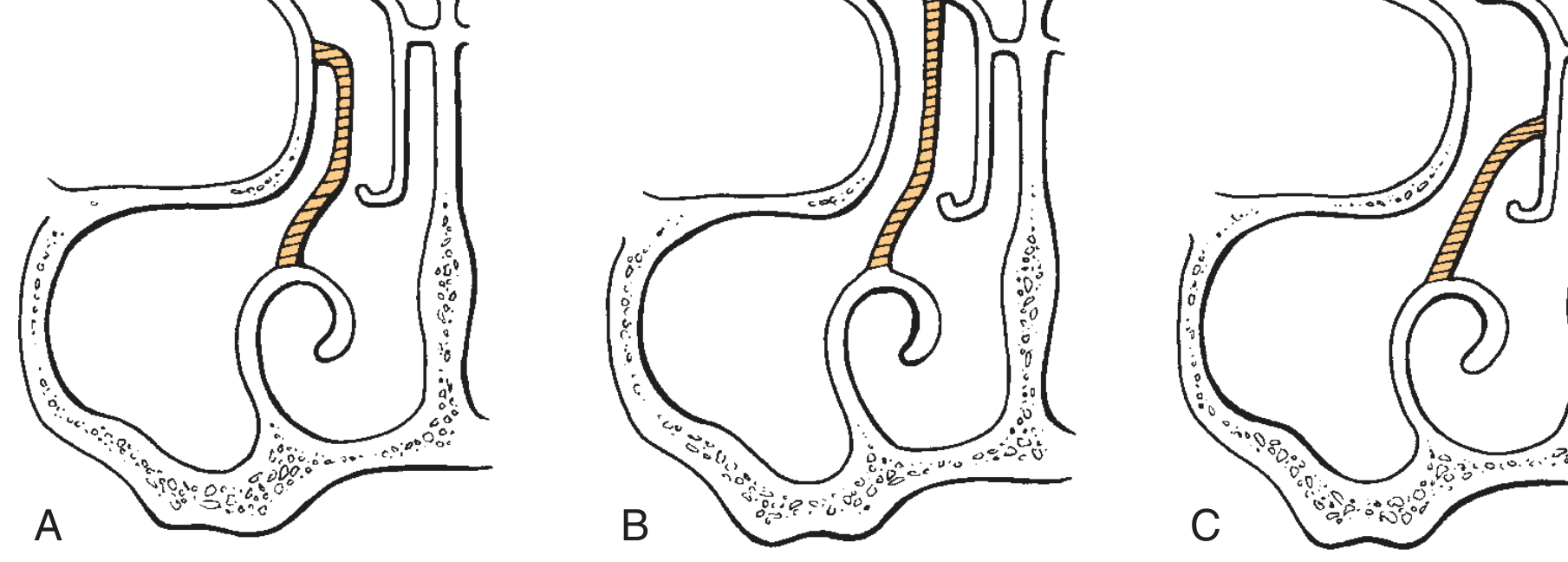

│ • SUPERIOR ATTACHMENT (crucial for frontal sinus drainage):   │
│   A: Lamina papyracea → creates recessus terminalis (blind)   │
│      → frontal sinus drains MEDIALLY beside middle turbinate  │
│   B: Ethmoid roof                                              │
│      → frontal sinus drains INTO infundibulum                 │
│   C: Middle turbinate                                          │
│      → frontal sinus drains INTO infundibulum                 │
├────────────────────────────────────────────────────────────────┤
│ SURGICAL SIGNIFICANCE:                                          │
│ • First structure removed in FESS (uncinectomy)                │
│ • Its posterior free edge forms medial wall of infundibulum   │
│ • The inferior part overlies the natural maxillary ostium     │
└────────────────────────────────────────────────────────────────┘

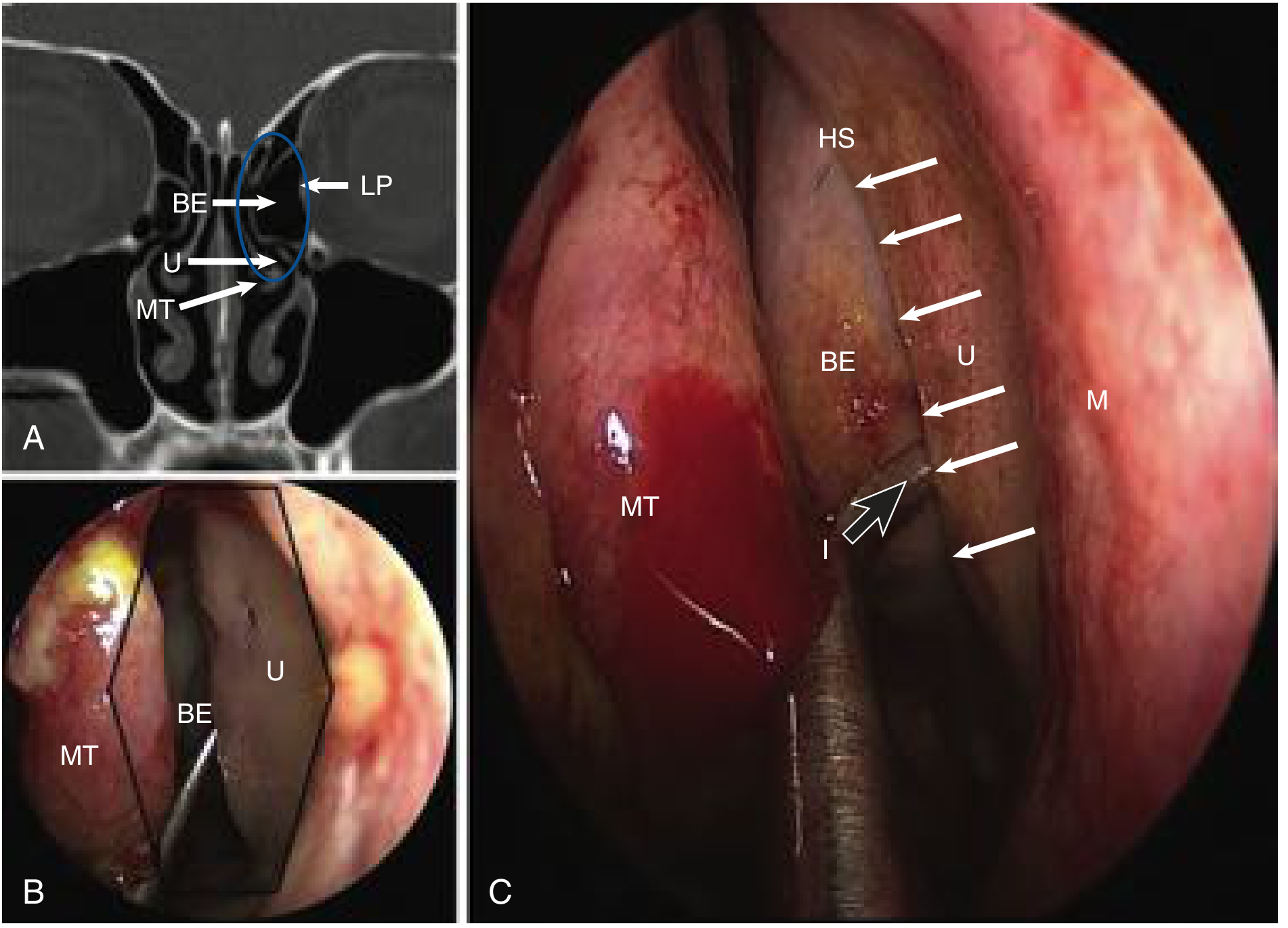

2. HIATUS SEMILUNARIS (INFERIOR)

• A two-dimensional, crescent/semilunar-shaped cleft (gap) between:
  • Anteriorly/medially: Posterior free edge of the uncinate process
  • Posteriorly/laterally: Anterior face of the ethmoid bulla
• Through this gap, the nasal cavity communicates with the ethmoidal infundibulum
• A "hiatus semilunaris superior" (hiatus secondarius) connects the middle meatus to the suprabullar/retrobullar recess (K.J. Lee's, p. 607)

3. ETHMOIDAL INFUNDIBULUM

┌──────────────────────────────────────────────────────┐
│              ETHMOIDAL INFUNDIBULUM                  │
├──────────────────────────────────────────────────────┤
│ Description: Funnel-shaped 3-dimensional space       │
│ that channels secretions → middle meatus             │
├──────────────────────────────────────────────────────┤
│ BOUNDARIES:                                           │
│ Medial:           Uncinate process                    │
│ Lateral:          Lamina papyracea (medial orbital   │
│                   wall)                               │
│ Posterior:        Anterior wall of ethmoid bulla     │
│ Anterior/Superior: Frontal process of maxilla        │
│ Superior/Lateral:  Lacrimal bone                     │
├──────────────────────────────────────────────────────┤
│ RECEIVES DRAINAGE FROM:                               │
│ • Maxillary sinus (via its natural ostium)           │
│ • Anterior ethmoid cells                             │
│ • Frontal sinus (if uncinate attaches to B or C)    │
└──────────────────────────────────────────────────────┘

4. ETHMOID BULLA (BULLA ETHMOIDALIS)

• The largest and most constant anterior ethmoid air cell
• First cell encountered after removal of uncinate process during FESS
• Anterior wall: Forms the posterior boundary of the hiatus semilunaris
• Lateral wall: Is the medial wall of the orbit (lamina papyracea)
• Drains into suprabullar recess or retrobullar recess (collectively = Sinus Lateralis of Grunwald)
• When the bulla extends to skull base = bulla lamella

5. AGGER NASI AND FRONTAL RECESS

• A bony mound at the attachment of the middle turbinate to the lateral wall
• When pneumatized = Agger Nasi Cell (ANC) - present in 98.5% of CT scans (Cummings)
• Most anterior of all ethmoid cells; key structure in frontal sinus surgery

Boundaries:
• Lateral:    Lamina papyracea
• Medial:     Middle turbinate
• Anterior:   Posterior wall of Agger Nasi Cell (when present)
• Posterior:  Anterior face of ethmoid bulla (if it reaches skull base)

• Tapers superiorly into the frontal sinus ostium

C. BOUNDARIES OF THE OMC AS A UNIT

┌──────────────────────────────────────┐
│    BOUNDARIES OF THE OMC             │
├────────────────┬─────────────────────┤
│ Lateral        │ Lamina papyracea    │
│                │ (medial orbital     │
│                │ wall)               │
├────────────────┼─────────────────────┤
│ Medial         │ Middle turbinate    │
├────────────────┼─────────────────────┤
│ Anterior       │ Agger nasi region   │
├────────────────┼─────────────────────┤
│ Posterior      │ Basal lamella of    │
│                │ middle turbinate    │
├────────────────┼─────────────────────┤
│ Superior       │ Skull base /        │
│                │ fovea ethmoidalis   │
└────────────────┴─────────────────────┘

D. DRAINAGE PATHWAYS - FLOWCHART

╔══════════════════════════════════════════════════════════════╗
║         MUCOCILIARY DRAINAGE OF PARANASAL SINUSES           ║
╠══════════════════════════════════════════════════════════════╣
║                                                              ║
║  ANTERIOR GROUP                    POSTERIOR GROUP          ║
║  (Via OMC / Middle Meatus)         (Via Superior Meatus)    ║
║  ┌─────────────┐                   ┌────────────────┐       ║
║  │Frontal Sinus│                   │Posterior Ethmoid│      ║
║  └──────┬──────┘                   │    Cells        │      ║
║         │ Frontal recess           └───────┬────────┘       ║
║         ↓                                  ↓                 ║
║  ┌──────────────────┐              ┌────────────────┐       ║
║  │  Anterior        │              │ Superior Meatus │       ║
║  │  Ethmoid Cells   │              └────────────────┘       ║
║  └──────┬───────────┘                                        ║
║         │                          ┌────────────────────┐   ║
║         ↓                          │  Sphenoid Sinus    │   ║
║  ┌──────────────────────┐          └────────┬───────────┘   ║
║  │  Ethmoidal           │                   │               ║
║  │  Infundibulum        │          ┌────────↓───────────┐   ║
║  └──────┬───────────────┘          │Sphenoethmoidal     │   ║
║         │ (via hiatus semilunaris) │Recess              │   ║
║         ↓                          └────────────────────┘   ║
║  ┌──────────────────┐                                        ║
║  │  Maxillary Sinus │                                        ║
║  │  → Natural ostium│                                        ║
║  └──────┬───────────┘                                        ║
║         │                                                    ║
║         ↓                                                    ║
║  ╔═════════════════╗                                         ║
║  ║  MIDDLE MEATUS  ║  ← FINAL COMMON PATHWAY                ║
║  ╚═════════════════╝                                         ║
╚══════════════════════════════════════════════════════════════╝

┌─────────────────────────────────────────────────────────────────┐
│ TRIGGER: Viral URTI / Allergy / Anatomic Variant                │
└──────────────────────────┬──────────────────────────────────────┘
                           ↓
        ┌──────────────────────────────────┐
        │  Mucosal edema at OMC            │
        │  (uncinate, infundibulum,        │
        │   middle meatus)                 │
        └──────────────────┬───────────────┘
                           ↓
        ┌──────────────────────────────────┐
        │  Obstruction of sinus ostia      │
        │  (maxillary, frontal, ant.       │
        │   ethmoid)                       │
        └──────────────────┬───────────────┘
                           ↓
        ┌──────────────────────────────────┐
        │  ↓ O₂ tension in sinus           │
        │  ↓ mucociliary clearance         │
        │  Mucus accumulation              │
        └──────────────────┬───────────────┘
                           ↓
        ┌──────────────────────────────────┐
        │  Secondary bacterial infection   │
        │  (S. pneumoniae, H. influenzae,  │
        │   M. catarrhalis)                │
        └──────────────────┬───────────────┘
                           ↓
        ┌──────────────────────────────────┐
        │  ACUTE / CHRONIC RHINOSINUSITIS  │
        │  (involving multiple sinuses     │
        │   from one OMC lesion)           │
        └──────────────────────────────────┘

E. ANATOMIC VARIANTS OF OMC (SURGICAL IMPORTANCE)

┌───────────────────────────────────────────────────────────────────┐
│              ANATOMIC VARIANTS OF OMC                             │
├────────────────────┬──────────────────────────────────────────────┤
│ Variant            │ Clinical Significance                         │
├────────────────────┼──────────────────────────────────────────────┤
│ Concha Bullosa     │ Most common; pneumatized middle turbinate;   │
│                    │ can obstruct OMC                             │
├────────────────────┼──────────────────────────────────────────────┤
│ Paradoxical middle │ Middle turbinate curves laterally instead of │
│ turbinate          │ medially; narrows middle meatus              │
├────────────────────┼──────────────────────────────────────────────┤

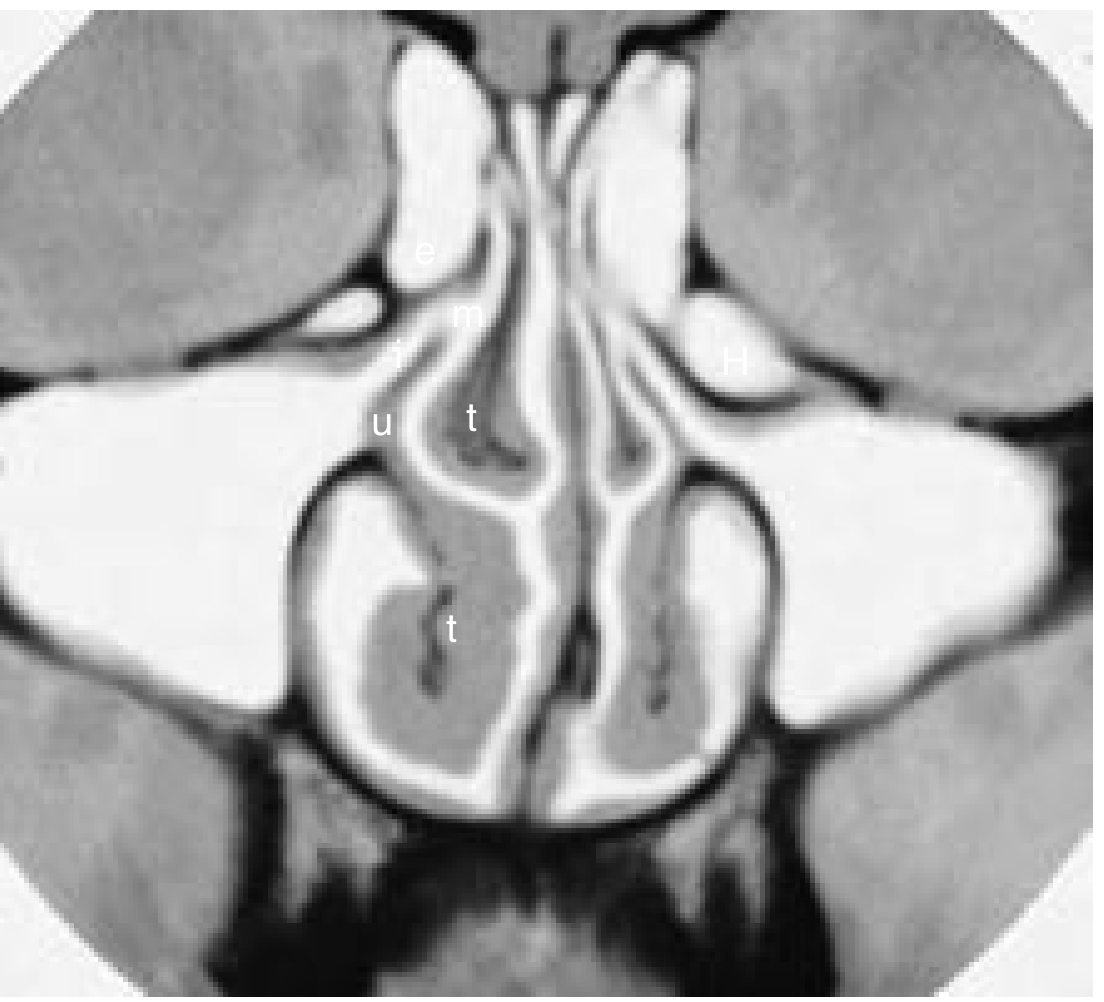

│ Haller cell        │ Now: Infraorbital ethmoidal cell (IOC)       │
│ (IOC)              │ Pneumatizes into orbital floor above         │
│                    │ maxillary ostium; can obstruct infundibulum  │
├────────────────────┼──────────────────────────────────────────────┤
│ Agger nasi cell    │ Large ANC can obstruct frontal recess        │
│ (ANC)              │                                              │
├────────────────────┼──────────────────────────────────────────────┤
│ Accessory maxillary│ Perforated posterior fontanelle (20-25%);   │
│ ostium             │ mucociliary recirculation                    │
├────────────────────┼──────────────────────────────────────────────┤
│ Onodi cell         │ Posterior-most ethmoid cell; intimate with  │
│ (sphenoethmoidal   │ optic nerve - risk during surgery           │
│ cell)              │                                              │
├────────────────────┼──────────────────────────────────────────────┤
│ Deviated nasal     │ Contralateral OMC narrowing                  │
│ septum             │                                              │
└────────────────────┴──────────────────────────────────────────────┘

F. SURGICAL SIGNIFICANCE OF OMC - FESS

Step 1: Middle turbinate medialized
        ↓
Step 2: UNCINECTOMY
        (Uncinate process removed - exposes infundibulum)
        ↓
Step 3: MAXILLARY ANTROSTOMY
        (Natural maxillary ostium identified and widened)
        ↓
Step 4: ETHMOID BULLA removed (anterior ethmoidectomy)
        (Exposes frontal recess and ethmoid roof)
        ↓
Step 5: FRONTAL SINUSOTOMY
        (Agger nasi cell opened; frontal recess cleared)
        ↓
Step 6: Posterior ethmoidectomy
        (Basal lamella entered; posterior cells cleared)
        ↓
Step 7: SPHENOIDOTOMY
        (Natural sphenoid ostium identified and widened)

G. RADIOLOGICAL ASSESSMENT OF OMC

• Modality of choice: Coronal CT scan (non-contrast)
• Best demonstrates the OMC structures, infundibulum, ethmoid bulla, uncinate, Haller cells, and all anatomic variants
• The three "tight spots" to assess (Cummings, p. 784):
  1. Frontal recess - narrowest portion
  2. Infundibulum - connects maxillary sinus to middle meatus
  3. Sphenoethmoidal recess - sphenoid drainage

PART III: RECENT ADVANCES (RGUHS Perspective)

1. Concept Revision - Haller Cell renamed Infraorbital Ethmoidal Cell (IOC)

2. EPOS 2020 Guidelines

3. CT vs. MRI

4. Endoscopic Anatomy - The "Key Area"

5. Drug Delivery to OMC

6. Image-Guided FESS

7. Anatomic Variations and CRS

SUMMARY TABLE

┌──────────────────────────────────────────────────────────────────────┐
│           COMPONENTS OF OMC AND THEIR SURGICAL RELEVANCE            │
├────────────────────────┬─────────────────────────────────────────────┤
│ Structure              │ Key Points                                   │
├────────────────────────┼─────────────────────────────────────────────┤
│ Uncinate process       │ First to be removed in FESS; determines     │
│                        │ frontal sinus drainage pattern              │
├────────────────────────┼─────────────────────────────────────────────┤
│ Hiatus semilunaris     │ 2D gap between uncinate & ethmoid bulla;    │
│                        │ entry into infundibulum                     │
├────────────────────────┼─────────────────────────────────────────────┤
│ Ethmoidal infundibulum │ 3D funnel; common drainage channel          │
├────────────────────────┼─────────────────────────────────────────────┤
│ Ethmoid bulla          │ Largest anterior ethmoid cell; post.        │
│                        │ boundary of hiatus                          │
├────────────────────────┼─────────────────────────────────────────────┤
│ Frontal recess         │ Narrowest "tight spot"; most complex        │
│                        │ frontal drainage                            │
├────────────────────────┼─────────────────────────────────────────────┤
│ Agger nasi cell        │ Present in 98.5%; key for frontal surgery   │
├────────────────────────┼─────────────────────────────────────────────┤
│ Natural maxillary      │ Posteromedial sinus wall; always widen     │
│ ostium                 │ rather than create new opening (prevents    │
│                        │ mucociliary recirculation)                  │
└────────────────────────┴─────────────────────────────────────────────┘

REFERENCES

1. Cummings Otolaryngology Head and Neck Surgery, 7th ed. - Flint PW et al. Chapter 38 (Imaging) and Chapter 44 (FESS). Elsevier, 2020. (Primary textbook - OMC anatomy, FESS steps, CT assessment)
2. Scott-Brown's Otorhinolaryngology Head & Neck Surgery, 8th ed., Vol. 1 - Watkinson JC, Clarke RW (eds). CRC Press. (Turbinate anatomy, nerve supply, inferior turbinate details)
3. K.J. Lee's Essential Otolaryngology, 11th ed. - Scholes MA, Ramakrishnan VR (eds). McGraw-Hill. (OMC components with detailed borders, ESS techniques)
4. Bailey & Love's Short Practice of Surgery, 28th ed. - Williams NS et al. CRC Press. (Lateral wall anatomy, blood supply)
5. Diseases of Ear, Nose and Throat, 7th ed. - Dhingra PL, Dhingra S. Elsevier. (Standard Indian ENT textbook - OMC concept)
6. Hazarika P. - Textbook of Ear, Nose and Throat. (Indian context - standard RGUHS reference)
7. Stell & Maran's Head and Neck Surgery, 5th ed. (OMC and FESS anatomy)
8. Stammberger H. Functional Endoscopic Sinus Surgery. Mosby, 1991. (Original OMC concepts)
9. Papadopoulou AM, Bakogiannis N, Skrapari I. "Anatomical Variations of the Sinonasal Area and Their Clinical Impact on Sinus Pathology: A Systematic Review." Int Arch Otorhinolaryngol, 2022 Jul. [PMID: 35846811]
10. Nandyal CB, Benola A. "Evaluation of Anatomical Variations Associated with Chronic Rhinosinusitis by Computed Tomography of Paranasal Sinuses." Indian J Otolaryngol Head Neck Surg, 2024. [PMID: 38440475]
11. Seifelnasr A, Zare F, Si XA. "Optimized gravity-driven intranasal drop administration delivers significant doses to the ostiomeatal complex and maxillary sinus." Drug Deliv Transl Res, 2024 Jul. [PMID: 38044376]
12. EPOS 2020 Guidelines - Fokkens WJ et al. Rhinology, 2020;58(Suppl S29):1-464.

RGUHS Exam Key Points to Remember:

• OMC is NOT a single structure - it is a functional unit / region
• The uncinate process determines frontal sinus drainage pathway (3 variations of superior attachment)
• Coronal CT (non-contrast) is the imaging modality of choice for OMC evaluation
• Concha bullosa is the most common anatomic variant causing OMC obstruction
• Messerklinger's FESS goes anterior-to-posterior; Wigand's goes posterior-to-anterior
• Haller cell = IOC (infraorbital ethmoidal cell) per current nomenclature (IFAC 2020)
• The natural maxillary sinus ostium must always be identified and preserved/widened - never create a neo-ostium without identifying the natural one (risk of mucociliary recirculation)
• Agger nasi cell is present in 98.5% of patients and is the most anterior ethmoidal cell
