Clinical Anatomy of the Ear: Physiology and Research Methods of Auditory and Vestibular Analyzers

I. OVERVIEW

"The ear is the organ of hearing and balance. It has three parts... The internal ear converts the mechanical signals received from the middle ear, which start as sound captured by the external ear, into electrical signals to transfer information to the brain. The internal ear also contains receptors that detect motion and position." — Gray's Anatomy for Students

II. EXTERNAL EAR

Auricle (Pinna)

• Helix — the outer rim, ending inferiorly at the fleshy lobule (the only part without cartilage)
• Antihelix — a curved parallel rim anterior to the helix
• Concha — the hollow center from which the external acoustic meatus opens
• Tragus / Antitragus — elevations flanking the meatus opening

External Acoustic Meatus

Tympanic Membrane (Eardrum)

• Pars tensa — the main functional part, taut
• Pars flaccida (Shrapnell's membrane) — the smaller superior region, loosely attached

Fig. External, middle, and internal sections of the ear — Gray's Anatomy for Students

III. MIDDLE EAR

• Tympanic cavity proper — adjacent to the tympanic membrane
• Epitympanic recess — the superior extension housing the malleus head and incus body

Walls of the Middle Ear

Auditory Ossicles

1. Malleus ("hammer") — largest; handle embedded in tympanic membrane; head articulates with incus in epitympanic recess; anterior process anchored to anterior wall by ligament.
2. Incus ("anvil") — body articulates with malleus head; long limb descends and articulates with stapes; short limb attaches posteriorly by ligament.
3. Stapes ("stirrup") — smallest bone in the body; head articulates with incus long process; footplate fits into the oval window.

Muscles of the Ossicles

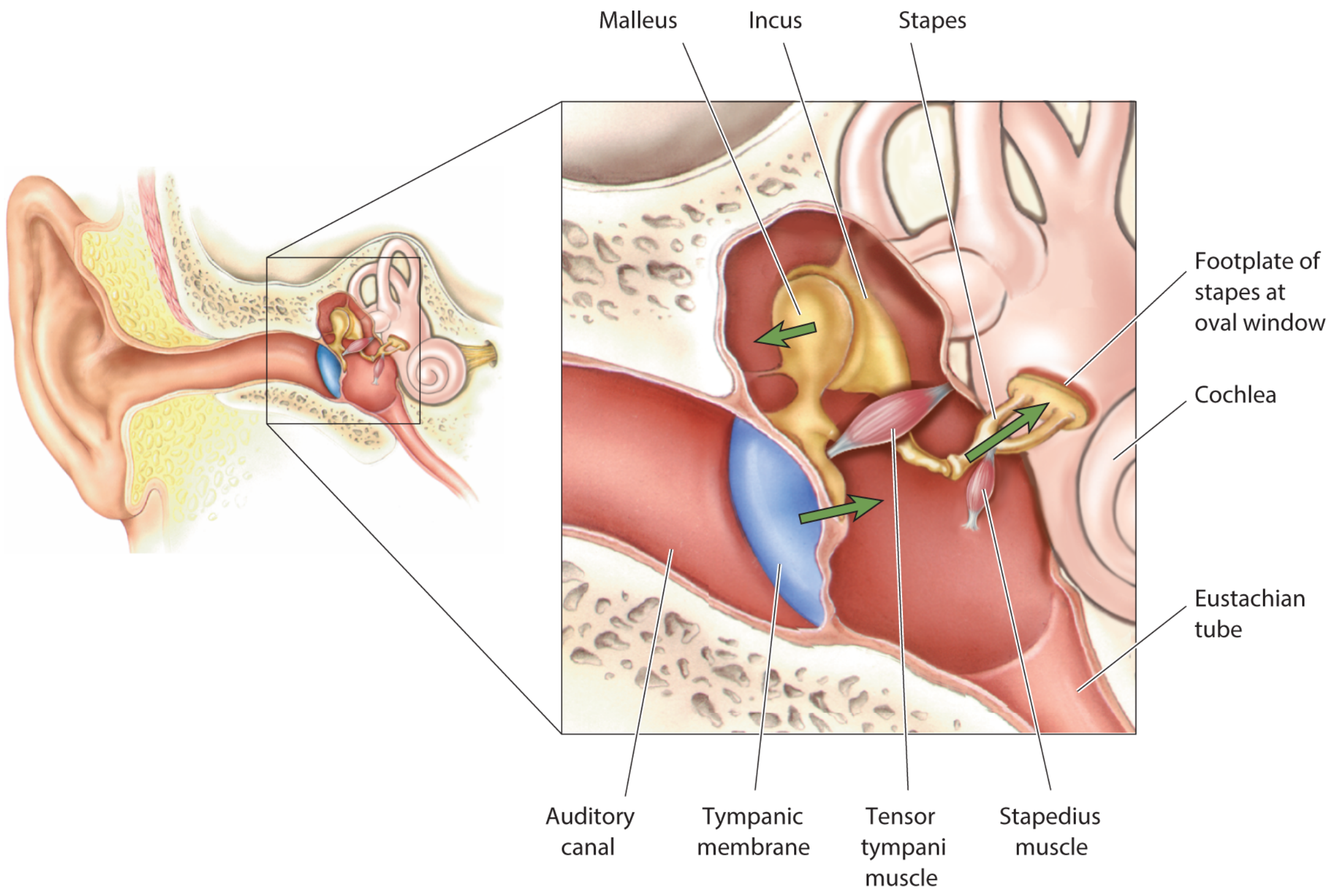

Fig. Middle ear components: tympanic membrane, malleus, incus, stapes, cochlea — Neuroscience: Exploring the Brain

Sound Force Amplification

1. Area advantage: The tympanic membrane (~55 mm²) is ~17× larger than the oval window (~3.2 mm²), concentrating pressure.
2. Lever action: The ossicular lever ratio provides ~1.3× mechanical advantage.
3. Combined: ~22-fold pressure amplification, equivalent to ~25 dB.

IV. INTERNAL (INNER) EAR

A. Bony Labyrinth

1. Vestibule — central region; oval window on lateral wall; communicates with cochlea anteriorly, semicircular canals posterosuperiorly
2. Three semicircular canals — anterior, posterior, lateral; each dilates at one end into an ampulla
3. Cochlea — spiral structure of 2.5–2.75 turns around a central bony core (modiolus); divided by the cochlear duct into scala vestibuli (above) and scala tympani (below); these communicate at the apex through the helicotrema

B. Membranous Labyrinth

• Cochlear duct (scala media) — organ of hearing
• Utricle and saccule — linear acceleration sensors
• Three semicircular ducts — rotational acceleration sensors

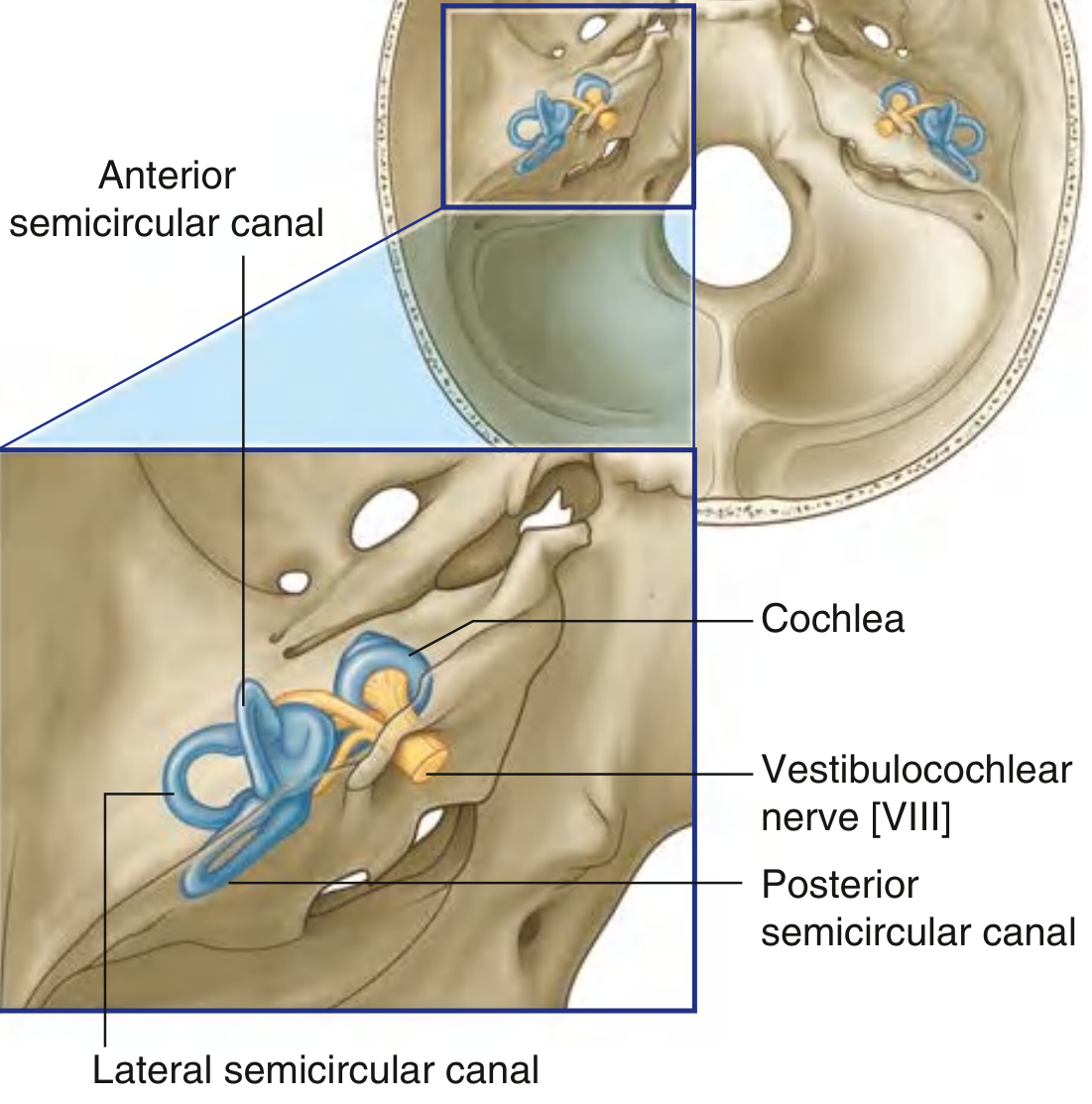

Fig. Location of the internal ear in the temporal bone — Gray's Anatomy for Students

Fig. 3D reconstruction of cochlea, vestibule, and semicircular canals — three orthogonal planes of the semicircular canals are clearly visible

Vestibulocochlear Nerve [CN VIII]

• Cochlear nerve — from spiral ganglion (hearing)
• Vestibular nerve — from vestibular ganglion (balance); carries superior and inferior divisions

V. PHYSIOLOGY OF THE AUDITORY ANALYZER

Nature of Sound

• Frequency (Hz) — perceived as pitch; human range 20–20,000 Hz
• Amplitude — perceived as loudness, measured in decibels (dB SPL)

Cochlear Mechanics — Basilar Membrane & Tonotopy

• High frequencies → peak near the base
• Low frequencies → wave travels to the apex

Organ of Corti — Transduction

• Inner hair cells (IHC) — 1 row (~3,500 cells); primary sensory receptors; receive ~95% of spiral ganglion afferents
• Outer hair cells (OHC) — 3 rows (~12,000 cells); amplify basilar membrane movement via electromotility (somatic motor driven by prestin protein)
• Tectorial membrane — gelatinous membrane above the hair cells; stereocilia of OHCs are embedded in it

Central Auditory Pathway

Cochlea (spiral ganglion)
        ↓ CN VIII (cochlear nerve)
Cochlear nuclei (dorsal & ventral — brainstem)
        ↓ decussates via trapezoid body
Superior olivary complex (first binaural integration; sound localization)
        ↓
Lateral lemniscus
        ↓
Inferior colliculus (midbrain; reflex coordination)
        ↓
Medial geniculate nucleus (MGN, thalamus)
        ↓
Primary auditory cortex — A1 (Heschl's gyrus, superior temporal gyrus)

Fig. Central auditory pathway mapped onto neuroimaging slices — key relay stations highlighted

Encoding Sound Intensity and Frequency

• Intensity: encoded by firing rate of spiral ganglion neurons and the number of neurons recruited
• Frequency: encoded by (1) place code (tonotopy on basilar membrane) and (2) phase-locking (neurons fire at specific phases of the sound wave, useful below ~4,000 Hz)

Sound Localization

VI. PHYSIOLOGY OF THE VESTIBULAR ANALYZER

Sensory Organs

• Macula of utricle: detects linear acceleration in the horizontal plane and sideways head tilts; hair cells embedded in a gelatinous membrane loaded with calcium carbonate crystals (otoliths/otoconia)
• Macula of saccule: detects linear acceleration in the vertical plane (forward-backward, up-down)

• Three canals oriented in nearly orthogonal planes: lateral (horizontal), anterior (superior), and posterior
• At each ampulla, the crista ampullaris houses hair cells capped by the gelatinous cupula, which spans the full width of the ampulla
• Angular acceleration of the head causes endolymph to lag due to inertia → pushes or pulls the cupula → deflects hair cell cilia
• The lateral canal of one side works in push-pull with the opposite lateral canal: rightward head rotation excites the right horizontal canal hair cells and inhibits the left

Vestibulo-Ocular Reflex (VOR)

Vestibulospinal Reflexes

Vestibular Cortex

VII. RESEARCH METHODS

A. Audiological Methods

Fig. ABR traces: right ear (normal — clear waves I, III, V) vs left ear (pathological — absent early waves, delayed wave V)

Fig. Levels of the auditory system assessed by different clinical tests (OAE = cochlea; ABR = peripheral to brainstem; Late AER = cortical; PTA = entire pathway)

B. Vestibular Methods

C. Imaging

VIII. CLINICAL CORRELATES

Sources

• Gray's Anatomy for Students — External ear, middle ear, internal ear (pp. 1093–1106)
• Neuroscience: Exploring the Brain, 5th ed. — Auditory and vestibular system (pp. 1019–1090)
• Medical Physiology (Boron & Boulpaep) — Vestibular and auditory transduction; hair cells (pp. 551–552)
