Here is a complete guide to differentiating a UAC (Umbilical Arterial Catheter) from a UVC (Umbilical Venous Catheter) on X-ray:

UAC vs UVC on X-ray

The key to telling them apart is their course through the body, not just where the tip ends up.

1. Initial Direction of Travel

Feature	UAC	UVC
Initial direction	Goes DOWN first	Goes UP/straight toward liver
Why	Enters umbilical artery → curves inferiorly into the internal iliac artery, then turns up into the aorta	Enters umbilical vein → heads directly superiorly toward the liver

This is the single most reliable differentiator: a UAC dips below the umbilicus before ascending, while a UVC goes straight up.

2. Course

UAC path:

Umbilical artery → descends into the pelvis → internal iliac artery → common iliac artery → turns around and ascends the aorta (midline or slightly left of midline)

UVC path:

Umbilical vein → ascends directly toward the liver → left portal vein → ductus venosus → hepatic vein → inferior vena cava (IVC)
The UVC typically runs slightly to the right of midline as it traverses the liver/IVC

3. Final Tip Position (ideal placement)

Catheter	Ideal tip position	Vertebral level
UAC	Aorta, above the celiac/SMA origins (high position)	T6-T9
UAC	Below the renal arteries (low position)	L3-L4
UVC	Junction of IVC and right atrium	T8-T9 (just above the diaphragm)

Both can end up near the mid-thoracic level, which is why tracing the course is more important than just checking the tip.

4. Side of the Spine / Lateral Deviation

UAC: Travels in the aorta, which runs centrally or slightly to the left of the spine
UVC: Travels in the IVC, which is to the right of the spine at the level of the liver/diaphragm

Textbook X-ray Images

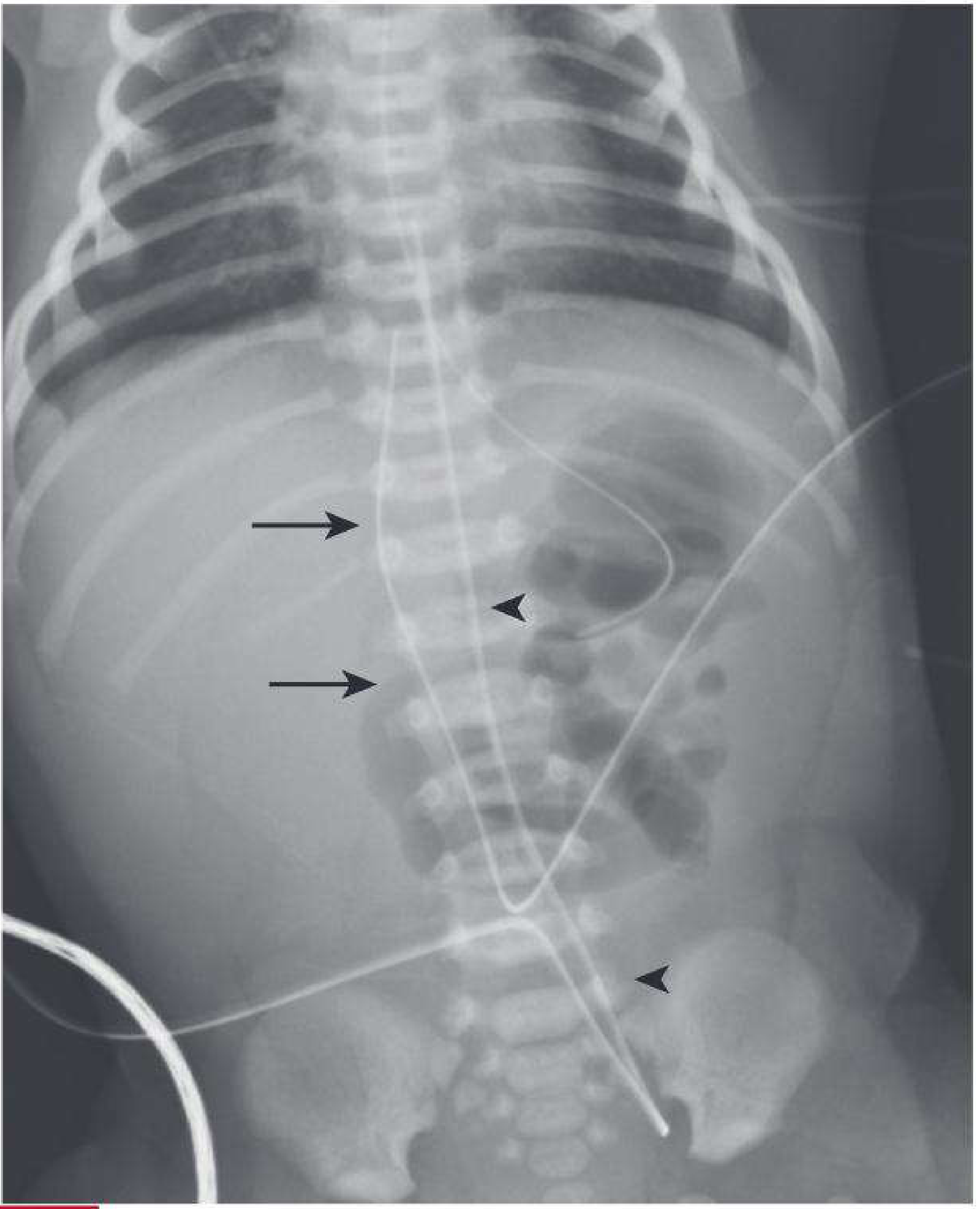

Figure 1 (from Harriet Lane Handbook): The UVC (arrows) terminates at the inferior cavo-atrial junction. The UAC (arrowheads) visibly dips down into the pelvis before ascending the aorta to T7.

UAC and UVC on abdominal X-ray - UAC dips into pelvis before ascending aorta, UVC goes straight up

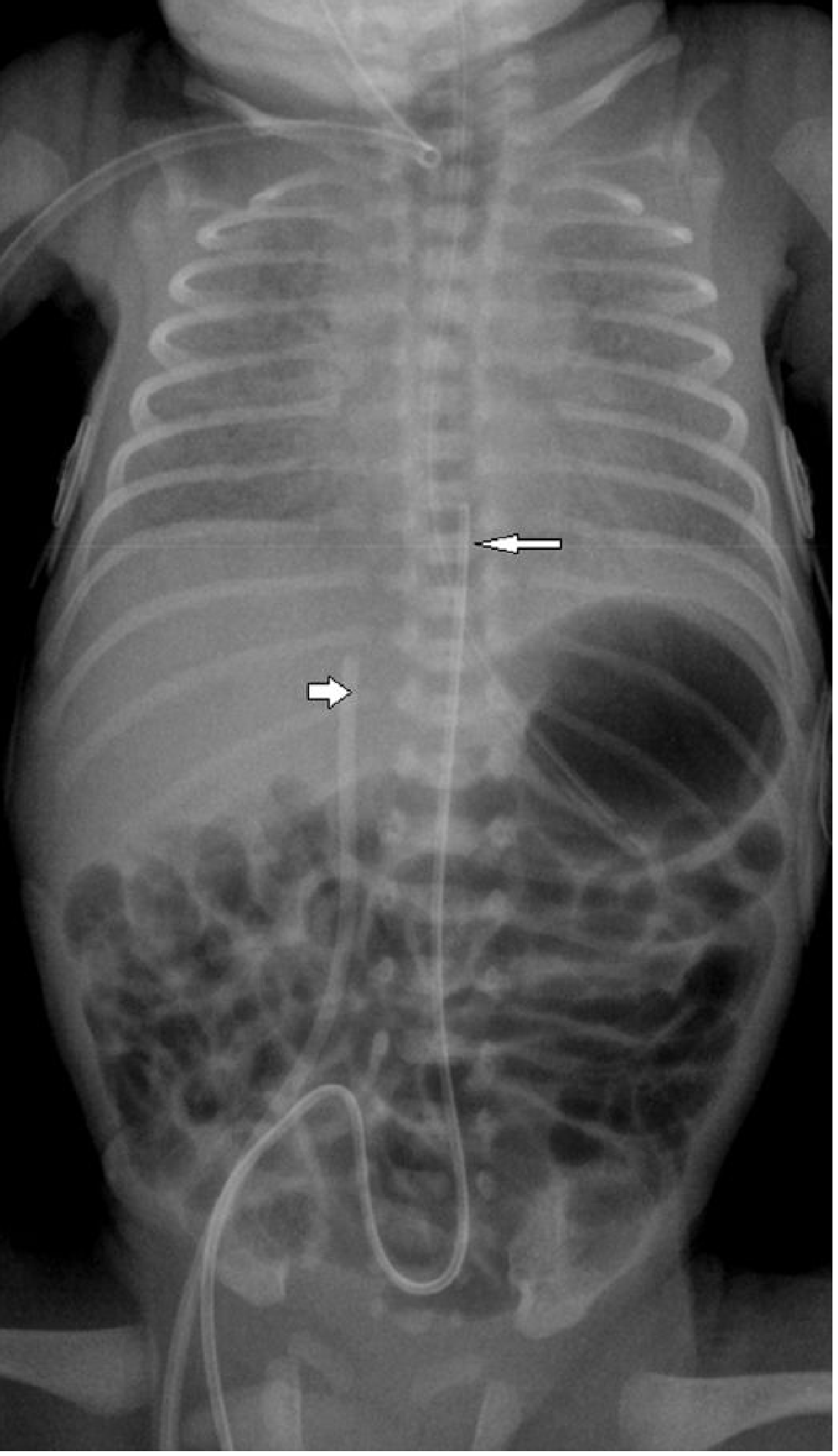

Figure 2 (from Grainger & Allison's Diagnostic Radiology): UAC tip at T7 (long arrow); UVC tip at the IVC-right atrium junction (arrowhead). Both catheters are visible as a single opaque line running to the upper abdomen/lower thorax.

UAC tip at T7 and UVC tip at IVC-RA junction on neonatal chest X-ray

Quick Memory Trick

UAC = "U"-turn in the pelvis (goes down then comes back up) UVC = "V"enous = goes straight Up like a V-shape toward the heart

Malposition Red Flags

UVC in the portal vein / intrahepatic: tip stays low in the liver, does not cross the diaphragm - do not infuse hyperosmolar fluids through it
UVC intracardiac (above T7): must be pulled back - risk of arrhythmia and pericardial effusion
UAC in a branch vessel or too high (above T6): risk of ischemia to abdominal organs
UAC low (L3-L4 zone): watch lower limbs for vascular compromise
Harriet Lane Handbook 23rd ed., Fig. 26.12
Grainger & Allison's Diagnostic Radiology, "Lines and Tubes" section, Fig. 70.19
